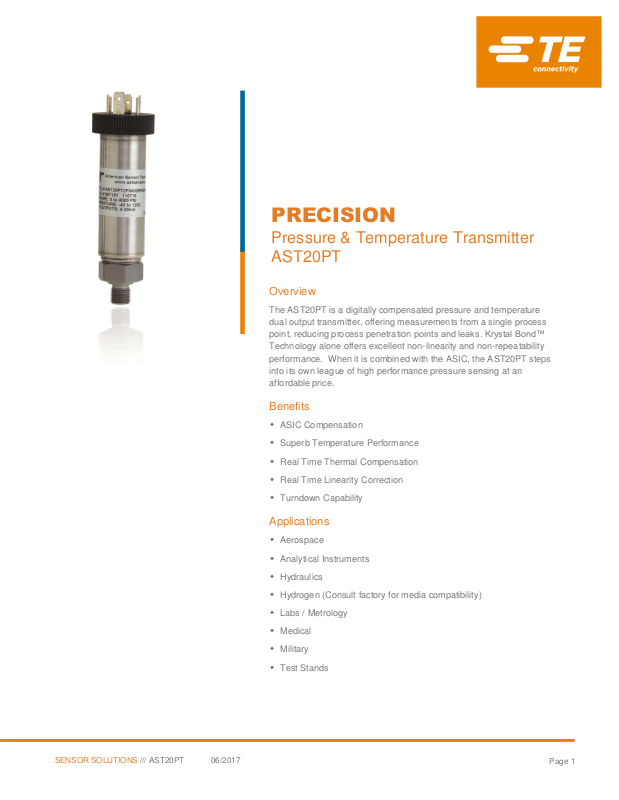

PRECISION
Pressure & Temperature Transmitter
AST20PT
Overview
The AST20PT is a digitally compensated pressure and temperature
dual output transmitter, offering measurements from a single process
point, reducing process penetration points and leaks. Krystal Bond™
Technology alone offers excellent non-linearity and non-repeatability
performance. When it is combined with the ASIC, the AST20PT steps
into its own league of high performance pressure sensing at an
affordable price.
Benefits
ASIC Compensation
Superb Temperature Performance
Real Time Thermal Compensation
Real Time Linearity Correction
Turndown Capability
Applications
Aerospace
Analytical Instruments
Hydraulics
Hydrogen (Consult factory for media compatibility)
Labs / Metrology
Medical
Military
Test Stands
SENSOR SOLUTIONS /// AST20PT 06/2017
Page 2
INDUSTRIAL
Page 2
Accuracy
(Pressure)
< ±0.1% BFSL (< ±0.2% BFSL over 15,000 PSI)
(Accuracy includes non-linearity, hysteresis & non-repeatability)
Accuracy
(Temp.)
±2%TEB
(Accuracy includes non-linearity, hysteresis & non-repeatability)
Stability
(1 year)
±0.1% FS, typical
Proof Pressure
2X Rated Pressure, standard
(For higher proof pressures, contact factory)
Burst Pressure
5X or 50,000 PSI (whichever is less)
Operating Ambient
Operating Media
-40 to 85°C (-40 to 185°F)
-55 to 125°C (-67 to 257°F)
Storage
-50 to 125°C (-58 to 257°F)
0-100% relative humidity, non-condensing
Compensated Range
0-70°C (32 to 158°F)
TC Zero
< ± 0.5% FS
TC Span
< ± 0.5% FS
Shock
100G, 11 msec, 1/2 sine
Vibration
10G peak, 20 to 2000 Hz.
EMI/RFI Protection:
Yes
Rating:
IP-66
Output
4-20mA+
0-5V, 1-5V
0-10V, 1-10V
0.5-4.5V Ratiometric
Excitation
10-28VDC
10-28VDC
15-30VDC
5VDC, regulated
Current Consumption:
-
< 10mA
< 10mA
< 10mA
Sampling Rate
400 Hz
400 Hz
400 Hz
400 Hz
Output Noise
< 1mV, RMS
< 1mV, RMS
< 1mV, RMS
< 1mV, RMS
Zero Offset:
< ±0.5% of FS
< ±0.5% of FS
< ±0.5% of FS
< ±0.5% of FS
Span Tolerance:
< ±0.5% of FS
< ±0.5% of FS
< ±0.5% of FS
< ±0.5% of FS
Output Load:
0-800 Ohms@10-28VDC
5k Ohms, Min.
5k Ohms, Min.
5K Ohms, Min.
Reverse Polarity
Protection
Yes
Yes
Yes
Yes
AST20PT Precision Pressure & Temperature Transmitter
Performance @ 25°C (77°F)
Environmental Data
Temperature
Thermal Limits
Other
Electrical Data
+For units with loop-powered 4-20mA output, the pressure loop must be powered or the temperature output will not operate.
SENSOR SOLUTIONS /// AST20PT 06/2017
Page 3
INDUSTRIAL
Page 3
Connector Options Letter
DIN 43650 C E
DIN 43650 A I
6 Pin Bendix R
M12x1 Y
Threaded Connections Letter
1/4” NPT Male A
1/8” NPT Male B
1/2” NPT Male P
F250C Female
Autoclave
W
AST20PT Precision Pressure & Temperature Transmitter

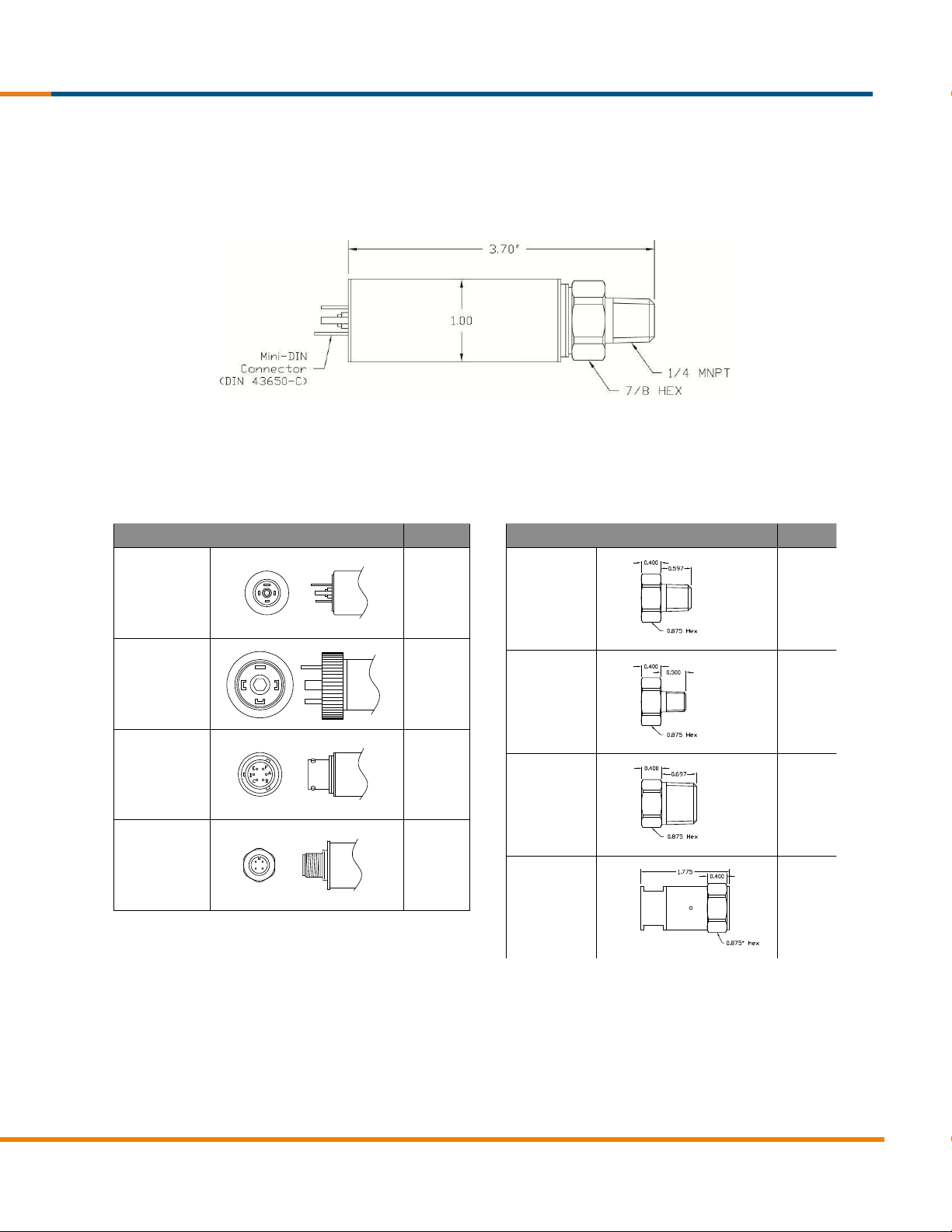

Dimensions
SENSOR SOLUTIONS /// AST20PT 06/2017
Page 4
INDUSTRIAL
Page 4
AST20PT
1 A 00500
P 3 E 1 H
000
Series Type
Temperature Output Range
1= -40 to 85°C (-40 to 185°F)
2= -40 to 125°C (-40 to 250°F)
3= 0 to 70°C (30 to 158°F)
4= -55 to 125°C (-65 to 250°F)
5= -18 to 93°C (0-200°F)
Process Connection
A = 1/4” NPT Male
B = 1/8” NPT Male**
P= 1/2” NPT Male***
W= F250C Female Autoclave****
** Not available under 50PSI, not available in 316L
*** Pressures up to 15,000 PSI
****Pressures from 10,000 to 45,000 PSI, not available in 316L
Pressure Range
Insert 5-digit pressure range code (example: 0-100 PSI = 00100)
Ranges between 0-25 PSI and 0-45,000 PSI available. Compound pressure
up to -14.7 to 500 PSI.
Pressure Unit
B= Bar K= kg/cm2 P= PSI
Outputs
1= 0.5-4.5V ratiometric
2= 0-5V(3 wire)
3= 1-5V
4= 4-20mA
5= 0-10V(3 wire)
G= 1-10V
Electrical
A= 2 ft.(0.6m)
B= 4 ft.(1.2m)
C= 6 ft.(1.8m)
D= 10 ft.(3.0m)
E= Mini DIN 43650C
I= DIN 43650A
R= 6- Pin Bendix
Y= M12x1
Wetted Material
0=17-4PH 1=316 L (available up to 10,000 PSI) 2= Inconel 718 (consult factory on availability)
Fail Condition
N= Not Specified
H= Fail High
L= Fail Low
Options
(contact factory for additional options)
000= No Options
TE.com/sensorsolutions
NORTH AMERICA
ASIA
AST20PT Precision Pressure & Temperature Transmitter
Ordering Information
