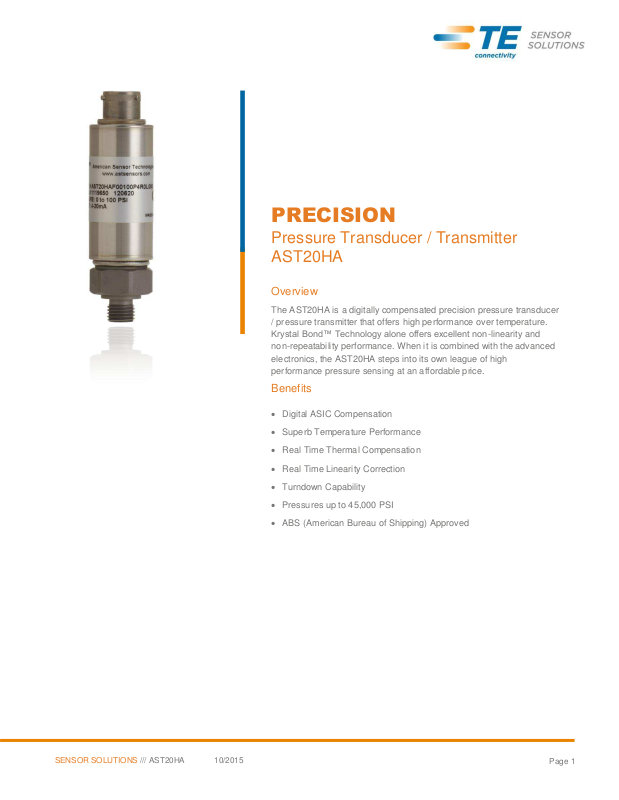

PRECISION
Pressure Transducer / Transmitter
AST20HA
Overview

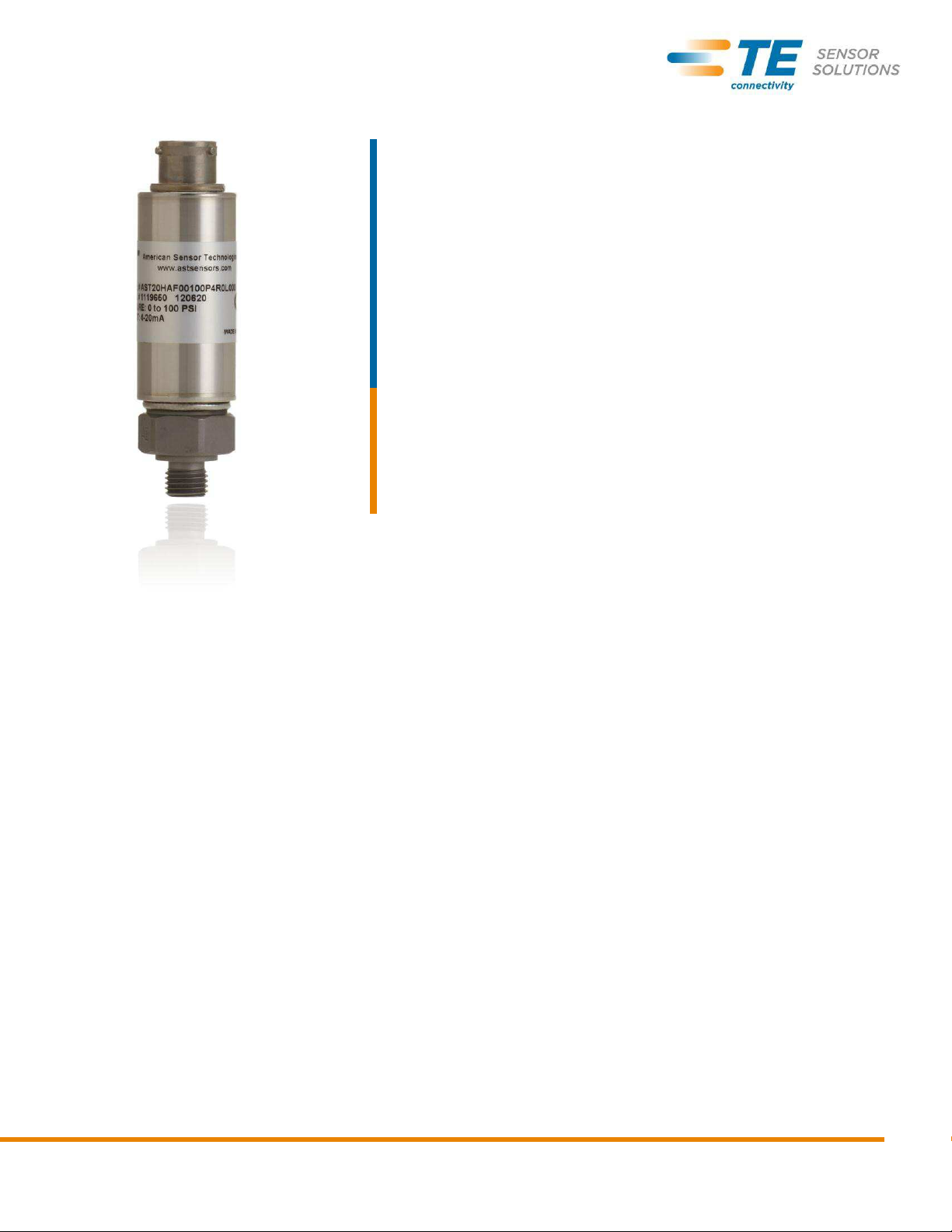

The AST20HA is a digitally compensated precision pressure transducer
/ pressure transmitter that offers high performance over temperature.
Krystal Bond™ Technology alone offers excellent non-linearity and
non-repeatability performance. When it is combined with the advanced
electronics, the AST20HA steps into its own league of high
performance pressure sensing at an affordable price.
Benefits
Digital ASIC Compensation
Superb Temperature Performance
Real Time Thermal Compensation
Real Time Linearity Correction
Turndown Capability
Pressures up to 45,000 PSI
ABS (American Bureau of Shipping) Approved
SENSOR SOLUTIONS /// AST20HA 10/2015
Page 2
PRECISION
Page 2
Accuracy
< ±0.1% BFSL (< ±0.2% BFSL over 15,000 PSI)
(Accuracy includes non-linearity, hysteresis & non-repeatability)
Stability (1 year)
±0.1% FS, typical
Proof Pressure
2X Rated Pressure, Standard
(For higher proof pressures, contact factory)
Burst Pressure
5X or 50,000 PSI (whichever is less)
Pressure Cycles
> 100 Million
Operating
-40 to 85°C (-40 to 185°F)
Storage
-50 to 125°C (-58 to 257°F)
0-100% relative humidity, non-condensing
Compensated Range
0-70°C (30 to 158°F)
TC Zero
< ±0.5% of FS
TC Span
< ±0.5% of FS
Shock
100G, 11 msec, 1/2 sine
Vibration
10G peak, 20 to 2000Hz
EMI/RFI Protection:
Yes
Rating:
IP-66, min
AST20HA Pressure Transducer / Transmitter
Applications
Aerospace
Analytical Instruments
Hydraulics
Hydrogen (Consult factory for media compatibility)
Labs / Metrology
Medical
Military
Test Stands
Performance @ 25°C (77°F)
Environmental Data
Temperature
Thermal Limits
Other
SENSOR SOLUTIONS /// AST20HA 10/2015
Page 3
PRECISION
Page 3
Output
4-20mA+
0-5V, 1-5V
0-10V, 1-10V
0.5-4.5V Ratiometric
Excitation
10-28VDC
10-28VDC
15-30VDC
5VDC, regulated
Current Consumption:
-
< 10mA
< 10mA
< 10mA
Sampling Rate
400 Hz
400 Hz
400 Hz
400 Hz
Output Noise
< 1mV, RMS
< 1mV, RMS
< 1mV, RMS
< 1mV, RMS
Zero Offset:
< ±0.5% of FS
< ±0.5% of FS
< ±0.5% of FS
< ±0.5% of FS
Span Tolerance:
< ±0.5% of FS
< ±0.5% of FS
< ±0.5% of FS
< ±0.5% of FS
Output Load:
0-800 Ohms@10-28VDC
5k Ohms, Min.
5k Ohms, Min.
5K Ohms, Min.
Reverse Polarity
Protection
Yes
Yes
Yes
Yes
AST20HA Pressure Transducer / Transmitter
Electrical Data

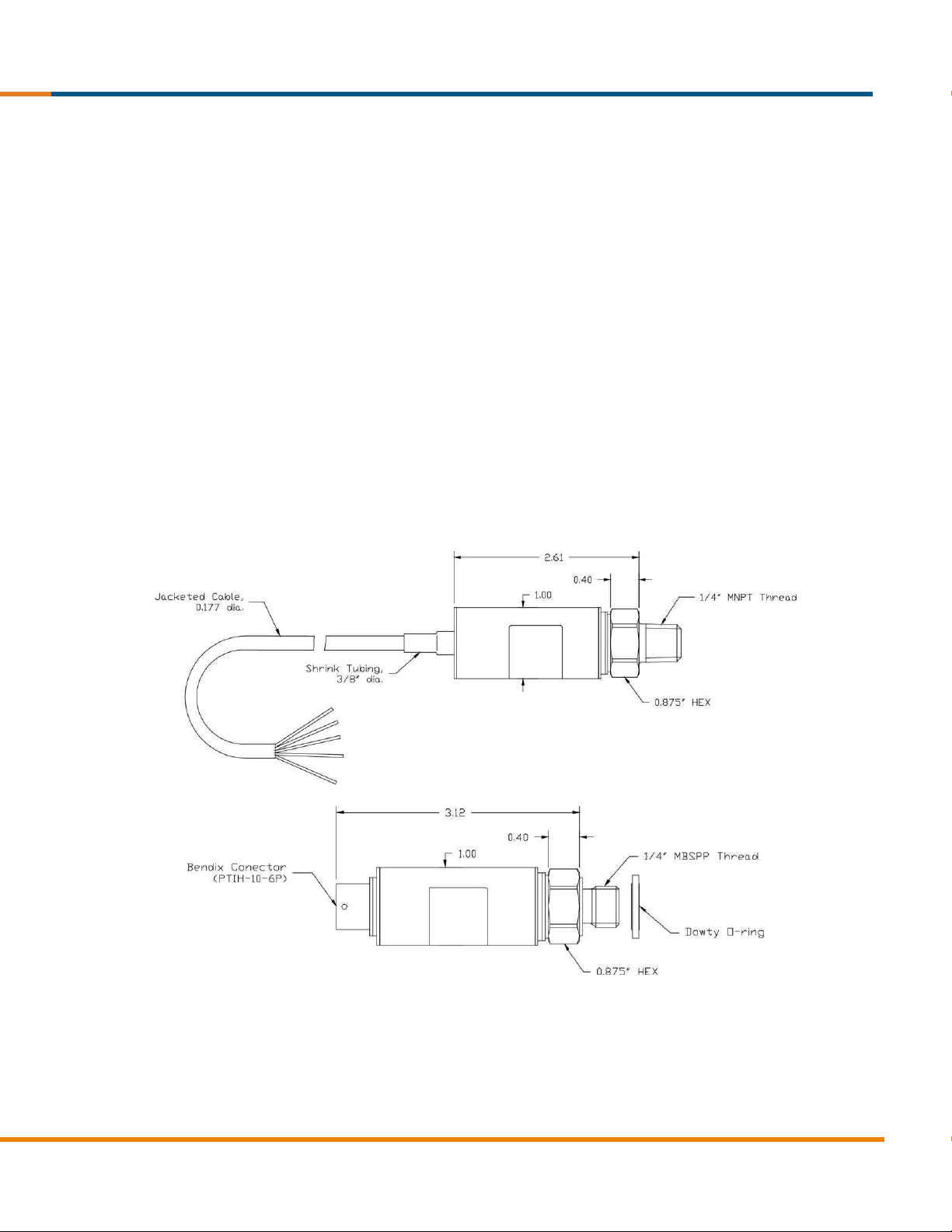

Dimensions
SENSOR SOLUTIONS /// AST20HA 10/2015
Page 4
PRECISION
Page 4
AST20HA
A
05000
P 4 E 0 H
000
Series Type
Process Connection
A = 1/4” NPT Male
B = 1/8” NPT Male**
C = 1/4” BSPP Male
E = 9/16”-18 UNF Male [SAE6]
F = 7/16”-20 UNF Male [SAE4]**
P= 1/2” NPT Male***
W= F250C Female Autoclave****
** Not available under 50PSI (1/8” NPT Male not available in 316L)
*** Pressures up to 15,000 PSI
****Pressures from 10,000 to 45,000 PSI, not available in 316L
Pressure Range
Insert 5-digit pressure range code (example: 0-100 PSI = 00100)
Ranges between 0-25 PSI and 0-45,000 PSI available. Compound
pressure up to -14.7 to 500 PSI.
Pressure Unit
B= Bar K= kg/cm2 P= PSI
Outputs
1= 0.5-4.5V ratiometric
2= 0-5V(3 wire)
3= 1-5V
4= 4-20mA
5= 0-10V(3 wire)
G= 1-10V
Electrical
A= 2 ft.(0.6m)
B= 4 ft.(1.2m)
C= 6 ft.(1.8m)
D= 10 ft.(3.0m)
E= Mini DIN 43650C
I= DIN 43650A
R= 6- Pin Bendix
Y= M12x1
Wetted Material
0=17-4PH 1=316 L (available up to 10,000 PSI) 2= Inconel 718 (consult factory on availability)
Fail Condition
N= Not Specified
H= Fail High
L= Fail Low
Options
(contact factory for additional options)
000= No Options
TE.com/sensorsolutions
American Sensor Technologies, Inc., a TE Connectivity company.
American Sensor Technologies, TE Connectivity, TE Connectivity (logo) and EVERY CONNECTION COUNTS are trademarks. All other logos, products and/or company names referred
to herein might be trademarks of their respective owners.
The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes o nly, is believed to be reliable. However, TE Connectivity makes
no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s ob ligations shall only be as set forth in TE Connectivity‘s Standard
Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or
misuse of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application.
© 2015 TE Connectivity Ltd. family of companies All Rights Reserved.
AST20HA 10/01/15
NORTH AMERICA
ASIA
AST20HA Pressure Transducer / Transmitter
Ordering Information
American Sensor Technologies, Inc. (AST),
a TE Connectivity company
450 Clark Drive
Mount Olive, NJ 07828 USA
Tel
+1 973 448 1901
+1 973 448 1905
Fax
Hong Kong Sensor Technologies (HKST),
a TE Connectivity company
Unit No. 2 on 24/F., Perfect Industrial
Building, No. 31 Tai Yau Street,
San Po Kong, Kln., Hong Kong
Tel 852 2242 5048
SENSOR SOLUTIONS /// AST20HA 10/2015
