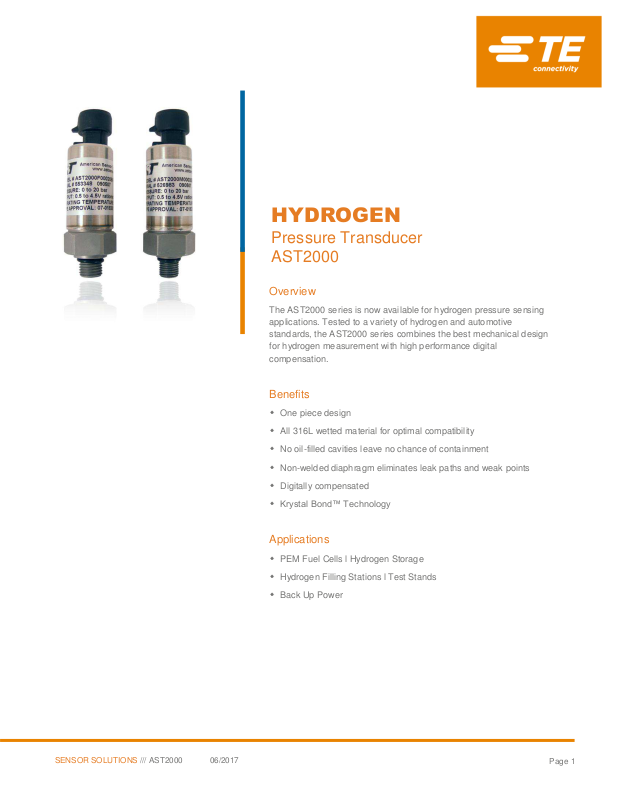

HYDROGEN
Pressure Transducer
AST2000
Overview
The AST2000 series is now available for hydrogen pressure sensing
applications. Tested to a variety of hydrogen and automotive
standards, the AST2000 series combines the best mechanical design
for hydrogen measurement with high performance digital
compensation.
Benefits
One piece design
All 316L wetted material for optimal compatibility
No oil-filled cavities leave no chance of containment
Non-welded diaphragm eliminates leak paths and weak points
Digitally compensated
Krystal Bond™ Technology
Applications
PEM Fuel Cells l Hydrogen Storage
Hydrogen Filling Stations l Test Stands
Back Up Power
SENSOR SOLUTIONS /// AST2000 06/2017
Page 2
HYDROGEN
Page 2
TUV
Approval
Files
Pressure
Range
Burst
Pressure
07-01820/1-TUV
20 Bar (2MPa)
600 Bar
EC79
20 Bar (2MPa)
600 Bar
EC79
350 Bar (35MPa)
2800 Bar
EC79
700 Bar (70MPa)
2800 Bar
Accuracy
< ±0.25% BFSL
(Accuracy includes non-linearity, hysteresis & non-repeatability)
Stability (1 year)
±0.25% FS, typical
Over Range
Protection
2X Rated Pressure
Pressure Cycles
> 100 Million
Operating
-40 to 85°C (-40 to 185°F)
Storage
-40 to 125°C (-40 to 250°F)
0-100% relative humidity, non-condensing
Compensated Range
-10 to 60°C (14 to 140°F)
Thermal Error
±2% of FS (±1% OF FS Optional)
Shock
100G, 11 msec, 1/2 sine
Vibration
20G peak, 20 to 2400 Hz.
EMI/RFI Protection:
Yes
Rating:
IPX6K
AST2000 Pressure Transducer
Approvals
EC79 (applicable to table below)
CE EN61326 (all models)
Performance @ 25°C (77°F)
Environmental Data
Temperature
Thermal Limits
Other
SENSOR SOLUTIONS /// AST2000 06/2017
Page 3
HYDROGEN
Page 3
Output
0.5-4.5V Ratiometric
Excitation
5VDC
Output Impedance
< 100 Ohms, Nominal
Current
Consumption:
< 10mA
Bandwidth
(3dB): DC to 3kHz
Output Noise
< 2mV RMS
Zero Offset:
±0.5% of FS
Span Tolerance:
±0.5% of FS
Output Load:
10k Ohms, Min.
Reverse Polarity
Protection
Yes
Test Performed
The tests performed are marked as "X" in the following table. The test conditions, parameters,
and details are described in the Annex 1. (Test Report) to Technical Report No. KS1011296
dated 2011-01-04.
No.
Type of Test
EU 406/2010 Annex IV
Remark
1
General Requirements
Part 3 Sect. 2
X
2
Technical Requirements
Part 3 Sect. 3
X
3
Hydrogen Compatibility
Test
Part 3 Sect. 4.1.1
X
4
Ageing Test*
Part 3 Sect. 4.1.2
X
5
Ozone Compatibility
Test**
Part 3 Sect. 4.1.3
Not Applicable
6
Corrosion Resistance
Test
Part 3 Sect. 4.2.1
X
7
Endurance Test
Part 3 Sect. 4.2.2
X
8
Hydraulic Pressure Cycle
Test
Part 3 Sect. 4.2.3
X 9 Internal Leakage Test
Part 3 Sect. 4.2.4
Not Applicable
10
External Leakage Test
Part 3 Sect. 4.2.5
X
11
Isolation Resistance
Testing
ECE R110 Rev. 1
X
12
EMC Compatibility
Testing
ECE R110 Rev. 1
X
13
Review of Information
EU 406/2010 Annex II Part 1
X
* Test applies only for non-metallic materials ** Test applies only to elastomer materials where
either a sealing surface is exposed directly to air or if used as a flexible fuel line cover.
AST2000 Pressure Transducer
Electrical Data
**4-20mA and 1-5V outputs available, contact factory

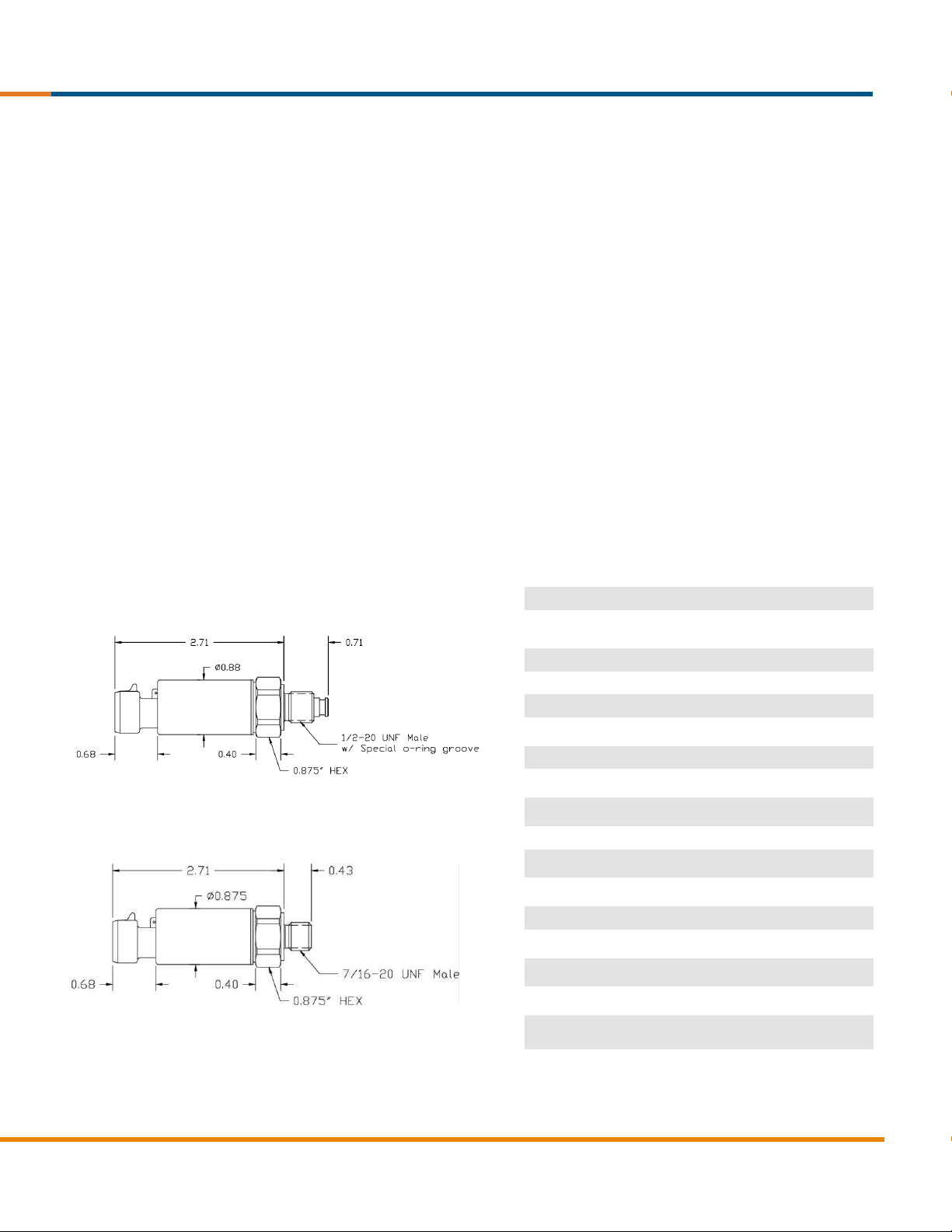

Dimensions
SENSOR SOLUTIONS /// AST2000 06/2017
Page 4
HYDROGEN
Page 4
AST2000
F
00500 B 1 F 1
000
Series Type
Process Connection
F= 7/16-20 UNF Male [SAE 4]
M= 3/8-24 UNF Male [SAE 3]
X= Special (see option code 487
Pressure Range*
00020= 20 Bar
00448= 448 Bar
00500= 500 Bar
00700= 700 Bar
00900= 900 Bar
* 3/8-24 UNF Male [SAE 3] is only available for 20 bar and 448 bar
Pressure Unit
B= Bar
Outputs
1= 0.5-4.5V ratiometric
Electrical
F= Packard Metripack 150 3-Pin
Wetted Material
1= 316L
Options
000= No Options
384= High Accuracy
487= 1/2-20 UNF Stud for high pressure H2 storage
