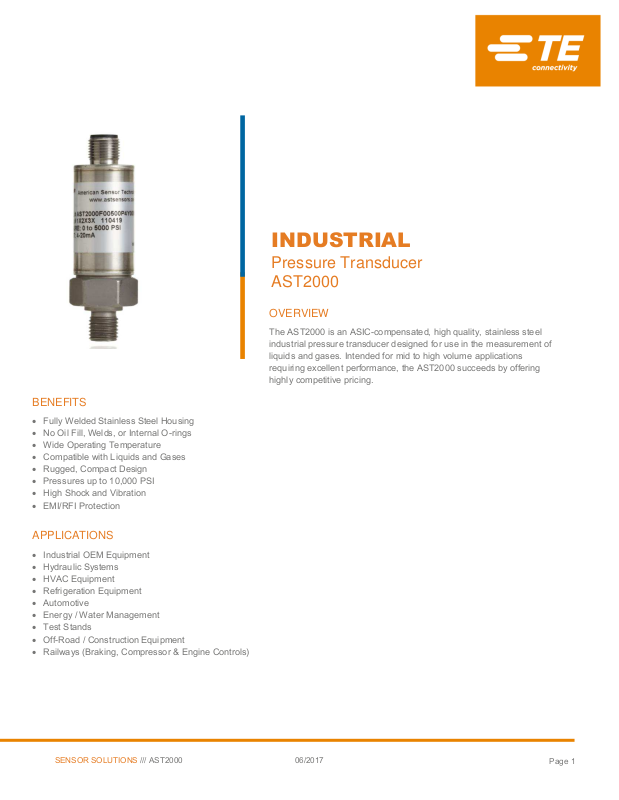

INDUSTRIAL
Pressure Transducer
AST2000
OVERVIEW

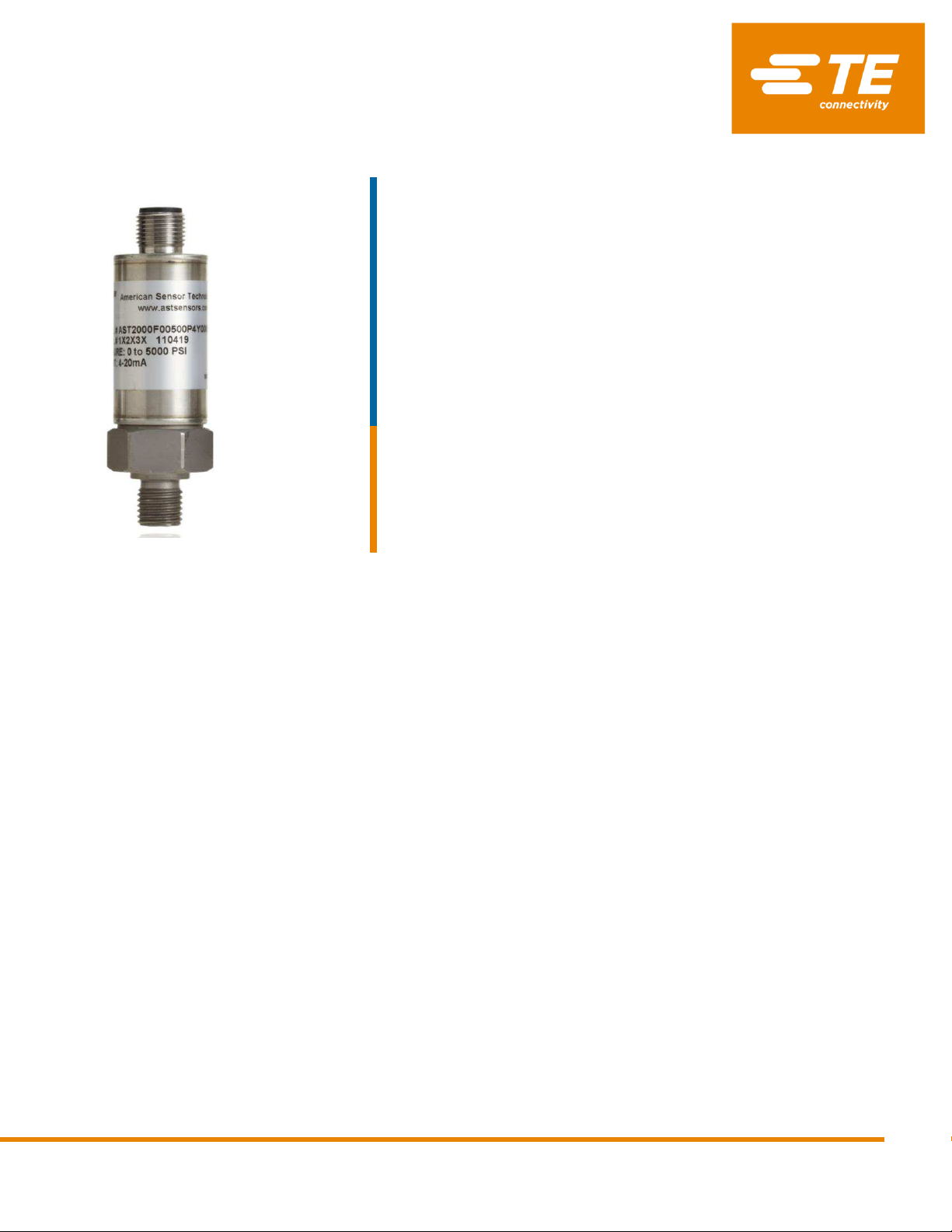

The AST2000 is an ASIC-compensated, high quality, stainless steel
industrial pressure transducer designed for use in the measurement of
liquids and gases. Intended for mid to high volume applications
requiring excellent performance, the AST2000 succeeds by offering
highly competitive pricing.
BENEFITS
Fully Welded Stainless Steel Housing
No Oil Fill, Welds, or Internal O-rings
Wide Operating Temperature
Compatible with Liquids and Gases
Rugged, Compact Design
Pressures up to 10,000 PSI
High Shock and Vibration
EMI/RFI Protection
APPLICATIONS
Industrial OEM Equipment
Hydraulic Systems
HVAC Equipment
Refrigeration Equipment
Automotive
Energy / Water Management
Test Stands
Off-Road / Construction Equipment
Railways (Braking, Compressor & Engine Controls)
SENSOR SOLUTIONS /// AST2000 06/2017
Page 2
INDUSTRIAL
Page 2
Accuracy
< ±0.25% BFSL
(Accuracy includes non-linearity, hysteresis & non-repeatability)
Stability (1 year)
±0.25% FS, typical
Over Range
Protection
2X Rated Pressure
Burst Pressure
5X or 20,000 PSI (whichever is less)
Pressure Cycles
> 100 Million
Operating
-40 to 125°C (-40 to 250°F)
Storage
-40 to 125°C (-40 to 250°F)
0-100% relative humidity, non-condensing
Compensated
Range
0 to 55°C (32 to 131°F)
TC Zero
< ±1.0% of FS
TC Span
< ±1.0% of FS
Shock
100G, 11 msec, 1/2 sine
Vibration
20G peak, 20 to 2400 Hz.
EMI/RFI Protection:
Yes
Rating:
IP-66, (optional IP-67)
AST2000 Pressure Transducer
PERFORMANCE @ 25°C (77°F)
ENVIRONMENTAL DATA
Temperature
Thermal Limits
Other
SENSOR SOLUTIONS /// AST2000 06/2017
Page 3
INDUSTRIAL
Page 3
Output
Voltage (.25-5V, 1-5V, 1-6V)
0.5-4.5V Ratiometric
4-20mA
Excitation
10-30VDC
5VDC
10-30VDC
Output Impedance
< 100Ω
NOMINAL
< 100Ω
NOMINAL
< 10kΩ
Current
Consumption:
< 10mA
< 10mA
20mA, typical
Bandwidth
(-3dB): DC to 3kHz
(3dB): DC to 3kHz
(-3dB): DC to 250Hz
Output Noise
< 2mV RMS
< 2mV RMS
-
Zero Offset:
±0.5% of FS
±0.5% of FS
< ±1% of FS
Span Tolerance:
±1.0% of FS
±1.0% of FS
< ±1% of FS
Output Load:
10kΩ
MIN
.
10kΩ
MIN
0-800Ω @10-28VDC
Reverse Polarity
Protection
Yes
Yes
Yes
AST2000 Pressure Transducer
ELECTRICAL DATA

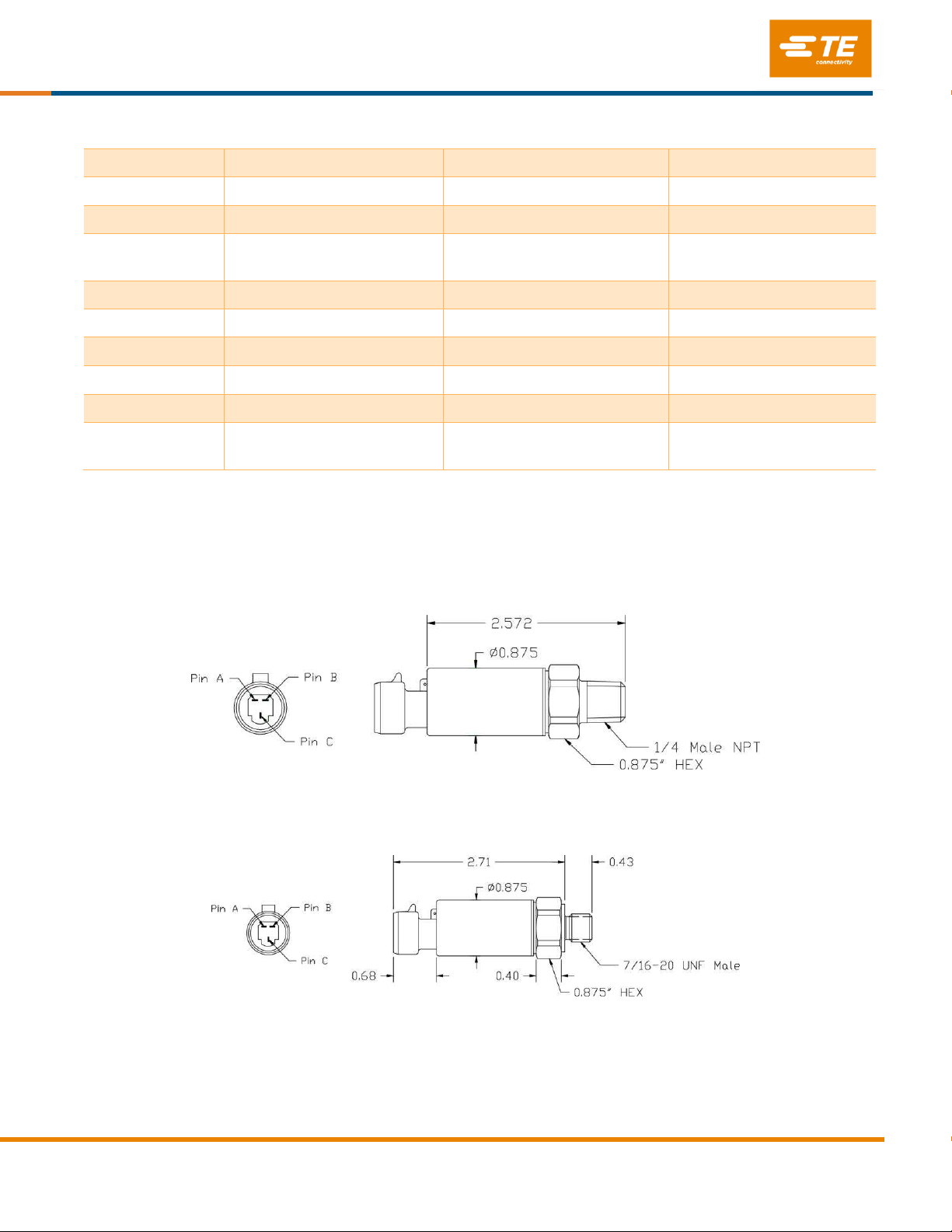

DIMENSIONS
SENSOR SOLUTIONS /// AST2000 06/2017
Page 4
INDUSTRIAL
Page 4
TE.com/sensorsolutions
NORTH AMERICA
ASIA
AST2000 – A 00500 P 1 E 0 000
Process Connection
A
1/4” NPT Male
B
1/8” NPT Male*
C
1/4” BSPP Male
F
7/16”-20 UNF Male*
K
SAE4 Female
Options
000
No Options
Pressure Range [psi]
Insert 5-digit pressure range code
(Ex: 0-100psi = 00100).
Wetted Material
0
17-4PH
1
316L
Electrical
E
Mini-DIN 43650
F
Packard Metripack 150 3-pin
K
Deutsch DT04-3 pin
R
6-pin Bendix
Y
M12x1 Eurofast
Z
Deutsch DT04-4 pin
Pressure Unit
B
bar
K
kg/cm
2
P
psi
Output
Code
Output Signal
1
0.5 – 4.5V Ratiometric
3
1 – 5V
4
4 – 20mA (2-wire loop powered)
6
1 – 6V
Compound pressure range is -14.7 to 500 psi
Ranges between 0-25psi and 0-10,000psi available
Contact factory for additional options
AST2000 Pressure Transducer
ORDERING INFORMATION
American Sensor Technologies, Inc. (AST),
a TE Connectivity Company
Tel: +1 800-522-6752
Email: [email protected]
Measurement Specialties, Inc., a TE Connectivity company.
Measurement Specialties, TE Connectivity, TE Connectivity (logo) and EVERY CONNECTION COUNTS are trademarks. All other logos, products and/or company names referred to herein
might be trademarks of their respective owners.
The information given herein, including drawings, illustrations and schematics which are in tended for illustration purposes only, is believed to be reliable. However, TE Connectivity makes
no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity ‘s obligations shall only be as set forth in TE Connectivity‘s Standard
Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or misuse
of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application.
© 2015 TE Connectivity Ltd. family of companies All Rights Reserved.
Hong Kong Sensor Technologies (HKST),
a TE Connectivity Company
Tel: +86 0400-820-6015
Email: [email protected]
SENSOR SOLUTIONS /// AST2000 06/2017
