PROFESSIONAL QUALITY COOKING EQUIPME

DESIGN CLASS FUNCTION

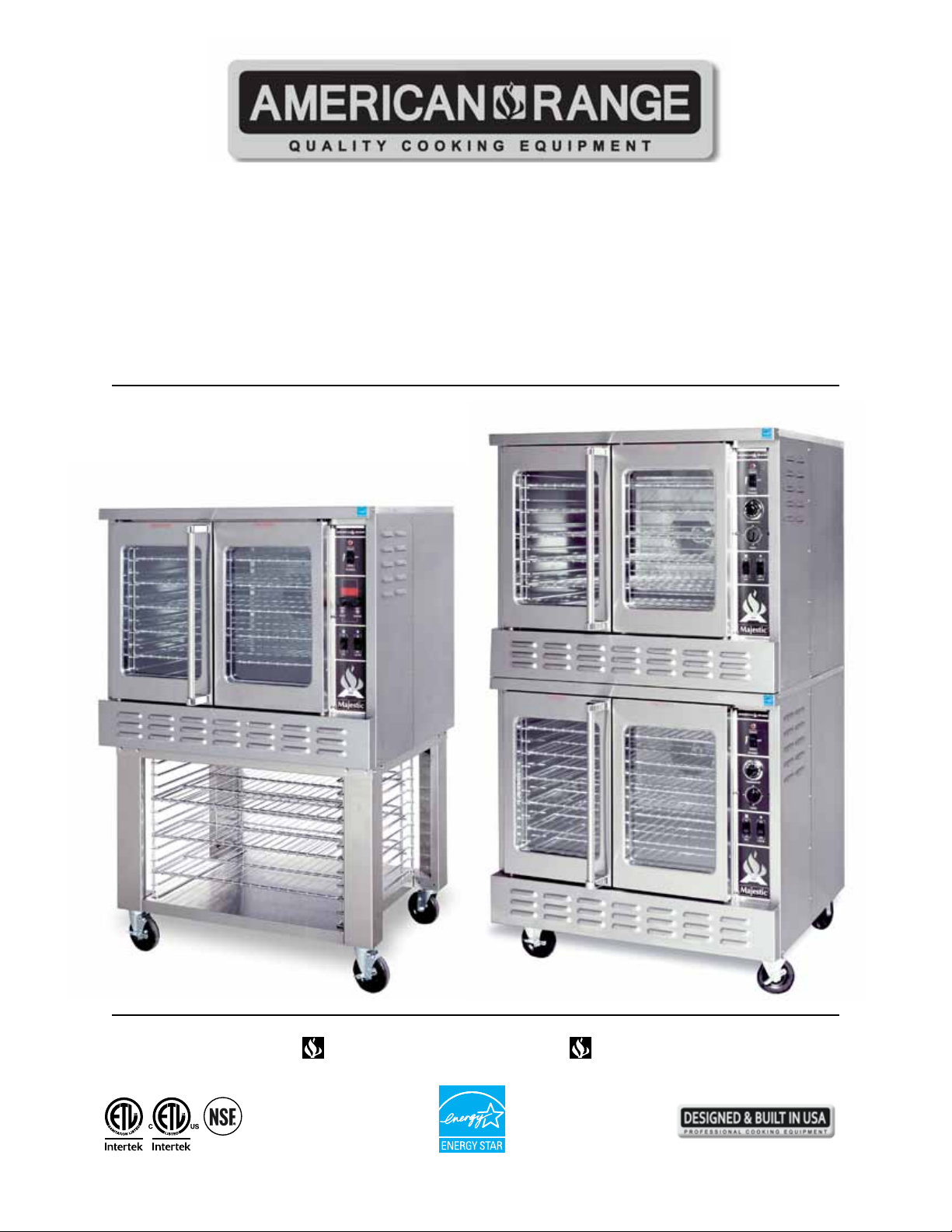

OWNER’S MANUAL FOR

MAJESTIC CONVECTION OVEN

MODEL NUMBERS:

MSD-1, MSD-2, MSDE-1, MSDE-2, M-1, M-2, ME-1, ME-2,

MAE-1, MAE-2, MA-1, MA-2, MASDE-1, MASDE-2

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

Majestic Convection Oven Owner’s Manual

FOR

YOUR

SAFETY

Improper installation, adjustment, alteration, service

WARNING

IMPROPER

INSTALLATION

or maintenance can cause property damage, injury

Installation, Operation and Maintenance Instructions

FOR YOUR SAFETY!

Do not store or use gasoline or

other ammable vapors or liquids

in the vicinity of this or any other appliance.

WARNING!

or death. Read the installation, operating and

maintenance instructions thoroughly before

installing or servicing this equipment.

FOR

YOUR

SAFETY

WARNING

IMPROPER

INSTALLATION

Instruction to be followed in the event the user smells gas should be posted

in a prominent location. This information should be obtained by

consulting the local gas supplier.

RETAIN THIS MANUAL FOR FUTURE REFERENCE.

Model Number: __________________________________________

Serial Number: ___________________________________________

Purchase Date: ___________________________________________

Installed By: _________________________ Install Date:__________

Gas Type: _______________________________________________

Electrical Information: ______________________________________

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

PROFESSIONAL QUALITY COOKING EQUIPMENT

To Our Most Valued Customer:

Congratulations on your purchase of an American Range product. We hope you will enjoy the design, manufactured quality, innovative features and cooking performance of this product – it represents our continuing dedication to satisfying the most demanding needs of customers like you.

Please read this manual and become familiar with important safety information about how to install and set-up the unit, basic operating instructions, and how to maintain that just-likebrand-new appearance and performance - over years of day-to-day and special holiday use.

If you should encounter any sort of problem, turn to the section of the manual entitled, “Troubleshooting” – for a quick solution or guidance regarding the next step required to get back to tip-top condition.

Thank you for choosing an American Range product for your home. As you can expect, this appliance is designed for years of reliable service. If you have any questions or comments, please contact the dealer from whom you purchased the unit, or contact American Range Customer Service at www.americanrange.com or 818.897.0808.

Sincerely,

Shane Demirjian

President, American Range Corporation

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

Majestic Convection OvenOwner’s Manual

Table of Contents

General Information ......................................................................................................1-2

Important Safety Information ....................................................................................... 1

Shipping Damage Claim Procedure .......................................................................... 1

Installation-Gas Standards and Codes ..................................................................... 2

Rating Plate ..............................................................................................................................3

Clearances ............................................................................................................................... 3

Installation ............................................................................................................................4-8

Single Oven Assembly ....................................................................................................... 4

Double Oven Assembly ...................................................................................................5

Caster Installation ................................................................................................................ 5

Leveling ...................................................................................................................................... 5

Air Supply and Ventilation ............................................................................................... 5

Electrical Connection ........................................................................................................ 6

Gas Connection ................................................................................................................... 6

Manual Shut Off Valve ...................................................................................................6-7

Oven with Casters .............................................................................................................. 7

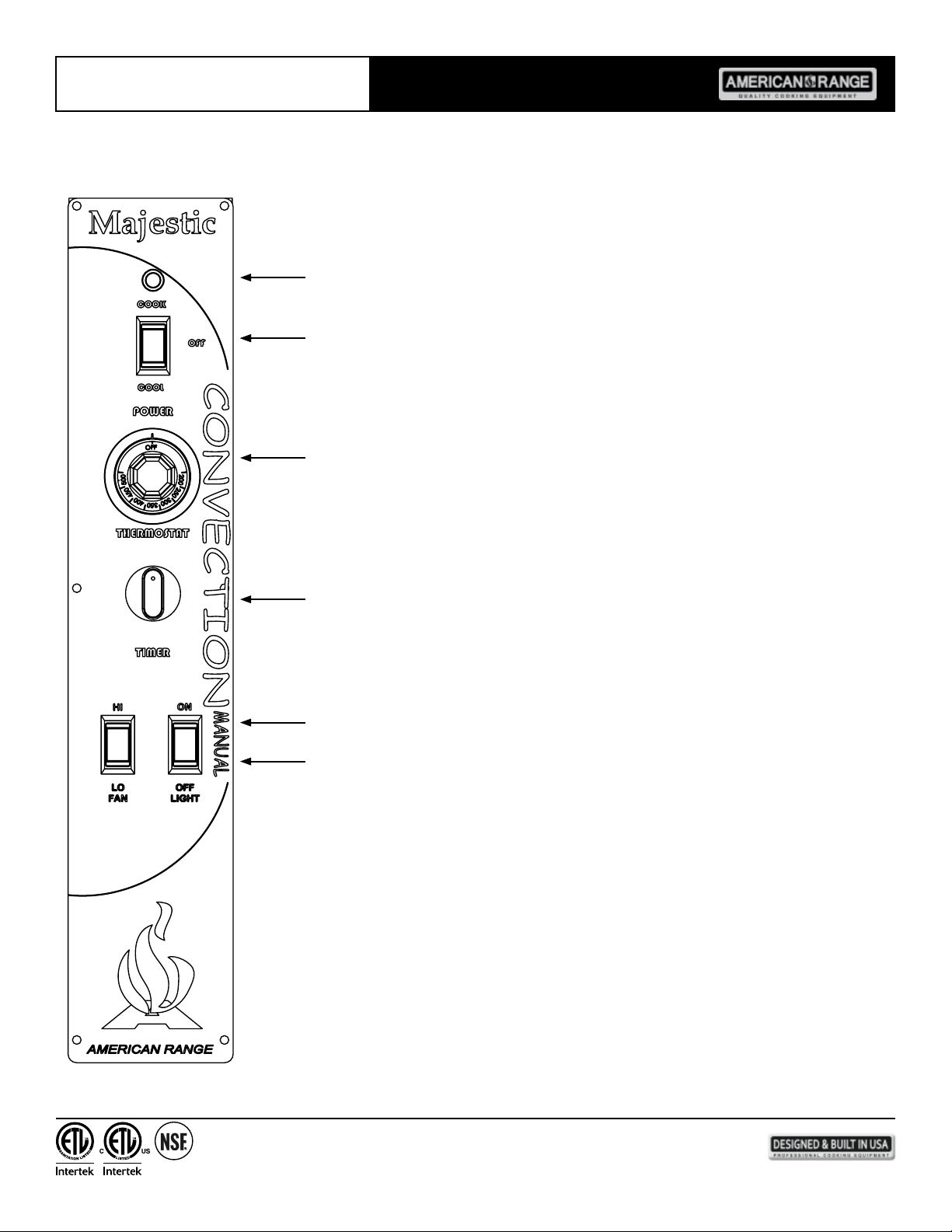

Manual Control ..................................................................................................................... 8

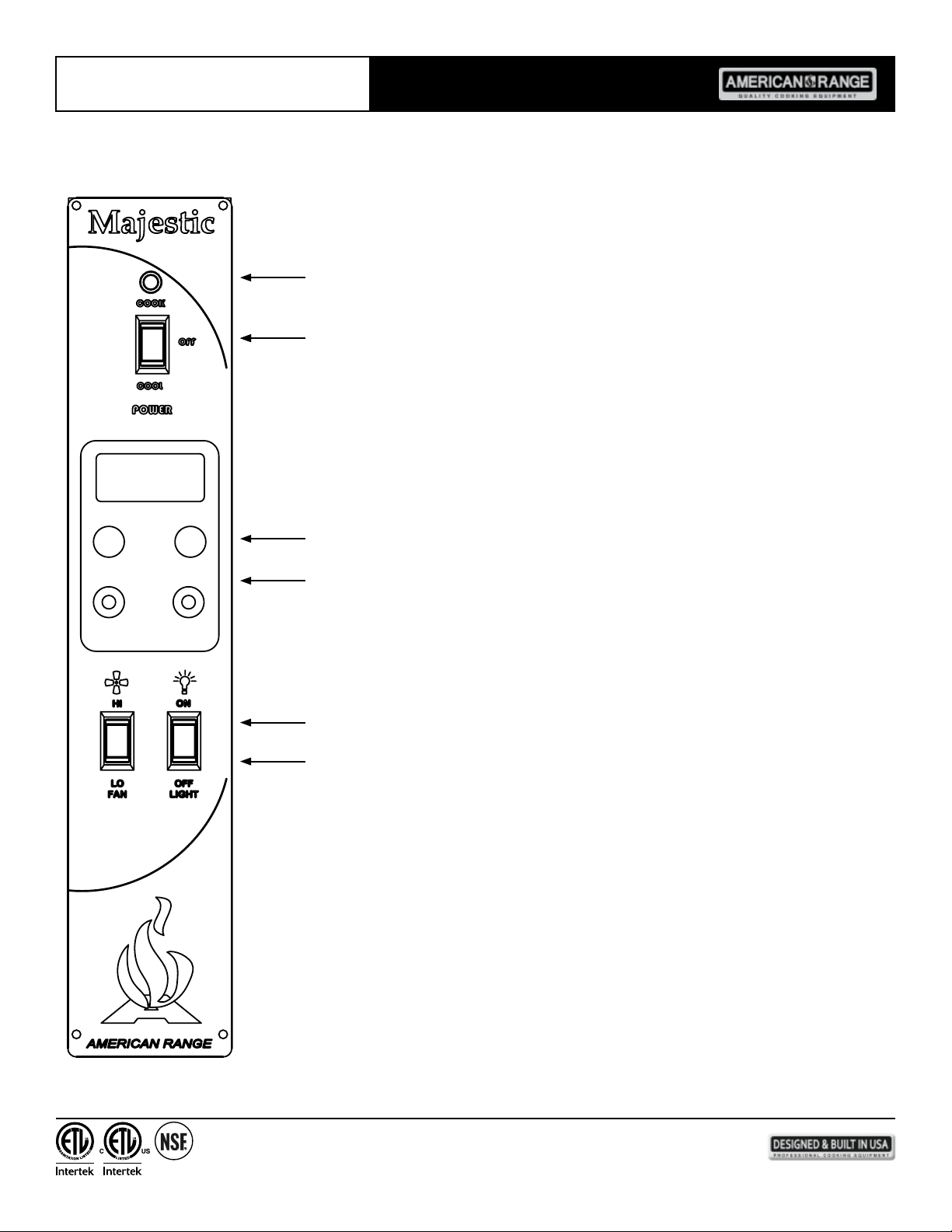

Cook & Hold Controls.....................................................................................................9

Checking for Gas Leaks ................................................................................................. 10

Lighting Instructions ......................................................................................................... 10

To Shut Down Oven ...................................................................................................... 10

Cleaning and Preventive Maintenance...........................................................10-11

Operation ............................................................................................................................. 12

Troubleshooting Guide .................................................................................................. 13

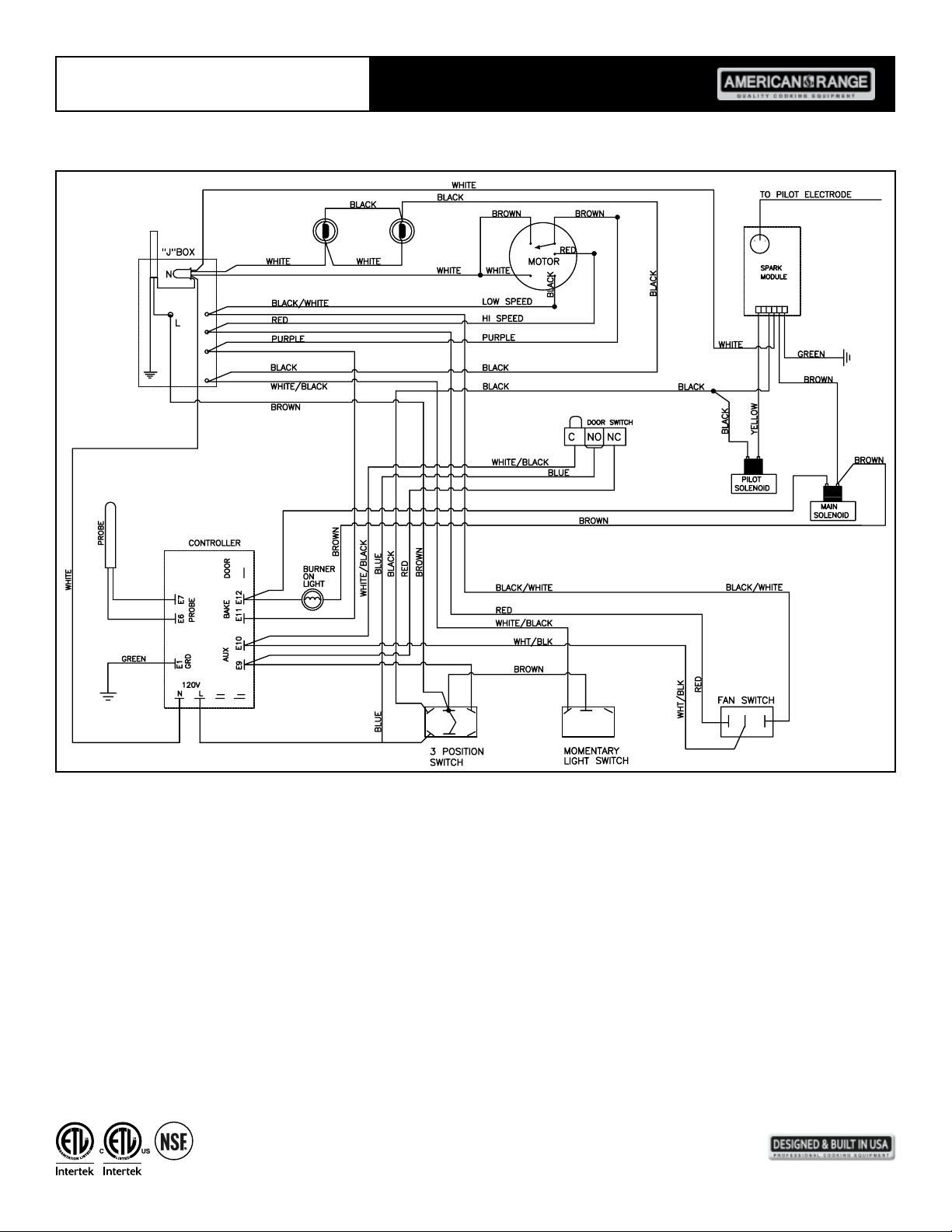

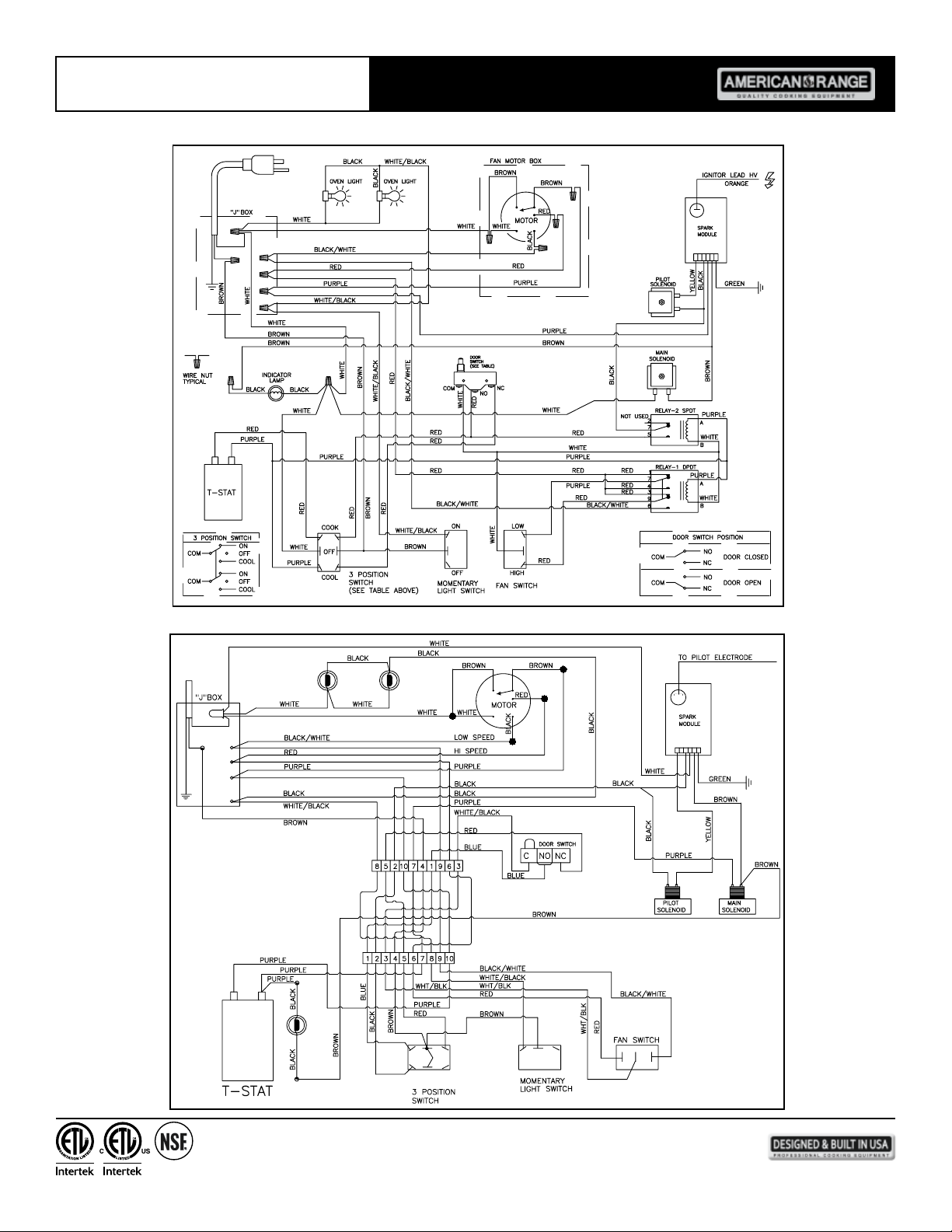

Electrical Schematics ................................................................................................ 14-15

Electrical Specications .................................................................................................. 16

ENERGY STAR

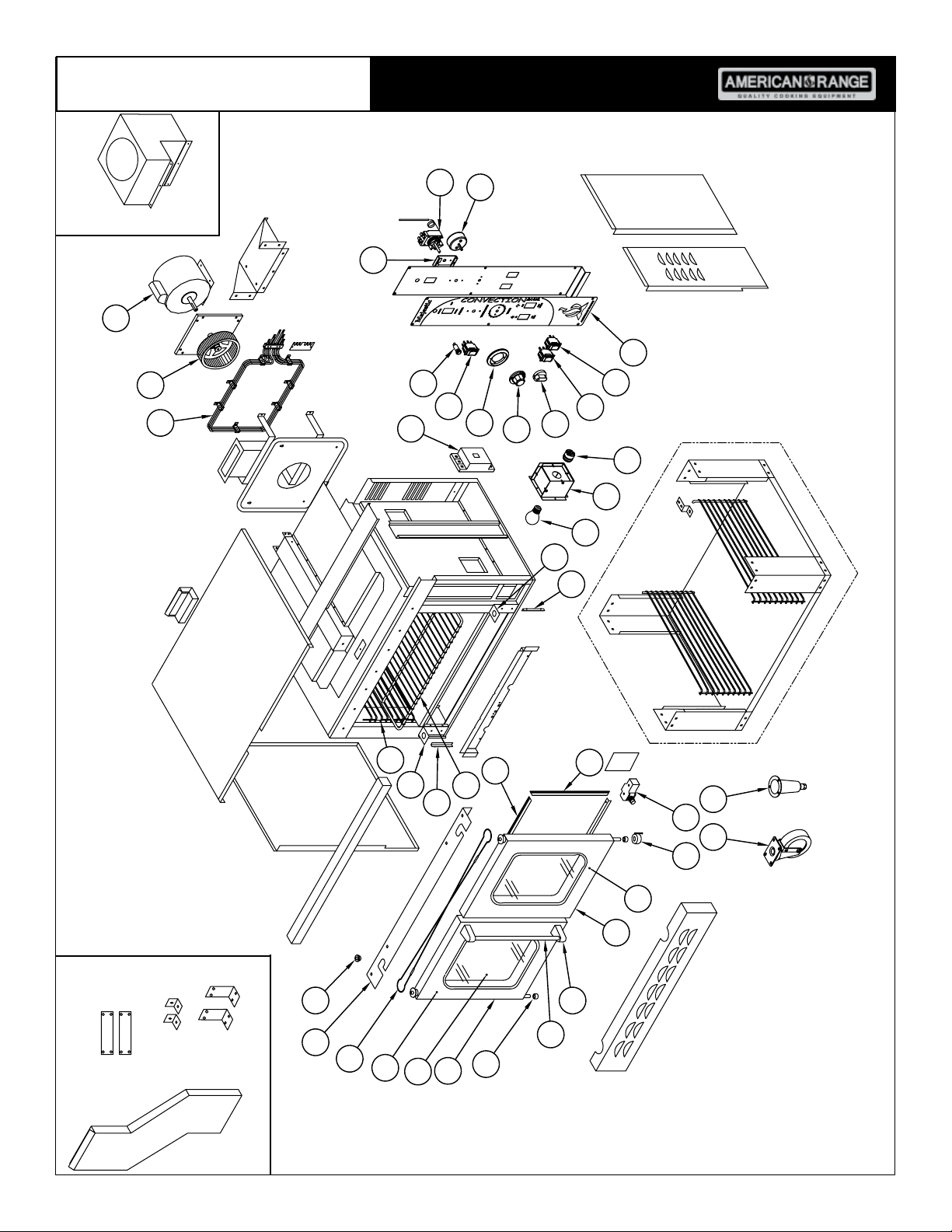

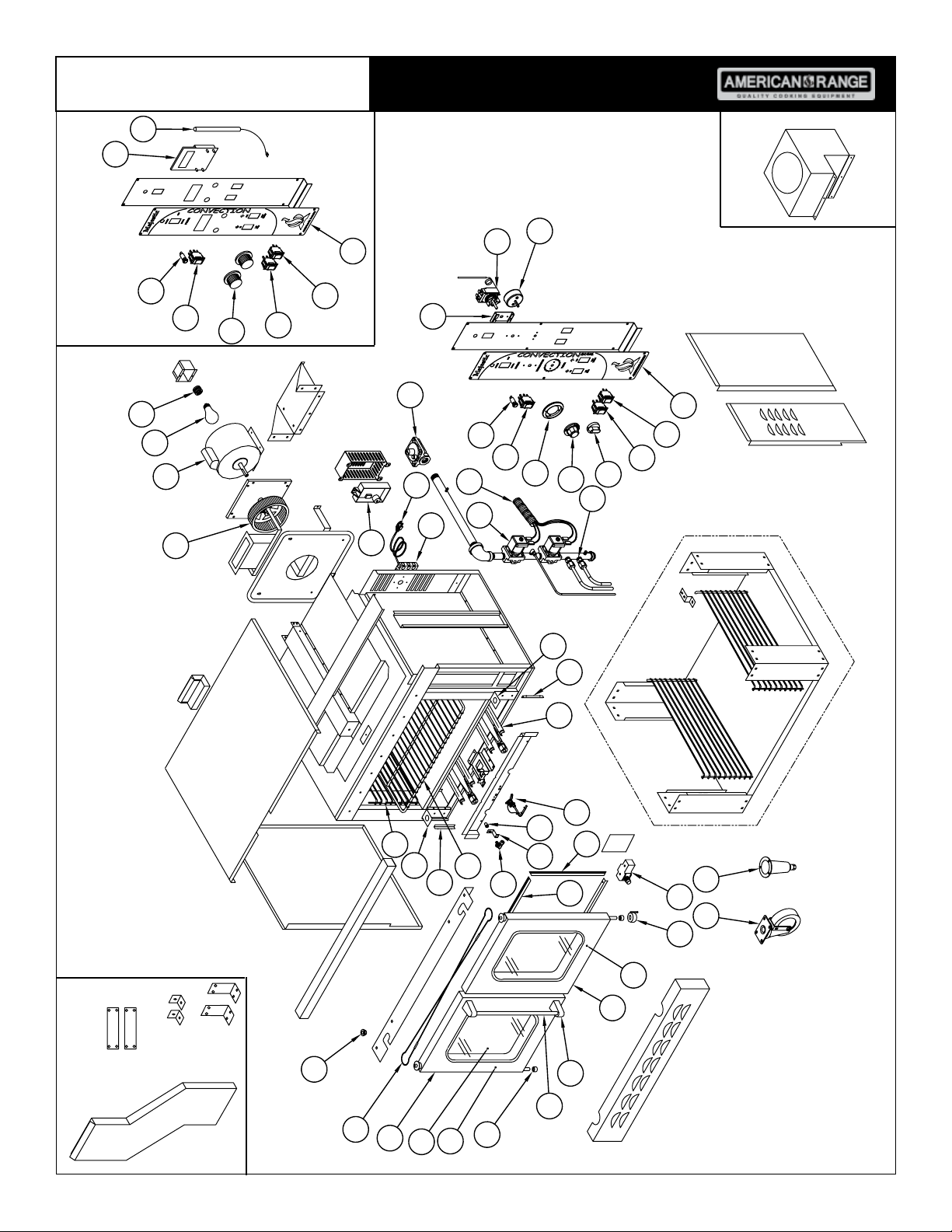

Exploded View Drawings ...................................................................................... 17-20

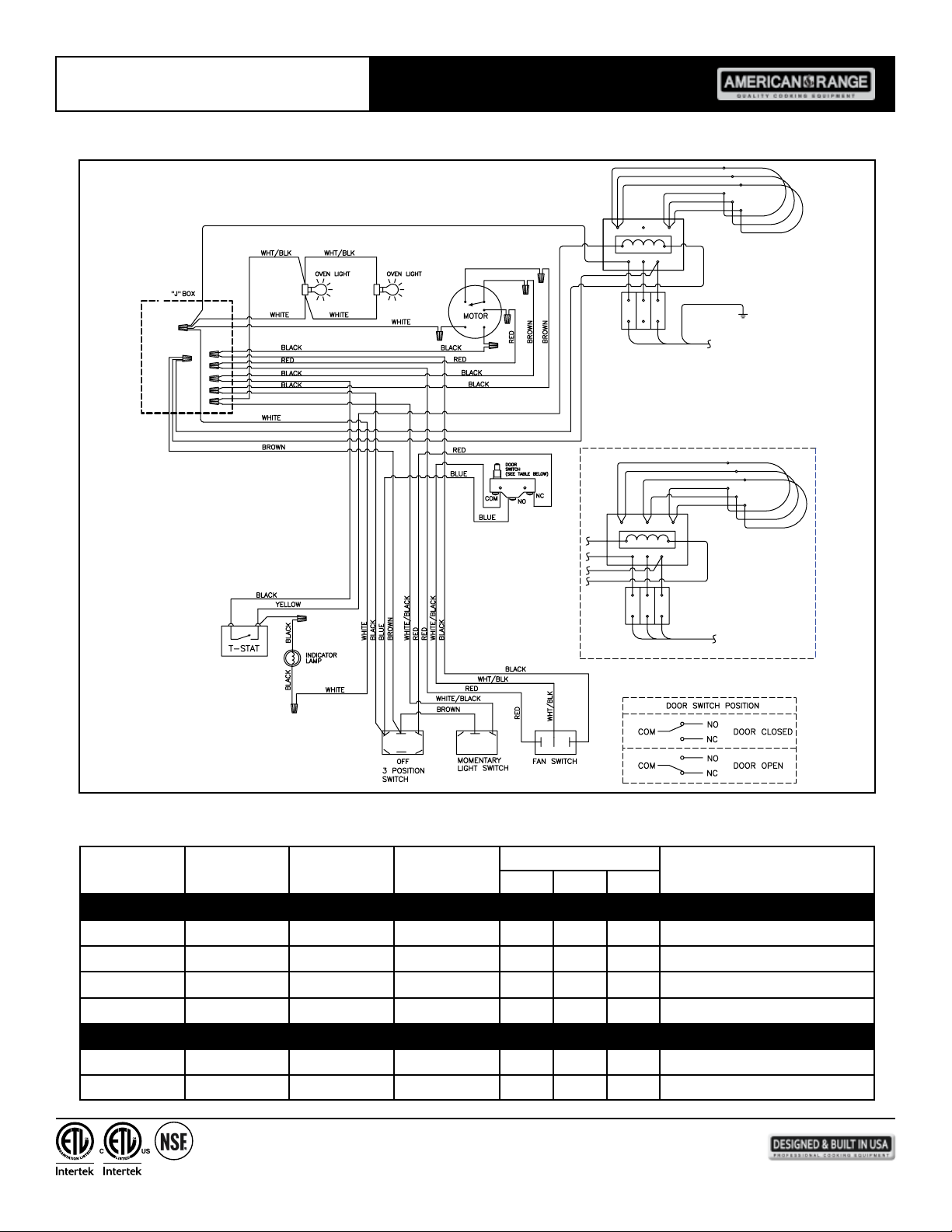

Majestic Wiring Diagram ....................................................... 16

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

Owner’s Manual

Majestic Convection Oven

IMPORTANT - PLEASE READ AND FOLLOW!

• Before beginning, please read all the instructions carefully.

• DO NOT remove permanently afxed labels, warnings, or plates from product. This will void the warranty.

• All local and national codes and ordinances must be observed; installation must conform with local codes.

• The Installer must leave these instructions with the consumer who should retain for local inspector’s use and for future reference.

• Installation and service must be performed by a certied / licensed installer, service agency or gas supplier.

• Please ensure that the product is properly grounded.

Your safety and the safety of others is very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the SAFETY ALERT SYMBOL. This symbol alerts you to hazards.

Hazards or unsafe practices which may result in severe

DANGER

personal injury or death.

WARNING

Shipping Damage Claim Procedure:

The equipment is crafted and inspected carefully by skilled personnel before leaving the factory. The transportation company assumes full responsibility for the safe delivery upon acceptance of the equipment. If the shipment arrives damaged:

1. Note on the freight bill or express delivery document any visible loss or damage and have the document signed by the

2. File claim for damages immediately regardless of the extent of damages.

3. For damage noticed after unpacking (concealed loss or damage), notify the transportation company immediately and

CALIFORNIA PROPOSITION 65 WARNING

The burning of gas cooking fuel generates some by-products which are on the list of substances known by the State of

The burning of gas cooking fuel generates some by-products which are on the list of substances known by the State of California to cause cancer or reproductive harm. California law requires businesses to warn customers of potential exposure

California to cause cancer or reproductive harm. California law requires businesses to warn customers of potential exposure to such substances. To minimize exposure to these substances, always operate this unit according to the Owners Manual,

to such substances. To minimize exposure to these substances, always operate this unit according to the Owners Manual, ensuring you provide proper ventilation when cooking with gas.

ensuring you provide proper ventilation when cooking with gas.

CAUTION

person making the delivery.

le a “Concealed Damage” claim with them. This should be done within fteen (15) days from the date that delivery is made to you. Retain the shipping container for inspection.

Hazards or unsafe practices which may result in severe personal injury or death.

Hazards or unsafe practices which may result in personal injury or property damage.

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

Majestic Convection OvenOwner’s Manual

Important - The installation of this appliance must conform to local codes or, in the absence of local codes, with the National Fuel

Gas Code ANSI Z223.1 Natural Gas Installation Code, CAN/CGA-B149-1 or the Propane Installation Code, CAN/CGA-B149-2

as applicable, including:

1. The appliance and its individual shut off valve must be disconnected from the gas supply piping system during any

pressure testing of that system at test pressure in excess of 1/2 psi (3.45 kPa).

2. The appliance must be isolated from the gas supply piping system by closing the individual manual shut off valve during any pressure testing of the gas supply piping system.

The appliance, when installed, must be wired and electrically grounded in accordance with local codes, or in the absence of local

codes, with the National Electric Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.2 as applicable.

Installation, Operation and Service Personnel - Installation of the equipment should be performed by qualied, certied, licensed and/or authorized personnel who are experienced in state/local installation codes.

Operation of the equipment should be performed by qualied or authorized personnel who have read and understand this manual

and are familiar with the functions of the equipment.

Service of the equipment should be performed by qualied and licensed service personnel who are knowledgeable with American

Range products.

DANGER

Installation - Gas Standards and Codes

1. A manual gas shut off valve must be installed in the gas supply (service) line ahead of the appliance and gas pressure regulator in the gas stream for safety and ease of future maintenance/service.

2. The gas pressure regulator supplied with the appliance must be installed prior to connecting the equipment to the gas supply line. Failure to install a regulator will void the equipment warranty and result in a potentially hazardous condition.

3. Contact factory for installation, maintenance and repairs, American Range Customer Service at www.americanrange.com or 818.897.0808.

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

Majestic Convection OvenOwner’s Manual

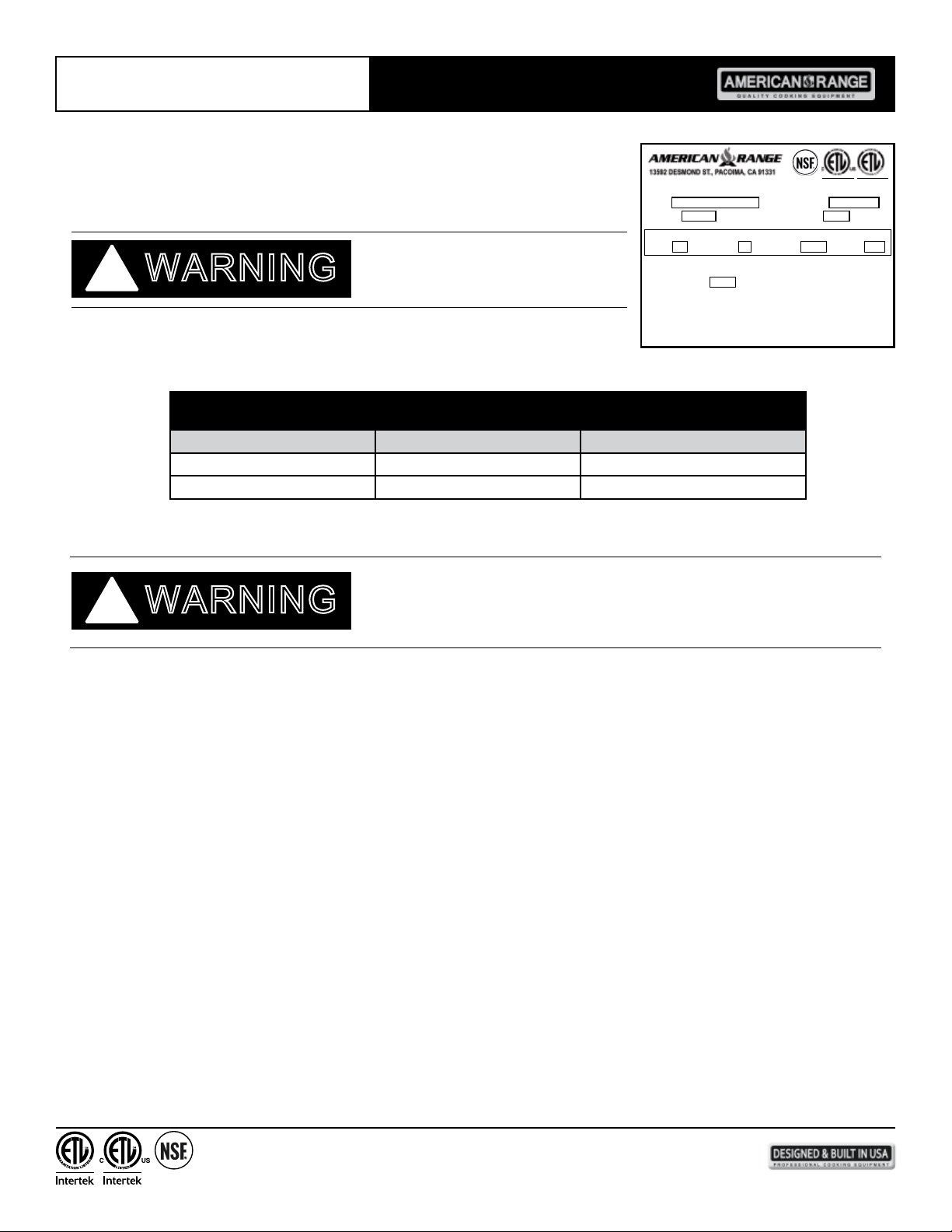

Rating Plate - The location of the rating plate is shown in Figure 2. The information on the

rating plate denes the model, serial number, gas type (natural or liquid propane), operating

pressures and burner BTU ratings. Keep this information for future reference. It is essential for

proper identication of the unit when requesting additional information or factory support.

Appliances must be connected only to the

WARNING

Clearances - The appliance must be kept free and clear of all combustible materials.

This unit is designed and certied for the following installation only:

CLEARANCE FROM MINIMUM COMBUSTIBLE AND NON-COMBUSTIBLE CONSTRUCTION

Back 6” 0”

Side 6” 0”

Installation - Electric Utility Connections-Standards and Codes

type of gas identied on the rating plate.

COMBUSTIBLE NON-COMBUSTIBLE

Intertek

3013256

M-2-GR

MODEL:

NAT

GAS TYPE:

110

VOLTS

INPUT-BTU/HOUR/BURNER CLEARANCES

CONV. OVEN

ANSI Z83.11a/CSA 1.8a-2007 Food Service Equipment

ELECTRICAL RATING

PHASE

45,000

FOR USE ONLY ON NONCOMBUSTIBLE FLOORS

CURB MOUNT MUST HAVE 2” OVERHANG

INTENDED FOR OTHER THAN HOUSEHOLD USE.

SERIAL NO.

5.0

MAN. PRESS: IN. W.C.

AMPS

CYCLE

6.5/3/0

NON-COMB. COMB. BACK SIDES0”0”4”12”

Rating Plate

Intertek

60/50

The installation instructions contained here are for the use of qualied installation and service personnel only. Installation or service by other

WARNING

than certied / licensed personnel will void the warranty and will result in damage to the oven and/or injury to the operator.

Qualied installation personnel are individuals, a rm or a company which either in person or through a representative are engaged

in and responsible for the installation of electrical wiring from the electric meter, main control box or service outlet to the electric appliance.

Qualied installation personnel, licensed and bonded, must be experienced in such work, familiar with all precautions required and

have complied with all requirements of state or local authorities having jurisdiction.

U.S. and Canadian Installations - All ovens, when installed, must be electrically grounded in accordance with local codes, or in the

absence of codes, with the National Electrical Code ANSI/NFPA 70 - Latest Edition and/or Canadian National Electrical Code C22.2

as applicable.

The ventilation of these ovens should be in accordance with local codes. In absence of local codes, refer to the national ventilation code titled, Standard for the Installation of Equipment for the Removal of Smoke and Grease Laden Vapors from Commercial Cooking Equipment, NFPA-96-Latest Edition.

The appliance is to be installed with a check valve in accordance with applicable federal, province and local codes.

General Export Installations - Installation must conform to Local and National Standards. Local installation codes and/or

requirements may vary. If you have any questions regarding the proper installation or operation of your American Range Convection Oven, please contact your local distributor. If you do not have a local distributor, contact American Range Corporation at 1.888.753.9898 or visit us at www.americanrange.com

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

Majestic Convection OvenOwner’s Manual

Do Not Mount the oven on a curb base. Use casters. Adequate air space at the bottom and rear of the unit must be provided for the proper venting of the blower motor.

Assembly - Do not use the door to lift or move the oven! The double ovens are installed on casters shipped with the unit. The standard assembly parts or casters for the single oven are shipped separately, within the crated unit.

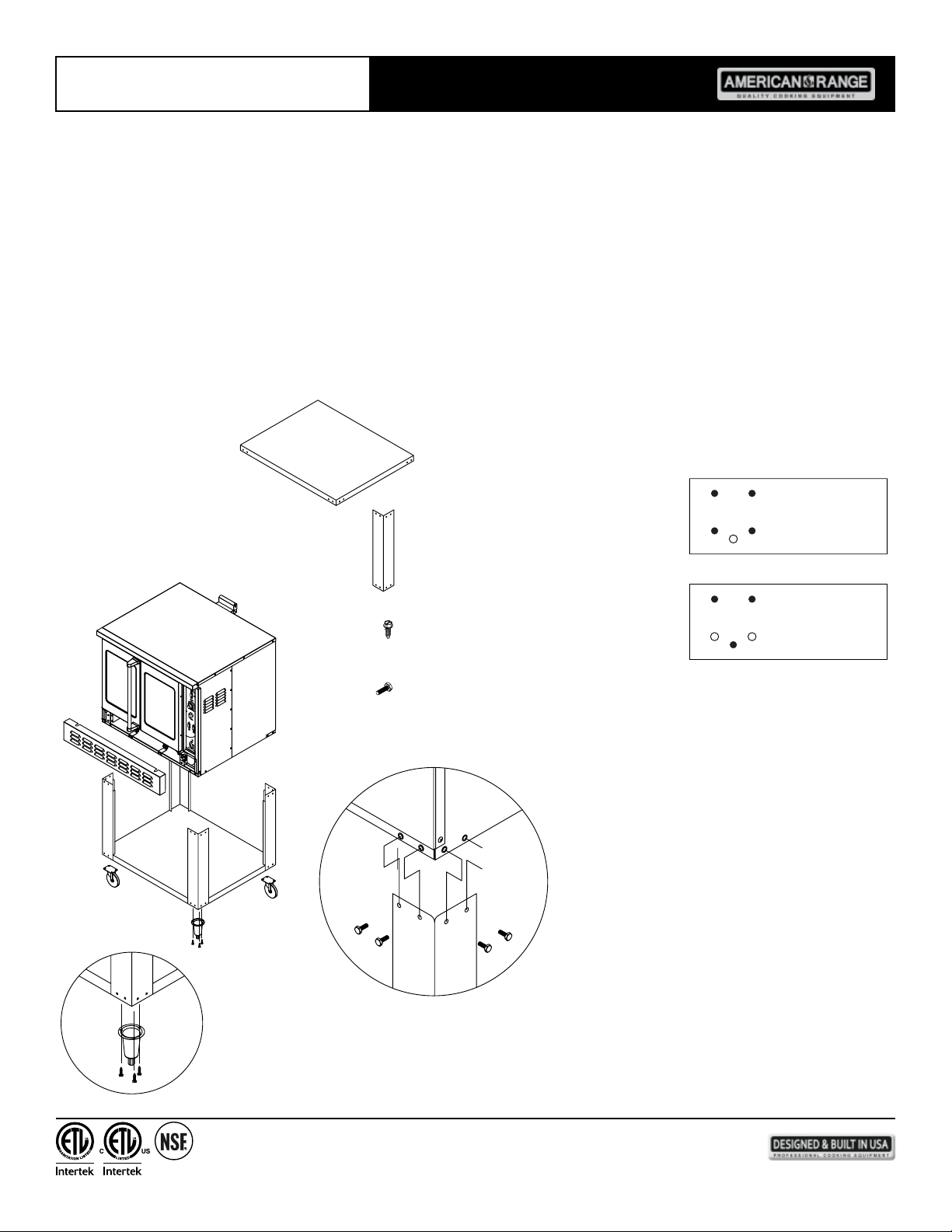

Single Oven - Assemble the leg / stand assembly as follows:

1. Remove the legs from the package.

2. Referring to Figure 1, secure bottom shelf to the legs, using bolts, and nuts provided. Tighten all bolts securely.

3. Place oven on the top of leg / stand assembly. Match holes on the frame with oven bottom base. Fasten with bolts provided. For the bottom shelf and rack support:

a. Screw the bottom shelf to the legs. b. Screw the guide support angles to the bottom shelf and top leg frame.

BOTTOM SHELF QTY. (1)

CASTER MOUNT HOLE PATTERN

LEG TOTAL QTY. (4)

#14 1/4 X 3/4 SCREW TOTAL QTY. (12) W/LEGS SCREW TOTAL QTY. (16) W/CASTERS

#20 1/4 X 3/4 BOLT TOTAL QTY. (32)

LEG MOUNT HOLE PATTERN

Figure 1

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

Majestic Convection OvenOwner’s Manual

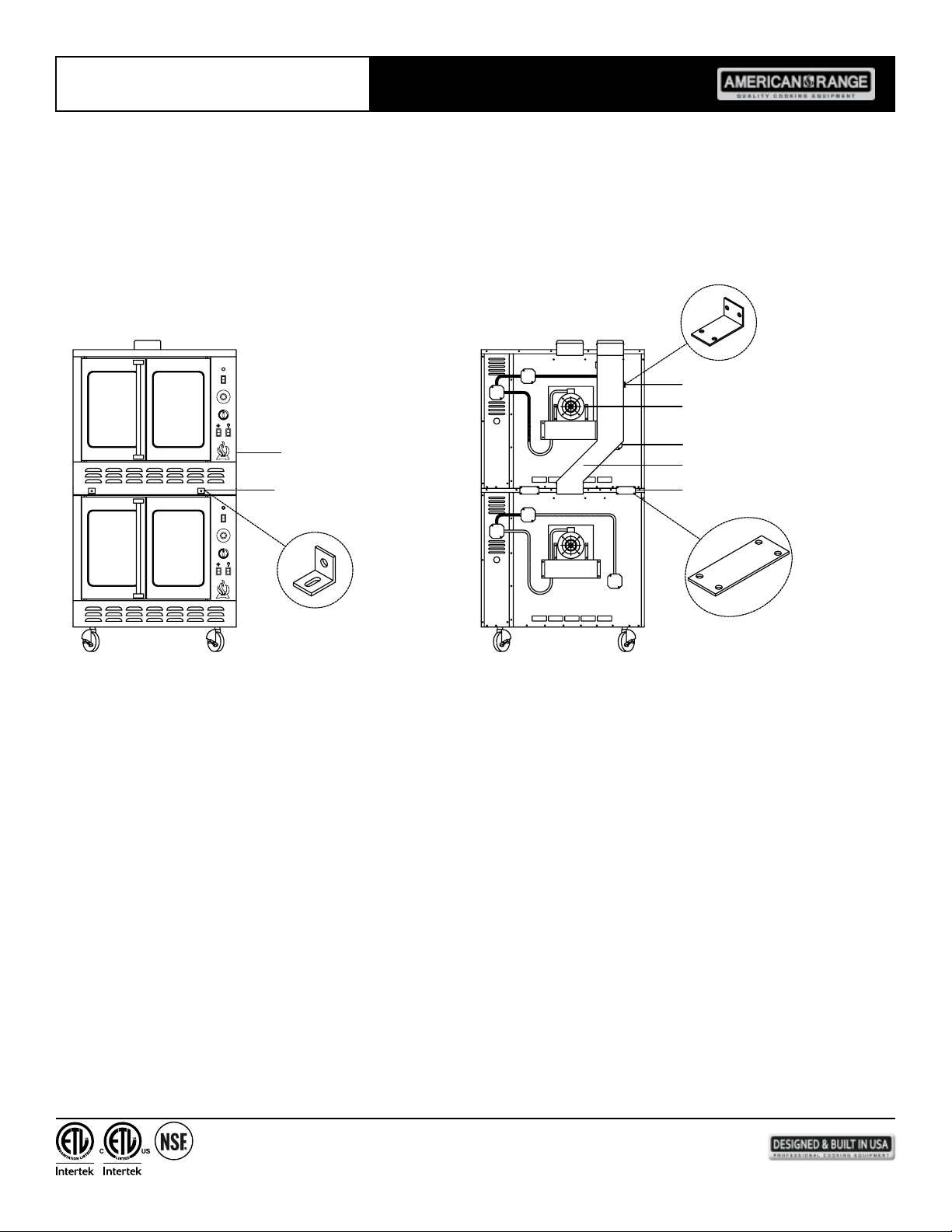

Double Oven - Only 6” casters can be used with the double oven.

1. Match holes on the casters with the oven bottom base and assemble with hardware provided.

2. Stack top oven on top of bottom oven.

3. Remove top kick plate by lifting and pulling forward. Then bolt by rear and front joiner brackets as shown in Figure 2.

4. Assemble the ue extension as shown in the same gure.

5. Do not use other manufacturer or aftermarket casters or legs.

Majestic

POWER

COOK

OFF

THERMOSTAT

450

TIMER

LOW FANLIGHT

Majestic

POWER

COOK

COOL

THERMOSTAT

500 200

450

400 300

TIMER

LOW

COOL

OFF

200500

250

300400

350

OFF

RATING PLATE

JOINER BRACKET

OFF

250

350

OFF LIGHTFAN

(2 FRONT, BEHIND KICK PLATE)

FLUE EXTENSION BRACKET

MOTOR

LIGHT FLUE EXTENSION

JOINER BRACKET (2 REAR)

FRONT VIEW REAR VIEW

Figure 2

Caster Installation - With provided casters, match holes on the caster with holes on the oven bottom base and fasten with the hardware provided. Locking-type casters must be installed in front of the unit.

Leveling - A carpenter’s spirit level should be placed on the oven’s center baking rack, and the unit leveled both front-to-back and side-to-side. If the unit is not level, cakes, casseroles and any other liquid or semi-liquid batter will not bake evenly, burner combustion may become erratic, and the unit will not function properly.

If the oor is relatively smooth and level, the unit may be leveled by turning the “foot” section of the leg, since casters are not adjustable. Identify the high corner and level the unit - using metal shims if the adjustment amount required exceeds the 1-1/4”

adjustment amount available. Casters must be leveled with shims. A unit will probably not return to the same position after being moved, so be sure to re-level as necessary.

Air Supply and Ventilation - The area in front of, around and above the appliance must be kept clear to avoid any obstruction of

the ow of combustion and ventilation air. Adequate clearance must also be maintained at all times in front and at the sides of the

appliances for proper operation and servicing. Refer to the chart “Clearance from Minimum Combustible and Non-Combustible Construction” presented on page 3 of this manual.

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

Majestic Convection OvenOwner’s Manual

Means must be provided for any commercial, heavy-duty cooking appliance to exhaust combustion waste products to the outside of the building. Usual practice is to place the unit under an exhaust hood. Filters and drip troughs should be par t of any industrial hood. Consult local codes before constructing and installing a hood.

Air movement should be checked during installation. Strong exhaust fans in the hood or in the overall air conditioning system can

produce a slight vacuum in the room and/or cause air drafts – either may interfere with the pilot or main burner performance and can also be hard to diagnose. If pilot burner or main burner outage problems persist – make up air openings or bafes may have to

be provided in the room.

Electrical Connection - The standard gas operated convection ovens require a 120 VAC, 60 Hz, 15 AMP electrical service for

operation. The supply cord provided on the appliance is equipped with a three-prong (grounding) plug for protection against

electrical shock hazard. The electrical service in the building must be equipped with a properly grounded three-prong receptacle, in

accordance with local codes, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or in Canada – to

Canadian electrical codes, CSA C22.2. Do not cut or remove the grounding prong from this plug.

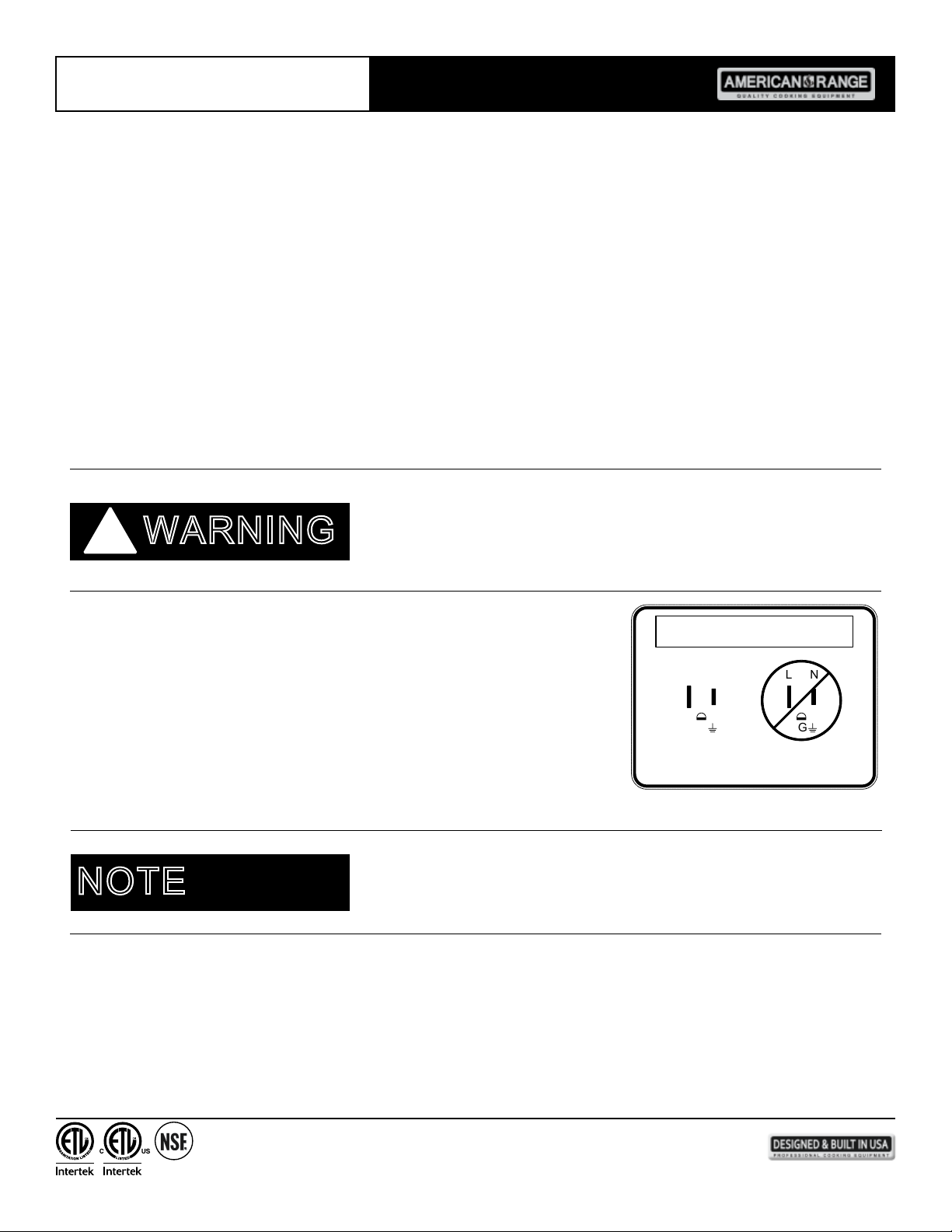

Electrical Grounding Instructions

The appliance is equipped with a three-prong (grounding) plug for your

WARNING

protection against electrical shock hazard and should be plugged directly into a proper grounded three-prong receptacle. Do not cut or remove the grounding prong from the plug.

CAUTION

For gas red units and any NEC compliant receptacle, properly grounded and with correct

polarity is required.

Electric convection ovens are congured at the factory for operation from 208 VAC, single phase, or 208 VAC, three-phase electrical service is also an available conguration. Consult

wiring diagram located at the end of this manual and on the back side of the appliance.

No attempt should be made to operate this appliance during an electrical

NOTE

Gas Connection - The single deck oven requires one gas connection; the double deck oven requires two gas connections. The gas

inlet line size of this appliance is 3/4” NPT. For proper operation, the gas supply service line must be the same size or greater than

the inlet line size of the appliance.

Manual Shut Off Valve - A gas pressure regulator and a contractor-supplied shut-off valve must be plumbed in the gas service line ahead of the appliance – in a physical location where it can be reached quickly in the event of an emergency.

service failure. The appliance is not capable of operation without specied gas and electric requirements.

NL NL

G G

GOOD NO GOOD

120 VAC POLARITY SPECS A39074

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

Majestic Convection OvenOwner’s Manual

The gas pressure regulator must be installed in the gas line – failure to install a pressure regulator will void the equipment

warranty. The regulators supplied with convection ovens have 3/4” NPT connections; the regulators adjusted at the factory for 5” W.C (water column) manifold gas pressure (natural gas) or 10” W.C. manifold gas pressure for propane gas operation.

Before connecting the regulator, check the incoming line pressure – as these regulators can only withstand a maximum inlet pressure

of 14” W.C. (1/2 PSI); exceeding this pressure will damage them. Visually double check any installer-supplied intake pipes and/or blow

them out using compressed air to clear any dirt or debris, threading chips, or other foreign matter – before installing a service line.

Those particles will clog gas orices when gas pressure is applied. Compounds used on threaded joints of this appliance piping must

be resistant to the action of NP and LP gas and provide a gas tight seal to prevent leaks. If the gas supply line pressure is greater than

this amount, a step-down regulator will be required. A gas ow direction arrow is cast into the body of the regulator to minimize

installation error – it should point downstream to the appliance. The blue air vent cap on the top of the regulator is part of the regulator and should not be removed.

Any adjustment to the regulator must be made only by qualied and licensed service personnel with the proper calibrated test equipment. Gas connections should be performed by a qualied licensed contractor.

Ovens with Casters - In order to be able to service this appliance, it must be installed with the locking front casters supplied,

a exible connector complying with ANSI Z21.69.CGA6.16 and a quick disconnect device complying with ANSI Z21.41CGA 6.9.

Adequate means must be provided to limit the movement of the appliance without depending on the connector and the quick disconnect device or its associated piping to limit the appliance movement.

When lighting the gas oven, DO NOT stand with your face close

All American Range Corporation appliances are adjusted and tested before leaving the factory, effectively matching them to appropriate atmospheric conditions. We recommend that adjustments and calibrations are performed upon installation to assure proper operation of the unit and avoid possible problems caused by rough handling or vibration during shipment. This work must be

performed only by qualied service personnel. These adjustments are the responsibility of the customer and/or dealer and are not

covered by warranty.

Check all gas connections for leaks with a soapy water solution before lighting the oven. DO NOT USE AN OPEN FLAME TO

CHECK FOR LEAKS! Putting an open ame beside a new gas connection is extremely dangerous and may result in serious injury

or death.

CAUTION

to the combustion chamber.

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

Majestic Convection OvenOwner’s Manual

Reliable KXT Thermostat Manual Controls

Control Description

1. Oven Indicator Light - This light indicates the heating elements are energized. When

the light goes out, the oven has reached the requested operating temperature.

2. Selector Switch - This switch controls power to the oven. It turns the oven, COOK, OFF or COOL if the door is open to activate the cooling fan.

3. Thermostat - This allows the operator to set cooking temperatures from 200ºF to 500ºF.

4. Timer - Turn knob to desired cook time. When cook period ends a buzzer sounds.

5. Light switch - This momentary contact switch is used to control the light.

6. Hi Speed, Lo Speed Convection Fan Switch - Use this switch to set the fan speed for

best cooking results.

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

TIMER TEMP.

Majestic Convection OvenOwner’s Manual

Cook and Hold Controls

Control Description

1. Oven Indicator Light - This light indicates the heating elements are energized. When

the light goes out, the oven has reached the requested operating temperature.

2. Selector Switch - This switch controls power to the oven. It turns the oven, COOK, OFF or COOL if the door is open to activate the cooling fan.

3. Thermostat - This allows the operator to set cooking temperatures from 200ºF to 500ºF.

4. Timer - Turn knob to desired cook time. When cook period ends a buzzer sounds.

START CANCEL

5. Light switch - This momentary contact switch is used to control the light.

6. Hi Speed, Lo Speed Convection Fan Switch - Use this switch to set the fan speed for

best cooking results.

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

Majestic Convection OvenOwner’s Manual

To Check For Gas Leaks Using a Soapy Water Solution

1. Turn ON the manual gas valve at the inlet side of the gas supply line.

2. Remove the kick plate by lifting and pulling away from the unit.

3. Check for gas leaks at the exible coupling or gas connector tting using a solution of one part soap and three par ts water.

4. Sparingly spray or brush the soapy solution at the gas ttings; active bubbling indicates location of gas leak.

5. If a gas leak is detected turn off the manual gas valve at the inlet side of the gas line. Call your certied and licensed service technician.

Lighting Instructions for Gas Fired Convection Ovens

1. Before attempting to light this appliance, the cover, if so equipped should be open.

2. Turn OFF the manual gas valve located at the outlet side of the gas supply line.

3. Turn the manual gas supply valve to the OFF position.

4. Set the thermostat to the OFF position.

5. Press the power switch to the OFF position.

6. Wait ve minutes.

7. This appliance is equipped with an automatic spark ignition device which automatically lights the pilot burner. Do not try to light the pilot burner with a match.

8. Turn the manual gas supply valve to the ON position.

9. Press the power switch to the ON “COOK” position.

10. Set the thermostat to the desired temperature. The direct spark ignitor will light the pilot burner and the pilot burner will light the main burners. If both burners do not light, go back to steps 2 - 9 above and repeat the process. If the problem persists, call your factory personnel.

11. The cover, if so equipped, should be replaced.

12. If gas odor is detected turn off the gas valve and follow lighting instructions.

To Shut Down the Gas Fired Convection Oven

1. Set the thermostat to the OFF position.

2. Press the power switch to the OFF position.

3. Turn the manual gas supply valve to the OFF position.

Final Preparation - On initial installation, turn the oven thermostat to 250ºF and operate the unit for about one hour, then reset the thermostat to its maximum and operate the unit for an additional hour. This will drive off any manufacturing oils remaining in the unit. Let the unit cool and thoroughly clean interior surfaces using hot soapy water.

Maintenance Summary

1. Never attempt to run oven with motor off.

2. Cool down after cooking is nished.

3. Periodically lubricate the pivot pins of the oven door hinge. Use a multi-purpose lubricating oil sparingly.

4. Door chain assembly and door bushing must be inspected periodically and adjusted or replaced to ensure satisfactory operation of doors.

5. Clean the burner air shutter and burner chamber. Remove any accumulation of debris by hand.

6. Check blower wheel for any accumulation of debris. Remove by hand, do not use any tools.

7. Replace burned out light bulbs.

8. Excessive use will result in excessive wear and tear.

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

Majestic Convection OvenOwner’s Manual

Disconnect all power sources and lockout to prevent accidental start up

CAUTION

Cleaning and Maintenance - Any piece of equipment operates better and lasts longer when properly maintained. Cooking equipment is no exception. Your American Range convection oven must be kept clean during the working day and thoroughly cleaned at the end of the day. To increase the lifetime of the motor, follow these instructions:

a. Do not run an empty oven at higher temperatures for an extended period of time. b. After you nish cooking place the rocker switch in the COOL position and open the door. Air will be hot, use care. When the oven temperature is equal to the room temperature, turn the unit OFF.

Daily Cleaning - Convection Ovens

1. Your appliance should be checked for safe and efcient operation at least yearly by a qualied service company.

2. Never spray water at or near equipment at any time as this could damage internal parts of the unit.

3. Stainless Steel Care - All Stainless Steel appliance parts should be wiped regularly with hot soapy water during the day, and with a liquid cleaner designed for this material at the end of each day as well. DO NOT USE steel wool, abrasive cloths, cleaners or powders to clean Stainless Steel surfaces! If it is necessar y to scrape Stainless Steel to remove encrusted materials, soak in hot water to loosen the material, then use a wooden or nylon scraper. DO NOT USE a metal knife, spatula, or any other metal tool to scrape Stainless Steel! Scratches are almost impossible to remove.

4. Remove the baking racks.

5. Be very careful about scratching the porcelain nish on the oven liner panels. Scrape off any food particles with a nylon griddle scraper.

6. Wash all the above with hot soapy water, then reassemble.

7. Baked-on spills and stubborn stains may be removed with ordinary household ammonia. Scrub with a nylon pad while oven is at room temperature only.

8. Do not allow any spray-type oven cleaners to come into contact with the temperature probe in the oven.

9. After cleaning the oven, rinse well with a solution of 1/4 cup of vinegar to one quart of clear water to neutralize any caustic residue remaining from the cleaning agent. Use water sparingly.

Periodic Maintenance

1. Check the ventilation system periodically to see that nothing has fallen down into the exhaust vents.

2. Lubricate the pivot pins of the oven door hinge. Use a multi-purpose lubricating oil sparingly.

CAUTION

of equipment.

Never use ammonia in an oven that is warmer than room temperature and always provide direct fresh air ventilation when cleaning the unit.

Contact the factory, a factory representative or a local service company

to perform maintenance and repairs.

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

Majestic Convection OvenOwner’s Manual

TIPS ON USING THE CONVECTION OVEN

General Guidelines

The American Range Convection Oven is a high performance commercial cooking appliance. You may need to adjust cook time and temperature to achieve best results for your product.

TEMPERATURES and COOK TIMES

Preheating The Oven - Always preheat the oven before baking or roasting. to the desired temperature. When “Oven Indicator Light” is off the unit is at temperature.

Cook Temperatures - Generally should be 25ºF (10ºC) lower than the deck or range oven recipes. If the edges of the product are done but the center is raw, or if there is color variation, consider reducing the thermostat setting another 15 - 25ºF (10-15ºC). Continue to

reduce the cook temperature on successive loads until the desired results are achieved.

NOTE: Cooking at excessive temperatures will not reduce the cook time, and more likely, will produce unsatisfactory baking and roasting results.

Cook Time - Check the product in about half the time recommended for deck and range oven recipes. Record cook times and temperatures that provide the best results for future reference.

NOTE: Cook time will vary with the amount of product loaded, the type of pan and the temperature.

OPERATING TIPS

Pans and Racks - Product or pan height determines how many racks are used. The oven holds up to ten - 18” x 26” (45.7 x 66.0 cm)

pans.

Load the oven from the bottom, centering the pans on the rack. Never place a pan or aluminum foil on the bottom of the oven as this

will obstruct the convection air ow and result in uneven baking and roasting.

Roasting - To reduce shrinkage when roasting, place meat directly on the racks. Place a sheet pan one-half full of water in the bottom rack position. The water will evaporate, increasing humidity in the oven chamber. The pan catches grease from the meat, making oven cleaning easier.

Baking - Weigh the product to ensure equal distribution in each pan. Varying amounts of product will cause uneven baking results.

Fan - The fan must be operating for the oven to heat.

Lights - The oven light switch is momentary contact. Press the switch to see what’s cooking – this feature will lengthen the lifetime of

the bulb.

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

Majestic Convection OvenOwner’s Manual

TROUBLESHOOTING GUIDE

POSSIBLE CAUSE SUGGESTED ACTION

SYMPTOM: Heating elements do not come on.

Unit is not connected to gas or electrical service Visually check unit is wired to gas or electrical service

Power switch is on Set the power switch to COOK

Thermostat is set to very low temperature Set temperature to desired value

Doors are open Close the door

SYMPTOM: Oven does not reach selected temperature.

May not have been on long enough Unit preheats to 350ºF in about ten minutes

Thermostat may be defective Unit will require service

Too little gas pressure, dirty gas line Call for authorized service

SYMPTOM: Convection fan does not operate.

Unit is not connected to electrical service Visually check unit is wired to electrical service

Power switch is off Set the power switch to COOK

Circuit breaker is tripped Reset the breaker, observe operation

SYMPTOM: General baking problems.

Unit set to “standard” bake temperature Set unit to convection bake temperature

Thermostat out of calibration Unit will require service

Always disconnect the electrical power service

WARNING

before cleaning or servicing the oven.

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

Majestic Convection OvenOwner’s Manual

ENERGY STAR® MAJESTIC & MSD GAS OVEN

654321

MAJESTIC & MSD SERIES PILOT IGNITION

432

TOP O N

O O L

O N

TOP

F F

TOP

H I

L O

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

MA SERIES PILOT IGNITION

Majestic Convection OvenOwner’s Manual

432 1

TOP O N

C O O L

TOP

O F F

TOP

H I

L O

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

ME/MSDE ELECTRIC OVEN

Majestic Convection OvenOwner’s Manual

CONTACTOR

HEATING ELEMENTS

L3 L2 L1

C O N

L O

POWER CONNECTION 208V, 1 PH, 50 AMPS

CONTACTOR

HEATING ELEMENTS

POWER CONNECTION 208V, 3 PH, 30 AMPS

ELECTRICAL SPECIFICATIONS

KW Hz Volts Phase

Amps

L1 L2 L3

U.S. AND CANADIAN INSTALLATIONS

11 60 208 1 550 -- 50 6 AWG

11 60 208 3 15 15 15 8 AWG

11 60 220 - 240 1 550 -- 50 6 AWG

11 60 220 - 240 3 15 15 15 8 AWG

GENERAL EXPORT INSTALLATIONS

11 50 240 3 19 14 14 Size per local code

11 50 240 1 42 - 42 Size per local code

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

Electrical Connection

(minimum size)

DRAFT HOOD

Majestic Convection OvenOwner’s Manual

MAJESTIC ME-1 MSDE-1

1112

DOUBLE STACK KIT

Majestic Convection OvenOwner’s Manual

ITEM

PART

NO.

1 A91014

A91201 Blower, Motor Wheel w/Stainless Set Screws M/MSD Series

A42175 Screw, Set 8mm x 16mm Socket SS M/MSD Blower Wheel

A12000

A20036 Bulb, Light 40W 240V A15 ME/MESD

11 A43000 Bushing, Oilite Bronze Flanged M/MSD Series

12 A99341

A43108 Chain Majestic

A43101 Link, Chain M1

A43005 Rod, 1CV 1/4” x 3” Rt/Lt M/MSD Series

A43006 Rod, 1CV 1/4” x 20” Rt/Lt ARFO/M1

A43001 Turnbuckle, 1CV Alum Body M/MSD Series

A99306 Chain Assembly, M/MSD Door Closing w/Cast Iron Turnbuckle

A99263

A99264

17 A43022 Bearing Sleeve, Bronze 1/2” ID x 3/4” OD 1/2” LG

18 A53010 Tube, Handle M1/MSD .049w x 1” x 23-1/2” 180 Grit

A99265 Door, Solid Stainless Rt Side w/Switch Activator M/MSD Series

A99266

23 A99304 Actuator, Door Switch Collar Assembly M/MSD Series

A35018 Caster, 4” Swivel No Brake NSF 300 lb. Load AR/Medallion

A35019 Caster, 4” Swivel with Brake NSF 300 lb. AR/Medallion

A35107

25 A10003 Switch, Oven Door Plunger with Rubber Boot M/MSD only

A99709 Gaskets, Oven Cell Left & Right Spring Stainless Steel M/MSD

A99716

A31000 Rack, Majestic Oven 28-1/2” x 26” Chrome Plated M/MA

A31082

A99233 Bracket, Door Hinge Left Side Heavy Duty Stainless M/MSD

A99329 Hinge, Bracket Lt Louver Panel Flat Back M/MSD Series

A31084 Guide, Rack 27-1/8” x 22-3/4” Chrome Plated M/MA Lt/Rt

A31081 Guide, Rack 21.40” x 19.19” Chrome Plated MSD Lt/Rt

35 A99330 Hinge, Bracket Rt Louver Panel Flat Black M/MSD Series

36 A99234 Bracket, Door Hinge Right Side Heavy Duty Stainless M/MSD

37 A20001 Bulb, Light Frosted 40W 130V M/MSD

39 A20000 Socket, Light Porcelain Base 10445 M/MSD/ACB Series

41 A10000 Switch, Rocker On/Off/Momentary MA

42 A10001 Switch, Rocker Fan On/Off/Maintain M/MSD Series

43 A32017 Knob, Black w/White Arrow ARC/M 01409

44 A32005 Knob, Dial KXT Thermostat 10411 M/MSD Series, ARC

45 A32023 Bezel, KXT-397-36 Thermostat 10440-C M/MSD Series, ARC

Motor, 1/2HP 50/60HZ 1725/1140 ME/MESD 200-230V 200V 60/50HZ

Element, Heating Assembly 9.9KW 3300W Per Rod 208V Incology ME

Bracket, Door Support Channel 1555B New Style MSD/ Majestic

Door, Solid Stainless Left hand Assembly w/Pullarm M/MSD Series

Door, Glass Window Pack Stainless Left Side w/Pullarm M/ MSD Series

Door, Glass Window Pack Rt SIde w/Switch Activator M/MSD Series

Caster, Set (4) 5” Swivel 2/w Brakes 300 lb. Load Majestic/ MSD/HD

Gaskets, Oven Cell Top & Bottom Spring Stainless Steel M/ MSD

Rack, Convection Oven MSD Chrome Plated 17.870” x

28.250”

DESCRIPTION

ITEM

PART NO. DESCRIPTION

NO.

46 A10009 Switch, Rocker 3 Position 10406 M/MSD Series ARC

47 A10058

52 A99712 Bracket, KXT Thermostat M/MSD 1330 ARC

53 A11105 Thermostat, KXT Electric M/MSD 10404 ARC

54 A60001 Timer, Cooking 60 Minute 10408 M/MSD, ARC

Contactor, 3 Pole 208-240 VAC 50HZ Coil 208/220VAC ME/ MSDE

Prices subject to change without notice.

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

Majestic Convection OvenOwner’s Manual

DIGITAL

DIGITAL CONTROL

DRAFT HOOD

MAJESTIC M-1 MSD-1

DOUBLE STACK KIT

26 28

Majestic Convection OvenOwner’s Manual

ITEM

PART NO. DESCRIPTION

NO.

2 A20000 Socket, Light Porcelain Base 10445 M/MSD/ACB Series

3 A20001 Bulb, Light Frosted 40W 130V M/MSD

A91000 Motor, 1/2 HP 50/60HZ 1PH M1/MSD 1725/1140 RPM 115V

A91014

A91201 Blower, Motor Wheel w/Stainless Set Screws M/MSD Series

A42175 Screw, Set 8mm x 16mm Socket SS M/MSD Blower Wheel

13 A43000 Bushing, Oilite Bronze Flanged M/MSD Series

A99306 Chain Assembly, M/MSD Door Closing w/Cast Iron Turnbuckle

A43108 Chain, Door Chain Assembly M/MSD Series

A43101 Link, Door Chain Assembly M/MSD Series

A43005 Rod, 1CV 1/4” x 3” Rt/Lt M/MSD Series

A43006 Rod, 1CV 1/4” x 20” Rt/Lt AFRO/M1

A43001 Turnbuckle, 1CV Alum Body M/MSD Series

A99263

A99264

17 A27005 Glass, Window Pack & J-Trim M1/MSD

19 A43022 Bearing Sleeve, Bronze 1/2” ID x 3/4” OD 1/2 LG

20 A53010 Tube, Handle M1/MSD .049w x 1” x 23-1/2” 180 Grit

A42003 Bolt, Hex GR5 1/4-20 x 3/4” ZP 4000/Box

A32105 Bracket, Door Handle M/MSD Polish Chrome

A99265 Door, Solid Stainless Rt Side w/Switch Activator M/MSD Series

A99266

25 A99304 Activator, Door Switch Collar Assembly M/MSD Series

A35018 Caster, 4” Swivel No Brake NSF 300 lb. Load AR/Medallion

A35019 Caster, 4” Swivel with Brake NSF 300 lb. Load AR/Medallion

A35107

27 A10003 Switch, Oven Door Plunger with Rubber Boot M & MSD Only

A35001 Leg 6” Cone 3” Adjustable Bullet Chrome Plated NSF

A35000 Leg Bullet for 1-5/8 Tube NSF 10438

A31081 Guide, Rack 21.40” x 19.19” Chrome Plated MSD Lt/Rt

A31084 Guide, Rack 27-1/8” x 22-3/4” Chrome Plated M/MA Lt/Rt

31 A99233 Bracket, Door Hinge Left Side Heavy Duty Stainless M/MSD

32 A99329 Hinge, Bracket Lt Louver Panel Flat Black M/MSD Series

A31000 Rack, Majestic Oven 28-1/2” x 26” Chrome Plated M/MA

A31082 Rack,Convection Oven MSD Chrome Plated 17.870” x 28.250”

34 A24000 Elbow, Orice Mixr 3/8C - 3/8-27 10442

35 A99725 Bracket, Orice Elbow M1

Motor, 1/2 HP 50/60HZ 1725/1140 ME/MESD 200-230V 60/50 HZ

Door, Solid Stainless Left Hand Assembly w/Pullarm M/MSD Series

Door, Glass Window Pack Stainless Left Side w/Pullarm M/MSD Series

Door, Glass Window Pack Rt Side w/Switch Activator M/MSD Series

Caster, Set of (4) 5” Swivel 2/w Brakes 300 lb. Load Majestic/ MSD/HD

Prices subject to change without notice.

ITEM

PART NO. DESCRIPTION

NO.

A29026 Hood, Orice #38 1/2” Brass 11038/MSD Nat Gas

A29003 Hood, Orice #53 1/2” Brass Flat Head/MSD LP Gas ARROB

A29021 Hood, Orice #35 1/2” Brass 11035M

A29022 Hood, Orice #51 1/2” Brass 11051M

A11109 Orice, Bell 0.014L VL LP Gas 11107 AF-Series

A37054 Conversion Kit, M1 Nat Gas

A37079 Conversion Kit, M2 LP Gas

A37080 Conversion Kit, M2 Nat Gas

A37144 Conversion Kit, MSD-1 LP Gas

A37145 Conversion Kit, MSD-1 Nat Gas

A37226 Conversion Kit, MSD-2 LP Gas

A37227 Conversion Kit, MSD-2 Nat Gas

37 A99716

38 A99709

A11107 Pilot, Nat Gas .26 .110 Term Majestic 36” Long Wire

A11120 Pilot, LPG Gas .16 .110 Term Majestic 36” Long Wire

A14010 Burner, Convection Oven M/MA Series

A14027 Burner, Convection Oven MSD Series

43 A99330 Hinge, Bracket Rt Louver Panel Flat Black M/MSD Series

44 A99234 Bracket, Door Hinge Right Side Heavy Duty Stainless M/MSD

47 A80101

A13019 Harness, M/MSD Majestic Wiring with Pin Connector

A13021 Harness, MSD/M1 Wiring with Pin Connector “Energy Star”

49 A20006 Box, Electric 4-1/2” OCT, w/Back 10459

50 A13100

51 A10062 Control, Gas Pilot Ignition Direct Spark 120V MSD/Majestic

A80110 Valve, Pressure Regulator 3/4 10480 Nat Gas Set 5

A80011 Valve, Pressure Regulator 3/4 10481 LP Gas Set 10.0

57 A10011

58 A10009 Switch, Rocker 3 Position 10406 M/MSD Series, ARC

59 A32023 Bezel, KXT-397-36 Thermostat 10440-C M/MSD Series, ARC

60 A32005 Knob, Dial KXT Thermostat 10411 M/MSD Series, ARC

61 A28002 Connector, Male 3/8cc x 1/8 MPT 10014 Compression Fitting

62 A32017 Knob, Timer M/MSD Series 104099

64 A10001 Switch, Rocker Fan On/Off Maintain, M/MSD only

66 A10000 Switch, Rocker On/Off/Momentary, MA

67 A39001 Label, Majestic Oven New Style American Range Logo

71 A60001 Timer, Cooking 60 Minute 10408 M/MSD, ARC

72 A11105 Thermostat, KXT Electric M/MSD 10404 ARC

73 A99712 Bracket, KXT Thermostat M/MSD 1330 ARC

86 A60000 Control, Digital Timer Temperature 100-500 F MA Series

87 A55000 Probe, Sensor Convection Oven 1000 OHMS MA Series

88 A39000 Label, Control Majestic Oven w/Red Transparent Window MA

89 A32000 Knob, Digital Control Timer Black Cap MA Series

Gasket, Oven Cell Top & Bottom Spring Stainless Steel M/ MSD

Gaskets, Oven Cell Left and Right Spring Stainless Steel M/ MSD

Solenoid, Valve Safety Gas 115V 10415/73462 HD Series/ AR6C/M1

Cord, Power NEMA 5-15P SJT 16/3 6’ Black ROJ 5-1/2”

Grn#10 Term

Light, Indicator 120V Red 12.7 10407 w/Wire Lead and Male Term

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com

WARRANTY REQUIREMENT

For reliable operation and for your own safety, this professional cooking equipment must be installed by a certied/licensed contractor.

Failure to comply will void any written or implied warranty.

Should the equipment require service during the standard warranty period, the receipt proving certied installation must be made available to American Range for verication.

If installation was not performed by a certied/licensed contractor be prepared to submit a major credit card for payment for proper installation prior to service.

A70701 121311

13592 Desmond Street, Pacoima, CA 91331

818.897.0808 888.753.9898 tel

818.897.1670 fax www.americanrange.com

American Range MSD-1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
