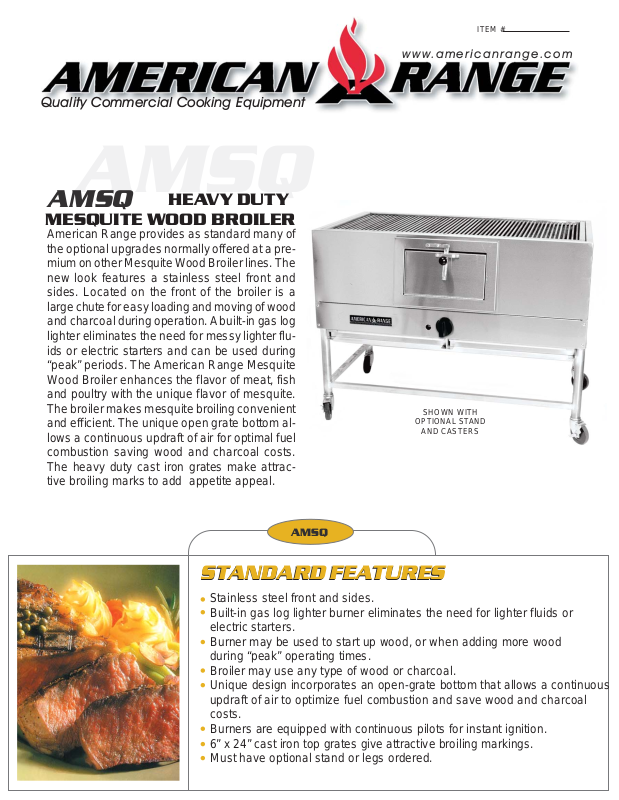

Page 1
Quality Commercial Cooking Equipment
AMSQ
HEAVY DUTY
AMSQ
MESQUITE WOOD BROILER
American Range provides as standard many of
the optional upgrades normally offered at a premium on other Mesquite Wood Broiler lines. The
new look features a stainless steel front and
sides. Located on the front of the broiler is a
large chute for easy loading and moving of wood
and charcoal during operation. A built-in gas log
lighter eliminates the need for messy lighter fluids or electric starters and can be used during
“peak” periods. The American Range Mesquite
Wood Broiler enhances the flavor of meat, fish
and poultry with the unique flavor of mesquite.
The broiler makes mesquite broiling convenient
and efficient. The unique open grate bottom allows a continuous updraft of air for optimal fuel
combustion saving wood and charcoal costs.
The heavy duty cast iron grates make attractive broiling marks to add appetite appeal.
ITEM #
www.americanrange.com
SHOWN WITH
OPTIONAL STAND
AND CASTERS
AMSQ
STANDARD FEATURES
STANDARD FEATURES
Stainless steel front and sides.
Built-in gas log lighter burner eliminates the need for lighter fluids or
electric starters.
Burner may be used to start up wood, or when adding more wood
during “peak” operating times.
Broiler may use any type of wood or charcoal.
Unique design incorporates an open-grate bottom that allows a continuous
updraft of air to optimize fuel combustion and save wood and charcoal
costs.
Burners are equipped with continuous pilots for instant ignition.
6” x 24” cast iron top grates give attractive broiling markings.
Must have optional stand or legs ordered.
Page 2
HEAVY DUTY MESQUITE BROILERHEAVY DUTY MESQUITE BROILER
HEAVY DUTY MESQUITE BROILER
HEAVY DUTY MESQUITE BROILERHEAVY DUTY MESQUITE BROILER
30”,36”,48”,60”
(762,914,1219,1524)
18”
(457)
AMSQ
3/4”NPT Gas inlet
27”
(687)
Series
2 1/4”
(57)
3/4”NPT Gas inlet
4”
(102)
MESQUITE BROILER
MODEL
WIDTH DEPTH HEIGHT
BURNERS
TOTAL BTU KW
AMSQ-30 30” 27 18” 1 20,000 5.86
AMSQ-36 36” 27” 18” 1 20,000 5.86
AMSQ-48 48” 27” 18” 1 20,000 5.86
AMSQ-60 60” 27” 18” 2 40,000 11.72
FEATURES
Heavy duty all stainless steel exterior .
Durable chrome plated control knob.
Large stainless steel door with chute located on the
front of the broiler allows easy loading and moving
of wood and charcoal during operation.
Must have optional MSQS stand or 4” (102) legs.
OPTIONS
Top grate made from 1/2” (12) round steel
rod, welded for durability .
Optional open top stand.
4” (102) counter legs.
Quick disconnect and flexible gas hose.
BROILERS
Burners are built-in gas log lighter with adjustable gas valve and standing pilot for instant ignition.
Heavy duty cast iron section grates for attractive markings on food.
Bottom grate: Open bottom grate allows continuous updraft for optional fuel combustion.
Drip Pan: Removable deep drip pan at the bottom for convenient cleaning of ash and debris.
Cleaning: Easy cleaning of all grates and inner liner, no tools required.
Removable Liner: Heavy duty liner protects the interior from burn out and is easy to replace when needed.
OPTIONAL
STAND
MSQS-30
MSQS-36
MSQS-48
MSQS-60
SHIP. WT. Lbs.
300
345
405
455
Kg.
137
157
184
210
GasGas
Gas: Manifold pressure is 5.0” W.C. for natural gas or 10.0” W.C. for propane gas. Specify type of gas and altitude if over 2000 feet.
GasGas
¾” NPT Gas Inlet.
ClearancesClearances
Clearances: For use in non combustible locations only, Clearance to non combustible construction 0”.
ClearancesClearances
American RAmerican R
American R
American RAmerican R
improvements these specifications are subject to change without prior notice.
ange Corporation ange Corporation
ange Corporation is a quality manufacturer of commercial cooking equipment. Because of continuing product
ange Corporation ange Corporation
