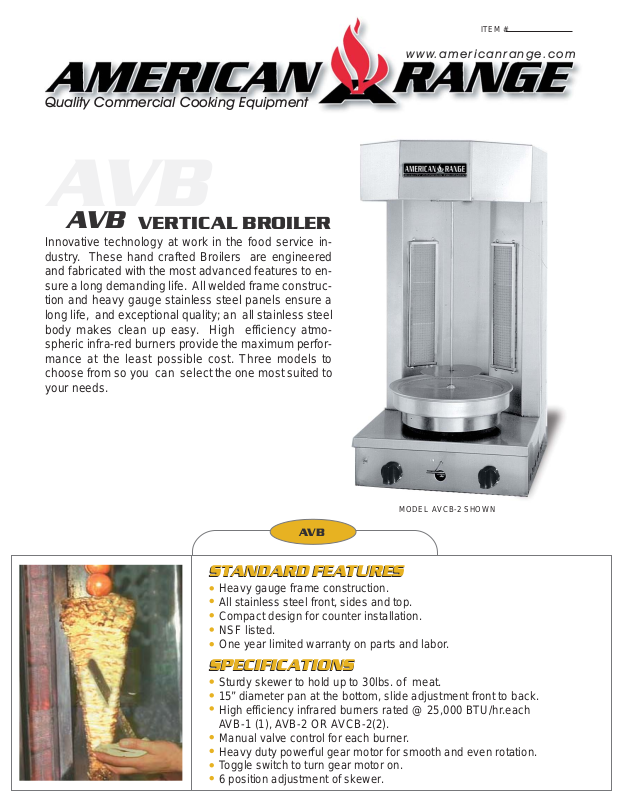

Page 1
Quality Commercial Cooking Equipment
AVB
ITEM #
www.americanrange.com
AVB
Innovative technology at work in the food service industry. These hand crafted Broilers are engineered
and fabricated with the most advanced features to ensure a long demanding life. All welded frame construction and heavy gauge stainless steel panels ensure a
long life, and exceptional quality; an all stainless steel
body makes clean up easy. High efficiency atmospheric infra-red burners provide the maximum performance at the least possible cost. Three models to
choose from so you can select the one most suited to
your needs.
VERTICAL BROILER
MODEL AVCB-2 SHOWN
AVB
STANDARD FEATURES
STANDARD FEATURES
Heavy gauge frame construction.
All stainless steel front, sides and top.
Compact design for counter installation.
NSF listed.
One year limited warranty on parts and labor.
SPECIFICATIONS
SPECIFICATIONS
Sturdy skewer to hold up to 30lbs. of meat.
15” diameter pan at the bottom, slide adjustment front to back.
High efficiency infrared burners rated @ 25,000 BTU/hr.each
A VB-1 (1), AVB-2 OR A VCB-2(2).
Manual valve control for each burner.
Heavy duty powerful gear motor for smooth and even rotation.
Toggle switch to turn gear motor on.
6 position adjustment of skewer.
Page 2
VERTICAL BROILERVERTICAL BROILER
VERTICAL BROILER
VERTICAL BROILERVERTICAL BROILER
AVB
Series
AVCB-2 AVB-2 AVB-1
VERTICAL BROILER
MODEL TOT AL BTU KW SHIP . WT. Lbs. WIDTH DEPTH
A VB - 1 20” 23 1/2” 34” 1 25,000 7.33 100
A VB - 2 20” 23 1/2” 34” 2 50,000 14.65 125
A VCB - 2 20” 23 1/2” 41” 2 50,000 14.65 150
STANDARD FEATURES
Sturdy skewer to hold up to 30 lbs. of meat.
15” (381) diameter pan at the bottom, slide adjustment
front to back.
High efficiency infrared burners rated @ 25,000 BTU/hr .
each (A VB-1 (1), AVB-2 OR AVCB-2(2)).
Manual valve control for each burner .
Heavy duty powerful gear motor for smooth and
even rotation.
T oggle switch to turn gear motor on.
6 position adjustment of skewer.
HEIGHT
BURNERS
GAS AND ELECTRICAL INFO
Manifold pressure:
5” W.C. - Natural gas
10” W.C. - Prop ane gas
When ordering, please specify type of
gas and altitude if over 2000 ft.
Gas inlet size:
3/4” NPT at rear bottom
A gas pressure regulator is provided and
must be installed when the appliance is
connected to the gas supply .
120V , 1 phase, 2 Amps, 6f t., 3 Prong
grounded power cord provided.
Kg.
45
57
68
GasGas
Gas: Manifold pressure is 5.0” W.C. for natural gas or 10.0” W.C. for propane gas.3/4”NPT Gas inlet. Specify type of gas and altitude over 200 feet.
GasGas
ClearancesClearances
Clearances: For use only on non-combustible counters. Clearance to non combustible construction 0”
ClearancesClearances
American RAmerican R
American R
American RAmerican R
improvements these specifications are subject to change without prior notice.
ange Corporation ange Corporation
ange Corporation is a quality manufacturer of commercial cooking equipment. Because of continuing product
ange Corporation ange Corporation
T el: 818-897-0808 Fax:818-897-1670
