PROFESSIONAL QUALITY COOKING EQUIPMENT
DESIGN CLASS FUNCTION
HERITAGE CLASSIC SERIES
24” Range with Sealed Gas Burners
ARR-244

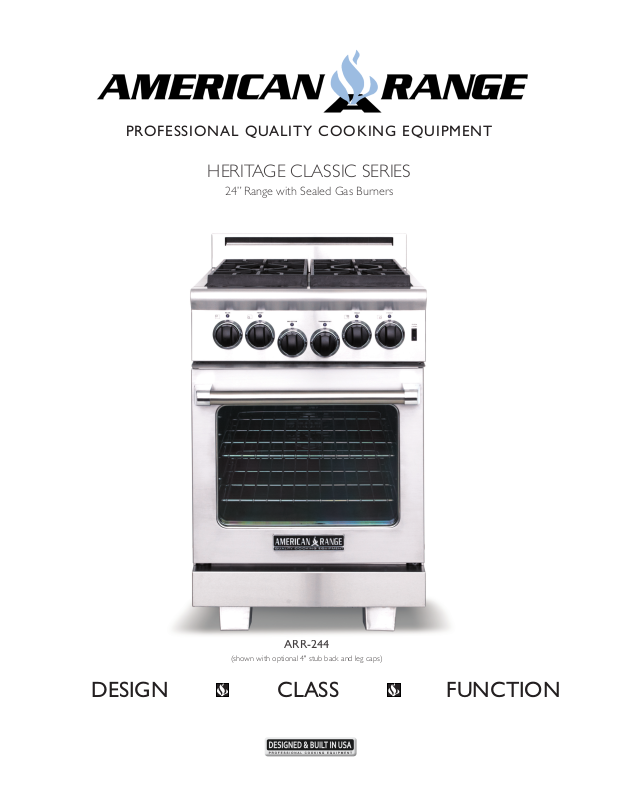

(shown with optional 4" stub back and leg caps)
24” RESIDENTIAL GAS RANGE
Porcelain
Jitterbug
Hammered
Mirrored
Blackened
Oil Rubbed
Hammered
Oil Rubbed
Textured Flat
RANGE TOP FEATURES
• Sealed burners deliver exceptional performance at every level
setting and lift off to provide easy cleanup
• 3 sizes of burners to serve your everyday needs:
17,000 BTU (lg), 13,000 BTU (med), 9,000 BTU (sm)
• Variable innite ame settings for all sealed top burners
• Fail-safe system ensures re-ignition in the event the ame
goes out even on the lowest burner setting
• Continuous and ush commercial-grade cast iron grates allow for
easy transfer of pots and pans across the entire cooking surface
• Sealed Single Piece tooled stainless steel cook top can hold
more than a gallon of spills
• Analog controls provide easy, push and turn operation
ensuring child safety
• Blue LED light indicate ame and oven functions provided with every knob
• Heavy metal die-cast black satin knobs with chrome bezels
OVEN FEATURES
• Multiple functions include: Standard Bake, Innovection®
Convection Bake, Infrared Broil and Fan mode
• Innovection® System with convection fan optimizes uniform air ow
• Two chrome racks glide at 6 (including base) cooking levels on heavy
chrome side supports
• Front panel switch controls oven lighting for optimal visibility
ACCESSORIES & OPTIONS
Island Back (standard) ARR-24SIB-H 20” High Back w/ Shelf ARR-2421HBS-H Set of 2 Casters ARR-2CAS-H Porcelainized Broiler Pan R31005
Island Back (welded) ARR-24IB-H S/S Curb Base ARR-24CB-H 12” Cutting Board ARR-CUTB-12-H Wok Adapter ARR-WOK-H
4” Stub Back ARR-244SB-H S/S Leg Caps (2) ARR-2LC-H 12” Griddle Plate ARR-PGP12-H
INNOVECTION® CONVECTION OVEN TECHNOLOGY
Balanced turbulent heat distribution is essential when baking,
roasting, and dehydrating food.
The American Range Innovection® convection oven technology
features dual convection motors and louvered side panels to
enhance uniform heat distribution throughout the large
oven cavity.
The strategic placement of the dual Innovection® convection
fans ensures consistent heat distribution even when challenged
with cooking the largest turkey, ham or roast.
INNOVECTION® CONVECTION OVEN IS GREEN TECHNOLOGY
The highly efcient design of the Innovection® Convection Oven uses
19% less gas versus a standard convection oven.
TECHNICAL SPECIFICATIONS
Overall Oven Capacity 3.8 CU. FT.
Oven Dimensions 20-1/2” W x 20-1/2” D x 15-1/2” H
Surface Burner Rating 17,000 BTU (lg) - 13,000 BTU (md) - 9,000 BTU (sm)
Infrared Broiler 18,000 BTU
Oven Bake Burner 30,000 BTU
Total Gas Connection Rating ARR-244 104,000 BTU 4 burners
Gas Supply 7” W.C. Natural, 11” W.C Propane
Electrical Supply 120 VAC 15 AMP 60 Hz Single Phase
Shipping Weight 340 Lbs
CUSTOMIZE YOUR RANGE: Now you can customize your American Range to match your kitchen setting. Pick from numerous colors and nishes to
give your range a unique one-of-a-kind look. For more details regarding color and nish options, go to our website: www.americanrange.com.
DESIGNER COLORS
Crimson Red
N = Natural gas Must ship from factory with proper gas type.
L = LP Gas Must provide N or L after model number for type of gas needed.
Example: ARR-304
Must specify elevation if over 1000 ft. when ordering.
Sapphire Blue
Dark Blue Alpine White Sandstone Gun Metal GreyRaven Black
23-7/8"
Yellow Forest Green Chocolate
30 -1/2"
ARR-244
37-3/4±1/2"
COMBUSTIBLE MATERIAL
30'' TO VENTILATION HOOD
COOKING
TO COMBUSTIBLE
MATERIAL OR
BOTTOM OF
VENTILATION
MIN COMBUSTIBLE
MATERIAL
FINISHED OPENING WIDTH
MIN
SURFACE
HOOD
COOKING SURFACE
DESIGNER FINISHES
Finish
Bronze
36''
MIN COMBUSTIBLE
MATERIAL
24''
S/S
Bronze
6''6''
Brushed S/S
Black
ISLAND TRIM REQUIRES 10'' MINIMUM
DISTANCE FROM REAR COMBUSTIBLE
WALL
18''
MIN COMBUSTIBLE
TO COOKING SURFACE
36''
Polished S/S
COOKING SURFACE
37''
Powder
Coat Biscuit
Custom
Finishes
Available
13''
CABINET
DEPTH
Steel
R70404
3-1/2''
10''
G E
6-7/8''
ARR-244
ISLAND OR PENINSULA INSTALLATIONS 10'' MINIMUM CLEARANCE FROM BACK OF RANGE TO COMBUSTIBLE SURFACE ISLAND TRIM IS 0''.
CLEARANCE TO NON COMBUSTIBLE SURFACE
NO SIDE WALL ABOVE COOKING SURFACE
13592 Desmond St., Pacoima, CA 91331 818.897.0808 888.753.9898 tel www.americanrange.com
LOCATION OF GAS AND ELECTRICAL SUPPLY
EG
