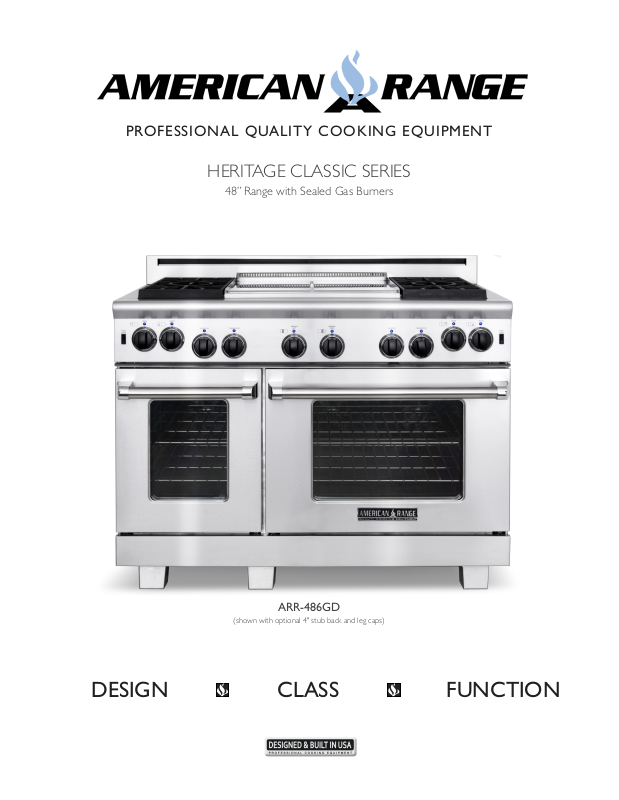

PROFESSIONAL QUALITY COOKING EQUIPMENT
DESIGN CLASS FUNCTION
HERITAGE CLASSIC SERIES
48” Range with Sealed Gas Burners
ARR-486GD
(shown with optional 4" stub back and leg caps)
Page 2

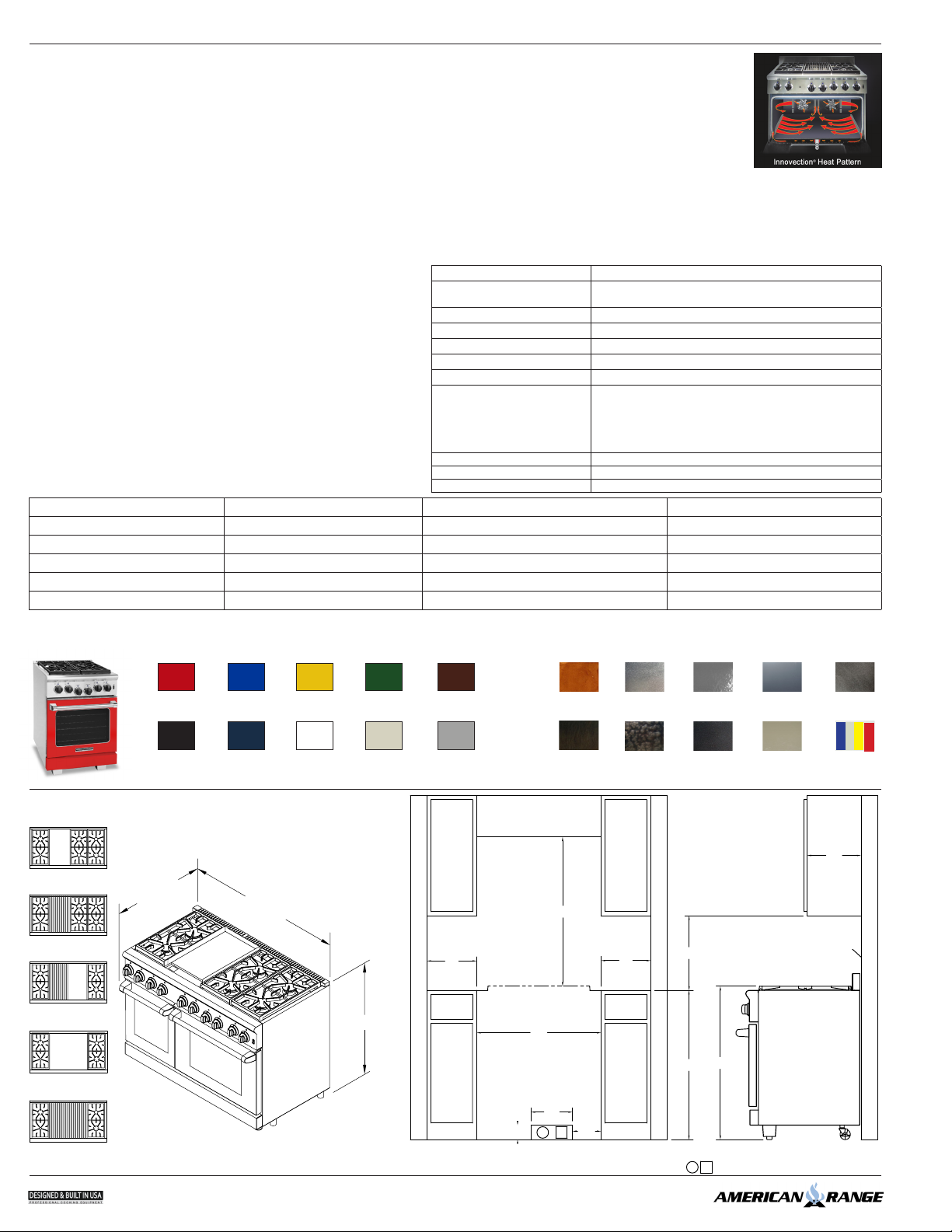

48” RESIDENTIAL GAS RANGE
Porcelain
Jitterbug
Hammered
Mirrored
Blackened
Oil Rubbed
Textured Flat
RANGE TOP FEATURES
• Sealed burners deliver exceptional performance at every level
setting and lift off to provide easy cleanup
• 3 sizes of burners to serve your everyday needs:
17,000 BTU (lg), 13,000 BTU (med), 9,000 BTU (sm)
• Variable innite ame settings for all sealed top burners
• Fail-safe system ensures re-ignition in the event the ame
goes out even on the lowest burner setting
• Continuous and ush commercial-grade cast iron grates allow for
easy transfer of pots and pans across the entire cooking surface
• Sealed Single Piece tooled stainless steel cook top can hold
more than a gallon of spills
• Analog controls provide easy, push and turn operation
ensuring child safety
• Blue LED light indicate ame and oven functions provided with every knob
• Heavy metal die-cast black satin knobs with chrome bezels
OVEN FEATURES
• Multiple functions include: Standard Bake, Innovection®
Convection Bake, Infrared Broil and Fan mode
• Innovection® System with convection fan optimizes uniform air ow
• Two chrome racks glide at 6 (including base) cooking levels on heavy
chrome side supports
• Accommodates full size commercial sheet pan
• Two lights in each oven are controlled from the front panel switch
ACCESSORIES AND OPTIONS
Island back (standard) ARR-48SIB-H Casters (Set of 3) ARR-3CAS-H 24” Griddle Cover ARR-GDCOV24-S-H 22” Chrome Grooved Griddle MCGG-H
Island back (welded) ARR-48IB-H 12” Cutting Board ARR-CUTB12-H 24” Grill Cover ARR-GRCOV24-H 22” Chrome Griddle w/ Separator MCSP-H
4” Stub Back ARR-484SB-H 12” Griddle Cover ARR-GDSCOV12-H 11” Chrome Flat Griddle Plate MC11-FS-H Porcelainized Broiler Pan R31005
20” High back w/ Shelf ARR-4821HBS-H 12” Grill Cover ARR-GRCOV12-H 11” Chrome Grooved Griddle Plate MC11-GG-H Wok Adapter ARR-WOK-H
S/S Curb base ARR-48CB-H 12” Griddle Plate ARR-PGP12-H 22” Chrome Flat Griddle Plate MC22-FS-H
Stainless Steel Leg Caps (3) ARR-3LC-H 24” Griddle Plate ARR-PGP24-H 22” Chrome L- Flat R - Grooved Griddle MC-HG-H
CUSTOMIZE YOUR RANGE: Now you can customize your American Range to match your kitchen setting. Pick from numerous colors and nishes to
give your range a unique one-of-a-kind look. For more details regarding color and nish options, go to our website: www.americanrange.com.
DESIGNER COLORS
INNOVECTION® CONVECTION OVEN TECHNOLOGY
Balanced turbulent heat distribution is essential when baking,
roasting, and dehydrating food.
The American Range Innovection® convection oven technology
features dual convection motors and louvered side panels to
enhance uniform heat distribution throughout the large
oven cavity.
The strategic placement of the dual Innovection® convection fans
ensures consistent heat distribution even when challenged with
cooking the largest turkey, ham or roast.
INNOVECTION® CONVECTION OVEN IS GREEN TECHNOLOGY
The highly efcient design of the Innovection® Convection Oven uses
19% less gas versus a standard convection oven.
TECHNICAL SPECIFICATIONS
Overall Oven Capacity 2.7 CU. FT. (18” oven) - 4.9 CU. FT. (30” oven)
Oven Dimensions
14-1/2” W x 20-1/2” D x 15-1/2” H (18” oven)
26-1/2” W x 20-1/2” D x 15-1/2” H (30” oven)
Surface Burner Rating 17,000 BTU (lg) - 13,000 BTU (md) - 9,000 BTU (sm)
Griddle Burner Rating 20,000 BTU for every 11” section
Grill Burner Rating 18,000 BTU for every 11” section
Infrared Broiler 18,000 BTU each oven
Oven Bake Burner 30,000 BTU each oven
ARR-486GD 190,000 BTU 6 burners & griddle
Total Gas Connection Rating
per model #
ARR-486GR 188,000 BTU 6 burners & grill
ARR-484GDGR 178,000 BTU 4 burners, griddle & grill
ARR-4842GD 180,000 BTU 4 burners double griddle
ARR-484X2GR 176,000 BTU 4 burners double grill
Gas Supply 7” W.C. Natural, 11” W.C. Propane
Electrical Supply 120 VAC 15 AMP 60 Hz Single Phase
Shipping Weight 660 Lbs
DESIGNER FINISHES
ARR - 486GD
ARR - 486GR
ARR - 484GDGR
ARR - 4842GD
ARR - 484X2GR
R70407
Crimson Red
N = Natural gas Must ship from factory with proper gas type.
L = LP Gas Must provide N or L after model number for type of gas needed.
Example: ARR-304
Must specify elevation if over 1000 ft. when ordering.
30 -1/2"
Sapphire Blue
Dark Blue Alpine White Sandstone Gun Metal GreyRaven Black
47-7/8"
Yellow Forest Green Chocolate
37-3/4±1/2"
ARR-486GD
13592 Desmond St., Pacoima, CA 91331 818.897.0808 888.753.9898 tel www.americanrange.com
Finish
Bronze
COMBUSTIBLE MATERIAL
30'' TO VENTILATION HOOD
MIN
COOKING
SURFACE
TO COMBUSTIBLE
MATERIAL OR
BOTTOM OF
VENTILATION
HOOD
MIN COMBUSTIBLE
MATERIAL
COOKING SURFACE
FINISHED OPENING WIDTH
3-1/2''
ISLAND OR PENINSULA INSTALLATIONS 10'' MINIMUM CLEARANCE FROM BACK OF RANGE TO COMBUSTIBLE SURFACE ISLAND TRIM IS 0''.
CLEARANCE TO NON COMBUSTIBLE SURFACE
NO SIDE WALL ABOVE COOKING SURFACE
36”
48''
10''
G E
MIN COMBUSTIBLE
MATERIAL
6-7/8''
S/S
Hammered
Oil Rubbed
Bronze
6''6''
Brushed S/S
Black
ISLAND TRIM REQUIRES 10” MINIMUM
DISTANCE FROM REAR COMBUSTIBLE
WALL
18''
MIN COMBUSTIBLE
TO COOKING SURFACE
36''
G
Polished S/S
Coat Biscuit
COOKING SURFACE
37''
LOCATION OF GAS AND ELECTRICAL SUPPLYE
Powder
Custom Finishes
Steel
Available
13''
CABINET
DEPTH
