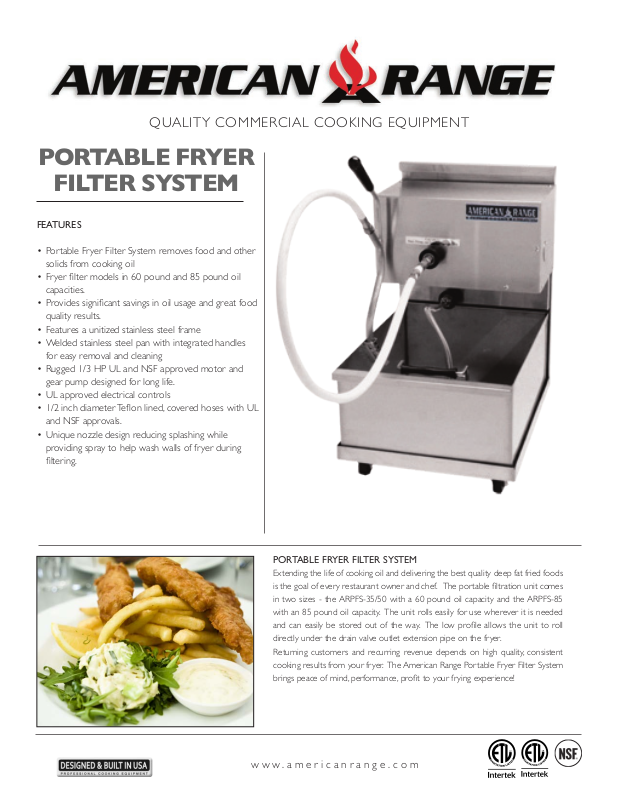

Page 1
QUALITY COMMERCIAL COOKING EQUIPMENT
PORTABLE FRYER
FILTER SYSTEM
FEATURES
• Portable Fryer Filter System removes food and other
solids from cooking oil
• Fryer lter models in 60 pound and 85 pound oil
capacities.
• Provides signicant savings in oil usage and great food
quality results.
• Features a unitized stainless steel frame
• Welded stainless steel pan with integrated handles
for easy removal and cleaning
• Rugged 1/3 HP UL and NSF approved motor and
gear pump designed for long life.
• UL approved electrical controls
• 1/2 inch diameter Teon lined, covered hoses with UL
and NSF approvals.
• Unique nozzle design reducing splashing while
providing spray to help wash walls of fryer during
ltering.
PORTABLE FRYER FILTER SYSTEM
Extending the life of cooking oil and delivering the best quality deep fat fried foods
is the goal of every restaurant owner and chef. The portable ltration unit comes
in two sizes - the ARPFS-35/50 with a 60 pound oil capacity and the ARPFS-85
with an 85 pound oil capacity. The unit rolls easily for use wherever it is needed
and can easily be stored out of the way. The low prole allows the unit to roll
directly under the drain valve outlet extension pipe on the fryer.
Returning customers and recurring revenue depends on high quality, consistent
cooking results from your fryer. The American Range Portable Fryer Filter System
brings peace of mind, performance, prot to your frying experience!
www.americanrange.com
Page 2
PORTABLE FRYER FILTER SYSTEM
27
1
8
(689)
1
29
2
PRODUCT
MODEL MAIN BURNERS WIDTH TOTAL BTU’S SHIP WEIGHT
ARPC-18 3 RING 18” 80,000 350 LBS.
ARPFS-35/50 and ARPFS-85
FEATURES
• A unitized stainless steel frame
• Welded stainless steel pan with integrated handles
for easy removal and cleaning
• Rugged 1/3 HP UL and NSF approved motor and
gear pump designed for long life.
• UL approved electrical controls
• 1/2 inch diameter Teon lined, covered hoses with UL
and NSF approvals.
• Unique nozzle design
• Low prole to t under drain valve tube
• Uses industry standard SuperSorb CarbonPad lter
3
(425)(749)
16
4
PORTABLE FRYER FILTER SYSTEM
Model ARPFS-35/50
Pan dimensions: 16” wide by 20” deep x 9” high
Total Pan Capacity: 1.63 cubic feet or 12.1 gallons of oil
Oil Capacity: 60 pounds of oil or 7.7 gallons
Pump/Motor:
Haight 5E Hot Oil Hub Mount Pump
Capacity: 4.6 GPM at 1750 RPM
1/3 HP, Capacitor Start
Rotary Gear, positive displacement pump
120 VAC, 6.2 AMP, 60 Hz
Electrical Service: Standard 3 wire 120 VAC plug in cord.
Model ARPFS-85
Pan dimensions: 16” wide by 26” deep x 9” high
Total Pan Capacity: 2.1 cubic feet or 16.2 gallons of oil
Oil Capacity: 85 pounds of oil or 10.9 gallons
Pump/Motor:
Haight 5E Hot Oil Hub Mount Pump
Capacity: 4.6 GPM at 1750 RPM
1/3 HP, Capacitor Start
Rotary Gear, positive displacement pump
120 VAC, 6.2 AMP, 60 Hz
Electrical Service: Standard 3 wire 120 VAC plug in cord.
As product improvement is an ongoing process at
American Range, we reserve the right to change
specications or design without prior notice.
A70188 041712
Quality Commercial Cooking Equipment
13592 Desmond St. Pacoima CA 91331
T. 818.897.0808 F. 818.897.1670
Toll Free: 888.753.9898
www.americanrange.com
