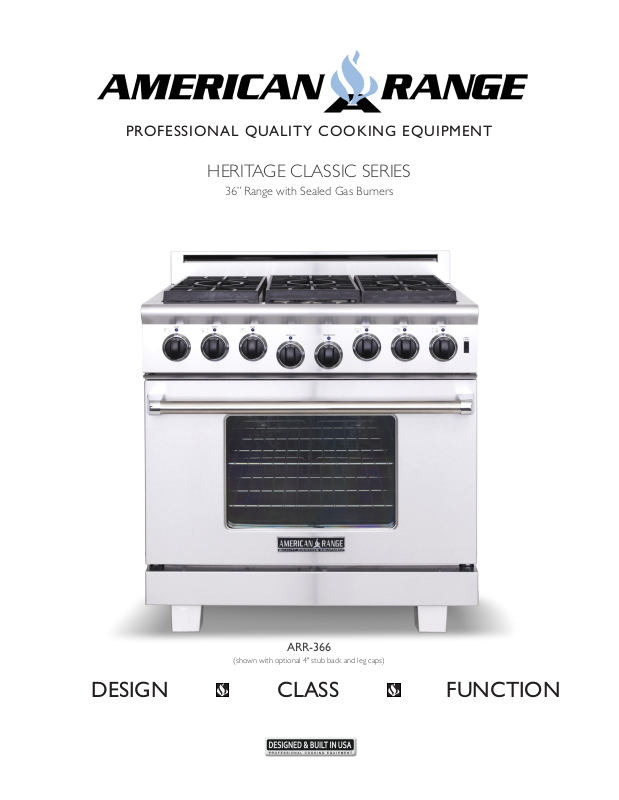

PROFESSIONAL QUALITY COOKING EQUIPMENT
DESIGN CLASS FUNCTION

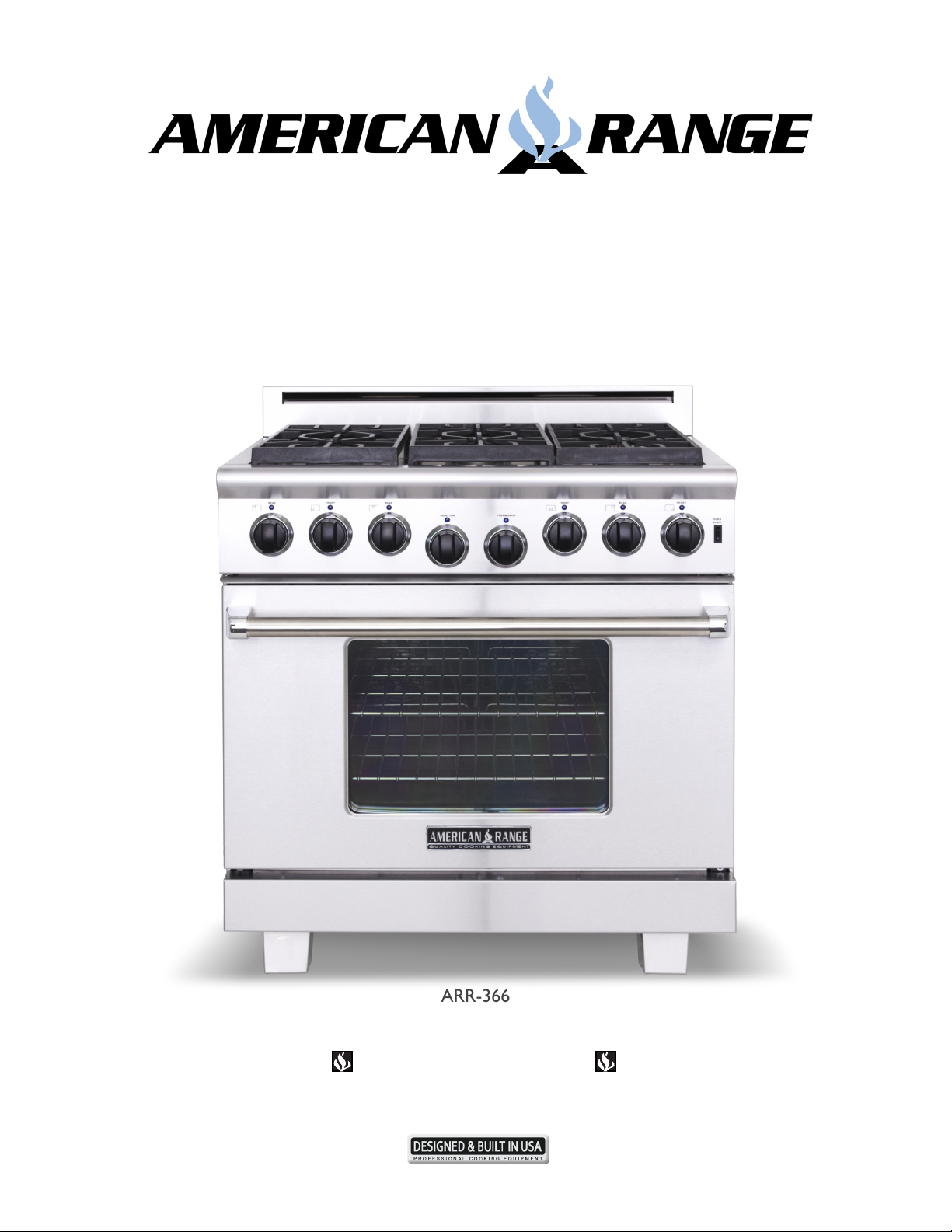

HERITAGE CLASSIC SERIES
36” Range with Sealed Gas Burners
ARR-366
(shown with optional 4" stub back and leg caps)
Page 2

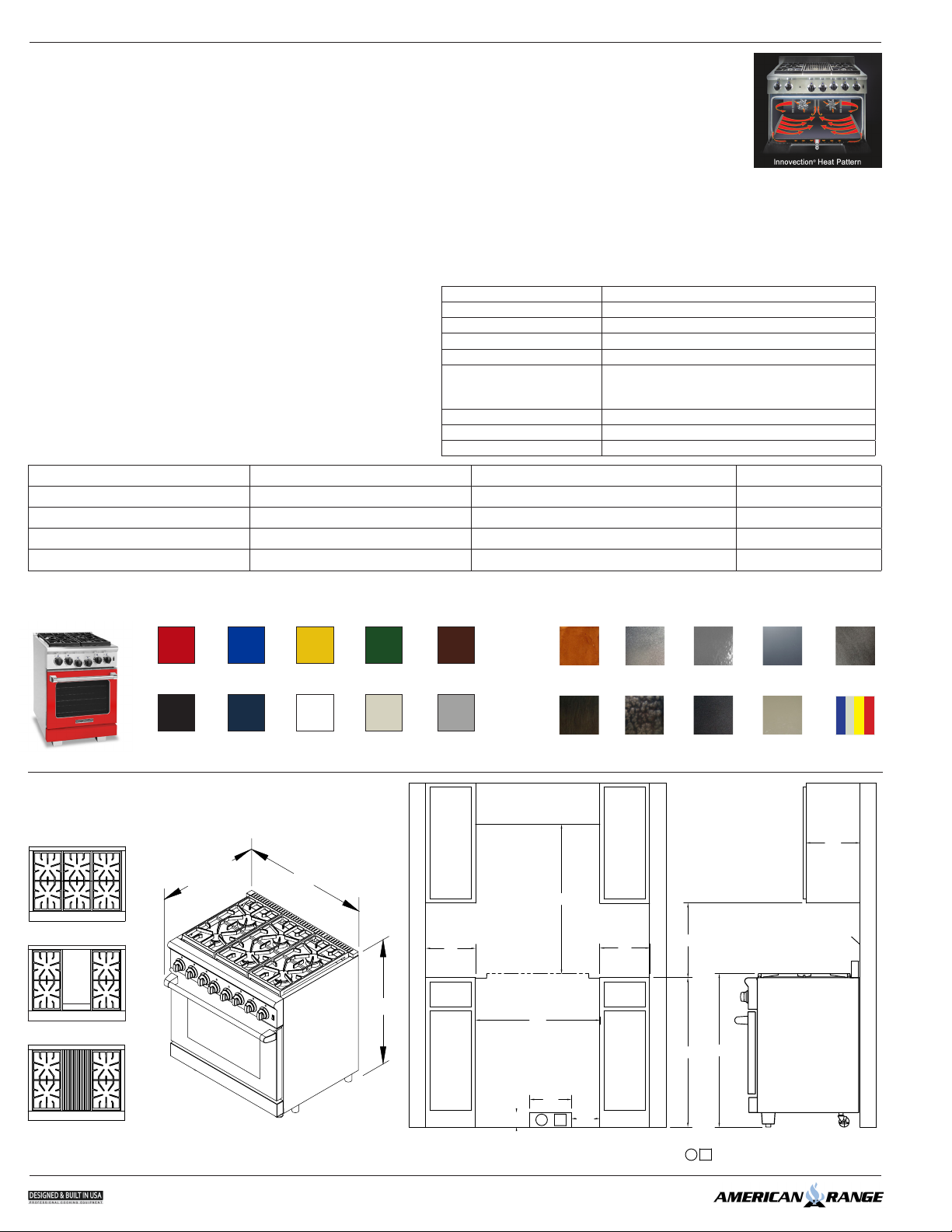

36” RESIDENTIAL GAS RANGE
Porcelain
Jitterbug
Hammered
Mirrored
Blackened
Oil Rubbed
Hammered
Oil Rubbed
Textured Flat
RANGE TOP FEATURES
• Sealed burners deliver exceptional performance at every level
setting and lift off to provide easy cleanup
• 3 sizes of burners to serve your everyday needs:
17,000 BTU (lg), 13,000 BTU (med), 9,000 BTU (sm)
• Variable innite ame settings for all sealed top burners
• Fail-safe system ensures re-ignition in the event the ame
goes out even on the lowest burner setting
• Continuous and ush commercial-grade cast iron grates allow for
easy transfer of pots and pans across the entire cooking surface
• Sealed Single Piece tooled porcelainized cook top can hold
more than a gallon of spills
• Analog controls provide easy, push and turn operation
ensuring child safety
• Blue LED light indicate ame and oven functions provided with every knob
• Heavy metal die-cast black satin knobs with chrome bezels
OVEN FEATURES
• Multiple functions include: Standard Bake, Innovection®
Convection Bake, Infrared Broil and Fan mode
• Innovection® System with convection fan optimizes uniform air ow
• Two chrome racks glide at 6 (including base) cooking levels on heavy
chrome side supports
• Accommodates full size commercial sheet pan
• Two lights in each oven are controlled from the front panel switch
ACCESSORIES & OPTIONS
Island back (standard) ARR-36SIB-H S/S Leg Caps (2) ARR-2LC-H 12” Griddle Plate ARR-PGP12-H Wok Adapter ARR-WOK-H
Island back (welded) ARR-36IB-H Casters (Set of 2) ARR-2CAS-H 24” Griddle Plate ARR-PGP24-H
4” Stub Back ARR-364SB-H 12” Cutting Board ARR-CUTB-12-H 11” Chrome Flat Griddle Plate MC11-FS-H
20” High back w/ Shelf ARR-3621HBS-H 12” Griddle Cover ARR-GDSCOV12-S-H 11” Chrome Grooved Griddle Plate MC11-GG-H
S/S Curb base ARR-36CB-H 12” Grill Cover ARR-GRCOV12-H Porcelainized Broiler Pan R31005
CUSTOMIZE YOUR RANGE: Now you can customize your American Range to match your kitchen settings. Pick from numerous colors and nishes to
give your range a unique one-of-a-kind look. For more details regarding color and nish options, go to our website: www.americanrange.com.
DESIGNER COLORS
INNOVECTION® CONVECTION OVEN TECHNOLOGY
Balanced turbulent heat distribution is essential when baking,
roasting, and dehydrating food.
The American Range Innovection® convection oven technology
features dual convection motors and louvered side panels to
enhance uniform heat distribution throughout the large
oven cavity.
The strategic placement of the dual Innovection® convection
fans ensures consistent heat distribution even when challenged
with cooking the largest turkey, ham or roast.
INNOVECTION® CONVECTION OVEN IS GREEN TECHNOLOGY
The highly efcient design of the Innovection® Convection Oven uses
19% less gas versus a standard convection oven.
TECHNICAL SPECIFICATIONS
Overall Oven Capacity 6.0 CU. FT.
Oven Dimensions 32-1/2” W x 20-1/2” D x 15-1/2” H
Surface Burner Rating 17,000 BTU (lg) - 13,000 BTU (md) - 9,000 BTU (sm)
Infrared Broiler 18,000 BTU
Oven Bake Burner 30,000 BTU
ARR-366 134,000 BTU 6 burners
Total Gas Connection Rating
ARR-364GD 124,000 BTU 4 burners and griddle
ARR-364GR 122,000 BTU 4 burners and grill
Gas Supply 7” W.C. Natural, 11” W.C. Propane
Electrical Supply 120 VAC 15 AMP 60 Hz Single Phase
Shipping Weight 440 Lbs
DESIGNER FINISHES
Crimson Red
Raven Black
N = Natural gas Must ship from factory with proper gas type.
L = LP Gas Must provide N or L after model number for type of gas needed.
Example: ARR-304
Must specify elevation if over 1000 ft. when ordering.
Sapphire Blue
Dark Blue
30 -1/2"
ARR-366
ARR364GD
ARR364GR
Yellow
Alpine White
36"
ARR-366
Forest Green
Sandstone
Chocolate
Gun Metal Grey
30'' TO VENTILATION HOOD
TO COMBUSTIBLE
MIN COMBUSTIBLE
MATERIAL
Finish
Bronze
COMBUSTIBLE MATERIAL
MIN
COOKING
SURFACE
MATERIAL OR
BOTTOM OF
VENTILATION
HOOD
COOKING SURFACE
36''
MIN COMBUSTIBLE
MATERIAL
S/S
Bronze
6''6''
Brushed S/S
Black
ISLAND TRIM REQUIRES 10” MINIMUM
DISTANCE FROM REAR COMBUSTIBLE
WALL
18''
MIN COMBUSTIBLE
TO COOKING SURFACE
Polished S/S
Powder
Coat Biscuit
COOKING SURFACE
37"
3-1/2''
36''
10''
G E
6-7/8''
36”
37”
LOCATION OF GAS AND ELECTRICAL SUPPLYE
G
FINISHED OPENING WIDTH
ISLAND OR PENINSULA INSTALLATIONS 10'' MINIMUM CLEARANCE FROM BACK OF RANGE TO COMBUSTIBLE SURFACE ISLAND TRIM IS 0''.
CLEARANCE TO NON COMBUSTIBLE SURFACE
NO SIDE WALL ABOVE COOKING SURFACE
Custom
Finishes
Available
13''
CABINET
DEPTH
Steel
R70406
