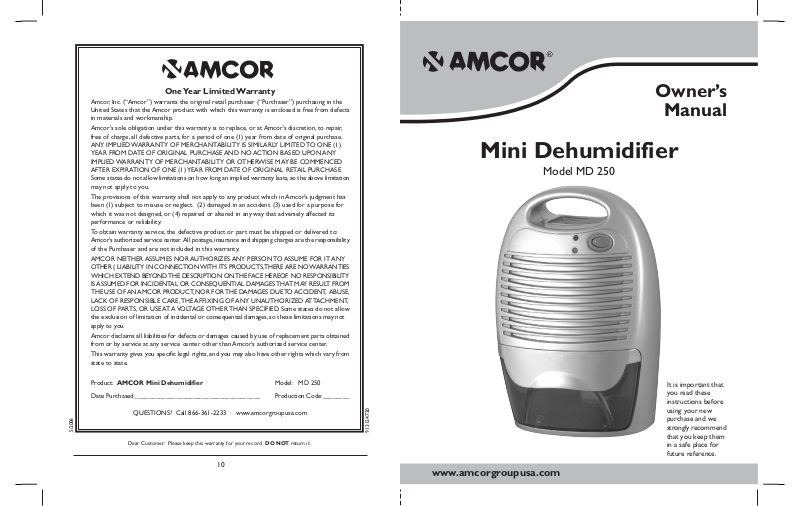

One Year Limited Warranty
Amcor, Inc. (“Amcor”) warrants the original retail purchaser (“Purchaser”) purchasing in the
United States that the Amcor product with which this warranty is enclosed is free from defects
in materials and workmanship.
Amcor’s sole obligation under this warranty is to replace, or at Amcor’s discretion, to repair,
free of charge, all defective parts, for a period of one (1) year from date of original purchase.
ANY IMPLIED WARRANTY OF MERCHANTABILITY IS SIMILARLY LIMITED TO ONE (1)
YEAR FROM DATE OF ORIGINAL PURCHASE AND NO ACTION BASED UPON ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR OTHERWISE MAY BE COMMENCED
AFTER EXPIRATION OF ONE (1) YEAR FROM DATE OF ORIGINAL RETAIL PURCHASE.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you.
The provisions of this warranty shall not apply to any product which in Amcor’s judgment has
been (1) subject to misuse or neglect. (2) damaged in an accident. (3) used for a purpose for
which it was not designed, or (4) repaired or altered in any way that adversely affected its
performance or reliability.
To obtain warranty service, the defective product or part must be shipped or delivered to:
Amcor’s authorized service center. All postage, insurance and shipping charges are the responsibility
of the Purchaser and are not included in this warranty.
AMCOR NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO ASSUME FOR IT ANY
OTHER ( LIABILITY IN CONNECTION WITH ITS PRODUCTS, THERE ARE NO WARRANTIES
WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. NO RESPONSIBILITY
IS ASSUMED FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES THAT MAY RESULT FROM
THE USE OF AN AMCOR PRODUCT, NOR FOR THE DAMAGES DUE TO ACCIDENT, ABUSE,
LACK OF RESPONSIBLE CARE, THE AFFIXING OF ANY UNAUTHORIZED ATTACHMENT,
LOSS OF PARTS, OR USE AT A VOLTAGE OTHER THAN SPECIFIED. Some states do not allow
the exclusion of limitation of incidental or consequential damages, so these limitations may not
apply to you.
Owner’s
Manual
Mini Dehumidifier
Model MD 250
Owner’s Manual
5/2006
Amcor disclaims all liabilities for defects or damages caused by use of replacement parts obtained
from or by service at any service center other than Amcor’s authorized service center.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
Product: AMCOR Mini Dehumidifier Model: MD 250
Date Purchased:_____________________________________ Production Code:________
QUESTIONS? Call 866-361-2233 · www.amcorgroupusa.com
Dear Customer: Please keep this warranty for your record. DO NOT return it.
10
913124720
It is important that
you read these
instructions before
using your new
purchase and we
strongly recommend
that you keep them
in a safe place for
future reference.
www.amcorgroupusa.com
Table of Contents
Troubleshooting
Problem Cause Solution
Never try to repair or dismantle the air conditioner yourself. Tampering with the unit
may result in the loss of warranty and can endanger the user and property.
THANK YOU..............................................................................................................................1
Energy Saving Tips ......................................................................................................................................................1
SPECIFICATIONS.......................................................................................................................2
SAFETY .........................................................................................................................................3
BEFORE USE................................................................................................................................4
FEATURES AND BENEFITS.....................................................................................................5
OPERATION ..........................................................................................................................6-7
MAINTENANCE ........................................................................................................................8
TROUBLESHOOTING .............................................................................................................9
WARRANTY.............................................................................................................................10
The Unit
Does Nothing
Poor Airflow
No power supply. Make sure outlet works and the transformer
is pushed completely into the outlet.
Breaker was tripped. Reset Breaker.
Bucket is full. Unit shuts off when bucket is full.
Empty the bucket.
Ambient temperature is Unit will restart after shutting off
above 122° or below 32°F. for 3 minutes.
Normal operation in initial Frost will usually disappear within 60
stage of operation. minutes unless temperature is below 60°F
Airflow is restricted Make sure there are no curtains, blinds or
furniture blocking the front or back of unit.
Dirty Air Filter Clean the filter.
If this product is defective or not working properly,
please DO NOT return to your retail store.
Please contact Amcor for service or technical assistance.
www.amcorgroupusa.com
9
Maintenance
Thank You!
Cleaning
Turn the dehumidifier off and remove the plug from the wall outlet before cleaning.
Use water and mild detergent to clean the inlet and outlet grilles.
Do not use bleach or abrasives.
Filter
The air filter is on the front of the dehumidifier. It should be checked and cleaned when
needed (at least every 2 to 3 weeks).
• Remove the filter from the unit
• Clean in lukewarm water
• Dry thoroughly.
Never operate the MD 250 without filter.
Thank you for purchasing an AMCOR Mini Dehumidifier. AMCOR is a leading brand
in indoor air treatment. We would like you to enjoy the many benefits this unit
offers, so please read this manual carefully and take full advantage of the many
advanced features that your AMCOR Dehumidifier offers you.
AMCOR has specialized in complete indoor environment control, manufacturing
world-class air conditioners, dehumidifiers and air purifiers with innovative technology.
In designing these advanced products, we have listened carefully to our customers
and have passed their views on to our research and development laboratories.
We wish you many years of enjoyable use.
After reading this manual, please keep it in a safe place for future reference.
Energy Saving Tips
• Do not locate the dehumidifier where furniture or other objects
can obstruct the airflow.
• Keep the filters clean.
8
1
Specifications
Model Number MD 250
Operation
1. Ensure unit is “OFF” when connecting the power cord.
2. Ensure that the filter and front vents are clean and not obstructed so air can
circulate freely through the unit.
3. The “GREEN” LED is on when in operation. The unit will switch off automatically and
the “RED” LED illuminate when the water tank is full.
Voltage (VDC) 12V
Power Input (W) 40W
Water Tank Capacity 1 pint
Moisture Removal 5.4 oz.
(ounces/24 hr @ 80°F 60% RH)
Weight 2.2 lbs.
Dimensions 10"H x 7"W x 6"D
4. To remove the water tank, first turn off the Mini Dehumidifier.
Hold the top of the unit, then remove the water tank and empty.
Replace the water tank back into the unit.
To continue dehumidifying, press the “ON/OFF” button to “ON” position again.
If the “BUCKET FULL” light comes on when using the unit for the first time, take the
bucket out and put it in again. The light will go off.
Emptying the Water Tank
• First, turn the MD 250 OFF (switch should be in the “O” position)
• Hold the top of the unit firmly and remover the water tank
• Turn the plug and empty the water tank
• Put the plug back in and place the water tank back into the unit
• To continue dehumidifying, press the button to ON (“I” position)
DANGER
Do not use this unit in a bathroom or shower.
Do not drip water onto the adaptor or dehumidifier.
2 7
Before Use
Features and Benefits
Read this manual carefully. It contains instructions to help you use,
maintain and enjoy your mini dehumidifier.
ELECTRICAL SAFETY
Grounding
This dehumidifier must be grounded. Grounding reduces the risk of electric shock by
providing an escape wire for the electric current. The transformer has a grounding wire
with a grounding plug. Plug it into an outlet that is properly installed and grounded.
WARNING: Improper use of the grounding plug can result in a risk of electric shock. Call
a qualified electrician if you don’t understand the grounding instructions or if you are not
sure if the dehumidifier is properly grounded. If the wall outlet is not grounded, please
contact an electrician to have it replaced with a properly grounded outlet.
Do not, under any circumstances, cut or remove the third (ground) prong from the
power cord.
Adapter Plug
Because most 2-prong outlets are not grounded, we strongly advise against using an adapter
plug. However, a temporary connection may be made where local codes permit and if the
2-prong wall outlet is properly grounded. Make sure the larger prong of the adapter goes
into the large slot to provide proper polarity.
This Dehumidifier uses PELTIER technology,
which offers these features:
• Almost silent operation
• No compressor
• No refrigerant
• No noise or vibration
This Dehumidifier is ideal for:
• Closets
• Wardrobes
• Small bedrooms
• Shoe cupboards
• Under sinks
• Wherever you want to remove dampness
The Water Tank features:
• One pint capacity
• Easy to remove
• Full tank warning light
For Proper Grounding
1. Ground the adapter to the outlet by using the outlet cover screw to secure the ground
terminal to the outlet box.
2. Please confirm the outlet is grounded through the house wiring. If the grounding
connector breaks. DO NOT USE the dehumidifier until a proper ground has again
been made.
Extension Cord
If an extension cord is required to reach the nearest wall receptacle, use only a UL-listed,
3-wire, grounding type, 16 AWG, 15A, 125V appliance extension cord.
4
• Auto cut-off
This Dehumidifier also features:
• Moisture removal rate of 5.4 ounces per 24 hours @ 80ºF, 60%RH
• 12V DC Adaptor included
• Long life brushless motor
• Easy to remove washable air filter
• Compact design: Just 7"W x 6"D x 10"H and weighs 2.2 lbs
5
LED Indicators
Green: “On”
Red: “Tank Full”
Operation
Sturdy
Carrying Handle
On/Off Switch
Safety
Read Instructions Before Using
When using the mini dehumidifier, always follow basic precautions, including the following:
• This dehumidifier must be properly installed and grounded as described in this manual.
• Never operate this dehumidifier in an area that is likely to accumulate standing water.
Water
Tank
removal
Front Vent
Water tank
If this condition develops, disconnect the power supply before stepping into the water.
• Repair or replace immediately all electric service cords that have become frayed or
otherwise damaged. Do not use a power cord that shows signs of damage along its length
or either the plug or where it is connected to the appliance.
• Always unplug dehumidifier before servicing or moving the unit.
DANGER
Do not use this unit in a bathroom or shower.
Do not drip water onto the adaptor or dehumidifier.
CAUTION
For indoor use only.
12V DC Adaptor
Water Tank
Plug, Water Outlet Filter Removal
6
Sensor
3
