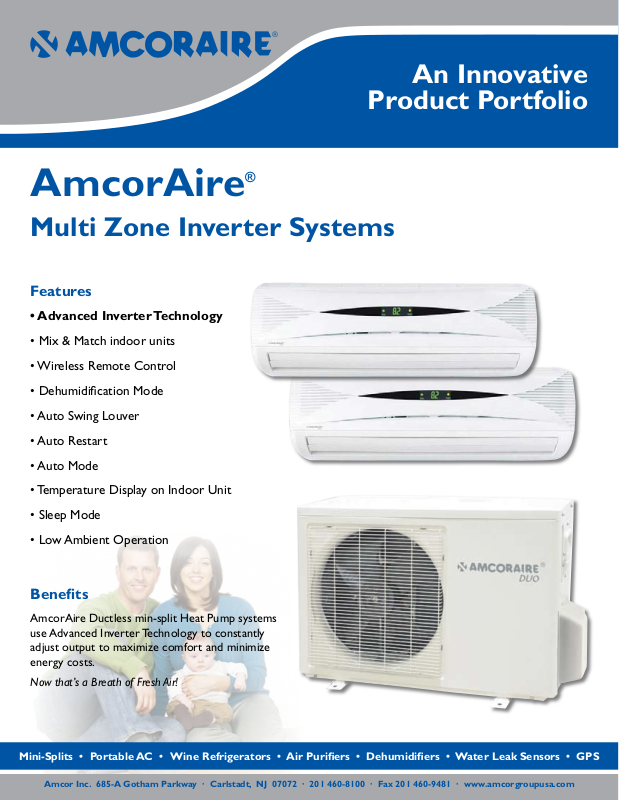

Amcor AWM 123HX User Manual

Product Portfolio

AmcorAire®

Multi Zone Inverter Systems

Features

• Advanced Inverter Technology

• Mix & Match indoor units

• Wireless Remote Control

An Innovative

• Dehumidification Mode

• Auto Swing Louver

• Auto Restart

• Auto Mode

• Temperature Display on Indoor Unit

• Sleep Mode

• Low Ambient Operation

Benefits

AmcorAire Ductless min-split Heat Pump systems
use Advanced Inverter Technology to constantly
adjust output to maximize comfort and minimize
energy costs.

Now that’s a Breath of Fresh Air!

Mini-Splits • Portable AC • Wine Refrigerators • Air Purifiers • Dehumidifiers • Water Leak Sensors • GPS

Amcor Inc. 685-A Gotham Parkway · Carlstadt, NJ 07072 · 201 460-8100 · Fax [phone] · www.amcorgroupusa.com

Indoor Model #

AWM093HX * 2 AWM093HX + AWM123HX

AWM123HX * 2

Outdoor Model #

Capacity (BTU)

Cooling

Heating

SEER

HSPF

Op Range Cool

Op Range Heat

Dehumidification (Pts/hr)

Voltage

Input Current (A)

Rated /Max Cooling

Heating

Power Use (KW)

Rated / Max Cooling

Heating

Max Overload Protection (A)

Indoor Air Circulation CFM L-M-H

Indoor Noise level dB(A) L-M-H

Indoor Fan Speeds(RPM) L-M-H

Fan Speeds

AOM183HX AOM243HX

AOM243HX

18,000(9,550-23,900) 21,000 (10,200—29,000) 24,000 (10,200—29,000)

22,000 (9,500—23,900) 23,500 (9,500—27,300) 25,000(9,500—27,300)

14.0 14.0 14.0

7.8 7.8 7.8

50—131 50—131 50—131

- 4— 89 - 4— 89 - 4— 89

1.55 1.55 / 2.11 2.11

230/208-60-1 230/208-60-1 230/208-60-1

6.0 / 10.5 8.0 / 13.0 8.0 / 13.0

6.7 / 9.8 8.7 / 12.5 8.7 / 12.5

1.38 / 2.43 1.83 / 2.93 1.83 / 2.93

1.55 / 2.35 2.0 / 2.45 2.0 / 2.45

20 25 25

190 / 306 / 353 190 / 306 / 353(218 / 406 / 459) 218 / 406 / 459

35 / 38 / 42 35 / 38 / 42 35 / 38 / 42

750 / 950 / 1150 750 / 950 / 1150(750 / 950 / 1200) 750 / 950 / 1200

3 + Auto 3 + Auto 3 + Auto

Outdoor Noise Level dB(A)

Outdoor Fan Speed (RPM)

Connection Method

Max Pipe Length (Ft.)

Max Elevation (Ft.)

Pipe Size (In.)

Service Port Connection (In.)

Indoor Dimensions W x H x D

Net Weight (lbs.)

Outdoor Dimensions

36-

Net Weight (lbs.)

Refrigerant

Some specifications above may change with with out notice. Contact Amcor for updates and review installation materials prior to installation.

57 57 57

500/750/900 500/750/900 500/750/900

Flare Flare Flare

82 82 82

33 33 33

1/4—3/8 1/4—3/8 &1/4—1/2 1/4—1/2

5/16 5/16 5/16

31-

1/8 x 10-5/8 x 8-1/4 31-1/8 x 10-5/8 x 8-1/4(36-5/8 x 10-7/8 x 8-1/4) 36-5/8 x 10-7/8 x 8-1/4

26 26(31) 31

1/2 x 27-5/8 x 14-1/4 35-3/8 x 32-1/8 x 13 35-3/8 x 32-1/8 x 13

123 143 143

R-410A R-410A R-410A

Amcor Inc. 685A Gotham Parkway, Carlstadt, NJ 07072 www.amcorgroupusa.com
