Amana Menumaster MDC182SE Service Manual

1

Service

Commercial Microwave Oven 50hz Compact Models starting at Serial No. 1910000000

Service Manual

This manual is to be used by qualified service technicians only. ACP, Inc. does not assume any responsibility for property damage or personal injury for improper service procedures done by an unqualified person.

16400045

Revision 0

December 2019

2

TABLE OF CONTENTS

Important Safety Instructions ............................................................................................. 3-4

Oven Specifications ............................................................................................................. 5

Quick Start Reference Guide ............................................................................................. 6-7

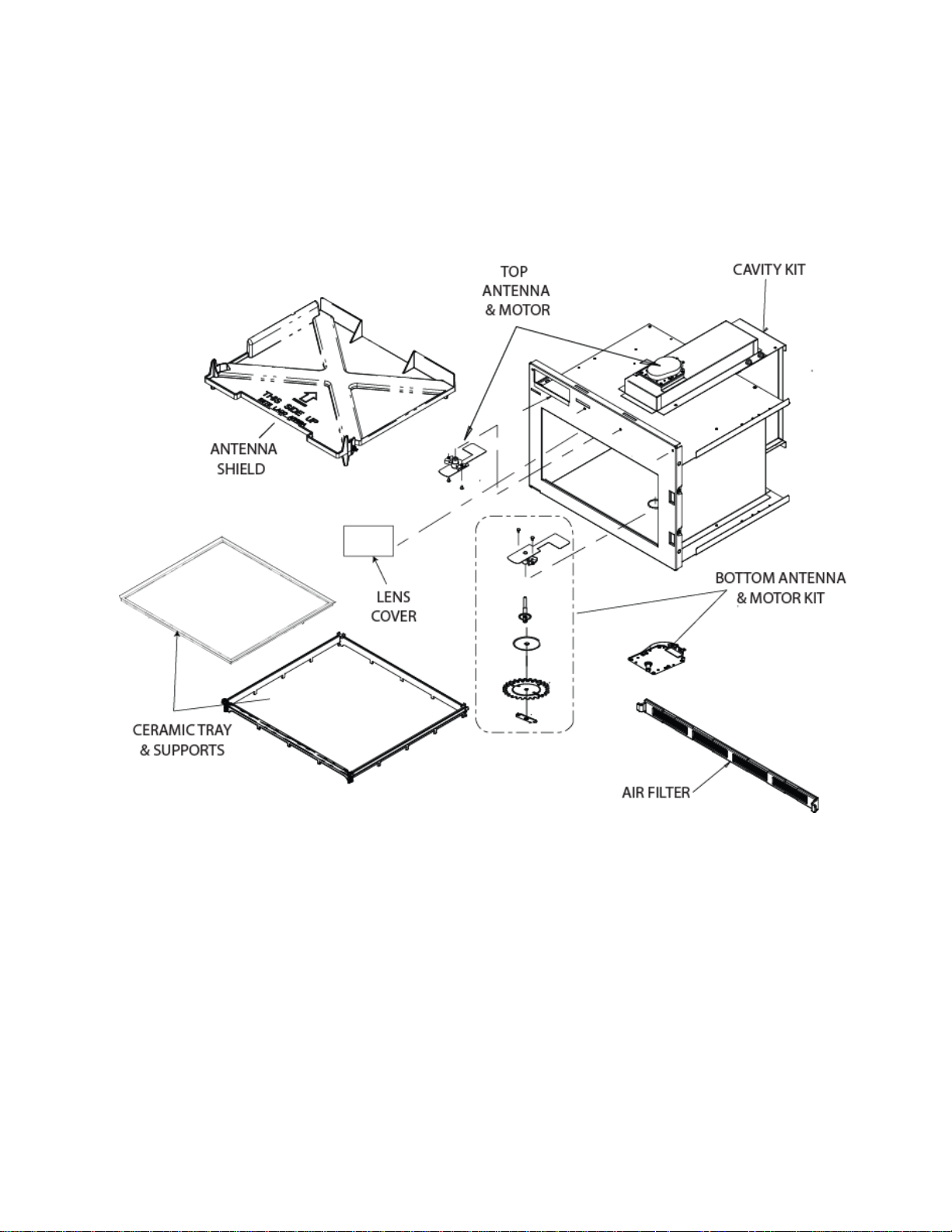

Oven Construction ........................................................................................................... 8-12

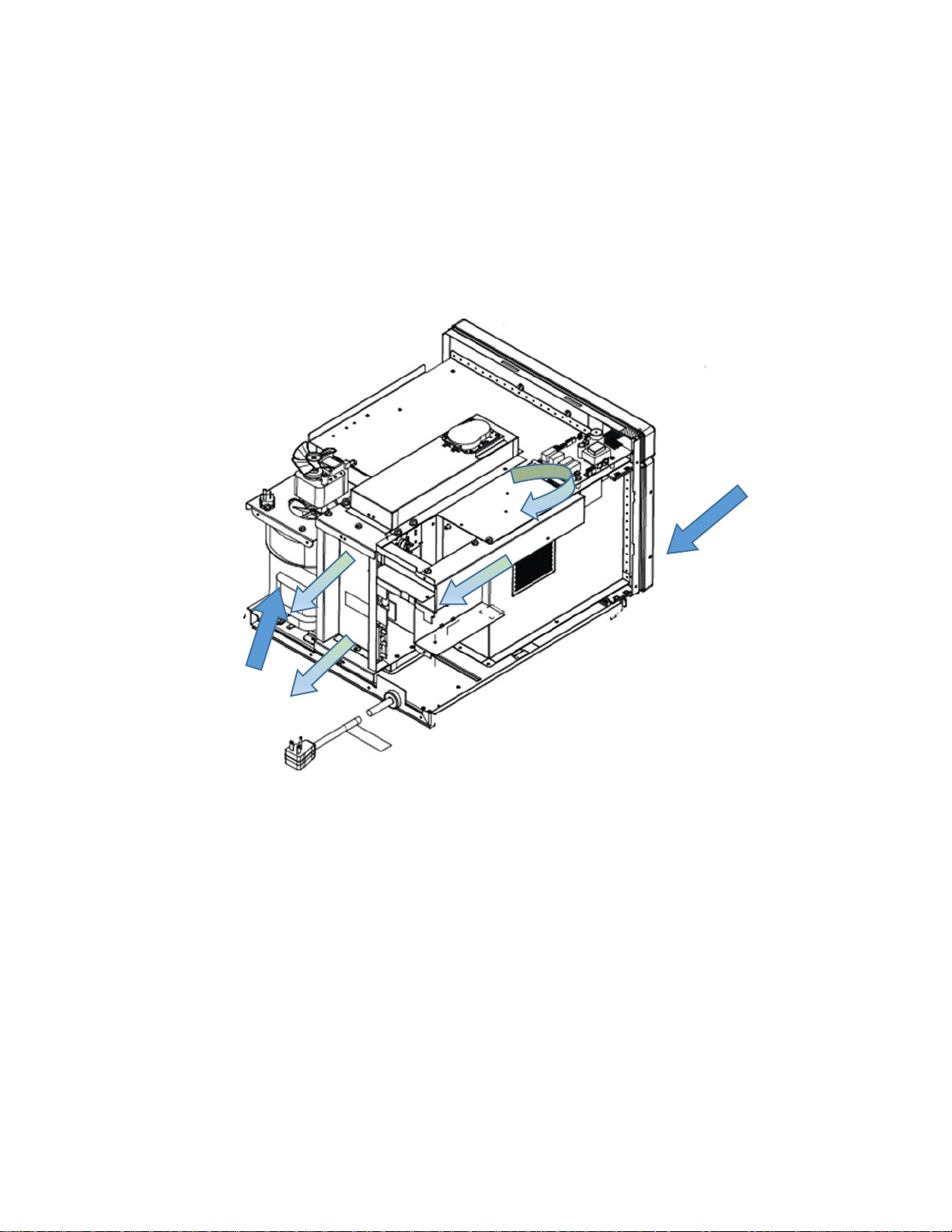

Airflow ................................................................................................................................ 13

Component Testing ....................................................................................................... 14-16

Service Mode……………………………………………………………………………………….16 Control Panel Replacement…………………………………………………………………...17-19 Power Output Test…………………………………………………………………………………20

Wiring and Schematic Diagrams......................................................................................... 21

3

IMPORTANT SAFETY INSTRUCTIONS

For additional product documentation or more detailed operating instructions visit:

www.acpsolutions.com

CONTACT INFORMATION

Any questions or to locate an authorized ACP servicer, call ACP ComServ Service Support.

–Inside the U.S.A. or Canada, call toll-free 866-426-2621. –Outside the U.S.A. and Canada, call 319-368-8120. –Email: Commercialservice@acpsolutions.com.

Warranty service must be performed by an authorized ACP servicer. ACP also recommends contacting an authorized ACP servicer, or ACP ComServ Service Support if service is required after warranty expires.

Important

Safety

Information.

Read before

using

this oven.

Keep these instructions for future reference.

If

the oven changes

ownership,

be sure this

guide

accompanies oven.

PRECAUTIONS

TO

AVOID POSSIBLE EXPOSURE

TO

EXCESSIVE MICROWAVE ENERGY

A.

DO NOT attempt to operate this oven with the door open since open door operation can result

in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

B.

DO NOT place any object between the oven front face and the door or allow soil or cleaner

residue to accumulate on sealing surfaces.

C.

DO NOT operate the oven if it is damaged.

It

is particularly important that the oven door close

properly and that there is no damage to the:

1.

door (bent)

2.

hinges and latches (broken or loosened)

3.

door seals and sealing surfaces.

D. The oven should not be adjusted or repaired by anyone except properly qualified service

personnel.

4

To avoid risk of personal injury or property damage, observe the following safety instructions:

General Use:

1.

Do not use regular cooking thermometers in oven. Most cooking thermometers contain mercury and may cause an electrical arc, malfunction, or damage to oven.

2.

Never use paper, plastic, or other combustible materials that are not intended for cooking.

3.

When cooking with paper, plastic, or other combustible materials, follow manufacturer’s recommendations on product use.

4.

Do not use paper towels which contain nylon or other synthetic fibers. Heated synthetics could melt and cause paper to ignite.

5.

To avoid surface deterioration, keep the oven in a clean condition. Infrequent cleaning could adversely affect the life of the appliance and possible result in a hazardous situation.

6.

Clean oven regularly and remove any food deposits.

Heating Foods and Liquids:

7.

Liquids such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons:

• Do not overheat the liquid.

• Stir the liquid both before and halfway through heating it.

• Do not use straight-sided containers with narrow necks.

• After heating, allow the container to stand in the microwave for a short time before removing it.

b.

Use extreme care when inserting a spoon or other utensil into the container.

8.

Do not deep fat fry in oven. Fat could overheat and be hazardous to handle.

9.

Do not cook or reheat eggs in shell or with an unbroken yolk using microwave energy. Pressure may build up and erupt. Pierce yolk with fork or knife before cooking.

10.

Pierce skin of potatoes, tomatoes, and similar foods before cooking with microwave energy. When skin is pierced, steam escapes evenly.

11.

Do not heat sealed containers or plastic bags in oven. Food or liquid could expand quickly and cause container or bag to break. Pierce or open container or bag before heating

12.

Do not heat baby bottles in oven.

13.

Baby food jars shall be open when heated and contents stirred or shaken before consumption, in order to avoid burns.

14.

Never use oven to heat alcohol or food containing alcohol as it can more easily catch fire if overheated.

Additional Microwave Oven Safety Instructions:

15.

Do not operate equipment without load or food in oven cavity.

16.

Use only popcorn in packages designed and labeled for microwave use. Popping time varies depending on oven wattage. Do not continue to heat after popping has stopped. Popcorn will scorch or burn. Do not leave oven unattended.

17.

Do not use metal utensils in oven.

18.

An authorized servicer MUST inspect equipment annually. Record all inspections and repairs for future use.

CAUTION

5

OVEN SPECIFICATIONS

CAUTION

!

All safety information must be followed

!

WARNING

To avoid risk of electrical shock, personal injury, or death, disconnect power to oven and discharge capacitor before

servicing, unless testing requires power.

Models

DEC14E2*

DEC18E2*

DEC21E2*

MCHDC521*

DEC18M/MU

DEC18MC

Power Source

Voltage AC

230

220

Amperage (single unit)

10

15

16

16A/13A

16

Frequency

50HZ

Single phase, 3 wire grounded

Yes

Power Output

Nominal microwave energy (IEC705)

1400W

1800W

2100W

1900W

2000W Number of Magnetrons

2 2 2 2 2

2

Operating frequency

2450 MHz

Power Consumption

Cook condition microwave

2100W

2900W

3100W

2900W

3100W Door Style

Window

Window or Solid

Window

Dimensions

Cabinet

Width

419 cm (16.5 in)

Height

343 cm (13.5 in)

Depth (includes door handle)

549 cm (21.63 in)

549 cm (22.63 in)

Oven Interior

Width

330 cm (13 in)

Height

171 cm (6.75 in)

Depth

305 cm (12 in)

Weight

Crated

34 kg (74 lbs)

Uncrated

31 kg (68 lbs)

Installation

Unpacking Oven

 Inspect oven for damage such as dents in door or dents inside oven cavity.  Report any dents or breakage to source of purchase immediately. Do not attempt to use oven if damaged.  Remove all materials from oven interior.  If oven has been stored in extremely cold area, wait a few hours before connecting power.

Radio Interference

Microwave operation may cause interference to radio, television, or similar. Reduce or eliminate interference by doing the following:

Clean door and sealing surfaces of oven according to instructions in “Care and Cleaning” section. Place radio, television, wireless routers, etc. as far away as possible from oven.

Use a properly installed antenna on radio, television, etc. to obtain a stronger signal reception.

6

QUICK START GUIDE

Refer to Owner’s Manual for Safety Statements. Complete Owner’s Manual available online.

(C)

(i) (ii) ( iii) (iv) (v) (vi)

OVEN CLEARANCES

A.

Allow at least 2” (5.1 cm) of clearance around top of oven. Proper air flow around oven cools electrical components. With restricted air flow, oven may not operate properly and life of electrical parts is reduced.

B.

General market models: There is not an installation clearance requirement for the back of the oven.

HDC21RB2, MCHDC21, HDC21DQ only: Allow at least 1” (2.54 cm) of

clearance around back of oven.

C.

Allow at least 1” (2.54 cm) of clearance

CONTROL PANEL FEATURES

(A)

USB Port

(B)

Display

(C)

Number Keypads

(D)

Start/ OK Keypad

(E)

Stop/ Reset Keypad

(F)

Secondary Function Keypads

To activate, press and hold corresponding number keypad.

(i)

Manual Time Entry Mode (keypad “1”)

(ii)

Power Level (keypad “2”)

(iii)

Programming Mode (keypad “3”)

(iv)

User Options (number keypad “4”)

(v)

X2 - Double Quantity Cooking (keypad “5”)

(vi)

Menu A/B (keypad “6”)

around sides of oven.

D.

Install oven so oven bottom is at least 3 feet (91.5 cm) above floor.

Preset Program Keypads

To cook food using preprogrammed cooking sequences:

1.

Open oven door, place food in oven, and close oven door.

2.

Press desired number keypad(s).

3.

Oven operates and time counts down.

4.

At the end of the cooking cycle, the oven beeps. Carefully remove food from oven.

X2 - DOUBLE QUANTITY COOKING

1.

Press and hold number keypad “5”/ X2 to toggle double quantity feature ON. “X2” appears at top center of screen when enabled.

2.

Press desired number keypad(s). Display counts down cooking time for two quantities.

MENU A/B (select models)

Press and hold number keypad “6” to toggle

between A and B menus.

So…how do I use it?

Manual Time Entry Mode

Time entry mode allows the user to manually enter cook time and power level, without changing the preset program keypads.

1.

Open oven door, place food in oven, and close door.

2.

Press and hold number keypad “1”/ TIME ENTRY.

3.

Press number keypads to enter desired cook time.

4.

Press and hold number keypad “2”/ POWER LEVEL to change power level.

•

Press number keypads to enter % microwave power (“1”=10%, “2”=20%,etc.)

For 100% power level, press and hold number keypad “2”/ POWER LEVEL.

5.

Press START/OK keypad to begin cooking.

6.

At the end of the cooking cycle, the oven beeps. Carefully remove food from oven.

Programming Mode

1.

Press and hold number keypad “3”/ PROGRAM.

2.

Press number keypad(s) to open the desired program location.

3.

To edit name: Press number keypad “0”. Press number keypads to enter recipe name. Press START/OK keypad.

4.

To edit cook time for Stage One: Press number keypad “1”. Press number keypads to enter cook time. Press START/OK keypad.

5.

To edit power level for Stage One: Press number keypad “5”. Press number keypads to enter % microwave power (“1”=10%, “2”=20%,etc.). For 100% power level, press and hold number keypad “2”/ POWER LEVEL.

6.

If stage cooking is desired, repeat steps 4-5 for each additional stage, substituting corresponding number keypads for each stage.

7.

To save and exit programming mode: Press START/OK keypad.

(A)

(B)

(F)

(D) (E)

This document covers HDC*, MDC*, DEC*, MCHDC*, and CRC* models

A C B

D

7

Access and Modify User Options

There are several options you can change to customize the operation of the oven for your business. Options are shown below. The factory setting is shown in bold type.

1.

Press and hold keypad number “4”/ USER OPTIONS. If prompted, enter the PIN Code and press START/OK keypad

2.

Press the START/OK keypad to scroll through pages of user options

3.

To access an individual user option, press the corresponding number keypad

•

To change the setting, press corresponding number keypad

•

To return to User Options Menu, press START or STOP/RESET

4.

Press STOP/RESET keypad to exit User Options Menu

STANDARD DEFAULT PER MODEL (FACTORY SETTINGS IN BOLD

)

Factory setting may vary by model

SETTING

DISPLAYED OPTIONS

DESCRIPTION

End of Cycle Beep

3 Seconds

Continuous Burst

3 second continuous beep

Continuous beep until door is opened 5 beep bursts until door is open

Speaker Volume

Low

Medium

High

Sets volume to low

Sets volume to medium

Sets volume to high

Key Beep

On

Off

Allows beep when keypad is pressed

Prevents beep when keypad is pressed

Reset on Door Open

End Cook Cycle

Pause Cook Cycle

Cancels heating time count down after door is opened during cycle.

Allows oven to resume heating time countdown after door is opened during cycle

Digit Entry

Single Digit

Double Digit Folders

Allows 10 (0-9) preprogrammed items

Allows 100 (00-99) preprogrammed items Allows 10 folders (0-9), each with 10 preprogrammed items

Manual Programming

On

Off

Allows use of manual time entry and preprogrammed keypads

Allows use of preprogrammed keypads only

Time Entry

On

Off

Manual time entry/cooking allowed

Manual time entry/cooking not allowed

Maximum Cook Time

10 minutes

60 minutes

Allows 10 minutes of heating time

Allows 60 minutes of heating time

Keypad Enable Window

15 seconds 30 seconds

1

minute

2

minutes

15 seconds after oven door is opened, keyboard disabled 30 seconds after oven door is opened, keyboard disabled

1 minute after oven door is opened, keyboard disabled

2 minutes after oven door is opened, keyboard disabled

On-the-Fly

On

Off

Allows pushing additional keypads to add or change time in the middle of a cook cycle

Disables pushing any additional keypads during a cook cycle

Quantity Prompt*

On

Off

Prompts the user for portion quantity multiplier (1-9) upon selecting a preset program

Allows user to cook individual portions and/or use X2 quantity multiplier feature

Default to Menu A or B*

Menu A

Menu B

Menu A displayed by default

Menu B displayed by default

PIN Code

Off

On Set PIN Code

PIN Code not required to access User Options

PIN Code required to access User Options PIN Code required. Create new 4 digit PIN Code

Language

Bengali, Chinese (Mandarin), Danish, Dutch, English, Filipino, French, German, Greek, Hindi, Italian, Japanese, Korean, Laotian, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Thai, Ukrainian, Vietnamese

Load File

N/A

Detects USB flash drive and imports .xml format menu file

* Available on select models only (only displayed in User Options menu if factory option is enabled)
