Amana RC30S2, RC22S2, RC17S2 Quick Guide

CLEAN FILTER

This oven displays CLEAN FILTER at user dened intervals. When the message displays ACP recommends cleaning the air lter thoroughly.

Cleaning the air lter will not shut

off the message. The message will stop displaying automatically after 24 hours. Depending on microwave use and environmental conditions, the lter may need to be cleaned more frequently. Once the frequency is determined, set the option for the appropriate time frame.

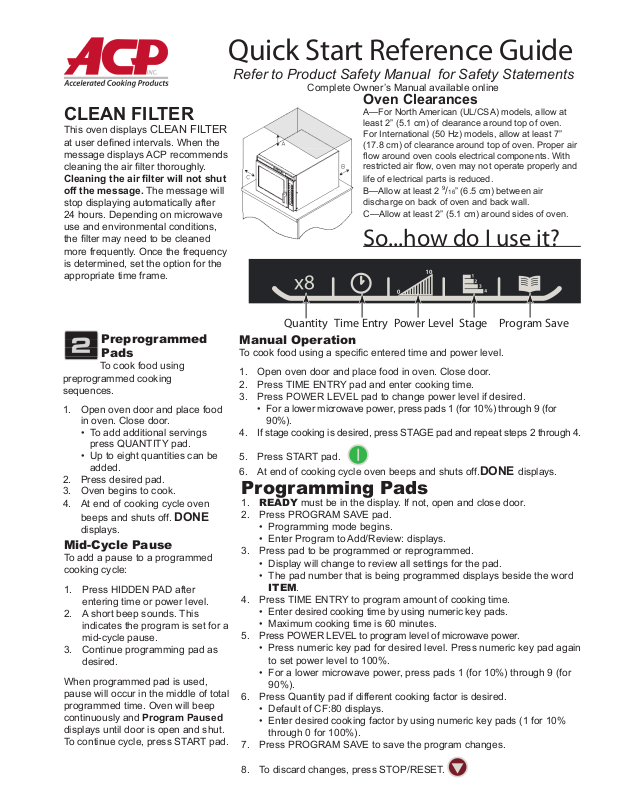

Quick Start Reference Guide

Refer to Product Safety Manual for Safety Statements

Complete Owner’s Manual available online

Oven Clearances

A—For North American (UL/CSA) models, allow at least 2” (5.1 cm) of clearance around top of oven. For International (50 Hz) models, allow at least 7” (17.8 cm) of clearance around top of oven. Proper air ow around oven cools electrical components. With restricted air ow, oven may not operate properly and

life of electrical parts is reduced. B—Allow at least 2

discharge on back of oven and back wall. C—Allow at least 2” (5.1 cm) around sides of oven.

So...how do I use it?

/16” (6.5 cm) between air

Preprogrammed Pads

To cook food using

preprogrammed cooking sequences.

1. Open oven door and place food in oven. Close door.

• To add additional servings

press QUANTITY pad.

• Up to eight quantities can be

added.

2. Press desired pad.

3. Oven begins to cook.

4. At end of cooking cycle oven beeps and shuts off. DONE

displays.

Mid-Cycle Pause

To add a pause to a programmed cooking cycle:

1. Press HIDDEN PAD after entering time or power level.

2. A short beep sounds. This indicates the program is set for a mid-cycle pause.

3. Continue programming pad as desired.

When programmed pad is used, pause will occur in the middle of total programmed time. Oven will beep continuously and Program Paused displays until door is open and shut. To continue cycle, press START pad.

Quantity

Time Entry Power Level Stage Program Save

Manual Operation

To cook food using a specic entered time and power level.

1. Open oven door and place food in oven. Close door.

2. Press TIME ENTRY pad and enter cooking time.

3. Press POWER LEVEL pad to change power level if desired.

• For a lower microwave power, press pads 1 (for 10%) through 9 (for 90%).

4. If stage cooking is desired, press STAGE pad and repeat steps 2 through 4.

5. Press START pad.

6. At end of cooking cycle oven beeps and shuts off.DONE displays.

Programming Pads

1. READY must be in the display. If not, open and close door.

2. Press PROGRAM SAVE pad.

• Programming mode begins.

• Enter Program to Add/Review: displays.

3. Press pad to be programmed or reprogrammed.

• Display will change to review all settings for the pad.

• The pad number that is being programmed displays beside the word ITEM.

4. Press TIME ENTRY to program amount of cooking time.

• Enter desired cooking time by using numeric key pads.

• Maximum cooking time is 60 minutes.

5. Press POWER LEVEL to program level of microwave power.

• Press numeric key pad for desired level. Press numeric key pad again to set power level to 100%.

• For a lower microwave power, press pads 1 (for 10%) through 9 (for 90%).

6. Press Quantity pad if different cooking factor is desired.

• Default of CF:80 displays.

• Enter desired cooking factor by using numeric key pads (1 for 10% through 0 for 100%).

7. Press PROGRAM SAVE to save the program changes.

8. To discard changes, press STOP/RESET.

Quick Start Reference Guide

Refer to Product Safety Manual for Safety Statements

Complete Owner’s Manual available online

Changing user options

Options such as single or double pad programming and beep volume can be changed to suit individual preferences.

No popcorn

To change options:

1. Press hidden pad.

• Pad is unmarked.

• The display remains blank when hidden pad is pressed.

2. Press PROGRAM SAVE pad.

• The rst user option will display. Oven is now in options mode.

No metal pans

3. Press number pad that controls option to be changed.

• See table below for options.

• Current option will display.

4. Press number pad again to change the option.

• Each time pad is pressed, option will change.

• Match code displayed with code for desired option.

• Changes take affect after pad is pressed.

• To change additional options, repeat steps 3 and 4.

DO NOT power spray

Numbered Pads Displays Options

Double Digit Entry

Manual Programming

Reset on Door Open

Keybeep

Speaker Volume

End of Cook Signal

Keypad Active

Stage Pad

Clean Filter Message

(Frequency)

5. Press PROGRAM SAVE to return to READY, or open and close oven door.

Disabled

Enabled

Disabled

Enabled

Disabled

Enabled

OFF

LOW

MEDIUM

HIGH

Solid Beep

3 Second Beep

4 Beeps Once

4 Beeps Repeating

15 Seconds 30 Seconds

60 Seconds

120 Seconds

Always

Disabled

Weekly

Monthly

Quarterly

HIDDEN

PAD

HIDDEN

Amana

Allows 10 (0-9) preprogrammed pads.

Allows 100 (00-99) preprogrammed pads.

Manual time entry/cooking not allowed

Manual time entry/cooking allowed

Opening oven door does not reset oven back to ready

Opening oven door resets the oven back to ready mode

Keys do not beep when pressed (keybeep off)

Keys beep when pressed (keybeep on)

Keybeep volume OFF Keybeep volume LOW Keybeep volume MEDIUM

Keybeep volume HIGH

Food done signal is a continuous beep until reset by user

Food done signal is a three second beep Food done signal is four beeps continously Food done signal is four beeps, four times

Keypad time entry window is 15 seconds Keypad time entry window is 30 seconds

Keypad time entry window is one minute

Keypad time entry window is two minutes Keypad time entry window is always active

Oven will not display Clean Filter

Oven will display Clean Filter every seven (7) days

Oven will display Clean Filter every thirty (30) days Oven will display Clean Filter every ninety (90) days

PAD

Menumaster

Part No.20001403 Printed in U.S.A. 09/12
