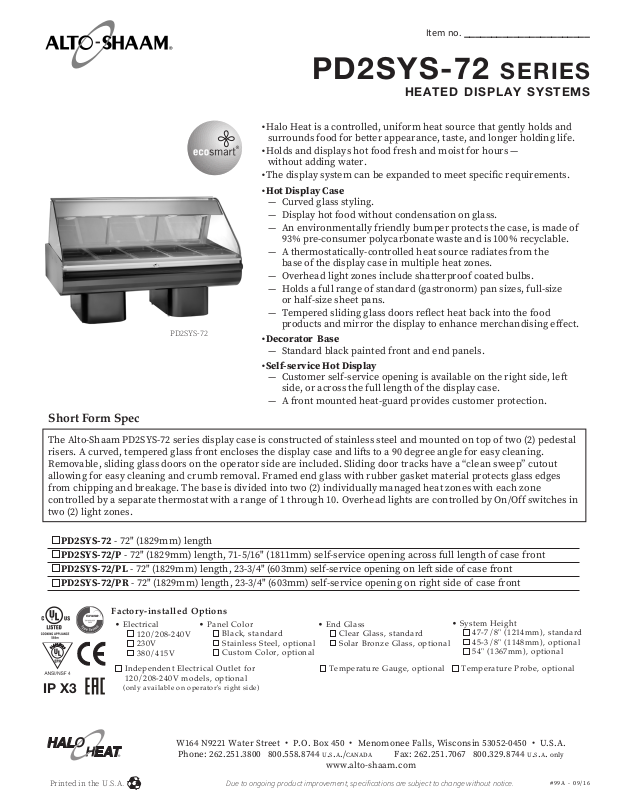

Alto Shaam PD2SYS-72 User Manual

U.S.A./CANADA

U.S.A.

PD2SYS-72

Factory-installed Options

IP X3

Item no. _______________________

PD2SYS-72 series

heate d displ a y syste m s

l

Halo Heat is a controlled, uniform heat source that gently holds and

surrounds food for better appearance, taste, and longer holding life.

l

Holds and displays hot food fresh and moist for hours —

without adding water.

l

The display system can be expanded to meet specifi c requirements.

l

Hot Display Case

— Curved glass styling.
— Display hot food without condensation on glass.
— An environmentally friendly bumper protects the case, is made of

93% pre-consumer polycarbonate waste and is 100% recyclable.

— A thermostatically-controlled heat source radiates from the

base of the display case in multiple heat zones.
— Overhead light zones include shatterproof coated bulbs.
— Holds a full range of standard (gastronorm) pan sizes, full-size

or half-size sheet pans.
— Tempered sliding glass doors re ect heat back into the food

products and mirror the display to enhance merchandising effect.

l

Decorator Base

— Standard black painted front and end panels.

l

Self-service Hot Display

— Customer self-service opening is available on the right side, le

side, or across the full length of the display case.
— A front mounted heat-guard provides customer protection.

Short Form Spec

The Alto-Shaam PD2SYS-72 series display case is constructed of stainless steel and mounted on top of two (2) pedestal
risers. A curved, tempered glass front encloses the display case and lis to a 90 degree angle for easy cleaning.
Removable, sliding glass doors on the operator side are included. Sliding door tracks have a “clean sweep” cutout
allowing for easy cleaning and crumb removal. Framed end glass with rubber gasket material protects glass edges
from chipping and breakage. The base is divided into two (2) individually managed heat zones with each zone
controlled by a separate thermostat with a range of 1 through 10. Overhead lights are controlled by On/Off switches in
two (2) light zones.

PD2SYS-72 - 72" (1829mm) length
PD2SYS-72/P - 72" (1829mm) length, 71-5/16" (1811mm) self-service opening across full length of case front
PD2SYS-72/PL - 72" (1829mm) length, 23-3/4" (603mm) self-service opening on le side of case front
PD2SYS-72/PR - 72" (1829mm) length, 23-3/4" (603mm) self-service opening on right side of case front

• Electrical
120/208-240V
230V

380/415V

120/208-240V models, optional

(only available on operator's right side)

• Panel Color
Black, standard
Stainless Steel, optional
Custom Color, optional

• End Glass
Clear Glass, standard
Solar Bronze Glass, optional

Temperature Gauge, optional Independent Electrical Outlet for

• System Height
47-7/8" (1214mm), standard
45-3/8" (1148mm), optional
54" (1367mm), optional

Temperature Probe, optional

Printed in the U.S.A.

W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.

Phone: [phone].558.8744

Due to ongoing product improvement, specifications are subject to change without notice.

www.alto-shaam.com

Fax: [phone].329.8744

only

# 9 9A - 0 9/ 16

12" X 20" X 2-1/2" (GN 1/1)
12"

X 6" X 2-1/2" (GN 1/3)

12" X 10" X 2-1/2" (GN 1/2)
12"

X 6" X 2-1/2" (GN 1/3)

18" X 26" X 1"

44" (1120mm)

21-7/16" (545mm)

WELL HEIGHT

27-11/16" (678mm)

HEIGHT TO CUTTING BOARD

2"

(51mm)

8-3/8"

(211mm)

19-11/16" (500mm)

26-1/2" (674mm)

47-7/8" (1214mm)

44" (1120mm)48" (1222mm)

47-7/8" (1214mm)

36" (915mm)

14-15/16" (379mm)

ELECTRICAL HOOKUP

3-13/16" (97mm)

ELECTRICAL HOOKUP

34-3/4" (881mm)

C

L

LEVELING SCREWS

72 Series

V PH Hz A

K

W

120/208-240 1 50/60 18.7 4.5

Bare end, no plug

208 1 50/60 16.2 3.4
240 1 50/60 18.7 4.5

230 1 50/60 18.3 4.2

Bare end, no plug

380-415

380

480

3

3

3

50/60

50/60

50/60

10.6

9.7

10.6

4.4

3.7

4.4

Bare end, no plug

PD2SYS-72 se ri es

heated display systems

Dimensions (h x w x d)

Exterior, with standard height pedestal style base:

47-7/8" x 72" x 44" (1214mm x 1831mm x 1120mm)

Exterior, with optional height pedestal style base:

45-3/8" x 72" x 44" (1148mm x 1831mm x 1120mm)

Exterior, with optional height pedestal style base:

54" x 72" x 44" (1367mm x 1831mm x 1120mm)

Well Dimensions (W x L x D):

27-3/16" x 69-5/16" x 4-1/2" (692mm x 1760mm x 114mm)

Electrical

47-7/8" (1214mm)

WELL HEIGHT

21-7/16" (545mm)

47-7/8" (1214mm)

18" (456mm)

19-11/16" (500mm)

26-1/2" (674mm)

16-5/8" (422mm)

C

L

54" (1371mm)

72" (1831mm)

LEVELING SCREWS

2"

(51mm)

27-11/16" (678mm)

HEIGHT TO CUTTING BOARD

8-3/8"

(211mm)

18" (456mm)

ELECTRICAL HOOKUP

Installation Requirements

The display case must be installed level.

The display case must not be installed in any area where

it may be affected by steam, grease, dripping water, high
temperatures, or any other severely adverse conditions.

Do not install a heated display case near a cold air source

such as a freezer, air conditioning vents, or in any area where
outside air  uctuation can affect performance.

Weight

674 lb (306 kg) Ship: 717 lb (325 kg)

Net:

Crated dimensions: l x w x h

81" x 50" x 71" (2057mm x 1270mm x 1803mm)

ACCESSORIES

Butting Kit (seamlessly connect multiple systems) 5009002

Carving Station 5001874

Pan Insert, Self-service 4" (102mm) deep 1001991

Thermostat Guard Cover Plate 5007660

# 9 9A - 0 9/ 16

W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
Phone: [phone].558.8744 U.S.A./Canada Fax: [phone].329.8744 U.S.A. only

Due to ongoing product improvement, specifications are subject to change without notice.

PD2SYS

Profile

(s tan dar d h eig ht base

sh own )

3-13/16" (97mm)

ELECTRICAL HOOKUP

PD2SYS-72

Pan Configuration*

Pan Size Dimensions

Full-size & one-third**:

Half-size & one-third**:

Full-size sheet pans:

Max. Capacity/Volume:

80 lbs (36 kg) 50 qts (60 L)

* Pans are not included with display case.
** Will also accept 4" (100mm) deep pans.

Specifications

l

Ten (10) overhead lights with two (2) light zones.

l

Two (2) base heat zones with two (2) adjustable thermostats with a range
of 1 through 10, and two (2) heat-on indicator lights.

l

Three (3) tinted, reective, tempered glass sliding doors on operator side.

l

One (1) 10" x 60" (254mm x 1524mm) operator-side work shelf.

l

Self-serve model PD2SYS-72/P has a self-serve pan insert
26-7/16" x 69-3/16" x 2" (672mm x 1757mm x 51mm) and includes three (3)
Wire Pan Grids.

l

Self-serve models PD2SYS-72/PL and PD2SYS-72/PR have self-serve pan
insert 21-5/8" x 26-7/16" x 2" (549mm x 672mm x 51mm) and includes
one (1) Wire Pan Grid.

Platform Scale

Le-hand 5005338
Right-hand 5005337

Sheet Pan Divider Bar Package

Full-service & Self-service full cases 5002803

Self-service le-side or right-side of cases 5002804

www.alto-shaam.com

Printed in the U.S.A.

Qty.

5
5

10

5

3
