Cyclone II Edition Reference Manual
101 Innovation Drive
San Jose, CA 95134
www.altera.com
Nios Development Board
Development Board Version 6XX-40020R
Document Version 1.3
Document Date May 2007
Copyright © 2007 Altera Corporation. All rights reserved. Altera, The Programmable Solutions Company, the stylized Altera logo, specific device designations, and all other words and logos that are identified as trademarks and/or service marks are, unless noted otherwise, the trademarks and
service marks of Altera Corporation in the U.S. and other countries. All other product or service names are the property of their respective holders. Altera products are protected under numerous U.S. and foreign patents and pending applications, maskwork rights, and copyrights. Altera warrants
performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make
changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera
Corporation. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.
Part Number MNL-N051805-1.3
ii Altera Corporation
Contents
About this Manual................................................................................... v
How to Contact Altera .............................................................................................................................. v
Typographic Conventions ...................................................................................................................... vi
Chapter 1. Overview
Features Overview ................................................................................................................................. 1–1
General Description ............................................................................................................................... 1–1
Factory-Programmed Reference Design ............................................................................................ 1–2
Chapter 2. Board Components
Component List ...................................................................................................................................... 2–1
Cyclone II EP2C35 Device (U62) ......................................................................................................... 2–3
Push-Button Switches (SW0 - SW3) .................................................................................................... 2–4
Individual LEDs (D0 - D7) .................................................................................................................... 2–5
Seven-Segment LEDs (U8 & U9) ........................................................................................................ 2–5
SSRAM Chip (U74) ................................................................................................................................ 2–6
DDR SDRAM Chip (U63) ..................................................................................................................... 2–9
Flash Memory (U5) .............................................................................................................................. 2–11
Ethernet MAC/PHY (U4) & RJ45 Connector (RJ1) ........................................................................ 2–13
Serial Connector (J19) ......................................................................................................................... 2–15

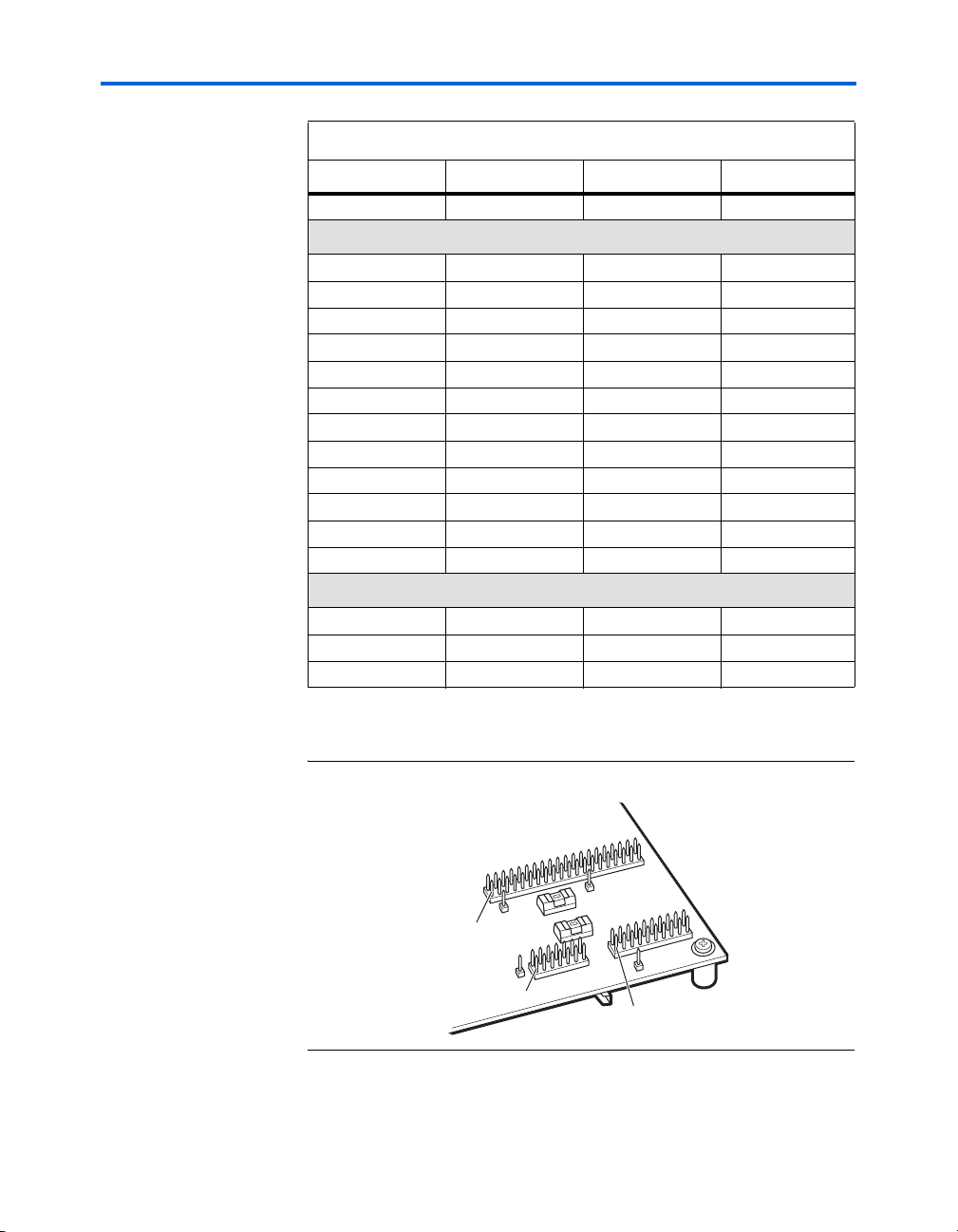

Expansion Prototype Connectors (PROTO1 & PROTO2) ............................................................. 2–16
CompactFlash Connector (CON3) .................................................................................................... 2–23

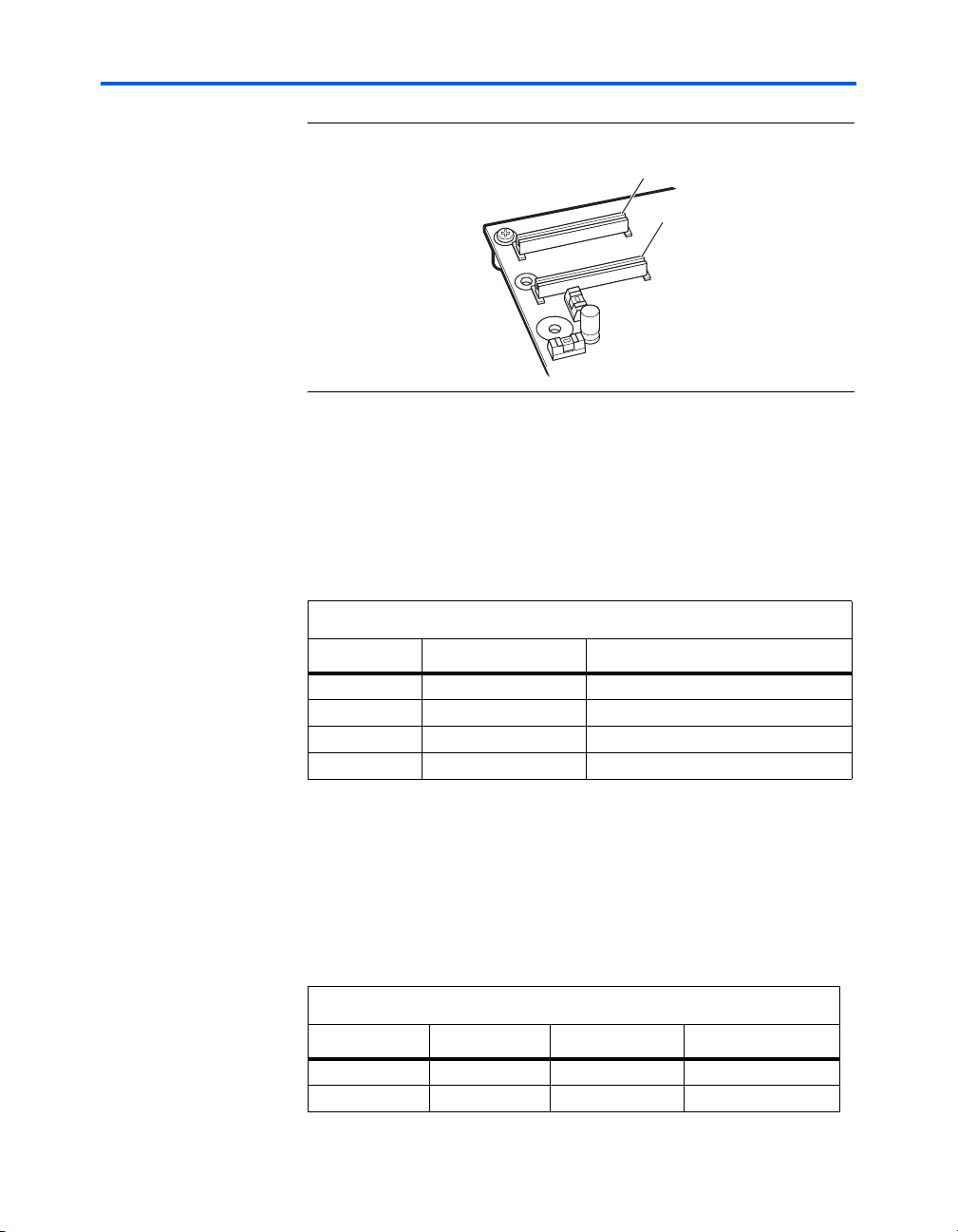

PMC Connector (JH1 & JH2) .............................................................................................................. 2–26
Mictor Connector (J25) ........................................................................................................................ 2–29
Test Points (TP1 – TP8) ....................................................................................................................... 2–31
EPCS64 Serial Configuration Device (U69) ..................................................................................... 2–32
Configuration Controller Device (U3) .............................................................................................. 2–33
Configuration-Status LEDs ........................................................................................................... 2–33

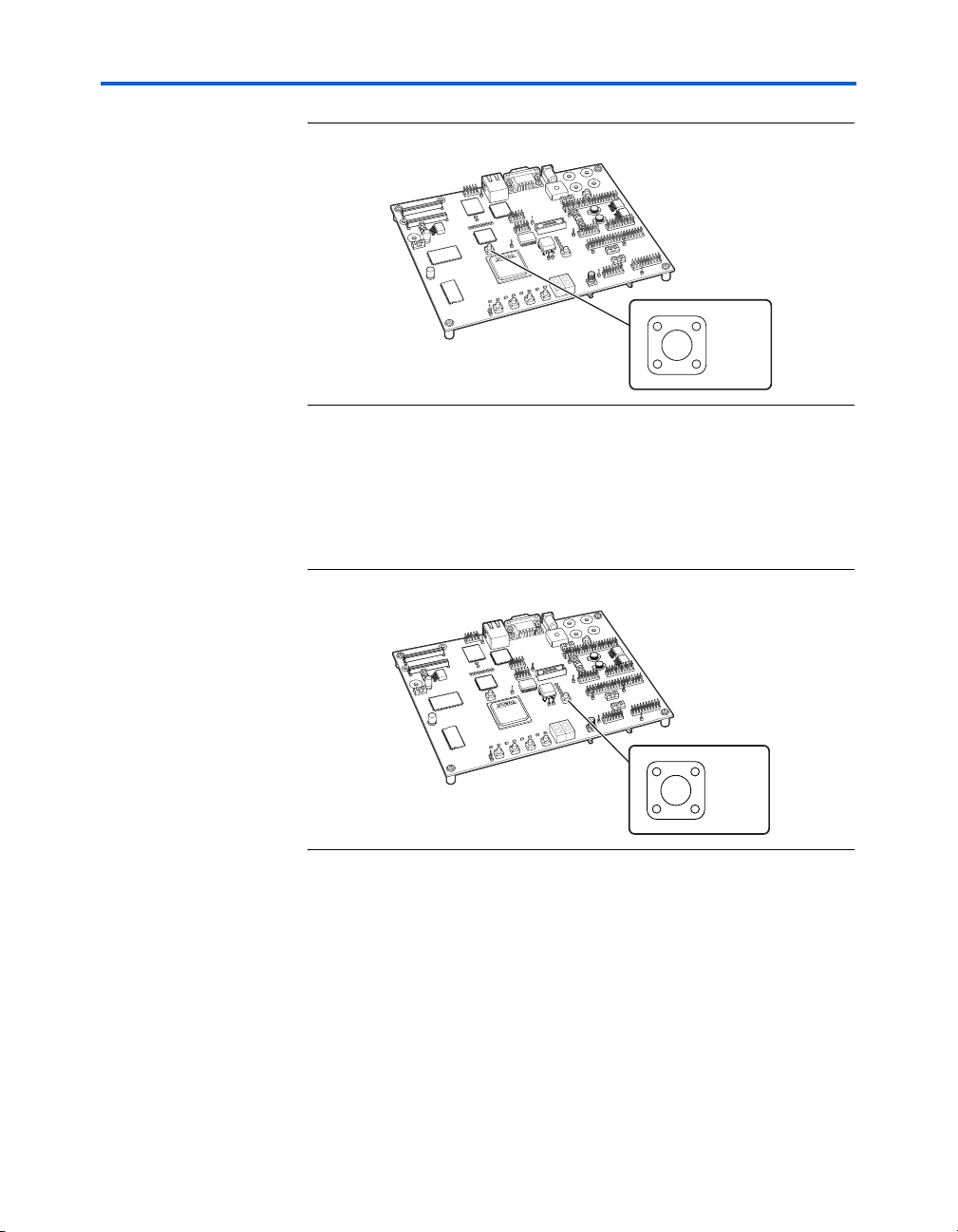

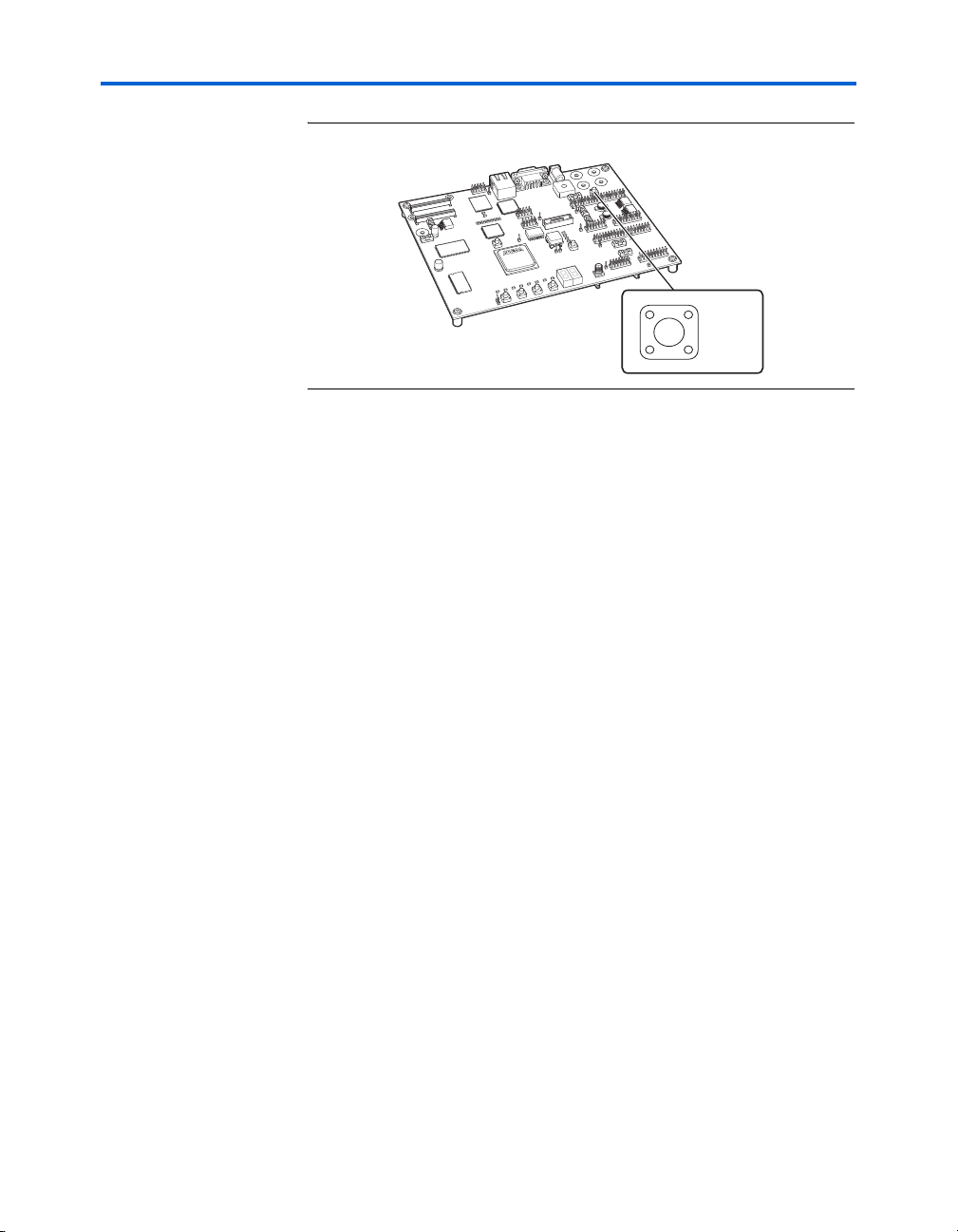

Configuration & Reset Buttons .................................................................................................... 2–34
SW8 – CPU Reset ...................................................................................................................... 2–34
SW9 – Factory Config ............................................................................................................... 2–35
SW10 – Reset, Config ................................................................................................................ 2–35
Reset Distribution ........................................................................................................................... 2–36
Starting Configuration ................................................................................................................... 2–36
Factory & User Configurations .................................................................................................... 2–36
Configuration Process ................................................................................................................... 2–37
Flash Memory Partitions ............................................................................................................... 2–38
User Application Space ............................................................................................................ 2–38
User Configuration ................................................................................................................... 2–39
Factory Configuration .............................................................................................................. 2–39
Persistent Data ........................................................................................................................... 2–39
Altera Corporation iii
Contents Nios Development Board Cyclone II Edition

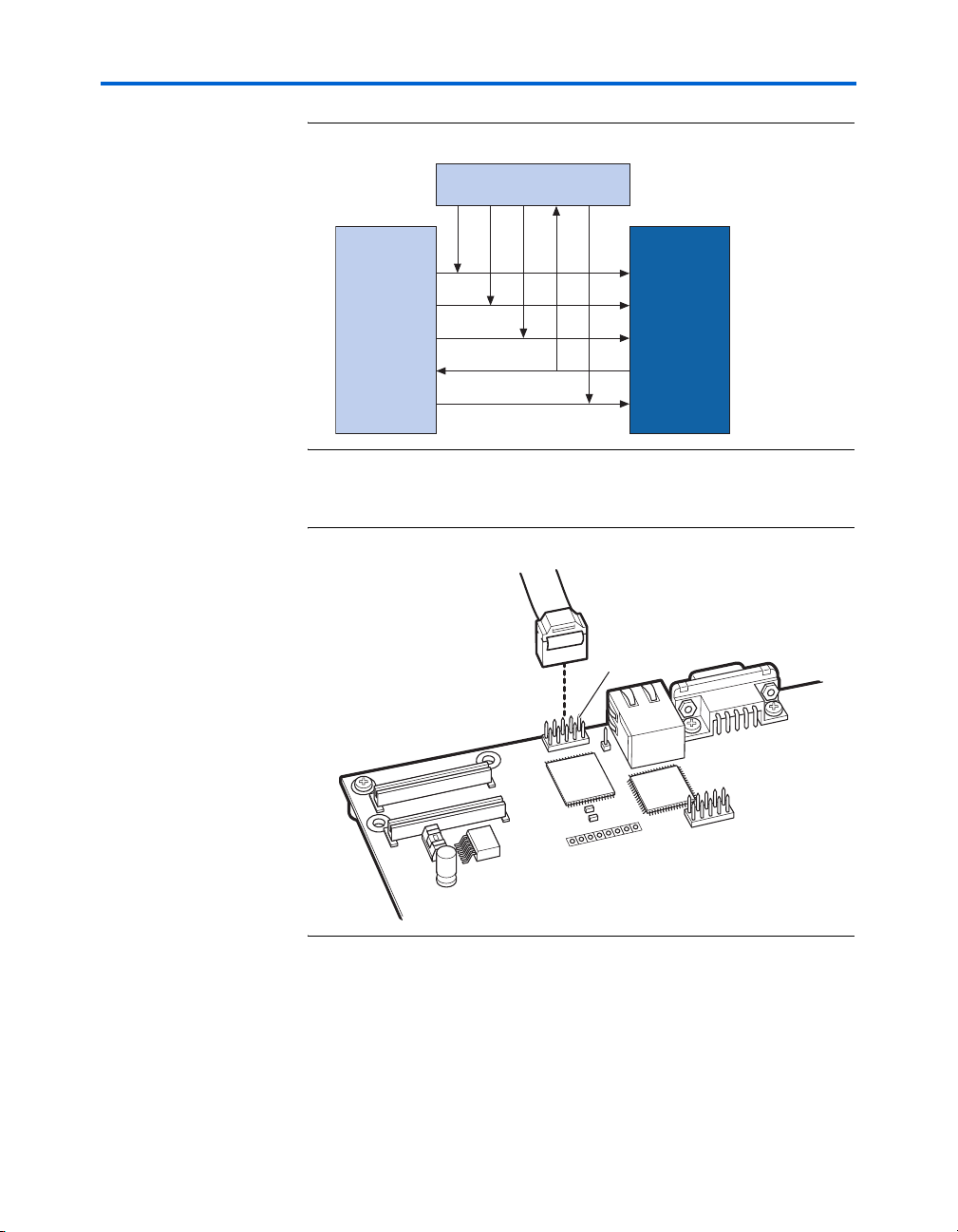

JTAG Connectors (J24 & J5) ............................................................................................................... 2–39
JTAG Connector to FPGA (J24) ....................................................................................................2–39
JTAG Connector to EPM7256AE Device (J5) .............................................................................. 2–41
Clock Circuitry ..................................................................................................................................... 2–41
Power-Supply Circuitry ...................................................................................................................... 2–44
Appendix A. Restoring the Factory Configuration
Introduction ........................................................................................................................................... A–1
Reprogramming the Flash Memory ................................................................................................... A–1
Reprogramming the EPM7256AE Configuration Controller Device ............................................ A–1
Appendix B. Connecting to the Board via Ethernet
Introduction ........................................................................................................................................... B–1
Connecting the Ethernet Cable ........................................................................................................... B–1
Connecting the LCD Screen ........................................................................................................... B–2
Obtaining an IP Address ................................................................................................................ B–2
LAN Connection ....................................................................................................................... B–3
DHCP .................................................................................................................................... B–3
Static IP Address .................................................................................................................. B–3
Point–to–Point Connections .................................................................................................... B–4

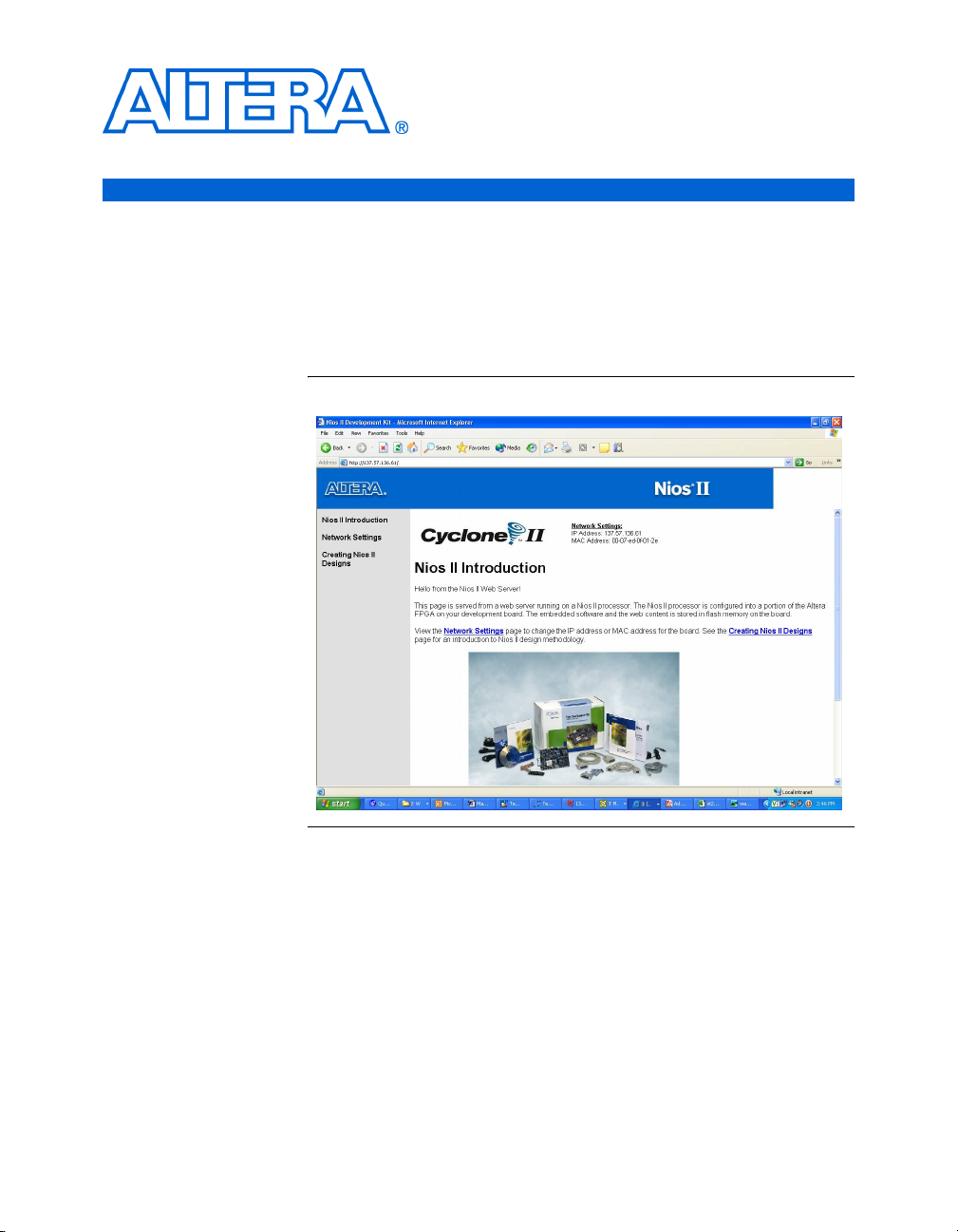

Browsing to Your Board ...................................................................................................................... B–5
iv Altera Corporation
About this Manual
This manual provides details about the Nios® development board,
Cyclone™ II Edition.Nios Development Board Cyclone II Edition
The table shows this document’s revision history.
Date & Revision Description
May 2007, 1.3 ● Corrected Figure 1-1 and Figure 2-21.
● Revised “How to Contact Altera”.
● Updated headers and footers.
October 2006, 1.2
June 2006, 1.1
May 2005, 1.0 First publication.
● Corrected statement: LEDs D0 - D7 turn on when driven
to 0, not 1.
● Updated headers and footers.
● Updated part numbers to RoHS compliant parts
● Corrected D7 pin information in LED pin table
● Removed pin labels from J19 figure
● Added J19 pin table
● Changed PROTO1 and PROTO2 figures to use board
net names
● Added PROTO1 and PROTO2 pin tables
● Corrected FPGA pin label for CON3 pin 9 in PMC
Connector pin table
● Added new pin AE15 to PMC Connector pin table
● Added U69 pin table
● Corrected factory config button figure
● Added pin and device information and corrected net
name for U3 Starting Configuration step 3
● Improved clock circuitry figure
● Added clock signal pin tables
How to Contact
For the most up-to-date information about Altera products, refer to the
following table.
Altera
Contact (1)
Technical support Website www.altera.com/support
Technical training Website www.altera.com/training
Altera Corporation v
May 2007 Nios Development Board Cyclone II Edition
Contact
Method
Email custrain@altera.com
Address
About this Manual
Contact
Method
Email nacomp@altera.com
Email authorization@altera.com
Address
Typographic
Contact (1)
Product literature Website www.altera.com/literature
Altera literature services Email literature@altera.com
Non-technical support (General)
(Software Licensing)
Note to table:
(1) You can also contact your local Altera sales office or sales representative.
This document uses the typographic conventions shown below.
Conventions
Visual Cue Meaning
Bold Type with Initial
Capital Letters
bold type External timing parameters, directory names, project names, disk drive names,
Italic Type with Initial Capital
Letters
Italic type Internal timing parameters and variables are shown in italic type.
Command names, dialog box titles, checkbox options, and dialog box options are
shown in bold, initial capital letters. Example: Save As dialog box.
filenames, filename extensions, and software utility names are shown in bold
type. Examples: f
Document titles are shown in italic type with initial capital letters. Example: AN 75:
High-Speed Board Design.
Examples: t
PIA
, \qdesigns directory, d: drive, chiptrip.gdf file.
MAX
, n + 1.
Variable names are enclosed in angle brackets (< >) and shown in italic type.
Example: <file name>, <project name>.pof file.
Initial Capital Letters Keyboard keys and menu names are shown with initial capital letters. Examples:
Delete key, the Options menu.
“Subheading Title” References to sections within a document and titles of on-line help topics are
shown in quotation marks. Example: “Typographic Conventions.”
Courier type Signal and port names are shown in lowercase Courier type. Examples: data1,
tdi, input. Active-low signals are denoted by suffix n, e.g., resetn.
Anything that must be typed exactly as it appears is shown in Courier type. For
example:
actual file, such as a Report File, references to parts of files (e.g., the AHDL
keyword
Courier.
1., 2., 3., and
a., b., c., etc.
● • Bullets are used in a list of items when the sequence of the items is not important.
■
v The checkmark indicates a procedure that consists of one step only.
vi Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Numbered steps are used in a list of items when the sequence of the items is
important, such as the steps listed in a procedure.
c:\qdesigns\tutorial\chiptrip.gdf. Also, sections of an
SUBDESIGN), as well as logic function names (e.g., TRI) are shown in
Visual Cue Meaning
1 The hand points to information that requires special attention.
c
w
r The angled arrow indicates you should press the Enter key.
f The feet direct you to more information on a particular topic.
The caution indicates required information that needs special consideration and
understanding and should be read prior to starting or continuing with the
procedure or process.
The warning indicates information that should be read prior to starting or
continuing the procedure or processes
About this Manual
Altera Corporation Reference Manual vii
May 2007 Nios Development Board Cyclone II Edition
About this Manual
viii Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
1. Overview
Features Overview
The Nios Development Board, Cyclone II Edition, provides a hardware
platform for developing embedded systems based on Altera® Cyclone II
devices. The Nios Development Board, Cyclone II Edition provides the
following features:
■ Nios Development Board Cyclone II EditionA Cyclone II
EP2C35F672C5 or EP2C35F672C5N FPGA with 33,216 logic elements
(LE) and 483,840 bits of on-chip memory
■ 16 MBytes of flash memory
■ 2 MBytes of synchronous SRAM
■ 32 MBytes of double data rate (DDR) SDRAM
■ On-board logic for configuring the FPGA from flash memory
■ On-board Ethernet MAC/PHY device and RJ45 connector
■ Two 5.0 V-tolerant expansion/prototype headers each with access to
41 FPGA user I/O pins
■ CompactFlash connector for Type I CompactFlash cards
■ 32-bit PMC Connector capable of 33 MHz and 66 MHz operation
■ Mictor connector for hardware and software debug
■ RS-232 DB9 serial port
■ Four push-button switches connected to FPGA user I/O pins
■ Eight LEDs connected to FPGA user I/O pins
■ Dual 7-segment LED display
■ JTAG connectors to Altera devices via Altera download cables
■ 50 MHz oscillator and zero-skew clock distribution circuitry
■ Power-on reset circuitry
General Description
Altera Corporation 1–1
May 2007
The Nios development board comes pre-programmed with a Nios II
processor reference design. Hardware designers can use the reference
design as an example of how to build systems using the Nios II processor
and to gain familiarity with the features included. Software designers can
use the pre-programmed Nios II processor design on the board to begin
prototyping software immediately.
This document describes the hardware features of the Nios development
board, including detailed pin-out information, to enable designers to
create custom FPGA designs that interface with all components on the
board. A complete set of schematics, a physical layout database, and
GERBER files for the development board are installed with the Nios II
development tools in the <Nios II EDS install path>/documents directory.
Overview
f See the Nios II Development Kit, Getting Started User Guide for instructions
on setting up the Nios development board and installing Nios II
development tools.
Figure 1–1shows a block diagram of the Nios development board.
Figure 1–1. Nios Development Board, Cyclone II Edition Block Diagram
Proto 1 Expansion
Prototype Connector
Proto 2 Expansion
Prototype Connector
Dual Seven-Segment Display
FactoryProgrammed
Reference
50MHz Oscillator
5.0 V Regulators
JTAG Connector
Mictor Connector
Compact Flash
Push-button
Switches (4)
User LEDs (8)
16 Mbyte DDR SDRAM
2 Mbyte SSRAM
Vccint 1.2-V
Vccio 3.3-V
27
41
4
8
16
Cyclone II
EP2C35
FPGA
EPCS64 Configuration
Device
Configuration
Controller
16 Mbyte Flash Memory
Ethernet
MAC/PHY
PMC Connector
RS-232
RJ45
Connector
When power is applied to the board, on-board logic configures the FPGA
using hardware configuration data stored in flash memory. After
successful configuration, the Nios II processor design in the FPGA wakes
up and begins executing boot code from flash memory.
Design
The board is factory-programmed with a default reference design. This
reference design is a web server that delivers web pages via the Ethernet
port. For further information on the default reference design, refer to
Appendix B: Connecting to the Board via Ethernet.
1–2 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Overview
In the course of development, you might overwrite or erase the flash
memory space containing the default reference design. Altera provides
the flash image for the default reference design so you can return the
board to its default state. Refer to Appendix A: Restoring the Factory
Configuration for more information.
Altera Corporation Reference Manual 1–3
May 2007 Nios Development Board Cyclone II Edition
Overview
1–4 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
2. Board Components
Optional Power
Supply
Component List
This section introduces all the important components on the Nios
development board. See Figure 2–1 and Table 2–1 for component
locations and brief descriptions of all board features.
Figure 2–1. Nios Development Board
J24
U63
TP1–
TP8
U5
CPU Reset
(SW8)
JH1
JH2
U74
Reset, Config
CON3
(SW10)
(J11, J12, J13)
PROTO1
(J15, J16, J17)
PROTO2
Y2
D0–D7
SW0 –SW3
J26
D34
J25
Optional Power
Optional Power
U9
U8
Supply
Supply
Factory Config
(SW9)
J4
J19
RJ1
U4
LED
7
LED
6
J5
J27
U3
U69
U62
Table 2–1. Nios Development Board, Cyclone II Edition Components & Interfaces
Board Designation Name Description
U62 Cyclone II FPGA EP2C35F672C5 or EP2C35F672C5N device.
User Interface
SW0 – SW3 Push-button switches Four momentary contact switches for user input to the
FPGA.
D0 – D7 Individual LEDs Eight individual LEDs driven by the FPGA.
U8, U9 Seven-segment LEDs Two seven-segment LEDs that display numeric
output from the FPGA.
Altera Corporation 2–1
May 2007
Board Components
Table 2–1. Nios Development Board, Cyclone II Edition Components & Interfaces (Continued)
Board Designation Name Description
Memory
U74 SSRAM memory 2 Mbytes of synchronous SRAM.
U5, LED7 Flash memory 16 Mbytes of nonvolatile memory for use by both the
U63 DDR SDRAM memory 32 Mbytes of DDR SDRAM.
FPGA and the configuration controller. LED7 lights
whenever the flash chip-enable is asserted.
Connections & Interfaces
U4, RJ1 Ethernet MAC/PHY 10/100 Ethernet MAC/PHY chip connected to an RJ-
J19 Serial connector RS-232 serial connector with 5 V-tolerant buffers.
PROTO1 (J11, J12, J13) Expansion prototype
connector
PROTO2 (J15, J16, J17) Expansion prototype
connector
CON3 CompactFlash connector CompactFlash connector for memory expansion.
JH1, JH2 PMC connector Expansion connector for a PCI mezzanine card.
J25 Mictor connector Mictor connector providing access to 27 I/O pins on
TP1 – TP8 Test Points Test points providing access to eight FPGA I/O pins.
J24 JTAG connector JTAG connection to the FPGA allowing hardware
J5 JTAG connector
J27 EPCS configuration header Connects to the EPCS serial configuration device for
45 Ethernet connector.
Supports all RS-232 signals.
Expansion headers connecting to 41 I/O pins on the
FPGA. Supplies 3.3V and 5.0V for use by a daughter
card.
Expansion headers connecting to 41 I/O pins on the
FPGA. Supplies 3.3V and 5.0V for use by a daughter
card.
the FPGA. Allows debugging Nios II systems using a
First Silicon Solutions (FS2) debug probe.
configuration using the
®
Quartus
Nios II IDE.
JTAG connection to the MAX
controller.
in-system programming.
II software and software debug using the
®
configuration
Configuration & Reset
U3 MAX Configuration controller Altera MAX EPM7256AE device used to configure
the FPGA from flash memory.
U69 Serial configuration device Altera EPCS64 low-cost serial configuration device to
configure the FPGA.
SW8 CPU Reset button Push-button switch to reboot the Nios II processor
configured in the FPGA.
2–2 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Board Components
Table 2–1. Nios Development Board, Cyclone II Edition Components & Interfaces (Continued)
Board Designation Name Description
SW9 Factory Config button Push-button switch to reconfigure the FPGA with the
factory-programmed reference design.
SW10 Reset, Config Push-button switch to reset the board.
LED0 – LED3, LED6 Configuration status LEDs LEDs that display the current configuration status of
the FPGA.
Clock Circuitry
Y2 Oscillator 50 MHz clock signal driven to FPGA.
J4 External clock input Connector to FPGA clock pin.
Power Supply
J26 DC power jack 16V DC unregulated power source.
D34 Bridge rectifier Power rectifier allows for center-negative or center-
positive power supplies.
J28, J29, J30, J33 (and
more)
Optional Power Supply External power supply can be connected for high-
current applications.
The sections that follow describe each component in detail.
Cyclone II
U62 is a Cyclone II FPGA in a 672-pin FineLine BGA® package.
Depending on the board revision, the part number is EP2C35F672C5 or
EP2C35 Device
EP2C35F672C5N. Table 2–2 lists the device features.
(U62)
Table 2–2. Cyclone II EP2C35 Device Features
LEs 33,216
M4K Memory Blocks 105
Total RAM Bits 483,840
Embedded 18x18 Multiplier Blocks 35
PLLs 4
User I/O Pins 475
1 Preproduction builds of the Nios Development Board, Cyclone
II Editon have an EP2C35F6728ES device.
Altera Corporation Reference Manual 2–3
May 2007 Nios Development Board Cyclone II Edition
Board Components
f For Cyclone II-related documentation including pin out data for the
The development board provides two separate methods for configuring
the FPGA:
®
1. Using the Quartus
II software running on a host computer, a
designer configures the device directly via an Altera download
cable connected to the FPGA JTAG header (J24).
2. When power is applied to the board, a configuration controller
device (U3) attempts to configure the FPGA with hardware
configuration data stored in flash memory. For more information on
the configuration controller, refer to “Configuration Controller
Device (U3)” on page 2–33.
EP2C35 device, see the Altera Cyclone II literature page at
www.altera.com/literature/lit-cyc2.jsp.
Push-Button
Switches (SW0 SW3)
SW0 – SW3 are momentary-contact push-button switches to provide
stimulus to designs in the FPGA. Refer to Figure 2–2. Each switch is
connected to an FPGA general-purpose I/O pin with a pull-up resistor as
shown in Ta bl e 2– 3. Each I/O pin perceives a logic 0 when its
corresponding switch is pressed.
Figure 2–2. Push-Button Switches (SW0 – SW3)
D0
SW0
D1
D2
SW1
D3
D4
SW2
D5
D6
D7
SW3
Table 2–3. Push Button Switches Pin Table
Button FPGA Pin Board Net Name
SW0 Y11 user_pb0
SW1 AA10 user_pb1
SW2 AB10 user_pb2
SW3 AE6 user_pb3
2–4 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Board Components
Individual LEDs (D0 - D7)
Seven-Segment LEDs (U8 & U9)
This Nios development board provides eight individual LEDs connected
to the FPGA. Refer to “Push-Button Switches (SW0 - SW3)” on page 2–4.
D0 – D7 are connected to general purpose I/O pins on the FPGA as
shown in Ta bl e 2– 4. When a pin drives logic 0, the corresponding LED
turns on.
Table 2–4. LED Pin Table
LED FPGA Pin Board Net Name
D0 AC10 pld_led0
D1 W11 pld_led1
D2 W12 pld_led2
D3 AE8 pld_led3
D4 AF8 pld_led4
D5 AE7 pld_led5
D6 AF7 pld_led6
D7 AA11 pld_led7
U8 and U9 connect to the FPGA, and each segment is individually
controlled by a general-purpose I/O pin. Refer to Figure 2–3. When a pin
drives logic 0, the corresponding U8 and U9 LED turns on. See Table 2–5
for pin-out details.
Figure 2–3. Dual Seven-Segment Display
U8 U9
a
b
f
g
c
e
d
Altera Corporation Reference Manual 2–5
May 2007 Nios Development Board Cyclone II Edition
a
b
f
g
c
e
d
dp
dp
Board Components
Table 2–5. Dual Seven-Segment Display
FPGA Pin U8 & U9 Pin Pin Function Board Net Name
U8
AE13 10 a hex_0A
AF13 9 b hex_0B
AD12 8 c hex_0C
AE12 5 d hex_0D
AA12 4 e hex_0E
Y12 2 f hex_0F
V113ghex_0G
U12 7 dp hex_0DP
U9
V14 10 a hex_1A
V139bhex_1B
AD11 8 c hex_1C
AE11 5 d hex_1D
AE10 4 e hex_1E
AF10 2 f hex_1F
AD10 3 g hex_1G
AC11 7 dp hex_1DP
SSRAM Chip (U74)
U74 is a 32-bit, 2 Mbyte Cypress SSRAM chip. Depending on the board
revision, the part number is CY7C1380C-167AC or CY7C1380D-167AXC.
The chip is rated for synchronous accesses up to 167 MHz. U74 connects
to the FPGA so it can be used by a Ni os II emb edded processor as generalpurpose memory. The factory-programmed Nios II reference design
identifies the SSRAM devices in its address space as a contiguous 2
Mbyte, 32-bit-wide, zero-wait-state main memory.
2–6 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Board Components
Table 2–6 shows all connections between the FPGA and the SSRAM chip.
Table 2–6. SSRAM Pin Table
FPGA Pin U74 Pin Pin Function Board Net Name
AB3 37 A0 ssram_a0
AB4 36 A1 ssram_a1
G5 35 A2 ssram_a2
G6 34 A3 ssram_a3
B2 33 A4 ssram_a4
B3 32 A5 ssram_a5
C2 38 NC/A19 ssram_a6
C3 39 NC/A20 ssram_a7
L9 42 A6 ssram_a8
F7 43 A7 ssram_a9
L10 44 A8 ssram_a10
J5 45 A9 ssram_a11
L4 46 A10 ssram_a12
C6 47 A11 ssram_a13
A4 48 A12 ssram_a14
B4 49 A13 ssram_a15
A5 50 A14 ssram_a16
B5 81 A15 ssram_a17
B6 82 A16 ssram_a18
A6 99 A17 ssram_a19
C4 100 A18 ssram_a20
G9 85 ADSC_N ssram_adsc_n
M3 93 BE_n0 ssram_be_n0
M2 94 BE_n1 ssram_be_n1
M4 95 BE_n2 ssram_be_n2
M5 96 BE_n3 ssram_be_n3
C7 98 CE1_n ssram_ce1_n
L2 52 D0 ssram_d0
L3 53 D1 ssram_d1
L7 56 D2 ssram_d2
L6 57 D3 ssram_d3
N9 58 D4 ssram_d4
Altera Corporation Reference Manual 2–7
May 2007 Nios Development Board Cyclone II Edition
Board Components
Table 2–6. SSRAM Pin Table (Continued)
FPGA Pin U74 Pin Pin Function Board Net Name
P9 59 D5 ssram_d5
K1 62 D6 ssram_d6
K2 63 D7 ssram_d7
K4 68 D8 ssram_d8
K3 69 D9 ssram_d9
J2 72 D10 ssram_d10
J1 73 D11 ssram_d11
H2 74 D12 ssram_d12
H1 75 D13 ssram_d13
J3 78 D14 ssram_d14
J4 79 D15 ssram_d15
H3 18 D24 ssram_d16
H4 19 D25 ssram_d17
G1 22 D26 ssram_d18
G2 23 D27 ssram_d19
F2 24 D28 ssram_d20
F1 25 D29 ssram_d21
K8 28 D30 ssram_d22
K7 29 D31 ssram_d23
G4 2 D16 ssram_d24
G3 3 D17 ssram_d25
K6 6 D18 ssram_d26
K5 7 D19 ssram_d27
E2 8 D20 ssram_d28
E1 9 D21 ssram_d29
J8 12 D22 ssram_d30
J7 13 D23 ssram_d31
D5 86 OE_n ssram_oe_n
J9 87 WE_n ssram_we_n
D7 84 ADSP_n ssram_adsp_n
H10 83 ADV_n ssram_adv_n
B7 97 CE2 ssram_ce2
A7 92 CE3_n ssram_ce3_n
2–8 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Board Components
Table 2–6. SSRAM Pin Table (Continued)
FPGA Pin U74 Pin Pin Function Board Net Name
K9 88 GW_n ssram_gw_n
E5 89 CLK sram_clk
The following pins on U74 have fixed connections, which restricts the
usable modes of operation:
■ MODE is pulled low to enable Linear Burst
■ ZZ is pulled low to leave the chip enabled
■ GLOBALW_n is pulled high to disable the global write
■ CE2 and CE3_n are wired high and low respectively to be enabled
and to make CE1_n the master chip enable
f See www.cypress.com for detailed information about the SSRAM chip.
DDR SDRAM Chip (U63)
U63 is a Micron DDR SDRAM chip. Depending on the board revision, the
part number is MT46V16M16TG or MT46V16M16P-6T. The DDR
SDRAM pins are connected to the FPGA as shown in Table 2–7. Altera
provides a DDR SDRAM controller that allows a Nios II processor to
access the DDR SDRAM device as a large, linearly-addressable memory.
Table 2–7. DDR SDRAM Pin Table
FPGA Pin U63 Pin Board Net Name
R2 2 sdram_dq0
R3 4 sdram_dq1
R4 5 sdram_dq2
P7 7 sdram_dq3
P6 8 sdram_dq4
T2 10 sdram_dq5
T3 11 sdram_dq6
R6 13 sdram_dq7
W2 54 sdram_dq8
W1 56 sdram_dq9
U6 57 sdram_dq10
U7 59 sdram_dq11
U5 60 sdram_dq12
Y1 62 sdram_dq13
Altera Corporation Reference Manual 2–9
May 2007 Nios Development Board Cyclone II Edition
Board Components
Table 2–7. DDR SDRAM Pin Table (Continued)
FPGA Pin U63 Pin Board Net Name
V5 63 sdram_dq14
V6 65 sdram_dq15
P3 16 sdram_dqs0
W4 51 sdram_dqs1
U2 20 sdram_dm0
AA1 47 sdram_dm1
T6 29 sdram_a0
V2 30 sdram_a1
R8 31 sdram_a2
W3 32 sdram_a3
R5 35 sdram_a4
U10 36 sdram_a5
P4 37 sdram_a6
V1 38 sdram_a7
T9 39 sdram_a8
T8 40 sdram_a9
AA2 28 sdram_a10
T10 41 sdram_a11
U3 42 sdram_a12
U9 26 sdram_ba0
Y4 27 sdram_ba1
U1 22 sdram_cas_n
R7 44 sdram_cke
Y3 24 sdram_cs_n
V4 23 sdram_ras_n
U4 21 sdram_we_n
AA6 46 sdram_clk_n
AA7 45 sdram_clk_p
f See www.micron.com for detailed information.
2–10 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Board Components
Flash Memory (U5)
U5 is an 8-bit, 16 Mbyte AMD flash memory device connected to the
FPGA. Depending on the board revision, the part number is
AM29LV128M or S29GL128M10TFIR1. Refer to Table 2–8 for connections
between the FPGA and the flash memory chip. U5 can be used for two
purposes:
1. A Nios II embedded processor implemented on the FPGA can use
the flash memory as general-purpose memory and non-volatile
storage.
2. The flash memory can hold FPGA configuration data that is used by
the configuration controller to load the FPGA at power-up. Refer to
“Configuration Controller Device (U3)” on page 2–33 for related
information.
A Nios II processor design in the FPGA can identify the 16 Mbyte flash
memory in its address space, and can program new data (either new
FPGA configuration data, Nios II software, or both) into flash memory.
The Nios II development software includes subroutines for writing and
erasing flash memory.
1 The flash memory device shares address and data connections
with the Ethernet MAC/PHY device.
Table 2–8. Flash Memory Pin Table
FPGA Pin U5 Pin Board Net Name
F9 51 fe_a0
H8 31 fe_a1
D11 26 fe_a2
E8 25 fe_a3
B14 24 fe_a4
A14 23 fe_a5
F14 22 fe_a6
G14 21 fe_a7
F13 20 fe_a8
G13 10 fe_a9
C15 9 fe_a10
B15 8 fe_a11
B16 7 fe_a12
C16 6 fe_a13
D15 5 fe_a14
Altera Corporation Reference Manual 2–11
May 2007 Nios Development Board Cyclone II Edition
Board Components
Table 2–8. Flash Memory Pin Table (Continued)
FPGA Pin U5 Pin Board Net Name
E15 4 fe_a15
H15 3 fe_a16
H16 54 fe_a17
A17 19 fe_a18
B17 18 fe_a19
G15 11 fe_a20
F15 12 fe_a21
F16 15 fe_a22
G16 2 fe_a23
D8 35 fe_d0
C8 37 fe_d1
F10 39 fe_d2
G10 41 fe_d3
D9 44 fe_d4
C9 46 fe_d5
B8 48 fe_d6
A8 50 fe_d7
H17 32 flash_cs_n
F17 34 flash_oe_n
G17 13 flash_rw_n
B18 16 flash_wp_n
C17 53 flash_byte_n (1)
D17 17 flash_ry_by_n
Note to Ta b l e 2 –8 :
(1) BYTE_n on U5 is pulled low to keep the flash memory in byte
mode which restricts the usable modes of operation.
The on-board configuration controller makes assumptions about whatresides-where in flash memory. For details refer to “SW10 – Reset,
Config” on page 2–35.
f See www.amd.com for detailed information about the flash memory
device.
2–12 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Board Components
Ethernet MAC/PHY (U4) & RJ45 Connector (RJ1)
The LAN91C111 chip (U4) is a 10/100 Ethernet media access control and
physical interface (MAC/PHY) chip. The control pins of U4 are
connected to the FPGA so that Nios II systems can access Ethernet
networks via the RJ-45 connector (RJ1) as shown in Figure 2–4. The
Nios II development tools include hardware and software components
that allow Nios II processor systems to communicate with the
LAN91C111 Ethernet device.
Figure 2–4. Ethernet RJ-45 Connector
U4
RJ1
Refer to Tabl e 2– 9 for connections between the FPGA and the MAC/PHY
device.
1 The Ethernet MAC/PHY device shares both address and data
connections with the flash memory.
Table 2–9. Ethernet MAC/PHY Pin Table
FPGA Pin U4 Pin Pin Function Board Net Name (1)
E26 41 Address Enable enet_aen
J17 43 Synchronous Ready enet_srdy_n
F18 40 VL Bus Access enet_vlbus_n
G18 45 Local Device enet_ldev_n
D18 38 IO Char Ready enet_iochrdy
E18 37 Address Strobe enet_ads_n
A19 42 Local Bus Clock enet_lclk
B19 46 Ready/Return enet_rdyrtn_n
D20 35 Bus Cycle enet_cycle_n
D14 36 Write/Read enet_w_r_n
Y15 34 Bus Chip Select enet_datacs_n
AA15 29 Interrupt enet_intr0
Altera Corporation Reference Manual 2–13
May 2007 Nios Development Board Cyclone II Edition
Board Components
Table 2–9. Ethernet MAC/PHY Pin Table (Continued)
FPGA Pin U4 Pin Pin Function Board Net Name (1)
C25 94 Byte Enable 0 enet_be_n0
C24 95 Byte Enable 1 enet_be_n1
D26 96 Byte Enable 2 enet_be_n2
D25 97 Byte Enable 3 enet_be_n3
E20 31 Read enet_ior_n
D16 32 Write enet_iow_n
H8 78 Address Line fe_a1
D11 79 Address Line fe_a2
E8 80 Address Line fe_a3
B14 81 Address Line fe_a4
A14 82 Address Line fe_a5
F14 83 Address Line fe_a6
G14 84 Address Line fe_a7
F13 85 Address Line fe_a8
G13 86 Address Line fe_a9
C15 87 Address Line fe_a10
B15 88 Address Line fe_a11
B16 89 Address Line fe_a12
C16 90 Address Line fe_a13
D15 91 Address Line fe_a14
E15 92 Address Line fe_a15
D8 107 Data Line fe_d0
C8 106 Data Line fe_d1
F10 105 Data Line fe_d2
G10 104 Data Line fe_d3
D9 102 Data Line fe_d4
C9 101 Data Line fe_d5
B8 100 Data Line fe_d6
A8 99 Data Line fe_d7
H11 76 Data Line fe_d8
H12 75 Data Line fe_d9
F11 74 Data Line fe_d10
E10 73 Data Line fe_d11
B9 71 Data Line fe_d12
2–14 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Board Components
Table 2–9. Ethernet MAC/PHY Pin Table (Continued)
FPGA Pin U4 Pin Pin Function Board Net Name (1)
A9 70 Data Line fe_d13
C10 69 Data Line fe_d14
D10 68 Data Line fe_d15
B10 66 Data Line fe_d16
A10 65 Data Line fe_d17
E12 64 Data Line fe_d18
D12 63 Data Line fe_d19
J13 61 Data Line fe_d20
J14 60 Data Line fe_d21
F12 59 Data Line fe_d22
G12 58 Data Line fe_d23
J10 56 Data Line fe_d24
J11 55 Data Line fe_d25
C11 54 Data Line fe_d26
B11 53 Data Line fe_d27
C12 51 Data Line fe_d28
B12 50 Data Line fe_d29
D6 49 Data Line fe_d30
G11 48 Data Line fe_d31
Note to Ta b l e 2 –9 :
(1) Nets fe_a0 and fe_a16 to fe_a23 do not connect to U4.
f See www.smsc.com for detailed information about the LAN91C111
device.
Serial Connector (J19)
Altera Corporation Reference Manual 2–15
May 2007 Nios Development Board Cyclone II Edition
J19 is a standard DB-9 serial connector, and is typically used for
communication between the FPGA and a host computer via an RS-232
serial cable. Level-shifting buffer (U52) is used between J19 and the
FPGA, because the FPGA device cannot interface to RS-232 voltage levels
directly.
J19 is able to transmit all RS-232 signals. Alternately, the FPGA design can
use only the signals it needs, such as J19’s RXD and TXD pins. LEDs are
connected to the RXD and TXD signals and visually indicate when data
is being transmitted or received. Figure 6 and Table 2–10 show the pin
connections between the serial connectors and the FPGA.
Board Components
Figure 2–5. Serial Connector J19
J19
Function
Direction
Connector Pin #
Connector Pin #
Direction
Function
GND5DTR
9
OUT
RI
Table 2–10. Serial Connector Pin Table
FPGA Pin J19 Pin Board Net Name
AB15 3 serial_rxd
J22 2 serial_txd
H21 4 serial_dtr
K22 1 serial_dcd
H19 6 serial_dsr
L19 9 serial_ri
L23 8 serial_cts
AC15 7 serial_rts
IN
4
RXD
8
OUT
CTS
TXD
7
IN
RTS
OUT
2
DCD
OUT
1
6
OUT
DSR
IN
3
Expansion Prototype Connectors (PROTO1 & PROTO2)
PROTO1 and PROTO2 are standard-footprint, mechanically-stable
connections that can be used (for example) as an interface to a specialfunction daughter card. Headers J11, J12, and J13 collectively form
PROTO1, and J15, J16 and J17 collectively form PROTO2.
The expansion prototype connector interface includes:
■ 41 I/O pins for prototyping. All 41 I/O pins connect to user I/O pins
on the FPGA. Each signal passes through analog switches to protect
the FPGA from 5V logic levels. These analog switches are
permanently enabled. The output logic-level on the expansion
prototype connector pins is 3.3V.
● PROTO1 switches: U19, U20, U21, U22 and U25
● PROTO2 switches: U27, U28, U29, U30 and U31
2–16 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Board Components
■ A buffered, zero-skew copy of the on-board oscillator output from
U2.
■ A buffered, zero-skew copy of the FPGA phase-locked loop (PLL)
output.
■ A logic-negative power-on reset signal.
■ Five regulated 3.3V power-supply pins (2A total max load for both
PROTO1 & PROTO2).
■ One regulated 5V power-supply pin (1A total max load for both
PROTO1 & PROTO2).
■ Numerous ground connections.
The PROTO1 expansion prototype connector shares FPGA I/O pins with
the CompactFlash connector (CON3). Designs can use either the PROTO1
connector or the CompactFlash connector.
1 Do not connect cards to PROTO1 and CON3 at the same time.
Damage to one or both cards might result.
f See the Altera web site for a list of available expansion daughter cards
that can be used with the Nios development board at
www.altera.com/devkits.
Table 2–11, Figure 2–6 and Figure 2–7 show connections from the
PROTO1 expansion headers to the FPGA. Unless otherwise noted, labels
indicate FPGA pin numbers...
Table 2–11. PROTO1 Pin Table
FPGA Pin PROTO1 Pin Connector Board Net Name
J11
U3 pin 56 1 J11 proto1_RESET_n
E25 3 J11 proto1_io0
F24 4 J11 proto1_io1
F23 5 J11 proto1_io2
J21 6 J11 proto1_io3
J20 7 J11 proto1_io4
F25 8 J11 proto1_io5
F26 9 J11 proto1_io6
N18 10 J11 proto1_io7
P18 11 J11 proto1_io8
G23 12 J11 proto1_io9
G24 13 J11 proto1_io10
Altera Corporation Reference Manual 2–17
May 2007 Nios Development Board Cyclone II Edition
Board Components
Table 2–11. PROTO1 Pin Table (Continued)
FPGA Pin PROTO1 Pin Connector Board Net Name
G25 14 J11 proto1_io11
G26 15 J11 proto1_io12
H23 16 J11 proto1_io13
H24 17 J11 proto1_io14
J23 18 J11 proto1_io15
J24 21 J11 proto1_io16
H25 23 J11 proto1_io17
H26 25 J11 proto1_io18
K18 27 J11 proto1_io19
K19 28 J11 proto1_io20
K23 29 J11 proto1_io21
K24 31 J11 proto1_io22
J25 32 J11 proto1_io23
J26 33 J11 proto1_io24
M21 35 J11 proto1_io25
T23 36 J11 proto1_io26
R17 37 J11 proto1_io27
K21 38 J11 proto1_cardsel_n
P17 39 J11 proto1_io28
J12
Y22 3 J12 proto1_io40
T18 4 J12 proto1_io29
T17 5 J12 proto1_io30
U26 6 J12 proto1_io31
R19 7 J12 proto1_io32
T19 8 J12 proto1_io33
U20 9 J12 proto1_io34
U21 10 J12 proto1_io35
V26 11 J12 proto1_io36
V25 12 J12 proto1_io37
V24 13 J12 proto1_io38
V23 14 J12 proto1_io39
J13
U2 pin 19 9 J13 proto1_osc
2–18 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Board Components
Table 2–11. PROTO1 Pin Table (Continued)
FPGA Pin PROTO1 Pin Connector Board Net Name
F21 11 J13 proto1_pllclk
N26 13 J13 proto1_clkout
Figure 2–6. PROTO1 Expansion Prototype Connector - J11, J12 & J13
J11
Pin 1
J13
J12
Pin 1
Pin 1
Altera Corporation Reference Manual 2–19
May 2007 Nios Development Board Cyclone II Edition
Board Components

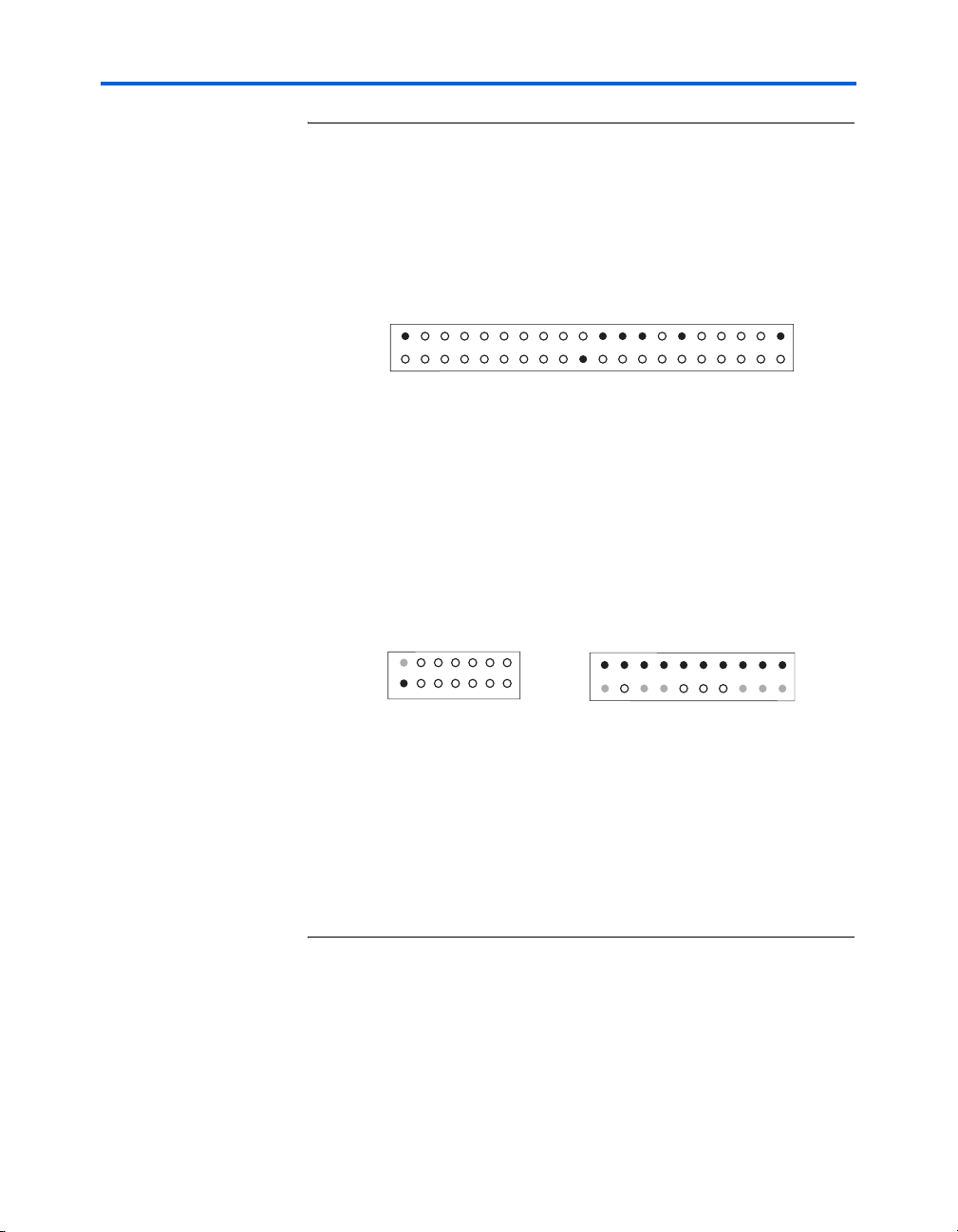

Figure 2–7. PROTO1 Pin Information – J11, J12, & J13
J11
2 GND
4 proto1_io1
6 proto1_io3
8 proto1_io5
10 proto1_io7
12 proto1_io9
14 proto1_io11
16 proto1_io13
18 proto1_io15
20 NC
22 GND
24 GND
26 GND
28 proto1_io20
30 GND
32 proto1_io23
34 NC
GND 19
proto1_io0 3
proto1_io2 5
proto1_io4 7
proto1_io6 9
proto1_io8 11
proto1_io10 13
proto1_io12 15
proto1_io14 17
proto1_io16 21
proto1_io17 23
proto1_io18 25
proto1_io19 27
proto1_io21 29
proto1_io22 31
proto1_io24 33
proto1_RESET_n 1
36 proto1_io26
38 proto1_cardsel_n
40 GND
proto1_io25 35
proto1_io27 37
proto1_io28 39
J12
4 proto1_io29
2 VCC5
GND 1
proto1_io40 3
12 proto1_io37
10 proto1_io35
8 proto1_io33
6 proto1_io31
proto1_io36 11
proto1_io34 9
proto1_io32 7
proto1_io30 5
14 proto1_io39
proto1_io38 13
J13
2 GND
1
Vunreg
(1)
4 GND
6 GND
5
NC 3
VCC3_3
8 GND
VCC3_3 7
Notes to Figure 2–7:
(1) Unregulated voltage from DC power supply.
(2) Clk from board oscillator.
(3) Clk from FPGA.
(4) Clk output from PROTO1 card to FPGA.
10 GND
12 GND
lk 11
proto1_osc 9
proto1_pllc
(2)
(3)
14 GND
16 GND
VCC3_3 15
proto1_clkout 13
4)
18 GND
20 GND
VCC3_3 17
VCC3_3 19
2–20 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Board Components
Table 2–12, Figure 2–8 and Figure 2–9 show connections from the
PROTO2 expansion headers to the FPGA. Unless otherwise noted, the
labels indicate FPGA pin numbers.
Table 2–12. PROTO2 Pin Table
FPGA Pin PROTO2 Pin Connector Board Net Name
J16
U3 pin 57 1 J16 proto2_RESET_n
AE24 3 J16 proto2_io0
T21 4 J16 proto2_io1
V22 5 J16 proto2_io2
AF23 6 J16 proto2_io3
AE23 7 J16 proto2_io4
AC22 8 J16 proto2_io5
AB21 9 J16 proto2_io6
AD23 10 J16 proto2_io7
AD22 11 J16 proto2_io8
AC21 12 J16 proto2_io9
AD21 13 J16 proto2_io10
AF22 14 J16 proto2_io11
AE22 15 J16 proto2_io12
V18 16 J16 proto2_io13
W19 17 J16 proto2_io14
U17 18 J16 proto2_io15
U18 21 J16 proto2_io16
AF21 23 J16 proto2_io17
AE21 25 J16 proto2_io18
AB20 27 J16 proto2_io19
AC20 28 J16 proto2_io20
AF20 29 J16 proto2_io21
AE20 31 J16 proto2_io22
AD19 32 J16 proto2_io23
AC19 33 J16 proto2_io24
AA17 35 J16 proto2_io25
AA18 36 J16 proto2_io26
W17 37 J16 proto2_io27
AA20 38 J16 proto2_cardsel_n
Altera Corporation Reference Manual 2–21
May 2007 Nios Development Board Cyclone II Edition
Board Components
Table 2–12. PROTO2 Pin Table (Continued)
FPGA Pin PROTO2 Pin Connector Board Net Name
V17 39 J16 proto2_io28
J15
AE17 3 J15 proto2_io40
AB18 4 J15 proto2_io29
AC18 5 J15 proto2_io30
AF19 6 J15 proto2_io31
AE19 7 J15 proto2_io32
AF18 8 J15 proto2_io33
AE18 9 J15 proto2_io34
AA16 10 J15 proto2_io35
Y16 11 J15 proto2_io36
AC17 12 J15 proto2_io37
AD17 13 J15 proto2_io38
AF17 14 J15 proto2_io39
J17
U2 pin 18 9 J17 proto2_osc
F20 11 J17 proto2_pllclk
AF14 13 J17 proto2_clkout
Figure 2–8. PROTO2 Expansion Prototype Connector - J15, J16 & J17
J16
Pin 1
J17
J15
Pin 1
2–22 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Pin 1
Figure 2–9. PROTO2 Pin Information – J15, J16 & J17
J16
2 GND
4 proto2_io1
6 proto2_io3
8 proto2_io5
10 proto2_io7
12 proto2_io9
14 proto2_io11
16 proto2_io13
18 proto_2io15
20 NC
22 GND
24 GND
26 GND
28 proto2_io20
GND 19
proto2_io0 3
proto2_io2 5
proto2_io4 7
proto2_io6 9
proto2_io8 11
proto2_io10 13
proto2_io12 15
proto2_io14 17
proto2_io16 21
proto2_io17 23
proto2_io18 25
proto2_io19 27
proto2_RESET_n 1
Board Components
30 GND
32 proto2_io23
34 NC
36 proto2_io26
38 proto2_cardsel_n
proto2_io21 29
proto2_io22 31
proto2_io24 33
proto2_io25 35
proto2_io27 37
40 GND
proto2_io28 39
CompactFlash Connector (CON3)
J15
4 proto2_io29
2 VCC5
GND 1
proto2_io40 3
12 proto2_io37
10 proto2_io35
8 proto2_io33
6 proto2_io31
proto2_io36 11
proto2_io34 9
proto2_io32 7
proto2_io30 5
14 proto2_io39
proto2_io38 13
J17
2 GND
1
Vunreg
(1)
4 GND
6 GND
5
NC 3
VCC3_3
8 GND
10 GND
12 GND
lk 11
VCC3_3 7
proto2_osc 9
proto2_pllc
(2)
(3)
14 GND
16 GND
VCC3_3 15
proto2_clkout 13
(4)
18 GND
20 GND
VCC3_3 17
VCC3_3 19
Notes to Figure 2–9:
(1) Unregulated voltage from DC power supply.
(2) Clk from board oscillator.
(3) Clk from FPGA.
(4) Clk output from PROTO2 card to FPGA.
The CompactFlash connector header (CON3) enables hardware designs
to access a CompactFlash card. Refer to Figure 2–10. The following two
access modes are supported:
■ ATA (hot swappable mode)
■ IDE (IDE hard disk mode)
Altera Corporation Reference Manual 2–23
May 2007 Nios Development Board Cyclone II Edition
Board Components
Figure 2–10. CompactFlash Connector
Most pins of CON3 connect to I/O pins on the FPGA. The following pins
have special connections:
■ Pin 13 and 38 of CON3 (VCC) are driven by a power MOSFET that is
controlled by an FPGA I/O pin. This allows the FPGA to control
power to the CompactFlash card for the IDE connection mode.
■ Pin 26 of CON3 (-CD1) is pulled up to 5V through a 10 Kohm resistor.
This signal is used to detect the presence of a CompactFlash card;
when the card is not present, the signal is pulled high through the
pull-up resistor.
■ Pin 41 of CON3 (RESET) is pulled up to 5V through a 10 Kohm
resistor, and is controlled by the EPM7256AE configuration
controller. The FPGA can cause the configuration controller to assert
RESET, but the FPGA does not drive this signal directly.
The CompactFlash connector shares several FPGA I/O pins with
expansion prototype connector PROTO1. Refer to “Expansion Prototype
Connectors (PROTO1 & PROTO2)” on page 2–16 for details on PROTO1.
1 Do not connect cards to PROTO1 and CON3 at the same time.
Damage to one or both cards might result.
Table 2–13 lists connections between CON3 and the FPGA.
Table 2–13. CompactFlash Pin Table
FPGA Pin CON3 Pin Pin Function Board Net Name (1)
E25 6 D7 proto1_io0
F24 47 D8 proto1_io1
2–24 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Board Components
Table 2–13. CompactFlash Pin Table (Continued)
FPGA Pin CON3 Pin Pin Function Board Net Name (1)
F23 5 D6 proto1_io2
J21 48 D9 proto1_io3
J20 4 D5 proto1_io4
F25 49 D10 proto1_io5
F26 3 D4 proto1_io6
N18 27 D11 proto1_io7
P18 2 D3 proto1_io8
G23 28 D12 proto1_io9
G24 23 D2 proto1_io10
G25 29 D13 proto1_io11
G26 22 D1 proto1_io12
H23 30 D14 proto1_io13
H24 21 D0 proto1_io14
J23 31 D15 proto1_io15
H25 35 IOWR_n proto1_io17
H26 34 IORD_n proto1_io18
K18 42 IORDY_n proto1_io19
K24 37 INTRQ proto1_io22
J25 24 IOCS16_n proto1_io23
J26 19 A1 proto1_io24
M21 20 A0 proto1_io25
T23 18 A2 proto1_io26
R17 7 CS0_n proto1_io27
P17 45 DASP proto1_io28
T18 8 A10 proto1_io29
T17 46 PDIAG proto1_io30
U26 10 A9 proto1_io31
R19 11 A8 proto1_io32
T19 12 A7 proto1_io33
U20 14 A6 proto1_io34
U21 15 A5 proto1_io35
V26 16 A4 proto1_io36
V25 17 A3 proto1_io37
V24 36 WE_n proto1_io38
Altera Corporation Reference Manual 2–25
May 2007 Nios Development Board Cyclone II Edition
Board Components
f For more information on the CompactFlash connector (CON3), see
Table 2–13. CompactFlash Pin Table (Continued)
FPGA Pin CON3 Pin Pin Function Board Net Name (1)
V23 43 INPACK_n proto1_io39
Y22 44 REG_n proto1_io40
W16 32 CS1_n cf_cs_n
AE16 9 ATA_SEL_n cf_atasel_n
AD16 5 Power supply
enable
W15 26 CD1_n cf_present_n
56 (U3) 41 RESET# proto1_RESET_n (3)
Notes to Ta b l e 2 –1 3 :
(1) Nets proto_io16, proto_io20, and proto_io21 do not connect to CON3.
(2) The FPGA I/O pin controls a power MOSFET that supplies 5V VCC to this net.
(3) proto1_RESET_n is driven by the EPM7256AE configuration controller device
(U3).
cf_power (2)
www.compactflash.org and www.molex.com.
PMC Connector (JH1 & JH2)
The PCI mezzanine card (PMC) connector, formed by JH1 and JH2,
allows Nios II systems in the FPGA to interface to daughter cards using
the standard 32-bit PMC form factor. Refer to Figure 2–11. The PMC
connector is capable of 33MHz and 66 MHz, and is configured as the PMC
host.
w Before connecting a daughter card to the PMC connector, the
FPGA must first be configured with a design that includes a
PMC interface. Damage to either the FPGA or daughter card can
result if the FPGA is not configured correctly.
The factory-programmed Nios II reference design does not include a
PMC interface.
2–26 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Board Components
Figure 2–11. PMC Connector
Pin 1
Pin 1
JH1
JH2
The PMC connector supplies +3.3V, +5V and +/- 12V, as required by the
PCI specification. However, DC power regulators for these supplies
cannot provide enough power to fully satisfy the PCI power specification.
The current that the board can supply through JH1 and JH2 is dependent
on the design configured in the FPGA. As a general guideline, if the PMC
card power requirements exceed the specifications shown in Table 2–14,
you must connect an external power source.
Table 2–14. PMC Card Power Specifications
DC Supply Maximum Power Apply External Power Source
+3.3V 9.5 Watts J29
+5V 15 Watts J28
+12V 45 Watts J31
-12V 1.2 Watts TP13
w When connecting an external power supply, the fuse for the
corresponding voltage should be removed to prevent the two
power supplies from interfering with each other. Refer to
“Power-Supply Circuitry” on page 2–44 for more information.
Table 2–15 lists the connections between the PMC connector and the
FPGA.
Table 2–15. PMC Connector Pin Table
FPGA Pin JH1 & JH2 Pin Connector Board Net Name
L20 61 JH1 pmc_ad0
L21 60 JH1 pmc_ad1
Altera Corporation Reference Manual 2–27
May 2007 Nios Development Board Cyclone II Edition
Board Components
Table 2–15. PMC Connector Pin Table (Continued)
FPGA Pin JH1 & JH2 Pin Connector Board Net Name
L24 59 JH1 pmc_ad2
L25 58 JH1 pmc_ad3
M19 55 JH1 pmc_ad4
M22 54 JH1 pmc_ad5
M23 53 JH1 pmc_ad6
R24 51 JH2 pmc_ad7
U22 49 JH2 pmc_ad8
U25 49 JH1 pmc_ad9
W21 48 JH2 pmc_ad10
W23 48 JH1 pmc_ad11
W24 47 JH1 pmc_ad12
W25 46 JH2 pmc_ad13
Y21 45 JH2 pmc_ad14
Y23 46 JH1 pmc_ad15
Y24 31 JH2 pmc_ad16
Y25 32 JH1 pmc_ad17
Y26 29 JH2 pmc_ad18
AA23 29 JH1 pmc_ad19
AA24 28 JH2 pmc_ad20
AA25 28 JH1 pmc_ad21
AA26 27 JH1 pmc_ad22
AB23 26 JH2 pmc_ad23
AB24 23 JH2 pmc_ad24
AB25 23 JH1 pmc_ad25
AB26 22 JH2 pmc_ad26
AC23 22 JH1 pmc_ad27
AC25 21 JH1 pmc_ad28
AC26 20 JH2 pmc_ad29
AD24 19 JH2 pmc_ad30
AD25 20 JH1 pmc_ad31
R20 52 JH1 pmc_be_n0
T22 43 JH2 pmc_be_n1
T24 32 JH2 pmc_be_n2
T25 26 JH1 pmc_be_n3
2–28 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Board Components
Table 2–15. PMC Connector Pin Table (Continued)
FPGA Pin JH1 & JH2 Pin Connector Board Net Name
T20 43 JH1 pmc _par
W26 13 JH1 pmc_clk
U24 39 JH2 pmc_perr_n
U23 42 JH2 pmc_serr_n
R25 37 JH1 pmc_devsel_n
P24 38 JH2 pmc_stop_n
P23 36 JH1 pmc_irdy_n
M20 4 JH1 pmc_inta_n
Y14 5 JH1 pmc_intb_n
AA13 6 JH1 pmc_intc_n
Y13 9 JH1 pmc_intd_n
G22 13 JH2 pmc_reset_n
N24 33 JH1 pmc_frame_n
N23 35 JH2 pmc_trdy_n
M25 25 JH2 pmc_idsel
M24 16 JH1 pmc_gnt_n
N20 17 JH1 pmc_req_n
K26 40 JH1 pmc_lock_n
K25 47 JH2 pmc_m66en
AE15 64 JH1 pmc_req64_n
Mictor Connector (J25)
The Mictor connector (J25) can be used to transmit up to 27 high-speed
I/O signals with very low noise via a shielded Mictor cable. J25 can be
used as a debug port for the Nios II processor or as a general-purpose I/O
connector to the FPGA. Twenty five of the Mictor connector signals are
used as data, and two signals are used as clock input and clock output.
Most pins on J25 connect to I/O pins on the FPGA (U62). For systems that
do not use the Mictor connector for debugging the Nios II processor, any
on-chip signals can be routed to I/O pins and probed at J25. External
scopes and logic analyzers can connect to J25 and analyze a large number
of signals simultaneously.
f For details on Nios II debugging products that use the Mictor connector,
see www.altera.com.
Altera Corporation Reference Manual 2–29
May 2007 Nios Development Board Cyclone II Edition
Board Components
Figure 2–12 shows an example of an in-target system analyzer ISA-
Nios/T by First Silicon Solutions (FS2) Inc. connected to the Mictor
connector. For details, see www.fs2.com.
Figure 2–12. An ISA-Nios/T Connecting to the Mictor Connector (J25)
J25
Five of the signals connect to both the JTAG pins on the FPGA (U62), and
the FPGA’s JTAG connector (J24). The JTAG signals have special usage
requirements. J25 and J24 cannot be used at the same time.
Figure 2–13 below shows connections from the Mictor connector to the
FPGA.
Figure 2–13. Mictor Connector Signaling
JTAG Connector
Mictor Connector
(J25)
(J24)
5
40
2–30 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
FPGA
(U62)
Board Components
Table 2–16 shows the pin out information for J25. Unless otherwise noted,
labels indicate FPGA pin numbers.
Table 2–16. Mictor Connector Pin Table
FPGA Pin J25 Pin Board Net Name
V21 5 mictor_clk
AC8 38 mictor0
AD8 36 mictor1
W10 34 mictor2
Y10 32 mictor3
V10 30 mictor4
V9 28 mictor5
AD6 26 mictor6
AD7 24 mictor7
AE5 22 mictor8
AF5 20 mictor9
AD4 18 mictor10
AD5 16 mictor11
AC5 10 mictor12
AC6 8 mictor13
AF4 37 mictor14
AE4 35 mictor15
B21 33 mictor16
B22 31 mictor17
A22 29 mictor18
A23 27 mictor19
B23 25 mictor20
D21 23 mictor21
C21 13 mictor22
C22 9 mictor23
C23 7 mictor24
B25 6 mictor_trclk
Test Points
(TP1–TP8)
Altera Corporation Reference Manual 2–31
May 2007 Nios Development Board Cyclone II Edition
TP1 – TP8 are test points connected to I/O pins on the FPGA. FPGA
designs can route signals to these I/O pins to be probed. TP1 –TP8 also
connect to the configuration controller (U3).
Board Components
Table 2–17 lists the connections between the FPGA, U3, and the test
points.
Table 2–17. Test Point Pin Table
Test Point FPGA Pin CPLD Pin Board Net Name
TP1 D19 75 pld_user0
TP2 C19 76 pld_user1
TP3 A20 77 pld_user2
TP4 B20 78 pld_user3
TP5 K16 79 pld_user4
TP6 J16 80 pld_user5
TP7 K17 81 pld_user6
TP8 J18 83 pld_user7
EPCS64 Serial Configuration Device (U69)
U69 is a serial configuration device connected to the FPGA. Serial
configuration devices are flash memory devices with a serial interface
which can store configuration data, and load the data into the FPGA upon
power up or reconfiguration. U69 can store FPGA configuration data, or
Nios II program data, or both.
Table 2–18 lists the connections between U69 and the FPGA.
Table 2–18. EPCS64 Pin Table
FPGA Pin U69 Pin Board Net Name
N6 16 pld_dclk
N3 8 pld_data0
D3 7 pld_cs_n
E3 15 pld_asdo
The SOPC Builder EPCS Serial Flash Controller component enables
Nios II processor systems to access the EPCS device. Nios II processor
systems can read program code or data from the device, and can write
new data into the EPCS device.
U69 is blank by default. The Quartus II software can program FPGA
configuration data (a .pof file) into U69 through an Altera download
cable connected to J27. Alternately, software running on a Nios II
processor design can write configuration data to U69.
2–32 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Board Components
1 The orientation of J27 is the reverse of J24.
f See the Serial Configuration Devices chapter in Altera's Configuration
Device Handbook for more information about the EPCS64 device. See the
EPCS Device Controller Core with Avalon Interface chapter in the Quartus II
Handbook, Volume 5: Altera Embedded Peripherals for information about the
EPCS serial flash controller component in SOPC Builder.
Configuration Controller Device (U3)
f For complete details on the configuration controller connections, see the
The configuration controller (U3) is an Altera MAX 7000 EPM7256AE
device. It comes preprogrammed with logic for managing board reset
conditions and configuring the FPGA from data stored in flash memory
and the EPCS64 serial configuration device (U69).
FPGA configuration data files are generated by the Quartus II software.
The Nios II integrated development environment (IDE) can write new
configuration data to the board's flash memory.
board schematic. For detailed information about the Altera EPM7256AE
device, see the MAX 7000 family literature at
www.altera.com/literature/lit-m7k.html. For details on programming
configuration data to flash memory, see the Nios II Flash Programmer User
Guide, or refer to the Nios II IDE help system.
Configuration-Status LEDs
The configuration controller is connected to four status LEDs that show
the configuration status of the board at a glance as shown in Figure 2–14.
The LEDs indicate which configuration, if any, was loaded into the FPGA
at power-on as shown in Table 2–19.
Figure 2–14. LED1 – LED 4
FPGA Config
LED 3
Loading
LED 4
Error
LED 1
User
LED 2
Factory
SW9
Factory
Config
Altera Corporation Reference Manual 2–33
May 2007 Nios Development Board Cyclone II Edition
Board Components
Table 2–19. Configuration Status LED Indicators
LED Led Name Color Description
LED3 Loading Green This LED blinks while the configuration controller is actively
transferring data from flash memory into the FPGA.
LED4 Error Red If this LED is on, then configuration was not transferred from flash
memory into the FPGA. This can happen if, for example, the flash
memory contains either a valid user or factory configuration.
LED1 User Green This LED turns on when the user configuration is being transferred
LED2 Factory Amber This LED turns on when the factory configuration is being
LED6 LED6 Red This LED is an indicator of the CONFIG_DONE_signal from the
LED7 LED7 Red This LED is an indicator of the flash_CE_n line. It illuminates when
from flash memory and stays illuminated when the user
configuration data is successfully loaded into the FPGA. If the
FPGA was successfully configured by the EPCS64, LED1 will blink
slowly.
transferred from flash memory and stays illuminated if the factory
configuration was successfully loaded into the FPGA.
FPGA. This LED illuminates when FPGA configuration completes
successfully and CONFIG_DONE goes high.
the flash is being accessed and the CE_n line is being asserted.
Configuration & Reset Buttons
The Nios development board uses dedicated switches SW8, SW9 and
SW10 for the following fixed functions:
SW8 – CPU Reset
When SW8 is pressed, a logic-0 is driven onto the FPGA I/O pin C5
(DEV_CLRn). The result of pressing SW8 depends on how the FPGA is
configured. Refer to Figure 2–15.
The factory-programmed Nios II reference design treats SW8 as a CPUreset button. The Nios II reference design resets and starts executing code
from its reset address when SW8 is pressed.
2–34 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Board Components
Figure 2–15. CPU Reset Button
SW8
CPU
Reset
SW9 – Factory Config
Pressing Factory Config (SW9) commands the configuration controller to
reconfigure the FPGA with the factory configuration. Refer to
Figure 2–16.
Figure 2–16. Factory Config Button
SW9
Factory
Config
SW10 – Reset, Config
Reset, Config (SW10) is the power-on reset button. Refer to Figure 2–17.
When SW10 is pressed, a logic 0 is driven to the power on reset controller
(U18). Refer to “Power-Supply Circuitry” on page 2–44 for more details.
Whenever SW10 is pressed, the configuration controller attempts to
reconfigure the FPGA.
Altera Corporation Reference Manual 2–35
May 2007 Nios Development Board Cyclone II Edition
Board Components
Figure 2–17. Reset, Config Button
SW10
Reset,
Config
Reset Distribution
The EPM7256AE device takes a power-on reset pulse from the Linear
Technologies 1326 power-sense/reset-generator chip (U18) and
distributes it (through internal logic) to other reset pins on the board, that
include the following:
■ LAN91C111 (Ethernet MAC/PHY) reset
■ Flash memory reset
■ CompactFlash reset
■ Reset signals delivered to the expansion prototype connectors
(PROTO1 & PROTO2)
Starting Configuration
The following four methods start a configuration sequence:
1. Board power-on
2. Pressing the Reset, Config button (SW10).
3. Asserting (driving 0 volts on) the pld_reconfigreq_n input pin
of the EPM7256AE device (U3 pin 94) from the FPGA (U62 pin
AA14).
4. Pressing the Factory Config button (SW9).
Factory & User Configurations
The configuration controller can manage two separate FPGA
configurations stored in flash memory U5. These two configurations are
referred to as the factory configuration and the user configuration. A
2–36 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Board Components
Nios II reference design is factory-programmed into the factory
configuration region of the flash memory. In addition, the FPGA can be
configured by the EPCS64 serial configuration device.
Configuration Process
At power-up or reset, the configuration controller attempts to configure
the FPGA with data from one of three sources, in the following order:
1. The EPCS64 serial configuration device
2. The user configuration from flash memory
3. The factory configuration from flash memory
First, the configuration controller puts the FPGA in active serial (AS)
configuration mode. The FPGA then attempt to read configuration data
from the EPCS64. If the FPGA finishes configuration successfully, the
configuration controller stops.
If configuration from the EPCS64 does not succeed, the configuration
controller puts the FPGA into passive serial (PS) mode and attempts to
load the user configuration from flash memory. If this also fails (because
the user configuration is either invalid or not present), the configuration
controller attempts to load the factory configuration from flash memory.
When SW9 (Factory Config) is pressed, the configuration controller
ignores the user configuration and EPCS64, and configures the FPGA
with the factory configuration. SW9 provides an escape from a situation
in which a valid-but-nonfunctional design is present in user flash
memory or the EPCS64.
Altera Corporation Reference Manual 2–37
May 2007 Nios Development Board Cyclone II Edition
Board Components
Flash Memory Partitions
The configuration controller expects user and factory configuration data
to be stored at fixed locations (offsets) in flash memory. In addition, the
factory-programmed reference design expects Nios II software and data
to exist at certain locations in flash memory. Table 2–20 shows the
expected flash memory partitioning.
Table 2–20. Flash Memory Partitions
Offset Usage Factory-Programmed Content
0x00000000 – 0x00BFFFFF User Application Space (11 MB)
0x00C00000 – 0x00CFFFFF User Configuration (1 MB)
0x00D00000 –0x00DFFFFFF Free Space (1 MB)
0x00E00000 – 0x00EFFFFF Factory Configuration (1 MB) Nios II Processor Reference
Design
0x00F00000 – 0x00FAFFFF Web Pages Web Pages
0x00FB0000 – 0x00FEFFFF Web Server Software Web Server Software
0x00FF0000 – 0x00FFFFFF Persistent Data Network Settings for Web Server
1 This partitioning scheme is merely a convention used by the
configuration controller and the factory-programmed reference
design. Custom FPGA designs can use the flash memory space
in any way necessary.
c Altera recommends that you do not overwrite the factory-
programmed flash memory contents. Without a valid factory
configuration, the configuration controller may not be able to
successfully configure the FPGA. If you alter the factory
configuration, you can restore the board to its factoryprogrammed state. Refer to Appendix B: Restoring the Factory
Configuration.
User Application Space
The lower 11 MB of flash memory is the user application space. This is
free space for user designs to store code and data for Nios II programs.
The Nios II IDE allows you to compile Nios II programs and program
them into the user application space.
2–38 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Board Components
User Configuration
The user configuration partition is 1 MB, starting at offset 0x00C00000.
This section contains the FPGA configuration data for the user
configuration. Nios II development tools include documentation on how
to create your own user configuration image and program it into flash
memory.
Factory Configuration
The factory configuration partition is 1 MB, starting at offset 0x00E00000.
This section contains the FPGA configuration data for the factory
configuration. The Nios II processor system in the factory configuration
is designed to start executing code from offset 0x00000000 in the flash
memory. The Nios II development tools include the source files for the
factory programmed hardware and software reference designs.
Persistent Data
The persistent data partition is 64 KB, starting at offset 0x00FF0000. This
partition is for maintaining nonvolatile settings and data, such as the
MAC address and IP address for the factory-programmed web server
reference design. Persistent data is technically no different than other
application data, but it is often convenient to think of certain data as
independent from the user hardware or software.
JTAG Connectors (J24 & J5)
The Nios development board has two 10-pin JTAG headers (J24 and J5)
compatible with Altera download cables, such as the USB-Blaster™. On
the Nios development board, each JTAG header connects to one Altera
device and forms a single-device JTAG chain. J24 connects to the FPGA
(U62), and J5 connects to the EPM7256AE device (U3).
JTAG Connector to FPGA (J24)
J24 connects to the JTAG pins (TCK, TDI, TDO, TMS, TRST) of the FPGA
(U62) as shown in Figure 2–18. Altera Quartus II software can directly
configure the FPGA with a new hardware image via an Altera download
cable as shown in Figure 2–19. In addition, the Nios II IDE can access the
Nios II processor JTAG debug module via a download cable connected to
the J24 JTAG connector.
Altera Corporation Reference Manual 2–39
May 2007 Nios Development Board Cyclone II Edition
Board Components
Figure 2–18. JTAG Connector (J24) to Cyclone II Device
To Mictor Connector (J25)
JTAG Signals
JTAG Connector
(J24)
TDI
TMS
TCK
TDO
TRST
FPGA
(U62)
Figure 2–19. USB Blaster Connected to J24 JTAG Connector
Pin 1
J24
The FPGA’s JTAG pins can also be accessed via the Mictor connector (J25).
The pins of J24 are connected directly to pins on J25, and care must be
taken so that signal contention does not occur between the two
connectors.
2–40 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Board Components
JTAG Connector to EPM7256AE Device (J5)
J5 connects to the JTAG pins (TCK, TDI, TDO, TMS, TRST) of the
EPM7256AE device (U3). Altera Quartus II software can perform insystem programming (ISP) to reprogram the EPM7256AE device (U3)
with a new hardware image via an Altera download cable as shown in
Figure 2–20.
f To restore the board to its factory-programmed condition, see Appendix
Clock Circuitry
1 The orientation of J5 is rotated 180
Most users never need to reprogram the configuration controller design
in the EMP7256AE device. Reprogramming the configuration controller
can result in an inoperable development board.
B: Restoring the Factory Configuration.
Figure 2–20. JTAG Connector (J5) to MAX Device
J5
Pin 1
The Nios development board includes a 50 MHz free-running oscillator
(Y2) and a zero-skew, point-to-point clock distribution network that
drives the FPGA (U62), the EPM7256AE configuration controller device
(U3), and pins on the PROTO1 & PROTO2 connectors. The zero-skew
buffer (U2) drives the clock distribution network using the free-running
50 MHz clock. Refer to Figure 2–21.
degrees compared to J24.
Altera Corporation Reference Manual 2–41
May 2007 Nios Development Board Cyclone II Edition
Board Components
Figure 2–21. Clock Circuitry
osc_CLK0
sdram_CLK_p
sdram_CLK_n
DDR SDRAM (U63)
Oscillator (Y2)
Clock
Buffer
SMA External
Input (J4)
sram_CLKIN
sdram_CLKIN
(U2)
osc_CLK1
FPGA
(U62)
PLLs
sram_CLK
mictor_CLK
PMC_CLK
SSRAM (U74)
Mictor (J25)
PMC (JH1 & JH2)
proto1_PLLCLK
proto1_CLKOUT
PROTO1
proto1_OSCCLK
proto2_PLLCLK
proto2_CLKOUT
PROTO2
proto2_OSCCLK
cpld_CLKOSC
MAX (U3)
Note to Figure 2–21:
(1) To use an external clock signal, remove the crystal oscillator from its socket. Make
sure to note the correct orientation of the oscillator before removing it.
2–42 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Board Components
The FPGA receives clock input from buffer U2, and from the PROTO1 and
PROTO2 connectors, as shown in Table 2–21.
Table 2–21. FPGA Clock Input Pin Table
FPGA Pin FPGA Pin Name PLL Signal Source Board Net Name
B25 IO N/A J25 pin 6 mictor_TRCLK
N26 CLK5 PLL2 J13 pin 13 proto1_CLKOUT
AF4 CLK13 PLL4 J17 pin 13 proto2_CLKOUT
P25 CLK6 PLL2 U2 pin 2 osc_CLK0
AC13 CLK15 PLL4 U2 pin 3 osc_CLK1
N2 CLK0 PLL1 U2 pin 4 sram_CLKIN
B13 CLK8 PLL3 U2 pin 6 sdram_CLKIN
The FPGA can synthesize new clock signals internally using on-chip
PLLs, and drive the clocks to various components on the board, as shown
in Ta bl e 2 –2 2.
Table 2–22. FPGA Clock Output Pin Table
FPGA Pin FPGA Pin Name PLL (1)
AA7 PLL1_OUTp PLL1 U63 pin 45 sdram_CLK_p
AA6 PLL1_OUTn PLL1 U63 pin 46 sdram_CLK_n
E5 PLL3_OUTp PLL3 U74 pin 89 sram_CLK
W26 IO N/A JH1 pin 13 pmc_CLK
F21 PLL2_OUTp PLL2 J13 pin 11 proto1_PLLCLK
F20 PLL2_OUTn PLL2 J17 pin 11 proto2_PLLCLK
V21 PLL4_OUTp PLL4 J25 pin 5 mictor_CLK
Note to Table 2–22:
(1) PLLs are only dedicated when using the Enhanced PLL. If you use the Fast PLL,
the PLL inputs and outputs are interchangeable. For more information on using
PLLs in the Cyclone II refer to the data sheet.
Signal
Destination
Board Net Name
The 50 MHz oscillator (Y2) is socketed and can be changed or removed by
the user. To drive the clock circuitry using the external clock connector
(J4), remove Y2.
1 The factory-programmed configuration controller and Altera-
provided reference designs work only with the 50 MHz clock.
Altera Corporation Reference Manual 2–43
May 2007 Nios Development Board Cyclone II Edition
Board Components
Power-Supply Circuitry
The Nios development board runs on a 16V, unregulated, input power
supply connected to J26. On-board circuitry generates +/-12V, +5V, +3.3V,
+2.5V, and +1.2V regulated power levels. For applications requiring high
current, separate voltage levels can be supplied from a workbench power
supply.
■ The input power-supply on J26 can be either center-negative or
center-positive. A bridge rectifier (D34) presents the appropriate
polarity to the voltage regulators.
■ The 5V supply is presented on pin 2 of J12 and J15 for use by any
device plugged into the PROTO1 & PROTO2 expansion connectors.
■ The 3.3V supply is used as the power source for all FPGA I/O pins.
The 3.3V supply is also available for PROTO1 & PROTO2 daughter
cards.
■ The 2.5V supply is used only as the power supply for the DDR
SDRAM chip and is not available on any connector or header.
■ The 1.2V supply is used only as the power supply for the Cyclone II
device core (VCCINT) and it is not available on any connector or
header.
■ The +/-12V supply is provided for the PMC connectors JH1 and JH2.
Refer to “PMC Connector (JH1 & JH2)” on page 2–26 for more
details. When workbench power supplies are connected to the board,
a corresponding fuse must be removed to decouple the on-board
voltage regulator. Each on-board regulator drives power through a
7A fuse. Refer to Table 2–23.
Table 2–23 lists the details of what voltage levels can be supplied to what
points on the board.
Table 2–23. Power Supply and Fuse Details
Voltage Pad Fuse Note
1.2V J30 F3 Core power for FPGA.
1.2V TP12 F7 FPGA PLL power supply.
1.25V TP10 F5 DDR SDRAM I/O VTT.
1.25V TP9 F4 DDR SDRAM I/O VREF.
2.5V TP11 F6 DDR SDRAM VDD power supply. FPGA VCCIO for pins that
3.3V J29 F2 3.3V power for multiple components on the board.
5V J28 F1 5.0V power for multiple components on the board.
+12V J31 F8 Power for the PMC connectors.
-12V TP13 F9 Power for the PMC connectors.
2–44 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
interface to DDR SDRAM.
Appendix A. Restoring the
Factory Configuration
Introduction
Reprogramming the Flash Memory
To restore the factory configuration, you must reprogram the flash
memory on the board, and you must Nios Development Board Cyclone II
Edition the EPM7256AE configuration controller device.
Nios II Embedded Design Suite provides the files required for this
operation in the directory <Nios II EDS install path>/examples
/factory_recovery.
To reprogram the flash memory on the development board, perform the
following steps:
1. Open a Nios II command shell.
On a Windows PC, click Windows Start, point to Programs, Altera,
Nios II EDS <installed version>, and then click Nios II Command
Shell.
2. From the examples directory, change to the factory_recovery
directory for your development kit.
cd factory_recovery/niosII_cycloneII_2c35
3. Run the flash-restoration script:
./restore_my_flash
4. Follow the script's instructions.
Reprogramming
the EPM7256AE
Configuration
If the configuration controller design was modified, you must also
reprogram the EMP7256AE device (U3). To reprogram the EMP7256AE
configuration controller, perform the following steps:
1. Move the programming cable from J24 to J5, labeled “For U3”.
Controller
Device
Altera Corporation A–1
May 2007
1 The orientation of J5 is opposite that of J24. When properly
connected to J5, the programming cable lies naturally over
the clock oscillator and the dual seven-segment display.
2. Launch the Quartus II software, and click Programmer on the Tools
menu.
3. Click Add File and select the following programming file:
<Nios II EDS install path>/examples/
factory_recovery/niosII_cycloneII_2c35/config_controller.pof.
4. In the Programmer, turn on the Program/Configure checkbox, and
click Start to reprogram the EPM7256AE device.
5. Press the Factory Config button to perform a power on reset and
reconfigure the FPGA from flash memory. You should see the
Factory LED turned on and activity on LEDs D0 through D7.
Your board is now reconfigured to the default factory condition.
A–2 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Appendix B. Connecting to
the Board via Ethernet
Introduction
The Nios development board is factory-programmed with a reference
design that implements a web server, among other functions as shown in
Figure B–1. This chapter describes how to connect a host computer to the
board's Ethernet port, assign an IP address to the board, and browse to the
web server from the host computer.
Figure B–1. Web Server Reference Design
Connecting the Ethernet Cable
Altera Corporation B–1
May 2007
The Nios II development kit includes an Ethernet (RJ45) cable and a
male/female RJ45 crossover adapter. Before you connect these
components, you must decide how you want to use the network features
of your board. Select one of the two following connection methods:
1. LAN Connection — To use your Nios development board on a LAN (for
example, connecting to an Ethernet hub) do the following:
a. Connect one end of the RJ45 cable to the Ethernet connector on
the development board (RJ1).
b. Connect the other end to your LAN connection (hub, router,
wall plug, etc.).
2. Point-to-Point Connection — To use your Nios development board
connected directly to a host computer point-to-point (not on a
LAN), do the following:
a. Connect one end of your RJ45 cable to the female socket in the
crossover adapter and insert the male end of the crossover
adapter into RJ1 on the Nios development board as shown in
Figure B–2.
Figure B–2. Point-to-Point Connection
RJ1
b. Connect the other end of the RJ45 connector directly to the
network (Ethernet) port on your host computer.
Connecting the LCD Screen
The Nios II development kit includes a two-line x 16-character LCD text
screen. The web-server software displays useful status and progress
messages on this display. If you wish to use the network features of the
board, connect the LCD screen to expansion prototype connector J12.
Refer to the Nios II Development Kit, Getting Started User Guide for details.
Obtaining an IP Address
In order to function on a network (either LAN or point-to-point), your
board must have an IP address. This section describes the methods to
assign an IP address to your board.
B–2 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
LAN Connection
If you have connected your board to a LAN, the board will either obtain
a dynamic IP address using DHCP, or a static IP address stored in flash
memory. If you do not know whether or not your LAN supports DHCP,
it is easiest to try DHCP first.
DHCP
Upon reset, the web server attempts to acquire an IP address via the
DHCP protocol. The board continues to attempt DHCP self-configuration
for two minutes. You can determine if DHCP has succeeded, or if it is still
in progress, by reading status messages on the LCD screen. If your LAN
does not support DHCP then DHCP configuration ultimately fails, and
the web server defaults to a static IP address.
If DHCP succeeds, the board displays a success message and the IP
address on the LCD screen. The web server is now ready to display web
pages. See “Browsing to Your Board” on page B–5 to continue.
Static IP Address
If the DHCP process fails, the board uses a static IP address stored in flash
memory. You need to obtain a safe IP address in your LAN's subnet from
your system administrator. Once you know a safe IP address, you can
assign it to your board using the steps below.
These steps send IP configuration data to the board via an Altera JTAG
download cable, such as the USB-Blaster cable.
1. Install the Nios II development tools, connect the JTAG download
cable, and apply power to the board, as described in the Nios II
Development Kit, Getting Started User Guide.
2. Open a Nios II command shell. On Windows PCs, On a Windows
PC, click Windows Start, point to Programs, Altera, Nios II EDS
<installed version>, and then click Nios II Command Shell. A shell
window appears with a command prompt.
3. Press the SW9 button labeled Factory Config on the board.
4. At the Nios II command shell command prompt, type:
nios2-terminal<Enter>
This command opens a terminal connection via the JTAG download
cable to a monitor program running on the board. The monitor
program displays status messages and text instructions that tell you
how to set the IP address for your board.
Altera Corporation Reference Manual B–3
May 2007 Nios Development Board Cyclone II Edition
5. Press the ! key to abort the DHCP process and display a prompt. If
you don't abort the DHCP process, it will fail after two minutes, and
eventually a prompt will appear.
1 The monitor's prompt is the + character. You can enter
h<Enter> at the prompt for a complete list of supported
commands.
6. At the prompt, type xip:<safe IP address><Enter>
The xip command saves the IP address in flash memory. In general,
you only need to assign an IP address to your board once. However,
you can change it at any time by issuing another xip command. You
can also use the commands xsubnet and xgateway to assign
subnet and gateway addresses, but setting these addresses is not
usually necessary.
7. Type xdhcp:off<Enter> to disable the board from attempting to
obtain the IP address using DHCP in the future. (You can re-enable
DHCP later, using the xdhcp:on command.)
8. Type CTRL+C to terminate the JTAG terminal session and
disconnect from the monitor program, then close the Nios II
command shell.
9. Press the SW8 button labeled CPU Reset to reboot the Nios II
processor and start the web server using the new IP address. The
LCD screen displays the static IP address assigned to the board,
along with other status messages.
The web server is now ready to display pages using the IP address you
assigned. See “Browsing to Your Board” on page B–5 to continue.
Point–to–Point Connections
All boards are factory programmed with a default IP address of 10.0.0.51
stored in flash memory. The 10.0.0.x subnet is conventionally reserved for
development, test, and prototyping. If DHCP fails or is aborted, the board
uses this static IP address. The LCD screen displays status messages to
indicate when the web server starts running using the default IP address.
Your host computer and the development board are the only two devices
connected to this simple point-to-point network. For most host operating
systems, it is necessary to assign your host computer an IP address on the
same subnet as the board. For example, the address 10.0.0.1 will work
fine. Any address in the 10.0.0.x subnet will work, and there is no
possibility of conflicting with another device on the network. After
B–4 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
modifying the host computer's IP address, your computer is ready to
connect to the web server. Refer to “Browsing to Your Board” on page B–5
to continue.
If you don't have the ability to change the IP address of your host
computer, you can change the IP address of the board to match the subnet
of the host computer. For example, if your computer's IP address is
1.2.3.4, then you can assign the address 1.2.3.5 to your board. To change
the board IP address, follow the steps in “Static IP Address ” on page B–3.
Every time you reset the board, the web server will attempt to obtain an
IP address via DHCP, which takes two minutes to time out. You can abort
the DHCP process, or disable DHCP entirely by using the steps in “Static
IP Address ” on page B–3.
Browsing to Your Board
Once your board has a valid IP address (obtained from either DHCP selfconfiguration or from flash memory), you can access the board via a web
browser (e.g., Microsoft Internet Explorer). To browse to this site, open a
web browser and type the IP address of the board (four numbers
separated by decimal-points) as a URL directly into the browser’s
Address input field. You can determine your board’s IP address by
reading the messages displayed on the LCD screen.
Altera Corporation Reference Manual B–5
May 2007 Nios Development Board Cyclone II Edition
B–6 Reference Manual Altera Corporation
Nios Development Board Cyclone II Edition May 2007
Loading...
