About This MegaCore Function

Contents

About This MegaCore Function......................................................................... 1-1
Getting Started With the 50G Interlaken IP Core..............................................2-1
Features......................................................................................................................................................... 1-1
IP Core Supported Combinations of Number of Lanes and Data Rate...................................1-2
IP Core Raw Aggregate Bandwidth...............................................................................................1-2
Device Family Support................................................................................................................................1-2
IP Core Verification.....................................................................................................................................1-3
Performance and Resource Utilization.....................................................................................................1-3
Device Speed Grade Support......................................................................................................................1-4
Release Information.....................................................................................................................................1-4
Installing and Licensing IP Cores..............................................................................................................2-1
OpenCore Plus IP Evaluation........................................................................................................ 2-1
Specifying the 50G Interlaken IP Core Parameters and Options .........................................................2-2
Files Generated for Arria V GZ and Stratix V Variations......................................................................2-3
Files Generated for Arria 10 Variations....................................................................................................2-4
Simulating the50G Interlaken IP Core......................................................................................................2-6
Integrating Your IP Core in Your Design................................................................................................ 2-6
Pin Assignments...............................................................................................................................2-6
Transceiver Logical Channel Numbering.....................................................................................2-7
Adding the Reconfiguration Controller..................................................................................... 2-10
Adding the External PLL.............................................................................................................. 2-12
Compiling the Full Design and Programming the FPGA....................................................................2-14
50G Interlaken IP Core Parameter Settings.......................................................3-1
Functional Description....................................................................................... 4-1
Altera Corporation
Meta Frame Length in Words....................................................................................................................3-1
Transceiver Reference Clock Frequency...................................................................................................3-1
Number of Calendar Pages.........................................................................................................................3-2
TX Scrambler Seed.......................................................................................................................................3-2
Transfer Mode Selection.............................................................................................................................3-2
Interfaces Overview.....................................................................................................................................4-1
Application Interface.......................................................................................................................4-1
Interlaken Interface..........................................................................................................................4-1
Out-of-Band Flow Control Interface.............................................................................................4-2
Management Interface.................................................................................................................... 4-2
Transceiver Control Interfaces.......................................................................................................4-2
High Level Block Diagram..........................................................................................................................4-4
Clocking and Reset Structure for IP Core................................................................................................ 4-4
About This MegaCore Function
50G Interlaken IP Core Clock Signals...........................................................................................4-5
IP Core Reset.................................................................................................................................... 4-5
IP Core Reset Sequence with the Reconfiguration Controller.................................................. 4-7
Interleaved and Packet Modes................................................................................................................... 4-7
50G Interlaken IP Core Transmit Path.....................................................................................................4-8
50G Interlaken IP Core Transmit User Data Interface Examples.............................................4-8
50G Interlaken IP Core In-Band Calendar Bits on Transmit Side......................................... 4-12
50G Interlaken IP Core Transmit Path Blocks..........................................................................4-13
50G Interlaken IP Core Receive Path......................................................................................................4-14
50G Interlaken IP Core Receive User Data Interface Examples............................................. 4-14
50G Interlaken IP Core RX Errored Packet Handling............................................................. 4-16
In-Band Calendar Bits on the 50G Interlaken IP Core Receiver User Data Interface.........4-18
50G Interlaken IP Core Receive Path Blocks.............................................................................4-19
TOC-3
50G Interlaken MegaCore Function Signals.......................................................5-1
50G Interlaken IP Core Clock Interface Signals......................................................................................5-1
50G Interlaken IP Core Reset Interface Signals.......................................................................................5-2
50G Interlaken IP Core User Data Transfer Interface Signals.............................................................. 5-4
50G Interlaken IP Core Interlaken Link and Miscellaneous Interface Signals................................... 5-8
50G Interlaken IP Core Management Interface....................................................................................5-12
Device Dependent Signals........................................................................................................................ 5-14
Transceiver Reconfiguration Controller Interface Signals.......................................................5-14
Arria 10 External PLL Interface Signals......................................................................................5-15
Arria 10 Transceiver Reconfiguration Interface Signals.......................................................... 5-15
50G Interlaken IP Core Register Map.................................................................6-1
50G Interlaken IP Core Testbench..................................................................... 7-1
50G Interlaken IP Core Testbench Interface Signals..............................................................................7-2
Testbench Simulation Behavior.................................................................................................................7-3
Running the Testbench With the Example Design.................................................................................7-3
Setting Up the Testbench Example................................................................................................7-3
Simulating the Example Design.....................................................................................................7-3
50G Interlaken IP Core Test Features................................................................ 8-1
Internal Serial Loopback Mode..................................................................................................................8-1
External Loopback Mode............................................................................................................................8-1
PRBS Generation and Validation.............................................................................................................. 8-2
Setting up PRBS Mode in Arria V and Stratix V Devices.......................................................... 8-2
Setting up PRBS Mode in Arria 10 Devices..................................................................................8-4
CRC32 Error Injection ...............................................................................................................................8-7
Advanced Parameter Settings............................................................................. 9-1
Hidden Parameters......................................................................................................................................9-1
Required User Clock Frequency....................................................................................................9-1
Altera Corporation
TOC-4
About This MegaCore Function
Counter Reset Bits............................................................................................................................9-2
Include Temp Sense.........................................................................................................................9-2
RXFIFO Address Width..................................................................................................................9-2
SWAP_TX_LANES and SWAP_RX_LANES (Data Word Lane Swapping)..........................9-2
Use ATX or CMU PLL....................................................................................................................9-4
Lane Profile.......................................................................................................................................9-4
Modifying Hidden Parameter Values.......................................................................................................9-4
Out-of-Band Flow Control in the 50G Interlaken MegaCore Function..........10-1
Out-of-Band Flow Control Block Clocks...............................................................................................10-2
TX Out-of-Band Flow Control Signals...................................................................................................10-2
RX Out-of-Band Flow Control Signals...................................................................................................10-4
Performance and Fmax Requirements for 40G Ethernet Traffic..................... A-1
Additional Information......................................................................................B-1
Document Revision History...................................................................................................................... B-1
How to Contact Altera................................................................................................................................B-3
Typographic Conventions..........................................................................................................................B-3
Altera Corporation
2015.05.04
FPGA/
ASIC
Interlaken
Interlaken
FPGA/
ASIC
Interlaken
Interlaken
FPGA/
ASIC
Interlaken
Up to
50 Gbps
Up to
50 Gbps
Traffic
Management
Packet
Processing
Ethernet
MAC/Framer
Switch
Fabric
To Line Interface
www.altera.com
101 Innovation Drive, San Jose, CA 95134

About This MegaCore Function

1
UG-01140
Subscribe
Send Feedback
Interlaken is a high-speed serial communication protocol for chip-to-chip packet transfers. The Altera 50G Interlaken MegaCore® function implements the Interlaken Protocol Specification, Revision 1.2 . It supports eight lanes at a lane rate of 6.25 gigabits per second (Gbps), on Stratix® V, Arria® V GZ, and Arria 10 devices, providing raw bandwidth of 50 Gbps.
Interlaken provides low I/O count compared to earlier protocols, supporting scalability in both number of lanes and lane speed. Other key features include flow control, low overhead framing, and extensive integrity checking. The 50G Interlaken MegaCore function incorporates a physical coding sublayer (PCS), a physical media attachment (PMA), and a media access control (MAC) block.
Figure 1-1: Typical Interlaken Application
®
Related Information
Interlaken Protocol Specification, Revision 1.2

Features

The 50G Interlaken MegaCore function has the following features:
• Compliant with the Interlaken Protocol Specification, Rev 1.2.
• Supports eight serial lanes in configurations that provide up to 50 Gbps raw bandwidth.
• Supports per-lane data rate of 6.25 Gbps using Altera on-chip high-speed transceivers.
• Supports dynamically configurable BurstMax and BurstMin values.
• Supports Packet mode and Interleaved (Segmented) mode for user data transfer.
©
2015 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, ENPIRION, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.
ISO 9001:2008 Registered
1-2

IP Core Supported Combinations of Number of Lanes and Data Rate

• Supports up to 256 logical channels in out-of-the-box configuration.
• Supports optional user-controlled in-band flow control with 1, 2, 4, 8, or 16 16-bit calendar pages.
• Supports optional out-of-band flow control blocks.
Related Information
Interlaken Protocol Specification, Rev 1.2
IP Core Supported Combinations of Number of Lanes and Data Rate
Table 1-1: 50G Interlaken IP Core Supported Combinations of Number of Lanes and Data Rate
The 50G Interlaken IP core supports only the following combination of number of lanes and data rate.
Number of Lanes Lane Rate (Gbps)
8 6.25

IP Core Raw Aggregate Bandwidth

The raw aggregate bandwidth of the 50G Interlaken IP core is 8 × 6.25 Gbps = 50 Gbps.
UG-01140
2015.05.04

Device Family Support

The following table lists the device support level definitions for Altera IP cores.
Table 1-2: Altera IP Core Device Support Levels
FPGA Device Families
Preliminary support — The core is verified with preliminary timing models for this device family. The IP core meets all functional requirements, but might still be undergoing timing analysis for the device family. It can be used in production designs with caution.
Final support — The IP core is verified with final timing models for this device family. The IP core meets all functional and timing requirements for the device family and can be used in production designs.
The following table shows the level of support offered by the 50G Interlaken MegaCore function for each Altera device family.
Table 1-3: Device Family Support
Device Family Support
Stratix V (GS, GT, and GX) Final
Arria V (GZ) Final
Arria 10 Preliminary
Altera Corporation
About This MegaCore Function
Send Feedback
UG-01140
2015.05.04
Device Family Support
Other device families No support

IP Core Verification

Before releasing a version of the 50G Interlaken IP core, Altera runs comprehensive regression tests in the current version of the Quartus® II software. These tests use standalone methods. These files are tested in simulation and hardware to confirm functionality. Altera tests and verifies the 50G Interlaken IP core in hardware for different platforms and environments.
Constrained random techniques generate appropriate stimulus for the functional verification of the IP core. Functional coverage metrics measure the quality of the random stimulus, and ensure that all important features are verified.

Performance and Resource Utilization

Table 1-4: 50G Interlaken MegaCore Function FPGA Resource Utilization
IP Core Verification
1-3
The table shows results obtained using the Quartus II software v13.1 and v13.1 Arria 10 edition releases for the following devices:
• Arria 10 device 10AX115S2F45I2SGES
• Arria V GZ device 5AGZE1H2F35I3
• Stratix V GX device 5SGXMA7N2F45I3 The results in this table do not include the out-of-band flow control block. The numbers of ALMs and logic registers are rounded up to the nearest 100. The numbers of ALMs, before
rounding, are the ALMs needed numbers from the Quartus II Fitter Report.
Resource Utilization
Device
ALMs
Primary Secondary
Logic Registers
M20K Blocks
Arria 10 9900 20600 1500 17
Arria V GZ 9800 20800 1600 17
Stratix V GX 9800 20700 1700 17
Stratix V GT 9800 20700 1600 17
About This MegaCore Function
Send Feedback
Altera Corporation
1-4

Device Speed Grade Support

Related Information
UG-01140
2015.05.04
Fitter Resources Reports in the Quartus II Help Information about Quartus II resource utilization reporting for 28-nm devices, including ALMs needed.
Quartus II Handbook, Volume 1: Design and Synthesis Includes information about how to apply the Speed setting.
Device Speed Grade Support
Table 1-5: Minimum Recommended Device Family Speed Grades
For each device family the 50G Interlaken IP core supports, Altera recommends that you configure the 50G Interlaken IP core only in the device speed grades listed in the table, and any faster (lower numbered) device speed grades that are available. Altera does not support configuration of this IP core in slower speed grades.
Device Family
Minimum Supported Speed Grade
Arria 10 I2, E2
Arria V GZ I3, C3
Stratix V GX I3, C3
Stratix V GT I3, C3
Stratix V GS I3, C3

Release Information

Table 1-6: 50G Interlaken MegaCore Function Release Information
Item Value
Version 15.0
Release Date May 2015
Ordering Code IP–ILKN/50G
Vendor ID 6AF7
Product ID 010D
Altera Corporation
About This MegaCore Function
Send Feedback
UG-01140
2015.05.04
Release Information
1-5
Altera verifies that the current version of the Quartus II software compiles the previous version of each MegaCore function, if this MegaCore function was included in the previous release. Any exceptions to this verification are reported in the Altera IP Core Release Notes. Altera does not verify compilation with MegaCore function versions older than the previous release.
Related Information
Altera IP Core Release Notes
About This MegaCore Function
Send Feedback
Altera Corporation
2015.05.04
acds
quartus - Contains the Quartus II software ip - Contains the Altera IP Library and third-party IP cores
altera - Contains the Altera IP Library source code
<IP core name> - Contains the IP core source files
www.altera.com
101 Innovation Drive, San Jose, CA 95134

Getting Started With the 50G Interlaken IP Core

2
UG-01140
Subscribe
Send Feedback
The following sections explain how to install, parameterize, simulate, and initialize the 50G Interlaken IP core.

Installing and Licensing IP Cores

The Altera IP Library provides many useful IP core functions for your production use without purchasing an additional license. Some Altera MegaCore® IP functions require that you purchase a separate license for production use. However, the OpenCore® feature allows evaluation of any Altera® IP core in simulation and compilation in the Quartus II software. After you are satisfied with functionality and perfformance, visit the Self Service Licensing Center to obtain a license number for any Altera product.
Figure 2-1: IP Core Installation Path
Note:
The default IP installation directory on Windows is <drive>:\altera\<version number>; on Linux it is <home directory>/altera/ <version number>.
Related Information
Altera Licensing Site
Altera Software Installation and Licensing Manual

OpenCore Plus IP Evaluation

Altera's free OpenCore Plus feature allows you to evaluate licensed MegaCore IP cores in simulation and hardware before purchase. You need only purchase a license for MegaCore IP cores if you decide to take your design to production. OpenCore Plus supports the following evaluations:
©
2015 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, ENPIRION, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.
ISO 9001:2008 Registered
2-2

Specifying the 50G Interlaken IP Core Parameters and Options

• Simulate the behavior of a licensed IP core in your system.
• Verify the functionality, size, and speed of the IP core quickly and easily.
• Generate time-limited device programming files for designs that include IP cores.
• Program a device with your IP core and verify your design in hardware. OpenCore Plus evaluation supports the following two operation modes:
• Untethered—run the design containing the licensed IP for a limited time.
• Tethered—run the design containing the licensed IP for a longer time or indefinitely. This requires a connection between your board and the host computer.
Note: All IP cores that use OpenCore Plus time out simultaneously when any IP core in the design times
out.
Specifying the 50G Interlaken IP Core Parameters and Options
The parameter editor GUI allows you to quickly configure your custom IP variation. You specify IP core options and parameters in the Quartus II software.
The 50G Interlaken IP core is not supported in Qsys. You must use the IP Catalog accessible from the Quartus II Tools menu.
The 50G Interlaken IP core does not support VHDL simulation models. Altera recommends that you specify the Verilog HDL for both synthesis and simulation models.
UG-01140
2015.05.04
1. In the IP Catalog (Tools > IP Catalog), locate and double-click the name of the IP core to customize. The parameter editor appears.
2. Specify a top-level name for your custom IP variation. The parameter editor saves the IP variation settings in a file named <your_ip>.qsys. Click OK.
Note:
For Arria V GZ and Stratix V variations, you are prompted to specify an IP variation file type. To generate the demonstration testbench and example design, you must select the Verilog HDL and specify the Verilog file extension (.v).
3. Specify the parameters and options for your IP variation in the parameter editor, including one or more of the following. Refer to 50G Interlaken IP Core Parameter Settings for information about specific IP core parameters.
• Specify parameters defining the IP core functionality, port configurations, and device-specific
features.
• Specify options for processing the IP core files in other EDA tools.
4. For Arria 10 variations, follow these steps: a. Click Generate HDL. The Generation dialog box appears.
b. Specify output file generation options, and then click Generate. The IP variation files generate
according to your specifications.
Note:
To generate the demonstration testbench and example design, you must specify Verilog HDL for both synthesis and simulation models.
c. Click Finish. The parameter editor adds the top-level .qsys file to the current project automatically.
If you are prompted to manually add the .qsys file to the project, click Project > Add/Remove Files
in Project to add the file.
5. For Arria V GZ and Stratix V variations, follow these steps:
Altera Corporation
Getting Started With the 50G Interlaken IP Core
Send Feedback
Notes:
1. If supported and enabled for your IP variation
2. If functional simulation models are generated
3. If example design is generated
<Project Directory>
<your_ip>_sim
1
ilk_core_50g.sv - IPFS model
2
<simulator_vendor>
<simulator setup scripts>
<your_ip>.qip - Quartus II IP integration file
<your_ip>.sip - Lists files for simulation
<your_ip>.v, .sv. or .vhd - Top-level IP synthesis file
ilk_core_50g
<your_ip>.cmp - VHDL component declaration file
<your_ip>.bsf - Block symbol schematic file
<your_ip> - IP core synthesis files
ilk_core_50g.sv - HDL synthesis file
ilk_50g_top.sdc - Timing constraints file
<your_ip>.ppf - XML I/O pin information file <your_ip>.spd - Combines individual simulation scripts
1
<your_ip>_sim.f - Refers to simulation models and scripts
1
testbench
3
UG-01140
2015.05.04

Files Generated for Arria V GZ and Stratix V Variations

a. Click Finish. The Generation dialog box appears. b. Click Exit. The parameter editor adds the top-level .qsys file to the current project automatically. If
you are prompted to manually add the .qsys file to the project, click Project > Add/Remove Files in Project to add the file.
6. After generating and instantiating your IP variation, make appropriate pin assignments to connect
ports.
If you specify the Verilog HDL for your IP core files, the Quartus II software creates the demonstration testbench and example design when it generates the IP core.
Related Information
50G Interlaken IP Core Parameter Settings on page 3-1
Details about the parameters available in the 50G Interlaken parameter editor.
Files Generated for Arria V GZ and Stratix V Variations
The Quartus II software generates multiple files during generation of your 50G Interlaken IP core Arria V GZ or Stratix V variation.
Figure 2-2: IP Core Generated Files
2-3
Getting Started With the 50G Interlaken IP Core
Send Feedback
Altera Corporation
2-4

Files Generated for Arria 10 Variations

If you select the Verilog HDL for synthesis and simulation models, the demonstration testbench and example design files are located in <your_ip>_sim/ilk_core_50g/testbench.
Files Generated for Arria 10 Variations
The Quartus II software generates multiple files during generation of your 50G Interlaken IP core Arria 10 variation.
UG-01140
2015.05.04
Altera Corporation
Getting Started With the 50G Interlaken IP Core
Send Feedback
<your_ip >.cmp - VHDL component declaration file
<your_ip >.ppf - XML I/O pin information file <your_ip >.qip - Lists IP synthesis files <your_ip >.sip - Lists files for simulation
<your_ip >.v or .vhd Top-level IP synthesis file
<your_ip >.v or .vhd Top-level simulation file
<simulator_setup_scripts >
<your_ip >.qsys - System or IP integration file
<your_ip >_bb.v - Verilog HDL black box EDA synthesis file <your_ip >_inst.v or .vhd - Sample instantiation template
<your_ip >_generation.rpt - IP generation report <your_ip >.debuginfo - Contains post-generation information
<your_ip >.html - Connection and memor y map data <your_ip >.bsf - Block symbol schematic <your_ip >.spd - Combines individual simulation scripts
<your_ip >.sopcinfo - Software tool-chain integration file
<project directory>
<your_ip>
IP variation files
sim
Simulation files
synth
IP synthesis files
<EDA tool name>
Simulator scripts
ilk_core_50g_<version>
Subcore libraries
sim
Subcore
Simulation files
synth
Subcore
synthesis files
<HDL files >
<HDL files >
<your_ip> n
IP variation files
testbench
Testbench files
UG-01140
2015.05.04
Figure 2-3: IP Core Generated Files
Files Generated for Arria 10 Variations
2-5
If you select the Verilog HDL for synthesis and simulation models, the demonstration testbench and example design files are located in <your_ip>/ilk_core_50g_<version>/sim/testbench.
.
Getting Started With the 50G Interlaken IP Core
Send Feedback
Altera Corporation
2-6

Simulating the50G Interlaken IP Core

Simulating the50G Interlaken IP Core
You can simulate your 50G Interlaken MegaCore function variation using any of the vendor-specific IEEE encrypted functional simulation models which are generated in the new <instance name>_sim subdirec‐ tory of your project directory.
The 50G Interlaken MegaCore function supports the Synopsys VCS, Cadence NC Sim, and Mentor Graphics Modelsim-SE simulators.
The 50G Interlaken IP core generates only a Verilog HDL simulation model and testbench. The IP core parameter editor appears to offer you the option of generating a VHDL simulation model, but this IP core does not support a VHDL simulation model or testbench.
For more information about functional simulation models for Altera IP cores, refer to the Simulating Altera Designs chapter in volume 3 of the Quartus II Handbook.
If you specify the models are in Verilog HDL when you parameterize your IP core variation, the Quartus II software generates a testbench which demonstrates the resetting, clocking, and toggling of the 50G Interlaken IP core user interfaces.
Related Information
UG-01140
2015.05.04
50G Interlaken IP Core Testbench on page 7-1 When you generate the IP core, the Quartus II software generates a testbench.
Simulating Altera Designs

Integrating Your IP Core in Your Design

After you generate your 50G Interlaken IP core variation, you can instantiate it in the RTL for your design. When you integrate your IP core instance in your design, you must pay attention to the following items.

Pin Assignments

When you integrate your 50G Interlaken MegaCore function instance in your design, you must make appropriate pin assignments. You do not need to specify pin assignments for simulation. However, you should make the pin assignments before you compile, to provide direction to the Quartus II Fitter and to specify the signals that should be assigned to device pins.
You can create a virtual pin to avoid making specific pin assignments for top-level signals while you are simulating and not ready to map the design to hardware. Do not create virtual pins for clock or Interlaken link data signals.
For the Arria 10 device family, you must configure a PLL external to the 50G Interlaken IP core. The required number of PLLs depends on the distribution of your Interlaken lane data pins in the different A10 transceiver blocks.
Related Information
Quartus II Help
For information about the Quartus II software, including virtual pins.
Altera Corporation
Getting Started With the 50G Interlaken IP Core
Send Feedback
UG-01140
2015.05.04

Transceiver Logical Channel Numbering

Transceiver Logical Channel Numbering
In Arria V and Stratix V devices, logical channel numbering starts from zero. The logical channel numbering starts at the bottom of the die with logical channel 0 and continues in physical pin order through the four ordered transceiver blocks on the same side of the device. Each data channel and TX PLL has its own dedicated reconfiguration interface with an assigned logical channel.
In Arria 10 devices, you control the mapping of Interlaken lanes directly in the Arria 10 Native PHY IP core that is included in the 50G Interlaken IP core.
In Arria V and Stratix V devices, you can control the logical channel assignments in the IP core. You typically assign lanes to match the logical channel numbering. However, the default Interlaken lane assignment does not assign a lane to Channel 1 or Channel 4 in a transceiver block, leaving either available for the CMU PLL. You can use the information in the following table to map the lanes to their default logical channel numbering. The logical channel numbering always starts at the bottom of a transceiver block.
Table 2-1: Transceiver Logical Channel Numbering
The default expected mapping of logical channels to Interlaken lanes in Arria V and Stratix V devices.
2-7
Transceiver Block Number Logical Channel Number in
Device
27 TX PLL 3
26
25
24
3
23
22
Direction Interlaken Lane Number in
IP Core
TX
RX
TX
RX
TX
RX
TX
RX
TX
RX
21
Getting Started With the 50G Interlaken IP Core
Send Feedback
TX
RX
Altera Corporation
2-8
Transceiver Logical Channel Numbering
UG-01140
2015.05.04
Transceiver Block Number Logical Channel Number in
Device
20 TX PLL 2
19
18
17
2
16
15
Direction Interlaken Lane Number in
IP Core
TX
RX
TX
RX
TX
RX
TX
RX
TX
RX
TX
14
RX
13 TX PLL 1
Altera Corporation
Getting Started With the 50G Interlaken IP Core
Send Feedback
UG-01140
2015.05.04
Transceiver Logical Channel Numbering
2-9
Transceiver Block Number Logical Channel Number in
Device
12
11
10
1
9
8
TX
RX
TX
RX
TX
RX
TX
RX
TX
RX
Direction Interlaken Lane Number in
IP Core
7
(Left available for CMU PLL)
6
5
(Left available for CMU PLL)
TX
7
RX
6 TX PLL 0
4
Getting Started With the 50G Interlaken IP Core
Send Feedback
Altera Corporation
2-10

Adding the Reconfiguration Controller

UG-01140
2015.05.04
Transceiver Block Number Logical Channel Number in
Device
5
4
3
0
2
1
TX
RX
TX
RX
TX
RX
TX
RX
TX
RX
Direction Interlaken Lane Number in
IP Core
3
(Left available for CMU PLL)
2
1
(Left available for CMU PLL)
0
For example, in an Arria V or Stratix V device, to change the VOD setting for lane 7, you write logical channel 12 to the Reconfiguration Controller.
Related Information
Lane Profile on page 9-4 Describes how to modify the logical channel mapping. Use this option with caution.
Altera Transceiver PHY IP User Guide Background information to better understand logical channel numbering.
Adding the Reconfiguration Controller
50G Interlaken IP core variations that target an Arria V or a Stratix V device require an external reconfi‐ guration controller to function correctly in hardware. 50G Interlaken IP core variations that target an Arria 10 device include a reconfiguration controller block and do not require an external reconfiguration controller.
Keeping the Reconfiguration Controller external to the IP core in Arria V and Stratix V devices provides the flexibility to share the Reconfiguration Controller among multiple IP cores and to accommodate FPGA transceiver layouts based on the usage model of your application. In Arria 10 devices, you can configure individual transceiver channels flexibly through an Avalon-MM Arria 10 transceiver reconfigu‐ ration interface.
TX
0
RX
Altera Corporation
Getting Started With the 50G Interlaken IP Core
Send Feedback
UG-01140
2015.05.04
The following simple instructions show you how to instantiate an Altera Transceiver Reconfiguration Controller and how to connect the design blocks:
Generating the Reconfiguration Controller
You can use the IP Catalog to generate an Altera Transceiver Reconfiguration Controller. In the Transceiver Reconfiguration Controller parameter editor, you select the features of the transceiver
that can be dynamically reconfigured. However, you must ensure that the following two features are turned on:
1. Enable PLL calibration
2. Enable Analog controls
You must also set the value of the Number of reconfiguration interfaces parameter. Each TX PLL requires its own reconfiguration interface, whether or not you intend to reconfigure it. The following formula determines the correct number of reconfiguration interfaces:
NUMBER_OF_RECONFIGURATION_INTERFACES = NUMBER_OF_LANES + NUMBER_OF_TX_PLLs
where
NUMBER_OF_LANES is the total number of physical lanes used in your implemented design.
NUMBER_OF_TX_PLLs is the total number of transceiver blocks (number of TX PLLs) used in your design.
Generating the Reconfiguration Controller
2-11
For example, for a design that includes an Interlaken variation that is configured in two transceiver blocks, you must set Number of reconfiguration interfaces to the value of 10.
Connecting the Reconfiguration Controller to the IP Core
The Reconfiguration Controller communicates with the 50G Interlaken IP core on two busses:
reconfig_to_xcvr (output)
reconfig_from_xcvr (input)
Each of these busses connects to the bus of the same name in the 50G Interlaken IP core. You must also connect the following signals:
mgmt_clk_clk: Reconfiguration Controller clock (input)
mgmt_rst_reset: Reconfiguration Controller reset (input)
reconfig_busy: Reconfiguration Controller busy indication (output)
Getting Started With the 50G Interlaken IP Core
Send Feedback
Altera Corporation
50G Interlaken
MegaCore
Function
Reconfiguration
Controller
mgmt_clk_clk
mgmt_rst_reset
Avalon-MM IF
reconfig_to_xcvr
reconfig_from_xcvr
reset_n
reconfig_busy
2-12

Adding the External PLL

Figure 2-4: Typical Connection of Reconfiguration Controller to 50G Interlaken IP Core
Altera recommends that you set the Reconfiguration Controller input clock frequency in the range of 100 MHz to 125 MHz. Refer to the Altera Transceiver PHY IP Core User Guide for frequency range require‐ ments specific to the device family.
The Reconfiguration Controller reset input should be asserted high during power up and remain asserted until its clock input becomes stable with the mgmt_clk_locked signal indicating a locked condition of the clock. Upon power up, the Reconfiguration Controller asserts reconfig_busy output high. The
reconfig_busy signal remains asserted until the Reconfiguration Controller completes the configuration
of all transceivers.
UG-01140
2015.05.04
Related Information
Altera Transceiver PHY IP Core User Guide
Adding the External PLL
50G Interlaken IP core variations that target an Arria 10 device require an external transceiver PLL to function correctly in hardware. 50G Interlaken IP core variations that target an Arria V or Stratix V device include the transceiver PLLs and do not require that you configure any additional PLLs.
You can use the IP Catalog to generate an external PLL IP core that configures a TX PLL on the device.
• Select Arria 10 Transceiver ATX PLL, Arria 10 Transceiver CMU PLL, or Arria 10 FPLL.
• In the parameter editor, set the following parameter values:
PLL output frequency to one half the per-lane data rate of the IP core variation. The transceiver
performs dual edge clocking, using both the rising and falling edges of the input clock from the PLL. Therefore, this PLL output frequency setting drives the transceiver with the correct clock for the Interlaken lanes.
PLL reference clock frequency to a frequency at which you can drive the TX PLL input reference
clock. You must drive the external PLL reference clock input signal at the frequency you specify for this parameter.
The number of external PLLs you must define depends on the distribution of your Interlaken TX serial lines across physical transceiver channels. You specify the clock network to which each PLL output connects by setting the clock network in the PLL parameter editor.
Altera Corporation
Getting Started With the 50G Interlaken IP Core
Send Feedback
ATX PLL
ATX PLL
ATX PLL
ATX PLL
pll_powerdown
50G Interlaken IP Core
Txvr Block N
Txvr Block N+1
tx_pll_locked
tx_pll_powerdown
tx_serial_clk[11] (Channel 5) (Lane 11) tx_serial_clk[10] (Channel 4) (Lane 10)
tx_serial_clk[9] (Channel 3) (Lane 9) tx_serial_clk[8] (Channel 2) (Lane 8) tx_serial_clk[7] (Channel 1) (Lane 7) tx_serial_clk[6] (Channel 0) (Lane 6)
tx_serial_clk[5] (Channel 5) (Lane 5) tx_serial_clk[4] (Channel 4) (Lane 4) tx_serial_clk[3] (Channel 3) (Lane 3) tx_serial_clk[2] (Channel 2) (Lane 2) tx_serial_clk[1] (Channel 1) (Lane 1) tx_serial_clk[0] (Channel 0) (Lane 0)
pll_locked
pll_cal_busy
tx_serial_clk
(8 Lanes)
UG-01140
2015.05.04
Adding the External PLL
You must connect the external PLL signals and the Arria 10 50G Interlaken IP core transceiver Tx PLL interface signals according to the following rules:
• Connect the tx_serial_clk input pin for each Interlaken lane to the output port of the same name in the corresponding external PLL.
• Connect the tx_pll_locked input pin of the 50G Interlaken IP core to the logical AND of the
pll_locked output signals of the external PLLs for all of the Interlaken lanes and the inverse of each of
the pll_cal_busy signals from the external PLLs.
• Connect the tx_pll_powerdown output pin of the 50G Interlaken IP core to the pll_powerdown reset pin of the external PLLs for all of the Interlaken lanes.
User logic must provide the AND function and connections. The following figure provides an example of one correct method, among many, to implement connection logic. You can also refer to the example design for example working user logic including one correct method to instantiate and connect an external PLL.
Figure 2-5: Example Connection of ATX PLL with 50G Interlaken IP Core Using Arria 10 xN Clock Network
2-13
Related Information
Arria 10 External PLL Interface on page 4-3
50G Interlaken IP Core Testbench on page 7-1
Getting Started With the 50G Interlaken IP Core
Send Feedback
Altera Corporation
2-14

Compiling the Full Design and Programming the FPGA

Pin Assignments on page 2-6
Arria 10 External PLL Interface Signals on page 5-15
Arria 10 Transceiver PHY User Guide Information about the correspondence between PLLs and transceiver channels, and information about how to configure an external PLL for your own design. You specify the clock network to which the PLL output connects by setting the clock network in the PLL parameter editor.
Compiling the Full Design and Programming the FPGA
You can use the Start Compilation command on the Processing menu in the Quartus II software to compile your design. After successfully compiling your design, program the targeted Altera device with the Programmer and verify the design in hardware.
Related Information
Quartus II Incremental Compilation for Hierarchical and Team-Based Design Information about compiling your design. Chapter in volume 1 of the Quartus II Handbook.
Quartus II Programmer Information about programming the device. Chapter in volume 3 of the Quartus II Handbook.
UG-01140
2015.05.04
Altera Corporation
Getting Started With the 50G Interlaken IP Core
Send Feedback
2015.05.04
www.altera.com
101 Innovation Drive, San Jose, CA 95134

50G Interlaken IP Core Parameter Settings

3
UG-01140
Subscribe
Send Feedback
You customize the 50G Interlaken IP core by specifying parameters in the 50G Interlaken parameter editor, which you access from the Quartus II IP Catalog.
This chapter describes the parameters and how they affect the behavior of the IP core. To customize your 50G Interlaken IP core, you can modify parameters to specify the following properties:
Meta Frame Length in Words on page 3-1 Transceiver Reference Clock Frequency on page 3-1 Number of Calendar Pages on page 3-2 TX Scrambler Seed on page 3-2 Transfer Mode Selection on page 3-2

Meta Frame Length in Words

The Meta frame length in words parameter specifies the length of the meta frame, in 64-bit (8-byte) words. In the Interlaken specification, this parameter is called the MetaFrameLength parameter.
Smaller values for this parameter shorten the time to achieve lock. Larger values reduce overhead while transferring data, after lock is achieved.
For simulation, you can set the Meta frame length in words parameter to the value of 128 for fast lane locking. For hardware testing, Altera recommends that you set the Meta frame length in words parameter to the value of 2048.
The default value of the Meta frame length in words parameter is 2048.

Transceiver Reference Clock Frequency

The Transceiver reference clock frequency parameter specifies the expected frequency of the
pll_ref_clk input clock.
If the actual frequency of the pll_ref_clk input clock does not match the value you specify for this parameter, the design fails in both simulation and hardware.
The 50G Interlaken IP core supports the following pll_ref_clk frequencies: 156.25 MHz, 195.3125 MHz, 250 MHz, 312.5 MHz, 390.625 MHz, 500 MHz, and 625 MHz.
The default value of the Transceiver reference clock frequency parameter is 312.5 MHz.
©
2015 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, ENPIRION, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.
ISO 9001:2008 Registered
3-2

Number of Calendar Pages

Related Information
50G Interlaken IP Core Clock Signals on page 4-5
50G Interlaken IP Core Clock Interface Signals on page 5-1
Number of Calendar Pages
The Number of calendar pages parameter specifies the number of 16-bit pages of in-band flow control data that your 50G Interlaken MegaCore function supports. The supported values are 1, 2, 4, 8, and 16.
Each 16-bit calendar page includes 16 in-band flow control bits. The application determines the interpre‐ tation of the in-band flow control bits. The IP core supports a maximum of 256 channels with in-band flow control.
If your design requires a different number of pages, select the lowest supported number of pages which is larger than the number required, and ignore any unused pages. For example, if your configuration requires three in-band flow control calendar pages, you can set Number of Calendar pages to 4 and use pages 3, 2, and 1 while ignoring page 0.
The default value of the Number of calendar pages parameter is 1.
UG-01140
2015.05.04

TX Scrambler Seed

The TX scrambler seed parameter specifies the initial scrambler state. If a single 50G Interlaken IP Core is configured on your device, you can use the default value of this
parameter. If multiple 50G Interlaken IP Cores are configured on your device, you must use a different initial
scrambler state for each IP core to reduce crosstalk. Try to select random values for each 50G Interlaken IP core, such that they have an approximately even mix of ones and zeros and differ from the other scramblers in multiple spread out bit positions.
The default value of this parameter is 58’hdeadbeef123.

Transfer Mode Selection

The Transfer mode selection parameter specifies whether the 50G Interlaken transmitter expects incoming traffic to the TX user data transfer interface to be interleaved or packet based. The supported values are Interleaved and Packet. Interleaved mode is also called Segmented mode. The value of this parameter cannot be modified dynamically; it is determined when you generate the IP core.
If the value of this parameter is Packet, the 50G Interlaken transmitter expects incoming traffic to the TX user data transfer interface to be packet based. This setting enables the internal enhanced scheduler and causes the IP core to send data on the Interlaken link based on the programmed BurstMax and BurstMin parameter settings.
If the value of this parameter is Interleaved, the 50G Interlaken transmitter expects you to provide scheduling information on the Start of Burst and End of Burst signals. In Interleaved mode, you can send either packet-based traffic or interleaved traffic, but you must provide the correct SOB and EOB signals even when sending non-interleaved packets.
If packets are always sent contiguously in your application, Altera recommends that you set this parameter to the value of Packet. This setting enables simpler transfers on the user data transfer interface,
Altera Corporation
50G Interlaken IP Core Parameter Settings
Send Feedback
UG-01140
2015.05.04
Transfer Mode Selection
and enables the 50G Interlaken IP core to perform enhanced scheduling based on the BurstMax and
BurstMin settings. If the data bursts that arrive on the TX application interface might be interleaved
between channels, then you must set Transfer mode selection to the value of Interleaved. The default value of the Transfer mode selection parameter is Interleaved.
Related Information
Interleaved and Packet Modes on page 4-7
3-3
50G Interlaken IP Core Parameter Settings
Send Feedback
Altera Corporation
2015.05.04
www.altera.com
101 Innovation Drive, San Jose, CA 95134

Functional Description

4
UG-01140
Subscribe
The 50G Interlaken MegaCore function provides the functionality described in the Interlaken Protocol Specification, Revision 1.2.
Related Information
Interlaken Protocol Specification, Revision 1.2

Interfaces Overview

The Altera 50G Interlaken MegaCore function supports the following interfaces:
Application Interface on page 4-1 Interlaken Interface on page 4-1 Out-of-Band Flow Control Interface on page 4-2 Management Interface on page 4-2 Transceiver Control Interfaces on page 4-2

Application Interface

Send Feedback
The application interface, also called the user data transfer interface, provides up to 256 channels of communication to and from the Interlaken link.
Related Information
High Level Block Diagram on page 4-4
The figure lists the major application interface signals.
50G Interlaken IP Core User Data Transfer Interface Signals on page 5-4
Comprehensive list of application interface signals and information about required signal behavior.

Interlaken Interface

The Interlaken interface complies with the Interlaken Protocol Specification, Revision 1.2. It provides a high-speed transceiver interface to an Interlaken link.
©
2015 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, ENPIRION, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.
ISO 9001:2008 Registered
4-2

OutofBand Flow Control Interface

The 50G Interlaken MegaCore function value for the Interlaken BurstMax parameter is determined by the value you specify on the burst_max_in input signal. The 50G Interlaken MegaCore function supports two values for BurstMax, 128 bytes and 256 bytes.
Note: You should only modify the value of the burst_max_in signal when no traffic is present. You can configure your 50G Interlaken MegaCore function to use 1, 2, 4, 8, or 16 pages of 16 calendar
bits. The application determines the use of the in-band flow control bits that the MegaCore function receives on the incoming Interlaken link, and the application is responsible for specifying the values of the in-band flow control bits the MegaCore function transmits on the outgoing Interlaken link.
Related Information
50G Interlaken IP Core Interlaken Link and Miscellaneous Interface Signals on page 5-8
Information about setting the BurstMax and BurstShort values, including the encoding of your desired value on the burst_max_in or burst_short_in input signal.
50G Interlaken IP Core User Data Transfer Interface Signals on page 5-4
Information about the in-band flow control signals.
Interlaken Protocol Specification, Revision 1.2
Available from the Interlaken Alliance web site at www.interlakenalliance.com.
OutofBand Flow Control Interface
UG-01140
2015.05.04
The optional out-of-band flow control interface conforms to the out-of-band requirements in Section
5.3.4.2, Out-of-Band Flow Control, of the Interlaken Protocol Specification, Revision 1.2.
Related Information
Out-of-Band Flow Control in the 50G Interlaken MegaCore Function on page 10-1
Interlaken Protocol Specification, Revision 1.2
Available from the Interlaken Alliance web site at www.interlakenalliance.com.

Management Interface

The management interface provides access to the 50G Interlaken IP core internal status and control registers. This interface does not provide access to the hard PCS registers on the device.
The management interface complies with the Avalon Memory-Mapped (Avalon-MM) specification defined in the Avalon Interface Specifications.
Related Information
Avalon Interface Specifications

Transceiver Control Interfaces

The 50G Interlaken IP core provides several interfaces to control the transceiver. The transceiver control interfaces in your 50G Interlaken IP core variation depend on the device family the variation targets.
The 50G Interlaken IP core supports the following transceiver control interfaces:
Transceiver Reconfiguration Controller Interface on page 4-3 Arria 10 External PLL Interface on page 4-3
Altera Corporation
Functional Description
Send Feedback
UG-01140
2015.05.04
Arria 10 Transceiver Reconfiguration Interface on page 4-3
Transceiver Reconfiguration Controller Interface
50G Interlaken IP core variations that target an Arria V or a Stratix V device require an external reconfi‐ guration controller to function correctly in hardware. 50G Interlaken IP core variations that target an Arria 10 device include a reconfiguration controller block and do not require an external reconfiguration controller.
Related Information
Altera Transceiver PHY IP Core User Guide
Describes the Altera Transceiver Reconfiguration Controller and the signals that connect to the 50G Interlaken IP core transceiver reconfiguration controller interface.
Arria 10 External PLL Interface
50G Interlaken IP core variations that target an Arria 10 device require an external transceiver PLL to function correctly in hardware. 50G Interlaken IP core variations that target an Arria V or Stratix V device include the transceiver PLLs and do not require that you configure any additional PLLs.
Related Information
Transceiver Reconfiguration Controller Interface
4-3
Adding the External PLL on page 2-12
Describes how to generate an external TX PLL, including parameter requirements.
Arria 10 External PLL Interface Signals on page 5-15
Arria 10 Transceiver PHY User Guide
Information about the Arria 10 transceiver PLLs and clock network.
Arria 10 Transceiver Reconfiguration Interface
The Arria 10 transceiver reconfiguration interface provides access to the registers in the embedded Arria 10 Native PHY IP core. This interface provides direct access to the hard PCS registers on the device.
This interface is available only in variations that target an Arria 10 device. In variations that target an Arria V device or a Stratix V device, user logic reconfigures the transceivers through the transceiver reconfiguration controller, an external block that you must instantiate in your design outside the 50G Interlaken IP core.
The Arria 10 transceiver reconfiguration interface complies with the Avalon Memory-Mapped (Avalon­MM) specification defined in the Avalon Interface Specifications.
Related Information
Avalon Interface Specifications
Defines the Avalon Memory-Mapped (Avalon-MM) specification.
Arria 10 Transceiver PHY User Guide
Information about the Arria 10 transceiver reconfiguration interface.
Arria 10 Transceiver Registers
Information about the Arria 10 transceiver registers.
Functional Description
Send Feedback
Altera Corporation
irx_chan[7:0]
irx_num_valid[2:0]
irx_sob
irx_eob
irx_sop
irx_eopbits[3:0]
irx_dout_words[255:0]
irx_calendar[16 x n - 1:0]
irx_err
itx_chan[7:0]
itx_num_valid[2:0]
itx_sob
itx_eob
itx_sop
itx_eopbits[3:0]
itx_din_words[255:0]
itx_calendar[16 x n - 1:0]
Transceiver Blocks
TX
PCS
TX
PMA
TX
MAC
TX
Transmit
Buffer
tx_usr_clk clk_tx_common
clk_rx_common
rx_usr_clk
RX
PCS
RX
PMA
RX
MAC
RX
Regroup
tx_pin[m - 1:0]
rx_pin[m - 1:0]
itx_ready
4-4

High Level Block Diagram

High Level Block Diagram

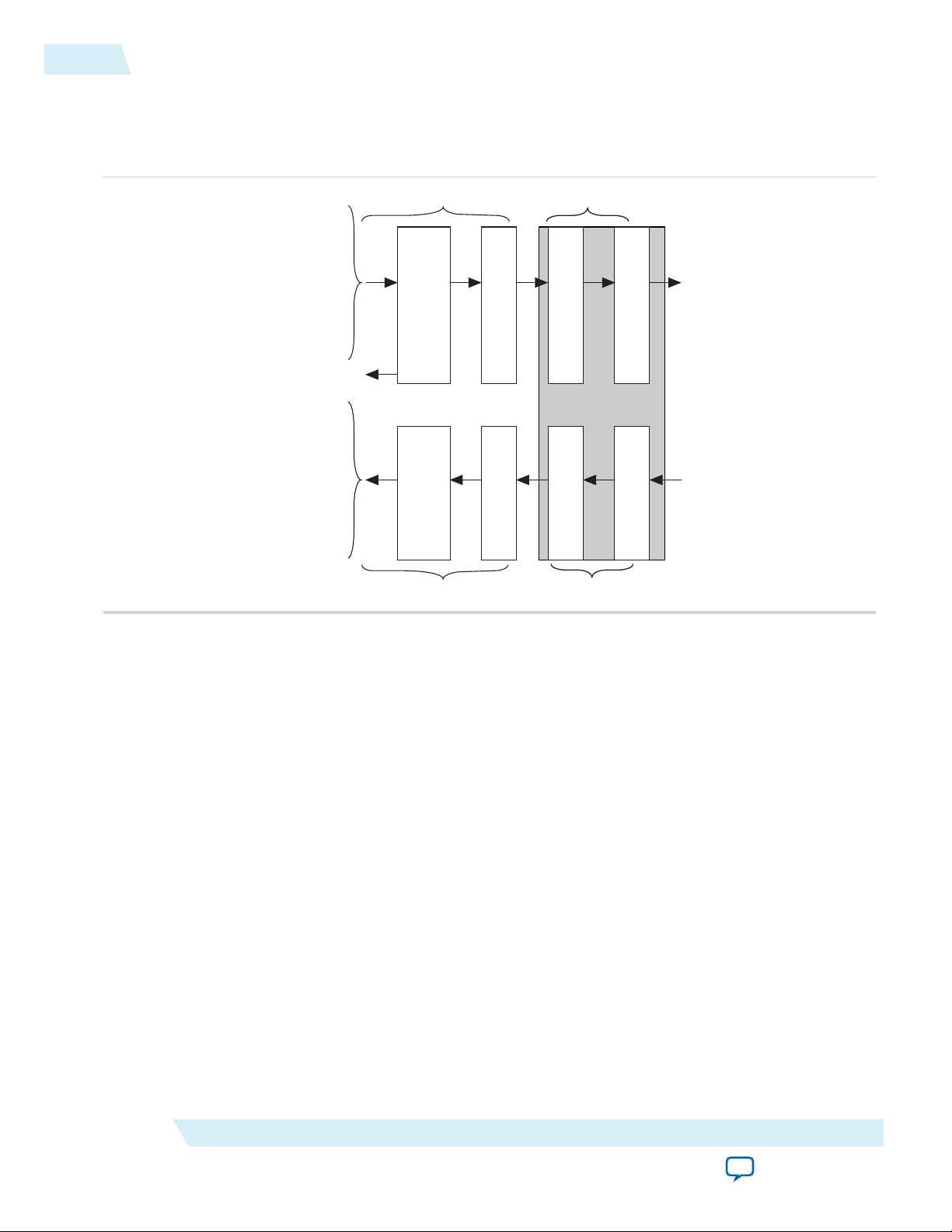

Figure 4-1: 50G Interlaken Block Diagram
UG-01140
2015.05.04

Clocking and Reset Structure for IP Core

Altera Corporation
The 50G Interlaken MegaCore function consists of two paths: an Interlaken TX path and an Interlaken RX path. Each path includes MAC, PCS, and PMA blocks. The PCS blocks are implemented in hard IP.
Related Information
50G Interlaken IP Core Transmit Path Blocks on page 4-13
For more information about the Interlaken TX path.
50G Interlaken IP Core Receive Path Blocks on page 4-19
For more information about the Interlaken RX path.
The following topics describe the clocking and reset structure of the 50G Interlaken IP core:
50G Interlaken IP Core Clock Signals on page 4-5 IP Core Reset on page 4-5 IP Core Reset Sequence with the Reconfiguration Controller on page 4-7
Functional Description
Send Feedback
UG-01140
2015.05.04

50G Interlaken IP Core Clock Signals

Table 4-1: 50G Interlaken IP Core Clocks
Clock Name Description
50G Interlaken IP Core Clock Signals
4-5
pll_ref_clk
Reference clock for the RX transceiver PLL in IP core variations that target an Arria 10 device. Reference clock for RX and TX transceiver PLLs in all other variations.
tx_serial_clk[NUM_LANES–1:0]
Clocks for the individual transceiver channels in 50G Interlaken IP core variations that target an Arria 10 device.
rx_usr_clk
tx_usr_clk
mm_clk
Clock for the receive application interface.
Clock for the transmit application interface.
Management clock for 50G Interlaken IP core register access.
reconfig_clk
Management clock for Arria 10 hard PCS register access, including access for Arria 10 transceiver reconfiguration and testing features.
If you choose to instantiate the optional out-of-band flow control blocks, your 50G Interlaken MegaCore function has additional clock domains.
Related Information
Out-of-Band Flow Control Block Clocks on page 10-2
Comprehensive list of out-of-band flow control block clocks and information about their expected frequencies.

IP Core Reset

The 50G Interlaken IP core variations have a single asynchronous reset, the reset_n signal. The 50G Interlaken IP core manages the initialization sequence internally. After you assert reset_n low, the IP core automatically goes through the entire reset sequence.
Note:
Altera recommends that you hold the reset_n signal low for at least the duration of two mm_clk cycles, to ensure the reset sequence proceeds correctly.
Functional Description
Send Feedback
Altera Corporation
reset_n
pll_pdn
pll_locked
tx_digital_rst
rx_analog_rst
rx_is_lockedtodata
rx_digital_rst
tx_usr_srst
rx_usr_srst
4-6
IP Core Reset
Figure 4-2: 50G Interlaken IP Core Transceiver Initialization Sequence
The internal initialization sequence implemented by the reset controller included in the 50G Interlaken IP core. In Arria 10 devices, the pll_locked signal originates in the external PLL. In other devices, it originates in the 50G Interlaken IP core itself.
UG-01140
2015.05.04
Altera Corporation
Following completion of the reset sequence internally, the 50G Interlaken IP core begins link initializa‐ tion. If your 50G Interlaken IP core and its Interlaken link partner initialize the link successfully, you can observe the assertion of the lane and link status signals according to the Interlaken specification. For example, you can monitor the tx_lanes_aligned, sync_locked, word_locked, and rx_lanes_aligned output status signals.
By default, in Arria V GZ and Stratix V devices, after you assert the reset_n signal, you must wait 2
mm_clk cycles before you attempt to access the 50G Interlaken IP core registers using the IP core
20
management interface. You can modify the size of the reset counter with an RTL parameter. Altera recommends that you set the value of the RTL parameter CNTR_BITS to six for simulation. If you set
CNTR_BITS to the value of six, you must wait 2
6
mm_clk cycles before you attempt to access the
50G Interlaken IP core registers using the IP core management interface. In Arria 10 devices, the required wait time from asserting the reset_n signal to safely accessing the IP
core registers is a function of the internal reset controller.
Related Information
IP Core Reset Sequence with the Reconfiguration Controller on page 4-7
You must wait until the required Altera Transceiver Reconfiguration Controller completes configura‐ tion of the transceivers before you assert the reset_n signal.
Functional Description
Send Feedback
mgmt_clk_locked
mgmt_rst_reset
reconfig_busy
reset_n
(*)
UG-01140
2015.05.04

IP Core Reset Sequence with the Reconfiguration Controller

Arria 10 Transceiver PHY User Guide
For more information about the Altera reset controller that is included in Arria 10 variations of the 50G Interlaken IP core, refer to the Using the Altera Transceiver PHY Reset Controller section of this user guide.
IP Core Reset Sequence with the Reconfiguration Controller
If your 50G Interlaken IP core targets an Arria V device or a Stratix V device, you must connect the 50G Interlaken IP core to an Altera Reconfiguration Controller. At power up, the Reconfiguration Controller configures the transceivers. After power up, upon completion of the transceiver configuration process, the Reconfiguration Controller returns control of the reset to your application. You must wait until the Reconfiguration Controller completes configuration of the transceivers before you assert the
reset_n signal.
The Reconfiguration Controller indicates the end of the configuration cycle by deasserting the
reconfig_busy signal. After reconfig_busy is deasserted, you can assert reset_n. Altera recommends
that you hold the reset_n signal low for at least the duration of two mm_clk cycles, to ensure the reset sequence proceeds correctly.
Figure 4-3: Reset Sequence With the Reconfiguration Controller
Indicates when you can safely assert the reset_n signal of the 50G Interlaken MegaCore IP core.
4-7
Functional Description
You must wait at least 2
mgmt_rst_reset input signal to the reconfiguration controller.
Related Information
(CNTR_BITS + 3)
Altera Transceiver PHY IP Core User Guide
For more information about the Altera Reconfiguration Controller.

Interleaved and Packet Modes

You can configure the 50G Interlaken IP core to accept interleaved data transfers from the application on the TX user data transfer interface, or to not accept interleaved data transfers on this interface. If the IP core can accept interleaved data transfers, it is in Interleaved mode, sometimes also called Segmented mode. If the IP core does not accept interleaved data transfers, it is in Packet mode. The value you specify for the Transfer mode selection parameter in the 50G Interlaken parameter editor determines the IP core transmit mode.
Send Feedback
mm_clk cycles after the mgmt_clk locks before you deassert the
Altera Corporation
4-8

50G Interlaken IP Core Transmit Path

UG-01140
2015.05.04
In Packet mode, the 50G Interlaken IP Core performs Optional Scheduling Enhancement based on Section 5.3.2.1.1 of the Interlaken Protocol Specification, Revision 1.2. The IP core ignores the itx_sob and
itx_eob signals. Instead, the IP core performs optional enhanced scheduling based on the settings of BurstMax, BurstMin, and BurstShort.
In Interleaved mode, the 50G Interlaken IP Core inserts burst control words on the Interlaken link based on the itx_sob and itx_eob inputs. The internal optional enhanced scheduling is disabled and the BurstMax and BurstMin values are ignored. BurstShort is still in effect. To avoid overflowing the transmit FIFO, you should not send a burst that is longer than 1024 bytes.
In Interleaved mode or in Packet mode, the 50G Interlaken IP core is capable of accepting non­interleaved data on the TX user data transfer interface (itx_din_words). However, if the IP core is in Interleaved mode, the application must drive the itx_sob and itx_eob inputs correctly.
In Interleaved mode or in Packet mode, the 50G Interlaken IP core can generate interleaved data transfers on the RX user data transfer interface (irx_dout_words). The application must be able to accept interleaved data transfers if the Interlaken link partner transmits them on the Interlaken link. In this case, the Interlaken link partner must send traffic in Interleaved mode that conforms with the 50G Interlaken IP core BurstShort value.
Note: Altera recommends that the transmitter (link partner) only send packets with a minimum packet
size of 64 bytes.
Related Information
Transfer Mode Selection on page 3-2
50G Interlaken IP Core User Data Transfer Interface Signals on page 5-4
Interlaken Protocol Specification, Revision 1.2
50G Interlaken IP Core Transmit Path
The 50G Interlaken MegaCore function accepts application data from up to 256 channels and combines it into a single data stream in which data is labeled with its source channel. The 50G Interlaken TX MAC and PCS blocks format the data into protocol-compliant bursts and insert Idle words where required.

50G Interlaken IP Core Transmit User Data Interface Examples

The following examples illustrate how to use the Altera 50G Interlaken IP core TX user data interface:
50G Interlaken IP Core Interleaved Mode (Segmented Mode) Example on page 4-8 50G Interlaken IP Core Packet Mode Operation Example on page 4-10 50G Interlaken IP Core Back-Pressured Packet Transfer Example on page 4-11
50G Interlaken IP Core Interleaved Mode (Segmented Mode) Example
In Interleaved Mode, you are responsible for scheduling the burst. You need to drive an extra pair of signals, Start of Burst (SOB) and End of Burst (EOB), to indicate the burst boundary. You can send the traffic in packet order or interleaved order, as long as you set the SOB and EOB flags correctly to establish the data boundaries.
Altera Corporation
Functional Description
Send Feedback
tx_usr_clk
itx_sop
itx_chan
itx_sob
itx_eob
itx_din_words
itx_num_valid
itx_eopbits
Cycle 1 Cycle 2 Cycle 3 Cycle 4 Cycle 5 Cycle 6 Cycle 7 Cycle 8 Cycle 9
8’h2
d1
d2
d3
3’b100
3’b100
3’b011
4’b0000
d4
3’b000 3’b100
8’h4
8’h2 8’h3
8’h4
d5
d6
d7
3’b100
3’b100
3’b010
4’b1011
4’b1011
4’b0000 4’b0000 4’b0000 4’b0000
UG-01140
2015.05.04
50G Interlaken IP Core Interleaved Mode (Segmented Mode) Example
Figure 4-4: Packet Transfer on Transmit Interface in Interleaved Mode
This example illustrates the expected behavior of the 50G Interlaken IP core application interface transmit signals during data transfers from the application to the IP core on the TX user data transfer interface in interleaved mode.
4-9
The figure shows the timing diagram for an interleaved data transfer in Interleaved mode. In cycle 1, the application asserts itx_sop and itx_sob, indicating that this cycle is both the start of the burst and the start of the packet. The value the application drives on itx_chan indicates the data originates from channel 2.
In cycle 2, the application asserts itx_eob, indicating the data the application transfers to the IP core in this clock cycle is the end of the burst. (itx_chan only needs to be valid when itx_sob or itx_sop is asserted). itx_num_valid[2:0] indicates all four words are valid. However, the data in this cycle is not end of packet data. The application is expected to transfer at least one additional data burst in this packet, possibly interleaved with one or more bursts in packets from different data channels.
Cycle 3 is a short burst with both itx_sob and itx_eob asserted. The application drives the value of three on itx_num_valid[2:0] to indicate that three words of the four-word itx_din_words data bus are valid. The data is packed in the most significant words of itx_din_words.The application drives the value of 4'b1011 on itx_eopbits to indicate that the data the application transfers to the IP core in this cycle are the final words of the packet, and that in the final word of the packet, only three bytes are valid data. The value the application drives on itx_chan indicates this burst originates from channel 4.
In cycle 4, the itx_num_valid[2:0] signal has the value of zero, which means this cycle is an idle cycle. In cycle 5, the application sends another single-cycle data burst from channel 2, by assertingitx_sob and
itx_eob to indicate this data is both the start and end of the burst. The application does not assert itx_sop, because this burst is not start of packet data. itx_eopbits has the value of 4'b0000, indicating
this burst is also not end of packet data. This data follows the data burst transfered in cycles 1 and 2, within the same packet from channel 2.
In cycle 6, the application sends a start of packet, single-cycle data burst from channel 3. In cycles 7 and 8, the application sends a two-cycle data packet in one two-cycle burst. In cycle 8, the
second data cycle, the application drives the value of two on itx_num_valid[2:0] and the value of
Functional Description
Send Feedback
Altera Corporation
tx_usr_clk
itx_sop
itx_chan
itx_sob
itx_eob
itx_din_words
itx_num_valid
itx_eopbits
itx_ready
itx_calendar
Cycle 1 Cycle 2 Cycle 3 Cycle 4 Cycle 5 Cycle 6 Cycle 7 Cycle 8 Cycle 9
8’h2
d1
d2
d3
3’b100
3’b100
3’b011
4’b0000
4’b1011
64’hffff_ffff_ffff_ffff 64’h1111_2222_3333_4444
4-10
50G Interlaken IP Core Packet Mode Operation Example
4'b1011 on itx_eopbits, to tell the IP core that in this clock cycle, the two most significant words of the data symbol contain valid data and the remaining words do not contain valid data, and that in the second of these two words, only the three most significant bytes contain valid data.
In Interleaved Mode, you can transfer a packet without interleaving as long as the channel number does not toggle during the same packet transfer. However, you must still assert the itx_sob and itx_eob signals correctly to maintain the proper burst boundaries.
If you do not drive the itx_sob and itx_eob signals, the 50G Interlaken IP Core does not operate properly and the transmit FIFO may overflow, since in this mode the internal logic is looking for itx_sob and itx_eob assertion for insertion of proper burst control words.
50G Interlaken IP Core Packet Mode Operation Example
Figure 4-5: Packet Transfer on Transmit Interface in Packet Mode
This example illustrates the expected behavior of the 50G Interlaken IP core application interface transmit signals during a packet transfer in packet mode.
UG-01140
2015.05.04
Altera Corporation
The figure illustrates a packet mode data transfer of 83 bytes on the transmit interface into the IP core. In this mode, the 50G Interlaken IP core ignores the itx_sob and itx_eob input signals.
To start a transfer, you assert itx_sop when you have data ready on itx_din_words. At the following rising edge of the clock, the IP core detects that itx_sop is asserted, indicating that the value on
itx_din_words in the current cycle is the start of an incoming data packet. When you assert itx_sop,
you must also assert the correct value on itx_chan to tell the IP core the data channel source of the data. In this example, the value 2 on itx_chan tells the IP core that the data originates from channel number 2.
Functional Description
Send Feedback
tx_usr_clk
itx_sop
itx_chan
itx_sob
itx_eob
itx_din_words
itx_num_valid
itx_eopbits
itx_ready
itx_calendar
Cycle 1 Cycle 2 Cycle 3 Cycle 4 Cycle 5 Cycle 6 Cycle 7 Cycle 8 Cycle 9
8’h2
d1
d2 d3
3’b100
3’b100
3’b100
4’b0000
d4
3’b000
3’b100
64’hffff_ffff_ffff_ffff 64’h1111_2222_3333_4444
UG-01140
2015.05.04
50G Interlaken IP Core Back-Pressured Packet Transfer Example
During the SOP cycle (labeled with data value d1) and the cycle that follows the SOP cycle (labeled with data value d2), you must hold the value of itx_num_valid[2:0] at 3'b100. In the following clock cycle, labeled with data value d3, you must hold the following values on critical input signals to the IP core:
itx_num_valid[2:0] at the value of 3'b011 to indicate the current data symbol contains three 64-bit words of valid data.
itx_eopbits[3] high to indicate the current cycle is an EOP cycle.
itx_eopbits[2:0] at the value of 3'b011 to indicate that only three bytes of the final valid data word are valid data bytes.
This signal behavior correctly transfers a data packet with the total packet length of 83 bytes to the IP core, as follows:
• In the SOP cycle, the IP core receives 32 bytes of valid data (d1).
• In the following clock cycle, the IP core receives another 32 bytes of valid data (d2).
• In the third clock cycle, the EOP cycle, the IP core receives two full words (2 x 8 = 16 bytes) and three bytes of valid data, for a total of 19 valid bytes.
The total packet length is 32 + 32 + 19 = 83 bytes.
50G Interlaken IP Core Back-Pressured Packet Transfer Example

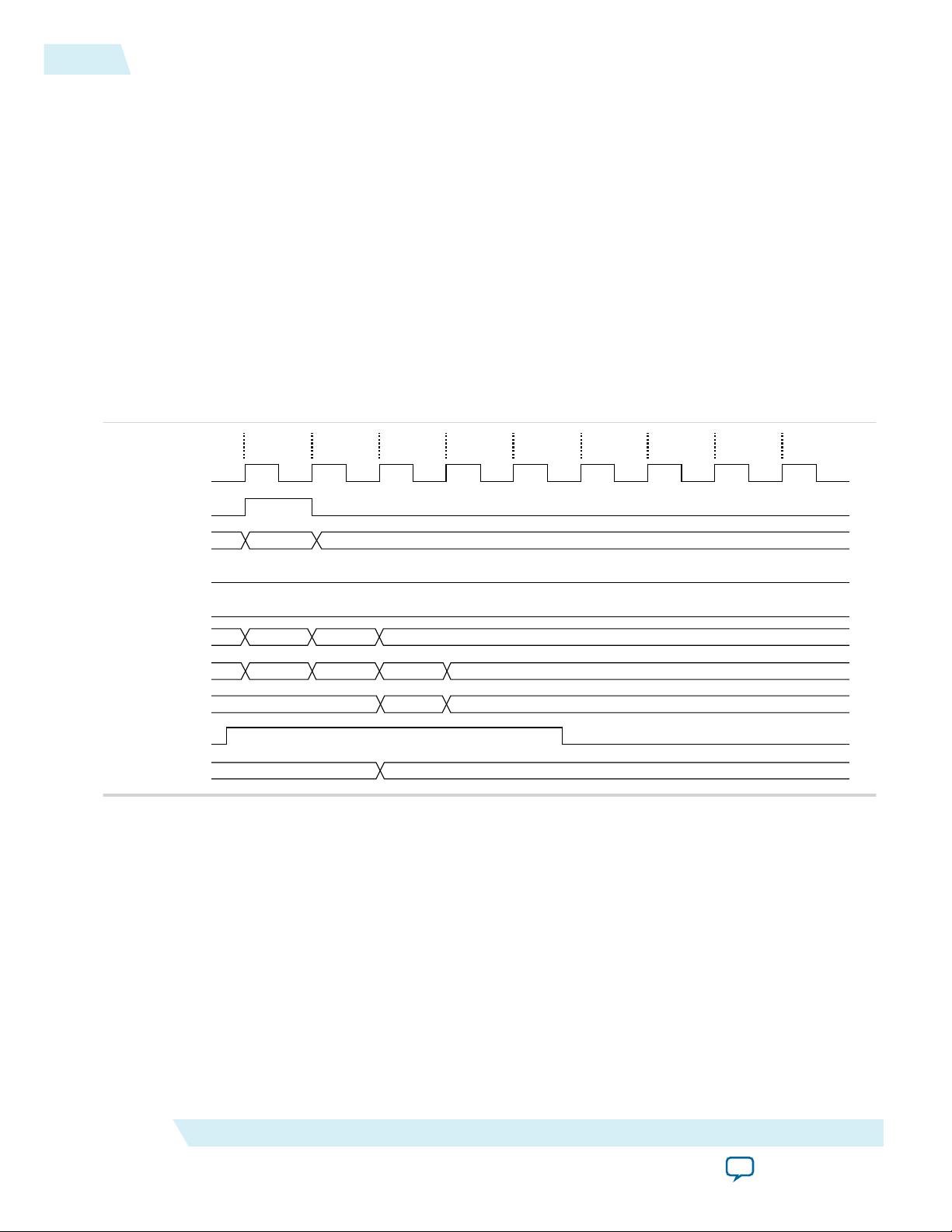

Figure 4-6: Packet Transfer on Transmit Interface with Back Pressure
4-11
This example illustrates the expected behavior of the 50G Interlaken application interface transmit signals during a packet transfer with back pressure.
In this example, the 50G Interlaken IP Core accepts the first four data symbols (128 bytes) of a data packet. The clock cycles in which the application transfers the data values d2 and d3 to the 50G Interlaken IP Core are grace-period cycles following the 50G Interlaken IP Core's de-assertion of itx_ready.
The 50G Interlaken IP Core supports up to 4 cycles of grace period, enabling you to register the input data and control signals, as well as the itx_ready signal, without changing functionality. The grace period
Functional Description
Send Feedback
Altera Corporation
4-12

50G Interlaken IP Core In-Band Calendar Bits on Transmit Side

supports your design in achieving timing closure more easily. In any case you must ensure that you hold
itx_num_valid at the value of 0 when you are not driving data.
You can think of this interface as a FIFO write interface. When itx_num_valid[2:0] is nonzero, both data and control information (including itx_num_valid[2:0] itself) are written to the transmit side data interface. The itx_ready signal is the inverse of a hypothetical FIFO-almost-full flag. When itx_ready is high, the 50G Interlaken IP Core is ready to accept data. When itx_ready is low, you can continue to send data for another 6 to 8 clock cycles of tx_usr_clk.
Related Information
50G Interlaken IP Core In-Band Calendar Bits on Transmit Side on page 4-12
Description of in-band calendar bits on the TX user data transfer interface.
50G Interlaken IP Core In-Band Calendar Bits on Transmit Side
The itx_calendar input signal supports in-band flow control. It is synchronous with tx_usr_clk, but does not align with the packets on the user data interface. The 50G Interlaken IP Core reads the
itx_calendar bits and encodes them in control words (Burst control words and Idle control words)
opportunistically. If you hold all the calendar bits at one, you indicate an XON setting for each channel. You should set the
calendar bits to 1 to indicate that the Interlaken link partner does not need to throttle the data it transfers to this 50G Interlaken IP Core. Set this value by default if you choose not to use the in-band flow control feature of the 50G Interlaken IP Core. If you decide to turn off any channel, you must drive the corresponding bits of itx_calendar with zero (the XOFF setting) for that channel.
UG-01140
2015.05.04
The50G Interlaken IP Core transmits each page of the itx_calendar bits on the Interlaken link in a separate control word, starting with the most significant page and working through the pages, in order, to the least significant page.
Consider an example where the number of calendar pages is four and itx_calendar bits are set to the value 64'h1111_2222_3333_4444. In this example, the Number of calendar pages parameter is set to four, and therefore the width of the itx_calendar signal is 4 x 16 = 64 bits. Each of these bits is a calendar bit. The transmission begins with the page with the value of 16'h1111 and works through the pages in order until the least significant page with the value of 16'h4444.
In this example, four control words are required to send the full set of 64 calendar bits from the
itx_calendar signal. The 50G Interlaken IP Core automatically sets the Reset Calendar bit[56] of the
next available control word to the value of one, to indicate the start of transmission of a new set of calendar pages, and copies the most significant page (16'h1111 in this example) to the In-Band Flow Control bits[55:40] of the control word. It maps the most significant bit of the page to the control word bit[55] and the least significant bit of the page to the control word bit[40].
The table shows the value of the Reset Calendar bit and the In-Band Flow Control bits in the four Interlaken link control words that transmit the 64'h1111_2222_3333_4444 value of itx_calendar:
Table 4-2: Value of Reset Calendar Bit and In-band Flow Control Bits in the Example
Control Word Reset Calendar Bit (bit [56]) In-Band Flow Control Bits (bits [55:40])
First 1 16'b0001000100010001 (16'h1111)
Altera Corporation
Functional Description
Send Feedback
itx_chan[7:0]
itx_num_valid[2:0]
itx_sob
itx_eob
itx_sop
itx_eopbits[3:0]
itx_din_words[255:0]
itx_calendar[16 x n - 1:0]
Transceiver Blocks
TX
PCS
TX
PMA
TX
MAC
TX
Transmit
Buffer
clk_tx_common
tx_pin[m - 1:0]
itx_ready
tx_usr_clk
UG-01140
2015.05.04

50G Interlaken IP Core Transmit Path Blocks

Control Word Reset Calendar Bit (bit [56]) In-Band Flow Control Bits (bits [55:40])
Second 0 16'b0010001000100010 (16'h2222)
Third 0 16'b0011001100110011 (16'h3333)
Fourth 0 16'b0100010001000100 (16'h4444)
For details of the control word format, refer to the Interlaken Protocol Specification, Revision 1.2. The 50G Interlaken IP Core supports itx_calendar widths of 1, 2, 4, 8, and 16 16-bit calendar pages.
You configure the width in the 50G Interlaken IP Core parameter editor. By convention, in a standard case, each calendar bit corresponds to a single data channel. However, the
50G Interlaken IP Core assumes no default usage. You must map the calendar bits to channels or link status according to your specific application needs. For example, if your design has 64 physical channels, but only 16 priority groups, you can use a single calendar page and map each calendar bit to four physical channels. As another example, for a different application, you can use additional calendar bits to pass quality-of-service related information to the Interlaken link partner.
If your application flow-controls a channel, you are responsible for dropping the relevant packet. Altera supports the transfer of the itx_calendar values you provide without examining the data that is affected by in-band flow control of the Interlaken link.
4-13
50G Interlaken IP Core Transmit Path Blocks
Functional Description
Send Feedback
Related Information
50G Interlaken IP Core Back-Pressured Packet Transfer Example on page 4-11 Example of in-band calendar bits usage on the TX user data transfer interface.
Interlaken Protocol Specification, Revision 1.2
Figure 4-7: 50G Interlaken IP Core Transmit Path
The 50G Interlaken IP core transmit data path has the following four main functional blocks:
50G Interlaken IP Core TX Transmit Buffer on page 4-14 50G Interlaken IP Core TX MAC on page 4-14
Altera Corporation
4-14
50G Interlaken IP Core TX Transmit Buffer
50G Interlaken IP Core TX PCS on page 4-14 50G Interlaken IP Core TX PMA on page 4-14
50G Interlaken IP Core TX Transmit Buffer
The 50G Interlaken MegaCore function TX transmit buffer performs the following function:
• Aligns the incoming user application data, itx_data, in the IP core internal format.
50G Interlaken IP Core TX MAC
The 50G Interlaken MegaCore function TX MAC performs the following functions:
• Inserts burst and idle control words in the incoming data stream. Burst delineation allows packet segmentation in the Interlaken protocol.
• Performs flow adaption of the data stream, repacking the data to ensure the maximum number of words is available on each valid clock cycle.
• Calculates and inserts CRC24 bits in all burst and idle words.
• Inserts calendar data in all burst and idle words.
• Stripes the data across the PCS lanes. Configurable order, default is MSB of the data goes to lane 0.
• Buffers data between the application and the TX PCS block in the TX FIFO buffer. The TX PCS block uses the FIFO buffer to recover bandwidth when the number of words delivered to the transmitter is less than the full width.
UG-01140
2015.05.04
50G Interlaken IP Core TX PCS
TX PCS logic is an embedded hard macro and does not consume FPGA soft logic elements. The 50G Interlaken MegaCore function TX PCS block performs the following functions for each lane:
• Inserts the meta frame words in the incoming data stream.
• Calculates and inserts the CRC32 bits in the meta frame diagnostic words.
• Scrambles the data according to the scrambler seed and the protocol-specified polynomial.
• Performs 64B/67B encoding.
50G Interlaken IP Core TX PMA
The 50G Interlaken MegaCore function TX PMA serializes the data and sends it out on the Interlaken link.

50G Interlaken IP Core Receive Path

The 50G Interlaken MegaCore function receives data on the Interlaken link, monitors and removes Interlaken overhead, and provides user data to the application.

50G Interlaken IP Core Receive User Data Interface Examples

The following examples illustrate how to use the Altera 50G Interlaken IP core RX user data interface:
50G Interlaken IP Core Receiver Side Example on page 4-15
Altera Corporation
Functional Description
Send Feedback
Cycle 1 Cycle 2 Cycle 3 Cycle 4 Cycle 5 Cycle 6 Cycle 7 Cycle 8 Cycle 9
rx_usr_clk
irx_sop
irx_sob
irx_eob
irx_dout_words d1
3’b100 3’b100 3’b011 3’b0103’b1003’b000
4’b0000 4’b0000 4’b0000 4’b00004’b1011 4’b10114’b0000
3’b100 3’b100
d2 d3 d4 d5 d6 d7
irx_num_valid
irx_eopbits
irx_chan 8’h2 8’h4 8’h48’h38’h2
UG-01140
2015.05.04
50G Interlaken IP Core Receiver Side Example
The 50G Interlaken IP Core can generate interleaved data transfers on the RX user data transfer interface. The IP core always toggles the irx_sob and irx_eob signals to indicate the beginning of the burst and end of the burst.
Figure 4-8: 50G Interlaken IP Core Receiver Side Example
This example illustrates the expected behavior of the 50G Interlaken IP core application interface receive signals during data transfers from the IP core to the application on the RX user data transfer interface in interleaved mode.
50G Interlaken IP Core Receiver Side Example
4-15
The figure shows the timing diagram for an interleaved data transfer in Interleaved mode. In cycle 1, the IP core asserts irx_sop and irx_sob, indicating that this cycle is both the start of the burst and the start of the packet. The first word is MSB aligned at the top. The value the IP core drives on irx_chan indicates the data targets channel 2. You must sample irx_chan during cycles in which irx_sob is asserted. The
irx_chan output signal is not guaranteed to remain valid for the duration of the burst.
In cycle 2, the IP core asserts irx_eob, indicating the data the IP core transfers to the application in this clock cycle is the end of the burst. irx_num_valid[2:0] indicates all four words are valid. However, the data in this cycle is not end of packet data. The IP core will transfer at least one additional data burst in this packet, possibly interleaved with one or more bursts in packets that target different data channels.
Cycle 3 is a short burst with both irx_sob and irx_eob asserted. The IP core drives the value of three on
irx_num_valid[2:0] to indicate that three words of the four-word irx_dout_words data bus are valid.
The data is packed in the most significant words of irx_dout_words.The IP core drives the value of 4'b1011 on irx_eopbits to indicate that the data the IP core transfers to the application in this cycle are the final words of the packet, and that in the final word of the packet, only three bytes are valid data. The value the IP core drives on irx_chan indicates this burst targets channel 4.
In cycle 4, the irx_num_valid[2:0] signal has the value of zero, which means this cycle is an idle cycle. In cycle 5, the IP core sends another single-cycle data burst to channel 2, by assertingirx_sob and
irx_eob to indicate this data is both the start and end of the burst. The IP core does not assert irx_sop,
because this burst is not start of packet data. irx_eopbits has the value of 4'b0000, indicating this burst is
Functional Description
Altera Corporation
Send Feedback
4-16

50G Interlaken IP Core RX Errored Packet Handling

also not end of packet data. This data follows the data burst transfered in cycles 1 and 2, within the same packet the IP core is sending to channel 2.
In cycle 6, the IP core sends a start of packet, single-cycle data burst to channel 3. In cycles 7 and 8, the IP core sends a two-cycle data packet in one two-cycle burst. In cycle 8, the second
data cycle, the IP core drives the value of two on irx_num_valid[2:0] and the value of 4'b1011 on
irx_eopbits, to tell the application that in this clock cycle, the two most significant words of the data
symbol contain valid data and the remaining words do not contain valid data, and that in the second of these two words, only the three most significant bytes contain valid data.
50G Interlaken IP Core RX Errored Packet Handling
The 50G Interlaken IP Core provides information about errored packets on the RX user data transfer interface through the following output signals:
irx_eopbits[3:0]—If this signal has the value of 4'b0001, an error indication arrived with the packet on the incoming Interlaken link: the EOP_Format field of the control word following the final burst of the packet on the Interlaken link has this value, which indicates an error and EOP.
irx_err—The 50G Interlaken IP Core checks the integrity of incoming packets on the Interlaken link, and reports the packet corruption errors it detects on the RX user data transfer interface in the
irx_err output signal.
UG-01140
2015.05.04
In both cases, the application is responsible for discarding the relevant packet. The irx_err signal reflects the following errors:
• CRC24 errors
• Loss of lane alignment
• Illegal control word
• Illegal framing pattern
• Missing SOP or EOP indicator
The irx_err output signal is aligned with irx_eopbits, and is always asserted when irx_eopbits has the value of 4'b0001. However, irx_eopbits can have the value of 4'b0001 when irx_err is not asserted, if the error indication arrived on the Interlaken link but the 50G Interlaken IP Core does not detect any of the listed integrity issues in the incoming packet communication.
The irx_err signal indicates approximately where an error occurs: the corruption could have occurred at the SOP of the current packet, in some later cycle in the payload of the current packet, in a packet that is interleaved with the current packet, or in the current EOP cycle. When the IP core identifies an error in the data it receives on the Interlaken link, it marks every packet currently open on the link as errored, rather than attempt to associate the error with a specific channel. Therefore, the application need not drop any packets that are not marked explicitly as errored using one of the two mechanisms.
The irx_err signal asserts one time only, whether a single error or multiple errors occurred in the packet. If the current EOP cycle data is corrupted so badly that the EOP indication is missing, the irx_err error indication is aligned to the next EOP. If an error occurs during an IDLE cycle, the irx_err is aligned to the next EOP.
The application is responsible for discarding packets it receives from the IP core with irx_err asserted during the EOP cycle, just as it is responsible for discarding packets it receives from the IP core with
irx_eopbits set to 4'b0001. The application is not responsible for tracking the open packets interleaved
with the errored packet — the 50G Interlaken IP Core asserts irx_err in the EOP cycle of every
Altera Corporation
Functional Description
Send Feedback
rx_usr_clk
irx_sop
irx_chan
irx_sob
irx_eob
irx_dout_words
irx_num_valid
irx_eopbits
irx_calendar
irx_err
Cycle 1 Cycle 2 Cycle 3 Cycle 4 Cycle 5 Cycle 6 Cycle 7 Cycle 8 Cycle 9
8’h2 8’h3
d1 d2 d3 d4 d5 d6
3’b100 3’b100 3’b1003’b011 3’b000 3’b100 3’b010
4’b0000 4’b00004’b1011 4’b1011
64’hffff_ffff_ffff_ffff ///////////64’h1111_2222_3333_4444
UG-01140
2015.05.04
50G Interlaken IP Core Receiver Side Example With Errors and In-Band Calendar Bits
potentially errored packet, and the application can rely on the fact that if irx_err is not asserted and
irx_eopbits has a value other than 4'b0001, the packet is not errored.
For CRC24 errors, you should use the crc24_err status signal, rather than relying on the irx_err signal, in the following situations:
• If you monitor the link when only Idle control words are being received (no data is flowing), you should monitor the real time status signal crc24_err.
• If you maintain a count of CRC24 errors, you should monitor the number of times that the real time status signal crc24_err is asserted.
50G Interlaken IP Core Receiver Side Example With Errors and In-Band Calendar Bits
Figure 4-9: 50G Interlaken IP Core Receiver Side Example With irx_err Errors
This example illustrates the expected behavior of the 50G Interlaken IP core application interface receive signals during a packet transfer with CRC or other errors. In the example, the errored packet transfer is followed by two idle cycles and a non-errored packet transfer.
4-17
Functional Description
This figure illustrates the attempted transfer of a 83-byte packet on the RX user data transfer interface to channel 2, after the 50G Interlaken IP Core receives the packet on the Interlaken link and detects corruption. Following the errored packet, the IP core transfers an uncorrupted packet to channel 3.
In cycle 1, the 50G Interlaken IP Core asserts irx_sop when data is ready on irx_dout_words. When the 50G Interlaken IP Core asserts irx_sop, it also asserts the correct value on irx_chan to tell the applica‐ tion the data channel destination of the data. In this example, the value 2 on irx_chan tells the application that the data should be sent to channel number 2.
During the SOP cycle (labeled with data value d1) and the cycle that follows the SOP cycle (labeled with data value d2), the 50G Interlaken IP Core holds the value of irx_num_valid[2:0] at 3'b100. In the
Send Feedback
Altera Corporation
4-18

In-Band Calendar Bits on the 50G Interlaken IP Core Receiver User Data Interface

UG-01140
2015.05.04
following clock cycle, labeled with data value d3, the 50G Interlaken IP Core holds the following values on critical output signals:
itx_num_valid[2:0] at the value of 3'b011 to indicate the current data symbol contains three 64-bit words of valid data.
itx_eopbits[3] high to indicate the current cycle is an EOP cycle.
itx_eopbits[2:0] at the value of 3'b011 to indicate that only three bytes of the final valid data word are valid data bytes.
This signal behavior, in the absence of the irx_err flag, would correctly transfer a data packet with the total packet length of 83 bytes from the 50G Interlaken IP Core.
However, the 50G Interlaken IP Core marks the packet as errored by asserting the irx_err signal, even though the irx_eopbits signal would appear to indicate the packet is valid.
The application is responsible for discarding the errored packet when it detects that the IP core has asserted the irx_err signal.
Following the corrupted packet, the IP core waits two idle cycles and then transfers a valid 75-byte packet.
Related Information
50G Interlaken IP Core Packet Mode Operation Example on page 4-10 The first data transfer in the current example is the receiver interface equivalent of the transmitter interface transfer example described at this link.
In-Band Calendar Bits on the 50G Interlaken IP Core Receiver User Data Interface on page 4-18 Description of in-band calendar bits on the RX user data transfer interface.
In-Band Calendar Bits on the 50G Interlaken IP Core Receiver User Data Interface
The 50G Interlaken IP core receiver logic decodes incoming control words (both Burst control words and Idle control words) on the incoming Interlaken link, extracts the calendar pages from the In-Band Flow Control bits, and assembles them into the irx_calendar output signal.
The 50G Interlaken IP core receives the most significant calendar page in a control word with the Reset Calendar bit set, indicating the beginning of the calendar page sequence. The mapping of bits from the control words to the irx_calendar output signal is consistent with the mapping of bits from the
itx_calendar input signal to the control words.
On the RX side, your application is responsible for mapping the calendar pages to the corresponding channels, according to any interpretation agreed upon with the Interlaken link partner application in sideband communication. On the TX side, your application is responsible for throttling the data it transfers to the TX user data transfer interface, in response to the agreed upon interpretation of the
irx_calendar bits.
Related Information
50G Interlaken IP Core In-Band Calendar Bits on Transmit Side on page 4-12
50G Interlaken IP Core Receiver Side Example With Errors and In-Band Calendar Bits on page 4­17 Example of in-band calendar bits usage on the RX user data transfer interface.
Altera Corporation
Functional Description
Send Feedback
irx_chan[7:0]
irx_num_valid[2:0]
irx_sob
irx_eob
irx_sop
irx_eopbits[3:0]
irx_dout_words[255:0]
irx_calendar[16 x n - 1:0]
irx_err
Transceiver Blocks
clk_rx_common
RX
PCS
RX
PMA
RX
MAC
RX
Regroup
rx_pin[m - 1:0]
rx_usr_clk
UG-01140
2015.05.04

50G Interlaken IP Core Receive Path Blocks

Figure 4-10: 50G Interlaken IP Core Receive Path
The 50G Interlaken IP core receive data path has the following four main functional blocks:
50G Interlaken IP Core RX PMA on page 4-19
50G Interlaken IP Core Receive Path Blocks
4-19
50G Interlaken IP Core RX PCS on page 4-19 50G Interlaken IP Core RX MAC on page 4-19 50G Interlaken IP Core RX Regroup Block on page 4-20
50G Interlaken IP Core RX PMA
The 50G Interlaken MegaCore function RX PMA deserializes data that the IP core receives on the serial lines of the Interlaken link.
50G Interlaken IP Core RX PCS
RX PCS logic is an embedded hard macro and does not consume FPGA soft logic elements. The 50G Interlaken MegaCore function RX PCS block performs the following functions to retrieve the
data:
• Detects word lock and word synchronization.
• Checks running disparity.
• Reverses gearboxing and 64/67B encoding.
• Descrambles the data.
• Delineates meta frame boundaries.
• Performs CRC32 checking.
• Sends lane status information to the calendar and status blocks.
50G Interlaken IP Core RX MAC
Functional Description
Send Feedback
To recover a packet or burst, the RX MAC takes data from each of the PCS lanes and reassembles the packet or burst.
Altera Corporation
4-20
50G Interlaken IP Core RX Regroup Block
The 50G Interlaken MegaCore function RX MAC performs the following functions:
• Data de-striping, including lane alignment and burst assembly from the PCS lanes.
• CRC24 validation
• Calendar recovery
50G Interlaken IP Core RX Regroup Block
The 50G Interlaken MegaCore function RX regroup block performs the following function:
• Translates the IP core internal data format to the outgoing user application data irx_data format.
UG-01140
2015.05.04
Altera Corporation
Functional Description
Send Feedback
2015.05.04
www.altera.com
101 Innovation Drive, San Jose, CA 95134

50G Interlaken MegaCore Function Signals

5
UG-01140
Subscribe
Send Feedback
The 50G Interlaken MegaCore function communicates with the surrounding design through multiple external signals.

50G Interlaken IP Core Clock Interface Signals

Table 5-1: 50G Interlaken IP Core Clock Interface
Signal Name Direction Width
(Bits)
Clock Ports
pll_ref_clk Input 1 Transceiver reference clock for the RX transceiver
PLL in IP core variations that target an Arria 10 device. Transceiver reference clock for RX and TX transceiver PLLs in all other variations.
The 50G Interlaken IP core supports the following
pll_ref_clk frequencies: 156.25 MHz, 195.3125
MHz, 250 MHz, 312.5 MHz, 390.625 MHz, 500 MHz, and 625 MHz.
Description
The pll_ref_clk input clock frequency must match the value you specify for the Transceiver reference clock frequency parameter.
tx_serial_clk
Input
NUM_ LANES–
Clocks for the individual transceiver channels in 50G Interlaken IP core variations that target an Arria 10 device.
clk_tx_common Output 1 PCS common lane clock driven by the SERDES
transmit PLL. The clock rate is the lane rate divided by 40 bits. The clk_tx_common frequency is
156.25 MHz for 6.25 Gbps per lane.
©
2015 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, ENPIRION, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.
ISO 9001:2008 Registered
5-2

50G Interlaken IP Core Reset Interface Signals

UG-01140
2015.05.04
Signal Name Direction Width
(Bits)
clk_rx_common Output 1 Master recovered lane clock. The Interlaken specifica‐
Description
tion requires all incoming lanes to run at the same frequency.
tx_usr_clk Input 1 Transmit side user data interface clock. To achieve 40
Gbps Ethernet traffic throughput, you must run this clock at a minimum frequency of 200 MHz.
By default, you must drive this clock at 250 MHz. To change the input clock frequency, you must first modify the value of the TX_USR_CLK_MHZ advanced parameter to the new frequency. The allowed range of frequencies you can specify is 200 MHz to 300 MHz.
rx_usr_clk Input 1 Receive side user data interface clock. To achieve 40
Gbps Ethernet traffic throughput, you must run this clock at a minimum frequency of 200 MHz.
By default, you must drive this clock at 250 MHz. To change the input clock frequency, you must first modify the value of the TX_USR_CLK_MHZ advanced parameter to the new frequency. The allowed range of frequencies you can specify is 200 MHz to 300 MHz.
mm_clk
Input
1
Management clock. Clocks the register accesses. It is also used for clock rate monitoring and some analog calibration procedures. You must run this clock at a frequency in the range of 100 MHz–125 MHz.
reconfig_clk
Input
1 Clocks the Arria 10 transceiver reconfiguration
interface. This clock is available only in IP core variations that target an Arria 10 device. You should run this clock at a frequency of 100 MHz.
Related Information
Performance and Fmax Requirements for 40G Ethernet Traffic on page 11-1
Explains the tx_usr_clk and rx_usr_clk frequency requirements.
50G Interlaken IP Core Reset Interface Signals
Table 5-2: 50G Interlaken IP Core Reset Interface
Signal Name Direction Width
(Bits)
50G Interlaken IP Core Reset Signals
Description
Altera Corporation
50G Interlaken MegaCore Function Signals
Send Feedback
UG-01140
2015.05.04
50G Interlaken IP Core Reset Interface Signals
5-3
Signal Name Direction Width
(Bits)
reset_n Input 1 Active-low reset signal for the 50G Interlaken IP core.
Description
Altera recommends that you hold this signal low for at least the duration of two mm_clk cycles, to ensure the reset sequence proceeds correctly.
reconfig_reset
Input 1 Reset signal for the Arria 10 transceiver reconfiguration
interface. This signal is available only in IP core variations that target an Arria 10 device.
srst_tx_common Output 1 Synchronous reset signal that the IP core asserts high
while the transmitter is initializing. This signal is synchro‐ nous with clk_tx_common.
This signal goes low to indicate that the transceiver PLL has locked to the reference clock. The TX PCS and the TX MAC are held in reset while the srst_tx_common clock is asserted. You can use this signal for diagnostic purposes.
srst_rx_common Output 1 Synchronous reset that is active at startup. This signal is
synchronous with clk_rx_common. This signal goes low to indicate that the transceiver PLL has achieved lock and the recovered clock has locked to data in normal operation, this signal is deasserted after the transceiver completes its reset sequence. The RX PCS and the RX MAC are held in reset while the srst_rx_common clock is asserted. This signal is also active in the event of a serious clock data recovery failure on any of the RX lanes.
tx_usr_srst Output 1 Transmit side reset output signal. Indicates the transmit
rx_usr_srst Output 1 Receive side reset output signal. Indicates the receive side
50G Interlaken MegaCore Function Signals
side user data interface is resetting. This signal is synchro‐ nous with tx_usr_clk. Your application can use this signal to reset any status counters you may maintain in the
tx_usr_clk domain.
user data interface is resetting. This signal is synchronous with rx_usr_clk. Your application can use this signal to reset any status counters you may maintain in the rx_
usr_clk domain.
Altera Corporation
Send Feedback
5-4

50G Interlaken IP Core User Data Transfer Interface Signals

50G Interlaken IP Core User Data Transfer Interface Signals
Table 5-3: 50G Interlaken IP Core User Data Transfer Interface
UG-01140
2015.05.04
Signal Name Direction Width
(Bits)
Description
50G Interlaken IP Core Transmit User Interface
itx_chan Input 8 Transmit logic channel number. The IP core supports up to 256
channels. The 50G Interlaken IP core samples this value only when
itx_sop or itx_sob is high and itx_num_valid has a non-zero value.
itx_num_ valid
Input 3 itx_num_valid[2:0] specifies the number of valid 64-bit words in the
current packet in the current data symbol. The maximum value of
itx_num_valid[2:0] is four, because a data symbol on the 256 bit
wide data path has four words (4 x 64 bits = 256 bits). In non-valid cycles, you must set the value of itx_num_valid[2:0] to
zero. In valid cycles, you must set the value of itx_num_valid[2:0] as
follows:
• 3’b100: if all four words contain valid data from the current packet.
• 3’b0xx: where xx indicates the number of valid words that are part of the current packet, if the number is less than four. Data is always MSB aligned (left aligned). For example, the value of 3’b011 indicates that word 0 (bit [63:0]) is not valid.
You must set the value of itx_num_valid to zero in all non-valid cycles, even when itx_ready is not asserted.
itx_sop Input 1 Indicates the current data symbol on itx_din_words contains the start
of a packet (SOP). This signal has the following valid values:
• 1'b0—The current data symbol does not contain the start of a packet.
• 1'b1—The current data symbol contains the start of a packet.
Altera Corporation
50G Interlaken MegaCore Function Signals
Send Feedback
UG-01140
2015.05.04
50G Interlaken IP Core User Data Transfer Interface Signals
5-5
Signal Name Direction Width
(Bits)
itx_ eopbits
Input 4 Indicates whether the current data symbol contains the end of a packet
(EOP) with or without an error, and specifies the number of valid bytes
Description
in the current end-of-packet, non-error 8-byte data word, if relevant. You must set the value of itx_eopbits as follows:
• 4b’0000: no end of packet, no error.
• 4b’0001: Error and end of packet.
• 4b’1xxx: End of packet. xxx indicates the number of valid bytes in the final valid 8-byte word of the packet, as follows:
• 3b’000: all 8 bytes are valid.
• 3b’001: 1 byte is valid.
• ...
• 3b’111: 7 bytes are valid.
All other values (4'b01xx, 4'b001x) are undefined. The valid bytes always start in bit positions [63:56] of the final valid
data word of the packet.
itx_sob Input 1 Indicates the current data symbol contains the start of a burst (SOB). If
the 50G Interlaken IP core is in Interleaved mode, you are responsible for providing this start of the burst signal. If the50G Interlaken IP core is in Packet mode, the IP core ignores this signal. The 50G Interlaken IP core samples the itx_chan signal during this cycle.
This signal has the following valid values:
• 1'b0—The current data symbol does not contain the start of a burst.
• 1'b1—The current data symbol contains the start of a burst.
Typically, you use this mode for sending interleaved packets. However, you can still send non-interleaved packets as long as you provide the
itx_sob and itx_eob signal values. You are responsible to comply
with the BurstMax and BurstMin parameters. If the burst you send is too large, it can overflow the 50G Interlaken transmit buffer.
itx_eob Input 1 End of the burst. If the 50G Interlaken IP core is in Interleaved mode,
you are responsible for providing this end of the burst signal. If the50G Interlaken IP core is in Packet mode, the IP core ignores this signal. You are responsible to comply with the BurstMax and BurstMin parameters.
itx_din_ words
Input
256
The four 64-bit words of input data (one data symbol). When itx_
num_valid has the value of zero, the IP core ignores itx_din_words.
50G Interlaken MegaCore Function Signals
Send Feedback
Altera Corporation
5-6
50G Interlaken IP Core User Data Transfer Interface Signals
UG-01140
2015.05.04
Signal Name Direction Width
(Bits)
itx_ calendar
Input 16 N Multiple pages (16 bits per page) of calendar input bits. The
50G Interlaken IP Core copies these bits to the in-band flow control
Description
bits in N control words that it sends on the Interlaken link. N is the value of the Number of calendar pages parameter, which can be any of 1, 2, 4, 8. or 16. This signal is synchronous with tx_usr_clk, although it is not part of the user data transfer protocol.
itx_ready Output 1 Flow control signal to back pressure transmit traffic. When this signal
is high, you can send traffic to the IP core. When this signal is low, you should stop sending traffic to the IP core within one to four cycles.
You can consider the inverse of itx_ready to be a FIFO-almost-full indicator. In full duplex mode, itx_ready is low when rx_lanes_
aligned is low.
itx_ifc_ err
Output 1
Indicates the transmit side user data transfer interface received traffic that the 50G Interlaken IP Core does not support. The IP core asserts the itx_ifc_err signal in the following cases:
• In Interleaved mode, the IP core receives a burst that exceeds the size of MaxBurst.
• Two instances of non-zero itx_sop (a start of packet), or two instances of non-zero itx_sob (a start of burst), are separated by fewer than 64 bytes.
The IP core asserts the itx_ifc_err signal for a single clock cycle. The signal pulses within the current burst, with a delay of one or two cycles after the error on the transmit side user data transfer interface.
50G Interlaken IP Core Receive User Interface
irx_chan Output 8 Receive logic channel number. The IP core supports up to 256
channels. You should sample this value when irx_sop or irx_sob is high and irx_num_valid has a non-zero value.
irx_num_ valid
Output 3 irx_num_valid[2:0] specifies the number of valid 64-bit words in the
current packet in the current data symbol. The maximum value of
irx_num_valid[2:0] is four, because a data symbol on the 256 bit
wide data path has four words (4 x 64 bits = 256 bits). In valid cycles, the IP core sets the value of irx_num_valid[2:0] as
follows:
• 3’b100: if all four words contain valid data from the current packet.
• 3’b0xx: where xx indicates the number of valid words that are part of the current packet, if the number is less than four. Data is always MSB aligned (left aligned). For example, the value of 3’b011 indicates that word 0 (bit [63:0]) is not valid.
The IP core sets the value of irx_num_valid to zero in all non-valid cycles.
Altera Corporation
50G Interlaken MegaCore Function Signals
Send Feedback
UG-01140
2015.05.04
50G Interlaken IP Core User Data Transfer Interface Signals
5-7
Signal Name Direction Width
(Bits)
irx_sop Output 1 Indicates the current data symbol on irx_dout_words contains the
Description
start of a packet (SOP). This signal has the following valid values:
• 1'b0—The current data symbol does not contain the start of a packet.
• 1'b1—The current data symbol contains the start of a packet.
irx_ eopbits
Output 4 Indicates whether the current data symbol contains the end of a packet
(EOP) with or without an error, and specifies the number of valid bytes in the current end-of-packet, non-error 8-byte data word, if relevant.
The IP core sets the value of irx_eopbits as follows:
• 4b’0000: no end of packet, no error.
• 4b’0001: Error and end of packet.
• 4b’1xxx: End of packet. xxx indicates the number of valid bytes in the final valid 8-byte word of the packet, as follows:
• 3b’000: all 8 bytes are valid.
• 3b’001: 1 byte is valid.
• ...
• 3b’111: 7 bytes are valid.
All other values (4'b01xx, 4'b001x) are undefined and are not generated by the IP core.
The valid bytes always start in bit positions [63:56] of the final valid data word of the packet.
irx_sob Output 1 Start of the burst. The 50G Interlaken IP core indicates the start of the
burst. The signal irx_channel is only valid when irx_sob is high. This signal toggles in Packet Mode and in Interleaved Mode.
This signal has the following valid values:
• 1'b0—The current data symbol does not contain the start of a burst.
• 1'b1—The current data symbol contains the start of a burst.
irx_eob Output 1 End of the burst. The 50G Interlaken IP core indicates the end of the
burst. This signal toggles in Packet Mode and in Interleaved Mode.
irx_dout_ words
irx_ calendar
Output
Output 16 × N Multiple pages (16 bits per page) of calendar output bits. The value is
256
The four 64-bit words of output data (one data symbol). When irx_
num_valid has the value of zero, you should ignore irx_dout_words.
the in-band flow control bits from N control words on the incoming Interlaken link. N is the value of the Number of calendar pages parameter, which can be any of 1, 2, 4, 8, or 16. This signal is synchro‐ nous with rx_usr_clk, although it is not part of the user data transfer protocol.
50G Interlaken MegaCore Function Signals
Send Feedback
Altera Corporation
5-8

50G Interlaken IP Core Interlaken Link and Miscellaneous Interface Signals

UG-01140
2015.05.04
Signal Name Direction Width
(Bits)
irx_err Output 1
Indicates an errored packet. This signal is valid only when both
irx_num_valid[2:0] and irx_eopbits[3:0] are non-zero. When a
Description
CRC24 or other error occurs, the 50G Interlaken IP core asserts this signal for all open channel packets to label them all as errored packets, because the IP core cannot assign the error to a specific channel.
Related Information
50G Interlaken IP Core RX Errored Packet Handling on page 4-16
Describes the behavior of the irx_err signal.
Transfer Mode Selection on page 3-2
Describes the parameter to select Packet or Interleaved mode.
Interleaved and Packet Modes on page 4-7
Describes the Packet and Interleaved modes.
50G Interlaken IP Core Interlaken Link and Miscellaneous Interface Signals
Table 5-4: 50G Interlaken IP Core SERDES Signals, Burst Parameter Signals, and Real Time Status Signals
Signal Name Direction Width (Bits) Description
SERDES Pins
rx_pin Input Number of lanes Receiver SERDES data pin on the RX Interlaken
link.
tx_pin Output Number of lanes Transmit SERDES data pin on the TX
Interlaken link.
TX Burst Control Settings
burst_max_in Input 4 Encodes the BurstMax parameter for the IP
core. The actual value of the BurstMax parameter must be a multiple of 64 bytes. While traffic is present, this input signal should remain static. However, when no traffic is present, you can modify the value of the burst_
max_in signal to modify the BurstMax value of
the IP core. The 50G InterlakenIP core supports the
following valid values for this signal: 2: 128 bytes
Altera Corporation
4: 256 bytes
50G Interlaken MegaCore Function Signals
Send Feedback
UG-01140
2015.05.04
50G Interlaken IP Core Interlaken Link and Miscellaneous Interface Signals
Signal Name Direction Width (Bits) Description
burst_short_in Input 4 Encodes the BurstShort parameter for the IP
core. The 50G Interlaken IP core supports the
following valid value for this parameter: 1: 32 bytes In general, the presence of the BurstMin
parameter makes the BurstShort parameter obsolete.
burst_min_in Input 4 Encodes the BurstMin parameter for the IP
core. The IP core supports the following valid values
for this signal: 0: Disable optional enhanced scheduling. Altera
recommends you do not drive this value. If you disable enhanced scheduling, performance is non-optimal.
5-9
1: 32 bytes 2: 64 bytes 4: 128 bytes The BurstMin parameter should have a value
that is less than or equal to half of the value of the BurstMax parameter.
Altera recommends that you modify the value of this input signal only when no traffic is present on the TX user data interface. You do not need to reset the IP core.
Real-Time Transmit Status Signals (Synchronous with tx_usr_clk)
tx_lanes_ aligned
Output 1 All of the transmitter lanes are aligned and are
ready to send traffic.
50G Interlaken MegaCore Function Signals
Send Feedback
Altera Corporation
5-10
50G Interlaken IP Core Interlaken Link and Miscellaneous Interface Signals
Signal Name Direction Width (Bits) Description
itx_hungry Output 1 A dynamic status flag indicating that a
downstream buffer which supplies data to the PCS is running empty. The IP core handles this situation by inserting IDLE symbols (IDLE control words) in the packet stream. Therefore, this signal does not indicate an error.
This signal is asserted for the duration of the condition it indicates.
The PCS runs continuously with the provided data or inserted IDLE symbols. This signal is usually asserted immediately after the IP core comes out of reset. However, the signal can also be asserted during normal operation, and is not a cause for concern.
itx_overflow Output 1 An error flag indicating that the PCS buffer is
currently overflowing. This signal is asserted for the duration of the overflow condition: it is asserted in the first clock cycle in which the overflow occurs, and remains asserted until the PCS buffer pointers indicate that no overflow condition exists.
UG-01140
2015.05.04
itx_underflow Output 1 An error flag indicating that the PCS buffer is
currently underflowed. In normal operation, this signal may be asserted temporarily immediately after the 50G Interlaken IP core comes out of reset. It is asserted as a single cycle wide pulse.
Real-Time Receiver Status Signals (Synchronous with rx_usr_clk )
sync_locked Output Number of lanes Receive lane has locked on the remote
transmitter Meta Frame. These signals are level signals: all bits are expected to stay high unless a problem occurs on the serial line.
word_locked Output Number of lanes Receive lane has identified the 67-bit word
boundaries in the serial stream. These signals are level signals: all bits are expected to stay high unless a problem occurs on the serial line.
rx_lanes_ aligned
Output 1 All of the receiver lanes are aligned and are
ready to receive traffic. This signal is a level signal.
Altera Corporation
50G Interlaken MegaCore Function Signals
Send Feedback
UG-01140
2015.05.04
50G Interlaken IP Core Interlaken Link and Miscellaneous Interface Signals
Signal Name Direction Width (Bits) Description
crc24_err Output 1 A CRC24 error flag covering both control word
and data word. This signal does not associate the CRC24 error with a particular packet. Instead, its value indicates the overall SERDES status. You can use this signal to count the number of CRC24 errors.
This signal is asserted as a single cycle wide pulse. If the IP core detects back-to-back CRC24 errors, this signal toggles.
crc32_err Output Number of lanes An error flag indicating diagnostic CRC32
failures per lane. This signal is asserted as a single cycle wide pulse. If back-to-back CRC32 errors are detected, this signal toggles.
irx_overflow Output 1 An error flag indicating the presence of
excessive jitter at the receiver side. This signal is included in the current IP core opportunisti‐ cally for diagnostic purposes.
5-11
rdc_overflow Output 1 An error flag indicating that the RX domain-
crossing FIFO is currently overflowed. The RX domain-crossing FIFO transfers data from the PCS clock domain to the MAC clock domain.
rg_overflow Output 1 An error flag indicating that the Reassembly
FIFO is currently overflowed. The Reassembly FIFO is the receiver FIFO that feeds directly to the user data interface.
rxfifo_fill_ level
Output RXFIFO_ADDR_
WIDTH
The fill level of the Reassembly FIFO, in units of 64-bit words. The width of this signal is the value of the RXFIFO_ADDR_WIDTH parameter, which is 12 by default. You can use this signal to monitor when the RX Reassembly FIFO is empty.
sop_cntr_inc Output 1 A pulse indicating that the 50G Interlaken IP
core receiver user data interface received a start­of-packet. You can use this signal to increment a count of SOPs the application observes on the receive interface.
eop_cntr_inc Output 1 A pulse indicating that the 50G Interlaken IP
core receiver user data interface received an end-of-packet. You can use this signal to increment a count of EOPs the application observes on the receive interface.
50G Interlaken MegaCore Function Signals
Send Feedback
Altera Corporation
5-12

50G Interlaken IP Core Management Interface

Related Information
RXFIFO Address Width on page 9-2
Information about programming the depth of the Reassembly FIFO with the RXFIFO_ADDR_WIDTH parameter.
50G Interlaken IP Core Management Interface
The 50G Interlaken IP core management interface allows you to communicate with IP core internal status and control registers. This interface manages the PMA (resets and serial loopback controls) and PCS control and status registers. This interface does not provide access to the hard PCS registers on the device.
The management interface is a typical 32-bit memory-mapped register port. It complies with the Avalon Memory-Mapped (Avalon-MM) specification defined in the Avalon Interface Specifications.
Table 5-5: 50G Interlaken IP Core Management Interface Signals
UG-01140
2015.05.04
Signal Name Direction Width
(Bits)
Description
50G Interlaken IP Core Management Interface Signals
mm_clk Input 1 Management clock. Clocks the register accesses. It is
also used for clock rate monitoring and some analog calibration procedures. You must run this clock at a frequency in the range of 100 MHz–125 MHz.
mm_clk_locked Input 1 Assert this signal to indicate that mm_clk is stable.
The IP core responds to this signal in the same way it responds to the reset_n signal: loss of lock restarts the reset sequence.
Altera recommends that you tie this signal high and not rely on its functionality. It is expected to be deprecated in the near future.
mm_read Input 1 Read access to the register ports.
mm_write Input 1 Write access to the register ports.
mm_addr Input 16 Address to access the register ports.
mm_rdata Output 32 When mm_rdata_valid is high, mm_rdata holds valid
mm_rdata_valid Output 1 Valid signal for mm_rdata.
mm_wdata Input 32 When mm_write is high, mm_wdata holds valid write
Altera Corporation
read data.
data.
50G Interlaken MegaCore Function Signals
Send Feedback
mm_clk
mm_write
mm_addr[15:0]
mm_wdata[31:0]
Don’t Care
0x0012 0x0013 Don’t Care
Don’t Care
wdata0 wdata1 Don’t Care
mm_clk
mm_read
mm_addr[15:0]
mm_rdata_valid
mm_rdata[31:0]
Don’t Care
0x0000 0x0001 Don’t Care
Previous Value
rdata0 rdata1
UG-01140
2015.05.04
50G Interlaken IP Core Management Interface
If you do not use the management interface, drive the management inputs as follows:
mm_clk must connect to a stable clock. However, the clock signal need not be of unusually high quality.
mm_clk_locked must be tied to zero.
mm_read and mm_write must be tied to zero. If you use the management interface, drive the control lines as shown in the examples and observing the
following constraints:
• During a write operation, you must maintain the the mm_write signal asserted for at least two clock cycles. Back-to-back writes must be separated by at least one clock cycle.
• During a read operation, you must maintain the mm_read signal asserted for at least two clock cycles. Back-to-back reads must be separated by at least one clock cycle.
Figure 5-1: 50G Interlaken IP Core Management Interface Write Operation
Shows the timing requirements for a write operation on the 50G Interlaken IP core management interface.
5-13
50G Interlaken MegaCore Function Signals
Figure 5-2: 50G Interlaken IP Core Management Interface Read Operation
Shows the timing requirements for a read operation on the 50G Interlaken IP core management interface. The IP core asserts the mm_rdata_valid signal one cycle after the mm_read signal is asserted.
Related Information
Avalon Interface Specifications
Altera Corporation
Send Feedback
5-14

Device Dependent Signals

Device Dependent Signals
Some of the 50G Interlaken MegaCore function signals depend on the device that your variation targets. Variations that target an Arria V device or a Stratix V device have an interface to connect to an Altera Transceiver Reconfiguration Controller that you must instantiate outside the 50G Interlaken IP core for successful functioning in hardware. Variations that target an Arria 10 device have Arria 10-specific requirements to support the Arria 10 transceivers. The following 50G Interlaken IP core interfaces are device specific:
Transceiver Reconfiguration Controller Interface Signals on page 5-14 Arria 10 External PLL Interface Signals on page 5-15 Arria 10 Transceiver Reconfiguration Interface Signals on page 5-15

Transceiver Reconfiguration Controller Interface Signals

50G Interlaken IP core variations that target an Arria V or a Stratix V device require an external reconfi‐ guration controller to function correctly in hardware. 50G Interlaken IP core variations that target an Arria 10 device include a reconfiguration controller block and do not require an external reconfiguration controller.
UG-01140
2015.05.04
Table 5-6: 50G Interlaken IP Core Arria V and Stratix V Transceiver Reconfiguration Controller Interface Signals
Signal Name Direction Width
(Bits)
reconfig_to_xcvr Input 70 bits
per reconfi‐ guration interface.
Bus from the external transceiver reconfiguration controller to the 50G Interlaken IP core. The bus includes signals fro multiple transceiver reconfigura‐ tion interfaces. The reconfiguration controller has one interface to control each transceiver channel (one per
Description
Interlaken lane) plus one interface to control each TX PLL configured in the IP core. The width of each reconfiguration controller output reconfiguration interface is 70 bits.
reconfig_from_xcvr Output 46 bits
per reconfi‐ guration interface
Bus to the external transceiver reconfiguration controller from the 50G Interlaken IP core. The bus includes signals for multiple reconfiguration interfaces of the transceiver reconfiguration controller. The reconfiguration controller has one interface for each transceiver channel (one per Interlaken lane) plus one interface for each TX PLL configured in the IP core. The width of each reconfi‐ guration controller input reconfiguration interface is 46 bits.
Altera Corporation
50G Interlaken MegaCore Function Signals
Send Feedback
UG-01140
2015.05.04

Arria 10 External PLL Interface Signals

50G Interlaken IP core variations that target an Arria 10 device require an external transceiver PLL to function correctly in hardware. 50G Interlaken IP core variations that target an Arria V or Stratix V device include the transceiver PLLs and do not require that you configure any additional PLLs.
Table 5-7: 50G Interlaken IP Core Arria 10 External PLL Interface Signals
Signal Name Direction Width (Bits) Description
tx_serial_clk Input NUM_LANES High-speed clock for Arria 10
tx_pll_locked Input 1 PLL-locked indication from external
Arria 10 External PLL Interface Signals
transceiver channel, provided from external TX PLL.
TX PLL.
5-15
tx_pll_powerdown
Output 1 Output signal from the IP core
internal reset controller. The IP core asserts this signal to tell the external PLLs to power down.
Related Information
Adding the External PLL on page 2-12

Arria 10 Transceiver Reconfiguration Interface Signals

The 50G Interlaken IP core Arria 10 transceiver reconfiguration interface allows you to communicate with Arria 10 hard PCS registers. This interface is available only in variations that target an Arria 10 device. You use this interface to reconfigure the transceiver and to take advantage of built-in transceiver features that the 50G Interlaken IP Core supports for IP core testing. The interface allows you to address a single register in a single transceiver channel at one time.
The Arria 10 transceiver reconfiguration interface is a typical 32-bit memory-mapped register port. It complies with the Avalon Memory-Mapped (Avalon-MM) specification defined in the Avalon Interface Specifications.
Table 5-8: 50G Interlaken IP Core Arria 10 Transceiver Reconfiguration Interface Signals
Signal Name Direction Width
(Bits)
Description
reconfig_clk Input 1
reconfig_reset Input 1 Assert this signal to reset the Arria 10 transceiver
reconfig_read Input 1 Read access to the Arria 10 hard PCS registers.
50G Interlaken MegaCore Function Signals
Send Feedback
Arria 10 transceiver reconfiguration interface clock.
reconfiguration interface.
Altera Corporation
5-16
Arria 10 Transceiver Reconfiguration Interface Signals
UG-01140
2015.05.04
Signal Name Direction Width
Description
(Bits)
reconfig_write Input 1 Write access to the Arria 10 hard PCS registers.
reconfig_address Input 13 Address to access the hard PCS registers. This signal
holds both the hard PCS register offset and the transceiver channel being addressed, in the following fields:
• [8:0]: register offset in the hard PCS
• [12:9]: Interlaken lane number
reconfig_readdata Output 32 After user logic asserts the reconfig_read signal,
when the IP core deasserts the reconfig_
waitrequest signal, reconfig_readdata holds valid
read data.
reconfig_waitrequest Output 1 Busy signal for reconfig_readdata.
reconfig_writedata Input 32 When reconfig_write is high, reconfig_writedata
holds valid write data.
Related Information
Avalon Interface Specifications
Defines the Avalon-MM interface specification, including the behavior of the output signals and the expected behavior of the input signals.
Altera Corporation
50G Interlaken MegaCore Function Signals
Send Feedback
2015.05.04
www.altera.com
101 Innovation Drive, San Jose, CA 95134

50G Interlaken IP Core Register Map

6
UG-01140
Subscribe
Send Feedback
The 50G Interlaken IP core control registers are 32 bits wide and are accessible to you using the management interface, an Avalon-MM interface which conforms to the Avalon Interface Specifications. This table lists the registers available in the IP core. All unlisted locations are reserved.
Table 6-1: 50G Interlaken IP Core Register Map
Offset Name R/W Description
9'h0
PCS_BASE
RO [31:8] – Constant “HSi” ASCII
[7:0] – version number Despite its name, this register does not encode the hard PCS
base address.
9'h1
LANE_COUNT
RO Number of lanes
9'h2 TEMP_SENSE RO Device temperature according to the internal temperature
sensing diode. [7:0] – the temperature in degrees Fahrenheit [15:8] – the temperature in degrees Celsius For example, when the temperature is 54 degrees Celsius
(130 degrees Fahrenheit), the value of the register is 0x3682. To interpret this register value, you read 0x36 (decimal 54) to be the temperature in degrees Celsius, and you read 0x82 (decimal 130) to be the temperature in degrees Fahrenheit.
This register is invalid in the following IP core variations:
• Variations that target an Arria 10 device
• Variations in which you turn off the hidden parameter
Include Temp Sense
9'h3 ELAPSED_SEC RO [23:0] - Elapsed seconds since power up. The IP core
calculates this value from the management interface clock (mm_clk) for diagnostic purposes. During continuous operation, this value rolls over every 194 days.
©
2015 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, ENPIRION, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.
ISO 9001:2008 Registered
6-2
50G Interlaken IP Core Register Map
Offset Name R/W Description
9'h4 TX_EMPTY RO [NUM_LANES–1:0] – Transmit FIFO status (empty)
9'h5 TX_FULL RO [NUM_LANES–1:0] – Transmit FIFO status (full)
9'h6 TX_PEMPTY RO [NUM_LANES–1:0] – Transmit FIFO status (partially
empty)
9'h7 TX_PFULL RO [NUM_LANES–1:0] – Transmit FIFO status (partially full)
UG-01140
2015.05.04
9'h8
9'h9
9'hA
9'hB
RX_EMPTY
RX_FULL
RX_PEMPTY
RX_PFULL
9'hC REF_KHZ
9'hD RX_KHZ
(1)
9'hE TX_KHZ
9'hF
LANE_PROFILE
(1)
(1)
RO [NUM_LANES–1:0] – Receive FIFO status (empty)
RO [NUM_LANES–1:0] – Receive FIFO status (full)
RO [NUM_LANES–1:0] – Receive FIFO status (partially
empty)
RO [NUM_LANES–1:0] – Receive FIFO status (partially full)
RO PLL reference clock frequency (kHz)
RO RX recovered clock frequency (kHz)
RO TX serial clock frequency (kHz)
RO [NUM_LANES–1:0] – Mask delineating the transceivers
this IP core uses on the device. For example, if the FPGA has 24 lanes on one side of the device and the IP core uses the bottom eight transceivers, the mask would be 24'b000000_000000_000011_111111..
This register is not available in IP core variations that target an Arria 10 device.
9'h10
9'h11
(1)
Altera recommends that you use this register only during hardware operation. During simulation, you should not rely on the value in this register, because the amount of simulation time required for the IP core to provide consistent values in the REF_KHZ, RX_KHZ, and TX_KHZ registers is too long.
Altera Corporation
PLL_LOCKED
FREQ_LOCKED
RO In Arria 10 devices: [0] – Transmit PLL lock indication.
In other device families: [Number of transceiver blocks–1:0] – Transceiver block transmit PLL n lock indication. One lock indicator per transceiver block. Bits that correspond to unused transceiver block PLLs are forced to 1.
RO [NUM_LANES–1:0] – Clock data recovery is frequency
locked on the inbound data stream
50G Interlaken IP Core Register Map
Send Feedback
UG-01140
2015.05.04
50G Interlaken IP Core Register Map
Offset Name R/W Description
6-3
9'h12
9'h13
LOOPBACK
RESET
RW [NUM_LANES–1:0] – For each lane, write a 1 to activate
internal TX to RX serial loopback mode, or write a 0 to disable the loopback for normal operation.
RW Bit 9 : 1 = Force lock to data mode
Bit 8 : 1 =Force lock to reference mode Bit 7 : 1 = Synchronously clear the TX-side error counters
and sticky flags Bit 6 : 1 = Synchronously clear the RX-side error counters
and sticky flags Bit 5 : 1 =Program load mode: perform a sequence of DMA
reads. Currently the IP core supports only the value of 1'b0, indicating a processor controls the read operations.
Bit 4 : 1 = Ignore the RX analog reset Bit 3 : 1 = Reset the soft microcontroller Bit 2 : 1 = Reset the transmitter and the receiver Bit 1 : 1 = Reset the receiver Bit 0 : 1 =Ignore RX digital resets The normal operating state for this register is all zeroes, to
allow automatic reset control. These bits are intended primarily for hardware debugging use. Bit 2 is a good general purpose soft reset. Bits 6 and 7 are convenient for monitoring long stretches of error-free operation.
9'h20
9'h21
9'h22
9'h23
9'h24
50G Interlaken IP Core Register Map
ALIGN
WORD_LOCK
SYNC_LOCK
CRC0
CRC1
RO Bit 12 : TX lanes are aligned
Bit 0 : RX lanes are aligned.
RO [NUM_LANES–1:0] – Word (block) boundaries have been
identified in the RX stream.
RO [NUM_LANES–1:0] – Metaframe synchronization has been
achieved.
RO 4 bit counters indicating CRC errors in lanes 7,6,5,4,3,2,1,0.
These will saturate at F, and you clear them by setting bit 6 in the RESET register.
RO 4 bit counters indicating CRC errors in lanes
15,14,13,12,11,10,9,8. These will saturate at F, and you clear them by setting bit 6
in the RESET register.
Altera Corporation
Send Feedback
6-4
50G Interlaken IP Core Register Map
Offset Name R/W Description
UG-01140
2015.05.04
9'h25
CRC2
RO 4 bit counters indicating CRC errors in lanes
23,22,21,20,19,18,17,16. These will saturate at F, and you clear them by setting bit 6
in the RESET register.
9'h27
SH_ERR
RO [NUM_LANES–1:0] – Sticky flag indicating a sync header
(framing bit) error has occurred in the corresponding RX lane since this bit was last cleared through the RESET register.
9'h28 RX_LOA RO Bit [0] – Sticky flag indicating loss of RX side lane-to-lane
alignment since this bit was last cleared through the RESET register. Typically, the IP core asserts this bit in case of a catastrophic problem such as one or more lanes going down.
9'h29 TX_LOA RO Bit [0] – Sticky flag indicating loss of TX side lane to lane
alignment since this bit was last cleared through the RESET register. Typically, the IP core asserts this bit in case of a TX FIFO underflow / overflow caused by a significant deviation from the expected data flow rate through the TX PCS.
9'h30
PCS_6SEL
RO Transceiver block selection for PCS test bus. (Factory use
only).
9'h31
9'h32
9'h33
9'h34
9'h35
9'h36
9'h37
PCS_LNSEL
PCS_TB
Reserved
RX_PRBS_DONE
RX_PRBS_ERR
RX_PRBS_COUNT
RX_PRBS_CTRL
RO Lane selection within transceiver block for PCS test bus.
(Factory use only).
RO PCS test bus. (Factory use only).
RO [NUM_LANES–1:0] – Indicates whether enough bits have
been received on the corresponding RX lane for one complete pass through the PRBS polynomial.
RO [NUM_LANES–1:0] – Sticky flag that indicates whether a
PRBS error has occurred on the corresponding RX lane after RX_PRBS_DONE has attained the value of 1.
RO [7:0] – This eight-bit counter holds the number of words
that had PRBS errors across all lanes. Saturates at the value of 0xFF.
RW Bit [0] – If you set this bit to the value of 1, the IP core
clears the RX_PRBS_DONE, RX_PRBS_ERR, and RX_PRBS_
COUNT registers. Reset this bit to the value of 0 to capture
new PRBS status.
Altera Corporation
50G Interlaken IP Core Register Map
Send Feedback
UG-01140
2015.05.04
50G Interlaken IP Core Register Map
Offset Name R/W Description
6-5
9'h38
CRC32_ERR_INJECT
Related Information
Avalon Interface Specifications
RW [NUM_LANES–1:0] - When a bit has the value of 1, the IP
core injects CRC32 errors on the corresponding TX lane. When it has the value of 0, the IP core does not inject errors on the TX lane. You must maintain each bit at the value of 1 for the duration of a Meta Frame, at least, to ensure that the IP core transmits at least one CRC32 error.
50G Interlaken IP Core Register Map
Send Feedback
Altera Corporation
2015.05.04
PLL
Loopback
TX Lanes
RX Lanes
Example Design
Top Testbench
Packet
Generator
Control & Status
Registers
Packet
Checker
50G Interlaken
MegaCore
Function
System Clock
Generator
PLL Reference
Clock Generator
TX PLL
www.altera.com
101 Innovation Drive, San Jose, CA 95134

50G Interlaken IP Core Testbench

7
UG-01140
Subscribe
Send Feedback
When you generate an 50G Interlaken IP core variation with Verilog HDLsynthesis and simulation models, the software generates an example design and testbench to simulate your 50G Interlaken IP core variation. The testbench provides system and PLL reference clocks and connects the TX output pins of the IP core to its RX input pins, implementing physical layer loopback.
In simulation, the testbench generates packets on the IP core TX user data transfer interface. The IP core sends these packets on the loopback Interlaken link. After the IP core receives the packets on the loopback Interlaken link, it processes the Interlaken packets and transmits them on the RX user data transfer interface. The testbench checks that the packets it receives on the IP core RX user data transfer interface are consistent with the packets sent in.
Figure 7-1: 50G Interlaken IP Core Testbench Block Diagram
The TX PLL is present only in the example designs for Arria 10 variations.
©
2015 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, ENPIRION, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.
ISO 9001:2008 Registered
7-2

50G Interlaken IP Core Testbench Interface Signals

In Arria 10 variations, the example design includes external TX PLLs. You can examine the clear text files to view sample code that implements one possible method to connect external PLLs to the 50G Interlaken IP core.
The Arria 10 example design packs six Interlaken lanes in a transceiver block, and connects all of the channels in the same transceiver block to a single ATX PLL. The IP core connects each ATX PLL to the 50G Interlaken IP core tx_pll_locked and tx_pll_powerdown ports. This simple connection model is only one of many options available to you for configuring and connecting the external PLLs in your 50G Interlaken design.
50G Interlaken IP Core Testbench Interface Signals on page 7-2 Testbench Simulation Behavior on page 7-3 Running the Testbench With the Example Design on page 7-3
50G Interlaken IP Core Testbench Interface Signals
Table 7-1: 50G Interlaken IP Core TestBench Signals
Port Name Direction Width (Bits) Description
UG-01140
2015.05.04
clk50
pll_ref_clk
rx_pin
tx_pin
Related Information
Input 1 System clock input. Clock
Input 1 Transceiver reference clock.
Input Number of lanes Receiver SERDES data pin.
Output Number of lanes Transmit SERDES data pin.
50G Interlaken IP Core Clock Interface Signals on page 5-1
Lists the valid PLL reference clock frequencies.
frequency is 50 MHz.
Drives the RX CDR PLL in Arria 10 variations, and drives both the TX PLL and the RX PLL in other variations.
Altera Corporation
50G Interlaken IP Core Testbench
Send Feedback
UG-01140
2015.05.04

Testbench Simulation Behavior

During simulation, the 50G Interlaken IP core testbench performs the following actions:
1. Resets the 50G Interlaken IP core.
2. After the reset sequence completes, sends a sequence of Interlaken packets of pseudo-random sizes
with predefined data in the payload to the TX user data transfer interface of the IP core. This action continues for a preset amount of time.
3. Performs a sequence of register read and write operations to demonstrate register access.
4. Resets the 50G Interlaken IP core again.
5. After the reset sequence completes, sends an additional sequence of Interlaken packets of the same
type as in Step 2.
6. Completes the sequence of packets and reports success or failure. The testbench is not parameterizable — you cannot modify the packet sequence that the testbench
generates for a specific DUT. However, Altera provides the testbench files in cleartext format, and you can modify the testbench for your own testing purposes.
The packet checker included in the testbench provides the following basic packet checking capabilities:
• Checks that the transmitted packet sequence is not violated
• Checks that the received data matches expected values
Testbench Simulation Behavior
7-3

Running the Testbench With the Example Design

Perform the following steps to simulate the testbench example:
1. Setting Up the Testbench Example on page 7-3
2. Simulating the Example Design on page 7-3

Setting Up the Testbench Example

When you generate your 50G Interlaken IP core, if you specify Verilog HDL IP core models, the resulting file structure includes the example design and the testbench.
Related Information
Specifying the 50G Interlaken IP Core Parameters and Options on page 2-2
Provides instructions to generate the DUT.

Simulating the Example Design

Altera provides simulation scripts for simulating the testbench in the Mentor Graphics Modelsim SE simulator. However, you can write your own scripts to simulate the testbench in other Altera-supported simulators. Your script should check that the SOP and EOP counts match after simulation is complete.
To simulate the example design using the Altera-provided scripts, perform the following steps:
1. Ensure IP core generation is complete.
2. Start the Mentor Graphics ModelSim-SE simulation tool.
3. Change directory to the following folder, which contains the generated testbench:
50G Interlaken IP Core Testbench
Send Feedback
Altera Corporation
7-4
Simulating the Example Design
a. <variation>_sim/ilk_core_50g/testbench for Arria V GZ and Stratix V IP core variations. b. <variation>/ilk_core_50g_<version>/sim/testbench for Arria 10 IP core variations.
4. Type the following command: do vlog.do
The testbench generates a series of packets on the IP core TX user data transfer interface, loops the resulting Interlaken data transmissions back to the IP core on the Interlaken link, and checks the packets that the IP core generates on the RX user data transfer interface. After simulation completes, a success or failure notice displays.
UG-01140
2015.05.04
Altera Corporation
50G Interlaken IP Core Testbench
Send Feedback
2015.05.04
www.altera.com
101 Innovation Drive, San Jose, CA 95134

50G Interlaken IP Core Test Features

8
UG-01140
Subscribe
Send Feedback
Your 50G Interlaken IP core supports the following test features:
Internal Serial Loopback Mode on page 8-1
The 50G Interlaken IP core supports an internal TX to RX serial loopback mode.
External Loopback Mode on page 8-1
The 50G Interlaken IP core operates correctly in an external loopback configuration.
PRBS Generation and Validation on page 8-2 CRC32 Error Injection on page 8-7

Internal Serial Loopback Mode

The 50G Interlaken IP core supports an internal TX to RX serial loopback mode. To turn on internal serial loopback:
• Reset the IP core by asserting the active low reset_n signal.
• After reset completes, set the value of bits [NUM_LANES-1:0] of the LOOPBACK register at offset 0x12 to all ones.
Note:
• Monitor the RX lanes aligned bit (bit 0) of the ALIGN register at offset 0x20 or the rx_lanes_aligned output signal. After the RX lanes are aligned, the IP core is in internal serial loopback mode.
Refer to "IP Core Reset" for information about the required wait period for register access.
Resetting the IP core turns off internal serial loopback. To turn off internal serial loopback:
• Reset the IP core by asserting the active low reset_n signal. Resetting the IP core sets the value of bits [NUM_LANES-1:0] of the LOOPBACK register at offset 0x12 to all zeroes.
• Monitor the RX lanes aligned bit (bit 0) of the ALIGN register at offset 0x20 or the rx_lanes_aligned output signal. After the RX lanes are aligned, the IP core is in normal operational mode.

External Loopback Mode

The 50G Interlaken IP core operates correctly in an external loopback configuration. To put the IP core in external loopback mode, connect the TX lanes to the RX lanes of the IP core. This
mode does not require any special programming of the IP core.
©
2015 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, ENPIRION, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.
ISO 9001:2008 Registered
8-2

PRBS Generation and Validation

PRBS Generation and Validation
The 50G Interlaken IP core supports generation and validation of several predetermined pseudo-random binary sequences (PRBS) for Interlaken link testing.
Table 8-1: PRBS Polynomials Available in the 50G Interlaken IP Core
UG-01140
2015.05.04
Pattern
Name
Polynomial
Defined in Interlaken
Specification
Available in 50G Interlaken IP Core Variations with
Target Device Family
Arria V or Stratix V Arria 10
PRBS7 x7 + x6 + 1 Yes Yes No PRBS9 x9 + x5 +1 No Yes Yes PRBS15 x15 + x14 +1 No No Yes PRBS23 x23 + x18 + 1 Yes Yes Yes PRBS31 x31 + x28 + 1 Yes Yes Yes
For instructions to activate and use the PRBS test feature in your 50G Interlaken IP core IP core, refer to one of the following two topics:
Setting up PRBS Mode in Arria V and Stratix V Devices on page 8-2 Setting up PRBS Mode in Arria 10 Devices on page 8-4

Setting up PRBS Mode in Arria V and Stratix V Devices

To enable the IP core to generate PRBS output, you must program the relevant hard PCS registers to enable the PRBS generator clock, to set the test_enable bit, and to select the PRBS polynomial. To enable the IP core to receive PRBS input, you must program the relevant hard PCS registers to enable the PRBS receiver clock, to set the test_enable bit, and to select the expected PRBS polynomial. If you perform your PRBS testing in loopback mode, you must enable the IP core to both generate and receive PRBS sequences.
This section describes the register values you must program. For instructions to program the registers that activate the PRBS test feature in your Arria V or Stratix V 50G Interlaken IP core, refer to the hard PCS register programming instructions in the Native PHY IP Core chapter for your target device family and in the Transceiver Reconfiguration Controller chapter of the Altera Transceiver PHY IP Core User Guide.
Altera Corporation
50G Interlaken IP Core Test Features
Send Feedback
UG-01140
2015.05.04
Setting up PRBS Mode in Arria V and Stratix V Devices
Table 8-2: Programming the Hard PCS Registers in Arria V and Stratix V Devices
To turn on the PRBS feature in the hard PCS, you must program the following hard PCS registers in the order shown, for each of the TX and RX sides. These registers are not accessible using the 50G Interlaken IP core Management interface. You must access these registers through the Transceiver Reconfiguration Controller that connects to the IP core.
Ensure you set these register bits using a read-modify-write register access sequence (per register), to avoid modifying the other register fields.
TX Register Offset Bits Meaning Action
1 0x141 [0] Invert TX channels Set this bit to the value of 0 to specify that
the outgoing PRBS be inverted, or set this bit to the value of 1 to specify that the outgoing PRBS not be inverted. The default value of this register bit is 0. By default, the
outgoing PRBS is inverted. [10] Enable PRBS7 [8] Enable PRBS23
Set one of these bits to the value of 1, and
the others to the value of 0, to select the TX
2 0x135
[6] Enable PRBS9
polynomial. [4] Enable PRBS31
8-3
[3] TX test enable Set this bit to the value of 1 to enable the
PRBS pattern generator in the transmitter.
3 0x137 [2] Enable TX PRBS clock Set this bit to the value of 1 to enable the
TX PRBS clock.
RX Register Offset Bits Meaning Action
1 0x16D [2] Invert RX channels Set this bit to the value of 0 to specify that
the PCS should expect the incoming PRBS
to be inverted, or set this bit to the value of
1 to specify that the PCS should not expect
the incoming PRBS to be inverted. The
default value of this bit is 0. In loopback
mode, you should set this bit to match the
setting in the PRBS transmitter.
[14] Enable PRBS7 [13] Enable PRBS23
Set one of these bits to the value of 1, and
the others to the value of 0, to select the
2 0x15E
[12] Enable PRBS9
expected polynomial.
[11] Enable PRBS31 [10] RX test enable Set this bit to the value of 1 to enable the
PRBS pattern verifier in the receiver.
3 0x164 [10] Enable RX PRBS clock Set this bit to the value of 1 to enable the
RX PRBS clock.
After you activate an IP core that targets an Arria V or Stratix V device to generate PRBS output, it immediately begins transmitting PRBS output on the Interlaken link. After you enable the IP core to
50G Interlaken IP Core Test Features
Send Feedback
Altera Corporation
8-4

Setting up PRBS Mode in Arria 10 Devices

receive PRBS input, you can check the receive PRBS status in the 50G Interlaken IP core PRBS status registers (RX_PRBS_DONE, RX_PRBS_ERR, and RX_PRBS_COUNT).
After your testing is complete, you must reset these register bits to their default values to enable normal operation.
Related Information
50G Interlaken IP Core Register Map on page 6-1
Describes the PRBS status registers.
PRBS Generation and Validation on page 8-2
Lists the supported PRBS polynomials.
Altera Transceiver PHY IP Core User Guide
Setting up PRBS Mode in Arria 10 Devices
To enable the IP core to generate PRBS output, for each Interlaken lane, you must program the relevant hard PCS registers to enable the PRBS generator clock, to set the test_enable bit, and to select the PRBS polynomial. To enable the IP core to receive PRBS input, for each Interlaken lane, you must program the relevant hard PCS registers to enable the PRBS receiver clock and to select the expected PRBS polynomial, in addition to some bookkeeping tasks. If you perform your PRBS testing in loopback mode, you must enable the IP core to both generate and receive PRBS sequences. After you set the hard PCS registers for PRBS mode, you must perform a soft reset of the transceiver.
UG-01140
2015.05.04
This section describes the register values you must program. For instructions to program the registers that activate the PRBS test feature in your Arria 10 50G Interlaken IP core, refer to the hard PCS register information in the Arria 10 Transceiver PHY User Guide. You program the hard PCS registers using the 50G Interlaken IP core Arria 10 transceiver reconfiguration interface.
Table 8-3: Programming the Hard PCS Registers in Arria 10 Devices
To turn on the PRBS feature in the hard PCS for IP core variations that target an Arria 10 device, you must program the following hard PCS registers in the order shown, for each of the TX and RX sides. These registers are not accessible using the 50G Interlaken IP core management interface. You must access these registers through the Arria 10 transceiver reconfiguration interface of the 50G Interlaken IP core.
Ensure you set these register bits using a read-modify-write register access sequence (per register), to avoid modifying the other register fields.
TX Register Offset Bits Meaning Action
[2:0] TX test enable Set this field to the value of 3'b100 to enable
the PRBS pattern generator in the transmitter.
1 0x6
[3] PRBS width select Set this bit to the value of 0 to specify that
the PRBS width is 64 bits.
[7:6] Enable TX PRBS clock Set this field to the value of 2'b01 to enable
the TX PRBS clock.
Altera Corporation
50G Interlaken IP Core Test Features
Send Feedback
UG-01140
2015.05.04
Setting up PRBS Mode in Arria 10 Devices
TX Register Offset Bits Meaning Action
[2] Invert TX channels Set this bit to the value of 0 to specify that
the outgoing PRBS be inverted, or set this bit to the value of 1 to specify that the outgoing PRBS not be inverted. The default value of this register field is 0. By default, the
2 0x7
outgoing PRBS is inverted. [5] Enable PRBS9 [6] Enable PRBS15
Set one of these bits to the value of 1, and the
others to the value of 0, to select the TX [7] Enable PRBS23
polynomial.
3 0x8 [4] Enable PRBS31
RX Register Offset Bits Meaning Action
[4] Invert RX channels Set this bit to the value of 0 to specify that
the PCS should expect the incoming PRBS to be inverted, or set this bit to the value of 1 to specify that the PCS should not expect the incoming PRBS to be inverted. The
1 0xA
default value of this bit is 0. In loopback mode, you should set this bit to match the setting in the PRBS transmitter.
8-5
[7] Enable RX PRBS clock Set this bit to the value of 1 to enable the RX
PRBS clock.
50G Interlaken IP Core Test Features
Send Feedback
Altera Corporation
8-6
Setting up PRBS Mode in Arria 10 Devices
RX Register Offset Bits Meaning Action
UG-01140
2015.05.04
2 0xB
[1]
Enable 10G PCS mode Set this bit to the value of 1 to specify the
PCS is in 10G mode.
[3:2] Verifier counter threshold Set this field to the value your design
requires to ensure adequate lead time before the PRBS checker begins counting PRBS errors. The field value specifies the wait time in number of clk_rx_common clock cycles. A counter begins counting clk_rx_
common clock cycles after the soft reset, and
triggers the start of PRBS checking when the specified threshold is reached. This field has the following valid values:
• 2'b00—Specifies the counter threshold (the wait time) is 127.
• 2'b01—Specifies the counter threshold is
255.
• 2'b10—Specifies the counter threshold is
511.
• 2'b11—Specifies the counter threshold is
1023.
[5] [6] Enable PRBS15
Enable PRBS9
Set one of these bits to the value of 1, and the others to the value of 0, to select the
[7] Enable PRBS23
expected polynomial.
[0] Enable PRBS31 [1] Confirm 10G PCS mode Set this bit to the value of 1 to confirm the
3 0xC
PCS is in 10G mode.
[3] PRBS width select Set this bit to the value of 0 to specify that
the PRBS width is 64 bits.
4 0x13F [3:0] RX Deserializer width select Set this field to the value of 4'b1110 to
specify that the data width after deserializa‐ tion is 64 bits.
After you enable the IP core to generate or receive PRBS output, by setting the relevant register field values for each Interlaken lane, you must perform a soft reset of the transceiver transmitters and receivers. To perform a soft reset of the transceiver transmitters and receivers, on the 50G Interlaken IP core management interface, program bit [2] of the 50G Interlaken IP core RESET register at offset 0x13 with the value of 1. On the following mm_clk cycle, or later, program the bit 0x13[2] with the value of 0 to clear the reset. After you reset the transceivers and subsequently clear the reset bit, the IP core immediately begins transmitting PRBS output on the Interlaken link. You can check the receive PRBS status in the 50G Interlaken IP core PRBS status registers (RX_PRBS_DONE, RX_PRBS_ERR, and RX_PRBS_COUNT).
After your testing is complete, you must reset these register bits to their default values and perform the soft reset to enable normal operation.
Altera Corporation
50G Interlaken IP Core Test Features
Send Feedback
UG-01140
2015.05.04
Related Information
50G Interlaken IP Core Register Map on page 6-1
Describes the PRBS status registers and the soft reset register.
Arria 10 Transceiver Reconfiguration Interface Signals on page 5-15
Describes the interface to program the Arria 10 hard PCS registers, including the information you need to address the registers for each individual lane.
50G Interlaken IP Core Management Interface on page 5-12
Describes the interface to program the 50G Interlaken IP core registers, including the RESET register.
PRBS Generation and Validation on page 8-2
Lists the supported PRBS polynomials.
Arria 10 Transceiver PHY User Guide
Information about the Arria 10 transceiver reconfiguration interface.
Arria 10 Transceiver Registers
Information about the Arria 10 transceiver registers.

CRC32 Error Injection

The 50G Interlaken IP core supports the injection of CRC32 errors on the Interlaken link for validation of the Interlaken link partner's error handling, and for validation of this IP core's error handling in a loopback configuration. Variations that target an Arria V or Stratix V device require that you first enable the feature in the hard PCS; variations that target an Arria 10 device do not require this step.
CRC32 Error Injection
8-7
To enable the CRC32 error injection feature in your 50G Interlaken IP core that targets an Arria V or Stratix V device, set the value of bit [15] of the hard PCS register at offset 0x138 (offset 0xC from the hard PCS base address of 0x12C) to the value of 1. Ensure you set the register bit using a read-modify-write register access sequence, to avoid modifying the other register fields. This step is not necessary in 50G Interlaken IP core devices that target an Arria 10 device, because CRC32 error injection is enabled by default in these variations.
For instructions to program the hard PCS registers in Arria V and Stratix V devices, refer to the Native PHY IP Core chapter for your target device family and to the Transceiver Reconfiguration Controller chapter of the Altera Transceiver PHY IP Core User Guide.
After you enable the IP core to inject CRC32 errors in the output to the Interlaken link, you can turn on the feature using the 50G Interlaken IP core CRC32_ERR_INJECT register. You must maintain each register bit at the value of 1 for the duration of a Meta Frame, at least, to ensure that the IP core transmits at least one CRC32 error on the corresponding lane.
After your testing is complete, in Arria V and Stratix V devices, you must reset the hard PCS register bit to its default value of zero to enable normal operation.
The 50G Interlaken IP core CRC32 error injection feature does not keep a count of the errors injected.
Related Information
50G Interlaken IP Core Register Map on page 6-1
Describes the CRC32_ERR_INJECT register.
Altera Transceiver PHY IP Core User Guide
50G Interlaken IP Core Test Features
Send Feedback
Altera Corporation
2015.05.04
www.altera.com
101 Innovation Drive, San Jose, CA 95134

Advanced Parameter Settings

9
UG-01140
Subscribe
Advanced users can further customize the 50G Interlaken IP core by modifying hidden parameters that are not displayed in the 50G Interlaken parameter editor. These parameters can only be modified in the Verilog RTL instantiation in the generated ilk_core_50g.sv file and the instantiation of the 50G Interlaken IP core in the top level design file.
The following topics describe the hidden parameters and tell you how to modify their values.
Hidden Parameters on page 9-1 Modifying Hidden Parameter Values on page 9-4

Hidden Parameters

The advanced parameters affect the behavior of the 50G Interlaken MegaCore function.
Altera recommends that you do not modify any RTL parameters that are not listed here. Some
Note:
undocumented modifications might overwrite settings you specify in the parameter editor.
To customize your 50G Interlaken MegaCore function, you can modify parameters to specify the following properties:
Required User Clock Frequency on page 9-1
Send Feedback
Counter Reset Bits on page 9-2 Include Temp Sense on page 9-2 RXFIFO Address Width on page 9-2 SWAP_TX_LANES and SWAP_RX_LANES (Data Word Lane Swapping) on page 9-2 Use ATX or CMU PLL on page 9-4 Lane Profile on page 9-4

Required User Clock Frequency

The TX_USR_CLK_MHZ parameter specifies the expected frequency of the input clocks tx_usr_clk and
rx_usr_clk.
The default value of this parameter is 250 MHz. The range of allowed values is 200 MHz to 300 MHz. You must drive the two input clocks at the frequency specified by this parameter.
©
2015 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, ENPIRION, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.
ISO 9001:2008 Registered
9-2

Counter Reset Bits

Counter Reset Bits
The Counter Reset Bits parameter (CNTR_BITS) specifies the counter configuration for the IP core internal reset sequence.
This parameter is not available in IP core variations that target an Arria 10 device. In Arria 10 variations, the size of the reset counters in the internal reset controller is set when the IP core is generated.
For simulation, set this parameter to the value of 6. For hardware testing, set this parameter to the value of
20. The default value of this parameter is 20.
Related Information
Modifying Hidden Parameter Values on page 9-4

Include Temp Sense

The Include Temp Sense parameter specifies whether the IP core includes logic to sense the device’s case temperature. If the value is set to 1, the IP core is configured with internal temperature sensing. If the value is set to 0, this logic is synthesized away.
This parameter is not available in IP core variations that target an Arria 10 device. The default value of this parameter is 1.
UG-01140
2015.05.04
Related Information
Modifying Hidden Parameter Values on page 9-4

RXFIFO Address Width

The RXFIFO Address Width parameter specifies the number of bits in the address (offset) of an entry in the RX Reassembly FIFO. The number of bits is log2 of the depth of this FIFO. Each RX Reassembly FIFO entry is a 64-bit word.
The default value for the RXFIFO Address Width parameter is 12, specifying this FIFO can hold 2 (==4K) 64-bit words. Adjusting this parameter may affect your ability to close timing for your design. However, you can adjust this parameter subject to the successful closure of the timing.
Related Information
Modifying Hidden Parameter Values on page 9-4

SWAP_TX_LANES and SWAP_RX_LANES (Data Word Lane Swapping)

The 50G Interlaken IP core supports a lane reversal feature (lane swapping). Lane swapping parameters determine the order in which blocks are distributed and gathered from the lanes. The 50G Interlaken IP core provides the following two options for the lane order:
• Straight Lane order. The transmitter sends Interlaken blocks sequentially across the lanes starting with the top lane, ending with Lane 0. The receiver takes in Interlaken blocks starting with the top lane, ending with Lane 0.
12
Altera Corporation
Advanced Parameter Settings
Send Feedback
Lane N
. . .
Lane 2 Lane 1 Lane 0
Lane 1 Lane 2
Lane 0
. . .
Lane N
UG-01140
2015.05.04
SWAP_TX_LANES and SWAP_RX_LANES (Data Word Lane Swapping)
Figure 9-1: Straight Lane Order
• Swapped Lane order. The transmitter sends Interlaken blocks sequentially across the lanes starting with Lane 0, ending with Lane N. The receiver takes in Interlaken blocks starting with Lane 0, ending with Lane N.
Figure 9-2: Swapped Lane Order
9-3
Two parameters determine lane order:
SWAP_TX_LANES
SWAP_RX_LANES
When a parameter is set to 0, the 50G Interlaken IP core implements the Straight Lane order. When a parameter is set to 1, the 50G Interlaken IP core implements the Swapped Lane order. The TX and RX parameters are independent and can be set separately.
To conform with the Interlaken specification, the default value of SWAP_TX_LANES and SWAP_RX_LANES is
1.
Note:
Related Information
Modifying Hidden Parameter Values on page 9-4
Advanced Parameter Settings
Send Feedback
Running traffic with incompatible lane swapping configuration results in CRC24 errors and incorrect data at the receiver.
Altera Corporation
9-4

Use ATX or CMU PLL

Use ATX or CMU PLL
The USE_ATX parameter specifies whether the transceivers use the ATX PLL or the CMU PLL. If this parameter has the value of 0, the 50G Interlaken IP core transceivers are configured to use the CMU PLL. If this parameter has the value of 1, the 50G Interlaken IP core transceivers are configured to use the ATX PLL.
This parameter is not available in IP core variations that target an Arria 10 device. These variations do not include a TX PLL. Instead, you must configure an external PLL and connect it to the IP core.
If the transceivers use the ATX PLL, more transceiver block logical channels are available for the eight Interlaken lanes. However, some lower pll_ref_clk frequencies are not available with the ATX PLL.
The default value of this parameter is 0, specifying that the IP core transceivers use the CMU PLL and have available the full range of pll_ref_clk frequencies documented for this input clock.
Related Information
Modifying Hidden Parameter Values on page 9-4

Lane Profile

The LANE_PROFILE parameter specifies the mapping of Interlaken lanes to transceiver logical channels on one side of the device.
UG-01140
2015.05.04
This parameter is not available in IP core variations that target an Arria 10 device. The Interlaken lane order is fixed: Interlaken Lane 0 maps to the lowest numbered logical channel to
which a lane is mapped; Interlaken Lane 1 maps to the next lowest numbered logical channel to which a lane is mapped; etc. You determine the side of the device outside the IP core, with pin assignments. Your pin assignments must be consistent with the value of the LANE_PROFILE parameter.
The default value of this parameter is 24'b000000_000000_101101_101101, for use with the CMU PLL. This lane profile specifies that the eight 50G Interlaken IP core Interlaken lanes map to the logical channels in the two bottom transceiver blocks that are consistent with use of the CMU PLL. These logical channels are logical channels 0, 2, 3, 5, 7, 9, 10, and 12.
If you want to use the ATX PLL, you can set this parameter to specify the use of the full bottom transceiver block and two channels from the adjacent transceiver block.
Related Information
Transceiver Logical Channel Numbering on page 2-7 Illustrates the logical channel mapping for the default lane profile.
Use ATX or CMU PLL on page 9-4 Describes the hidden parameter to specify whether the IP core transceivers use the CMU PLL or the ATX PLL.
Modifying Hidden Parameter Values on page 9-4

Modifying Hidden Parameter Values

To modify the value of a hidden parameter, you must edit one or more generated files. Every time you regenerate the 50G Interlaken IP core, the files are overwritten and you must edit them again.
Altera Corporation
Advanced Parameter Settings
Send Feedback
UG-01140
2015.05.04
Modifying Hidden Parameter Values
Table 9-1: Files to Edit to Modify the Value of a Hidden Parameter
In each entry, the first file controls the RTL parameter value for synthesis, and the second file controls the RTL parameter value for simulation.
Parameter Arria 10 Variations Other Variations
9-5
CNTR_BITS
LANE_PROFILE
RXFIFO_ADDR_WIDTH
TX_USR_CLK_MHZ
SWAP_TX_LANES
SWAP_RX_LANES
INCLUDE_TEMP_SENSE
USE_ATX
<instance name>/synth/ <instance name>.v
<instance name>/sim/ <instance name>.v
<instance name>/ilk_core_50g_ <version>/synth/ilk_core_50g.sv
<instance name>/ilk_core_50g_ <version>/sim/ilk_core_50g.sv
<instance name>.v <instance name>_ sim/<instance name>.v
<instance name>/ilk_core_50g.sv <instance name>_sim/ilk_core_50g.sv
Advanced Parameter Settings
Send Feedback
Altera Corporation
Out-of-Band Flow Control in the 50G Interlaken
TX Out-of-Band
Flow Control
RX Out-of-Band
Flow Control
tx.fc_clk tx.fc_sync tx.fc_data
rx.fc_clk rx.fc_sync rx.fc_data
double_fc_clk
double_fc_arst
ena_status
lane_status
link_status
calendar
status_update
lane_status
link_status
status_error
calendar
calendar_update
calendar_error
Out-of-Band Flow Control
Application
Signals
Out-of-Band Flow Control Interface
sys_clk
sys_arst
www.altera.com
101 Innovation Drive, San Jose, CA 95134
MegaCore Function
2015.05.04
UG-01140
Subscribe
The 50G Interlaken MegaCore function includes logic to provide the out-of-band flow control function‐ ality described in the Interlaken Protocol Specification, Revision 1.2, Section 5.3.4.2. This optional feature is intended for applications that require transmission rate control.
Figure 10-1: Out-of-Band Flow Control Block Interface
This figure lists the signals on the four interfaces of the out-of-band flow control block.
Send Feedback
10
The out-of-band flow control block is provided as two separate modules that can be stitched to the 50G Interlaken IP core and user logic. You can optionally instantiate these blocks in your own custom logic. To enable the use of these out-of-band modules, the signals on the far left side of the figure must be connected to user logic, and the signals on the far right side of the figure should be connected to the complementary flow control blocks of the Interlaken link partner.
You must connect the out-of-band flow control receive and transmit interface signals to device pins.
Out-of-Band Flow Control Block Clocks on page 10-2 TX Out-of-Band Flow Control Signals on page 10-2 RX Out-of-Band Flow Control Signals on page 10-4
©
2015 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, ENPIRION, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.
ISO 9001:2008 Registered
10-2

Out-of-Band Flow Control Block Clocks

Related Information
Interlaken Protocol Specification, Revision 1.2
Out-of-Band Flow Control Block Clocks
Table 10-1: 50G Interlaken MegaCore Function Out-of-Band Flow Control Block Clocks
UG-01140
2015.05.04
Clock Name Interface Direction Recommende
d Frequency
(MHz)
RX fc_clk RX Out-of-
Input 100 Clocks the incoming out-of-band flow control
band
TX fc_clk TX Out-of-
Output 100 Clocks the outgoing out-of-band flow control
band
sys_clk RX
Input 200 Clocks the outgoing calendar and status informa‐
Application
Description
interface signals described in the Interlaken specification. This clock is received from an upstream TX out-of-band flow control block associated with the Interlaken link partner. The recommended frequency for the RX fc_clk clock is 100 MHz, which is the maximum frequency allowed by the Interlaken specification.
interface signals described in the Interlaken specification. This clock is generated by the out-of-band flow control block and sent to a downstream RX out-of-band flow control block associated with the Interlaken link partner. The frequency of this clock must be half the frequency of the double_fc_clk clock. The recommended frequency for the TX fc_clk clock is 100 MHz, which is the maximum frequency allowed by the Interlaken specification.
tion on the application side of the block. The frequency of this clock must be at least double the frequency of the RX input clock fc_clk. Therefore, the recommended frequency for the
sys_clk clock is 200 MHz.
double_ fc_clk
TX Application
Input 200 Clocks the incoming calendar and status informa‐

TX OutofBand Flow Control Signals

The transmit out-of-band flow control interface receives calendar and status information, and transmits flow-control clock, data, and sync signals. The TX Out-of-Band Flow Control Interface Signals table describes the transmit out-of-band flow control interface signals specified in the Interlaken Protocol
Altera Corporation
tion on the application side of the block. The frequency of this clock must be double the frequency of the TX output clock fc_clk. Therefore, the recommended frequency for the
double_fc_clk clock is 200 MHz.
Out-of-Band Flow Control in the 50G Interlaken MegaCore Function
Send Feedback
UG-01140
2015.05.04
Specification, Revision 1.2. The TX Out-of-Band Flow Control Block Signals for Application Use table describes the signals on the application side of the TX out-of-band flow control block.
Table 10-2: TX Out-of-Band Flow Control Interface Signals
TX OutofBand Flow Control Signals
10-3
Signal Name Direction Width
(Bits)
fc_clk Output 1 Output reference clock to an upstream out-of-band RX block.
Description
Clocks the fc_data and fc_sync signals. You must connect this signal to a device pin.
fc_data Output 1 Output serial data pin to an upstream out-of-band RX block.
You must connect this signal to a device pin.
fc_sync Output 1 Output sync control pin to an upstream out-of-band RX block.
You must connect this signal to a device pin.
Table 10-3: TX Out-of-Band Flow Control Block Signals for Application Use
Signal Name Direction Width
(Bits)
double_fc_clk Input 1 Reference clock for generating the flow control output clock
fc_clk. The frequency of the double_fc_clk clock must be
Description
double the intended frequency of the TX fc_clk output clock.
double_fc_ arst
Input 1 Asynchronous reset for the out-of-band TX block.
ena_status Input 1 Enable transmission of the lane status and link status to the
downstream out-of-band RX block. If this signal is asserted, the lane and link status information is transmitted on fc_data. If this signal is not asserted, only the calendar information is transmitted on fc_data.
lane_status Input Number
of Lanes
link_status Input 1 Link status to be transmitted to a downstream out-of-band RX
Lane status to be transmitted to a downstream out-of-band RX block if ena_status is asserted. Width is the number of lanes.
block if ena_status is asserted.
calendar Input 16 Calendar status to be transmitted to a downstream out-of-band
RX block.
Related Information
Interlaken Protocol Specification, Revision 1.2
Out-of-Band Flow Control in the 50G Interlaken MegaCore Function
Altera Corporation
Send Feedback
10-4

RX Out-of-Band Flow Control Signals

RX Out-of-Band Flow Control Signals
The receive out-of-band flow control interface receives input flow-control clock, data, and sync signals and sends out calendar and status information. The RX Out-of-Band Flow Control Interface Signals table describes the receive out-of-band flow control interface signals specified in the Interlaken Protocol Specifi‐ cation, Revision 1.2. The RX Out-of-Band Flow Control Block Signals for Application Use describes the signals on the application side of the RX out-of-band flow control block.
Table 10-4: RX Out-of-Band Flow Control Interface Signals
UG-01140
2015.05.04
Signal Name Direction Width
(Bits)
fc_clk Input 1 Input reference clock from an upstream out-of-band TX block. This
Description
signal clocks the fc_data and fc_sync signals. You must connect this signal to a device pin.
fc_data Input 1 Input serial data pin from an upstream out-of-band TX block. You
must connect this signal to a device pin.
fc_sync Input 1 Input sync control pin from an upstream out-of-band TX block. You
must connect this signal to a device pin.
Table 10-5: RX Out-of-Band Flow Control Block Signals for Application Use
Signal Name Direction Width
(Bits)
sys_clk Input 1 Reference clock for capturing RX calendar, lane status,
Description
and link status. Frequency must be at least double the frequency of the TX fc_clk input clock.
sys_arst Input 1 Asynchronous reset for the out-of-band RX block.
status_update Output 1 Indicates a new value without CRC4 errors is present on
lane_status Output Number of
link_status Output 1 Link status bit received from an upstream out-of-band
status_error Output 1 Indicates corrupt lane or link status. A new value is
Altera Corporation
Lanes
at least one of lane_status or link_status in the current sys_clk cycle. The value is ready to be read by the application logic.
Lane status bits received from an upstream out-of-band TX block on fc_data. Width is the number of lanes.
TX block on fc_data.
present on at least one of lane_status or link_status in the current sys_clk cycle, but the value has at least one CRC4 error.
Out-of-Band Flow Control in the 50G Interlaken MegaCore Function
Send Feedback
UG-01140
2015.05.04
RX Out-of-Band Flow Control Signals
10-5
Signal Name Direction Width
Description
(Bits)
calendar Output 16 Calendar bits received from an upstream out-of-band
TX block on fc_data.
calendar_update Output 1 Indicates a new value without CRC4 errors is present on
calendar in the current sys_clk cycle. The value is ready to be read by the application logic.
calendar_error Output 1 Indicates corrupt calendar bits. A new value is present
calendar in the current sys_clk cycle, but the value has at least one CRC4 error.
Related Information
Interlaken Protocol Specification, Revision 1.2
Out-of-Band Flow Control in the 50G Interlaken MegaCore Function
Send Feedback
Altera Corporation
Performance and Fmax Requirements for 40G
Preamble
8 Bytes
Minimum Packet
64 Bytes
Interpacket Gap
12 Bytes
672 Bits
40 x 1,000,000,000 bits/sec
. .
672 = 59.5 million packets/sec
60 million packets/sec
www.altera.com
101 Innovation Drive, San Jose, CA 95134
Ethernet Traffic
2015.05.04
UG-01140
To achieve 40G Ethernet line rates through the application interface of your 50G Interlaken IP core, you must run the transmit side and receiver side user interface clocks tx_usr_clk and rx_usr_clk at a minimum frequency of 200 MHz.
The following discussion describes the packet rate calculation that supports this requirement.
Figure A-1: Interlaken Ethernet Packet
To transmit a minimum size (64-byte) Ethernet packet, the Interlaken link transmitter must send 672 bits of data.
To support an Ethernet line rate of 40Gb/s, the Interlaken link must process 400 bits in 10ns. The following calculation derives the required clock frequency.
Subscribe
Send Feedback
A
This packet rate requires that the user interface handle one packet per two cycles if the operating clock runs at 200 MHz.
The following figures explain the derivation of the minimum frequency requirements.
©
2015 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, ENPIRION, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.
ISO 9001:2008 Registered
32
Bytes
32
Bytes
64 Bytes at 200 MHz
256
1 2
32
Bytes
32
Bytes
65 - 96 Bytes in 15 ns
256
1 - 32
Bytes
A-2
Performance and Fmax Requirements for 40G Ethernet Traffic
Figure A-2: Packet Processing Requirements
A 65-byte packet comprises (65 + 20) x 8 = 680 bits. Therefore, for traffic that consists mainly of 65-byte packets, the most inefficient traffic possible, the user interface must handle:
40 x 1,000,000,000 bits/sec ÷ 680 = 58.8 Million packets/sec, or one packet every 17 ns. Case 2 in the figure shows that the user interface requires three cycles to process each 65-byte packet. At
200 MHz, three cycles take 15 ns, which is a sufficiently small amount of time. The same calculations applied to lower frequencies yield an average time per packet that is not sufficiently
short. Therefore, 200 MHz is the recommended frequency for the two user data transfer interface clocks in your 50G Interlaken IP core.
UG-01140
2015.05.04
Altera Corporation
Performance and Fmax Requirements for 40G Ethernet Traffic
Send Feedback
2015.05.04
www.altera.com
101 Innovation Drive, San Jose, CA 95134
Additional Information
B
UG-01140
Subscribe
Send Feedback
This section provides additional information about the document and Altera.

Document Revision History

Table B-1: 50G Interlaken MegaCore Function User Guide Revision History
Date ACDS Version Changes Made
2015.05 .04
2014.12 .15
15.0
14.1
• Added new TX scrambler seed parameter in new section TX Scrambler Seed
on page 3-2. Previously this parameter was hidden (SCRAM_CONST) and unavailable for Arria 10 devices. In the IP core version 15.0 and later, you must modify the scrambler seed from the parameter editor.
• Improved description of itx_ifc_err output signal in 50G Interlaken IP Core
User Data Transfer Interface Signals on page 5-4.
• Improved description of itx_hungry output signal in 50G Interlaken IP Core
Interlaken Link and Miscellaneous Interface Signals on page 5-8.
• Updated filenames for hidden parameter editing to include the filenames for Arria 10 variations, in Modifying Hidden Parameter Values on page 9-4.
• Updated release-specific information for the software release v14.1, including new resource utilization numbers and new Arria 10 speed grade notation and information. Resource utilization numbers improved by 20% in the v14.0 release.
• Updated for new Quartus II IP Catalog, which replaces the MegaWizard Plug­In Manager starting in the Quartus II software v14.0. Changes are located primarily in Getting Started with the 50G Interlaken IP Core chapter. Reordered the chapter to accommodate the new descriptions.
• Corrected instructions to connect the external TX PLL to include the tx_cal_
busy signal, and added example figure to illustrate the required connections
between the IP core and an ATX PLL. Changes are located in Adding the External PLL section. .
• Added information about the required wait from reset to successful register access in IP Core Reset section. .
• Corrected width of reconfig_waitrequest signal to one bit. This signal has been a single bit in all versions that support Arria 10 devices, starting with the IP core version 13.1 Arria 10 Edition.
©
2015 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, ENPIRION, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.
ISO 9001:2008 Registered
B-2
Document Revision History
Date ACDS Version Changes Made
• Added information about turning on and off loopback mode in two new sections, External Loopback Mode and Internal Serial Loopback Mode, in IP Core Test Features chapter.
• Clarified that Counter Reset Bits is the CNTR_BITS advanced parameter, in Counter Reset Bits section.
• Added new advanced parameter, TX_USR_CLK_MHZ, that specifies the required frequency of the two input clocks tx_usr_clk and rx_usr_clk. Added new section in Advanced Parameter Settings chapter, and clarified required frequencies in 50G Interlaken IP Core Clock Interface Signals section. This advanced parameter is included in the IP core version 14.0 and later.
• Corrected instructions to modify the USE_ATX advanced parameter by moving the parameter to the correct list in Modifying Hidden Parameter Values section.
• Clarified that the testbench and example design are generated only if you specify the IP core synthesis and simulation models are in Verilog HDL. The IP core does not support VHDL models, despite the fact that in the IP core v14.0 and later, the parameter editor appears to offer that option.
• Fixed assorted typos and formatting issues.
UG-01140
2015.05.04
Decem ber 2013
Novem ber 2013
13.1 Arria 10 Edition (2013.12. 02)
13.1 (2013.11.04)
• Added preliminary support for Arria 10 devices.
• Documented features of new Arria 10 variations:
• User logic must configure external PLLs.
• IP core includes reconfiguration controller.
• IP core includes new Avalon-MM interface to program Arria 10 Native
PHY IP core registers.
• IP core does not support all of the hidden parameters.
• IP core does not support temperature register and other registers related to
unsupported parameters.
• IP core provides a different process to enable the PRBS and CRC32 error
injection testing features in Arria 10 variations.
• Corrected recommended simulation value for Meta frame length in words parameter, from 64 (an unsupported value) to 128 (the minimum supported value).
• Updated IP core generation instructions to indicate the MegaWizard Plug-In Manager no longer prompts the user to generate or not generate the example design. Instead, the example design is generated in all cases.
• Provided additional information about TEMP_SENSE register.
• Corrected typo in width of itx_hungry signal.
• Modified introduction of resource utilization information to clarify that the numbers do not include the out-of-band flow control block.
• Added OpenCore Plus feature support in Installation and Licensing section.
May 2013
Altera Corporation
13.0 Initial release.
Additional Information
Send Feedback
UG-01140
2015.05.04

How to Contact Altera

How to Contact Altera
Table B-2: How to Contact Altera
To locate the most up-to-date information about Altera products, refer to this table. You can also contact your local Altera sales office or sales representative.
Contact Contact Method Address
Technical support Website www.altera.com/support
Website www.altera.com/training
Technical training
Email custrain@altera.com
Product literature Website www.altera.com/literature
Nontechnical support: general Email nacomp@altera.com
B-3
Nontechnical support: software
Email authorization@altera.com
licensing
Related Information
www.altera.com/support
www.altera.com/training
custrain@altera.com
www.altera.com/literature
nacomp@altera.com
authorization@altera.com

Typographic Conventions

Table B-3: Typographic Conventions
Lists the typographic conventions this document uses.
Visual Cue Meaning
Bold Type with Initial Capital Letters Indicate command names, dialog box titles, dialog
box options, and other GUI labels. For example, Save As dialog box. For GUI elements, capitaliza‐ tion matches the GUI.
bold type Indicates directory names, project names, disk drive
Additional Information
Send Feedback
names, file names, file name extensions, software utility names, and GUI labels. For example, \ qdesigns directory, D: drive, and chiptrip.gdf file.
Altera Corporation
B-4
Typographic Conventions
Visual Cue Meaning
Italic Type with Initial Capital Letters Indicate document titles. For example, Stratix V
Design Guidelines.
italic type Indicates variables. For example, n + 1.
Variable names are enclosed in angle brackets (< >). For example, <file name> and <project name> . pof file.
Initial Capital Letters Indicate keyboard keys and menu names. For
example, the Delete key and the Options menu.
“Subheading Title” Quotation marks indicate references to sections in a
document and titles of Quartus II Help topics. For example, “Typographic Conventions.”
UG-01140
2015.05.04
Courier type
Indicates signal, port, register, bit, block, and primitive names. For example, data1, tdi, and
input. The suffix n denotes an active-low signal.
For example, resetn. Indicates command line commands and anything
that must be typed exactly as it appears. For example, c:\qdesigns\tutorial\chiptrip.gdf.
Also indicates sections of an actual file, such as a Report File, references to parts of files (for example, the AHDL keyword SUBDESIGN), and logic function names (for example, TRI).
1., 2., 3., and a., b., c., and so on Numbered steps indicate a list of items when the sequence of the items is important, such as the steps listed in a procedure.
Bullets indicate a list of items when the sequence of the items is not important.
The Subscribe button links to the Email Subscription Management Center page of the Altera website, where you can sign up to receive update notifications for Altera documents.
The Feedback icon allows you to submit feedback to Altera about the document. Methods for collecting feedback vary as appropriate for each document.
Related Information
Email Subscription Management Center
Altera Corporation
Additional Information
Send Feedback
Loading...
