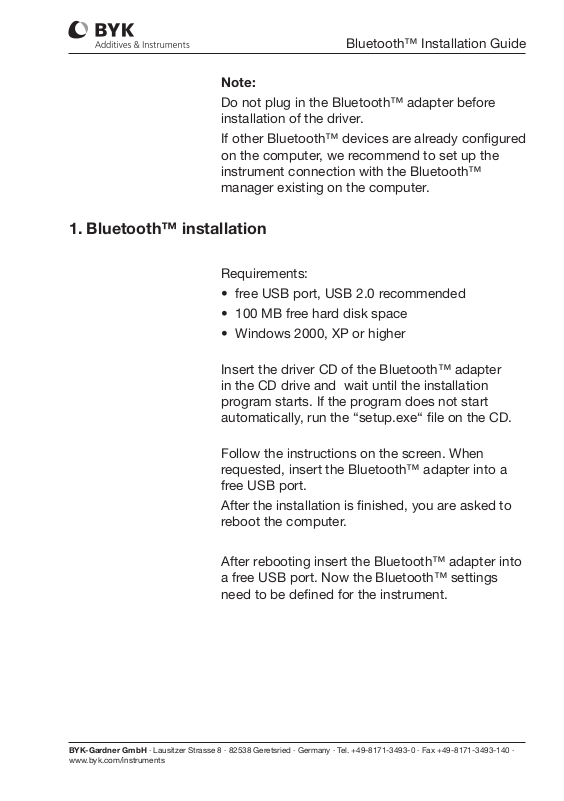

ALTANA Bluetooth User Manual

Note:

Do not plug in the Bluetooth™ adapter before
installation of the driver.

If other Bluetooth™ devices are already congured
on the computer, we recommend to set up the
instrument connection with the Bluetooth™
manager existing on the computer.

1. Bluetooth™ installation

Requirements:

• free USB port, USB 2.0 recommended

• 100 MB free hard disk space

• Windows 2000, XP or higher

Insert the driver CD of the Bluetooth™ adapter
in the CD drive and wait until the installation
program starts. If the program does not start
automatically, run the “setup.exe“ le on the CD.

Follow the instructions on the screen. When
requested, insert the Bluetooth™ adapter into a
free USB port.

After the installation is nished, you are asked to
reboot the computer.

Bluetooth™ Installation Guide

After rebooting insert the Bluetooth™ adapter into
a free USB port. Now the Bluetooth™ settings
need to be dened for the instrument.

BYK-Gardner GmbH · Lausitzer Strasse 8 · 82538 Geretsried · Germany · Tel. [phone] · Fax [phone] ·
www.byk.com/instruments

Bluetooth™ Installation Guide

2. Set up of the Bluetooth™ connection to the instrument

Insert the Bluetooth™ adapter into a free USB port
of the PC.

Switch on the instrument and if needed, activate
the Bluetooth™ function of the unit (for details
refer to the instrument manual).

Right click on the Bluetooth™ symbol in the task
bar of the computer or go to the Programs folder
of the “Start“ menu, and select “Bluetooth™ ­Settings“.

Activate “New Connection“, select “Express
mode“ and follow the instructions on the screen.
The Bluetooth™ manager starts to scan for
Bluetooth™ devices.

A dialog box appears which lists all available
devices.The measuring unit is identied by its
name and serial number. These data can be
veried on the instrument label. Highlight the
desired instrument and continue with “Next“.

Passkey (PIN)

If a box appears asking for the Bluetooth™
Passkey (PIN), enter “0000“ for the instrument and
conrm with “OK“.

The Bluetooth™ connection will be completed
and an information about the used COM port is
displayed.

Finally, the window “Bluetooth™ Settings“
appears with an icon included for the new
instrument, the connection will be ready to use.

BYK-Gardner USA · 9104 Guiford Road · Columbia · MD 21046 · USA · Phone [phone] · Fax [phone] ·
www.byk.com/instruments

260 020 747 E 0812
