DIGITAL VIDEO
• OWNER'S MANUAL
Please read before using this equipment.
• MODE D'EMPLOI
Veuillez lire avant d'utiliser cet appareil.
• MANUAL DE OPERACIÓN
Léalo antes de utilizar este equipo.
ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.
6-8 Fiveways Boulevarde Keysborough,
Victoria 3173, Australia
Phone 03-9769-0000
ALPINE ELECTRONICS GmbH
Frankfurter Ring 117
80807 München, Germany
Phone 089-32 42 640
ALPINE ELECTRONICS OF U.K. LTD.
Fletchamstead Highway, Coventry CV4 9TW, U.K.
Alpine House
Phone 0870-33 33 763
ALPINE ELECTRONICS FRANCE S.A.R.L.
(RCS PONTOISE B 338 101 280)
98, Rue de la Belle Etoile, Z.I. Paris Nord Il,
B.P. 50016, 95945 Roissy Charles de Gaulle
ALPINE ELECTRONICS DE ESPAÑA, S.A.
01013 Vitoria (Alava)-APDO 133, Spain
Cedex, France
Phone 01-48638989
ALPINE ITALIA S.p.A.
Viale C. Colombo 8, 20090 Trezzano
Sul Naviglio (MI), Italy
Phone 02-484781
Portal de Gamarra 36, Pabellón, 32
Phone 945-283588
Designed by ALPINE Japan
Printed in Japan (Y)
68P70033Y31-O
ES
ES
IT
SE
CHM-S630CHA-S634
• CD changer for IVA-D300.
•
Changeur CD pour
• Cambiador de CD para IVA-D300.
IVA-D300
.
CHA-1214
• CD changer for IVA-D300.
•
Changeur CD pour
• Cambiador de CD para IVA-D300.
IVA-D300
.
Alpine CD Changers Give You More!
More musical selections, more versatility, more convenience.
The CHA-S634 is a high-performance 6-disc changer with a new M DAC, CD-R/RW PLAY BACK, MP3
PLAY BACK and CD TEXT. The CHA-1214 Ai-NET model holds 12 discs, and the CHM-S630 M-Bus
model is a super-compact 6-disc changer with a CD-R/RW PLAY BACK.
Changeurs de CD Alpine : vous avez le choix!
Plus de sélections musicales, plus de souplesse, plus de confort.
Le modèle CHA-S634 est un changeur 6 disques ultra performant équipé des nouvelles fonctions M DAC,
CD-R/RW PLAY BACK, MP3 PLAY BACK et CD TEXT. Le modèle CHA-1214 Ai-NET contient 12
disques. Le modèle CHM-S630 M-Bus est un changeur 6 disques super compact doté de la fonction CD-R/
RW PLAY BACK.
¡Los cambiadores Alpine de CD le ofrecen más!
Más selecciones musicales, más versatilidad y más ventajas.
CHA-S634 es un cambiador de seis discos de alto rendimiento con nuevo M DAC, CD-R/RW PLAY BACK,
MP3 PLAY BACK y CD TEXT. El modelo CHA-1214 Ai-NET alberga 12 discos y el modelo CHM-S630
M-Bus es un cambiador de seis discos de tamaño reducido con un CD-R/RW PLAY BACK.

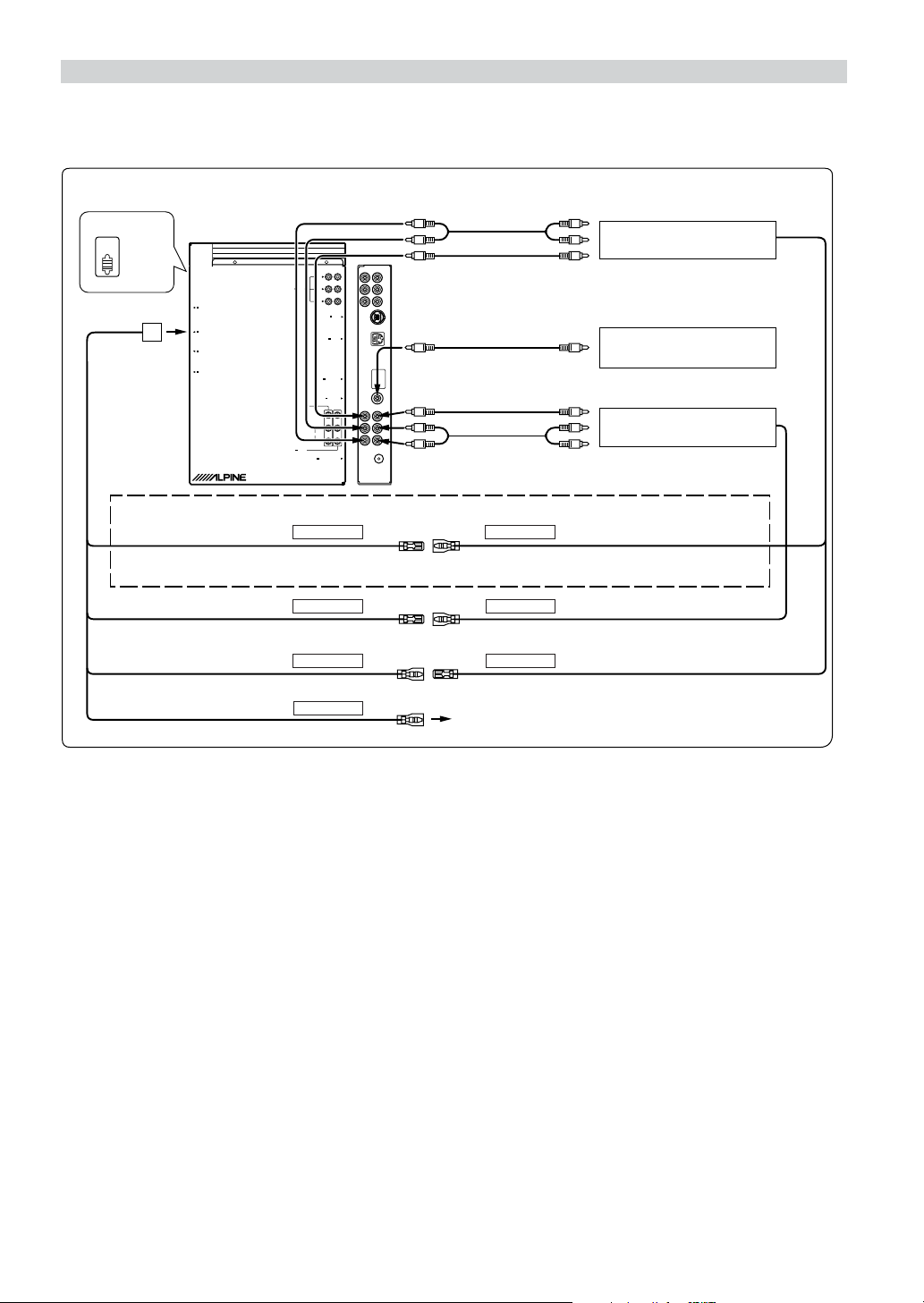

System Example ............................................. 72
LIMITED WARRANTY
3-EN
Operating Instructions
USE THE CORRECT AMPERE RATING WHEN REPLACING
WARNING
FUSES.
Failure to do so may result in fire or electric shock.
WARNING
This symbol means important instructions.
Failure to heed them can result in serious
injury or death.
INSTALL THE PRODUCT CORRECTLY SO THAT THE
DRIVER CANNOT WATCH TV/VIDEO UNLESS THE VEHICLE
IS STOPPED AND THE EMERGENCY BRAKE IS APPLIED.
It is dangerous (and illegal in many states) for the driver to watch
TV/Video while driving a vehicle. Installing this product
incorrectly enables the driver to watch TV/Video while driving.
This may cause a distraction, preventing the driver from looking
ahead, thus causing an accident. The driver or other people could
be severely injured.
DO NOT WATCH VIDEO WHILE DRIVING.
Watching the video may distract the driver from looking ahead of
the vehicle and cause an accident.
DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR
ATTENTION AWAY FROM SAFELY DRIVING YOUR
VEHICLE.
Any function that requires your prolonged attention should only
be performed after coming to a complete stop. Always stop the
vehicle in a safe location before performing these functions.
Failure to do so may result in an accident.
DO NOT BLOCK VENTS OR RADIATOR PANELS.
Doing so may cause heat to build up inside and may result in fire.
USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.
Use for other than its designed application may result in fire,
electric shock or other injury.
DO NOT PLACE HANDS, FINGERS OR FOREIGN OBJECTS
IN INSERTION SLOTS OR GAPS.
Doing so may result in personal injury or damage to the product.
CAUTION
This symbol means important instructions.
Failure to heed them can result in injury or
material property damage.
HALT USE IMMEDIATELY IF A PROBLEM APPEARS.
Failure to do so may cause personal injury or damage to the
product. Return it to your authorized Alpine dealer or the nearest
Alpine Service Center for repairing.
KEEP FINGERS AWAY WHILE THE MOTORIZED FRONT
PANEL OR MOVING MONITOR IS IN MOTION.
Failure to do so may result in personal injury or damage to the
product.
KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL
HEAR OUTSIDE NOISE WHILE DRIVING.
Failure to do so may result in an accident.
MINIMIZE DISPLAY VIEWING WHILE DRIVING.
Viewing the display may distract the driver from looking ahead of
the vehicle and cause an accident.
DO NOT DISASSEMBLE OR ALTER.
Doing so may result in an accident, fire or electric shock.
USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.
(Check with your dealer if you are not sure.) Failure to do so may
result in fire, etc.
KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE
REACH OF CHILDREN.
Swallowing them may result in serious injury. If swallowed,
consult a physician immediately.
4-EN
PRECAUTIONS
Product Cleaning
Use a soft dry cloth for periodic cleaning of the product. For
more severe stains, please dampen the cloth with water only.
Anything else has the chance of dissolving the paint or damaging
the plastic.
Temperature
Be sure the temperature inside the vehicle is between +45°C
(+113°F) and 0°C (+32°F) before turning your unit on.
Moisture Condensation
You may notice the disc playback sound wavering due to
condensation. If this happens, remove the disc from the player
and wait about an hour for the moisture to evaporate.
New Discs
As a protective measure to prevent the disc from jamming, the
DVD player will automatically eject discs with irregular surfaces
or inserted incorrectly. When a new disc is inserted into the
player and ejected after initial loading, using your finger, feel
around the inside of the center hole and outside edge of the disc.
If you feel any small bumps or irregularities, this could inhibit
proper loading of the disc. To remove the bumps, rub the inside
edge of the hole and outside edge of the disc with a ball-point pen
or other such instrument, then insert the disc again.
Bumps
Center Hole
Center Hole
New
Disc
Outside
(Bumps)
Damaged Disc
Do not attempt to play cracked, warped, or damaged discs.
Playing a bad disc could severely damage the playback
mechanism.
Maintenance
If you have problems, do not attempt to repair the unit yourself.
Return it to your Alpine dealer or the nearest Alpine Service
Station for servicing.
Never Attempt the Following
Do not grip or pull out the disc while it is being pulled back into
the player by the automatic reloading mechanism.
Do not attempt to insert a disc into the unit when the unit power
is off.
Inserting Discs
Your player accepts only one disc at a time for playback. Do not
attempt to load more than one disc.
Make sure the label side is facing up when you insert the disc.
Your player will automatically eject any disc that is inserted
incorrectly. If the player continues to eject a correctly inserted
disc, push the RESET switch with a pointed object such as a
ballpoint pen.
Playing a disc while driving on a very bumpy road may result in
skips, but this will not scratch the disc or damage the player.
Irregular Shaped Discs
Be sure to use round shaped discs only for this unit and never use
any special shaped discs.
Use of special shaped discs may cause damage to the mechanism.
Installation Location
Make sure the IVA-D300 will not be installed in a location
subjected to:
•Direct sun and heat
•High humidity and water
•Excessive dust
•Excessive vibrations
Correct Handling
Do not drop the disc while handling. Hold the disc so you will
not leave fingerprints on the surface. Do not affix tape, paper, or
gummed labels to the disc. Do not write on the disc.
CORRECT
INCORRECTCORRECT
Disc Cleaning
Fingerprints, dust, or soil on the surface of the disc could cause
the DVD player to skip. For routine cleaning, wipe the playing
surface with a clean, soft cloth from the center of the disc to the
outer edge. If the surface is heavily soiled, dampen a clean, soft
cloth in a solution of mild neutral detergent before cleaning the
disc.
Continued
5-EN
Disc Accessories
There are various accessories available on the market for
protecting the disc surface and improving sound quality.
However, most of them will influence the thickness and/or
diameter of the disc. Using such accessories can cause
operational problems. We recommend not using these accessories
on discs played in Alpine DVD players.
Disc StabilizerTransparent Sheet
Handling the Detachable Front Panel
• Do not expose to rain or water.
• Do not drop or subject to shock.
• After turning the system off, a slight ghost of the image will
remain temporarily. This is an effect peculiar to LCD
technology and is normal.
• In cold temperature conditions, the screen may lose contrast
temporarily. After a short warm-up period, it will return to
normal.
Alpine products equipped with the Ai-NET bus, connected to the
IVA-D300, can be operated from the IVA-D300. Depending on
the products connected, the functions and displays will vary. For
details, consult your Alpine dealer.
Discs playable on this unit
Playable Discs
The discs listed below can be played on this unit.
DVD
Video
Mark (logo)Recorded
content
Audio
Video
(Moving
pictures)
Disc size
12 cm*
+
8 cm
playing time
One-sided
disc
Approx.
4 hours
Two-sided
disc
Approx.
8 hours
One-sided
disc
Approx.
80 Minutes
Two-sided
disc
Approx.
160 Minutes
Max.
Remove the anti-theft cover when you drive. This prevents the
cover from falling off the unit and interfering with the safe
operation of the vehicle.
Operation of some of the functions of this unit is very complex.
Because of this, it was deemed necessary to place these functions
into a special screen. This will restrict operation of these
functions to times when the vehicle is parked. This ensures the
focus of the driver's attention will be on the road and not on the
IVA-D300. This has been done for the safety of the driver and
passengers.
Title Input and Audio Processor Adjustments cannot be made if
the car is moving. The car must be parked and the parking brake
must be engaged for the procedure described in the Owner's
Manual to be valid. The warning "CAN'T OPERATE WHILE
DRIVING," will be displayed if any attempts are made to
perform these operations while driving.
This operation is the same as when selecting sources using the
remote control. When the car is parked, the selection is made as
described in the Owner's Manual.
12 cm
8 cm
Video
CD
DIGITAL VIDEO
Audio
+
Video
(Moving
pictures)
VIDEO CD
12 cm
Music
CD
Audio
8 cm
(CD single)
* Two-layer DVD disc compatible
Approx.
74 Minutes
Approx.
20 Minutes
Approx.
74 Minutes
Approx.
20 Minutes
6-EN
Discs that cannot be played
DVD-ROMs, DVD-RAMs, DVD + Rs, DVD + RWs, CD-ROMs
(excluding MP3/WMA files), photo CDs, etc.
DVD region number (playable region number)
This DVD player will play back any disc whose region number is
1 (or All). DVDs with a region number other than those listed
below, cannot be played on this DVD player.
1
ALL
Video CDs
This DVD head unit is compatible with playback control (PBC)
compatible video CDs (version 2.0).
“PBC” is a function by which you can use menu screens recorded
on the disc to find the scene you want to watch and view various
types of information in dialog style.
Using compact discs (CD/CD-R/CD-RW)
If you use unspecified compact discs, correct performance cannot
be guaranteed.
Yo u can play CD-Rs (CD-Recordable)/CD-RWs (CDReWritable) which have been recorded only on audio devices.
Yo u can also play CD-Rs/CD-RWs containing MP3/WMA
formatted audio files.
• Some of the following discs may not play on this unit:
Flawed discs, discs with fingerprints, discs exposed to extreme
temperatures or sunlight (e.g., left in the car or this unit), discs
recorded under unstable conditions, discs on which a recording
failed or a re-recording was attempted, copy-protected CDs
which do not conform to the audio CD industry standard.
• Use discs with MP3/WMA files written in a format compliant
with this unit. For details, see pages 15 and 16.
To customers using CD-R/CD-RW
• If a CD-R/CD-RW cannot be played back, make sure the last
recording session was closed (finalized).
• Finalize the CD-R/CD-RW if necessary, and attempt playback
again.
Tips for making your own CDs
The IVA-D300 plays DVD Video, Video CD, Audio CD and has a
built in MP3/WMA decoder.
The following information is designed to help you create your
own music CDs (either Audio CD or MP3/WMA encoded CD-R/
RW files).
What is the difference between an Audio and MP3/WMA
CD?
An Audio CD is the same format as the commercial CDs you buy
in the store (also known as CD-DA). MP3 (MPEG-1 Audio Layer
3)/WMA (Windows Media Audio) is a data file that uses a
compression scheme to reduce the size of the music file.*
Hybrid Audio CD and Data (MP3/WMA) CD-R/RW discs:
The IVA-D300 can read either sector on the disc. Choose CD-DA
to play the CD audio section or MP3/WMA to play the MP3/
WMA section.*
Multisession CD-R/RW:
Once a recording has been stopped, this is considered one
session. If the disc is not closed (finalized), additional data may
be added. Once this additional data has been recorded, this
becomes a “multisession” CD. The IVA-D300 can only read
multisession DATA Formatted discs (MP3/WMA files - Not
Audio CD files).
MP3 ID3 Tag/WMA Tag Information:
The IVA-D300 read and displays MP3 ID3v1 tag or WMA tag
information. MP3 files created with ID3v2 tag information can be
played back but the tag info cannot be read or displayed.
Properly formatted MP3/WMA Discs:
Use ISO9660 formatting to insure proper playback. You may use
standard ISO naming Level 1 (8.3 DOS standard), Level 2 (32
characters) or Joliet (Windows or Macintosh long filenames) file
naming conventions*.
*Please consult the Owner’s manual for additional information.
On handling compact discs (CD/CD-R/CD-RW)
• Do not touch the surface.
• Do not expose the disc to direct sunlight.
• Do not affix stickers or labels.
• Clean the disc when it is dusty.
• Make sure that the disc is smooth and flat.
• Do not use commercially available disc accessories.
Do not leave the disc in the car or the unit for a long time.
Never expose the disc to direct sunlight.
Heat and humidity may damage the disc and you may not be
able to play it again.
Using DVD-Rs/DVD-RWs
•This unit is compatible only with discs recorded in the DVDVideo mode.
Discs recorded in the DVD-VR mode cannot be played back.
•Note that discs not finalized (processed to enable to play on
playback-only DVD players) cannot be played on this DVD
player.
•Some discs may not play back, depending on the recording
device. (This unit has a copy protection function. Discs copied
illegally will not be played back. Some files recorded by a
software using an improper recording system may be
recognized as illegally copied.)
• In the following cases, the disc may not play on this unit:
discs recorded by certain DVD recorders, certain irregular
discs, flawed discs, dirty discs, when the pickup lens of this
DVD player is dirty, or when moisture condensation has
occurred inside the unit.
•Be sure to follow all cautions included with your DVD-Rs/
DVD-RWs discs.
•Do not put stickers, seals, or tape on the label side of DVD-Rs/
DVD-RWs.
•Compared to the regular discs, DVD-Rs/DVD-RWs are more
affected by heat, moisture, and direct sunlight. If left in a car,
etc., damage may occur and it might not play on this unit.
7-EN
Disc terminology
Title
If titles are programmed for the DVD, these are the largest units
of division of the information recorded on the disc.
Chapter
Each Title may also be divided into smaller divisions, called
chapters. These can be specific scenes or musical selections.
• This product incorporates copyright protection technology that is
protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology
must be authorized by Macrovision Corporation, and is intended
for home and other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
• Manufactured under license from Dolby Laboratories. “Dolby,”
• “DTS” and “DTS2.0 + Digital Out” are trademarks of Digital
Theater Systems, inc.
• Windows Media and the Windows logo are trademarks, or
registered trademarks of Microsoft Corporation in the United
States and/or other countries.
8-EN
Getting Started
123456789"#
Location of Controls
1 Rotary encoder
Adjust the volume by turning to the left or right.
If pressed, the audio adjusting screen is displayed.
2 Access Indicator
Blinks when an operation is performed (except when the
volume is adjusted).
3 Remote Sensor
Point the optional remote control transmitter toward the
remote sensor within a range of 2 m.
4 SOURCE/POWER button
Tur ns the power on. Press and hold for at least 2 seconds
to turn the power off.
Recalls the source selection screen.
5 BAND/TEL. button
Radio mode: Changes the band.
Visual source (except navigation screen): Changes the
display mode.
Press and hold for at least 2 seconds to change to the
TEL. mode, and to be able to place or cut a call. (When
MobileHub (CXA-B200NK) is connected.)
6 V. SEL/OFF button
The visual selecting screen is displayed.
Press and hold for at least 2 seconds to cancel the
Simultaneous function.
7 V. SEL Indicator
Lights when the simultaneous function is activated. (See
“Switching the Visual Source Only (Simultaneous
Function)” on page 25.
8 Reset Switch
Be sure to press the Reset switch when using the unit for
the first time, after changing the car battery, or when an
operation cannot be performed.
9 MUTE button
Tur ns the MUTE mode ON or OFF.
! DISC-IN Indicator
This indicator is lit when a disc is inserted.
" c button
Ejects a disc.
# OPEN/CLOSE/FLAT button
Raises the monitor.
Press and hold for at least 2 seconds to lower the monitor.
Press to move the open monitor to the flat position.
!
About the expression of buttons in this Owner's
Manual
• The buttons on this unit are expressed in bold (e.g. SOURCE/
POWER). The touch buttons on the display are expressed in
bold with [ ] (e.g. [SRC]).
• This Owner’s Manual explains mainly the function of touch
buttons, when a touch button and a unit button have the same
function.
Using Face Cover
An anti-theft face cover is provided with the
IVA-D300.
Put the face cover onto the IVA-D300 when you leave
the vehicle.
Be sure to remove the anti-theft face cover when you
drive.
Initial System Start-Up
Immediately after installing or applying power to the
unit, it should be initialized. Press the RESET switch
with a ballpoint pen or any other pointed object.
• If the monitor was open before resetting, it will close automatically
after a reset is performed. None of the buttons will function while it
is closing.
9-EN
Turning Power On or Off
Some of this unit's functions cannot be performed while the vehicle is
in motion. Be sure to stop your vehicle in a safe location and apply
the parking brake, before attempting these operations.
Press SOURCE/POWER to turn on the unit.
1
• The unit can be turned on by pressing any button on the unit except
OPEN and c (Eject).
Press and hold SOURCE/POWER for at least 2
2
seconds to turn off the unit.
• The IVA-D300 draws minimal current even when its power switch
is turned off. If the switched power (ignition) lead of the IVA-D300
is connected directly to the positive (+) post of the vehicle's
battery, the battery may be discharged. If this lead is unswitched, it
must be disconnected from the battery post should the vehicle be
left unused for an extended period of time.
An SPST (Single-Pole, Single-Throw) switch (sold separately) can
be added to simplify this procedure. Then, you can simply place it
in the OFF position when you leave the vehicle. Turn the SPST
switch back ON before using the IVA-D300. For connecting the
SPST switch, refer to the “Connection Diagram of SPST switch”
(page 69).
• Some operation of the unit cannot be performed while the vehicle is
in motion. In this case, be sure to first stop your vehicle and apply
the parking brake, then perform the operation.
Opening/Closing the Monitor
Press OPEN.
1
The unit beeps 3 times and opens the monitor
automatically.
Press and hold OPEN (CLOSE) for at least 2
2
seconds.
The unit beeps 3 times and closes the monitor
automatically.
• Opening/closing the monitor should never be performed manually.
It may cause a malfunction.
• The monitor's angle is set to 90 degrees at the factory. Depending
on the car, the monitor may hit the dashboard when opened. The
monitor's angle can be adjusted and stored in memory so that the
monitor will not hit the dashboard when opening. For adjusting the
monitor, refer to "Adjusting the monitor Angle" on page 26.
Even when the vehicle's battery power is removed, the adjusted
monitor angle remains stored in memory.
• The IVA-D300 is a precision device. With gentle handling, its
unique capabilities can be enjoyed for a long time.
• If the monitor touches anything while it is being opened (or
closed), the monitor will stop opening (or closing) immediately.
Should this occur, remove the obstacle and press and hold OPEN
for at least 2 seconds again to lower the monitor.
• When the movable monitor is opened, do not place any object on
the monitor and be careful not to bump or apply any pressure to the
monitor while it is open. This can cause damage to the mechanism.
•In low ambient temperature conditions, the display may be dark for
a short period of time immediately after the power is turned on.
Once the LCD has warmed up, the display returns to normal.
•For your safety, some operation of the unit cannot be performed
while the vehicle is in motion. In this case, first stop the vehicle and
engage the parking brake, then perform the operation.
Moving the Monitor to be Flat
When you want to operate some function on the car (air conditioner,
etc.) which is hidden by the raised monitor, use this function.
Press OPEN (FLAT).
1
The monitor moves to the flat position.
Press OPEN (FLAT) again.
2
The monitor returns to the previous angle.
• The monitor returns to the previous angle 10 seconds after being
moved to the flat position.
• If an excessive force is added to the monitor when the monitor is
flat, putting an object on the back of the monitor for example, it
may cause a malfunction.
Adjusting the Volume
Adjust the volume by turning the Rotary encoder.
Volume: 0 - 35
Lowering Volume Quickly
Activating this function will instantly lower the volume level by 20
dB.
Press MUTE to activate the MUTE mode.
The audio level decreases by about 20 dB.
Pressing MUTE again brings the audio back to its previous
level.
How to view the Display
Touch button operation
The display unit is equipped with tactile feedback
(PULSETOUCHTM).
What is the tactile feedback (PULSETOUCHTM) ?
When you touch a button graphic in the display, you will
feel a mild vibration and click on the display panel surface.
This feedback enables you to easily identify action areas in
the display.
• Be sure to touch the button lightly with the pad of your finger on
the display to protect the display.
• If you touch a button and there is no reaction, remove your finger
from the display once, and try again.
About the expression of touch buttons in this Owner's
Manual
•Display buttons in this manual are shown in bold with
[ ] (e.g. [SRC]).
• This Owner’s Manual explains mainly the function of
touch buttons, when a touch button and a unit button
have the same function.
10-EN
Recalling the Source
Here is an example explanation for the Radio mode display on how to
recall a source.
Touch [SRC] on the main screen.
1
The source selection screen is displayed.
Display example for source selection screen
1
2
1 Changes to main source screen
2 Displays source modes that can be selected
(The kind of source modes that are displayed varies
depending on connection and setting)
Touch [RADIO].
2
The screen changes to the Radio mode main display.
Main screen example for Radio mode
34567
&
%
$
#
"!
3 Displays the source name, such as radio band, etc.,
that is selected
4 Changes to Telephone mode*2 (see page 55)
Number of bars decreases depending on reception
level ( is no reception)
5 Changes to VISUAL selection screen
6 Changes to SYSTEM selection screen
7 Displays time
8 Displays shortcut menu screen (see pages 11,12)
9 Function Guide:
The function guide display varies depending on each
source.
The contents of the function guide change by touching
[P1/2]*1 or [P1/3]*1 on the function guide, and many
other operations can be performed.
! Icon for new incoming mail*
" Missed incoming mail icon*
# Displays volume level
$ Working state indicator
2
2
8
9
% Displays the title input screen (see pages 22,23)
& Changes to the source selection screen (to Step 1
screen)
*1Display may vary depending on the connected devices.
*2Displayed when MobileHub (CXA-B200NK) is connected.
• When an optional DVD player or DVD changer is connected,
AUX 1 appears as “EXT.DVD” or “DVD CHG” on the display.
• When both the optional DVD player and DVD changer are
connected, AUX 1 appears as “EXT.DVD” and AUX 2 as “DVD
CHG” on the display. (When an optional expansion box VPE-S431
is connected)
• When i-Personalize and SETUP are selected, these operations may
only be carried out after the car is parked.
The screen changes to another source by touching
3
[SRC] on the main source screen.
• The screen can be changed to the VISUAL selection screen by
touching [V.SEL].
• The screen can be changed to the SYSTEM selection screen by
touching [SYS].
•After 5 seconds of each operation in the visual mode, the screen
changes to the visual screen only.
To display the source selection screen, touch the display panel,
then touch [MAIN CONT.] on the screen. The source selection
screen appears by touching [SRC] on the changed main source
screen.
Shortcut Screen
In the main source display, shortcuts for set up of Media Xpander,
Bass MAX EQ, Visual EQ, and DOLBY PLII can be shown and their
settings can be made directly.
Touch [] on the far right of the main source
1
screen.
The shortcut menu screen is displayed. (Displayed when
DEFEAT is set to OFF.)
Touch a desired setup menu.
2
MX (Media Xpander):
Selects the MX mode of the currently displayed audio source.
Bass Max EQ:
Allows choosing any desired mode. (This function cannot be
set when an external audio processor is connected. The
setting can be carried out on the audio processor.)
Visual EQ:
Selectable when the visual source mode is turned on.
DOLBY PLII:
Displayed when an external audio processor is connected.
Continued
11-EN
Display example for shortcut menu screen
The setup screen is displayed
by touching one of these
modes.
Display example for setup screen
1
3
1 Close the Shortcut menu screen by touching [].
2 The screen changes to the setup screen mode by
touching another mode.
3 Your desired setting can be made by using operation
buttons.
2
Displaying the Numeric Keypad Input Screen
The numeric keypad input screen is displayed when the DVD mode is
selected for searching a title or chapter, and for entering a country
code or password for the DVD setup item, and also when selecting a
channel number in the XM Radio mode.
Touch [10KEY] on the main source screen.
1
Touch the desired numeric key.
2
Display example for numeric keypad
1
2
3
4
5
8
7
1 Operation buttons of this area can be used while
displaying the numeric keypad input screen.
2 Input screen area
3 All input numbers will be deleted
4 Previous number will be deleted
5 Input number is confirmed
6 Closes numeric keypad input screen
7 Numeric keypad
8 Operation buttons of this area cannot be used while
displaying the numeric keypad input screen.
Touch [ENT] to confirm your entry.
3
6
Dual-Screen Display
The connected AMP Link-compatible external amplifier can be
displayed in dual-screen on the main source screen.
12-EN
Touch [V.SEL] on the main source screen.
1
The VISUAL selection screen appears.
Touch [DUAL SCREEN].
2
The main source screen is restored showing the dualscreen display.
Display example for the dual-screen
Changes the AMP display for the
connected amplifier.
Touch [V.SEL] to cancel the dual-screen display.
3
The VISUAL selection screen appears.
Touch [NORMAL].
4
The normal screen will be restored.
Radio
Display example for Radio main screen
1
A
2
B
1 [SRC] button: Refer to page 11
2 [TITLE] button: Refer to page 22
3 [] button: Refer to pages 55 to 57
4 [V.SEL] button: Displays the VISUAL selection screen
5 [SYS.] button: Displays the SYSTEM selection screen
6 [] button: Refer to page 11
A Displays the input radio station title.
B Displays the preset number/frequency.
Listening to the Radio
Touch [SRC] on the main source screen.
1
The source selection screen is displayed.
Touch [RADIO].
2
The radio mode is activated and the display changes to
the Radio Mode screen.
Touch [BAND] to select the desired radio band.
3
Each press changes the bands as follows:
FM-1 → FM-2 → AM → FM-1
Touch [TUNE] to choose the tuning mode.
4
Each touch changes the tuning mode display.
Distance → Local → Manual → Distance
g f gf ( ) g f
• There are two modes you can select for auto tuning, DX and
Local:
- DX (Distance) mode (with DX SEEK indicator ON);
Both strong and weak stations will be tuned in.
- Local mode (with SEEK indicator ON);
Only strong stations will be tuned in.
The initial setting is DX.
Touch [g] or [f] to change the radio
5
frequency up or down respectively.
When the button is touched and held, the frequency
changes continuously until the button is released.
• When a stereo FM station is tuned in, the STEREO indicator
appears in the display.
345
6
Manual Storing of Station Presets
Tune in a desired radio station you wish to store in
1
the preset memory by manual or automatic seek
tuning.
Touch [P1/2] to change the function guide.
2
Touch [MEMORY].
3
Touch any one of the preset buttons [P.SET 1]
4
through [P.SET 6] within 5 seconds.
The selected station is stored.
Repeat the procedure to store up to 5 other
5
stations onto the same band.
To use this procedure for other bands, simply select the
band desired and repeat the procedure.
A total of 18 stations can be stored in the preset memory
(6 stations for each band; FM1, FM2 or AM).
• If a preset memory has already been set in the same preset number,
it will be cleared and the new station will be memorized.
Automatic Memory of Station Presets
The tuner can automatically seek and store 6 strong stations in the
selected band in order of signal strength.
After selecting the desired band, touch [A.MEMO].
The tuner automatically seeks and stores 6 strong stations into
[P.SET 1] to [P.SET 6] in order of signal strength.
When the automatic storing has been completed, the tuner
goes to the station stored in [P.SET 1].
• If no stations are stored, the tuner will return to the original station
you were listening to before the automatic storing procedure
began.
Tuning to Preset Stations
You can tune in the preset stations in memory on each band using the
preset number.
After selecting the desired band, touch [P1/2] to
1
change the function guide.
Touch any one of the preset buttons [P.SET 1]
2
through [P.SET 6] that has a station stored to it.
The preset station is received.
Searching from Radio Station Title
If the title of a radio station is entered, a title list is displayed. (See
“Titling Discs/Radio Stations” on page 22)
Touch [] to activate the search mode.
1
The screen changes to the radio title list display.
Touch [:] to select the desired radio title.
2
The screen changes to the radio mode main display, and
the desired radio station is received.
13-EN
CD/MP3/WMA
Display example for MP3/WMA main screen
1
A
B
1 [SRC] button: Refer to page 11
2 [] button: Refer to pages 55 to 57
3 [V.SEL] button: Displays the VISUAL selection screen
4 [SYS.] button: Displays the SYSTEM selection screen
5 [] button: Refer to page 11
6 [] button: Refer to page 23
A CD:
Displays track text*1 in the upper line.
Displays input title in the lower line.
Disc text*1 is displayed if there are no titles in the
display.
MP3/WMA:
After displaying the file name in the upper line, the
track name is displayed if there is ID3 tag information.
After displaying the folder name, the artist name/
album name are displayed if there is ID3 tag
information.
B CD:
Displays the track number/disc number*2/elapsed
time.
MP3/WMA:
Displays the folder number/file number/disc number*3/
elapsed playback time
*1Displayed when CD text is available.
*2Displayed when a CD changer is connected.
*3Displayed when an MP3 compatible CD changer is connected.
234
5
6
Playback
Touch [SRC] on the main source screen.
1
The source selection screen is displayed.
Touch [DVD PLAYER].
2
The display shows the DVD player mode screen.
When a CD/MP3/WMA is inserted into the DISC SLOT of
the IVA-D300, with the label side facing up, the unit starts
to play the CD/MP3/WMA.
• When an optional Alpine CD player is connected, inserting a CD
into the optional CD player starts playback automatically.
Touch [g] or [f] to select the desired track
3
(file).
Returning to the beginning of the current track (file):
Touch [g].
Fast backward :
Touch and hold [g].
Advancing to the beginning of the next track (file) :
Touch [f].
Fast forward :
Touch and hold [f].
To pause playback
Touch [-/J].
Touching [-/J] again will resume playback.
To e ject the disc
Press c.
• The IVA-D300 models include a built-in MP3/WMA unit. You can
play CD-ROMs, CD-Rs, and CD-RWs containing MP3/WMA files
on this unit. Use the format compliant with this unit.
Fo r further information about playing or storing MP3/WMA files,
refer to pages 15 and 16 before using the unit.
•A WMA format file that is protected by DRM (Digital Rights
Management) cannot be played back on this unit.
• The unit can play discs containing both audio data and MP3/WMA
data.
• The MP3/WMA indicator is lit during MP3/WMA playback.
• No sound is played during fast-forwarding/fast-reversing.
• The fast-reversing operation can be performed in the MP3/WMA
mode only when a track (file) is currently being played back.
• The track display for CD audio data playback is the track numbers
recorded on the disc.
• Three-inch (8cm) CD's can be used.
• "Playing MP3/WMA Data" is mentioned on page 31 "GENERAL
Setup".
• When an MP3/WMA disc is played, it sometimes takes a few
moment until it starts.
•Touch [] to activate the search mode. For operations, refer to
“Disc Search Function” on page 23.
14-EN
Repeat Play
About MP3/WMA
Touch [] to play back repeatedly the track currently
being played.
The track (file) will be played repeatedly.
Touch [] again and select OFF to deactivate Repeat play.
1
CD:RPT → RPT ALL
MP3/WMA:
1Touch [P1/2]*3 to change the function guide.
2Touch [] and select the desired Repeat play.
RPT → RPT FLDR∗2 → RPT ALL∗1 → (off) → RPT
*1If a CD Changer or an MP3 compatible CD changer is connected
and the RPT ALL mode is selected, the unit repeatedly plays back
all tracks (files) on the disc selected.
*2Only files in a folder are repeatedly played back.
*3Display may vary depending on the connected devices.
*
→ (off) → RPT
M.I.X. (Random Play)
Touch [] during playback.
The tracks (files) on the disc will be played back in a random
sequence.
To cancel M.I.X. play, touch [].
CD:M.I.X. → M.I.X. ALL*1 → (off) → M.I.X.
MP3/WMA:
1Touch [P1/2]*4 to change the function guide.
2Touch [] and select the desired M.I.X. play.
M.I.X. FLDR*3→ M.I.X.*2→ (off) → M.I.X. FLDR
*1If a CD Changer equipped with the M.I.X. ALL function is
connected, M.I.X. ALL will also be selectable.
In this mode, the tracks on all the CDs in the current magazine will
be included in the random playback sequence.
*2If an MP3 compatible CD changer is connected, all files in a disc
are played back in random sequence, and playback shifts to the
next disc.
*3Only files in a folder are played back in random sequence in the
M.I.X. FLDR mode.
*4Display may vary depending on the connected devices.
*3
Selecting Folders (concerning MP3/WMA)
Touch [F.DN] or [F.UP] to select the folder.
CAUTION
Except for private use, duplicating audio data (including MP3/
WMA data) or distributing, transferring, or copying it, whether
for free or for a fee, without permission of the copyright holder is
strictly prohibited by the Copyright Act and by international
treaty.
What is MP3?
MP3, whose official name is “MPEG-1 Audio Layer 3,” is a
compression standard prescribed by the ISO, the International
Standardization Organization and MPEG which is a joint
activity institution of the IEC.
MP3 files contain compressed audio data. MP3 encoding is
capable of compressing audio data at extremely high ratios,
reducing the size of music files to as much as one-tenth their
original size. This is achieved while still maintaining near CD
quality. The MP3 format realizes such high compression ratios
by eliminating the sounds that are either inaudible to the
human ear or masked by other sounds.
What is WMA?
WMA, or “Windows Media™ Audio,” is compressed audio data.
WMA allows you to create music files and store them at higher
ratios of compression than MP3 audio data (approx. half
original size). This is achieved while still maintaining CD
quality sound.
Method for creating MP3/WMA files
Audio data is compressed by using MP3/WMA specified
software. For details on creating MP3/WMA files, refer to the
user's manual for that software.
MP3/WMA files that can be played back by this device have
the file extension “mp3” / “wma”. Files with no extension
cannot be played back. (WMA ver. 7.1 and 8 are supported)
Sampling rates: 32 kHz ∼ 48 kHz
Bit rates:32 - 192 kbps
This device may not play back correctly depending on
sampling rates or bit rates.
ID3 tags/WMA tags
This device supports ID3 tag v1, and WMA tag.
If tag data is in an MP3/WMA file, this device can display the
title (track title), artist name, and album name ID3 tag/WMA
tag data.
This device can only display single-byte alphanumeric
characters (up to 30 for ID3 tags and up to 15 for WMA tags)
and the underscore. For non-supported characters, “NO
SUPPORT” is displayed.
The tag information may not be correctly displayed,
depending on the contents.
Producing MP3/WMA discs
MP3/WMA files are prepared, then written to a CD-R or CDRW using CD-R writing software. A disc can hold up to 255
files/255 folders (including Root Folders).
Depending on the structure of the folders or files, it may take
time to read a disc. In this case, it is recommended to
decrease the number of folders or files.
Media supported
The media that this device can play back are CD-ROMs, CDRs and CD-RWs.
Continued
15-EN
Corresponding File Systems
This device supports discs formatted with ISO9660 Level 1 or
Level 2.
Under the ISO9660 standard, there are some restrictions to
remember.
The maximum nested folder depth is 8 (including the root
directory). File/folder names are limited to 31 characters
(including the extension).
Valid characters for folder/file names are letters A-Z (all
caps), numbers 0-9, and ‘_’ (underscore).
This device also can play back discs in Joliet, Romeo, etc.,
and other standards that conform to ISO9660. However,
sometimes the file names, folder names, etc., are not
displayed correctly.
Formats supported
This device supports CD-ROM XA, Mixed Mode CD,
Enhanced CD (CD-Extra) and Multi-Session.
This device cannot correctly play back discs recorded with
Track At Once or packet writing.
Order of files
The unit plays the files in the order that the writing software
writes them. Therefore, the playing order may not be the same
as the order you input. The playback order of the folders and
files is as follows. However, the folder and file playback order
differs from the folder no. and file no. indicated on the display.
Terminology
Bit rate
This is the “sound” compression rate specified for encoding. The
higher the bit rate, the higher the sound quality, but also the larger
the files.
Sampling rate
This value shows how many times per second the data is sampled
(recorded). For example, music CDs use a sampling rate of 44.1
kHz, so the sound is sampled (recorded) 44,100 times per second.
The higher the sampling rate, the higher the sound quality, but also
the larger the volume of data.
Encoding
Converting music CDs, WAVE (AIFF) files, and other sound files
into the specified audio compression format.
Tag
Song information such as track titles, artist names, album names,
etc., written into MP3/WMA files.
MP3: ID3 tag
WMA: WMA tag
Root folder
The root folder is found at the top of the file system. The root folder
contains all folders and files.
1
Root
Folder
2
4
6
1
FolderMP3/WMA File
2
3
3
4
5
5
6
7
16-EN
DVD/Video CD
Display example for DVD main screen
1
A
B
1 [SRC] button: Refer to page 11
2 [] button: Refer to pages 55 to 57
3 [V.SEL] button: Displays the VISUAL selection screen
4 [SYS.] button: Displays the SYSTEM selection screen
5 [] button: Refer to page 11
6 [] button: Refer to page 23
A Displays the input title only for video CD.
B Displays the title number/chapter number/elapsed
playback time for a DVD.
Displays the track number/elapsed playback time for a
video CD.
• Some operations cannot be carried out depending on the disc or
playback screen.
•Displays of the function guide [P1/2], etc., may vary depending on
the connected device(s).
Playing DVD/Video CD
IVA-D300 has a built-in DVD player. When an optional Alpine DVD/
video CD/CD player (or DVD changer) is connected to the IVAD300, you can control it from the IVA-D300. (except some
operations)
234
5
6
To display the DVD mode screen
To watch a video source, your vehicle must be parked with the
ignition key in the ACC or ON position. To do this, follow the
procedure below.
1. Push the foot brake to bring your vehicle to a complete
stop at a safe location. Engage the parking brake.
2. Keep pushing the foot brake and release the parking
brake once then engage it again.
3. While the parking brake is being engaged the second
time, release the foot brake.
•For automatic transmission vehicles, place the transmission lever
in the Park position.
Now, the locking system for the DVD mode operation has been
released. Engaging the parking brake can reactivate the DVD mode,
as long as the car's ignition has not been turned off. It is not
necessary to repeat the above procedure (1 through 3), of “To display
the DVD mode screen.”
Each time the ignition is turned OFF, perform the procedure of “To
display the DVD mode screen.”
• If you try to activate the auxiliary device while driving, the display
will show the warning-PICTURE OFF FOR YOUR SAFETY.
Caution
• Not all functions will operate for every DVD. See
the individual DVD’s instructions for details on
the features supported.
•Fingerprints on a disc may adversely affect
playback. If a problem occurs, remove the disc
and check for fingerprints on the playback side.
Clean the disc if necessary.
• If you switch the power or Ignition Key OFF or
change sources during playback, playback will
continue where you left off when you resume
playback.
• If you try to perform an invalid operation (based
on the type of disc being played), the following
mark is displayed on the monitor screen:
WARNING
It is dangerous (and illegal in many states) for the
driver to watch the DVD/TV/Video while driving the
vehicle. The driver may be distracted from looking
ahead and an accident could occur.
Install the IVA-D300 correctly so that the driver
cannot watch DVD/TV/Video unless the vehicle is
stopped and the emergency brake is applied.
If the IVA-D300 is not installed correctly, the driver
will be able to watch the DVD/TV/Video while
driving the vehicle and may be distracted from
looking ahead causing an accident. The driver or
other people could be severely injured.
•Play Position Memory Function
Even if you turn power off or switch the Ignition
Key to OFF during playback or change the
source, playback will continue from the point
where playback stopped when the power is
turned ON again.
17-EN
Touch [SRC] on the main source screen.
1
The source selection screen is displayed.
Touch [DVD PLAYER].
2
The display shows the DVD player mode screen.
Insert a disc with the label side facing up. The unit starts
to play the disc.
When an optional Alpine DVD player is connected:
Insert a disc into the DVD/video CD/CD player, the player
starts playing.
• The operation screen changes to the visual screen in the DVD or
video CD mode for 5 seconds after an operation has been
performed. Touch the display panel to display the operation screen
again.
• The display mode can be changed by touching [WIDE].
Fo r operation, see “Switching Display Modes” on page 24.
To e ject the disc
Press c.
• The reverse side of a double-sided DVD will not be played
automatically.
Remove the disc, turn it over, and reinsert it.
• DO NOT insert discs containing maps for the navigation system.
Doing so could result in damage.
• Refer also to “DVD Setup” (pages 27 to 30).
• If : (playback symbol) is displayed when a video CD with PBC
(Playback Control) is inserted, playback is enabled by touching
and holding [:/ J] for at least 2 seconds.
• Be sure the remote input lead is connected to the remote output
lead of this unit when a DVD changer or DVD player is connected.
If not correctly connected, touch operation cannot be performed.
•To return to the previous screen during video CD playback, touch
[;] after touching [P1/2] of the function guide. However, the
function may vary depending on the disc.
If a menu screen appears
On DVDs and Video CDs with playback control (PBC), menu
screens may appear automatically. If this happens, perform
the operation described below to start playback.
Direct Menu Operations (DVD only)
1Touch the DV D menu directly.
• Some operations cannot be performed depending on the disc.
Menu Operations (DVD only)
1Touch [KEY].
The menu operation mode will be displayed.
2 Select a desired menu item by touching [8], [9], [;] or
[:].
3Touch [ENTER] to confirm the selected item.
18-EN
Numeric Keypad Input Operations (DVD)
Displaying the Menu Operation Mode Screen (DVD only)
Touch [P1/2] on the DVD mode main screen.
1
The function guide changes.
Touch [MENU CONT].
2
The menu operation mode screen appears.
•For further operation, see “If a menu screen appears” on pages 18
and 19.
1Touch [KEY].
The menu operation mode appears
2Touch [KEY] again.
The numeric keypad input mode screen appears.
Touch [RTN] to close the numeric
keypad input screen.
3Touch a desired number.
4Touch [ENT] on the numeric keypad mode screen to
confirm your selection.
Numeric Keypad Input Operations (Video CD)
When PBC is turned OFF, the menu screen is not displayed. Turn it
ON to display the screen (see “Turning the PBC Function ON or
OFF” on this page).
1Touch [P1/2] in the video CD mode to change the
function guide.
2Touch [10KEY].
The numeric keypad is displayed.
3Touch and input a desired number.
4Touch [ENT] to confirm.
Tu rning the PBC Function ON or OFF
(Video CD only)
The following describes how to turn a video CD equipped PBC
(playback control) on or off.
Touch [PBC] on the video CD mode main screen.
Touching [PBC] sequentially turns the PBC on and off.
Stopping Playback (PRE STOP)
Press the stop button during playback to stop playback. That position
is stored in the memory.
Touch [L] once during playback.
1
“PRE STOP” is displayed.
Touch [:/J] in the PRE STOP mode.
2
Playback starts from the position at which it was stopped.
•For some discs, the position at which playback was stopped may
not be accurate.
Stopping Playback
Touch [L] twice or touch and hold [L] for at least 2
seconds during playback.
“STOP” is displayed, and playback stops.
•Playback starts from the beginning when [:/J] is touched while
playback is stopped.
Displaying the Top Menu Screen (DVD only)
When a DVD contains two or more titles, the top menu screen
appears.
Touch [TOP MENU] on the DVD mode main screen.
The top menu screen appears.
•To perform necessary operations, see “If a menu screen appears”
on pages 18 and 19.
Displaying the Menu Screen (DVD only)
With a DVD having two or more menus, a menu screen will appear
for the programs available, in addition to the main programs.
Touch [MENU] on the DVD mode main screen.
The menu screen appears.
•To perform necessary operations, see “If a menu screen appears”
on pages 18 and 19.
Fast-forwarding/Fast-reversing
During playback, touch [g] (Fast-reverse) or
1
[f] (fast-forward).
When touched and held for more than 1 second, the disc
is forwarded/reversed at double speed. When held for 5
more seconds or longer, the disc is forwarded/reversed at
8 times the normal speed.
Stop touching [g] or [f] to return to normal
2
playback.
• No sound is played during fast-forwarding/fast-reversing.
• No subtitles are shown during fast-forwarding/fast-reversing.
However, subtitles may be displayed depending on the disc.
•For DVDs and video CDs with playback control (PBC), the menu
screen may reappear during fast-forwarding/fast-reversing.
19-EN
Finding the Beginnings of Chapters or Tracks
During playback, touch [g] or [f].
The chapter/track switches each time the button is touched,
and playback of the selected chapter/track starts.
f : Touch this to start playback from the beginning of
the following chapter or track.
g : Touch this to start playback from the beginning of
the current chapter or track.
• Some DVDs do not have chapters.
Supplementary explanation
“Chapters” are divisions of movies or musical selections
on DVDs.
“Tra cks” are divisions of movies or musical selections on
video and music CDs.
Playing Still Frames (Pausing)
During playback, touch [:/J].
1
Touch [:/J] to resume playback.
2
• No sound is played during the still frame mode.
• The image or sound may stop temporarily when playback starts
from the pause mode. This is not a malfunction.
Frame-by-frame Playback
9
REPEATThe chapter is played repeatedly.
9
REPEAT TITLEThe title is played repeatedly.
9
REPEAT OFFThe playback returns to normal mode.
•Display may vary depending on the connected devices.
Video CD
During playback, touch [P1/2].
1
During playback, touch [] on the main unit.
2
The repeat mode switches every time the button is
touched.
9
REPEATThe track is played repeatedly.
9
REPEAT ALLThe disc is played repeatedly.
9
REPEAT OFFThe playback returns to normal mode.
•Display may vary depending on the connected devices.
• The track/disc repeat modes cannot be used on video CDs with
playback control (PBC). These modes can be carried out after
turning PBC off. See “Turning the PBC Function ON or OFF” on
page 19.
•For some discs it is not possible to switch the repeat mode.
•Step 1 is not necessary when a DVD changer or DVD player is
connected.
In the pause mode, touch [f].
1
The picture advances by one frame each time the button
is touched.
Touch [:/J] to return to normal mode.
2
• No sound is played during frame-by-frame playback.
Slow Motion Playback
When [f] is touched and held while in the pause
1
mode, the 1/8th speed slow motion playback mode
is set.
When held in for 5 more seconds, the slow motion
speed switches to 1/2 the normal speed.
Stop touching [f] to pause, and touch [:/J] to
2
playback.
• No sound is played during slow motion playback.
•Reverse slow motion playback is not available.
•1/2, 1/8 are approximate speeds. The actual speed differs from disc
to disc.
Chapter/Track/Title Repeat Playback
Use this function to play the disc’s titles, chapters or tracks
repeatedly.
DVD
Searching by Title Number (DVD only)
Use this function to easily find positions on the DVD using the
DVD’s titles.
Touch [P1/2] while playback is stopped.
1
The function guide appears.
Touch [10KEY].
2
The numeric keypad input mode screen appears.
Enter a desired title by touching its title number.
3
See page 19 for operation of the numeric keypad.
Confirm your selection by touching [ENT].
4
Playback will start from the title number selected.
• This function cannot be used on discs on which no title numbers
are recorded.
•Playback starts from the beginning of the chapter/track number in
the state of PRE STOP.
• Some disc may not accept any operation.
During playback, touch [P1/2].
1
Touch [] on the main unit.
2
The repeat mode switches every time the button is
touched.
20-EN
Searching Directly by Chapter or Track
Number
Use this function to easily move to the beginnings of the chapters or
tracks on the disc.
Touch [P1/2] in any mode other than stop mode.
1
The function guide will appear.
Touch [10KEY].
2
The numeric keypad input mode screen will appear.
Touch and enter the chapter or track number you
3
want to play.
See page 19 for operation of the numeric keypad.
Touch [ENT] to confirm your selection.
4
Playback will start from the selected chapter or track.
• This function is not available for a disc on which chapters or
tracks are not stored.
•Direct search of a track number is not available for a video CD
with the PBC (playback control) function as long as its PBC is
turned on. Be sure to turn PBC off before starting the search (see
“Turning the PBC function ON or OFF” on page 19).
Switching the Angle (DVD only)
On DVDs in which scenes have been filmed from multiple angles, the
angle can be switched during playback.
During playback, touch [P1/2].
1
The function guide changes.
Video CDs with multiplex audio
During playback, touch [P1/2].
1
The function guide changes.
Touch [AUDIO].
2
The left and right channels will be output as shown in the
figure below, each time the button is pressed.
AUDIO L/L → AUDIO R/R → AUDIO L/R → AUDIO L/L
Switching the Subtitles (Subtitle Language)
(DVD only)
With DVDs on which multiple subtitle languages are recorded, the
subtitle language can be switched during playback; moreover,
subtitles can be hidden.
During playback, touch [P1/2].
1
The function guide changes.
Touch [SUBT.].
2
Touching this button repeatedly selects sequentially the
subtitle languages recorded on the disc, and then turns
the subtitles OFF.
• There may be a delay before the selected subtitle appears.
• Not all discs will allow changing the subtitles during playback. In
these cases, select subtitles from the DVDs menu.
• The subtitle language selected becomes the default setting every
time the power is turned on or the disc is replaced. If the disc does
not include that language, the disc’s default language is selected
instead.
•For some discs, the subtitles will be displayed even when this is set
to off.
Touch [ANGLE].
2
The angle switches between the angles recorded on the
disc every time the button is touched.
• Some time may be required for the angle to change.
• Depending on the disc, the angle may switch in one of two ways.
- Seamless: The angle switches smoothly.
- Non-seamless: When the angle is switched, a still picture is
displayed first, after which the angle switches.
Switching the Audio Tracks
DVDs can have up to 8 different audio tracks. These alternate tracks
can be switched during playback.
During playback, touch [P1/2].
1
Touch [AUDIO].
2
The sound switches between the alternate audio tracks
recorded on the disc every time the button is touched.
• The alternate track selected becomes the default setting every time
the power is turned on or the disc is replaced. If the disc does not
include that track, the disc’s default language is selected instead.
• Not all discs will allow changing the alternate audio tracks during
playback. In these cases, select audio tracks from the DVDs menu.
• There may be a delay before the selected alternate track begins to
play.
Switching from the disc menu
For some discs, the audio language, angle and subtitles can be
switched from the disc menu.
Touch [MENU] or [TOP MENU] to display the
1
menu.
Select an item to confirm it.
2
See “If a menu screen appears” on pages 18 and 19.
Displaying the Disc Status for DVD/Video CD
Use the procedure described below to display the status (title number,
chapter number, etc.) of the currently playing DVD or of the currently
playing video CD (track number, etc.) on the monitor.
During playback, touch the display panel.
1
The operation menu screen is displayed.
Touch [MAIN CONT.] within 5 seconds.
2
The display status is displayed for 5 seconds.
21-EN
Other Useful Features
Adjusting the Audio
Press the Rotary encoder on the unit.
The display changes to the Audio Adjustment screen.
Display Example for Audio Adjustment Screen
3
2
1
Turn ing defeat ON or OFF
Touch [;] or [:] of DEFEAT to turn it ON or OFF.
If you set the defeat to ON, MX is turned OFF and EQ is
returned to the initial setting.
Adjusting the BASS Level
Touch [;] or [:] of BASS to adjust the low frequency
bass level.
Setting range: 0 to 11
• This adjustment becomes available when AMP Link compatible
external amplifiers (MRD-M301 and MRD-M501) are connected.
Adjusting the Balance/Fader Directly
Touch and move [\] to a desired setting.
Or touch a desired setting range, and [\] will move to that
location.
Touch [L] or [R] of Balance and [F] or [R] of Fader for fine-tuning.
4
Titling Discs/Radio Stations
1 Adjust the volume of the front and rear speakers by
touching [F] or [R].
2 Adjust the volume of the left and right speakers by
touching [L] or [R].
3 Determine your desired setting value by touching and
moving [O].
4 Touches [;], [:] to adjust to your preference.
•Touch [AUDIO MODE] on the SYSTEM selection screen to change
to the Audio Adjustment screen.
Adjusting the Balance
Touch [L] or [R] to adjust the sound volume of the left
and right speakers.
Setting range: L15 to R15
Adjusting the Fader
Touch [F] or [R] to adjust the volume of the front and
rear speakers.
Setting range: F15 to R15
Adjusting the Subwoofer Level
Touch [;] or [:] of SUBW. to adjust the subwoofer
output.
Setting range: 0 to 15
• The level adjustment becomes available when 0° or 180° is set in
“Subwoofer On and Off” (page 40).
Adjusting NAV. LEVEL
Touch [;] or [:] of NAV. to adjust the volume of
navigation interruption.
Setting range: 0 to 15
• This adjustment becomes available when NAV.MIX is turned on in
“Setting the Navigation Interruption” (page 32).
To display the Title Inputting screen:
To watch a video source, your vehicle must be parked with
the ignition key in the ACC or ON position. To do this, follow
the procedure below.
1. Bring your vehicle to a complete stop at a safe
location. Engage the parking brake.
2. Keep pushing the foot brake and release the parking
brake once then engage it again.
3. When the parking brake is engaged for the second
time, release the foot brake.
•For automatic transmission vehicles, place the transmission
lever in the Park position.
Now, the locking system for the Title Inputting mode
operation has been released. Engaging the parking brake
can reactivate the Title Inputting mode, as long as the car's
ignition has not been turned off. It is not necessary to
repeat the above procedure (1 through 3), of “To display
the Title Inputting mode screen.”
Each time the ignition is turned OFF, perform the procedure
of “To display the Title Inputting mode screen.”
•Trying to access this screen while driving will display the
warning-CAN'T OPERATE WHILE DRIVING.
You can title radio stations and Discs (CD, Video CD). This manual
describes how to title radio stations.
(You cannot title DVD and MP3/WMA discs.)
Activate the Radio mode.
1
Touch [TITLE] on the radio main screen.
2
The title input screen appears.
Touch a desired character symbol to input. Up to
3
16 digits can be input.
Each time [A/a/1/+] is touched, alphabet upper case,
lower case, numerical and then symbols are selected.
22-EN
Display example for title input screen
123
4
5
6
9
1 Moves the cursor to the left in the input area
2 Input area
3 Moves the cursor to the right in the input area
4 Changes between character and symbol
5 All you have input is deleted
6 Deletes a previous character
7 Confirms and stores a title you have input
8 Returns to a previous screen
9 Character/Symbol Pallet
Touch [ENT] to confirm the input title.
4
The display changes to the radio mode.
•You can enter up to 100 titles of radio stations, CD and video CD.
•You cannot enter file name, folder name and tag information on
MP3/WMA files on this unit.
• When the memory is full, “Full Data” is displayed for 2 seconds.
At this point, touch [ENT] to delete the oldest title you have input
first, and then you can input a new one.
•Immediately after inputting titles or changing the settings of Setup
mode or Display mode (while the system is inputting the titles or
data automatically) do not turn the ignition key (engine key) to OFF.
Otherwise, the title may not be written, or the settings may not be changed.
7
8
Disc Search Function
Touch [] on the function guide while in the disc mode.
1
The disc search mode is turned on, and the disc search
list screen is displayed.
Select a desired disc title.
Touch [:] for direct playback.
When a hierarchical list is prepared for the disc, [] or[] will be displayed. Touch [] to display the
respective hierarchy list screens (to respective modes
described in Step 2).
Display Example for Disc Search Screen
4
3
1
2
1 [] is displayed if there is a hierarchical list.
2 Select directly by touching [:], and its disc (or folder/
file) is played back.
3 Go through the list pages by touching [ ] or [ ].
4 Touch [] to return to the previous list screen*.
* This screen displays a list of the disc currently playing, or each
disc of a connected external CD player or changer.
• When a disc title is not given to a CD or video CD, “NO TITLE” is
displayed.
Touch [] of the selected disc title.
2
Another hierarchical list appears.
Refer to the following mode procedure.
Internal CD player mode
1 The track title list* or the track list screen appears.
Select a desired folder and then touch [].
([] appears only when a file is present in the
selected folder.)
The file list screen is displayed.
•Touch [:] to play back the folder directly.
2Touch [:] of a desired file name.
The selected file will be played back.
Rear Entertainment Function
The rear entertainment function independently routes different
sources to the front and the rear inside a car. For example, while
listening to the radio or other audio source in the front, DVD can be
enjoyed in the rear with the optional rear monitor and headphones.
Touch [SYS.] on the main source screen.
1
The SYSTEM selection screen is displayed.
Touch [REAR SELECT].
2
Rear Select display appears.
• This function cannot be used when MONITOR OUT 1 or 2 is set to
OFF in the SYSTEM SETUP.
Touch your desired source (the auxiliary input or
3
built-in DVD) to select.
REAR.1:
External monitor which is connected to AUX OUT of the
tuner box on this unit. (If the optional expansion box (VPES431) is not connected), or an external monitor is connected
to AUX OUT1 of the optional expansion box (VPE-S431).
REAR.2*:
External monitor which is connected to AUX OUT2 of the
optional expansion box (VPE-S431)
* REAR.2 is not displayed if only an external monitor is connected.
The setting screen is displayed for REAR.2 if the external monitor
is connected to the optional expansion box (VPE-S431).
•Touch [OFF] to cancel the rear entertainment function.
• When the “Setting the AUX Mode” (page 33) is set to OFF, the
auxiliary source is not displayed.
• When TV is selected in AUX IN 1, 2 MODE, TV is displayed.
Continued
23-EN
Switching the function of the remote sensor
For optional remote control operation, the remote sensor of the
external device (monitor, etc.) can be switched, as you prefer.
Touch [FRONT], [REAR 1] or [REAR 2].
4
The monitor which has a priority to the remote control
operation is changed.
FRONT: The remote sensor of this unit is effective.
REAR1: The remote sensor of the external monitor
REAR2: The remote sensor of the external monitor
• When you watch the built-in DVD in IVA-D300 (front monitor) and
in the rear monitor, the On Screen display of the rear monitor
(PLAY, PAUSE, FAST FWD, etc.) is not displayed.
• The sensor of the touch panel rear monitor has priority over the
sensor of the remote control, if the rear monitor (connected to the
Alpine touch panel rear monitor via the Monitor control lead) is
touched, regardless of the remote control sensor switch setting.
Note, however, that the sensor of the remote control that has been
set takes priority if it has been 5 seconds since last touching the
panel.
• When an optional DVD changer or DVD player is connected, and
the remote control sensor is set to REAR1 or REAR2, some touch
button operations ( [L] STOP, etc.) cannot be performed.
In this case, set the remote control sensor to FRONT.
connected to AUX OUT of the tuner box of this
unit, or the optional expansion box (VPE-S431)
is effective, and the remote control can operate
only the source selected for the terminals.
connected to AUX OUT of the optional
expansion box (VPE-S431) is effective, and the
remote control can operate only the source
selected for the terminals.
Switching Display Modes
After carrying out the steps 1 to 3 of “To display the DVD mode
Screen” explained on page 27, perform the operation described below.
While your vehicle is parked, touch [WIDE] on the
visual source screen.
In Mode 1 (Wide), the monitor displays a normal picture wider
to fit in a wide-screen monitor by evenly stretching out the
picture horizontally.
MODE2
In the Mode 2 (Zoom), the monitor displays a normal picture
wider to fit in the wide-screen monitor by unevenly stretching
out. The centre portion of the picture is stretched out only
slightly in order to make the important centre portion of the
picture look natural.
MODE3
In Mode 3 (Cinema), the monitor displays a normal picture by
stretching out the picture horizontally and vertically. This mode
is good for displaying a cinema type picture at the 16 : 9 ratio.
MODE4
In Mode 4 (Normal), the monitor displays a normal picture at
the center of the screen with a vertical black band at each
side.
24-EN
Switching the Visual Source Only
(Simultaneous Function)
You can watch the video portion of another source while listening to
the current source.
•After carrying out the steps 1 to 3 of “To display the DVD mode
Screen” explained on page 27, perform the operation described
below.
Touch [V.SEL] on the audio source screen.
11
The VISUAL selection screen appears.
Touch a desired visual source.
2
The visual source is switched to the selected one.
• If a DVD player is connected, you can receive the DVD picture/
sound.
DVD player (DVA-5205) or DVD changer (DHA-S680) is
connected:
Press and hold V.OUT on the remote control supplied with the
DVD player or DVD changer for more than 2 seconds. The picture
and sound of the DVD will be output.
The DVA-5210 is connected:
Press V.OUT on the remote control (included with the DVA-5210)
to output DVD picture/sound.
• The simultaneous function cannot be used when the Audio source
is in the navigation mode.
• By pressing V. SEL for more than 2 seconds, the simultaneous
function is canceled.
Blackout Mode On and Off
When Blackout mode is turned on, the display will turn off to reduce
power consumption.
This additional power enhances the sound quality.
Touch [V.SEL] on the main source screen.
1
The VISUAL selection screen is displayed.
Touch [OFF].
2
The backlit-display portion goes out.
Setting VISUALIZER
This setting is available when the expansion box (VPE-S431) is
connected.
Touch [V.SEL] on the main source screen.
1
The VISUAL selection screen is displayed.
Touch [VISUALIZER].
2
The Visualizer setting screen is displayed. If you do not
touch any button for 5 seconds, the operating display
buttons, [MAIN CONT.] etc., will disappear.
Touch the screen (visual screen only) after the
3
operating display has disappeared.
The VISUALIZER setup mode is displayed.
Select a desired mode by touching [;] or [:] of
4
VISUALIZER within 5 seconds.
MODE1 to MODE6 / OFF:
Recalls the maker’s setting mode on the expansion
box (VPE-S431).
SCAN: Displays the pattern of MODE1 to MODE6 repeatedly.
Canceling the Visualizer Function:
Touch [NORMAL] on the VISUAL selection screen.
• This setting is enabled when OFF is selected for “Setting the
Visual Effect” (this page) and ON is selected for “Connecting and
Setting the External Expansion Box”,“Setting the VISUALIZER
Mode Display” (page 33).
Setting the Visual Effect
This setting becomes available when the expansion box (VPE-S431)
is connected.
Touch [V.SEL] on the visual main source screen.
1
The VISUAL selection screen is displayed.
Touch [VISUALIZER].
2
The Visualizer setting screen is displayed. If you do not
touch any button for 5 seconds, the operating display
buttons, [MAIN CONT.] etc., will disappear.
Touch the screen (visual screen only) after the
3
operation display has disappeared.
The VISUALIZER setup screen appears.
Select “ON” by touching [;] or [:] of V.EFFECT
4
within 5 seconds.
ON: Tur ns on the function for enhancing visual effects when
connected to two or more external monitors.
Set to OFF to cancel.
•V.EFFECT is not displayed when the audio main source is
selected.
• When the visual effect is set to ON, the rear monitor source cannot
be changed from the unit.
• This setting may not be performed while driving.
Touch [OFF] again to cancel the display backlight.
3
• If any button on the unit is pressed during Blackout mode, the
function will be displayed for 5 seconds to show the operation
before returning to Blackout mode.
25-EN
Monitor Setting
Monitor Setting Operation
Following Steps 1 to 4 describe the common procedures for
operating the MONITOR setting function. For details of the
setting function items, refer to descriptions of respective items.
Touch [SYS.] on the main source screen.
1
The SYSTEM selection screen is displayed.
Touch [MONITOR].
2
The MONITOR screen appears.
Touch [;] or [:] of the desired item to change its
3
setting.
Setting items:
TILT / SLIDE / MONITOR O/C (OPEN/CLOSE)
Touch [RETURN] to return to the previous screen.
4
Touch [MAIN CONT.] to return to the main source screen
that was displayed before the setup operation was
started.
Adjusting the Monitor Angle
Adjust the monitor’s angle (between 40 and 105 degrees) for optimum
visibility.
Setting item: TILT
Setting range: 1 to 10
• If the monitor touches an obstacle, remove the obstacle.
• The screen color will vary when viewed at certain angles. Adjust
the screen angle for the best viewing position.
• If the voltage of the vehicle’s battery power is low, the screen may
blink when the screen angle is changed. This is not a malfunction.
Setting Automatic Opening/Closing of the Monitor
Setting item: MONITOR O/C (OPEN / CLOSE)
Setting content: MANUAL / FULL / CLOSE
MANUAL: The monitor is manually opened or closed by
pressing OPEN.
FULL:The monitor automatically opens and closes when
the ignition key is turned to the “ACC” or “ON”
position.
CLOSE:The monitor automatically closes when the ignition
key is turned OFF.
Selecting the Monitor Position
The monitor can be set in 2 positions.
Setting item: SLIDE
Setting content: BACK / FRONT
BACK: Slides the display backwards.
FRONT: Slides the display forwards
• If the monitor is forcibly pushed or pulled, you may not be able to
set the monitor angle or position. In this case, press OPEN for
more than 2 seconds to close the monitor once, and then open the
monitor again.
26-EN
Setup
DVD Setup
DVD Setup Operation
To display the DVD mode screen:
To watch a video source, your vehicle must be parked with
the ignition key in the ACC or ON position. To do this, follow
the procedure below.
1. Bring your vehicle to a complete stop at a safe
location. Engage the parking brake.
2. Keep pushing the foot brake and release the parking
brake once then engage it again.
3. When the parking brake is engaged for the second
time, release the foot brake.
• Fo r automatic transmission vehicles, place the transmission
lever in the Park position.
Now, the locking system for the DVD mode operation has
been released. Engaging the parking brake can reactivate
the DVD mode, as long as the car's ignition has not been
turned off. It is not necessary to repeat the above
procedure (1 through 3), of “To display the DVD mode
screen.”
Each time the ignition is turned OFF, perform the procedure
of “To display the DVD mode screen.”
Display example for DVD setup screen
Touch [;] or [:] to set a desired language.
Touch [ ] or [ ] to turn
pages of setting items.
Touch [CODE] to display the
numeric keypad screen.
Numeric keypad input screen
The numeric keypad is used if you want to
play back in a language other than that
displayed, or to input your parental lock
password, etc.
The DVD Setup operation can be carried out after removing
the disc from the unit.
The following steps 1 to 5 are common operations to each
“Setting item” of DVD Setup. Refer to each section for
details.
Touch [SYS.] on the main source screen.
1
The SYSTEM selection screen is displayed.
Touch [SETUP].
2
The SETUP screen appears.
Touch [] of DVD SETUP.
3
The DVD setup screen appears.
Touch [;] or [:] of the desired item to change its
4
setting.
Setting items:
MENU LANGUAGE / AUDIO LANGUAGE / SUBT. LANGUAGE
/ COUNTRY CODE / PARENTAL / DIGITAL OUT MODE /
OPTICAL OUT / TV SCREEN
Touch [RETURN] to return to the previous screen.
5
Touch [MAIN CONT.] to return to the main source screen
that was displayed before the setup operation was
started.
•
Immediately after inputting titles or changing the settings of DVD
mode (while the system is inputting the titles or data automatically)
do not turn the ignition key (engine key) to OFF.
Otherwise, a title may not be written, or the settings may not be
changed.
Changing the language setting
The audio language, subtitle language and menu language can be set
according to your preferences.
Once set, this becomes the default language. This function is
convenient when you always want to listen in English. (The language
setting is not effective on some discs. If not, the default language is
set from the factory.)
• When the settings are changed, the old settings are overwritten. Make
a note of the current settings before making changes. The settings are
not cleared even when the vehicle’s battery is disconnected.
•To temporarily change the language of the current disc, either do
so from the DVD menu or by using the operation described in the
section “Switching the Audio Tracks” (page 21).
• If the disc does not include the selected language, the disc’s default
language is set.
Continued
27-EN
Setting of the Menu Language
Set the language used for the menus (title menu, etc.).
Setting item: MENU LANGUAGE
Setting contents: AUTO / ENGLISH / GERMAN / FRENCH /
JAPANESE / CODE
• When “AUTO” is selected, the primary menu language among the
recorded ones is played.
Setting of the Audio Language
Set the audio language produced from the speakers.
Setting item: AUDIO LANGUAGE
Setting contents: AUTO/ ENGLISH / GERMAN / FRENCH /
JAPANESE / CODE
• When “AUTO” is selected, the primary audio language among the
recorded ones is played.
Setting of the Subtitle Language
Set the language of the subtitles displayed on the screen.
Setting item: SUBT. LANGUAGE
Setting contents: AUTO / ENGLISH / GERMAN / FRENCH /
JAPANESE / CODE
• When “AUTO” is selected, the primary subtitle language among
the recorded ones is played.
To play in a language other than those displayed
1Touch [CODE].
The numeric keypad screen is displayed.
2Touch the 4-digit numeral of the language number.
As for the language number, refer to “List of Language
codes” (page 59).
3Touch [ENT] to memorize the number.
Changing the Country Code Setting
Set the country code when setting the rating level (Parental lock).
Setting item: COUNTRY CODE
Setting content: CODE
• When the settings are changed, the old settings are overwritten.
Make a note of the current settings before making changes. The
settings are not cleared even when the vehicle’s battery is
disconnected.
1Touch [CODE].
2Touch [ALL DEL] or [BS].
Delete the displayed country number.
3Touch the 4-digit country code.
As for the country number, refer to “List of Country
Codes” (pages 60, 61).
4Touch [ENT] to memorize the code.
Setting the Rating Level (Parental Lock)
This function can help restrict the viewing of movies to children of
appropriate age levels only.
Setting item: PARENTAL
Setting content: INPUT
• When the settings are changed, the old settings are overwritten.
Make a note of the current settings before making changes. Then
settings are not cleared even when the vehicle’s battery is
disconnected.
• On unrated DVDs, playback will not be restricted even if the rating
level is set.
• Once set, this rating level remains in memory until changed. To
enable playback of discs of higher rating levels or to cancel the
parental lock, the setting must be changed.
• Not all DVDs provide a Parental Lock feature. If you are unsure
about a DVD, play it first to confirm. Do not leave DVDs
accessible to young children for whom you deem them
inappropriate.
1Touch [INPUT].
The numeric keypad screen is displayed.
2Touch the numeric keypad to input a 4-digit password.
The initial number is 1111.
Input number are displayed as “∗”.
3Touch [ENT] to memorize the number.
The PARENTAL screen appears.
Set the rating level of PARENTAL
4Touch [;] or [:] of PARENTAL to turn on.
5Touch [;] or [:] of PARENTAL LEVEL to select the
rating level (1 to 8).
Select “OFF” to cancel the parental lock or if you do not
want to set a rating level. The smaller the number, the
higher the rating level.
6Touch [RETURN] to return to the previous screen.
Changing the password
4Touch [INPUT] of PASSWORD CHANGE.
The numeric keypad screen is displayed.
5Touch the input screen to enter a new 4-digit password
•Keep a note of the number somewhere safe in case you should
forget it.
6Touch [ENT] to memorize the number.
7Touch [RETURN] to return to the previous screen.
Changing the rating level temporarily
Some discs may request that you change the rating level set
in the default settings during playback. In this case, the
message appears on the monitor screen “PARENTAL LEVEL
CHANGE OK? [YES] [NO].”
If this screen appears, change the level as follows:
• To change parental level and play, touch [YES].
• To play without changing the parental level, touch [NO].
(When [NO] is touched, playback will be at the parental level
set in “Setting the Rating Level (Parental Lock).”)
Changing the Digital Output Setting
Use the following procedure to set the digital audio signal output from
the IVA-D300.
Setting item: DIGITAL OUT MODE
Setting contents: AUTO / LPCM
AUTO : The digital output is switched automatically according
to the type of audio signals being played.
Be sure to select “AUTO” when you want to connect a
digital audio processor and play Dolby Digital audio.
“AUTO” is the factory setting.
LPCM: The audio signals recorded on the disc are converted
to 48 kHz/16 bit (for DVDs) or 44.1 kHz (for video CDs
and CDs) linear PCM audio signals for output.
28-EN
Audio output/Optical digital audio output
DiscAudio recording
DVD
format
Dolby Digital
Linear
PCM
MPEG2
Video CD
CD
MP3
WMA
MPEG
Audio
Layer3
Bit Rate:
32kbps
320kbps
Windows
Media™
Audio
Bit Rate:
32kbps
320kbps
MPEG1
Linear PCM
~
~
DTS
DTS
48kHz/16bit
48kHz/20bit
48kHz/24bit
96kHz/16bit
96kHz/20bit
96kHz/24bit
32kHz/16bit
44.1kHz/16bit
48kHz/16bit
32kHz/16bit
44.1kHz/16bit
48kHz/16bit
Digital output
setting
AUTO
LPCM
AUTO
LPCM
AUTO
or
LPCM
AUTO
or
LPCM
AUTO
or
LPCM
AUTO
or
LPCM
AUTO
or
LPCM
AUTO
or
LPCM
AUTO or LPCM
AUTO or LPCM
AUTO or LPCM
AUTO
LPCM
AUTO or LPCM
AUTO or LPCM
AUTO or LPCM
AUTO or LPCM
AUTO or LPCM
AUTO or LPCM
Optical digital audio output
(when a digital audio
processor is connected)
DTS Elementary Stream
LPCM Encode
2ch Down mix
(48kHz/16bit)
Dolby Digital
LPCM (48kHz/16bit)
LPCM (48kHz/16bit)
LPCM (48kHz/16bit)
LPCM (48kHz/16bit)
LPCM (48kHz/16bit)
LPCM (48kHz/16bit)
LPCM (48kHz/16bit)
LPCM (48kHz/16bit)
LPCM (44.1kHz)
LPCM (44.1kHz)
DTS Elementary Stream
LPCM Encode
2ch Down mix
(44.1kHz/16bit)
LPCM Encode
2ch
(32kHz/16bit)
LPCM Encode
2ch
(44.1kHz/16bit)
LPCM Encode
2ch
(48kHz/16bit)
LPCM Encode
2ch
(32kHz/16bit)
LPCM Encode
2ch
(44.1kHz/16bit)
LPCM Encode
2ch
(48kHz/16bit)
Analog audio
output (Ai-NET,
RCA output)
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
29-EN
Setting the Digital Output
To connect an audio processor using the optical digital output, set to
“ON” by the following procedure.
Setting item: OPTICAL OUT
Setting contents: OFF / ON
•Afterwards, set ACC to OFF once, then turn it ON again. The
setting of Digital Output is decided.
Setting the TV Screen Setting
Use the procedure described below to modify the output screen
according to the type of TV monitor (rear monitor) being used.
This setting can also be applied for the IVA-D300.
If the rear monitor is not connected, the screen setting is 16:9.
•For some discs, the picture may not be set to the selected screen
size. (For details, refer to the explanation on the disc’s jacket.)
4:3 LETTER BOX:
Select this when connected to a conventional 4:3 size (normal
TV aspect ratio) monitor. There may be black stripes visible at
the top and bottom of the screen (when playing a 16 : 9 size
movie). The width of these stripes will depend upon the
original aspect ratio of the theatrical release of the movie.
GENERAL Setup
General Setup Operation
To display the General mode screen:
To watch a video source, your vehicle must be parked with
the ignition key in the ACC or ON position. To do this, follow
the procedure below.
1. Bring your vehicle to a complete stop at a safe
location. Engage the parking brake.
2. Keep pushing the foot brake and release the parking
brake once then engage it again.
3. When the parking brake is engaged for the second
time, release the foot brake.
• For automatic transmission vehicles, place the
transmission lever in the Park position.
Now, the locking system for the General mode operation
has been released. Engaging the parking brake can
reactivate the General mode, as long as the car's ignition
has not been turned off. It is not necessary to repeat the
above procedure (1 through 3), of “To display the General
mode screen.”
Each time the ignition is turned OFF, perform the procedure
of “To display the General mode screen.”
The following steps 1 to 5 are common operations to each
“Setting item” of GENERAL Setup. Refer to each section for
details.
4:3 PAN-SCAN:
Select this when connected to a conventional 4:3 size monitor.
The picture will fill the entire TV screen. However, due to the
mismatch in aspect ratio, parts of the movie at the extreme left
and right sides will not be visible (when playing a
16 : 9 size movie).
16:9 WIDE:
Select this when connected to a wide screen TV. This is the
factory setting.
Touch [SYS.] on the main source screen.
1
The SYSTEM selection screen is displayed.
Touch [SETUP].
2
The SETUP screen appears.
Touch [] of GENERAL SETUP.
3
The GENERAL setup screen appears.
Touch [;] or [:] of the desired item to change its
4
setting.
Setting items:
CLOCK / CLOCK ADJUST / DAYLIGHT SAVING TIME /
DEMONSTRATION / BEEP / AUTO SCROLL / FM
CONDITION / ADF*1 / PHONE RECEIVE*2 / PLAY MODE
*1Displayed only when XM Satellite Radio Receiver (TUA-T021XM)
is connected.
*2Displayed only when MobileHub (CXA-B200NK) is connected.
Touch [RETURN] to return to the previous screen.
5
Touch [MAIN CONT.] to return to the main source screen
that was displayed before the setup operation was
started.
•Immediately after inputting titles or changing the settings of
General Mode (While the system is inputting the titles or data
automatically) do not turn the ignition key (engine key) to OFF.
Otherwise, the title may not be written, or the settings may not be
changed.
30-EN
Displaying the Time
The clock display is turned off or on respectively.
Setting item: CLOCK
Setting content: OFF / ON
Setting the Time
Setting item: CLOCK ADJUST
Further setting items: HOUR / MINUTE / TIME ADJUST
Setting content:
HOUR:Adjust the hour.
MINUTE: Adjust the minute.
RESET: If the clock shows less than 30 minutes past, the
1-12 / 0-59 / RESET
minute will be “: 00”; more than 30, the hour
advances.
• The clock-adjusting mode is cancelled when the power is turned
off, when [RETURN] or [MAIN CONT.] is touched.
Setting Daylight Saving Time
Setting item: DAYLIGHT SAVING TIME
Setting content: OFF / ON
ON: Place the Summer Time mode ON. The time advances
by one hour.
OFF: Return to the ordinary time.
Demonstration Function
This unit is equipped with a demonstration function capable of
showing basic operations of respective sources on the display.
Setting item: DEMONSTRATION
Setting content: OFF / ON
ON: Tu rns on the demonstration mode to show the basic
operations.
OFF: Tu rns off the demonstration mode.
• The demonstration operation is automatically repeated until the
function is turned off.
Sound (Beep) Guide Function
Setting item: BEEP
Setting content: OFF / ON
ON: Activate the Sound Guide mode.
OFF: Deactivate the Sound Guide mode. The sound guide
beep will not be produced when a button on the unit is
pressed.
Setting the Sound Quality of the Tuner
The IVA-D300 incorporates the MAX TUNE SQ for the highest
quality tuner audio. Moreover, you can choose between 3 settings to
suit your own personal sound preferences and usage.
Setting item: FM CONDITION
Setting content: NORMAL / HI-FI / STABLE
This display can be used only when the optional XM Satellite Radio
Receiver (TUA-T021XM) is connected.
Setting item: ADF
Setting content: OFF/ON
ON: The Auxiliary Data Field is displayed in the XM mode.
OFF: The Auxiliary Data Field is not displayed.
Switching the incoming calls of the telephone
This operation can be carried out only when a cellular phone and
MobileHub (CXA-B200NK) is connected.
Setting item: PHONE RECEIVE
Setting content: AUTO / MANUAL
• The incoming call can be switched to Automatic Calling or Manual
Calling.
Playing MP3/WMA Data
When using discs containing both audio data and MP3/WMA data.
Setting item: PLAY MODE
Setting content: CD / MP3
CD: Plays only the audio data on discs containing both audio
data and MP3/WMA data.
MP3: Plays only the MP3/WMA files on discs containing both
audio data and MP3/WMA data.
• Remove the disc from this unit before setting.
• When an MP3-compatible CD changer is used, this setting cannot
be applied.
Setting the Scroll
Scroll display is available if titles are entered in the disc. Scroll
display of CD text, folder names, file names and tag information is
also enabled.
Setting item: AUTO SCROLL
Setting content: OFF / ON
ON: Tu rns on the AUTO scroll mode. Scroll display is
repeated as long as the mode is turned on.
OFF: Tu rns off the AUTO scroll mode.
Scroll display is done once as a track is changed.
31-EN
SYSTEM Setup
System Setup Operation
To display the System mode screen:
To watch a video source, your vehicle must be parked with
the ignition key in the ACC or ON position. To do this, follow
the procedure below.
1. Brake to bring your vehicle to a complete stop at a
safe location. Engage the parking brake.
2. Keep pushing the foot brake and release the parking
brake once then engage it again.
3. When the parking brake is engaged for the second
time, release the foot brake.
•For automatic transmission vehicles, place the transmission
lever in the Park position.
Now, the locking system for the System mode operation has
been released. Engaging the parking brake can reactivate
the System mode, as long as the car's ignition has not been
turned off. It is not necessary to repeat the above
procedure (1 through 3), of “To display the System mode
screen.”
Each time the ignition is turned OFF, perform the procedure
of “To display the System mode screen.”
The following steps 1 to 5 are common operations to each
“Setting item” of SYSTEM Setup. Refer to each section for
details.
Touch [SYS.] on the main source screen.
1
The SYSTEM selection screen is displayed.
Setting the External Device Interrupt Mode
If an Alpine Ai-NET Auxiliary Input Adapter (KCA-801B) is
connected to the IVA-D300, an Auxiliary Source will be allowed to
interrupt the current audio source. For example, you can listen to a
portable MP3 player through your car audio system even with a CD
changer connected and playing. The CD changer will automatically
mute when switched to the AUX Input. For further details on how to
use the Alpine KCA-801B, see your authorized Alpine dealer.
Setting item: IN INT. MUTE
Setting content: OFF / ON
OFF: The volume level can be adjusted in Interrupt mode.
ON: Sound will not be output. The icon that is set in “Setting
the Interrupt Icon Display” is displayed.
• The auxiliary device being connected must have an Interrupt wire
with a negative trigger for this function to operate automatically.
Otherwise, a separate switch needs to be added to switch it
manually.
Setting the Interrupt Icon Display
The unit can display the icon of an external device, such as a
telephone, whenever a phone call comes in to tell you there is a phone
call.
Setting item: IN INT. ICON
Setting content: INT / TEL
INT: The INT icon appears on the display.
TEL: When the external device (telephone) sends the
interrupt signal, the telephone icon appears on the
display.
• TEL icon on this setting is not related to TEL Link Operation
(pages 55-57).
Touch [SETUP].
2
The SETUP screen appears.
Touch [] of SYSTEM SETUP.
3
The SYSTEM setup screen appears.
Touch [;] or [:] of the desired item to change its
4
setting.
Setting items:
IN INT. MUTE / IN INT. ICON / NAV. IN / NAV. MIX /
EXPANSION BOX*
AUX IN-3*
IN / V.SEL KEY / A. PROC TYPE
*1The setting is effective when the external expansion Box (VPE-
S431) is connected.
*2Displayed when the expansion Box is set to ON.
Touch [RETURN] to return to the previous screen.
5
Touch [MAIN CONT.] to return to the main source screen
that was displayed before the setup operation was
started.
•Immediately after inputting titles or changing the settings of
System Mode (While the system is inputting the titles or data
automatically) do not turn the ignition key (engine key) to OFF.
Otherwise, a title may not be written, or the settings may not be
changed.
1
/ VISUALIZER*2 / AUX IN-1 / AUX IN-2*2 /
2
/ MONITOR OUT-1 / MONITOR OUT-2*2 / CAMERA
Setting the Navigation Mode
When you connect an optional navigation equipment, set it to ON.
Setting item: NAV. IN
Setting contents: OFF / ON
ON: Navigation source is displayed.
OFF: Navigation source is not displayed. The settings related
to the navigation can not be changed from this unit.
Setting the Navigation Interruption
With an Alpine navigation system connected to the IVA-D300, the
voice guidance of the navigation system will be mixed with the radio
or CD play.
Setting item: NAV.MIX
Setting content: OFF / ON
OFF: The navigation interruption mode is turned off.
ON: The navigation interruption mode is on.
To adjust the navigation interruption volume level, the
adjustment for NAV. LEVEL can be performed in “Adjusting the
Audio” on page 22 after setting to ON.
• The audio volume during the navigation guide can be set by
adjusting the audio volume while the navigation guide continues.
When the navigation guide finishes, the previous audio volume and
the previous screen are restored. For exception, if the navigation
cuts in when the audio volume is lower than the setting level, the
audio volume during the navigation guide is reset the current
listening volume. (When the navigation guide cuts in, the audio
volume does not increase.)
• This setting is effective when NAV.IN of SYSTEM list screen is ON.
• When PXA-H510 or PXA-H900 is connected, NAV.MIX value set in
this unit does not affect PXA-H510 or PXA-H900.
32-EN
Connecting and Setting the External Expansion Box
This setting becomes necessary when the optional expansion box
(VPE-S431) is connected.
Setting item: EXPANSION BOX
Setting content: OFF / ON
OFF: Select when the expansion box (VPE-S431) is not
connected.
ON: Select when the expansion box (VPE-S431) is
connected.
Setting the VISUALIZER Mode Display
Select this display when displaying the source names of
VISUALIZER on the VISUAL selection screen.
Note that this setting is enabled only when the optional expansion
box (VPE-S431) is connected.
Setting item: VISUALIZER
Setting contents: OFF / ON
OFF: “VISUALIZER” and source names are not displayed on
the VISUAL selection screen.
ON: “VISUALIZER” and source names are displayed on the
VISUAL selection screen.
Setting the AUX Mode
Setting item: AUX IN-1, 2, 3
Setting content: OFF / ON
OFF: AUX source is not displayed.
ON: AUX source is displayed.
• OFF is not displayed when the optional DVD player or DVD
changer is connected.
• When OFF is selected, the settings related to AUX cannot be
changed from this unit.
• When either DVD player or DVD changer is connected to AUX IN
1, EXT. DVD is displayed on the screen. When both of them are
connected, EXT. DVD is displayed for AUX IN 1 and DVD CHG is
displayed for AUX IN 2.
•AUX IN 2,3 is displayed when the external expansion box (VPES431) is connected.
Naming External Devices
When more than one external device is connected, you can name each
(up to 3) as you like. After setting to ON in "Setting the AUX mode,"
touch any one of the [] buttons of AUX IN 1 through 3, then this
setting may be carried out.
Setting items: NAME
Setting contents: AUX / VCR / GAME-1,2 / TV / NAV.
• The selected source name is displayed instead of AUX source
name. When a source is selected, the Function Guide of AUX mode
appears.
• Only AUX IN-3 MODE can be named “NAV.” When AUX mode is
selected, “NAV.” is displayed as the source name.
This setting is recomended if you view the navigation screen on the
rear monitor. However, it is available only when the Alpine
navigation system (except RGB navigation) is connected.
• Only when an Alpine TV tuner is connected, can you operate the
displayed function guide from this unit.
Adjusting the External Input Audio Level
After setting to ON in "Setting the AUX mode," touch any one of the
[] buttons of AUX IN 1 through 3, then this setting may be carried
out.
Setting item: LEVEL
Setting content: LOW / HIGH
LOW: Decreases the external input audio level
HIGH: Increases the external input audio level
Setting of the External Monitor Output
Set it to ON when you use the rear entertainment function (page 23).
Setting items: MONITOR OUT-1, 2
Setting contents: OFF / ON
ON: By setting the connected external monitor to ON, the
remote control will be usable.
OFF: When either MONITOR OUT 1 or 2 is set to OFF, only
one monitor can be set by the rear enter function.
When both MONITOR OUT 1 and 2 are set to OFF,
REAR SELECT, which is displayed on the SYSTEM
selection screen, cannot be used.
• “MONITOR OUT-2” is displayed when “ON” is set in
“Connecting and Setting the External Expansion Box” on page 33.
Setting of the Rear Camera
When the rear camera is connected, rear pictures are output on the
screen.
Setting item: CAMERA IN
Setting contents: OFF / ON
ON: Even if the shift lever is not set to reverse (R), the rear
pictures are output by pressing V.SEL and selecting the
CAMERA source.
OFF: The rear pictures are not output.
• By shifting to reverse (R), the rear pictures are output.
This function is effective when the reverse wire is properly
connected.
Setting Visual Mode
This setting changes the function of the V.SEL button on the unit.
Setting item: V.SEL KEY
Setting content: V.SEL / NAV.
NAV.: Pressing V. SEL directly switches to the navigation
screen. (Only when an Alpine optional RGB Navigation
is connected.)
V.SEL: Press V. SEL to recall the VISUAL Select screen.
33-EN
Optical Digital Input Selection for an External Audio
Processor
Make sure “OPTICAL OUT” is ON in “Setting the Digital Output”
(page 30) before switching this setting.
Setting item: A.PROC TYPE
Setting contents: PXA-H510 / OTHER
OTHER:
When connecting any audio processor via an optical
digital cable except the PXA-H510.
Connect the optical digital input connector with the
connector for the Head unit.
PXA-H510:
When connecting PXA-H510.
Connect the optical digital input connector with the
connector for the DVD.
•After input selection is completed, turn ignition OFF and back ON
again. Your setting of the optical digital input switch is completed.
DISPLAY Setup
Display Setup Operation
To display the Display mode screen:
To watch a video source, your vehicle must be parked with
the ignition key in the ACC or ON position. To do this, follow
the procedure below.
1. Bring your vehicle to a complete stop at a safe
location. Engage the parking brake.
2. Keep pushing the foot brake and release the parking
brake once then engage it again.
3. When the parking brake is engaged for the second
time, release the foot brake.
• Fo r automatic transmission vehicles, place the transmission
lever in the Park position.
Now, the locking system for the Display mode operation has
been released. Engaging the parking brake can reactivate
the Display mode, as long as the car's ignition has not been
turned off. It is not necessary to repeat the above procedure
(1 through 3), of “To display the Display mode screen.”
Each time the ignition is turned OFF, perform the procedure
of “To display the Display mode screen.”
The following steps 1 to 5 are common operations to each
“Setting item” of DISPLAY Setup. Refer to each section for
details.
Touch [SYS.] on the main source screen.
1
The SYSTEM selection screen is displayed.
Touch [RETURN] to return to the previous screen.
5
Touch [MAIN CONT.] to return to the main source screen
that was displayed before the setup operation was
started.
•Immediately after inputting titles or changing the settings of
Display Mode (While the system is inputting the titles or data
automatically) do not turn the ignition key (engine key) to OFF.
Otherwise, a title may not be written, or the settings may not be
changed.
Illumination Control
Backlighting is provided by a fluorescent light built into the liquid
crystal panel. The illumination control adjusts the brightness of the
backlighting based on the car ambient lighting for easier viewing.
Setting item: DIMMER
Setting content: OFF / ON / AUTO
OFF:Deactivate Auto Dimmer mode to keep the
background illumination of the monitor bright.
ON:Keep the background illumination of the monitor dark.
AUTO : Adjust the brightness of the background illumination
of the monitor automatically to the brightness of the
car interior.
However, when set to AUTO with the monitor closed,
the button lighting will become active when the
headlights are turned on. (This is not functional if the
illumination lead of the unit is not connected).
Adjusting the Minimum Level of Backlight
You can adjust the brightness of the backlight (LOW). This function
could be used, for instance, to change the screen brightness while
travelling at night.
Setting item: DIMMER LOW LEVEL
Setting content: -15 to +15
You can adjust the level between MIN (-15) and MAX (+15).
When it reaches the minimum or maximum point, the display
shows “MIN” or “MAX” respectively.
Switching Background Textures
You have a choice of 5 different background textures preset at the
factory.
Setting item: BACKGROUND
Setting content: MODE1 to 5
• When you select a source other than the built-in disc on this unit,
and the built-in disc is selected on the rear monitor connected to
the unit, background textures cannot be displayed on the unit.
• When an error message is displayed (ERROR, HI-TEMP, etc.),
background textures selected by this setting cannot be displayed on
the unit.
Touch [SETUP].
2
The SETUP screen appears.
Touch [] of DISPLAY SETUP.
3
The DISPLAY setup screen appears.
Touch [;] or [:] of the desired item to change its
4
setting.
Setting items:
DIMMER / DIMMER LOW LEVEL / BACKGROUND / AUTO
BACKGROUND / FONT TYPE / FONT COLOR / TOUCH
PANEL / SCREEN ALIGNMENT
34-EN
Setting Automatic Background Textures
Turn on the Automatic Background Texture Scroll to automatically
change background texture. The background texture will change each
time the ignition key is turned off and turned back on again (5
textures).
Setting item: AUTO BACKGROUND
Setting content: OFF / ON
ON: Tu rn on the Auto Background Texture Scroll mode.
The background textures will scroll when the ignition key
is turned off once and turned back on again as follows:
MODE1 → MODE2 → MODE3 → MODE4 →
MODE5→ MODE1
OFF: Tu rn off the Auto Background Texture Scroll mode.
Setting the Font Type
You can choose a character (text and tag information, etc.) font type
for the main display.
Setting item: FONT TYPE
Setting content: FONT 1 / FONT 2
You can choose from 5 different display colors for the font back
(source title, shortcut display, etc.).
Setting item: FONT COLOR
Setting contents: MODE 1 to MODE 5
Turning the Touch Panel Vibration ON or OFF
You can turn the touch panel’s vibration ON or OFF during operation.
Setting item: TOUCH PANEL
Setting content: NORMAL / FORCE
NORMAL: Tu rns off vibration during operation.
FORCE: Tu rns on vibration during operation.
Adjusting the Touch Panel
Adjustment becomes necessary when the display position on the LCD
and the touch position on the touch panel do not match.
Setting item: SCREEN ALIGNMENT
Setting content:
1Touch [] of SCREEN ALIGNMENT.
The adjustment screen appears.
2 Accurately touch the mark provided in the lower left
corner of the screen.
The screen changes to the adjustment screen.
3 Accurately touch the mark provided in the upper
right corner of the screen.
This completes adjustment, and returns to the DISPLAY
setup mode screen.
• If you have touched a location other than the mark, touch
[RESET] to restore the adjustment screen to the initial setting.
• If you touch [RETURN] on the adjustment screen, no adjustment is
done and the DISPLAY setup screen is restored.
/ RESET
i-Personalize
TM
Media Xpander Function
Setting the MX mode
To display the i-Personalize mode screen:
To watch a video source, your vehicle must be parked with
the ignition key in the ACC or ON position. To do this, follow
the procedure below.
1. Bring your vehicle to a complete stop at a safe
location. Engage the parking brake.
2. Keep pushing the foot brake and release the parking
brake once then engage it again.
3. When the parking brake is engaged for the second
time, release the foot brake.
•For automatic transmission vehicles, place the transmission
lever in the Park position.
Now, the locking system for the i-Personalize mode
operation has been released. Engaging the parking brake
can reactivate the i-Personalize mode, as long as the car's
ignition has not been turned off. It is not necessary to
repeat the above procedure (1 through 3), of “To display
the i-Personalize mode screen.”
Each time the ignition is turned OFF, perform the procedure
of “To display the i-Personalize mode screen.”
MX (Media Xpander) makes vocals or instruments sound distinct
regardless of the music source. The radio, CD, and MP3, will be able
to reproduce the music clearly even in cars with a lot of road noise.
Touch [SYS.] on the source main screen.
1
The SYSTEM selection screen is displayed.
Touch [i-Personalize].
2
The screen changes to the i-Personalize.
Touch [;] or [:] of MEDIA XPANDER to turn MX
3
ON or OFF.
OFF: MX mode is canceled for all music sources.
ON: The selected MX mode is turned on.
After setting to ON, touch [].
4
The screen changes to the Media Xpander setting screen.
Continued
35-EN
Touch [;] or [:] of the desired MX mode.
5
The level of the audio source can be adjusted.
MX CD (OFF, CD1 to 3)
The large quantity of uncompressed CD data is
processed to reproduce the sound with more clarity.
MX COMPRESS MEDIA (OFF, CMPM1 to 3)/MX XM
(OFF, XM1 to 3)
This corrects information that was omitted at the time of
compression. This reproduces a well-balanced sound
close to the original.
MX FM (OFF, FM1 to 3)
The medium to high frequencies become more clear, and
produces well balanced sound in all the bands.
MX DVD (OFF, MOVIE 1 to 2)
The dialog portion of the video is reproduced more
clearly.
(DVD MUSIC)
This disk contains a large quantity of data such as a
music clip. MX uses this data to reproduce the sound
accurately.
MX AUX 1 to 3 (OFF, MP3, MOVIE, MUSIC)
Choose the MX mode (MP3, MUSIC, or MOVIE) that
corresponds to the media connected.
Bass Engine Function
Setting the Bass Engine
The following steps 1 to 6 are common operations to each
“Setting item” of bass engine Setup. Refer to each section for
details.
1 Touch [SYS.] on the source main screen.
The SYSTEM selection screen is displayed.
Touch [i-Personalize].
2
The i-Personalize screen appears.
Touch [] of BASS ENGINE.
3
The screen changes to the Bass Engine setting screen.
• When OFF is selected, MX effect of each MX mode will be off.
• Each music source, such as radio, CD and MP3 can have its own
MX setting.
•AUX is displayed when ON is selected in “Setting the AUX Mode”
(page 33).
• MX mode does not function for AM radio when MX is ON.
• MX COMPRESS MEDIA is applied for MP3/WMA, MMD.
• If the unit is connected to an audio processor with the MX function,
such as PXA-H700, etc., the MX processing can be applied to the
audio processor. In this case the audio processor needs to be
adjusted. For details, refer to the Owner’s Manual of the audio
processor.
• This function is inoperable when Defeat is set to ON.
5 Touch [;] or [:] of the selected setting item, and
change the setting.
• When setting is complete, storing in memory is recommended.
Touch [RETURN].
6
The screen returns to the previous one.
Selecting Bass EQ mode (Maker's setting)
10 typical equalizer settings are preset at the factory for a variety of
musical source material.
Setting item: BASS MAX EQ
Setting contents: FLAT / ROCK / POPS / JAZZ / ELECTRIC /
HIPHOP / EASY / COUNTRY / CLASSIC / NEWS / CUSTOM
* Contents that are adjusted in parametric EQ.
Adjusting and Storing/Recalling the Parametric EQ
The frequency bands of the graphic equalizer are fixed. This makes it
very difficult to correct for undesired peaks and dips at specific
frequencies. The parametric equalizer’s center frequency can be tuned
to these specific frequencies. Then, the bandwidth (Q) and level are
fine-tuned, independently, to make the necessary corrections. The
parametric equalizer function is an advanced tool for serious
audiophiles.
Setting item: P-EQ
Further setting items: HIGH / MID-HIGH / MID-LOW / LOW
Setting contents: FREQ / LEVEL / Q
1Touch [] of P-EQ.
The screen changes to the P-EQ setup screen.
2Touch a desired item for adjustment.
FREQ: Adjusts the center frequency.
LEVEL: Adjusts the level.
Q:Adjusts the bandwidth (Q).
*
36-EN
3After the necessary selection is done in Step 2 above,
adjust a desired band by touching [;] or [:]
corresponding to that band.
cannot be adjusted in HIGH).
MID-HIGH:1.0, 2.0, 3.0
MID-LOW: 1.0, 1.5, 2.0
LOW:1.0, 2.0, 3.0
• If you set the parametric EQ, BASS EQ setting content is set to
"CUSTOM."
4 When adjusting another band, repeat Steps 2 and 3
above.
5Touch [RETURN] to return to the previous screen.
Storing Adjusted Contents
The following operation is performed after Step 5 above.
6Touch [MEMORY].
7Within 5 seconds, touch any one of preset buttons
[P.SET 1] through [P.SET 6] on the BASS ENGINE
screen.
The adjusted contents are stored on the P.SET number
you touch.
• The stored contents on the P.SET number remain undeleted despite
a following reset operation or disconnection of the battery power
cord.
• Adjusted/set contents of each setting item in Bass Engine can be
stored in the preset buttons (1 through 6).
Recalling the Adjusted and Stored Contents
Following operation is performed after Step 5 above.
6Touch any one of [P.SET 1] to [P.SET 6] on the BASS
ENGINE screen.
Recall the adjusted and stored contents.
• The frequencies of adjacent bands cannot be adjusted within 4
steps.
• This function is inoperable when Defeat is set to ON.
About the Time Correction
The distance between the listener and the speakers in a car vary
widely due to the special conditions of the mobile environment. This
difference in the distances from the speakers to the listener creates a
shift in the sounds image and frequency characteristics. This is caused
by the time delay between the sound reaching the listener’s right
versus left ear.
To correct this, the IVA-D300 is able to delay the audio signal to the
speakers closest to the listener. This effectively creates a perception of
increased distance for those speakers. The listener can be placed at an
equal distance between the left and right speakers for optimum
staging.
The adjustment will be made for each speaker in a step of 0.1 ms.
Example 1. Listening Position: Front Left Seat
Adjust the time correction level of the front left speaker to a
high value and the rear right to zero or a low value.
5.1ms
0.5m
2.25m
∗
Tips
*
Subwoofer speaker
You cannot change the time correction value for the
subwoofer, but you can set the subwoofer's apparent position
to the front by adjusting the time correction value of the front
and rear speakers.
For details, refer to the “Tips” on page 39.
∗
Here we calculate the time correction value for the front left
speaker in the diagram above.
Conditions:
Farthest Speaker – listening position:2.25 m (88-9/16")
Front left speaker – listening position: 0.5 m (19-11/16")
Calculation: L = 2.25 m – 0.5 m = 1.75 m (68-7/8")
Time correction = 1.75 ÷ 343
**
Speed of sound: 343 m/s (765 mph) at 20˚C
**
× 1000 = 5.1 (ms)
The sound is not balanced because the distance between the
listening position and the various speakers is different.
The difference in distance between the front left speaker and
the rear right speaker is 1.75 m (68-7/8").
Time correction eliminates the differences in the time required
for the sound to reach the listening position.
The time of the front left speaker is corrected by 5.1 ms so that
its sound reaches the listening position at the same time as the
sound of other speakers.
In other words, giving the front left speaker a time correction
value of 5.1 ms makes it seem as if the distance to the front left
speaker is the same as the distance to the farthest speaker.
Continued
37-EN
Example 2. Listening Position: All Seats
Adjust the time correction level of each speaker to almost the
same level.
1Sit in the listening position (driver’s seat, etc.) and
measure the distance (in meters) between your head
and the various speakers.
2 Calculate the difference between the distance to the
farthest speaker and the other speakers.
L = (distance to farthest speaker) – (distance to other
speakers)
3Divide the distances calculated for the speakers by the
speed of sound (343 m/s (765 mph) at 20˚C).
These values are the time correction values for the
different speakers.
Adjusting and Storing/Recalling the Bass Focus
The time difference between the front-rear/left-right speakers, can be
adjusted at the same time. With an initial delay of 0.1 ms for each of
the 0 to 99 steps, audible time correction can be done.
Setting item: BASS FOCUS
Setting contents: 0-99
1Touch [] of BASS FOCUS.
The screen changes to the BASS FOCUS setup screen.
2 Set the delay number in the front and rear as well as on
the right and left by touching either button [;] or [:] of
the front, rear, right and left speakers.
3 Repeat the Step 2 above to set another channel
(speaker).
4Touch [RETURN] to return to the previous screen.
• Any manual time correction adjustments will also affect
corrections made for bass focus.
Storing Adjusted Contents
The following operation is performed after Step 4 above.
5Touch [MEMORY].
6Within 5 seconds, touch any one of preset buttons
[P.SET 1] through [P.SET 6] on the BASS ENGINE
screen.
The adjusted contents are stored on the P.SET number
you touch.
• The stored contents on the P.SET number remain undeleted despite
a following reset operation or disconnection of the battery power
cord.
• Adjusted/set contents of each setting item in Bass Engine can be
stored in the preset buttons (1 through 6).
Recalling the Adjusted and Stored Contents
Following operation is performed after Step 4 above.
5Touch any one of [P.SET 1] to [P.SET 6] on the BASS
ENGINE screen.
Recall the adjusted and stored contents.
Time Difference Table
Number of
Steps
Time
Difference
(ms)
0
0.0
1
0.1
2
0.2
3
0.3
4
0.4
5
0.5
6
0.6
7
0.7
8
0.8
9
0.9
10
1.0
11
1.1
12
1.2
13
1.3
14
1.4
15
1.5
16
1.6
17
1.7
18
1.8
19
1.9
20
2.0
21
2.1
22
2.2
23
2.3
24
2.4
25
2.5
26
2.6
27
2.7
28
2.8
29
2.9
30
3.0
31
3.1
32
3.2
33
3.3
34
3.4
35
3.5
36
3.6
37
3.7
38
3.8
39
3.9
40
4.0
41
4.1
42
4.2
43
4.3
44
4.4
45
4.5
46
4.6
47
4.7
48
4.8
49
4.9
50
5.0
Distance
cm (inch)
0.0
3.4 (1-3/8")
6.9 (2-3/4")
10.3 (4-1/16")
13.7 (5-3/8")
17.2 (6-13/16")
20.6 (8-1/8")
24.0 (9-7/16")
27.4 (10-13/16")
30.9 (12-3/16")
34.3 (13-1/2")
37.7 (14-13/16")
41.2 (16-1/4")
44.6 (17-9/16")
48.0 (18-7/8")
51.5 (20-1/4")
54.9 (21-5/8")
58.3 (22-15/16")
61.7 (24-1/4")
65.2 (25-5/8")
68.6 (27")
72.0 (28-3/8")
75.5 (29-11/16")
78.9 (31-1/16")
82.3 (32-3/8")
85.8 (33-3/4")
89.2 (35-1/8")
92.6 (36-7/16")
96.0 (37-3/4")
99.5 (39-13/16")
102.9 (40-1/2")
106.3 (41-7/8")
109.8 (43-1/4")
113.2 (44-9/16")
116.6 (45-7/8")
120.1 (47-5/16")
123.5 (48-5/8")
126.9 (49-15/16")
130.3 (51-5/16")
133.8 (52-11/16")
137.2 (54")
140.6 (55-3/8")
144.1 (56-3/4")
147.5 (58-1/16")
150.9 (59-3/8")
154.4 (60-3/4")
157.8 (62-1/8")
161.2 (63-7/16")
164.6 (64-3/4")
168.1 (66-3/16")
171.5 (67-1/2")
Number of
Steps
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
Time
Difference
(ms)
5.1
5.2
5.3
5.4
5.5
5.6
5.7
5.8
5.9
6.0
6.1
6.2
6.3
6.4
6.5
6.6
6.7
6.8
6.9
7.0
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
7.9
8.0
8.1
8.2
8.3
8.4
8.5
8.6
8.7
8.8
8.9
9.0
9.1
9.2
9.3
9.4
9.5
9.6
9.7
9.8
9.9
Distance
cm (inch)
174.9 (68-7/8")
178.4 (70-1/4")
181.8 (71-9/16")
185.2 (72-7/8")
188.7 (74-1/4")
192.1 (75-5/8")
195.5 (77")
198.9 (78-5/16")
202.4 (79-11/16")
205.8 (81")
209.2 (82-3/8")
212.7 (83-3/4")
216.1 (85-1/16")
219.5 (86-3/8")
223.0 (87-3/4")
226.4 (89-1/8")
229.8 (90-1/2")
233.2 (91-13/16")
236.7 (93-3/16")
240.1 (94-1/2")
243.5 (95-7/8")
247.0 (97-1/4")
250.4 (98-9/16")
253.8 (99-7/8")
257.3 (101-1/4")
260.7 (102-5/8")
264.1 (104")
267.5 (105-5/16")
271.0 (106-11/16")
274.4 (108-1/16")
277.8 (109-3/8")
281.3 (110-3/4")
284.7 (112-1/16")
288.1 (113-1/16")
291.6 (114-3/4")
295.0 (116-1/8")
298.4 (117-1/2")
301.8 (118-13/16")
305.3 (120-3/16")
308.7 (121-1/2")
312.1 (122-7/8")
315.6 (124-1/4")
319.0 (125-9/16")
322.4 (126-7/8")
325.9 (128-5/16")
329.3 (129-5/8")
332.7 (131")
336.1 (132-5/16")
339.6 (133-11/16")
38-EN
Example of Bass Focus Setting
1After entering corrections for the front (left and right)
speakers in STEP 15, the time difference is 1.5 ms for
both front-left and front-right speakers.
1.5ms
∗
1.5ms
2After entering corrections for the left (front and rear)
speakers in STEP 15, the time difference becomes 3.0
ms** for the front left speaker and 1.5 ms for the left
rear speaker.
**
Because the time difference was already set to 1.5 ms for the
front left speaker in STEP 1, the additional correction in
STEP 15 makes the time difference of the front left speaker 3.0
ms.
3.0ms
1.5ms
1.5ms
1.5ms
∗
Tips
*
Subwoofer speaker
Delay (turn the rotary encoder) the audio signal to the front
(left and right) speakers to make the apparent position of the
subwoofer to be at the front. In doing this, the apparent
position between the front (left and right) speakers and
subwoofer will appear equal to the driver. After performing
above, you can change the positions of left and right speakers
by delaying the time.
1.5ms
Storing the Adjusted Contents
The storing/recalling of time correction operation is performed after
Step 4 above.
5Touch [MEMORY].
6
Within 5 seconds, touch any one of preset buttons
[P.SET 1] through [P.SET 6] on the BASS ENGINE screen.
The adjusted contents will be stored on the preset
number you touch.
• The stored contents on the P.SET number remain undeleted despite
a reset operation or disconnection of the battery power cord.
• Adjusted/set contents of each setting item in Bass Engine can be
stored in the preset buttons (1 through 6).
Recalling the Stored Time Correction Setting
The storing/recalling of time correction operation is performed after
Step 4 above.
5Touch any one of [P.SET 1] to [P.SET 6] on the BASS
ENGINE screen.
The stored adjusting contents will be recalled.
Adjustment and Storing/Recalling of the Built-in Crossover
The High and Low Pass Filters on this unit can be adjusted to suit
your personal taste.
Setting item: X-OVER
Setting contents: LPF / HPF
1Touch [] of X-OVER.
The screen changes to the X-OVER setup screen.
2 Adjust LPF/HPF by touching [;] or [:] of LPF or HPF.
LPF: Outputs all frequencies lower than that selected
according to your preference.
(Only available when using the subwoofer output from
this unit.)
HPF: Outputs all frequencies higher than that selected
according to your preference.
3Touch [RETURN] to return to the previous screen.
• When the subwoofer output of this unit is turned OFF, LPF and
phase are deactivated.
• Except when the HPF and LPF is turned OFF, the subwoofer is in
monaural mode.
Continued
Adjustment and Storing/Recalling of Time
Correction
Before performing the following procedures, refer to “About the Time
Correction” (page 37).
2Touch [;] or [:] of the desired speaker to adjust the
time correction value (0.0 to 9.9).
3 Repeat Step 2 above to set another speaker.
4Touch [RETURN] to return to the previous screen.
• The setting contents which have been set in “Time Correction” are
applied for the Bass Focus mode.
39-EN
Storing the Adjusted Contents
Following operation is performed after Step 3 above.
4Touch [MEMORY].
5
Within 5 seconds, touch any one of preset buttons
[P.SET 1] through [P.SET 6] on the BASS ENGINE screen.
The adjusted contents will be stored on the preset
number you touch.
• The stored contents on the P.SET number remain undeleted despite
a reset operation or disconnection of the battery power cord.
• Adjusted/set contents of each setting item in Bass Engine can be
stored in the preset buttons (1 through 6).
Recalling the Stored Adjusting Contents
Following operation is performed after Step 3 above.
4Touch any one of [P.SET 1] to [P.SET 6] on the BASS
ENGINE screen.
The stored adjusting contents will be recalled.
Subwoofer On and Off
Setting item: SUBWOOFER
Setting contents: OFF / 0° / 180°
OFF: Subwoofer output is off.
0°:Subwoofer output is on, and the phase is 0°.
180°: Subwoofer output is on, and the phase is 180°.
• Adjusted/set contents of each setting item in Bass Engine can be
stored in the preset buttons (1 through 6).
VISUAL EQ
TM
Visual EQ Setting Operation
The following steps 1 to 6 are common operations to each
“Setting item” of VISUAL EQ setting. Refer to each section
for details
* The setting is available in the visual source mode. (except
navigation screen)
Change the setting on the selected item by
5
touching its [;] or [:].
Touch [RETURN] to return to the previous screen.
6
Touch [MAIN CONT.] to return to the main source screen
that was displayed before the setup operation was
started.
Selecting the VISUAL EQ Mode (Maker’s setting)
You can select a mode suitable for the subject image.
Setting item: VISUAL EQ
Setting contents: OFF (FLAT) / NIGHT M. / SOFT / SHARP /
CONTRAST / P-1 / P-2
OFF (FLAT): Initial Setting
NIGHT M.: Suitable for movies in which dark scenes
SOFT:Suitable for CGs and animated films.
SHARP:Suitable for old movies where images are not
CONTRAST:Suitable for recent movies.
P-1:Recalls the VISUAL EQ mode being stored on
P-2:Recalls the VISUAL EQ mode being saved on
•To return to the initial setting after selecting any one of the setting
contents (NIGHT M. to CONTRAST) and adjusting a desired
brightness, picture tint, etc., set this function to OFF.
• If your desired brightness, picture tint, etc., are adjusted after
selecting any one of the setting contents (NIGHT M. to
CONTRAST), “CUSTOM” is displayed.
Adjusting Brightness
Setting item: BRIGHT
Setting content: -15 ~ +15
You can adjust the brightness between MIN (–15) and MAX (+15).
When it reaches the minimum or maximum point, the display shows
"MIN" or "MAX" respectively.
frequently appear.
clearly shown.
preset No.P-1 from “Storing VISUAL EQ” (page
41).
preset No.P-2 from “Storing VISUAL EQ” (page
41).
40-EN
Adjusting Color of Picture
Setting item: COLOR
Setting content: -15 ~ +15
You can adjust the color between MIN (–15) and MAX (+15). When
it reaches the minimum or maximum point, the display shows "MIN"
or "MAX" respectively.
• Color adjustment can be made only in the navigation, DVD, AUX1
and AUX2 modes.
• Color adjustment cannot be made if a Navigation system with the
RGB feature is connected.
Adjusting Tint of Picture
Setting item: TINT
Setting content: G15 ~ R15
Adjust the color from G15 to R15. “G MAX” or “R MAX” is
displayed at the maximum of each color.
•Tint adjustment can be made only in the navigation, DVD, AUX1
and AUX2 modes.
•Tint adjustment cannot be made if a Navigation system with the
RGB feature is connected.
Adjusting Image Contrast
Setting item: CONTRAST
Setting content: -15 to +15
Adjustment of contrast is done in the range of -15 to +15.
“HIGH” and “LOW” appear as the maximum and minimum
values specified.
Adjusting Picture Quality
Setting item: SHARP
Setting content: -15 to +15
Adjustment of picture quality is done in the range of -15 to
+15. “HARD” and “SOFT” appear as the maximum and
minimum values specified.
•Picture quality adjustment can be made only in the navigation,
DVD, AUX1 and AUX2 modes.
•Picture quality adjustment cannot be made if a Navigation system
with the RGB feature is connected.
Data Download
About SOUND SETUP Download
You can download data (from Alpine’s website) to a CD-R/CD-RW or
HDD, and download and store the data to the IVA-D300.
To start SOUND SETUP download, access the URL below and follow
the on-screen instructions.
http://www.alpine.com or http://www.alpine-europe.com
or http://www.alpine.com.au
Downloadable data
Parametric
equalizer
Time correction
Crossover
The file name of download data shall be
“A_U*****.MP3.”
A_U∗∗∗∗∗.MP3
You can create a file name via the website. Do not change a
file name once it has been created. Malfunction may result.
•For details about procedures of download, see ALPINE’s Web site.
• If a external audio processor is connected, data that is downloaded
cannot be used.
Data is memorized in Preset 6 of the
Parametric EQ Mode.
Data is memorized in Preset 6 of the
Time Correction Mode.
Data is memorized in Preset 6 of the
crossover mode.
Extender (fixed)
Identifier (alphabet or number 5
letters maximum)
Header (fixed)
Storing VISUAL EQ
You can store the settings made for “Adjusting Image Brightness,
Tint, Depth, Picture Quality and Contrast.”
Setting item: USER MEMORY
Setting content: P-1/P-2
Picture Quality, and Contrast” (this page), touch [;] or
[:] of USER MEMORY and then select preset No. [P-1]
or [P-2] to which the settings are to be stored.
2After selecting a preset No., touch [WRITE].
The adjusted VISUAL EQ mode is stored by the above
operations.
•You can recall the VISUAL EQ mode stored here from P-1 or P-2
of “Selecting the VISUAL EQ Mode” (page 40).
41-EN
Data Downloading
Insert the CD-R/CD-RW disc containing the data.
1
• If the optional HDA-5460 is connected, steps 2 to 7 can be
performed after the data has downloaded removable hard disc. The
MM DRIVER main source screen can then be selected on this unit.
• If audio data is contained in a CD-R/CD-RW, set to “MP3” in
“Playing MP3/WMA Data” (page 31).
Touch [SYS.].
2
The SYSTEM selection screen appears.
Touch [i-Personalize].
3
The i-Personalize screen appears.
Touch [] of DATA DOWNLOAD.
4
Touch [] of SOUND SETUP.
5
The unit starts searching the disc for data. When the data
search has completed, the Data Download file selection
screen is displayed.
• If a file is not found by the data search, “NO FILE” is indicated.
Touch [] of file which is to be downloaded.
6
Data downloading starts.
When data has been successfully downloaded, the
confirmation screen is displayed for 5 seconds, and the
screen returns to the file selection screen.
PARAMETRIC EQ data
The data is memorized in Preset 6 of Parametric EQ mode.
The memorized data settings in Preset 6 (Parametric EQ
mode) are automatically applied.
X-OVER (Crossover) data
The data is memorized in Preset 6 of X-OVER mode. The
memorized data settings in Preset 6 (X-OVER mode) are
automatically applied.
TIME CORRECTION data
The data is memorized in Preset 6 of the Time correction
mode. The memorized data settings in Preset 6 (Time
Correction mode) are automatically applied.
Touch [RETURN] to return to the previous screen.
7
Touch [MAIN CONT.] to return to the main source screen
which was previously set.
• When you download the data again, the data is overwritten in
Preset 6.
Setting AMP Link (Optional)
Adjusting and Storing/Recalling the External
Amplifier (Option)
When an external amplifier (MRD-M301 or MRD-M501) is
connected, you can set it from this unit. Up to eight amplifiers can be
set.
• If amplifier settings are made on the unit, do not then change the
setting with the amplifier buttons, as the amplifier display may not
match the operation of the unit.
Touch [SYS.] on the main source screen.
1
The SYSTEM selection screen appears.
Touch [i-Personalize].
2
The i-Personalize screen appears.
Touch [] of AMPLIFIER LINK.
3
The AMPLIFIER LINK list screen* appears.
* Connected external amplifiers are listed, and their temperature
Fahrenheit (°F), voltage, and electric current are displayed.
•For details of the adjustment mode, refer to the Owner’s Manual of
the external amplifier.
To adjust another amplifier, touch [RETURN] and
6
then repeat Steps 4 and 5 above.
Touch [RETURN] to return to the previous screen.
7
Touching [MAIN CONT.] restores the main source screen
that was displayed before amplifier adjustment was
started.
Storing Contents of the Amplifier Adjustment
1After adjusting the amplifier, select P-1 or P-2 by
touching [;] or [:] of MEMORY WRITE from the
adjustment mode list.
2Touch [WRITE].
The contents of the adjustment will be stored on the
preset number you have touched.
• The stored information remains undeleted even if a reset operation
is performed, or if the battery cord is disconnected.
42-EN
Recalling the Stored Contents of Amplifier
Adjustment
1 Select P-1 or P-2 by touching [;] or [:] of MEMORY
READ from the adjustment mode list.
2Touch [READ].
Stored adjustment data will be recalled.
Titling the Amplifier
From the AMPLIFIER LINK list screen, touch []
1
of an amplifier to which a title is to be given.
The adjustment mode list screen appears.
Touch [] of NAME.
2
The title input screen appears.
Touch the desired character symbols.
3
You can use up to 8 characters.
After the input, touch [ENT] to confirm your entry.
4
As the entry is confirmed, the screen immediately before
the current one will be restored, and the title that has been
entered from the AMPLIFIER LINK list screen is shown.
Displaying Status of External Amplifier
You can display the status of the connected external amplifier (MRDM301 or MRD-M501) for AMP Link.
Touch [V.SEL] on the main source screen.
1
The VISUAL selection screen appears.
Touch [AMP STATUS].
2
The AMP status screen appears.
Display Example for AMP status screen
1
External Audio Processor
(Optional)
When an external audio processor is connected to this unit, you can
operate it from this unit. Some audio processors may not be operated.
When PXA-H510 or PXA-H900 is connected, some of the operations
may not be performed from this unit. In this case, operate them in the
connected product. Explanations below is the case when PXA-H700
or PXA-H701 is connected for example.
Refer also to the operating instructions of the connected audio
processor.
• The adjustments or settings performed on the connected audio
processor cannot be operated properly from this unit.
To display the Audio processor mode screen:
To watch a video source, your vehicle must be parked with
the ignition key in the ACC or ON position. To do this, follow
the procedure below.
1. Bring your vehicle to a complete stop at a safe
location. Engage the parking brake.
2. Keep pushing the foot brake and release the parking
brake once then engage it again.
3. When the parking brake is engaged for the second
time, release the foot brake.
• Fo r automatic transmission vehicles, place the transmission
lever in the Park position.
Now, the locking system for the Audio processor mode
operation has been released. Engaging the parking brake
can reactivate the Audio processor mode, as long as the
car's ignition has not been turned off. It is not necessary to
repeat the above procedure (1 through 3), of “To display
the Audio processor mode screen.”
Each time the ignition is turned OFF, perform the procedure
of “To display the Audio processor mode screen.”
Continued
2
1 Amplifier Name
2 Tu rns pages
3 Temperature (°F)
4 Voltage (V)
5 Electric Currency
To cancel the AMP status screen, touch [V.SEL].
3
The VISUAL selection screen is displayed.
Touch [NORMAL].
4
The screen returns to the normal screen.
2
3
4
5
43-EN
Adjustment Procedure for Dolby Surround
Make the adjustments described below in order to reproduce Dolby
Digital and DTS sound with greater accuracy.
Adjustment procedure
Speaker Setup (page 48)
1
(Turning the speakers to be used on and off and
setting their response)
Setting the Speakers
Check that Defeat mode is off (page 22).
1
Touch [SYS.] on the main source screen.
2
The SYSTEM selection screen is displayed.
Touch [i-Personalize].
3
The i-Personalize screen appears.
Touch [] of A.PROCESSOR.
4
The A.PROC list screen appears.
B
Adjusting the speaker levels (page 49)
2
(Adjusting the signal output level to the various
speakers)
B
Mixing bass sound to the rear channel (page
48)
3
(Achieving smooth sound in the rear seat by mixing
the front audio signals with the rear speaker signals)
B
Adjusting the acoustic image (page 48)
(Adjusting the acoustic image to achieve a sound as
4
if the center speaker were directly in front of the
listener)
B
Achieving powerful high volume sound (page
49)
5
(Achieving energetic sound with even greater power,
like the sound in a movie theater)
B
Adjusting the DVD Level (page 49)
6
(Adjust the volume (signal level) in the Dolby Digital,
Pro Logic II, DTS and PCM modes.)
• Settings above can be carried out even when the speaker is set to
OFF in “Speaker Setup” (page 48).
•To use the subwoofer in MONO with PXA-H700 or PXA-H701
connected, connect the subwoofer to the subwoofer output terminal
of PXA-H700 or PXA-H701.
Set MX Mode of the External Audio
Processor
Before performing the operations below, set MX (Media Xpander)
mode of the PXA-H700 to “AUTO” when the PXA-H700 is
connected.
Check that Defeat mode is off.
1
Touch [SYS.] on the main source screen.
2
The SYSTEM selection screen appears.
Touch [i-Personalize].
3
The i-Personalize screen will appear.
B
Storing Settings in the Memory (page 49)
(Storing all the settings and adjustments made on the
7
IVA-D300 (not only the above settings/adjusts) in the
memory)
In case of combining the Automatic adjustments etc.
We recommend to make the Automatic adjustments before the Dolby
Surround adjustments.
44-EN
Select ON or OFF of MX by touching [;] or [:] of
4
MEDIA XPANDER.
OFF: Tu rns off the MX effect of every music source.
ON: Tu rns on the specified MX mode.
Touch [] after setting to ON.
5
The Media Xpander setup screen appears.
Touch [;] or [:] of the desired MX mode.
6
• Music source (such as radio broadcasts and CDs, excluding AM
radio) level can be set.
MX CD (OFF, CD 1 to 3)
CD mode processes a large quantity of data. This data is
used to reproduce the sound cleanly by making use of the
data quantity.
MX COMPRESS MEDIA (OFF, CMPM 1 to 3) / MX XM (OFF,
XM 1 to 3)
This corrects information that was omitted at the time of
compression. This reproduces a well-balanced sound close to
the original.
MX FM (OFF, FM 1 to 3)
The medium to high frequencies become more clear, and
produces well balanced sound in all the bands.
MX DVD (OFF, MOVIE 1 to 2)
The dialog portion of the video is reproduced more clearly.
(DVD MUSIC)
This disk contains a large quantity of data such as music clip.
MX uses this data to reproduce the sound accurately.
MX AUX 1 to 3 (OFF, MP3, MOVIE, MUSIC)
Choose the MX mode (MP3, MUSIC, or MOVIE) that
corresponds to the media connected.
Touch [RETURN] to return to the previous screen.
7
• The contents of MX set here is reflected to PXA-H700 or PXAH701.
• When OFF is selected, MX effect of each MX mode will be OFF.
• Each music source, such as radio, CD, and MP3 can have its own
MX setting.
• MX mode does not function when MX is ON for AM radio.
• MX COMPRESS MEDIA is applied for MP3/WMA, MMD.
Touch a desired adjustment mode.
7
FREQ: Adjust the H.P.F. or L.P.F. cutoff frequency.
The adjustable bands differ according to the
SLOPE: Adjust the H.P.F. or L.P.F. slope.
LEVEL: Adjust the H.P.F. or L.P.F. level.
Touch [;] or [:] of the speaker to adjust its
8
channel.
When adjusting another channel, repeat steps 7
9
and 8 above.
Touch [RETURN] to return to the previous screen.
10
• When the speaker is set to the “OFF” mode, the X-OVER for that
speaker cannot be set. Refer to “Setting the Speakers” (page 44).
• Check the playback frequencies of the connected speakers before
adjusting.
•In order to protect the speakers, there is no OFF setting for the
subwoofer low pass filter (the slope remains the same).
• Even if Tweeter is selected for FRONT 1, the filter OFF (slope
OFF) of the H.P.F. can be set. If the slope is set to OFF, speakers
may be damaged. Take care with this setting.
channel (speaker).
Performing Time Correction Manually (TCR)
Because of the particular conditions inside the vehicle, there can be
major differences in the distances between the various speakers and
the listening position. It is possible to calculate the optimum
correction values and eliminate the time error at the listening position
yourself using this function.
X-OVER Adjustment
Check that Defeat mode is off.
1
Touch [SYS.] on the main source screen.
2
The SYSTEM selection screen appears.
Touch [i-Personalize].
3
The i-Personalize screen will appear.
Touch [] of A.PROCESSOR.
4
The A.PROC list screen appears.
Touch [;] or [:] of X-OVER to select L/R or L+R.
5
L/R: Different adjustment values can be set for the left
and right channels.
L+R: Sets the same adjustment values for the left and
right channels.
Touch [] of X-OVER.
6
The X-OVER adjustment screen appears.
Check that Defeat mode is off.
1
Sit in the listening position (the driver’s seat, for
2
example) and measure the distance (in meters)
between your head and the various speakers.
Calculate the difference in distance between the
3
farthest speaker and the other speakers.
L = (distance of farthest speaker)
– (distance of other speakers)
Divide the distances calculated for the different
4
speakers by the speed of sound (343 m/s
temperature 20°C).
This value is the time correction value for the various
speakers.
Concrete examples
Calculating the time correction value for the front left speaker
on the diagram below.
Conditions:
Distance between farthest speaker and listening position:
2.25 m (88-3/4")
Distance between front left speaker and listening position:
0.5 m (20")
Calculation:
L = 2.25 m (88-3/4") – 0.5 m (20")= 1.75 m (68-3/4")
Compensation time = 1.75 ÷ 343 x 1000 = 5.1 (ms)
In other words, setting the time correction value for the front
left speaker to 5.1 (ms) sets a virtual distance matching the
distance to the farthest speaker.
Continued
45-EN
5.1ms
0.5m
2.25m
The sound is uneven
because the distance
between the listening
position and the different
speakers is different.
The difference in the
distance between the front
left and rear right speakers
is 1.75 meters (68-3/4").
Touch [SYS.] on the main source screen.
5
The SYSTEM selection screen appears.
Touch [i-Personalize].
6
The i-Personalize screen appears.
Touch [] of A.PROCESSOR.
7
The A.PROC list screen is displayed.
Touch [;] or [:] of T.CORR.
8
Select L/R or L+R.
L/R: Different adjustment values can be set for the left
and right channels.
L+R: Sets the same adjustment values for the left and right
channels.
Touch [] of T.CORR.
9
The T.CORR adjustment screen appears.
Adjust the time correction value (0.0~20.0ms) of a
10
desired speaker by touching the respective [;] or
[:] button. (1step = 0.1ms)
Touch [RETURN] to return to the previous screen.
11
• When the speaker is set to the “OFF” mode, the TCR for that
speaker cannot be set. Refer to “Setting the Speakers” (page 44).
• The adjustment value for FRONT2 (Speakers) which is adjusted in
time correction, is also applied to the front speakers in “Setting
Bass Focus” (page 47).
• The adjustment (AUTO TCR) cannot be automatically set on this
unit.
Time correction eliminates
the difference between the
time required for the sound
from the different speakers
to reach the listening
position.
Setting the time correction of
the front left speaker to 5.1
ms makes it possible to
coordinate the distance from
the listening position to the
speaker.
Phase Switching
Make sure that the defeat is turned off (page 22).
1
Touch [SYS.] on the main source screen.
2
The SYSTEM selection screen is displayed.
Touch [i-Personalize].
3
The i-Personalize screen appears.
Touch [] of A.PROCESSOR.
4
The A.PROC list screen is displayed.
Touch [] of PHASE.
5
The PHASE adjustment screen appears.
Switch the phase (0° or 180°) by touching [;] or
6
[:] of the desired speaker.
Touch [RETURN] to return to the previous screen.
7
Graphic Equalizer Adjustments
The graphic equalizer allows you to modify the sound using 31 bands
each for the front (left and right), rear (left and right) and center
speakers. An additional 10 bands are available for the subwoofer. This
allows you to customize the sound to suit your taste.
Check that the Defeat mode is off.
1
Touch [SYS.] on the main source screen.
2
The SYSTEM selection screen appears.
Touch [i-Personalize].
3
The i-Personalize screen will appear.
Touch [] of A.PROCESSOR.
4
The A.PROC list screen appears.
Select L/R or L+R by touching [;] or [:] of G-EQ.
5
L/R: Different adjustment values can be set for the left
and right channels.
L+R: Sets the same adjustment values for the left and
right channels.
When parametric EQ is adjusted, this setting will be
turned off.
Touch [] of G-EQ.
6
The G-EQ list screen appears.
Touch [] of the desired speaker (channel).
7
The G-EQ adjustment screen appears.
Adjust the level by touching [;] or [:] of the
8
desired frequency.
When adjusting another frequency, repeat steps 7
9
and 8 above.
46-EN
Touch [RETURN] to return to the previous screen.
10
• When the speaker is set to the “OFF” mode, the graphic equalizer
for that speaker cannot be set. Refer to “Setting the
Speakers” (page 44).
• Check the playable frequency ranges of the connected speakers
before making the equalizer adjustments. If the speaker’s playable
frequency range is 55 Hz to 30 kHz, for example, adjusting the 40
Hz or 20 Hz band has no effect. Additionally, you may overload
and damage the speakers.
• When graphic EQ is adjusted, the adjustment for parametric EQ
becomes ineffective.
• When the speaker is set to the “OFF” mode, the parametric
equalizer for that speaker cannot be set. Refer to “Setting the
Speakers” (page 44).
• It is not possible to adjust the frequencies of adjacent bands within
7 steps.
• Check the playable frequency ranges of the connected speakers
before making the equalizer adjustments. If the speaker's playable
frequency range is 55 Hz to 30 kHz, for example, adjusting the 40
Hz or 20 Hz band has no effect. Additionally, you may overload
and damage the speakers.
• When the parametric EQ is adjusted, the adjustment for graphic
EQ becomes ineffective.
Parametric Equalizer Adjustments
The frequency bands of the graphic equalizer are fixed. This makes it
very difficult to correct for undesired peaks and dips at specific
frequencies. The parametric equalizer’s center frequency can be tuned
to these specific frequencies. Then, the bandwidth (Q) and level are
fine-tuned, independently, to make the necessary corrections. The
parametric equalizer function is an advanced tool for serious
audiophiles.
Check that Defeat mode is off.
1
Touch [SYS.] on the main source screen.
2
The SYSTEM selection screen appears.
Touch [i-Personalize].
3
The i-Personalize screen will appear.
Touch [] of A.PROCESSOR.
4
The A.PROC list screen appears.
Select L/R or L+R by touching [;] or [:] of P-EQ.
5
L/R: Different adjustment values can be set for the left
and right channels.
L+R: Sets the same adjustment values for the left and
right channels.
When graphic EQ is adjusted, this setting will be turned
off.
Touch [] of P-EQ.
6
The P-EQ list screen appears.
Touch [] of the desired speaker (channel).
7
The P-EQ adjustment screen appears.
Touch the desired adjustment mode.
8
FREQ : Selects the frequency.
LEVEL : Adjusts the level.
Q :Adjust the band width.
Adjust the desired band by touching [;] or [:] of
9
that band.
Setting Bass Sound Control
Make sure that the defeat is turned off.
1
Touch [SYS.] on the main source screen.
2
The SYSTEM selection screen is displayed.
Touch [i-Personalize].
3
The i-Personalize screen appears.
Touch [] of A.PROCESSOR.
4
The A.PROC list is displayed.
Touch [] of BASS SOUND CONT.
5
The Bass Sound Cont. screen appears.
Setting Bass Compressor
You can adjust the sound of low frequencies as desired.
Touch [;] or [:] of BASS COMP. to select the
6
desired mode.
Bass sound is emphasized more as the mode is
sequentially switched as MODE1 → 2 → 3, offering you
vivid low frequencies.
Select OFF when the setting is not necessary.
Touch [RETURN] to return to the previous screen.
Setting Bass Focus
Using the previously specified delay number (time difference) allows
you to set a time difference between the front-rear/left-right speakers.
Namely, it enables a time correction based on your preference. With
an initial delay of 0.10 ms for each of the 0 to 200 steps, audible time
correction can be achieved.
Set the delay number in the front and rear, and on
6
the right and left of the desired speaker by
touching the respective [;] or [:] button.
• Any setting in Bass Focus is applied in time correction, too.
•Touch [RETURN] to return to the previous screen.
When adjusting another band, repeat steps 7 to 9
10
above.
Touch [RETURN] to return to the previous screen.
11
47-EN
Speaker Setup
The PXA-H700 or PXA-H701 can be set according to the playable
frequency range of your speakers.
Check the playable frequency range of the speakers (not including the
subwoofer) before performing this operation to verify whether the
speakers can play low frequencies (of about 80 Hz or less).
•Avoid stopping, pausing, switching the disc, cueing, fastforwarding or switching the audio channel of this unit while
making this adjustment. The setting is canceled if Decode mode is
switched.
Check that Defeat mode is off (page 22).
1
Touch [SYS.] on the main source screen.
2
The SYSTEM selection screen appears.
Touch [i-Personalize].
3
The i-Personalize screen will appear.
Touch [] of A.PROCESSOR.
4
The A.PROC list screen appears.
Touch [] of SPEAKER SETUP.
5
The adjusting screen of SPEAKER SETUP appears.
Select the speaker characteristic by touching [;]
6
or [:] of the desired speaker setting.
OFF∗1:When no speaker is connected.
SMALL: When a speaker that cannot play low
LARGE∗2: When a speaker that can play low frequencies
∗1 It is not possible to set the front speakers to “OFF”.
∗2 If the front speakers are set to “SMALL”, the rear and
• If the center speaker is turned “OFF,” the center channel's audio
signals are added to the audio signals output from the front
speakers.
• If you set the speaker response to “OFF,” also set the speaker
setting to “OFF.” (page 44)
•Perform the setup for all the speakers (“Front,” “Center,” “Rear”
and “Subwoofer”). If not, the sound may not be balanced.
• When center is set to “OFF”, the setting is ineffective even if
center is set with this function.
• Through changing the settings on each speaker, a change in the
output of the other speakers may occur due to the setting
requirements.
• When using the PRO LOGIC II, if the rear speaker is set to
“LARGE”, then there will be no output from the subwoofer.
frequencies (80 Hz or less) is connected.
(80 Hz or less) is connected.
center speakers cannot be set to “LARGE”.
Setting of Dolby 5.1ch
Check that Defeat mode is off.
1
Touch [SYS.] on the main source screen.
2
The SYSTEM selection screen appears.
Touch [i-Personalize].
3
The i-Personalize screen will appear.
Touch [] of A.PROCESSOR.
4
The A.PROC list screen appears.
Touch [] of DOLBY 5.1 CH SETUP.
5
The DOLBY 5.1CH SETUP display appears.
Set the items below as you desire.
Adjusting the acoustic image
In most installations, the center speaker must be placed directly
between the front passenger and driver. Using this function, the center
channel information is distributed to the left and right speakers. This
creates an acoustic image simulating a center speaker directly in front
of each listener. Adjusting the center width in PL II MUSIC (see
“Using the Pro Logic II Mode,” page 50), makes this function
ineffective.
•Avoid stopping, pausing, switching the disc, cueing, fastforwarding or switching the audio channel of this unit while
making this adjustment. The setting is canceled if the Decode mode
is switched.
Touch [;] or [:] of BI - PHANTOM to adjust the level.
The level can be adjusted within the range of -5 to +5. The
higher the level, the more the position of the center speaker is
shifted to the sides.
The BI-PHANTOM function is turned off by touching
[OFF].
• This adjustment is effective when the setting of the center speaker
to SMALL or LARGE in the speaker setup settings.
• This adjustment is ineffective when the speaker is set to CENTER
OFF in “Setting the Speakers” (page 44).
Mixing bass sound to the rear channel
This function mixes the front channel audio signals to the audio
signals output from the rear speakers, improving the sound in the
vehicle’s rear seat.
•Avoid stopping, pausing, switching the disc, cueing, fastforwarding or switching the audio channel of this unit while
making this adjustment. The setting is canceled if the Decode mode
is switched.
Touch [;] or [:] of REAR MIX to adjust the level.
The level can adjusted in five steps: –6, –3, 0, +3 and +6. The
higher the level, the more bass is output from the rear
speakers. (The effect differs according to the software (DVD,
etc.).)
The REAR MIX function is turned off by touching [OFF].
• This adjustment is ineffective when the rear speaker setup setting is
set to “OFF.”
•For linear PCM signals, the voice is output from the rear speaker
regardless of the REAR FILL and REAR MIX setting.
48-EN
Achieving powerful high volume sound
With Dolby Digital, the dynamic range is compressed so that
powerful sound can be achieved at regular volume levels. This
compression can be canceled to achieve an energetic sound with even
greater power, like the sound in a movie theater.
This function works only in the Dolby Digital mode.
Touch [;] or [:] of LISTENING MODE to select STD or MAX.
STD: For powerful sound at regular volume levels
MAX: For powerful sound at high volumes
•Keep the volume to a level at which sounds outside the vehicle can
still be heard.
Adjusting the speaker levels
The test tones help to make the volume adjustments of the different
speakers. When levels are equal, a strong sense of presence can be
heard from the different speakers at the listening position.
•Avoid stopping, pausing, switching the disc, cueing, fastforwarding or switching the audio channel of this unit while
making this adjustment. The setting is canceled if the decode mode
is switched.
1Touch [ON] of OUTPUT LEVEL.
Test tone output is repeated for each of the different
speaker channels. They will be repeated in the order
shown below.
If no operation is performed for 2 seconds, the channel
switches to the next channel.
Left → Center → Right → Right Surround →
Left surround → Left
2 While the test tone is being produced from the
speakers, touch [;] or [:] of OUTPUT LEVEL balance
the output from all the speakers.
• The adjustment range for the different speakers is
–10 dB - +10 dB.
• Adjust based on the front speakers.
• If a speaker is set to off mode, that speaker’s level adjustment
cannot be made.
Refer to “Setting the Speakers” (page 44).
Adjusting the DVD Level
The volume (signal level) for Dolby Digital, Dolby PL II, DTS and
PCM modes can be set.
•Avoid stopping, pausing, switching the disc, cueing, fastforwarding or switching the audio channel of this unit while
making this adjustment. The setting is canceled if the Decode mode
is switched.
Check that Defeat mode is off.
1
Touch [SYS.] on the main source screen.
2
The SYSTEM selection screen appears.
Touch [i-Personalize].
3
The i-Personalize screen will appear.
Touch [] of A.PROCESSOR.
4
The A.PROC list screen appears.
Touch [] of DVD LEVEL.
5
The DVD LEVEL list screen appears.
Adjust the level by touching [;] or [:] of the
6
desired adjusting mode.
The level can be adjusted in the range of –5 to +5.
Storing Settings in the Memory
Adjustment or setting contents can be stored.
Contents that can be stored vary depends on the audio processor used.
Check that Defeat mode is off.
1
Touch [MEMORY] on the A.PROC list display.
2
Within 5 seconds, touch any one of the preset
3
buttons [P.SET 1] through [P.SET 6] on the
A.PROC list screen.
The setting contents are stored.
• The stored contents will not be deleted even when the battery
power cord is detached.
Getting out the Preset Memory
Check that Defeat mode is off.
1
Touch any one of the preset buttons [P.SET 1]
2
through [P.SET 6] on the A.PROC list display to
select the preset memory.
• It takes a few moment to get out the preset memory.
49-EN
Using the Pro Logic II Mode
Pro Logic processing can be conducted on the music signals recorded
on two channels to achieve Dolby Pro Logic II surround sound. For
two-channel Dolby Digital and DTS signals, there is also a “REAR
FILL” function for outputting the signals of the front channel to the
rear channel.
Check that Defeat mode is off (page 22).
1
Touch [SYS.] on the main source screen.
2
The SYSTEM selection screen appears.
Touch [i-Personalize].
3
The i-Personalize screen will appear.
Touch [] of A.PROCESSOR.
4
The A.PROC list screen appears.
Touch [] of DOLBY PLII.
5
The DOLBY PLII adjusting screen appears.
Touch [;] or [:] of DOLBY PLII to select the
6
desired mode.
PL II MOVIE:
Suits the stereo TV shows and all programs
encoded in Dolby Surround. It improves the sound
field directivity to near that of discrete 5.1-channel
sound.
PL II MUSIC:
Can be used for all stereo music recordings, and
provides a wide, deep sound field.
REAR FILL:
Depending on the input signals, the sound may only
be output from the front speakers. In this case, the
"REAR FILL" function can be used to output signals
from the rear speakers as well.
OFF: Tu rns DOLBY PL II function to OFF.
If PL II MUSIC is selected, the center width can be adjusted
with following operations.
This function offers the optimum vocal position by adjusting
the center channel position between the center speaker and
the L/R speaker. (The adjustments established in “Adjusting
the acoustic image” (page 48) are ineffective while this
function is activated.)
Touch [;] or [:] of CENTER WIDTH CONT to adjust the
level.
The level can be adjusted between 0 to 7. When the
level increases, the center channel position moves from
the center speaker position to both sides.
Touch [OFF] of CENTER WIDTH CONT to turn off the
center width control.
• This adjustment is effective when the setting of the center speaker
is SMALL or LARGE in the speaker setup settings.
•
Avoid stopping, pausing, switching the disc, cueing, fast-forwarding
or switching the audio channel of this unit while making this
adjustment. The setting is canceled if the Decode mode is switched.
• This adjustment is ineffective when the speaker is set to CENTER
OFF in “Setting the Speakers” (page 44).
•
This function only works with two-channel signals. This operation is
ineffective when 5.1-channel DTS or Dolby Digital signals are input.
• If the setting of REAR FILL is made when REAR MIX is ON, sound
is unchanged in the rear fill setting because REAR MIX is given
priority during 2 channel decoder other than linear PCM.
•For linear PCM signals, the voice is output from the rear speaker
regardless of the REAR FILL and REAR MIX setting.
Linear PCM Setting
The output when playing discs recorded in linear PCM can be set to 2
or 3 channels.
• This adjustment is ineffective when the speaker is set to CENTER
OFF in “Setting the Speakers” (page 44).
50-EN
Navigation System (Optional)
Auxiliary Device (Optional)
Switching the Navigation Screen (Optional)
If an optional Alpine Navigation System is connected to the IVAD300, the Navigation screen can be displayed on this unit.
Touch [SRC] on the main source screen.
1
The source screen appears on the display.
Touch [NAV].
2
The Navigation screen is displayed.
The operation is possible with the supplied navigation
remote control.
For navigation operation, refer to the Owner's Manual of
the navigator.
• When V. SEL is pressed while the Navigation selection mode is
being selected in “Setting Visual Mode” (page 33), the navigation
mode will be directly activated.
• If the Navigation mode menu is not displayed on the main menu
screen, set NAV. IN to on by following "Setting the navigation
Mode" (page 32).
• When the Navigation System is on, the audio and visual navigation
cuts in.
Operating Auxiliary Devices (Optional)
To operate your devices connected to the AUX terminals on the rear
panel of IVA-D300, follow the procedure described below.
WARNING
It is dangerous (and illegal in many states) for the driver to
watch the TV/Video while driving the vehicle. The driver
may be distracted from looking ahead and an accident
could occur.
Install the IVA-D300 correctly so that the driver cannot
watch TV/Video unless the vehicle is stopped and the
emergency brake is applied.
If the IVA-D300 is not installed correctly, the driver will be
able to watch the TV/Video while driving the vehicle and
may be distracted from looking ahead and cause an
accident. The driver or other people could be severely
injured.
To activate your auxiliary devices:
To watch a video source, your vehicle must be parked with
the ignition key in the ACC or ON position. To do this, follow
the procedure below.
1. Bring your vehicle to a complete stop at a safe
location. Engage the parking brake.
2. Keep pushing the foot brake and release the parking
brake once then engage it again.
3. When the parking brake is engaged for the second
time, release the foot brake.
•For automatic transmission vehicles, place the transmission
lever in the Park position.
Now, the locking system for the AUX mode operation has
been released. Engaging the parking brake can reactivate
the AUX mode, as long as the car's ignition has not been
turned off. It is not necessary to repeat the above
procedure (1 through 3), of “To activate your auxiliary
devices.”
Each time the ignition is turned OFF, perform the procedure
of “To activate your auxiliary devices.”
• If you try to activate the auxiliary device while driving, the
display will show the warning-PICTURE OFF FOR YOUR
SAFETY.
Touch [SRC] on the main source screen.
1
The source screen appears on the display.
Touch [AUX]*.
2
The external input screen is displayed.
*AUX-1 to AUX-3 are displayed if the external input devices
(maximal 3) are connected, or the name which is given as the
source name in “Naming External Devices” on page 33 is
displayed.
• If the AUX mode is not displayed on the main menu, set AUX IN to
ON by following "Setting the AUX Mode" (page 33).
• The display mode changes by touching [WIDE].
Fo r operation, refer to “Switching Display Modes” on page 24.
51-EN
Changer (Optional)
Controlling CD Changer (Optional)
An optional 6-disc or 12-disc CD Changer may be connected to the
IVA-D300 if it is Ai-NET compatible. With a CD Changer connected
to the Ai-NET input of the IVA-D300, the CD Changer will be
controllable from the IVA-D300.
If you connect a changer compatible with MP3, you can play CD-
ROMs, CD-Rs, and CD-RWs containing MP3 files on the IVA-D300.
Using the KCA-400C (the Multi-Changer Switching device) multiple
changers can be controlled by the IVA-D300.
See the Multi-Changer Selection section for selecting the CD
Changers (explained on this page).
Touch [SRC] on the main source screen.
1
Touch [CD CHG].
2
The display changes to the CD changer mode screen.
When a 6 Disc CD Changer is connected;
1Touch [P1/2]*.
The Function Guide display appears.
* When an MP3 compatible CD changer or DVD changer is
connected, touch repeatedly until the disc number is displayed.
2Touch any one of the select buttons [DISC 1] through
[DISC 6].
DISC 1 through DISC 6 select the discs from the first
disc to 6th disc.
When an MP3 compatible CD changer is connected;
1Touch [P1/3] twice to change the Function Guide
display.
2Touch any one of the select buttons [DISC 1] through
[DISC 6].
DISC 1 through DISC 6 select the discs from the first
disc to 6th disc.
When a 12-Disc CD Changer is connected;
You can select the disc numbers 1 to 6 in the same manner as
for 6-disc Changer.
Touch [P1/3] twice to select disc numbers 7 to 12.
The function guide display changes so that DISC 7
through DISC 12 represent disc numbers 7 to 12.
•After selecting the desired disc, you can operate in the same way
as for the CD player. For details, see the CD/MP3/WMA section
• When an MP3 compatible CD changer is connected, the unit can
play discs containing both audio data and MP3 data.
• The DVD changer (optional) is controllable from the IVA-D300 as
well as the CD changer.
Multi-Changer Selection (Optional)
Alpine's Ai-NET system will support up to 6 CD Changers. When
operating two or more changers, the KCA-400C (Multi-Changer
Switching device) must be used. If you use 1 Switching device, you
can connect up to 4 CD Changers. If you use 2 Switching devices,
you can connect up to 6 CD Changers. When using KCA-410C
(Versatile Link Terminal), you can connect two changers only.
In changer mode, touch [CHG SEL] or press
1
BAND on the unit to select the next changer
(connected changers only) .
To operate the selected changer, see "CD/MP3/
2
WMA" section.
•To operate the selected changer, see “CD/MP3/WMA” (pages 14
and 15).
52-EN
HDD Player Operation
XM Radio (Optional)
(Optional)
Listening to Music of HDD
This device is controllable from the unit when Alpine HDD player is
connected.
Touch [SRC] on the main source screen.
1
The source selection screen appears.
Touch [MM DRIVER].
2
The MM DRIVER mode main screen appears.
Select the desired music by touching [g] or
3
[f].
Searching: Touch [g] or [f].
Fast-forward/reverse: Touch and hold [g] or [f].
Touch [:/J] to temporarily stop the music
4
currently playing.
Touch [:/J] again to resume the play.
Receiving XM Channels with the XM
Receiver (Optional)
XM Satellite Radio* is the next generation of audio entertainment,
with up to 100 brand-new digital channels. For a small monthly fee,
subscribers can hear crystal-clear music, sports, news and talk, coastto-coast via satellite. For more information, visit XM’s website at
www.xmradio.com or call 1-800-852-9696.
An optional XM Satellite Radio Receiver (TUA-T021XM) and an
optional XM Antenna may be connected to the IVA-D300. With an
XM Receiver connected to the Ai-NET input of the IVA-D300, the
XM Receiver will be controllable from the IVA-D300.
* XM and its corresponding logos are trademarks of XM
Satellite Radio Inc.
• The controls on the IVA-D300 for XM Receiver operation are
operative only when an XM Receiver is connected.
Touch [SRC] on the main source screen.
1
The source selection screen is displayed.
Touch [XM].
2
The XM main screen display appears.
Touch [BAND] to select XM1, XM2 or XM3.
3
Touch [NO./NAME] to select the channel number
4
tuning.
Each time it is pressed, the tuning mode is changed.
channel number tuning ↔ channel name tuning
Touch [; CH NO.] or [CH NO. :] to select the
5
desired channel. Holding either button down will
change channels continuously.
When selecting the channel name tuning in step 4, select
a channel name by touching [; CH NAME] or [CH NAME
:]. Holding either button down will change channel
names continuously.
53-EN
Tuning in to Categorized Programs
You can listen to programs categorized to the same group one after
another.
In the XM mode, touch [;CAT DN] or [CAT UP :]
1
once to activate the Category mode.
The “CATEGORY” indicator lights.
While in the category mode, touch [;CAT DN] or
2
[CAT UP :] again to select a desired category.
The first channel of the selected category is tuned.
•In category mode, activate channel UP/DOWN to select a channel
in the current category by touching [; CH NO.] or [CH NO. :].
•To cancel the Category mode, touch [NO./NAME] or [P1/3]. This
mode is automatically canceled after 13 seconds.
• If the desired category program is not found, the selected category
is displayed for 5 seconds, then the receiving program is restored.
Changing the Display
Text information, such as the channel name, artist name/feature, and
song/program title, is available with each XM channel. The unit can
display this text information as explained below.
In XM mode, touch [INFO.].
Each time you touch this button, the display changes as
shown below.
Channel name/Title name/
--
Category displayArtist name display
Auxiliary Data FieldInformation display
*1Channel number, category, title name, etc., are displayed in one
screen.
*2The information display appears when ON is set in “Setting the
Auxiliary Data Field Display” (page 31).
•Auxiliary Data Field is not displayed in the dual screen.
/
2
*
/
1
*
Checking the XM Radio ID Number
You need to provide XM with the unique XM Radio ID number for
your XM Radio Receiver in order to subscribe to XM's programming.
This number is an 8 character alphanumeric number that is printed on
a label directly on the XM Receiver.
It can also be displayed on the screen of the IVA-D300 in the
following way.
While receiving XM1/XM2 or XM3, touch [; CH
1
NO.] or [CH NO. :] to select channel “0.”
The unit displays the ID number.
2
To cancel the ID number display, set the channel to
3
other than “0.”
•You cannot use “O,” “S,” “ I,” or “F” for the ID Number.
•You can check your ID number printed on the label on the package
of your XM Satellite Radio Receiver (TUA-T021XM).
Storing XM Channel Presets
Touch [P1/3] after selecting a desired band.
1
The Function Guide is switched.
Touch [MEMORY].
2
Touch any one of the preset buttons [P.SET 1]
3
through [P.SET 6] within 5 seconds into which
you want to store the channel. The selected
channel is stored.
Repeat the procedure to store up to 5 other
4
channels onto the same band.
To use this procedure for other bands, simply select the
desired band and repeat the procedure.
A total of 18 channels can be stored in the preset memory
(6 channels for each band; XM1, XM2 and XM3).
• If you store a channel in a preset already being used, the current
channel will be replaced with the new one.
54-EN
Receiving Stored XM Channels
Touch [P1/3] after selecting a desired band.
1
The Function Guide is switched.
Touch any one of the preset buttons [P.SET 1]
2
through [P.SET 6] that has your desired satellite
channel in memory.
Displaying the Category/Channel Name Title
List
MobileHub™ Link
In XM mode, touch [].
1
The category title list is displayed.
Screen example for category search list
2
1
4
1 Tu rns the page
2 Touch [:] to receive the selected category channel
directly.
3 [] is displayed if there is a hierarchical list.
Touch [] to change the channel name search
screen of the selected category.
4 Category UP/DOWN can directly be performed.
Screen example for channel name search list
2
3
1
4
1 Tu rns the page
2 Returns to the category search list.
3 The selected channel is received.
4 Category UP/DOWN can directly be performed.
Touch [:] of the selected Category or Channel
2
name.
The channel in the selected category is tuned.
3
(Optional)
About MobileHub™ Link (Optional)
Connect a separately sold junction box and a portable telephone
(available from Nokia) to control the incoming and outgoing calls of
the portable telephone.
CAUTION
• Even with hands-free operation, a driver can be distracted
during telephone operation or receiving a call. For the
sake of safety, drivers are requested to refrain from
operating the telephone while driving.
• For the sake of safety, operations other than incoming
calls and Speed-Dial outgoing calls cannot be used.
• If a portable telephone is connected, its address book, incoming
and outgoing history, short message history and standardized
sentences are downloaded to the junction box.
Please refer to the instruction manual of the junction box.
• When a portable telephone is not connected, “NO PHONE” is
displayed for at least 5 seconds, then the mode returns to the
original source mode.
• When the portable telephone is taken off the junction box during an
incoming or outgoing call, or during a hands-free call, the call will
be treated as an ordinary one by the portable telephone.
• When there is an incoming call while the power of the IVA-D300 is
OFF, the power of the IVA-D300 turns ON automatically, handsfree call is cut, and the portable telephone call is enabled.
• Even if the power of the portable telephone is OFF, when IVAD300 is set to the telephone mode, the power of the portable
telephone will be turned ON.
• If the ACC power of the vehicle is turned OFF (the engine is
stopped) during a hands-free call, the hands-free call cuts, and the
portable telephone call is enabled.
• If there is an incoming call during operation (except an outgoing
call or talking), operation mode will end and switch to the
incoming or talking mode.
• An outgoing call from a portable telephone is also possible.
However, you cannot perform different operations at the same time
from a portable telephone and IVA-D300 as malfunction can result.
•With a junction box connected outgoing, incoming, and sending
history will also be recorded in the portable telephone.
• While telephoning, Time Correction is set to normal (0.0ms) and
DEFEAT is also set to ON. When the call has finished, the unit
returns to the setting which you previously set.
• The telephone volume can be adjusted from the IVA-D300. The
volume you set during the call is memorized, and is automatically
applied again on the next call.
Selecting the Channel directly
You can directly select the channel number on the display of the
numeric keypad.
Touch [P1/3] twice in the XM mode.
1
The function guide appears.
Touch [10KEY].
2
The numeric keypad input screen is displayed.
Touch to input the channel number.
3
Touch [ENT].
4
The selected channel is received.
55-EN
Telephone Reception
When this unit receives a call, the screen is
1
switched to RINGING display of Telephone mode.
When AUTO call (setting of AUTO/MANUAL call
2
page 31) is selected, CONNECT display appears
and this unit enters AUTO call mode in 3 seconds
after receiving.
To cut the call, touch [] . Or the call is
3
automatically cut in 5 seconds after finishing.
The screen returns to the previous source mode.
To input any number or symbol during call:
1Touch [10KEY] in the CONNECT display.
The numeric keypad screen is displayed.
2Touch and input a desired number or symbol.
3Touch [RTN] to return to the previous screen.
4Touch [] to start a call.
Calling
Calling by using the Speed Dial
You can place a call by retrieving one of the telephone numbers
registered in No. 1 to 9 of the address book.
Touch [] on the main source screen.
1
The Speed Dial and the numeric keypad displays appear.
Touch any one of the buttons [1] through [9] in
2
which the telephone numbers are recorded.
•A call is sent directly by touching and holding any one of the
recorded buttons [1] to [9] for at least 2 seconds.
Touch [] to start call.
3
To cut the call, touch []. Or the call is
4
automatically cut in 5 seconds after finishing.
• If no telephone number is registered in the selected function button,
"NO PRESET" is displayed for 5 seconds.
Touch [RETURN] to return to the Telephone menu.
• When [SPEED DIAL] is touched in the Telephone menu display,
the Speed Dial display appears.
To listen to the answer-phone or to input numbers:
1In the CONNECT display, touch [10KEY].
The Dial Sending and numeric keypad displays appear.
2Touch and input a desired number or symbol.
3Touch [RTN] to return to the previous screen.
To cut the call, touch []. Or the call is
7
automatically cut in 5 seconds after finishing.
The screen returns to the previous source mode.
• If [RETURN] is touched within 5 seconds of cutting the call, the
Telephone menu display appears.
• When the call is cut, touching [] dials the number again.
Calling by the address book
From your vehicle, call from the address book registered in the
portable telephone.
The operation may be carried out only when vehicle is parked.
Touch [] on the main source screen.
1
The Speed Dial display appears.
Touch [RTN] on the numeric keypad input screen
2
to close the numeric keypad screen.
The Telephone menu display appears.
Touch [PHONE BOOK].
3
The Phone Book list appears.
Touch [CALL] of a desired addressee on the list.
4
• By touching [ ] or [ ], the names are listed in alphabetical order.
• If no data is in the PHONE BOOK, "NO MEMORY" is displayed.
Touch [RETURN] to return to the Telephone menu display.
Touch [] to place the call.
5
To cut the call, touch []. Or the call is
6
automatically cut in 5 seconds after finishing.
Calling by the outgoing / incoming /
absent incoming history
You can place a call to one of the last 999 calls by the outgoing/
incoming/absent incoming history.
Dial call
Input the telephone number using the dial.
Touch [] on the main source screen.
1
The Speed Dial display appears.
Touch [RTN] on the numeric keypad input screen
2
to close the numeric keypad screen.
The Telephone menu display appears.
Touch [DIRECT CALL].
3
The Direct Call and numeric keypad displays appear.
Touch and input the telephone number.
4
Touch [ENT].
5
Touch [] to start call.
6
• The call is cut in 5 seconds after “NO NETWORK COVERAGE” is
displayed.
56-EN
Touch [] on the main source screen.
1
The Speed Dial display appears.
Touch [RTN] on the numeric keypad input screen
2
to close the numeric keypad screen.
The Telephone menu display appears.
Touch any one of the buttons [DIALED CALL],
3
[MISSED CALL] or [RECEIVED CALL].
DIALED CALL:Outgoing history list display
MISSED CALL:Absent incoming history list display
RECEIVED CALL: Incoming history list display
• If no history is registered to any of the lists, “NO MEMORY” is
displayed.
To return to Telephone menu display, touch [RETURN].
Touch [CALL] of a desired addressee on the list.
4
Touch [] to start call.
5
To cut the call, touch []. Or the call is
6
automatically cut in 5 seconds after finishing.
SMS (Short Message Service) Operation
You can receive messages, show the contents of messages, and send
standardized sentences.
When a message is received, an icon is indicated on the display.
Information
About DVDs
Music CDs and DVDs have grooves (tracks) in which the
digital data is recorded. The data is represented as
microscopic pits recorded into the track – these pits are read
by a laser beam to play the disc. On DVDs, the density of the
tracks and pits is twice that of CDs, so DVDs can contain more
data in less space.
Receiving a Short message
Touch [] on the main source screen.
1
The Speed Dial display appears.
Touch [RTN] on the numeric keypad input screen
2
to close the numeric keypad screen.
The Telephone menu display appears.
Touch [SMS READ].
3
The SMS Read display appears.
Touch [READ] of the received short message.
4
The SMS Inbox display appears.
The contents of the received message is displayed up to
140 letters.
Touch [RETURN] to return to the SMS Read display.
• When the unit receives a message, the new reception icon appears.
CDs
Minimum pit
length -
0.9 µm
DVDs
Minimum pit
length -
0.9 µm
A 12 cm disc can contain one movie or about four hours of
music.
In addition, DVDs provide sharp picture quality with vivid colors
thanks to a horizontal resolution of over 500 lines (compared to less
than 300 for VHS tape). With the addition of an optional, digital audio
processor (PXA-H900/PXA-H510/PXA-H700, etc.), you can recreate
the power and presence of a movie theater with Dolby Digital 5.1channel Surround.
In addition, DVDs offer a variety of functions.
• Multiple audio* (page 21)
Movies can be recorded in up to eight languages. The
desired language can be selected from the remote control
unit.
• Subtitles function* (page 21)
Movies can include subtitles in up to 32 languages. The
desired subtitle language can be selected from the remote
control unit.
• Multi angle function* (page 21)
When the DVD contains a movie shot from multiple angles,
the desired angle can be selected from the remote control
unit.
• Multi story function
With this function, a single movie includes various story
lines. You can select different story lines to view various
versions of the same movie.
Operation differs from disc to disc. Story line selection
screens including instructions appear during the movie.
Just follow the instructions.
* The functions audio languages, subtitle languages, angles, etc.,
differ from disc to disc. For details, refer to the disc’s instructions.
1.2 mm
0.6 mm
0.6 mm
*
Track pitch -
1.6 µm
Track pitch -
0.74 µm
57-EN
Terminology
Dolby Digital
Dolby Digital is a digital audio compression technology
developed by Dolby Laboratories that allows large quantities
of audio data to be efficiently recorded on discs. It is
compatible with audio signals from mono (1 channel) all the
way up to 5.1-channel surround sound. The signals for the
different channels are completely independent, and since the
sound is high quality digital there is no loss of sound quality.
* The separately sold digital audio processor (PXA-H510/PXA-
H900/PXA-H700, etc.) is required to enjoy full 5.1-channel
surround sound.
The IVA-D300 performs Dolby Digital decoding when it outputs
analog audio signals, it just happens to be 2-channel audio not
5.1-channel.
Center
speaker
Front
speakers
Rear
speakers
Dolby Pro Logic
Dolby Pro Logic is the technology used to decode programs
encoded in Dolby Surround. Pro logic decoding will provide
you with four channels of sound (front left/right, center and
monaural rear surround) from a 2-channel (stereo) source.
* The separately sold digital audio processor (PXA-H510/PXA-
H900) is required to enjoy Dolby Pro Logic surround sound.
Dolby Pro Logic II
Dolby Pro Logic II plays 2-channel sources in 5 channels over
the entire frequency range.
This is done with an advance, high sound quality matrix
surround decoder which draws out the spatial properties of the
original recording without adding any sounds to or changing
the sound of the source.
* The separately sold digital audio processor (PXA-H700, etc.) is
required to enjoy Dolby Pro Logic II surround sound.
Linear PCM audio (LPCM)
LPCM is a signal recording format used for music CDs.
Whereas music CDs are recorded at 44.1 kHz/16 bits, DVDs
are recorded at 48 kHz/16 bits to 96 kHz/24 bits, thereby
achieving higher sound quality than music CDs.
Rating levels (parental lock)
This is a function of the DVD for restricting the viewing age as
stipulated by laws in different countries. The way in which
viewing is restricted differs from DVD to DVD. Sometimes the
DVD cannot be played at all, other times certain scenes are
skipped, and other times certain scenes are replaced with
other scenes.
Subwoofer
Speaker layout for enjoying
Dolby Digital sound/dts sound
DTS
This is a home-use digital sound format of the DTS Sound
System. This is a high quality sound system, developed by
Digital Theater Systems Corp for use in movie theaters.
DTS has six independent sound tracks. The theater
presentation is fully realized in the home and other settings.
DTS is the abbreviation for Digital Theater System.
*To enjoy DTS surround sound you need the separately sold DTS
digital audio processor (PXA-H900/PXA-H700, etc.). The DVD
video software must also have a DTS sound track.
The IVA-D300 has a built-in DTS 2-channel audio decoder.
Analog audio outputs are available.
Afar
Abkhazian
Afrikaans
Amharic
Arabic
Assamese
Aymara
Azerbaijani
Bashkir
Byelorussian
Bulgarian
Bihari
Bislama
Bengali, Bangla
Tibetan
Breton
Catalan
Corsican
Czech
Welsh
Danish
German
Bhutani
Greek
English
Esperanto
Spanish
Estonian
Basque
Persian
Finnish
Fiji
Faroese
French
Frisian
Irish
Scots Gaelic
Galician
Guarani
Gujarati
Hausa
Hindi
Croatian
Hungarian
Armenian
Interlingua
Interlingue
Inupiak
Indonesian
Icelandic
Italian
Hebrew
Japanese
Yiddish
Javanese
Georgian
Kazakh
Greenlandic
Cambodian
Kannada
Korean
Kashmiri
Kurdish
Kirghiz
Latin
Lingala
Laothian
Lithuanian
Latvian, Lettish
Malagasy
Maori
Macedonian
Malayalam
Mongolian
Moldavian
Marathi
Malay
Maltese
Burmese
Nauru
Nepali
Dutch
Norwegian
Occitan
(Afan) Oromo
Oriya
Punjabi
Polish
Pashto, Pushto
Por tuguese
Quechua
Rhaeto-Romance
Kirundi
Romanian
Russian
Kinyarwanda
Sanskrit
Sindhi
Sangho
Serbo-Croatian
Singhalese
Slovak
Slovenian
Samoan
Shona
Somali
Albanian
Serbian
Siswati
Sesotho
Sundanese
Swedish
Swahili
Tamil
Telugu
Tajik
Thai
Tigrinya
Tu rk m en
Tagalog
Setswana
Tonga
Tu rkish
Tsonga
Tatar
Tw i
Ukrainian
Urdu
Uzbek
Vietnamese
Volapuk
Wolof
Xhosa
Yo r uba
Chinese
Zulu
Dominica
Dominican Republic
Algeria
Ecuador
Estonia
Egypt
Western Sahara
Eritrea
Spain
Ethiopia
Finland
Fiji
Falkland Islands
Micronesia, Federated States of
Faroe Islands
France
Gabon
United Kingdom
Grenada
Georgia
French Guiana
Ghana
Gibraltar
Greenland
Gambia
Guinea
Guadeloupe
Equatorial Guinea
Greece
South Georgia and the
South Sandwich Islands
Guatemala
Guam
Guinea-Bissau
Guyana
Hong Kong
Heard Island and
McDonald Islands
Honduras
Croatia
Haiti
Hungary
Indonesia
Ireland
Israel
India
British Indian Ocean Territory
Iraq
Iran, Islamic Republic of
Iceland
Italy
Jamaica
Jordan
Japan
Kenya
Kyrgyzstan
Cambodia
KI
KM
KN
KP
KR
KW
KY
KZ
LA
LB
LC
LI
LK
LR
LS
LT
LU
LV
LY
MA
MC
MD
MG
MH
MK
ML
MM
MN
MO
MP
MQ
MR
MS
MT
MU
MV
MW
MX
MY
MZ
NA
NC
NE
NF
NG
NI
NL
NO
NP
NR
NU
NZ
OM
PA
7573
Kiribati
7577
Comoros
7578
Saint Kitts and Nevis
7580
Korea, Democratic
People’s Republic of
7582
Korea, Republic of
7587
Kuwait
7589
Cayman Islands
7590
Kazakstan
7665
Lao People’s
Democratic Republic
7666
Lebanon
7667
Saint Lucia
7673
Liechtenstein
7675
Sri Lanka
7682
Liberia
7683
Lesotho
7684
Lithuania
7685
Luxembourg
7686
Latvia
7689
Libyan Arab Jamahiriya
7765
Morocco
7767
Monaco
7768
Moldova, Republic of
7771
Madagascar
7772
Marshall Islands
7775
Macedonia, The former
Yugoslav Republic of
7776
Mali
7777
Myanmar
7778
Mongolia
7779
Macau
7780
Northern Mariana Islands
7781
Martinique
7782
Mauritania
7783
Montserrat
7784
Malta
7785
Mauritius
7786
Maldives
7787
Malawi
7788
Mexico
7789
Malaysia
7790
Mozambique
7865
Namibia
7867
New Caledonia
7869
Niger
7870
Norfolk Island
7871
Nigeria
7873
Nicaragua
7876
Netherlands
7879
Norway
7880
Nepal
7882
Nauru
7885
Niue
7890
New Zealand
7977
Oman
8065
Panama
60-EN
Abbreviation
PE
PF
PG
PH
PK
PL
PM
PN
PR
PT
PW
PY
QA
RE
RO
RU
RW
SA
SB
SC
SD
SE
SG
SH
Taiwan, Province of China
Tanzania, United Republic of
Ukraine
Uganda
United States Minor
Outlying Islands
United States
Uruguay
Uzbekistan
Holy See (Vatican City State)
Saint Vincent and the
Grenadines
Venezuela
Virgin Island, British
Virgin Islands, U.S
Viet Nam
Van uatu
Wallis and Futuna
Samoa
Ye m e n
Mayotte
Yugoslavia
South Africa
Zambia
Zimbabwe
61-EN
In Case of Difficulty
If you encounter a problem, please turn the power off, then on
again. If the unit is still not functioning normally, please review
the items in the following checklist. This guide will help you
isolate the problem if the unit is at fault. Otherwise, make sure the
rest of your system is properly connected, or then consult your
authorized Alpine dealer.
Basic
No function or display.
• Vehicle's ignition is off.
- If connected according to the instructions, the unit will not
operate with the vehicle's ignition off.
• Improper power lead connections.
-Check power lead connections.
• Blown fuse.
-Check the fuse on the battery lead of the unit; replace
with the proper value if necessary.
• Internal micro-computer malfunctioned due to interference
noise, etc.
-Press the RESET switch with a ballpoint pen or other
pointed article.
• Blackout mode is activated.
-Cancel Blackout mode.
No sound or unnatural sound.
• Incorrect setting of volume/balance/fader controls.
-Readjust the controls.
• Connections are not properly or securely made.
-Check the connections and firmly connect.
Screen not displayed.
• Brightness control is set at the minimum position.
-Adjust the Brightness control.
• Temperature in the vehicle is too low.
- Increase the vehicle's interior temperature to operation
temperature range.
• Connections to the DVD, CD player, navigation system are not
securely made.
-Check the connections and firmly connect.
Movement of displayed picture is abnormal.
• Temperature in the vehicle is too high.
-Allow the vehicle's interior temperature to cool.
Unclear or noisy display.
• Fluorescent plate is worn out.
-Replace the fluorescent plate.
Navigation system inoperative.
• Connections to the navigation system are incorrect.
-Check the connections with the navigation system and
connect the cables correctly and firmly.
Unclear picture display.
• Fluorescent tube is exhausted.
-Replace the fluorescent tube*.
* The fluorescent tube replacement is not free of charge even within
the warranty period, for the tube is an article of consumption.
Radio
Unable to receive stations.
• No antenna, or open connection in the antenna cable.
-Make sure the antenna is properly connected;
replace the antenna or cable if necessary.
Unable to tune stations in the seek mode.
• You are in a weak signal area.
-Make sure the tuner is in DX mode.
• If the area you are in is a primary signal area, the antenna may
not be grounded and connected properly.
-Check your antenna connections; make sure the antenna is
properly grounded at its mounting location.
• The antenna may not be the proper length.
-Make sure the antenna is fully extended; if broken, replace
the antenna with a new one.
Broadcast is noisy.
• The antenna is not the proper length.
-Extend the antenna fully; replace it if it is broken.
• The antenna is poorly grounded.
-Make sure the antenna is grounded properly at its mounting
location.
• The station signal is weak and noisy.
- If above solution does not work, tune in another station.
CD/MP3/WMA/DVD/Video CD
Disc playback sound is wavering.
• Moisture condensation in the disc Module.
-Allow enough time for the condensation to evaporate
(about 1 hour).
Disc insertion not possible.
• A disc is already in the DVD player.
-Eject the disc and remove it.
• The disc is being improperly inserted.
-Make sure the disc is being inserted following the
instructions in the CD (MP3/WMA/DVD/Video CD) Player
Operation section.
Unable to fast forward or backward the disc.
• The disc has been damaged.
-Eject the disc and discard it; using a damaged disc in
your unit can cause damage to the mechanism.
Disc playback sound skips due to vibration.
• Improper mounting of the unit.
-Securely re-mount the unit.
• Disc is very dirty.
-Clean the disc.
• Disc has scratches.
-Change the disc.
• The pick-up lens is dirty.
-Do not use a commercial available lens cleaner disc.
Consult your nearest ALPINE dealer.
Disc playback sound skips without vibration.
• Dirty or scratched disc.
-Clean the disc; damaged disc should be replaced.
CD-R/CD-RW playback not possible.
• Close session (finalization) has not been performed.
- Perform finalization and attempt playback again.
62-EN
Error displays
• Mechanical error
-Press c. After the error indication disappears, insert the disc
again. If the above-mentioned solution does not solve the
problem, consult your nearest ALPINE dealer.
MP3/WMA is not played back.
• Writing error occurred. The CD format is not compatible.
- Make sure the CD has been written in a supported format.
Refer to “About MP3/WMA” (pages 15 and 16), then rewrite
in the format supported by this device.
Unit does operate.
• Monitor’s power is not turned on.
-Turn on the monitor’s power.
• Condensation.
-Wait a while (about 1 hour) for the condensation to dry.
No picture is produced.
• Monitor’s mode is not switched to the mode you want to see.
- Switch to the mode you want to see.
• Monitor’s parking brake lead is not connected.
- Connect the monitor’s parking brake lead and set the parking
brake.
(For details, refer to the monitor’s instructions.)
• Monitor’s parking brake is not set.
- Connect the monitor’s parking brake lead and set the parking
brake.
(For details, refer to the monitor’s instructions.)
Playback does not start.
• Disc is loaded upside-down.
- Check the disc and load it with the labeled side facing
upward.
• Disc is dirty.
-Clean the disc.
• A disc not able to playback with this unit is loaded.
- Check if the disc is able to be played back.
• Parental lock is set.
-Cancel the parental lock or change the rating level.
Picture is unclear or noisy.
• Disc is being fast-forwarded or fast-reversed.
- The picture may be slightly disturbed, but this is normal.
• Ve hicle’s battery power is weak.
- Check the battery power and wiring.
(The unit may malfunction if the battery power is under 11
volts with a load applied.)
• Monitor’s fluorescent tube is worn.
-Replace the monitor’s fluorescent tube.
Image stops sometimes.
• Disc is scratched.
-Replaced with a non-scratched disc.
Indication for CD/MP3/WMA
HI-TEMP
•Protective circuit is activated due to high temperature.
- The indicator will disappear when the temperature returns to
within operation range.
-Leave the power OFF until the temperature decreases and
then turn the power ON again.
NO DISC
• No disc is inserted.
- Insert a disc.
• Although a disc is inserted, “NO DISC” is displayed and the
unit does not start to play or eject the disc.
-Remove the disc by following these steps:
Press c for at least 3 seconds.
LOADING ERROR
EJECT ERROR
•Mechanism error.
1) Press c and eject the disc.
If not ejecting, consult your Alpine dealer.
2) When the error indication remains after ejecting, press c
again.
If the error indication still does not turn off after pressing
c for a few times, consult your Alpine dealer.
DISC ERROR
•Scratched disc, contaminated disc/poor recording/disc
incompatible with this unit
-Press c.
-Change the disc.
Indication for DVD/Video CD
NO DISC
•No disc is inserted.
- Insert a disc.
•Although a disc is inserted, “NO DISC” is displayed and the
unit does not start to play or eject the disc.
-Remove the disc by following these steps:
Press c for at least 3 seconds.
•Remote control operation is not possible.
-For some discs or playing modes, certain operations are not
possible. This is not a malfunction.
HI-TEMP
•Protective circuit is activated to high temperature.
- The indicator will disappear when the temperature returns to
within operation range.
-Leave the power OFF until the temperature decreases and
then turn the power ON again.
VIDEO SIGNAL SYSTEM IS
NOT CORRECT
•PAL disc is loaded.
- Load an NTSC disc
Continued
63-EN
LOADING ERROR
Indication for XM radio mode
EJECT ERROR
•Mechanism error.
1) Press c and eject the disc.
If not ejecting, consult your Alpine dealer.
2) When the error indication remains after ejecting, press c
again.
If the error indication still does not turn off after pressing
c for a few times, consult your Alpine dealer.
DISC ERROR
•Scratched disc, contaminated disc/poor recording/disc
incompatible with this unit
-Press c.
-Change the disc.
Indication for CD changer
HI-TEMP
•Protective circuit is activated due to high temperature.
-The indicator will disappear when the temperature returns to
within operation range.
ERROR01
ANTENNA
• The XM antenna is not connected to the XM radio module.
-Check whether the XM antenna cable is attached securely to
the XM radio module.
UPDATING
•Radio is being updated with latest encryption code.
-Wait until encryption code is being updated. Channels
0 and 1 should function normally.
NO SIGNAL
• XM signal is too weak at the current location.
-Wait until the car reaches a location with a stronger signal.
LOADING
•Radio is acquiring audio or program information.
-Wait until the radio has received the information.
OFF AIR
• The channel currently selected has stopped broadcasting.
-Select another channel.
•Malfunction in the CD Changer.
-Consult your Alpine dealer. Press the magazine eject
button and pull out the magazine.
Check the indication. Insert the magazine again.
If the magazine cannot be pulled out, consult your Alpine
dealer.
•Magazine ejection not possible.
-Press the magazine eject button. If the magazine does
not eject, consult your Alpine dealer.
ERROR02
•A disc is left inside the CD Changer.
-Press the Eject button to activate the eject function. When the
CD Changer finishes the eject function, insert an empty CD
magazine into the CD Changer to receive the disc left inside
the CD Changer.
NO MAGAZINE
• No magazine is loaded into the CD Changer.
- Insert a magazine.
NO DISC
• No indicated disc.
-Choose another disc.
– – – – – –
• The user has selected a Channel Number that does not exist or
is not subscribed to.
-The unit will revert back to the previously selected channel.
• There is no artist name/feature, song/program title, or
Auxiliary Data Field associated with the channel at that time.
-No action needed.
64-EN
Specifications
MONITOR SECTION
Screen Size7.0"
LCD TypeTransparent type TN LCD
Operation SystemTFT active matrix
Number of Picture Elements 336,960 pcs. (1,440 × 234)
Effective Number of Picture Elements
80 dB
Signal-to-Noise Ratio80 dB
Stereo Separation45 dB
Capture Ratio2.0 dB
AM TUNER SECTION
Tuning Range530 – 1,710 kHz
Usable Sensitivity22.5 µV/27.0 dB
CD/DVD SECTION
Frequency Response5 – 20,000 Hz
Wow & Flutter (% WRMS)Below measurable limits
Total Harmonic Distortion0.008% (at 1 kHz)
Dynamic Range95 dB (at 1 kHz)
Channel Separation85 dB (at 1 kHz)
Signal systemNTSC
Horizontal resolution500 lines or greater
Video output level1Vp-p (75 ohms)
Video S/N ratioDVD: 60 dB
Audio S/N ratioMore than 105 dB
GENERAL
Power Requirement14.4 V DC
(11–16 V allowable)
Operating temperature+32°F to +113°F
(0°C to + 45°C)
Power Output18 W RMS × 4*
*Primary amplifier ratings per CEA-2006 Standard
•Power output: measured at 4 Ohms and ≤ 1% THD+N
•S/N: 80 dBA (reference: 1 W into 4 Ohms)
Output Voltage2,000 mV/10k ohms
Weight(Monitor Section) 2.1 kg
Width178 mm (7")
Height50 mm (2")
Depth165 mm (6-1/2")
CHASSIS SIZE (Tuner section)
Width275 mm (10-13/16")
Height40 mm (1-9/16")
Depth170 mm (6-3/4")
• Due to continuous product improvement, specifications and design
are subject to change without notice.
• The LCD panel is manufactured using an extremely high precision
manufacturing technology. Its effective pixel ratio is over 99.99%.
This means that there is a possibility that 0.01% of the pixels could
be either always ON or OFF.
PICKUP
Wave length
DVD:665 nm
CD:800 nm
Laser powerCLASS I
65-EN
Installation and Connections
Before installing or connecting the unit, please read the
following and pages 4 to 6 of this manual thoroughly
for proper use.
Warning
MAKE THE CORRECT CONNECTIONS.
Failure to make the proper connections may result in fire or
product damage.
USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.
(Check with your dealer if you are not sure.) Failure to do so may
result in fire, etc.
BEFORE WIRING, DISCONNECT THE CABLE FROM THE
NEGATIVE BATTERY TERMINAL.
Failure to do so may result in electric shock or injury due to
electrical shorts.
DO NOT ALLOW CABLES TO BECOME ENTANGLED IN
SURROUNDING OBJECTS.
Arrange wiring and cables in compliance with the manual to
prevent obstructions when driving. Cables or wiring that obstruct
or hang up on places such as the steering wheel, gear lever, brake
pedals, etc. can be extremely hazardous.
DO NOT SPLICE INTO ELECTRICAL CABLES.
Never cut away cable insulation to supply power to other
equipment. Doing so will exceed the current carrying capacity of
the wire and result in fire or electric shock.
DO NOT DAMAGE PIPE OR WIRING WHEN DRILLING
HOLES.
When drilling holes in the chassis for installation, take
precautions so as not to contact, damage or obstruct pipes, fuel
lines, tanks or electrical wiring. Failure to take such precautions
may result in fire.
DO NOT USE BOLTS OR NUTS IN THE BRAKE OR
STEERING SYSTEMS TO MAKE GROUND CONNECTIONS.
Bolts or nuts used for the brake or steering systems (or any other
safety-related system), or tanks should NEVER be used for
installations or ground connections. Using such parts could
disable control of the vehicle and cause fire etc.
KEEP SMALL OBJECTS SUCH AS BOLTS OR SCREWS OUT
OF THE REACH OF CHILDREN.
Swallowing them may result in serious injury. If swallowed,
consult a physician immediately.
DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER
VEHICLE OPERATION, SUCH AS THE STEERING WHEEL
OR GEARSHIFT.
Doing so may obstruct forward vision or hamper movement etc.
and results in serious accident.
Caution
HAVE THE WIRING AND INSTALLATION DONE BY
EXPERTS.
The wiring and installation of this unit requires special technical
skill and experience. To ensure safety, always contact the dealer
where you purchased this product to have the work done.
USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM
SECURELY.
Be sure to use only the specified accessory parts. Use of other
than designated parts may damage this unit internally or may not
securely install the unit in place. This may cause parts to become
loose resulting in hazards or product failure.
ARRANGE THE WIRING SO IT IS NOT CRIMPED OR
PINCHED BY A SHARP METAL EDGE.
Route the cables and wiring away from moving parts (like the
seat rails) or sharp or pointed edges. This will prevent crimping
and damage to the wiring. If wiring passes through a hole in
metal, use a rubber grommet to prevent the wires insulation from
being cut by the metal edge of the hole.
DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE
OR DUST.
Avoid installing the unit in locations with high incidence of
moisture or dust. Moisture or dust that penetrates into this unit
may result in product failure.
Precautions
• Be sure to disconnect the cable from the (–) battery post before
installing your IVA-D300. This will reduce any chance of
damage to the unit in case of a short-circuit.
• Be sure to connect the color coded leads according to the
diagram. Incorrect connections may cause the unit to
malfunction or damage to the vehicle's electrical system.
• When making connections to the vehicle's electrical system, be
aware of the factory installed components (e.g. on-board
computer). Do not tap into these leads to provide power for this
unit. When connecting the IVA-D300 to the fuse box, make
sure the fuse for the intended circuit of the IVA-D300 has the
appropriate amperage. Failure to do so may result in damage to
the unit and/or the vehicle. When in doubt, consult your
ALPINE dealer.
• The IVA-D300 uses female RCA-type jacks for connection to
other units (e.g. amplifier) having RCA connectors. You may
need an adaptor to connect other units. If so, please contact
your authorized ALPINE dealer for assistance.
• Be sure to connect the speaker (–) leads to the speaker (–)
terminal. Never connect left and right channel speaker cables to
each other or to the vehicle body.
• The Display must be completely retracted in the casing when
installing. If it is not, problems may occur.
• When installing in automobiles, make sure the Display can
open/close without coming in contact with the gear shift .
IMPORTANT
Please record the serial number of your unit in the space provided
below and keep it as a permanent record. The serial number plate is
located on the bottom of the unit.
66-EN
SERIAL NUMBER:
INSTALLATION DATE:
INSTALLATION TECHNICIAN:
PLACE OF PURCHASE:
Installation
Installing the Monitor
Installation Location
Before deciding on the mounting location, check that opening and
closing the display will not hamper gear shifting in that position.
•Install at an angle of within 30 degrees from the horizontal.
• The monitor's angle is set to 90 degrees at the factory. Depending
on the car, the monitor may hit the dashboard when opened. The
monitor's angle can be adjusted and stored in memory so that the
monitor will not hit the dashboard when opening. For adjusting the
monitor, refer to "Adjusting the monitor Angle" on page 26.
Even when the vehicle's battery power is removed, the adjusted
monitor angle remains stored in memory.
1
Dashboard
Mounting Sleeve
(Included)
IVA-D300
Screws (M4 × 3)
(Included)
Mounting Bracket
(Included)
Reinforce the monitor unit with a metal mounting strap (not
supplied). Secure the ground lead of the unit to a clean
metal spot using a screw (}) already attached to the
vehicle's chassis.
•For the screw marked }}, use an appropriate screw for the
chosen mounting location.
Connect each input lead coming from an amplifier or
equalizer to the corresponding output lead coming from
the left rear of the IVA-D300. Connect all other leads of the
IVA-D300 according to details described in the
Connections section.
3
Lock Pin
Slide the IVA-D300 into the dashboard. When the unit is in
place, make sure the locking pins are fully seated in the
down position. This can be done by pressing firmly in on
the unit while pushing the locking pin down with a small
screwdriver. This ensures that the unit is properly locked
and will not accidentally come out from the dashboard.
Install the supplied Front Frame.
Removal
1. Use a small screwdriver (or similar tool) to push the
locking pins to the "up" position (see Step 3). As each
pin is unlocked, gently pull out on the unit to make sure
it does not re-lock before unlocking the second pin.
2. Pull the unit out, keeping it unlocked as you do so.
Slide the mounting sleeve into the dashboard. Install the
supplied bracket on the monitor.
• Make sure to use the supplied screw (M4 × 3) to install the monitor.
If you use another screw to install the monitor, it may cause a
malfunction.
2
Screw
Hex Nut (M5)
Bolt Stud
Metal Mounting
Strap
Ground
Lead
Chassis
Wider edge should face down.
IVA-D300
Front Frame
(Included)
< JAPANESE CAR >
To install using the vehicle's standard bracket.
Screws (M4 × 6)
Ground Lead
IVA-D300
• Make sure to use the supplied screw (M4 × 6) to install the monitor.
If you use another screw to install the monitor, it may cause a
malfunction.
(Included)
Mounting Bracket
67-EN
Installing the Tuner Box
Caution
Do not block the unit’s fan or heat sink, thus
preventing air circulation. If blocked, heat will
accumulate inside the unit and may cause a fire.
Air ventilation hole
<Side of the tuner box>
When mounting with Velcro fasteners
When mounting the tuner with the Velcro fasteners, be sure to choose
a flat location.
Do not hang the unit from the bottom of the dashboard or rear deck
with the Velcro fasteners.
Remove the Protective paper and attach two pieces
1
of Velcro fastener to the bottom of the Tuner.
Install the tuner on the floor with the supplied
2
flange-head tapping screws (M4 × 14).
Flange-head tapping screws
(M4 × 14) (Included)
Tuner Box
Installing the DC/DC Converter
Install the DC/DC Converter on the floor with the
supplied flange-head tapping screws (M4 × 14).
Flange-head tapping
screws (M4 × 14)
(Included)
Tuner Box
Protective paper
Velcro Fasteners
Protective paper
Check the position, and then fix the Tuner to the
2
floor carpet.
When mounting with Screws
When mounting the tuner with the screws, be sure to choose a flat
location.
When making holes, be careful not to scratch any pipes or wires.
Connect the bracket to both the flanks of the tuner
1
with the supplied pan screws (M4 × 8).
Tuner Box
(Included)
Bracket (Included)
DC/DC Converter
Pan screws (M4 × 8) (Included)
68-EN
Parking Brake Lead Connection
If necessary, use a pinch connector to connect the foot brake lead, parking brake lead, etc.
12
Vehicle Cable
Stopper
Pinch Connector
Monitor Cable
Pliers
Foot Brake Lead / Parking Brake Lead Connection
Foot brake lamp
Foot brake switch
Chassis
Battery
Parking brake switch
IVA-D300
Tuner Box
FOOT BRAKE
(Yellow/Black)
PARKING BRAKE
(Yellow/Blue)
Pinch
Connector
Pinch
Connector
Foot brake lead
Parking brake lamp
Parking brake lead
Connection Diagram of SPST Switch (Sold Separately)
(If the ACC power supply is not available)
FUSE (5A)
(Optional)
FUSE (20A)
(Optional)
Battery
IVA-D300
(Monitor and
Tuner Box)
(Red)
(Yellow)
IGNITION
BATTERY
SPST SW (Optional)
• If your vehicle has no ACC power supply, add an SPST (Single-Pole, Single-Throw) switch (sold separately) and fuse (sold separately).
• The diagram and the fuse amperage shown above are in the case when IVA-D300 is used individually.
• If the switched power (ignition) lead of the IVA-D300 is connected directly to the positive (+) post of the vehicle‘s battery, the IVA-D300 draws
some current (several hundred milliamperes) even when its switch is placed in the OFF position and the battery may be discharged.
To prevent external noise from entering the audio system.
• Locate the unit and route the leads at least 10 cm away from the car harness.
• Keep the battery power leads as far away from other leads as possible.
• Connect the ground lead securely to a bare metal spot (remove any paint, dirt or grease if necessary) of the car chassis.
• If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries various
noise suppressors, contact them for further information.
• Your Alpine dealer knows best about noise prevention measures so consult your dealer for further information.
69-EN
Connections (IVA-D300 Wiring Diagram)
Antenna
4
IVA-D300
Tuner BOX
3
POWER SUPPLY
REMOTE IN/OUT
NAVIGATION IN
%
DISPLAY OUT
&
(
$
EQ/DIV
NORM
2
IVA-D300
1
<Monitor>
3
6
BATT
(Yellow)
ILLM
(Orange)
REMOTE OUT
(White/Brown)
REMOTE IN
(White/Brown)
SUBW.
REAR
PRE IN/OUT
FRONT
L
R
Ai-NET
EXT.OUT
AV.SELECTOR
CAMERA IN
AUX OUT
VIDEO
L
AUDIO
R
AUX IN
RADIO ANTENNA IN
:
/
.
,
+
~
REVERSE
(Orange/White)
M.CONT
(White/Pink)
REMOTE
TURN-ON
(Blue/White)
POWER ANT
(Blue)
AUDIO INTERRUPT IN
)
(Pink/Black)
PARKING BRAKE
(Yellow/Blue)
FOOT BRAKE
(Yellow/Black)
IGNITION
(Red)
[
BATTERY
GND
(Black)
5
7
8
9
!
"
#
;
<
=
>
?
@
5
Battery
To the instrument cluster
illumination lead
To remote input lead
To remote output lead
To p lus side of the back
lamp signal lead of the car
To monitor control lead
To amplifier or equalizer
To power antenna
To vehicle phone
To the parking brake
signal lead
To the foot brake cord or
brake lamp cord.
Ignition key
(Yellow)
GND
(Black)
SPEAKER
LEFT
FRONT
(White)
(White/
Black)
SPEAKER
LEFT
REAR
(Green/
Black)
(Green)
SPEAKER
RIGHT
REAR
(Violet)
(Violet/
Black)
SPEAKER
RIGHT
FRONT
(Gray/
Black)
V}|{7_^]\
Speakers
Front leftRear leftRear rightFront right
• Set the system switch to “NORM” when only a changer is connected (when the Ai-NET compatible equalizer is not used).
70-EN
Battery
(Gray)
1 Antenna Extension Cable
2 Digital Output Terminal (Optical)
Use when combining fiber digital input compatible
products.
3 Power Supply Connector
4 DC/DC Converter
• Do not install the converter at a location subjected to water such
as under the floor mat or air conditioner. This may cause a
malfunction.
• Do not bundle the DC/DC converter cable with other audio cables.
Also, do not install the cables directly next to the unit. Doing so
may induce noise into your system.
•Keep the DC/DC converter away from the Antenna cables and the
rear side of the unit, otherwise noise may be generated when
receiving radio broadcast.
5 Battery Lead (Yellow)
Connect this lead to the positive (+) post of the vehicle’s
battery.
6 Fuse Holder (10A)
7 Ground Lead (Black)
Connect this lead to a good chassis ground on the
vehicle. Make sure the connection is made to bare metal
and is securely fastened using the sheet metal screw
provided.
8 Illumination Lead (Orange)
This lead may be connected to the vehicle’s instrument
cluster illumination lead. This will allow the backlighting of
the IVA-D300 to dim whenever the vehicle‘s lights are
turned on.
9 Remote Control Output Lead (White/Brown)
Connect this lead to the remote control input lead. This
lead outputs the controlling signals from the remote
control.
! Remote Control Input Lead (White/Brown)
Connect the external Alpine product to the remote control
output lead.
" Reverse Lead (Orange/White)
Use only when a back-up camera is connected. Connect
to the plus side of the car's reverse lamp that lights when
the transmission is shifted into reverse (R).
Switches the video picture to the back-up camera. This is
linked with putting the car into reverse (R).
# Monitor Control Lead (White/Pink)
Connect this to the Monitor Control Lead of the touch
panel-compatible rear monitor.
$ Monitor Extension Cable (Included)
% Remote IN/OUT Terminal
& Display Output Terminal
( System Switch
When connecting an equalizer or divider using Ai-NET
feature, place this switch in the EQ/DIV position. When no
device is connected, leave the switch in the NORM
position.
• Be sure to turn the power off to the unit before changing the switch
position.
) Antenna Receptacle
~ AUX Input Terminals/AUX Output Terminals
If these terminals are connected to the optional expansion
box (VPE-S431), the AUX input and output terminals are
not used on this unit. Connect AUX IN 1, 2 and 3, and the
AUX OUT 1 and 2 terminals of the expansion box (VPES431) to the external device(s).
+ AV Select Connector
When this connector is connected to the optional
expansion box (VPE-S431), connect this to the HEAD
UNIT terminal of VPE-S431.
, Ext. Output Connector
If this connector is connected to the optional Amplifier
Link compatible monaural Amplifier, connect this to the
optional Amplifier Link Box, and output the Amplifier Link
control signal.
- Ai-NET Connector
Connect this to the output or input connector of other
product (CD changer, Equalizer, etc.) equipped with AiNET.
. Front input/output Terminal
Use when connecting an amplifier or Equalizer.
/ Rear input/output Terminal
Use when connecting an amplifier or Equalizer.
: Subwoofer output Terminal
Connect the input lead of an amplifier for the subwoofer to
this terminal.
; Remote Turn-On Lead (Blue/White)
Connect this lead to the remote turn-on lead of your
amplifier or signal processor.
< Power Antenna Lead (Blue)
Connect this lead to the +B terminal of your power
antenna, if applicable.
= Audio Interrupt In Lead (Pink/Black)
> Parking Brake Lead (Yellow/Blue)
Connect this lead to the power supply side of the parking
brake switch to transmit the parking brake status signals
to the IVA-D300.
? Foot Brake Lead (Yellow/Black)
Connect to the vehicle's foot brake lead or brake lamp
lead.
@ Switched Power Lead (Ignition) (Red)
Connect this lead to an open terminal on the vehicle’s fuse
box or another unused power source which provides (+)
12V only when the ignition is turned on or in the accessory
position.
[ Fuse Holder (10A)
\ Right Front (+) Speaker Output Lead (Gray)
] Right Front (–) Speaker Output Lead (Gray/Black)
^ Right Rear (–) Speaker Output Lead (Violet/Black)
_ Right Rear (+) Speaker Output Lead (Violet)
{ Left Rear (+) Speaker Output Lead (Green)
| Left Rear (–) Speaker Output Lead (Green/Black)
} Left Front (–) Speaker Output Lead (White/Black)
V Left Front (+) Speaker Output Lead (White)
71-EN
System Example
Connect the Ai-NET compatible audio processor (Fiber digital compatible), Navigation system, DVD
player and changer.
IVA-D300 Monitor
NVE-N852A/NVE-N871A
Fiber optic
5
cable
(for head unit)
(Sold Separately)
66
#
Ai-NET
cable
CD Changer (Ai-NET)
(Sold Separately)
!
Fiber digital
Input terminal
(for Changer)
!
**
Fiber
optic cable
1
(White/Brown)
REMOTE OUT
Navigation system
(Sold Separately)
IVA-D300
Tuner BOX
POWER SUPPLY
2
REMOTE IN/OUT
NAVIGATION IN
DISPLAY OUT
3
4
EQ/DIV
NORM
(White/Brown)
REMOTE IN
(Yellow)
SUBW.
PRE IN/OUT
REAR
FRONT
L
R
Ai-NET
EXT.OUT
AV.SELECTOR
CAMERA IN
AUX OUT
VIDEO
L
AUDIO
R
AUX IN
RADIO ANTENNA IN
8
%
DVD Video Player
(DVA-5210 etc.)
(Sold Separately)
6
Ai-NET
cable
7
!
9
Fiber optic cable
&
**
*Fiber digital Input terminal
Audio Processor (Ai-NET)
(Fiber Digital compatible)
Fiber digital
Input terminal
(for DVD Player)
Ai-NET cable
"$
Only connect fiber digital compatible CD Changer
• When the fiber digital compatible product is connected, it is necessary to set the mode of this unit. Refer to “Setting the Digital Output” (page
30) and set to ON. Then refer to “Optical Digital Input Selection for an External Audio Processor” (page 34) and switch the setting.
•* When connecting with PXA-H510 :
- Connect the fiber digital input terminal to the DVD.
-IVA-D300, DVA-5200, DVA-5205 or DVA-5210 cannot be connected simultaneously when fiber digital is in use.
• When the NVA-N751AS is connected for the Navigation System, use the RGB conversion cable KWE-503N (Sold separately).
Please observe the following when using Fiber Optic Cable.
• Do not coil the Fiber Optic Cable smaller than a 30 mm radius.
• Do not place anything on top of the Fiber Optic Cable.
72-EN
1 RGB Cable (Included with NVE-N852, not included
with NVE-N871A)
2 Remote IN/OUT Terminal
3 RGB Input Terminal
Connect this to the RGB output terminal of the Navigation
System.
4 System Switch
When connecting an equalizer or divider using Ai-NET
feature, place this switch in the EQ/DIV position. When no
device is connected, leave the switch in the NORM
position.
• Be sure to turn the power off to the unit before changing the switch
position.
5 Digital Output Terminal
6 Ai-NET Connector
Connect this to the output or input connector of other
product equipped with Ai-NET.
7 AUX Video Input (AUX1) Terminal
Connect the video output lead of a DVD video player or
DVD changer to this terminal.
8 RCA Extension Cable (Included with DVD video
player)
9 Ai-NET Cable (Included with DVD video player)
! Fiber optic Cable (Sold Separately)
" Ai-NET Cable (Included with Audio Processor)
# Ai-NET Cable (Included with CD Changer)
$ Remote Control Output Lead (White/Brown)
Connect this lead to the remote control input lead. This
lead outputs the controlling signals from the remote
control.
% To Ai-NET Connector (Gray)
& To Ai-NET Connector (Black)
73-EN
When Connecting External Equipment
1
EQ/DIV
NORM
2
IVA-D300
Tuner BOX
POWER SUPPLY
REMOTE IN/OUT
NAVIGATION IN
DISPLAY OUT
(White/Pink)
(White/Brown)
(White/Brown)
(Orange/White)
!
SUBW.
PRE IN/OUT
REAR
FRONT
L
R
Ai-NET
6
7
8
9
3
5
!
!
M.CONT
REMOTE IN
REMOTE OUT
Use only when back-up camera is connected.
EXT.OUT
AV.SELECTOR
CAMERA IN
4
AUX OUT
VIDEO
(MONO)
L
AUDIO
R
AUX IN
RADIO ANTENNA IN
M.CONT
*
Connect this to the touch panel-compatible rear monitor.
REMOTE OUT
REMOTE IN
REVERSE
To Audio Input terminal
Rear monitor
(Sold Separately)
To Video Input terminal
To Video Output terminal
Back-up camera
(Sold Separately)
To Video Output terminal
TV Tuner or VCR
(Sold Separately)
To Audio Output terminal
(White/Pink)
(White/Brown)
(White/Brown)
1 System Switch
When connecting an equalizer or divider using Ai-NET
feature, place this switch in the EQ/DIV position. When no
device is connected, leave the switch in the NORM
position.
• Be sure to turn the power off to the unit before changing the switch
position.
2 Remote IN/OUT Terminal
3 CAMERA Input Terminal
Use when connecting a back-up camera.
4 AUX Video/Audio Output Terminal
Use when connecting an optional monitor etc.
5 AUX Video/Audio Input Terminal
6 Monitor Control Lead (White/Pink)
Connect this to the Monitor Control Lead of the touch
panel-compatible rear monitor.
74-EN
7 Remote Control Output Lead (White/Brown)
Connect this lead to the remote control input lead. This
lead outputs the controlling signals from the remote
control.
8 Remote Control Input Lead (White/Brown)
9 Connect to the plus side of the car's reverse lamp
which lights when the transmission is shifted into
reverse (R).
Switches the video picture to the back-up camera.
This is linked to putting the car into reverse (R).
! RCA Extension Cable (Sold separately)
Connect an expansion box (VPE-S431), DVD Player, DVD Changer or the Touch Panel-compatible
Monitor.
IVA-D300
Tuner BOX
8
To AUX Input (AUX IN 1)
Terminals
4
!
DVD PLAYER
(Sold separately)
"
To AUX Input
(AUX IN 2)
Terminals
4
IN
(White/Brown)
REMOTE OUT
(AUX1)
7
(White/Brown)
REMOTE OUT
(AUX2)
7
!
DVD CHANGER
(Sold separately)
REMOTE IN
REMOTE IN
(AUX1)
(White/Brown)
(AUX2)
(White/Brown)
POWER SUPPLY
REMOTE IN/OUT
NAVIGATION IN
DISPLAY OUT
1
EQ/DIV
NORM
SUBW.
PRE IN/OUT
REAR
FRONT
L
R
Ai-NET
EXT.OUT
AV.SELECTOR
CAMERA IN
AUX OUT
VIDEO
L
AUDIO
R
AUX IN
RADIO ANTENNA IN
2
3
To AUX Input (AUX IN 3)
Terminals
4
5
EXPANSION BOX
(VPE-S431)
(Sold separately)
To AUX Output Terminals
6
M.CONT
(White/Pink)
REMOTE
(White/Brown)
4
M.CONT
(White/Pink)
To Video Input
Terminals
To Audio Input
Terminals
TOUCH PANEL COMPATIBLE
REAR MONITOR
(Sold separately)
REMOTE
OUT
(White/Brown)
9
1 System Switch
When connecting an equalizer or divider using Ai-NET
feature, place this switch in the EQ/DIV position. When no
device is connected, leave the switch in the NORM
position.
• Be sure to turn the power off to the unit before changing the switch
position.
2 To AV Selector Terminal
3 AUX Video/Audio Output Terminal
4 RCA Extension Cable (Sold separately)
• If the expansion box (VPE-S431) is connected to either a DVD
video player or DVD changer, connect this to AUX IN 1. If this is
connected to AUX IN 2, remote control operation will not be
possible. If both are to be connected, connect the DVD video
player to AUX IN 1, and the DVD changer to AUX IN 2.
5 AV Selector Cable (Included with VPE-S431)
6 Monitor Control Lead (White/Pink)
Connect this to the Monitor Control Lead of the touch
panel-compatible rear monitor.
7 Remote Control Output Lead (White/Brown)
Connect this lead to the remote control input lead. This
lead outputs the controlling signals from the remote
control.
8 Ai-NET Cable (Included with DVD video player)
9 Ai-NET Cable (Included with DVD changer)
! To Ai-NET Connector (Black)
" To Ai-NET Connector (Gray)
75-EN
LIMITED WARRANTY
ALPINE ELECTRONICS OF AMERICA, INC. AND ALPINE OF CANADA INC. ("Alpine"), are dedicated to quality
craftsmanship and are pleased to offer this Warranty. We suggest that you read it thoroughly. Should you have any
questions, please contact your Dealer or Alpine at one of the telephone numbers listed below.
[[
[PRODUCTS COVERED:
[[
This Warranty covers Car Audio/Visual Products and
Related Accessories ("the product"). Products purchased in
the Canada are covered only in the Canada. Products
purchased in the U.S.A. are covered only in the U.S.A.
[[
[LENGTH OF WARRANTY:
[[
This Warranty is in effect for one year from the date of the
first consumer purchase.
[[
[LIFETIME TAPE HEAD WARRANTY:
[[
All Alpine Car Audio analog tape heads excluding Video
tape heads are warranted for life against manufacturing
defects causing failure.
[[
[WHO IS COVERED:
[[
This Warranty only covers the original purchaser of the
product, who must reside in the United States, Puerto Rico
or Canada.
[[
[WHAT IS COVERED:
[[
This Warranty covers defects in materials or workmanship
(parts and labor) in the product.
[[
[WHAT IS NOT COVERED:
[[
This Warranty does not cover the following:
1 Damage occurring during shipment of the product to
Alpine for repair (claims must be presented to the
carrier).
2 Damage caused by accident, abuse, negligence,
misuse, improper connections, improper operation or
failure to follow instructions contained in the Owner's
manual.
3 Damage caused by act of God, including without
limitation, earthquake, fire, flood, storms or other acts of
nature.
4 Any cost or expense related to the removal or
reinstallation of the product.
5 Service performed by an unauthorized person, company
or association.
6 Any product which has the serial number defaced,
altered or removed.
7 Any product which has been adjusted, altered or
modified without Alpine's consent.
8 Any product not distributed by Alpine within the United
States, Puerto Rico or Canada.
9 Any product not purchased from an Authorized Alpine
Dealer.
! Any product that has been determined to contain an
excessive amount of dust or dirt and any product that
contains other contaminants including liquid or foreign
objects.
[[
[HOW TO OBTAIN WARRANTY SERVICE:
[[
1 You are responsible for delivery of the product to an
Authorized Alpine Service Center or Alpine for repair
and for payment of any initial shipping charges. Alpine
will, at its option, repair or replace the product with a
new or reconditioned product without charge. If the
repairs are covered by the warranty, and if the product
was shipped to an Authorized Alpine Service Center or
Alpine, Alpine will pay the return shipping charges.
2 You should provide a detailed description of the
problem(s) for which service is required.
3 You must supply proof of your purchase of the product.
4 You must package the product securely to avoid
damage during shipment.
[[
[HOW WE LIMIT IMPLIED WARRANTIES:
[[
ANY IMPLIED WARRANTIES INCLUDING FITNESS FOR
USE AND MERCHANTABILITY ARE LIMITED IN
DURATION TO THE PERIOD OF THE EXPRESS
WARRANTY SET FORTH ABOVE AND NO PERSON IS
AUTHORIZED TO ASSUME FOR ALPINE ANY OTHER
LIABILITY IN CONNECTION WITH THE SALE OF THE
PRODUCT.
[[
[HOW WE EXCLUDE CERTAIN DAMAGES:
[[
ALPINE EXPRESSLY DISCLAIMS LIABILITY FOR
INCIDENTAL AND CONSEQUENTIAL DAMAGES
CAUSED BY THE PRODUCT. THE TERM "INCIDENTAL
DAMAGES" REFERS TO EXPENSES OF
TRANSPORTING THE PRODUCT TO THE ALPINE
SERVICE CENTER, LOSS OF THE ORIGINAL
PURCHASER'S TIME, LOSS OF THE USE OF THE
PRODUCT, BUS FARES, CAR RENTALS OR OTHERS
COSTS RELATING TO THE CARE AND CUSTODY OF
THE PRODUCT. THE TERM "CONSEQUENTIAL
DAMAGES" REFERS TO THE COST OF REPAIRING OR
REPLACING OTHER PROPERTY WHICH IS DAMAGED
WHEN THIS PRODUCT DOES NOT WORK PROPERLY.
THE REMEDIES PROVIDED UNDER THIS WARRANTY
ARE EXCLUSIVE AND IN LIEU OF ALL OTHERS.
[[
[HOW STATE/PROVINCIAL LAW RELATES TO THE
[[
WARRANTY:
This Warranty gives you specific legal rights, and you may
also have other rights which vary form state to state and
province to province. In addition, some states/provinces do
not allow limitations on how long an implied warranty lasts,
and some do not allow the exclusion or limitation of
incidental or consequential damages. Accordingly,
limitations as to these matters contained herein may not
apply to you.
[[
[IN CANADA ONLY:
[[
This Warranty is not valid unless your Alpine car audio
product has been installed in your vehicle by an Authorized
Installation Center, and this warranty stamped upon
installation by the installation center.
[[
[HOW TO CONTACT CUSTOMER SERVICE:
[[
Should the product require service, please call the following
number for your nearest Authorized Alpine Service Center.
