Alpine EZi-DAB-BT OWNER'S MANUAL [IT]

OWNER’S MANUAL

Please read before using this equipment.

BEDIENUNGSANLEITUNG

Bitte vor der Verwendung des Produkts lesen.

MANUEL D’UTILISATION

Veuillez lire ce manuel avant d’utiliser ce matériel.

MANUALE DELL’UTENTE

Leggere il manuale prima di installare il dispositivo.

BRUKERHÅNDBOK

Les nøye før du bruker dette produktet.

GEBRUIKERSHANDLEIDING

Doorlezen voor gebruik van het apparaat.

Digital Radio Interface

EZi-DAB-BT

Thank you for choosing EZi-DAB-BT. This manual will get you up and running in no time, and explains how to make the most of your EZi-DAB-BT. We’re constantly improving and adding new features to our products. To take advantage of any enhancements made since your product was shipped, please visit www.alpine-europe.com where you can ﬁnd out about the latest product updates and download the latest version of this user guide in PDF format.

Safety instructions

Symbols used on this product

Symbol Description

This WARNING symbol is used throughout this manual to indicate a potentially serious risk to your personal safety. Obey all safety notices that accompany this symbol to avoid possible injury or death.

This symbol is used on the product to indicate a caution and that instructions should be read before use.

This symbol indicates 12V DC.

12V DC

1A This symbol indicates a USB socket rated at 1 Amp maximum.

This symbol indicates where the product is switched on or put into standby.

Note: For information on all the other symbols used on the product, see page 12.

1. Read and r etain these in structio ns.

2. Heed th e warnings given.

3. Follow the operating instructions.

4. Failure to install or use the product in accordance with these instructions may impair the safety of the product and invalidate the warranty.

6. Do not f it the wireles s controller, re ceiver or the an tenna in such a way t hat may inter fere with the sa fe operation o f the vehicle, t he deploymen t of air bags or oth er safety pro duct.

7. Avoi d running cables and w ires near the steerin g wheel.

8. Do not con nect to anyt hing other th an the vehicle 12V suppl y using the supplied adapter.

9. Do not use t he product i n a manner that wo uld cause care less driving or improper con trol of your vehicle.

10. Do not immerse in water.

11. Clean only w ith a dry clot h.

12. Do not place on or nea r sources of heat , for example he ating vents .

13. This pro duct must on ly be used with the sup plied battery ty pes and 12V accessory p ower adapter.

14. WARNI NG: The batter ies in the wirel ess controll er shall not be ex posed to excessi ve heat such as su nshine, fire or similar.

15. Ensure ba tteries are f itted with t he correct po larity.

16. Attention should be drawn to the environmental aspects of battery disposal.

17. Do not cover any of the vehicle’s ventilation openings as this may impair the vehicle’s ventilation.

18. D o not expose the p roduct to naked flam e sources, for exa mple a lighter.

19. This product is intended for use in moderate climates.

20. Ensure t hat power is rem oved prior to mak ing any connec tions to the rear of your ve hicle’s head uni t. Only turn on your pro duct once connect ions are made saf e. See your vehic le’s

Use only power supplies listed in the user manual/user instructions.

owner’s manual for more information.

If the product is used in a manner not speciﬁed by the instructions, the product’s protection could be impaired. Do not use the product if any damage is noticed. Product repairs are only allowed to be carried out by competent and authorised personnel. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries may have been swallowed or placed inside any part of the body, seek immediate medical attention.

Contents

4 Introduction

4 Package contents

5 Installing EZi-DAB-BT in your vehicle

5 Important safety notice 6 Considerations before installing EZi-DAB-BT 8 Installing the receiver 9 Cable routing overview 10 Connecting the receiver to the power supply 11 Installing the wireless controller

12 Overview

12 Controls 13 Display 13 Switching on and o

14 Switching on EZi-DAB-BT for the ﬁrst time 15 Listening to digital radio 16 Pairing EZi-DAB-BT with a phone or

tablet

17 Using the handsfree telephone function

18 Streaming audio stored on your phone

or tablet 19 Streaming from a music streaming service 19 Using EZi-DAB-BT with your mobile’s

personal assistant feature 19 Settings

19 Digital radio settings 21 Bluetooth settings 22 Switching between auxiliary connection and FM

transmission 23 Display 23 About 23 Software updates 24 Resetting EZi-DAB-BT to factory settings

25 Appendix

25 Troubleshooting 28 Technical speciﬁcations

Introduction

Package contents

Receiver

This is intended to be mounted to the windscreen.

Batteries

Two AAA batteries.

Magnetic grounding tail This attaches to the receiver (see page 7).

DAB ﬁlm antenna This attaches to the receiver. Note: The DAB ﬁlm antenna is delicate, so be careful not to bend it.

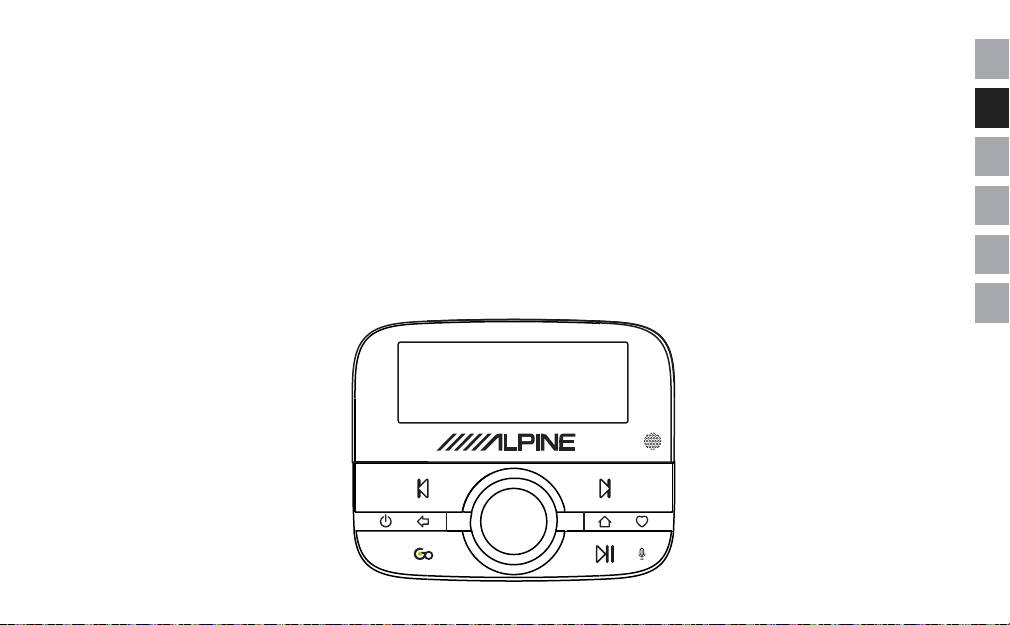

Wireless controller

The wireless controller connects to the receiver using Bluetooth and is used to control all of EZi-DAB-BT’s functions.

Wireless controller bracket Bracket for positioning the wireless controller on your dashboard. Includes sticky pad.

EZi-DAB-BT power adapter Dual USB port 12V accessory power adapter.

Self-adhesive cable clips Used for securing any cables.

Cleaning wipe Used to wipe down surfaces before ﬁxing any of EZi-DAB-BT’s components into place.

Installing EZi-DAB-BT in your vehicle

Important safety notice

For your safety, do not run cables so that they interfere with operation of the vehicle, or through a location that would interfere with the function of the airbags or other safety equipment, for example seat belts. Do not install any of EZi-DAB-BT’s components in a location that obstructs the view of the driver or in a location where digital radio interference may be caused from the metal bodywork or other components.

Suggested position

No restriction

Zone B Zone A

Max 4cm incursion

Max 1cm incursion

Receiver positioning overview

The receiver is designed to be installed on a window using the self-adhesive pads provided.

Make sure that you install the receiver in a safe position where the primary viewing area is not obstructed. Your windscreen can be divided into separate zones to help you determine where the receiver can be safely placed:

Zone A is a vertical area 290mm wide, centred on the steering wheel and contained within the swept area of the windscreen (this area is 350mm wide on vehicles over 3.5 tonnes) which must not be incurred upon by more than 1cm.

Note: Fitting EZi-DAB-BT in this area is not recommended.

Zone B is the remainder of the swept area of the windscreen which must not be incurred upon by more than 4cm.

The above information is a guide only, for full information you should consult the relevant country department of transport guidelines.

Considerations before installing EZi-DAB-BT

Minimum vehicle requirements

• Fitted audio system with either aux-in (3.5 mm) or FM receiver.

• Standard 12V negative earth power system - not suitable for 24V systems.

Check for the latest EZi-DAB-BT software updates

Visit www.alpine-europe.com to see if any software updates are available for your EZi-DAB-BT.

Test intended positions of receiver and wireless controller before fixing into place

• Check the cable length to ensure connectors can reach the audio and accessory power outlet positions.

• Temporarily place the receiver and wireless controller in their intended positions and check that EZi-DAB-BT is working as expected. Check the digital radio quality and signal strength (see ‘Info’ on page 23 for more information).

Receiver positioning

• Ensure you can easily access the ‘Reset’ button on the receiver before ﬁtting.

• For best performance we recommend positioning the receiver away from heated screen elements and not on glass panels that contain metallic UV ﬁlters.

Wireless controller positioning

Consider usability and visibility from driving seat and possible mounting points/brackets.

Connecting to your existing audio system

There are two options for installing EZi-DAB-BT. You can connect EZi-DAB-BT to your audio system’s auxiliary connection or you can transmit to your audio system wirelessly using an available FM frequency.

• If you want to use an auxiliary cable (recommended for best performance), check for auxiliary inputs on the existing audio system (this may be on the back on some audio systems). For more information, see your existing audio system’s user guide.

• If you want to use an available FM frequency, select this option during initial EZi-DAB-BT setup (see page 14 for more information). Note: To comply with legal requirements the FM transmitter function of EZi-DAB-BT will switch o if no audio is transmitted for a period lasting over a minute - this includes DAB radio or audio streamed from your phone or tablet. If FM transmission is switched o you need to re-tune to an active DAB station or stream audio from your phone or tablet.

Receiver overview

Film antenna

Clip to the receiver.

Power and audio out cable

Status LED

Lights up for a few seconds when you ﬁrst switch on EZi-DAB-BT. If the LED starts to ﬂash see ’Troubleshooting’ on page 25 for more information.

Reset button

Used to reset EZi-DAB-BT or to start pairing between the receiver and the wireless controller, see ’Troubleshooting’ on page 25 for more information.

Microphone connection

Optional detachable magnetic grounding tail

We recommend ﬁtting the magnetic grounding tail if you can stick it to a metal part of your vehicle’s bodywork. It can improve DAB reception in areas with poor signal strength. See the next page for installation guidance.

Installing the receiver

We recommend installing EZi-DAB-BT’s receiver on your vehicle’s windscreen as described below (see page 5 for more information).

1. If you decided to ﬁt the magnetic grounding tail, gently pull down the front of the roof liner so that there is enough room to push the detachable magnetic grounding tail through the gap. Note: Ensure that the magnet on the end of the magnetic grounding tail makes contact with the roof above your vehicle’s headliner or the vehicle’s metal bodywork surface.

2. Use the supplied cleaning wipe to clean the area of the windscreen that you want to install the receiver and ﬁlm antenna on and wait for the surface to dry. Important: Ensure the surface is completely clean and dry before adhesion.

Note: The receiver and antenna should be installed at least 40mm from

your vehicle’s metal bodywork.

3. Remove the backing from the receiver (A) and attach to your windscreen. Note: Make sure that you install EZi-DAB-BT in a safe position where the

primary viewing area is not obstructed (see page 5).

4. Gently unpeel the backing of the ﬁlm antenna (B) and attach to your

windscreen, taking care not to bend it. Apply gentle pressure until the ﬁlm antenna is held ﬁrmly in position.

Note: Take care not to unclip the ﬁlm antenna from the receiver when

attaching to your windscreen.

Cable routing overview

Installing the main cable

Installing the microphone

1. Connect the microphone to your receiver and run the cable (G) along the top of your windscreen near the driver’s position.

2. Fit the microphone (H) near the driver’s position using the supplied pads or microphone clip. Note: For best results, position the microphone as close as possible to the driver’s position.

3. Secure the microphone cable using the self-adhesive clip.

1. Identify the location of the vehicle power outlet and the auxiliary audio input (if required).

2. Uncoil the cable (A) from the receiver (B) and place in its intended position. Check there is adequate length for the cable to run to the 12V accessory socket and the auxiliary connection.

WARNING: Do not route the main cable in a way that could interfere with operation of the vehicle, or through a location that could interfere with the function of the airbags or other safety equipment. See page 5 for more information.

3. Route the cable so it is near your 12V accessory socket (C). Try to secure the cable by tucking the cable behind the trim on the side of your windscreen.

4. If you are connecting EZi-DAB-BT to your audio system using the auxiliary connection, separate the auxiliary cable (D) from the USB power cable by gently pulling the cables apart to the right length and connect to the auxiliary connection (E) on your audio system. If you are using FM transmission, coil the auxiliary connection cable and stow away in a safe position.

Secure the cables using the self-adhesive clips (F) (if required).

Ensure

all surfaces are completely clean and dry before adhesion.

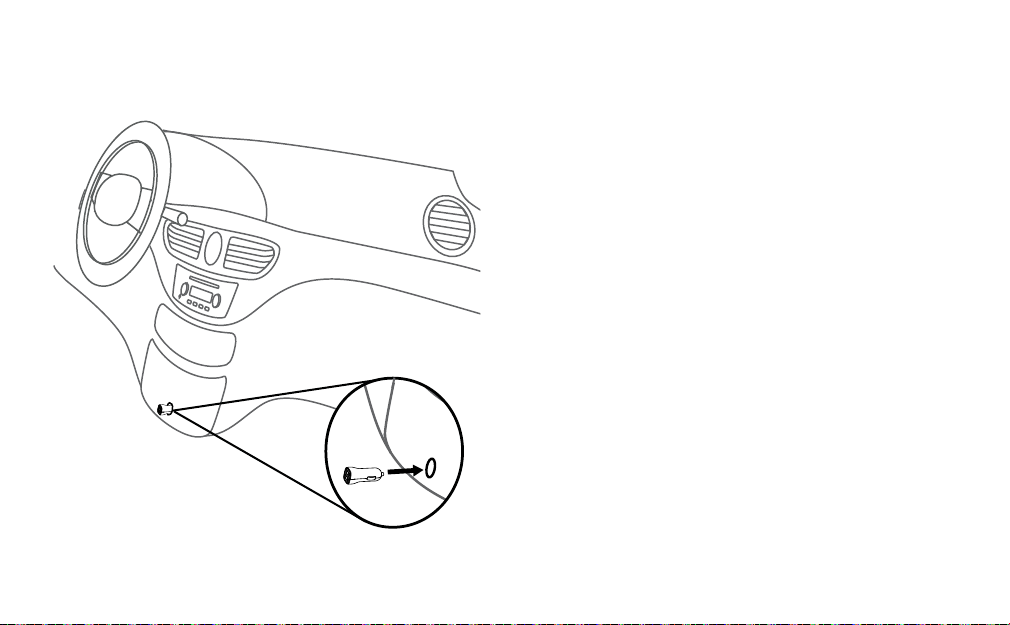

Connecting the receiver to the power supply

Plug the EZi-DAB-BT power adapter into the 12V accessory socket and then plug the USB power cable from the receiver into one of the adapter’s USB ports.

Note: Cigarette lighter and power sockets can vary between car makes and models. Ensure the power adapter is completely inserted and is ﬁrmly held in position.

Note: Other electronic devices can interfere with EZi-DAB-BT’s DAB performance, for best results only use the supplied EZi-DAB-BT power adapter to power the receiver.

Installing the wireless controller

1. Slide the back cover from the wireless controller and ﬁt the supplied batteries with the correct polarity.

WARNING: See the ‘Safety instructions’ on page 2 for more information on ﬁtting and using the batteries.

2. Choose an area on your dashboard (A) where you want to install the wireless controller and wipe down with the supplied cleaning wipe. Ensure the surface is completely clean and dry before adhesion.

WARNING: See page 6 for positioning guidance.

3. Attach the bracket (B) to your dashboard.

4. Slide the wireless controller (C) on to the bracket until you hear it click

into position.

Overview

Controls

Answer call, Next, Redial button

Phone: Press to answer an incoming call. Press and hold to redial the last number,

Bluetooth streaming: Press to skip back to the previous track.

Digital radio: Press to listen to the previous preset.

Power/Back button

Press and hold to put the wireless controller and receiver in or out of standby.

Press to move back up a level in menus or lists.

Go button

Press to stream audio from your music streaming service.

Note: If you have set up more than one streaming service, press to cycle through each streaming service.

If listening to a radio station, press and hold to identify the track that is currently playing and add it to your supported streaming service*.

Note: Before you can use the Go button you’ll need to download EZi-DAB-BT’s companion app on your mobile device (see page 19 for more information).

* Requires streaming service supported by the Pure Go app (see page 19 for more information).

Select dial

Turn to browse stations, tracks and menu items. Push to select. Press and hold to carry out an autotune, which will automatically scan for new digital radio stations and remove inactive ones.

Light sensor

Auto-adjusts the display brightness.

Reject/End Call, Previous Track/Preset button

Phone: Press to reject an incoming call. Bluetooth streaming: Press to skip to the next

track. Digital radio: Press to listen to the next preset.

Home/Favourites button

Press to return to the main menu. Digital radio: Press and hold to open the

favourites menu.

Play/Pause/Personal Assistant button

Bluetooth streaming: Press to pause or play music. Press and hold to launch your mobile phone’s personal assistant

function. Note: You will need to install the Pure Go app to use the personal

assistant function on your mobile device (see page 19 for more information).

Display

BBC R2

1. Mode indicator (DR indicates digital radio,

2. Displays the signal strength and battery level of the mobile device you have connected to EZi-DAB-BT.

3. Text area.

indicates Bluetooth audio,

indicates in-call).

Switching on and off

If the 12V accessory power socket in your vehicle only works when you turn on your vehicle’s ignition, EZi-DAB-BT will switch on or o automatically with your vehicle’s ignition.

If the 12V accessory power socket in your vehicle works even when your vehicle’s ignition is switched o, press and hold the button on the controller to manually switch o EZi-DAB-BT.

Note: The wireless controller screen will automatically switch into power saving mode after 15 seconds. The receiver will automatically go into standby after 4 hours.

Switching on EZi-DAB-BT for the ﬁrst time

1. Turn on your vehicle’s ignition to ensure that the receiver is switched on.

ANTENNA CONNECTING

LANGUAGE

Note: The receiver LED will remain illuminated for a short period of time to indicate that it is powered on.

After a few seconds, your controller will automatically connect to the receiver. If your

controller doesn’t connect to the receiver, see ‘Troubleshooting’ on page 25.

2. Choose your display language by turning the Select dial to highlight the language you want. Push the Select dial in to conﬁrm your choice.

ENGLIsh

3. Turn and press the Select dial to choose the way that you have connected

AUDIO OUT

FM TRANSMIT

FM FREQ

87\60MHZ

SCANNING

EZi-DAB-BT to your audio system. If you are connecting via an available FM frequency, select ‘FM TRANSMIT’ and move to the next step. If you are connecting using an auxiliary cable, select ‘LINE OUT’ and skip to step 5,

4. Turn and press the Select dial to choose an unused FM frequency that you want EZi-DAB-BT to use for transmitting to your audio system. The recommended frequency for transmitting to your audio system in the UK is 87.6 MHz.

Note: You’ll need to tune your audio system to this FM frequency when ever you want

to listen to EZi-DAB-BT. For easy access, you can store this FM frequency as a preset on your audio system (see your vehicle’s owner’s manual for more information).

5. Wait for EZi-DAB-BT to complete an autotune and ﬁnd all available digital stations. When the autotune is complete, a station will start playing.

DIG\ RADIO

Listening to digital radio

Switching to digital radio

BBC R2

BBC R3

Changing station

(current station on top line)

1. Press the button.

2. Turn the Select dial until ‘DIG. RADIO’ is displayed on the bottom line of the

Changing stations

Turn the Select dial to browse the list of available stations. Press the Select dial to change station.

Using presets

BBC R2

PRESET 1

You can save up to 20 of your favourite digital stations in the presets list for easy access.

Saving presets

1. When listening to a digital radio station, press and hold the button on the

2. Turn the Select dial until you see the preset number that you want to save your

3. Press and hold the

EMPTY

Selecting presets

PRESET 1

1. Press and hold the button.

2. Turn the Select dial to browse through your presets list and push the Select

SAVED

screen and press the Select dial.

front of the wireless controller.

favourite station to.

that preset number. Previous presets can be overwritten. You will see ‘PRESET SAVED’ on the screen when the preset has been saved.

dial to select one or press the next preset.

button or the Select dial to save the current station to

or buttons to skip to the previous or

Pairing EZi-DAB-BT with a phone or tablet

You can stream audio to EZi-DAB-BT using your phone or tablet’s Bluetooth connection. Note: Bluetooth pairing varies on dierent mobile devices. See your mobile device manual for speciﬁc information.

To pair with EZi-DAB-BT using Bluetooth:

1. Press the button.

2. Turn and press the Select dial to select ‘SETTINGS’ > ‘BLUETOOTH’ > ‘PAIR’ > ‘BT MUSIC’. The Bluetooth icon on the wireless controller will ﬂash until EZi-DAB-BT has paired with your phone or pairing mode times out.

Important: If ‘GO APP CODE’ appears on Note: To cancel pairing press the button and turn and press the Select dial to select ‘SETTINGS’ > ‘BLUETOOTH’ >

‘STOP PAIR’.

3. On your mobile device, enable Bluetooth and select the option to add a new Bluetooth device. On some mobile devices you may need to select the search or scan option (see your mobile device user guide for more information).

4. On your mobile device select ‘EZi-DAB-BT’ from the list of available devices.

5. When EZi-DAB-BT’s wireless controller displays a message asking if you want to pair your mobile device with EZi-DAB-BT, turn and press the Select dial to select ‘YES’.

Note: Once paired with your Bluetooth device, EZi-DAB-BT will automatically reconnect whenever it is in range. If using the Pure Go app, EZi-DAB-BT will only remember one device. EZi-DAB-BT will remember several previously connected devices if they paired to EZi-DAB-BT using a standard Bluetooth connection.

EZi-DAB-BT’s wireless controller,

press the button and repeat the above steps.

Using the handsfree telephone function

After pairing your mobile device to EZi-DAB-BT using Bluetooth, you can use EZi-DAB-BT’s microphone and your car’s built in audio system to make handsfree phone calls. Once connected, you can also use EZi-DAB-BT’s display to view information about incoming, outgoing and missed phone calls.

Dialling a phone number from your phonebook

1. Press the button.

2. Turn and press the Select dial to select ‘PHONEBOOK’.

3. Turn and press the Select dial to select ‘CONTACTS’.

4. Turn the Select dial to scroll through the contacts in your phonebook and press the Select dial to ring the phone number.

When you have ﬁnished your phone call, press the

Answering a call

Press the To reject an incoming call press the

button to answer an incoming call.

button.

Ending a call

When you have ﬁnished your phone call, press the

Viewing your call history

1. Press the button.

2. Turn and press the Select dial to select ‘PHONEBOOK’.

3. Turn and press the Select dial to select ‘HISTORY’.

4. Turn and press the Select dial to select ‘OUTGOING’, ‘INCOMING’ or ‘MISSED’ calls.

button to hang up.

Streaming audio stored on your phone or tablet

Once paired to your Bluetooth device*, you can use EZi-DAB-BT’s wireless controller to browse tracks and control playback.

Browsing and selecting tracks

1. Press the button.

2. Turn and press the Select dial to select ‘BT MUSIC’.

3. Turn the Select dial and press to browse to your music content.

Note:

If you see a `BROWSE NOT AVAILABLE’ message, this function is not supported by your device.

Note: If you see a ‘+’ symbol while navigating through your music it indicates that the item is a folder or sub-folder containing music ﬁles.

Controlling playback

Use the following controls to pause and control the audio content streamed from your connected mobile device:

Pause and restart playback.

Press to skip to the start of the current track or press again within three seconds to skip back to the previous track.

Skip track forward.

* Bluetooth classic compatibility varies across dierent manufacturers. For more information on compatibility, please visit www.alpine-europe.com.

Streaming from a music streaming service

With the Pure Go app, you can enjoy listening to music from streaming services* like Spotify, identify tracks playing on radio stations on EZi-DAB-BT and get the latest software updates† for your EZi-DAB-BT. To download the app, search for Pure Go on the Apple App Store or Google Play from your phone or tablet‡. If you want to ﬁnd out more about the Pure Go app visit www.pure.com/apps/go.

Using EZi-DAB-BT with your mobile’s personal assistant feature

You can trigger the personal assistant function on your iOS or Android device from EZi-DAB-BT’s wireless controller. Note: You will need to install the Pure Go app to use the personal assistant function (see above for more information). To use your mobile device’s personal assistant feature: Press and hold the button until you are prompted to ask a question by your mobile device’s personal assistant function. You can cancel the personal assistant function by pressing the or button at any time. For more information on using the Pure Go app, refer to the help within the app.

Settings

Digital radio settings

Autotune

You can use the autotune function to automatically scan for new digital radio stations and remove inactive ones. To autotune EZi-DAB-BT press and hold the Select dial on the wireless controller whilst in digital radio mode. Alternatively, to carry out an autotune using EZi-DAB-BT’s menu:

1. Press the

2. Turn and press the Select dial to choose ‘SETTINGS’ > ‘DIG. RADIO’ > ‘AUTOTUNE’. The number of stations found will be displayed during the autotune.

* Subscription required for some streaming services. † EZi-DAB-BT software updates not available via iOS Pure Go app. To ﬁnd out more about software updates visit www.alpine-europe.com. ‡ Pure Go app requires phone or tablet with Bluetooth Low Energy (Bluetooth Smart) support. Visit www.pure.com/apps/go for more information.

button.

Alternative station

If you are listening to a digital radio station and you lose the reception, EZi-DAB-BT’s service linking feature will always try to automatically tune in to the same radio station with better reception (if available). If the radio station you were listening to cannot be found, you can set EZi-DAB-BT up so that it tunes into a radio station chosen by the broadcaster with similar content. To enable the alternative station feature:

1. Press the

2. Turn and press the Select dial to choose ‘SETTINGS’ > ‘DIG. RADIO’ > ‘ALT STATION’.

3. Turn and press the Select dial to turn the alternative station function ‘ON’ or ‘OFF’.

button.

Traffic announcements

You can set EZi-DAB-BT to automatically tune in to a trac announcement signal*. During the trac announcement, EZi-DAB-BT’s display will show ‘TRAFFIC’ until the trac announcement has ﬁnished. Once the trac announcement has ﬁnished, EZi-DAB-BT will automatically tune in to the last digital radio station you were listening to.

Switching traffic announcements on or off

1. Press the button.

2. Turn and press the Select dial to choose ‘SETTINGS’ > ‘DIG. RADIO’ > ‘TRAFFIC MSG’.

3. Turn and press the Select dial to turn trac announcements ‘ON’ or ‘OFF’.

Cancelling an active traffic announcement

To cancel an active trac announcement, press the button. EZi-DAB-BT will return to the radio station you were listening to.

* Visit www.getdigitalradio.com to ﬁnd out the latest information on digital radio trac announcements for the UK.

Bluetooth settings

Pair

See ‘Pairing EZi-DAB-BT with a phone or tablet’ on page 16 for more information about pairing a mobile device with EZi-DAB-BT.

Forget

Note: If you previously forgot EZi-DAB-BT on your mobile device, you will need to use EZi-DAB-BT’s ‘FORGET’ setting to remove the mobile device before you can reconnect it to EZi-DAB-BT.

To make EZi-DAB-BT forget about a mobile device or all mobile devices that were previously paired with EZi-DAB-BT using Bluetooth:

1. Press the

2. Turn and press the Select dial to choose ‘SETTINGS’ > ‘BLUETOOTH’ > ‘FORGET’.

3. Turn and press the Select dial to choose the mobile device that you want EZi-DAB-BT to forget. To forget all mobile devices, turn and press the Select dial to choose ‘ALL’.

Note: If you want to reconnect a forgotten mobile device, you will need to use the Bluetooth settings menu on your mobile device to remove EZi-DAB-BT from the list of paired devices before it can be reconnected to EZi-DAB-BT.

button.

Auto standby

By default, the receiver automatically goes into standby after four hours to save your vehicle’s battery power. To change the auto standby setting:

1. Press the

2. Turn and press the Select dial to choose ‘SETTINGS’ > ‘AUTO STANDBY’.

3. Turn and press the Select dial to choose a standby time between 2 and 8 hours.

button.

Switching between auxiliary connection and FM transmission

To change the way EZi-DAB-BT connects to your existing audio system:

1. Press the

2. Turn and press the Select dial to choose ‘SETTINGS’ > ‘AUDIO OUT’.

3. Turn and press the Select dial to choose one of the following options: FM TRANSMIT: Select this if you want EZi-DAB-BT to connect to your existing audio system using FM transmit. Turn and

press the Select dial again to choose the FM frequency that you want EZi-DAB-BT to use for transmitting to your audio system. Note: You may want to change the FM transmit frequency if you ﬁnd it is interfering or using the same frequency as a broadcast FM radio station.

LINE OUT:

Turn and press the Select dial again to choose a ‘GAIN’ setting between ‘NORMAL’ (Default) and ‘LOW’. Choose ‘LOW’ if the audio sounds distorted

Note:

button.

Select this if you want EZi-DAB-BT to connect to your existing audio system using the auxiliary input connection.

For best performance, we recommend using the ‘

. If you still experience problems, try using the ‘FM TRANSMIT’ option.

LINE OUT

’ option.

Display

Language

You can change the language EZi-DAB-BT uses for displaying menus and options:

1. Press the

2. Turn and press the Select dial to choose ‘SETTINGS’ > ‘DISPLAY’ > ‘LANGUAGE’.

3. Turn and press the Select dial to choose from ‘ENGLISH’, ‘NORSK/DANSK’ (Norwegian/Danish), ‘FRANCAIS’ (French), ‘ITALIANO’ (Italian), ‘DEUTSCH’ (German) or ‘NEDERLANDS’ (Dutch).

button.

Info

When listening to digital radio, EZi-DAB-BT usually displays the name of the radio station you’re listening to on the wireless controller. You can also display the digital radio quality and signal strength, which can help you position the antenna during installation.

1. Press the

2. Turn and press the Select dial to choose ‘SETTINGS’ > ‘DISPLAY’ > ‘INFO’.

3. Turn and press the Select dial to choose a display option. Select ‘STATION’ to display the name of the radio station. Select ‘QUALITY’ to display the digital radio quality and signal strength.

button.

About

To display the software version that is running on EZi-DAB-BT’s receiver and controller:

1. Press the

Turn and press the Select dial to choose ‘

Turn the Select dial until ‘ software version is displayed on the top line of the screen.

button.

ANTENNA

SETTINGS

’ or ‘

CONTROLLER

’ > ‘

ABOUT

’.

’ is displayed on the bottom line of the screen. The corresponding

Software updates

Software updates may be issued in the future to provide new features and functions for your EZi-DAB-BT. The Pure Go app will display a message whenever a software update is available and advise you on how to update EZi-DAB-BT to the latest version of software. To ﬁnd out more about updating the software on your EZi-DAB-BT, visit www.alpine-europe.com.

Resetting EZi-DAB-BT to factory settings

Resetting EZi-DAB-BT removes any stored presets, clears the station list and resets all options to defaults.

1. Press the

2. Turn and press the Select dial to choose ‘SETTINGS’ > ‘RESET’.

3. To reset EZi-DAB-BT, turn and press the Select dial to choose ‘YES’ or choose ‘NO’ if you don’t want to reset EZi-DAB-BT. Wait for EZi-DAB-BT to reset. Note: If you can’t access the ‘RESET’ menu, you can reset EZi-DAB-BT using the Reset button on EZi-DAB-BT’s receiver. See the

‘Troubleshooting’ section of this user guide.

button.

Appendix

Troubleshooting

I can’t reset EZi-DAB-BT to factory settings from my wireless controller

If you can’t access the ‘RESET’ menu on your wireless controller, you can reset EZi-DAB-BT using the Reset button on EZi-DAB-BT’s receiver. Note: You will need to use a paperclip or pen to reset EZi-DAB-BT to factory settings.

To reset EZi-DAB-BT to factory settings:

1. Remove and re-insert

2. Within 5 seconds, while

The Status LED will ﬂash rapidly three times to indicate that the factory reset has started.

My wireless controller displays a ‘Antenna connecting’ message

Check the power supply to the receiver is properly inserted into your vehicle’s power socket. Check that EZi-DAB-BT is not in USB upgrade mode. Power cycle your receiver by removing and re-inserting the USB EZi-DAB-BT power adapter.

The Status LED on EZi-DAB-BT’s receiver is constantly illuminated

If the Status LED on EZi-DAB-BT’s receiver is constantly illuminated, it means that EZi-DAB-BT is expecting a software update via the USB connection. If this is unintentional, you can exit USB update mode by removing the power or by holding down the for 10 seconds.

the EZi-DAB-BT power adapter into the 12V accessory socket.

the Status LED on EZi-DAB-BT’s receiver is lit solidly, use a paperclip or pen to press the Reset button.

Reset

button

The Status LED on the receiver is ﬂashing rapidly

If the Status LED is ﬂashing rapidly on the receiver it means that the wireless controller has lost its connection with the receiver. To resolve this, you will need to manually re-pair the receiver and controller.

1. Remove and re-insert the EZi-DAB-BT power adapter into the 12V accessory socket and wait 5 seconds until the

Status LED on the receiver goes out.

2. Use a paperclip or pen to press the Reset button on the receiver. The Status LED on the receiver will start to blink slowly.

3. Press and hold the

the wireless controller will brieﬂy light up and ‘ANTENNA CONNECTING’ will be shown on the display. The Bluetooth icon on the controller will blink while the receiver and wireless controller try to connect. If the receiver and controller still fail to connect, then you will need to reset your receiver back to factory settings (see the reset instructions on the previous page), and repeat step 3.

The wireless controller is not responding

1. Check that the batteries in the wireless controller have not gone ﬂat. If they have, the screen will not light up when you press the

2. Check that the receiver is powered. To test this, remove then re-apply power to the receiver. The status LED should light for 5 seconds to conﬁrm power supply.

3. If the batteries and power are OK, check that the wireless controller and receiver are properly paired. Press and hold the

, and buttons simultaneously on the wireless controller. If paired correctly, the Status LED on the receiver should light solidly, and turn o as soon as you release the buttons. If the Status LED does not light up when you press and hold the LED on the receiver is ﬂashing rapidly’ above.

The audio on EZi-DAB-BT sounds distorted when I connect EZi-DAB-BT to my existing audio system using the auxiliary connection

If the audio on EZi-DAB-BT sounds distorted when you’ve connected EZi-DAB-BT to your audio system via the auxiliary connection, try setting the ‘GAIN’ value to ‘LOW’. If this still doesn’t solve the problem, try using ‘FM TRANSMIT’ instead (see page 22 for more information).

EZi-DAB-BT turned itself o

See ‘Auto standby’ on page 22.

button.

, and buttons, you will need to re-pair the controller and receiver. For re-pairing instructions see ‘The Status

, and buttons simultaneously on the wireless controller for 10 seconds. All the segments on

I can’t connect EZi-DAB-BT to my Bluetooth device

Check that your device is Bluetooth compatible and that Bluetooth is switched on. Check that no other Bluetooth devices are connected to EZi-DAB-BT. In the unlikely event you still cannot connect and pair manually, you can clear the previous connected device log by pressing the Reset button on the receiver after EZi-DAB-BT’s receiver has switched on (Status LED is o).

The DAB signal cuts out Check that there are no obstructions (see page 5 for more information). Only use the provided power adapter. Check that no other electrical products are being used in your vehicle as they can cause interference with DAB signals. Ensure the detectable magnetic ground tail is correctly ﬁtted.

No sound or too quiet

On the Bluetooth settings menu of your mobile device, check that your device is connected to EZi-DAB-BT. Check that EZi-DAB-BT is not in pairing mode. If you are using the auxiliary connection, check that the plugs are ﬁrmly inserted into the sockets. Check the volume levels on your mobile device or check what’s playing on the display.

How do I force EZi-DAB-BT to switch o?

To force EZi-DAB-BT to switch o, use a paper clip or pen to press the Reset button on the receiver for 10 seconds, or remove power.

EZi-DAB-BT has locked up or frozen

In the unlikely event of a software lock up, press and hold the power button for 10 seconds to force EZi-DAB-BT to switch o. Note you must ensure EZi-DAB-BT is plugged in via the adapter.

How long are the AAA batteries in EZi-DAB-BT’s controller expected to last before they need replacing?

The AAA batteries supplied with EZi-DAB-BT should last for around 12 months under typical usage conditions. EZi-DAB-BT’s controller will display a message when the batteries in EZi-DAB-BT’s controller are running low. See the illustration on page 11 to ﬁnd out how to ﬁt new batteries.

I can’t hear the DAB station

If using FM transmit, make sure you have tuned your vehicle’s radio to the FM frequency that EZi-DAB-BT is transmitting on (see page 22). source on your vehicle’s radio is selected (refer to the manufacturer’s instructions).

The audio will fade down to silent if the DAB signal is very weak and begins to ‘burble’.

If you have connected EZi-DAB-BT to your vehicle radio’s line in or aux-in socket, make sure that the correct input

Technical specifications

Radio Digital (DAB/DAB+) Frequency ranges Band III 174-240 MHz FM Transmitter Frequency range: 87.60<107.90 MHz

Maximum power: 51.20 dBuV/m @ 3m

Display Backlit LCD with 2-line text display and custom icons Receiver power

supply Wireless controller

power Bluetooth HFP (Hands Free Proﬁle), A2DP (Advanced Audio Distribution Proﬁle), AVRCP (Audio Video Remote Control

Temperature range Operational temperature: -20°C to +60°C

Approvals CE Marked. Hereby, ALPINE declares that this Band II LPD device is in compliance with the essential

Software Versions Controller : v1.3

DC 12V

2 x AAA batteries

Proﬁle), OPP (Object Push Proﬁle), PBAP (Phone Book Access Proﬁle)

Frequency range: 2402<2480 MHz Maximum power: 4.40 dBm (EIRP)

Storage temperature: -40°C to +85°C

requirements and other provisions of RED 2014/53/EU. Compliant with UNECE Regulation 10 (E-Mark) and RF exposure requirements EN 62479: 2010. You can view the Declaration of Conformity at www.alpine-europe.com.

Antenna unit : v1.10

+ 144 hidden pages

Alpine EZi-DAB-BT OWNER'S MANUAL [IT]

Specifications and Main Features

Frequently Asked Questions

User Manual
