Alpine CDE-9880R, CDE-9882RI User Manual

FOR CAR USE ONLY/NUR FÜR AUTOMOBIL GEBRAUCH/POUR APPLICATION AUTOMOBILE UNIQUEMENT/PARA USO EN
AUTOMÓVILES/SOLO PER L’UTILIZZO IN AUTOMOBILE/ENDAST FÖR BILBRUK/ALLEEN VOOR GEBRUIK IN DE AUTO/

/

ДЛЯ ИСПОЛЬЗОВАНИЯ В АВТОМОБИЛЯХ

DO UŻYCIA TYLKO W SAMOCHODZIE/ΓΙΑ ΧΡΗΣΗ ΜΟΝΟ ΣΕ ΑΥΤΟΚΙΝΗΤΟ

R

ТОЛЬКО

EN

RDS MP3/WMA/AAC CD Receiver

CDE-9880R/

CDE-9882Ri

• OWNER’S MANUAL
Please read before using this equipment.

• BEDIENUNGSANLEITUNG
Lesen Sie diese Bedienungsanleitung
bitte vor Gebrauch des Gerätes.

• MODE D’EMPLOI
Veuillez lire avant d’utiliser cet appareil.

• MANUAL DE OPERACIÓN
Léalo antes de utilizar este equipo.

• ISTRUZIONI PER L’USO
Si prega di leggere prima di utilizzare il
attrezzatura.

• ANVÄNDARHANDLEDNING
Innan du använder utrustningen bör du läsa
igenom denna användarhandledning.

• GEBRUIKERSHANDLEIDING
Lees deze aanwijzingen aandachtig alvorens
dit toestel te gebruiken.

• РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ

Прочтите настоящее руководство перед
началом использования оборудования.

• INSTRUKCJA OBSŁUGI
Prosimy zapoznać się z tą instrukcją przed
przystąpieniem do użytkowania urządzenia.

• ΕΓΧΕΙΡΙ∆ΙΟ ΧΡΗΣΤΗ
Παρακαλούµε διαβάστε το πριν
χρησιµοποιήσετε τη συσκευή.

DE

FR

ES

IT

SE

NL

ALPINE ELECTRONICS MARKETING, INC.

1-1-8 Nishi Gotanda,

Shinagawa-ku,

Tokyo 141-0031, Japan

Phone [phone]

ALPINE ELECTRONICS OF AMERICA, INC.

19145 Gramercy Place, Torrance,

California 90501, U.S.A.

Phone 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF CANADA, INC.

777 Supertest Road, Toronto,

Ontario M3J 2M9, Canada

Phone 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.

161-165 Princes Highway, Hallam

Victoria 3803, Australia

Phone [phone]

ALPINE ELECTRONICS GmbH

Frankfurter Ring 117,

80807 München, Germany

Phone [phone]

ALPINE ELECTRONICS OF U.K. LTD.

Fletchamstead Highway, Coventry CV4 9TW, U.K.

ALPINE ELECTRONICS FRANCE S.A.R.L.

98, Rue de la Belle Etoile, Z.I. Paris Nord Il,

B.P. 50016, 95945 Roissy Charles de Gaulle

Alpine House

Phone [phone]

(RCS PONTOISE B 338 101 280)

Cedex, France

Phone [phone]

ALPINE ITALIA S.p.A.

Viale C. Colombo 8, 20090 Trezzano

Sul Naviglio (MI), Italy

Phone [phone]

ALPINE ELECTRONICS DE ESPAÑA, S.A.

Portal de Gamarra 36, Pabellón, 32

01013 Vitoria (Alava)-APDO 133, Spain

Phone [phone]

ALPINE ELECTRONICS (BENELUX) GmbH

Leuvensesteenweg 510-B6,

1930 Zaventem, Belgium

Phone [phone]

Designed by ALPINE Japan

68-09359Z29-B

RU

PL

GR

ENGLISH

Contents
Operating Instructions

WARNING

WARNING ................................................. 3

CAUTION .................................................. 3

PRECAUTIONS ........................................ 3

Getting Started

Accessory List .................................................. 6

Turning Power On and Off ............................... 6

Detaching and Attaching the Front Panel ........ 6

Initial System Start-Up ..................................... 7

Adjusting Volume ............................................. 7

Lowering Volume Quickly ............................... 7

Radio

Listening to Radio ............................................ 8

Presetting Stations Manually ............................ 8

Presetting Stations Automatically .................... 8

Tuning to Preset Stations .................................. 8

Frequency Search Function .............................. 8

RDS

Setting RDS Reception Mode and Receiving

RDS Stations ................................................. 9

Recalling Preset RDS Stations ......................... 9

Receiving RDS Regional (Local) Stations ....... 9

PI SEEK Setting ............................................. 10

Setting PTY31 (Emergency Broadcast)

reception ...................................................... 10

Receiving Traffic Information ........................ 10

PTY (Programme Type) Tuning ..................... 10

Receiving Traffic Information While Playing

CD or Radio ............................................... 10

Priority News .................................................. 11

Displaying Radio Text .................................... 11

CD/MP3/WMA/AAC

Playback ..........................................................11

Repeat Play .....................................................12

M.I.X. (Random Play) ....................................12

Searching for CD Text ....................................12

File/Folder Name Search

(concerning MP3/WMA/AAC) ................... 13

Quick Search ...................................................13

About MP3/WMA/AAC .................................13

Sound Setting

Adjusting Subwoofer Level/Bass Level/Treble

Level/Balance (Between Left and Right)/Fader

(Between Front and Rear)/Defeat ............... 15

Setting the Subwoofer Level ........................... 15

Setting the Bass Control .................................15

Setting the Treble Control ............................... 16

Adjusting the High Pass Filter ........................16

Turning Subwoofer ON/OFF .......................... 16

Setting the Subwoofer System ........................16

Turning Loudness On/Off ...............................16

Other Functions

Displaying the Text .........................................17

SETUP

BLUETOOTH IN

Setting the Bluetooth Connection ....................18

Sound Customizing

Adjusting Source Signal Levels .......................18

Visual Customizing

Changing Lighting Colour ...............................18

Adjusting Display Contrast ..............................18

Dimmer Control ...............................................19

Scroll Type Setting ...........................................19

Scroll Setting (TEXT SCROLL) ......................19

Setting the Language Font ................................19

Demonstration ..................................................19

MP3/WMA/AAC

Playing MP3/WMA/AAC Data

(PLAY MODE) .............................................19

1-EN

External Device

Connecting to an External Amplifier ...............19

Turning Mute Mode On / Off (INT MUTE) ....20

Setting the AUX+ SETUP Mode .....................20

Setting the AUX+ NAME mode ......................20

Setting the AUX+ Level (AUX IN GAIN) ......20

USB memory (Optional)

Controlling USB memory (Optional) .............20

Playing MP3/WMA/AAC Files with the USB

memory (Optional) ......................................20

iPod® (Optional)

Playback .......................................................... 21

Searching for a desired Song .......................... 21

Quick Search ................................................... 22

Direct Search Function ................................... 22

Select Playlist/Artist/Album/Genre/

Composer ....................................................22

Random Play Shuffle (M.I.X.) ....................... 23

Repeat Play ..................................................... 23

Displaying the Text ......................................... 23

Information

In Case of Difficulty .......................................24

Specifications .................................................. 26

Installation and Connections

Warning .................................................. 27

Caution ................................................... 27

Precautions ............................................ 27

Installation ...................................................... 28

Connections .................................................... 30

2-EN

Operating Instructions

WARNING

WARNING

This symbol means important instructions.
Failure to heed them can result in serious injury
or death.

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR
ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.

Any function that requires your prolonged attention should only be
performed after coming to a complete stop. Always stop the vehicle
in a safe location before performing these functions. Failure to do
so may result in an accident.

KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL
HEAR OUTSIDE NOISES WHILE DRIVING.

Excessive volume levels that obscure sounds such as emergency
vehicle sirens or road warning signals (train crossings, etc.) can be
dangerous and may result in an accident. LISTENING AT LOUD
VOLUME LEVELS IN A CAR MAY ALSO CAUSE HEARING
DAMAGE.

DO NOT DISASSEMBLE OR ALTER.

Doing so may result in an accident, fire or electric shock.

CAUTION

This symbol means important instructions.
Failure to heed them can result in injury or
material property damage.

HALT USE IMMEDIATELY IF A PROBLEM APPEARS.

Failure to do so may cause personal injury or damage to the
product. Return it to your authorized Alpine dealer or the nearest
Alpine Service Centre for repairing.

PRECAUTIONS

Product Cleaning

Use a soft dry cloth for periodic cleaning of the product. For more
severe stains, please dampen the cloth with water only. Anything
else has the chance of dissolving the paint or damaging the plastic.

Temperature

Be sure the temperature inside the vehicle is between +60°C
(+140°F) and –10°C (+14°F) before turning your unit on.

Moisture Condensation

You may notice the CD playback sound wavering due to
condensation. If this happens, remove the disc from the player and
wait about an hour for the moisture to evaporate.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may
result in fire, etc.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE
REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed,
consult a physician immediately.

USE THE CORRECT AMPERE RATING WHEN REPLACING
FUSES.

Failure to do so may result in fire or electric shock.

DO NOT BLOCK VENTS OR RADIATOR PANELS.

Doing so may cause heat to build up inside and may result in fire.

USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.

Use for other than its designed application may result in fire,
electric shock or other injury.

DO NOT PLACE HANDS, FINGERS OR FOREIGN OBJECTS IN
INSERTION SLOTS OR GAPS.

Doing so may result in personal injury or damage to the product.

Damaged Disc

Do not attempt to play cracked, warped, or damaged discs. Playing
a bad disc could severely damage the playback mechanism.

Maintenance

If you have problems, do not attempt to repair the unit yourself.
Return it to your Alpine dealer or the nearest Alpine Service
Station for servicing.

3-EN

Never Attempt the Following

Do not grip or pull out the disc while it is being pulled back into the
player by the automatic reloading mechanism.
Do not attempt to insert a disc into the unit when the unit power is
off.

Inserting Discs

Your player accepts only one disc at a time for playback. Do not
attempt to load more than one disc.
Make sure the label side is facing up when you insert the disc.
“ERROR” will be displayed on your player if you insert a disc
incorrectly. If “ERROR” continues to be displayed even though the
disc has been inserted correctly, push the RESET switch with a
pointed object such as a ballpoint pen.
Playing a disc while driving on a very bumpy road may result in
skips, but this will not scratch the disc or damage the player.

New Discs

To prevent the CD from jamming, “ERROR” is displayed if discs
with irregular surfaces are inserted or if discs are inserted
incorrectly. When a new disc is ejected immediately after initial
loading, use your finger to feel around the inside of the centre hole
and outside edge of the disc. If you feel any small bumps or
irregularities, this could inhibit proper loading of the disc. To
remove the bumps, rub the inside edge of the hole and outside edge
of the disc with a ballpoint pen or other such instrument, then insert
the disc again.

Installation Location

Make sure this unit will not be installed in a location subjected to:

• Direct sun and heat

• High humidity and water

• Excessive dust

• Excessive vibrations

Correct Handling

Do not drop the disc while handling. Hold the disc so you will not
leave fingerprints on the surface. Do not affix tape, paper, or
gummed labels to the disc. Do not write on the disc.

CORRECT

INCORRECT CORRECT

Disc Cleaning

Fingerprints, dust, or soil on the surface of the disc could cause the
CD player to skip. For routine cleaning, wipe the playing surface
with a clean, soft cloth from the centre of the disc to the outer edge.
If the surface is heavily soiled, dampen a clean, soft cloth in a
solution of mild neutral detergent before cleaning the disc.

Centre Hole

Bumps

Centre Hole

New Disc

Outside
(Bumps)

Irregular Shaped Discs

Be sure to use round shape discs only for this unit and never use
any special shape discs.
Use of special shape discs may cause damage to the mechanism.

Disc Accessories

There are various accessories available on the market for protecting
the disc surface and improving sound quality. However, most of
them will influence the thickness and/or diameter of the disc. Using
such accessories can cause the disc to be out of standard
specifications and may create operational problems. We
recommend not using these accessories on discs played in Alpine
CD players.

Transparent Sheet Disc Stabilizer

4-EN

On handling Compact Discs (CD/CD-R/CD-RW)

• Do not touch the surface.

• Do not expose the disc to direct sunlight.

• Do not affix stickers or labels.

• Clean the disc when it is dusty.

• Make sure that there are no bumps around the disc.

• Do not use commercially available disc accessories.

Do not leave the disc in the car or the unit for a long time. Never
expose the disc to direct sunlight. Heat and humidity may damage

the CD and you may not be able to play it again.

To customers using CD-R/CD-RW

• If a CD-R/CD-RW cannot be played back, make sure the last
recording session was closed (finalized).

• Finalize the CD-R/CD-RW if necessary, and attempt playback
again.

About media that can be played

Use only compact discs with the label side showing the CD logo
marks below.

If you use unspecified compact discs, correct performance cannot
be guaranteed.
You can play CD-Rs (CD-Recordables)/CD-RWs (CD­ReWritables) which have been recorded only on audio devices.
You can also play CD-Rs/CD-RWs containing MP3/WMA/AAC
formatted audio files.

• Some of the following CDs may not play on this unit:
Flawed CDs, CDs with fingerprints, CDs exposed to extreme
temperatures or sunlight (e.g., left in the car or this unit), CDs
recorded under unstable conditions, CDs on which a recording
failed or a re-recording was attempted, copy-protected CDs
which do not conform to the audio CD industry standard.

• Use discs with MP3/WMA/AAC files written in a format
compatible with this unit. For details, see

• ROM data other than audio files contained in a disc will not
produce sound when played back.

pages 13-14.

Protecting the USB connector

• Only a USB memory can be connected to the USB connector on
this unit. Correct performance using other USB products cannot
be guaranteed.

• If the USB connector is used, be sure to connect it to the unit
using a USB extension cable (sold separately). A USB hub is not
supported.

• Depending on the connected USB memory device, the unit may
not function or some functions may not be performed.

• The audio file format that can be played back on the unit is MP3/
WMA/AAC.

• Artist/song name, etc., can be displayed, however characters
may not be correctly displayed.

CAUTION

Alpine accepts no responsibility for lost data, etc., even if data, etc.,
is lost while using this product.

On Handling USB Memory

• To prevent malfunction or damage, note the following points.
Read the USB memory Owner’s Manual thoroughly.
Do not touch the terminals by hand or metal.
Do not subject USB memory to excessive shock.
Do not bend, drop, disassemble, modify or soak in the water.

• Avoid usage or storage in the following locations:
Anywhere in the car exposed to direct sunlight or high
temperatures.
Anywhere the possibility of high humidity or corrosive
substances are present.

• Fix the USB memory in a location where driver operation will

not be hindered.

• USB memory may not function correctly at high or low

temperature.

• Use only certified USB memory. Note that even certified USB

memory, may not function correctly depending on its type or
state.

• USB memory function is not guaranteed. Use USB memory

according to the terms of agreement.

• Depending on the settings of the USB memory type, memory

state or encoding software, the unit may not play back or display
properly.

• A file that is copy-protected (copyright protection) cannot be

played back.

• USB memory may take time to start playback. If there is a

particular file other than audio in the USB memory, it may take
considerable time before the file is played back or searched.

• The unit can play back “mp3”, “wma” or “m4a” file extensions.

• Do not add the above extensions to a file other than audio data.

This non-audio data will not be recognized. The resulting
playback may contain noise that can damage speakers and/or
amplifiers.

• It is recommended to back up important data on a personal

computer.

• Do not remove the USB device while playback is in progress.

Change SOURCE to something other than USB, then remove the
USB device to prevent possible damage to its memory.

• Windows Media and the Windows logo are trademarks, or

registered trademarks of Microsoft Corporation in the United
States and /or other countries.

• iPod is a trademark of Apple Inc., registered in the U.S. and

other countries.

• “MPEG Layer-3 audio coding technology licensed from

Fraunhofer IIS and Thomson.”

• “Supply of this product only conveys a license for private,

non-commercial use and does not convey a license nor imply
any right to use this product in any commercial (i.e. revenue­generation) real time broadcasting (terrestrial, satellite, cable
and/or any other media), broadcasting/streaming via internet,
intranets and/or other networks or in other electronic content
distribution systems, such as pay-audio or audio-on-demand
applications. An independent license for such use is required.
For details, please visit http://www. mp3licensing.com”

5-EN

Getting Started

3

Grasp the front panel firmly, slide to the left , and
then pull to remove.

(OPEN)

SOURCE/

MUTE

Rotary encoder

Accessory List

• Head unit ............................................................................1

• Power cable ........................................................................1

• FULL SPEED

(CDE-9882Ri only) ..............................................................1

• Mounting sleeve.................................................................1

• Carrying case.....................................................................1

• Rubber Cap ........................................................................1

• Hex Bolt ..............................................................................1

• Screw (M5 × 8)....................................................................4

• Owner’s Manual .......................................................... 1 set

TM

Connection Cable

Turning Power On and Off

Press SOURCE/ to turn on the unit.

• The unit can be turned on by pressing any other button except

(OPEN).

Press and hold SOURCE/ for at least 2 seconds to
turn off the unit.

• The first time power is turned on, the volume will start from level 12.

• The front panel may become hot in normal usage (especially the

connector terminals on the back of the front panel). This is not a
malfunction.

• To protect the front panel, place it in the supplied carrying case.

• When detaching the front panel, do not apply excessive force as it

may result in malfunction.

• Do not leave the front panel open, or drive the car with the panel

open as it may result in an accident or malfunction.

Attaching

1

Insert the right side of the front panel into the main
unit. Align the groove on the front panel with the
projections on the main unit.

2

Push the left side of the front panel until it locks
firmly into the main unit.

• Before attaching the front panel, make sure that there is no dirt or

dust on the connector terminals and no foreign object between the
front panel and the main unit.

• Attach the front panel carefully, holding the sides of the front panel to

avoid pushing buttons by mistake.

Detaching and Attaching the Front Panel

Detaching

1

Turn off the unit power.

2

Press (OPEN) to open the front panel.

To close the front panel, press the left side until it locks as
shown in the figure below.

6-EN

Initial System Start-Up

Be sure to press the RESET switch when using the unit for the first
time, after changing the car battery, etc.

1

Turn off the unit power.

2

Press (OPEN) to open the front panel, and then
remove it.

3

Press RESET with a ballpoint pen or similar pointed
object.

RESET switch

Adjusting Volume

Turn t he Rotary encoder until the desired sound is
obtained.

Lowering Volume Quickly

Activating the Audio Mute function will instantly lower the volume
level by 20 dB.

Press MUTE to activate the MUTE mode.

The audio level will decrease by about 20 dB.

Pressing MUTE again will bring the audio back to its
previous level.

Controllable with Remote Control

This unit can be controlled with an optional Alpine remote
control. For details, consult your Alpine dealer.
Point the optional remote control transmitter at the remote
control sensor.

Remote control sensor

Connectable to Steering Remote Control Interface Box

You can operate this unit from the vehicle’s control unit when
an Alpine Steering Remote Control Interface Box (optional) is
connected. For details, contact your Alpine dealer.

7-EN

Radio

Rotary encoder

SOURCE/

BAND/TA

TUNE/A.ME

/ESC

Listening to Radio

1

Press SOURCE/ to select TUNER mode.

2

Press BAND/TA repeatedly until the desired radio
band is displayed.

F1 (FM1) F2 (FM2) F3 (FM3) MW LW F1 (FM1)

3

Press TUNE/A.ME to select the tuning mode.

DX SEEK (Distance mode) SEEK (Local mode)
OFF (Manual mode) DX SEEK

• The initial mode is Distance mode.

Distance mode:

Both strong and weak stations will be automatically tuned in
(Automatic Seek Tuning).

Local mode:

Only strong stations will be automatically tuned in (Automatic
Seek Tuning).

Manual mode:

The frequency is manually tuned in steps (Manual tuning).

4

Press or to tune in the desired station.

Holding down or will change the frequency
continuously.

/ENT

F/SETUP

Preset buttons
(1 through 6)

Presetting Stations Automatically

1

Press BAND/TA repeatedly until the desired radio
band is displayed.

2

Press and hold TUNE/A.ME for at least 2 seconds.

The frequency on the display continues to change while the
automatic memory is in progress. The tuner will
automatically seek and store 6 strong stations in the
selected band. They will be stored into preset buttons 1 to 6
in order of signal strength.
When the automatic memory has been completed, the tuner
goes to the station stored in preset location No.1.

• If no stations are stored, the tuner will return to the original station

you were listening to before the auto memory procedure began.

Tuning to Preset Stations

1

Press BAND/TA repeatedly until the desired band is
displayed.

2

Press any one of the station preset buttons
(1 through 6) that has your desired radio station in

memory.

The display shows the band, preset number and frequency
of the station selected.

• If the indicator is illuminated, turn off the indicator by

pressing F/SETUP, and then you can perform the operation.

Frequency Search Function

You can search for a radio station by its frequency.

1

Press and hold /ENT for at least 2 seconds in
Radio mode to activate Frequency search mode.

2

Turn t he Rotary encoder to select the desired
frequency.

3

Press /ENT to receive the selected frequency.

• Press and hold /ESC for at least 2 seconds in the search mode to

cancel. Or, the search mode will be cancelled if no operation is
performed for 10 seconds.

Presetting Stations Manually

1

Select the radio band and tune in a desired radio
station you wish to store in the preset memory.

2

Press and hold, for at least 2 seconds, any one of the
preset buttons (1 through 6) into which you wish
to store the station.

The selected station is stored.
The display shows the band, preset number and station
frequency memorized.

• A total of 30 stations can be stored in the preset memory (6 stations

for each band; FM1, FM2, FM3, MW and LW).

• If you store a station in a preset memory which already has a station,

the current station will be cleared and replaced with the new station.

• If the indicator is illuminated, turn off the indicator by

pressing F/SETUP, then you can perform the operation.

8-EN

RDS

Rotary encoder

BAND/TA

Setting RDS Reception Mode and Receiving RDS Stations

The RDS (Radio Data System) is a radio information system using the
57 kHz subcarrier of regular FM broadcast. The RDS allows you to
receive a variety of information such as traffic information, station
names, and to automatically re-tune to a stronger transmitter that is
broadcasting the same programme.

1

Press F/SETUP so that the indicator lights up.

2

Press 1 AF to activate the RDS mode.

3

Press or to tune in the desired RDS
station.

4

Press 1 AF again to deactivate the RDS mode.

5

Press F/SETUP to activate the normal mode.

The indicator goes out.

• When the “Setting PTY31 (Emergency Broadcast) reception” (refer

page 10) is set to on, if the unit receives the PTY31 (Emergency

to
Broadcast) signal, the unit will show “ALARM” in the display
automatically.

• Operate the unit while the indicator lights up. If no operation

is performed for 10 seconds, the indicator goes out.

The RDS digital data includes the following:

PI Programme Identification
PS Programme Service Name
AF List of Alternative Frequencies
TP Traffic Programme
TA Traffic Announcement
EON Enhanced Other Networks

VIEW

/ENT

F/SETUP

1 AF/ESC

NEWS 2

3 PTY

Recalling Preset RDS Stations

1

Press F/SETUP so that the indicator lights up.

2

Press 1 AF to activate the RDS mode.

3

Press F/SETUP to activate the normal mode.

The indicator goes out.

4

Make sure that the indicator light goes out,
then press the preset button in which your desired
RDS station is preset.

If the preset station’s signal is weak, the unit automatically
searches and tunes to a stronger station in the AF
(Alternative Frequencies) list.

5

If the preset station and the stations in the AF list
cannot be received:

When the PI SEEK setting is on (refer to “PI SEEK Setting”

page 10), the unit searches again for a station in the PI

on
(Programme Identification) list.
If there are still no stations receivable in the area, the unit
displays the frequency of the preset station and the preset
number disappears.
If the signal level of the Regional (Local) station being tuned
becomes too weak to receive, press the same preset button
to tune in a Regional station in other district.

• For presetting the RDS stations, refer to the Radio Operation section.

The RDS stations can be preset in the F1, F2 and F3 bands only.

• Operate the unit while the indicator lights up. If no operation

is performed for 10 seconds, the indicator goes out.

Receiving RDS Regional (Local) Stations

1

Press and hold F/SETUP for at least 2 seconds to
activate the SETUP mode.

2

Turn t he Rotary encoder to select the RDS
REGIONAL mode, and then press

3

Turn t he Rotary encoder to select ON or OFF.

In the OFF mode, the unit automatically keeps receiving the
related local RDS station.

4

Press and hold F/SETUP for at least 2 seconds to
return to normal mode.

• Press /ESC to return to the previous mode.

• If no operation is performed for 60 seconds, the unit will return to

normal mode automatically.

/ENT.

9-EN

PI SEEK Setting

1

Press and hold F/SETUP for at least 2 seconds to
activate the SETUP mode.

2

Turn t he Rotary encoder to select the PI SEEK
mode, and then press

3

Turn t he Rotary encoder to select ON or OFF.

4

Press and hold F/SETUP for at least 2 seconds to
return to normal mode.

• Press /ESC to return to the previous mode.

• If no operation is performed for 60 seconds, the unit will return to

normal mode automatically.

/ENT.

Setting PTY31 (Emergency Broadcast) reception

Turn PTY31 (Emergency Broadcast) reception ON/OFF.

1

Press and hold F/SETUP for at least 2 seconds to
activate the SETUP mode.

2

Turn t he Rotary encoder to select ALERT PTY31,
and then press

3

Turn t he Rotary encoder to select ON or OFF.

If you set to ON, emergency broadcasts are received
regardless of source. “ALARM” is displayed during
reception.

4

Press and hold F/SETUP for at least 2 seconds to
return to normal mode.

When an emergency broadcast is received, the volume
level will be automatically changed to the memorized level
in the traffic information mode. For details, refer to
“Receiving Traffic Information” on

• Pressing /ESC during the procedure will return to the previous

mode.

• If no operation is performed for 60 seconds in the SETUP mode, the

setting mode is cancelled.

/ENT.

page 10.

Receiving Traffic Information

1

Press and hold BAND/TA for at least 2 seconds so
that the “TA” indicator lights up.

• If the traffic information broadcast signal falls below a certain level,

the unit remains in the receiving mode for 1 minute. If the signal
remains below a certain level for over 1 minute, the “TA” indicator
blinks.

• If you do not want to listen to the traffic information being received,

lightly press BAND/TA to skip that traffic information message. The
TA mode will remain in the ON position to receive the next traffic
information message.

• If the volume level is changed while receiving traffic information, the

changed volume level will be memorized. When traffic information is
received next time, the volume level will be automatically adjusted to
the level memorized.

• In the TA mode, the SEEK tuning selects only the TP stations.

PTY (Programme Type) Tuning

1

Press F/SETUP so that the indicator lights up.

2

Press 3 PTY to activate the PTY mode, while the
unit is in Radio (FM receiving) mode.

The Programme Type of the station being currently received
will be displayed for 10 seconds.
If there is no receivable PTY broadcast, “NO PTY” will be
displayed for 10 seconds.
If no RDS station can be received, the display shows “NO
PTY”.

• If no operation is performed for 10 seconds after pressing 3 PTY, the

PTY mode will be automatically cancelled.

3

Press or within 10 seconds after
activating the PTY mode to choose the desired
programme type while the PTY (programme type) is
being displayed.

Each press scrolls the programme type by one.

4

Press 3 PTY within 10 seconds after selecting the
programme type to start searching for a station in
the selected programme type.

The chosen programme type display blinks during
searching and lights when a station is found.

If no PTY station is found, “NO PTY” will be displayed for 10
seconds.

5

Press F/SETUP to activate the normal mode.

• Operate the unit while the indicator lights up. If no operation

is performed for 10 seconds, the indicator goes out.

Receiving Traffic Information While Playing CD or Radio

2

Press or to select your desired traffic
information station.

When a traffic information station is tuned in, the “TP”
indicator lights up.
Traffic information is heard only when it is being broadcast.
If traffic information is not being broadcast, the unit is set in
the standby mode. When a traffic information broadcast
begins, the unit automatically receives it and the display
shows “TRF-INFO” for 5 seconds.
When the traffic information broadcast is over, the unit will
automatically set in the standby mode.

10-EN

1

Press and hold BAND/TA for at least 2 seconds so
that the “TA” indicator lights up.

2

Press or to select a traffic information
station if necessary.

When a traffic information broadcast starts, the unit
automatically mutes the CD player or the regular FM
broadcast.
When the traffic information broadcast finishes, the unit
automatically returns to the original source play before the
traffic information broadcast began.

When traffic information stations cannot be received:

In the CD mode:
When the TP signal can no longer be received, the traffic
information station of another frequency will be selected
automatically.

• The receiver is equipped with the EON (Enhanced Other Networks)

function in order to keep track of additional alternate frequencies to
the AF list. The “EON” indicator lights up while an RDS EON
station is being received. If the station being received does not
broadcast the traffic information, the receiver automatically tunes in
the related station that broadcasts the traffic information when it
occurs.

3

Press and hold BAND/TA for at least 2 seconds to
deactivate the Traffic Information mode.

The “TA” indicator goes out.

Priority News

This function allows you to preset to give priority to the News
programme. You will never miss the News programme as the unit
automatically gives priority to the News programme whenever it begins
broadcasting, and interrupts the programme you are currently listening.
This feature is functional when your unit is set to a mode other than the
LW and MW modes.

1

Press F/SETUP to activate the function mode while
the unit is in Radio (FM receiving) mode.

CD/MP3/WMA/AAC

SOURCE/

Playback

1

Press (OPEN).

The front panel will open.

2

Insert a disc with the label side facing up.

The disc will be pulled into the unit automatically.

Rotary encoder

(OPEN)

VIEW

/ENT

/

4 5

/ESC

2

Press NEWS 2 to activate the PRIORITY NEWS
mode.

The “NEWS” indicator appears in the display.
To disable the PRIORITY NEWS function, press NEWS 2.

• In the PRIORITY NEWS function, unlike in the TA function, the

volume does not increase automatically.

3

Press F/SETUP to activate the normal mode, while
the unit is in Radio (FM receiving) mode.

• Operate the unit while the indicator lights up. If no operation

is performed for 10 seconds, the indicator goes out.

Displaying Radio Text

Text messages from a radio station can be displayed.

Press VIEW while receiving FM in the radio mode to
select the Radio Text display.

The display will change every time the button is pressed.

If there is PS (Programme Service Name):

PS (Programme Service Name)* RADIO TEXT
PS (Programme Service Name)

* Press and hold VIEW for at least 2 seconds if PS is displayed in the

radio mode, frequency will be displayed for 5 seconds.

If there is no PS (Programme Service Name):

FREQUENCY RADIO TEXT FREQUENCY

The display shows “WAITING” for a few seconds, then starts
scrolling the text message.

• If there is no receivable text message or the unit cannot receive a text

message properly, the display shows “NO TEXT”.

Close the front panel manually, and the “DISC IN” indicator
lights up.
When a disc is already inserted, press SOURCE/ to
switch to the DISC mode.

The mode will change every time the button is pressed.

TUNER DISC USB AUDIO iPod*1/AUX+*2
BT AUDIO*3 TUNER

*1Displayed only when the iPod is connected and AUX+ SETUP is set

to OFF, refer to “Setting the AUX+ SETUP Mode” (

*2Displayed only when the AUX+ SETUP is set to ON, refer to “Setting

the AUX+ SETUP Mode” (

*3Only when BLUETOOTH IN is set to ADAPTE, refer to “Setting the

Bluetooth Connection” (

3

While playing back MP3/WMA/AAC, press or to
select the desired folder.

Pressing and holding or will change folders
continuously.

4

Press or to select the desired track (file).

Returning to the beginning of the current track (file):

Press .

Fast backward:

Press and hold .

Advancing to the beginning of the next track (file):

Press .

Fast forward:

Press and hold .

5

To pause playback, press / .

Pressing / again will resume playback.

page 20).

page 18).

page 20).

11-EN

6

After pressing (OPEN) to open the front panel,
press to eject the disc.

• Do not remove a CD during its eject cycle. Do not load more than

one disc at a time. A malfunction may result from doing either.

• If the CD does not eject, press and hold for at least 2 seconds.

• The “DISC IN” indicator lights up when a disc is inserted.

• The CD-player can play discs containing audio data, MP3 data,

WMA data and AAC data.

• WMA format files that are protected by DRM (Digital Rights

Management), AAC format files that have been purchased from
iTunes Music Store and files that are copy-protected (copyright
protection) cannot be played back on this unit.

• “MP3” is displayed during MP3 playback.

• “WMA” is displayed during WMA playback.

• “AAC” is displayed during AAC playback.

• The track display for MP3/WMA/AAC data playback is the file

numbers recorded on the disc.

• The playback time may not be correctly displayed when a VBR

(Variable Bit Rate) recorded file is played back.

MP3/WMA/AAC Play Display

The folder number and file number will be displayed as
described below.

M.I.X. (Random Play)

Press 5 in the play or pause mode.

The tracks (files) on the disc will be played back in random
sequence.

To cancel M.I.X. play, press 5 again.

CD mode :

: The tracks are played back in random

sequence.

MP3/WMA/AAC mode :

: Only files in a folder are played back in

random sequence.

*

: The files are played back in random sequence.

Folder number
display

• Press VIEW to switch the display. See “Displaying the Text”

page 17) for information about display switching.

(

File number
display

Repeat Play

Press 4 to play back repeatedly the track being
played.

The track (file) will be played repeatedly.

Press 4 again and select off to deactivate repeat play.

CD mode :

: Only a track is repeatedly played back.

MP3/WMA/AAC mode :

: Only a file is repeatedly played back.

: Only files in a folder are repeatedly played back.

* In the USB mode, all files stored in the USB memory are played back

in random sequence, and the “M.I.X.” indicator lights up.

• When a song is played back during Random (M.I.X.) play in the USB

mode, the song can be played back again randomly even if not all
songs on the USB Memory have been played back.

Searching for CD Text

On discs utilizing CD Text, songs can be searched and played by using
their recorded titles. For discs without CD Text, searches are made
using the track numbers associated with each song.

1

Press /ENT during play.

This will set the search mode.

2

Turn t he Rotary encoder to select the desired
track, and then press

This will play the selected track.

• Press and hold /ESC for at least 2 seconds in the search mode to

cancel. Or, the search mode is cancelled if no operation is performed
for 10 seconds.

• When CD Text Search is made during M.I.X. play, the M.I.X. play

mode will be cancelled.

/ENT.

12-EN

File/Folder Name Search (concerning MP3/WMA/AAC)

About MP3/WMA/AAC

Folder and file names may be searched and displayed during playback.

1

During MP3/WMA/AAC playback, press /ENT to
activate the search mode.

2

Turn t he Rotary encoder to select Folder Name
Search mode or File Name Search mode, and then
press

Folder Name Search mode

3

Turn t he Rotary encoder to select the desired
folder.

4

Press and hold /ENT for at least 2 seconds to
play back the first file in the selected folder.

• Press and hold /ESC for at least 2 seconds in the search mode to

cancel. Or, the search mode is cancelled if no operation is performed
for 10 seconds.

• To search for files in the Folder Name Search mode, press

/ENT. Files in the folder may be searched.

• Press /ESC to exit Folder Name Search mode in step 3 in order

to select File Name Search mode.

• The root folder of DISC is displayed as “ ”.

• When Folder Name Search is made during M.I.X. play, the M.I.X.

play mode will be cancelled.

File Name Search mode

3

Press or to select another Folder.

4

Select the desired file by turning the Rotary
encoder.

5

Press /ENT to play back the selected file.

• Press and hold /ESC for at least 2 seconds in the search mode to

cancel. Or, the search mode is cancelled if no operation is performed
for 10 seconds.

• Press /ESC in the search mode to return to the previous mode.

• When File Name Search is made during M.I.X. play, the M.I.X. play

mode will be cancelled.

/ENT.

CAUTION

Except for private use, duplicating audio data (including MP3/
WMA/AAC data) or distributing, transferring, or copying it,
whether for free or for a fee, without permission of the copyright
holder is strictly prohibited by the Copyright Act and by
international treaty.

What is MP3?

MP3, whose official name is “MPEG-1 Audio Layer 3,” is a
compression standard prescribed by the ISO, the International
Standardization Organization and MPEG which is a joint activity
institution of the IEC.

MP3 files contain compressed audio data. MP3 encoding is
capable of compressing audio data at extremely high ratios,
reducing the size of music files to as much as one-tenth their
original size. This is achieved while still maintaining near CD
quality. The MP3 format realises such high compression ratios
by eliminating the sounds that are either inaudible to the human
ear or masked by other sounds.

What is WMA?

WMA, or “Windows Media™ Audio,” is compressed audio data.
WMA is similar to MP3 audio data and can achieve CD quality
sound with small file sizes.

What is AAC?

AAC is the abbreviation for “Advanced Audio Coding,” and is a
basic format of audio compression used by MPEG2 or MPEG4.

Method for creating MP3/WMA/AAC files

Audio data is compressed using software with MP3/WMA/AAC
codecs. For details on creating MP3/WMA/AAC files, refer to the
user

’s manual for that software.

MP3/WMA/AAC files that are playable on this device have the
file extensions “mp3”/“wma”/“m4a”. Files with no extension
cannot be played back (WMA ver. 7.1 , 8 and 9 are supported).
Protected files are not supported, neither are raw AAC files
(using the “.aac”

There are many different versions of the AAC format. Confirm
that the software being used conforms to the acceptable
formats listed above. It
unplayable even though the extension is valid.
Playback of AAC files encoded by iTunes is supported.

extension).

’s possible that the format may be

Quick Search

You can search for tracks (files).

1

Press and hold /ENT for at least 2 seconds in the
CD/MP3/WMA/AAC mode to activate Quick Search
mode.

2

Turn t he Rotary encoder to select a desired track
(file).

The selected track is played back immediately.

• Press and hold /ESC for at least 2 seconds in the search mode to

cancel. Or, the search mode is cancelled if no operation is performed
for 10 seconds.

13-EN

Supported playback sampling rates and bit rates

MP3

Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz,

16 kHz, 12 kHz, 11.025 kHz, 8 kHz

Bit rates: 32 - 320 kbps

WMA

Sampling rates: 48 kHz, 44.1 kHz, 32 kHz
Bit rates: 48 - 192 kbps

AAC

Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz,

16 kHz, 12 kHz, 11.025 kHz, 8 kHz

Bit rates: 16 - 320 kbps

This device may not play back correctly depending on sampling
rates.
In the USB mode, the playback time may not be correctly
displayed when a VBR (Variable Bit Rate) recorded file is played
back.

ID3 tags/WMA tags

This device supports ID3 tag v1 and v2, and WMA/AAC tag.
If tag data is in an MP3/WMA/AAC file, this device can display
the title (track title), artist name, and album name ID3 tag/WMA/
AAC tag data.

This device can only display single-byte alphanumeric
characters (up to 30 for ID3 tags and up to 15 for WMA tags)
and the underscore. For non-supported characters, “NO
SUPPORT” is displayed.
The tag information may not be correctly displayed, depending
on the contents.

Playing back MP3/WMA/AAC

MP3/WMA/AAC files are prepared, then written to a CD-R,
CD-RW using CD-R writing software or stored to a USB memory.
A disc can hold up to 510 files/folders (including Root Folders),
and the maximum number of folders is 255. This unit can
recognize at least 100 folders (including root folder) and 100
files per folder stored in USB memory .
Playback may not be performed if a disc or USB memory
exceeds the limitations described above.
Do not make a file’s playback time more than 1 hour.

Media supported

The media that this device can play back are CD-ROMs, CD-Rs,
and CD-RWs.
This device also can play back USB memory media.

Corresponding File Systems

This device supports discs formatted with ISO9660 Level 1 or
Level 2.

Under the ISO9660 standard, there are some restrictions to
remember.

The maximum nested folder depth is 8 (including the root
directory). The number of characters for a folder/file name is
limited.

Valid characters for folder/file names are letters A-Z (all caps),
numbers 0-9, and ‘_’ (underscore).

This device also can play back discs in Joliet, Romeo, etc., and
other standards that conform to ISO9660. However, sometimes
the file names, folder names, etc., are not displayed correctly.
This device also supports FAT 12/16/32 for USB memory device.

Order of files

Files are played back in the order that the writing software writes
them to the disc. Therefore, the playback order may not be what
is expected. Verify the writing order in the software
documentation. The playback order of the folders and files is as
follows.

Root folder

Folder MP3/WMA/AAC File

’s

* The folder No./folder Name will not be displayed if no file is

contained in the folder.

Terminology

Bit rate

This is the “sound” compression rate specified for encoding. The
higher the bit rate, the higher the sound quality, but also the larger
the files.

Sampling rate

This value shows how many times per second the data is sampled
(recorded). For example, music CDs use a sampling rate of 44.1 kHz,
so the sound is sampled (recorded) 44,100 times per second. The
higher the sampling rate, the higher the sound quality, but also the
larger the volume of data.

Encoding

Converting music CDs, WAVE (AIFF) files, and other sound files into
the specified audio compression format.

Tag

Song information such as track titles, artist names, album names,
etc., written into MP3/WMA/AAC files.

Root folder

The root folder (or root directory) is found at the top of the file
system. The root folder contains all folders and files. It is created
automatically for all burned discs.

Formats supported

This device supports CD-ROM XA, Mixed Mode CD, Enhanced
CD (CD-Extra) and Multi-Session.
This device cannot correctly play back discs recorded with
Track At Once or packet writing.

14-EN

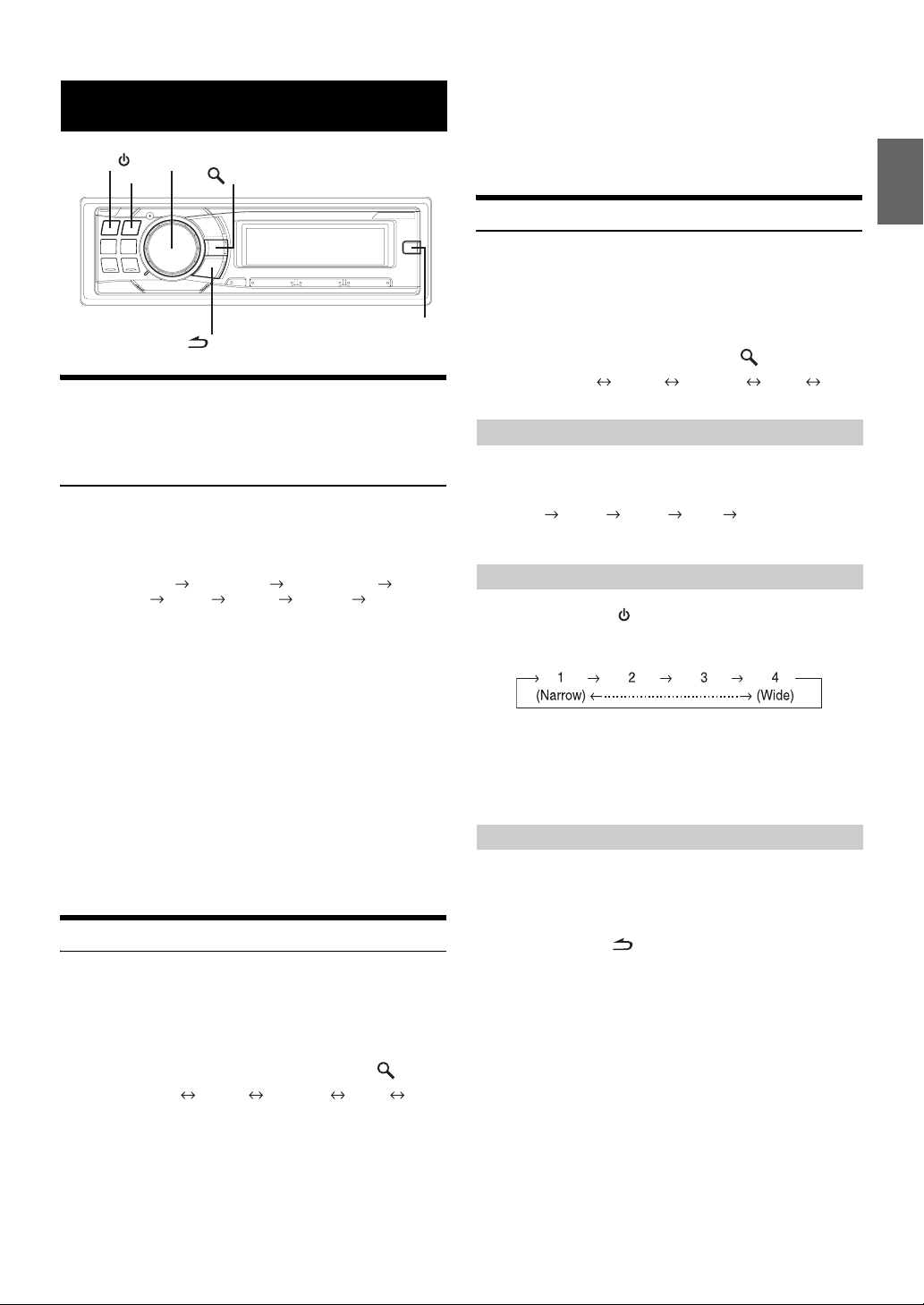

Sound Setting

SOURCE/

Adjusting Subwoofer Level/Bass Level/ Treble Level/Balance (Between Left and Right)/Fader (Between Front and Rear)/ Defeat

1

Press Rotary encoder (AUDIO) repeatedly to
choose the desired mode.

Each press changes the mode as follows:

SUBW LEVEL* BASS LEVEL TREBLE LEVEL
BALANCE FADER DEFEAT VOLUME SUBW LEVEL

Subwoofer level : 0 ~ +15
Bass level: –7 ~ +7
Treble level: –7 ~ +7
Balance : L15 ~ R15
Fader : R15 ~ F15
Defeat : ON/OFF
Volume : 0 ~ 35

• If no operation is performed for 5 seconds after selecting the SUBW

LEVEL, BASS LEVEL, TREBLE LEVEL, BALANCE, FADER or
DEFEAT mode, the unit automatically returns to normal mode.

* When the subwoofer mode is set to OFF, its level cannot be adjusted.

Refer to “Turning Subwoofer ON/OFF” (

2

Turn t he Rotary encoder until the desired sound is
obtained in each mode.

By setting DEFEAT ON, previously adjusted settings of
BASS and TREBLE will return to the factory defaults.

Setting the Subwoofer Level

You can change the Subwoofer Level to create your own tonal
preference.

1

Press SOUND to activate the Sound Setting mode.

2

Turn t he Rotary encoder to select the SUBW

LEVEL Adjustment mode, and then press

SUBW LEVEL*1 BASS*2 TREBLE*2 HPF*2
SUBW LEVEL

3

Turn t he Rotary encoder to select the desired
subwoofer level (0~+15).

• If no operation is performed for 15 seconds, the unit will return to

normal mode automatically

• When subwoofer is set to OFF and DEFEAT is set to ON, pressing

the SOUND button momentarily will not be functional.

Rotary encoder (AUDIO/LOUD)

BAND/TA

/ENT

/ESC

.

page 16).

SOUND

/ENT.

*1When the subwoofer mode is set to OFF, its level cannot be adjusted.

The adjustment can also be made by pressing Rotary encoder
(AUDIO). Refer to “Adjusting Subwoofer Level/Bass Level/Treble
Level/Balance (Between Left and Right)/Fader (Between Front and
Rear)/Defeat” (

*2The function is inoperable when DEFEAT is set to ON.

page 15).

Setting the Bass Control

You can change the Bass Frequency emphasis to create your own tonal
preference.

1

Press SOUND to activate the Sound Setting mode.

2

Turn t he Rotary encoder to select the BASS
Adjustment mode, and then press

SUBW LEVEL*3 BASS*4 TREBLE*4 HPF*4
SUBW LEVEL

Setting the Bass Centre Frequency

3

-1 Press BAND/TA to select the desired bass centre

frequency.

80 Hz 100 Hz 200 Hz 60 Hz 80 Hz

Emphasizes the displayed bass frequency ranges.

Setting the Bass Bandwidth

3

-2 Press SOURCE/ to select the desired bass

bandwidth.

Changes the boosted bass bandwidth to wide or narrow. A
wider setting will boost a wide range of frequencies above
and below the centre frequency. A narrower setting will
boost only frequencies near the centre frequency.

Setting the Bass Level

3

-3*5Turn t he Rotary encoder to select the desired
bass level (–7~+7).

You can emphasize or weaken the bass level.

4

Press and hold /ESC for at least 2 seconds to
return to normal mode.

• If no operation is performed for 15 seconds, the unit will return to

normal mode automatically

• The bass level settings will be individually memorized for each

source (FM, MW (LW), CD, etc.) until the setting is changed. The
bass frequency and bass bandwidth settings adjusted for one source
are effective for all other sources (FM, MW (LW), CD etc.).

• When subwoofer is set to OFF and DEFEAT is set to ON, pressing

the SOUND button momentarily will not be functional.

*3 When the subwoofer mode is set to OFF, its level cannot be adjusted.

Refer to “Turning Subwoofer ON/OFF” (
*4The function is inoperable when DEFEAT is set to ON.
*5The adjustment can also be made by pressing Rotary encoder

(AUDIO). Refer to “Adjusting Subwoofer Level/Bass Level/Treble

Level/Balance (Between Left and Right)/Fader (Between Front and

Rear)/Defeat” (

page 15).

.

/ENT.

page 16).

15-EN

Setting the Treble Control

You can change the Treble Frequency emphasis to create your own tonal
preference.

1

Press SOUND to activate the Sound Setting mode.

2

Turn t he Rotary encoder to select the TREBLE
Adjustment mode, and then press

SUBW LEVEL*6 BASS*7 TREBLE*7 HPF*7
SUBW LEVEL

/ENT.

Setting the Treble Centre Frequency

3

-1 Press BAND/TA to select the desired treble centre

frequency.

10.0 kHz 12.5 kHz 15.0 kHz 17.5 kHz 10.0 kHz

Emphasizes the displayed treble frequency ranges.

Setting the Treble Level

3

-2*8Turn t he Rotary encoder to select the desired
treble level (–7~+7).

You can emphasize the treble level.

4

Press and hold /ESC for at least 2 seconds to
return to normal mode.

• If no operation is performed for 15 seconds, the unit will return to

normal mode automatically

• The treble level settings will be individually memorized for each

source (FM, MW (LW), CD, etc.) until the setting is changed. The
Treble frequency settings adjusted for one source are effective for all
other sources (FM, MW (LW), CD, etc.).

• When subwoofer is set to OFF and DEFEAT is set to ON, pressing

the SOUND button momentarily will not be functional.

*6When the subwoofer mode is set to OFF, its level cannot be adjusted.

Refer to “Turning Subwoofer ON/OFF” (
*7The function is inoperable when DEFEAT is set to ON.
*8The adjustment can also be made by pressing Rotary encoder

(AUDIO). Refer to “Adjusting Subwoofer Level/Bass Level/Treble

Level/Balance (Between Left and Right)/Fader (Between Front and

Rear)/Defeat” (

page 15).

.

page 16).

Adjusting the High Pass Filter

The High Pass Filter on this unit can be adjusted to suit your personal
taste.

1

Press SOUND to activate the Sound Setting mode.

*9When the subwoofer mode is set to OFF, its level cannot be

adjusted. Refer to “Turning Subwoofer ON/OFF” (

*10The function is inoperable when DEFEAT is set to ON.

page 16).

Turning Subwoofer ON/OFF

When the subwoofer is on, you can adjust the subwoofer output level
(refer to

page 15).

1

Press and hold SOUND for at least 2 seconds to
activate the Subwoofer selection mode.

2

Turn t he Rotary encoder to select the
SUBWOOFER mode, and then press

SUBWOOFER SUBW SYSTEM SUBWOOFER

3

Turn t he Rotary encoder to select SUBW ON/OFF.

SUBW ON (Initial Setting) SUBW OFF

4

Press and hold /ESC for at least 2 seconds to
return to normal mode.

• If no operation is performed for 15 seconds, the unit will return to

normal mode automatically.

/ENT.

Setting the Subwoofer System

When the subwoofer is on, you can select either SYS 1 or SYS 2 for the
desired subwoofer effect.

1

Press and hold SOUND for at least 2 seconds to
activate the Subwoofer selection mode.

2

Turn t he Rotary encoder to select the SUBW
SYSTEM mode, and then press

SUBWOOFER SUBW SYSTEM SUBWOOFER

3

Turn t he Rotary encoder to select SUBW SYS 1 or
SUBW SYS 2, and then press

Select either SYS 1 or SYS 2 for the desired subwoofer
effect.

SUBW SYS 1 (Initial Setting) SUBW SYS 2

SUBW SYS 1: Subwoofer level changes according to the

SUBW SYS 2 : Subwoofer level changes is different from the

main volume setting.

main volume setting. For example, even at low
volume settings, the subwoofer is still audible.

/ENT.

/ENT.

2

Turn t he Rotary encoder to select the HPF
Adjustment mode, and then press

SUBW LEVEL*9 BASS*10 TREBLE*10 HPF*10
SUBW LEVEL

3

Turn t he Rotary encoder to select the desired HPF
frequency.

OFF 80 Hz 120 Hz 160 Hz

4

Press and hold /ESC for at least 2 seconds to
return to normal mode.

• If no operation is performed for 15 seconds, the unit will return to

normal mode automatically

• When subwoofer is set to OFF and DEFEAT is set to ON, pressing

the SOUND button momentarily will not be functional.

.

/ENT.

16-EN

4

Press and hold /ESC for at least 2 seconds to
return to normal mode.

• If no operation is performed for 15 seconds, the unit will return to

normal mode automatically.

• This function is inoperable when Subwoofer mode is set to OFF.

Turning Loudness On/Off

Loudness introduces a special low- and high-frequency emphasis at low
listening levels. This compensates for the ear’s decreased sensitivity to
bass and treble sound.

Press and hold Rotary encoder (LOUD) for at least 2
seconds to activate or deactivate the loudness mode.

• The function is inoperable when DEFEAT is set to ON.

Other Functions

VIEW

Displaying the Text

Text information, such as the disc name and the track name, will be
displayed if playing a CD text compatible disc. It is also possible to
display the folder name, the file name and the tag, etc., while playing
MP3/WMA/AAC files.

About the indication display

When displaying Text, the following indicators are lit
according to the mode.

Blinks in search mode when the Rotary encoder is turned. Also
blinks when operation, such as fast forward etc., is performed.

Lights up in SETUP mode or SOUND setting menu mode.

Indicator/

Mode

CD Mode

MP3/WMA/AAC/

USB Audio

Mode

iPod/BT Audio

Mode

Press VIEW.

The display will change every time the button is pressed.

• When the TEXT SCROLL is set to SCROLL MANU, press and hold

VIEW for at least 2 seconds, the current text will be scrolled one

time (except Radio mode).

The display in Radio mode:
If there is PS (Programme Service Name)

PS (Programme Service Name)*1 RADIO TEXT
PS (Programme Service Name)

If there is no PS (Programme Service Name)

FREQUENCY RADIO TEXT FREQUENCY

The display in CD mode:

TRACK NO./ELAPSED TIME TEXT (DISC NAME)*2
TEXT (TRACK NAME)*2 TRACK NO./ELAPSED TIME

The display in MP3/WMA/AAC mode:

FILE NO./ELAPSED TIME FOLDER NO./FILE NO.
FOLDER NAME FILE NAME ARTIST NAME*3
ALBUM NAME*3 SONG NAME*3
FILE NO./ELAPSED TIME

The display in BT AUDIO mode:

The following display will be shown only when a telephone with
iRadio function is correctly connected with a Bluetooth Interface
Module and correctly set. (For details, refer to the Owner’s
Manual of the Bluetooth Interface Module).

PRESET NO. ARTIST NAME*4 ALBUM NAME*4
SONG NAME*4 PRESET NO.

*1Press and hold VIEW for at least 2 seconds in the PS display mode,

frequency will be displayed for 5 seconds.
*2Displayed during playback of a disc with CD text.
*3ID3 tag/WMA tag

If an MP3/WMA/AAC file contains ID3 tag/WMA tag information,

the ID3 tag/WMA tag information is displayed (e.g., song name,

artist name, and album name). All other tag data is ignored.

If the Scroll Setting (page 19) is set to “SCROLL AUTO”, the tag

information will scroll automatically.
*4When a BT AUDIO signal is received, text information such as artist,

album, song is displayed.

If there is no text information, “ARTIST”/ “ALBUM”/ “SONG” will

be displayed.

––

––

Text (Disc

3

Name*

) being

displayed

Text (Track

3

) being

Name*
displayed

*1Tag information

If there is no tag information, “ARTIST”/“ALBUM”/“SONG” is
displayed.

*2The root folder of Disc is displayed as “FOLDER”, the root folder of

USB is displayed as “ROOT”.

*3If there is no Text (Disc Name or Track Name), “DISC TEXT”/

“TRACK TEXT” is displayed.

Folder Name*2
being displayed

Artist Name*1
being displayed

Album Name*1
being displayed

Song Name*1/
File Name being
displayed

––

Artist Name*1
being displayed

Album Name*1
being displayed

Song Name*1
being displayed

About “Text”

Text:

Text compatible CDs contain text information such as the disc
name and track name. Such text information is referred to as
“text.”

• Some characters may not be displayed correctly with this device,

depending on the character type.

• The text or tag information may not be correctly displayed,

depending on the contents.

17-EN

SETUP

You can flexibly customize the unit to suit your own preferences and
usage. From the SETUP menu, Sound Customizing, Visual
Customizing, etc., can be modified.

Rotary encoder

SOURCE/

Use steps 1 to 4 to select one of the SETUP modes to
modify. See the applicable section below for details
about the selected SETUP item.

1

Press and hold F/SETUP for at least 2 seconds to
activate the SETUP mode.

2

Turn t he Rotary encoder to select the desired
SETUP menu, and then press

(e.g. Select POWER IC)

BLUETOOTH IN*1 FM-LEVEL RDS REGIONAL*2
PI SEEK*3 ALERT PTY31*4 ILLUMINATION
LCD CONTRAST DIMMER PLAY MODE
SCROLL TYPE TEXT SCROLL INT MUTE*5
AUX+ SETUP AUX+ NAME*6 AUX IN GAIN*6
POWER IC LANGUAGE DEMO BLUETOOTH IN

*1Displayed only when INT MUTE is set to OFF, and the mode is set to

other than BT AUDIO.
*2Refer to “Receiving RDS Regional (Local) Stations” (page 9).
*3Refer to “PI SEEK Setting” (page 10).
*4Refer to “Setting PTY31 (Emergency Broadcast) reception”

page 10).

(
*5Displayed only when BLUETOOTH IN is OFF.
*6Displayed only when AUX+ SETUP is ON.

3

Turn t he Rotary encoder to change the setting.

(e.g. Select POWER IC ON or POWER IC OFF.)

4

Press and hold F/SETUP for at least 2 seconds to
return to normal mode.

• Press /ESC to return to the previous mode.

• If no operation is performed for 60 seconds, the unit will return to

normal mode automatically.

/ESC

/ENT

F/SETUP

/ENT.

BLUETOOTH IN

Setting the Bluetooth Connection

BT IN ADAPTE / BT IN OFF (Initial setting)

If an optional Bluetooth Box is connected, you can place a hands-free
call by a Bluetooth-equipped mobile phone.
Make this setting when the Bluetooth Box is connected and the
Bluetooth function is used. For details, refer to the Owner’s Manual of
the optional Bluetooth Box.
Set ADAPTE when the Bluetooth Box is connected.

• If the Bluetooth Box compatible with the Voice Dial function is

connected, the Voice Dial function can be used.

Sound Customizing

Adjusting Source Signal Levels

FM-LEVEL HI (Initial setting) / FM-LEVEL LOW

If the difference in volume level between the CD player and FM radio is
too great, adjust the FM signal level.

Visual Customizing

Changing Lighting Colour

ILLUMI TYPE1 (initial setting) / ILLUMI TYPE2

TYPE1 TYPE2

• CDE-9880R:
You can change the lighting colour of the unit’s buttons.

TYPE1: The colour of the unit’s buttons is green.
TYPE2: The colour of the unit’s buttons is amber

• CDE-9882Ri:
You can change the lighting colour of the following six buttons.
SOURCE/ , BAND/TA, , , , .

TYPE1: When the colour of the six buttons is blue, the colour of

the other is red.

TYPE2: When the colour of the six buttons is red, the colour of

the other is red.

Adjusting Display Contrast

CONTRAST

You can adjust the display contrast for better visibility.

You can adjust in a range of –5 and +3.

• The initial setting at the factory is “0”.

18-EN

Dimmer Control

DIMMER AUTO (Initial setting) / DIMMER MANU

Set the DIMMER control to AUTO to decrease the illumination
brightness of the unit with the head lights of the vehicle ON. This mode
is useful if you feel the unit’s backlighting is too bright at night.

• If your vehicle should have a dimmer control for the dashboardlights,

never connect the DIMMER cable (orange) of the radio to this

dimmer control.

Scroll Type Setting

SCROLL TYPE1 / SCROLL TYPE2 (Initial setting)

Choose from two scrolling methods.
Select the type you prefer.

SCROLL TYPE1: The characters scroll from right to left, a single

character at a time.

SCROLL TYPE2: Words are built up from left to right, a single

character at a time. When the display is filled,
it is cleared and the remaining words are
displayed the same way until all words of the
title have been shown.

Scroll Setting (TEXT SCROLL)

SCROLL AUTO / SCROLL MANU (Initial setting)

This CD player can scroll the disc and track names recorded on
CD-TEXT discs, as well as the text information of MP3/WMA/AAC
files, folder names and tags.

SCROLL AUTO: The CD text information, the text information of

folder and file names, and the tags are
scrolled automatically.

SCROLL MANU: The display is scrolled when a disc is loaded

or when a track is changed, etc.

• The unit scrolls CD text names, folder names, file names or tag

display.

Setting the Language Font

LAN GUAG E 1 (i nitia l s ettin g) / L ANGUAGE 2 / LA NG UAGE 3

Three types of font can be selected.

LANGUAGE 1: Normal font
LANGUAGE 2: European font
LANGUAGE 3: Russian font

MP3/WMA/AAC

Playing MP3/WMA/AAC Data (PLAY MODE)

CD-DA (Initial setting) / CD-DA&MP3

This unit can play back CDs containing both CD and MP3/WMA/AAC
data (created in Enhanced CD (CD Extra) format). However, in some
situations, playback of an enhanced CD may be difficult. In this case,
you can select playback of a single session only, containing the CD data.
When a disc contains both CD and MP3/WMA/AAC data, playback
starts from the CD data portion of the disc.

CD-DA : Only the CD data in Session 1 can be played

CD-DA&MP3 : CD data, MP3/WMA/AAC files in mixed mode,

• Perform this setting before inserting a disc. If a disc has already been

inserted, remove it first.

back.

and multi-session discs can be played back.

External Device

Connecting to an External Amplifier

POWER IC ON (Initial setting) / POWER IC OFF

When an external amplifier is connected, sound quality can be improved
by stopping the power supply of the built-in amplifier.

POWER IC OFF : Use this mode when the line output of this unit

is used to drive an external amplifier. In this
setting, the head unit’s internal amplifier is
turned OFF and cannot drive speakers.

Front

Amplifier

Amplifier

left

Front
right

Rear
left

Rear
right

Demonstration

DEMO ON / DEMO OFF (Initial setting)

This unit has a demonstration feature for the display.

• To quit Demo mode, set to DEMO OFF.

19-EN

POWER IC ON : The speakers are driven by the built-in

amplifier.

Speakers

SPEAKER
RIGHT FRONT

SPEAKER
RIGHT REAR

SPEAKER
LEFT REAR

SPEAKER
LEFT FRONT

• No sound is produced by the system when the power output is set to

OFF.

Front
right

Rear
right

Rear
left

Front
left

Turning Mute Mode On/Off (INT MUTE)

MUTE ON / MUTE OFF (Initial setting)

If a device having the interrupt feature is connected, audio will be
automatically muted whenever the interrupt signal is received from the
device.

Setting the AUX+ SETUP Mode

AUX+ ON / AUX+ OFF (Initial setting)

An external device (such as a portable music player) can be connected
to the iPod Direct connector of this unit. An iPod Direct/RCA Interface
cable (optional) is required.
A portable music device and an iPod cannot be connected to the iPod
Direct connector at the same time.

AUX+ ON : Set to ON when a portable device is connected. If

AUX+ OFF :Set to OFF when an iPod is connected.

SOURCE/

sound of the portable device is input to the unit.

is pressed and AUX+ is selected, the

Setting the AUX+ NAME mode

AUXILI ARY* (Initial setting) / TV / DVD / PORTABLE / GAME

You can change the AUX+ NAME display in the SETUP mode, when
AUX+ SETUP is ON.

* After the setting is completed, AUX is displayed on the unit.

Setting the AUX+ Level (AUX IN GAIN)

LOW (Initial setting) / HIGH

After setting to ON in “Setting the AUX+ SETUP Mode”, this setting
can be carried out.

LOW: Decreases the external input audio level.
HIGH: Increases the external input audio level.

USB memory (Optional)

SOURCE/

Controlling USB memory (Optional)

A USB memory may be connected to this unit. With a USB memory
connected to this unit, the USB memory will be controllable from this
unit.

• The controls on this unit for USB memory operation are operative

only when a USB memory is connected.

Playing MP3/WMA/AAC Files with the USB memory (Optional)

If you connect a USB memory containing MP3/WMA/AAC, you can
play these files on this unit.

1

Press SOURCE/ to switch to the USB AUDIO
mode.

The mode will change every time the button is pressed.

TUNER DISC USB AUDIO iPod*1/AUX+*2
BT AUDIO*3 TUNER

*1Displayed only when the iPod is connected and AUX+ SETUP is set

to OFF, refer to “Setting the AUX+ SETUP Mode” (

*2Displayed only when the AUX+ SETUP is set to ON, refer to “Setting

the AUX+ SETUP Mode” (

*3Only when BLUETOOTH IN is set to ADAPTE, refer to “Setting the

Bluetooth Connection” (

2

To pause playback, press / .

Pressing / again will resume the playback.

• The root folder is displayed as “ROOT” in the Folder Name Search

mode.

• This unit plays back files on a USB memory device with the same

controls and modes as playback of CDs containing MP3/WMA/AAC.
For details, refer to “CD/MP3/WMA/AAC” on

• Before disconnecting USB memory, be sure to change to another

source or set to pause.

• The playback time may not be correctly displayed when a VBR

(Variable Bit Rate) recorded file is played back.

/

page 20).

page 20).

page 18).

pages 11 to 14.

20-EN

iPod® (Optional)

SOURCE/

Rotary encoder

/

/ENT

4

5

Advance to the beginning of the next song:

Press .

Fast forward through current song:

Press and hold .

3

6

To pause playback, press / .

Pressing / again will resume playback.

• A song playing on the iPod while it is connected to this unit will

continue to play from where it was paused after disconnection.

• If you listen to an episode from a selected podcast or audiobook, the

episode can be changed by pressing

• An episode may have several chapters. The chapter can be changed

by pressing

or .

or .

VIEW

An iPod® can be connected to this unit by using the proprietary
ALPINE FULL SPEED™ Connection Cable (KCE-422i) (sold
separately). When this unit is connected by using the cable, the controls
on the iPod are not functional.

• Set AUX+ SETUP to OFF when an iPod is connected (refer to

“Setting the AUX+ SETUP Mode” on

• If the Bluetooth Box and an iPod are connected at the same time, be

sure to disconnect the iPod from the Bluetooth Box while turning

ACC to OFF.

iPods usable with this unit

• The unit can be used with the fourth generation and above
iPod, iPod photo, iPod mini or iPod nano. iPod Shuffle cannot
be used, however.

• Touch wheel or scroll wheel type iPods without the dock
connector cannot be connected to the unit.

• The unit can be used with the following iPod.

Fourth generation iPod
Fifth generation iPod
iPod photo
iPod mini
First generation iPod nano
Second generation iPod nano

• If the unit is used with iPod software versions of iTunes earlier than

7.1.0.59, correct function and performance are not guaranteed.

/ESC

Preset buttons
(1 through 6)

page 20).

Playback

Searching for a desired Song

An iPod can contain hundreds of songs. By using file tag information
and keeping these songs organised in playlists, this unit’s search
functions will ease song searches. Each music category has its own
individual hierarchy. Use the Playlist/Artist/Album/Song/ Podcast/
Genre/Composer/Audiobook search mode to narrow searches based on
the table below.

Hierarchy 1 Hierarchy 2 Hierarchy 3 Hierarchy 4

Playlist Song — —

Artist* Album* Song —

Album* Song — —

Song — — —

Podcast Episode — —

Genre* Artist* Album* Song

Composer* Album* Song —

Audiobook — — —

For example: Searching by Artist name
The following example explains how an ARTIST search is performed.
Another search mode can be used for the same operation, although the
hierarchy differs.

1

Press /

2

Turn t he Rotary encoder to select the ARTIST
search mode, and then press

PLAYLIST ARTIST ALBUM SONG PODCAST

ENT

to activate the search selection mode.

/ENT.

GENRE COMPOSER AUDIOBOOK PLAYLIST

1

Press SOURCE/ to switch to the iPod mode.

The mode will change every time the button is pressed.

TUNER DISC USB AUDIO iPod*1/AUX+*2
BT AUDIO*3 TUNER

*1Displayed only when the iPod is connected and AUX+ SETUP is set

to OFF, refer to “Setting the AUX+ SETUP Mode” (

*2Displayed only when the AUX+ SETUP is set to ON, refer to “Setting

the AUX+ SETUP Mode” (

*3Only when BLUETOOTH IN is set to ADAPTE, refer to “Setting the

Bluetooth Connection” (

2

Press or to select the desired song.

Return to the beginning of the current song:

Press .

Fast backward through current song:

Press and hold .

page 20).

page 18).

page 20).

3

Turn t he Rotary encoder to select the desired
Artist, and then press

4

Turn t he Rotary encoder to select the desired
Album, and then press

/ENT.

/ENT.

21-EN

5

Turn t he Rotary encoder to select the desired
Song, and then press

The selected song is played back.

• After pressing and holding /ENT for at least 2 seconds while in

each hierarchy (except Song and Audiobook hierarchy), all songs of
the selected hierarchy are played back.

• After selecting [ALL] in the search mode with “*”, press and hold

/ENT for at least 2 seconds to play back all songs in the iPod or

selected search mode.

• While in the search mode, if you press and hold /ESC for 2

seconds, or no operation is performed for 10 seconds, the search
mode is cancelled.

• In the search mode, pressing /ESC will return to the previous

mode.

• When search is made during M.I.X. play, the M.I.X. play mode will be

cancelled.

• “NO SONG” will be displayed if there are no songs in the selected

playlist in the PLAYLIST search mode.

• “NO PODCAST” will be displayed if there is no podcast data in the

iPod in the PODCAST search mode.

• “NO AUDIOBOOK” will be displayed if there is no audiobook data

in the iPod in the AUDIOBOOK search mode.

• If “iPod name” stored in the iPod is selected in the desired Playlist

search mode, and
in the iPod. Also, if you press and hold /ENT for at least 2
seconds, all songs in the iPod are played back.

• Depending on the iPod, podcast search is not supported.

• If any one of the preset buttons (1 through 6) is pressed in the search

mode, a search can be made quickly by skipping to the specified
location. For details, refer to “Direct Search Function” on

/ENT is pressed, you can search for all songs

/ENT.

page 22.

Quick Search

Direct Search Function

The unit’s direct search function can be used to search for an album,
song, etc., more efficiently. In Playlist/Artist/Album/Song/
Genre/Composer/Audiobook mode, you can quickly target any song.

In the search mode, press any one of the preset
buttons (1 through 6) to quickly skip over a

designated percent of your song content.

Song search example:
If there are 100 songs in your iPod, they are divided into 6
groups using percentages (shown below). These groups are
assigned to the preset buttons (1 through 6).

Example 1:
Suppose the song you are searching for is located at around
the middle (50%) of your library: press button 4 to jump to the
50th song and turn the Rotary encoder to find the desired
song.

Example 2:
Suppose the song you are searching for is located near the
end (83%) of your library: press button 6 to jump to the 83rd
song and turn the Rotary encoder to find the desired song.

All 100 songs (100%)

0% 17% 33% 50% 67% 83%

Preset

buttons

Songs

1 2 3 4 5 6

First

17th

33rd

song

song

song

50th

song

67th

song

Podcast/

83rd

song

You can search a song from all songs in the iPod without selecting an
album, artist, etc.

1

Press and hold /ENT for at least 2 seconds to
activate the Quick Search mode.

2

Turn t he Rotary encoder to select a desired song.

The selected song is played back immediately.

• Press and hold /ESC for at least 2 seconds in the search mode to

cancel. Or, the search mode is cancelled if no operation is performed
for 10 seconds.

• If many songs are in the iPod, it takes time to search for songs.

• If any one of the preset buttons (1 through 6) is pressed in the search

mode, a search can be made quickly by skipping to the specified
location. For details, refer to “Direct Search Function” on

• This function is inactive during repeat (RPT) playback.

page 22.

Select Playlist/Artist/Album/Genre/ Composer

Playlist/Artist/Album/Genre/Composer can be easily changed.
For example, if you listen to a song from a selected album, the album
can be changed.

Press or to select the desired Playlist/Artist/Album/
Genre/Composer.

• If the song search mode was used to select a song, this function is

inactive.

• If an album is selected during an artist search, other albums by that

artist are searchable.

• This function is inactive during shuffle (M.I.X.) playback.

22-EN

Random Play Shuffle (M.I.X.)

Repeat Play

The Shuffle function of the iPod is displayed as M.I.X. on this unit.

Shuffle Albums:

The songs on each album are played back in proper order.
Upon completion of all the songs on the album, the next album is
selected randomly. This continues until all albums have been
played.

Shuffle Songs:

Song shuffle randomly plays back songs within a selected
category (playlist, album, etc.). The songs within the category
are played just once until all songs have been played.

1

Press 5 .

The songs are played back in random sequence.

M.I.X. M.I.X. (off) M.I.X.

(Shuffle Albums) (Shuffle Songs)

2

To cancel M.I.X. play, select (off) with the above
procedure.

• If a song is selected in the album search mode before selecting M.I.X.

play, the songs will not play back randomly even when Shuffle

is selected.

Albums

Shuffle ALL:

Shuffle ALL plays all songs in the iPod randomly. Any one song
does not play back again until all songs have been played back.

1

Press 6.

The songs are played back in random sequence.

M.I.X. (off) M.I.X.
(Shuffle ALL)

Only Repeat One is available for the iPod.

Repeat One:

A single song is repeatedly played back.

1

Press 4.

The song is played back repeatedly.

RPT (off) RPT
(Repeat One)

2

To cancel repeat play, select (off) with the above
procedure.

• During repeat playback, no other songs are selectable by pressing

or .

Displaying the Text

You can display the tag information of a song in the iPod.

Press VIEW.

Each press changes the display.

• When the TEXT SCROLL is set to MANU, press and hold VIEW for

at least 2 seconds, the current text will be scrolled one time.

TRACK NO./ELAPSED TIME ARTIST NAME*
ALBUM NAME* SONG NAME*
TRACK NO./ELAPSED TIME

* TAG information

“ARTIST”/“ALBUM”/“SONG” is displayed if there is no tag
information.

2

To cancel M.I.X. play, select (off) with the above
procedure.

• If Shuffle ALL is selected, the selected songs being played back in the

search mode are cancelled.

• Only alphanumeric characters (ASCII) can be displayed.

• If the artist, album or song name, created in iTunes, has too many

characters, songs may not be played back when connected to the
adapter. Therefore, a maximum of 250 characters is recommended.
The maximum number of characters for the head unit is 128
(128 byte).

• Some characters may not be correctly displayed.

• “NO SUPPORT” is displayed if text information is not supported by

the unit.

23-EN

Information

In Case of Difficulty

If you encounter a problem, please turn the power off, then on again. If
the unit is still not functioning normally, please review the items in the
following checklist. This guide will help you isolate the problem if the
unit is at fault. Otherwise, make sure the rest of your system is properly
connected or consult your authorized Alpine dealer.

Basic

No function or display.

• Vehicle’s ignition is off.

- If connected following instructions, the unit will not operate
with the vehicle’s ignition off.

• Improper power lead (Red) and battery lead (Yellow)
connections.

- Check power lead and battery lead connections.

•Blown fuse.

- Check the fuse of the unit; replace with the proper value if

necessary.

• Internal micro-computer malfunctioned due to interference noise
etc.

- Press the RESET switch with a ballpoint pen or other pointed

article.

Radio

Unable to receive stations.

• No antenna or open connection in cable.

- Make sure the antenna is properly connected;

replace the antenna or cable if necessary.

Unable to tune stations in the seek mode.

• You are in a weak signal area.

- Make sure the tuner is in the DX mode.

• If the area you are in is a primary signal area, the antenna may
not be grounded and connected properly.

- Check your antenna connections; make sure the antenna is

properly grounded at its mounting location.

• The antenna may not be the proper length.

- Make sure the antenna is fully extended; if broken, replace the

antenna with a new one.

Broadcast is noisy.

• The antenna is not the proper length.

- Extend the antenna fully; replace it if it is broken.

• The antenna is poorly grounded.

- Make sure the antenna is grounded properly at its mounting

location.

CD

CD Player not functioning.

• Out of operating temperature range +50°C (+120°F) for CD.

- Allow the vehicle’s interior (or trunk) temperature to cool.

CD playback sound is wavering.

• Moisture condensation in the CD Module.

- Allow enough time for the condensation to evaporate (about 1

hour).

CD insertion not possible.

• A CD is already in the CD player.

- Eject the CD and remove it.

• The CD is being improperly inserted.

- Make sure the CD is being inserted following instructions in
the CD Player Operation section.

Unable to fast forward or backward the CD.

• The CD has been damaged.

- Eject the CD and discard it; using a damaged CD in your unit
can cause damage to the mechanism.

CD playback sound skips due to vibration.

• Improper mounting of the unit.

- Securely re-mount the unit.

• The disc is very dirty.

- Clean the disc.

• The disc has scratches.

- Change the disc.

• The pick-up lens is dirty.

- Do not use a commercially available lens cleaner disc. Consult
your nearest Alpine dealer.

CD playback sound skips without vibration.

• The disc is dirty or scratched.

- Clean the disc; damaged disc should be replaced.

Error displays (built-in CD player only).

• Mechanical error.

- Press . After the error indication disappears, insert the disc
again. If the above-mentioned solution does not solve the
problem, consult your nearest Alpine dealer.

CD-R/CD-RW playback not possible.

• Close session (finalization) has not been performed.

- Perform finalization and attempt playback again.

MP3/WMA/AAC

MP3, WMA or AAC is not played back.

• Writing error occurred. The MP3/WMA/AAC format is not
compatible.

- Make sure the MP3/WMA/AAC has been written in a

supported format. Refer to “About MP3/WMA/AAC”

pages 13-14), then rewrite in the format supported by this

(
device.

Audio

The sound is not output from the speakers.

• Unit has no output signal of the internal amplifier.

- POWER IC is switched to “ON” (page 19).

iPod

iPod does not play and no sound is output.

• The iPod has not been recognized.

- Reset this unit and the iPod. Refer to “Initial System Start-Up”

page 7). To reset the iPod, refer to the Owner’s Manual of the

(
iPod.

24-EN

Indication for CD Player

• No CD is inserted.

- Insert a CD.

• Although a disc is inserted, “NO DISC” is displayed and the unit
does not start to play or eject the disc.

- Remove the disc by following these steps:

Press the button again for at least 2 seconds.
If the disc still does not eject, consult your Alpine dealer.

NO USB UNIT

• A USB memory is not connected.

- Make sure the USB memory device is correctly connected and
the cable is not excessively bent.

• No song (file) is stored in the USB memory.

- Connect the USB memory device after storing songs (files).

• Mechanism error.

1) Press the button and eject the CD.
If not ejecting, consult your Alpine dealer.

2) When the error indication remains after ejecting, press the
button again.
If the error indication still does not turn off after pressing the

button for a few times, consult your Alpine dealer.

• When “ERROR” is displayed:

If the disc cannot be ejected by pressing , press the RESET switch
(refer to page 7) and press again.
If the disc still cannot be ejected, consult your Alpine dealer.

• A copy-protected WMA file was played back.

- You can only play back non-copy-protected files.

• A sampling rate/bit rate not supported by the unit is used.

- Use a sampling rate/bit rate that is supported by the unit.

Indication for USB memory

• A sampling rate/bit rate not supported by the unit is used.

- Use a sampling rate/bit rate that is supported by the unit.

• A copy-protected WMA file was played back.

- You can only play back non-copy-protected files.

NO SUPPORT

• Text information that is not recognizable by the unit has been
input.

- Use a USB memory device with input text information that is

supported by the unit.

Indication for iPod Mode

• The iPod is not connected.

- Make sure the iPod is correctly connected (refer to

“Connections”).
Make sure the cable is not bent excessively.

• Abnormal current is run to the USB connector device (an error
message may be displayed if the USB device that is not
compatible with the unit is connected).
USB memory is a malfunction or it is shorted.

- Connect another USB memory.

DEVICE ERROR

• A USB device that is not supported by the unit is connected.

- Connect a USB device that is supported by the unit.

• There are no songs in the iPod.

- Download songs to the iPod and connect to this unit.

• Communication error

- Turn the ignition key off, and then set to ON again.

- Check the display by reconnecting between the iPod and this
unit, using the iPod cable.

• Caused by the iPod Software Version not being compatible with
this unit.

- Update the iPod Software Version to be compatible with this

unit.

25-EN

Specifications

FM TUNER SECTION

Tuning Range 87.5-108.0 MHz

Mono Usable Sensitivity 0.7 µV

Alternate Channel Selectivity 80 dB

Signal-to-Noise Ratio 65 dB

Stereo Separation 35 dB

Capture Ratio 2.0 dB

MW TUNER SECTION

Tuning Range 531-1,602 kHz

Sensitivity (IEC Standard) 25.1 µV/28 dB

CHASSIS SIZE

Width 178 mm (7")

Height 50 mm (2")

Depth 160 mm (6-1/4")

NOSEPIECE SIZE

Width 170 mm (6-3/4")

Height 46 mm (1-13/16")

Depth 24 mm (15/16")

• Due to continuous product improvement, specifications and design

are subject to change without notice.

LW TUNER SECTION

Tuning Range 153-281 kHz

Sensitivity (IEC Standard) 31.6 µV/30 dB

CD PLAYER SECTION

Frequency Response 5-20,000 Hz (±1 dB)

Wow & Flutter (% WRMS) Below measurable limits

Total Harmonic Distortion 0.008% (at 1 kHz)

Dynamic Range 95 dB (at 1 kHz)

Signal-to-Noise Ratio 105 dB

Channel Separation 85 dB (at 1 kHz)

PICKUP

Wave length 795 nm

Laser power CLASS I

USB SECTION

USB requirements USB 1.1/2.0

Max. Power Consumption 500 mA

USB Class Mass Storage

File System FAT 12/16/32

MP3 Decoding MPEG-1/2 AUDIO Layer-3

WMA Decoding Windows Media™ Audio

AAC Decoding AAC-LC format “.m4a” file

Number of Channels 2-Channel (Stereo)

Frequency Response* 5-20,000 Hz (±1 dB)

Total Harmonic Distortion 0.008% (at 1 kHz)

Dynamic Range 95 dB (at 1 kHz)

Signal-to-Noise Ratio 105 dB

Channel Separation 85 dB (at 1 kHz)

* Frequency response may differ depending on the encoder

software/bit rate.

CAUTION

CLASS 1

LASER PRODUCT

(Bottom si de of player)

GENERAL

Power Requirement 14.4 V DC

Maximum Power Output 50 W × 4

Maximum Pre-Output Voltage 2 V/10 k ohms

Bass ±14 dB at 60 Hz

Treb le ±14 dB at 10 kHz

Weight 1.5 kg (3 lbs. 4 oz)

26-EN

(11-16 V allowable)

Installation and Connections

Before installing or connecting the unit, please read the
following and
for proper use.

pages 3 and 5 of this manual thoroughly

Warning

MAKE THE CORRECT CONNECTIONS.

Failure to make the proper connections may result in fire or product
damage.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may
result in fire, etc.

BEFORE WIRING, DISCONNECT THE CABLE FROM THE
NEGATIVE BATTERY TERMINAL.

Failure to do so may result in electric shock or injury due to
electrical shorts.

DO NOT SPLICE INTO ELECTRICAL CABLES.

Never cut away cable insulation to supply power to other
equipment. Doing so will exceed the current carrying capacity of
the wire and result in fire or electric shock.

DO NOT DAMAGE PIPE OR WIRING WHEN DRILLING
HOLES.

When drilling holes in the chassis for installation, take precautions
so as not to contact, damage or obstruct pipes, fuel lines, tanks or
electrical wiring. Failure to take such precautions may result in fire.

DO NOT USE BOLTS OR NUTS IN THE BRAKE OR STEERING
SYSTEMS TO MAKE GROUND CONNECTIONS.

Bolts or nuts used for the brake or steering systems (or any other
safety-related system), or tanks should NEVER be used for
installations or ground connections. Using such parts could disable
control of the vehicle and cause fire etc.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE
REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed,
consult a physician immediately.

DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER
VEHICLE OPERATION, SUCH AS THE STEERING WHEEL OR
SHIFT LEVER.

Doing so may obstruct forward vision or hamper movement etc.
and results in serious accident.

Caution

HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS.

The wiring and installation of this unit requires special technical
skill and experience. To ensure safety, always contact the dealer
where you purchased this product to have the work done.

USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM
SECURELY.

Be sure to use only the specified accessory parts. Use of other than
designated parts may damage this unit internally or may not
securely install the unit in place. This may cause parts to become
loose resulting in hazards or product failure.

ARRANGE THE WIRING SO IT IS NOT CRIMPED OR
PINCHED BY A SHARP METAL EDGE.

Route the cables and wiring away from moving parts (like the seat
rails) or sharp or pointed edges. This will prevent crimping and
damage to the wiring. If wiring passes through a hole in metal, use
a rubber grommet to prevent the wire’s insulation from being cut by
the metal edge of the hole.

DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR
DUST.

Avoid installing the unit in locations with high incidence of
moisture or dust. Moisture or dust that penetrates into this unit may
result in product failure.

Precautions

•

Be sure to disconnect the cable from the (–) battery post before
installing your
chance of damage to the unit in case of a short-circuit.

•

Be sure to connect the colour coded leads according to the diagram.
Incorrect connections may cause the unit to malfunction or damage
to the vehicle’s electrical system.

•

When making connections to the vehicle’s electrical system, be
aware of the factory installed components (e.g. on-board computer).
Do not tap into these leads to provide power for this unit. When
connecting the
sure the fuse for the intended circuit of the
CDE-9882Ri
result in damage to the unit and/or the vehicle. When in doubt,
consult your Alpine dealer.

•

The

CDE-9880R/CDE-9882Ri
connection to other units (e.g. amplifier) having RCA connectors.
You may need an adaptor to connect other units. If so, please contact
your authorized Alpine dealer for assistance.

•

Be sure to connect the speaker (–) leads to the speaker (–) terminal.
Never connect left and right channel speaker cables to each other or
to the vehicle body.

CDE-9880R/CDE-9882Ri

CDE-9880R/CDE-9882Ri

has the appropriate amperage. Failure to do so may

uses female RCA-type jacks for

. This will reduce any

to the fuse box, make
CDE-9880R/

IMPORTANT

Please record the serial number of your unit in the space provided
below and keep it as a permanent record. The serial number or the
engraved serial number is located on the bottom of the unit.

SERIAL NUMBER:
INSTALLATION DATE:
INSTALLATION TECHNICIAN:
PLACE OF PURCHASE:

27-EN

Installation

Detachable
Front Panel

Caution

When you install this unit in your car, do not remove the
detachable front panel.
If the detachable front panel is removed during installation, you
might press too hard and warp the metal plate that holds it in
place.

• The main unit must be mounted within 35 degrees of the horizontal

plane, back to front.

Less than 35°

1

Bracket

Mounting Sleeve
(Included)

Rubber Cap
(Included)

Hex Bolt
(Included)

Dashboard

2

When your vehicle has the Bracket, mount the long
hex bolt onto the rear panel of
CDE-9882Ri and put the Rubber Cap on the hex bolt.
If your vehicle does not have the Mounting Support,
reinforce the head unit with the metal mounting
strap (not supplied). Connect all other leads of
CDE-9880R/CDE-9882Ri according to details
described in the CONNECTIONS section.

• For the screw *, provide a proper screw to the chassis installing

location.

Slide the CDE-9880R/CDE-9882Ri into the

3

dashboard. When the unit is in place, make sure the
locking pins are fully seated in the down position.
This can be done by pressing firmly in on the unit
while pushing the locking pin down with a small
screwdriver. This ensures that the unit is properly
locked and will not accidentally come out from the
dashboard. Install the detachable front panel.

Metal Mounting Strap

Hex Nut (M5)

Screw

Bolt Stud

∗

the CDE-9880R/

This unit

Lock Pin

the

Pressure Plates*

This unit

* If the installed mounting sleeve is loose in the dashboard, the

pressure plates may be bent slightly to remedy the problem.

Remove the mounting sleeve from the main unit (see
“Removal” on
into the dashboard and fix it with the metal shackles.

page 28). Slide the mounting sleeve

Removal

1. Remove the detachable front panel.

2. Use a small screwdriver (or similar tool) to push the
locking pins to the “up” position (see above drawing).
As each pin is unlocked, gently pull out on the unit to
make sure it does not re-lock before unlocking the
second pin.

3. Pull the unit out, keeping it unlocked as you do so.

28-EN

<JAPANESE CAR>

Front Frame

Screws (M5 × 8)

This unit

Mounting Bracket

(Included)

USB memory Connection (sold separately)

Connect USB memory

Connect USB memory to USB cable.

This unit

USB connector

Cable (sold separately)

USB memory
(sold separately)

Remove USB memory

Pull out USB memory squarely from the USB cable.

This unit

USB connector

USB memory
(sold separately)

Cable (sold separately)

• When removing USB memory, pull it out straight.

• If sound is not output or USB memory is not recognized even when

USB memory is connected, remove USB memory once, then connect
it again.

• Change to a source other than the USB memory mode, then remove

the USB memory. If the USB memory is removed in the USB memory
mode, data may be damaged.

• Route the USB cable away from another cables, etc.

29-EN

Connections

(Pink/Black) AUDIO INTERRUPT IN

To i Po d

Antenna

JASO Antenna Plug

To vehicle phone

ISO Antenna Plug

(Red) IGNITION

(Black) GND

(Blue) POWER ANT

(Orange) DIMMER

BATTERY

(Yellow)

(Blue/White) REMOTE TURN-ON

(Green)

(Green/Black)

(White)

(White/Black)

(Grey/Black)

(Grey)

(Violet/Black)

(Violet)

To amplifier or equalizer

To power antenna

To the instrument cluster
illumination lead

Ignition Key

Battery

Speakers

Rear Left

Front Left

Front Right

Rear Right

30-EN

Amplifier

Amplifier

Amplifier

Speakers

Rear Left

Rear Right

Front Left

Front Right

Subwoofers

iPod Direct Connector

Control iPod signals.
Connect this to an iPod by using the FULL SPEEDTM
Connection Cable (KCE-422i) (sold separately) or connect
this to an external device (such as a portable player) by
using iPod Direct/RCA Interface cable (sold separately).

* Refer to “Setting the AUX+ SETUP Mode” (page 20).

AUX+ON : When the exter nal device is connected.
AUX+OF F : When an iPod is connected.

Antenna Receptacle

Audio Interrupt In Lead (Pink/Black)

Connect this lead to the Audio Interface output of a cellular
phone which provides ground shorting when a call is
received.

Remote Turn-On Lead (Blue/White)

Connect this lead to the remote turn-on lead of your
amplifier or signal processor.

Switched Power Lead (Ignition) (Red)

Connect this lead to an open terminal on the vehicle’s fuse
box or another unused power source which provides (+)
12V only when the ignition is turned on or in the accessory
position.

Ground Lead (Black)

Connect this lead to a good chassis ground on the vehicle.
Make sure the connection is made to bare metal and is
securely fastened using the sheet metal screw provided.

Power Antenna Lead (Blue)

Connect this lead to the +B terminal of your power antenna,
if applicable.

• This lead should be used only for controlling the vehicle’s power

antenna. Do not use this lead to turn on an amplifier or a signal
processor, etc.

Dimmer Lead (Orange)

This lead may be connected to the vehicle’s instrument
cluster illumination lead. This will enable the vehicle’s
dimmer control to dim the backlighting of the unit.

Battery Lead (Yellow)

Connect this lead to the positive (+) post of the vehicle’s
battery.

ISO Power Supply Connector

ISO Connector (Speaker Output)

Left Rear (+) Speaker Output Lead (Green)

Left Rear (–) Speaker Output Lead (Green/Black)

Left Front (+) Speaker Output Lead (White)

Left Front (–) Speaker Output Lead (White/Black)

Right Front (–) Speaker Output Lead (Grey/Black)

Right Front (+) Speaker Output Lead (Grey)

Right Rear (–) Speaker Output Lead (Violet/Black)

Right Rear (+) Speaker Output Lead (Violet)

Steering Remote Control Interface Connector

To steering remote control interface box.

Fuse Holder (10A)

Rear Output RCA Connectors

RED is right and WHITE is left.

Front Output RCA Connectors

RED is right and WHITE is left.

Subwoofer Output RCA Connectors

RED is right and WHITE is left.

Power Supply Connector

USB Connector

Connect USB cable.

RCA Extension Cable (sold separately)

FULL SPEED

TM

Connection Cable (KCE-422i)

(CDE-9880R, sold separately; CDE-9882Ri supplied)

ISO/JASO Antenna Adaptor (sold separately)

An ISO/JASO antenna adapter may be required, depending
on the vehicle.

To prevent external noise from entering the audio system.

• Locate the unit and route the leads at least 10 cm away from the car harness.

• Keep the battery power leads as far away from other leads as possible.

• Connect the ground lead securely to a bare metal spot (remove any paint, dirt or grease if necessary) of the car chassis.

• If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries various noise
suppressors, contact them for further information.

• Your Alpine dealer knows best about noise prevention measures so consult your dealer for further information.

31-EN
