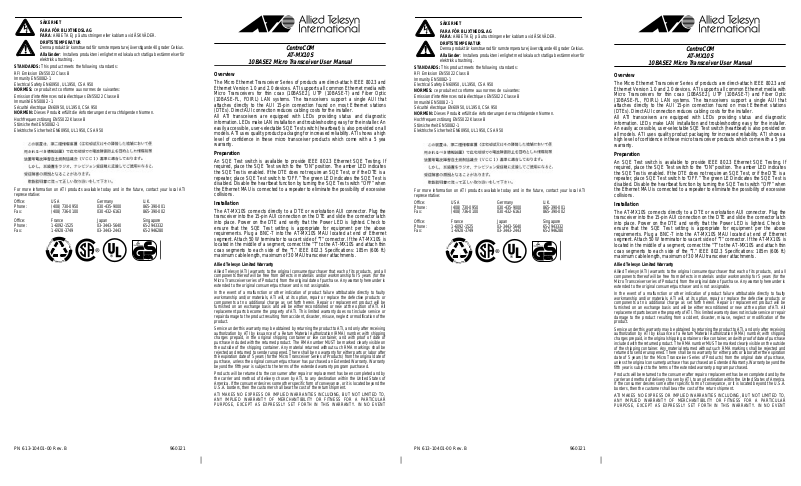

Allied Telesyn AT-MX10S User guide

CentreCOM

AT-MX10S

10BASE2 Micro Transceiver User Manual

Overview

The Micro Ethernet Transceiver Series of products are direct-attach IEEE 802.3 and
Ethernet Version 1.0 and 2.0 devices. ATI supports all common Ethernet media with
Micro Transceivers for thin coax (10BASE2), UTP (10BASE-T) and Fiber Optic
(10BASE-FL, FOIRL) LAN systems. The transceivers support a single AUI that
attaches directly to the AUI 15-pin connection found on most Ethernet stations
(DTEs). Direct AUI connection reduces cabling costs for the installer.

All ATI transceivers are equipped with LEDs providing status and diagnostic
information. LEDs make LAN installation and troubleshooting easy for the installer. An
easily accessible, user-selectable SQE Test switch (heartbeat) is also provided on all
models. ATI uses quality product packaging for increased reliability. ATI shows a high
level of confidence in these micro transceiver products which come with a 5 yea
warranty.

Preparation

An SQE Test switch is available to provide IEEE 802.3 Ethernet SQE Testing. If
required, place the SQE Test switch to the “ON” position. The amber LED indicates
the SQE Test is enabled. If the DTE does not require an SQE Test, or if the DTE is a
repeater, place SQE Test switch to “OFF.” The green LED indicates the SQE Test is
disabled. Disable the heartbeat function by turning the SQE Test switch “OFF” when
the Ethernet MAU is connected to a repeater to eliminate the possibility of excessive
collisions.

Installation

The AT-MX10S connects directly to a DTE or workstation AUI connector. Plug the
transceiver into the 15-pin AUI connection on the DTE and slide the connector latch
into place. Power on the DTE and verify that the Power LED is lighted. Check to
ensure that the SQE Test setting is appropriate for equipment per the above
requirements. Plug a BNC-T into the AT-MX10S MAU located at end of Ethernet
segment. Attach 50 W terminator to vacant side of “T” connector. If the AT-MX10S is
located in the middle of a segment, connect the “T” to the AT-MX10S and attach thin
coax segments to each side of the “T.” IEEE 802.3 Specifications: 185m (606 ft.)
maximum cable length, maximum of 30 MAU transceiver attachments.

Allied Telesyn Limited Warranty

Allied Telesyn (ATI) warrants to the original consumer/purchaser that each of its products, and all
components thereof will be free from defects in materials and/or workmanship for 5 years (for the
Micro Transceiver series of Products) from the original date of purchase. Any warranty hereunder is
extended to the original consumer/purchaser and is not assignable.

In the event of a malfunction or other indication of product failure attributable directly to faulty
workmanship and/or materials, ATI will, at its option, repair or replace the defective products or
components at no additional charge as set forth herein. Repair or replacement product will be
furnished on an exchange basis and will be either reconditioned or new at the option of ATI. All
replacement parts become the property of ATI. This limited warranty does not include service or
repair damage to the product resulting from accident, disaster, misuse, neglect or modification of the
product.

Service under this warranty may be obtained by returning the product to ATI, and only after receiving
authorization by ATI by issuance of a Return Material Authorization (RMA) number, with shipping
charges prepaid, in the original shipping container or like container, and with proof of date of
purchase included with the returned product. The RMA number MUST be marked clearly visible on
the outside of the shipping container. Any material returned without such RMA markings shall be
rejected and returned to sender unopened. There shall be no warranty for either parts or labor after
the expiration date of 5 years (for the Micro Transceiver Series of Products) from the original date of
purchase, unless the original consumer/purchaser has purchased an Extended Warranty. Warranty
beyond the fifth year is subject to the terms of the extended warranty program purchased.

Products will be returned to the consumer after repair or replacement has been completed and by
the carrier and method of delivery chosen by ATI, to any destination within the United States of
America. If the consumer desires some other specific form of conveyance, or it is located beyond the
U.S.A. borders, then the customer shall bear the cost of the return shipment.

ATI MAKES NO EXPRESS OR IMPLIED WARRANTIES INCLUDING, BUT NOT LIMITED TO,
ANY IMPLIED WARRANTY OF MERCHANTIBILITY OR FITNESS FOR A PARTICULAR
PURPOSE, EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY. IN NO EVENT

SHALL ATI BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, COSTS, OR
EXPENSES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE
OF THE PRODUCT DELIVERED HEREUNDER.

Some governments do not allow the exclusion or limitation of incidental or consequential damages
for consumer products, so the above limitation of exclusion may not apply to you.

U.S. FEDERAL COMMUNICATIONS COMMISSION

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and the receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Changes and Modifications not expressly approved by the manufacturer or registrant of this
equipment can void your authority to operate this equipment under Federal Communications
Commission rules.

CANADIAN DEPARTMENT OF COMMUNICATIONS

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital
apparatus as set out in the radio interference regulations of the Canadian Department of
Communications.
Lé présent appareil numérique n’émet pas de bruits radio électriques dépassent les limites
applicables aux appareils numériques de Classe A prescrites dans le réglement sur le brouillage
radio électrique édicté par le ministére des Communications du Canada.

BESCHEINIGUNG DES HERSTELLERS/IMPORTEURS

Hiermit wird bescheinigt, dass der MX10S Micro Transceiver in Uebereinstimmung mit den
Bestimmungen der Vfg. 1046/1984 funk-entstoert ist. Der Deutschen Bundespost wurde das
Inverkehrbringen dieses Geraetes angezeit und die Berechtigung zur Ueberpruefung der Serie auf
Einhaltung der Bestimmungen eingeraeumt. Von Benutzer zusammengestellte Systeme, die dieses
Geraet beihalten, muessen den Bestimmungen von Vfg 1046/1984 entsprechen.

SAFETY
LIGHTNING DANGER

DANGER

: DO NOT WORK on equipment or CABLES during periods of LIGHTNING

ACTIVITY.

Operating temperature

This product is designed for a maximum ambient temperature of 40 degrees C.

Environmental Air Notice
CAUTION : UL listed for use in other Environmental Air Spaces in Accordance with

Article 300-22(C) of the U.S.A National Electrical Code. Note: Product is not Plenum
rated.

All Countries : Install product in accordance with local and National Electrical Codes.

SICHERHEIT
GEFAHR DURCH BLITZSCHLAG

GEFAHR

: Keine Arbeiten am Gerät oder an den Kabeln während eines Gewitter

ausführen.

BETRIEBSTEMPERATUR

Dieses Produkt wurde für den Betrieb in einer Umgebungstemperatur von nicht mehr
als 40 ° C entworfen.

Alle Länder : Installation muß örtlichen und nationalen elektrischen Vorschriften

entsprechen.

SIKKERHED
FARE UNDER UVEJR

FARE

: UNDLAD at arbejde på udstyr eller KABLER i perioder med LYNAKTIVITET.

BETJENINGSTEMPERATUR

Dette apparat er konstrueret til en omgivende temperatur på maksimum 40 grader C.

Alle Lande : Installation af produktet skal ske i overensstemmelse med lokal og

national lovgivning for elektriske installationer.

VEILIGHEID
GEVAAR VOOR BLIKSEMINSLAG

GEVAAR

: NIET aan toestellen of KABELS WERKEN bij BLIKSEM.

Bedrijfstemperatuur

De omgevingstemperatuur voor dit produkt mag niet meer bedragen dan 40 graden
Celsius.

Alle landen

voorschriften.

SECURITE
DANGER DE FOUDRE

DANGER

d'activité orageuse.

TEMPERATURE DE FONCTIONNEMENT

Ce produit est capable de tolérer une température ambiante maximum de 40 degrés
Celsius.

Pour tous pays

et locales.

TURVALLISUUS
SALAMANISKUVAARA

HENGENVAARA

SALAMOINNIN AIKANA.

KÄYTTÖLÄMPÖTILA

Tämä tuote on suunniteltu ympäröivän ilman maksimilämpötilalle 40°C.

Kaikki maa

mukaisesti.

NORME DI SICUREZZA
PERICOLO DI FULMINI

PERICOLO

TEMPORALESCHE.

Temperatura di funzionamento

Questo prodotto è concepito per una temperatura ambientale massima di 40 gradi
centigradi.

Tutti i paesi

nazionali.

SIKKERHET
FARE FOR LYNANTENNELSE

FARE

: MÅ IKKE BRUKES på utstyr eller ledninger mens LYN-AKTIVITET er i gang.

Driftstemperatur

Dette produktet har blitt fremstilt til bruk med maksimum romtemperatur på 40 grader
celsius.

Alle land

koder.

:

: het toestel installeren overeenkomstig de lokale en nationale elektrische

: NE PAS MANIER l'équipement ou les CABLES pendant les périodes

: Installer le produit conformément aux normes électriques nationales

: ÄLÄ TYÖSKENTELE laitteiden tai KAAPELEIDEN KANSSA

t: Asenna tuote paikallisten ja kansallisten sähköturvallisuusmääräysten

: NON LAVORARE sul dispositivo o sui CAVI durante PRECIPITAZIONI

: installare il prodotto in conformità alle vigenti normative elettriche

: Produktet må installeres i samsvar med de lokale og nasjonale elektriske

SEGURANÇA
PERIGO DE CHOQUE CAUSADO POR RAIO

PERIGO

: NÃO TRABALHE no equipamento ou nos CABOS durante períodos

suscetíveis de QUEDAS DE RAIO.

TEMPERATURA DE FUNCIONAMENTO

Este produto foi projetado para uma temperatura ambiente máxima de 40 graus
centígrados.

Todos os países

instalações elétricas.

SEGURIDAD
PELIGRO DE RAYOS

PELIGRO

equipos o en LOS CABLES durante TORMENTAS DE RAYOS.

Temperatura requerida para la operación

Este producto está diseñado para una temperatura ambiental máxima de 40 grados
C.

Para todos los países

locales y nacionales.

: Instale o produto de acordo com as normas federais e locais para

: NO REALICE NINGUN TIPO DE TRABAJO O CONEXION en los

: Monte el producto de acuerdo con los Códigos Eléctricos

STANDARDS: This product meets the following standards:

RFI Emission EN55022 Class B
Immunity EN50082-1
Electrical Safety EN60950, UL1950, CSA 950

NORMES: ce produit est conforme aux normes de suivantes:

Emission d’interférences radioélectriques EN55022 Classe B
Immunité EN50082 - 1
Sécurité électrique EN60950, UL1950, CSA 950

NORMEN: Dieses Produkt erfüllt die Anforderungen der nachfolgenden Normen.

Hochfrequenzstörung EN55022 Klasse B
Störsicherheit EN50082-1
Elektrische Sicherheit EN60950, UL1950, CSA 950

For more information on ATI products available today and in the future, contact your local ATI
representative:

Office: USA Germany U.K.
Phone: [phone]-001
Fax: [phone]-002

Office: France Japan Singapore
Phone: [phone]
Fax: [phone]

SÄKERHET
FARA FÖR BLIXTNEDSLAG

FARA : ARBETA EJ på utrustningen eller kablarna vid ÅSKVÄDER.
DRIFTSTEMPERATUR

Denna produkt är konstruerad för rumstemperatur ej överstigande 40 grader Celsius.

Alla länder : Installera produkten i enlighet med lokala och statliga bestämmelser för

elektrisk utrustning.

R

E

E

L

C

B

Y

A

C

L

L

C

A

Y

B

C

L

E

E

R

R

E

E

L

C

B

Y

A

C

L

PN 613-10401-00 Rev. B 960321 PN 613-10401-00 Rev. B 960321

|||
