Allied Telesis AT-8116 User Manual

AT-8116

Fast Ethernet Intelligent Switch

Installation Guide

PN 613-10691-00 Rev A

Copyright 1998 Allied Telesyn International Corp.
All rights reserved. No part of this publication may be reproduced without prior written
permission from Allied Telesyn International Corp.

Ethernet is a registered trademark of Xerox Corporation. UNIX is a registered
trademark in the United States and other countries licensed exclusively through X/
Open Company Limited. Novell and NetWare are registered trademarks of Novell, Inc.
Microsoft and MS-DOS are registered trademarks and LAN Manager and Windows for
Workgroups are trademarks of Microsoft Corporation. 3Com is a registered trademark
of 3Com. PC-NFS is a trademark of Sun Microsystems, Inc. PC/TCP is a registered
trademark of FTP Software, Inc. DECnet is a registered trademark of Digital
Equipment Corporation. All other product names, company names, logos or other
designations mentioned herein are trademarks or registered trademarks of their
respectives owners.

Allied Telesyn International Corp. reserves the right to make changes in specifications
and other information contained in this document without prior written notice. The
information provided herein is subject to change without notice. In no event shall Allied
Telesyn International Corp. be liable for any incidental, special, indirect, or
consequential damages whatsoever, including but not limited to lost profits, arising out
of or related to this manual or the information contained herein, even if Allied Telesyn
International Corp. has been advised of, known, or should ha ve known, the possibility of
such damages.

Electrical Safety and Installation Requirements

U.S. Federal Communications Commission

RADIATED ENERGY

Note: This equipment has been tested and found to comply with the limits for a Class A
digital device pursuant to Part 15 of FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with this instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.

Note: Modifications or changes not expressly approved of by the manufacturer or the
FCC, can void your right to operate this equipment.

Canadian Department of Communications

This Class A digital apparatus meets all requirements of the Canadian Interference­Causing Equipment Regulations.

Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.

STANDARDS

RFI Emission EN55022 Class A

WARNING

case the user may be required to take adequate measures.
Immunity EN50082-1
Electrical Safety EN60950, UL1950

SAFETY
ELECTRICAL NOTICES

WARNING

To prevent ELECTRIC shock, do not remove cover. No user-serviceable parts inside. This
unit contains HAZARDOUS VOLTAGES and should only be opened by a trained and qualified
technician. To avoid the possibility of ELECTRIC SHOCK disconnect electric power to the
product before connecting or disconnecting the LAN cables.

: This product meets the following standards.

: In a domestic environment this product may cause radio interference in which

: ELECTRIC SHOCK HAZARD

iii

Electrical Safety and Installation Requirements

LIGHTNING DANGER
DANGER

: DO NOT WORK on equipment or CABLES during periods of LIGHTNING

ACTIVITY.

INSTALLATION
ELECTRICAL—TYPE CLASS 1 EQUIPMENT

THIS EQUIPMENT MUST BE EARTHED. Power plug must be connected to a properly wired
earth ground socket outlet. An improperly wired socket outlet could place hazardous
voltages on accessible metal parts.

ELECTRICAL—CORD NOTICE

Use power cord, maximum 4.5 meters long, rated 6 amp minimum, 250V, made of HAR
cordage molded IEC 320 connector on one end and on the other end a plug approved by the
country of end use.

CAUTION

: Air vents must not be blocked and must have free access to the room ambient air

for cooling.

FUSE RATING

For continued protection against risk of fire replace only with the same type and rating of
fuse.

OPERATING TEMPERATURE

This product is designed for a maximum ambient temperature of 40 degrees C.

ALL COUNTRIES

iv

: Install product in accordance with local and National Electrical Codes.

Table of Contents

Electrical Safety and Installation Requirements

Chapter 1
Introduction

Description...........................................................................................................1

Theory of Operation.............................................................................................2

Features...............................................................................................................2

Front Panel..........................................................................................................3

Rear Panel............................................................................................................4

Power Connection................................................................................................4

Chapter 2
Installation

Verifying Package Contents................................................................................5

Installing the AT-8116........................................................................................5

Rack Mounting ....................................................................................................6

Network Connections..........................................................................................6

Connecting an Ethernet Device to a 10Base-T or 100Base-TX Port.........6

Chapter 3
Applications and Configurations

Applications.........................................................................................................9

Typical Applications............................................................................................9

Configuring Your Network................................................................................11

Links Between Switches............................................................................11

Device Configuration.........................................................................................11

.....................................................................................................1

.......................................................................................................5

................................................................9

..................................iii

Appendix A
Technical Specifications

Appendix B
Technical Support Fax Order

Appendix C
Where To Find Us

..........................................................................................17

.............................................................................13

....................................................................15

v

Chapter 1

Introduction

The AT-8116 is a high-performance 10/100Mbps switch representing
the next generation in switching technology. The AT-8116 employs
highly-integrated ASIC technology and a Gigabit/sec backplane to
significantly boost network performance. Its high density and
performance combine with exceptional functionality, such as RMON
support, VLAN capabilities and Full Duplex switching, to achieve
optimal network switching without expensive changes to the desktop
PC or cabling system. The AT-8116 exemplifies the design flexibility
which enables deployment as both a departmental and enterprise
switch, while enhancing network connectivity.

Description

The AT-8116 high-density switch features 16 dual-speed 10/100 UTP
ports with auto-sensing. Highly-integrated ASIC technology enables a
maximum throughput of over 2,000,000pps and 1.6 Gbps.

The switch boasts extensive management capabilities, such as the
ability to access the learning table and per/port counter statistics, and
to set configurations. Built-in RMON support for Groups 1, 2, 3, and 9
allows in-depth analysis of traffic flow, while implementation of the
Spanning Tree Algorithm prevents broadcast loops and provides fail­safe network redundancy.

TERMINAL

RS232C

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Figure 1:

AT-8116 Front View

10BASE-T/100BASE-TX 16 PORT ETHERNET SWITCH with Management

81 16

POWER

100M
COLN/FULL DUP
LINK
ACT

1

Introduction

Theory of Operation

Ethernet segment switches divide a large local network into smaller
segments, insulating each from the other’s local traffic and increasing
aggregate bandwidth, while still retaining full connectivity. The AT­8116 is designed to be self-configuring and extremely fast, making
installation simple and providing an increase in available bandwidth.

The switch learns on which port stations are located by remembering
the source address of every packet received on every port. When
packets are received for stations that the switch has learned, they will
be forwarded to only the port on which the station is located. This is in
contrast to a hub, which sends every packet to every port.

If the switch receives a packet addressed to a station which the switch
has not learned, the packet is sent to every port, except the port on
which it was received, just as a hub would. This insures that full
connectivity is maintained. The high port density of the AT-8116 allows
for dedicated high-performance workstation links.

Features

❑

Complies with IEEE 802.3 and IEEE 802.3u standards

❑

Sixteen auto-sensing 10/100Mbps UTP ports

❑

All ports operate at wire speed with an aggregate throughput
of over 2,000,000pps

❑

Employs highly-integrated ASIC technology; high-speed
backplane design; 8 MB of buffer memory

❑

Learning table for up to 8K Mac address entries

❑

Terminal-based Command Line Interface (CLI) management

❑

Spanning tree algorithm prevents broadcast loops and provides
fail-safe network redundancy

❑

Port-based VLAN supports broadcast domain VLANs to
eliminate network-clogging broadcast storms

2

AT-8116 Installation Guide

Front Panel

The front panel of the AT-8116 is illustrated below in Figure 2. The
following tables describe its various LEDs and components and their
functions.

TERMINAL

RS232C

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

100M

COLN/Full DUP

LINK

ACT

Figure 2:

Table 1:

RS232C

AT-8116 Front Panel

AT-8116 LEDs and Ports

LED Color Description

100M Green ON indicates 100Mbps mode
COLN/

FULL DUP
LINK Green
ACT Green

Yellow or
Green

Yellow

Blinking

for port collision; Green ON when

port is configured for Full Duplex

ON

indicates a valid link connection

Blinking

indicates port activity

Power Green ON indicates normal operation mode

10BASE-T/100BASE-TX 16 PORT ETHERNET SWITCH with Management

81 16

100M
COLN/FULL DUP
LINK
ACT

Power

POWER

Table 2:

RJ45 and RS232 Ports

RJ45 16, RJ45 10/100 Mb UTP ports
RS232 One, RS232 connection for NMS

3

Introduction

Rear Panel

The power connection and ON/OFF switch are located on the rear panel
of the AT-8116. The two fan holes MUST be kept unobstructed.

Power Connection

Plug the power cord into an easily accessible outlet and turn on the ON/
OFF switch.

4

Chapter 2

Installation

The AT-8116 can operate as a stand-alone unit or in conjunction with
any of Allied Telesyn’s other Ethernet and Fast Ethernet offerings. It
supports local and SNMP management.

Verifying Package Contents

❑

AT-8116 Fast Ethernet Switch

❑

Power cord (for 110V units only)

❑

Rack-mounting brackets

❑

Null modem cable

❑

This installation guide

Installing the AT-8116

This section outlines the installation and operation of the AT-8116.
The AT-8116 comes as a 19” rack-mounted unit. However, it can be

placed in either a rack mount, using the enclosed rack-mount brackets,
or on a secure flat surface. Ensure that the unit is within reach of the
necessary connections (i.e. power outlet, Ethernet connections, and, if
the AT-8116 will be monitored via the serial port, a PC, UNIX
workstation, or modem. The unit is powered by a wide-range power
supply for either 115 - 240 VAC 50/60Hz, 0.5 A operation.

Warning

Free air flow must be maintained in order to permit adequate
cooling of the unit. FAN holes MUST be unobstructed.

5

Installation

Rack Mounting

If rack-mounted units are installed in a closed or multi-rack assembly,
they may require further evaluation by certification agencies. The
following items must be considered:

1. The ambient temperature within the rack may be greater than
room ambient temperature. Installation should be such that the
amount of air flow required for safe operation is not compromised.
The maximum temperature for equipment in this environment is
40°C. Consideration should be given to the maximum rated
ambient temperature.

2. Installation should be such that a hazardous stability condition is
not inadvertently created due to uneven loading.

Network Connections

Connecting an Ethernet Device to a 10Base-T or 100Base-TX Port

The 10/100Base-TX ports on the AT-8116 are designed to be connected
directly to a workstation, using a standard straight-through patch
cable. In order to cascade switches or connect a hub to the switch, a
crossover cable must be used. The RJ45 ports are defined as MDI-X
ports.

The cable connections to the 10/100 ports should be UTP Category 5,
and cable length is limited to 100 meters on each port. Figure 3 and
Figure 4 shows the pin assignments for the RJ45 connector.

Note
Cables must comply with the ANSI/TIA/EIA specification,
commonly referred to as T568A or T568B.

6

AT-8116 Installation Guide

Pin #

1
2

3

4

5

6

7

8

Figure 3:

Pin #

TD+

1

TD-

RD+

2
3

4

5

RD-

6

7

8

Straight Cable Connection Between an AT-8116 and a Server/PC

7

Installation

Pin #

1

2

3

4

5

6

7

8

Figure 4:

Pin #

1

2

3

4

5

6

7

8

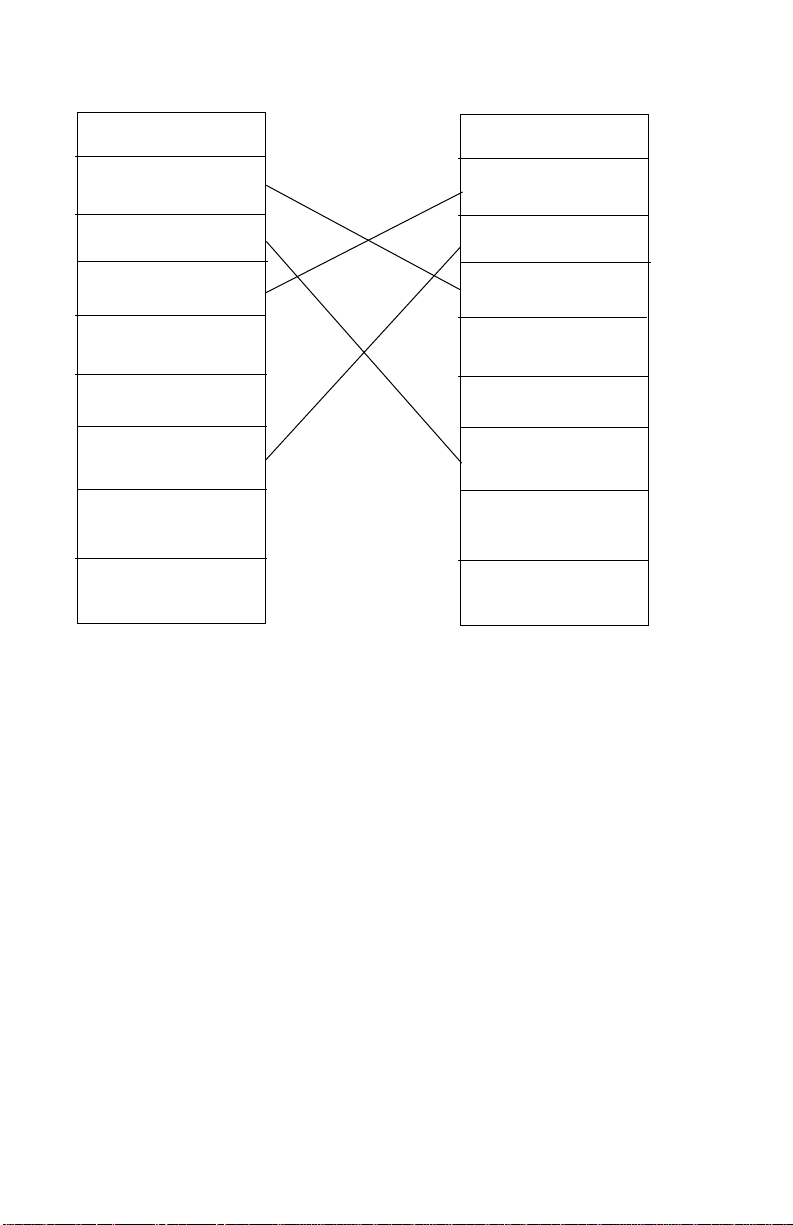

Crossover Between AT-8116 and Hub or Another Switch

8

Chapter 3

Applications and Configurations

Applications

A switch boosts network performance by segmenting a single large
collision domain into smaller, separate collision domains and providing
dedicated connections for intensive networks using work stations and
servers. In addition, the Full Duplex capability of Ethernet switches
permits connectivity for backbone applications or high throughput for
high-performance dedicated servers. The AT-8116 combines 10/
100Mbps auto-sensing ports with a high-speed backplane design to
enable deployment as both a departmental and backbone switch.

Typical Applications

The AT-8116 seamlessly integrates Fast Ethernet and legacy 10Mbps
Ethernet networks, creates a high-performance collapsed Fast
Ethernet backbone and drives high bandwidth server farms and power
users. Figure 5 illustrates various connection possibilities of the
AT-8116. One switch can connect up to sixteen 10/100Mbps UTP ports.
Attachments can include 10Mbps and 100Mbps servers, a Fast
Ethernet backbone, 10/100Mbps hubs, all functioning in Half or Full
Duplex mode. Port connectivity can be over 10Base-T/100Base-TX
copper cabling. See Figure 5.

9

Applications and Configurations

AT-8116 10/100 Ethernet Switch

To Backbone

Local Servers

100Mbps Stackable Hubs

TERMINAL

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

RS232C

10BASE-T/100BASE-TX 16 PORT ETHERNET SWITCH with Management

100Mbps

100Mbps

10/100 Ethernet Switch

8116

100M
COLN/FULL DUP
LINK
ACT

POWER

Shared 100Mbps
Fast Ethernet

Figure 5:

10

Switched 10Mbps

Ethernet

Various Application Possibilities of the AT-8116

AT-8116 Installation Guide

Configuring Your Network

Links Between Switches

An Ethernet to Fast Ethernet switch offers the network administrator
a possible upgrade path. At first, the switch can be used simply to
segment the existing 10Mbps Ethernet, immediately boosting
performance. Next, with the addition of a Fast Ethernet NIC, a file
server can be migrated to Fast Ethernet, increasing its availability. As
needed, additional file servers or individual users can be moved to Fast
Ethernet, while leaving all other parts of the network running 10Mbps
as usual. If some of the shared Ethernet segments are still congested,
but don’t warrant a full 100Mbps, additional switches can further
divide the shared segments, creating a collapsed 100Mbps backbone
and small switched 10Mbps segments.

Fast Ethernet provides 10 times the bandwidth than regular Ethernet.
Software, except for low-level drivers which are always card specific,
works with Fast Ethernet without modification. Frames from a device
using Fast Ethernet require only physical layer conversion. The
AT-8116 combines switched 10/100Mbps technology in a seamless
integration of regular Ethernet and the IEEE 802.3u 100Base-TX
standard.

Device Configuration

The AT-8116 provides CLI management. The switch can autosense the
speed for each port. However, the switch must be manually configured
for the correct duplex mode.

For full information on configuring the AT-8116, see the

User’s Guide
manuals.htm

on our website at

.

www.alliedtelesyn.com/

AT-8116

11

Appendix A

Technical Specifications

Table 3 lists the AT-8116 technical specifications.

Table 3:

Compatibility

IEEE 802.3; IEEE 802.3u (Fast Ethernet Standard)

Electrical

Rating 115 - 240 VAC, 0.5A
Frequency 50 - 60 Hz
Power Consumption- 50W

Connectors

Ethernet Ports 16, RJ45s
RS232 DB-9

Port LEDs

100M Green
ON indicates port is operating at 100Mbps

COLN/FULL DUP Yellow/Green
Yellow Blinking indicates collision/Green ON indicates Full duplex

LINK Green (ON indicates a valid link to software)
ACT Green (Blinking indicates port activity)

AT-8116 Technical Specifications

General LED

POWER Green
ON indicates normal operation

Learning Table 8K MAC address
Physical 3.5” x 19” x 14.65” (1.5U)

13

Technical Specifications

Table 3:

AT-8116 Technical Specifications

(Continued)

Weight 8 lb

Environment

Operating Temperature 40°C
Storage temperature 10°C to 50°C
Humidity 85% maximum, non-condensing

Standards Compliance

UL-1950; EN60500; VCCI; FCC Part 15 Class A

14

Appendix B

Technical Support Fax Order

Name__________________________________________________________________
Company _______________________________________________________________
Address ________________________________________________________________
City ________________________State/Province _______________________________
Zip/Postal Code ___________________ Country _______________________________
Phone _______________________________Fax _______________________________

Incident Summary

Model number of Allied Telesyn product I am using _____________________________
Network software products I am using________________________________________

______________________________________________________________________

Brief summary of problem _________________________________________________

______________________________________________________________________

Conditions (List the steps that led up to the problem.) ___________________________

______________________________________________________________________
______________________________________________________________________
______________________________________________________________________

Detailed description (Use separate sheet, if necessary)

______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________

When completed, fax this sheet to the appropriate ATI office. Fax numbers can be found
on page 17.

15

Appendix C

Where To Find Us

For Technical Support or Service

Location Phone Fax

Asia

Singapore, Taiwan, Thailand, Malaysia,
Indonesia, Korea, Philippines, China, India

Australia

Australia, New Zealand

France

France, Belgium, Luxembourg, The Netherlands,
Middle East, Africa

Germany

Germany, Switzerland, Austria, Eastern Europe

Hong Kong ([phone] ([phone]

Italy

Italy, Spain, Portugal, Greece, Turkey, Israel

Japan ([phone] ([phone]

North America

United States, Canada, Mexico, Central America,
South America

United Kingdom

United Kingdom, Denmark, Norway, Sweden,
Finland, Iceland

Techncial Support E-mail Address [e-mail]

Technical Bulletin Board Service 1 [phone]

CompuServe Go ALLIED

World Wide Web http://www.alliedtelesyn.com

([phone] ([phone]

[phone] [phone]

([phone] ([phone]

([phone] ([phone]

([phone] ([phone]

1 [phone] 1 [phone]

([phone] ([phone]

For Information Regarding Allied Telesyn International

Allied Telesyn International

19015 North Creek Parkway
Bothell, WA 98011
Tel: [phone]
Fax: [phone]

Allied Telesyn International

950 Kifer Road
Sunnyvale, CA 94086
Tel: [phone] (USA and Canada)
Fax: [phone]

17

Where To Find Us

For Sales Information

Australia
Lindfield, NSW

Tel: [phone], Fax: [phone]

Canada
Rexdale, Ontario

Tel: [phone], Fax: [phone]

Richmond, British Columbia

Tel: [phone], Fax: [phone]

England
Abingdon, Oxon

Tel: [phone], Fax: [phone]

France
Les Ulis

Tel: [phone], Fax: [phone]

Germany
Berlin

Tel: [phone], Fax: [phone]

Freising

Tel: [phone], Fax: [phone]

Hong Kong
Mongkok

Tel: [phone], Fax: [phone]

Italy
Milano

Tel: [phone], Fax: [phone]

Japan
Machida-shi, T okyo

Tel: [phone], Fax: [phone]

Yodogawa-ku, Osaka

Tel: [phone], Fax: [phone]

Singapore

Tel: [phone], Fax: [phone]

United States
Scottsdale, AZ

Tel: [phone] Fax: [phone]

Los Angeles, CA

Tel: [phone], Fax: [phone]

Mission Viejo, CA

Tel: [phone], Fax: [phone]

San Diego, CA

Tel: [phone], Fax: [phone]

Santa Ana, CA

Tel: [phone], Fax: [phone]

Clearwater, FL

Tel: [phone], Fax: [phone]

Norcross, GA

Tel: [phone], Fax: [phone]

Reading, MA

Tel & Fax: [phone]

Eden Prairie, MN

Tel: [phone], Fax: [phone]

St. Louis, MO

Tel: [phone], Fax: [phone]

Dover, NH

Tel: [phone], Fax: [phone]

Plaistow, NH

Tel: [phone], Fax: [phone]

Portsmouth, NH

Tel: [phone], Fax: [phone]

Morrisville, NC

Tel: [phone], Fax: [phone]

Lake Oswego, OR

Tel: [phone], Fax: [phone]

Austin, TX

Tel: [phone], Fax: [phone]

Dallas, TX

Tel: [phone], Fax: [phone]

San Antonio, TX

Tel: [phone]

Vienna, V A

Tel: [phone], Fax: [phone]

18
