Allen & Heath MixWizard WZ4 User manual

MixWizard WZ4 16:2 and WZ4 12:2

USER GUIDE

Publication AP8665

Limited One Year Warranty

This product is warranted to be free from defects in materials or workmanship for period of one year from the date of purchase by the original owner.

To ensure a high level of performance and reliability for which this equipment has been designed and manufactured, read this User Guide before operating. In the event of a failure, notify and return the defective unit to ALLEN & HEATH Limited or its authorised agent as soon as possible for repair under warranty subject to the following

conditions

Conditions Of Warranty

The equipment has been installed and operated in accordance with the instructions in this User Guide.

The equipment has not been subject to misuse either intended or accidental, neglect, or alteration other than as described in the User Guide or Service Manual, or approved

by ALLEN & HEATH. Any necessary adjustment, alteration or repair has been carried out by ALLEN &

HEATH or its authorised agent.

This warranty does not cover fader wear and tear. The defective unit is to be returned carriage prepaid to ALLEN & HEATH or its

authorised agent with proof of purchase.

Units returned should be packed to avoid transit damage. In certain territories the terms may vary. Check with your ALLEN & HEATH agent for

any additional warranty which may apply.

This product complies with the European Electromagnetic Compatibility directive 2004/108/EC and the European Low Voltage directive 2006/95/EC.

This product has been tested to EN55103 Parts 1 & 2 2009 for use in Environments E1, E2, E3, and E4 to demonstrate compliance with the protection requirements in the European EMC directive 2004/108/EC. During some tests the specified performance figures of the product were affected. This is considered permissible and the product has been passed as acceptable for its intended use. Allen & Heath has a strict policy of ensuring all products are tested to the latest safety and EMC standards. Customers requiring more information

about EMC and safety issues can contact Allen & Heath.

NOTE: Any changes or modifications to the console not approved by Allen & Heath could void the compliance of the console and therefore the users authority to operate it.

Allen & Heath WZ4 16:2 and 12:2 User Guide AP8665 Issue 1

Allen & Heath Limited

Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK

http://www.allen-heath.com

Allen & Heath 2 WZ

4

16:2 and 12:2 User Guide

Safety Instructions

WARNING -

Read the following before proceeding :

CAUTION

ATTENTION: RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR

Read instructions: Retain these safety and operating instructions for future reference. Adhere to all

warnings printed here and on the console. Follow the operating instructions printed in this User Guide.

Do not remove cover: Operate the console with its covers correctly fitted. Disconnect mains power by

unplugging the power cord if the cover needs to be removed for setting internal options. Refer this work to competent technical personnel only.

Power sources: Connect the console to a mains power unit only of the type described in this User

Guide and marked on the rear panel. Use the power cord with sealed mains plug appropriate for your local mains supply as provided with the console. If the provided plug does not fit into your outlet consult your service agent for assistance.

Power cord routing: Route the power cord so that it is not likely to be walked on, stretched or

pinched by items placed upon or against it.

Grounding: Do not defeat the grounding and polarisation means of the power cord plug. Do

not remove or tamper with the ground connection in the power cord

WARNING: This equipment must be earthed.

Water and moisture: To reduce the risk of fire or electric shock do not expose the console to rain or

moisture or use it in damp or wet conditions. Do not place containers of liquids on it which might spill into any openings.

Ventilation: Do not obstruct the ventilation slots or position the console where the air flow

required for ventilation is impeded. If the console is to be operated in a rack unit or flightcase ensure that it is constructed to allow adequate ventilation.

Heat and vibration: Do not locate the console in a place subject to excessive heat or direct sunlight as

this could be a fire hazard. Locate the console away from any equipment which produces heat or causes excessive vibration.

Servicing: Switch off the equipment and unplug the power cord immediately if it is exposed

to moisture, spilled liquid, objects fallen into the openings, the power cord or plug become damaged, during lightning storms, or if smoke, odour or noise is noticed. Refer servicing to qualified technical personnel only.

Installation: Install the console in accordance with the instructions printed in this User Guide.

Do not connect the output of power amplifiers directly to the console. Use audio connectors and plugs only for their intended purpose.

Allen & Heath 3 WZ

4

16:2 and 12:2 User Guide

Safety Instructions

Important Mains plug wiring instructions.

The console is supplied with a moulded mains plug fitted to the AC mains power lead. Follow the instructions below if the mains plug has to be replaced. The wires in the mains lead are coloured in accordance with the following code:

L LIVE BROWN BLACK

!

N NEUTRAL BLUE WHITE

E EARTH GND GREEN & YELLOW GREEN

TERMINAL WIRE COLOUR

European USA/Canada

The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter E or with the Earth symbol. This appliance must be earthed.

The wire which is coloured Blue must be connected to the terminal in the plug which is marked with the letter N.

The wire which is coloured Brown must be connected to the terminal in the plug which is marked with the letter L.

Ensure that these colour codes are followed carefully in the event of the plug being changed.

General Precautions

Damage :

Environment :

Cleaning :

To prevent damage to the controls and cosmetics avoid placing heavy objects on the control surface, scratching the surface with sharp objects, or rough handling and vibration.

Protect from excessive dirt, dust, heat and vibration when operating and storing. Avoid tobacco ash, smoke, drinks spillage, and exposure to rain and moisture. If the console becomes wet, switch off and remove mains power immediately. Allow to dry out thoroughly before using again.

Avoid the use of chemicals, abrasives or solvents. The control panel is best cleaned with a soft brush and dry lint-free cloth. The faders, switches and potentiometers are lubricated for life. The use of electrical lubricants on these parts is not recommended. The fader and potentiometer knobs may be removed for cleaning with a warm soapy solution. Rinse and allow to dry fully before refitting them.

Transporting :

Hearing :



Allen & Heath 4 WZ

The console may be transported as a free-standing unit or mounted in a rack or flightcase. Protect the controls from damage during transit. Use adequate packing if you need to ship the unit.

To avoid damage to your hearing do not operate any sound system at excessively high volume. This also applies to any close-to-ear monitoring such as headphones. Continued exposure to high volume sound can cause frequency selective or wide range hearing loss.

4

16:2 and 12:2 User Guide

Introduction

Welcome to the Allen & Heath WZ4, the latest generation of the popular MixWizard series of compact audio mixing consoles. We have tried to keep this user guide brief and to the point. Please read it fully before starting. Included is information on installing, connecting and operating the console, panel drawings, system block diagram and technical specification. For further information on the basic principles of audio system engineering, please refer to one of the specialist publications and resources available from bookshops, audio equipment dealers and the Internet.

Whilst we believe the information in this guide to be reliable we do not assume responsibility for inaccuracies. We also reserve the right to make changes in the interest of further product development.

We are able to offer further product support through our world-wide network of approved dealers and service agents. You can also access our Web site on the Internet for information on our full product range, our company pedigree, assistance with your technical queries, our contact details or simply to chat about audio matters ( www.allen-heath.com )To help us provide the most efficient service please keep a record of your console serial number, and date and place of purchase to be quoted in any communication regarding this product.

Contents

Warranty ............................................................. 2

Safety Instructions ............................................. 3

General Precautions ......................................... 4

Introduction to this Guide .............................. 5

Front Panel Layout ............................................ 6

Introducing the MixWizard ............................. 7

Installing the Console ....................................... 8

Connecting Power ............................................ 9

Connection Pinouts and Cables ................... 10

Audio Connections ......................................... 11

Connector Panel Layouts .............................. 12

Console Connectors ...................................... 13

Mono Input Channel ....................................... 15

Stereo Input Channel ..................................... 17

Stereo Effects Channel ................................... 18

Master Section ................................................. 19

Gain Structure .................................................. 21

Specifications .................................................... 22

System Block Diagrams .................................. 24

User Options .................................................... 26

Cue Sheets ........................................................ 29

Allen & Heath 5 WZ

4

16:2 and 12:2 User Guide

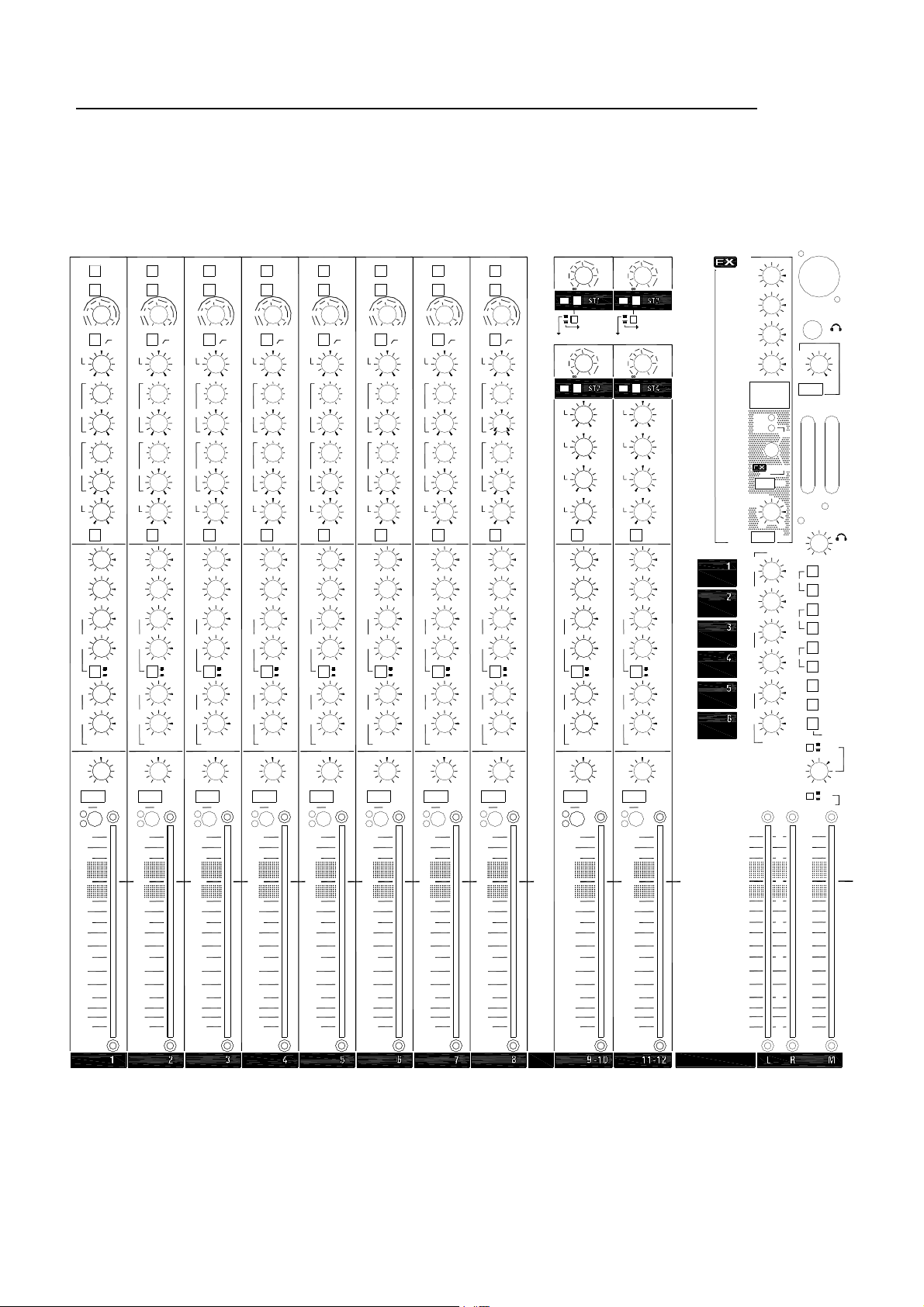

LAMP
