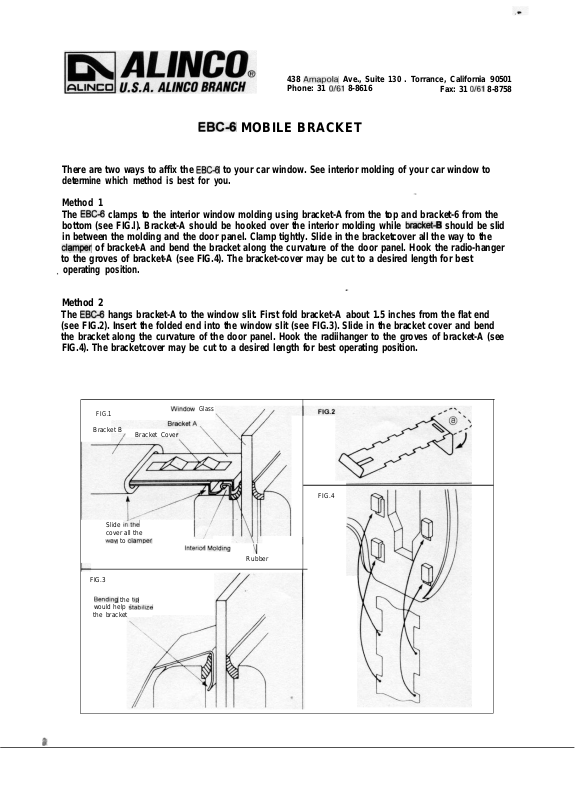

There are two ways to affix the

EBC-6

MOBILE BRACKET

to your car window. See interior molding of your car window to

determine which method is best for you. Method 1

The

EBCS

clamps to the interior window molding using bracket-A from the top and bracket-6 from the

bottom (see FIG.l). Bracket-A should be hooked over the interior molding while

bracket-B

should be slid

in between the molding and the door panel. Clamp tightly. Slide in the bracketcover all the way to the

clamper

of bracket-A and bend the bracket along the curvature of the door panel. Hook the radio-hanger

to the groves of bracket-A (see FIG.4). The bracket-cover may be cut to a desired length for best

operating position.

Method 2 The

EBC-6

hangs bracket-A to the window slit. First fold bracket-A about 1.5 inches from the flat end (see FIG.2). Insert the folded end into the window slit (see FIG.3). Slide in the bracket cover and bend the bracket along the curvature of the door panel. Hook the radiihanger to the groves of bracket-A (see FIG.4). The bracketcover may be cut to a desired length for best operating position.

FIG.1

Bracket B

Slide cover all the

way

FIG.3

Bendmg

would help the bracket

Bracket Cover

inthe

to clamper

the

tip

Stabilize

Wmdow Glass

lntenor

Molding

Rubber

FIG.4
