Alcatel One Touch 501, One Touch 700 User Guide

ONE TOUCH

500

501

700

701

USER’S

GUIDE

CONTENTS

Safety and precautions 4

1 Your telephone 8

1 - 1 Keys 9 1 - 2 Status icons 10 1 - 3 Conventions used in this User’s Guide 11

2 Getting started 12

2 - 1 Initial operation 12 2 - 2 Switching your phone on 14 2 - 3 Switching your phone off 15 2 - 4 Fitting the pocket clip 15

3 First steps 16

3 - 1 Making a call 16 3 - 2 Receiving a call 16 3 - 3 Accessing your voice mail 17 3 - 4 Displaying your number 17 3 - 5 Accessing the functions and scrolling 18 3 - 6 Functions structure 19 3 - 7 Creating a directory file 21 3 - 8 Changing the ring tone 22 3 - 9 Reading your new short messages 23

4 Directory 24

4 - 1 Accessing the directory 24 4 - 2 Creating a file 25 4 - 3 Options 27 4 - 4 Creating a new directory 28 4 - 5 Copying files 29

5 Consult information 30 6 Calls 32

6 - 1 Making a call 32 6 - 2 Receiving a call 34 6 - 3 During a call 35

7 Call memory 38

7 - 1 Accessing the call memory and calling back 38 7 - 2 Options 39

8 Short messages 40

8 - 1 Accessing short messages 40 8 - 2 Reading your short messages 41

8 - 3 Options 42 8 - 4 Writing a short message 43 8 - 5 Parameters 48

9 Scheduler 50

9 - 1 Accessing the scheduler 50 9 - 2 Consulting your scheduler 50 9 - 3 Creating an appointment 51 9 - 4 Scheduling an alarm 52 9 - 5 Creating a task 53 9 - 6 Options 54 9 - 7 Description of scheduler icons 54 9 - 8 Configuring the scheduler 55 9 - 9 Advanced scheduler functions 56

10 Voice functions 58

10 - 1 Handsfree 58 10 - 2 Voice recognition 58 10 - 3 Voice memo 60

11 Mobile Internet 62

11 - 1 Accessing Internet ser vices 62 11 - 2 Options 64

12 Calculator / Currency converter 66

12 - 1 Accessing the calculator and currency converter 66 12 - 2 Calculator 66 12 - 3 Currency converter 67 12 - 4 Currency selection 68

13 Menu 70

13 - 1 Ser vices 70 13 - 2 Settings 75 13 - 3 Billing 80 13 - 4 Available memory 82 13 - 5 Security 83

14 Audios 84

14 - 1 Accessing the “Audios” function 84 14 - 2 Options 84

15 Personal key 86

15 - 1 Features offered by personal key 86 15 - 2 Setting the personal key 86

16 Warranty 88

16 - 1 Warranty 88 16 - 2 Information 90

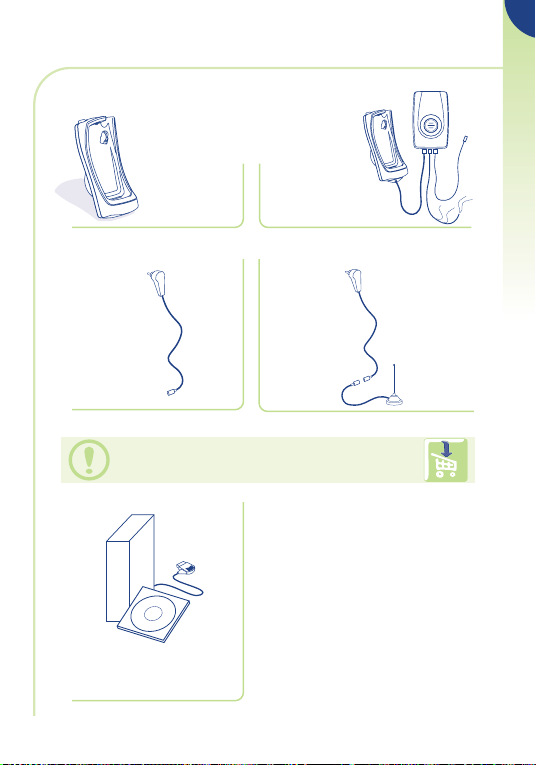

17 Accessories 92

CONTENTS

SAFETY AND

PRECAUTIONS

We recommend that you read this chapter carefully before use.

CONDITIONS OF USE

Switch the phone off before boarding an aircraft. Use could lead to legal action against the user.

Switch the phone off when in health care facilities except in areas specified. Like many other types of equipment now in regular use, mobile telephones can interfere with other electric or electronic devices.

Persons with a medical device (such as a pacemaker, hearing aid, insulin pump) should not carry the phone in a place close to the device.

When placing or receiving a call, persons with a pacemaker or hearing aid should use the ear on the opposite side to the device.

Switch your phone off when near gas or flammable liquids.

Strictly obey all signs and instructions when in a fuel depot, service station, chemical plant or any potentially explosive atmosphere.

Do not let small children use the phone without supervision.

Do not attempt to open or repair it yourself.

Do not expose the phone to unfavourable environmental conditions (humidity, rain, ingress of liquid, dust, sea air, etc.)

Outside the manufacturer’s recommended operating temperature range (-20° C +55° C), the legibility of the phone’s display may be impaired and the battery may not work, though this is temporary.

CONDITIONS OF USE FOR BATTERIES:

Only use batteries, battery chargers and accessories approved by the manufacturer. The manufacturer disclaims any liability for damage caused by use of other batteries, chargers or accessories.

Before removing the battery from your phone, please make sure that the phone is switched off.

Do not attempt to open the battery because it contains chemical substances.

Do not dispose of used batteries in household waste.

Batteries must be disposed of in accordance with locally applicable environmental legislation.

Do not place battery in fire or in water.

Do not store above 60 ºC.

Do not allow + and - terminals to contact each other. Keep them away from metal objects as nickel or coins.

Charge the battery in an area where the temperature is from 0º C to 45º C.

The battery discharges below -20º C and above 60º C.

The battery may discharge if it is not used for a sufficiently long period of time.

Do not let small children handle batteries without supervision.

SAFETY AND PRECAUTIONS

TRAFFIC SAFETY:

Remember to always check whether local legislation allows operation of a mobile phone while driving a vehicle.

It is vital to connect the phone to an external antenna when it is used in a vehicle. Electromagnetic waves may otherwise interfere with the vehicle electronics.

Check that the antenna is mounted and located away from the driver and passengers or separated from them by a metal screen (e.g. car roof).

We recommend that you park your car before using the phone. However if you intend to use your phone while driving, you must use it connected to the “Fullduplex handsfree vehicle kit” (cf. chapter entitled “Accessories”, page 92).

Electromagnetic waves from the telephone may interfere with the operation of the car’s electronic systems such as anti-lock brakes (ABS), airbags, etc.

Check with your car dealer or car manufacturer that these systems are adequately shielded from mobile phone RF energy before using it in the vehicle. Always avoid placing the phone on the dashboard.

GENERAL INFORMATION:

As with all radio transceivers, your mobile phone emits electromagnetic waves. This phone conforms to international regulations when used under normal conditions and in accordance with the instructions contained herein.

There has been speculation about the safety of mobile phones.

Several expert groups belonging to or having been appointed by official national or international bodies have analysed all the existing publications and, to date, have concluded that there is a lack of evidence as to any credible or convincing hazardous effects of mobile phones on health.

These studies have, in particular, focused on the fact that mobile handsets receive and emit electromagnetic waves via their antenna.

Experts from such organizations as the European Commission and the International Commission on Non-Ionising Radiation Protection (ICNIRP) have established thresholds on a handset’s emissions to the human body. The main measurement standard is known as SAR (Specific Absorption Rate). ALCATEL can formally state that all its GSM mobile phones generate a SAR that is significantly below these thresholds.

Furthermore, ALCATEL actively supports national and international research into this issue carried out by authoritative and independent organizations.

If you still have concerns on this issue, you may use your mobile phone with a headset, or use the handsfree feature integrated in the phone and, while driving, use the full-duplex handsfree vehicle kit (cf. chapter entitled “Accessories”, page 92).

The part numbers of these accessories can be found in the “Accessories” chapter on page 92.)

The manufacturer disclaims any liability for damage which may result as a consequence of improper use or use contrary to the instructions contained herein.

Icons and other illustrations shown in this User’s Guide are for information only.

07/02/2000

SAFETY AND PRECAUTIONS

06-09

2000

Network name

YOUR TELEPHONE

Activate voice functions

Delete Lock keypad

(long keypress)

Switch on Switch off Hang up

Voice mail

Your number

Loudspeaker

Personal

key

Scroll

Confirm

Off-hook

(2)

Microphone

(1)

Flap

1 • 1 Keys

Switch on/switch off (long keypress) Hang up (short keypress)

Off hook

Access call memory (Redial)

Access the MENU (directory, short messages, etc.) Confirm an option

Volume control Scroll to select an option

Delete (short keypress) Return to standby screen (long keypress) Lock the keypad (long keypress)

Use voice functions:

Activate built-in “handsfree”

•

(short keypress during a call)

Activate “voice recognition”

•

(short keypress in standby mode) Record “voice memos”

•

(long keypress in standby mode)

Your personal key

Display your number (long keypress)

YOUR TELEPHONE

(1) Flap (depending on your model): to open flap, press button (2) on the left-hand side of the phone. You can also go off hook by opening the flap and hang up by closing it.

1 • 2 Status icons

Battery charge level.

Call forwarding activated: your calls are forwarded

(see Chapter 13, page 70).

Consult information: Consult your voice mail, unanswered incoming calls, unread short messages and voice memos.

Short message list (SIM card) is full: your terminal cannot store any more messages. You must access the short message list and delete at least one message.

Appointment scheduled. (See Chapter 9, page 55).

Signal strength indicator.

Icons displa

yed at the bottom of the screen:

Keypad locked.

Vibrating system activated. (See Chapter 14, page

85).

Icons and other illustrations shown in this User’s Guide are for information only.

1 • 3 Conventions used in this User’s Guide

You can use the scroll key to move between your phone’s options in four directions: up, down, left, right.

The following symbols are used in the text which follows:

Briefly press the centre of the scroll key to confirm an option.

Move the scroll key left or right.

Move the scroll key up or down.

Use the keypad keys to enter digits and/or letters.

YOUR TELEPHONE

2 • 1 Initial operation

Insert the SIM card

You must insert your SIM card in order to use your phone.

GETTING STARTED

Open the cover Slide the SIM card

Fit the battery

Insert the battery Close the battery Click into place

into its compartment

Close the cover

CLICK

Charge the battery

Connect the battery charger

Wait for the onscreen indicator to stop flashing

Disconnect the battery charger once charging is complete

A beep will sound when charging begins.

It takes a few seconds before the charging indicator icon starts to flash (charging time may be longer with a new battery, or when the battery level is very low).

The mains socket-outlet must be close to the phone and easily accessible.

GETTING STARTED

When you first use your phone you must charge the battery for approximately 3 hours.

PIN code?

____

06-09

2000

Network name

2 • 2 Switching your phone on

Switch your

phone on

(long keypress)

Enter your

PIN code

Confirm Standby screen

If you do not know your PIN code, please contact your network operator.

Do not leave your PIN code near your phone and keep your SIM card in a safe place when you are not using it.

You are prompted to enter the time and the date, enter new data if necessary, then confirm by .

If cell broadcast messages are displayed, use the key to browse through them in full or press the key to return to the standby screen.

While the phone is searching for a network, <<<–>>> is displayed (???-??? is displayed if your SIM card is rejected by the network, in this case please contact your operator).

2 • 3 Switching your phone off

Press the key (long keypress).

2 • 4 Fitting the pocket clip

This accessory is only available on certain models.

The pocket clip helps you keep your telephone in your shirt or jacket pocket.

The pocket clip is not designed to be worn on a belt.

GETTING STARTED

Karine

In order to make or receive a call, you must switch your phone on.

3 • 1 Making a call

FIRST STEPS

Hello

Dial the number

If you make a mistake, use the key to delete digits.

3 • 2 Receiving a call

Make the

call

Talk Hang up

Hello

Incoming call

(1)

Flap (depending on your model): to open the flap, press the button on the left-hand side of the phone. You can also answer a call by opening the flap.

(1) The caller’s number or name is displayed if it is provided

by the network (check the availability of this service with your operator).

Ta ke

the call

Talk Hang up

Voice mail

Call ?

3 • 3 Accessing your voice mail

The network provides a voice mail service to ensure that you do not miss any calls: it works like an answering machine which you can interrogate at any time.

FIRST STEPS

Access voice mail

(long keypress)

Make the call

If your operator’s voice mail access number is not shown, dial the number that your operator supplied to you. To later modify this number see the “Voice Mail” option in the “Menu”, page

75.

To use your voice mail abroad, contact your operator before setting out on your trip.

3 • 4 Displaying your number

You can display your own number by pressing the key (long keypress).

If your number is not displayed, enter it and confirm by pressing the key.

To later modify it, see the “Your number” option in the

“Menu”, page 75.

DIRECTORY

4 • 1 Accessing the directory

Select the Directory icon to access the directory from the standby screen.

Searching for a name by its first letter

You can search for the name of the person you wish to contact by pressing the key associated with the first letter of his/her name.

Example: press twice to find the first name beginning with “N”. Then scroll the list to the name you want by using the

key.

Displaying a phone number

ConfirmSelect a name

“View”

ConfirmSelect

Calling the person

Press the key while the name is selected.

If several numbers are assigned to the name of the person to be called, you must first use the key to make a selection from the number list (GSM, office, home, etc.).

Press to make the call.

4 • 2 Creating a file

See the chapter entitled “Creating a file” in the “First steps” chapter, page 21.

DIRECTORY

There are 4 directories:

SIM

General directory

Work directory

Personal directory

SIM directory: The capacity of your SIM card depends on your operator. Only one number can be assigned to a name.

GENERAL directory: This contains all the files created. SIM card files are not automatically created in the general directory but you can copy them.

WORK directory: You can place your work numbers (companies, etc.) in this directory.

PERSONAL directory: You can place your personal numbers in this directory (family, friends, etc.).

First select the icon you want.

In addition to the directories that come with your phone, you can also create directories yourself (see the section entitled “Creating a new directory”, page 28).

4 • 3 Options

From the list of names in your general, work and personal directories, you can access the following options by using the

key:

View: display a complete file: name,

View

Create file Create dir. Classify

Voice recog. Delete Back Exit

numbers, address, voice mail, etc. Create file: create a file (name, numbers,

address, voice mails, etc.). You can save this file in one of your directories.

Create dir.: create your own directories for files apart from the SIM directory.

Classify: move a file from one directory to another.

Voice recog.: record a voice recognition command.

Delete: delete the selected file. Back: return to the list of names in your

DIRECTORY

To return to the standby screen, press the key (long keypress).

Restaurants

Dir. name?

Fr d rique

Hlne Sophie St phanie

Create file

Classify

Create dir.

View

Fr d rique

Hlne Sophie St phanie

4 • 4 Creating a new directory

This option lets you create your own directories.

ConfirmSelect “Create dir.”ConfirmSelect a name

of the directory

to be created

ConfirmEnter the name

Move Fr d riqu

to Restaurants

directory? (c) to exit

Personne

Restaturants

Professionn

Create dir.

Exit

Back

Validate

Work Personal

Restaurants

Fr d rique

Hlne Sophie St phanie

Create file Create dir.

View

Classify

Fr d rique

Hlne Sophie St phanie

4 • 5 Copying files

You can copy files from one directory to another.

DIRECTORY

copied

Confirm
