Alcatel OmniSwitch 6450-24, OmniSwitch 6450-P24, OmniSwitch 6450-24X, OmniSwitch 6450-P24X, OmniSwitch 6450-24XM operation manual

...

Download

Part No. 060351-10, Rev. F

January 2015

OmniSwitch 6450 Hardware Users

Guide

www.alcatel-lucent.com

This user guide documents OmniSwitch 6450 hardware, including chassis and associated components. The specifications described in this guide are subject to change without notice.

OmniSwitch

, Alcatel-Lucent® and the Alcatel-Lucent logo are registered trademarks of Alcatel-Lucent.

26801 West Agoura Road

Calabasas, CA 91301

(818) 880-3500 FAX (818) 880-3505

U.S. Customer Support (800) 995-2696

International Customer Support (818) 878-4507

www.alcatel-lucent.com

esd.support@alcatel-lucent.com

About This Guide ..............................................................................................................ix

Supported Platforms ..........................................................................................................ix

Who Should Read this Manual? .........................................................................................x

When Should I Read this Manual? .....................................................................................x

What is in this Manual? ......................................................................................................x

What is Not in this Manual? ...............................................................................................x

How is the Information Organized? .................................................................................. xi

Documentation Roadmap ......................................................................................... .... ... ..xi

Related Documentation ...................................................................................................xiii

Published / Latest Product Documentation .....................................................................xiv

Technical Support ...........................................................................................................xiv

Documentation Feedback ................................................................................................xiv

Chapter 1 OmniSwitch 6450 Switches .............................................................................................1-1

Chassis Configurations ....................................................................................................1-2

10-Port Models .........................................................................................................1-2

24-Port Models .........................................................................................................1-2

48-Port Models .........................................................................................................1-3

Combo Ports ......................................................................................................1-3

Non-combo Fiber Ports .....................................................................................1-3

OmniSwitch 6450 Feature Overview ..............................................................................1-4

Power over HD Base-T (PoH) Support ....................................................................1-4

IEEE 1588 Precision Time Protocol (PTP) Support ................................................1-4

Security Features ......................................................................................................1-4

Availability Features ................................................................................................1-5

Software Rollback .......................................................... .... ...............................1-5

Hot Swapping ....................................................................................................1-5

Hardware Monitoring ...................................... ............................................... ...1-6

Chapter 2 OmniSwitch 6450 Chassis and Hardware Components ................................................2-1

OmniSwitch 6450-10 ......................................................................................................2-2

Chassis Features ................................................. .... ............................................... ...2-2

Front Panel ............................................................................................................... 2-2

OmniSwitch 6450-10 Rear Panel .............................................................................2-3

OmniSwitch 6450-10 Internal AC Power Supply ....................................................2-3

OmniSwitch 6450 Hardware Users Guide January 2015 iii

Contents

OmniSwitch 6450-P10 ....................................................................................................2-5

Chassis Features ................................................. .... ............................................... ...2-5

Front Panel ............................................................................................................... 2-5

OmniSwitch 6450-P10 Rear Panel ...........................................................................2-6

OmniSwitch 6450-P10 Internal AC Power Supply ..................................................2-6

OmniSwitch 6450-P10S ..................................................................................................2-8

Front Panel ............................................................................................................... 2-8

OmniSwitch 6450-P10S Rear Panel ......................................................................2 -10

OmniSwitch 6450-P10S Internal AC Power Supply .............................................2-11

OmniSwitch 6450-24 ....................................................................................................2-13

Chassis Features ................................................. .... ............................................... .2-13

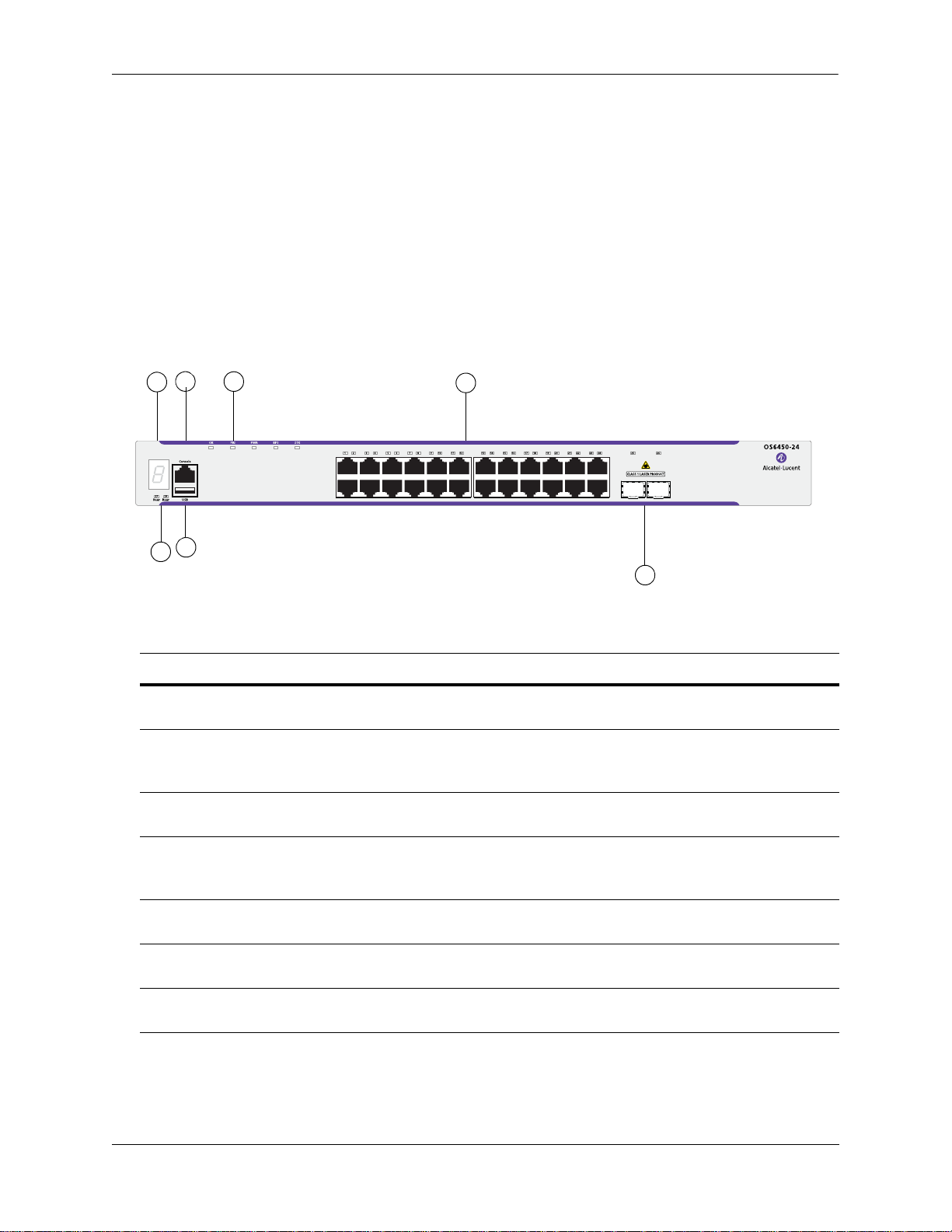

Front Panel ............................................................................................................. 2 -13

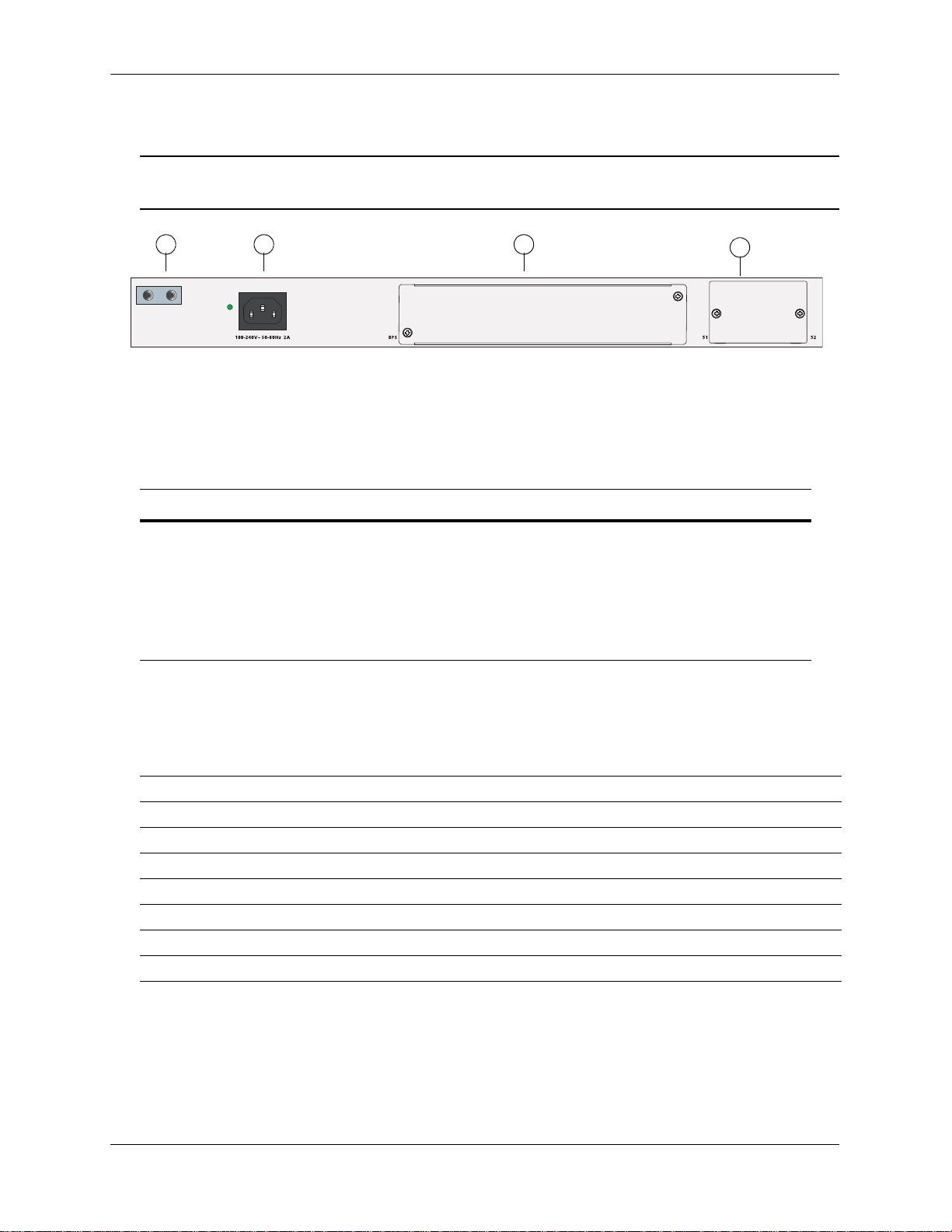

OmniSwitch 6450-24 Rear Panel ...........................................................................2-14

OmniSwitch 6450-24 Internal AC Power Supply ..................................................2-14

OmniSwitch 6450-P24 ..................................................................................................2-16

Chassis Features ................................................. .... ............................................... .2-16

Front Panel ............................................................................................................. 2 -16

OmniSwitch 6450-P24 Rear Panel .........................................................................2-17

OmniSwitch 6450-P24 Internal AC Power Supply ................................................2-17

OmniSwitch 6450-48 ....................................................................................................2-19

Chassis Features ................................................. .... ............................................... .2-19

Front Panel ............................................................................................................. 2 -19

OmniSwitch 6450-48 Rear Panel ...........................................................................2-20

OmniSwitch 6450-48 Internal AC Power Supply ..................................................2-20

OmniSwitch 6450-P48 ..................................................................................................2-22

Chassis Features ................................................. .... ............................................... .2-22

Front Panel ............................................................................................................. 2 -22

OmniSwitch 6450-P48 Rear Panel .........................................................................2-23

OmniSwitch 6450-P48 Internal AC Power Supply ................................................2-23

OmniSwitch 6450-U24 .................................................................................................2-25

Chassis Features ................................................. .... ............................................... .2-25

Front Panel ............................................................................................................. 2 -25

OmniSwitch 6450-U24 Rear Panel ........................................................................2-26

OmniSwitch 6450-U24 Internal AC Power Supply ...............................................2-26

OmniSwitch 6450-U24S ...............................................................................................2-28

Front Panel ............................................................................................................. 2 -28

OmniSwitch 6450-U24S Rear Panel ......................................................................2-30

OmniSwitch 6450-U24S Internal AC Power Supply .............................................2-30

OmniSwitch 6450 LED Status ......................................................................................2-32

Expansion Modules .......................................................................................................2-33

OS6450-GNI-C2 ....................................................................................................2-33

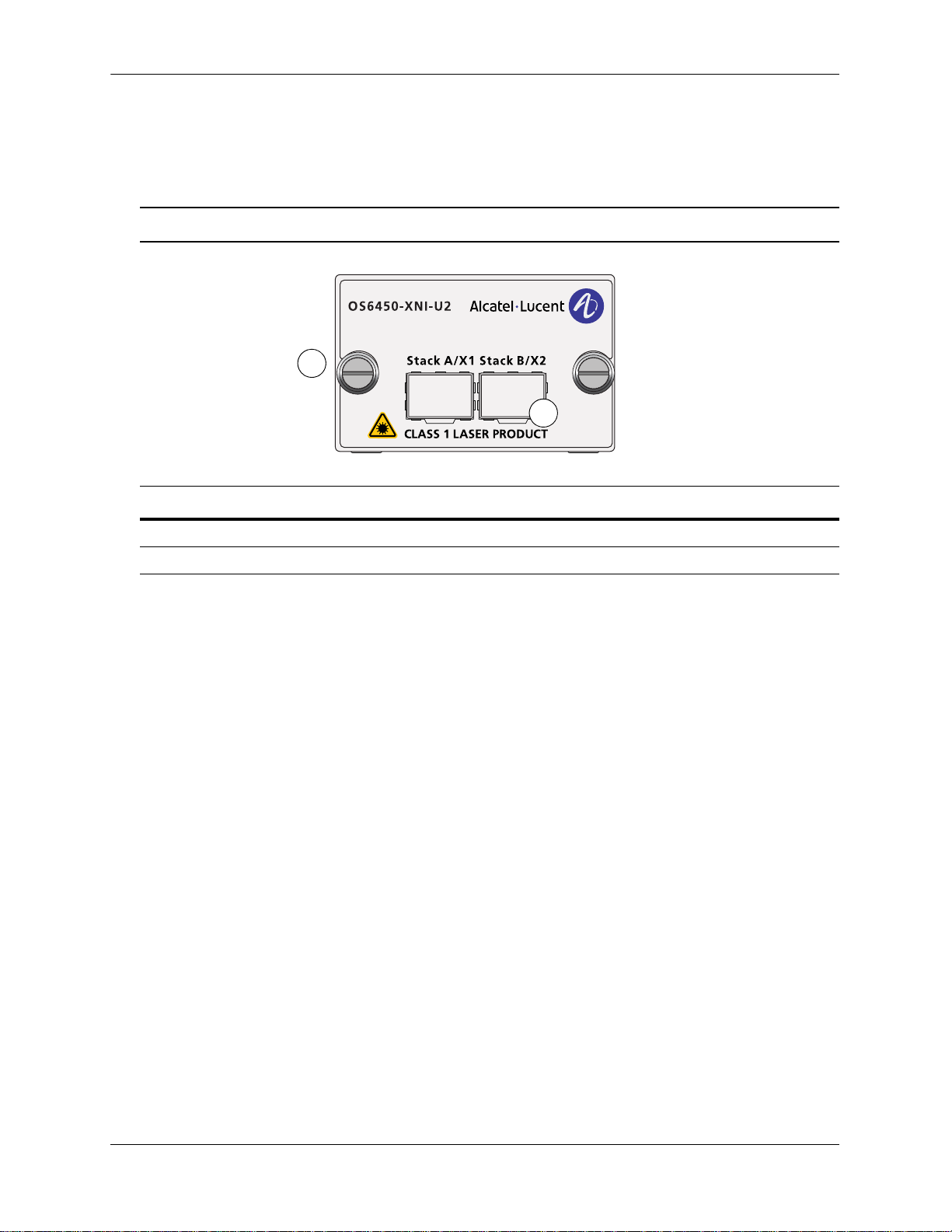

OS6450-GNI-U2 ....................................................................................................2-33

OS6450-XNI-U2 ....................................................................................................2-34

OmniSwitch 6450 Internal Backup Power Supplies .....................................................2-35

PS-90W-AC 90W AC Power Supply .....................................................................2-35

PS-90W-DC 90W DC Power Supply .....................................................................2-35

iv OmniSwitch 6450 Hardware Users Guide January 2015

Contents

OmniSwitch 6450 External Backup Power Supplies ....................................................2-36

PS-550W-AC-P External 550W AC PoE Power Supply .......................................2-36

PS-900AC-P External 900W AC PoE Power Supply ............................................2-36

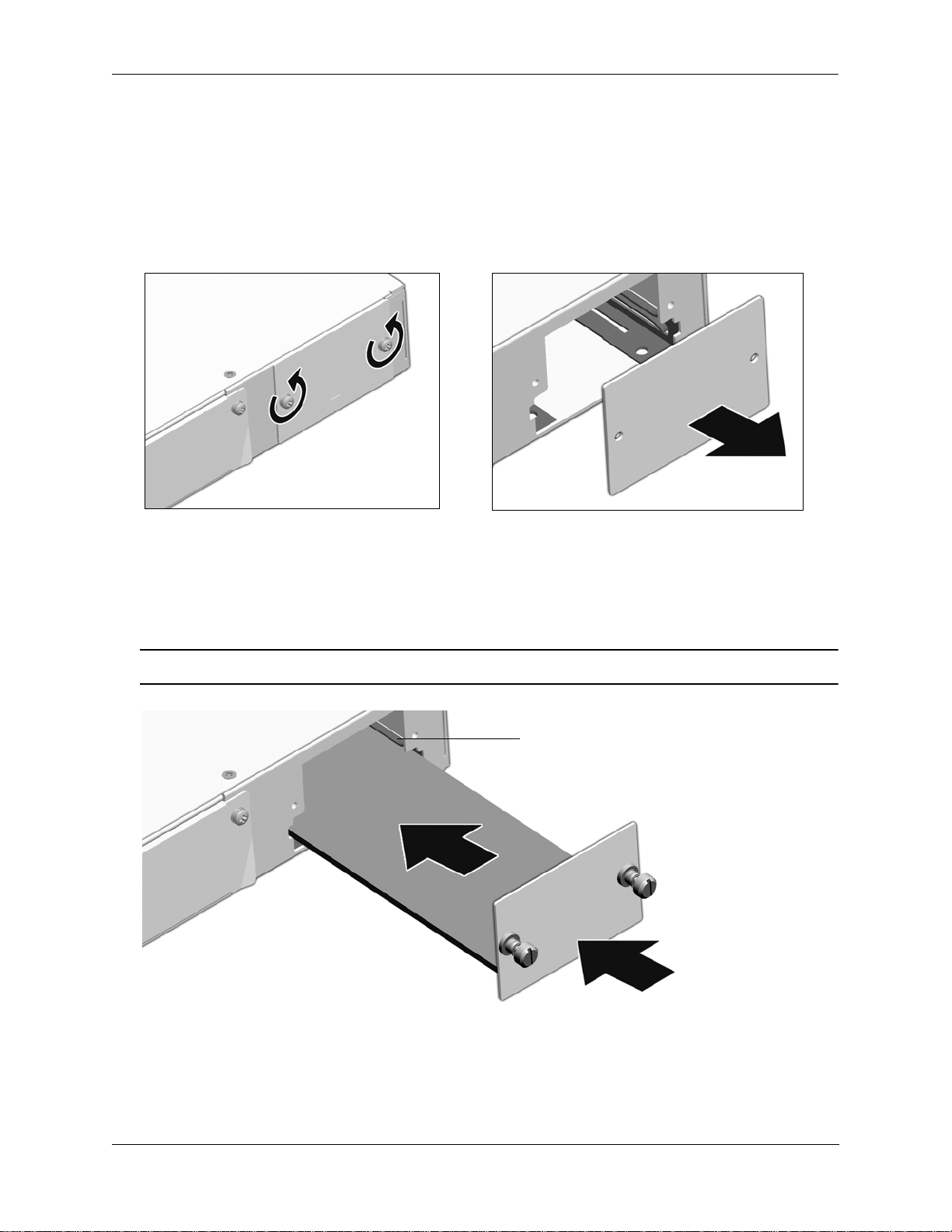

Installing Expansion Modules .......................................................................................2-37

Removing Expansion Modules .....................................................................................2-39

Installing Power Supplies ..............................................................................................2-41

Removing Power Supplies .....................................................................................2-43

AC Power Cords ...........................................................................................................2-45

Specifications .........................................................................................................2-45

Console Port ..................................................................................................................2-46

Port Pinouts .............................................................................................. .... .... .............2-47

RJ-45 Console Port – Connector Pinout ................................................................2-47

10/100 Ethernet Port – RJ-45 Pinout (non-PoE) .................................................... 2-47

Gigabit Ethernet Port – RJ-45 Pinout .....................................................................2-47

10/100/1000 Mbps Power over Ethernet Port – RJ-45 Pinout ..............................2-48

Overtemp Condition .................................................. .... ............................................... .2-48

Dying Gasp ....................................................................................................................2-49

Scenarios ................................................................................................................2-49

SNMP Trap ......................................................................................................2-49

Syslog Message ...............................................................................................2-49

Link OAM PDU ..............................................................................................2-50

Chapter 3 Mounting OmniSwitch 6450 Switches ............................................................................ 3-1

General Installation Recommendations ..........................................................................3-2

Airflow Recommendations ......................................................................................3-2

Mechanical Loading .................................................................................................3-4

Circuit Overloading ..................................................................................................3-4

Reliable Earthing ......................................................................................................3-4

Table-Mounting OS6450 Switches .................................................................................3-4

General Table-Mounting Guidelines ........................................................................3-4

Table-Mounting Installation .....................................................................................3-4

Rack-Mounting 10-Port OS6450 Switches .............................................................. .... ...3-5

Available 10-Port Rack-Mounting Kits ...................................................................3-5

General Rack-Mounting Guidelines .............................................................. ...........3-5

Installing Available Rack Mounting Kits .......................................................................3-6

Installing the OS6450-RM-19-L Rack Mount Kit ...................................................3-6

Installing the OS6450-DUAL-MNT Rack Mount Kit .............................................3-7

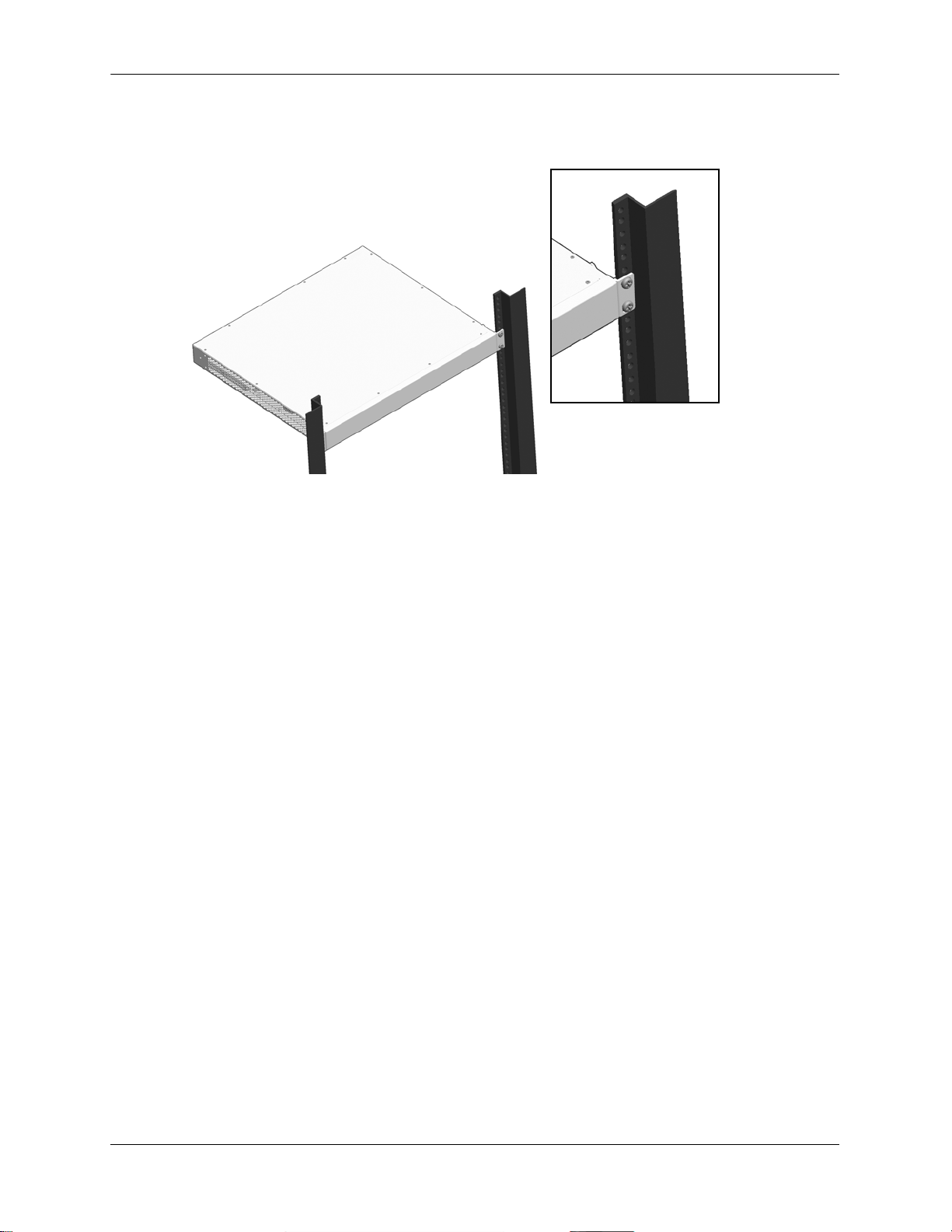

Rack-Mounting 24 and 48-Port OS6450 Switches .......................................................3-10

Rack Mounting Steps .............................................................................................3-11

Installing External PoE Power Supplies .................................. .... .... .............................3-13

Rack Mounting Power Supplies .............................................................................3-13

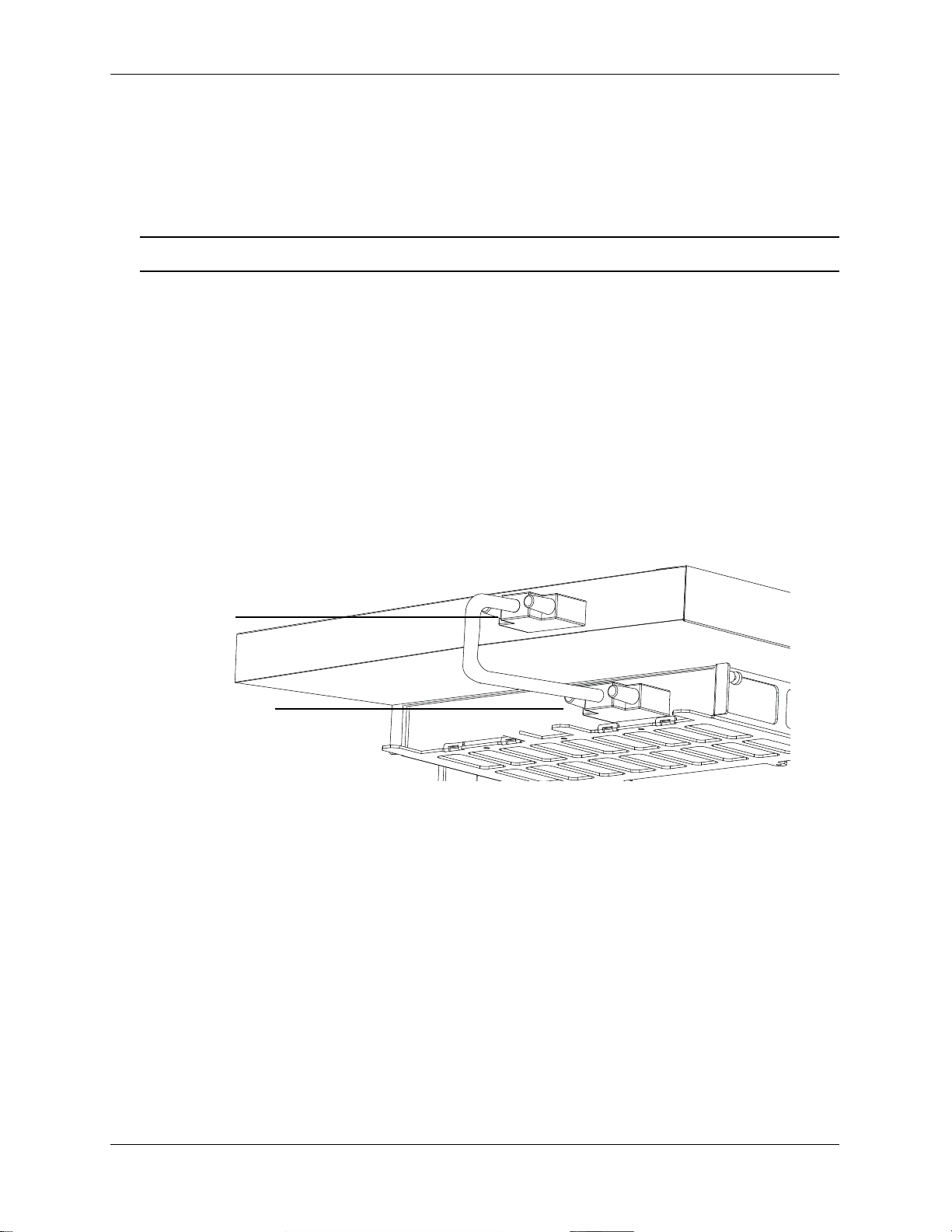

Connecting the Power Supply Cable ...............................................................3-14

DC Power Supply Considerations ..........................................................................3-15

OmniSwitch 6450 Hardware Users Guide January 2015 v

Contents

Connecting Chassis to Power Source ............................................................................3-15

AC Power Supply Connections .............................................................................. 3-15

Powering On a Chassis ................................................................... .... .............3-15

Chapter 4 Booting OmniSwitch 6450 Switches ...............................................................................4-1

Booting an OmniSwitch ...........................................................................................4-1

Console Port ....................................................................................................................4-2

Serial Connection Default Settings ..........................................................................4-2

Modifying the Serial Connection Settings ...............................................................4-2

Monitoring the Chassis ...................................................................................................4-4

Checking the Overall Chassis Status ........................................................................4-4

Checking the Temperature Status ............................................................................4-4

Viewing the Power Supply Status ............................................................................4-5

Additional Monitoring Commands ..........................................................................4-5

Using LEDs to Visually Monitor the Chassis ..........................................................4-5

Chapter 5 Managing Power over Ethernet (PoE) ...........................................................................5-1

In This Chapter ................................................................................. .... .... .... ...................5-2

Power over Ethernet Specifications ................................................................................5-3

Viewing PoE Power Supply Status .................................................................................5-4

Configuring Power over Ethernet Parameters .................................................................5-4

Power over Ethernet Defaults ..................................................................................5-4

Understanding and Modifying the Default Settings .................................................5-4

PoE Class Detection .................................................................................................5-5

Setting the PoE Operational Status ....................................................................5-5

Configuring the Total Power Available to a Port ..............................................5-6

Configuring the Total Power Available to a Switch .........................................5-6

Setting Port Priority Levels ...............................................................................5-7

Understanding Priority Disconnect .................................................................................5-8

Setting Priority Disconnect Status ............................................................................5-8

Disabling Priority Disconnect ...........................................................................5-8

Enabling Priority Disconnect ............................................................................5-8

Monitoring Power over Ethernet via CLI .....................................................................5-10

vi OmniSwitch 6450 Hardware Users Guide January 2015

Contents

Chapter 6 Managing OmniSwitch 6450 Stacks ............................................................................... 6-1

In This Chapter ................................................................................. .... .... .... ...................6-1

OmniSwitch 6450 Stacking Specifications ..............................................................6-2

OmniSwitch 6450 Stack Overview .................................................................................6-2

Expansion Modules and Stacking Mode .........................................................................6-3

Swapping Expansion Modules .................................................................................6-3

OmniSwitch 6450-10 Mode .....................................................................................6-3

Roles Within the Stack ....................................................................................................6-4

Primary and Secondary Management Modules .......................................................6-4

Primary Management Module Selection ........................................................... 6-7

Secondary Management Module Selection ..................................................... 6-10

Idle Module Role ....................................................................................................6 -12

Pass-Through Mode ...............................................................................................6-13

Recovering from Pass-Through Mode (Duplicate Slot Numbers) ..................6-14

Stack Cabling ....................................................................................................... .... .....6-17

Redundant Stacking Cable Connection ..................................................................6-18

Checking Redundant Stacking Cable Status ..........................................................6-19

Slot Numbering .............................................................................................................6-20

Dynamic Slot Number Assignment ........................................................................6-21

Manual Slot Number Assignment ..........................................................................6-23

Reverting to the Dynamic Slot Numbering Model ..........................................6-24

Hot-Swapping Modules In a Stack ...............................................................................6-25

Removing Switches from an Existing Stack ..........................................................6-25

Inserting Switches Into an Existing Stack ..............................................................6-25

Merging Stacks .......................................................................................................6-26

Reloading Switches .......................................................................................................6-27

Reloading the Primary Management Module ........................................................6-27

Reloading the Secondary Management Module ....................................................6-29

Reloading Switches with Idle Roles .......................................................................6 -31

Reloading Switches in Pass-Through Mode ..........................................................6-31

Reloading All Switches in a Stack .........................................................................6-32

Software Synchronization During a Full Reload .............................................6-32

Effects of Saved Slot Number Information on the Reload Process .................6-32

Avoiding Split Stacks .............................................................................................6-34

Changing the Secondary Module to Primary ................................................................6-35

Synchronizing Switches in a Stack ...............................................................................6-37

Automatic Synchronization During a Full Reload .................................................6-37

Stack Split Detection (SSP) ..........................................................................................6-38

Stack Split Key Components and Terms ................................................................6-38

Basic Operation .............................. ............................................... .... .... .................6-39

Protection States .....................................................................................................6-39

Stack Split Recovery .......................................................................................6-39

Monitoring the Stack .....................................................................................................6-41

OmniSwitch 6450 Hardware Users Guide January 2015 vii

Contents

Appendix A Regulatory Compliance and Safety Information.............................................................A-1

Declaration of Conformity: CE Mark ............................................................................A-1

China RoHS: Hazardous Substance Table .....................................................................A-2

Waste Electrical and Electronic Equipment (WEEE) Statement ...................................A-4

Standards Compliance ....................................................................................................A-5

Safety Standards ......................................................................................................A-5

EMC Standards .......................................................................................................A-5

Environmental Standards ........................................................................................A-5

FCC Class A, Part 15 ..............................................................................................A-6

Canada Class A Statement ........................................................................ .... ..........A-6

JATE ........................................................................................................................ A-6

CISPR22 Class A Warning .....................................................................................A-6

Korea Emissions Statement .....................................................................................A-7

Class A Warning for Taiwan and Other Chinese Markets ......................................A-7

Translated Safety Warnings ...........................................................................................A-8

Chassis Lifting Warning ........................................................................ .... ..............A-8

Electrical Storm Warning ........................................................................................A-8

Installation Warning ................................................................................................A-8

Invisible Laser Radiation Warning .........................................................................A-9

Power Disconnection Warning ................................................................................A-9

Proper Earthing Requirement Warning .................................................................A-10

Read Important Safety Information Warning ........................................................ A-11

Restricted Access Location Warning ....................................................................A-11

Wrist Strap Warning ..............................................................................................A-12

Instrucciones de seguridad en español .........................................................................A-13

Advertencia sobre el levantamiento del chasis .....................................................A-13

Advertencia de las tapaderas en blanco .................................................................A-13

Advertencia en caso de tormenta eléctrica ............................................................A-13

Advertencia de instalación ....................................................................................A-13

Advertencia de radiación láser invisible ...............................................................A-13

Advertencia de la batería de litio ...........................................................................A-13

Advertencia sobre la tensión de operación ............................................................A-13

Advertencia sobre la desconexión de la fuente .....................................................A-13

Advertencia sobre una apropiada conexión a tierra ..............................................A-14

Leer “información importante de seguridad” ........................................................ A-14

Advertencia de acceso restringido .........................................................................A-14

Advertencia de pulsera antiestática .......................................................................A-14

Clase de seguridad ................................................................................. .... .... .... ....A-14

viii OmniSwitch 6450 Hardware Users Guide January 2015

About This Guide

This OmniSwitch 6450 Hardware Users Guide describes your switch hardware components and basic switch hardware procedures.

Supported Platforms

The information in this guide applies to the following products:

• OmniSwitch 6450-10(L)

• OmniSwitch 6450-P10(L)

• OmniSwitch 6450-P10S

• OmniSwitch 6450-24(L)

• OmniSwitch 6450-P24(L)

• OmniSwitch 6450-48(L)

• OmniSwitch 6450-P48(L)

• OmniSwitch 6450-U24

• OmniSwitch 6450-U24S

OmniSwitch 6450 Hardware Users Guide January 2015 page ix

Who Should Read this Manual? About This Guide

Who Should Read this Manual?

The audience for this users guide is network administrators and IT support personnel who need t o con figure, maintain, and monitor switches and routers in a live network. However, anyone wishing to gain knowledge on the OmniSwitch 6450 hardware will benefit from the material in this guide.

When Should I Read this Manual?

Read this guide as soon as you are ready to familiarize yourself with your switch hardware components. You should have already stepped through the first login procedures and read the brief hardware overviews in the OmniSwitch 6450 Getting Started Guide.

You should already be familiar with the very basics of the switch hardware, such as module LEDs and module installation procedures. This manual will help you understand your switch hardware components (e.g., chassis, cables, power supplies, etc.) in greater depth.

What is in this Manual?

This users guide includes the following hardware-related information:

• Descriptions of switch configurations.

• Descriptions of “availability” features.

• Descriptions of chassis types (e.g., OmniSwitch 6450-10).

• Instructions for mounting the chassis.

• Descriptions of hardware components (status LEDs, chassis, cables, backup power supplies, etc.).

• Managing a chassis.

• Hardware-related Command Line Interface (CLI) commands

What is Not in this Manual?

The descriptive and procedural information in this manual focuses on switch hardware. It includes information on some CLI commands that pertain directly to hardware configuration, bu t it is not intended as a software users guide. There are several OmniSwitch 6450 users guides that focus on switch software configuration. Consult those guides for detailed information and examples for configuring yo ur switch software to operate in a live network environment. See “Documentation Roadmap” on page -xi and

“Related Documentation” on page -xiii for further information on software configuration guides available

for your switch.

page x OmniSwitch 6450 Hardware Users Guide January 2015

About This Guide How is the Information Organized?

How is the Information Organized?

This users guide provides an overview of OmniSwitch 6450 switches, specifications of the hardware components, steps for setting up and managing OmniSwitch 6450 switches, and an overview and procedures for managing Power over Ethernet (PoE).

Documentation Roadmap

The OmniSwitch user documentation suite wa s design ed to supply you with information at several critical junctures of the configuration process.The following section outlines a roadmap of the manuals that will help you at each stage of the configuration process. Under each stage, we point you to the manual or manuals that will be most helpful to you.

Stage 1: Using the Switch for the First Time

Pertinent Documentation: Getting Started Guide

Release Notes

The Getting Started Guide provides all the information you need to get your switch up and running the first time. This guide provides information on unpacking the switch, installing power supplies, unlocking access control, setting the switch’s IP address, and setting up a password. It also includes succinct overview information on fundamental aspects of the switch, such as hardware LEDs, the software directory structure, CLI conventions, and web-based management.

At this time you should also familiarize yourself with the Release Notes that accompanied your switch. This document includes important information on feature limitations that are not included in other user guides.

Stage 2: Gaining Familiarity with Basic Switch Functions

Pertinent Documentation: Hardware Users Guide

Switch Management Guide

Once you have your switch up and running, you will want to begin investigating basic aspects of its hard ware and software. Information about switch hardware is provided in the Hardware Users Guide. This guide provide specifications, illustrations, and descriptions of all hardware components—e.g., chassis, backup power supplies, etc.

The Switch Management Guide is the primary user guide for the basic software features on a switch. This guide contains information on the switch directory structure, basic file and directory utilities, switch access security, SNMP, and web-based management. It is recommended that you read this guide before connecting your switch to the network.

OmniSwitch 6450 Hardware Users Guide January 2015 page xi

Documentation Roadmap About This Guide

Stage 3: Integrating the Switch Into a Network

Pertinent Documentation: Network Configuration Guide

When you are ready to connect your switch to the network, you will need to learn how the OmniSwitch implements fundamental softwa re features, such as 802.1Q, VLANs, a nd Spanning Tree. The Network Configuration Guide contains overview information, procedures and examples on how standard networking technologies are configured in the OmniSwitch.

Anytime

The OmniSwitch 6250/6450 CLI Reference Guide contains comprehensive information on all CLI commands supported by the switch. This guide includes syntax, default, usage, example, related CLI command, and CLI-to-MIB variable mapping information for all CLI commands supported by the switch. This guide can be consulted anytime during the configuration process to find detailed and specific information on each CLI command.

page xii OmniSwitch 6450 Hardware Users Guide January 2015

About This Guide Related Documentation

Published / Latest Product Documentation

All user guides for the OmniSwit ch Series are included on the Alcatel-Lucent public website. Thi s web site also includes user guides for other Alcatel-Lucent Enterprise prod ucts.

The latest user guides can be found on our website at:

http://enterprise.alcatel-lucent.com/UserGuides

Technical Support

An Alcatel-Lucent service agreement brings your company the assurance of 7x24 no-excuses technical support. You’ll also receive regular software updates to maintain and maximize your Alcatel-Lucent product’s features and functionality and on-site hardware replacement through our global network of highly qualified service delivery partners. Additionally, with 24-hour-a-day access to Alcatel-Lucent’s Service and Support web page, you’ll be able to view and update any case (open or closed) that you have reported to Alcatel-Lucent’s technical support, open a new case or access helpful release notes, technical bulletins, and manuals. For more information on Alcatel-Lucent’s Service Programs, see our web page at service.esd.alcatel-lucent.com, call us at 1-800-995-2696, or email us at esd.support@alcatel-lucent.com.

Documentation Feedback

Alcatel-Lucent values comments on the quality and usefulness of the documentation. To send comments on the OmniSwitch documentation use the following email address: feedback.osdocs@alcatel-lucent.com.

For document identification it's helpful to include the Document Title, Part Number and Revision (which can be found on the title page) with any comments.

page xiv OmniSwitch 6450 Hardware Users Guide January 2015

1 OmniSwitch 6450 Switches

OS6450-24;OS6450-24L

OS6450-10; OS6450-10L

OS6450-P10; OS6450-P10L; OS6450-P10S

OS6450-P24;OS6450-P24L

OS6450-P48;OS6450-P48L

OS6450-U24; OS6450-U24S

OS6450-48;OS6450-48L

Alcatel-Lucent OmniSwitch 6450 Stackable Gigabit Ethernet LAN switches include 10-port, 24-port and 48-port models.

OmniSwitch 6450-10 offer Fast and Gigabit Ethernet for classroom, workgroup and small enterprise applications and provide low-power consumption and fanless op eration.

OmniSwitch 6450-24 and OmniSwitch 6450-48 fixed configuration gigabit switches offer optional upgrade paths for 10 Gigabit Ethernet (GigE) stacking, 10 GigE uplinks and metro Ethernet services.

Power over Ethernet (PoE) is offered on OmniSwitch 6450-P10, OmniSwitch 6450-P24 and OmniSwitch 6450-P48 models.

OmniSwitch 6450 Hardware Users Guide January 2015 page 1-1

Chassis Configurations OmniSwitch 6450 Switches

Chassis Configurations

10-Port Models

• OmniSwitch 6450-10: Provides eight (8) 10/100/1000BaseT Ethernet ports, two (2) combo ports, two

(2) non-combo SFP ports, and an internal AC power supply.

• OmniSwitch 6450-P10: Provides eight (8) 10/100/1000BaseT Power Over Ethernet (802.3at) ports,

two (2) combo ports, two (2) non-combo SFP ports, and an internal AC power supply.

• OmniSwitch 6450-10L: Provides eight (8) 10/100BaseT Ethernet ports upgradeable to 10/100/

1000BaseT, two (2) combo ports, two (2) non-combo SFP ports, and an internal AC power supply.

• OmniSwitch 6450-P10L: Provides eight (8) 10/100BaseT Power Over Ethernet (802.3at) ports

upgradeable to 10/100/1000BaseT, two (2) combo ports, two (2) non-combo SFP ports, and an internal AC power supply.

• OmniSwitch 6450-P10S: Provides eight (8) 10/100 /1000BaseT Power Over Ethernet ports (with ports

1 through 4 supporting HPoE at up to ~75W and ports 5 through 8 supporting 802.3at), two (2) fixed SFP ports, and an internal AC power supply. This switch also supports IEEE 1588 Precision Time Protocol (PTP). For more information on PTP support, refer to page 1-4.

24-Port Models

• OmniSwitch 6450-24: Provides 24 10/100/1000 BaseT ports, 2 fixed SFP+ ports and one expansion

slot for optional stacking or uplink modules. The chassis feat ures fanl ess desi gn and int erna l AC power with optional internal AC or DC backup power.

• OmniSwitch 6450-P24: Provides 24 PoE 10/100/1000 BaseT ports, 2 fixed SFP+ ports and one

expansion slot for optional stacking or uplink modules. The chassis provides four fans and internal AC power with optional external AC backup power. (The backup power supply is installed on a separate 1 RU tray for an overall 2 RU configuration.)

• OmniSwitch 6450-24L: Provides 24 10/100 BaseT ports upgradeable to 10/100/1000BaseT, 2 fixed

SFP+ ports and one expansion slot for optional stacking or uplink modules. The chassis features fanless design and internal AC power with optional internal AC or DC backup power.

• OmniSwitch 6450-P24L: Provides 24 PoE 10/100 BaseT ports upgradeable to 10/100/1000BaseT, 2

fixed SFP+ ports and one expansion slot for optional stacking or uplink modules. The chassis provides four fans and internal AC power with optional external AC backup power. (The backup power supply is installed on a separate 1 RU tray for an overall 2 RU configuration.)

• OmniSwitch 6450-U24: Provides 22 SFP ports, two (2) RJ45/SFP combo ports, two (2) fixed SFP+

ports and one expansion slot for two (2) optional SFP+ stacking/expansion ports.

• OmniSwitch 6450-U24S: Provides 22 SFP ports, two (2) RJ45/SFP combo ports, two (2) fixed SFP+

ports and one expansion slot for two (2) optional SFP+ stacking/expansion ports. This switch also supports IEEE 1588 Precision Time Protocol (PTP). For more information on PTP support, refer to

page 1-4.

page 1-2 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Switches Chassis Configurations

48-Port Models

• OmniSwitch 6450-48: Provides 48 10/100/1000 BaseT ports, 2 fixed SFP+ ports and one expansion

slot for optional stacking or uplink modules. The chassis provides three fans and internal AC power with optional internal AC or DC backup power.

• OmniSwitch 6450-P48: Provides 48 PoE 10/100/1000 BaseT ports, 2 fixed SFP+ ports and one

• OmniSwitch 6450-48L: Provides 48 10/100 BaseT ports upgradeable to 10/100/1000BaseT, 2 fixed

SFP+ ports and one expansion slot for optional stacking or uplink modules. The chassis provides three fans and internal AC power with optional internal AC or DC backup power.

• OmniSwitch 6450-P48L: Provides 48 PoE 10/100 BaseT ports upgradeable to 10/100/1000BaseT, 2

Note. The 10/100BaseT “L” models have the same hardware characteristics as the other models but can be upgraded to support 10/100/1000BaseT via software license upgrade.

Combo Ports

Combo ports are individually configurable to be 10/100/1000BaseT or 100FX/1000X that can support SFP transceivers for short, long and very long distances.

Non-combo Fiber Ports

The non-combo SFP ports provide uplink capability throug h the use of supported SFP transceivers.

OmniSwitch 6450 Hardware Users Guide January 2015 page 1-3

OmniSwitch 6450 Feature Overview OmniSwitch 6450 Switches

OmniSwitch 6450 Feature Overview

Power over HD Base-T (PoH) Support

OmniSwitch 6450-P10S models offer PoE (four pair) ports 1-4 that are compliant with the PoE portion of the Power over HD Base-T (PoH) standard, up to ~75W per port, with a 280W PoE power budget. These ports are labeled “HPoE” on the chassis front panel.

Note. PoH is supported on OmniSwitch 6450-P10S models only. PoE support of up to 30W per port is provided on PoE ports 5 through 8. The maximum PoE power budget available for all ports on the OmniSwitch 6450-P10S is 280W. Refer to Chapter 2, “OmniSwitch 6450 Chassis and Hardware

Components” for more information.

IEEE 1588 Precision Time Protocol (PTP) Support

OmniSwitch 6450-P10S and OmniSwitch 6450-U24S models provide support for IEEE 1588 Version 2 end-to-end transparent clocking.

IEEE 1588 Precision Time Protocol (PTP) is used to synchronize clocks throughout a network. On a local area network, it achieves clock accuracy in the sub-microsecond range, making it suitable for measurement and control systems.

Note. PTP is supported on OmniSwitch 6450-P10S and OmniSwitch 6450-U24S models only. When PTP mode is enabled, OmniSwitch 6450-U24S switches act as a standalone devices and cannot become part of a stack. Refer to Chapter 2, “OmniSwitch 6450 Chassis and Hardware Components” for more information.

Security Features

OmniSwitch 6450 switches offer extensive security features for network access control, policy enforcement and attack containment, enabling fully secure networks and OmniVista Network Management System (NMS) support.

page 1-4 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Switches OmniSwitch 6450 Feature Overview

Availability Features

OmniSwitch 6450 switches incorporate advanced Alcatel-Lucent Operating System (AOS) protocols to ensure high availability for mission critical applications. Availability features are hardware- and softwarebased safeguards that help to prevent the loss of data flow in the unlikely event of a subsystem failure.

In addition, some availability features allow users to maintain or replace hardware components without powering off the switch or interrupting switch operations. Combined, these features provide added resiliency and help to ensure that the switch or virtual chassis is consistently available for high-impact network operations.

Hardware-related availability features include:

• Software Rollback

• Hot Swapping

• Hardware Monitoring

Software Rollback

Software rollback (also referred to as image rollback) essentially allows the switch to return to a prior “last known good” version of software in the event of a system software problem. The switch controls software rollback through its resilient directory structure design (i.e., /flash/working and /flash/certified).

For detailed information on the software rollback feature, as well as the switch’s /flash/working and

/flash/certified directories, refer to the “Managing CMM Directory Content” chapter in the OmniSwitch 6250/6450 Switch Management Guide.

Hot Swapping

Hot swapping refers to the action of adding, removing, or rep lacing components without powering off switches or disrupting other components.This feature facilitates hardware upgrades and maintenance and allows users to easily replace components in the unlikely event of hardware failure.

The following components can be hot swapped:

• Switches (virtual NI modules) within a virtual chassis stack. Refer to “Hot-Swapping Modules In a

Stack” on page 5-25 for more information.

• 1G uplink modules (“like” kinds only). Refer to “Swapping Expansion Modules” on page 5-3 for

more information.

• 10G stacking modules (“like” kinds only). Refer to “Swapping Expansion Modules” on page 5-3 for

more information.

• Power supply connector cables

• Transceivers. Refer to Omn iSw itc h 6250/6450 Transceivers Guide for more information.

• Backup power supplies

Note. Backup power supplies are fully operational and may share the load with the primary power supply,

remaining operational in the event the primary power supply fails unexpectedly. If a failover occurs, the backup power supply automatically takes up the full power load without disrupting the switch.

OmniSwitch 6450 Hardware Users Guide January 2015 page 1-5

OmniSwitch 6450 Feature Overview OmniSwitch 6450 Switches

Hardware Monitoring

Automatic Monitoring

Automatic monitoring refers to the switch’s built-in sensors that automatically monitor operations. If an error is detected (e.g., over-threshold temperature), the switch immediately sends a trap to the user. The trap is displayed on the console in the form of a text error message.

LEDs

LEDs, which provide visual status information, are provided on the chassis front panel. LEDs are used to indicate conditions such as hardware and software status, temperature errors, link integrity, data flow, etc. For detailed LED descriptions, refer to Chapter 2, “OmniSwitch 6450 Chassis and Hardware

Components.”

User-Driven Monitoring

User-driven hardware monitoring refers to CLI commands that are entered by the user in order to access the current status of hardware components. The user enters “show” commands that output information to the console. Monitoring information for chassis components, such as the optional back up power supply, chassis temperature sensor, and chassis fans is provided in Chapter 2, “OmniSwitch 6450 Chassis and

Hardware Components.” The show commands for all the features are described in detail in th e

OmniSwitch 6250/6450 CLI Reference Guide.

page 1-6 OmniSwitch 6450 Hardware Users Guide January 2015

2 OmniSwitch 6450

Chassis and Hardware Components

OmniSwitch 6450 switches are available in the chassis configurations as shown in the table below:

OmniSwitch 6450-10(L) (OS6450-10/OS6450-10L)

OmniSwitch 6450-P10(L) (OS6450-P10/OS6450-P10L)

OmniSwitch 6450-P10S (OS6450-P10S)

OmniSwitch 6450-24(L) (OS6450-24/OS6450-24L)

OmniSwitch 6450-P24(L) (OS6450-P24/OS6450-P24L)

OmniSwitch 6450-48(L) (OS6450-48/OS6450-48L)

OmniSwitch 6450-P48(L) (OS6450-P48/OS6450-P48L)

OmniSwitch 6450-U24 (OS6450-U24)

OmniSwitch 6450-U24S (OS6450-U24S)

Ten port 10/100/1000BaseT model. Available in 10/100 “L” model.

Ten port 10/100/1000BaseT Power Over Ethernet model. Available in 10/100 “L” model.

Ten port 10/100/1000BaseT Power Over Ethernet model. Provides ~75W PoH power on ports 1 through 4. Provides support for additional features like IEEE 1588 Precision Time Protocol (PTP).

Twenty-four port 10/100/1000BaseT model. Available in 10/100 “L” model.

Twenty-four port 10/100/1000BaseT Power Over Ethernet model. Available in 10/100 “L” model.

Forty-eight port 10/100/1000BaseT model. Available in 10/100 “L” model.

Forty-eight port 10/100/1000BaseT Power Over Ethernet model. Available in 10/100 “L” model.

Twenty-two SFP ports, two (2) RJ45/SFP combo ports and two (2) SFP+ fixed fiber ports.

Twenty-two SFP ports, two (2) RJ45/SFP combo ports and two (2) SFP+ fixed fiber ports. Provides support for additional features like IEEE 1588 Precision Time Protocol (PTP).

Note. The 10/100BaseT “L” models have the same hardware characteristics as the other models but can be upgraded to support 10/100/1000BaseT via a software license upgrade.

This chapter includes detailed information on these chassis types. Topics include:

• OmniSwitch 6450 chassis descriptions

• Technical specifications

• Power Supplies

• Cables and power cords

• Console port and pinout specifications

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-1

OmniSwitch 6450-10 OmniSwitch 6450 Chassis and Hardware Components

OmniSwitch 6450-10

Chassis Features

System status LEDs Internal AC Power Supply (8) Non-combo 10/100/1000Base-T ports Console port (RJ-45) (2) Non-combo 100/1000BaseX ports USB port (USB 2.0) (2) Combo 10/100/1000Base-T or

100/1000BaseX ports

Front Panel

Fanless design

OK PRI PWR STK

12 34 56 78 9 10 11 12

Item Description

System Status LEDs

Provides status on hardware, software, and power.

Console Port

RS-232 console port with an RJ-45 connector. Provides access to the CLI for configuration and management.

10/100/1000BaseT RJ-45 Ports

10/100/1000BaseT non-combo ports. Odd-numbered ports are on top row, even-numbered ports are on bottom row.

10/100/1000BaseT or 100/1000BaseX SFP Combo Ports

Two 10/100/1000BaseT or SFP combo ports for various supported SFP transceivers.

SFP Uplink Ports

Two SFP ports to be used for uplinks.

USB Port

High speed USB 2.0 port.

Push Button

When pushed, all LEDs will turn off and the LED of the Stack ID will remain lit. (Applies to 24- and 48-port switches.)

OmniSwitch 6450-10 Front Panel

OS6450-10

Console

USB12/STK B11/STK B109

Refer to “OmniSwitch 6450 LED Status” on page 2- 32 for LED status information.

page 2-2 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components OmniSwitch 6450-10

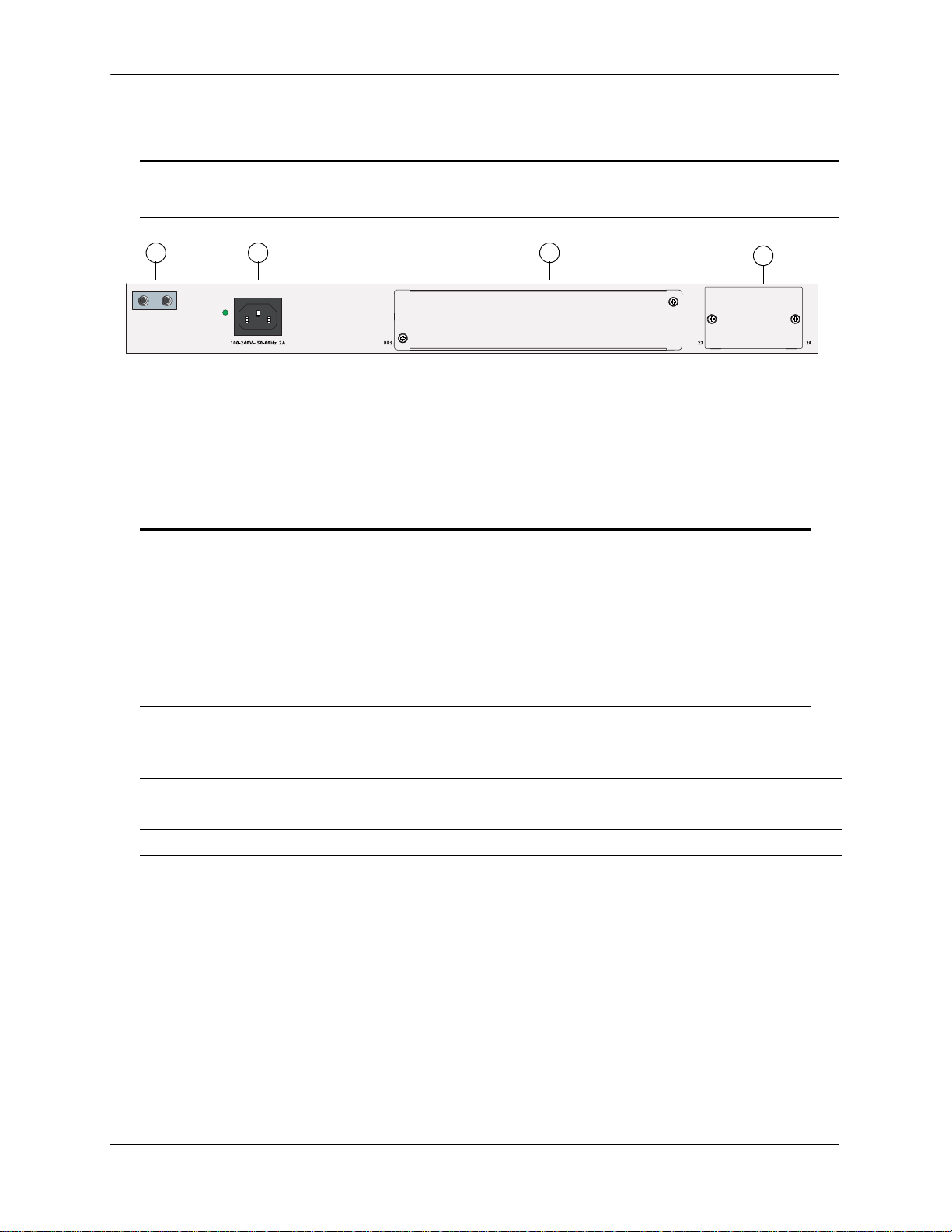

OmniSwitch 6450-10 Rear Panel

Note. The figure shows a pre-production version of the chassis without product, safety, and compliance

information labels. All production versions of the chassis have these labels.

OmniSwitch 6450-10 Rear Panel

Item Description

Power Supply Connector

Internal AC power supply.

Grounding Block

Type LCD8-10A-L grounding lug

OmniSwitch 6450-10 Internal AC Power Supply

P/S Component Description

Model Internal AC Power Supply Provides System Power For OmniSwitch 6450-10 Input Voltage Range 100-240 VAC Rated Frequency 50 to 60 Hz Maximum Output Power 30 W Output Voltage 12.0 VDC Output Current 2.5 A

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-3

OmniSwitch 6450-10 OmniSwitch 6450 Chassis and Hardware Components

OS6450-10 Specifications

10/100/1000BaseT ports 8 To tal combo ports 2 SFP uplink ports 2

802.3at PoE ports N/A Flash memory size 128 MB RAM memory size 256 MB SDRAM Chassis Width 8.50 inches (21.5 cm) Chassis Height 1.73 inches (4.40 cm) Chassis Depth 11.50 inches (29.21 cm) Weight 3.66 lbs (1.66 kg) Operating Humidity 5% to 95% Storage Humidity 5% to 95% Operating Temperature 0C to +45C Storage Temperature -40C to +75C Default Upper Threshold Tem-

76C

perature Danger Threshold Temperature 83C Data rate (RJ-45) 10/100/1000 Mbps Maximum frame size 9216 bytes Cable supported

(RJ-45)

10BaseT: unshielded twisted-pair (UTP) 100BaseTX: unshielded twisted-pair (UTP), Category 5, EIA/TIA 568 or shielded twisted-pair (STP), Category 5, 100 ohm 1000BaseT: unshielded twisted-pair (UTP), Category 5e

Maximum cable distance

100 meters

(RJ-45) Remote Stacking Support Does not support remote stacking

page 2-4 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components OmniSwitch 6450-P10

OmniSwitch 6450-P10

Chassis Features

System status LEDs Internal AC Power Supply (8) Non-combo 10/100/1000Base-T PoE ports Console port (RJ-45) (2) Non-combo 100/1000BaseX ports USB port (USB 2.0) (2) Combo 10/100/1000Base-T or

100/1000BaseX ports

Front Panel

Fanless design

OK PRI PWR STK

12 34 56 78 9 10 11 12

Item Description

System Status LEDs

Provides status on hardware, software, and power.

Console Port

RS-232 console port with an RJ-45 connector. Provides access to the CLI for configuration and management.

10/100/1000BaseT RJ-45 PoE Ports

10/100/1000BaseT non-combo ports. Odd-numbered ports are on top row, even-numbered ports are on bottom row.

10/100/1000BaseT or 100/1000BaseX SFP Combo Ports

Two 10/100/1000BaseT or SFP combo ports for various supported SFP transceivers.

SFP Uplink Ports

Two SFP ports to be used for uplinks.

USB Port

High speed USB 2.0 port.

Push Button

When pushed, all LEDs will turn off and the LED of the Stack ID will remain lit. (Not currently supported. Functionality scheduled for future release.)

OmniSwitch 6450-P10 Front Panel

OS6450-P10

Console

USB12/STK B11/STK B109

Refer to “OmniSwitch 6450 LED Status” on page 2- 32 for LED status information.

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-5

OmniSwitch 6450-P10 OmniSwitch 6450 Chassis and Hardware Components

OmniSwitch 6450-P10 Rear Panel

Note. The figure shows a pre-production version of the chassis without product, safety, and compliance

information labels. All production versions of the chassis have these labels.

OmniSwitch 6450-P10 Rear Panel

Item Description

Power Supply Connector

Internal AC power supply.

Grounding Block

Type LCD8-10A-L grounding lug

OmniSwitch 6450-P10 Internal AC Power Supply

P/S Component Description

Model Internal AC Power Supply Provides System/PoE Power For OmniSwitch 6450-P10 Input Voltage Range 115-230 VAC Rated Frequency 50 to 60 Hz Maximum System Power 30 W Maximum PoE Power 90 W To tal Maximum Output Power 120 W Output Voltage 12.0 VDC / 54.5 VDC Output Current 2.5 A / 1.65A

page 2-6 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components OmniSwitch 6450-P10

OS6450-P10 Specifications

Total non-combo 10/100/

8 (1-8)

1000BaseT PoE ports per switch Total combo ports per switch 2 (9-10) Total non-combo SFP ports per

2 (11-12 in Uplink mode)

switch Flash memory size 128 MB RAM memory size 256 MB SDRAM Chassis Width 8.50 inches (21.5 cm) Chassis Height 1.73 inches (4.40 cm) Chassis Depth 11.50 inches (29.21 cm) Weight 4.56 lbs (2.07 kg) Operating Humidity 5% to 95% Storage Humidity 5% to 95% Operating Temperature 0C to +45C Storage Temperature -40C to +75C Default Upper Threshold Tem-

73C

perature Danger Threshold Temperature 82C Data rate (RJ-45) 10/100/1000 Mbps Maximum frame size 9216 bytes Cable supported

(RJ-45)

Maximum cable distance

100 meters

(RJ-45) Remote Stacking Support Does not support remote stacking

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-7

OmniSwitch 6450-P10S OmniSwitch 6450 Chassis and Hardware Components

C DA

OmniSwitch 6450-P10S

The OmniSwitch 6450-P10S is a standalone switch with eight (8) 10/100/1000 Base-T PoE ports and two (2) fixed SFP ports. (Refer to the OmniSwitch 6250/6450 Transceivers Guide for SFP specifications and compatibility information.)

OmniSwitch 6450-P10S switches support IEEE 1588 Precision Time Protocol (PTP). For more information, see page page 1-4.

All ports support IEEE 802.3af/802.3at. PoE (four pair) ports 1-4 are compliant with the PoE portion of the Power over HD Base-T (PoH) standard

with a 280W PoE power budget. These ports are labeled “HPoE” on the chassis front panel. PoE support of up to 30W per port is provided on PoE ports 5 through 8.

Note. The maximum PoE power budget available for all ports is 280W.

Front Panel

OmniSwitch 6450-P10S Front Panel

Item Description

System Status LEDs

Provides status on hardware and software.

PoH Port Status LEDs

Provides status on HPoE-capable (PoH) ports 1-4, including connectivity and link activity. (These ports are labeled “HPoE” on the chassis front panel.)

Back-lit Power Status LED

Illuminates model name on chassis front panel to indicate “power on” status.

PoE Port Status LEDs

Provides status on PoE ports 5-8, including connectivity and link activity.

Console Port

RS-232 console port with an RJ-45 connector. Provides console access to the CLI for configuration and management.

page 2-8 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components OmniSwitch 6450-P10S

Item Description

Four (4) 10/100/1000BaseT RJ-45 PoH Ports

Port numbers 1 through 4. Each port provides ~75W of PoH power. (These ports are labeled “HPoE” on the chassis front panel.)

Four (4) 10/100/1000BaseT RJ-45 PoE Ports

Port numbers 5 through 8. Each port provides up to 30W of PoE power.

Two (2) Fixed SFP Ports

Refer to the OmniSwitch 6250/6450 Transceivers Guide for SFP specifications and compatibility information.

USB Port

High speed USB 2.0 port.

Refer to “OmniSwitch 6450 LED Status” on page 2- 32 for LED status information.

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-9

OmniSwitch 6450-P10S OmniSwitch 6450 Chassis and Hardware Components

A B C

OmniSwitch 6450-P10S Rear Panel

Note. The figure shows a pre-production version of the chassis without product, safety, and compliance

information labels. All production versions of the chassis have these labels.

OmniSwitch 6450-P10S Rear Panel

Item Description

Air Vent

Intake vent for internal chassis airflow.

Power Supply Connector

Internal AC power supply.

Grounding Block

Type LCD8-10A-L grounding lug

page 2-10 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components OmniSwitch 6450-P10S

OmniSwitch 6450-P10S Internal AC Power Supply

P/S Component Description

Maximum System Power 40 W Maximum PoE Power 280 W To tal Maximum Output Power 320 W Input Range 100-240V~, 50-60Hz, 4A

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-11

OmniSwitch 6450-P10S OmniSwitch 6450 Chassis and Hardware Components

OmniSwitch 6450-P10S Specifications

Chassis Width 8.50 inches (21.5 cm) Chassis Height 1.73 inches (4.40 cm) (1 RU) Chassis Depth 11.50 inches (29.21 cm) Chassis Weight 5.14 lbs (2.33 kg) Maximum System Power 40 W Maximum PoE Power 280 W Maximum Output Power 320 W PoE/PoH Support Per Port * Max. ~75W PoH ports 1 through 4

Max. 30W PoE ports 5 through 5 Operating Humidity 5% to 95% Storage Humidity 5% to 95% Operating Temperature 0°C to +45°C (+32°F to +113°F) Storage Temperature -40°C to +75°C (-40°F to +167°F)

* The maximum PoE power budget available for all ports is 28 0W.

page 2-12 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components OmniSwitch 6450-24

OmniSwitch 6450-24

Chassis Features

System status LEDs Internal AC Power Supply (24) Non-combo 10/100/1000Base-T ports Console port (RJ-45) (2) Non-combo SFP/SFP+ ports USB port (USB 2.0) Expansion Module Stacking LED

Front Panel

OmniSwitch 6450-24 Front Panel

Item Description

Refer to “OmniSwitch 6450 LED Status” on page 2- 32 for LED status information.

Stacking LED

Displays the chassis stack ID.

Console Port

RS-232 console port with an RJ-45 connector. Provides access to the CLI for configuration and management.

System Status LEDs

Provides status on hardware, software, and power.

10/100/1000BaseT RJ-45 Ports

10/100/1000BaseT non-combo ports. Odd-numbered ports are on top row, even-numbered ports are on bottom row.

Rear Status LEDs

Displays link status for expansion module ports.

USB Port

High speed USB 2.0 port.

SFP/SFP+ Ports

Two SFP/SFP+ ports to be used for uplinks.

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-13

OmniSwitch 6450-24 OmniSwitch 6450 Chassis and Hardware Components

B C

OmniSwitch 6450-24 Rear Panel

Note. The figure shows a pre-production version of the chassis without product, safety, and compliance

information labels. All production versions of the chassis have these labels.

OmniSwitch 6450-24 Rear Panel

Item Description

Grounding Block

Type LCD8-10A-L grounding lug

Power Supply Connector

Internal AC power supply

C D

Internal Backup Power Supply Slot Expansion Module Slot

OmniSwitch 6450-24 Internal AC Power Supply

P/S Component Description

Model Internal AC Power Supply Provides System Power For OmniSwitch 6450-24 Input Voltage Range 100-240 VAC Rated Frequency 50 to 60 Hz Maximum Output Power 65 W Output Voltage 12.0 VDC Output Current 5.4 A

page 2-14 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components OmniSwitch 6450-24

OS6450-24 Specifications

RJ-45 10/100/1000BaseT ports 24 SFP+ Gigabit/10Gigabit uplink

2 ports

Ports per expansion module 2 Max. chassis per stack 8 Flash memory size 128 MB RAM memory size 256 MB SDRAM Chassis Width 17.32 inches (44.00 cm) Chassis Height 1.73 inches (4.40 cm) Chassis Depth 12.3 inches (31.24 cm) Weight 9 lbs (4.08 kg) Operating Humidity 5% to 95% Storage Humidity 5% to 95% Operating Temperature 0C to +45C (32F to 113F) Storage Temperature -40C to +75C (-40F to +167F) Default Upper Threshold

74C Temperature

Danger Threshold Temperature 79C Data rate (RJ-45) 10/100/1000 Mbps Maximum frame size 9216 bytes Cable supported

(RJ-45)

10BaseT: unshielded twisted-pair (UTP)

100BaseTX: unshielded twisted-pair (UTP), Category 5, EIA/TIA 568

or shielded twisted-pair (STP), Category 5, 100 ohm

1000BaseT: unshielded twisted-pair (UTP), Category 5e Maximum cable distance

100 meters (RJ-45)

Remote Stacking Support Supports remote stacking

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-15

OmniSwitch 6450-P24 OmniSwitch 6450 Chassis and Hardware Components

OmniSwitch 6450-P24

Chassis Features

System status LEDs Internal AC Power Supply (24) Non-combo 10/100/1000Base-T 802.3at PoE

ports (2) Non-combo SFP/SFP+ ports Console port (RJ-45) Expansion Module USB port (USB 2.0) Stacking LED

Front Panel

Backup Power Supply (BPS) Connector

OmniSwitch 6450-10 Front Panel

Item Description

Refer to “OmniSwitch 6450 LED Status” on page 2- 32 for LED status information.

Stacking LED

Displays the chassis stack ID.

Console Port

RS-232 console port with an RJ-45 connector. Provides access to the CLI for configuration and management.

System Status LEDs

Provides status on hardware, software, and power.

10/100/1000BaseT RJ-45 PoE Ports

10/100/1000BaseT non-combo ports. Odd-numbered ports are on top row, even-numbered ports are on bottom row.

Rear Status LEDs

Displays link status for expansion module ports.

USB Port

High speed USB 2.0 port.

SFP/SFP+ Ports

Two SFP/SFP+ ports to be used for uplinks.

page 2-16 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components OmniSwitch 6450-P24

B C

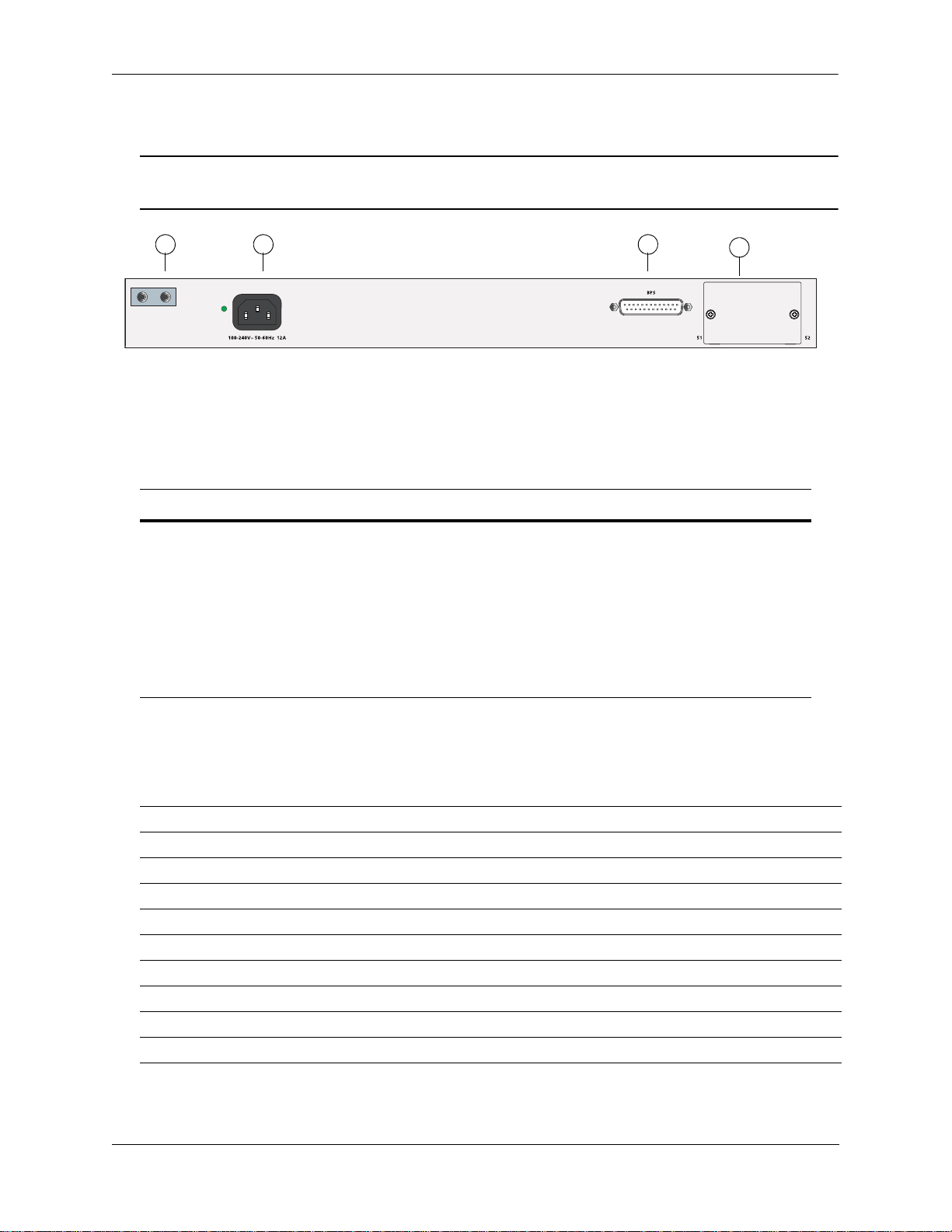

OmniSwitch 6450-P24 Rear Panel

Note. The figure shows a pre-production version of the chassis without product, safety, and compliance

information labels. All production versions of the chassis have these labels.

OmniSwitch 6450-P24 Rear Panel

Item Description

Grounding Block

Type LCD8-10A-L grounding lug

Power Supply Connector

Internal AC power supply.

External Backup or PoE Power Supply Connector

Expansion Module Slot

OmniSwitch 6450-P24 Internal AC Power Supply

P/S Component Description

Model Internal AC Power Supply Provides System/PoE Power For OmniSwitch 6450-P24 Input Voltage Range 100-240 VAC Rated Frequency 50 to 60 Hz Maximum System Power 120 W Maximum PoE Power 410 W Maximum Output Power 530 W Output Voltage 12.0 VDC / 54.5 VDC Output Current 10.0 A / 7.6 A

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-17

OmniSwitch 6450-P24 OmniSwitch 6450 Chassis and Hardware Components

OS6450-P24 Specifications

RJ-45 10/100/1000BaseT

802.3at PoE ports SFP+ Gigabit/10Gigabit uplink

2 ports

Ports per expansion module 2 Max. chassis per stack 8 Flash memory size 128 MB RAM memory size 256 MB SDRAM Chassis Width 17.32 inches (44.00 cm) Chassis Height 1.73 inches (4.40 cm) Chassis Depth 12.30 inches (31.24 cm) Weight 11 lbs (5.05 kg) Operating Humidity 5% to 95% Storage Humidity 5% to 95% Operating Temperature 0C to +45C (32F to 113F) Storage Temperature -40C to +75C (-40F to +167F) Data rate (RJ-45) 10/100/1000 Mbps Default Upper Threshold Tem-

60C perature

Danger Threshold Temperature 66C Maximum frame size 9216 bytes Cable supported

(RJ-45)

10BaseT: unshielded twisted-pair (UTP)

100BaseTX: unshielded twisted-pair (UTP), Category 5, EIA/TIA 568

or shielded twisted-pair (STP), Category 5, 100 ohm

1000BaseT: unshielded twisted-pair (UTP), Category 5e Maximum cable distance

100 meters (RJ-45)

Remote Stacking Support Supports remote stacking

page 2-18 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components OmniSwitch 6450-48

OmniSwitch 6450-48

Chassis Features

System status LEDs Internal AC Power Supply (48) Non-combo 10/100/1000Base-T ports Console port (RJ-45) (2) Non-combo SFP/SFP+ ports USB port (USB 2.0) Expansion Module Stacking LED

Front Panel

OmniSwitch 6450-48 Front Panel

Item Description

Refer to “OmniSwitch 6450 LED Status” on page 2- 32 for LED status information.

Stacking LED

Displays the chassis stack ID.

Console Port

RS-232 console port with an RJ-45 connector. Provides access to the CLI for configuration and management.

System Status LEDs

Provides status on hardware, software, and power.

10/100/1000BaseT RJ-45 Ports

10/100/1000BaseT non-combo ports. Odd-numbered ports are on top row, even-numbered ports are on bottom row.

Rear Status LEDs

Displays link status for expansion module ports.

USB Port

High speed USB 2.0 port.

SFP/SFP+ Ports

Two SFP/SFP+ ports to be used for uplinks.

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-19

OmniSwitch 6450-48 OmniSwitch 6450 Chassis and Hardware Components

B C

OmniSwitch 6450-48 Rear Panel

Note. The figure shows a pre-production version of the chassis without product, safety, and compliance

information labels. All production versions of the chassis have these labels.

OmniSwitch 6450-48 Rear Panel

Item Description

Grounding Block

Type LCD8-10A-L grounding lug

Power Supply Connector

Internal AC power supply

C D

Internal Backup Power Supply Slot Expansion Module Slot

OmniSwitch 6450-48 Internal AC Power Supply

P/S Component Description

Model Internal AC Power Supply Provides System Power For OmniSwitch 6450-48 Input Voltage Range 100-240 VAC Rated Frequency 50 to 60 Hz Maximum Output Power 90 W Output Voltage 12.0 VDC Output Current 7.5 A

page 2-20 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components OmniSwitch 6450-48

OS6450-48 Specifications

Total non-combo 10/100/

48 1000BaseT ports per switch

Total non-combo SFP/SFP+

2 ports per switch

Total expansion modules per

1 switch

Flash memory size 128 MB RAM memory size 256 MB SDRAM Chassis Width 17.32 inches (44.00 cm) Chassis Height 1.73 inches (4.40 cm) Chassis Depth 15.40 inches (39.10 cm) Weight 12 lbs (5.44 kg) Operating Humidity 5% to 95% Storage Humidity 5% to 95% Operating Temperature 0C to +45C (32F to 113F) Storage Temperature -40C to +75C (-40F to +167F) Data rate (RJ-45) 10/100/1000 Mbps Default Upper Threshold Tem-

64C perature

Danger Threshold Temperature 70C Maximum frame size 9216 bytes Cable supported

(RJ-45)

10BaseT: unshielded twisted-pair (UTP)

100BaseTX: unshielded twisted-pair (UTP), Category 5, EIA/TIA 568

or shielded twisted-pair (STP), Category 5, 100 ohm

1000BaseT: unshielded twisted-pair (UTP), Category 5e Maximum cable distance

100 meters (RJ-45)

Remote Stacking Support Supports remote stacking

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-21

OmniSwitch 6450-P48 OmniSwitch 6450 Chassis and Hardware Components

OmniSwitch 6450-P48

Chassis Features

System status LEDs Backup Power Supply (BPS) Connector (48) Non-combo 10/100/1000Base-T PoE ports Console port (RJ-45) (2) Non-combo SFP/SFP+ ports USB port (USB 2.0) Expansion Module Stacking LED Internal AC Power Supply

Front Panel

OmniSwitch 6450-P48 Front Panel

Item Description

Refer to “OmniSwitch 6450 LED Status” on page 2- 32 for LED status information.

Stacking LED

Displays the chassis stack ID.

Console Port

RS-232 console port with an RJ-45 connector. Provides access to the CLI for configuration and management.

System Status LEDs

Provides status on hardware, software, and power.

10/100/1000BaseT RJ-45 PoE Ports

10/100/1000BaseT non-combo ports. Odd-numbered ports are on top row, even-numbered ports are on bottom row.

Rear Status LEDs

Displays link status for expansion module ports.

USB Port

High speed USB 2.0 port.

SFP/SFP+ Ports

Two SFP/SFP+ ports to be used for uplinks.

page 2-22 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components OmniSwitch 6450-P48

B C

OmniSwitch 6450-P48 Rear Panel

Note. The figure shows a pre-production version of the chassis without product, safety, and compliance

information labels. All production versions of the chassis have these labels.

OmniSwitch 6450-P48 Rear Panel

Item Description

Grounding Block

Type LCD8-10A-L grounding lug

Power Supply Connector

Internal AC power supply.

External Backup or PoE Power Supply Connector

Expansion Module Slot

OmniSwitch 6450-P48 Internal AC Power Supply

P/S Component Description

Model Internal AC Power Supply Provides System/PoE Power For OmniSwitch 6450-P48 Input Voltage Range 100-240 VAC Rated Frequency 50 to 60 Hz Maximum System Power 120 W Maximum PoE Power 780 W Maximum Output Power 900 W Output Voltage 12.0 VDC / 54.5 VDC Output Current 10.5 A / 14.3 A

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-23

OmniSwitch 6450-P48 OmniSwitch 6450 Chassis and Hardware Components

OS6450-P48 Specifications

Total non-combo 10/100/

48 1000BaseT 802.3at PoE ports per switch

Total non-combo SFP/SFP+

2 ports per switch

Total expansion modules per

1 switch

Flash memory size 128 MB RAM memory size 256 MB SDRAM Chassis Width 17.32 inches (44.00 cm) Chassis Height 1.73 inches (4.40 cm) Chassis Depth 15.40 inches (39.10 cm) Weight 15 lbs (6.8 kg) Operating Humidity 5% to 95% Storage Humidity 5% to 95% Operating Temperature 0C to +45C (32F to 113F) Storage Temperature -40C to +75C (-40F to +167F) Data rate (RJ-45) 10/100/1000 Mbps Default Upper Threshold Tem-

67C perature

Danger Threshold Temperature 71C Maximum frame size 9216 bytes Cable supported

(RJ-45)

10BaseT: unshielded twisted-pair (UTP)

100BaseTX: unshielded twisted-pair (UTP), Category 5, EIA/TIA 568

or shielded twisted-pair (STP), Category 5, 100 ohm

1000BaseT: unshielded twisted-pair (UTP), Category 5e Maximum cable distance

100 meters (RJ-45)

Remote Stacking Support Supports remote stacking

page 2-24 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components OmniSwitch 6450-U24

OmniSwitch 6450-U24

Chassis Features

System status LEDs Internal AC Power Supply (22) Non-combo SFP ports Console port (RJ-45) (2) Combo 10/100/1000BaseT or SFP USB port (USB 2.0) (2) Non-combo SFP/SFP+ ports Stacking LED Expansion Module

Front Panel

OmniSwitch 6450-U24 Front Panel

Item Description

Refer to “OmniSwitch 6450 LED Status” on page 2- 32 for LED status information.

Stacking LED

Displays the chassis stack ID.

Console Port

RS-232 console port with an RJ-45 connector. Provides access to th e CLI for configuration and management.

System Status LEDs

Provides status on hardware, software, and power.

100/1000 Base-X SFP Ports

22 100/1000 Base-X SFP ports, 2 combo ports configurable to be 10/100/1000 BaseT or 100/1000 Base-X.

Rear Status LEDs

Displays link status for expansion module ports.

USB Port

High speed USB 2.0 port.

SFP/SFP+ Ports

Two SFP/SFP+ ports to be used for uplinks.

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-25

OmniSwitch 6450-U24 OmniSwitch 6450 Chassis and Hardware Components

B C

OmniSwitch 6450-U24 Rear Panel

Note. The figure shows a pre-production version of the chassis without product, safety, and compliance

information labels. All production versions of the chassis have these labels.

OmniSwitch 6450-U24 Rear Panel

Item Description

Grounding Block

Type LCD8-10A-L grounding lug

Power Supply Connector

Internal AC power supply.

Internal Backup Power Supply Slot

Expansion Module Slot

OmniSwitch 6450-U24 Internal AC Power Supply

P/S Component Description

Model Internal AC Power Supply Provides System Power For OmniSwitch 6450-U24 Input Voltage Range 100-240 VAC Rated Frequency 50 to 60 Hz Maximum Output Power 90 W Output Voltage 12.0 VDC Output Current 7.5 A

page 2-26 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components OmniSwitch 6450-U24

OS6450-U24 Specifications

Total non-combo SFP ports per

22 switch

T otal RJ45/SFP combo port s per

2 switch

Total non-combo SFP/SFP+

2 ports per switch

Total expansion modules per

1 switch

Flash memory size 128 MB RAM memory size 256 MB SDRAM Chassis Width 17.32 inches (44.00 cm) Chassis Height 1.73 inches (4.40 cm) Chassis Depth 12.30 inches (31.24 cm) Weight 9 lbs (4.08 kg) Operating Humidity 5% to 95% Storage Humidity 5% to 95% Operating Temperature 0C to +45C (32F to 113F) Storage Temperature -40C to +75C (-40F to +167F) Data rate (RJ-45) 10/100/1000 Mbps Default Upper Threshold Tem-

54C perature

Danger Threshold Temperature 61C Maximum frame size 9216 bytes Cable supported

(RJ-45)

10BaseT: unshielded twisted-pair (UTP)

100BaseTX: unshielded twisted-pair (UTP), Category 5, EIA/TIA 568

or shielded twisted-pair (STP), Category 5, 100 ohm

1000BaseT: unshielded twisted-pair (UTP), Category 5e Maximum cable distance

100 meters (RJ-45)

Remote Stacking Support Supports remote stacking

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-27

OmniSwitch 6450-U24S OmniSwitch 6450 Chassis and Hardware Components

B C

OmniSwitch 6450-U24S

The OmniSwitch 6450-U24S provides 22 SFP ports, two (2) RJ45/SFP combo ports, two (2) fixed SFP+ ports and a slot (located on the rear panel) for two (2) optional SFP+ stacking/expansion ports. (Refer to the OmniSwitch 6250/6450 Transceivers Guide for SFP specifications and compatibility information.)

OmniSwitch 6450-U24S switches support IEEE 1588 Precision Time Protocol (PTP). (PTP is supported on front panel ports only; PTP is not supported on rear panel expansion mod ules. For more information on PTP support, refer to page 1-4.)

Note. When PTP is disabled, the OmniSwitch 6450-U24S may be stacked with other stackable OS6450 models. When PTP is enabled, stacking is not supported and the switch operates as a standalone unit.

Front Panel

OmniSwitch 6450-U24S Front Panel

Item Description

Stacking LED

Displays the chassis stack ID.

Back-lit Power Status LED

Illuminates model name on chassis front panel to indicate “power on” status.

Console Port

RS-232 console port with an RJ-45 connector. Provides console access to the CLI for configuration and management.

System Status LEDs

Provides status on hardware and software.

Port Status LEDs

Provides status on connectivity and link activity for the switch’s 22 SFP ports and two (2) RJ45/SFP ports.

RJ45/SFP Combo Ports

Port numbers 23 and 24.

SFP+ Port LEDs

Displays link status for front panel fixed SFP+ ports.

SFP+ Stacking/Expansion Module Port Status LEDs

Displays link status for rear panel SFP+ stacking/expansion ports.

page 2-28 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components OmniSwitch 6450-U24S

Item Description

USB Port

High speed USB 2.0 port.

SFP Ports

22 SFP ports. Port numbers 1 through 22.

Fixed SFP+ Ports

Port numbers 25 and 26.

Refer to the OmniSwitch 6250/6450 Transceivers Guide for SFP specifications and compatibility information.

Refer to “OmniSwitch 6450 LED Status” on page 2- 32 for LED status information.

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-29

OmniSwitch 6450-U24S OmniSwitch 6450 Chassis and Hardware Components

B C

OmniSwitch 6450-U24S Rear Panel

Note. The figure shows a pre-production version of the chassis without product, safety, and compliance

information labels. All production versions of the chassis have these labels.

OmniSwitch 6450-U24S Rear Panel

Item Description

Grounding Block

Type LCD8-10A-L grounding lug

Power Supply Connector

Internal AC power supply.

External Backup Power Supply (BPS) Connector

Expansion Module Slot

For optional SFP+ stacking/expansion module. Ports 27 and 28.

OmniSwitch 6450-U24S Internal AC Power Supply

P/S Component Description

Maximum Output Power 90W Input Range 100-240V~, 50-60Hz, 2A

page 2-30 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components OmniSwitch 6450-U24S

OmniSwitch 6450-U24S Specifications

Chassis Width 17.32 inches (44.0 cm) Chassis Height 1.73 inches (4.40 cm) (1 RU) Chassis Depth 12.3 inches (31.24 cm) Chassis Weight 9.0 lbs (4.08 kg) Power Consumption 90W Operating Humidity 5% to 95% Storage Humidity 5% to 95% Operating Temperature 0°C to +45°C (+32°F to +113°F) Storage Temperature -40°C to +75°C (-40°F to +167°F)

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-31

OmniSwitch 6450 LED Status OmniSwitch 6450 Chassis and Hardware Components

OmniSwitch 6450 LED Status

LED State Description

OK Solid Green

Blinking Green Solid Amber

PRI Solid Green

Solid Amber Off

PWR Solid Green

Solid Amber Off

STK Solid Green

Solid Amber Off

Stack/Uplink Ports Solid / Blinking Green

Solid / Blinking Amber Off

10/100/1000 Ports Solid Green

The switch has passed hardware diagnostic tests and the system software is operational

Normal diagnostics and/or Remote Config Load in progress System fan failure or temperature threshold exceeded

Primary unit in a stack or standalone switch Secondary unit in a stack Switch is idle. (not primary or secondary)

P/S Normal Operation P/S Present and Bad P/S Not Present.

Unit in Stacking Mode Unit in uplink mode No expansion module present

Valid Uplink / Activity Valid Stacking Link / Activity No Link Detected

Valid Link

Blinking Green

Solid Amber Blinking Amber Off

SFP Ports Solid Green

Blinking Green Off

Transmitting or receiving packets in a link up state for nonPoE

Valid PoE Link Transmitting or receiving packets in a link up state for PoE No Link Detected

Valid Link Transmitting or receiving packets in a link up state No Link Detected

page 2-32 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components Expansion Modules

Expansion Modules

OS6450-GNI-C2

The OS6450-GNI-C2 is an optional uplink module that supports two RJ45 Gigabit ports. The module inserts into the expansion slot at the rear of 24- and 48-port OS6450 switches,

Item Description

A B

Captive Screws RJ45 Ports

OS6450-GNI-U2

The OS6450-GNI-U2 is an optional uplink module that supports two SFP Gigabit transceivers. The module inserts into the expansion slot at the rear of 24- and 48-port OS6450 switches,

Item Description

A B

Captive Screws SFP ports

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-33

Expansion Modules OmniSwitch 6450 Chassis and Hardware Components

OS6450-XNI-U2

The OS6450-XNI-U2 is an optional 10 Gigabit stacking module that supports two SFP+ 10 Gigabit ports. The module inserts into the expansion slot at the rear of 24- and 48-port OS6450 switches.

Note. Uplink mode is not supported on OS6450-XNI-U2 stacking modules.

Item Description

A B

Captive Screws SFP+ 10 Gigabit ports.

page 2-34 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components OmniSwitch 6450 Internal Backup Power Supplies

OmniSwitch 6450 Internal Backup Power Supplies

Backup power supplies are fully operational and may share the load with the primary power supply, remaining operational in the event the primary power supply fails unexpectedly. If a failover occurs, the backup power supply automatically takes up the full power load without disrupting the switch.

PS-90W-AC 90W AC Power Supply

P/S Component Description

Model PS-90W-AC (Marketing Number OS6450-BP) Platform(s) Supported OmniSwitch 6450-2 4, Om niSwitch 6450-48 or

OmniSwitch 6450-U24 Installation Inserts into backup power supply bay at rear of chassis Input Voltage Range 90-264 VAC Rated Frequency 47 to 63 Hz Maximum Output Power 90W Output Voltage 12.0 VDC Output Current 7.5 A

PS-90W-DC 90W DC Power Supply

P/S Component Description

Model PS-90W-DC (Marketing Number OS6450-BP-D) Installation Inserts into backup power supply bay at rear of chassis Provides DC power for one non-PoE switch (OmniSwitch 6450-24,

OmniSwitch 6450-48 or OmniSwitch 6450-U2 4) VDC Range -48 to -60 VDC, maximum Output Rating 12V 11.40V to12.60V 0A 7.5 A 7.5 A A 90 W

Note: PS-90W-DC power supply has Input Marking as 36-75VDC. Please note that 36-75VDC is without any tolerance. Please operate this power supply from the range of -48 to -60 VDC (nominal voltage).

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-35

OmniSwitch 6450 External Backup Power Supplies OmniSwitch 6450 Chassis and Hardware Components

OmniSwitch 6450 External Backup Power Supplies

PS-550W-AC-P External 550W AC PoE Power Supply

P/S Component Description

Model PS-550W-AC-P (M arke tin g Nu mber OS6450-BP-PH) Platform(s) Supported OmniSwitch 6450-P24 backup power for system and PoE Installation Rack mounts above or below chassis for a 2RU configuration Maximum System Output Power 140 W Maximum PoE Output Power 410 W Input Voltage Range 100-240 VAC Rated Frequency 47 to 63 Hz Output Voltage 12.0 VDC / 54.5 VDC Output Current 12.5 A / 7.34 A

PS-900AC-P External 900W AC PoE Power Supply

P/S Component Description

Model PS-900AC-P (Marketing Number OS6450-BP-PX) Platform(s) Supported OmniSwitch 6450-P48 backup power for system and PoE Installation Rack mounts above or below chassis for a 2RU configuration Input Voltage Range 90 to 265 VAC Rated Frequency 47 to 63 Hz Maximum PoE Output Power 780 W Maximum System Output Power 126 W PoE Output Voltage -54.5 VDC PoE Output Current 14.3 A System Output Voltage 12.0 VDC System Output Current 10.5 A

page 2-36 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components Installing Expansion Modules

Alignment groove

Installing Expansion Modules

The expansion module slot is located at the right-hand side of the chassis rear panel. Refer to the rear panel diagrams in the sections above for additional information.

1 If a blank cover plate is in place over the expansion module slot, remove the cover plate by loosening

the two screws at the left and right sides of the cover plate. Store the cover plate for future use.

2 Insert the module circuit board into the grooves at the left side of the expansion module slot. This

groove will ensure that the expansion module and backplane connectors are properly aligned.

3 Once the module circuit board is inse rted in the grooves, slide the module back until the backplane

connectors are fully seated and the module front plate is flush with the front panel of the chassis.

Note. Do not force the module into the slot.

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-37

Installing Expansion Modules OmniSwitch 6450 Chassis and Hardware Components

4 When the module is seated in the chassis slot, hand tighten the thumb screws at the left and right sides

of the module’s front plate.

5 Install transceivers and connec t network cables as required. Refer to the OmniSwitch 6250/6450

Transceivers Guide for additional information.

Note. If installing the OS6450-XNI-U2 stacking module, refer to the Chapter 6, “Managing OmniSwitch 6450 Stacks” for information on stacking cable requirements.

page 2-38 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components Removing Expansion Modules

Removing Expansion Modules

1 If applicable, remove any attached network cables from the module. 2 Loosen the thumb screws at the left and right sides of the module’s front plate.

3 When the thumb screws are loosened and the module front plate is free from the chassis, grasp the

thumbscrews and pull the module straight out of the chassis. Store the module in a static-free environment (e.g., an anti-static bag).

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-39

Removing Expansion Modules OmniSwitch 6450 Chassis and Hardware Components

4 If the expansion module is not being replaced with another module, be sure to install a blank plate over

the slot opening.

page 2-40 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components Installing Power Supplies

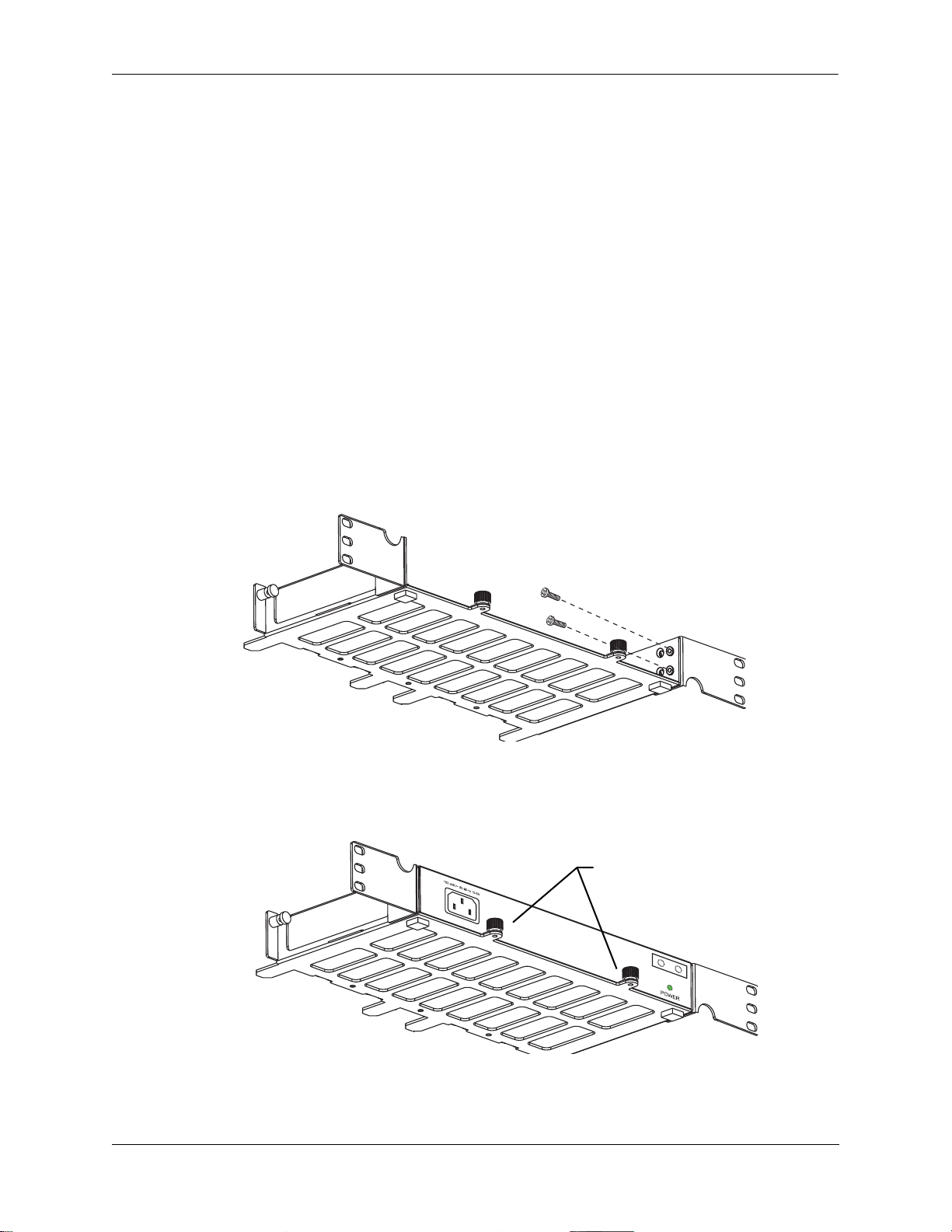

Installing Power Supplies

1 Insert the power supply into the back of the chassis, as shown.

2 Slide the power supply back until it is securely seated in the chassis backplane.When the power supply

is fully seated, hand-tighten the thumb screws.

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-41

Installing Power Supplies OmniSwitch 6450 Chassis and Hardware Components

Completed Installation

3 Plug the power cord (provided) into the power supply’s socket.

page 2-42 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components Installing Power Supplies

Removing Power Supplies

1 When removing a power supply, first disconnect the power cord from the power source. Once the

power cord is disconnected, pull the power cord out of the power supply housing.

2 Loosen the thumb screws at the left and right sides of the power supply face plate.

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-43

Installing Power Supplies OmniSwitch 6450 Chassis and Hardware Components

3 Slide the power supply out of the chassis.

Note. If you are not replacing the power supply, be sure to install a blank cover panel over the empt y

power supply bay.

page 2-44 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components AC Power Cords

Power Cord Types User Side Connectors

North America NEMA 5-15-P United Kingdom / Ireland BS 1363 UK Europe CEE 7/7 Japan JIS 8303 Australia AS 3112 India BS 546 Italy CIE 23-16 Switzerland / Liechtenstein SEV 1011 Denmark / Greenland SRAF 1962 / DB 16/87 Argentina A-10

IEC-60320-C13

AC Power Cords

Since the power cord is the switch’s only disconnect device, it should be plugged into an easily accessible outlet. In the event that your power cord is lost or damaged, refer to the specifications below.

Specifications

The power cord included with this product contains three (3) in sulated #18AWG stranded copper wires and is rated between 85-265 VAC (region dependent), 10 amps with a nominal length of 2 meters. The female end terminates in an IEC-60320-C13 attachment plug and the male end termination varies dependent upon region, as listed below.

European cords must be Harmonized (HAR) type. Refer to the information below for power plug types by region:

Power Cord Specifications

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-45

Console Port OmniSwitch 6450 Chassis and Hardware Components

Console Port

The console port, located on the chassis front panel, provides a console connection to the switch and is required when logging into the switc h for the first time. By default, this RJ-45 connector provides a DTE console connection.

Serial Connection Default Settings

The factory default settings for the serial connection are as follows:

baud rate 9600 parity none data bits (word size) 8 stop bits 1 flow control none

page 2-46 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components Port Pinouts

Port Pinouts

RJ-45 Console Port – Connector Pinout

Pin Number Signals as DTE Console Port

1NC 2NC 3RXD 4Ground 5Ground 6TXD 7NC 8NC

10/100 Ethernet Port – RJ-45 Pinout (non-PoE)

Pin Number Description

1RX+ 2RX3TX+ 4 not used 5 not used 6TX7 not used 8 not used

Gigabit Ethernet Port – RJ-45 Pinout

Pin Number Description

1BI_DB+ 2BI_DB3BI_DA+ 4BI_DD+ 5BI_DD6BI_DA7BI_DC+ 8BI_DC-

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-47

Overtemp Condition OmniSwitch 6450 Chassis and Hardware Components

10/100/1000 Mbps Power over Ethernet Port – RJ-45 Pinout

Pin Number Description

1 RX+ (-VDC) 2 RX- (-VDC) 3TX+ (+VDC) 4 5 6 TX- (+VDC) 7 8

Overtemp Condition

The OmniSwitch is designed to operate within a specified operating temperature as noted under the specifications section. However, in the event that the normal operating temperature of the switch is exceeded, the following will occur:

• Upon crossing the configured Upper Threshold, a trap will be sent. (See the OmniSwitch 6250/6450

Network Configuration Guide for information on configuring switch thresholds.)

If the temperature continues to rise and reaches the Danger Threshold, the following will occur:

• OK LED will display solid Amber.

• The switch will automatically shutdown

• Once the temperature drops to an acceptable operating level, the switch will automatically restart.

Check the following if an overtemp condition exists:

• Verify that the switch is installed properly in an environment that adheres to the installation

instructions in the following chapters.

• Verify proper airflow to the chassis.

• Time of the failure

Use the snmp station command and refer to the SNMP Configuration chapter for information on configuring an SNMP station.

page 2-48 OmniSwitch 6450 Hardware Users Guide January 2015

OmniSwitch 6450 Chassis and Hardware Components Dying Gasp

Dying Gasp

If the switch loses all power it will maintain power long enough to send a Dying Gasp message before completely shutting down. An SNMP trap, Syslog message and Link OAM PDUs will be generated.

Scenarios

A Dying Gasp event will be generated in the following scenarios:

• Primary power supply failure (if only power supply present).

• Primary power supply failure and then backup power supply failure.

• Backup power supply failure and then primary power supply failure.

• When a reload command is issued.

• When a takeover command is issued.

Note. Dying gasp will not work when both primary and backup power supplies fail simultaneously.

Connect each power supply to a separate independent power source to avoid simultaneous power failures.

SNMP Trap

As soon as the power failure is detected, an SNMP trap is se nt to the first three configured SNMP stations. The trap includes the follow ing information:

• Slot number

• Power supply type (primary/backup)

• Time of the failure

Use the snmp station command and refer to the SNMP Configuration chapter for information on configuring an SNMP station.

Syslog Message

As soon as the power failure is detected, the following Syslog message is sent to the first four configured Syslog servers, along with the time of the failure:

Dying Gasp Power Failure Event Occurred

Use the swlog output socket command to add a Syslog station. Refer to the Using Switch Logging Configuration chapter in the OmniSwitch 6250/6450 Network Configuration Guide for information on

configuring a Syslog server.

OmniSwitch 6450 Hardware Users Guide January 2015 page 2-49

Dying Gasp OmniSwitch 6450 Chassis and Hardware Components

Link OAM PDU

As soon as the power failure is detected an 802.3ah OAM Information PDU is sent to all ports for which link OAM is enabled and the LinkOAM port statu s is operational. The PDU will have the Dying Gasp bit set.

Use the efm-oam and efm-oam port propagate-events commands to enable the generation of an

802.3ah OAM Information PDU upon a dying gasp event:

-> efm-oam enable

-> efm-oam port 2/1-10 propagate-events dying-gasp enable

Link OAM PDU Priority

It may not be possible to generate PDUs on all ports enabled for link OAM. Dying gasp packets will be sent in the following order based on port priority:

1. Uplink ports

2. Combo ports

3. All other ports

page 2-50 OmniSwitch 6450 Hardware Users Guide January 2015

3 Mounting

OmniSwitch 6450 Switches

This chapter covers different mounting and installation options. OmniSwitch 6450 switches may be either table- or rack-mounted. 24- and 48-port OmniSwitch 6450 swit ches are rack mounted using factoryinstalled rack mount flanges. 10-port (1/2 width) switches may be rack mounted using available rack mounting kits. Refer to “Available 10-Port Rack-Mounting Kits” on page 3-5 for details.

Anti-Static Warning. Before handling any components, free yourself of static by wearing a grounding strap or by grounding yourself properly. Static discharge can damage the switch and related components.

OmniSwitch 6450 Hardware Users Guide January 2015 page 3-1

General Installation Recommendations Mounting OmniSwitch 6450 Switches

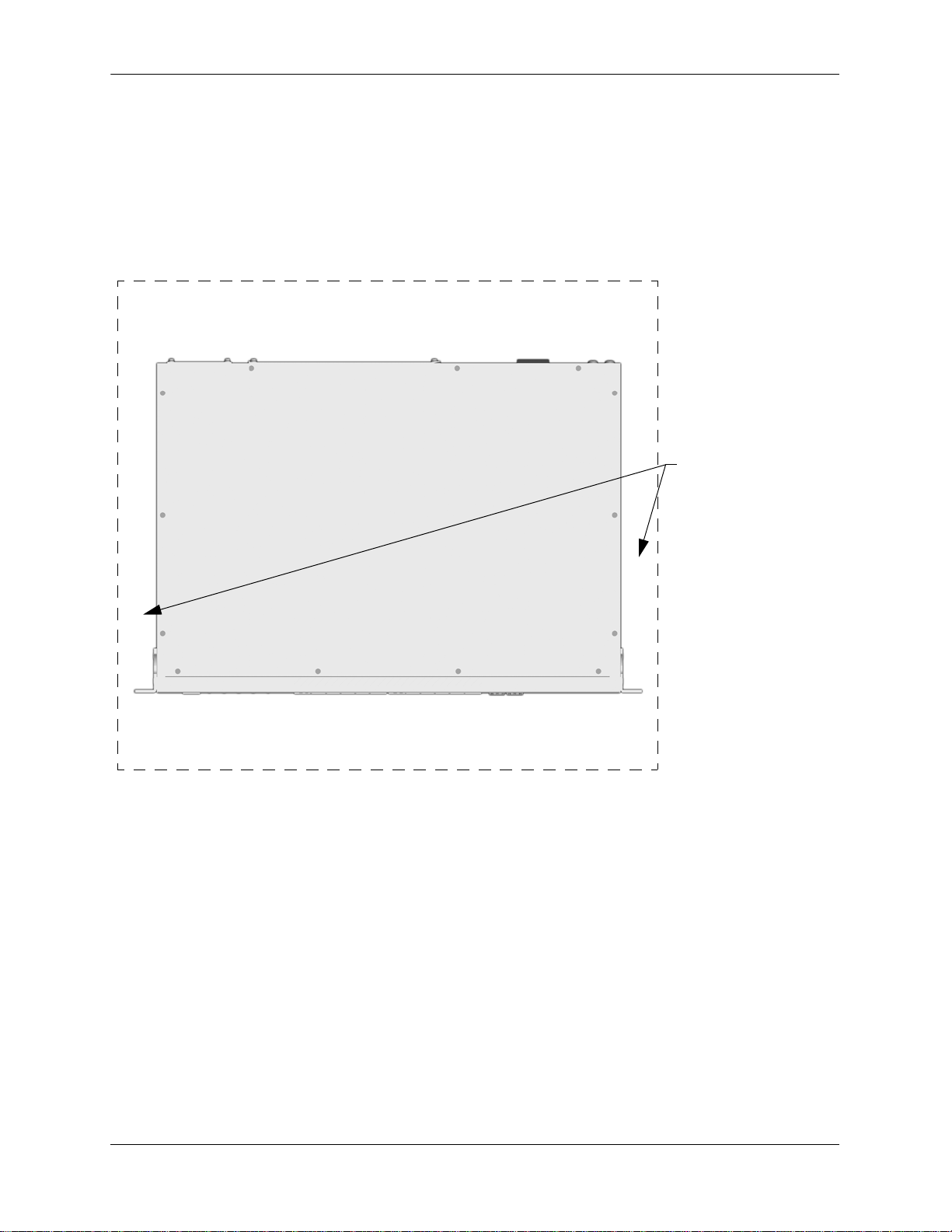

6 inches minimum at front of chassis.

2 inches minimum at left and right sides.

}

6 inches minimum at rear of chassis.

General Installation Recommendations

Airflow Recommendations

To ensure proper airflow, be sure that your switch is pl aced i n a wel l-ventilated area and provide minimum recommended clearance at the front, back and sides of the switch, as shown below. Restricted airflow can cause your switch to overheat, which can lead to switch failure.

24- and 48-Port Chassis Types

page 3-2 OmniSwitch 6450 Hardware Users Guide January 2015

Mounting OmniSwitch 6450 Switches General Installation Recommendations

6 inches minimum at front of chassis.

2 inches minimum at left and right sides.

}

6 inches minimum at rear of chassis.

10-Port Chassis Types

Note. Clearance is not required at the top and bottom of the chassis. Clearance recommendations at the

front and rear of chassis are for access to cabling and components only and are not intended as a specific airflow requirement.

Reduced Air Flow

Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised.

Elevated Operating Ambient Temperatures

If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.

OmniSwitch 6450 Hardware Users Guide January 2015 page 3-3

Table-Mounting OS6450 Switches Mounting OmniSwitch 6450 Switches

Mechanical Loading

Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading.

Circuit Overloading

Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the circuit might have on overcurrent protectio n and suppl y wi ring. Appropriate consideration of equipment nameplate ratin gs should be used when addressing this concern.

Reliable Earthing

Reliable earthing of rack-mount equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).

Table-Mounting OS6450 Switches

General Table-Mounting Guidelines

OmniSwitch 6450 switches can be installed freestanding as tabletop-mounted units. If you will be tablemounting your switch(es), refer to the important guidelines below before installing.

• When choosing a location for the switch, be sure that adequate clearance has been provided for chassis

airflow and access to the front, back, and sides of the chassis. For recommended clearances, refer to

“Airflow Recommendations” on page 3-2.

• The power cord measures two (2) meters (approximately 6.5 feet) in length. When table mounting the

switch, be sure that the mounting location is within the reach of all the required power sources.

Table-Mounting Installation

1 Locate the four indentations on the bottom of the chassis. 2 Using the adhesive on the rubb er feet attach them to the indentations, pressing firmly to ensure they are

properly adhered. Place the chassis on the table as desired.

page 3-4 OmniSwitch 6450 Hardware Users Guide January 2015

Mounting OmniSwitch 6450 Switches Rack-Mounting 10-Port OS6450 Switches

Rack-Mounting 10-Port OS6450 Switches

The following kits are available for rack mounting 10-port (1/2 width) OmniSwitch 6450 switches.

Note. Some factory-installed screws may need to be removed prior to mounting, depending on the kit being used.

Available 10-Port Rack-Mounting Kits

Kit Description

OS6450-RM-19-L Simple L-bracket for mounting one OS6450-10 or OS6450-P10 unit in a

19" rack. See page 3-6 for installation instructions.

OS6450-DUAL-MNT Two universal mounting and sliding brackets for mounting two OS6450-10

or OS6450-P10 units in a 19" rack. See page 3-6 for installation instructions.

Note. For information on rack mounting full width 24- and 48-port OS6450 switches, refer to

“Rack-Mounting 24 and 48-Port OS6450 Switches” on page 3-10.

General Rack-Mounting Guidelines

If you will be rack-mounting your switch(es), refer to the important guidelines below before installing.

• It is recommended that two people install the switch assembly on the rack—one person to hold the

chassis and position it on the rack, and a second person to secure the chassis to the rack using attachment screws. (Please note that Alcatel-Lucent does not provide rack-mount screws. Use the screws supplied by the rack vendor.)

• To prevent a rack from becoming top heavy, it is recommended that you install heavier equipment at

the bottom of the rack, whenever possible.

• Review page 3-2 for recommended chassis clearances before installing.

• If you are installing the switch on a relay rack, be sure to install and secure the rack per the rack

manufacturer’s specifications.

OmniSwitch 6450 Hardware Users Guide January 2015 page 3-5

Installing Available Rack Mounting Kits Mounting OmniSwitch 6450 Switches

When rack mounting, a clearance of 0.875 inches is recommended above the chassis.

No minimum clearance is required below the chassis assembly. However, be sure that the bottom of the chassis is not in direct contact with any equipment below.

Installing Available Rack Mounting Kits

Note. Some factory-installed screws may need to be removed prior to mounting, depending on the kit

being used.

Installing the OS6450-RM-19-L Rack Mount Kit

A single chassis can also be mounted into a standard 19-inch rack using L-brackets, as shown in the figure below.

1 Attach rack mount brackets to both sides of the front of the chassis.The long and short bracket can be

mounted on either side of the chassis.

2 Align the holes in the flanges with the rack holes and insert rack moun t screws (not provided) through

the bottom hole of each flange and then the top of each flange. Tighten both screws until they are secure

Attach Rack Mount Brackets

Rack-mounting Single Chassis

page 3-6 OmniSwitch 6450 Hardware Users Guide January 2015

Mounting OmniSwitch 6450 Switches Installing Available Rack Mounting Kits

Slot -bracket

Plate and Screws

Power Supply Tray Rear Bracket (Not used)

Front center mounting brackets.

Rear center brackets.

Installing the OS6450-DUAL-MNT Rack Mount Kit

Two chassis can be assembled side-by-side for mounting into a standard 19-inch rack as show in the figure below.

OmniSwitch 6450 Hardware Users Guide January 2015 page 3-7

Fully Assembled Side-by-Side Chassis Assembly

1 Attach the slot-brackets and slide-brackets to the front and back of the chassis using the attachment

screws (M3 flat head) provided for each bracket.

Attach Slot/Slide-Brackets

Installing Available Rack Mounting Kits Mounting OmniSwitch 6450 Switches

Slide chassis together

Bracket Plate and Screws

2 Align the chassis and slide both front and rear center brackets together.

Slide Chassis Together

3 Place bracket plate over front and rear brackets and secure with thumb screws.

Secure Front and Back with Bracket Plate

4 Attach rack mount brackets to both sides of the front of the chassis.

Attach Rack Mount Brackets

5 Using one additional person, lift and position the assembly on the rack until the rack-mount flanges are

flush with the rack post.

page 3-8 OmniSwitch 6450 Hardware Users Guide January 2015

Mounting OmniSwitch 6450 Switches Installing Available Rack Mounting Kits

When rack mounting, a clearance of

0.875 inches is recommended above the chassis.

No minimum clearance is required below the chassis assembly. However, be sure that the bottom of the chassis is not in direct contact with any equipment below.

6 Align the holes in the flanges with the rack holes and insert rack moun t screws (not provided) through

the bottom hole of each flange and then the top of each flange. Tighten both screws until they are secure.

Rack-mounting Two Chassis

OmniSwitch 6450 Hardware Users Guide January 2015 page 3-9

Rack-Mounting 24 and 48-Port OS6450 Switches Mounting OmniSwitch 6450 Switches

Rack-Mounting 24 and 48-Port OS6450 Switches

Note. For information on rack mounting half width 10-port OS6450 switches, refer to “Rack-Mounting

10-Port OS6450 Switches” on page 3-5.

Refer to the important guidelines below before installing the OmniSwitch 6450 chassis on a rack.

Note. When rack mounting multiple switches in a stacked configuration, be sure to place all switches in vertically-adjacent rack positions. This will ensure that all required stacking cables will have adequate length for the installation.

• It is recommended that two people install the switch on the rack—one person to hold the chassis and

position it on the rack, and a second person to secure the chassis to the rack using attachment screws (not supplied).

• Alcatel-Lucent provides two rack-mount flanges with each OmniSwitch 6450 switch. These flanges

support standard 19-inch rack-mount installations. These flanges must be attached to the chassis before the switch can be rack mounted.

Note. If you are installing the switch in a 23-inch-wide rack, Alcatel-Lucent offers optional 23-inch rackmounting hardware. For more information, contact your Alcatel-Lucent representative.

• Alcatel-Lucent does not provide rack-mount screws. Use the screws supplied by the rack vendor.

• To prevent a rack from becoming top heavy, it is recommended that you install heavier equipment at

the bottom of the rack, whenever possible.

• If you are installing the switch on a relay rack, be sure to install and secure the rack per the rack manu-

facturer’s specifications.

• Review “Airflow Recommendations” on page 3-2 for important chassis airflow and access recommen-

dations before installing.

page 3-10 OmniSwitch 6450 Hardware Users Guide January 2015

Mounting OmniSwitch 6450 Switches Rack-Mounting 24 and 48-Port OS6450 Switches

Rack Mounting Steps

1 Attach rack mount brackets to both sides of the chassis as shown.

2 Mark the holes on the rack where the switch is to be installed. 3 Lift and position the switch until the rack-mount brackets are flush with the rack post, then align the

holes in the brackets with the rack holes that were marked at step 1.

4 Once the holes are aligned, insert a rack mount screw (not provided) through the bottom hole of each

bracket. Tighten both screws until they are secure.

Note. Be sure to install the screws in the bottom hole of each bracket, as shown, before proceeding.

OmniSwitch 6450 Hardware Users Guide January 2015 page 3-11

Rack-Mounting 24 and 48-Port OS6450 Switches Mounting OmniSwitch 6450 Switches

5 Once the screws at the bottom of each bracket are secure, install the remaining two rack mount screws.

Be sure that all screws are securely tightened.

page 3-12 OmniSwitch 6450 Hardware Users Guide January 2015

Mounting OmniSwitch 6450 Switches Installing External PoE Power Supplies

Captive Screws

Installing External PoE Power Supplies

The following external power supplies provided PoE and backup system power for OmniSwitch 6450 PoE-ready switches:

• PS-550W-AC-P (OS6450-P24)

• PS-900AC-P (OS6450-P48)

These power supplies may be rack mounted above or below the chassis for a 2RU configuration. The following sections describe how to rack-mount a power supply shelf and connect the power supply to the chassis with a cable.

Rack Mounting Power Supplies

1 Align the threaded holes in the provided rack-mount flanges with the two holes in the power supply

shelf. These holes are located on the left and right sides of the shelf.

2 Attach the flanges to the chassis using the provided Phillips-head screws. The screws slide through the

non-threaded holes from the inside of the power supply shelf and are then attached to the mounting brackets using the threaded holes. Be sure to tighten each of the screws firmly using a Phillips screwdriver.

3 Carefully slide the power supply on to the power shelf and secure the power supply to the shelf using

the captive screws.

4 After the rack-mount flanges and the power supply are secured to the shelf, mark the holes on the rack

where the shelf is to be installed.

OmniSwitch 6450 Hardware Users Guide January 2015 page 3-13

Installing External PoE Power Supplies Mounting OmniSwitch 6450 Switches

Chassis Connector

Power Supply Connector

5 Lift and position the shelf until the rack-mount flanges are flush with the rack post. 6 Align the holes in the flanges with the rack holes that were marked earlier. 7 Once the holes are aligned, insert a rack mount screw (not provided) through the bottom hole of each

flange. Tighten both screws until they are secure.

Note. Be sure to install the screws in the bottom hole of each flange, as shown, before proceeding.

8 Once the screws at the bottom of each flange are secure, install the remaining two rack mount screws.

Be sure that all screws are securely tightened.

Connecting the Power Supply Cable

Follow the steps below to connect a power supply with a cable:

1 Be sure the switch and power shelf are securely fastened to the rack. 2 Connect the proper end of the supplied power supply cable to the appropriately labeled connector at the

rear of the chassis and tighten securely.

3 Connect the other end of the power supply cable to the power supply and securely tighten.

4 Connect the power cord to the p ower supply.

page 3-14 OmniSwitch 6450 Hardware Users Guide January 2015

Mounting OmniSwitch 6450 Switches Connecting Chassis to Power Source

MIN 1 TURN PER 1.5

HALF TURN PER .75

DC Power Supply Considerations

DC power supplies have the following additional considerations:

• Connect to a -48V or -60V reliably grounded DC SELV source.

• Use common DC return connections for the DC power supplies. The DC return terminal conductor

• should be connected to the equipment frame.

• The Branch Circuit Overcurrent Protection must be rated a Maximum of 15A.

• Use 12AWG solid conductors only.

• A readily accessible disconnect device that is suitably approved and rated shall be incorporated in the

field wiring.

Twisted pair wire (red and black) for a DC power supply

Connecting Chassis to Power Source

AC Power Supply Connections

Powering On a Chassis

Follow the steps below to power on the chassis using and AC po wer source:

1 Connect the IEC-60320-C15 end of the supplied power cord to the chassis. 2 Connect power supply to AC power source. 3 Monitor the chassis as it boots.

OmniSwitch 6450 Hardware Users Guide January 2015 page 3-15

Connecting Chassis to Power Source Mounting OmniSwitch 6450 Switches

page 3-16 OmniSwitch 6450 Hardware Users Guide January 2015

4 Booting

OmniSwitch 6450 Switches

For information on booting stand-alone switches and switches in stacked configurations, refer to the sections below.

Booting an OmniSwitch

The switch does not use an on/off switch. The power cord is the switch’s only connect/disconnect device. The power connector socket is located on the power supply rear panel. For more information, refer to

“OmniSwitch 6450 Chassis and Hardware Components” on page 2-1.

To boot the switch, plug the power cord into an easily-accessible power source, such as a grounded AC outlet or an Uninterruptible Power Supply (UPS).

The switch immediately begins the boot process. Allow a few moments for the switch to boot co mpletely, then verify the status of all LEDs on the switch’s front panel. A successful boot disp lays the following LED states:

LED States for a Stand-Alone Switch

OK Solid green or blinking amber PRI Solid green STK Off or solid amber PWR Solid Green

LED States for a Stacked Switch

OK Solid green or blinking amber PRI Solid green (Primary); Amber (Secondary); Off (Idle) STK Green PWR Solid Green

If any of the LED state differs from the states shown in the table above, refer to page 2-5 for more information. Contact Alcatel-Lucent Customer Support if the LED state persists.

For information on logging in and configuring your switch, refer to the OmniSwitch 6450 Getting Started Guide.

OmniSwitch 6450 Hardware Users Guide January 2015 page 4-1

Console Port Booting OmniSwitch 6450 Switches

Console Port

Serial Connection Default Settings

The factory default settings for the serial connection are as follows:

baud rate 9600 parity none data bits (word size) 8 stop bits 1 flow control none

Modifying the Serial Connection Settings

The switch’s serial connection defaults are listed above. If you wish to modify the default serial connection settings (i.e., baud rate, parity, data bits, and stop bits), refer to the following steps:

Note. You must be connected to the switch via the console port before attempting to change serial connection settings. Otherwise, an error message will display.

For switches in a stacked configuration, all changes must be configured before the switches are cabled together. In other words, you must configure these settings when each switch is operating as a stand-alone unit.

1 Enter the modify boot parameters command at the CLI prompt. The boot prompt displays:

Boot >

2 To change the baud rate, enter boot serialbaudrate, followed by the desired baud rate va lue . Opt io ns

include 1200, 2400, 4800, 9600 (default), 19200, 38 400, 57600, 76800, and 115200. For example:

Boot > boot serialbaudrate 19200

Note. Setting the console port to speeds above 9600 baud can cause problems with Zmodem uploads.

3 To change the parity value, enter boot serialparity, followed by the desired parity value. Options

include none (default), even, and odd. For example:

Boot > boot serialparity even

4 To change the data bits (i.e., word size) value , enter boot serialwordsize, followed by the number of

data bits. Options include 7 and 8 (default). For example:

Boot > boot serialwordsize 7

page 4-2 OmniSwitch 6450 Hardware Users Guide January 2015

Booting OmniSwitch 6450 Switches Console Port

5 To change the stop bits value, enter boot serialstopbits, followed by the number of stop bits. Options

include 1 (default) and 2. For example:

Boot > boot serialstopbits 2

6 Verify your current changes by entering show at the boot prompt:

Boot > show Edit buffer contents: Serial (console) baud : 19200 Serial (console) parity : even Serial (console) stopbits : 2 Serial (console) wordsize : 7

(additional table output not shown)

7 You can save your changes to the boot.params file by entering commit file at the boot prompt:

Boot > commit file

When the commit file command is used, changes will not be enabled until after the next switch reboot.

8 You can also save your changes in real time to the switch’s running memory by entering commit

system at the boot prompt:

Boot > commit system

Caution. There are two important things to consider when using the commit system command to save serial connection changes:

• Output to the terminal may become illegible due to incomp at ibl e serial connection settings between the

switch and the terminal emulation software.

• If you use the commit system command only, changes will not be saved to the switch’s boot.params

file and will be lost if the switch is rebooted. To save changes to the boot.params file, refer to step 7.

9 Return to the CLI prompt by entering exit at the boot prompt.

OmniSwitch 6450 Hardware Users Guide January 2015 page 4-3

Monitoring the Chassis Booting OmniSwitch 6450 Switches

Monitoring the Chassis

The OmniSwitch can be monitored and managed via the console port using Command Line Interface (CLI) commands. The switches can also be monitored and managed via the Ethernet using CLI commands, WebView, SNMP, and OmniVista.

The section below provides some examples of useful hard ware-related monitoring CLI commands. Refer to the OmniSwitch 6250/6450 CLI Reference Guide for detailed information on all management and monitoring commands used with the OmniSwitch.

Checking the Overall Chassis Status

To check the overall status of a chassis, including the chassis type, and current administrative and operational status, use the show chassis command. For example:

-> show chassis

Chassis 1 Model Name: 6450 10 PORT COPPER GE, Description: Virtual Chassis, Part Number: 903005-90, Hardware Revision: 03, Serial Number: M338153P, Manufacture Date: AUG 13 2011, Admin Status: POWER ON, Operational Status: UP, Number Of Resets: 4 MAC Address: e8:e7:32:12:e6:6e,

For a complete list of output definitions for this command, refer to the OmniSwitch 6250/6450 CLI Reference Guide.

Checking the Temperature Status

To check chassis temperature status, including the current temperature and configured threshold values, use the show temperature command. For example:

-> show temperature

Temperature for chassis 1 Hardware Board Temperature (deg C) = 54, Temperature Upper Threshold Range (deg C) = 0 to 85, Temperature Upper Threshold (deg C) = 81, Temperature Status = UNDER THRESHOLD, Temperature Danger Threshold (deg C) = 85

For a complete list of output definitions for this command, refer to the OmniSwitch 6250/6450 CLI Reference Guide.

page 4-4 OmniSwitch 6450 Hardware Users Guide January 2015

Booting OmniSwitch 6450 Switches Monitoring the Chassis

Viewing the Power Supply Status

To check the status of the power supply, use the show power command. For example:

-> show power

Slot PS Wattage Type Status Location

----+----+---------+------+-----------+--------- 1 1 30 AC UP Internal

Additional Monitoring Commands

CLI Commands Used for Monitoring a Chassis

show cmm Displays the basic hardware and status information for primary and

secondary management modules (if applicable).

show ni Displays the basic hardware and status information for individual mod-

ules. If the switch is a standalone, information for the stand alone switch displays.

show module Displays the basic information for individual modules. If the switc h is a

standalone, information for th e stand-alone switch displays.

show module long Displays the detailed information for individual modules. If the switch

is a standalone, information for the standalone switch displays.

show module status Displays the basic status information for individual modules. If the

switch is a standalone, information for the standalone switch displays.

Using LEDs to Visually Monitor the Chassis

The front and rear panel of provides status LEDs that are usef ul in visually monitoring the status of the switches. LEDs include:

• Ethernet Port LEDs

• System Status LEDs

• Combo Port Status LEDs

For tables showing LED states operating normally, refer to “OmniSwitch 6450 LED Status” on page 2-32.

OmniSwitch 6450 Hardware Users Guide January 2015 page 4-5

Monitoring the Chassis Booting OmniSwitch 6450 Switches

page 4-6 OmniSwitch 6450 Hardware Users Guide January 2015

5 Managing Power over Ethernet

(PoE)

Power over Ethernet (PoE) is supported on OmniSwitch 6450 switches and provides inline power directly from the switch’s Ethernet ports. Powered Devices (PDs) such as IP phones and wireless APs can be powered directly from the switch’s RJ-45 ports.

As the feature reduces devices’ dependence on conventional power sources, PoE eliminates many restrictions that traditional electrical considerations have imposed on networks.

In a PoE configuration, Power Source Equipment (PSE) detects the presence of a PD and provides an electrical current that is conducted along the data cable. The PD operates using the power received via the Ethernet data cable; no connection to an additional power source (e.g., an AC wall socket) is required.

Note on Terminology. There are several general terms used to describe this feature. The terms Power over Ethernet (PoE), LAN Power, Power over LAN (PoL), Power on LAN (PoL), and Inline Power are

synonymous terms used to describe the powering of attached devices through Ethernet ports. This documentation refers to the feature as Power over Ethernet (PoE) and related CLI commands use the syntax, lanpower.

Additional terms, such as Powered Device (PD) and Power Source Equipment (PSE) are terms that are not synonymous, but are directly related to PoE.

• PD refers to any attached device that uses a PoE data cable as its only source of power. Examples

include access points such as IP telephones, Ethernet hubs, wireless LAN stations, and so on.

• PSE refers to the actual hardware source of the electrical current for PoE.

As the OmniSwitch 6450 switches fully support Ethernet connectiv it y, you may also attach non-PD equipment, such as computer worksta tions, printers, servers, etc. to PoE ports. See Chapter 2,

“OmniSwitch 6450 Chassis and Hardware Components,” for more information on the OmniSwitch 6450

chassis.

Important. Alcatel-Lucent recommends that PoE-enabled switches with attached IP telephones should have operational power supply redundancy at all times for 911 emergency requirements. In addition, both the switch and the power supply should be plugged into an Uninterruptible Power Source (UPS).

OmniSwitch 6450 Hardware Users Guide January 2015 page 5-1

In This Chapter Managing Power over Ethernet (PoE)

In This Chapter

This chapter provides specifications and descriptions of hardware and software used to provide PoE for attached devices.

The chapter also provides information on configuring PoE settings on the switch through the Command Line Interface (CLI). CLI commands are used in the configuration examples; for more details about the syntax of commands, see the OmniSwitch 6250/6450 CLI Reference Guide. Topics and configuration procedures described in this chapter include:

• Power over Ethernet Specifications on page 5-3

• Viewing Power Status on page 5-4

• Configuring Power over Ethernet Parameters on page 5-4

• Understanding Priority Disconnect on page 5-8

• Monitoring Power over Ethernet via the CLI on page 5-10

Note. You can also monitor all chassis components and manage many chassis features, including Power

over Ethernet, with WebView, Alcatel-Lucent’s embedded web-based device management application. WebView is an interactive and easy-to-use GUI that can be launched from the OmniVista or a web browser. Please refer to WebView’s Online Documentation for more information.

page 5-2 OmniSwitch 6450 Hardware Users Guide January 2015

Power over Ethernet Specifications

The table below lists general specifications for Alcatel-Lucent’s Power over Ethernet support. For more detailed power supply and Power Source Equipment (PSE) specifications, refer to Chapter 2,

“OmniSwitch 6450 Chassis and Hardware Components.”

IEEE Standards supported*

Default PoE administrative status Enabled Default PoE operational status Disabled (PoE must be activated on a switch-

Models supporting PoE OS6450-P10, OS6450-P10S, OS6450-P24,

Cable distances supported 100 meters (approx.) PoE-capable ports per switch 8 (OS6450-P10 and OS6450-P10S)

Default amount of inline power available* 3100 0 milliwatts Range of inline power allowed* 3000 - 31000 milliwatts

PoE Power Available* OmniSwitch 6450-P10: ~ 90W

IEEE 802.3at HPoE and IEEE 802.3at on OS6450-P10S only, on ports 1 through 4; see important note below.

by-switch basis via the lanpower start command.)

OS6450-P48

24 (OS6450-P24) 48 (OS6450-P48)

3000 - 75000 milliwatts (OS6450-P10S only, on ports 1 through 4; see important note below.)

OmniSwitch 6450-P10S: ~ 280W OmniSwitch 6450-P24: ~ 410W OmniSwitch 6450-P48: ~ 780W

* For OS6450-P10S switches, PoE support of up to ~75W per port is provided on ports 1 through 4. These ports are labeled “HPoE” on the chassis front panel. HPoE at ~75W per port must be enabled via the lanpower power command. PoE support of up to 30W per port is provided on PoE ports 5 through 8. The maximum PoE power budget available for all ports is 280W.

OmniSwitch 6450 Hardware Users Guide January 2015 page 5-3

Viewing PoE Power Supply Status Managing Power over Ethernet (PoE)

Viewing PoE Power Supply Status

To view the current status of power supplies installed, use the show power command, as shown below:

-> show power Slot PS Wattage Type Status Location

----+----+---------+------+-----------+--------- 1 1 900 AC UP Internal 1 2 900 AC UP External

For detailed information on the show power command output, refer to the OmniSwitch 6250/6450 CLI Reference Guide.

Configuring Power over Ethernet Parameters

Power over Ethernet Defaults

The following table lists the defaults for PoE configuration:

Parameter Description Command(s) Default Value/Comments

PoE operational status lanpower start or lanpower stop Disabled Total power available to a port lanpower power Varies depending on chassis and

power supply type. For more information, refer to product specifications in Chapter 2.

Total PoE power available to an entire chassis

Power priority level for a port lanpower priority Low Priority disconnect status lanpower priority-disconnect Enabled

lanpower maxpower Varies depending on chassis and

power supply type. For more information, refer to product specifications in Chapter 2.

Understanding and Modifying the Default Settings

The sections below provide information on each of the key components within the Power over Ethernet software. They include information on PoE-related CLI commands. For detailed information on PoErelated commands, refer to the OmniSwitch 6250/6450 CLI Reference Guide.

Note. PoE units support different wattage power supplies. If an unsupported power supply is used, a console message and a trap are generated.

page 5-4 OmniSwitch 6450 Hardware Users Guide January 2015

PoE Class Detection

Powered devices can be classified into different classes as shown in the table below. Class detection allows for automatic maximum power adjustment based on the power class detected. This will prevent the switch from delivering more than the maximum power allowed based on a device’s class.

During class detection the switch will allocate the maximum amount of power allowed based on the class detected. Once powered, if the device uses less than the maximum the remaining power will be made available for other devices.

Class

Usage Classification

Current (mA)

Power Range (Watts)

Class Description

0 Default 0-4 0.44-30.00 Unimplemented 1 Optional 9-12 0.44-3.84 Very Low Power 2 Optional 17-20 3.84-6.49 Low Power 3 Optional 26-30 6.49-15.40 Mid Power 4 Optional 36-44 15.4-31.00 High Power

Setting the PoE Operational Status

Enabling PoE

By default, Power over Ethernet is administratively enabled in the switch’s system software. However, in order to physically activate PoE, you must issue the lanpower start command on a slot-by-slot basis before any connected PDs will receive inline power.

To activate power to PoE-capable in a switch, enter the corresponding slot number only. For example:

-> lanpower start 1

If power to a particular port has been disconnected via the lanpower stop command, you can reactivate power to the port by specifying both the slot and port in the command line. For example:

-> lanpower start 1/1

Note. You cannot use the slot/port syntax to initially activate PoE on a port. This syntax is intended only to reactivate power to those that have been disconnected via the lanpower stop command. To initially activate PoE, you must use the lanpower start slot syntax only, as described above.

Disabling PoE

To disable PoE on a particular slot or port, use the lanpower stop command. To disable PoE on a specific PoE-capable port, enter a slot/port number. For example:

-> lanpower stop 1/4

To disable PoE for all PoE-capable in a slot, enter the corresponding slot number only. For example:

-> lanpower stop 1

OmniSwitch 6450 Hardware Users Guide January 2015 page 5-5

Configuring Power over Ethernet Parameters Managing Power over Ethernet (PoE)

Configuring the Total Power Available to a Port

By default, each port is authorized by th e sy stem so ft wa re to use up to a maximum amount of milliwatts to power any attached device.

You can either increase or decrease this value based on the range in the specifications table. Increasing the total power available to an individual port may provide a more demanding Powered Device

(PD) with additional power required for operation. Decreasing the total power available to a port helps to preserve inline power and assists in the overall management of the switch’s power budget.

To increase or decrease the total power available to an individual port, use the lanpower power command. Since you are setting the power allowance for an individual port, you must specify a slot/port number in the command line. For example, the syntax

-> lanpower 1/1 power 3000

reduces the power available on port 1 of the switch to 3000 milliwatts. This new value is now the maximum amount of power the port can use to power any attached device (until the value is modified by the user).

Configuring the Total Power Available to a Switch

Like the maximum port power allowance, the system software also provides a maximum slot-wide power allowance. By default, each switch is authorized by the system software to use up to the maximum watts available from the PoE power supply.

As with the maximum port power allowance, the user can either increase or decrease this value based on the range in the specifications table.

Increasing the total power available to a switch may provide more demanding Powered Devices (PDs) with additional power required for operation. Decreasing the total power available helps preserve inline power and assists in the overall management of the switch’s power budget.

Important. Before changing the maximum slot-wide power allowance, you must d isabl e PoE for the slot via the lanpower stop command. Once the new value is assigned, re-enable PoE for the slot via the

lanpower start command.

To increase or decrease the total power available to a slot, use the lanpower maxpower command. Since you are setting the power allowance for an individual slot, you must specify a slot number in the command line. For example, the syntax

-> lanpower 1 maxpower 40

reduces the power allowance of slot 1 to 40 watts. This value is now the maximum amount of power the slot can use to power all attached devices (until the value is modified by the user).

Note. Changing the maximum power available to a slot or port does not reserve or immediately allocate that power. These settings are only used for configuring a maximum amount of power that may be used,

any unused power is still available and remains a part of the overall PoE budget.

page 5-6 OmniSwitch 6450 Hardware Users Guide January 2015

Setting Port Priority Levels

As not all Powered Devices (PDs) connected to the switch have the same priority within a customer network setting, the switch allows the user to specify priority levels on a port-by-port basis. Priority level s include low, high, and critical. The default priority level for a port is low.

• Low. This default value is used for port(s) that have low-priority devices attached. In the event of a

power management issue, inline power to low-priority is interrupted first (i.e., before critical and highpriority).

• High. This value is used for port(s) that have important, but not mission-critical, devices attached. If

other in the chassis have been configured as critical, inline power to high-priority is given second priority.

• Critical. This value is used for port(s) that have mission-critical devices attached, and therefore require

top (i.e., critical) priority. In the event of a power management issue, inline power to critical is maintained as long as possible.

To change the priority level for a particular port, use the lanpower priority command. Since the switch allows you to set priority levels on a port-by-port basis, be sure to specify slot/port information in the command line. For example, the syntax

-> lanpower 1/1 priority critical

changes the priority value of port 1 to the highest priority level of critical. Now that the default value has been reconfigured, this port should be reserved for those PDs that are missi on critical for network operations.

OmniSwitch 6450 Hardware Users Guide January 2015 page 5-7

Understanding Priority Disconnect Managing Power over Ethernet (PoE)

Understanding Priority Disconnect

The priority disconnect function differs from the port priority function described on page 5-7 in that it applies only to the addition of powere d devices (PDs) in tig ht power bu dget condit ions . Priority disc onnect is used by the system software in determining whether an incoming PD will be granted or denied power when there are too few watts remaining in the PoE power budget for an additional device. For example, if there are only 2 watts available in the current PoE power budget and a user plugs a 3.5W powered device into a PoE port, the system software must determine whether the device will be powered on. Based on priority disconnect rules, in some cases one or more existing devices may be powered down in order to accommodate the incoming device. In other cases, the incoming device will be denied power.

Priority disconnect rules involve the port priority status of an incoming device (i.e., low, high, and critical), as well as the port’s physical port number (i.e., 1/1). Understanding priority disconnect rules is especially helpful in avoiding power budget defi cits and the unintentional shutdown of mission-critical devices when PDs are being added in tight power budget conditions. Fo r detailed information on how priority disconnect uses port priority and port number criteria for determining the po we r stat us of incoming PDs, refer to the examples on pages 5-9 through 5-10.

Reminder. Priority disconnect applies only when there is inadequate power remaining in the power budget for an incoming device.

For information on setting the priority disconnect status, refer to the section below. For information on setting the port priority status (a separate function from priority disconnect), refer to “Setting Port Priority

Levels” on page 5-7.

Setting Priority Disconnect Status

By default, priority disconnect is enabled in the switch’s system software. For information on changing the priority disconnect status, refer to the information below.

Disabling Priority Disconnect

When priority disconnect is disabled and there is inadequate power in the budget for an additional device, power will be denied to any incoming PD, regardless of its port priority status (i.e., low, high, and critical) or physical port number (i.e., 1/4).

To disable priority disconnect, use the lanpower priority-disconnect command. Since the switch allows you to set priority disconnect status on a slot-by-slo t basis, be sure to specify the slot number in the command line. For example, the syntax

-> lanpower 1 priority-disconnect disable

disables the priority disconnect function on slot 1.

Enabling Priority Disconnect

To enable priority disconnect, use the lanpower priority-disconnect command. Be sure to specify the slot number in the command line. For example, the syntax

-> lanpower 1 priority-disconnect enable

enables priority disconnect on slot 1.

page 5-8 OmniSwitch 6450 Hardware Users Guide January 2015
