Akg Perception 120 User Manual [ru]
PERCEPTION
120
PERCEPTION
220
User Instructions.............................p. 2
Please read the manual before using the equipment!
Mode d’emploi .............................p. 14
Veuillez lire cette notice avant d’utiliser le système!
2
Page
1 Precaution/Unpacking .....................................3
1.1 Precaution .........................................3
1.2 Unpacking .........................................3
2 Description .............................................3
2.1 Introduction ........................................3
2.2 Features ..........................................3
2.3
Optional Accessories .................................4
3 Interfacing ..............................................5
3.1 General ...........................................5
3.2 Pinout ............................................5
3.3 Connecting the Microphone ............................5
4 Using Your Microphone ....................................6
4.1 General Hints .......................................6
Table of Contents
1
Precaution/Unpacking
1.1 Precaution
Please make sure that the piece of equipment
your microphone will be connected to fulfills
the safety regulations in force in your country
and is fitted with a ground lead.
1.2 Unpacking
Check that the packaging contains all of the items
listed for your microphone. Should any item be
missing, please contact your AKG dealer.
PERCEPTION 120: • Microphone
• Stand adapter
• Mini poster
PERCEPTION 220: • Microphone
• Spider suspension
• Carrying case
• Mini poster
2 Description
2.1 Introduction
Thank you for purchasing an AKG product. This
Manual contains important instructions for setting
up and operating your equipment. Please take a
few minutes to read the instructions below care-
fully before operating the equipment and keep
the Manual for future reference. Have fun and
impress your audience!
The
PERCEPTION 120
and
heavy-duty, rugged condenser microphones built to
the same strict quality standards as all other AKG
products.
The
PERCEPTION 120
uses a 2/3-inch back electret
diaphragm, while the
PERCEPTION 220
condenser microphone with a 1-inch large dia-
phragm.
Designed on the basis of AKG’s decades of know-
how and feedback from sound engineers around
the world using AKG studio microphones every day,
these general-purpose microphones bringAKG stu-
L
!
AKG PERCEPTION 120
/220
4
microphone near transmitter stations and along
with wireless microphones or other communi-
cations equipment. The extremely rugged,
heavy body and sturdy front grill protect the
microphone from damage from tough handling
on stage.

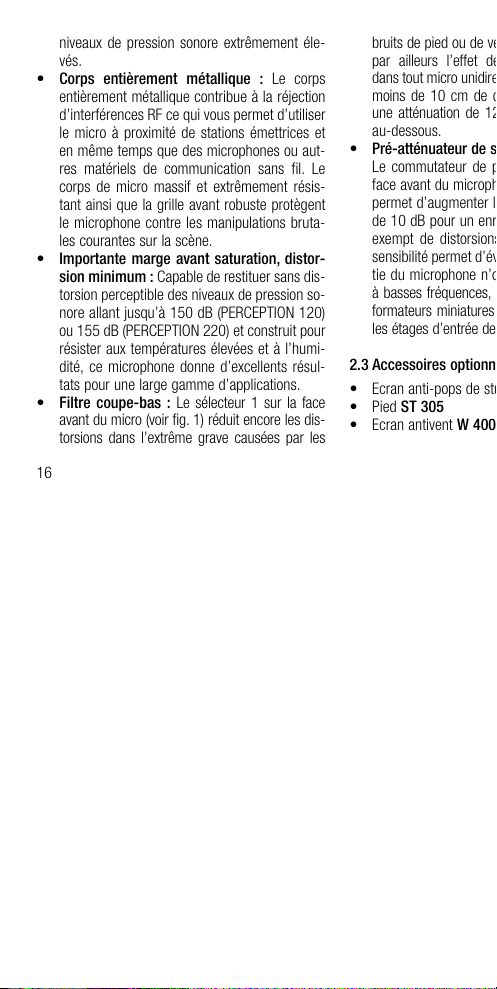

• High headroom, minimum distortion:
Capable of handling sound pressure levels up
to 150 dB (PERCEPTION 120) or 155 dB (PER-
CEPTION 220) without introducing perceptible
distortion and built to resist high temperatures
and humidity, the microphone will give excellent
results in a wide range of applications.
• Bass cut filter: Selector 1 on the microphone
front (refer to fig. 1) further reduces low-end
distortion caused by footfall or wind noise, etc.
The filter also minimizes the proximity effect
that close-in miking from less than 4 inches
causes in any unidirectional microphone. The
filter rolls off at 12 dB/octave from 300 Hz
downward.
• Switchable preattenuation pad: Selector 2
on the microphone front (refer to fig. 1) lets you
increase the headroom by 20 dB for distortion-
free close-in recording. The preattenuation pad
prevents the microphone's output level, partic-
ularly at low frequencies, from overloading the
miniature transformers used in many mixer
input stages, etc.
2.3 Optional Accessories
• PF 80 studio pop screen
• ST 305 floor stand
• W 4000 external windcscreen
3 Interfacing
3.1 General
Section 3 applies to both the
PERCEPTION 120
and the
PERCEPTION 220
.
The microphone uses a condenser transducer de-
signed for 48-volt phantom powering to DIN 45 596/
IEC 268-15 and needs an external power supply.
3.2 Pinout
The microphone provides a balanced output on a 3-
pin male XLR connector:
Pin 1: ground
Pin 2: hot
Pin 3: cold

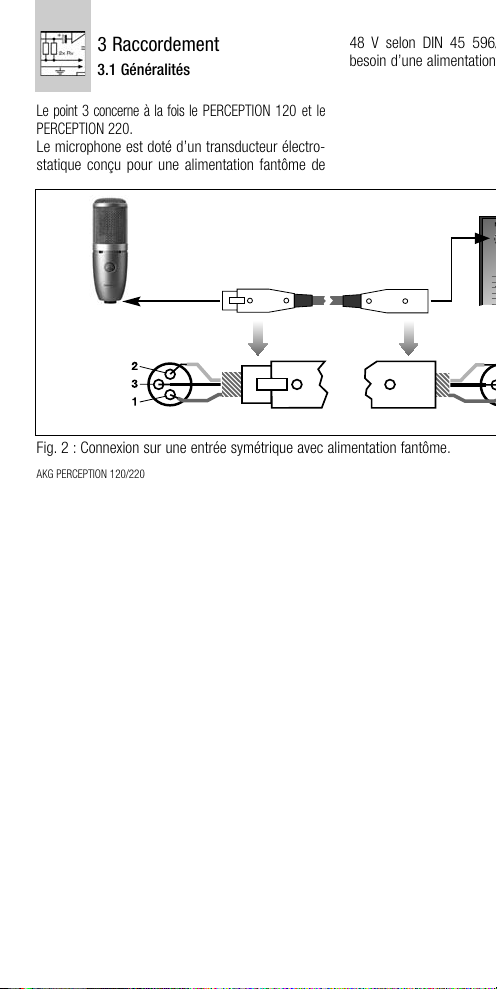

Fig. 2: Connecting toa balanced inputwith phantom power.
AKG PERCEPTION 120/220
4 Using Your Microphone
4.1 General Hints
The
PERCEPTION 120
and
PERCEPTION 220
are gen-
eral-purpose cardioid microphones for recording,
broadcast, and onstage use.
Every instrument radiates its sound in a specific
way.Therefore, to get the best sound it is crucial to
experiment with microphone placement.
The following hints apply to both the
PERCEPTION
120
and the
PERCEPTION 220
.
• Refer to fig. 3. The front of the microphone is
the side of the body with the AKG logo on it.
Therefore, always aim the logo at the sound
source you are going to record!
Being a unidirectional (cardioid) microphone,
the
PERCEPTION 120/220
will pick up very little
sound from the rear.
• When recording wind instruments or vocals,
make sure not to blow or sing directly into
6
Fig. 3: Microphone front.
PERCEPTION 120 PERCEPTION 220

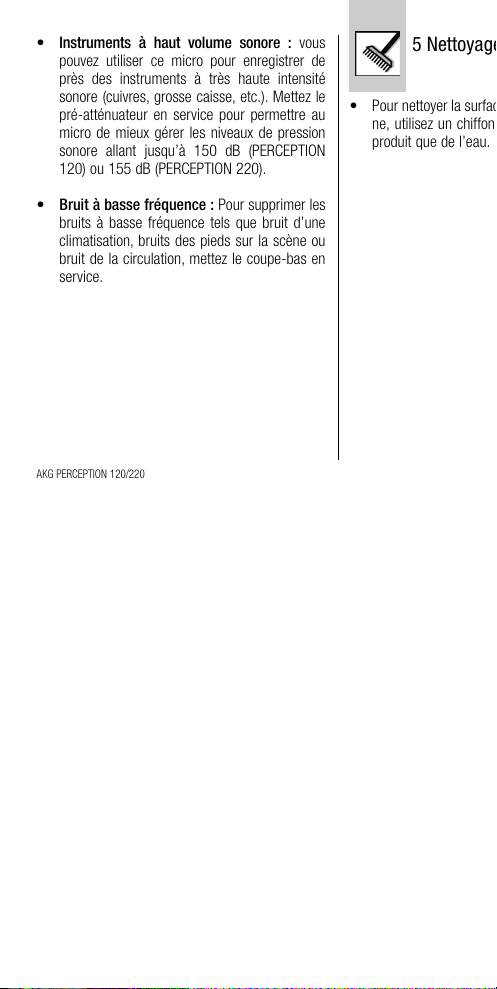

sound pressure levels up to 150 dB (PERCEP-
TION 120) or 155 dB (PERCEPTION 220).
• Low-frequency noise: To suppress low-fre-
quency noise such as air conditioning rumble,
footfall noise, or traffic sounds, switch the bass
cut filter in.
5 Cleaning
• To clean the surface of the microphone body,
use a soft cloth moistened with water.
AKG PERCEPTION 120/220
8
No sound.
Distortion.
1. Power to mixer and/or amplifier is off.
2. Channel or master fader on mixer, or volume
control on amplifier is at zero.
3. Microphone is not connected to mixer or ampli-
fier.
4. Cable connectors are seated loosely.
5. Cable is defective.
6. No supply voltage.
1. Channel gain control on mixer set too high.
2. Microphone too close to sound source.
Problem Possible Cause Remedy
6 Troubleshooting
Crackling noises or low output. • Partial short circuits due to excessive humidity. • Place microphone in warm, dry room and allow to
Problem Possible Cause Remedy
AKG PERCEPTION 120/220
