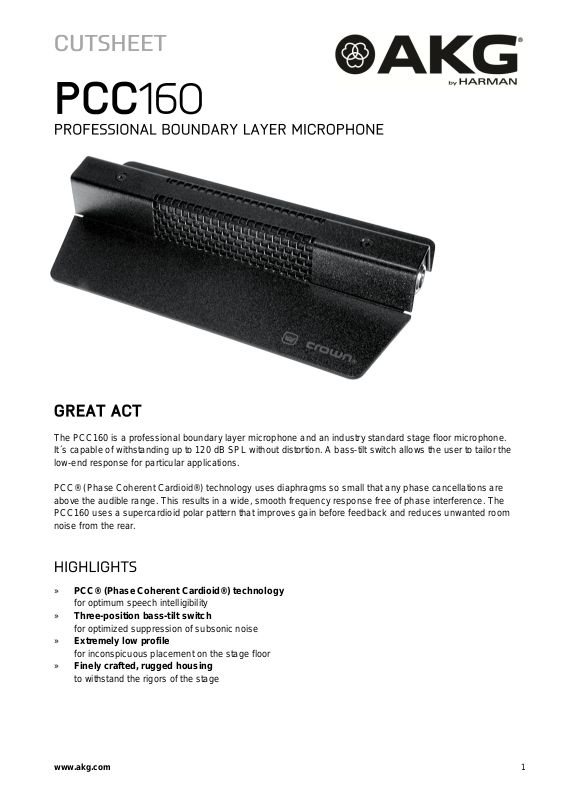

Page 1
The PCC160 is a professional boundary layer microphone and an industry standard stage floor microphone.
It´s capable of withstanding up to 120 dB SPL without distortion. A bass-tilt switch allows the user to tailor the
low-end response for particular applications.
PCC® (Phase Coherent Cardioid®) technology uses diaphragms so small that any phase cancellations are
above the audible range. This results in a wide, smooth frequency response free of phase interference. The
PCC160 uses a supercardioid polar pattern that improves gain before feedback and reduces unwanted room
noise from the rear.
» PCC® (Phase Coherent Cardioid®) technology
for optimum speech intelligibility
» Three-position bass-tilt switch
for optimized suppression of subsonic noise
» Extremely low profile
for inconspicuous placement on the stage floor
» Finely crafted, rugged housing
to withstand the rigors of the stage
www.akg.com 1
Page 2
» Stage
» Theater
Transducer Electret condenser
Polar pattern Supercardioid
Audio frequency bandwidth 50 Hz to 18 kHz
Sensitivity 22 mV/Pa
Max. sound pressure level 120 dB
Equivalent noise level 22 dB (A)
Signal-to-noise level 72 dB (A)
Electrical impedance 150 ohms, balanced
Recommended load impedance 2000 ohms
Powering interface 12 - 48 V phantom power
Audio output 3-pin mini XLR (male)
Finish Black
Cable length 4.6 m (15 ft.)
Length 170 mm (6.7 in.)
Width 80 mm (3.2 in.)
Height 20 mm (0.8 in.)
Net Weight 170 g (6 oz.)
Box content 1x PCC160
1x Carrying Pouch
1x Mini XLR to XLR cable
Item numbers SKU: 3332H00010
EAN: 9002761024890
UPC: 885038 02489 7
AKG ACOUSTICS GMBH LAXENBURGER STRASSE 254, 1230 VIENNA/AUSTRIA
© 2015 HARMAN International Industries, Incorporated. All rights reserved. AKG is a trademark of AKG Acoustics GmbH,
registered in the United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
For more information on this product download the manual at
www.akg.com 2
AKG ACOUSTICS, U.S. 8500 BALBOA BOULEVARD, NORTHRIDGE, CA 91329, U.S.A.
