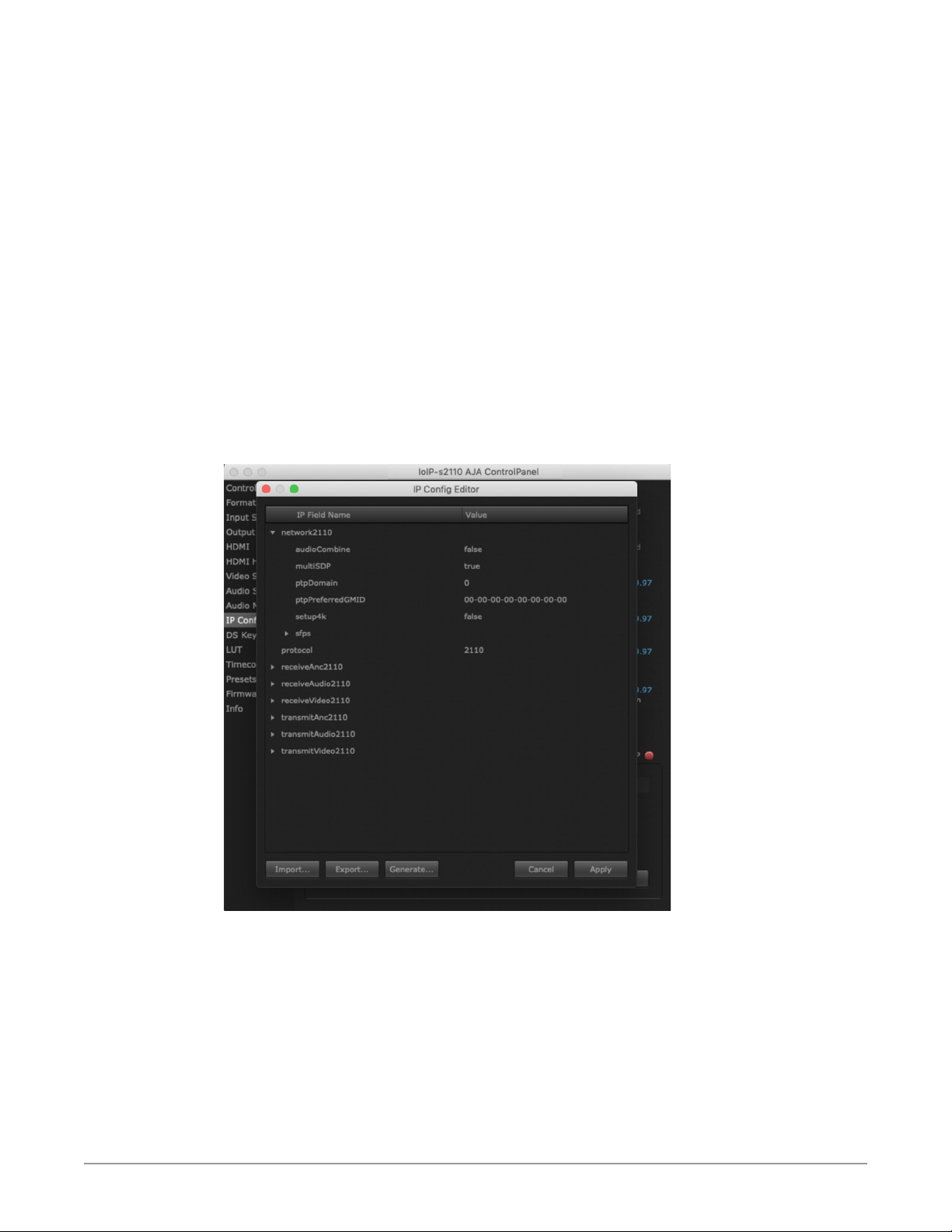

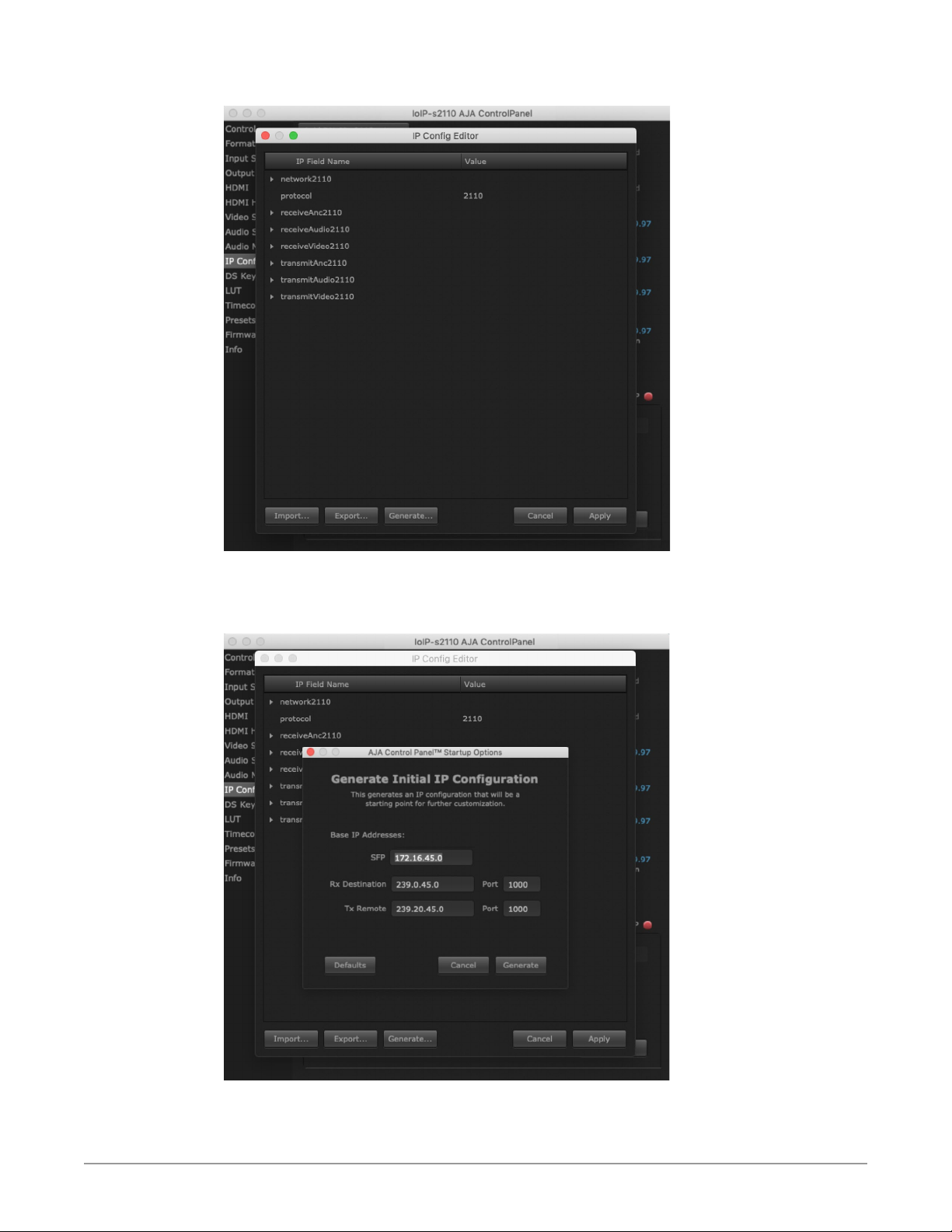

IP Cong Editor Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Chapter 4 – Advanced ST 2110 Conguration . . . . . . . . . . . . . 59
Conguration Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Initial Io IP ST 2110 Installation and Network Conguration . . . . . . . . . . 59
Transmit/Receive Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Appendix A – Specications . . . . . . . . . . . . . . . . . . . . . . . . 63
Io IP Tech Specs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Audio Connection Pinouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Appendix B – Safety and Compliance . . . . . . . . . . . . . . . . . . 67
Warranty and Liability Information . . . . . . . . . . . . . . . . . . . .75
Limited Warranty on Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Limitation of Liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Governing Law and Language; Your Rights. . . . . . . . . . . . . . . . . . . . . . 76
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Io IP Transport, Capture, Display v15.2r2 4 www.aja.com
Chapter 1 – Introduction
Overview
Io IP is a portable Thunderbolt 3 ingest and playback device for professional HD
video and audio over IP, bridging 10 GigE to the most popular creative software
applications.
Io IP has all the portable benefits of the AJA Io family line with two Thunderbolt 3
ports for flexibility. It works with AJA's Control Room, Control Panel software and
SDK tools, and provides support for leading content creation applications, such
as Adobe Premiere® Pro, Apple FCP X, Avid Media Composer®, FilmLight products
and more.
Designed as a flexible platform with support for SMPTE ST 2022-6, ST 2022-7,
and ST 2110 uncompressed IP video/audio, Io IP offers you the flexibility to keep
current as the IP transition proceeds. Io IP brings the highest quality 4K/UltraHD,
2K, HD, and SD video and audio over IP to computers running Mac or Windows
Operating Systems. Io IP can also support 4K/UltraHD p60 (2SI) capture or
playback, via SMPTE ST 2110-23.
Io IP is also supported through the very same SDK as the rest of the KONA family,
making it straight forward for developers to make the transition to Video over IP.
Io IP Features
Io IP is designed as a flexible platform for supporting various different IP
standards and types. See "Appendix A Specifications" on page 63 for a complete
listing.
NOTE: NDI is supported on Io IP in the same way as it is supported on KONA 4, Io 4K Plus
etc., courtesy of running Newtek Connect.
Physical Connection for IP Video
• 2x 10 Gb Ethernet SFP+ Cages (SFP+ modules not included)
Inputs and Outputs
• AJA Desktop Software package congured by default for 2022-6 operation
with two simultaneous uncompressed streams on SFP 1 (one In, one Out).
• For 2022-7 operation, a second SFP is used for redundant transport of the
other SFP's signals.
• SMPTE ST 2110 uncompressed HD video and over IP, including Transmit
support for the 2022-7 standard, thus providing for playout redundancy. The
Io IP Transport, Capture, Display v15.2r2 5 www.aja.com
maximum resolution and frame rate supported for ST 2110 via ST 2022-7 is 2K/
HD 60p.
• KONA IP can also be congured to use all streams for input or output, thus
supporting up to 4K p60 uncompressed transport via ST 2110-23. There is no
ST 2022-7 support when using ST 2110-23 to achieve 4K/UHD I/O with Io IP
• Dedicated 3G SDI monitor output
• Dedicated HDMI 2.0 output
• HDR signaling and monitoring for HDR10 and HLG. HLG support is application
dependent. Check with your software manufacturer for compatibility.
Digital Audio Input
• 16-Channel embedded audio
Digital Audio Output
• 16-Channel embedded audio, 16- and 24-bit per channel, 48 kHz sample rate,
synchronous
• 8-Channel HDMI embedded audio, 48 kHz sample rate, synchronous
Balanced Analog Audio Input and Output
A 25-pin connector provides 8-channel balanced analog audio. The eight analog
audio channels can be configured in four different ways:
• Ch 1-8 Output
• Ch 1-4 Input and Ch 5-8 Output
• Ch 1-4 Output and Ch 5-8 Input
• Ch 1-8 Input
Signal Timing
• 1x BNC assignable to reference video or LTC input
Internal HD/SD Hardware Downstream Keyer
Io IP provides a powerful hardware keyer that can place graphic files with an
alpha channel over video in a selectable matte or the contents of the card’s
framebuffer from a software application. Key a bug or text over picture and avoid
what might normally be a lengthy software render. Also, working with these
software applications, you can key video that has an alpha-channel over video
input or a matte. For example, you can play a QuickTime clip that has an alphachannel (a flying logo generated in the Animation codec) and then place it over
live video coming into the card and then passing both on to a VTR for recording
or broadcast.
NMOS Support
A separate application, “AJA NMOS”, supports automatic discovery of IP devices
on the network, using an app (daemon) that operates in the background without
user configuration. The first AJA device accessed by the computer running
the daemon can be discovered and subject to control by an external NMOS
network control application. NMOS uses the IP address of the host machine for
communications.
Generally, NMOS works as follows:
• When Io IP starts up, the NMOS app actively scans the network for an NMOS
registry using MDNS/DNS. If found, the NMOS registry is informed who the
Io IP device is, and its capabilities.
• If during startup the NMOS registry is not found, the NMOS app continues to
announce Io IP's presence via MDNS so that it can later be discovered, and
Io IP Transport, Capture, Display v15.2r2 6 www.aja.com
then after discovery, it can be manually registered in the network control
application.
AJA Software & Utilities
Io IP operates with AJA's Desktop software package, developed for powerful
integrated video/audio capture, editing, and production with a variety of 3rdparty software. AJA software is distributed as a unified package which includes all
the software, firmware, plug-ins, and utility programs for the Io IP, as well as AJA’s
Io, KONA, and T-TAP products.
Two retail packages are available, one for Mac and one for Windows.
Mac and Windows Packages
These packages include:
Firmware
Firmware, otherwise referred to as a bit file or the card's 'personality', refers to
very low level code that defines the capabilities of the hardware. It is important
to always update to the firmware recommended following install of new, or older
versions of software.
Drivers
AJA device drivers for the host system OS provide tightly integrated hardware/
software operation.
AJA Control Panel
The Control Panel provides:
• Source selection and control of your AJA hardware
• A block diagram to show visually what routing and processing is being
performed
AJA Control Room
Control Room is a cross-platform software application for ingest, playback and
output with AJA products.
AJA System Test
AJA System Test provides accurate and detailed evaluations of drive and system
performance statistics, allowing you to measure the capabilities of your system
for recording and playing back various resolutions and codecs. The application
includes:
• System Disk Test
• AJA Device Test
• Disk + Device Test
• System Report
The application tests Read and Write, Capture and Playback speeds in both
Megabytes per second and Frames per second. The disk speed tests differ from
standard disk I/O performance applications in that they specifically test the
system under conditions typically encountered with video capture, playback, and
editing.
NOTE: Theoretically the best test (or simulation) is to fill your storage disk to 80% and
then test capture at the highest data rate you will use.
Io IP Transport, Capture, Display v15.2r2 7 www.aja.com
3rd-Party Plug-ins
Plug-ins for popular 3rd-party Professional Video Applications from Adobe, Avid,
Apple, Telestream, and others.
NMOS App
Available for automatic discovery of IP devices.
Network Requirements
For uncompressed workflows (SMPTE ST 2022-6/7 and SMPTE ST 2110) a 10GbE
switch is required.
For SMPTE ST 2110 specifically, a PTP clock source must also be deployed and the
switch must therefore also be PTP aware.
In all cases the switch used must be both managed (configurable) and IGMP
aware.
SFPs are not included with the purchase of Io IP. Recommended SFPs are listed in
"Specifications" on page 63.
System Requirements
Your system should meet minimum hardware and software requirements to
achieve a satisfactory level of performance. Updates to system requirements are
subject to change.
NOTE: See Software Vendor system requirements for GPU and additional hardware
recommendations.
Recommended system specifications:
• Mac OS 10.12 Sierra or later
• Win 10 or later with all updates
• 2.5 GHz quad core i7 minimum, for HD
• 3.5 GHz eight core minimum, faster processors and more cores
recommended,for UltraHD/4K workows, especially with high frame rate
• 8GB RAM minimum, 16GB or more recommended, especially for High Frame
Rate applications
• 16GB RAM minimum, 32GB or more recommended, especially for UltraHD/4K
or high frame rate applications
• A reasonably fast and powerful graphics card, with plenty of on-board
memory. Examples (may be specic to application version and/or host CPU)
include:
• Nvidia K5200
• Nvidia K4200
• Nvidia M6000
• Nvidia M5000
• Nvidia M4000
• AMD W7100
• AMD W8100
• Media storage with adequate bandwidth to sustain the capture and playback
of the material you expect to be working with.
Io IP Transport, Capture, Display v15.2r2 8 www.aja.com
NOTE: For large scale installations with shared storage, or for very high performance
requirements, consultation with an experienced a system integrator is
recommended. A consultant will be able to assist with many important variables.
Disk Storage Methods
To ensure performance and quality, the disk storage system used with
the workstation must be able to meet the demands of storing real-time
uncompressed media. At the very minimum, the disk storage system must be
able to provide and maintain a consistent transfer rate from the workstation to
disk (read/write). There are a variety of system configurations and peripherals that
can provide this level of performance.
For more on disk storage performance see "AJA System Test" on page 7.
Hardware Description
Front Panel Controls and Indicators
Figure 1. Io IP Front Panel
Audio Level
Meters (8)
Power
LED
Monitor
Gain Control
The Io IP front panel has the following controls and indicators:
Monitor Output
Connector 1/8 in. TRS
Monitor Output and Gain Control
A 1/8 inch TRS connector is available for monitoring two channels of audio,
selectable in channel pairs using the Control Panel application. Typically used
with a pair of headphones.
The Monitor Gain knob on the left adjusts the monitor output level. Pushing in
the knob extends it (for adjustment) or recesses it (to prevent accidental changes).
Audio Level Meters
The Audio Level Meters in the center of the front panel indicate:
• During Capture - The rst 8 channels of the audio source selected (SDI, HDMI,
Analog)
• During Playback - The sum of whatever sources are being played out via
the AJA hardware; i.e. NLE timeline and mix of host system audio output (if
applicable)
The meter's LEDs are colored to indicate the amount below 0dBfs when averaged
over a one millisecond time interval:
Io IP Transport, Capture, Display v15.2r2 9 www.aja.com
dBfs LED Color and Location
-2 db Red LED 1 (top)
-12 db Yellow LED 2
-20 db Yellow LED 1
-30 db Green LED 4
-40 db Green LED 3
-50 db Green LED 2
-60 db Green LED 1 (bottom)
NOTE: These audio level meters are for guidance only. Third-party audio metering
should be employed when doing critical audio editing and mixing.
Power LED
The power LED lights up yellow when power is provided via the power supply.
Once a Thunderbolt 3 connection is made, and the host is in an active state, the
light turns green.
Rear Panel Connectors
Figure 2. Io IP Rear Panel
Reference or
LTC Input
SFP Cage 1
HD/SD-SDI
Monitor Out BNC
SFP Cage 2
HDMI
Output
Balanced Audio In/Out
DB-25F (8-Ch)
Thunderbolt 3
Thunderbolt 3
The Io IP provides the third-generation Thunderbolt 3 (USB-C) ports to support
increased bandwidth between host computer and I/O device. Two ports are
provided for daisy-chained network configurations.
SFP Cages and Modules
Two SFP+ cages are provided to connect two separate 10 Gigabit Ethernet Links.
Both links are bi-directional. Inputs and outputs for most uses will be set up over
the same link if bandwidth allows it.
For a list of SFP+ modules tested by AJA, see "Appendix A Specifications" on page
63.
Ports (2)
4-Pin XLR
DC Power Input
Dedicated SDI HD/SD Output
One BNC connector is provided for full-time, real-time output of 2K/HD/SD video.
Io IP Transport, Capture, Display v15.2r2 10 www.aja.com
HDMI Output
A full-size HDMI connector on the Io IP endplate provides HDMI 2.0 capability.
HDMI also supports multi-channel embedded audio (8 channels). HDCP is not
supported on the output. HDMI Output also supports HDR (HDR10 and HLG).
Reference Video
When in SMPTE 2022-6/7 mode, Io IP can lock to reference analog or tri-level
input, or the incoming SMPTE 2022-6/7 stream.
For analog reference, a single BNC on the Io IP endplate allows you to synchronize
Io IP outputs to your house analog or tri-level reference video signal (or black
burst). If you have a sync generator or central piece of video equipment to use
for synchronizing other video equipment in your studio, connect its output here.
When Io IP outputs video in SMPTE 2022-6/7 mode, it locks to this reference
signal. When connecting a reference video source, the locking signal should be
the same format as the Primary format selected in Io IP software. It is possible in
some circumstances to use an alternate format video signal if the basic frame rate
is compatible.
Io IP can also lock to an incoming SMPTE 2022-6 signal, or it can free run.
Balanced Analog Audio Input and Output
A 25-pin connector provides 8-channel balanced analog audio, 24-bit 48kHz
sample rate D/A and A/D, for use with an industry standard 8x XLR on DB-25
breakout cable (cable not included). The eight analog audio channels can be
configured four different ways:
• Ch 1-8 Output
• Ch 1-4 Input and Ch 5-8 Output (default setting)
• Ch 1-4 Output and Ch 5-8 Input
• Ch 1-8 Input
12V Power Connector
A standard 4-pin XLR type connector is provided for either battery or line source
power using the supplied AC power adapter.
In This Manual
Chapter 1 - Introduces the product briefly, listing features and system
requirements.
Chapter 2 - Provides complete instructions for installing and configuring the
product.
Chapter 3 - Discusses operational aspects and how to work with 3rd-party
software.
Appendix A - Presents a list of technical specifications for the product.
Appendix B - Provides important Safety and Compliance information.
Io IP Transport, Capture, Display v15.2r2 11 www.aja.com
Chapter 2 – Installation
Installation Overview
1. If not previously installed on your Thunderbolt equipped computer, ensure
that appropriate third party application software is installed as detailed in
its user documentation.
2. Download and install the latest Io IP software from:
https://www.aja.com/en/support/downloads
3. Connect your Io IP to your computer using an appropriate Thunderbolt 3
cable (and adapter if required). Information about Thunderbolt including
cable recommendations is available here:
https://www.aja.com/solutions/thunderbolt
4. Insert compatible SFP module(s) into the SFP cage(s) and connect to your
media network.
5. Connect the video and audio inputs and outputs to your Io IP .
6. Power up the unit (AC supply or battery). The Io IP will startup automatically.
IM PORTAN T: You should wait at least two minutes after Io IP powers up before you open
AJA Control Panel.
7. When you run AJA Control Panel, the Io IP is auto-discovered as long as it is
properly cabled and powered up.
8. You will now be able to congure your Io IP for operation on your network.
Unpacking
Shipping Box Contents
As you unpack your shipment, carefully examine the contents. Ensure you
received everything and that nothing was damaged during shipping. If you find
any damage, immediately notify the shipping service and supply them with a
complete description of the damage. AJA will repair or replace damaged items.
If you find shipping damage, contact your AJA dealer or distributor for details on
how to have your AJA device repaired or replaced.
NOTE: Save packing materials and the shipping box. If you ever require service or move
your system use the packaging materials and box for safe shipment.
Installing Io IP Software
NOTE: If your computer has previously had another video capture or multimedia device
installed, ensure you uninstall any related software before installing Io IP. This will
prevent any hardware or software conflicts.
Io IP Transport, Capture, Display v15.2r2 12 www.aja.com
Before installing the AJA Desktop Software package, ensure that your capture/
editing application is installed as detailed in its user documentation. You cannot
use the AJA Desktop Software package with a third-party application until the
application has been installed and run at least once on your workstation. Next,
install the AJA Desktop Software package. If at a later date you add any Io IP
supported applications that require drivers, you must run the AJA install program
again to install them.
NOTE: Always uninstall the previous version of the AJA Desktop Software package
before updating your Io IP.
NMOS Installation
Io IP supports NMOS (Networked Media Open Specifications), using a standalone AJA NMOS application. The AJA Installer does not install the AJA NMOS
application by default. You must select NMOS using the "Custom" option during
installation, and to enable this feature you will also need to manually launch this
application and be connected to a network that has a running NMOS control
application.
NOTE: If you do not install AJA NMOS on your computer, NMOS control systems will not
be able to register or control Io IP.
Important MacOS High Sierra Installation Information
With the introduction of macOS High Sierra (v10.13), Apple now requires that third
party application developers be identified during kernal extension installations.
Failure to do so will make AJA devices fail to operate (Unsupported AJA Device).
Depending on your macOS version and AJA Desktop Software installation history,
the following installation outcomes are possible:
MacOS Sierra and Earlier Supported Versions
No problems exist for AJA software installation or updates with these earlier
versions of macOS.
Earlier MacOS to High Sierra Update
No problems should occur if you already have the AJA Desktop Software package
installed on macOS Sierra (or earlier) and update your Mac to High Sierra. The
identification of AJA as a trusted developer is passed from the earlier macOS to
the High Sierra macOS.
MacOS High Sierra First AJA Desktop Software Install
No problems should occur if your Mac is running High Sierra macOS, you install
AJA Desktop Software for the first time, and you follow the instructions shown
during installation (Figure 3).
Figure 3. MacOS High Sierra Blocked Message Prompt
Io IP Transport, Capture, Display v15.2r2 13 www.aja.com
Do NOT click OK. Instead click Open Security Preferences (or go to System
Preferences>Security and Privacy) and then click Allow for AJA Video Systems
developer (Figure 4).
Figure 4. MacOS High Sierra System Preferences, Allow Developer
NOTE: If after successful installation, you remove AJA applications from your computer
using the AJA Uninstaller, developer identification is retained by macOS High
Sierra. Re-installation should proceed without any problems.
Recovery from Installation Approval Failure
If you just clicked OK during installation and skipped the developer approval
step, the AJA Desktop Software installation will complete, but essential extension
installations will not occur and AJA devices will not be operational (Unsupported
AJA Device).
Apple has engineered a time window, within which you can belatedly approve
a developer after a partial installation. If you go to System Preferences>Security
and Privacy, within 30 minutes of a partial installation, the developer message
and Approve button will be available for use. After 30 minutes, however, the
message and button are removed from the window. Recovery from this involves
uninstalling all AJA files (some manually), reinstalling the AJA Desktop Software
package, and clicking on Allow for AJA Video Systems developer.
Recovery Procedure
1. Run the AJA Uninstaller, located in the AJA Utilities folder in the Mac
Applications folder.
2. Access the Users Library, which is hidden. To access the library:
A. Go to the Finder.
B. In the Finder Menu Bar and click on Go.
C. Hold down the Option key. The Library folder appears as long as the
Option key is held down.
3. Go to Library>Preferences and delete all com.aja.*.* les. There may be
one le or several les.
4. Remove AJA Control Panel from the Dock, if applicable.
5. Restart the Mac.
6. Install the AJA Desktop Software package.
7. During installation click on Open Security Preferences (or go to System
Preferences,>Security and Privacy).
Io IP Transport, Capture, Display v15.2r2 14 www.aja.com
8. Under the General tab click on the Allow button for AJA Video Systems.
The button is only available for 30 minutes.
Io IP Firmware Installation
IM PORTAN T: The firmware installed in your Io IP card should match the version of the
AJA software package. If a mis-match is present, the Io IP card may not work and
a "Not Valid, device needs firmware update" message will be displayed. Always
update the firmware of your Io IP card when you install an AJA software package.
Types of Io IP Firmware
AJA Desktop Software can provide the Io IP with two different personalities, or
modes of operation.
• SMPTE ST 2022-6/7 operation (s2022) uses the IoIP s2022 rmware bitle
• SMPTE ST 2110 operation (s2110) uses the IoIP s2110 rmware bitle
Switching between these different Io IP operating modes requires loading the
appropriate firmware bitfile as listed above.
By default, newly purchased Io IP hardware will come pre loaded with ST 2022
firmware. Loading the s2110 bitfile will provide that functionality.
Cabling the System
See "Rear Panel Connectors" on page 10.
Io IP Cable Connections
For 2022-6 and 2022-7 operation, 10GbE infrastructure can be connected
with either a short (3 feet) Direct Attached cable, or optical fiber cable with
appropriate SFPs.
Figure 5. IP Configuration Example for 2022-6 Workflow
Broadcast
Monitor
Workstation A
with Io IP
Video Switcher or other
facility destination
SDI
10 Gb Ethernet Switch
10 Gb
Ethernet
SDI
Ethernet
SDI
10 Gb
10 Gb
Ethernet
Workstation C
with KONA IP
and KONA 4
HDMI
Workstation B
with Io IP
HDMI
HDMI Monitor
Receive live video
from Workstation A,
downstream key and
live re-transmit to a
dierent IP address.
Capture live video
from Workstation A
with KONA IP, edit,
and subsequent
SDI playout to facility
through KONA 4 card.
KUMO 3232
Io IP Transport, Capture, Display v15.2r2 15 www.aja.com
Figure 6. IP Configuration Example for 2022-7 Workflow
10 Gb Ethernet Switch
Workstation B
Workstation A
with Io IP
10 Gb
Ethernet
Redundant
10 Gb Ethernet Switch
10 Gb
Ethernet
with KONA IP
SFP Module Connections
For SMPTE 2022-6 / SMPTE 2022-7 operation (s2022), modules inserted into the
two SFP+ cages can be used to connect two separate 10 Gigabit Ethernet Links.
With AJA Desktop Drivers, the SFP 1 and 2 modules are configured using AJA
Control Panel software, using the Input, Output, and Network Settings tabs. In
most cases, only SFP 1 will be used, providing up to two total streams of SD or
HD video, each with 16 audio channels and metadata, for simultaneous input or
output, i.e. when using SMPTE 2022-6. Both links are bi-directional (one In, one
Out). When in SMPTE 2022-7 mode SFP 2 carries a duplicate of the Upper SFP data.
For a list of SFP+ modules tested by AJA, see "Appendix A Specifications" on page
63.
Redundant video transport
with automatic crossover
to other network if
a network path fails.
Unicast and Multicast Support
Io IP supports both unicast and multicast operation. Unicast operation is point to
point, from one sender to one receiver. Multicast operation is from one sender to
possibly multiple receivers. In both cases, the sender transmits information to a
location (IP address) on the network, and receivers access that information over
the network using that location IP address. Compatible IP addresses are required
for each type of operation. These network settings filter the IP addresses so the
information is sent successfully to the desired receiver(s).
IM PORTAN T: Proper network configuration settings vary, depending on your particular
network environment. Because the process can be complicated, you should
always consult with your facility's IP or Networking Engineering department
before configuring Io IP network settings.
Listed below are example sets of compatible IP addresses that could be used in
an isolated network to test Io IP network operation.
Table 1. Example Compatible Unicast IP Addresses
Control Panel Screen Parameter Io IP 1 (send) Io IP 2 (receiver)
IP Network Local IP Address 192.168.10. 31 192.168.10. 32
Subnet Mask 255.255.255.0 255.255.255.0
IP Input Destination IP Address - - - 192.168.10.41
Destination Port - - - 2000
IP Output Destination IP Address 192.168.10.41 - - -
Destination Port 2000 - - -
Io IP Transport, Capture, Display v15.2r2 16 www.aja.com
Table 2. Example Compatible Multicast IP Addresses
Control Panel Screen Parameter Io IP 1 (send) Io IP 2 (receiver 1) Io IP 3 (receiver 2)
IP Network Local IP Address 192.168.10. 31 192.168.10.32 192.168.10. 33
Subnet Mask 255.255.255.0 255.255.255.0 255.255.255.0
IP Input Destination IP Address - - - 239.0.61.100 239.0.61.100
Destination Port - - - 10000 10000
IP Output Destination IP Address 239.0.61.100 - - - - - -
Destination Port 10000 - - - - - -
Io IP Transport, Capture, Display v15.2r2 17 www.aja.com
Chapter 3 – Io IP Operation
Using Io IP with Professional Video /Audio Software
After you install the AJA software package on your computer, you’re ready to
begin capturing and playing back video and audio using your choice of thirdparty software. You can go here for AJA software and documentation:
https://www.aja.com/en/support/downloads
For further support information and downloads for third-party software, go to:
https://www.aja.com/compatibility/io
Frequently Asked Question documents for various AJA products are available at:
https://www.aja.com/products/kona-ip#support
Capture Formats
When capturing, you can record data in the following file formats:
• DPX
• TGA
• BMP
• QuickTime
• MXF
NOTE: Support by Io IP of QuickTime for Windows has been discontinued. Instead, AJA
supports ProRes family capture and playback for macOS and Windows via AJA
Control Room.
NOTE: Other file types can be captured using third-party capture applications such as
Sienna, Softron, Tools on Air, Drastic Technologies, or Quadrus.
AJA Control Panel Overview
The AJA Control Panel is a software application that provides a simple visual
showing how the Io IP hardware is currently configured and allows you to make
changes. You can change signal input and output parameters and define the
video processing that will be performed.
The AJA software installer automatically installs the Control Panel application on
your computer.
Io IP Transport, Capture, Display v15.2r2 18 www.aja.com
Framebuer
AJA Control Panel User Interface
The AJA Control Panel user interface includes a visual block diagram of the unit’s
current configuration. The current status, input and output settings, and many
other details are depicted in the color-coded block diagram. Below this block
diagram are various controls for changing operating parameters, which will vary
depending on which function screen has been selected.
The left side of the AJA Control Panel provides a navigation list of available
function screens. Clicking on a link (or alternatively, a related element in the block
diagram) displays a function screen corresponding to that topic.
NOTE: Although Io IP is sending and receiving video over IP, once that data is decoded
to memory it is governed by the same video menus used for SDI and HDMI based
AJA I/O solutions.
Figure 7. AJA Control Panel, Block Diagram and Controls
Currently
Selected
Function
Screen
AJA Device
Selection
Inputs
Parameter
Controls
Format
(Primary)
Outputs
Block Diagram Area
The top block diagram area of the Control Panel screen is a visual representation
of the processing, if any, that’s currently occurring, including inputs/outputs,
reference source, and system status. Lines between inputs, the framebuffer, and
outputs, show a video path. Where there are no lines, there is no connection; this
can be because an input or output isn’t selected in the Input Select menu. The
lines will also show whether the outputs are video or video + key.
You can click any of the function screen selection links in the left column to view
its current settings or click on an icon to call up its related settings screen. You can
also right-click or Control-click to see context-sensitive information and choices.
Figure 8. Context Sensitive Menu
Io IP Transport, Capture, Display v15.2r2 19 www.aja.com
Color Meanings
All items in the AJA Control Panel block diagram are color-coded to show what is
happening in real time. This applies to both icons and text. These colors indicate:
Blue - Video is same format as the Primary Format (framebuffer)
Yello w - Reference video (black burst or other reference source)
Red - The selected operation cannot be performed
Input/Output Icons
The input and output icons are triangles that together with their color show all
the input and outputs and their status (selected, not selected, input present or
not, format, etc.). A complete video path is shown when inputs and outputs are
connected with lines going to/from the framebuffer.
Figure 9. Input/Output Icons
Framebuffer
The framebuffer is the “engine” where your third-party applications interface with
the AJA device. The framebuffer has a format (called the “Primary Format”) and
color space that it follows, as defined in the linked menu screens or via external
application software.
Primary Format
The Primary Format is the media format written to disk and used in your project.
This is the format that the framebuffer will use and is shown in the Control Panel
using the color blue. It is the format that the third-party application software will
either receive from the AJA hardware, or is sending to the hardware. All icons in
blue are the same as the Primary Format used by the framebuffer. Also any text
descriptions in the block diagram that appear in blue indicate that something is
in the primary format.
Controlling Application
Figure 10. Control Panel In Use Message (in red)
In the top right corner, the Control Panel displays the name of the application
controlling the unit. In some cases, applications may not always properly “let go”
of the I/O interface as another takes over—you’ll be able to tell by looking at the
Control Panel.
Io IP Transport, Capture, Display v15.2r2 20 www.aja.com
Presets
Setups can be named and saved as a snapshot (Preset) for recall at any time. You
can save various AJA device Control Panel configurations associated with your
frequent tasks. You don’t have to spend time resetting interface configurations,
just load the previously saved Preset for each task. See "Saving, Loading and
Deleting Presets" on page 50 for more information.
If you work on multiple systems and want to carry your saved setups to another
location, you can copy your saved Preset files on to movable storage and load
them into any computer running the AJA Control Panel application.
Mac OS Preset Files Storage Location
• From the Finder, hold down the Option key (to display the Library directory)
and click on Go/Library/Application Support/AJA/<device name>/Presets/
Windows Preset Files Storage Location
• c:\Users\<username>\AppData\Local\AJA\Control Panel\<device name>
Presets\
NOTE: When you visually browse to the above location, depending on Windows OS
setting you may not be able to visually see the folder referred to in the path.
Instead, you have to fill out the rest of the Windows path manually (i.e. type the
rest of the address in the navigation bar when you hit the "end" of the browsing
path).
Default Preferences
When an AJA device starts up, a preference can determine what settings it will
have it when it begins to operate. The AJA Control Panel offers two default
preference settings:
• Local Preference - A preference stored from the last AJA device's Control Panel
settings to be used on next startup of AJA Control Panel. This occurs on next
restoration of the default state (triggered by start up of host CPU, startup of
the AJA device, or when a third-party application releases the AJA device).
• Global Preference - A preference saved for use as a global default start state
for an AJA device that can be shared by multiple users, applied on rst startup,
or by pressing the Control Panel Reset Device... button.
Local Preference
The Local Preference file (com.aja.devicesettings) exists to immediately and
automatically store all parameter changes made by a user on a particular AJA
device. When any control is changed in the Control Panel, that change is recorded
in the Local Preference file stored in a unique location on that computer that is
dedicated to that particular device, serial number, and logged-in user. Then, when
AJA Control Panel is restarted for any reason, the AJA device being controlled
restores the settings being used when Control Panel was last closed.
The Local Preference file can be accessed at the following locations.
On Mac:
• From the Finder, hold down the Option key (to display the Library directory)
and click on Go/Library/Preferences/com.aja.devicesettings.
On Windows:
• C:\Users\<USER_NAME>\AppData\Local\aja\com.aja.devicesettings
Io IP Transport, Capture, Display v15.2r2 21 www.aja.com
NOTE: Clicking on the AJA Control Panel "Erase All Prefs" button deletes the existing
Local Preference file from this location. This file will be recreated as soon as any
Control Panel setting is changed.
NOTE: Clicking on the AJA Control Panel "Reset Device..." button will delete the existing
Local Preference file. If a Global Preference file is found, these settings are
reloaded. If a Global Preference file is not found, “factory defaults” are loaded and
the device is set to that state
Global Preference
An administrator can establish a house standard for an AJA device by copying
a preference file to a shared computer location. Once placed at that location, it
becomes a Global Preference file where it will establish a standard default startup
state for all users of that AJA device using that computer system. These settings
preempt the initial AJA factory default settings, and are applied when an AJA
device is first powered up, or when the Control Panel Reset Device button is
pressed.
To establish a Global Preference, the administrator first configures the AJA device
(which automatically creates a "com.aja.devicesettings" Local Preference file in
the location identified above) and then copy or move or that file to the correct
computer locations (manually or by pushing it out across the network) on all the
computers that use the AJA device.
NOTE: If the user makes changes to an AJA Device's Control Panel settings, those
changes are saved to the Local Preference file, which will take priority over the
Global Preference file.
The shared computer locations for a Global Preference file are:
On Mac:
• From the Finder, click on Go/Computer/<System HD>/Users/Shared/AJA/
and copy or move the "com.aja.devicesettings le" described above to this
location.
NOTE: The "AJA" folder needs to be created manually at this location before moving the
preference file into it.
On Windows there are three possible shared locations depending on your system:
• C:\Users\Public\Aja\
• C:\Users\All Users\Aja\
• C:\ProgramData\Aja
Copy or move the "com.aja.devicesettings file" described above to one of
these locations.
NOTE: The AJA Control Panel Info screen displays the path to the Global Preference file
on that computer.
NOTE: Clicking on the AJA Control Panel Erase All Prefs button does NOT delete an
existing Global Preference file from this location.
Io IP Audio Monitoring
Io IP hardware can be used as your single audio monitoring solution whether
you are auditioning music in a web browser, playing a movie file on the desktop,
creating music, or playing a YouTube clip. As long as the output of your work
or application is normally output via the host system audio, your AJA hardware
can route this audio for monitoring. This cuts down on unnecessary cabling, and
means you can take advantage of a consistent audio monitoring environment
whatever you are currently doing with your host system.
Io IP Transport, Capture, Display v15.2r2 22 www.aja.com
NOTE: On first use, you will need to tell your operating system to use AJA hardware as
the default Input and Output hardware.
Io IP lets you listen to Host System audio concurrently with your NLE audio. This is
useful if you need to audition music tracks against playback of your NLE timeline,
or if you need to Skype with a remote producer during an edit session, or for a
myriad of other reasons.
You can also listen to Io IP Input concurrently with your NLE (with the exception of
Avid Media Composer). This is useful if you need to listen out for the readiness of
talent, or the presence of some other feed, whilst you continue to work.
Io IP audio monitoring is routed and mixed using the Control Panel application's
Audio Mixer screen. You can select sources to be monitored, and can adjust
their levels. If you are using the 1/4 inch monitor output connector, an additional
overall mix gain control is conveniently available on the Io IP's front panel.
The mixed audio monitor signal is routed to:
• Front Panel Monitor Output (headphone jack)
• SDI Embedded Audio Out
• HDMI Embedded Audio Out
• Analog Audio Out (via DB25 cable)
IM PORTAN T: Even though you can hear changes in the signals and levels adjusted with
the Audio Mixer screen, these changes are NOT recorded to disk during NLE
Capture or Audio Punch In / Voice Over to Timeline. The Audio Mixer screen is
dedicated for monitoring only, not program mixing.
Figure 11. Io IP Audio Monitoring Routing Diagram
Audio Capture
Punch In/Voice Over
Record to File
Non Linear
Video Editor
Control Panel
Input Select
Screen
AJA Hardware
Audio Input
SFP In with SDI
Embedded Audio
Analog Audio
Input
Host Computer Audio Input
Audio File
Playback
YouTube
Other
Sources
To control which AJA hardware audio is used during recording, you use the
Control Panel application's Input Select Screen, Audio Input Select drop down to
select from:
• SDI embedded
• Analog (via DB25 cable)
NLE
Application
Mac or PC
Computer
Audio
NOTE: NLE audio
output is disabled
in Capture mode.
NLE
Audio
AJA Hardware Audio
Host
Computer
Audio
Control Panel
Audio Mixer
Screen
Mixer
Controls
Gain
Knob
AJA Hardware
Audio Monitoring
SFP Out with SDI
Embedded Audio
HDMI Embedded
Audio Output
Analog Audio
Output
Front Panel
Monitor Output
Io IP Transport, Capture, Display v15.2r2 23 www.aja.com
Any level adjustments to Capture or Audio Punch In / Voice Over to Timeline
recording operations will either need to be made upstream of the AJA input, or
else via adjustments within the main NLE application (e.g. via a pass through mix
tool).
Control Panel Function Screens
Table 3. Io IP Function Screens
Screen Functions
Control Congure some basic Io IP operation options and output timing.
Format Select the framebuer primary video format and any secondary formats
for conversion of inputs/outputs
Input Select View and edit input selections and audio mapping.
Output Select Select output format.
HDMI Congure the HDMI Output
HDMI HDR Congure High Dynamic Range settings for HDMI output
Video Setup Congure Video such as composite black level, progressive format and
ancillary data (Closed Caption) option.
Audio Setup Congures Audio options such as analog audio monitor level.
Audio Mixer Select and mix audio sources for playback and capture.
IP Network Congure network parameters for the location of each Io IP physical SFP
cage.
IP Input Congure parameters for receiving inputs from the media network.
IP Output Congure parameters for sending outputs to the media network.
DS Keyer Setup and control the insertion of keyed video from the frame buer or
graphics les with alpha channel.
LUT Load a lookup table (LUT) le to adjust the calibration of color for any
source.
Timecode Monitors SMPTE 12M-2 timecode and congure timecode window burn
output.
Presets Add or delete saved preset congurations (handy for quick and easy recall
of dierent Io IP settings for varied workows).
Firmware Install rmware from your currently installed AJA software package.
Info Display status information and the rmware version number. This
information is generally intended for troubleshooting/support.
About Io IP Modal Operation
Io IP cards support modal operation. Functionality depends on what firmware
has been installed on that card. Different Control Panel screens are displayed,
depending on the operating mode.
For Io IP you can choose to install:
• Io IP s2022—For use only with ST 2022-6/7 full bandwidth video, and supports
use of two SFPs for up to four uncompressed HD streams.
• Io IP ST 2110—For use only with full bandwidth video, supports use of two
SFPs for up to two input and two output uncompressed HD streams, and
permits transport of individual video or audio streams, or a set of multiple
video and audio streams.
Io IP Transport, Capture, Display v15.2r2 24 www.aja.com
Most ST 2022 Mode functionality also resides in ST 2110 Mode, with some
exceptions.
Control Panel Operation in s2022 Mode
Control Screen
The Io IP card can be controlled by various software applications running on
a host computer. The Control screen is where you select how the Io IP directs
video and is used by application software. This screen also provides control for
configuring output timing with regard to external reference video and horizontal/
vertical delay. The top of the Control Screen shows the currently selected AJA
device if more than one is available in your system.
Default Output
This is where you select what the Io IP card will output as a default when no
application has control of the board, such as when the Mac Finder or Windows
Navigation Pane is active. Since Io IP can be controlled by software applications
as well as its own control panel, the output can change dynamically. When you
select many video applications, they will take control of the Io IP inputs and
outputs. However, when an application that doesn’t take control is active, these
settings determine what Io IP will output.
Input Passthrough
This selection directs Io IP to route video from its selected input through the card
for processing and output.
Io IP Transport, Capture, Display v15.2r2 25 www.aja.com
Test Pattern
This selection directs the Io IP card to output a choice of preset pattern when no
other application is using the Io IP card. You can choose from:
• Black, Color Bars (75% or 100%), Ramp, Multiburst, Line Sweep, Multi Pattern,
or Flat Field, Check Field, White, Border, Linear Ramp, Slant Ramp, Zone Plate,
and Color Quadrant
In addition to the preset test pattern choices, a “Load File...” selection at the
bottom of the menu allows you to load any standard RGB graphics file (.tif,.psd,
etc.) into the frame buffer for display.
While in Test Pattern mode, you can select RGB or YUV output via a pulldown
menu.
NOTE: The graphic file will not be scaled to fit. If it’s smaller than the current frame
buffer format, Io IP will center it in the frame. If it’s larger than the current frame
buffer format, it will be cropped on the right and bottom. Also some graphics
formats and bit depths may not be supported. Once a graphic file is loaded into
the frame buffer it will be retained until it is overwritten by another graphic or test
pattern, or when power is turned off. Graphic file names are only “remembered”
in the menu until the AJA Control Panel application closed.
Hold Last App
This selection directs Io IP to hold and output the last frame of video from the last
application to control Io IP. This can be helpful when operating in an environment
where you’re switching back and forth between multiple application windows.
Playback Timing
Use these controls to set Genlock and Timing adjustment.
Genlock
Selects how Io IP will synchronize program video:
• Freerun - In this mode, Io IP generates sync without an external reference
source
• Ref In - Directs Io IP to use the Ref Video source for sync (usually an analog
black burst video signal)
• Video In - Directs Io IP to use whichever video input source has been selected
in the Inputs Screen for sync
Timing (Horiz and Vert):
These two pull-downs allow output timing adjustment with reference to the Ref
Video source selected:
• Horizontal selects a number of pixels (clocks) to oset
• Vertical species a number of lines to oset
Io IP Transport, Capture, Display v15.2r2 26 www.aja.com
Format Screen
The Format Screen shows the video format currently in use by the Io IP
framebuffer (called the Primary Format) and allows you to change it. All
throughout the Control Panel, choices are always presented based on what Io IP
can do with the signals available and the inputs/outputs selected.
Primary (Frame Buffer) Format
Format
This pull-down menu shows the currently selected format. When a change is
made via the Video Format pull-down or by clicking an icon and selecting a new
format via a contextual menu, the block diagram will change to reflect the new
format.
NOTE: The AJA Control Panel software uses the abbreviation “sf” instead of “PsF” when
referring to “progressive segmented frame” formats.
Pixel Format
Use this pulldown menu to choose from: YUV-10, YUV-8, RGB-10, or ARGB-8 or
RGB-12.
RGB Range
The RGB Range pulldown menu allows you to select either Full-range (0-1023) or
SMPTE range (typically 64-940) for RGB color output.
Follow Input
Enabling the Follow Input checkbox allows the Control Panel Buffer to autoswitch to whatever is the detected input format. This feature works only if the
controlling application supports input-based capture—AJA Control Room for
example.
Io IP Transport, Capture, Display v15.2r2 27 www.aja.com
Input Select Screen
On the Input Select Screen you can view the currently selected video and audio
input sources and map audio sources to the channels supported by your editing
application.
Video Input
Source
The pulldown menu allows you to change the currently selected video input.
Select from IP 1 or IP 2.
LTC /Ref
Use the LTC/Ref menu pulldown to identify the type of signal being received by
the LTC/Ref BNC:
• Reference - BNC is used as a video reference input
• LTC- BNC is used for linear time code (LTC) input
SDI Color Sp
Sets the color space. Select from Auto, YUV, or RGB.
SDI RGB Rng
Sets the RGB range. Select from Auto, SMPTE, or Full.
Io IP Transport, Capture, Display v15.2r2 28 www.aja.com
Audio Input
Select the audio input. Choose from:
• Analog - Analog input (four or eight channels, depending on conguration).
• IP1 Ch 1-16 - IP1 embedded SDI or HDMI incoming audio (up to 16 mono
channels)
• IP2 Ch 1-16 - IP 2 embedded SDI or HDMI incoming audio (up to 16 mono
channels)
Ch Map
If only two channels were selected in the third-party application you are using,
you can select which two channels will be mapped to that application. Different
Audio Input selections can have different channel mapping capabilities. Select
from:
• 1-2 to 1-2
• 3-4 to 1-2
• 5-6 to 1-2
• 7-8 to 1-2
• 9-10 to 1-2
• 11-12 to 1-2
• 13-14 to 1-2
• 15-16 to 1-2
NOTE: This setting does not affect the embedded audio being sent to the Io IP's BNC or
HDMI output connectors.
Output Select Screen
The IP Output Screen shows the current settings for both of the IP outputs. The
outputs can be configured independently.
Io IP Transport, Capture, Display v15.2r2 29 www.aja.com
Output Options
Select
• Auto - Automatically selects the output format, based on the input or selected
format.
• Primary - Selects the framebuer format for output.
• Video+Key - When selected, this indicates that the SDI 3 video is set to the
same format as the framebuer. SDI 4 is set to a video key signal associated
with SDI 3 (the shape to be cut out from the video - this will appear as a black
and white image/matte). Using the second KONA output as an Alpha Channel
key, with the video output, may be useful for feeding production switchers,
DVEs or other professional video equipment.
Color Space
Sets the color space. Select from Auto, YUV, or RGB.
RGB Range
Sets the RGB range. Select from Auto, SMPTE, or Full.
3G Transpor t
Sets the output transport. Select from:
• Auto - Automatically selects the transport, based on the input or selected
format.
• 2xHD-DL - Dual link HD output transport, using two BNCs.
• 3Gb
• 3Ga
HDMI Screen
Io IP Transport, Capture, Display v15.2r2 30 www.aja.com
HDMI Output
Select
• Primary - The HMDI Output of the Io IP is always the primary format. The
current format and frame rate are displayed on the right.
• Stereo 3D - A pulldown menu for 3D output allows you to select either Sideby-Side or Top-Bottom (Stacked) output of left-eye and right-eye signals.
NOTE: This selection must agree with the format selection in the third-party CineForm
Codec pulldown menu (NOT included with AJA Desktop Software).
Audio Ch
An Audio Channel pulldown allows you to select the number of embedded audio
channels for the HDMI output.
Protocol
The Protocol pull down allows you to choose between two “Auto” modes, or to
explicitly force the output to a desired protocol.
• Auto Detect - (most reliable) AJA device attempt to recongure the HDMI
output to match the current protocol setting of the output monitor. This
option will be the most reliable in creating an output image. However, the
output may result in loss of audio.
• Auto Set - (best quality) The AJA device HDMI out will attempt to
automatically set the output monitor into the best protocol, usually HDMI.
• HDMI - Forces the use of the HDMI protocol regardless of the attached
device’s EDID. Connection may fail if output monitor does not support the
HDMI protocol.
• DVI: - Forces the use of the DVI protocol regardless of the attached device’s
EDID.
Color Space
The Color Space pulldown allows you to choose between two “Auto” modes, or
to explicitly force the output to a desired color space regardless of the attached
device’s EDID or user application needs.
• Auto Detect - (most reliable) AJA device attempt to recongure the HDMI
output to match the current color space setting of the output monitor EDID.
This option will be the most reliable in creating an output image. However, the
output may result in an inferior image due to color space conversion and loss
of bit depth.
• Auto Set - (best quality) The AJA device will attempt to automatically set the
output monitor into the best color space and bit depth that matches the user's
application needs regardless of EDID of the output monitor. This may result
in loss of image if the output monitor does not support a specic color space
mode.
• RGBA-8 - Forces the use of RGBA-8.
• RGB-10 - Forces the use of RGB-10.
• RGB-12 - Forces the use of RGB-12.
• YUV-8 - Forces the use of YUV-8.
• YUV-10vForces the use of YUV-10.
RGB Range
The RGB Range pulldown menu allows you to select the type of RGB color output.
• SMPTE - (typically 64-940)
• Full - (0-1023)
Io IP Transport, Capture, Display v15.2r2 31 www.aja.com
HDMI HDR Screen
The HDMI-HDR screen provides a mechanism to inform an HDMI display device
(such as a TV or monitor) that the video content is HDR. This includes generation
of the Dynamic Range and Mastering Infoframe and the static metadata
descriptors as defined in CTA-861.3 and HDMI v2.0a. Included are pre-defined
primaries values for BT.2020 and DCI P3 color gamuts.
HDMI HDR Output
HDR Mode
• O - HDR Mode disabled (default)
• DCI-P3 D65 - Only Display Mastering Luminance available for Digital Primaries
• BT.2020 - Typically used with HDR
• Custom - Allows custom values for the Digital Primaries
EOTF
The Electrical Optical Transfer Function metadata bit tells the HDMI display which
EOTF to use. Most TV’s will require this to be set to ST 2084 for their HDR modes.
• Trad Gamma SD
• Trad Gamma HD
• ST 2084 (HDR-10)
• HLG (Hybrid Log Gamma) - No meta-data for Digital Primaries.
Ext. Color
Most TV’s require this be set to Non-Const Luma to go into their HDR modes.
Io IP Transport, Capture, Display v15.2r2 32 www.aja.com
Digital Primaries
Selecting Custom HDR Mode allows the editing of digital primaries information
that is passed as metadata accompanying the video signal. However, when HLG
selected as the EOTF digital primaries information cannot be edited, because HLG
does not use metadata.
Display Mastering Luminance
Represents the minimum and maximum Display Mastering Luminance.
• Minimum: Denes the oor of the SMPTE ST 2086 color volume (in the case of
HDR) and is determined by the mastering environment.
• Range: 0.0000 cd/m2 to 1.0000 cd/m2.
• Step size: 0.0002 cd/m2.
• Maximum: Denes the ceiling of the SMPTE ST 2086 color volume (in the case
of HDR) and is determined by the mastering environment.
• Range: 1 cd/m2 to 65535 cd/m2.
• Step size: 1 cd/m2.
Maximum Content Light Level (CLL)
Represents the highest-value pixel component in an entire scene. It is
determined by analyzing each frame of video, and can be determined in the post
environment.
• Range: 1 cd/m2 to 65535 cd/m2.
• Step size: 1 cd/m2.
Maximum Frame Average Light Level (FALL)
Represents the maximum of frame-based average light levels taken over an entire
scene, and can be determined in the post environment.
• Range: 1 cd/m2 to 65535 cd/m2.
• Step size: 1 cd/m2.
Video Setup Screen
Io IP Transport, Capture, Display v15.2r2 33 www.aja.com
The Video Setup screen shows various other settings which will affect how
video inputs and outputs behave, and how Io IP interacts with some software
applications.
Video Setup
Progressive Pref
Allows you to choose to prefer p (progressive frames) or PsF (progressive
segmented frames) on non-interlaced output. This feature is used to default the
hardware to use either p or PsF output over SDI when it has not been specified by
the application.
Color Space
Sets the video color space. Select from:
• Auto
• Rec 601
• Rec 709
Gamma
Sets the video gamma. Intended for use with legacy Apple displays. Select from:
• Auto
• Gamma 1.8
VANC Checkbox (inactive on Io IP)
This checkbox enables the tall frame buffers that include VANC, which is not
supported by Io IP. When using SMPTE ST 2110 the video flow is the video raster
only. VANC/HANC is sent on a separate IP flow, along with audio. ST 2110 is
designed to support separate essence flows for each data type.
Audio Setup Screen
Io IP Transport, Capture, Display v15.2r2 34 www.aja.com
The Audio Setup Screen shows the current settings for the analog audio output,
allowing you to re-configure it when desired.
Audio Monitor
Monitor Channels
Use the drop-down menu to select which two audio channels to monitor. Select
from:
• Ch 1-2 through Ch 15-16.
NOTE: This setting only applies to dual channel monitoring environments.
Monitor Level
Allows adjustment of the analog monitor level, to match the audio to your
operating levels. Select from:
• +24 dBu FSD
• +18 dBu FSD (default)
• +15 dBu FSD
• +12 dBu FSD
Lock Audio Gain To Unity
When set, Io IP will ignore the third-party application gain setting and set the
audio gain at unity. When not set, this checkbox tells the Io IP to get the audio
gain setting from the application.
Audio Configure
Analog IO Select
This setting controls how the analog audio inputs and outputs are configured.
Select from:
• 8-Out (Ch 1-8 output)
• 4-In 4-Out (Ch 1-4 input, Ch 5-8 output)
• 4-Out 4-In (Ch 1-4 output, Ch 5-8 input)
• 8-In (Ch 1-8 input)
Delay In
Here you can set up to 6 frames (in tenths of a frame) of input audio delay.
Delay Out
Here you can set up to 6 frames (in tenths of a frame) of output audio delay. The
AJA Control Panel delays all audio outputs—SDI, HDMI, and Analog.
IM PORTAN T: If you use Control Panel delay, do not use other delay settings in your
applications, as they can conflict.
Audio Mixer Screen
The Audio Mixer screen has two tabs; Playback and Capture. These tabs display
what sources are available for monitoring / mixing via the AJA hardware when
in either of those two modes (if applicable). The controls on this screen are
dedicated only to monitoring adjustments, and do not affect the level at which
inbound audio signals are captured to storage.
Io IP Transport, Capture, Display v15.2r2 35 www.aja.com
The selection check boxes and screen slider controls affect the following Io IP,
outputs:
• SDI Embedded Audio Out
• HDMI Embedded Audio Out
• Analog Audio Out (via DB25 cable)
• Front Panel Monitor Out (headphone jack) - This level can also be adjusted
with the front panel gain knob, and is additive to the screen slider controls.
IM PORTAN T: Even though you can hear changes in the signals and levels adjusted
with the Audio Mixer screen, these changes are NOT recorded to disk during
NLE Capture or Audio Punch In / Voice Over to Timeline. In addition, muting or
activating sources on this screen will not affect audio signals being recorded. The
Audio Mixer screen is dedicated for monitoring only, not program mixing.
The branching arrow on the lower right indicates which sources are being routed
for monitoring in that operating mode, and is colored blue when active and red
when disabled.
Each source has a confidence meter, which enables you to tell immediately if you
have a source arriving correctly at the AJA hardware (without having to launch
any other software). The level sliders allow a simple plus or minus adjustment to
the Source level being monitored. This is to allow for fine-tuning of your listening
environment (on occasions the host system audio can be unexpectedly loud, or
an incoming feed may be very loud or very quiet).
Two different Audio Mixer screens are available, selected by clicking on the
Playback Monitor or Capture Monitor tabs. During regular editing, the Playback
tab is used to control your monitoring experience. During capture operations, the
Capture tab is used for your monitoring experience.
Controls in each tab are only in effect when Io IP, is in the correct operating
mode, as determined by the controlling application or the Control Panel
application's Default Output setting. When the mode doesn't match, the mode
indicator on the right goes red (see Figure 51 on page 69). However, settings can
be adjusted while in that disabled mode, and will be applied when you return to
that operating mode.
Io IP Transport, Capture, Display v15.2r2 36 www.aja.com
Audio Mixer Playback Monitor Tab
Playback Source Selection
Clicking the On checkbox selects the audio for that item for playback to the audio
monitor outputs. Multiple sources can be selected simultaneously.
Main App
If an external application is controlling the Io IP,, it will be displayed in the Item
Select column and its audio can be selected for playback with the checkbox.
AJA Input
Selects for monitoring the audio being input to Io IP,.
NOTE: The AJA Input Item Select dropdown selection is linked to the Input Select screen's
Audio Input Select dropdown. Changing the setting on one screen will also
change the setting on the other screen.
In the Item Select column, click on the dropdown and choose from:
• Analog - The Analog Audio being received on the Io IP, DB-25 connector.
• IP Ch 1-16 - The embedded audio being received by the Io IP.
Host Audio
Selects the audio from the host computer, thus enabling the AJA hardware to
monitor anything that would normally be presented via the host laptop, CPU or
computer monitor. For example, an editor could sample music from an online
library, while concurrently playing back their NLE timeline. Or, a producer and
editor could be communicating live during an editing session, using Skype or
some other video calling tool.
Io IP Transport, Capture, Display v15.2r2 37 www.aja.com
Source Gain
Meters display the input audio levels of the source, colored green when that
source is On, and gray when that source is not selected. The levels shown do not
change when the gain is adjusted, because the input levels are being monitored,
not the output levels.
When activated, the source gain controls can be used to adjust the monitoring
output gain of that source, from +6dB to - infinity (mute). Adjustment methods
include:
• Sliders - The sliders on the right can be used to change the values for each
color.
• Numeric Entry - You also enter a numeric value by clicking on the displayed
number, and can increase or decrease the values clicking on the up/down
arrow boxes.
• Cut and Paste - Right clicking on a displayed number opens a Cut, Copy, Paste
dropdown menu for convenient numeric entry.
As mentioned before, these controls are for monitoring only, and do not change
the audio recorded to a NLE file. Any actual recording level adjustments to
Capture or Audio Punch In / Voice Over to Timeline operations will either need to
be made upstream of the AJA input, or else via adjustments within the main NLE
application (e.g. via a pass through mix tool).
Audio Mixer Capture Monitor Tab
The Capture Monitor Mode screen is used to select and mix audio to be
monitored during capture operations.
IM PORTAN T: Even though you can hear changes in the signals and levels adjusted with
the Audio Mixer screen, these changes are NOT recorded to disk during NLE
Capture or Audio Punch In / Voice Over to Timeline. In addition, muting or
activating sources on this screen will not affect audio signals being recorded.
The Audio Mixer screen is dedicated for monitoring only, not program
mixing.
Io IP Transport, Capture, Display v15.2r2 38 www.aja.com
The controls on this screen are similar to those on the Playback Monitor Mode
screen, except the Main App is not available for selection (you cannot capture
from the application that is capturing). See "Audio Mixer Playback Monitor Mode
Screen" on page 70 for more information.
NOTE: If you want different behavior when the Capture tab is triggered; i.e. for host
system audio to be muted, then simply check the host system audio in the
Capture tab only. This way when you exit NLE Capture and return to regular
editing, the Playback tab settings will be applied and your host system audio
monitoring will resume.
IP Network Screen
The IP Network Screen lets you input the network parameters that define the
location of each physical SFP+ cage of the Io IP hardware.
Enable 2022-7
Enables 2022-7 redundant network operation. See "IP Network Screen, 2022-7
Operation" on page 40 for more information.
Local IP Address
This is the IP address that identifies each physical Io IP SFP+ link on the network.
This field must be filled in for at least one of the Io IP SFPs for Io IP to work
properly.
Subnet Mask
This is the subnet mask defined by the system administrator. Generally speaking,
this value must be defined in the AJA Control Panel for Io IP to work correctly on
the network.
Io IP Transport, Capture, Display v15.2r2 39 www.aja.com
Gateway Address
This is the IP address of a network gateway to a remote network. This value must
be defined if/when the Io IP needs to send signals to, or receive signals from a
remote network.
Local MAC Address
This is an information display field that cannot be changed. It is the MAC address
that is assigned to the specific SFP cage on the Io IP.
Set Button
Click the ‘Set’ button to apply the changes.
IP Network Screen, 2022-7 Operation
Enabling 2022-7 makes it possible to configure redundant networking capabilities
using both SFP modules. No additional inputs or outputs are activated. In 2022-7
operation each SFP transmits and receives the same information. This allows the
use of two separate network paths, making recovery possible if one path fails.
When 2022-7 is enabled, additional settings are available for configuring your
network settings.
• SFP Top - Indicates the top physical SFP cage on the Io IP board, farthest from
the copper contacts where the Io IP, card connects to its PCIe slot.
• SFP Bottom - Indicates the bottom physical SFP cage on the Io IP board closest
to the copper contacts where the Io IP, card connects to its PCIe slot.
Io IP Transport, Capture, Display v15.2r2 40 www.aja.com
IP Input Screen
The IP Input Screen on Io IP, lets you define parameters for receiving inputs to the
Io IP from another device on the network. This screen has two tabs, one for each
Channel.
NOTE: The IP 1 Input and IP 2 Input labels do not represent the physical SFP cages on
the Io IP. They represent different transmissions being received by the Io IP card,
possibly over the same 10GbE link.
Channel 1 or 2
Select the input channel to be configured.
Multicast
When selected, Multicast operation is used. Enter a valid multicast IP address into
the Dest IP Address field.
Unicast
When selected, Unicast operation is used. The Dest IP Address field is
automatically filled with that card's Local IP Address (from the IP Network screen)
and the field will be grayed out (not editable).
NOTE: Turning off Unicast operation makes the Dest IP Address editable, but it retains
the previously applied Unicast IP address. You must edit the Dest IP Address field
on this screen to resume Multicast operation.
Destination IP Addr
This filter lets you specify the network address where a multicast from another
device on the network can be found.
Destination Port
This filter lets you specify the port number being used to send a multicast to the
‘Destination IP’ address specified above.
Io IP Transport, Capture, Display v15.2r2 41 www.aja.com
Match Checkboxes
The ‘Match’ checkbox can be used to match the Destination Port to the
Destination IP Address.
Playout Delay
The Playout Delay slider can be used to adjust the amount of buffering before
packets are sent to the network, in a range of 0 to 150 milliseconds. Network
traffic conditions may require setting a larger buffer. Default is 50 milliseconds.
IP Input Screen, 2022-7 Operation
These fields will only be available when 2022-7 is Enabled in the IP Network
section. See "IP Network Screen, 2022-7 Operation" on page 40.
Destination IP Addr 2
This filter lets you specify the network address where a duplicate multicast from
another 2022-7 device on the network can be found. That device should be
sending two duplicate IP video multicasts and the IP addresses of those streams
will be specified in ‘Destination IP Addr’ and ‘Destination IP Addr 2’.
Destination Port 2
This filter lets you specify the port number being used to send a multicast to the
‘Destination IP Addr 2’ address specified above.
Path Difference
The Path Difference slider can be used to adjust the buffering used for redundant
operation, where the paths through the network of the two streams may
have different delays. Adjustable in a range of 0 to 150 milliseconds, with 50
milliseconds the default.
Io IP Transport, Capture, Display v15.2r2 42 www.aja.com
IP Output Screen
Figure 12. AJA Control Panel, IP Output Screen
The IP Output Screen on Io IP lets you define parameters for sending outputs
from the Io IP card onto the network. This screen has two tabs, one for each
Channel.
NOTE: The IP 1 Input and IP 2 Input labels do not represent the physical SFP cages on
the Io IP. They represent different transmissions being received by the Io IP card,
possibly over the same 10GbE link.
Channel 1 or 2
Select the output channel to be configured.
Destination IP Addr
This parameter lets you specify the network address where a multicast from this
Io IP can be sent for use by other devices on the network.
Destination Port
This lets you specify the port number being used to send a multicast to the
Destination IP address specified above.
Destination IP Addr 2
This field will only be available when 2022-7 is Enabled in the IP Network section.
This filter lets you specify the network address where a duplicate multicast from
this Io IP output can be sent. This IP output will then be sent to both the address
specified in ‘Remote IP Addr’, and to the address specified in ‘Remote IP Addr 2’.
Destination Port 2
This field will only be available when 2022-7. It lets you specify the port number
being used to send a multicast to the ‘Remote IP Addr 2’ address specified above.
Io IP Transport, Capture, Display v15.2r2 43 www.aja.com
Enable Checkbox
The ‘Enable’ checkbox connects the Io IP to the network address specified by all
the matched output parameters. Any time a parameter is changed, the output
should be re-enabled.
DS Keyer Screen
Io IP has a hardware-based downstream keyer that is ideal for putting logos,
“bugs” or other video material with an alpha channel on top of video being
played out or printed to tape. A typical application would be putting a television
station’s call letters or channel over program video content. Keyed video can
be from the Io IP’s internal Frame Buffer (from storage, Video In, etc.) or from a
graphics file that has an alpha channel (PhotoShop etc.).
Settings in the DS Keyer Screen provide control over how the keyer operates and
whether it’s turned on or off.
Downstream Keyer
Mode
• Downstream Keyer O - When this pulldown menu item is selected the
downstream keyer will be turned o.
• Frame Buer over Matte - Places the keyed video with alpha channel currently
in the Frame Buer over a xed color matte determined by the “Matte Color”
setting set separately.
• Frame Buer over Video In - Places the keyed video currently in the Frame
Buer over the video input for playout or print-to-tape.
• Graphic over Matte - Places a graphics le having an alpha channel (chosen in
“Graphic File” pulldown) over a xed color matte determined by the “Matte
Color” setting set separately.
• Graphic over Video In - Places a graphics le having an alpha channel (chosen
in “Graphic File” pulldown) over the video input for playout or print-to-tape.
Io IP Transport, Capture, Display v15.2r2 44 www.aja.com
• Graphic over Frame Buer - Places a graphics le having an alpha channel
(chosen in “Graphic File” pulldown) over the current contents of the KONA
card’s Frame Buer (which might be from storage, video In, KONA TV, etc.).
Matte Color
Only available when the pulldown “Frame Buffer over Matte” or “Graphic over
Matte” are selected-pressing this button brings up a color selection dialog. The
dialog provides a variety of ways to select a matte color including a color wheel,
color picker (choose from a location anywhere on the computer screen), numeric
sliders, swatches, “crayons”, and spectrums. The matte chosen will be used as a
video background under the keyed video.
Foreground pre-multiplied (checkbox)
Use to avoid “matte lines” and improve the appearance of the foreground (key)
being composited over the background.
Audio Out
• Frame Buer - Select audio out to be routed from the contents of the Frame
Buer.
• Audio In - Select audio out to be routed from Io IP’s currently selected input(s).
Opacity
This slider controls the transparency of the keyed video (over the background)
from translucent to completely opaque.
Graphic File Load
This pulldown allows you to choose from any recently accessed file or select
a new file (“Load File...”), which then brings up a file dialogue. Remember that
the file raster (pixel x pixel count) should match the primary format in the frame
buffer. Example: you wish to key a logo on top of your 1920x1080 footage, the still
image with alpha channel that you load should be 1920x1080.
Io IP Transport, Capture, Display v15.2r2 45 www.aja.com
LUT Screen
This screen lets you control RGB look up table (LUT) color conversion. You can
let Io IP automatically apply LUT conversion as appropriate, or you can load and
adjust LUT data to meet your requirements. The frame buffer must be set to RGB
(Format screen, Pixel Format) to enable, apply, and adjust LUT conversions.
NOTE: Io IP also uses a hardware based color-space converter in conjunction with the
LUT. For example,
LUT Transfer Function
The upper right side of the LUT screen displays an approximate representation of
the Red, Green, and Blue curves of the current transfer function.
NOTE: The LUT Transfer Function display may not always be an accurate representation
of the color conversion being applied. For example, if other parameters are
not set correctly, you may be able to change the curves on the screen but that
conversion is not applied to the output until the parameters are adjusted
correctly.
LUT Type
Select the type of LUT. Choose from
Auto (default)
When the Frame Buffer is set to RGB and LUT Type is set to Auto the type of
LUT automatically loaded is determined by the video format and how the video
output(s) are configured.
• For SD format and YUV output, the LUT is automatically loaded with a REC601
gamma.
• For HD format and YUV output, the LUT is automatically loaded with a REC709
Gamma.
Io IP Transport, Capture, Display v15.2r2 46 www.aja.com
• For HD format and RGB output (e.g. dual link RGB), the LUT is automatically
loaded with linear since both the buer and output are both RGB (1:1).
• For an RGB source and RGB output, and for a YUV source and YUV output the
LUT will be linear because no conversion is taking place.
• For an RGB source and a YUV output (common if receiving les from an
animator or motion graphics artist), and vice versa, then Auto will apply the
proper curve to enable this (along with a color space conversion).
Linear
Forces a straight linear transfer function.
SMPTE->FullRange
Forces a SMPTE to Full Range transfer function.
FullRange->SMPTE
Forces a Full Range to SMPTE transfer function.
User Linear
On first use, sets a linear transfer function and activates the Gain and Offset
sliders on the right, permitting individual Red, Green, and Blue color adjustments.
These settings are retained if you select another LUT type and then return to this
setting.
User Film Stream
Similar to User Linear, above but sets a film style transfer function that can be
adjusted with the Gain and Offset sliders.
User LUT File
Activates the LUT Files controls, allowing the loading of a custom LUT .txt file. See
"User Defined LUTs" on page 47.
Reset Button
Returns the settings of the currently selected LUT type to their default values.
Gain and Offset Sliders
When a User setting is selected, individual sliders for Gain and Offset for Red,
Green, and Blue are activated.
User Defined LUTs
Users can specify their own custom LUTs by creating a LUT file and uploading it to
an AJA Video Device using the LUT (lookup table) screen in the Control Panel. You
can create a custom LUT file using most text editors or spread sheets, provided
the data is arranged according to the LUT File Format Specification (see "LUT File
Format Specification" on page 48).
Uploading A Custom User LUT File
Once the LUT file is created, you can upload it with the following steps:
1. Before loading a LUT, make sure you are using an RGB frame buer format.
Go to the Format screen and adjust the Pixel Format.
Io IP Transport, Capture, Display v15.2r2 47 www.aja.com
2. Open AJA Control Panel and select the “LUT” screen.
3. Click the “LUT Type” popup and choose “User LUT File”. LUT Files options
become enabled.
4. Click the “+” button and use the navigation dialog to choose a custom LUT
le. The le is loaded and the LUT will be applied, if it is properly formatted.
LUT File Format Specification
LUT files are normal text files that contain 1025 lines (numbered 0 - 1024).
Each line contains 3 integer values in the range 0 - 1023, representing 10 bit R, G, B
component output values. Component values may be separated by one or more
commas, spaces, or tabs. The example below show LUT File contents for Line 0,
Line 1, Line 2, and Line 1024, with different valid ways to separate the numbers in
a line.
• 16, 17, 17
• 171818
• 19 19 21
• …
• 1000, 1022, 1023
In the example above, the first line (Line 0) represents the output values for the
case where R=0, G=0, or B=0. In other words, if the R component of a pixel is set
to 0, then set R component value to 16. Likewise, if G is set to 0, then set G to 17.
The second line (Line 1) does a similar thing for input component values equal to
one.
A simple way to construct a LUT file is to use a Spreadsheet like Excel. Simply fill 3
columns and 1025 rows with LUT data, and save the result as a “CSV” file.
Timecode Screen
Io IP Transport, Capture, Display v15.2r2 48 www.aja.com
The Timecode Screen selects the timecode stream read for applications that use it
(for example, when the timecode source is set to “Use control panel setting,” AJA
Control Room will read the selected stream). It is also used for monitoring the RP188 timecode embedded in the digital data stream, and can be used for selecting
a timecode oset (if required).
Timecode Input Settings
RP-188 Timecode <n>
In RP-188 timecode (SMPTE 12M-2) there can be multiple timecode types in the
data stream. Use this pull-down to select the one you wish to monitor:
• RP188 LTC (Linear timecode)
• RP188 VITC (Vertical Interval timecode)
The selection will be displayed in the timecode value to the right of the pulldown.
User Bits
For monitoring a variable framerate (VFR) timecode (such as Varicam), you may
wish to check the User-bits box. If you set this checkbox, Io IP will detect and
interpret the user-bits and display them next to the checkbox. You will see the
original framerate (30 fps in the figure below) followed by the adjusted frame
padding (two digits reporting discarded and retained frame padding).
NOTE: SMPTE 12M-2 is the updated name and specification for what was RP-188.
Timecode Output Settings
Use QT Timecode (Mac OS Only)
This feature is for Final Cut Pro 7 (or earlier), AJA Control Room, and AJA TV only.
When checked, it directs Io IP to output timecode from the QuickTime timecode
track.
Timecode Burn-in
This pulldown selects whether the timecode value is displayed in a “burned-in”
window in video output. If set to “OFF”, timecode will not be keyed over the
video. If set to “Timecode”, then the timecode value will be keyed over the output
video for all of the Io IP outputs. This can be useful for synchronizing, choosing
edit points, dailies, and many other purposes.
Timecode Offset (entry field and FPS pull-down)
When QuickTime timecode in disabled, this text entry field allows you to
generate a timecode based on the offset entry. You can select a framerate from
the pulldown menu at the right side of the pane. Use that same value here as the
source video to ensure the timecode is synchronized.
NOTE: SMPTE RP 188 defines a standard for the transmission of time code and control
code in the ancillary data space of a digital television data stream. Time code
information is transmitted in the ancillary data space as defined in ANSI/SMPTE
291M. Multiple codes can be transmitted within a single digital video data stream.
Other time information, such as real time clock, DTTR tape timer information,
and other user-defined information, may also be carried in the ancillary time
code packet instead of time code. The actual information transmitted through
the interface is identified by the coding of a distributed binary bit. Equipment
manufacturers can use the meta data for different purposes.
Io IP Transport, Capture, Display v15.2r2 49 www.aja.com
Presets Screen
After configuring the AJA Control Panel screens, you can then save all your
settings as a snapshot for later recall, called a preset. In this way, you can organize
presets for all your typical tasks, eliminating manual reconfiguration.
Saving, Loading and Deleting Presets
To save a preset, simply go to the Presets screen and click “Save Preset”. A dialog
will be presented asking you for a file name. Enter a meaningful name and click
“OK”. Thereafter the preset will be available under the Control Panel “Presets” list.
From the Presets screen you can manage your collection of presets easily. To Load
or Delete a stored preset, just select it with your mouse and then click the “Load
Preset” or “Delete” button respectively .
Transferring Saved Presets
If you want to use a saved Preset on another workstation, you can simply copy
the file on removable storage and install it at the new location. The Preset files are
stored at:
Mac OS Preset Files Storage Location
• From the Finder, hold down the Option key (to display the Library directory)
and click on Go/Library/Application Support/AJA/<device name>/Presets/
Windows Preset Files Storage Location
• c:\Users\<username>\AppData\Local\AJA\Control Panel\<device name>
Presets\
Io IP Transport, Capture, Display v15.2r2 50 www.aja.com
Reset to Default
When you click the "Reset Device" button the Default User Preference file will be
deleted and AJA Control Panel will do one of the following:
• If a Default Global Preference if found, it is loaded and the device is set to this
state.
• If a Default Global Preference le is not found, “factory defaults” are loaded
and the device is set to this state.
NOTE: See "Default Preferences" on page 21 for more information.
Erase all Prefs
For technical support purposes you may be required to remove the current
Preference settings. Clicking on the "Erase all Prefs" button deletes the current
Default User Preference file without accessing a Default Global Preference file, if
one exists. Current AJA device settings are not altered, but changing any setting
will immediately regenerate a Default Use Preference file with the changed
settings.
NOTE: Clicking on the AJA Control Panel Erase All Prefs button does NOT delete an
existing Global Preference file from that shared location.
Firmware Screen
Figure 13. AJA Control Panel, Firmware Screen
Two versions of firmware are available for Io IP. You can select from:
• Io IP s2022 - For use only with 2022-6/7 full bandwidth video.
• Io IP s2110 - Permits granular transport of individual or groups of video and
audio streams.
NOTE: When you change between operating modes, you may need to connect to
a different physical media network, or reconfigure that media network for
compatible operation.
Io IP Transport, Capture, Display v15.2r2 51 www.aja.com
Click Install to erase the current firmware and load the desired firmware.
Info Screen
Figure 14. AJA Control Panel, Information Screen (Standard Mode)
The Info Screen shows the software files that have been installed on your
system. This information may be needed if you talk to an AJA Customer Service
representative to determine if files are missing or need updating.
Control Panel Operation in ST 2110 Mode
Overview
Io IP's ST 2110 mode supports the transport of uncompressed SDI video (up to
4Kp60) and embedded digital audio streams over a network. These audio and
video streams can be sent and received independently.
Requirements
• 10G network
• PTP network timing system
General Operation
In ST 2110 mode, a new Io IP must be configured before operation. Once initially
configured, that Io IP can be set to receive JSON or SDP information, which
completes that device's configuration for a specific workflow task (playing back
and/or capturing SDI video and audio over the network).
Io IP Transport, Capture, Display v15.2r2 52 www.aja.com
Because of the complexity of setting up IP configurations for ST 2110 operation,
IT experts at your facility may have created a set of files you can use for quick
and easy Io IP re-configuration. A shared network location or other method
may also be established to hold these files, to ensure easy access to the correct
configuration files for various workflows.
AJA Control Panel ST 2110 Mode Follow Input Settings
The correct setting of AJA's Control Panel application's "Follow Input" parameter
is required, depending on the type of transport:
• Follow Input should be On for HD/SD SDPs.
• Follow Input should be O for script to script congurations. The frame rate
will need to be manually set.
• Follow Input should be O for UltraHD/4K SDP's, which will maintain the
board in UltraHD/4K operation.
AJA Device ST 2110 Mode Presets and Resets
Control Panel user defined Presets save and restore the video state and video
options currently set in Control Panel. IP parameters are not included. Use
exported scripts to save IP parameters.
The Control Panel "Reset Device" button reset clears all IP settings and puts the
card back to fresh state. This is recommended when setting up a new script or
generating a new set of parameters, but is not required.
IP Config Status Tab
The Control Panel screens available in ST 2110 mode are similar to those in ST
2022-6 mode. The IP Config screen parameters are arranged differently, however,
with three tabs.
Io IP Transport, Capture, Display v15.2r2 53 www.aja.com
The ST 2110 Status screen reports various network statuses, including IP
addresses and PTP operation. It also permits access to IP configuration options.
SFP1 Local IP
The Local IP address of the top SFP is displayed. The current transmit and receive
bitrates are also reported, in Gb/sec.
SFP2 Local IP
Same as above, but for the lower SFP module, if installed.
PTP Information
The PTP Grandmaster and Master IDs are displayed, as well as the current PTP
Status.
Advanced Button
Clicking on the Advanced button takes you to the 2110 IP configuration windows.
See "IP Config Editor Window" on page 57 for more information.
IP Config Capture Tab
The Capture Tab screen shows the current settings for receiving IP streams, the
status of that stream, and allows activating and deactivating each stream.
Session Description Protocol (SDP) information, used for easy configuration, can
also be loaded and refreshed from this screen.
Io IP Transport, Capture, Display v15.2r2 54 www.aja.com
Channel 1-4
Click on the box to enable the configured stream (check mark). Activity of that
stream is indicated by the color of the dot: blue = active, red = inactive.
Clicking on the triangles display information for that video or audio playback
stream.
SDP
The current SDP information is displayed for that stream.
Refresh
Click Refresh to update the configuration information. Use when the source
frame rate has changed.
Set
Click Set to open a dialog box allowing you to enter SDP configuration
information for the source of the desired stream.
• Select URL to enter the text of a network location where the desired SDP
information resides. This can be a URL of a Io IP transmit device.
NOTE: When using a URL for configuration, you need to turn Control Panel's "Follow
Input" setting On and use Refresh if the incoming signal format changes.
• Select SDP File to browse to a location with the desired SDP source stream
information. The location selected must point to an SDP le that was created
by the source that is transmitting the signal.
NOTE: When using an SDP for configuration, you need to turn Control Panel's "Follow
Input" setting On and if the incoming signal format changes you will need to
generate and import a new SDP file to accommodate the format change.
Io IP Transport, Capture, Display v15.2r2 55 www.aja.com
IP Config Playback Tab
Channel 1-4
Click on the box to enable the configured stream (check mark) Activity of that
stream is indicated by the color of the dot: blue = active, red = inactive.
Clicking on the triangles display information for that video or audio playback
stream.
SDP
The current SDP information is displayed for that stream. This text can be copied
and pasted to configure another Io IP's capture stream.
Export
Click Export to name and save an SDP configuration file for that transmit stream,
which can be used to configure another Io IP's capture stream.
Io IP Transport, Capture, Display v15.2r2 56 www.aja.com
IP Config Editor Window
In the Status tab screen, clicking on Advanced opens an IP Config Editor window,
used for advanced configuration. Click on the triangles to reveal editable
configuration information, listed by IP Field Name and Value.
Import
Click Import to open a navigation window allowing you to import a JSON file into
the editor. Imported values are not activated on the Io IP until applied.
Export
Click Export to open a navigation window allowing you to name and export the
current configuration as JSON file.
Generate
Click Generate to open an initial IP Configuration window allowing you to create
the current configuration as JSON file (see "Generate Window" on page 58).
Cancel
Cancels any currently changed settings and closes the window.
Apply
Click Apply to apply the current settings to the Io IP's basic IP settings.
NOTE: Applying a basic configuration affects the Io IP's currently configured network
playback stream information, but does not affect the currently loaded capture
stream information.
Io IP Transport, Capture, Display v15.2r2 57 www.aja.com
Generate Window
The Generate window lets you edit and create the base IP addresses to be used
by that Io IP.
IM PORTAN T: Each Io IP ships by default with the same SFP base IP address. This must be
changed to ensure each device on the network has a unique IP address.
Defaults
Resets the IP values to factory defaults. These values are not activated on the Io IP
until applied.
Cancel
Cancels any currently changed settings and closes the window.
Generate
Generates a set of basic IP addresses based on the values entered above.
Generated values are not activated on the Io IP until applied.
Io IP Transport, Capture, Display v15.2r2 58 www.aja.com
Chapter 4 – Advanced ST 2110 Configuration
This Chapter offers technical information regarding IT configuration for ST
2110 workflows, useful to IT professionals responsible for network system
administration.
Configuration Summary
In ST 2110 Mode, each Io IP must be configured before operation. This
configuration process can be accomplished using AJA's Control Panel software,
and includes the following steps:
• Create a unique base IP address for each SFP module.
• Create JSON or SDP conguration les that determine the IP attributes of each
transmit and receive stream.
• Apply the correct conguration le for each stream to the each Io IP.
In ST 2110 Mode, Io IP supports three configuration methods to specify the
required transmit and receive stream IP information:
• JSON Script - Generate and apply a JavaScript Object Notation (JSON) le
containing all the required information for each Io IP. The Control Panel
Follow Input parameter of the capture Io IP must be turned O, and the user
manually sets the Control Panel frame buer format to match the input. For
advanced users only after initial setup.
• SDP URL - Enter the URL of a network location that has a desired Session
Description Protocol (SDP) le for a stream to be received. This may be the
URL of the transmitting Io IP device itself. The Control Panel Follow Input
parameter must be turned On before applying the conguration, and
the operator uses Refresh to update the Io IP's frame buer format if the
incoming signal format changes.
• SDP File - Export an SDP le from a transmit Io IP and then import it into a
receive Io IP. This le reects the transmit device's output conguration at the
time of creation, and a new SDP le must be generated and imported if the
incoming signal format changes. The Control Panel Follow Input parameter
must be turned On before applying each conguration.
Initial Io IP ST 2110 Installation and Network Configuration
1. Install the Io IP card with SFP module(s) into your computer.
2. Install AJA's Desktop Software package on the same computer.
3. Connect the Io IP card's SFP module(s) to your 10 GigE media network.
4. Connect the Io IP's HDMI output to a compatible HDMI monitor.
5. Launch AJA's Control Panel application and select IP Cong.
6. In the Status tab, click on Advanced.
Io IP Transport, Capture, Display v15.2r2 59 www.aja.com
Figure 15. Generating an Initial ST 2110 Configuration
7. Click on Generate at the bottom of the screen, which opens the Generate
window.
Figure 16. SFP Configuration IP Address
8. In the SFP eld, enter a unique IP address for the Io IP card's top SFP.
Io IP Transport, Capture, Display v15.2r2 60 www.aja.com
IM PORTAN T: Each Io IP ships by default to generate the same IP address. This default
address must be changed so each device on the network has a unique IP address.
IM PORTAN T: Io IP's automatic configuration file creation process generates a compatible
set of IP addresses by incrementing the basic IP address. AJA recommends
separating adjacent IP addresses for different Io IP devices by at least two in the
third octet, to keep each SFP (up to two per card) unique.
IM PORTAN T: Keep careful records of what IP addresses have been assigned on the
network to avoid accidental duplication.
9. Click on the second window's Generate button, then click Apply. This
creates a generic conguration dened with four transmit video streams,
four receive video streams, four audio transmit streams, and four receive
transmit streams. The various IP addresses generated are derived from the
base IP value you entered.
NOTE: Default IP addresses can be used for testing, but for actual deployment AJA
recommends having a facility administrator manage IP configuration.
10. Click on the Network triangle and enter a valid IP address for your facility's
PTP master clock, which is required for ST 2110 operation.
Figure 17. PTP Configuration
11. Using these values as a starting point, you can now open other data elds
in the editor to manually adjust the remaining conguration values as
required. When the conguration is complete, click Apply to enable the
settings for that Io IP.
12. This JSON le can be named and exported to a shared network location,
and then be imported as needed into other Io IP transmit and receive
devices to be used as a starting point for further conguration.
Io IP Transport, Capture, Display v15.2r2 61 www.aja.com
Transmit/Receive Example
One simple way to test actual operation over the network is to configure two
Io IPs with complimentary settings, as follows:
1. Perform an initial conguration on a Io IP device as described above,
entering a dierent address. This will be used as the playback device.
2. Import that conguration to a second Io IP, edit that base SFP address (for
example, increment by 100), and swap the RX and TX IP addresses for that
second device. These complimentary congurations allow bi-directional
transport between the two Io IPs.
KONA Device Base SFP Rx Destination Tx R em ote Port
KONA IP #1 172.16 .45.0 239.0.45.0 239.20.45.0 1000
KONA IP #2 172.16.45.100 239.20.45.0 239.0.45.0 1000
3. You should now be able to open AJA's Control Room application on each
computer and test playback and capture.
Io IP Transport, Capture, Display v15.2r2 62 www.aja.com
Appendix A – Specifications
Io IP Tech Specs
Video Formats
• (4K)** 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (UltraHD)** 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50*, 59.94*, 60*
• (2K) 2048 x 1080PsF 23.98, 24, 25
• (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1080i 50, 59.94, 60
• (HD) 720p 50, 59.94, 60
• (SD) 625i 50
• (SD) 525i 59.94
*SMPTE ST 2110 only
**2SI over IP via ST 2110-23
Note: High Frame Rate capabilities are dependent on host system attributes. Not
all systems and configurations will support all frame rates.
Media Transport Interfaces
• SMPTE ST 2110 (-10, -20, -21, -30, -40), 2022-6, 2022-7
• 2x SFP+ Cages - SFPs not included
• Recommended 10 GigE SFP+ modules:
• Arista Networks SFP-10G-SR Compatible 10GBASE-SR
• Fiberstore SFP-10GSR-85 10G SFP+ 850nm
• Finisar FTLX1471D3BCL (for single mode 1310nm)
• Mellanox MFM1T02A-SR 850nm 10G
Video Input IP
• SMPTE ST 2110, 2022-6, 2022-7
• Single channel* input available when using ST 2110 or ST 2022-6 to receive
2K/HD
• 4-Channels input available when using ST 2110-23 to receive 4K/HD
• ANC support
• Rx support for Narrow or Wide, Gapped or Linear Modes**
*Capture and simultaneous monitoring is supported up to 2K/HD
**SMPTE ST 2110 only
Io IP Transport, Capture, Display v15.2r2 63 www.aja.com
Video Output IP
• SMPTE ST 2110, 2022-6, 2022-7
• Single channel* output available when using ST 2110 or ST 2022-6 to
transmit 2K/HD
• 4-Channels output available when using ST 2110-23 to transmit 4K/HD
• ANC support
• Tx support for Narrow, Gapped Mode**
*Capture and simultaneous monitoring is supported
**SMPTE ST 2110 only
Video Output Digital
• 3G-SDI:
• 3G-SDI, SMPTE-259/292/296/424, 12-bit*, 10-bit and 8-bit
• 1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1 x BNC), 10-bit and 8-bit
• 2K/HD and SD
• 2K/HD downsample available when working with 4K/UltraHD via ST 2110-23
• HDMI v2.0
• 30/36-bits/pixel, RGB or YUV, 6 Gbps per color component
• 4K/UltraHD, 2K/HD and SD
• 2K/HD downsample available when working with 4K/UltraHD via ST 2110-23
• HDR10 Support** - HDR Infoframe metadata, compatible with HDMI 2.0a/
CTA-861. 3
• HLG Support** - compatible with HDMI 2.0b/CTA-861-G
*Bit depth support is application dependent. Check with your software
manufacturer for compatibility.
**HDR support is application dependent. Check with your software manufacturer
for compatibility..
Audio Input IP
• Up to 16-channel embedded audio, 24-bit per channel, 48 kHz synchronous
Audio Inputs Analog
• 8-Channel, 24 and 16-bit A/D analog audio, 48 kHz sample rate, balanced,
using industry standard 8x XLR on DB-25 breakout cable (cable not included)
• +24 dBu full scale digital (0 dBFS)
• +/- 0.2 dB 20 to 20 kHz frequency response
• Input supported across Ch 1-8, Ch 1-4, or Ch 5-8 depending on the chosen
conguration
Audio Output IP
• Up to 16-channel embedded audio, 24-bit per channel, 48 kHz synchronous
Audio Output Digital
• 16-Channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
• 8-Channel HDMI embedded audio, 48 kHz sample rate, synchronous
Io IP Transport, Capture, Display v15.2r2 64 www.aja.com
Audio Outputs Analog
• 8-Channel, 24-bit D/A analog audio, 48 kHz sample rate, balanced, using
industry standard 8x XLR on DB-25 breakout cable (cable not included)
• +24 dBu full scale digital (0 dBFS)
• +/- 0.2 dB 20 to 20 kHz frequency response
• Output supported across Ch 1-8, Ch 1-4, or Ch 5-8 depending on the chosen
conguration
Downstream Keyer
• Supports graphics with alpha channel over video, matte or framebuer, or
framebuer content over incoming video or matte
Reference and LTC I/O
• 1x BNC assignable to Reference video or LTC input
Reference
• Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V)
• Reference input is terminated into 75 ohms when Genlock is set to Ref In
• Applicable in SMPTE ST 2022-6/7 environments
Discovery, Registration and Control
• NMOS Tx/Rx support for SMPTE ST 2110 according to standards IS-04 v1.2 and
IS-05 v1.0
• Applicable in SMPTE ST 2110 environments
IP Clock
• PTP support compliant with PTP PTPv2 / IEEE 1588-2008
• Applicable in SMPTE ST 2110 environments
Electrical Interface
• Thunderbolt 3 (2 x)
Size (w x d x h)
• 8.74” x 8.11” x 1.65” (222.0 x 206.0 x 41.9 mm)
Weight
• 3.3 lbs (1.5 kg)
Power (device only)
• 10-20V, 33W typical, 38W max, 72W max with USB-C power delivery to
external devices
Environment
• Safe Operating Temperature Range: 0 to 40C (32xF to 104xF)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140
degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
Io IP Transport, Capture, Display v15.2r2 65 www.aja.com
Audio Connection Pinouts
Analog Audio
Figure 18. DB-25 Analog Audio Connector Pinouts
G - +G - +G - +G - +G - +G - +G - +G - +
Key
G = Ground
+/- = Balanced Pair
Io IP Transport, Capture, Display v15.2r2 66 www.aja.com
Appendix B – Safety and Compliance
Federal Communications Commission (FCC) Compliance Notices
Class A Interference Statement
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15, Subpart B of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Canadian ICES Statement
Canadian Department of Communications Radio Interference Regulations
This digital apparatus does not exceed the Class A limits for radio-noise emissions
from a digital apparatus as set out in the Radio Interference Regulations of
the Canadian Department of Communications. This Class A digital apparatus
complies with Canadian ICES-003.
Règlement sur le brouillage radioélectrique du ministère des Communications
Cet appareil numérique respecte les limites de bruits radioélectriques visant les
appareils numériques de classe A prescrites dans le Règlement sur le brouillage
radioélectrique du ministère des Communications du Canada. Cet appareil
numérique de la Classe A est conforme à la norme NMB-003 du Canada.
European Union and European Free Trade Association (EFTA)
Regulatory Compliance
This equipment may be operated in the countries that comprise the member
countries of the European Union and the European Free Trade Association. These
countries, listed in the following paragraph, are referred to as The European
Community throughout this document:
AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA,
FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA,
LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL,
ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND,
LICHTENSTEIN, NORWAY, SWITZERLAND
Io IP Transport, Capture, Display v15.2r2 67 www.aja.com
Declaration of Conformity
Marking by this symbol indicates compliance with the Essential Requirements of
the EMC Directive of the European Union 2014/30/EU.
This equipment meets the following conformance standards:
This equipment meets the following conformance standards:
Safety
EN 60065: 2014 (T-Mark License),
IEC 60065: 2014, (CB Scheme Report/Certificate)
Additional licenses issued for specific countries available on request.
Emissions
EN 55032: 2012 + AC: 2013, CISPR 32: 2015
EN 61000-3-2: 2014, EN 61000-3-3: 2013
Immunity
EN 55103-2: 2009
61000-4-2: 2009, EN 61000-4-3: 2006 + A1: 2008 + A2: 2010,
EN 61000-4-4: 2004 + A1: 2010, EN 61000-4-5: 2006,
EN 61000-4-6: 2009, EN 61000-4-11: 2004
Environments: E2, E3 and E4
The product is also licensed for additional country specific standards as required
for the International Marketplace.
Warning! This is a Class A product. In a domestic environment, this product
may cause radio interference, in which case, the user may be required to take
appropriate measures.
Achtung! Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen
können bei Betrieb dieses Gerätes Rundfunkstörungen auftreten, in welchen
Fällen der Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist.
Attention! Ceci est un produit de Classe A. Dans un environnement domestique,
ce produit risque de créer des interférences radioélectriques, il appartiendra
alors à l?utilisateur de prendre les mesures spéciques appropriées..
Recycling Notice
This symbol on the product or its packaging indicates that this product
must not be disposed of with your other household waste. Instead, it is your
responsibility to dispose of your waste equipment by handing it over to a
designated collection point for the recycling of waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment
at the time of disposal will help conserve natural resources and ensure that
it is recycled in a manner that protects human health and the environment.
For more information about where you can drop o your waste for recycling,
please contact your local authority, or where you purchased your product.
Io IP Transport, Capture, Display v15.2r2 68 www.aja.com
Korea KCC Compliance Statement
Taiwan Compliance Statement
This is a Class A product based on the standard of the Bureau of Standards,
Metrology and Inspection (BSMI) CNS 13438, Class A. In a domestic environment
this product may cause radio interference in which case the user may be required
to take adequate measures.
Japan Compliance Statement
This is a Class A product based on the standard of the VCCI Council (VCCI32:2016).
If this equipment is used in a domestic environment, radio interference may
occur, in which case, the user may be required to take corrective actions.
China Compliance Statement
This product has been tested to the following Chinese standards:
GB/T13837-2012, GB17625.1-2012 and GB8898-2011
This product meets the requirements of implementation rules for compulsory
certification (REFNO.CNCA-C08-01:2014) under certificate number
2018010805038172.
Translated Warning and Caution Messages
The following caution statements, warning conventions, and warning messages
apply to this product and manual.
Io IP Transport, Capture, Display v15.2r2 69 www.aja.com
Before Operation Please Read These Instructions
Warning! Read and follow all warning notices and instructions marked on the
product or included in the documentation.
Avertissement! Lisez et conformez-vous à tous les avis et instructions
d'avertissement indiqués sur le produit ou dans la documentation.
Warnung! Lesen und befolgen Sie die Warnhinweise und Anweisungen, die auf
dem Produkt angebracht oder in der Dokumentation enthalten sind.
¡Advertencia! Lea y siga todas las instrucciones y advertencias marcadas en el
producto o incluidas en la documentación.
Aviso! Leia e siga todos os avisos e instruções assinalados no produto ou incluídos
na documentação.
Avviso! Leggere e seguire tutti gli avvisi e le istruzioni presenti sul prodotto o
inclusi nella documentazione.
Warning! Do not use this device near water and clean only with a dry cloth.
Avertissement! N'utilisez pas cet appareil près de l'eau et nettoyez-le seulement
avec un tissu sec.
Warnung! Das Gerät nicht in der Nähe von Wasser verwenden und nur mit einem
trockenen Tuch säubern.
¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con
un paño seco.
Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano
seco.
Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un
panno asciutto.
Warning! Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
Avertissement! Ne bloquez aucune ouverture de ventilation. Suivez les
instructions du fabricant lors de l'installation.
Warnung! Die Lüftungsönungen dürfen nicht blockiert werden. Nur gemäß den
Anweisungen des Herstellers installieren.
¡Advertencia! No bloquee ninguna de las aberturas de la ventilación. Instale de
acuerdo con las instrucciones del fabricante.
Aviso! Não obstrua nenhuma das aberturas de ventilação. Instale de acordo com as
instruções do fabricante.
Avviso! Non ostruire le aperture di ventilazione. Installare in conformità con le
istruzioni del fornitore.
Warning! Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including ampliers) that produce heat.
Avertissement! N'installez pas l'appareil près d'une source de chaleur telle que des
radiateurs, des bouches d'air de chauage, des fourneaux ou d'autres appareils
(amplicateurs compris) qui produisent de la chaleur.
Warnung! Nicht in der Nähe von Wärmequellen wie Heizkörpern, Heizregistern,
Öfen oder anderen Wärme erzeugenden Geräten (einschließlich Verstärkern)
aufstellen.
¡Advertencia! No instale cerca de fuentes de calor tales como radiadores, registros
de calor, estufas u otros aparatos (incluidos amplicadores) que generan calor.
Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de
calor, fogões ou outros aparelhos (incluindo amplicadores) que produzam calor.
Avviso! Non installare vicino a fonti di calore come termosifoni, diusori di aria
calda, stufe o altri apparecchi (amplicatori compresi) che emettono calore
Io IP Transport, Capture, Display v15.2r2 70 www.aja.com
Warning! Unplug this device during lightning storms or when unused for long
periods of time.
Avertissement! Débranchez cet appareil pendant les orages avec éclairsou s'il est
inutilisé pendant de longues périodes.
Warnung! Das Gerät ist bei Gewitterstürmen oder wenn es über lange Zeiträume
ungenutzt bleibt vom Netz zu trennen.
¡Advertencia! Desenchufe este dispositivo durante tormentas eléctricas o cuando
no se lo utilice por largos periodos del tiempo.
Aviso! Desconecte este dispositivo da tomada durante trovoadas ou quando não é
utilizado durante longos períodos de tempo.
Avviso! Utilizzare soltanto i collegamenti e gli accessori specicati e/o venduti dal
produttore, quali il treppiedi e l'esoscheletro.
Warning! Do not open the chassis. There are no user-serviceable parts inside.
Opening the chassis will void the warranty unless performed by an AJA service
center or licensed facility.
Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis
ne peut être réparé par l’utilisateur. La garantie sera annulée si le châssis est
ouvert par toute autre personne qu’un technicien d’un centre de service ou d’un
établissement agréé AJA.
Warnung! Önen Sie das Gehäuse nicht. Keine der Geräteteile können vom
Benutzer gewartet werden. Durch das Önen des Gehäuses wird die Garantie
hinfällig, es sei denn, solche Wartungsarbeiten werden in einem AJA-ServiceCenter oder einem lizenzierten Betrieb vorgenommen.
¡Advertencia! No abra el chasis. El interior no contiene piezas reparables por el
usuario. El abrir el chasis anulará la garantía a menos que se lo haga en un centro
de servicio AJA o en un local autorizado.
Advertência! Não abra o chassi. Não há internamente nenhuma peça que permita
manutenção pelo usuário. Abrir o chassi anula a garantia, a menos que a abertura
seja realizada por uma central de serviços da AJA ou por um local autorizado.
Avvertenza! Non aprire lo chassis. All’interno non ci sono parti riparabili
dall’utente. L’apertura dello chassis invaliderà la garanzia se non viene eettuata
da un centro uciale o autorizzato AJA.
Warning! Only use attachments and accessories specied and/or sold by the
manufacturer.
Avertissement! Utilisez seulement les attaches et accessoires spéciés et/ou
vendus par le fabricant.
Warnung! Verwenden Sie nur Zusatzgeräte und Zubehör angegeben und / oder
verkauft wurde durch den Hersteller.
¡Advertencia! Utilice solamente los accesorios y conexiones especicados y/o
vendidos por el fabricante.
Aviso! Utilize apenas equipamentos/acessórios especicados e/ou vendidos pelo
fabricante.
Avviso! Utilizzare soltanto i collegamenti e gli accessori specicati e/o venduti dal
produttore.
Io IP Transport, Capture, Display v15.2r2 71 www.aja.com
Warning! Refer all servicing to qualied service personnel. Servicing is required
when the device has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the device,
the device has been exposed to rain or moisture, does not operate normally, or
has been dropped.
Avertissement! Référez-vous au personnel de service qualié pour tout entretien.
L'entretien est exigé quand l'appareil a été endommagé de quelque manière
que ce soit, par exemple lorsque le cordon d'alimentation ou la prise sont
endommagés, que du liquide a été versé ou des objets sont tombés dans
l'appareil, que l'appareil a été exposé à la pluie ou à l'humidité, ne fonctionne pas
normalement ou est tombé.
Warnung! Das Gerät sollte nur von qualizierten Fachkräften gewartet werden.
Eine Wartung ist fällig, wenn das Gerät in irgendeiner Weise beschädigt wurde,
wie bei beschädigtem Netzkabel oder Netzstecker, falls Flüssigkeiten oder
Objekte in das Gerät gelangen, das Gerät Regen oder Feuchtigkeit ausgesetzt
wurde, nicht ordnungsgemäß funktioniert oder fallen gelassen wurde.
¡Advertencia! Consulte al personal calicado por cuestiones de reparación. El
servicio de reparación se requiere cuando el dispositivo ha recibido cualquier
tipo de daño, por ejemplo cable o espigas dañadas, se ha derramado líquido o
se han caído objetos dentro del dispositivo, el dispositivo ha sido expuesto a la
lluvia o humedad, o no funciona de modo normal, o se ha caído.
Aviso! Remeta todos os serviços de manutenção para o pessoal de assistência
qualicado. A prestação de serviços de manutenção é exigida quando o
dispositivo foi danicado mediante qualquer forma, como um cabo de
alimentação ou cha que se encontra danicado/a, quando foi derramado
líquido ou caíram objectos sobre o dispositivo, quando o dispositivo foi exposto
à chuva ou à humidade, quando não funciona normalmente ou quando foi
deixado cair.
Avviso! Fare riferimento al personale qualicato per tutti gli interventi di assistenza.
L'assistenza è necessaria quando il dispositivo è stato danneggiato in qualche
modo, ad esempio se il cavo di alimentazione o la spina sono danneggiati, è
stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel
dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona
correttamente o è caduto
Io IP Transport, Capture, Display v15.2r2 72 www.aja.com
Warning! Do not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does
not t into your outlet, consult an electrician for replacement of the obsolete
outlet.
Avertissement! La sécurité de la prise polarisée ou de la prise de type mise à la
terre ne doit en aucun cas être empêchée de fonctionner. Une prise polarisée
a deux broches, l'une étant plus large que l'autre. Une prise de type mise à la
terre a deux broches et une troisième broche pour la mise à la terre. La broche
large ou la troisième broche sont fournies pour votre sécurité. Si la prise
fournie ne s'insère pas dans votre prise femelle, consultez un électricien pour le
remplacement de la prise femelle obsolète.
Warnung! Der Sicherheitszweck des gepolten bzw. Schukosteckers ist zu
berücksichtigen. Ein gepolter Stecker verfügt über zwei Pole, von denen einer
breiter als der andere ist. Ein Schukostecker verfügt neben den zwei Polen noch
über einen dritten Pol zur Erdung. Der breite Pol bzw. der Erdungspol dienen der
Sicherheit. Wenn der zur Verfügung gestellte Stecker nicht in Ihren Anschluss
passt, konsultieren Sie einen Elektriker, um den veralteten Anschluss zu ersetzen.
¡Advertencia! No eche por tierra la nalidad del tipo de enchufe polarizado con
conexión a tierra. Un enchufe polarizado tiene dos espigas, una más ancha
que la otra. Un enchufe con conexión a tierra tiene dos espigas iguales y una
tercera espiga que sirve para la conexión a tierra. La expiga ancha, o la tercera
espiga, sirven para su seguridad. Si el enchufe suministrado no encaja en el
tomacorriente, consulte con un electricista para reemplazar el tomacorriente
obsoleto.
Aviso! Não anule a nalidade da segurança da cha polarizada ou do tipo ligação
terra. Uma cha polarizada tem duas lâminas sendo uma mais larga do que
a outra. Uma cha do tipo de ligação à terra tem duas lâminas e um terceiro
terminal de ligação à terra. A lâmina larga ou o terceiro terminal são fornecidos
para sua segurança. Se a cha fornecida não couber na sua tomada, consulte um
electricista para a substituição da tomada obsoleta.
Avviso! Non compromettere la sicurezza della spina polarizzata o con messa a
terra. Una spina polarizzata ha due spinotti, di cui uno più largo. Una spina con
messa a terra ha due spinotti e un terzo polo per la messa a terra. Lo spinotto
largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non
si inserisce nella presa di corrente, contattare un elettricista per la sostituzione
della presa obsoleta.
Warning! Disconnect the external AC power supply line cord(s) from the mains
power before moving the unit.
Avertissement! Retirez le ou les cordons d’alimentation en CA de la source
d’alimentation principale lorsque vous déplacez l’appareil.
Warnung! Trennen Sie die Wechselstrom-Versorgungskabel vom Netzstrom, bevor
Sie das Gerät verschieben.
¡Advertencia! Cuando mueva la unidad desenchufe de la red eléctrica el/los
cable(s) de la fuente de alimentación CA tipo brick.
Advertência! Remova os cabos CA de alimentação brick da rede elétrica ao mover
a unidade.
Avvertenza! Scollegare il cavo dell’alimentatore quando si sposta l’unità.
Io IP Transport, Capture, Display v15.2r2 73 www.aja.com
Warning! Since the Mains plug is used as the disconnection for the device, it must
remain readily accessible and operable.
Avertissement! Puisque la prise principale est utilisée pour débrancher l'appareil,
elle doit rester aisément accessible et fonctionnelle.
Warnung! Da der Netzstecker als Trennvorrichtung dient, muss er stets zugänglich
und funktionsfähig sein.
¡Advertencia! Puesto que el enchufe de la red eléctrica se utiliza como dispositivo
de desconexión, debe seguir siendo fácilmente accesible y operable.
Aviso! Dado que a cha principal é utilizada como a desconexão para o dispositivo,
esta deve manter-se prontamente acessível e funcional.
Avviso! Poiché il cavo di alimentazione viene usato come dispositivo di
sconnessione, deve rimane prontamente accessibile e operabile.
Warning! Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the device.
Avertissement! Protégez le cordon d'alimentation pour que l'on ne marche
pas dessus ou qu'on le pince, en particulier au niveau des prises mâles, des
réceptacles de convenance, et à l'endroit où il sort de l'appareil.
Warnung! Vermeiden Sie, dass auf das Netzkabel getreten oder das Kabel geknickt
wird, insbesondere an den Steckern, den Steckdosen und am Kabelausgang am
Gerät.
¡Advertencia! Proteja el cable de energía para que no se le pise ni apriete, en
especial cerca del enchufe, los receptáculos de conveniencia y el punto del que
salen del equipo.
Aviso! Proteja o cabo de alimentação de ser pisado ou de ser comprimido
particularmente nas chas, em tomadas de parede de conveniência e no ponto
de onde sai do dispositivo.
Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra
e che non venga schiacciato soprattutto in corrispondenza delle spine e del
punto in cui esce dal dispositivo.
Io IP Transport, Capture, Display v15.2r2 74 www.aja.com
Warranty and Liability Information
AJA VIDEO SYSTEMS, INC.
Limited Warranty on Hardware
AJA Video Systems, Inc. (AJA Video) warrants that the hardware product, not
including storage modules or software components, will be free from defects in
materials and workmanship for a period of three (3) years from the date of purchase.
AJA Video warrants that the storage modules provided as part of the hardware
product will be free from defects in materials and workmanship for a period of one
year from the date of purchase. AJA Video provides a separate software warranty as
part of the license agreement applicable to software components.
If a hardware product or storage module (hereafter, a “product”) proves to be
defective during the applicable warranty period, AJA Video, at its option, will either
repair the defective product without charge for parts and labor, or will provide a
replacement in exchange for the defective product.
To obtain service under this warranty, the Customer must notify AJA Video of the
defect before expiration of the warranty period and make suitable arrangements for
the performance of service by contacting AJA Video support through the channels
set forth on the support contacts web page at http://www.aja.com/support. Except
as stated, the Customer shall bear all shipping, packing, insurance and other costs,
excluding parts and labor, to effectuate repair. Customer shall pack and ship the
defective product to a service center designated by AJA Video, with shipping charges
prepaid. AJA Video shall pay to return the product to Customer but only if to a
location within the country in which the AJA Video service center is located.
This warranty shall not apply to any defect, failure or damage caused by negligent,
inadequate or improper use, handling or maintenance. Without limiting the
foregoing, AJA Video shall not be obligated to furnish service under this warranty
or repair any damage or malfunction a) resulting from attempts by personnel other
than AJA Video representatives to install, repair or service the product, b) resulting
from improper use or connection to incompatible equipment, c) caused by the use
of non-AJA Video parts or supplies, d) if the product has been modified or integrated
with other products when the effect of such a modification or integration increases
the time or difficulty of servicing the product, or e) resulting from being dropped
or otherwise subjected to undue force, exposure to moisture or other corrosive or
conductive substances, exposure to strong magnetic fields, use with improperly
regulated power supplies, exposure to electric shock, use in temperatures outside the
specified operating range, or otherwise failing to treat the product in accordance with
the standard of care appropriate to sensitive and delicate electronic equipment.
EXCEPT AS STATED ABOVE, AJA VIDEO AND ITS VENDORS DISCLAIM IN THEIR
ENTIRETY ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION ALL WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. AJA VIDEO’S RESPONSIBILITY TO REPAIR OR REPLACE TIMELY REPORTED
DEFECTIVE PRODUCTS IS THE WHOLE AND EXCLUSIVE REMEDY CUSTOMER IS
PROVIDED WITH RESPECT TO HARDWARE PRODUCTS AND THEIR STORAGE MODULES.
SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR
LIMITATIONS ON APPLICABLE STATUTORY RIGHTS OF A CONSUMER, SO SOME OR ALL
OF THE TERMS OF THIS PARAGRAPH MAY NOT APPLY TO YOU.
THE PRODUCT IS NOT INTENDED, STATED, OR WARRANTED TO OPERATE
UNINTERRUPTED OR ERROR-FREE. YOU UNDERSTAND AND ACKNOWLEDGE THAT THE
PRODUCT IS NOT INTENDED TO BE USED AS THE SOLE OR PRIMARY DATA SOURCE OR
TARGET FOR CRITICAL DATA, AND THAT IT IS YOUR RESPONSIBILITY TO IMPLEMENT
REDUNDANT CAPTURE AND BACKUP SYSTEMS AS APPROPRIATE.
Io IP Transport, Capture, Display v15.2r2 75 www.aja.com
Limitation of Liability
Under no circumstances shall AJA video BE LIABLE IN ANY WAY FOR ANY LOST,
CORRUPTED OR DESTROYED DATA, FOOTAGE OR WORK, OR FOR ANY OTHER
INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOST PROFITS,
OR FOR ANY THIRD PARTY CLAIM, IN CONNECTION WITH THE PRODUCT, WHETHER
RESULTING FROM DEFECTS IN THE PRODUCT, SOFTWARE OR HARDWARE FAILURE,
OR ANY OTHER CAUSE WHATSOEVER, EVEN IF AJA VIDEO HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. AJA VIDEO’S LIABILITY IN CONNECTION WITH THE
PRODUCT SHALL UNDER NO CIRCUMSTANCES EXCEED THE PURCHASE PRICE PAID
FOR THE PRODUCT. The foregoing limitations apply even if any remedy set forth in
this LIMITED WARRANTY fails of its essential purpose. SOME JURISDICTIONS DO NOT
ALLOW THE LIMITATION OF LIABILITY FOR PERSONAL INJURY, OR OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO SOME OR ALL OF THE TERMS OF THIS PARAGRAPH
MAY NOT APPLY TO YOU.
Governing Law and Language; Your Rights.
This limited warranty is the only warranty provided by AJA Video on the hardware
product. It supersedes all prior or contemporaneous understandings regarding such
subject matter. No amendment to or modification of this warranty will be binding
unless in writing and signed by AJA Video. The laws of the State of California, USA
will govern this warranty and any dispute arising from it. Any translation of this
Agreement is intended for convenience and to meet local requirements and in the
event of a dispute between the English and any non-English versions, the English
version of this warranty will govern. This limited warranty gives you specific legal
rights and you may have other rights that vary from jurisdiction to jurisdiction, some
of which are noted above.
Io IP Transport, Capture, Display v15.2r2 76 www.aja.com
Index
Symbols
3G Transport 30
3rd-Party Plugins 8
12V Power Connector 11
2022-7 Operation 40
A
Advanced Button 54
AJA Control Panel 7
AJA Control Room 7
AJA Software & Utilities 7
AJA Support 2
AJA System Test 7
Analog Audio 6, 11
Analog Audio Pinouts 66
Apply
s2110 Mode 57
Approval
Developer 14
Audio Ch 31
Audio Configure 35
Audio Input 29
Audio Level Meters 9
Audio Mixer Capture Monitor Tab 38
Audio Mixer Playback Monitor Tab
37
Audio Mixer Screen 35
Audio Monitor 35
Audio Monitoring 22
Audio Monitoring Routing Diagram
23
Audio Out 45
Audio Setup Screen 34
B
Block Diagram Area 19
BMP Format 18
C
Cable Connections 15
Capture Formats 18
Ch Map 29
Ch Map 29
Color Space 30, 31, 34
Controlling Application 20
Control Panel 7, 18
Block Diagram Area 19
Framebuer 20
Input/Output Icon 20
Primary Format 20
UI Colors 20
User Interface 19
Control Panel Operation
s2110 Mode 52
Control Room 7
Control Screen 25
D
Damage in Shipping 12
Default Output 25
Default Peferences 21
Delete Preset 50
Destination IP Addr 43
Destination Port 43
Dest IP Addr 41
Dest IP Addr 2 42
Dest Port 41
Dest Port 2 42
Developer Approval 14
Digital Primaries 33
Disk Storage Methods 9
Downstream Keyer 44
DPX Format 18
DS Keyer Screen 44
E
Enable 2022-7 39
Enable Checkbox 44
EOTF 32
Erase all Prefs 51
Export 56, 57
Ext. Color 32
F
Firmware
Typ es 15
Firmware Screen 51
Follow Input 27
Follow Input Settings
s2110 Mode 53
Foreground Pre-Multiplied 45
Format 27
Format Screen 27
Framebuffer
Control Panel UI 20
G
Gain and Offset Sliders 47
Gamma 34
Gateway Address 40
General Operation
s2110 Mode 52
Generate 57
s2110 Mode 58
Generate Window
s2110 Mode 58
Genlock 26
Global Preference 22
Global Preference File Location 22
Graphic File Load 45
H
HDMI HDR Output 32
HDMI HDR Screen 32
HDMI Output 11, 31
HDMI Screen 30
4K Mode 63
HDR Mode 32
High Sierra Installation Information
13
Hold Last App 26
I
Import 57
Information Screen
Standard Mode 52
Info Screen 52
Input/Output Icon 20
Input Passthrough 25
Input Select Screen 28
Installation
High Sierra 13
Installation Approval Failure 14
Installation Overview 12
Installing Software 12
IP Config Screen
s2110 Mode Capture Tab 54
s2110 Mode Editor Window 57
s2110 Mode Playback Tab 56
S2110 Mode Status Tab 53
IP Input Screen 41
IP Input Screen, 2022-7 Operation
42
IP Network Screen 39
IP Output Screen 43
L
Load Preset 50
Local IP Address 39
Local MAC Address 40
Local Preference 21
Local Preference File 21
Lock Audio Gain To Unity 35
LTC/Ref 28
LUT File
Format Specication 48
Uploading 47
LUT Screen 46
LUT Transfer Function 46
LUT Type 46
M
Match Checkbox 42
Matte Color 45
Monitor Channels 35
Monitor Gain Control 9
Monitor Level 35
Monitor Output 9
Multicast 16, 41
MXF Format 18
Io IP Transport, Capture, Display v15.2r2 77 www.aja.com
N
Network Requirements 8
NMOS App 8
O
Opacity 45
Output Select Screen 29
Overview 5
P
Path Difference 42
Pinouts
Analog Audio 66
Pixel Format 27
Playback Source Selection 37
Playback Timing 26
Playout Delay 42
Power LED 10
Preference 21
Preference File Location
Default Global 22
Preset
Delete 50
Load 50
s2110 Mode 53
Save 50
Preset Files Storage Location 21, 50
Presets 21
Presets Screen 50
Primary Format 20, 27
Primary Output
HDMI 31
Progressive Pref 34
Protocol 31
PTP Information 54
Q
QT Timecode 49
QuickTime Format 18
Set Button 40
SFP Cage 10
SFP Local IP 54
SFP Module 10, 16
Shipping Box Contents 12
Snapshot 50
Source
Video Input 28
ST 2110 Configuration
Advanced 59
Stereo 3D 31
Subnet Mask 39
System Requirements 8
System Test 7
T
Technical Support 2
Test Pattern 26
TGA Format 18
Thunderbolt 3 10
Timecode
QT 49
Timecode Burn-in 49
Timecode Input Settings 49
Timecode Offset 49
Timecode Output Settings 49
Timecode Screen 48
Transferring Saved Presets 50
U
Unicast 16, 41
User Bits 49
User Defined LUTs 47
V
VANC Checkbox 34
Video+Key 30
Video Input 28
Video Setup Screen 33
R
Reference Video 11
Refresh 55
Reset
s2110 Mode 53
Reset to Default 51
RGB Range 27, 30, 31
RP-188 Timecode 49
S
s2022 Firmware 15
Save Preset 50
SDI Color Sp 28
SDI HD/SD Output 10
SDI RGB Rng 28
SDP 55, 56
Select HDMI Primary Output 31
Set
s2110 Mode 55
Io IP Transport, Capture, Display v15.2r2 78 www.aja.com
Loading...
