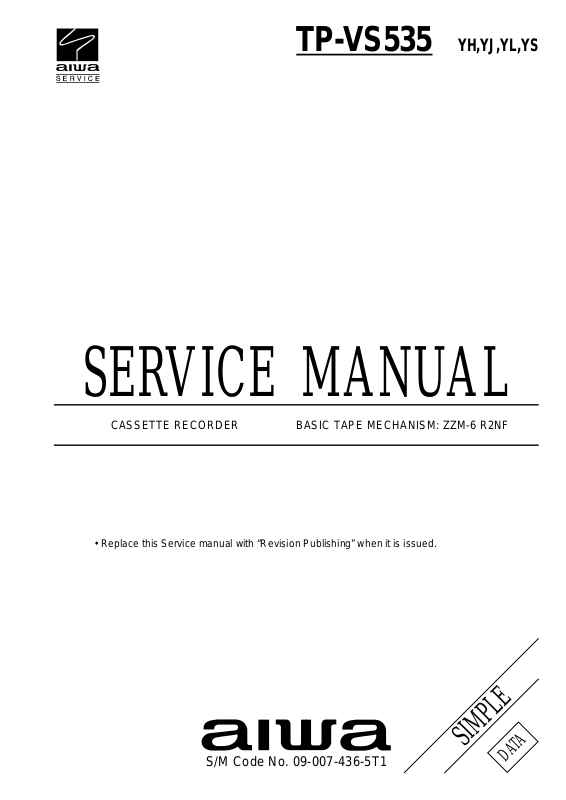

AIWA TP VS535 Service Manual

TP-VS535

YH,YJ,YL,YS

SERVICE MANUAL

CASSETTE RECORDER BASIC TAPE MECHANISM: ZZM-6 R2NF

• Replace this Service manual with “Revision Publishing” when it is issued.

S/M Code No. 09-007-436-5T1

SIMPLE

DATA

ELECTRICAL MAIN PARTS LIST - 1/2

NOTE: The characters in the suffix column indicate the part usage.

YHSF ...................XX..................................A...................

YSF ....................XX...................................B..................

YJSF ...................XX....................................C.................

YLSF ...................XX.....................................D................

KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 101 87-010-503-040 CAP,E 220-4 GAS ABCD................

C 103 87-010-505-080 CA, CHIP TANTALUM 1-16 ABCD................

C 107 87-010-785-080 C-CAP,U0.015-25BK ABCD................

C 104 87-010-787-080 CAP, U 0.022-25 ABCD................

C 106 87-012-282-080 CAP, U 4700P-50 ABCD................

C 108 87-016-317-080 C-CAP,TN 2.2-6.3 ABCD................

C 105 87-016-317-080 C-CAP,TN 2.2-6.3 ABCD................

C 102 87-A10-504-080 C-CAP,U 0.047-16 K B ABCD................

C 109 87-A10-952-080 C-CAP,TN 22-4 M A MCM ABCD................

C 111 87-010-746-080 CAP, TANTAL 10-4 ABCD................

C 112 87-010-788-080 C-CAP,U 0.033-2.5F ABCD................

C 115 87-012-267-080 C-CAP,U 270P-50 B ABCD................

C 110 87-016-562-080 C-CAP,TN 4.7-10 SV A ABCD................

C 113 87-A10-262-080 C-CAP,U 1-10 ZF ABCD................

C 126 87-010-503-040 CAP,E 220-4 GAS ABCD................

C 125 87-010-824-040 CAP,E 220-2 M MJ ABCD................

C 121 87-012-282-080 CAP, U 4700P-50 ABCD................

C 124 87-016-317-080 C-CAP,TN 2.2-6.3 ABCD................

C 122 87-016-396-080 C-CAP,U 0.22-16F ABCD................

C 123 87-016-562-080 C-CAP,TN 4.7-10 SV A ABCD................

C 128 87-A10-262-080 C-CAP,U 1-10 ZF ABCD................

C 120 87-A10-262-080 C-CAP,U 1-10 ZF ABCD................

C 133 87-010-501-040 E/CAP GAS 47-4 ABCD................

C 134 87-010-502-040 CAP ELECT GAS 100/4 ABCD................

C 131 87-010-820-040 CAP,E 47-4 (MJ) ABCD................

C 132 87-016-396-080 C-CAP,U 0.22-16F ABCD................

IC 101 87-A21-657-080 C-IC,AN7086S ABCD................

J 101 87-A61-294-010 JACK,3.5 MONO W/SW ABCD................

J 102 87-A61-294-010 JACK,3.5 MONO W/SW ABCD................

MIC 101 84-TM1-639-010 ECM,KUC3523 ABCD................

Q 101 87-026-411-080 C-TR RN1304 ABCD................

Q 103 89-341-165-080 CHIP TRANSISTOR 2SC4116GR ABCD................

S 101 87-036-082-010 SLIDE SWITCH, 2-2-2 ABCD................

S 104 87-036-379-180 C-SW,SL1-1-2 SS350 ABCD................

S 103 87-A90-423-010 SW,LEAF ABCD................

SP 101 87-A90-568-310 SPKR,DIA 50 8OHM ABCD................

VR 101 87-024-654-010 VR,20KA DIA 14 ABCD................

C 141 87-010-821-040 CAP,E 100-4 (MJ) ABCD................

C 142 87-A12-317-080 C-CAP,U 0.1-50 Z F ABCD................

Q 144 87-026-411-080 C-TR RN1304 ABCD................

Q 142 87-026-414-080 C-TR RN1307 ABCD................

Q 141 89-333-266-080 CHIP TR,2SC3326B ABCD................

Q 143 89-341-165-080 CHIP TRANSISTOR 2SC4116GR ABCD................

Q 183 87-026-414-080 C-TR RN1307 ABCD................

S 141 87-036-379-180 C-SW,SL1-1-2 SS350 ABCD................

C 453 87-016-396-080 C-CAP,U 0.22-16F ABCD................

C 451 87-A12-317-080 C-CAP,U 0.1-50 Z F ABCD................

C 452 87-A12-317-080 C-CAP,U 0.1-50 Z F ABCD................

D 452 87-001-166-080 DIODE,1SS301 ABCD................

D 451 87-001-167-080 DIODE,1SS302 (100MA) ABCD................

Q 453 87-026-414-080 C-TR RN1307 ABCD................

Q 454 87-026-417-080 TR,RN1310 ABCD................

Q 455 87-026-417-080 TR,RN1310 ABCD................

Q 452 89-333-266-080 CHIP TR,2SC3326B ABCD................

Q 451 89-341-165-080 CHIP TRANSISTOR 2SC4116GR ABCD................

C 302 87-010-822-040 CAP,E 220-4 (MJ) ABCD................

C 301 87-010-822-040 CAP,E 220-4 (MJ) ABCD................

C 303 87-010-822-040 CAP,E 220-4 (MJ) ABCD................

C 308 87-A10-828-080 C-CAP,U 0.33-6.3 K B ABCD................

C 307 87-A12-317-080 C-CAP,U 0.1-50 Z F ABCD................

C 306 87-A12-317-080 C-CAP,U 0.1-50 Z F ABCD................

C 305 87-A12-317-080 C-CAP,U 0.1-50 Z F ABCD................

C 313 87-A10-504-080 C-CAP,U 0.047-16 K B ABCD................

C 312 87-A10-827-080 C-CAP,U 0.47-6.3 K B ABCD................

C 310 87-A12-317-080 C-CAP,U 0.1-50 Z F ABCD................

C 311 87-A12-317-080 C-CAP,U 0.1-50 Z F ABCD................

C 314 87-A12-317-080 C-CAP,U 0.1-50 Z F ABCD................

IC 301 87-A21-224-040 C-IC,LB1877M ABCD................

Q 304 87-026-414-080 C-TR RN1307 ABCD................

Q 306 87-A30-184-070 C-FET,2SJ106Y ABCD................

Q 305 87-A30-184-070 C-FET,2SJ106Y ABCD................

S 182 87-036-379-180 C-SW,SL1-1-2 SS350 ABCD................

S 301 87-A90-423-010 SW,LEAF ABCD................

SFR 301 87-A91-653-040 C-SFR,K 33K H RH03AEC ABCD................

TH 301 87-A90-542-080 C-THMS,NTH5G2M35A472K04TE ABCD................

VR 301 87-A91-822-010 VR,RTRY 10KB H XV081PH1NCC-305 ABCD................

D 301 87-A40-822-040 C-DIODE,CRS01 ABCD................

J 103 87-A61-124-010 JACK,DC DIA2.75 BLK TC ABCD................

ELECTRICAL MAIN PARTS LIST - 2/2

LED 401 87-A91-355-040 C-LED,BR1112H-TR-RED ABCD................

MECHANICAL PARTS LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

YHSF ...................XX..................................A...................

YSF ....................XX...................................B..................

YJSF ...................XX....................................C.................

YLSF ...................XX.....................................D................

¶ÝØ
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8A-HT6-021-010 CABI,FRONT Y ABCD................

8A-HT7-001-010 LID,CASS ABCD................

8A-HT7-003-010 WINDOW,CASS ABCD................

8A-HT7-004-010 FRAME,MIC ABCD................

8A-HT7-005-010 PLATE,MIC ABCD................

8A-HT9-001-010 CABI,REAR ABCD................

8A-HT9-002-010 PANEL,CASS ABCD................

8A-HT9-010-010 LID,BATT ABCD................

8A-HT6-014-010 BTN,REC ABCD................

8A-HT6-015-010 BTN,PLAY ABCD................

8A-HT6-016-010 BTN,STOP ABCD................

8A-HT6-017-010 BTN,REW ABCD................

8A-HT6-018-010 BTN,FF ABCD................

8A-HT9-004-010 KNOB,SL SLSS ABCD................

8A-HT9-005-010 KNOB,SL PAUSE ABCD................

87-078-190-010 S-SCRW,+1.7-3HL B ABCD................

87-B10-076-010 VT2+1.7-9 (3) CR ABCD................

87-HT6-212-010 SPR-P,CASS ABCD................

87-HT6-221-010 COUNTER,MU331-001 ABCD................

8A-HT6-203-010 HLDR,COUNTER ABCD................

8A-HT6-204-010 LEVER,PAUSE ABCD................

8A-HT6-205-010 BAT-CONTACT,(+) ABCD................

8A-HT6-206-010 BAT-CONTACT,(-) ABCD................

8A-HT6-207-010 SPR-T,CASS ABCD................

8A-HT6-208-010 FOOT,RUBBER ABCD................

8A-HT6-209-010 BELT,COUNTER ABCD................

8A-HT7-201-010 COVER, MIC ABCD................

ACCESSORIES / PACKAGE LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

YHSF ...................XX..................................A...................

YSF ....................XX...................................B..................

YJSF ...................XX....................................C.................

YLSF ...................XX.....................................D................

¶ÝØ
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8A-HT9-902-010 IB,YHJ(ECC)S A.C.................

8A-HT9-904-010 IB,YL(3L)S ...D................

8A-HT9-905-010 IB,Y(EGF)S .B..................

8A-HT9-906-010 IB,Y(SID)S .B..................

8A-HT9-907-010 IB,Y(PHNCZ)S .B..................

87-PD3-050-010 STRAP,HAND ABCD................

SCHEMATIC DIAGRAM

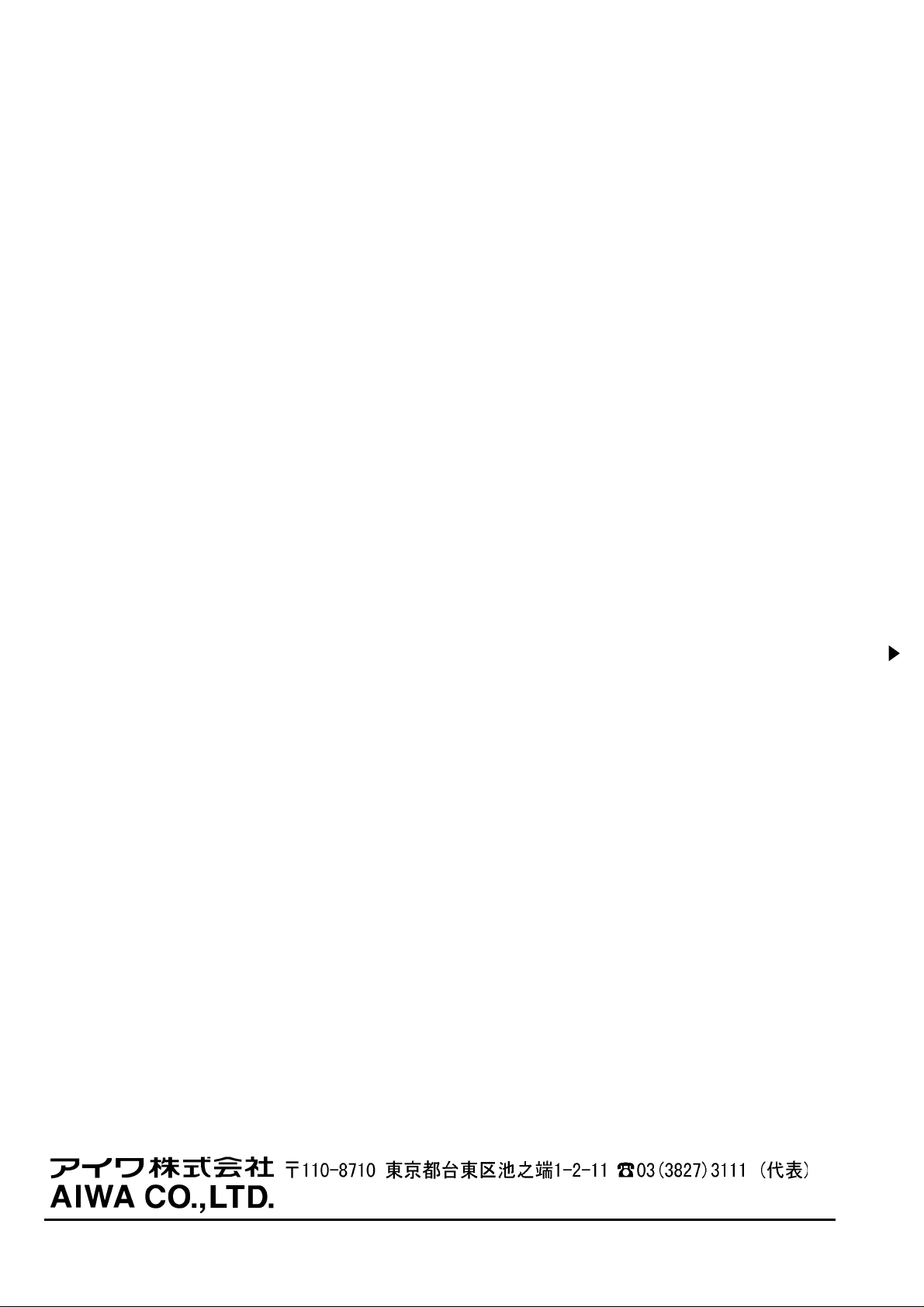

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]

Printed in Singapore9620450
