OPERATING INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MODE D’EMPLOI
CT-X408
STEKEO CAR CASSETTE RECEIVER
RADtO-CASSETTE ESTEREOFONICO PARA AUTOMOVIL
OWNER’S RECORD
For your convenience, record the model number and
serial number (you will find them on the right side of
your set) in the space provided below. Please refer to
them when you contact your AIWA dealer in case of
difficulty.
YU
ENGLISH
Model No. |CT-X408 |
Serial No. I ^ I
Welcome
Thank you for your purchasing this AIWA product.
To optimize the performance of this unit, please
read through this manual carefully.
In addition to this operating instructions manual,
be sure to refer to the separate installation and
connections manuals as well.
PRECAUTIONS
• This unit is designed to be operated on a 12-volt
DC negative-ground electrical system only.
•To prevent short-circuiting, disconnect the
negative car battery terminal until the unit has
been mounted and connected completely.
• When replacing the fuse, be sure to use one
whose amperage rating is identical. Use of a
fuse of higher amperage may cause serious
damage to the unit.
• Keep screwdrivers, etc. and other metallic or
magnetic objects away from the playback head.
• When your car was parked in direct sunlight
resulting in a considerable rise in temperature
inside the car, allow the unit to cool off before
operating it.
• Keep the volume at such a level that you can
hear outside warning sounds (horns, sirens,
etc.).
Notes on cassettes
Do NOT expose cassettes to direct sunlight,
extremely high or cold temperature or moisture.
Keep cassettes away from equipment with builtin magnets to avoid unwanted noise or loss of
sound quality.
Do NOT touch the tape of a cassette, as any dirt
or dust will contaminate the heads.
Be sure to remove any cassette from the unit if
you are not using it.
* •
NOTE
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates, uses, andean radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment off
and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet on
circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced radio/
TV technician for help.
CAUTION
Modifications or adjustments to this product, which
are not expressly approved by the manufacturer,
may void the user’s right or authority to operate
this product.
Caution on the transit protection pad
The unit is shipped with a transit protection pad
in the cassette compartment.
Be sure to press EJECT A to remove the pad
before operation the unit.
1 ENGLISH
TABLE OF CONTENTS
FRONT PANEL.........................................................................................................................3
DETACHING AND ATTACHING THE FRONT PANEL..................................................................4
SETTING THE BEEP TONE.......................................................................................................5
SETTING THE CLOCK.............................................................................................................. 5
RADIO OPERATION ................................................................................................................ 6
PRESETTING STATIONS......................................................................................................... 7
TAPE PLAYBACK..................................................................................................................... 8
SOUND ADJUSTMENTS...........................................................................................................9
CRP (CD changer ready position)...............................................................................................10
CONNECTING A PORTABLE CD PLAYER OR OTHER EQUIPMENT
MAINTENANCE...................................................................................................................... 12
SPECIFICATIONS...................................................................................................................12
........................................
11
m
z
o
r
5)
X
ENGLISH 2
FRONT PANEL
(DSEL (select) button
@ +/— (audio control) button
©EJECT ± button
® Cassette compartment
©DIRECTION button
® BAND button
® CRP (CD changer ready position) button
®1, (release) button
®TUNE fJk buttons
@ MUTE button
(Q) CD IN jack (3.5-mm dia.)
(0) Preset station buttons 1-6
@ A. ME (auto memory/preset scan) button
3 ENGLISH
(0) CD iN button
©Band indicator
(§) Main dispiay section
BASS indicator
(g)ST (stereo) indicator
© CRP (CD changer ready position)
indicator
(g) LO (locai) indicator
© AM/PM indicator
©Audio control indicator
©Subdisplay section
© -O- (tape direction) indicators
Attaching the front panel
DETACHING AND
ATTACHING THE FRONT
PANEL
1
2
■ J
nm J + \
3i^—^
You can detach the front panel from the unit and
carry it with you when you leave your car
unattended.
When you carry the front panel out of your car,
use the supplied carring case.
Before defaching the front panel, remove the
cassette to prevent possible damage to the unit.
1 Press PWR to turn the unit off.
2 White supporting the front panei with
3 When the front panel is lifted from the
0"F^ ri0E)
©\ /f Jt 2aDJ 4CDS •o"''--
one hand, press l to release one side
of the panei. Care must be taken not to
drop the panel. It may suddenly eject at
this point.
unit, remove it by puliing it away from
the unit.
--------------

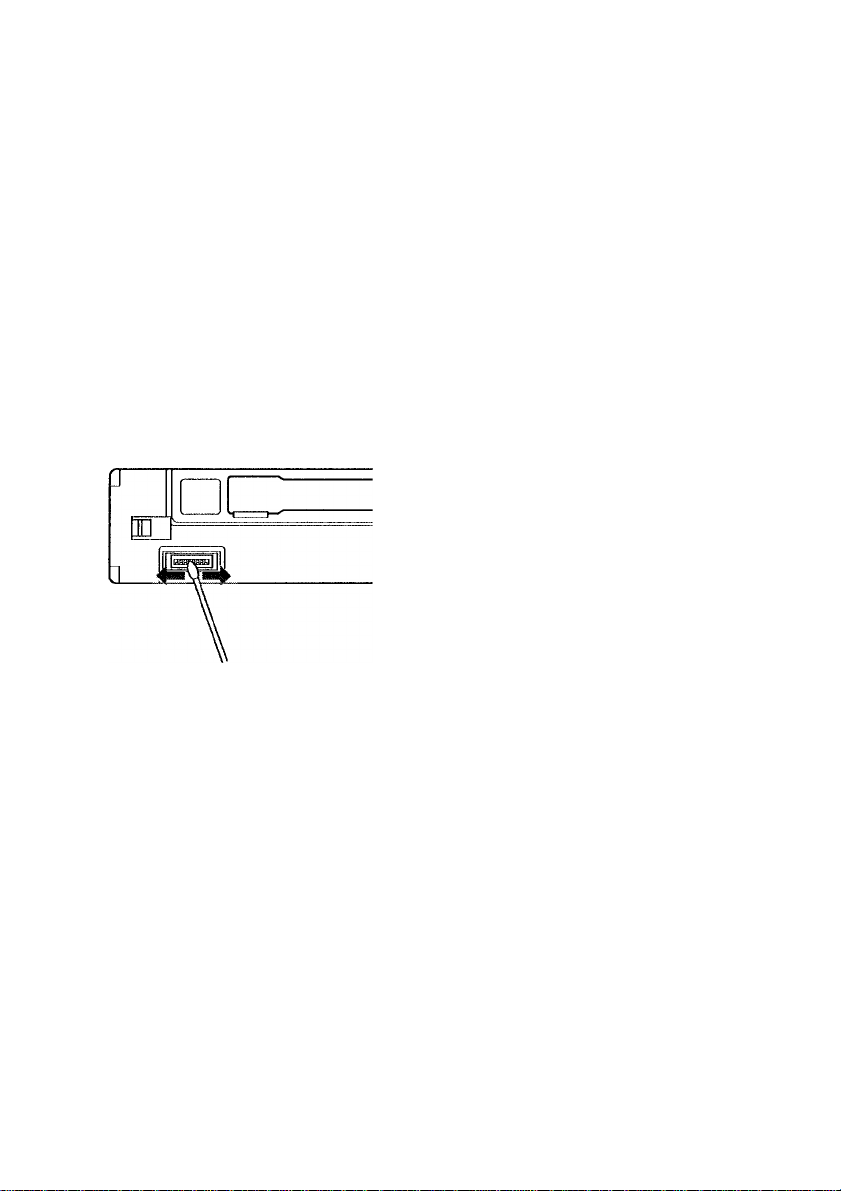

Security Lamp
When the front panel is detached, you can find an
LED lamp on the front side of the unit. This lamp
is designed to deter theft, and continues to flash
when the car's ignition is turned off with the front
panel detached. This unit is not equipped with
any other security systems such as a security
alarm, so there are limitations to its effectiveness.
’
II
0
□
t
DD
a ®
______-----------------
LED lamp
Ac S
“ J
Do NOT touch the connector on the reverse
side of the front panel, as doing so may
contaminate the connector and cause a poor
connection resulting in a malfunction.
ENGLISH 4

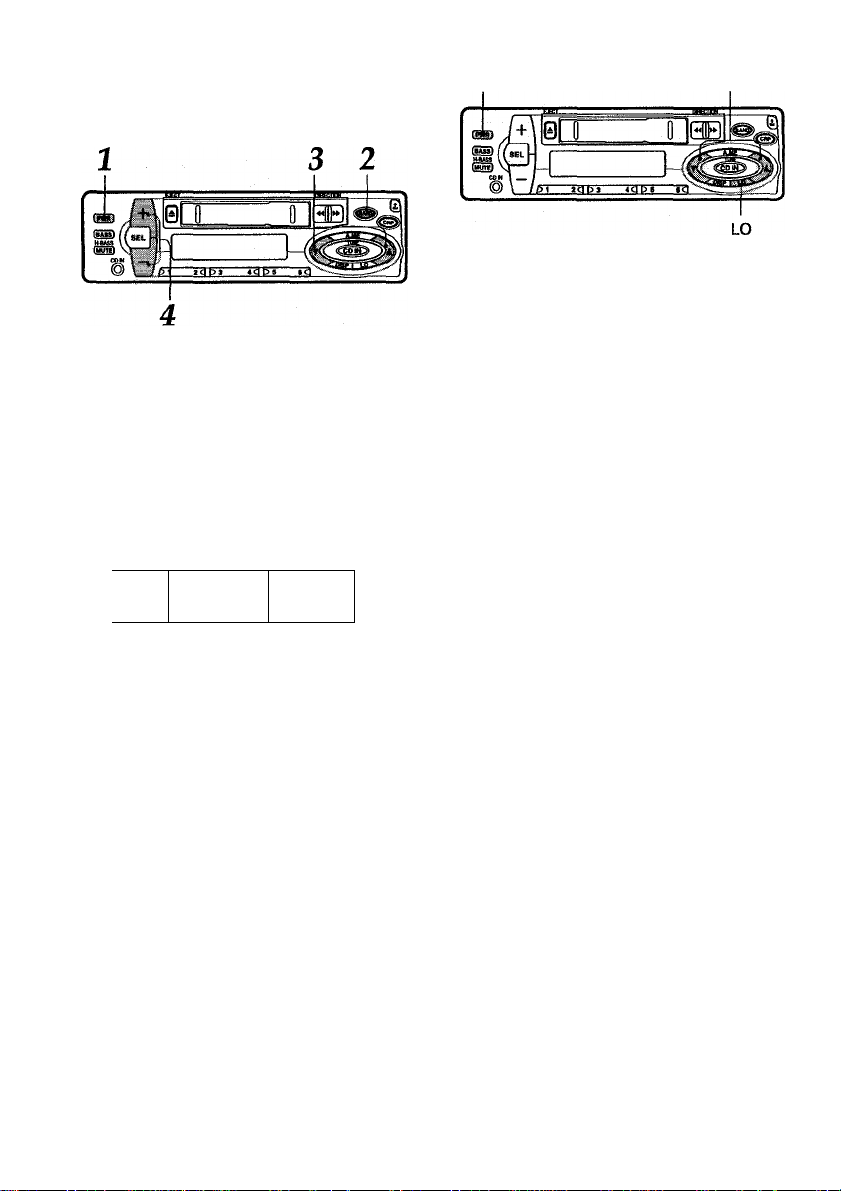

SETTING THE BEEP TONE SETTING THE CLOCK
The unit is preset at the factory to beep each time
you press any button on the front panel except
OPEN. You can stop beeping by following the
procedure below.
Press PWR.
1
Press and hold down DISP for more
2
With the unit off, press 1 and 4 at the
same time.
The “BEEP” indication appears.
Each time you press them, this function turns
on or off.
The beep function is activated when the
“BEEP” indication appears with the audio
control indicator lighting up and deactivated
without the indicator.
It C C O
it L L I
than 1.5 seconds until the clock
indication flashes.
• If you do not proceed with step 3 within 5
seconds, the ciock indication disappears.
sVL.+;±fTJt.A-
J-l I I ! ■
•/.../ LL
I'-T' in'^'
3 Press T to set the hour.
Press A to set the minutes.
4 Press DISP to start working the clock
from 0 second.
5 ENGLISH
Audio control indicator
Having the clock displayed while in Radio, Tape
Play or CD Changer Play mode
Press DISP. To return the unit to its former
display, repeat the same procedure.

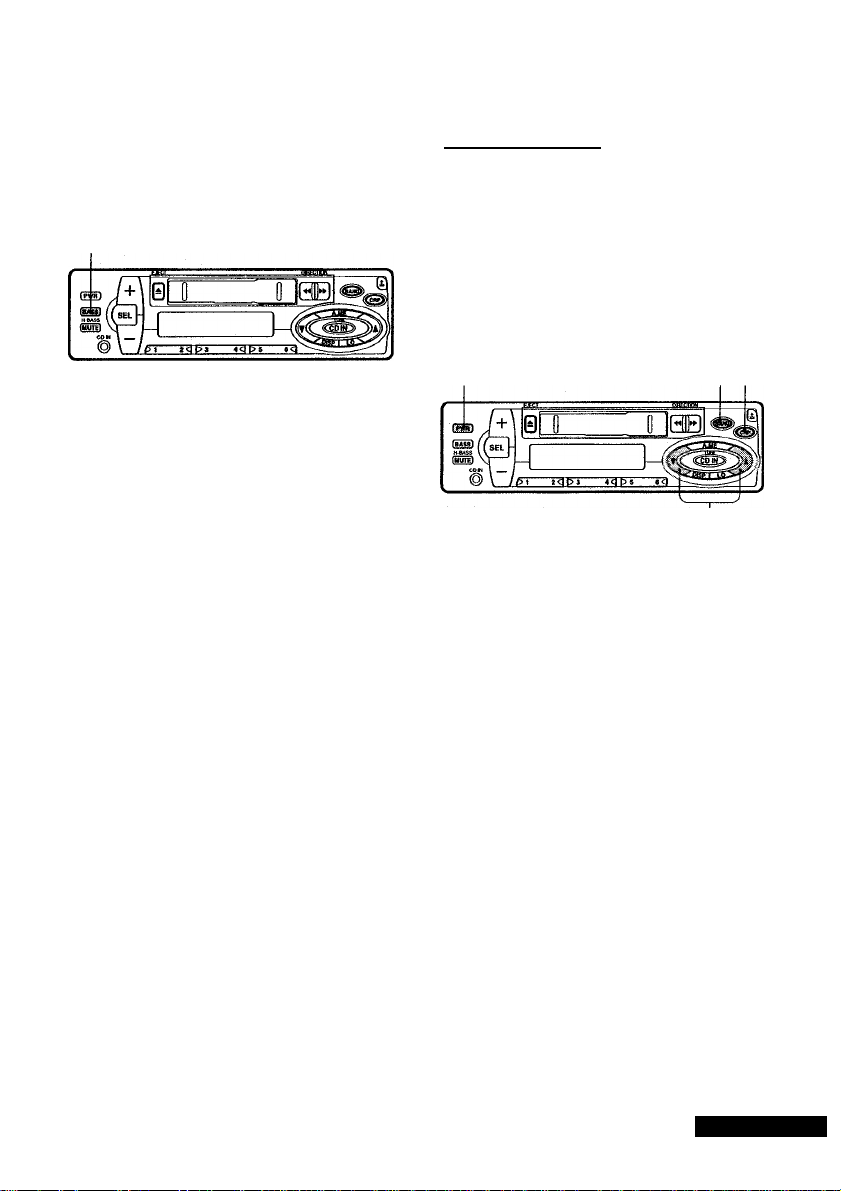

RADIO OPERATION
Press PWR to turn the unit on.
The radio frequency appears.
Press BAND to select the band from
among FM1, FM2, FM3 and AM.
The band indication appears cyciicaily in
order.
(FM1, FM2 and FM3 share the same
frequency range.)
Band
indication
l£ájj
3 Press (more than 0.5 second) either
TUNETorTUNE Ato tune in the desired
station.
Press T to decrease and A to increase the
frequency.
The unit starts scaning and tunes in a station
automatically (Seek tuning).
Press the button again to deactivate Seek
tuning. Repeatthe procedure until the desired
station is tuned in.
Note
If you press (less than 0.5 second at a time)
either TUNE T or TUNE A, the frequency
decreases or increases step by step.
4 Adjust the volume with +/—.
Frequency
indication
n ^
lljlj. 1
PWR TUNET/A
LO (local/DX) button
You can use Local mode when you wish to tune
in only strong stations during seek tuning. In
Radio mode, press LO to select Local mode. The
“LO” indicator lights up.
• Press LO to deactivate Local mode and switch
to DX (distance) mode.
•The “ST” (stereo) indicator lights up when the
tuned-in station is broadcasting in stereo and
the reception is good.
To turn the unit off
Press PWR.
Switching modes
When the unit is in Radio mode, inserting a
cassette switches the unit to Tape Play mode
automatically.
ENGLISH 6

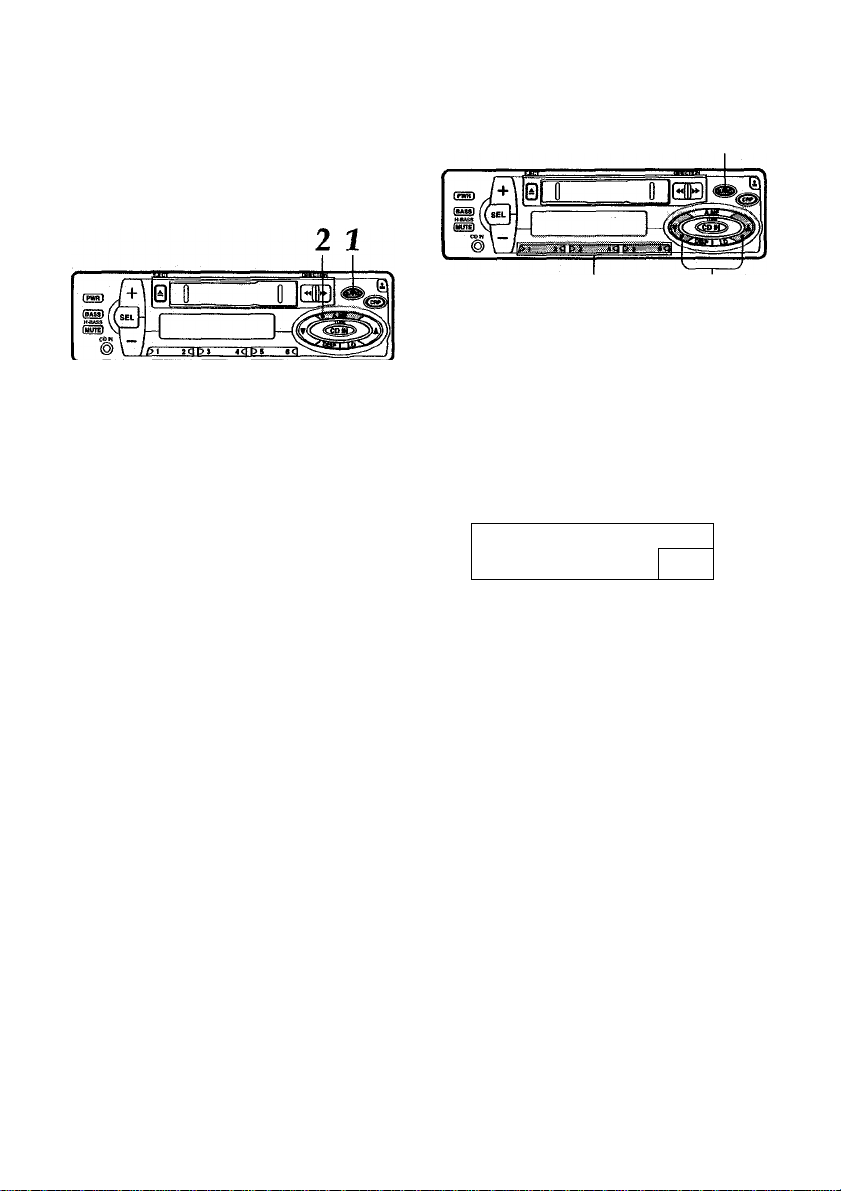

PRESETTING STATIONS
To preset stations automatically
(auto memory)
Press BAND to select a desired band
from among FM1, FM2, FM3 and AM.
/ / 7 / 7 /
I LIU. I
2 Press and hold A.ME for more than 1.5
seconds to activate the automatic
preseting function.
The six strongest available stations will be
stored in memory on the preset station
buttons 1 to 6 in order of their signal
strength.
Use this function to automatically preset up to 6
stations each for FM1, FM2, FM3 and AM (up to
a total of 24 stations).
• When auto memory is completed, the station
stored in 1CH is tuned in.
•To stop auto memory, press A.ME again.
To check the preset stations (preset scan)
• If you wish to check the preset stations, press
A.ME for less than 1.5 seconds. The preset
stations stored in memory will be tuned in for 5
seconds each in order.
• To stop this function, press A.ME again or press
any of the preset station buttons 1 to 6.
To preset stations manually
Press BAND to select the band from
among FM1, FM2, FM3 and AM.
Tune in the station that you wish to
preset with TUNE T or TUNE A.
Press one of the preset station buttons
1 to 6 for approximately 1.5 seconds.
The number of the pressed preset station
button appears next to the frequency
indication.
™ " / n n 1
ILI LI. 1
Repeat these procedures to preset up to 6 stations
each for FM1, FM2, FM3 and AM.
• You can manually preset stations that have not
been selected by auto memory. ,
• If you try to preset a station on a preset station
button on which another station of the same
band has already been preset, the previously
preset station will be erased.
During presetting of stations, beeps are heard
regardless of the beep on/off setting (page 5).
zl CH
Preset number
7 ENGLISH
To tune in the preset stations
TAPE PLAYBACK
1 Press BAND to select a desired band
from among FM1, FM2, FM3 and AM.
2 Press the desired preset station button.
The number of the pressed preset station
button is displayed next to the frequency
indication.
Active tuning reception controi (ATRC)
This unit automatically suppresses FM noise
caused by varying signal strength resulting from
movement of the car.
• The built-in automatic blending circuit mixes the
left and right channel signals according to the
strength of the reception. At the same time, the
high-cut circuit activates to maintain the sound
quality.
• If the reception becomes even weaker, the unit
automatically switches to Monaural mode to
reduce noise.
2 Insert a cassette to start playback.
Playback starts in the direction that the unit
played back previously.
T ooc;
1 1 11 L.
►
2 Adjust the volume with +/—.
Press the following buttons to operate tape
transport
To do this
Eject the cassette*
Change the playback
side
Fast-forward upper side
of the tape
Rewind lower side of
the tape
Rewind upper side of
the tape
Fast-forward lower side
of the tape
Stop fast winding and
resume playback
Press this button
0
gandjg
simultaneously
B
01
01 or B
When you eject the cassette, the unit switches to
Radio mode.
' Do not press m or IQ ail the way. Doing so may
change the direction of tape transport.
continued
ENGLISH 8
TAPE PLAYBACK
SOUND ADJUSTMENTS
Auto reverse function
When the end of the tape is reached during
playback or fast tape transport, the direction of
the tape is automatically reversed, and playback
starts again.
Tape direction indications
Playback
Upper side
Lower side
Before turning the ignition off
Be sure to eject any cassette from the unit before
turning the ignition off. Otherwise, the unit may be
damaged when you detach the front panel.
Switching modes
When the unit is in Radio mode, inserting a
cassette switches the unit to Tape Play mode
automatically.

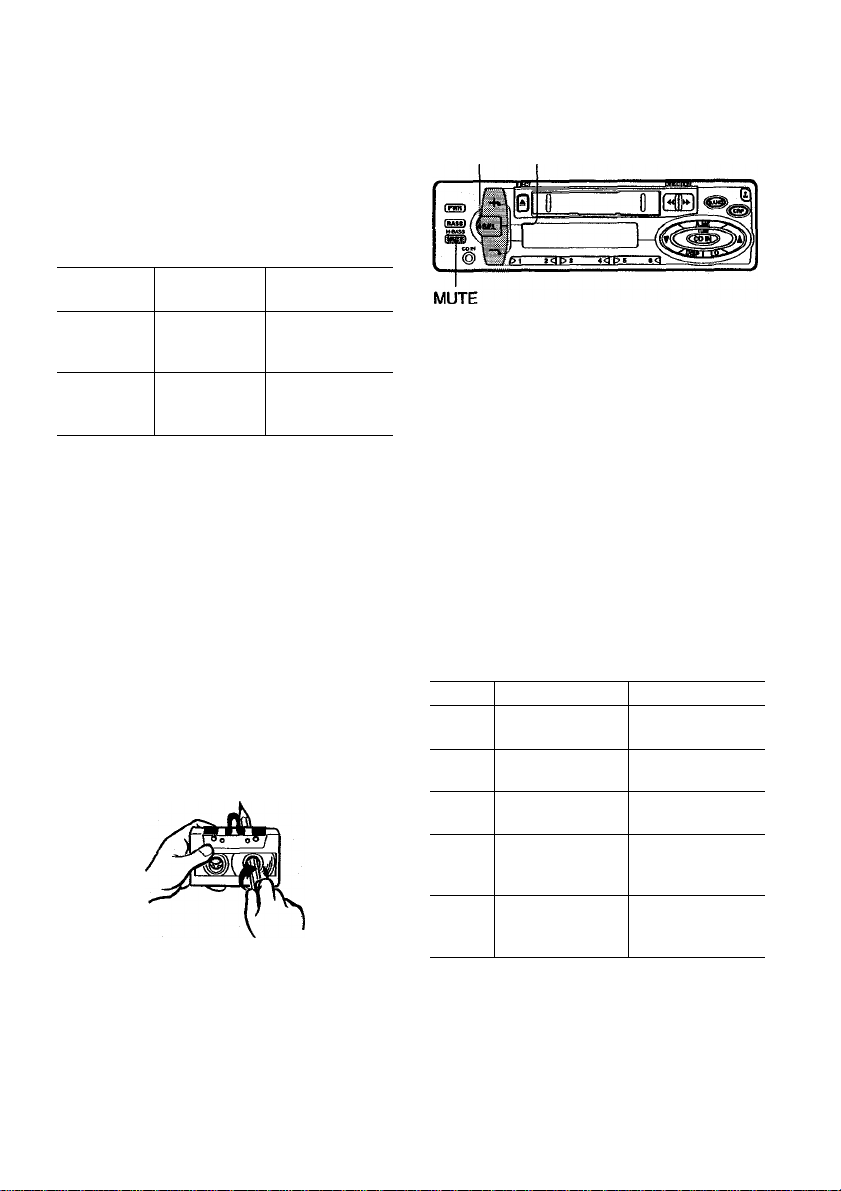

To prevent tape problems
Before inserting a cassette into the unit, make
sure that there is no slack in the tape. If necessary,
take up the slack by inserting a pencil into the
spindle hole and winding.
90-minute or longer tapes are extremely thin and
easily deformed or damaged. They are no
recommended.
Fast- forward
or rewind
O'O
1 2
Press SEL to select the mode that you
wishtoadjustfrom: VOL (volume), BAS
(bass), TRE (treble), BAL (balance) and
FAD (fader).
The following indications appear in cyclic
order.
iHJL-*llFI 5-i Re-*IIRL'*F FI I
c
The selected mode switches to volume mode
if you do not proceed with step 2 within 5
seconds.
Press +/— to adjust the level.
Press and hold either button to change the
level rapidly.
Adjust each mode referring to the audio
control indicators in the display window, (see
page 3)
-
Decreases the
IJOL
volume level
Decreases the
11 FIS
bass level
Decreases the
IRE
treble level
Decreases the
level of the right
sni.
speaker(s)
Decreases the
FFI II
level of the front
speakers
Without selecting any mode with SEL, only
the volume level can be adjusted by pressing
+/-.
+
Increases the
volume level
Increases the
bass level
Increases the
treble level
Decreases the
level of the left
speaker(s)
Decreases the
level of the rear
speakers
3
9 ENGLISH
MUTE button
Press this button to temporarily lower the volume.
Press it again to restore the previous volume.
H-BASS (High BASS)
You can enjoy music with strong bass sound.
H-BASS
CRP (CD changer ready
position)
You can enjoy CD changer play in combination
with your RF-CD-changer system with easy
operation.
Presetting the frequency in accordance with the FM modulator supplied with the CD changer system
___ ___
Press H-BASS to obtain powerful bass.
The “H BASS” indicator lights up.
Each time you press H-BASS, this function turns
on or off.
24
1 Press PWR to turn the unit on.
The radio frequency indication appears.
2 Press BAND to select the FM1 band.
3 Press (less than 0.5 second at a time)
either TUNE ▼ or TUNE Á repeatedly to
tuné in your FM modulator’sfrequency*.
4 Press CRP for more than 2 seconds to
preset the frequency.
The “CRP” indicator flashes.
Pressing TUNE T/A or any preset number
button stores your setting in memory and the
“CRP” indicator goes off.
* Tune in 88.7 MHz or 89.1 MHz for Aiwa brand’s
compact disc changer system. This unit is preset in
88.7 MHz at the factory.
Note
You can not preset your setting in the following
cases.
- when you select a band except FM1.
- when a cassette is inserted in the unit.
- when the unit is in CD IN mode.
continued
ENGLISH 10
CRP (CD changer ready position)

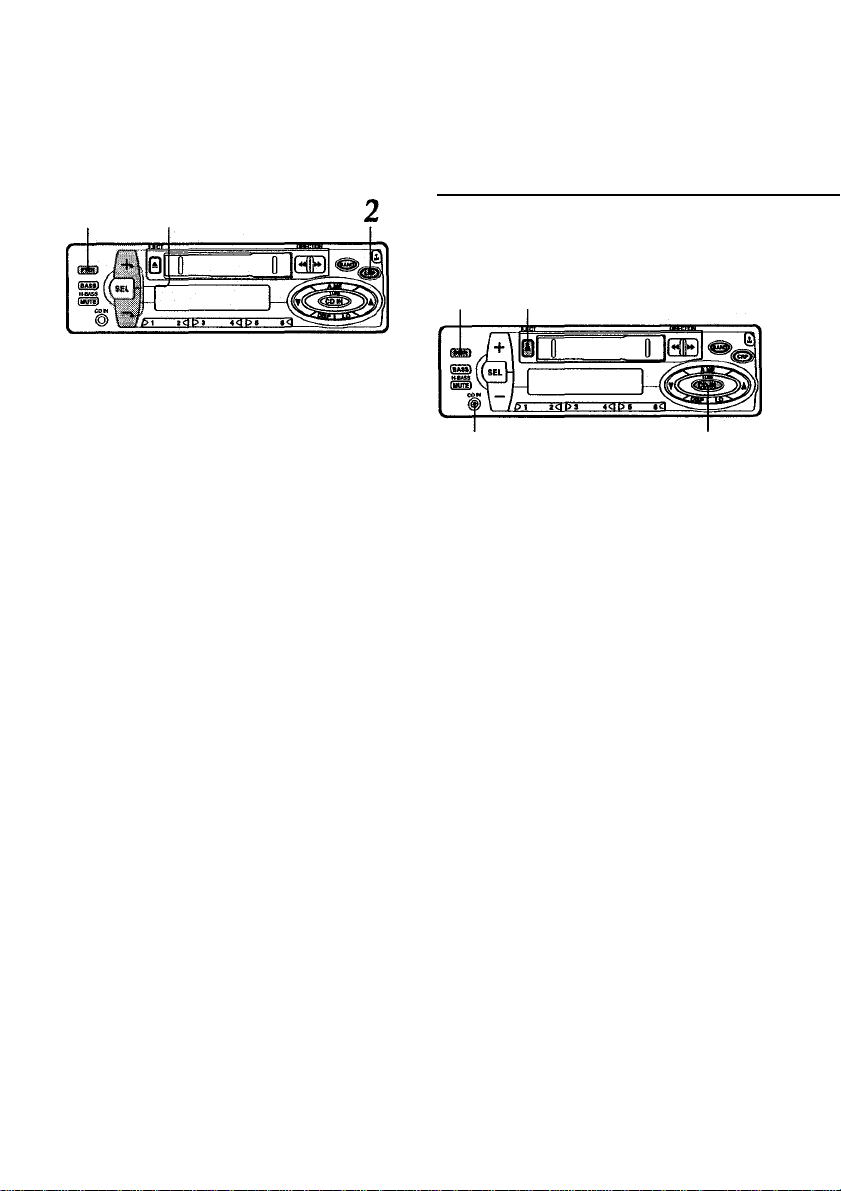

CD changer play
1 4
2 Press PWR to turn the unit on.
If a cassette is inserted, remove it to prevent
possible damage to the unit.
2 Press CRP to switch the unit to CRP
mode.
The “CRP” indicator lights up.
3 Piay a CD with your CD changer system.
4 Adjust the volume with +/—.
To stop CD changer play
1. Press CRP.
2. Turn off your CD changer system.
To turn the unit off
Press PWR.
CONNECTING A PORTABLE CD PLAYER OR OTHER EQUIPMENT
This unit is equipped with the line-level input (CD
IN) jack enabling high quality of the sound.
4
1 If a cassette is inserted, remove it to
prevent possible damage to the unit.
2 Connect a portable CD player, etc. via
the CD IN jack (3.5-mm dia.) on the unit.
3 Press PWR to turn the unit on.
4 Press CD IN to listen to the connected
equipment.
The “CD” indication appears.
•For further information on the connected
equipment, refer to the operating instructions
for the equipment.
Note
Be sure to press CD IN after you connect a
portable CD player, etc. to the CD IN jack to listen
using the connected equipment.
Even if equipment is connected to the CD iN jack,
you cannot listen using the connected equipment
without switching the unit to CD IN mode by
pressing CD IN.
11 ENGLISH
MAINTENANCE
SPECIFICATIONS
Cleaning the front panel
When the front panel is soiled, wipe the surface
of the panel with a dry and soft cloth.
Cleaning the tape head
Use a cleaning cassette to clean the playback
head and capstans approximately once a month.
If the playback head is dirty, the high tones may
not be reproduced properly.
Cleaning the connector
The connector on the reverse side of the front
panel needs to be cleaned occasionally. Wipe
the surface of the connector with a cotton swab
slightly moistened with alcohol.
RADIO SECTION
(FM)
Frequency Range: 87.5 MHz-108 MHz
Usable Sensitivity: 12.7dBf
50 dB Quieting Sensitivity:
iF Rejection: 80 dB
Frequency Response: 30 Hz-15,000 Hz
S/N Ratio: 63 dB
Stereo Separation: 35 dB at 1 kHz
Aiternate Channei Seiectivity:
Capture Ratio: 3 dB
(lOO-kHz steps)
87.5 MHz-108 MHz
(50-kHz steps)
17.2 dBf
70 dB
(AM)
Frequency Range:
Usabie Sensitivity:
530 kHz-1,710 kHz
(10-kHz steps)
522 kHz-1,620 kHz
(9-kHz steps)
30 pV (30 dB)
TAPE SECTION
Wow/Fiutter:
Tape Speed:
S/N Ratio:
Frequency Response: 40 Hz-14,000 Hz
Stereo Separation:
FF/REWTime:
0.1% (WRMS)
4.8 cni/sec. (1 % ips)
50 dB
40 dB
190 sec. (C-60)
AUDIO SECTION
Max. Power Output:
35 W X 4 channeis
CD IN input
Input sensitivity (load impedance)
COIN: 500 mV (10 kn)
GENERAL
Power-Supply Voltage:
Load Impedance:
Tone Control:
Preamp Output Voltage (load impedance):
Installation size: 182 (W) x 53 (H) x
Accessory supplied: Carrying case (1)
• Specifications and external appearance are subject to
change without notice due to product improvement.
14.4 V (11 to 16 V allowable),
DC, negative ground
4£2
Bass ± 10 dB at 100 Hz
Treble ± 10 dB at 10 kHz
2.2 V (10 ki2)
155 (D) mm
(7 V4 (W) X 2 Vb (H) X
6 Vb (D) inches)
ENGLISH 1 2
88-KTD-903-01
980109BTM-OX
AIWA CO.,LTD.
Loading...
