Aiwa HTDV-1 Service manual

HT-DV1

HK(S), HRJ(S)

SERVICE MANUAL

BASIC DVD/CD MECHANISM: KHM-230

DVD PLAYERDTS DECODER

HT-DV1

Replace this Service Manual with “Revision Publishing” when it is issued.

XA-SDV1 SX-SDV1

XD-SDV1

SPEAKERSYSTEM

S/M Code No. 09-027-362-9T2

SIMPLE

DATA

ACCESSORIES PARTS LIST -1/1

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XA-SDV1 XA-SDV1
HRJSM HKSM
O AS1001 8C-AV5-901-010 IB,HR(EC)M HT-DV1 a b
O AS1002 8C-AV5-623-010 RC UNIT,RC-CVL04 X a b
! O AS1003 87-A80-190-010 AC CORD SET ASSY,E BLK X a b
O AS1004 87-A80-197-010 CORD,DC POWERCORD X a b
! O AS1005 87-099-811-010 PLUG,ADPTR CONV(K) X . b
! O AS1005 87-A91-017-010 PLUG,CONVERSION JT-0476 a .
O AS1006 87-A80-167-010 CORD,PIN 1PY 150CM a b
O AS1008 8C-AA5-216-010 FOOT ASSY,D a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-2-

ELECTRICAL PARTS LIST (XA-DV1) -1/10

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XA-SDV1 XA-SDV1
HRJSM HKSM
FRONT O C 0001 87-A12-063-080 CAP,E 220-10 SMG a b
FRONT O C 0002 87-A12-087-080 CAP,E 1-50 SMG a b
FRONT O C 0003 87-012-184-080 C-CAP,U 33P-50 J CH GRM a b
FRONT O C 0004 87-010-316-080 C-CAP,S 33P-50 J CH GRM a b
FRONT O C 0005 87-010-197-080 C-CAP,S 0.01-25 K B C2012 a b
FRONT O C 0006 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b
FRONT O C 0007 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b
FRONT O C 0008 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b
FRONT O C 0009 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b
FRONT O C 0010 87-010-197-080 C-CAP,S 0.01-25 K B C2012 a b

FRONT O C 0011 87-010-197-080 C-CAP,S 0.01-25 K B C2012 a b
FRONT O C 0013 87-012-154-080 C-CAP,S 150P-50 J CH GRM a b
FRONT O C 0014 87-012-154-080 C-CAP,S 150P-50 J CH GRM a b
FRONT O C 0015 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
FRONT O C 0016 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
FRONT O CN 0001 87-A60-051-010 CONN,19P V 9604S-19C a b
FRONT O D 0001 87-A41-142-010 LED,SPR-39MVWF GRN/RED (L/M/N) a b
FRONT O D 0002 87-A41-126-080 LED,SLR-342VCTB7 RED a b
FRONT O D 0003 87-A41-126-080 LED,SLR-342VCTB7 RED a b
FRONT O D 0004 87-A41-126-080 LED,SLR-342VCTB7 RED a b

XA-SDV1 XA-SDV1
HRJSM HKSM
FRONT O D 0005 87-A41-126-080 LED,SLR-342VCTB7 RED a b
FRONT O D 0006 87-A41-126-080 LED,SLR-342VCTB7 RED a b
FRONT S D 0009 87-017-932-080 ZENER,MTZJ6.2B a b
FRONT S D 0012 87-A40-872-040 C-ZENER,UDZS 4.3B a b
FRONT S IC 0001 8C-AA5-617-030 C-IC,M34513M2-420FP a b
FRONT S IC 0002 87-A20-611-080 IC,M51943BSL-700A a b
FRONT X JR 0005 88-108-000-080 C-JUMPER,U a b
FRONT X JR 0011 88-108-000-080 C-JUMPER,U a b
FRONT X JR 0018 88-108-000-080 C-JUMPER,U a b
FRONT X JR 0019 88-108-000-080 C-JUMPER,U a b

FRONT X JR 0021 88-108-000-080 C-JUMPER,U a b
FRONT X JR 0024 88-108-000-080 C-JUMPER,U a b
FRONT X JR 0025 88-108-000-080 C-JUMPER,U a b
FRONT X JW 0001 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0002 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0003 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0004 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0005 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0006 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0007 88-100-000-010 PLATING-JW, 0.58 SN95 a b

XA-SDV1 XA-SDV1
HRJSM HKSM
FRONT X JW 0008 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0009 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0010 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0012 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0013 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0014 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0015 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0016 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0017 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0020 88-100-000-010 PLATING-JW, 0.58 SN95 a b

FRONT X JW 0022 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0023 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT O L 0001 87-005-614-080 COIL,100UH J LAV35 a b
FRONT S Q 0001 87-A30-087-080 C-FET,2SK2158 a b
FRONT S Q 0002 87-A30-087-080 C-FET,2SK2158 a b
FRONT S Q 0004 87-A30-455-040 C-TR,DTA144EKA a b
FRONT S Q 0005 87-A30-246-040 C-TR,2SA1037AK a b
FRONT X R 0001 88-118-102-080 C-RES,S 1K-1/10W J a b
FRONT X R 0002 88-118-101-080 C-RES,S 100-1/10W J a b
FRONT X R 0003 88-118-391-080 C-RES,S 390-1/10W J a b

XA-SDV1 XA-SDV1
HRJSM HKSM
FRONT X R 0004 88-118-681-080 C-RES,S 680-1/10W J a b
FRONT X R 0005 88-118-681-080 C-RES,S 680-1/10W J a b
FRONT O R 0006 88-108-101-080 C-RES,U 100-1/16W J a b
FRONT O R 0007 88-108-101-080 C-RES,U 100-1/16W J a b
FRONT O R 0008 88-108-101-080 C-RES,U 100-1/16W J a b
FRONT O R 0009 88-108-102-080 C-RES,U 1K-1/16W J a b
FRONT O R 0010 88-108-473-080 C-RES,U 47K-1/16W J a b
FRONT O R 0011 88-108-101-080 C-RES,U 100-1/16W J a b
FRONT O R 0012 88-108-224-080 C-RES,U 220K-1/16W J a b
FRONT O R 0013 88-108-103-080 C-RES,U 10K-1/16W J a b

FRONT X R 0015 88-108-104-080 C-RES,U 100K-1/16W J a b
FRONT O R 0016 88-108-101-080 C-RES,U 100-1/16W J a b
FRONT O R 0017 88-108-101-080 C-RES,U 100-1/16W J a b
FRONT O R 0018 88-108-102-080 C-RES,U 1K-1/16W J a b
FRONT O R 0019 88-108-102-080 C-RES,U 1K-1/16W J a b
FRONT X R 0020 88-118-472-080 C-RES,S 4.7K-1/10W J a b
FRONT O R 0022 88-108-101-080 C-RES,U 100-1/16W J a b
FRONT O R 0023 88-108-101-080 C-RES,U 100-1/16W J a b
FRONT O R 0024 88-108-101-080 C-RES,U 100-1/16W J a b
FRONT O R 0025 88-108-101-080 C-RES,U 100-1/16W J a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-3-

ELECTRICAL PARTS LIST (XA-DV1) -2/10

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XA-SDV1 XA-SDV1
HRJSM HKSM
FRONT O R 0026 88-108-101-080 C-RES,U 100-1/16W J a b
FRONT O R 0027 88-108-101-080 C-RES,U 100-1/16W J a b
FRONT O R 0028 88-108-101-080 C-RES,U 100-1/16W J a b
FRONT O R 0029 88-108-101-080 C-RES,U 100-1/16W J a b
FRONT X R 0030 88-118-681-080 C-RES,S 680-1/10W J a b
FRONT X R 0031 88-118-681-080 C-RES,S 680-1/10W J a b
FRONT X R 0032 88-118-681-080 C-RES,S 680-1/10W J a b
FRONT O R 0033 88-108-103-080 C-RES,U 10K-1/16W J a b
FRONT X R 0034 88-108-472-080 C-RES,U 4.7K-1/16W J a b
FRONT X R 0035 88-108-472-080 C-RES,U 4.7K-1/16W J a b

FRONT X R 0036 88-118-103-080 C-RES,S 10K-1/10W J a b
FRONT X R 0037 88-118-103-080 C-RES,S 10K-1/10W J a b
FRONT X R 0038 88-118-222-080 C-RES,S 2.2K-1/10W J a b
FRONT X R 0039 88-118-222-080 C-RES,S 2.2K-1/10W J a b
FRONT X R 0040 88-118-332-080 C-RES,S 3.3K-1/10W J a b
FRONT X R 0041 88-118-562-080 C-RES,S 5.6K-1/10W J a b
FRONT X R 0042 88-118-822-080 C-RES,S 8.2K-1/10W J a b
FRONT O R 0043 88-118-223-080 C-RES,S 22K-1/10W J a b
FRONT X R 0044 88-118-472-080 C-RES,S 4.7K-1/10W J a b
FRONT X R 0045 88-108-472-080 C-RES,U 4.7K-1/16W J a b

XA-SDV1 XA-SDV1
HRJSM HKSM
FRONT X R 0046 88-118-102-080 C-RES,S 1K-1/10W J a b
FRONT X R 0047 88-118-104-080 C-RES,S 100K-1/10W J a b
FRONT X R 0048 88-118-102-080 C-RES,S 1K-1/10W J a b
FRONT X R 0049 88-118-104-080 C-RES,S 100K-1/10W J a b
FRONT O R 0050 88-108-101-080 C-RES,U 100-1/16W J a b
FRONT X R 0051 88-108-472-080 C-RES,U 4.7K-1/16W J a b
FRONT X R 0052 88-108-472-080 C-RES,U 4.7K-1/16W J a b
FRONT X R 0053 88-108-472-080 C-RES,U 4.7K-1/16W J a b
FRONT O R 0054 88-108-103-080 C-RES,U 10K-1/16W J a b
FRONT O R 0055 88-108-103-080 C-RES,U 10K-1/16W J a b

FRONT X R 0056 88-118-103-080 C-RES,S 10K-1/10W J a b
FRONT X R 0057 88-118-103-080 C-RES,S 10K-1/10W J a b
FRONT O R 0059 88-108-103-080 C-RES,U 10K-1/16W J a b
FRONT O R 0060 88-108-223-080 C-RES,U 22K-1/16W J a b
FRONT O R 0062 88-108-223-080 C-RES,U 22K-1/16W J a b
FRONT X R 0064 88-118-391-080 C-RES,S 390-1/10W J a b
FRONT O R 0065 88-108-473-080 C-RES,U 47K-1/16W J a b
FRONT O R 0066 88-108-103-080 C-RES,U 10K-1/16W J a b
FRONT X R 0067 88-118-331-080 C-RES,S 330-1/10W J a b
FRONT O SW 0001 87-A92-419-010 SW,RTRY EC12E24304WITH VC a b

XA-SDV1 XA-SDV1
HRJSM HKSM
FRONT O SW 0003 87-A90-095-080 SW,TACT EVQ11G04M a b
FRONT O SW 0004 87-A90-095-080 SW,TACT EVQ11G04M a b
FRONT O SW 0005 87-A90-095-080 SW,TACT EVQ11G04M a b
FRONT O SW 0006 87-A90-095-080 SW,TACT EVQ11G04M a b
FRONT O SW 0007 87-A90-095-080 SW,TACT EVQ11G04M a b
FRONT O X 0001 87-A70-075-080 VIB,CER 4.19MHZ CRHF a b
HP-JACK O CN 0552 87-A60-063-010 CONN,04P V 9604S-04C a b
HP-JACK O J 0551 8C-AA5-640-010 JACK,3.5 BLK ST W/SW HTJ-035-F a b
HP-JACK O JW 0024 87-003-149-080 COIL,47UH J LAL02 a b
MAIN O C 0101 87-010-405-080 CAP,E 10-50 M 11L SME a b

MAIN O C 0102 87-A12-080-080 CAP,E 220-35 SMG a b
MAIN O C 0103 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
MAIN O C 0104 87-A12-077-080 CAP,E 33-35 SMG a b
MAIN O C 0105 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
MAIN O C 0107 87-010-197-080 C-CAP,S 0.01-25 K B C2012 a b
MAIN O C 0110 87-010-197-080 C-CAP,S 0.01-25 K B C2012 a b
MAIN O C 0301 87-A12-307-080 C-CAP,S 0.1-50 K B a b
MAIN O C 0302 87-010-178-080 C-CAP,S 1000P-50 K B C2012 a b
MAIN O C 0303 87-A12-307-080 C-CAP,S 0.1-50 K B a .
MAIN O C 0303 87-A12-310-080 C-CAP,U 0.01-50 K B . b

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN O C 0304 87-010-178-080 C-CAP,S 1000P-50 K B C2012 a b
MAIN O C 0305 87-A12-307-080 C-CAP,S 0.1-50 K B a .
MAIN O C 0305 87-A12-310-080 C-CAP,U 0.01-50 K B . b
MAIN O C 0306 87-010-178-080 C-CAP,S 1000P-50 K B C2012 a b
MAIN O C 0307 87-A12-307-080 C-CAP,S 0.1-50 K B a b
MAIN O C 0309 87-A13-055-080 CAP,E 220-35 M 105 KY 12.5L a b
MAIN X C 0312 88-710-949-810 CAP,M 0.47-50 J TFL ECQV a b
MAIN X C 0313 88-710-949-810 CAP,M 0.47-50 J TFL ECQV a b
MAIN X C 0314 88-710-949-810 CAP,M 0.47-50 J TFL ECQV a b
MAIN X C 0315 88-710-949-810 CAP,M 0.47-50 J TFL ECQV a b

MAIN O C 0316 87-016-669-080 C-CAP,S 0.1-25 K B a b
MAIN O C 0317 87-010-251-040 CAP,E 10-35 M 5L SRE a b
MAIN O C 0318 87-A12-319-080 C-CAP,U 0.1-25 K B a b
MAIN O C 0319 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b
MAIN O C 0320 87-A12-319-080 C-CAP,U 0.1-25 K B a b
MAIN O C 0321 87-A12-307-080 C-CAP,S 0.1-50 K B a b
MAIN O C 0322 87-010-251-040 CAP,E 10-35 M 5L SRE a b
MAIN O C 0323 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
MAIN O C 0324 87-012-267-080 C-CAP,U 270P-50 K B GRM a b
MAIN O C 0325 87-012-267-080 C-CAP,U 270P-50 K B GRM a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-4-

ELECTRICAL PARTS LIST (XA-DV1) -3/10

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN O C 0326 87-012-336-080 C-CAP,U 330P-50 J SL GRM a b
MAIN O C 0327 87-012-336-080 C-CAP,U 330P-50 J SL GRM a b
MAIN O C 0328 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
MAIN O C 0329 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
MAIN O C 0330 87-010-264-080 CAP,E 100-10 M 5L SRE a b
MAIN O C 0331 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
MAIN X C 0332 88-700-910-810 CAP,M 0.1-50 J AMZV a b
MAIN O C 0333 87-A12-434-080 C-CAP, 0.1-100 K X7R GHM1530 a b
MAIN X C 0334 88-700-910-810 CAP,M 0.1-50 J AMZV a b
MAIN O C 0335 87-A12-434-080 C-CAP, 0.1-100 K X7R GHM1530 a b

MAIN O C 0336 87-010-190-080 C-CAP,S 0.01-50 Z F C2012 a b
MAIN O C 0337 87-010-190-080 C-CAP,S 0.01-50 Z F C2012 a b
MAIN O C 0338 87-010-190-080 C-CAP,S 0.01-50 Z F C2012 a b
MAIN O C 0339 87-010-190-080 C-CAP,S 0.01-50 Z F C2012 a b
MAIN O C 0341 87-A12-307-080 C-CAP,S 0.1-50 K B a b
MAIN O C 0342 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b
MAIN O C 0343 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b
MAIN O C 0344 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b
MAIN O C 0345 87-A13-159-010 CAP,E 220-25 M BP VP a b
MAIN O C 0346 87-A13-160-080 CAP,E 220-25 M 10*12.5 BP NA a b

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN O C 0401 87-A12-307-080 C-CAP,S 0.1-50 K B a b
MAIN O C 0402 87-010-178-080 C-CAP,S 1000P-50 K B C2012 a b
MAIN O C 0403 87-A12-307-080 C-CAP,S 0.1-50 K B a .
MAIN O C 0403 87-A12-310-080 C-CAP,U 0.01-50 K B . b
MAIN O C 0404 87-010-178-080 C-CAP,S 1000P-50 K B C2012 a b
MAIN O C 0405 87-A12-307-080 C-CAP,S 0.1-50 K B a .
MAIN O C 0405 87-A12-310-080 C-CAP,U 0.01-50 K B . b
MAIN O C 0406 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0407 87-A12-307-080 C-CAP,S 0.1-50 K B a b
MAIN O C 0408 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b

MAIN O C 0409 87-A13-055-080 CAP,E 220-35 M 105 KY 12.5L a b
MAIN X C 0412 88-710-949-810 CAP,M 0.47-50 J TFL ECQV a b
MAIN X C 0413 88-710-949-810 CAP,M 0.47-50 J TFL ECQV a b
MAIN X C 0414 88-710-949-810 CAP,M 0.47-50 J TFL ECQV a b
MAIN X C 0415 88-710-949-810 CAP,M 0.47-50 J TFL ECQV a b
MAIN O C 0416 87-016-669-080 C-CAP,S 0.1-25 K B a b
MAIN O C 0417 87-010-251-040 CAP,E 10-35 M 5L SRE a b
MAIN O C 0418 87-A12-319-080 C-CAP,U 0.1-25 K B a b
MAIN O C 0419 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b
MAIN O C 0420 87-A12-319-080 C-CAP,U 0.1-25 K B a b

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN O C 0421 87-A12-307-080 C-CAP,S 0.1-50 K B a b
MAIN O C 0422 87-010-251-040 CAP,E 10-35 M 5L SRE a b
MAIN O C 0423 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
MAIN O C 0424 87-012-196-080 C-CAP,U 120P-50 J CH GRM a b
MAIN O C 0425 87-012-196-080 C-CAP,U 120P-50 J CH GRM a b
MAIN O C 0426 87-012-197-080 C-CAP,U 150P-50 J CH GRM a b
MAIN O C 0427 87-012-197-080 C-CAP,U 150P-50 J CH GRM a b
MAIN O C 0428 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
MAIN O C 0429 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
MAIN O C 0430 87-010-264-080 CAP,E 100-10 M 5L SRE a b

MAIN O C 0431 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
MAIN X C 0432 88-700-910-810 CAP,M 0.1-50 J AMZV a b
MAIN O C 0433 87-A12-434-080 C-CAP, 0.1-100 K X7R GHM1530 a b
MAIN X C 0434 88-700-910-810 CAP,M 0.1-50 J AMZV a b
MAIN O C 0435 87-A12-434-080 C-CAP, 0.1-100 K X7R GHM1530 a b
MAIN O C 0436 87-010-190-080 C-CAP,S 0.01-50 Z F C2012 a b
MAIN O C 0437 87-010-190-080 C-CAP,S 0.01-50 Z F C2012 a b
MAIN O C 0438 87-010-190-080 C-CAP,S 0.01-50 Z F C2012 a b
MAIN O C 0439 87-010-190-080 C-CAP,S 0.01-50 Z F C2012 a b
MAIN O C 0441 87-A12-307-080 C-CAP,S 0.1-50 K B a b

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN O C 0442 87-010-178-080 C-CAP,S 1000P-50 K B C2012 a b
MAIN O C 0443 87-010-178-080 C-CAP,S 1000P-50 K B C2012 a b
MAIN X C 0444 88-118-000-080 C-JUMPER,S a b
MAIN O C 0445 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
MAIN O C 0451 87-A12-307-080 C-CAP,S 0.1-50 K B a b
MAIN O C 0452 87-010-178-080 C-CAP,S 1000P-50 K B C2012 a b
MAIN O C 0453 87-A12-307-080 C-CAP,S 0.1-50 K B a .
MAIN O C 0453 87-A12-310-080 C-CAP,U 0.01-50 K B . b
MAIN O C 0454 87-010-178-080 C-CAP,S 1000P-50 K B C2012 a b
MAIN O C 0455 87-A12-307-080 C-CAP,S 0.1-50 K B a .

MAIN O C 0455 87-A12-310-080 C-CAP,U 0.01-50 K B . b
MAIN O C 0456 87-010-178-080 C-CAP,S 1000P-50 K B C2012 a b
MAIN O C 0457 87-A12-307-080 C-CAP,S 0.1-50 K B a b
MAIN O C 0459 87-A13-055-080 CAP,E 220-35 M 105 KY 12.5L a b
MAIN X C 0462 88-710-949-810 CAP,M 0.47-50 J TFL ECQV a b
MAIN X C 0463 88-710-949-810 CAP,M 0.47-50 J TFL ECQV a b
MAIN X C 0464 88-710-949-810 CAP,M 0.47-50 J TFL ECQV a b
MAIN X C 0465 88-710-949-810 CAP,M 0.47-50 J TFL ECQV a b
MAIN O C 0466 87-016-669-080 C-CAP,S 0.1-25 K B a b
MAIN O C 0467 87-010-251-040 CAP,E 10-35 M 5L SRE a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-5-

ELECTRICAL PARTS LIST (XA-DV1) -4/10

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN O C 0468 87-A12-319-080 C-CAP,U 0.1-25 K B a b
MAIN O C 0469 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b
MAIN O C 0470 87-A12-319-080 C-CAP,U 0.1-25 K B a b
MAIN O C 0471 87-A12-307-080 C-CAP,S 0.1-50 K B a b
MAIN O C 0472 87-010-251-040 CAP,E 10-35 M 5L SRE a b
MAIN O C 0473 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
MAIN O C 0474 87-012-191-080 C-CAP,U 68P-50 J CH GRM a b
MAIN O C 0475 87-012-191-080 C-CAP,U 68P-50 J CH GRM a b
MAIN O C 0476 87-012-193-080 C-CAP,U 82P-50 J CH GRM a b
MAIN O C 0477 87-012-193-080 C-CAP,U 82P-50 J CH GRM a b

MAIN O C 0478 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
MAIN O C 0479 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
MAIN O C 0480 87-010-264-080 CAP,E 100-10 M 5L SRE a b
MAIN O C 0481 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
MAIN X C 0482 88-700-910-810 CAP,M 0.1-50 J AMZV a b
MAIN O C 0483 87-A12-434-080 C-CAP, 0.1-100 K X7R GHM1530 a b
MAIN X C 0484 88-700-910-810 CAP,M 0.1-50 J AMZV a b
MAIN O C 0485 87-A12-434-080 C-CAP, 0.1-100 K X7R GHM1530 a b
MAIN O C 0486 87-010-190-080 C-CAP,S 0.01-50 Z F C2012 a b
MAIN O C 0487 87-010-190-080 C-CAP,S 0.01-50 Z F C2012 a b

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN O C 0488 87-010-190-080 C-CAP,S 0.01-50 Z F C2012 a b
MAIN O C 0489 87-010-190-080 C-CAP,S 0.01-50 Z F C2012 a b
MAIN O C 0491 87-A12-307-080 C-CAP,S 0.1-50 K B a b
MAIN O C 0502 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b
MAIN O C 0503 87-A10-918-080 CAP,E 100-16 SMG a b
MAIN O C 0504 87-010-401-080 CAP,E 1-50 M 11L SME a b
MAIN O C 0505 87-012-199-080 C-CAP,U 220P-50 J CH GRM a b
MAIN O C 0507 87-010-401-080 CAP,E 1-50 M 11L SME a b
MAIN O C 0508 87-012-199-080 C-CAP,U 220P-50 J CH GRM a b
MAIN O C 0509 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b

MAIN O C 0510 87-A10-918-080 CAP,E 100-16 SMG a b
MAIN O C 0511 87-A12-069-080 CAP,E 22-25 SMG a b
MAIN O C 0512 87-A12-069-080 CAP,E 22-25 SMG a b
MAIN O C 0513 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b
MAIN O C 0514 87-010-401-080 CAP,E 1-50 M 11L SME a b
MAIN O C 0515 87-010-401-080 CAP,E 1-50 M 11L SME a b
MAIN ! O C 0801 87-A11-353-010 CAP,M/P 0.22-275 M ECQUL a b
MAIN ! O C 0802 87-A11-353-010 CAP,M/P 0.22-275 M ECQUL a b
MAIN ! O C 0803 87-A10-413-090 CAP,CER 2200P-4K M E KX . b
MAIN ! O C 0803 87-A13-005-090 CAP,AC CER 1500P-250 M E KX a .

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN ! O C 0804 87-A10-413-090 CAP,CER 2200P-4K M E KX . b
MAIN ! O C 0804 87-A13-005-090 CAP,AC CER 1500P-250 M E KX a .
MAIN O C 0805 87-012-193-080 C-CAP,U 82P-50 J CH GRM a b
MAIN O C 0806 87-A10-646-090 CAP,E 220-400 SMH25.4*40) a b
MAIN O C 0808 87-A10-474-090 CAP,PP 0.01-1.25K H PHS a b
MAIN O C 0810 87-A12-293-010 CAP,CER 470P-2K J SL HR a b
MAIN O C 0811 87-016-369-080 C-CAP,S 0.033-25 K B GRM a b
MAIN O C 0813 87-A12-095-080 CAP,E 100-50 SMG a b
MAIN O C 0814 87-010-198-080 C-CAP,S 0.022-25 K B C2012 a b
MAIN O C 0815 87-A12-094-080 CAP,E 47-50 SMG a b

MAIN O C 0817 87-010-197-080 C-CAP,S 0.01-25 K B C2012 a b
MAIN O C 0820 87-A12-091-080 CAP,E 10-50 SMG a b
MAIN O C 0821 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0822 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0823 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0824 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0825 87-010-197-080 C-CAP,S 0.01-25 K B C2012 a b
MAIN O C 0830 87-A10-833-090 CAP,CER 1000P-2K K R a b
MAIN O C 0831 87-A12-972-090 CAP,E 2200-35 M 105 M25 KY a b
MAIN O C 0832 87-A12-972-090 CAP,E 2200-35 M 105 M25 KY a b

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN O C 0833 87-A12-972-090 CAP,E 2200-35 M 105 M25 KY a b
MAIN O C 0834 87-016-045-080 CAP,E 1000-6.3 M SMG a b
MAIN O C 0837 87-A12-074-080 CAP,E 470-25 SMG a b
MAIN O C 0838 87-A12-091-080 CAP,E 10-50 SMG a b
MAIN O C 0841 87-010-184-080 C-CAP,S 3300P-50 K B C2012 a .
MAIN O C 0841 87-010-178-080 C-CAP,S 1000P-50 K B C2012 . b
MAIN O C 0842 87-016-669-080 C-CAP,S 0.1-25 K B a b
MAIN O C 0847 87-A12-092-080 CAP,E 22-50 SMG a b
MAIN O C 0848 87-A12-092-080 CAP,E 22-50 SMG a b
MAIN O C 0849 87-A12-092-080 CAP,E 22-50 SMG a b

MAIN O C 0850 87-A12-074-080 CAP,E 470-25 SMG a b
MAIN O C 0852 87-A12-092-080 CAP,E 22-50 SMG a b
MAIN O C 0853 87-A13-001-080 CAP,E 470-25 M 105 KY 8*20 a b
MAIN O C 0854 87-010-178-080 C-CAP,S 1000P-50 K B C2012 a b
MAIN O C 0855 87-010-197-080 C-CAP,S 0.01-25 K B C2012 a b
MAIN O C 0856 87-A12-307-080 C-CAP,S 0.1-50 K B a b
MAIN O C 0857 87-010-382-080 CAP,E 22-25 M 11L SME a b
MAIN O C 0858 87-010-197-080 C-CAP,S 0.01-25 K B C2012 a b
MAIN O C 0859 87-A10-918-080 CAP,E 100-16 SMG a b
MAIN O C 0860 87-010-197-080 C-CAP,S 0.01-25 K B C2012 a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-6-

ELECTRICAL PARTS LIST (XA-DV1) -5/10

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN O C 0861 87-010-197-080 C-CAP,S 0.01-25 K B C2012 a b
MAIN O CN 0201 87-A60-051-010 CONN,19P V 9604S-19C a b
MAIN O CN 0204 87-A60-316-010 CONN,19P TUC-P19P-B1 a b
MAIN O CN 0205 87-A60-539-010 CONN,5P V TUC-P05P-B1 a b
MAIN O CN 0501 87-A60-063-010 CONN,04P V 9604S-04C a b
MAIN O CN 0603 87-A60-316-010 CONN,19P TUC-P19P-B1 a b
MAIN O CN 0604 87-099-564-010 CONN,4P V TUC-P4P-B1 a b
MAIN O CN 0801 87-009-030-010 CONN,2P V WHT PH a b
MAIN S D 0101 87-A40-269-080 C-DIODE,MC2836 a b
MAIN S D 0103 87-017-779-080 C-DIODE,1SS355 a b

MAIN S D 0301 87-017-779-080 C-DIODE,1SS355 a b
MAIN S D 0302 87-A40-270-080 C-DIODE,MC2838 a b
MAIN S D 0401 87-017-779-080 C-DIODE,1SS355 a b
MAIN S D 0402 87-A40-270-080 C-DIODE,MC2838 a b
MAIN S D 0451 87-017-779-080 C-DIODE,1SS355 a b
MAIN S D 0452 87-A40-270-080 C-DIODE,MC2838 a b
MAIN O D 0801 87-A91-897-090 VRIS,TNR10V471K a b
MAIN S D 0802 87-017-654-060 DIODE,GBU6JL6131 a b
MAIN S D 0803 87-A40-856-080 DIODE,UF4007 a b
MAIN O D 0804 87-A41-108-080 DIODE,11EQS03L a b

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN S D 0805 87-A40-286-080 DIODE,RGP10JE-5025 a b
MAIN S D 0806 87-A40-660-040 C-DIODE,BAS316 a b
MAIN S D 0810 87-A41-133-040 C-ZENER,UDZS11B a b
MAIN S D 0829 87-A40-660-040 C-DIODE,BAS316 a b
MAIN S D 0830 87-A41-134-010 DIODE,YG906C2R a b
MAIN S D 0832 87-A40-286-050 DIODE,RGP10JE-5025 a b
MAIN S D 0833 87-A40-874-040 C-ZENER,UDZS 5.6B a b
MAIN S D 0834 87-A40-286-050 DIODE,RGP10JE-5025 a b
MAIN S D 0835 87-A40-660-040 C-DIODE,BAS316 a b
MAIN S D 0836 87-A40-660-040 C-DIODE,BAS316 a b

MAIN S D 0839 87-A40-660-040 C-DIODE,BAS316 a b
MAIN S D 0840 87-A40-660-040 C-DIODE,BAS316 a b
MAIN S D 0842 87-A40-660-040 C-DIODE,BAS316 a b
MAIN S D 0852 87-A40-851-090 DIODE,31DQ04(F) a b
MAIN S D 0855 87-A40-756-080 ZENER,UZ7.5BSB a b
MAIN S D 0856 87-A40-660-040 C-DIODE,BAS316 a b
MAIN ! S F 0801 87-A91-217-010 FUSE,3.15A 250V T 50T a b
MAIN O FB 0452 87-008-372-080 FLTR,EMI BL01 RN1 a b
MAIN ! O FC 0801 87-033-213-080 FUSE CLAMP,PFC5000 a b
MAIN ! O FC 0802 87-033-213-080 FUSE CLAMP,PFC5000 a b

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN ! O FR 0802 87-A00-770-090 RES,FUSE 0.1-1W J RF1SL12.5 a b
MAIN X HT 0801 8C-AA5-209-010 HT-SINK,ASSY PW a b
MAIN X HT 0830 87-A92-376-010 HT-SINK,BPUE26-30 11.6DG/W a b
MAIN S IC 0101 87-001-608-080 C-IC,NJM2903M a b
MAIN S IC 0301 87-A22-310-040 C-IC,TP2050 a b
MAIN S IC 0302 87-A22-241-040 C-IC,TA2025 . b
MAIN S IC 0302 87-A22-311-040 C-IC,TC2000 a .
MAIN S IC 0401 87-A22-310-040 C-IC,TP2050 a b
MAIN S IC 0402 87-A22-241-040 C-IC,TA2025 . b
MAIN S IC 0402 87-A22-311-040 C-IC,TC2000 a .

MAIN S IC 0451 87-A22-310-040 C-IC,TP2050 a b
MAIN S IC 0452 87-A22-241-040 C-IC,TA2025 . b
MAIN S IC 0452 87-A22-311-040 C-IC,TC2000 a .
MAIN S IC 0501 87-A21-823-040 C-IC,NJM4556AM a b
MAIN S IC 0801 87-A22-015-010 IC,TEA1507P a b
MAIN S IC 0831 87-020-969-010 IC,NJM78M09FA a b
MAIN S IC 0832 87-A20-830-010 IC,BA05T a b
MAIN S IC 0833 87-020-970-010 IC,NJM79L09 a b
MAIN S IC 0834 87-A22-231-080 IC,HA17431PA a b
MAIN S IC 0835 87-A22-288-090 IC,PQ1CG2032FZ a b

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN O J 0201 87-A61-744-010 CONN,13P V WHT 52328-1310 a b
MAIN O J 0301 87-A61-824-010 TERMINAL,SP 4P LQR1410-0956G a b
MAIN O J 0401 87-A61-825-010 TERMINAL,SP 8P LQR1810-0656G a b
MAIN ! O J 0801 87-A61-740-010 JACK,AC D HSC0609 a b
MAIN O J 0802 87-A61-826-010 JACK,DC 4.4 6.3 W/SW HEC3690 a b
MAIN X JR 0850 88-108-000-080 C-JUMPER,U a b
MAIN X JR 0853 88-118-000-080 C-JUMPER,S a b
MAIN X JW 0803 88-100-000-010 PLATING-JW, 0.58 SN95 a b
MAIN X JW 0804 88-100-000-010 PLATING-JW, 0.58 SN95 a b
MAIN X JW 0805 88-100-000-010 PLATING-JW, 0.58 SN95 a b

MAIN X JW 0806 88-100-000-010 PLATING-JW, 0.58 SN95 a b
MAIN X JW 0807 88-100-000-010 PLATING-JW, 0.58 SN95 a b
MAIN X JW 0809 88-100-000-010 PLATING-JW, 0.58 SN95 a b
MAIN X JW 0811 88-100-000-010 PLATING-JW, 0.58 SN95 a b
MAIN X JW 0820 88-100-000-010 PLATING-JW, 0.58 SN95 a b
MAIN O L 0301 87-A50-696-010 COIL,10UH 7310 a b
MAIN O L 0302 87-A50-696-010 COIL,10UH 7310 a b
MAIN O L 0303 87-A50-696-010 COIL,10UH 7310 a b
MAIN O L 0304 87-A50-696-010 COIL,10UH 7310 a b
MAIN O L 0401 87-A50-696-010 COIL,10UH 7310 a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-7-

ELECTRICAL PARTS LIST (XA-DV1) -6/10

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN O L 0402 87-A50-696-010 COIL,10UH 7310 a b
MAIN O L 0403 87-A50-696-010 COIL,10UH 7310 a b
MAIN O L 0404 87-A50-696-010 COIL,10UH 7310 a b
MAIN O L 0451 87-A50-696-010 COIL,10UH 7310 a b
MAIN O L 0452 87-A50-696-010 COIL,10UH 7310 a b
MAIN O L 0453 87-A50-696-010 COIL,10UH 7310 a b
MAIN O L 0454 87-A50-696-010 COIL,10UH 7310 a b
MAIN O L 0455 87-005-614-080 COIL,100UH J LAV35 a b
MAIN O L 0801 87-005-614-080 COIL,100UH J LAV35 a b
MAIN O L 0803 87-A50-777-010 COIL,150UH K ELC10D151HN a b

MAIN ! O LF 0801 87-A92-377-010 FLTR,LINE ELF21V012A . b
MAIN ! O LF 0801 87-A92-431-010 FLTR,LINE ELF21V013A a .
MAIN ! S PR 0801 87-A91-945-080 PROTECTOR,5A 20P 60V a b
MAIN ! S PR 0802 87-A91-945-080 PROTECTOR,5A 20P 60V a b
MAIN ! S PR 0803 87-A91-945-080 PROTECTOR,5A 20P 60V a b
MAIN ! S PR 0804 87-A91-943-080 PROTECTOR,3.5A 20P 60V a b
MAIN ! S PR 0806 87-A91-943-080 PROTECTOR,3.5A 20P 60V a b
MAIN ! S PR 0807 87-A91-941-080 PROTECTOR,3A 20P 60V a b
MAIN ! O PS 0801 87-A91-407-010 P-COUPLER,ON3171-R a b
MAIN ! O PT 0801 8C-AV5-651-010 PT,EZ SW CAA-5 . b

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN ! O PT 0801 8C-AA5-635-010 PT,HR SW CAA-5 a .
MAIN S Q 0101 87-A30-087-080 C-FET,2SK2158 a b
MAIN S Q 0102 87-A30-087-080 C-FET,2SK2158 a b
MAIN S Q 0104 87-A30-087-080 C-FET,2SK2158 a b
MAIN S Q 0105 89-320-011-080 TR,2SC2001K a b
MAIN S Q 0107 87-A30-087-080 C-FET,2SK2158 a b
MAIN S Q 0108 87-A30-435-040 C-TR,DTC144EKA a b
MAIN S Q 0301 87-A30-087-080 C-FET,2SK2158 a b
MAIN S Q 0302 87-A30-282-040 C-TR,DTA114TKA a b
MAIN S Q 0304 87-A30-087-080 C-FET,2SK2158 a b

MAIN S Q 0401 87-A30-087-080 C-FET,2SK2158 a b
MAIN S Q 0402 87-A30-282-040 C-TR,DTA114TKA a b
MAIN S Q 0404 87-A30-087-080 C-FET,2SK2158 a b
MAIN S Q 0451 87-A30-087-080 C-FET,2SK2158 a b
MAIN S Q 0452 87-A30-282-040 C-TR,DTA114TKA a b
MAIN S Q 0454 87-A30-087-080 C-FET,2SK2158 a b
MAIN S Q 0501 87-A30-087-080 C-FET,2SK2158 a b
MAIN S Q 0502 87-A30-087-080 C-FET,2SK2158 a b
MAIN S Q 0801 87-A30-692-010 FET,FS7KM-18A . b
MAIN S Q 0801 87-A30-648-010 FET,FS7KM16A a .

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN S Q 0802 89-324-122-040 C-TR,2SC2412KR a b
MAIN S Q 0830 89-341-165-080 C-TR,2SC4116GR a b
MAIN S Q 0832 89-341-165-080 C-TR,2SC4116GR a b
MAIN S Q 0838 89-115-884-080 C-TR,2SA1588Y a b
MAIN S Q 0840 87-A30-087-080 C-FET,2SK2158 a b
MAIN S Q 0852 89-324-122-040 C-TR,2SC2412KR a b
MAIN S Q 0853 87-A30-087-080 C-FET,2SK2158 a b
MAIN S Q 0862 89-112-965-080 TR,2SA1296GR a b
MAIN X R 0101 88-108-104-080 C-RES,U 100K-1/16W J a b
MAIN X R 0102 88-108-104-080 C-RES,U 100K-1/16W J a b

MAIN O R 0103 88-108-223-080 C-RES,U 22K-1/16W J a b
MAIN O R 0104 88-108-332-080 C-RES,U 3.3K-1/16W J a b
MAIN O R 0105 88-108-102-080 C-RES,U 1K-1/16W J a b
MAIN X R 0106 88-108-472-080 C-RES,U 4.7K-1/16W J a b
MAIN X R 0107 88-108-472-080 C-RES,U 4.7K-1/16W J a b
MAIN O R 0108 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN O R 0109 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN O R 0110 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN O R 0111 88-108-223-080 C-RES,U 22K-1/16W J a b
MAIN X R 0112 88-108-104-080 C-RES,U 100K-1/16W J a b

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN O R 0113 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN O R 0114 88-108-473-080 C-RES,U 47K-1/16W J a b
MAIN X R 0116 88-108-104-080 C-RES,U 100K-1/16W J a b
MAIN O R 0117 88-108-123-080 C-RES,U 12K-1/16W J a b
MAIN X R 0118 88-108-104-080 C-RES,U 100K-1/16W J a b
MAIN O R 0120 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN X R 0303 88-108-472-080 C-RES,U 4.7K-1/16W J a b
MAIN O R 0304 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN O R 0305 87-022-241-080 C-RES,U 12K-1/16W F a b
MAIN O R 0306 87-022-241-080 C-RES,U 12K-1/16W F a b

MAIN O R 0307 87-022-215-080 C-RES,U 1K-1/16W F a b
MAIN O R 0308 87-022-215-080 C-RES,U 1K-1/16W F a b
MAIN O R 0311 87-022-215-080 C-RES,U 1K-1/16W F a b
MAIN O R 0312 87-022-215-080 C-RES,U 1K-1/16W F a b
MAIN O R 0313 87-022-241-080 C-RES,U 12K-1/16W F a b
MAIN O R 0314 87-022-241-080 C-RES,U 12K-1/16W F a b
MAIN O R 0315 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN O R 0316 88-108-473-080 C-RES,U 47K-1/16W J a b
MAIN X R 0317 88-108-105-080 C-RES,U 1M-1/16W J a b
MAIN X R 0318 88-108-105-080 C-RES,U 1M-1/16W J a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-8-

ELECTRICAL PARTS LIST (XA-DV1) -7/10

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN O R 0319 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN O R 0320 88-108-473-080 C-RES,U 47K-1/16W J a b
MAIN X R 0321 88-108-243-080 C-RES,U 24K-1/16W J a b
MAIN O R 0323 88-108-123-080 C-RES,U 12K-1/16W J a b
MAIN O R 0324 88-108-822-080 C-RES,U 8.2K-1/16W J a b
MAIN O R 0325 87-A00-933-050 RES,M/F 10-2W J a b
MAIN O R 0326 87-A00-933-050 RES,M/F 10-2W J a b
MAIN O R 0330 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN O R 0331 88-108-562-080 C-RES,U 5.6K-1/16W J a b
MAIN O R 0332 88-108-103-080 C-RES,U 10K-1/16W J a b

MAIN X R 0334 88-108-104-080 C-RES,U 100K-1/16W J a b
MAIN O R 0344 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN O R 0346 87-022-215-080 C-RES,U 1K-1/16W F a b
MAIN X R 0403 88-108-472-080 C-RES,U 4.7K-1/16W J a b
MAIN O R 0404 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN O R 0405 87-022-241-080 C-RES,U 12K-1/16W F a b
MAIN O R 0406 87-022-241-080 C-RES,U 12K-1/16W F a b
MAIN O R 0407 87-022-215-080 C-RES,U 1K-1/16W F a b
MAIN O R 0408 87-022-215-080 C-RES,U 1K-1/16W F a b
MAIN O R 0411 87-022-215-080 C-RES,U 1K-1/16W F a b

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN O R 0412 87-022-215-080 C-RES,U 1K-1/16W F a b
MAIN O R 0413 87-022-241-080 C-RES,U 12K-1/16W F a b
MAIN O R 0414 87-022-241-080 C-RES,U 12K-1/16W F a b
MAIN O R 0415 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN O R 0416 88-108-473-080 C-RES,U 47K-1/16W J a b
MAIN X R 0417 88-108-105-080 C-RES,U 1M-1/16W J a b
MAIN X R 0418 88-108-105-080 C-RES,U 1M-1/16W J a b
MAIN O R 0419 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN O R 0420 88-108-473-080 C-RES,U 47K-1/16W J a b
MAIN X R 0421 88-108-243-080 C-RES,U 24K-1/16W J a b

MAIN O R 0423 88-108-123-080 C-RES,U 12K-1/16W J a b
MAIN O R 0424 88-108-822-080 C-RES,U 8.2K-1/16W J a b
MAIN O R 0425 87-A00-933-050 RES,M/F 10-2W J a b
MAIN O R 0426 87-A00-933-050 RES,M/F 10-2W J a b
MAIN O R 0430 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN O R 0431 88-108-562-080 C-RES,U 5.6K-1/16W J a b
MAIN O R 0432 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN X R 0434 88-108-104-080 C-RES,U 100K-1/16W J a b
MAIN O R 0444 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN O R 0446 87-022-215-080 C-RES,U 1K-1/16W F a b

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN X R 0453 88-108-472-080 C-RES,U 4.7K-1/16W J a b
MAIN O R 0454 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN O R 0455 87-022-241-080 C-RES,U 12K-1/16W F a b
MAIN O R 0456 87-022-241-080 C-RES,U 12K-1/16W F a b
MAIN O R 0457 87-022-215-080 C-RES,U 1K-1/16W F a b
MAIN O R 0458 87-022-215-080 C-RES,U 1K-1/16W F a b
MAIN O R 0461 87-022-215-080 C-RES,U 1K-1/16W F a b
MAIN O R 0462 87-022-215-080 C-RES,U 1K-1/16W F a b
MAIN O R 0463 87-022-241-080 C-RES,U 12K-1/16W F a b
MAIN O R 0464 87-022-241-080 C-RES,U 12K-1/16W F a b

MAIN X R 0465 88-108-472-080 C-RES,U 4.7K-1/16W J a b
MAIN O R 0466 88-108-473-080 C-RES,U 47K-1/16W J a b
MAIN X R 0467 88-108-105-080 C-RES,U 1M-1/16W J a b
MAIN X R 0468 88-108-105-080 C-RES,U 1M-1/16W J a b
MAIN O R 0469 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN O R 0470 88-108-473-080 C-RES,U 47K-1/16W J a b
MAIN X R 0471 88-108-243-080 C-RES,U 24K-1/16W J a b
MAIN O R 0473 88-108-123-080 C-RES,U 12K-1/16W J a b
MAIN O R 0474 88-108-822-080 C-RES,U 8.2K-1/16W J a b
MAIN O R 0475 87-A00-933-050 RES,M/F 10-2W J a b

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN O R 0476 87-A00-933-050 RES,M/F 10-2W J a b
MAIN O R 0480 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN O R 0481 88-108-562-080 C-RES,U 5.6K-1/16W J a b
MAIN O R 0482 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN X R 0484 88-108-104-080 C-RES,U 100K-1/16W J a b
MAIN O R 0494 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN O R 0496 87-022-215-080 C-RES,U 1K-1/16W F a b
MAIN O R 0501 88-108-102-080 C-RES,U 1K-1/16W J a b
MAIN O R 0502 88-108-473-080 C-RES,U 47K-1/16W J a b
MAIN O R 0503 88-108-473-080 C-RES,U 47K-1/16W J a b

MAIN X R 0504 88-108-471-080 C-RES,U 470-1/16W J a b
MAIN O R 0505 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN O R 0506 88-108-473-080 C-RES,U 47K-1/16W J a b
MAIN O R 0507 88-108-102-080 C-RES,U 1K-1/16W J a b
MAIN O R 0508 88-108-473-080 C-RES,U 47K-1/16W J a b
MAIN X R 0509 88-108-471-080 C-RES,U 470-1/16W J a b
MAIN O R 0510 88-108-103-080 C-RES,U 10K-1/16W J a b
MAIN X R 0511 88-128-181-080 C-RES, 180-1/8W J a b
MAIN X R 0512 88-128-181-080 C-RES, 180-1/8W J a b
MAIN X R 0513 88-108-104-080 C-RES,U 100K-1/16W J a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-9-

ELECTRICAL PARTS LIST (XA-DV1) -8/10

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN O R 0514 88-108-223-080 C-RES,U 22K-1/16W J a b
MAIN O R 0515 88-108-102-080 C-RES,U 1K-1/16W J a b
MAIN X R 0516 88-108-104-080 C-RES,U 100K-1/16W J a b
MAIN X R 0517 88-108-104-080 C-RES,U 100K-1/16W J a b
MAIN X R 0518 88-128-151-080 C-RES, 150-1/8W J a b
MAIN X R 0519 88-128-151-080 C-RES, 150-1/8W J a b
MAIN X R 0801 88-144-684-080 RES,SD 680K-1/2W K a b
MAIN O R 0802 87-A00-543-080 RES,SD 8.2M-1W J RCR60 a b
MAIN O R 0803 87-A01-134-090 RES,M/F 82K-5W J RSS H1 a b
MAIN X R 0804 88-118-103-080 C-RES,S 10K-1/10W J a b

MAIN X R 0805 88-118-103-080 C-RES,S 10K-1/10W J a b
MAIN O R 0806 87-A00-708-010 RES,CEM 0.12-5W J RGC5 . b
MAIN O R 0806 87-A00-707-010 RES,CEM 0.1-5W J RGC5 a .
MAIN O R 0808 88-118-223-080 C-RES,S 22K-1/10W J a b
MAIN X R 0809 88-118-471-080 C-RES,S 470-1/10W J a b
MAIN X R 0810 88-118-564-080 C-RES,S 560K-1/10W J . b
MAIN X R 0810 88-118-224-080 C-RES,S 220K-1/10W J a .
MAIN X R 0811 88-118-334-080 C-RES,S 330K-1/10W J a .
MAIN X R 0811 88-118-274-080 C-RES,S 270K-1/10W J . b
MAIN X R 0812 88-118-473-080 C-RES,S 47K-1/10W J a b

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN X R 0813 88-118-000-080 C-JUMPER,S a b
MAIN X R 0814 88-108-561-080 C-RES,U 560-1/16W J a b
MAIN X R 0815 88-118-472-080 C-RES,S 4.7K-1/10W J a b
MAIN X R 0816 88-118-102-080 C-RES,S 1K-1/10W J a b
MAIN X R 0817 88-108-000-080 C-JUMPER,U a b
MAIN X R 0819 88-118-103-080 C-RES,S 10K-1/10W J a b
MAIN X R 0820 88-121-561-080 RES,560-1/8W J a b
MAIN X R 0821 88-121-561-080 RES,560-1/8W J a b
MAIN X R 0826 88-118-103-080 C-RES,S 10K-1/10W J a b
MAIN X R 0827 88-118-103-080 C-RES,S 10K-1/10W J a b

MAIN X R 0828 88-118-103-080 C-RES,S 10K-1/10W J a b
MAIN O R 0830 87-A00-613-090 RES,M/F 1.2K-1W J RSF(S) a b
MAIN X R 0831 88-118-103-080 C-RES,S 10K-1/10W J a b
MAIN X R 0832 88-118-272-080 C-RES,S 2.7K-1/10W J a b
MAIN X R 0833 88-118-000-080 C-JUMPER,S a b
MAIN O R 0834 87-022-355-080 C-RES,S 10K-1/10W F a b
MAIN O R 0835 87-022-345-080 C-RES,S 1.2K-1/10W F a b
MAIN X R 0836 88-118-100-080 C-RES,S 10-1/10W J a b
MAIN X R 0844 88-108-000-080 C-JUMPER,U a b
MAIN X R 0848 88-118-103-080 C-RES,S 10K-1/10W J a b

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN O R 0849 87-022-364-080 C-RES,S 82K-1/10W F . b
MAIN O R 0849 87-022-359-080 C-RES,S 22K-1/10W F a .
MAIN O R 0851 87-022-350-080 C-RES,S 3.3K-1/10W F a b
MAIN O R 0852 87-022-343-080 C-RES,S 820-1/10W F a b
MAIN X R 0853 88-118-102-080 C-RES,S 1K-1/10W J a b
MAIN X R 0854 88-118-273-080 C-RES,S 27K-1/10W J a b
MAIN X R 0855 88-118-103-080 C-RES,S 10K-1/10W J a b
MAIN X R 0859 88-118-104-080 C-RES,S 100K-1/10W J a b
MAIN X R 0860 88-118-473-080 C-RES,S 47K-1/10W J a b
MAIN X R 0861 88-121-102-080 RES,1K-1/8W J a b

MAIN X R 0863 88-108-104-080 C-RES,U 100K-1/16W J a b
MAIN O RY 0301 87-A91-550-010 RELAY,DC24 G5PA-28 ZJA-13 a b
MAIN O RY 0401 87-A91-550-010 RELAY,DC24 G5PA-28 ZJA-13 a b
MAIN O RY 0451 87-A91-550-010 RELAY,DC24 G5PA-28 ZJA-13 a b
MAIN O SFR0301 87-024-432-080 SFR,4.7K H RH063MC a b
MAIN O SFR0302 87-024-432-080 SFR,4.7K H RH063MC a b
MAIN O SFR0401 87-024-432-080 SFR,4.7K H RH063MC a b
MAIN O SFR0402 87-024-432-080 SFR,4.7K H RH063MC a b
MAIN O SFR0451 87-024-432-080 SFR,4.7K H RH063MC a b
MAIN O SFR0452 87-024-432-080 SFR,4.7K H RH063MC a b

XA-SDV1 XA-SDV1
HRJSM HKSM
MAIN O TH 0801 87-A91-978-010 THMS,NTH11D5R0 a b
MAIN O TH 0803 87-A92-434-080 C-THMS,PRF18BE471QB2RB a b
MAIN O TH 0804 87-A92-488-010 THMS,NTSA0XV103EE1 a b
SELECTOR O C 0201 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
SELECTOR O C 0202 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
SELECTOR O C 0203 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
SELECTOR O C 0204 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
SELECTOR O C 0205 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
SELECTOR O C 0206 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
SELECTOR O C 0207 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b

SELECTOR O C 0208 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
SELECTOR O C 0209 87-010-234-080 CAP,E 47-16 M 5L SRE a b
SELECTOR O C 0211 87-010-182-080 C-CAP,S 2200P-50 K B C2012 a b
SELECTOR O C 0212 87-010-182-080 C-CAP,S 2200P-50 K B C2012 a b
SELECTOR O C 0213 87-016-669-080 C-CAP,S 0.1-25 K B a b
SELECTOR O C 0214 87-016-669-080 C-CAP,S 0.1-25 K B a b
SELECTOR O C 0215 87-016-669-080 C-CAP,S 0.1-25 K B a b
SELECTOR O C 0216 87-016-669-080 C-CAP,S 0.1-25 K B a b
SELECTOR O C 0217 87-010-234-080 CAP,E 47-16 M 5L SRE a b
SELECTOR O C 0218 87-A12-317-080 C-CAP,U 0.1-50 Z F a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-10-

ELECTRICAL PARTS LIST (XA-DV1) -9/10

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XA-SDV1 XA-SDV1
HRJSM HKSM
SELECTOR O C 0219 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
SELECTOR O C 0220 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
SELECTOR X C 0221 88-700-840-810 CAP,M 0.033-50 J AMZV a b
SELECTOR X C 0222 88-700-840-810 CAP,M 0.033-50 J AMZV a b
SELECTOR O C 0223 87-010-369-080 C-CAP,S 0.033-25 K B a b
SELECTOR O C 0224 87-010-369-080 C-CAP,S 0.033-25 K B a b
SELECTOR O C 0225 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
SELECTOR O C 0226 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
SELECTOR O C 0227 87-010-234-080 CAP,E 47-16 M 5L SRE a b
SELECTOR O C 0229 87-010-182-080 C-CAP,S 2200P-50 K B C2012 a b

SELECTOR O C 0230 87-010-182-080 C-CAP,S 2200P-50 K B C2012 a b
SELECTOR O C 0231 87-016-669-080 C-CAP,S 0.1-25 K B a b
SELECTOR O C 0232 87-016-669-080 C-CAP,S 0.1-25 K B a b
SELECTOR O C 0233 87-016-669-080 C-CAP,S 0.1-25 K B a b
SELECTOR O C 0234 87-016-669-080 C-CAP,S 0.1-25 K B a b
SELECTOR O C 0236 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
SELECTOR O C 0237 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
SELECTOR O C 0238 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
SELECTOR X C 0239 88-700-840-810 CAP,M 0.033-50 J AMZV a b
SELECTOR O C 0240 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b

XA-SDV1 XA-SDV1
HRJSM HKSM
SELECTOR O C 0241 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
SELECTOR O C 0242 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
SELECTOR O C 0243 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
SELECTOR O C 0244 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
SELECTOR O C 0245 87-010-234-080 CAP,E 47-16 M 5L SRE a b
SELECTOR O C 0247 87-010-182-080 C-CAP,S 2200P-50 K B C2012 a b
SELECTOR O C 0249 87-016-669-080 C-CAP,S 0.1-25 K B a b
SELECTOR O C 0250 87-016-669-080 C-CAP,S 0.1-25 K B a b
SELECTOR O C 0251 87-016-669-080 C-CAP,S 0.1-25 K B a b
SELECTOR O C 0252 87-016-669-080 C-CAP,S 0.1-25 K B a b

SELECTOR O C 0254 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
SELECTOR O C 0255 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
SELECTOR O CN 0202 87-A60-538-010 CONN,5P H TUC-P05X-B1 a b
SELECTOR O CN 0203 87-A60-315-010 CONN,19P TUC-P19X-B1 a b
SELECTOR S IC 0201 87-A22-240-040 C-IC,BD3870FS a b
SELECTOR S IC 0202 87-A22-240-040 C-IC,BD3870FS a b
SELECTOR S IC 0203 87-A22-240-040 C-IC,BD3870FS a b
SELECTOR O L 0201 87-005-614-080 COIL,100UH J LAV35 a b
SELECTOR X R 0201 88-118-562-080 C-RES,S 5.6K-1/10W J a b
SELECTOR X R 0202 88-118-394-080 C-RES,S 390K-1/10W J a b

XA-SDV1 XA-SDV1
HRJSM HKSM
SELECTOR X R 0203 88-118-562-080 C-RES,S 5.6K-1/10W J a b
SELECTOR X R 0204 88-118-394-080 C-RES,S 390K-1/10W J a b
SELECTOR X R 0205 88-118-102-080 C-RES,S 1K-1/10W J a b
SELECTOR X R 0206 88-118-102-080 C-RES,S 1K-1/10W J a b
SELECTOR X R 0208 88-118-394-080 C-RES,S 390K-1/10W J a b
SELECTOR X R 0210 88-118-394-080 C-RES,S 390K-1/10W J a b
SELECTOR X R 0211 88-118-102-080 C-RES,S 1K-1/10W J a b
SELECTOR X R 0212 88-118-102-080 C-RES,S 1K-1/10W J a b
SELECTOR X R 0213 88-118-562-080 C-RES,S 5.6K-1/10W J a b
SELECTOR X R 0214 88-118-394-080 C-RES,S 390K-1/10W J a b

SELECTOR X R 0216 88-118-394-080 C-RES,S 390K-1/10W J a b
SELECTOR X R 0217 88-118-102-080 C-RES,S 1K-1/10W J a b
SELECTOR X R 0218 88-118-102-080 C-RES,S 1K-1/10W J a b
SELECTOR X R 0219 88-118-183-080 C-RES,S 18K-1/10W J a b
SELECTOR O R 0220 88-118-223-080 C-RES,S 22K-1/10W J a b
SELECTOR X R 0221 88-118-183-080 C-RES,S 18K-1/10W J a b
SELECTOR O R 0222 88-118-223-080 C-RES,S 22K-1/10W J a b
SELECTOR O R 0223 88-108-223-080 C-RES,U 22K-1/16W J a b
SELECTOR O R 0224 88-108-223-080 C-RES,U 22K-1/16W J a b
SELECTOR X R 0225 88-108-183-080 C-RES,U 18K-1/16W J a b

XA-SDV1 XA-SDV1
HRJSM HKSM
SELECTOR X R 0226 88-108-183-080 C-RES,U 18K-1/16W J a b
SELECTOR X R 0227 88-108-183-080 C-RES,U 18K-1/16W J a b

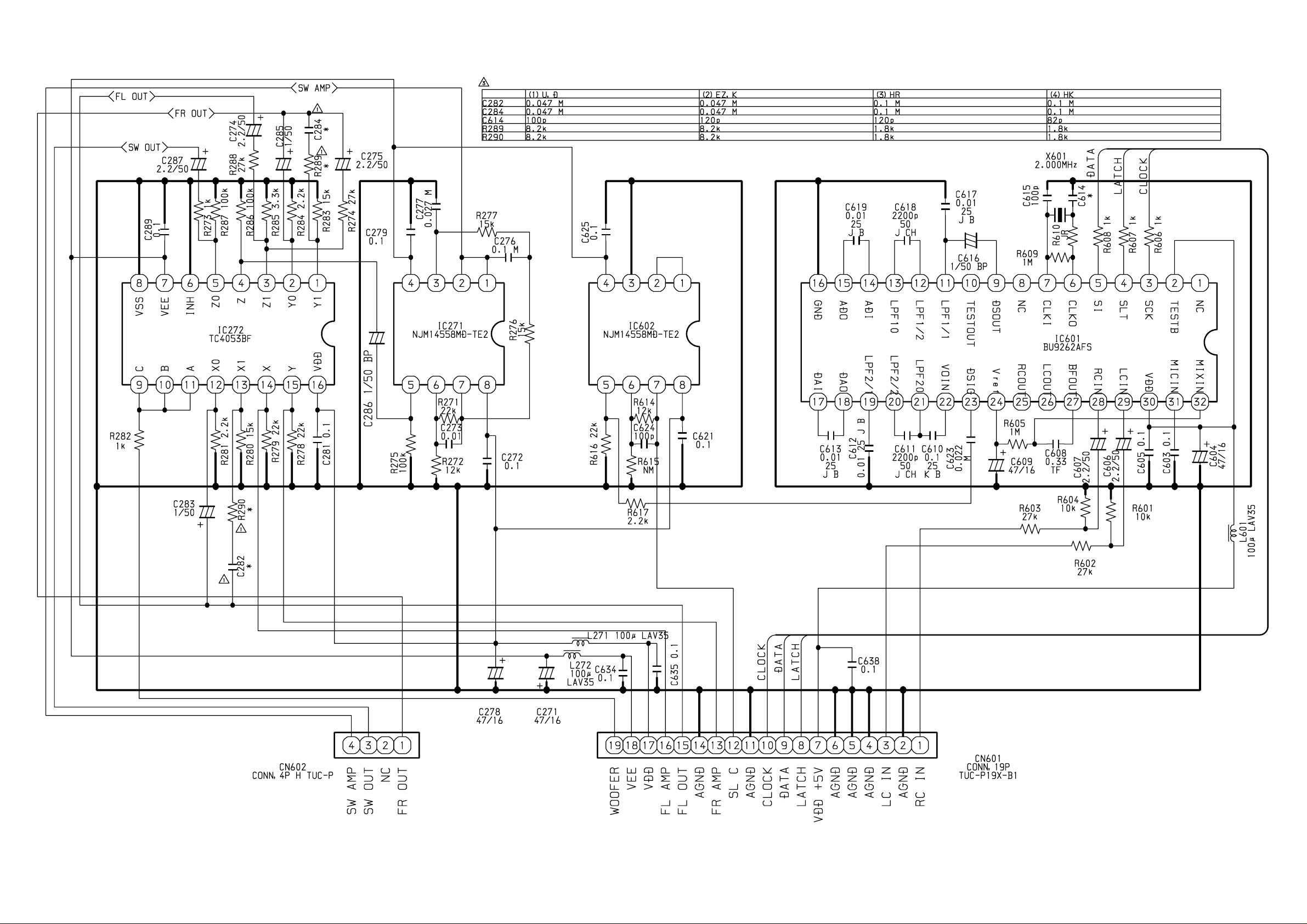

SURROUND O C 0271 87-010-234-080 CAP,E 47-16 M 5L SRE a b
SURROUND O C 0272 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
SURROUND O C 0273 87-010-197-080 C-CAP,S 0.01-25 K B C2012 a b
SURROUND O C 0274 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
SURROUND O C 0275 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
SURROUND X C 0276 88-700-910-810 CAP,M 0.1-50 J AMZV a b
SURROUND X C 0277 88-700-890-810 CAP,M 0.027-50 J AMZV a b
SURROUND O C 0278 87-010-234-080 CAP,E 47-16 M 5L SRE a b

SURROUND O C 0279 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
SURROUND O C 0281 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
SURROUND X C 0282 88-700-850-810 CAP,M 0.047-50 J AMZV a b
SURROUND O C 0283 87-010-071-080 CAP,E 1-50 M 5L SRE a b
SURROUND X C 0284 88-700-850-810 CAP,M 0.047-50 J AMZV a b
SURROUND O C 0285 87-010-071-080 CAP,E 1-50 M 5L SRE a b
SURROUND O C 0286 87-010-626-080 CAP,E 1-50 M 5L BP SRE a b
SURROUND O C 0287 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
SURROUND O C 0289 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
SURROUND O C 0603 87-A12-317-080 C-CAP,U 0.1-50 Z F a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-11-

ELECTRICAL PARTS LIST (XA-DV1) -10/10

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XA-SDV1 XA-SDV1
HRJSM HKSM
SURROUND O C 0604 87-010-234-080 CAP,E 47-16 M 5L SRE a b
SURROUND O C 0605 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
SURROUND O C 0606 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
SURROUND O C 0607 87-010-072-080 CAP,E 2.2-50 M 5L SRE a b
SURROUND X C 0608 88-710-789-810 CAP,M 0.33-50 J TFL ECQV a b
SURROUND O C 0609 87-010-234-080 CAP,E 47-16 M 5L SRE a b
SURROUND O C 0610 87-016-669-080 C-CAP,S 0.1-25 K B a b
SURROUND O C 0611 87-010-989-080 C-CAP,S 2200P-50 J CH GRM a b
SURROUND O C 0612 87-010-958-080 C-CAP,S 0.01-25 J B GRM a b
SURROUND O C 0613 87-010-958-080 C-CAP,S 0.01-25 J B GRM a b

SURROUND O C 0614 87-012-153-080 C-CAP,S 120P-50 J CH GRM a b
SURROUND O C 0615 87-010-322-080 C-CAP,S 100P-50 J CH GRM a b
SURROUND O C 0616 87-010-626-080 CAP,E 1-50 M 5L BP SRE a b
SURROUND O C 0617 87-010-958-080 C-CAP,S 0.01-25 J B GRM a b
SURROUND O C 0618 87-010-989-080 C-CAP,S 2200P-50 J CH GRM a b
SURROUND O C 0619 87-010-958-080 C-CAP,S 0.01-25 J B GRM a b
SURROUND O C 0621 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
SURROUND X C 0623 88-700-830-810 CAP,M 0.022-50 J AMZV a b
SURROUND O C 0624 87-010-322-080 C-CAP,S 100P-50 J CH GRM a b
SURROUND O C 0625 87-A12-317-080 C-CAP,U 0.1-50 Z F a b

XA-SDV1 XA-SDV1
HRJSM HKSM
SURROUND O C 0634 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
SURROUND O C 0635 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
SURROUND O C 0638 87-A12-317-080 C-CAP,U 0.1-50 Z F a b
SURROUND O CN 0601 87-A60-315-010 CONN,19P TUC-P19X-B1 a b
SURROUND O CN 0602 87-099-553-010 CONN,4P H TUC-P a b
SURROUND S IC 0271 87-A21-419-040 C-IC,NJM14558MD-TE2 a b
SURROUND S IC 0272 87-020-784-040 C-IC,TC4053BF a b
SURROUND S IC 0601 87-A20-613-040 C-IC,BU9262AFS a b
SURROUND S IC 0602 87-A21-419-040 C-IC,NJM14558MD-TE2 a b
SURROUND O L 0271 87-005-614-080 COIL,100UH J LAV35 a b

SURROUND O L 0272 87-005-614-080 COIL,100UH J LAV35 a b
SURROUND O L 0601 87-005-614-080 COIL,100UH J LAV35 a b
SURROUND O R 0271 88-118-223-080 C-RES,S 22K-1/10W J a b
SURROUND X R 0272 88-118-123-080 C-RES,S 12K-1/10W J a b
SURROUND X R 0273 88-118-102-080 C-RES,S 1K-1/10W J a b
SURROUND X R 0274 88-118-273-080 C-RES,S 27K-1/10W J a b
SURROUND X R 0275 88-118-104-080 C-RES,S 100K-1/10W J a b
SURROUND X R 0276 88-118-153-080 C-RES,S 15K-1/10W J a b
SURROUND X R 0277 88-118-153-080 C-RES,S 15K-1/10W J a b
SURROUND O R 0278 88-118-223-080 C-RES,S 22K-1/10W J a b

XA-SDV1 XA-SDV1
HRJSM HKSM
SURROUND O R 0279 88-118-223-080 C-RES,S 22K-1/10W J a b
SURROUND X R 0280 88-118-153-080 C-RES,S 15K-1/10W J a b
SURROUND X R 0281 88-118-222-080 C-RES,S 2.2K-1/10W J a b
SURROUND X R 0282 88-118-102-080 C-RES,S 1K-1/10W J a b
SURROUND X R 0283 88-118-153-080 C-RES,S 15K-1/10W J a b
SURROUND X R 0284 88-118-222-080 C-RES,S 2.2K-1/10W J a b
SURROUND X R 0285 88-118-332-080 C-RES,S 3.3K-1/10W J a b
SURROUND X R 0286 88-118-104-080 C-RES,S 100K-1/10W J a b
SURROUND X R 0287 88-118-104-080 C-RES,S 100K-1/10W J a b
SURROUND X R 0288 88-118-273-080 C-RES,S 27K-1/10W J a b

SURROUND O R 0289 88-108-822-080 C-RES,U 8.2K-1/16W J a b
SURROUND O R 0290 88-108-822-080 C-RES,U 8.2K-1/16W J a b
SURROUND X R 0601 88-118-103-080 C-RES,S 10K-1/10W J a b
SURROUND X R 0602 88-118-273-080 C-RES,S 27K-1/10W J a b
SURROUND X R 0603 88-118-273-080 C-RES,S 27K-1/10W J a b
SURROUND X R 0604 88-118-103-080 C-RES,S 10K-1/10W J a b
SURROUND X R 0605 88-118-105-080 C-RES,S 1M-1/10W J a b
SURROUND X R 0606 88-118-102-080 C-RES,S 1K-1/10W J a b
SURROUND X R 0607 88-118-102-080 C-RES,S 1K-1/10W J a b
SURROUND X R 0608 88-118-102-080 C-RES,S 1K-1/10W J a b

XA-SDV1 XA-SDV1
HRJSM HKSM
SURROUND X R 0609 88-118-105-080 C-RES,S 1M-1/10W J a b
SURROUND X R 0610 88-118-000-080 C-JUMPER,S a b
SURROUND X R 0614 88-118-123-080 C-RES,S 12K-1/10W J a b
SURROUND O R 0616 88-118-223-080 C-RES,S 22K-1/10W J a b
SURROUND X R 0617 88-118-222-080 C-RES,S 2.2K-1/10W J a b
SURROUND O X 0601 87-030-211-080 VIB,CER 2.000MHZ KBR MS a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-12-

ELECTRICAL PARTS LIST (XD-DV1) -1/12

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XD-SDV1 XD-SDV1
YHRJSM YHKSM
FRONT O C 0300 87-010-078-080 CAP,E 47-6.3 M 5L SRE a b
FRONT O C 0301 87-010-078-080 CAP,E 47-6.3 M 5L SRE a b
FRONT O C 0302 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b
FRONT O C 0303 87-A11-144-080 CAP,TC U 0.1-50 K B a b
FRONT O C 0304 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b
FRONT O C 0305 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b
FRONT O C 0306 86-ZA1-616-080 C-CAP,U 0.01-50 K B (MUR) a b
FRONT O C 0308 86-ZA1-616-080 C-CAP,U 0.01-50 K B (MUR) a b
FRONT O C 0309 87-010-759-080 C-CAP,U 0.1-25 Z F CM/CB a b
FRONT O CN 0300 87-A60-771-010 CONN,20P B TMC-D(X) a b

FRONT O D 0301 87-A92-361-010 LED,SELU5720CGREEN a b
FRONT S IC 0300 87-A21-245-010 IC,RPM6938-V4 a b
FRONT S IC 0301 8C-AV6-617-030 C-IC,HD6433802A57FP a b
FRONT S IC 0302 87-A20-648-080 IC,PST600J a b
FRONT X JR 0001 88-108-000-080 C-JUMPER,U a b
FRONT X JR 0002 88-108-000-080 C-JUMPER,U a b
FRONT X JR 0003 88-108-000-080 C-JUMPER,U a b
FRONT X JR 0004 88-108-000-080 C-JUMPER,U a b
FRONT X JW 0005 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0006 88-100-000-010 PLATING-JW, 0.58 SN95 a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
FRONT X JW 0007 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0008 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0009 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0010 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0011 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0012 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT X JW 0013 88-100-000-010 PLATING-JW, 0.58 SN95 a b
FRONT O L 0300 87-003-149-080 COIL,47UH J LAL02 a b
FRONT O L 0301 87-003-149-080 COIL,47UH J LAL02 a b
FRONT O LCD0300 8C-AV6-610-010 LCD,CAV-6 a b

FRONT S Q 0300 87-A30-455-040 C-TR,DTA144EKA a b
FRONT X R 0306 88-121-222-080 RES,2.2K-1/8W J a b
FRONT X R 0308 88-121-332-080 RES,3.3K-1/8W J a b
FRONT X R 0310 88-108-682-080 C-RES,U 6.8K-1/16W J a b
FRONT O R 0312 88-108-223-080 C-RES,U 22K-1/16W J a b
FRONT O R 0313 88-108-822-080 C-RES,U 8.2K-1/16W J a b
FRONT X R 0314 88-121-473-080 RES,47K-1/8W J a b
FRONT X R 0315 88-121-471-080 RES,470-1/8W J a b
FRONT O R 0316 87-022-237-080 C-RES,U 8.2K-1/16W F a b
FRONT O R 0317 87-022-237-080 C-RES,U 8.2K-1/16W F a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
FRONT X R 0318 88-108-000-080 C-JUMPER,U a b
FRONT X R 0320 88-121-472-080 RES,4.7K-1/8W J a b
FRONT X R 0321 88-121-103-080 RES,10K-1/8W J a b
FRONT X R 0322 88-108-105-080 C-RES,U 1M-1/16W J a b
FRONT O R 0323 88-108-103-080 C-RES,U 10K-1/16W J a b
FRONT X R 0324 88-121-223-080 RES,22K-1/8W J a b
FRONT X R 0325 88-108-000-080 C-JUMPER,U a b
FRONT X R 0326 88-108-000-080 C-JUMPER,U a b
FRONT X R 0327 88-108-000-080 C-JUMPER,U a b
FRONT X R 0329 88-108-270-080 C-RES,U 27-1/16W J a b

FRONT X R 0333 88-108-333-080 C-RES,U 33K-1/16W J a b
FRONT O R 0334 88-108-473-080 C-RES,U 47K-1/16W J a b
FRONT X R 0335 88-108-472-080 C-RES,U 4.7K-1/16W J a b
FRONT X R 0336 88-108-000-080 C-JUMPER,U a b
FRONT X R 0337 88-121-223-080 RES,22K-1/8W J a b
FRONT O S 0300 87-A90-164-080 SW,TACT SKQNAB(N) a b
FRONT O S 0301 87-A90-164-080 SW,TACT SKQNAB(N) a b
FRONT O S 0302 87-A90-164-080 SW,TACT SKQNAB(N) a b
FRONT O S 0303 87-A90-164-080 SW,TACT SKQNAB(N) a b
FRONT O S 0304 87-A90-164-080 SW,TACT SKQNAB(N) a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
FRONT O S 0305 87-A90-164-080 SW,TACT SKQNAB(N) a b
FRONT O S 0306 87-A90-164-080 SW,TACT SKQNAB(N) a b
FRONT O X 0300 87-030-167-080 VIB,CER 4.000MHZ CST a b

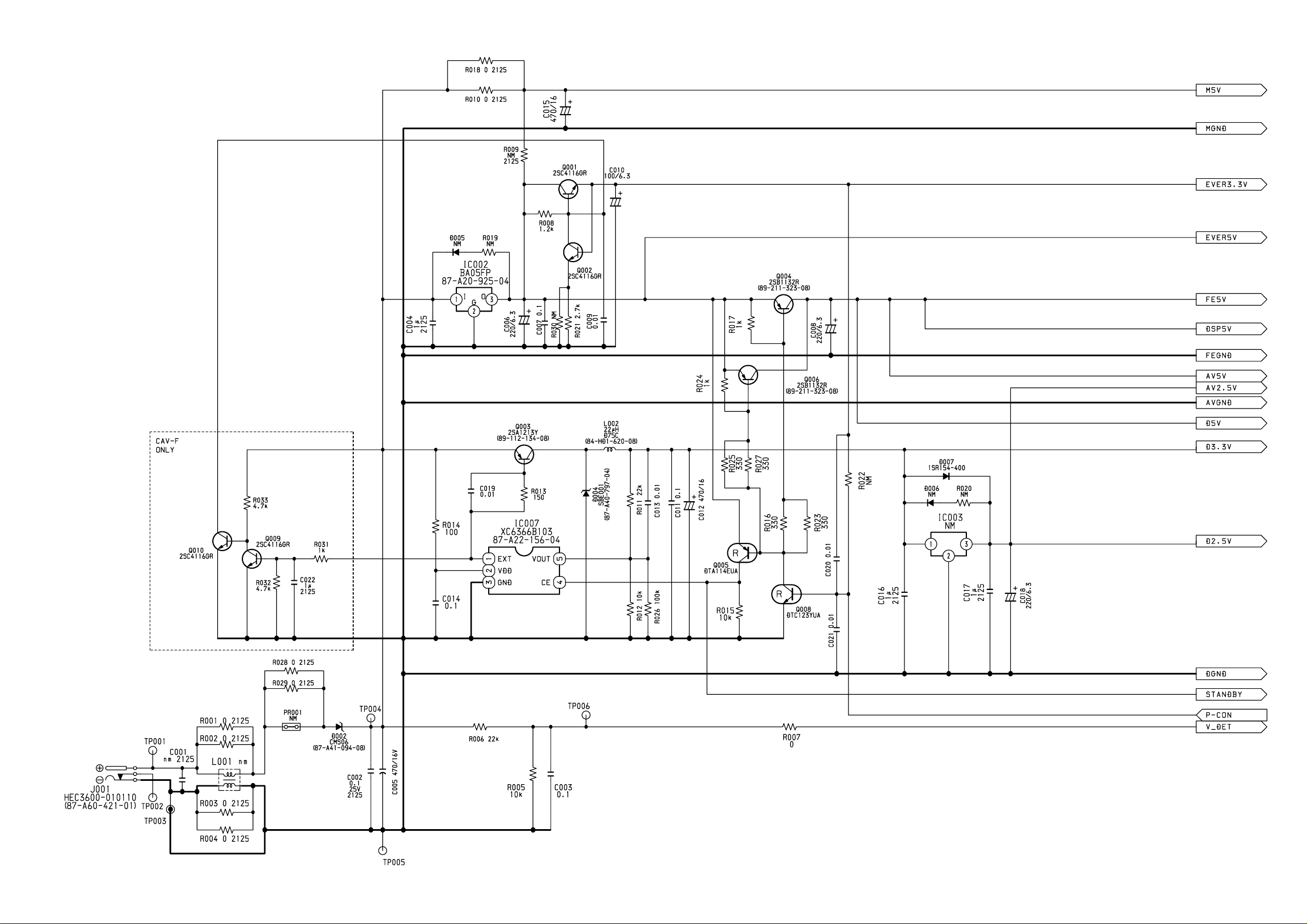

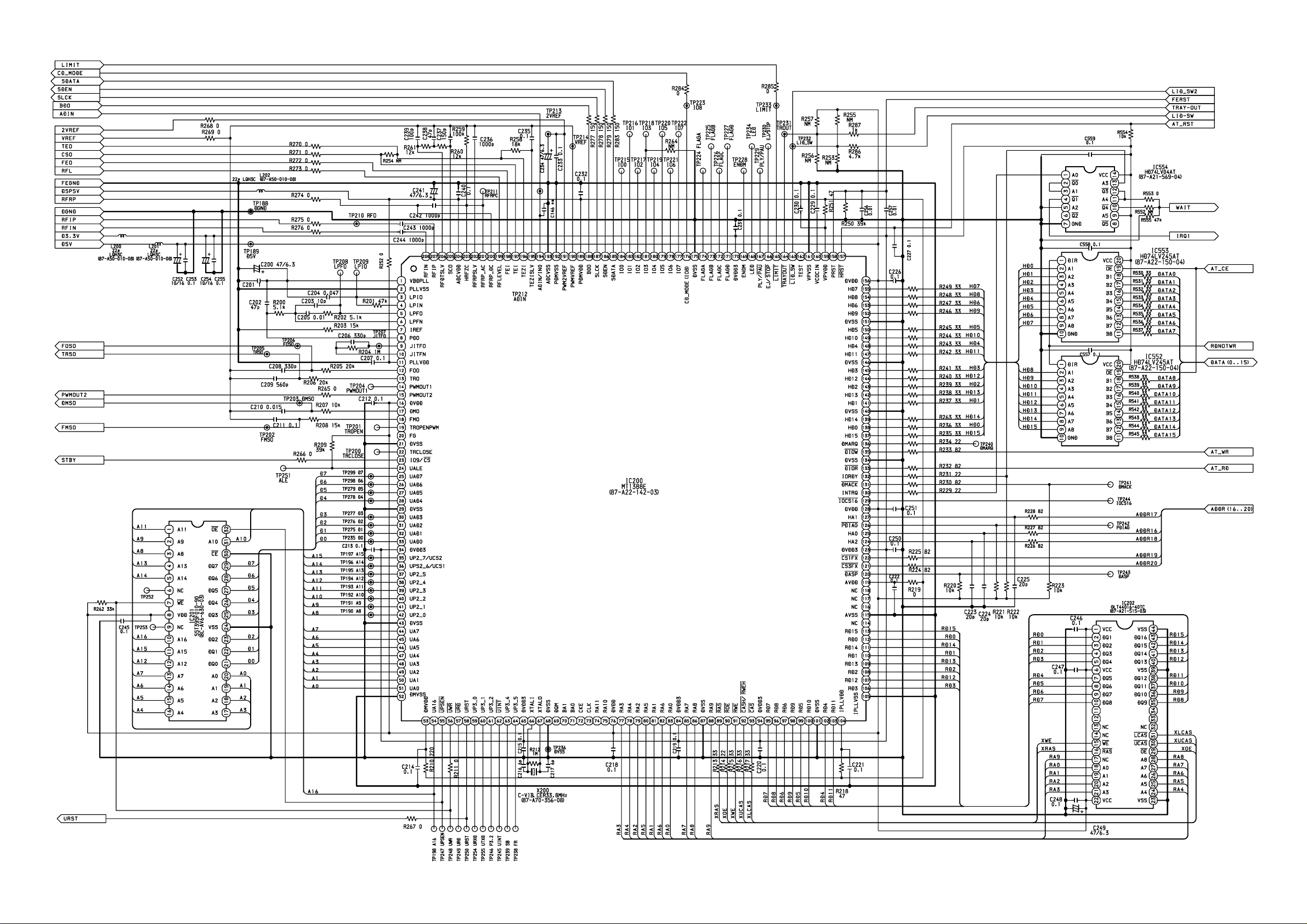

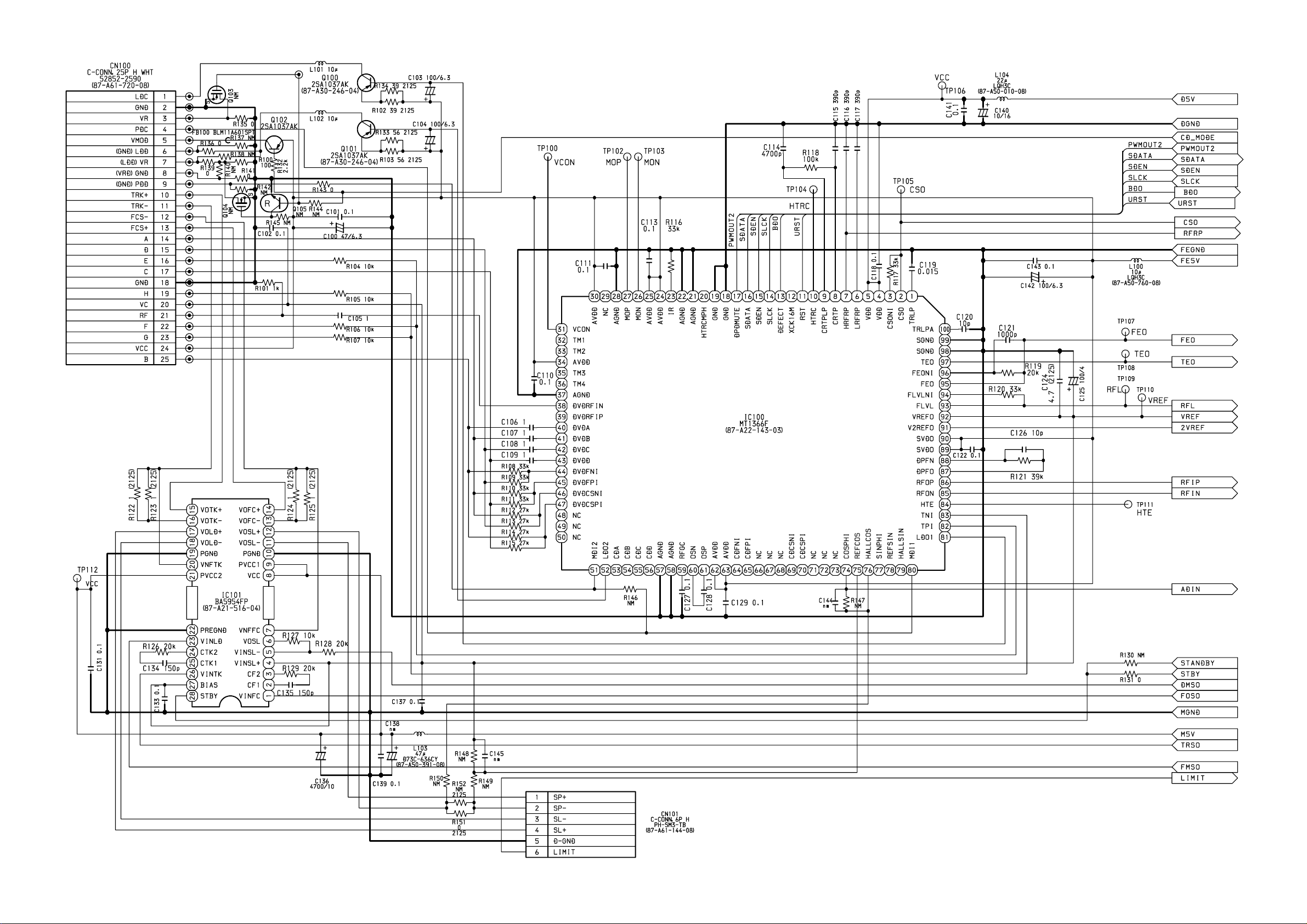

MAIN O C 0002 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 a b
MAIN O C 0003 87-A11-057-080 C-CAP,U 0.1-16 K B a b
MAIN O C 0004 87-A11-282-080 C-CAP,S 1-16 K B a b
MAIN O C 0005 87-A11-976-080 C-CAP,E 470-16 M 10.5L MV a b
MAIN O C 0006 87-A12-793-080 C-CAP,E 220-6.3 M MVY-F60 a b
MAIN O C 0007 87-A11-057-080 C-CAP,U 0.1-16 K B a b
MAIN O C 0008 87-A12-793-080 C-CAP,E 220-6.3 M MVY-F60 a b

MAIN O C 0009 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0010 87-010-779-080 C-CAP,E 100-6.3 M MV a b
MAIN O C 0011 87-A11-057-080 C-CAP,U 0.1-16 K B a b
MAIN O C 0012 87-A11-976-080 C-CAP,E 470-16 M 10.5L MV a b
MAIN O C 0013 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0014 87-A11-057-080 C-CAP,U 0.1-16 K B a b
MAIN O C 0015 87-A11-976-080 C-CAP,E 470-16 M 10.5L MV a b
MAIN O C 0016 87-A11-282-080 C-CAP,S 1-16 K B a b
MAIN O C 0017 87-A11-282-080 C-CAP,S 1-16 K B a b
MAIN O C 0018 87-A12-793-080 C-CAP,E 220-6.3 M MVY-F60 a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-13-

ELECTRICAL PARTS LIST (XD-DV1) -2/12

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN O C 0019 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0020 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0021 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0022 87-A11-282-080 C-CAP,S 1-16 K B a b
MAIN O C 0050 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0051 87-016-427-080 C-CAP,E 47-6.3 M 5.5L WX a b
MAIN O C 0052 87-010-662-080 C-CAP,E 22-6.3 M MV a b
MAIN O C 0053 87-010-851-080 C-CAP,E 47-4 M 5.5L MV a b
MAIN O C 0054 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0055 87-010-470-080 C-CAP,E 4.7-50 M V a b

MAIN O C 0056 87-010-655-080 C-CAP,E 0.22-50 M MV a b
MAIN X C 0057 88-108-681-080 C-RES,U 680-1/16W J a b
MAIN O C 0058 87-012-278-080 C-CAP,U 2200P-50 K B GRM a b
MAIN O C 0059 87-012-273-080 C-CAP,U 820P-50 K B GRM a b
MAIN O C 0060 87-010-655-080 C-CAP,E 0.22-50 M MV a b
MAIN O C 0061 87-012-276-080 C-CAP,U 1500P-50 K B GRM a b
MAIN O C 0062 87-A10-262-080 C-CAP,U 1-10 Z F a b
MAIN O C 0066 87-010-470-080 C-CAP,E 4.7-50 M V a b
MAIN O C 0067 87-010-655-080 C-CAP,E 0.22-50 M MV a b
MAIN X C 0068 88-108-681-080 C-RES,U 680-1/16W J a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN O C 0069 87-012-278-080 C-CAP,U 2200P-50 K B GRM a b
MAIN O C 0070 87-012-273-080 C-CAP,U 820P-50 K B GRM a b
MAIN O C 0071 87-010-655-080 C-CAP,E 0.22-50 M MV a b
MAIN O C 0072 87-012-276-080 C-CAP,U 1500P-50 K B GRM a b
MAIN O C 0073 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0074 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0075 87-010-662-080 C-CAP,E 22-6.3 M MV a b
MAIN O C 0076 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0077 87-012-270-080 C-CAP,U 470P-50 K B GRM a b
MAIN O C 0078 87-012-266-080 C-CAP,U 220P-50 K B GRM a b

MAIN O C 0079 87-012-266-080 C-CAP,U 220P-50 K B GRM a b
MAIN O C 0080 87-010-662-080 C-CAP,E 22-6.3 M MV a b
MAIN O C 0081 87-A10-025-080 C-CAP,U 0.22-16 Z F a b
MAIN O C 0082 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b
MAIN O C 0083 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0084 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0086 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0087 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0100 87-016-427-080 C-CAP,E 47-6.3 M 5.5L WX a b
MAIN O C 0101 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN O C 0102 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0103 87-016-430-080 C-CAP,E 100-6.3 M 5.5L WX a b
MAIN O C 0104 87-016-430-080 C-CAP,E 100-6.3 M 5.5L WX a b
MAIN O C 0105 87-A10-047-080 C-CAP,U 1-10 Z F a b
MAIN O C 0106 87-A10-047-080 C-CAP,U 1-10 Z F a b
MAIN O C 0107 87-A10-047-080 C-CAP,U 1-10 Z F a b
MAIN O C 0108 87-A10-047-080 C-CAP,U 1-10 Z F a b
MAIN O C 0109 87-A10-047-080 C-CAP,U 1-10 Z F a b
MAIN O C 0110 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0111 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b

MAIN O C 0113 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0114 87-012-282-080 C-CAP,U 4700P-50 K B GRM a b
MAIN O C 0115 87-012-269-080 C-CAP,U 390P-50 K B GRM a b
MAIN O C 0116 87-012-269-080 C-CAP,U 390P-50 K B GRM a b
MAIN O C 0117 87-012-269-080 C-CAP,U 390P-50 K B GRM a b
MAIN O C 0118 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0119 87-010-785-080 C-CAP,U 0.015-25 K B GRM a b
MAIN O C 0120 87-012-172-080 C-CAP,U 10P-50 D CH GRM a b
MAIN O C 0121 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b
MAIN O C 0122 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN O C 0124 87-A11-170-080 C-CAP,S 4.7-6.3 K B a b
MAIN O C 0125 87-016-429-080 C-CAP,E 100-4 M WX a b
MAIN O C 0126 87-012-172-080 C-CAP,U 10P-50 D CH GRM a b
MAIN O C 0127 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0128 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0129 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0131 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0133 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0134 87-012-197-080 C-CAP,U 150P-50 J CH GRM a b
MAIN O C 0135 87-012-197-080 C-CAP,U 150P-50 J CH GRM a b

MAIN O C 0136 87-A13-111-080 CAP,E 4700-10 M SMG a b
MAIN O C 0136 87-A13-111-080 CAP,E 4700-10 M SMG a b
MAIN O C 0137 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0139 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0140 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0141 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0142 87-016-430-080 C-CAP,E 100-6.3 M 5.5L WX a b
MAIN O C 0143 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0200 87-016-427-080 C-CAP,E 47-6.3 M 5.5L WX a b
MAIN O C 0201 87-A10-047-080 C-CAP,U 1-10 Z F a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-14-

ELECTRICAL PARTS LIST (XD-DV1) -3/12

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN O C 0202 87-012-188-080 C-CAP,U 47P-50 J CH GRM a b
MAIN O C 0203 87-012-172-080 C-CAP,U 10P-50 D CH GRM a b
MAIN O C 0204 87-A10-504-080 C-CAP,U 0.047-16 K B a b
MAIN O C 0205 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0206 87-012-268-080 C-CAP,U 330P-50 K B GRM a b
MAIN O C 0207 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0208 87-012-268-080 C-CAP,U 330P-50 K B GRM a b
MAIN O C 0209 87-012-271-080 C-CAP,U 560P-50 K B GRM a b
MAIN O C 0210 87-010-785-080 C-CAP,U 0.015-25 K B GRM a b
MAIN O C 0211 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b

MAIN O C 0212 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0213 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0214 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0215 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0216 87-012-168-080 C-CAP,U 6P-50 D CH GRM a b
MAIN O C 0217 87-012-168-080 C-CAP,U 6P-50 D CH GRM a b
MAIN O C 0218 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0219 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0220 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0221 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN O C 0222 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0223 87-012-179-080 C-CAP,U 20P-50 J CH GRM a b
MAIN O C 0224 87-012-179-080 C-CAP,U 20P-50 J CH GRM a b
MAIN O C 0225 87-012-179-080 C-CAP,U 20P-50 J CH GRM a b
MAIN O C 0226 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0227 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0229 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0230 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0231 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0232 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b

MAIN O C 0233 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0234 87-016-427-080 C-CAP,E 47-6.3 M 5.5L WX a b
MAIN O C 0235 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0236 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b
MAIN O C 0237 87-012-197-080 C-CAP,U 150P-50 J CH GRM a b
MAIN O C 0238 87-012-188-080 C-CAP,U 47P-50 J CH GRM a b
MAIN O C 0239 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b
MAIN O C 0240 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0241 87-016-427-080 C-CAP,E 47-6.3 M 5.5L WX a b
MAIN O C 0242 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN O C 0243 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b
MAIN O C 0244 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b
MAIN O C 0245 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0246 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0247 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0248 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0249 87-016-427-080 C-CAP,E 47-6.3 M 5.5L WX a b
MAIN O C 0250 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0251 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0252 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b

MAIN O C 0253 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0254 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0255 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0256 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0257 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0557 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0558 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0559 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0602 87-016-428-080 C-CAP,E 47-16 M 5.5L WX a b
MAIN O C 0603 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN O C 0604 87-016-429-080 C-CAP,E 100-4 M WX a b
MAIN O C 0605 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0606 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0607 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0608 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0609 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0610 87-016-429-080 C-CAP,E 100-4 M WX a b
MAIN O C 0611 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0612 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0613 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b

MAIN O C 0614 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0615 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0618 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0619 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0620 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0621 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0622 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0623 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0624 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0625 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-15-

ELECTRICAL PARTS LIST (XD-DV1) -4/12

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN O C 0626 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0627 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0628 87-012-172-080 C-CAP,U 10P-50 D CH GRM a b
MAIN O C 0629 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0630 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0631 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0633 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0634 87-012-170-080 C-CAP,U 8P-50 D CH GRM a b
MAIN O C 0635 87-012-170-080 C-CAP,U 8P-50 D CH GRM a b
MAIN O C 0636 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b

MAIN O C 0637 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0638 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0639 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0640 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0642 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0643 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0644 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0645 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0646 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0650 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN O C 0651 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0652 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0653 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0654 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0655 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0751 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0752 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0753 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0800 87-A10-025-080 C-CAP,U 0.22-16 Z F a b
MAIN O C 0801 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b

MAIN O C 0802 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0803 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0804 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0805 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0806 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0807 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0808 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0809 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0810 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0811 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN O C 0812 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0813 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0814 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0815 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0816 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0817 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0819 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0820 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0830 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0831 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b

MAIN O C 0832 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0833 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0834 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0835 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0836 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0837 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0838 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0839 87-012-279-080 C-CAP,U 2700P-50 K B GRM a b
MAIN O C 0840 87-012-279-080 C-CAP,U 2700P-50 K B GRM a b
MAIN O C 0841 87-012-279-080 C-CAP,U 2700P-50 K B GRM a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN O C 0842 87-012-279-080 C-CAP,U 2700P-50 K B GRM a b
MAIN O C 0843 87-012-279-080 C-CAP,U 2700P-50 K B GRM a b
MAIN O C 0844 87-012-279-080 C-CAP,U 2700P-50 K B GRM a b
MAIN O C 0845 87-012-279-080 C-CAP,U 2700P-50 K B GRM a b
MAIN O C 0846 87-012-279-080 C-CAP,U 2700P-50 K B GRM a b
MAIN O C 0847 87-012-267-080 C-CAP,U 270P-50 K B GRM a b
MAIN O C 0848 87-012-267-080 C-CAP,U 270P-50 K B GRM a b
MAIN O C 0849 87-012-267-080 C-CAP,U 270P-50 K B GRM a b
MAIN O C 0850 87-012-267-080 C-CAP,U 270P-50 K B GRM a b
MAIN O C 0851 87-012-267-080 C-CAP,U 270P-50 K B GRM a b

MAIN O C 0852 87-012-267-080 C-CAP,U 270P-50 K B GRM a b
MAIN O C 0853 87-012-267-080 C-CAP,U 270P-50 K B GRM a b
MAIN O C 0854 87-012-267-080 C-CAP,U 270P-50 K B GRM a b
MAIN O C 0855 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0856 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0857 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0858 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0859 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0860 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0861 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-16-

ELECTRICAL PARTS LIST (XD-DV1) -5/12

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN O C 0862 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0863 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0864 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0865 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0866 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0884 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0885 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0886 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0900 87-016-430-080 C-CAP,E 100-6.3 M 5.5L WX a b
MAIN O C 0901 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b

MAIN O C 0905 87-012-180-080 C-CAP,U 22P-50 J CH GRM a b
MAIN O C 0906 87-012-180-080 C-CAP,U 22P-50 J CH GRM a b
MAIN O C 0907 87-012-180-080 C-CAP,U 22P-50 J CH GRM a b
MAIN O C 0911 87-012-170-080 C-CAP,U 8P-50 D CH GRM a b
MAIN O C 0912 87-012-170-080 C-CAP,U 8P-50 D CH GRM a b
MAIN O C 0913 87-012-170-080 C-CAP,U 8P-50 D CH GRM a b
MAIN O C 0917 87-012-180-080 C-CAP,U 22P-50 J CH GRM a b
MAIN O C 0918 87-012-180-080 C-CAP,U 22P-50 J CH GRM a b
MAIN O C 0919 87-012-180-080 C-CAP,U 22P-50 J CH GRM a b
MAIN O C 0920 87-016-429-080 C-CAP,E 100-4 M WX a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN O C 0921 87-016-429-080 C-CAP,E 100-4 M WX a b
MAIN O C 0922 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0923 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0924 87-010-848-080 C-CAP,E 10-16 M 5.5L MV a b
MAIN O C 0925 87-A10-047-080 C-CAP,U 1-10 Z F a b
MAIN O C 0926 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0927 87-A10-047-080 C-CAP,U 1-10 Z F a b
MAIN O C 0928 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b
MAIN O C 0929 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b
MAIN O C 0930 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b

MAIN O CN 0100 87-A61-720-080 C-CONN,25P H WHT 52852-2590 a b
MAIN ! O CN 0101 87-A61-144-080 C-CONN,6P H PH-SM3-TB a b
MAIN O CN 0600 87-A61-829-080 C-CONN,7P V WHT BM07B-SRSS-TB a b
MAIN O CN 0601 87-A60-779-010 CONN,20P B TMC-D(P) a b
MAIN O CN 0602 87-099-440-080 C-CONN,2P H WHT ZR-SM3A-TF a b
MAIN O CN 0800 87-A61-749-010 CONN,13P H BLK 52303-1311 a b
MAIN S D 0002 87-A41-094-080 C-DIODE,CMS06 a b
MAIN S D 0004 87-A40-797-040 C-DIODE,SBE001 a b
MAIN S D 0007 87-A40-524-040 C-DIODE,1SR154-400 a b
MAIN S D 0600 87-A41-003-040 C-DIODE,RB521S-30 a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN S D 0800 87-020-125-080 C-DIODE,1SS181 a b
MAIN S D 0802 87-020-027-080 C-DIODE,1SS184 a b
MAIN S D 0830 87-017-365-040 C-DIODE,DA204U a b
MAIN S D 0831 87-017-365-040 C-DIODE,DA204U a b
MAIN S D 0900 87-017-365-040 C-DIODE,DA204U a b
MAIN S D 0901 87-017-365-040 C-DIODE,DA204U a b
MAIN S D 0902 87-017-365-040 C-DIODE,DA204U a b
MAIN X FB 0050 88-108-000-080 C-JUMPER,U a b
MAIN X FB 0051 88-108-000-080 C-JUMPER,U a b
MAIN X FB 0052 88-108-000-080 C-JUMPER,U a b

MAIN O FB 0053 87-A50-208-080 C-COIL,BLM11A601SPT a b
MAIN O FB 0100 87-A50-208-080 C-COIL,BLM11A601SPT a b
MAIN O FB 0600 87-A91-763-080 C-F-BEAD, BK1608LM252 a b
MAIN X FB 0830 88-108-000-080 C-JUMPER,U a b
MAIN X FB 0831 88-108-000-080 C-JUMPER,U a b
MAIN X FB 0832 88-108-000-080 C-JUMPER,U a b
MAIN X FB 0833 88-108-000-080 C-JUMPER,U a b
MAIN X FB 0834 88-108-000-080 C-JUMPER,U a b
MAIN X FB 0835 88-108-000-080 C-JUMPER,U a b
MAIN X FB 0836 88-108-000-080 C-JUMPER,U a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X FB 0837 88-108-000-080 C-JUMPER,U a b
MAIN S IC 0002 87-A20-925-040 C-IC,BA05FP a b
MAIN S IC 0007 87-A22-156-040 C-IC,XC6366B103MR a b
MAIN S IC 0050 87-017-853-040 C-IC,NJM2100V a b
MAIN S IC 0051 87-017-853-040 C-IC,NJM2100V a b
MAIN S IC 0052 87-017-853-040 C-IC,NJM2100V a b
MAIN O IC 0053 8A-AV6-614-040 C-IC,YSS915C-PK28MP-1 a b
MAIN S IC 0100 87-A22-143-030 C-IC,MT1366F a b
MAIN S IC 0101 87-A21-516-040 C-IC,BA5954FP a b
MAIN S IC 0200 87-A22-142-030 C-IC,MT1388E a b

MAIN X IC 0201 87-A22-244-030 C-IC,SST39SF010-90-4C-WH a b
MAIN S IC 0201 8C-AV6-630-030 C-IC,SST39SF010-90-4C-WH-VER01 a b
MAIN S IC 0202 87-A21-515-030 C-IC,GLT44016-40TC a b
MAIN S IC 0552 87-A22-150-040 C-IC,HD74LV245AT a b
MAIN S IC 0553 87-A22-150-040 C-IC,HD74LV245AT a b
MAIN S IC 0554 87-A21-569-040 C-IC,HD74LV04AT a b
MAIN S IC 0601 87-A22-169-030 C-IC,STI5580 a b
MAIN S IC 0602 87-A22-248-040 C-IC,HD74LVU04 a b
MAIN S IC 0603 87-A22-285-030 C-IC,GLT5640L16-7TC a b
MAIN X IC 0750 87-A22-247-030 C-IC,M29W160DT90N1 a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-17-

ELECTRICAL PARTS LIST (XD-DV1) -6/12

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN S IC 0750 8C-AVF-640-030 C-IC,M29W160DT90N1-AVF01 a b
MAIN S IC 0751 87-A22-355-040 C-IC,M24C16-WMN6T a b
MAIN S IC 0800 87-A22-170-040 C-IC,PCM1602 a b
MAIN S IC 0801 87-A21-993-040 C-IC,PCM1742 KE a b
MAIN S IC 0802 87-A21-362-040 C-IC,NJM2100M(TE2) a b
MAIN S IC 0830 87-A21-362-040 C-IC,NJM2100M(TE2) a b
MAIN S IC 0831 87-A21-362-040 C-IC,NJM2100M(TE2) a b
MAIN S IC 0832 87-A21-362-040 C-IC,NJM2100M(TE2) a b
MAIN S IC 0833 87-A21-362-040 C-IC,NJM2100M(TE2) a b
MAIN S IC 0900 87-A22-249-040 C-IC,MM1509XNRE a b

MAIN S IC 0901 87-A22-250-040 C-IC,MM1510XNRE a b
MAIN S IC 0902 87-A22-250-040 C-IC,MM1510XNRE a b
MAIN O J 0001 87-A61-340-010 JACK,DC a b
MAIN O J 0050 87-A61-502-010 JACK,3.5 BLK MONO W/SW a b
MAIN O J 0051 87-A61-502-010 JACK,3.5 BLK MONO W/SW a b
MAIN O J 0800 87-A61-735-010 JACK,PIN 2P JPJ9811-01 a b
MAIN ! O J 0900 87-A60-127-010 JACK,Y/CYKF51-5503 a b
MAIN O J 0901 87-A61-754-010 JACK,PIN 1P OC0806 a b
MAIN O L 0002 84-HD1-620-080 C-COIL, 22UH M D75C a b
MAIN O L 0050 87-A50-360-080 C-COIL, 47UH K NLFC252018 a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN O L 0051 87-A50-360-080 C-COIL, 47UH K NLFC252018 a b
MAIN O L 0100 87-A50-117-080 C-COIL,10UHLQH3C a b
MAIN O L 0101 87-005-811-080 C-COIL, 10UH FLC32 a b
MAIN O L 0102 87-005-811-080 C-COIL, 10UH FLC32 a b
MAIN O L 0103 87-A50-391-080 C-COIL,47UHD73C-636CY a b
MAIN O L 0104 87-A50-010-080 C-COIL, 22UH LQH3C a b
MAIN O L 0200 87-A50-010-080 C-COIL, 22UH LQH3C a b
MAIN O L 0201 87-A50-010-080 C-COIL, 22UH LQH3C a b
MAIN O L 0202 87-A50-010-080 C-COIL, 22UH LQH3C a b
MAIN O L 0600 87-A50-391-080 C-COIL,47UHD73C-636CY a b

MAIN O L 0601 87-A50-010-080 C-COIL, 22UH LQH3C a b
MAIN O L 0603 87-A50-360-080 C-COIL, 47UH K NLFC252018 a b
MAIN O L 0604 87-A50-360-080 C-COIL, 47UH K NLFC252018 a b
MAIN O L 0605 87-A50-360-080 C-COIL, 47UH K NLFC252018 a b
MAIN O L 0606 87-005-815-080 C-COIL, 22UH J FLC32 a b
MAIN O L 0800 87-A50-360-080 C-COIL, 47UH K NLFC252018 a b
MAIN O L 0801 87-A50-360-080 C-COIL, 47UH K NLFC252018 a b
MAIN O L 0830 87-A50-360-080 C-COIL, 47UH K NLFC252018 a b
MAIN O L 0831 87-A50-010-080 C-COIL, 22UH LQH3C a b
MAIN O L 0900 87-A50-360-080 C-COIL, 47UH K NLFC252018 a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN O L 0904 87-005-814-080 C-COIL, 18UH J FLC32 a b
MAIN O L 0905 87-005-814-080 C-COIL, 18UH J FLC32 a b
MAIN O L 0906 87-005-814-080 C-COIL, 18UH J FLC32 a b
MAIN S Q 0001 89-341-165-080 C-TR,2SC4116GR a b
MAIN S Q 0002 89-341-165-080 C-TR,2SC4116GR a b
MAIN S Q 0003 89-112-134-080 C-TR,2SA1213Y a b
MAIN S Q 0004 89-211-323-080 C-TR,2SB1132R a b
MAIN S Q 0005 87-A30-358-040 C-TR,DTA114EUA a b
MAIN S Q 0006 89-211-323-080 C-TR,2SB1132R a b
MAIN S Q 0008 87-A30-409-040 C-TR,DTC123YUA a b

MAIN S Q 0009 89-341-165-080 C-TR,2SC4116GR a b
MAIN S Q 0010 89-341-165-080 C-TR,2SC4116GR a b
MAIN S Q 0050 87-A30-358-040 C-TR,DTA114EUA a b
MAIN S Q 0051 89-341-165-080 C-TR,2SC4116GR a b
MAIN S Q 0100 87-A30-289-040 C-TR,2SA1037AK(Q) a b
MAIN S Q 0101 87-A30-289-040 C-TR,2SA1037AK(Q) a b
MAIN S Q 0102 87-A30-289-040 C-TR,2SA1037AK(Q) a b
MAIN S Q 0600 89-324-121-040 C-TR,2SC2412KQ a b
MAIN S Q 0601 89-324-121-040 C-TR,2SC2412KQ a b
MAIN S Q 0800 87-A30-435-040 C-TR,DTC144EKA a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN S Q 0801 87-A30-455-040 C-TR,DTA144EKA a b
MAIN S Q 0802 87-A30-435-040 C-TR,DTC144EKA a b
MAIN S Q 0803 87-A30-035-040 C-TR,DTC323TU a b
MAIN S Q 0830 89-341-165-080 C-TR,2SC4116GR a b
MAIN S Q 0831 89-341-165-080 C-TR,2SC4116GR a b
MAIN S Q 0832 89-341-165-080 C-TR,2SC4116GR a b
MAIN S Q 0833 89-341-165-080 C-TR,2SC4116GR a b
MAIN S Q 0834 89-341-165-080 C-TR,2SC4116GR a b
MAIN S Q 0835 89-341-165-080 C-TR,2SC4116GR a b
MAIN S Q 0836 89-341-165-080 C-TR,2SC4116GR a b

MAIN S Q 0837 89-341-165-080 C-TR,2SC4116GR a b
MAIN S Q 0910 87-A30-289-040 C-TR,2SA1037AK(Q) a b
MAIN S Q 0911 87-A30-435-040 C-TR,DTC144EKA a b
MAIN X R 0001 88-118-000-080 C-JUMPER,S a b
MAIN X R 0002 88-118-000-080 C-JUMPER,S a b
MAIN X R 0003 88-118-000-080 C-JUMPER,S a b
MAIN X R 0004 88-118-000-080 C-JUMPER,S a b
MAIN X R 0005 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0006 88-104-223-080 C-RES,V 22K-1/16W J a b
MAIN X R 0007 88-104-000-080 C-JUMPER,V a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-18-

ELECTRICAL PARTS LIST (XD-DV1) -7/12

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0008 88-104-122-080 C-RES,V 1.2K-1/16W J a b
MAIN X R 0010 88-118-000-080 C-JUMPER,S a b
MAIN X R 0011 88-104-223-080 C-RES,V 22K-1/16W J a b
MAIN X R 0012 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0013 88-104-151-080 C-RES,V 150-1/16W J a b
MAIN X R 0014 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0015 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0016 88-104-331-080 C-RES,V 330-1/16W J a b
MAIN X R 0017 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0018 88-118-000-080 C-JUMPER,S a b

MAIN X R 0021 88-104-272-080 C-RES,V 2.7K-1/16W J a b
MAIN X R 0023 88-104-331-080 C-RES,V 330-1/16W J a b
MAIN X R 0024 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0025 88-104-331-080 C-RES,V 330-1/16W J a b
MAIN X R 0026 88-104-104-080 C-RES,V 100K-1/16W J a b
MAIN X R 0027 88-104-331-080 C-RES,V 330-1/16W J a b
MAIN X R 0028 88-118-000-080 C-JUMPER,S a b
MAIN X R 0029 88-118-000-080 C-JUMPER,S a b
MAIN X R 0031 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0032 88-104-472-080 C-RES,V 4.7K-1/16W J a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0033 88-104-472-080 C-RES,V 4.7K-1/16W J a b
MAIN O R 0047 87-A10-666-080 C-CAP,V 2700P-50 K B a b
MAIN X R 0050 88-104-153-080 C-RES,V 15K-1/16W J a b
MAIN X R 0051 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0052 88-104-821-080 C-RES,V 820-1/16W J a b
MAIN X R 0053 88-104-681-080 C-RES,V 680-1/16W J a b
MAIN X R 0054 88-104-221-080 C-RES,V 220-1/16W J a b
MAIN X R 0055 88-104-153-080 C-RES,V 15K-1/16W J a b
MAIN X R 0056 88-104-472-080 C-RES,V 4.7K-1/16W J a b
MAIN X R 0057 88-104-103-080 C-RES,V 10K-1/16W J a b

MAIN X R 0058 88-104-273-080 C-RES,V 27K-1/16W J a b
MAIN X R 0059 88-104-223-080 C-RES,V 22K-1/16W J a b
MAIN X R 0060 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0061 88-104-272-080 C-RES,V 2.7K-1/16W J a b
MAIN X R 0062 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0063 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0064 88-104-472-080 C-RES,V 4.7K-1/16W J a b
MAIN X R 0065 88-104-104-080 C-RES,V 100K-1/16W J a b
MAIN X R 0066 88-104-821-080 C-RES,V 820-1/16W J a b
MAIN X R 0067 88-104-681-080 C-RES,V 680-1/16W J a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0068 88-104-221-080 C-RES,V 220-1/16W J a b
MAIN X R 0069 88-104-472-080 C-RES,V 4.7K-1/16W J a b
MAIN X R 0070 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0071 88-104-273-080 C-RES,V 27K-1/16W J a b
MAIN X R 0072 88-104-223-080 C-RES,V 22K-1/16W J a b
MAIN X R 0073 88-104-272-080 C-RES,V 2.7K-1/16W J a b
MAIN X R 0074 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0075 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0076 88-104-561-080 C-RES,V 560-1/16W J a b
MAIN X R 0077 88-104-000-080 C-JUMPER,V a b

MAIN X R 0078 88-104-183-080 C-RES,V 18K-1/16W J a b
MAIN X R 0081 88-104-000-080 C-JUMPER,V a b
MAIN X R 0082 88-104-000-080 C-JUMPER,V a b
MAIN X R 0083 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0084 88-104-000-080 C-JUMPER,V a b
MAIN X R 0085 88-104-000-080 C-JUMPER,V a b
MAIN X R 0086 88-104-000-080 C-JUMPER,V a b
MAIN X R 0087 88-104-000-080 C-JUMPER,V a b
MAIN X R 0088 88-108-470-080 C-RES,U 47-1/16W J a b
MAIN X R 0089 88-108-470-080 C-RES,U 47-1/16W J a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0090 88-108-470-080 C-RES,U 47-1/16W J a b
MAIN X R 0091 88-104-000-080 C-JUMPER,V a b
MAIN X R 0092 88-104-000-080 C-JUMPER,V a b
MAIN X R 0097 88-104-000-080 C-JUMPER,V a b
MAIN X R 0098 88-104-123-080 C-RES,V 12K-1/16W J a b
MAIN X R 0099 88-104-123-080 C-RES,V 12K-1/16W J a b
MAIN X R 0100 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0101 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0102 88-118-390-080 C-RES,S 39-1/10W J a b
MAIN X R 0103 88-118-560-080 C-RES,S 56-1/10W J a b

MAIN X R 0104 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0105 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0106 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0107 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0108 88-104-333-080 C-RES,V 33K-1/16W J a b
MAIN X R 0109 88-104-333-080 C-RES,V 33K-1/16W J a b
MAIN X R 0110 88-104-333-080 C-RES,V 33K-1/16W J a b
MAIN X R 0111 88-104-333-080 C-RES,V 33K-1/16W J a b
MAIN X R 0112 88-104-273-080 C-RES,V 27K-1/16W J a b
MAIN X R 0113 88-104-273-080 C-RES,V 27K-1/16W J a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-19-

ELECTRICAL PARTS LIST (XD-DV1) -8/12

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0114 88-104-273-080 C-RES,V 27K-1/16W J a b
MAIN X R 0115 88-104-273-080 C-RES,V 27K-1/16W J a b
MAIN X R 0116 88-104-333-080 C-RES,V 33K-1/16W J a b
MAIN X R 0117 88-104-333-080 C-RES,V 33K-1/16W J a b
MAIN X R 0118 88-104-104-080 C-RES,V 100K-1/16W J a b
MAIN X R 0119 88-104-203-080 C-RES,V 20K-1/16W J a b
MAIN X R 0120 88-104-333-080 C-RES,V 33K-1/16W J a b
MAIN X R 0121 88-104-393-080 C-RES,V 39K-1/16W J a b
MAIN X R 0122 88-118-109-080 C-RES,S 1-1/10W J a b
MAIN X R 0123 88-118-109-080 C-RES,S 1-1/10W J a b

MAIN X R 0124 88-118-109-080 C-RES,S 1-1/10W J a b
MAIN X R 0125 88-118-109-080 C-RES,S 1-1/10W J a b
MAIN X R 0126 88-104-203-080 C-RES,V 20K-1/16W J a b
MAIN X R 0127 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0128 88-104-203-080 C-RES,V 20K-1/16W J a b
MAIN X R 0129 88-104-203-080 C-RES,V 20K-1/16W J a b
MAIN X R 0131 88-104-000-080 C-JUMPER,V a b
MAIN X R 0132 88-104-222-080 C-RES,V 2.2K-1/16W J a b
MAIN X R 0133 88-118-560-080 C-RES,S 56-1/10W J a b
MAIN X R 0134 88-118-390-080 C-RES,S 39-1/10W J a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0135 88-104-000-080 C-JUMPER,V a b
MAIN X R 0136 88-104-000-080 C-JUMPER,V a b
MAIN X R 0139 88-104-000-080 C-JUMPER,V a b
MAIN X R 0141 88-104-000-080 C-JUMPER,V a b
MAIN X R 0143 88-104-000-080 C-JUMPER,V a b
MAIN X R 0151 88-118-000-080 C-JUMPER,S a b
MAIN X R 0200 88-104-512-080 C-RES,V 5.1K-1/16W J a b
MAIN X R 0201 88-104-473-080 C-RES,V 47K-1/16W J a b
MAIN X R 0202 88-104-512-080 C-RES,V 5.1K-1/16W J a b
MAIN X R 0203 88-104-153-080 C-RES,V 15K-1/16W J a b

MAIN X R 0204 88-104-105-080 C-RES,V 1M-1/16W J a b
MAIN X R 0205 88-104-203-080 C-RES,V 20K-1/16W J a b
MAIN X R 0206 88-104-203-080 C-RES,V 20K-1/16W J a b
MAIN X R 0207 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0208 88-104-153-080 C-RES,V 15K-1/16W J a b
MAIN X R 0209 88-104-393-080 C-RES,V 39K-1/16W J a b
MAIN X R 0210 88-104-221-080 C-RES,V 220-1/16W J a b
MAIN X R 0211 88-104-000-080 C-JUMPER,V a b
MAIN X R 0212 88-104-105-080 C-RES,V 1M-1/16W J a b
MAIN X R 0213 88-104-330-080 C-RES,V 33-1/16W J a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0214 88-104-220-080 C-RES,V 22-1/16W J a b
MAIN X R 0215 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0216 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0217 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0218 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0219 88-104-000-080 C-JUMPER,V a b
MAIN X R 0220 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0221 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0222 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0223 88-104-103-080 C-RES,V 10K-1/16W J a b

MAIN X R 0224 88-104-820-080 C-RES,V 82-1/16W J a b
MAIN X R 0225 88-104-820-080 C-RES,V 82-1/16W J a b
MAIN X R 0226 88-104-820-080 C-RES,V 82-1/16W J a b
MAIN X R 0227 88-104-820-080 C-RES,V 82-1/16W J a b
MAIN X R 0228 88-104-820-080 C-RES,V 82-1/16W J a b
MAIN X R 0229 88-104-220-080 C-RES,V 22-1/16W J a b
MAIN X R 0230 88-104-820-080 C-RES,V 82-1/16W J a b
MAIN X R 0231 88-104-220-080 C-RES,V 22-1/16W J a b
MAIN X R 0232 88-104-820-080 C-RES,V 82-1/16W J a b
MAIN X R 0233 88-104-820-080 C-RES,V 82-1/16W J a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0234 88-104-220-080 C-RES,V 22-1/16W J a b
MAIN X R 0235 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0236 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0237 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0238 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0239 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0240 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0241 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0242 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0243 88-104-330-080 C-RES,V 33-1/16W J a b

MAIN X R 0244 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0245 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0246 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0247 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0248 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0249 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0250 88-104-393-080 C-RES,V 39K-1/16W J a b
MAIN X R 0251 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0252 88-104-000-080 C-JUMPER,V a b
MAIN X R 0258 88-104-183-080 C-RES,V 18K-1/16W J a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-20-

ELECTRICAL PARTS LIST (XD-DV1) -9/12

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0259 88-104-104-080 C-RES,V 100K-1/16W J a b
MAIN X R 0260 88-104-123-080 C-RES,V 12K-1/16W J a b
MAIN X R 0261 88-104-123-080 C-RES,V 12K-1/16W J a b
MAIN X R 0262 88-104-333-080 C-RES,V 33K-1/16W J a b
MAIN X R 0263 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0265 88-104-000-080 C-JUMPER,V a b
MAIN X R 0266 88-104-000-080 C-JUMPER,V a b
MAIN X R 0267 88-104-000-080 C-JUMPER,V a b
MAIN X R 0268 88-104-000-080 C-JUMPER,V a b
MAIN X R 0269 88-104-000-080 C-JUMPER,V a b

MAIN X R 0270 88-104-000-080 C-JUMPER,V a b
MAIN X R 0271 88-104-000-080 C-JUMPER,V a b
MAIN X R 0272 88-104-000-080 C-JUMPER,V a b
MAIN X R 0273 88-104-000-080 C-JUMPER,V a b
MAIN X R 0274 88-104-000-080 C-JUMPER,V a b
MAIN X R 0275 88-104-000-080 C-JUMPER,V a b
MAIN X R 0276 88-104-000-080 C-JUMPER,V a b
MAIN X R 0277 88-104-151-080 C-RES,V 150-1/16W J a b
MAIN X R 0278 88-104-151-080 C-RES,V 150-1/16W J a b
MAIN X R 0279 88-104-151-080 C-RES,V 150-1/16W J a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0283 88-104-151-080 C-RES,V 150-1/16W J a b
MAIN X R 0284 88-104-000-080 C-JUMPER,V a b
MAIN X R 0285 88-104-000-080 C-JUMPER,V a b
MAIN X R 0286 88-104-472-080 C-RES,V 4.7K-1/16W J a b
MAIN X R 0287 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0530 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0531 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0532 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0533 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0534 88-104-330-080 C-RES,V 33-1/16W J a b

MAIN X R 0535 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0536 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0537 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0538 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0539 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0540 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0541 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0542 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0543 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0544 88-104-330-080 C-RES,V 33-1/16W J a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0545 88-104-330-080 C-RES,V 33-1/16W J a b
MAIN X R 0553 88-104-000-080 C-JUMPER,V a b
MAIN X R 0554 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0555 88-104-473-080 C-RES,V 47K-1/16W J a b
MAIN X R 0560 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0561 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0562 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0563 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0600 88-104-683-080 C-RES,V 68K-1/16W J a b
MAIN X R 0601 88-104-272-080 C-RES,V 2.7K-1/16W J a b

MAIN X R 0602 88-104-151-080 C-RES,V 150-1/16W J a b
MAIN X R 0603 88-104-000-080 C-JUMPER,V a b
MAIN X R 0604 88-104-272-080 C-RES,V 2.7K-1/16W J a b
MAIN X R 0605 88-104-151-080 C-RES,V 150-1/16W J a b
MAIN X R 0606 88-104-151-080 C-RES,V 150-1/16W J a b
MAIN X R 0607 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0608 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0609 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0610 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0611 88-104-470-080 C-RES,V 47-1/16W J a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0612 88-104-472-080 C-RES,V 4.7K-1/16W J a b
MAIN X R 0613 88-104-473-080 C-RES,V 47K-1/16W J a b
MAIN X R 0614 88-104-563-080 C-RES,V 56K-1/16W J a b
MAIN X R 0615 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0616 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0617 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0618 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0619 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0620 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0621 88-104-470-080 C-RES,V 47-1/16W J a b

MAIN X R 0622 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0623 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0624 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0625 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0626 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0627 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0628 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0629 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0630 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0631 88-104-470-080 C-RES,V 47-1/16W J a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-21-

ELECTRICAL PARTS LIST (XD-DV1) -10/12

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0632 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0633 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0634 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0635 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0636 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0637 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0638 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0639 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0640 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0641 88-108-000-080 C-JUMPER,U a b

MAIN X R 0642 88-108-000-080 C-JUMPER,U a b
MAIN X R 0643 88-108-151-080 C-RES,U 150-1/16W J a b
MAIN X R 0644 88-104-000-080 C-JUMPER,V a b
MAIN X R 0645 88-108-151-080 C-RES,U 150-1/16W J a b
MAIN X R 0646 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0647 88-108-000-080 C-JUMPER,U a b
MAIN X R 0648 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0649 88-104-271-080 C-RES,V 270-1/16W J a b
MAIN X R 0650 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0651 88-108-000-080 C-JUMPER,U a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0652 88-108-000-080 C-JUMPER,U a b
MAIN X R 0653 88-108-000-080 C-JUMPER,U a b
MAIN X R 0654 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0655 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0656 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0657 88-108-000-080 C-JUMPER,U a b
MAIN X R 0658 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN O R 0659 87-A92-436-080 C-F-BEAD, BLM18AG221SN1 a b
MAIN X R 0660 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0661 88-104-000-080 C-JUMPER,V a b

MAIN X R 0662 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN O R 0663 87-A92-436-080 C-F-BEAD, BLM18AG221SN1 a b
MAIN X R 0664 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN O R 0665 87-A92-436-080 C-F-BEAD, BLM18AG221SN1 a b
MAIN X R 0666 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0667 88-108-000-080 C-JUMPER,U a b
MAIN X R 0668 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0669 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0670 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0671 88-104-470-080 C-RES,V 47-1/16W J a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0672 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0673 88-118-000-080 C-JUMPER,S a b
MAIN X R 0675 88-104-000-080 C-JUMPER,V a b
MAIN X R 0677 88-104-000-080 C-JUMPER,V a b
MAIN X R 0678 88-104-000-080 C-JUMPER,V a b
MAIN X R 0679 88-104-000-080 C-JUMPER,V a b
MAIN X R 0682 88-104-151-080 C-RES,V 150-1/16W J a b
MAIN X R 0683 88-104-151-080 C-RES,V 150-1/16W J a b
MAIN X R 0684 88-104-151-080 C-RES,V 150-1/16W J a b
MAIN X R 0685 88-104-103-080 C-RES,V 10K-1/16W J a b

MAIN X R 0686 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0688 88-104-151-080 C-RES,V 150-1/16W J a b
MAIN X R 0690 88-104-473-080 C-RES,V 47K-1/16W J a b
MAIN X R 0691 88-104-000-080 C-JUMPER,V a b
MAIN X R 0692 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0693 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0694 88-104-000-080 C-JUMPER,V a b
MAIN X R 0696 88-104-151-080 C-RES,V 150-1/16W J a b
MAIN X R 0697 88-104-151-080 C-RES,V 150-1/16W J a b
MAIN X R 0698 88-104-151-080 C-RES,V 150-1/16W J a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0700 88-104-000-080 C-JUMPER,V a b
MAIN X R 0701 88-104-000-080 C-JUMPER,V a b
MAIN X R 0702 88-104-151-080 C-RES,V 150-1/16W J a b
MAIN X R 0703 88-104-151-080 C-RES,V 150-1/16W J a b
MAIN X R 0705 88-104-151-080 C-RES,V 150-1/16W J a b
MAIN X R 0706 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0707 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0708 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0709 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0710 88-104-103-080 C-RES,V 10K-1/16W J a b

MAIN X R 0711 88-104-271-080 C-RES,V 270-1/16W J a b
MAIN X R 0712 88-104-271-080 C-RES,V 270-1/16W J a b
MAIN X R 0713 88-104-271-080 C-RES,V 270-1/16W J a b
MAIN X R 0714 88-104-271-080 C-RES,V 270-1/16W J a b
MAIN X R 0715 88-104-151-080 C-RES,V 150-1/16W J a .
MAIN X R 0715 88-104-271-080 C-RES,V 270-1/16W J . b
MAIN X R 0716 88-104-271-080 C-RES,V 270-1/16W J a b
MAIN X R 0717 88-104-271-080 C-RES,V 270-1/16W J a b
MAIN X R 0718 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0719 88-104-101-080 C-RES,V 100-1/16W J a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-22-

ELECTRICAL PARTS LIST (XD-DV1) -11/12

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0720 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0721 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0722 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0723 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0724 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0725 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0726 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0727 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0728 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0729 88-104-101-080 C-RES,V 100-1/16W J a b

MAIN X R 0730 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0731 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0732 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0733 88-104-151-080 C-RES,V 150-1/16W J a b
MAIN X R 0734 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0735 88-104-151-080 C-RES,V 150-1/16W J a b
MAIN X R 0736 88-104-151-080 C-RES,V 150-1/16W J a b
MAIN X R 0737 88-104-151-080 C-RES,V 150-1/16W J a b
MAIN O R 0738 87-A91-642-080 C-F-BEAD, BK1005HS601 a b
MAIN O R 0739 87-A91-642-080 C-F-BEAD, BK1005HS601 a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0740 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0741 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0742 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0743 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0744 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0745 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0746 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0747 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0748 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0749 88-104-470-080 C-RES,V 47-1/16W J a b

MAIN X R 0750 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0751 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0752 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0753 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0754 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0755 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN O R 0756 87-A92-390-080 C-F-BEAD, BLM15BB221PN1 a b
MAIN X R 0757 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0758 88-104-105-080 C-RES,V 1M-1/16W J a b
MAIN X R 0759 88-104-681-080 C-RES,V 680-1/16W J a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0760 88-104-474-080 C-RES,V 470K-1/16W J a b
MAIN X R 0761 88-104-474-080 C-RES,V 470K-1/16W J a b
MAIN X R 0762 88-104-474-080 C-RES,V 470K-1/16W J a b
MAIN X R 0763 88-104-474-080 C-RES,V 470K-1/16W J a b
MAIN X R 0764 88-104-474-080 C-RES,V 470K-1/16W J a b
MAIN X R 0765 88-104-560-080 C-RES,V 56-1/16W J a b
MAIN X R 0766 88-104-474-080 C-RES,V 470K-1/16W J a b
MAIN X R 0767 88-104-472-080 C-RES,V 4.7K-1/16W J a b
MAIN X R 0768 88-104-474-080 C-RES,V 470K-1/16W J a b
MAIN X R 0769 88-104-473-080 C-RES,V 47K-1/16W J a b

MAIN X R 0770 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0771 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0772 88-104-000-080 C-JUMPER,V a b
MAIN X R 0773 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0774 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0775 88-104-472-080 C-RES,V 4.7K-1/16W J a b
MAIN X R 0777 88-104-473-080 C-RES,V 47K-1/16W J a b
MAIN X R 0780 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0781 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0782 88-104-470-080 C-RES,V 47-1/16W J a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0783 88-104-470-080 C-RES,V 47-1/16W J a b
MAIN X R 0800 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0801 88-104-473-080 C-RES,V 47K-1/16W J a b
MAIN X R 0802 88-104-000-080 C-JUMPER,V a b
MAIN X R 0803 88-104-000-080 C-JUMPER,V a b
MAIN X R 0807 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0809 88-104-472-080 C-RES,V 4.7K-1/16W J a b
MAIN X R 0812 88-104-000-080 C-JUMPER,V a b
MAIN X R 0826 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0827 88-104-103-080 C-RES,V 10K-1/16W J a b

MAIN X R 0838 88-104-123-080 C-RES,V 12K-1/16W J a b
MAIN X R 0839 88-104-123-080 C-RES,V 12K-1/16W J a b
MAIN X R 0840 88-104-123-080 C-RES,V 12K-1/16W J a b
MAIN X R 0841 88-104-123-080 C-RES,V 12K-1/16W J a b
MAIN X R 0842 88-104-123-080 C-RES,V 12K-1/16W J a b
MAIN X R 0843 88-104-123-080 C-RES,V 12K-1/16W J a b
MAIN X R 0844 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0845 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0846 88-104-153-080 C-RES,V 15K-1/16W J a b
MAIN X R 0847 88-104-153-080 C-RES,V 15K-1/16W J a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-23-

ELECTRICAL PARTS LIST (XD-DV1) -12/12

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0848 88-104-153-080 C-RES,V 15K-1/16W J a b
MAIN X R 0849 88-104-153-080 C-RES,V 15K-1/16W J a b
MAIN X R 0850 88-104-153-080 C-RES,V 15K-1/16W J a b
MAIN X R 0851 88-104-153-080 C-RES,V 15K-1/16W J a b
MAIN X R 0852 88-104-153-080 C-RES,V 15K-1/16W J a b
MAIN X R 0853 88-104-153-080 C-RES,V 15K-1/16W J a b
MAIN X R 0854 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0855 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0856 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0857 88-104-102-080 C-RES,V 1K-1/16W J a b

MAIN X R 0858 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0859 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0860 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0861 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0862 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN O R 0863 87-A10-554-080 C-CAP,V 1000P-50 K B a b
MAIN X R 0864 88-104-000-080 C-JUMPER,V a b
MAIN X R 0870 88-104-104-080 C-RES,V 100K-1/16W J a b
MAIN X R 0871 88-104-104-080 C-RES,V 100K-1/16W J a b
MAIN X R 0872 88-104-104-080 C-RES,V 100K-1/16W J a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0873 88-104-104-080 C-RES,V 100K-1/16W J a b
MAIN X R 0874 88-104-104-080 C-RES,V 100K-1/16W J a b
MAIN X R 0875 88-104-104-080 C-RES,V 100K-1/16W J a b
MAIN X R 0876 88-104-104-080 C-RES,V 100K-1/16W J a b
MAIN X R 0877 88-104-104-080 C-RES,V 100K-1/16W J a b
MAIN X R 0878 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0879 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0880 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0881 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0882 88-104-101-080 C-RES,V 100-1/16W J a b

MAIN X R 0883 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0884 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0885 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0886 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0887 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0888 88-104-101-080 C-RES,V 100-1/16W J a b
MAIN X R 0889 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0890 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0891 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0892 88-104-102-080 C-RES,V 1K-1/16W J a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0893 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0894 88-104-000-080 C-JUMPER,V a b
MAIN X R 0900 88-104-000-080 C-JUMPER,V a b
MAIN X R 0903 88-104-681-080 C-RES,V 680-1/16W J a b
MAIN X R 0904 88-104-681-080 C-RES,V 680-1/16W J a b
MAIN X R 0905 88-104-681-080 C-RES,V 680-1/16W J a b
MAIN X R 0909 88-104-681-080 C-RES,V 680-1/16W J a b
MAIN X R 0910 88-104-681-080 C-RES,V 680-1/16W J a b
MAIN X R 0911 88-104-681-080 C-RES,V 680-1/16W J a b
MAIN X R 0914 88-104-000-080 C-JUMPER,V a b

MAIN X R 0915 88-104-000-080 C-JUMPER,V a b
MAIN X R 0918 88-104-000-080 C-JUMPER,V a b
MAIN X R 0919 88-104-000-080 C-JUMPER,V a b
MAIN X R 0921 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0922 88-104-000-080 C-JUMPER,V a b
MAIN X R 0936 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0937 88-104-104-080 C-RES,V 100K-1/16W J a b
MAIN X R 0938 88-104-104-080 C-RES,V 100K-1/16W J a b
MAIN X R 0939 88-104-000-080 C-JUMPER,V a b
MAIN X R 0940 88-104-000-080 C-JUMPER,V a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
MAIN X R 0945 88-104-103-080 C-RES,V 10K-1/16W J a b
MAIN X R 0946 88-104-102-080 C-RES,V 1K-1/16W J a b
MAIN X R 0948 88-118-750-080 C-RES,S 75-1/10W J a b
MAIN X R 0949 88-104-223-080 C-RES,V 22K-1/16W J a b
MAIN X R 0950 88-118-750-080 C-RES,S 75-1/10W J a b
MAIN X R 0952 88-118-750-080 C-RES,S 75-1/10W J a b
MAIN O S 0001 87-A92-352-010 SW,SL 3-1-1 SSSS910800 a b
MAIN O T 0800 87-A92-337-080 C-BALUN,5BLS-2LINE a b
MAIN O T 0801 87-A92-338-080 C-BALUN,5BLS-3LINE a b
MAIN O T 0802 87-A92-338-080 C-BALUN,5BLS-3LINE a b

MAIN O T 0803 87-A92-338-080 C-BALUN,5BLS-3LINE a b
MAIN O T 0804 87-A92-338-080 C-BALUN,5BLS-3LINE a b
MAIN O T 0901 87-A92-338-080 C-BALUN,5BLS-3LINE a b
MAIN O VR 0050 87-A91-145-080 C-VR,RTRY 30KCX2 H RK14J12R a b
MAIN O VR 0051 87-A91-145-080 C-VR,RTRY 30KCX2 H RK14J12R a b
MAIN O X 0200 87-A70-356-080 C-VIB,CER 33.8MHZ a b
MAIN O X 0600 87-A70-195-080 C-VIB,XTAL 27MHZ HC-49/U03C a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-24-

SCHEMATIC DIAGRAM -1/14 (XA-DV1-1/5, SELECTOR C.B)

-25-

SCHEMATIC DIAGRAM -2/14 (XA-DV1-2/5, SURROUND C.B)

-26-

SCHEMATIC DIAGRAM -3/14 (XA-DV1-3/5, FRONT C.B)

-27-

SCHEMATIC DIAGRAM -4/14 (XA-DV1-4/5, HP-JACK C.B)

-28-

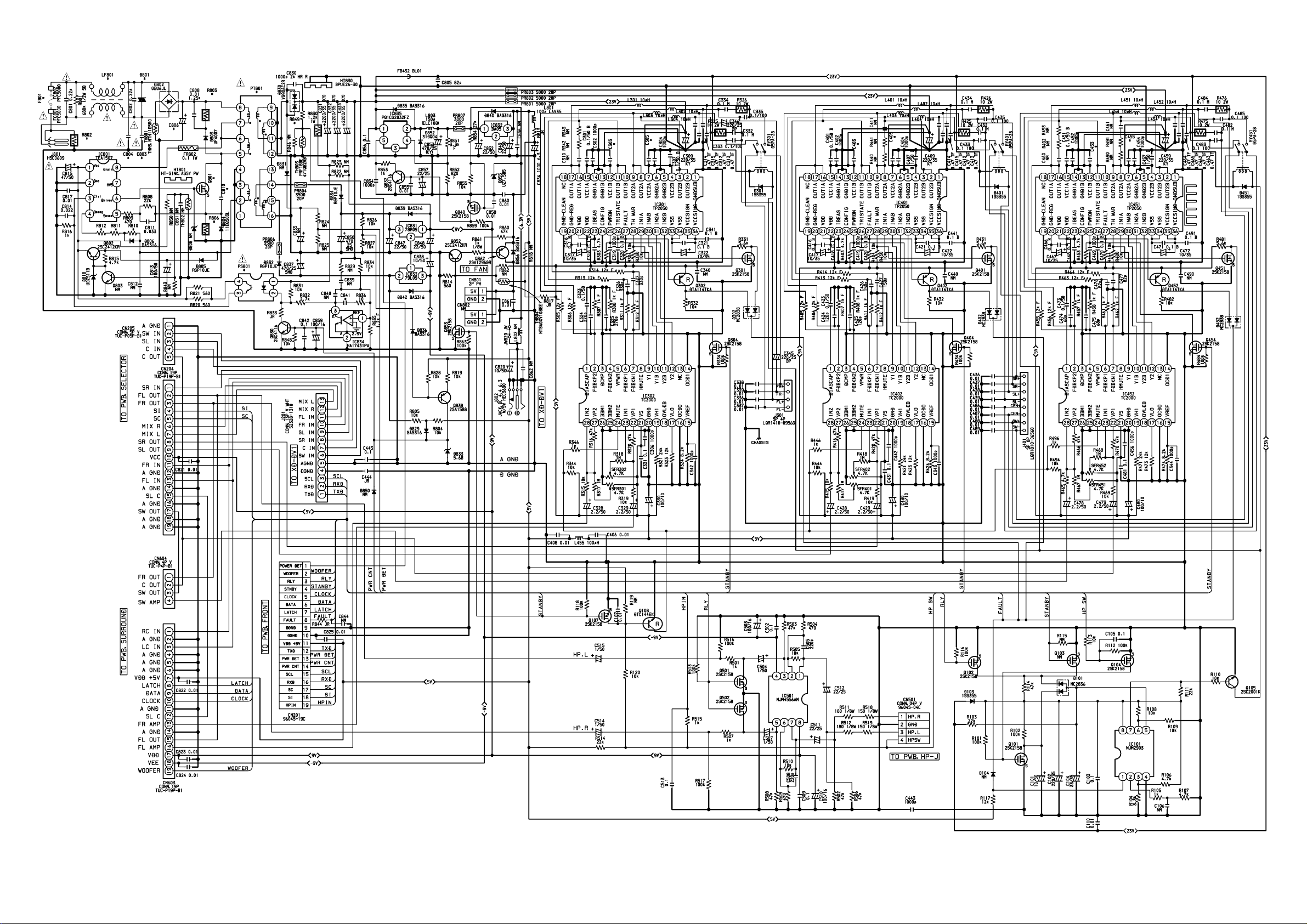

SCHEMATIC DIAGRAM -5/14 (XA-DV1-5/5, MAIN C.B)

-29-

SCHEMATIC DIAGRAM -6/14 (XD-DV1-1/9, MAIN C.B-POWER)

-30-

SCHEMATIC DIAGRAM -7/14 (XD-DV1-2/9, MAIN C.B-RF AMP)

-31-

SCHEMATIC DIAGRAM -8/14 (XD-DV1-3/9, MAIN C.B-DVD DSP)

-32-

SCHEMATIC DIAGRAM -9/14 (XD-DV1-4/9, MAIN C.B-DECODER)

-33-

SCHEMATIC DIAGRAM -10/14 (XD-DV1-5/9, MAIN C.B-AUDIO-DAC)

-34-

SCHEMATIC DIAGRAM -11/14 (XD-DV1-6/9, MAIN C.B-VIDEO OUTPUT)

-35-

SCHEMATIC DIAGRAM -12/14 (XD-DV1-7/9, AUDIO OUTPUT)

-36-

SCHEMATIC DIAGRAM -13/14 (XD-DV1-8/9, MAIN C.B-KARAOKE)

-37-

SCHEMATIC DIAGRAM -14/14 (XD-DV1-9/9, FRONT C.B)

-38-

MECHANICAL EXPLODED VIEW -1/2 (XA-DV1)

F

18

28

E

E

17

19

B

20

21

22

C

E

E

E

G

15

12

14

E

G

13

24

A

E

25

29

29

30

26

C

C

C

D

11

6

5

E

8

4

2

3

10

9

B

23

B

7

1

4

27

-39-

MECHANICAL EXPLODED VIEW -2/2 (XD-DV1)

22

20

18

17

13

10

9

14

15

12

19

16

11

21

26

23

24

25

8

27

28

7

6

5

4

B

3

D

D

D

29

A

30

C

1

E

A

28
29

2

-40-

C

C

C

2

MECHANICAL MAIN PARTS LIST -1/2 (XA-DV1)

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XA-SDV1 XA-SDV1
HRJSM HKSM
O MC1001 8C-AA5-001-010 CABI,FR AMP a b
O MC1002 8C-AA5-005-010 RING,VOL a b
O MC1003 8C-AA5-004-010 KNOB,RTRY VOL a b
O MC1004 8C-AA5-203-010 FOOT,10-3 a b
O MC1005 87-B00-043-010 BADGE,AIWA 25 ABS SIL ND063 a b
O MC1006 8C-AA5-007-010 LENS,PW a b
O MC1007 8C-AA5-003-010 KEY,MAIN a b
O MC1008 8C-AA5-006-010 LENS,LED a b
O MC1009 8C-AV5-625-010 FF-CABLE,19P 1.25 270MM WHITE a b
X MC1010 8C-AV5-611-010 PWB,FRONT a b

O MC1011 8C-AV5-626-010 FF-CABLE,4P 1.25 205MM WHITE 1 a b
X MC1012 8C-AV5-612-010 PWB,HP-J a b
X MC1013 8C-AV5-601-110 PWB,AMP MAIN a b
X MC1014 87-A92-376-010 HT-SINK,BPUE26-30 11.6DG/W a b
! O MC1015 8C-AV5-651-010 PT,EZ SW CAA-5 . b
! O MC1015 8C-AA5-635-010 PT,HR SW CAA-5 a .
X MC1017 8C-AA5-205-010 HT-SINK,AMP a b
O MC1018 87-A92-506-010 FAN,F410T-05LC-01-100MM a b
X MC1019 8C-AA5-208-010 HT-SINK,EG98-20 FOR AMP a b
X MC1020 8C-AV5-606-110 PWB,SURROUND a b

XA-SDV1 XA-SDV1
HRJSM HKSM
X MC1021 8C-AV5-607-110 PWB,SELECTOR a b
O MC1022 8C-AA5-002-010 CABI,TOP AMP a .
O MC1022 8C-AA5-014-010 CABI,TOP AMP HALO . b
X MC1023 8C-AA5-201-010 CHAS,MAIN a b
X MC1024 8C-AA5-202-010 HLDR,STAY a b
X MC1025 8C-AA5-209-010 HT-SINK,ASSY PW a b
X MC1025a 8C-AA5-206-010 HT-SINK,PW a b
X MC1025b 8Z-JE7-212-010 PLATE,FOOT a b
O MC1026 8C-AV5-615-010 CONN ASSY,13P 52305-1311 a b
O MC1027 8C-AA5-019-010 PLATE,REAR HRJ a .

O MC1027 8C-AA5-020-110 PLATE,REAR HK . b
O MC1028 87-069-033-010 CABLE,TIE a b
O MC1029 80-XV1-218-010 CUSH-S,PWB a b
X MC1030 8C-AA5-214-010 SHLD-PLATE,SE a b
O MC1A 87-761-096-410 VFT2+3-10 W/O SLOT a b
O MC1B 87-067-703-010 BVT2+3-10 W/0 SL0T a b
O MC1C 87-743-096-410 UT2+3-10 W/O SLOT BLK a b
O MC1D 87-743-094-410 UT2+3-6 W/O SLOT BLK a b
O MC1E 87-067-584-010 BVT2+3-6 W/0 SL0T a b
O MC1F 87-B10-089-410 VT2+3-12 W/O GOLD a b

XA-SDV1 XA-SDV1
HRJSM HKSM
O MC1G 87-067-579-010 BVT2+3-8 W/O SLOT a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-41-

MECHANICAL MAIN PARTS LIST -2/2 (XD-DV1)

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XD-SDV1 XD-SDV1
YHRJSM YHKSM
O MC1001 8A-CQ0-642-010 CONN ASSY,6P PH 50MM a b
O MC1002 8C-AVF-201-010 FOOT,22-7 a b
X MC1003 8C-AVF-010-010 CABI,BTTM HRJ DVD a .
X MC1003 8C-AVF-011-110 CABI,BTTM HK DVD . b
O MC1004 8C-AV6-009-010 PANEL,SIDE (A) a b
X MC1005 8C-AVF-603-010 PWB,MAIN(HR) a b
O MC1006 8C-AV6-613-010 FF-CABLE,25P RF a b
O MC1007 8C-AVF-003-010 PANEL,REAR (B) a b
O MC1008 8C-AVF-004-010 WINDOW,FR DVD a b
O MC1009 87-B00-043-010 BADGE,AIWA 25 ABS SIL ND063 a b

O MC1010 8C-AVF-001-010 CABI,FR DVD a b
O MC1011 8C-AV6-007-010 KEY,PLAY a b
O MC1012 8C-AV6-006-010 KEY,POWER a b
O MC1013 8C-AV6-610-010 LCD,CAV-6 a b
X MC1014 8C-AV6-205-010 SH,LCD a b
X MC1015 8C-AV6-202-110 LENS,LCD a b
X MC1016 8C-AV6-209-010 COVER, LCD a b
X MC1017 8C-AV6-212-010 CUSH, 10-4.8-4 a b
X MC1018 8C-AV6-201-210 HLDR,LCD a b
X MC1019 8C-AV6-605-110 PWB,FRONT 4M a b

XD-SDV1 XD-SDV1
YHRJSM YHKSM
O MC1020 87-036-389-010 SW,PUSH 1-1-1 R8120125 a b
O MC1021 8C-AV6-614-010 CONN ASSY,2P V WHT LID-130 a b
O MC1022 8C-AV6-004-210 LID,DISC a b
O MC1023 8C-AV6-204-010 SPR-T,LID a b
O MC1024 8A-NFA-231-010 OIL-DMPR,70 a b
O MC1025 8C-AVF-002-010 CABI,TOP DVD a b
O MC1026 8C-AV6-015-110 PANEL,MECHA N a b
O MC1027 M8-BZK-690-070 KHM-230 a b
O MC1028 8A-ZG3-217-010 CUSHION,45BLK a b
O MC1029 8C-AV6-208-010 SPACER,MECHA a b

O MC1030 8C-AV6-211-010 FELT,9.2-4.2-3 a b
O MC1A 8A-ZG1-201-010 S-SCREW,MECH 880 a b
O MC1B 87-067-703-010 BVT2+3-10 W/0 SL0T a b
O MC1C 87-067-581-010 BVT2+3-15 W/0 SL0T a b
O MC1D 87-743-096-410 UT2+3-10 W/O SLOT BLK a b
O MC1E 82-NE8-215-010 W,4.2-6.8-0.18 a b

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-42-

OTHER PARTS LIST -1/1

! = ! SAFTY PARTS
C = Components marked

UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL

XA-SDV1 XA-SDV1
HRJSM HKSM
X 8C-AA5-207-010 SH,IC HT 16-10-0.5 a b
X 8C-AA5-212-010 CLOTH,40-15-0.35 a b
X 8C-AA5-210-010 SH, PC 162-57-0.5 W/ADH a b
X 8C-AV5-610-010 PWB,COMB FR 4M a b
X 8C-AV5-605-110 PWB,COMB SURR 3M a b
X 87-619-032-210 WIRE,B9-3-2 a b
X 93-704-281-010 BAG,FOAMED 0.31-300-300 a b
X 8C-AVF-851-010 CUSHION,LEFT CAVF a b
X 8C-AVF-852-010 CUSHION,RIGHT CAVF a b
X 93-704-281-010 BAG,FOAMED 0.31-300-300 a b

X 8C-AA5-851-010 CUSHION,LEFT AMP a b
X 8C-AA5-852-010 CUSHION,RIGHT AMP a b
X 87-B40-086-010 BAG,PV 0.04-230-400 PL a b
X 87-B40-281-010 LBL,BAR-CODE A 35X8 a b
X 8C-AA5-013-010 LBL,CAUTION LH a b
X 8C-AVF-972-010 LBL,POP K2 . b
X 8C-AA5-211-010 SH, PC 40-15-0.5 W/ADH a b
X 87-B50-079-010 LIST,FACILITY(B)-0007 a b
X 8C-AV5-911-110 SH,ADDITIONAL DTS(EC) a b
X 8C-AA5-010-010 LBL,CPA a .

XA-SDV1 XA-SDV1
HRJSM HKSM
X 8C-AVF-973-010 LBL,POP HR2 a .

All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.

-43-

921338

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:[phone]
