FR-C12
YZ
FR-C13
YZ
SERVICE MANUAL
RADIO RECEIVER
S/M Code No. 09-992-323-9N2
DATA
ACCESSORIES/PACKAGE LIST
REF. NO PART NO. KANRI DESCRIPTION
1 S0-302-792-000 INSTRUCTION BOOK<12YZW,12YZB>
1 S0-302-793-000 INSTRUCTION BOOK<12YZW,12YZB>
1 S0-302-794-000 INSTRUCTION BOOK<13YZW,13YZB>
1 S0-302-795-000 INSTRUCTION BOOK<13YZW,13YZB>
NO.
2
SPECIFICATIONS
FR-C12 FR-C13
Design and specifications are subject to change without
•
notice
.
Design and specifications are subject to change without
•
notice
.
3
ELECTRICAL MAIN PARTS LIST
REF. NO PART NO. KANRI DESCRIPTION
NO.
IC
S2-516-191-000 IC,CXA1619AS
DIODE
82-135-799-010 DIODE,1N4148
MAIN C.B
C4 87-010-401-080 CAP,E 1UF-50V
C7 87-016-299-080 CAP,E 10-10V
C13 87-015-697-080 CAP,E 3.3UH-10V
C18 87-016-299-080 CAP,E 10-10V
C19 87-010-404-080 CAP,E 4.7UF-10V
C20 87-016-299-080 CAP,E 10-10V
C25 87-016-299-080 CAP,E 10-10V
C26 87-010-221-080 CAP,E 470UF-10V
C28 87-010-404-080 CAP,E 4.7UF-10V
C29 87-010-562-040 CAP,E 220UF-10V
REF. NO PART NO. KANRI DESCRIPTION
NO.
CF1 87-008-582-010 CER,FILTER SFU455B
CF2 S2-310-012-400 CER,FILTER 10.7MHZ
CN1 S2-603-003-100 FLATE CABLE 3P 30MM
J1 S1-210-010-900 JACK,MONO TC38-066-P1
J2 S1-910-100-150 JACK,SMK
L1 87-003-108-010 INDUCTOR 0.68UH
L3 S7-810-023-500 COIL,ANT AM 8.0-30<12YZW,12YZB>
L3 S7-810-023-600 COIL,LW ANT 350:70<13YZW,13YZB>
LED1 S7-010-012-000 LED,4-2(RED)
PVC1 S2-010-013-801 AM/FM 21-21-12
SW1 S3-110-014-200 SW,SLIDE 2P2T
SW2 S2-210-011-100 SW,PUSH PSC-22E032NL-TA
T1 S1-110-013-800 COIL,OSC AM 7-7-12(RED)
T2 S3-010-021-400 COIL,DET FM 7-7-12(PNK)
T3 S1-010-013-300 COIL,IF AM 7-7-12(WIT)
VR1 S2-910-011-300 VR,RK09K1110 50KB
• Regarding connectors, they are not stocked as they are not the initial order items.
The connectors are available after they are supplied from connector manufacturers upon the order is received.
4

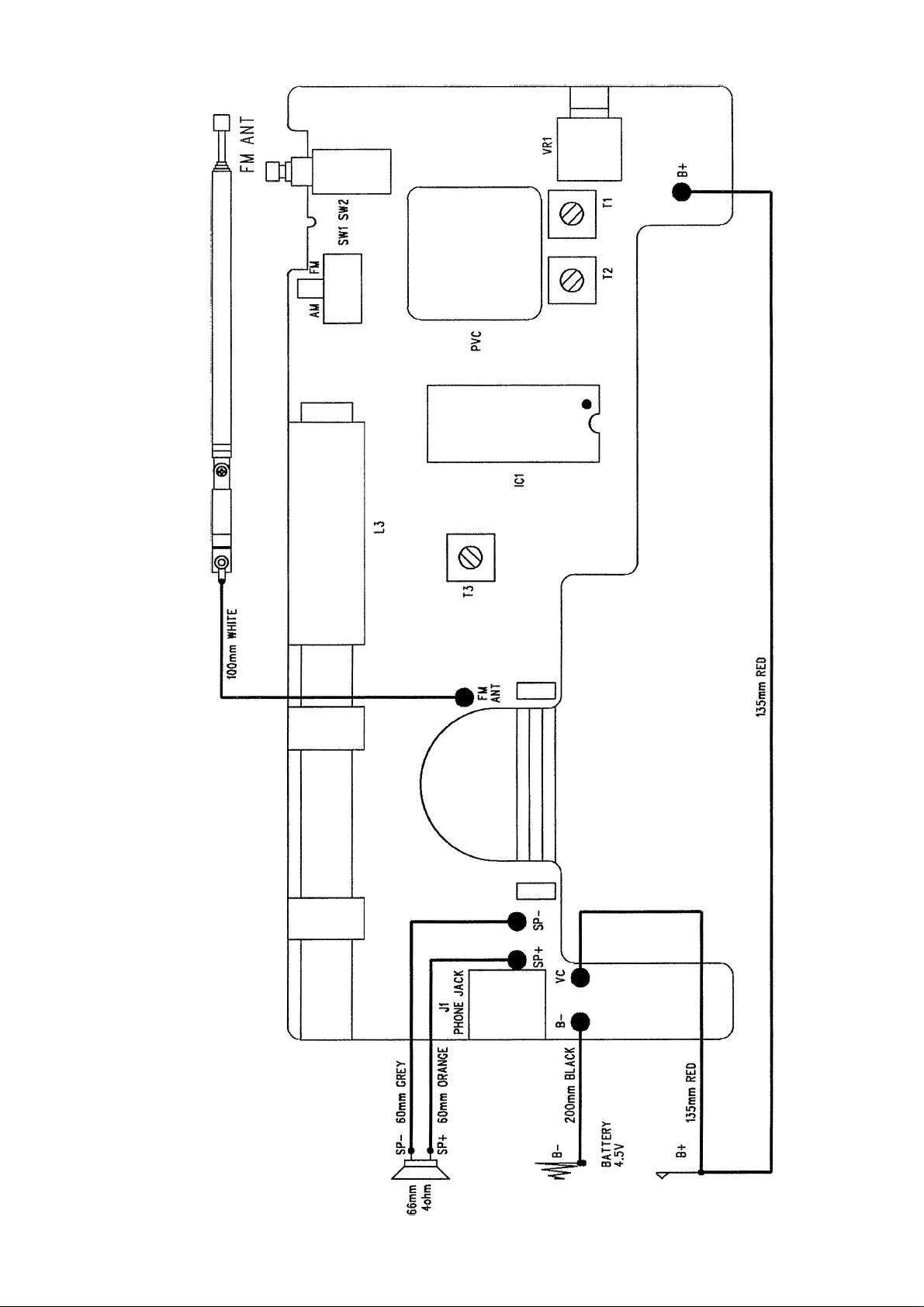

WIRING-1
5
WIRING-2
C30
FR-C12 MODEL ONLY
FR-C13 MODEL ONLY
1
A
B
234567
C
D
E
F
G
H
I
J
K
6
(SPEAKER)
SP1
VOLUME
SP+
SP-
J1
FM DET ADJ.
T2
AM LOW-END
ADJ.
T1
AM HIGH-END
ADJ.
TC3TC2
FM HIGH-END
ADJ.
FM RF ADJ.
L4,TC1
FM LOW-END
ADJ.
L5
AM RF ADJ.
L3,TC4
PVC1
TUNING
BAND
AM
FM
MAIN C.B
T3
AM IF ADJ.
1
TUNE
POWER
ON
OFF
0.022
3.3/10V
1.2K
/10V
10V
0.1
3.9K
4.7/10V
0.10.10.0010.02
4.7/10V
10V
10V
10V
0.022
1.2K
50V
0.022 0.01
10V
NOTE
6
(TC1-4)
FRONT
END
39P
47P
3.5T
25P
0.68µH
*
*
C12 5P : FR-C12 MODEL
C30 130P : FR-C13 MODEL
SCHEMATIC DIAGRAM
7
IC BLOCK DIAGRAM
IC, CXA1619AS
8
ELECTRICAL ADJUSTMENT
9
MECHANICAL EXPLODED VIEW 1/1
9
10
MECHANICAL PARTS LIST 1/1
REF. NO PART NO. KANRI DESCRIPTION
NO.
1 S0-301-160-000 DOOR,BATT<12YZB,13YZB>
1 S0-301-160-100 DOOR,BATT<12YZW,13YZW>
3 87-342-073-210 PAN M-SCREW M2.6-5
5 S0-201-730-000 SPR,CONTACT B
6 S1-010-011-500 BAR,FERRITE AM
7 S0-401-080-000 TERIMAL CONTACT
8 87-751-074-410 BINDING S-SCREW M2.6-8
9 S1-102-140-001 FERRIC BAR HOLDER
10 S1-010-015-000 SPKR,66MM 4/OHM1W
11 S1-700-690-000 DIAL POINTER
12 S0-700-350-000 POINTER
13 S0-100-200-000 HAND STRAP(W)
14 S0-101-320-300 CAB,FRONT(FRC12YZW)<12YZW>
14 S0-101-320-201 CAB,FRONT(FRC13YZB)<13YZB>
14 S0-101-320-401 CAB,FRONT(FRC13YZW)<13YZW>
14 8Z-RTA-022-010 CAB,FRONT(FRC12YZB)<12YZB>
15 S0-801-060-400 LENS DIAL(FRC12YZW)<12YZW>
15 S0-801-060-100 LENS,DIAL(FRC12Z)<12YZB>
15 S0-801-060-200 LENS,DIAL(FRC13YZB)<13YZB>
15 S0-801-060-500 LENS,DIAL(FRC13YZW)<13YZW>
REF. NO PART NO. KANRI DESCRIPTION
NO.
17 87-353-076-210 S-SCREW,PAN M2.6-12
18 S0-201-310-100 CAB,REAR<12YZW,13YZW>
18 S0-201-310-001 CAB,REAR(FRC13YZB)<12YZB,13YZB>
19 S2-010-011-301 ANT,ROD
20 S0-201-720-000 SPR,CONTACT A
21 S1-800-130-000 LED INDI POWER
22 S1-400-990-000 BTN,POWER<12YZB,13YZB>
22 S1-400-990-100 BTN,POWER<12YZW,13YZW>
23 S1-102-160-001 FRAME GEAR
24 S1-700-680-000 GEAR,PVC
25 S1-700-670-000 GEAR TUNE 2
26 S1-102-230-001 INDICATOR TUNE
27 S1-700-660-000 GEAR TUNE 1<12YZW,12YZB>
28 S1-005-029-101 KNOB RTRY VOL<12YZW,13YZW>
28 S0-502-910-001 KNOB,RTRY VOL(FRC13YZB)
29 S0-502-920-100 KNOB RTRY TUNE<12YZW,13YZW>
29 S0-502-920-000 KNOB,RTRY TUNE<12YZB,13YZB>
30 S0-502-940-100 KNOB SL BAND<12YZW,13YZW>
30 S0-502-940-000 KNOB,SL BAND<12YZB,13YZB>
32 S0-502-930-000 SLIDE TUNESET
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange
<12YZB,13YZB>
11
2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:03 (3827) 3111
920074
Printed in Japan
