Aiwa CSD-ED67, CSD-ED 37 User Manual

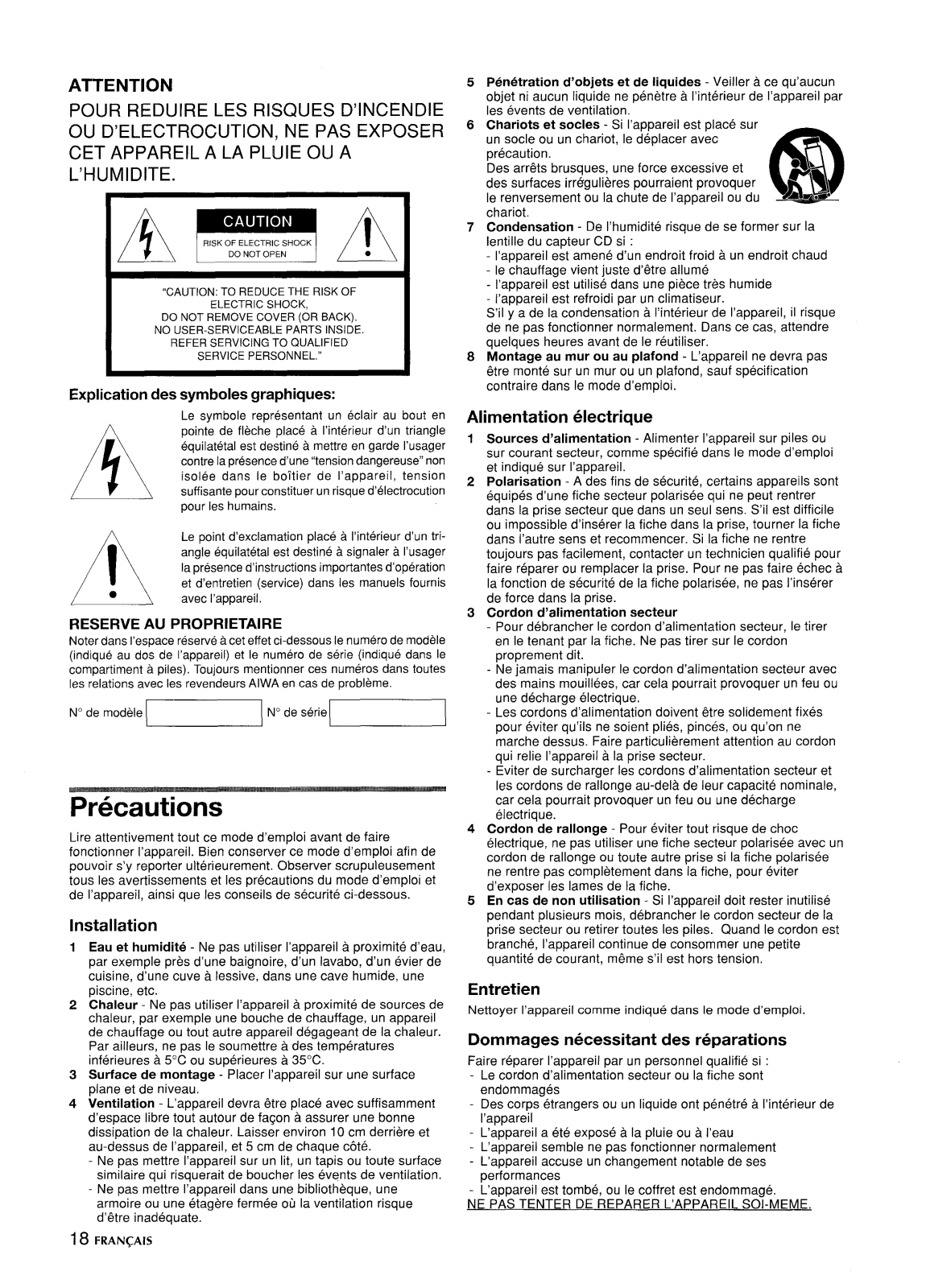

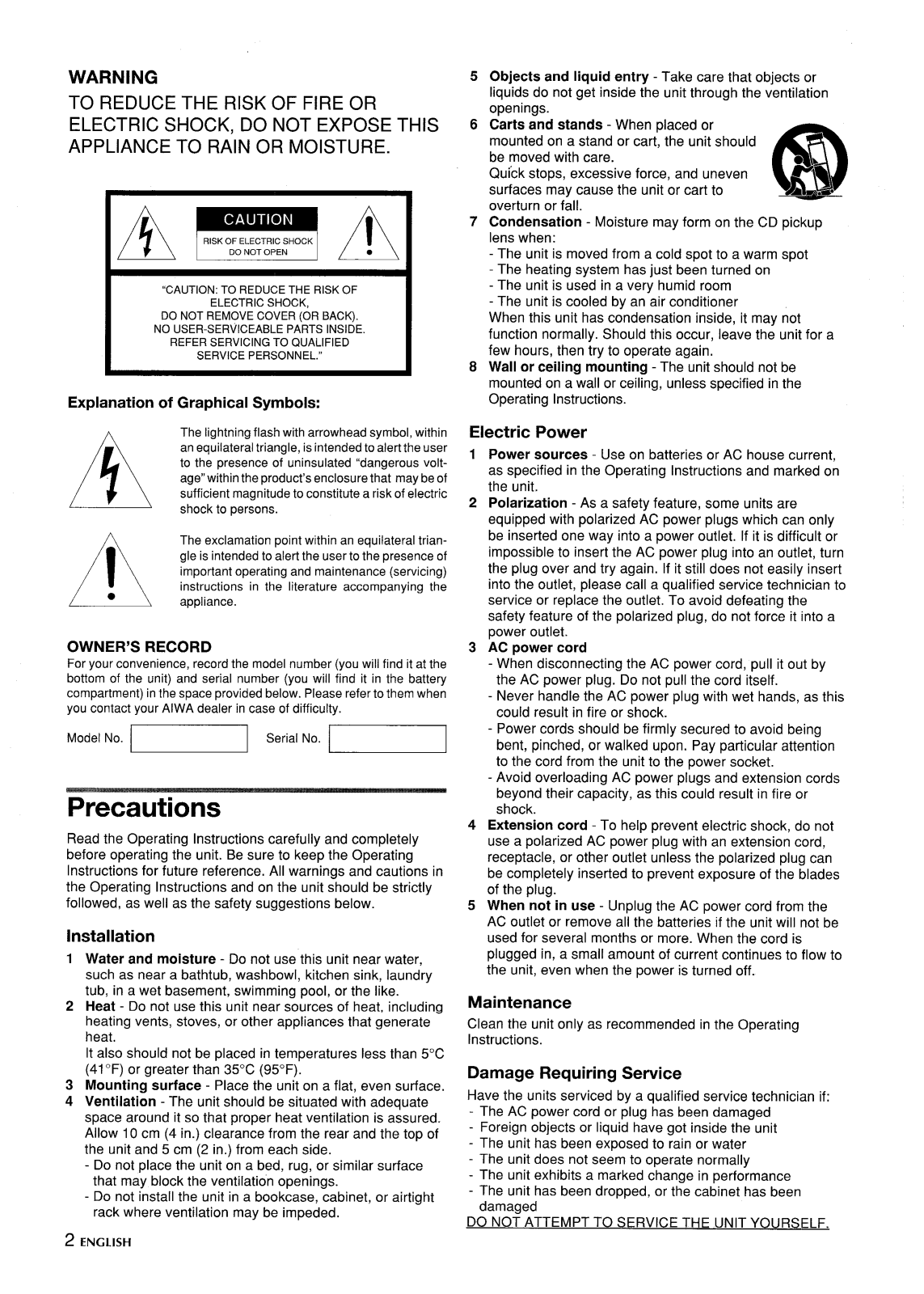

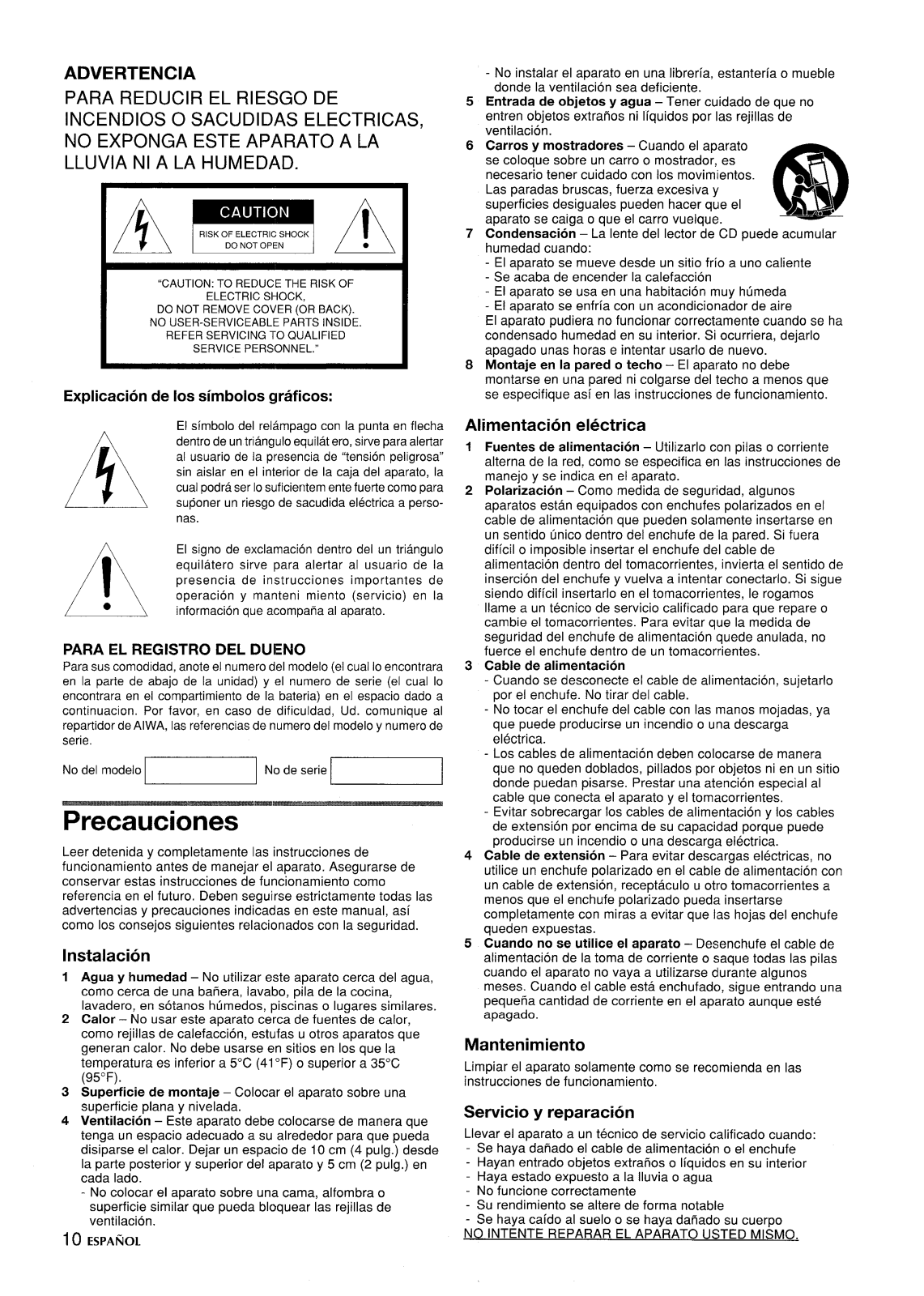

WARNING
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
AE!!!5aA
“CAUTION TO REDUCE THE RISK OF
ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.”
Explanation of Graphical Symbols:
5
Objects and liquid entry - Take care that objects or
liquids do not get inside the unit through the ventilation
openings.
6
Carts and stands - When placed or
mounted on a stand or cart, the unit should
be moved with care.
Quick stops, excessive force, and uneven
surfaces may cause the unit or cart to
overturn or fall.
7
Condensation - Moisture may form on the CD pickup
lens when:
- The unit is moved from a cold spot to a warm spot
- The heating system has just been turned on
- The unit is used in a very humid room
- The unit is cooled by an air conditioner
When this unit has condensation inside, it may not
function normally. Should this occur, leave the unit for a
few hours, then try to operate again.
8
Wall or ceiling mounting - The unit should not be
mounted on a wall or ceiling, unless specified in the
Operating Instructions.
@
~~.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of
A
●
A
OWNER’S RECORD
For your convenience, record the model number (you will find it at the
bottom of the unit) and serial number (you will find it in the battery
compartment) in the space provided below. Please refer to them when
you contact your AIWA dealer
‘ode’No ~ ‘erialNO ~
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
in case of difficulty.
Precautions
Read the Operating Instructions carefully and completely
before operating the unit. Be sure to keep the Operating
Instructions for future reference. All warnings and cautions in
the Operating Instructions and on the unit should be strictly
followed, as well as the safety suggestions below.
Installation
1
Water and moisture - Do not use this unit near water,
such as near a bathtub, washbowl, kitchen sink, laundry
tub, in a wet basement, swimming pool, or the like.
2
Heat - Do not use this unit near sources of heat, including
heating vents, stoves, or other appliances that generate
heat.
It also should not be placed in temperatures less than 5°C
(41 “F) or greater than 35°C (95°F).
Mounting surface - Place the
3
Ventilation - The unit should be situated with adequate
4
space around it so that proper heat ventilation is a&ured.
Allow 10 cm (4 in.) clearance from the rear and the top of
the unit and 5 cm (2 in.) from each side.
- Do not place the unit on a bed, rug, or similar surface
that may block the ventilation openings.
- Do not install the unit in a bookcase, cabinet, or airtight
rack where ventilation may be impeded.
2 ENGLISH
unit on a flat, even surface.
Electric Power
Power sources - Use on batteries or AC house current,
1
as specified in the Operating Instructions and marked on
the unit.
2
Polarization - As a safety feature, some units are
equipped with polarized AC power plugs which can only
be inserted one way into a power outlet. If it is difficult or
impossible to insert the AC power plug into an outlet, turn
the plug over and try again. If it still does not easily insert
into the outlet, please call a qualified service technician to
service or replace the outlet. To avoid defeating the
safety feature of the polarized plug, do not force it into a
power outlet.
AC power cord
3
- When disconnecting the AC power cord, pull it out by
the AC power plug. Do not pull the cord itself.
- Never handle the AC power plug with wet hands, as this
could result in fire or shock.
- Power cords should be firmly secured to avoid being
bent, pinched, or walked upon. Pay particular attention
to the cord from the unit
- Avoid overloading
beyond their capacity, as this could result in fire or
shock.
Extension cord - To help prevent electric shock, do not
4
use a polarized AC power plug with an extension cord,
receptacle, or other outlet unless the polarized plug can
be completely inserted to prevent exposure of the blades
of the plug.
When not in use - Unplug the AC power cord from the
5
AC outlet or remove all the batteries if the unit will not be
used for several months or more. When the cord is
plugged in, a small amount of current continues to flow to
the unit, even when the power is turned off.
to the power socket.
AC power plugs and extension cords
Maintenance
Clean the unit only as recommended in the Operating
Instructions.
Damage Requiring Service
Have the units serviced by a qualified service technician if:
- The AC power cord or plug has been damaged
- Foreign objects or liquid have got inside the unit
- The unit has been exposed to rain or water
- The unit does not seem to operate normally
- The unit exhibits a marked change in performance
- The unit has been dropped, or the cabinet has been
damaged
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.

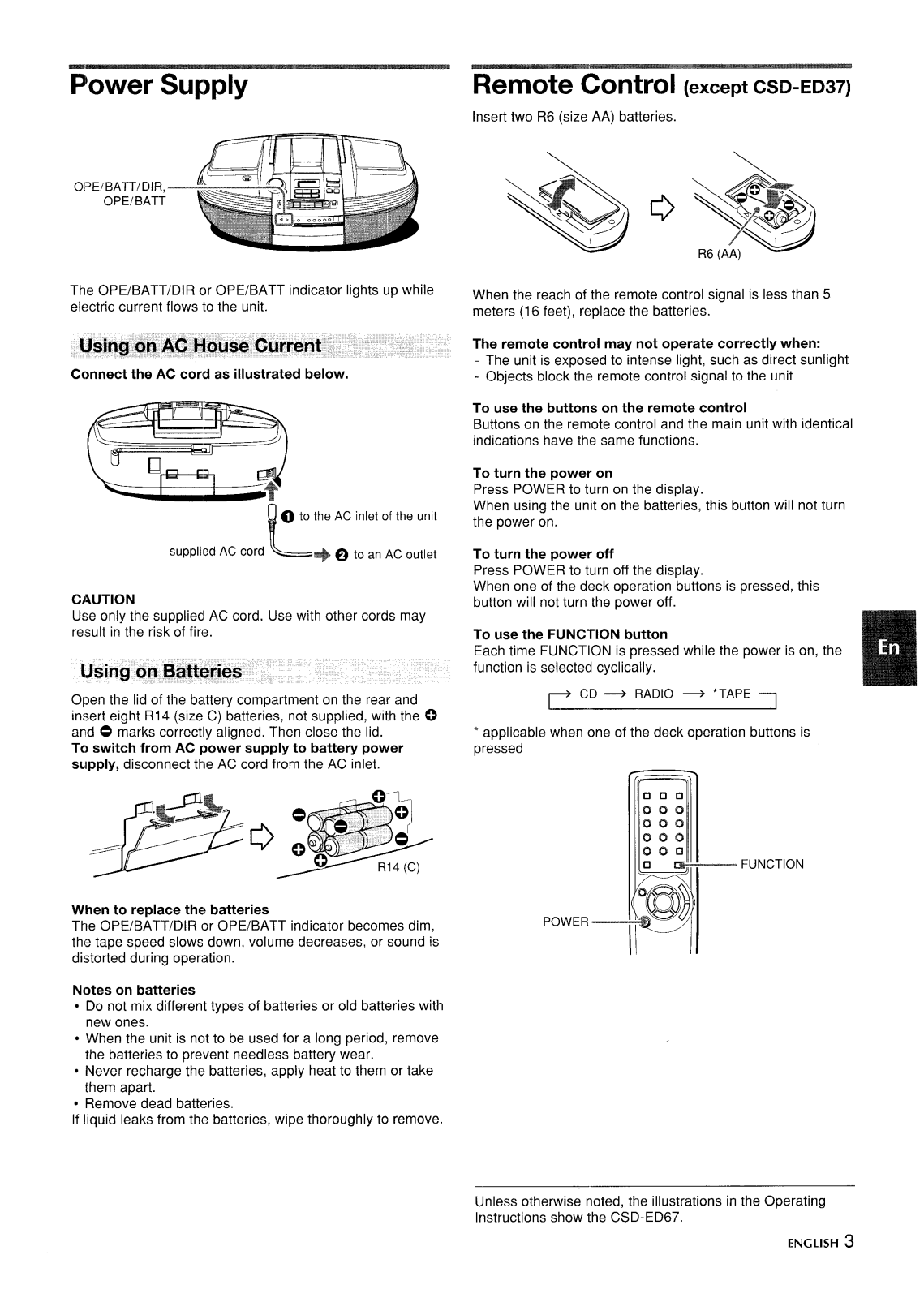

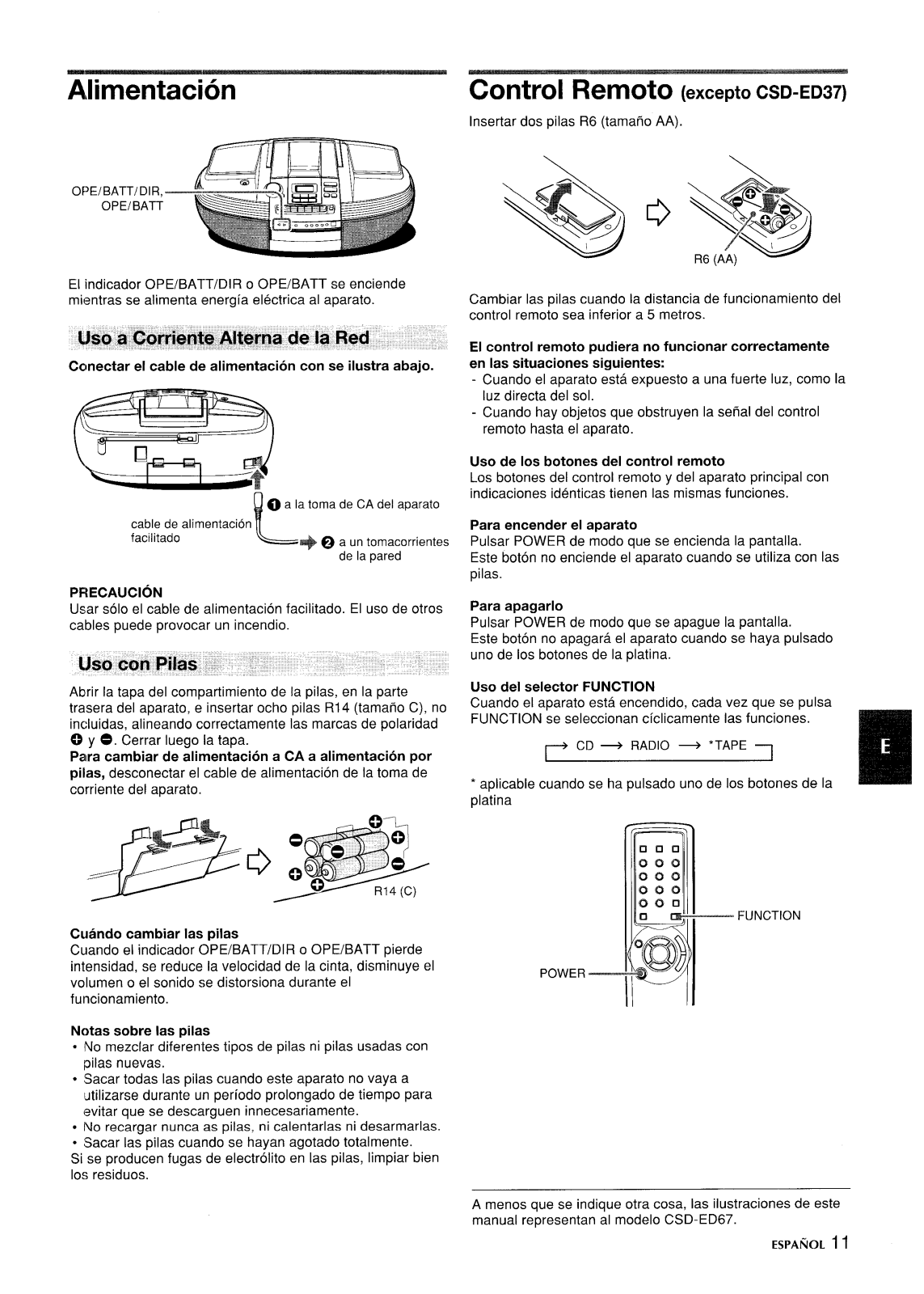

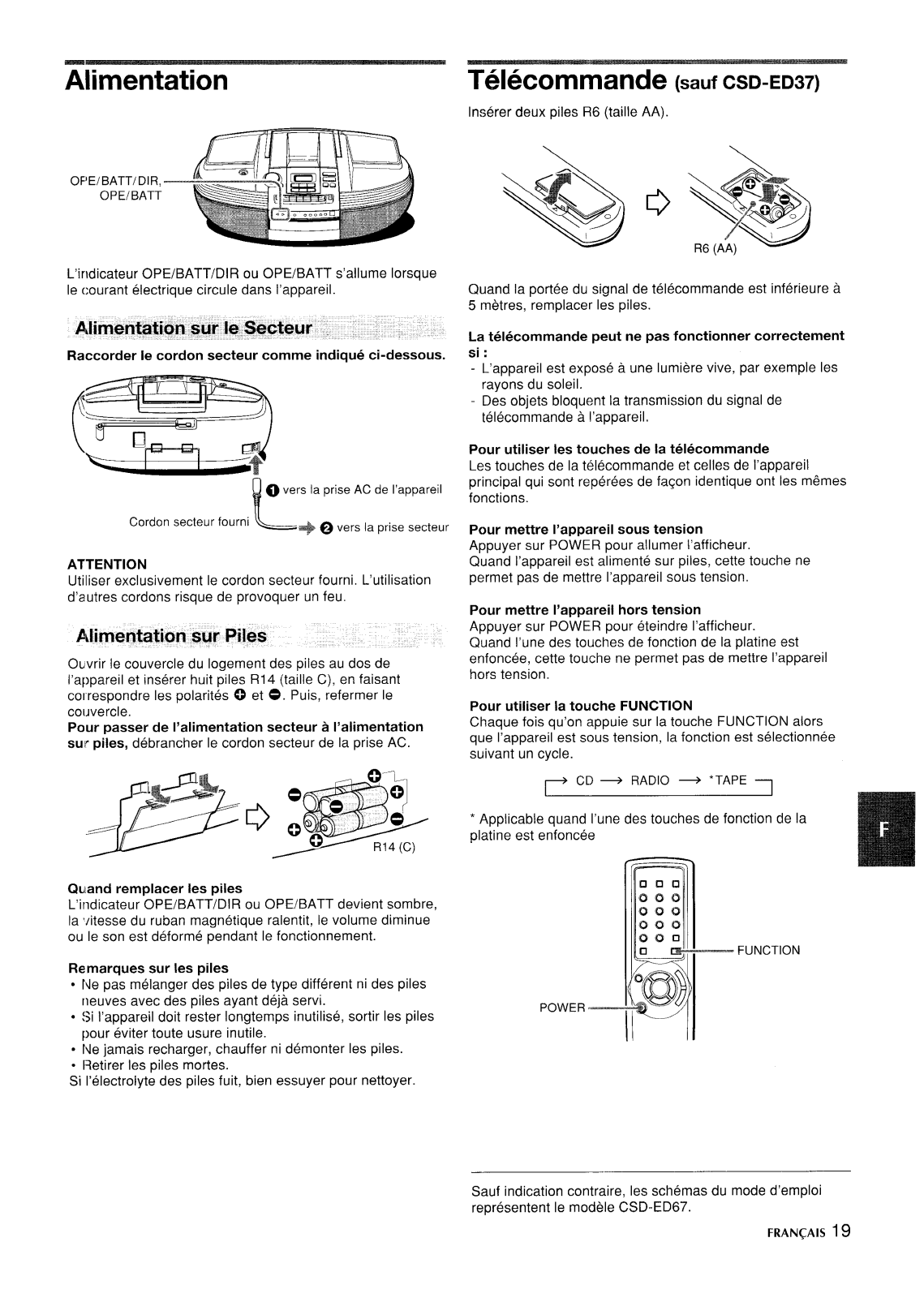

Power Supply
o;2E/BA’j_T/D]R,
OPE/BATT
Remote Control
Insert two R6 (size AA) batteries
* . \~*
(except CSD-ED37)
R6 (AA)
The OPE/BATT/DIR or OPE/BATT indicator lights up while
electric current flows to the unit.
to the AC inlet of the unit
supplied AC cord &+ @ to an AC outlet
CAUTION
Use only the supplied AC cord. Use with other cords may
result in the risk of fire.
Open the lid of the battery compartment on the rear and
insert eight RI 4 (size C) batteries, not supplied, with the ~
O marks correctly aligned. Then close the lid.
and
To switch from AC power supply to battery power
supply, disconnect the AC cord from the AC inlet.
When the reach of the remote control signal is less than 5
meters (16 feet), replace the batteries.
The remote control may not operate correctly when:
- The unit is exposed to intense light, such as direct sunlight
- Objects block the remote control signal to the unit
To use the buttons on the remote control
Buttons on the remote control and the main unit with identical
indications have the same functions.
To turn the power on
Press POWER to turn on the display.
When using the unit on the batteries, this button will not turn
the power on.
To turn the power off
Press POWER to turn off the display.
When one of the deck operation buttons is pressed, this
button will not turn the Dower off.
To use the FUNCTION button
Each time FUNCTION is pressed while the power is on, the
function is selected cyclically.
~
CD ~ RADIO ~ *TAPE ~
* applicable when one of the deck operation buttons is
pressed
When to replace the batteries
The OPE/BATT/DIR or OPE/BATT indicator becomes dim,
the tape speed slows down, volume decreases, or sound is
distorted during operation.
Notes on batteries
● Do not mix different types of batteries or old batteries with
new ones.
● When the unit is not to be used for a long period, remove
the batteries to prevent needless battery wear.
● Never recharge the batteries, apply heat to them or take
them apart.
● Remove dead batteries.
If liquid leaks from the batteries, wipe thoroughly to remove.
FUNCTION
POWER —
Unless otherwise noted, the illustrations in the Operating
Instructions show the CSD-ED67.
ENGLISH 3
REPEAT/
FM MODE/
Osc
-
STOPIMEMORY~
@@
– TUNING+
POWER(!)STANDBY
TAPE
H ““’0 I-kL.J
BAND

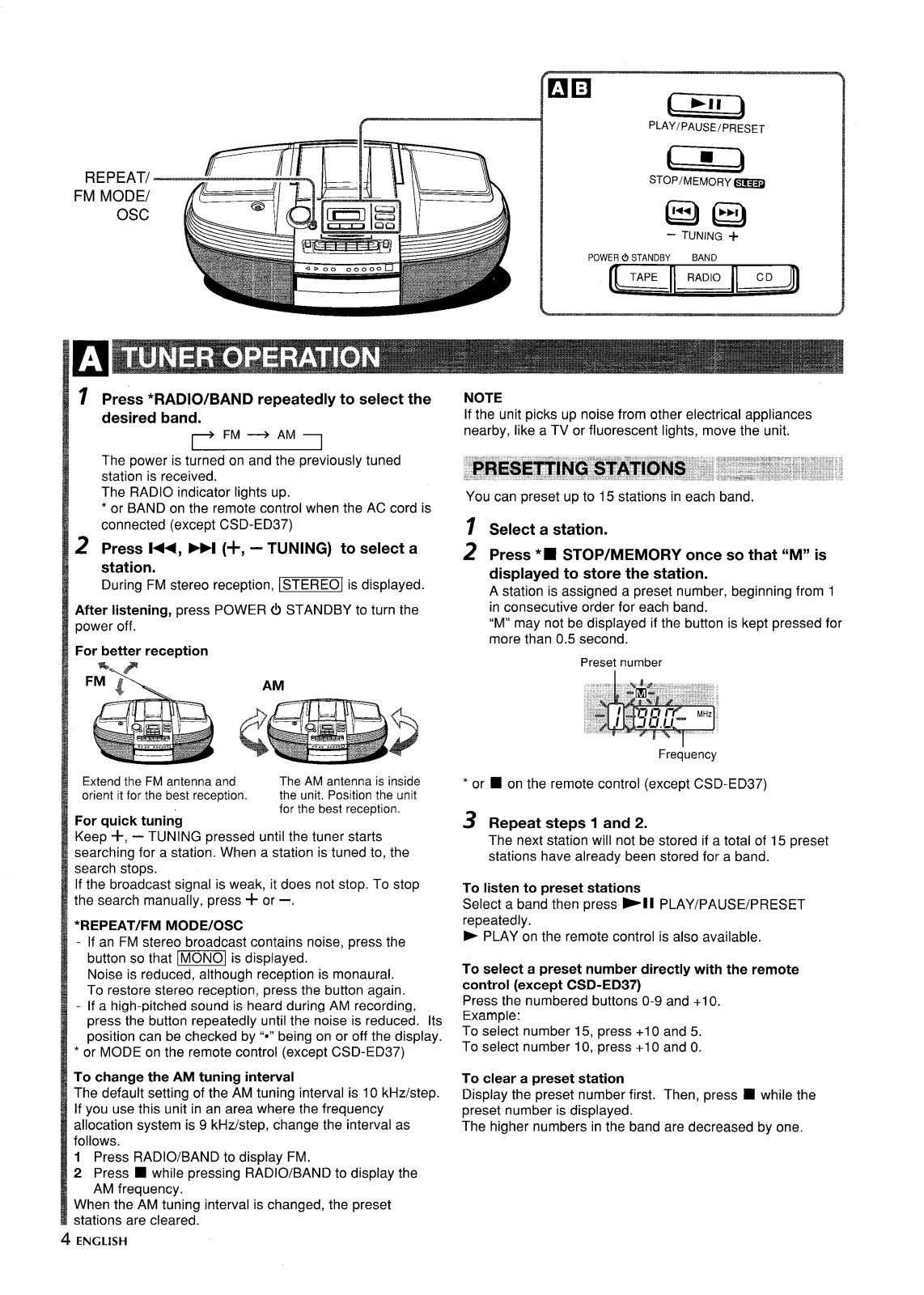

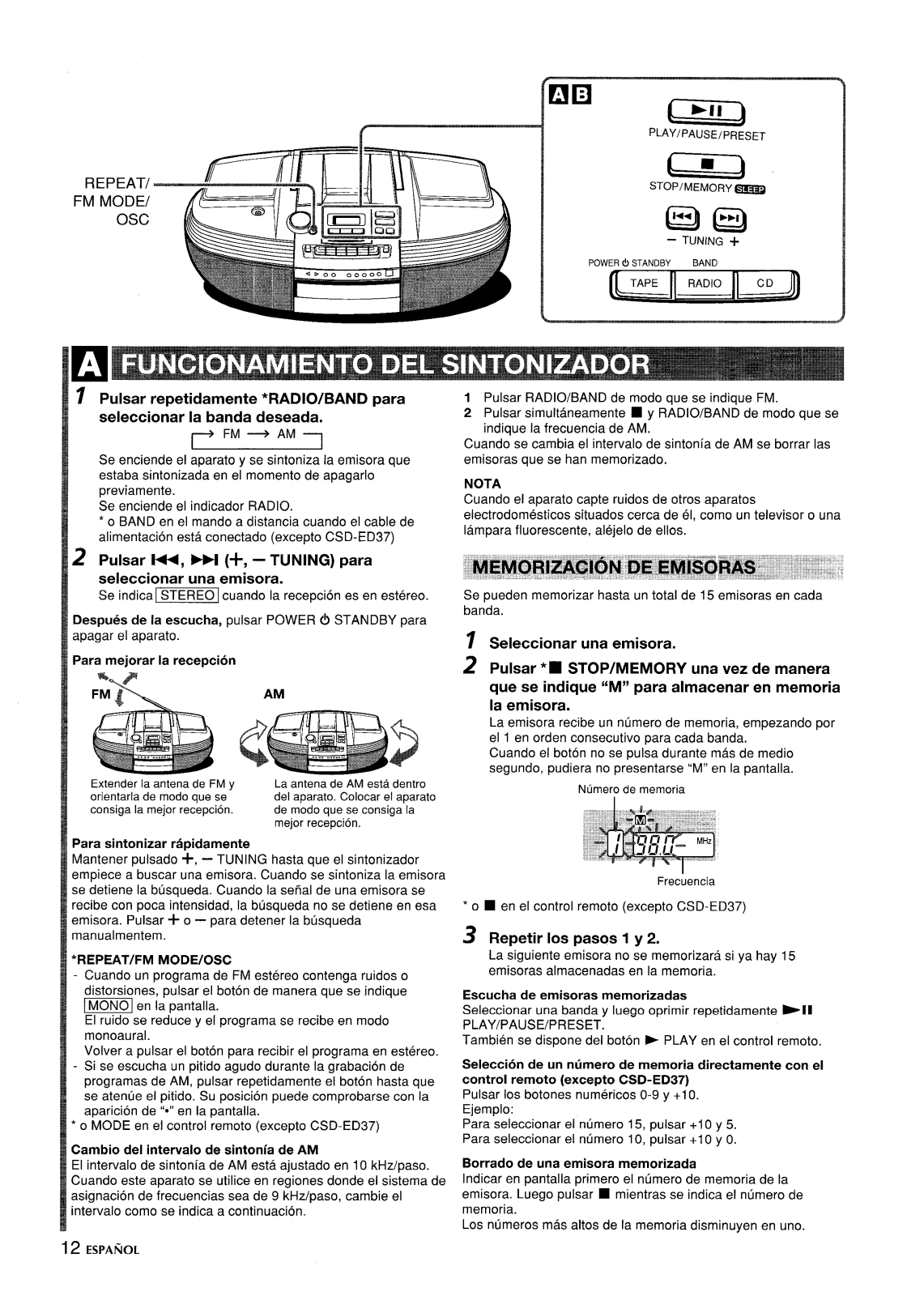

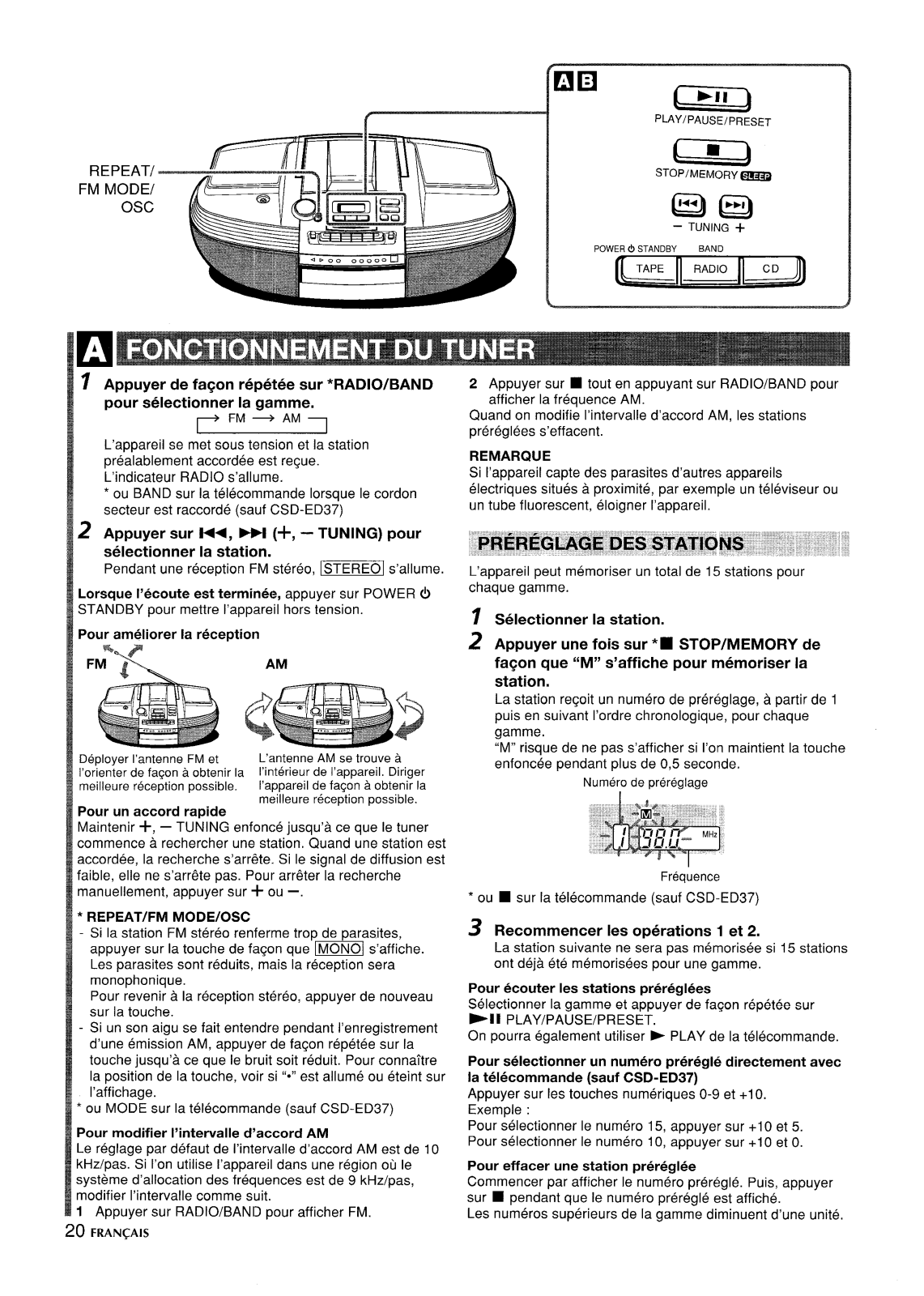

~ Press *RADIO/BAND repeatedly to select the
desired band.
~FM--+AMT
The power is turned on and the previously tuned
station is received.
The RADIO indicator lights up.
* or BAND on the remote control when the AC cord is
connected (except CSD-ED37)
z Press 1+4, BI (+, – TUNING) to select a
station.
During FM stereo reception, ~ is displayed.
After listening, press POWER (!) STANDBY to turn the
power off.
For better reception
$% P
Extend the FM antenna and
orient it for the best reception.
The AM antenna is inside
the unit. Position the unit
for the best reception.
For quick tuning
Keep i-,
– TUNING pressed until the tuner starts
searching for a station. When a station is tuned to, the
search stops.
If the broadcast signal is weak, it does not stop. To stop
the search manually, press -1-or –.
*REPEAT/FM MODE/OSC
- If an FM stereo broadcast contains noise, press the
button so that _ is displayed.
Noise is reduced, although reception is monaural.
To restore stereo reception, press the button again.
- If a high-pitched sound is heard during
press the button repeatedly until the noise is reduced. Its
position can be checked by “*” being
AM recording,
on or off the display.
* or MODE on the remote control (except CSD-ED37)
To change the AM tuning interval
The default setting of the AM tuning interval is 10 kHz/step.
If you use this unit in an area where the frequency
allocation system is 9 kHz/step, change the interval as
follows.
1 Press RADIO/BAND to display FM.
2 Press
■ while pressing RADIO/BAND to display the
AM frequency.
When the AM tuning interval is changed, the preset
stations are cleared.
4 ENGLISH
NOTE
unit picks up noise from other electrical appliances
If the
nearby, like a TV or fluorescent lights, move the unit.
You can preset up to 15 stations in each band.
Select a station.
Press *9 STOP/MEMORY once so that “M” is
displayed to store the station.
A station is assigned a preset number, beginning from 1
in consecutive order for each band.
“M” may not be displayed if the button is kept pressed for
more than 0.5 second.
Preset number
Frequency
* or
■ on the remote control (except CSD-ED37)
B
Repeat steps 1 and 2.
The next station will not be stored if a total of 15 preset
stations have already been stored for a band.
TO listen to preset stations
Select a band then press -11 PLAY/PAUSE/PRESET
repeatedly.
- PLAY on the remote control is also available.
To select a preset number directly with the remote
control (except CSD-ED37)
Press the numbered buttons O-9 and +1O.
Example:
To select number 15, press +10 and 5.
To select number 10, press +10 and O.
To clear a preset station
Display the preset number first. Then, press
preset number is displayed.
The higher numbers in the band are decreased by one,
■ while the

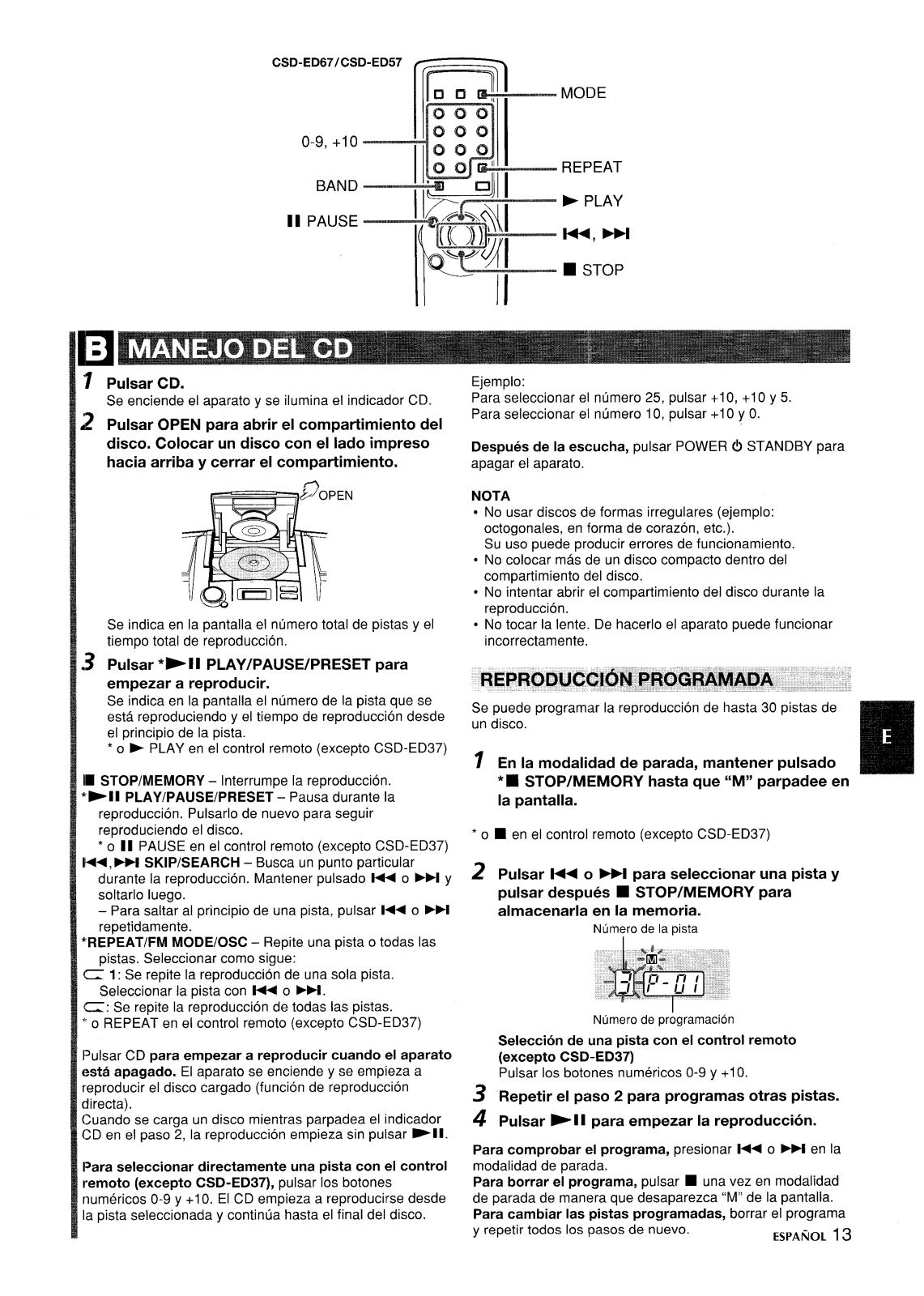

MODE
REPEAT
- PLAY
H+, m
■ STOP

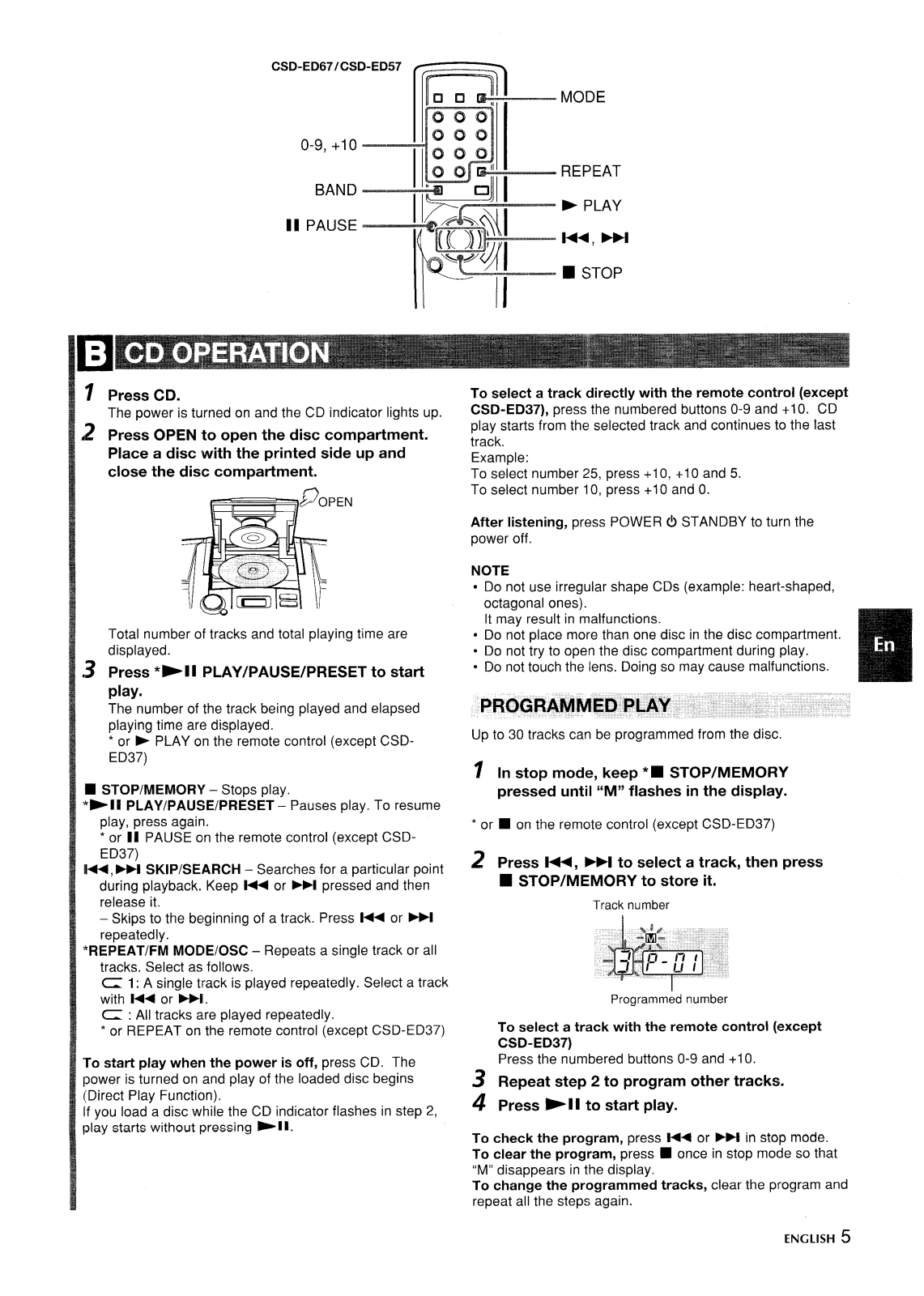

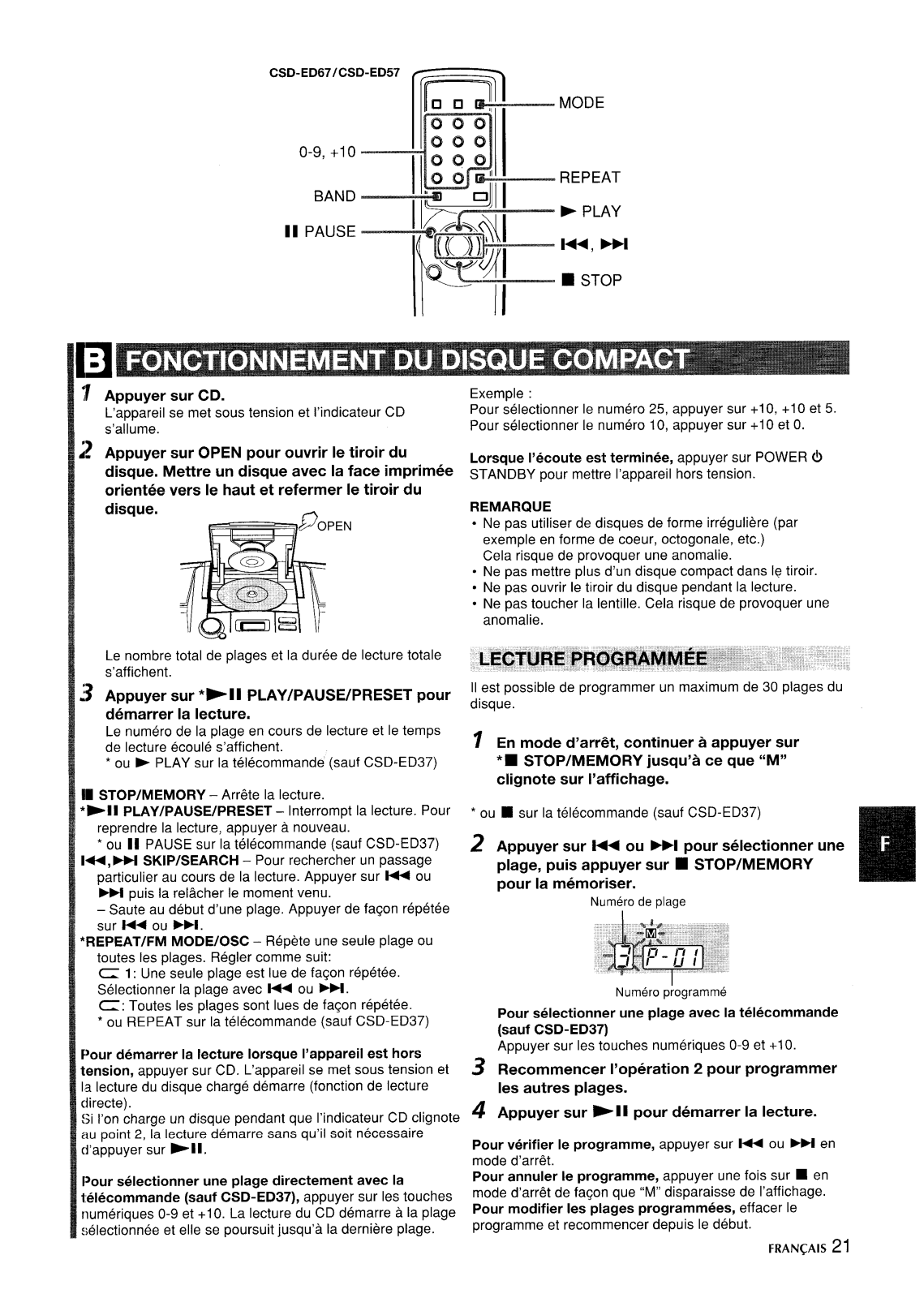

Press CD.
1
The power is turned on and the CD indicator lights up.
Press OPEN to open the disc compartment.
2
Place a disc with the printed side up and
close the disc compartment.
Total number of tracks and total playing time are
displayed.
Press’- II PLAY/PAUSE/PRESET to start
3
play.
The number of the track being played and elapsed
playing time are displayed.
* or F PLAY on the remote control (except CSDED37)
■ STOP/MEMORY – Stops play.
‘>lE PLAY/PAUSE/PRESET – Pauses play. To resume
play, press again.
‘ or II PAUSE on the remote control (except CSDED37)
K+, FM SKIP/SEARCH – Searches for a particular point
during playback. Keep H or
release it.
– Skips to the beginning of a track. Press 14 or FM
repeatedly.
‘REPEAT/FM MODE/OSC – Repeats a single track or all
tracks. Select as follows.
C 1: A single track is played repeatedly. Select a track
with 144 or
C : All tracks are played repeatedly.
* or REPEAT on the remote control (except CSD-ED37)
To start play when the power is off, press CD. The
power is turned on and play of the loaded disc begins
(Direct Play Function).
If you load a disc while the CD indicator flashes in step 2,
play starts without pressing -11.
➤>1.
➤Pl pressed and then
To select a track directly with the remote control (except
CSD-ED37), press the numbered buttons O-9 and +1O. CD
play starts from the selected track and continues to the last
track.
Example:
To select number 25, press +10, +10 and 5.
To select number 10, press +10 and O.
After listening, press POWER (!) STANDBY to turn the
power off.
NOTE
● Do not use irregular shape CDs (example: heart-shaped,
octagonal ones).
It may result in malfunctions.
● Do not place more than one disc in the disc compartment.
● Do not try to open the disc compartment during play.
● Do not touch the lens. Doing so may cause malfunctions.
Up to 30 tracks can be programmed from the disc.
In stop mode, keep’= STOP/MEMORY
~
pressed until “M” flashes in the display.
‘
or ■ on the remote control (except CSD-ED37)
2
Press W, >>1 to select a track, then press
H STOP/MEMORY to store it.
Track number
Programmed number
To select a track with the remote control (except
CSD-ED37)
Press the numbered buttons O-9 and +1O.
Repeat step 2 to program other tracks.
3
Press -II to start play.
4
To check the program, press ~< or ~ in stop mode.
To clear the program, press
“M” disappears in the display.
To change the programmed tracks, clear the program and
repeat all the steps again.
■ once in stop mode so that
ENGLISH 5

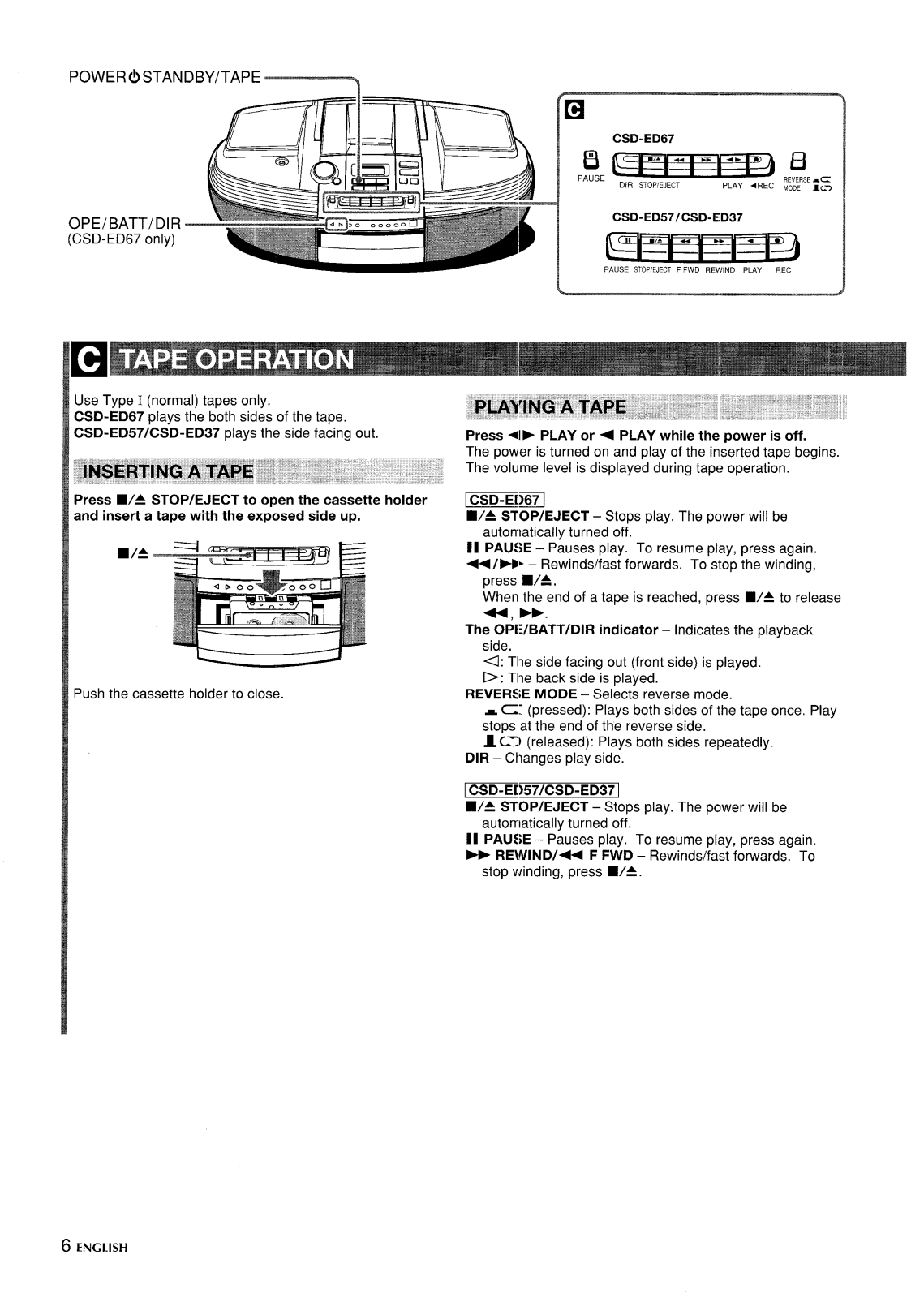

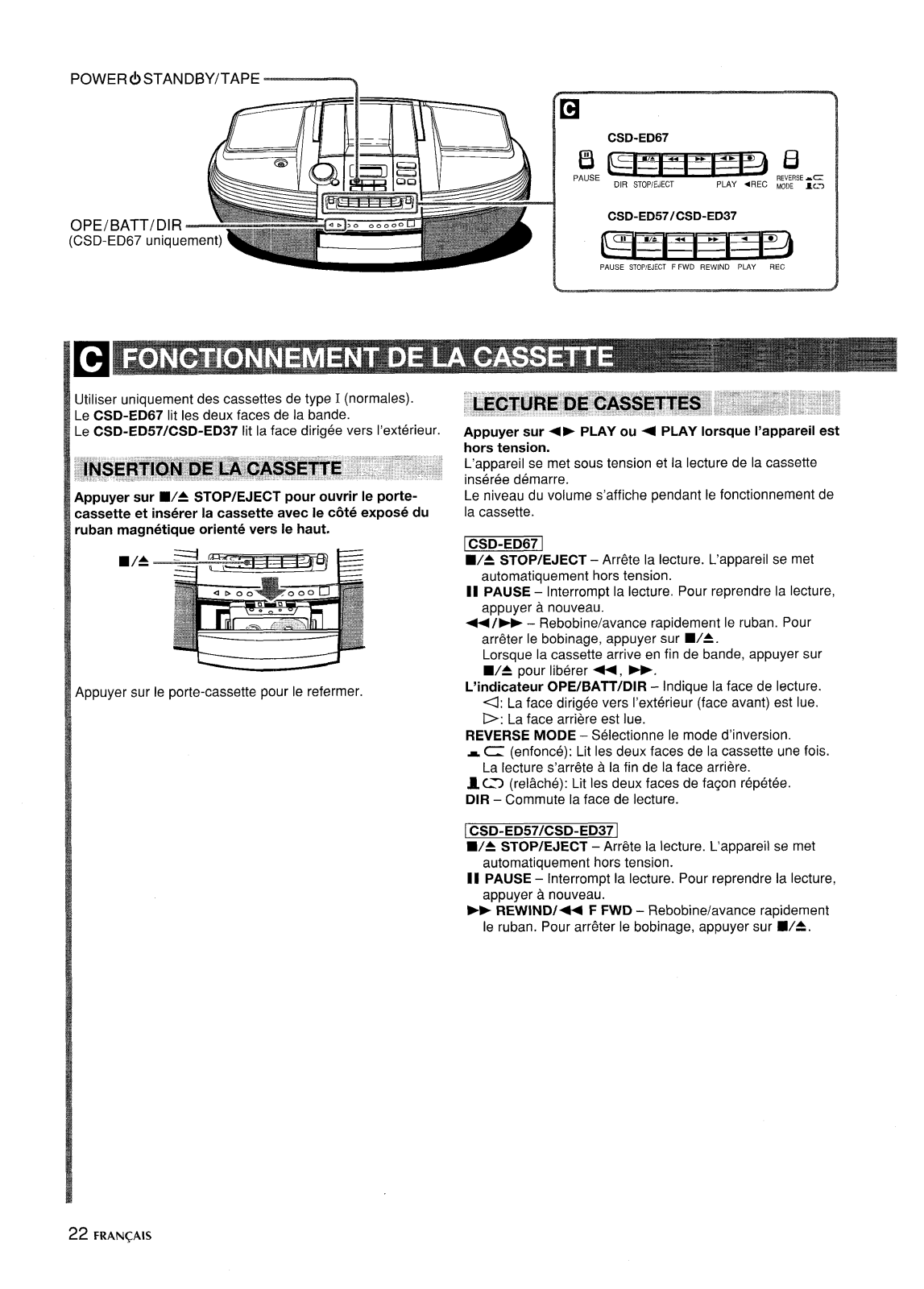

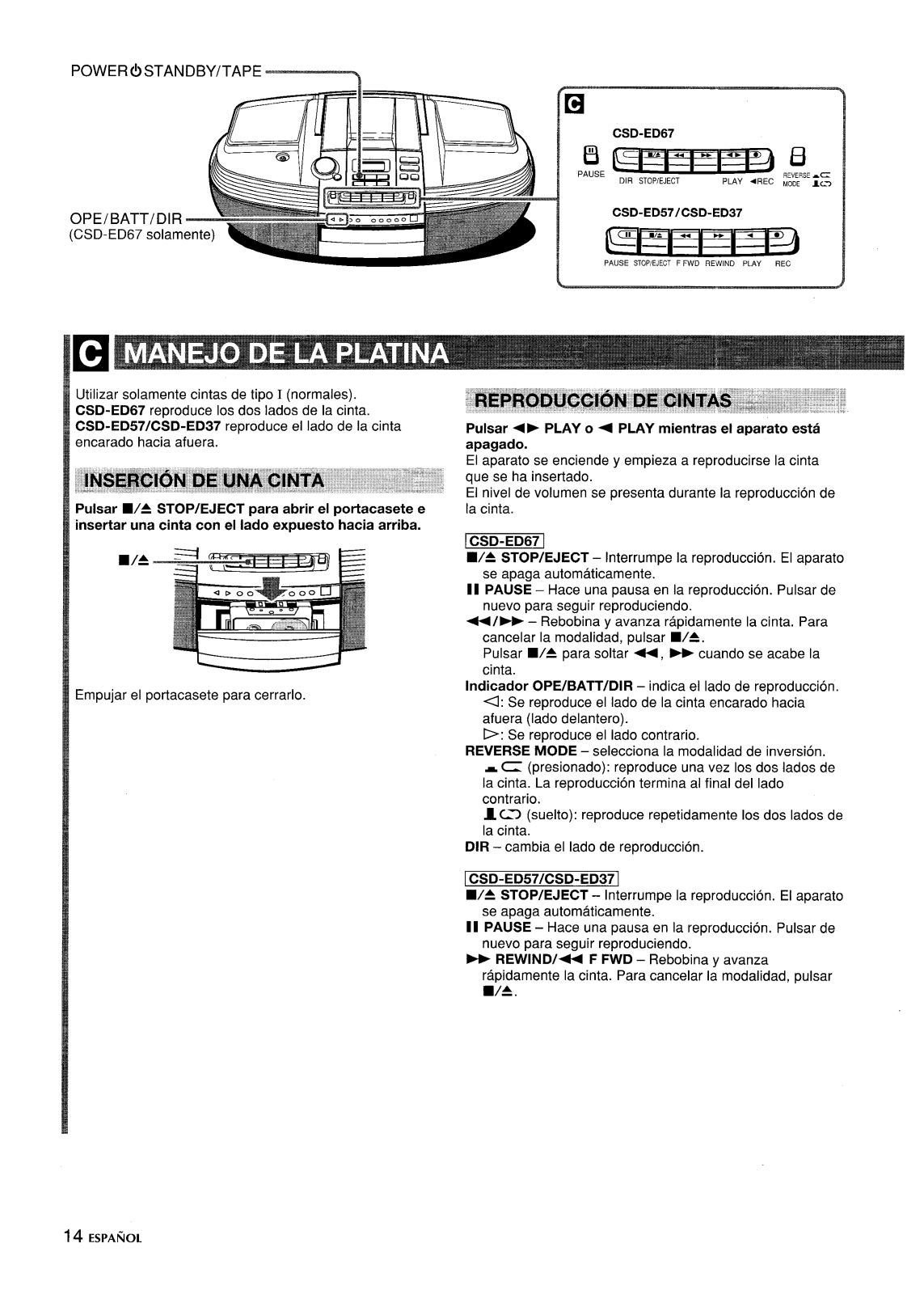

POWER(!) STANDBY/TAPE —%
CSD-ED67
OPE/BATT/DIR
(CSD-ED67 only)
Jse Type I (normal) tapes only.
XD-ED67 plays the both sides of the tape.
>SD-ED57/CSD-ED37 plays the side facing out.
%ess W4 STOP/EJECT to open the cassette holder
md insert a tape with the exposed side up.
‘ush the cassette holder to close.
DIR STOP/EJECT
CSD-ED571CSD-ED37
Press +1➤ PLAY or < PLAY while the power is off.
The power is turned on and play of the inserted tape begins.
volume level is displayed during tape operation.
The
-q
WA STOP/EJECT – Stops play. The power will be
automatically turned off.
II PAUSE – Pauses play. To resume play, press again.
M/W~ – Rewinds/fast forwards. To stop the winding,
■\A.
press
When the end of a tape is reached, press WA to release
U,w.
The OPEVBATT/DIR indicator – Indicates the playback
side.
U: The side facing out (front side) is played.
D: The back side is played.
REVERSE MODE – Selects reverse mode.
~ G (pressed): Plays both sides of the tape once, Play
stops at the end of the reverse side.
1~=) (released): Plays both sides repeatedly.
DIR – Changes play side.
PLAY <REC
!
-)57=D-ED371
W= STOP/EJECT – Stops play. The power will be
automatically turned off.
II PAUSE – Pauses play. To resume
>
RE\MIND/+ F FWD – Rewinds/fast forwards. To
stop winding, press
■/4.
play, press again.
6 ENGLISH

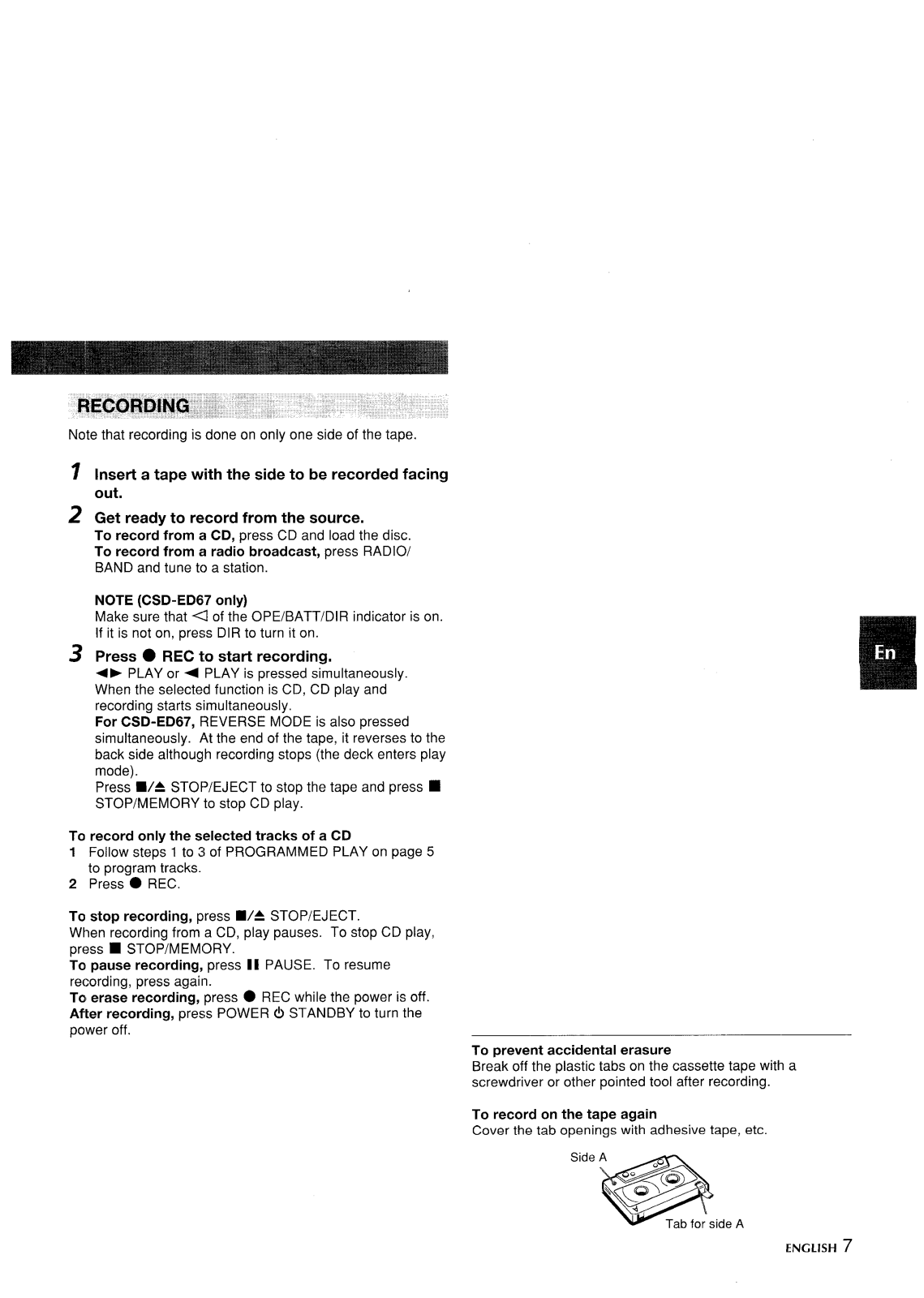

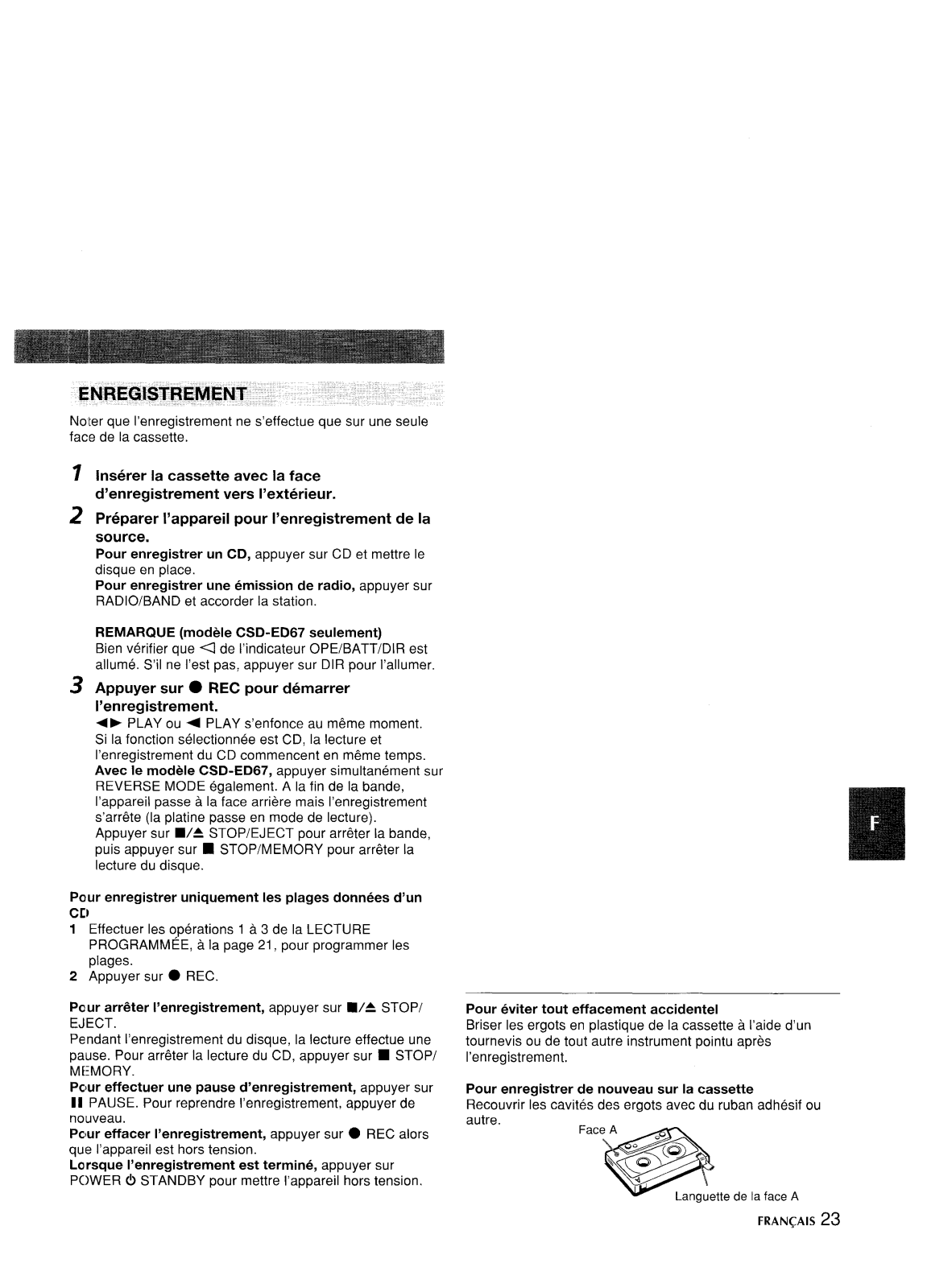

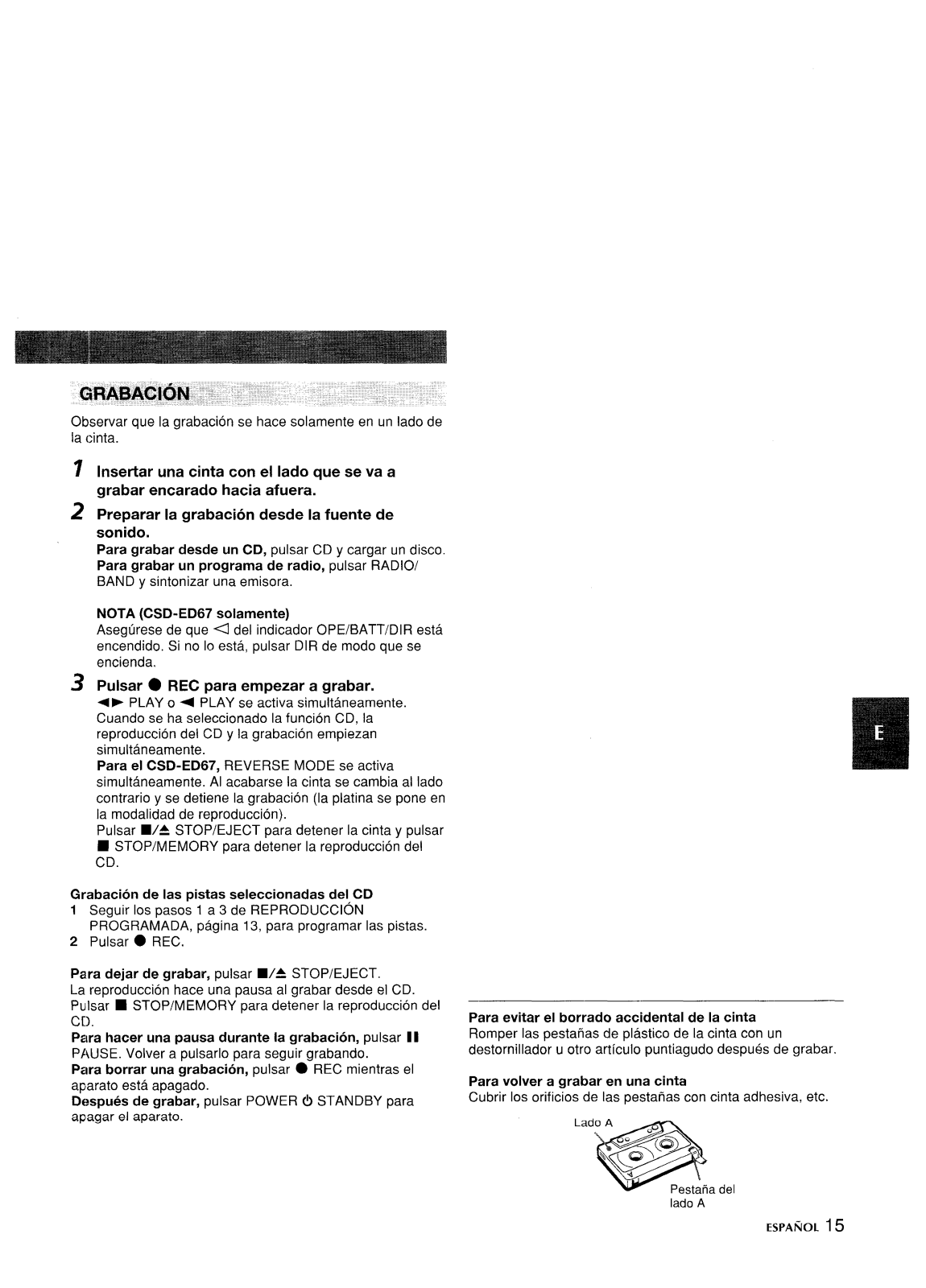

Insert a tape with the side to be recorded facing
out.
Get ready to record from the
To record from a CD, press CD and load the disc.
To record from a radio broadcast, press RADIO/
BAND and tune to a station.
NOTE (CSD-ED67 only)
Make sure that ~ of the OPE/BATT/DIR indicator is on.
If it is not on, press DIR to turn it on.
Press
4* PLAY or 4 PLAY is pressed simultaneously.
When the selected function is CD, CD play and
recording starts simultaneously,
For CSD-ED67, REVERSE MODE is also pressed
simultaneously. At the end of the tape, it reverses to the
back side although recording stops (the deck enters play
mode).
Press WA STOP/EJECT to stop the tape and press
STOP/MEMORY to stop CD play.
To record only the selected tracks of a CD
1 Follow steps 1 to 3 of PROGRAMMED PLAY on page 5
to program tracks.
2 Press
To stop recording, press WA STOP/EJECT.
When recording from a CD, play pauses. To stop CD play,
press W STOP/MEMORY.
To pause recording, press II PAUSE. To resume
recording, press again.
To erase recording, press
After recording, press POWER (!) STANDBY to turn the
power off.
● REC to start recording,
● REC.
● REC while the power is off.
source.
■
To prevent accidental erasure
Break off the plastic tabs on the cassette tape with a
screwdriver or other pointed tool after recording.
To record on the tape again
Cover the tab openings with adhesive tape, etc.
Side A
“OO(! ~
\
m
4
Tab for side A
ENGLISH
7

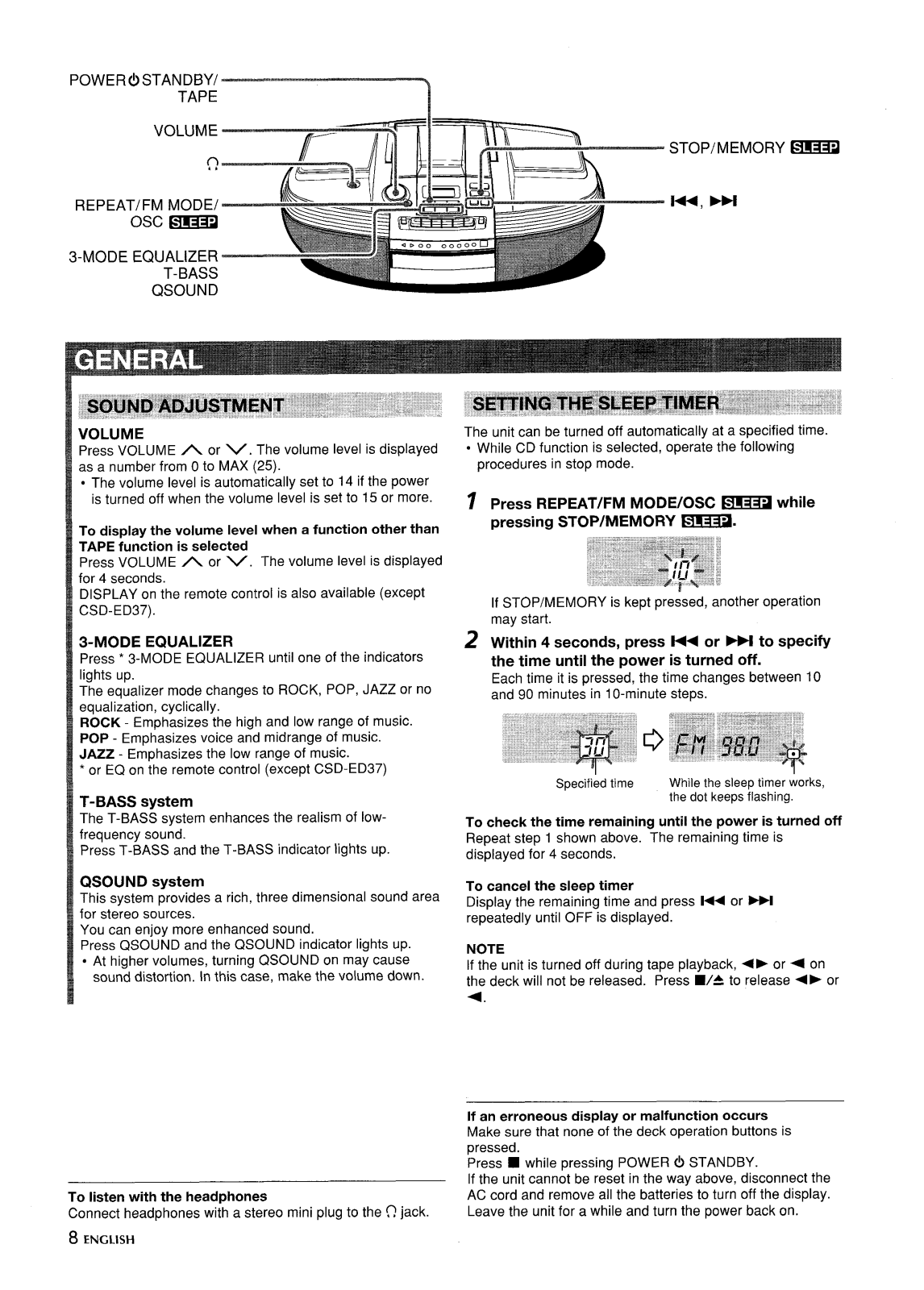

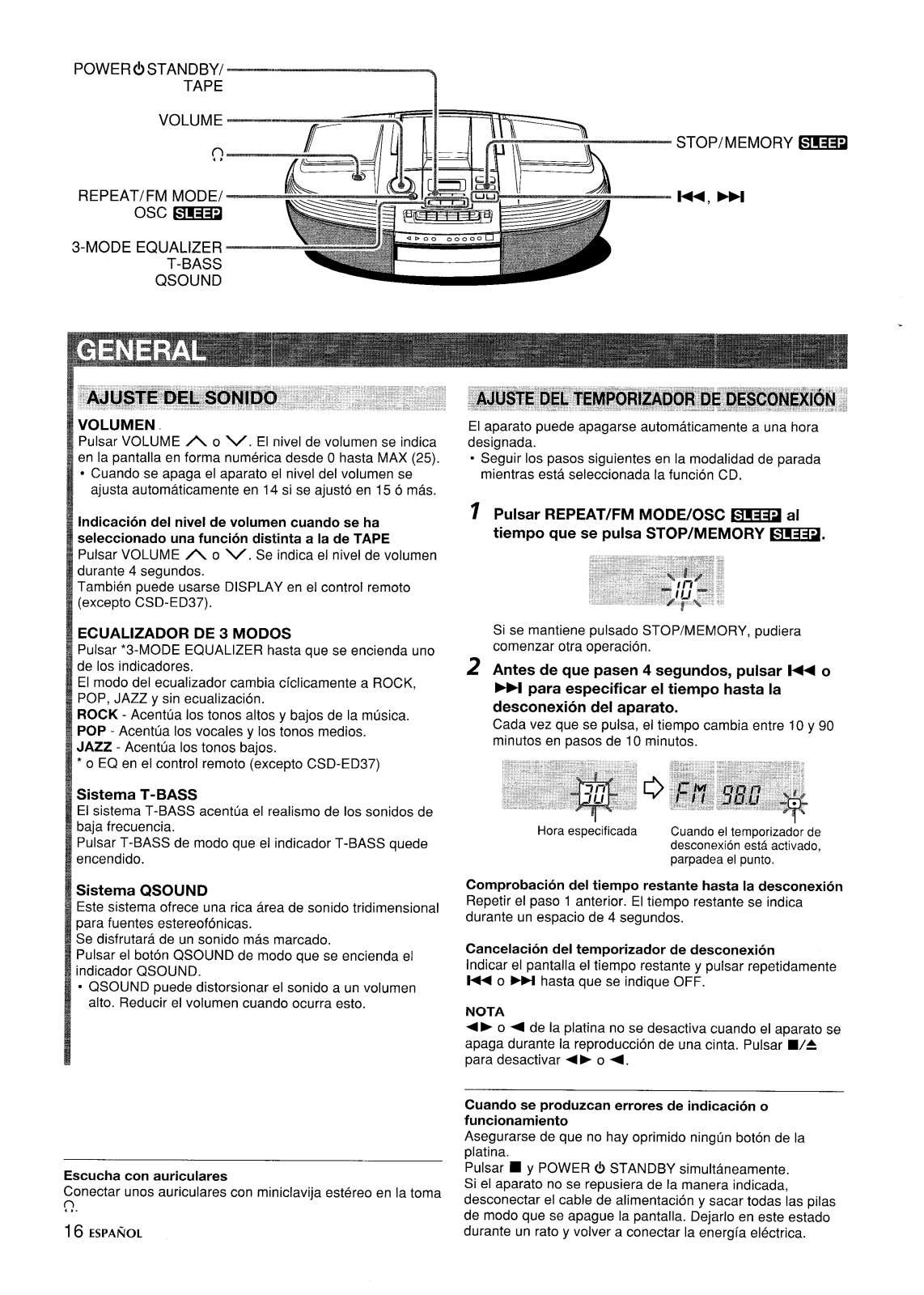

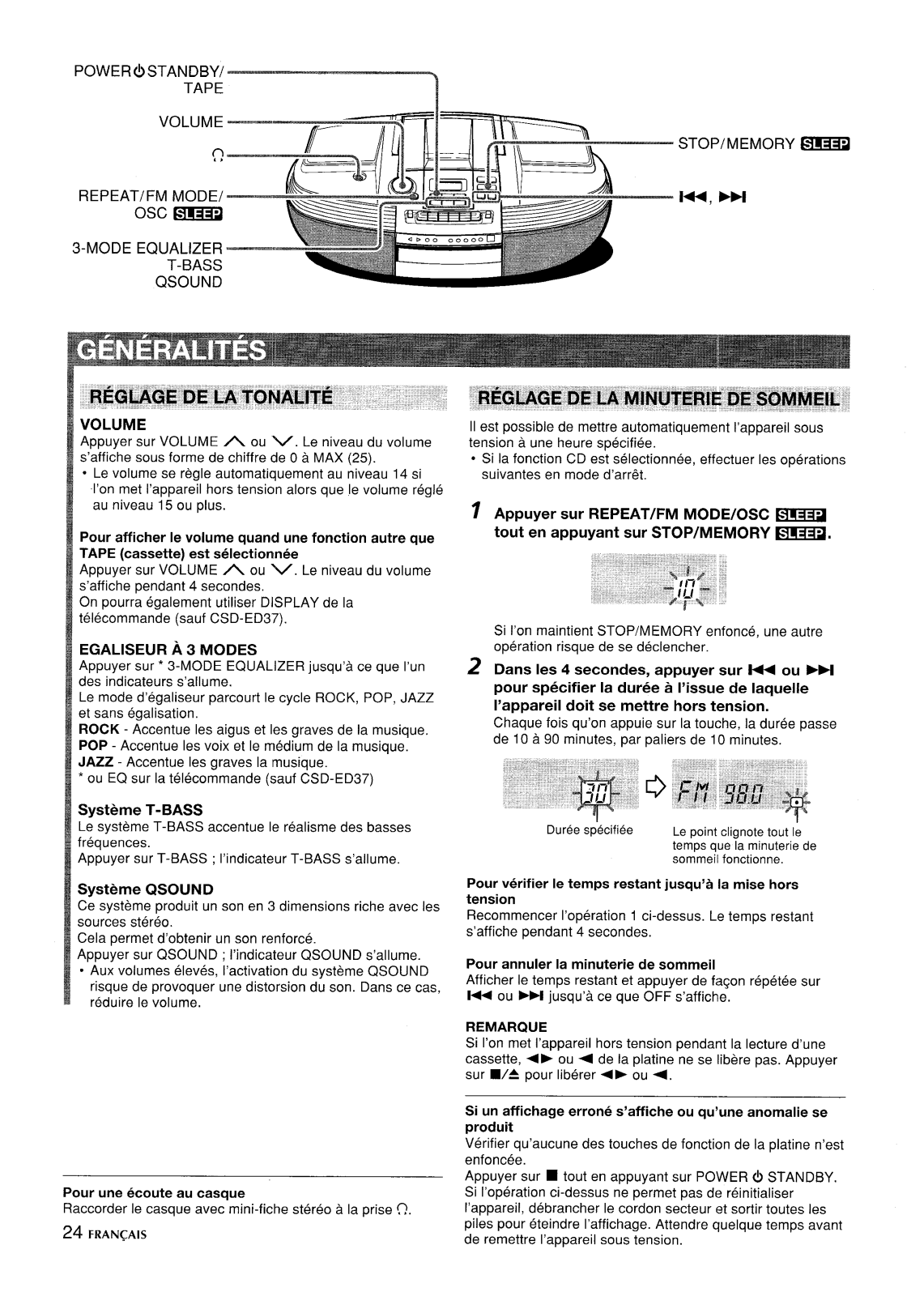

REPEAT/FM M“DE/
“’c Iml=ra
3-MODE EQUALIZER —
T-BASS
QSOUND
,,-,====4==,4 ,4
LL—’716
\\..——— ,—
T
\
Y
~
STOP/MEMORY ~
m, w
VOLUME
Press VOLUME A or V. The volume level is displayed
as a number from Oto MAX (25).
● The volume level is automatically set to 14 if the power
is turned off when the volume level is set to 15 or more.
To display the volume level when a function other than
TAPE function is selected
Press VOLUME A or V. The volume level is displayed
for 4 seconds.
DISPLAY on the remote control is also available (except
CSD-ED37).
3-MODE EQUALIZER
Press * 3-MODE EQUALIZER until one of the indicators
lights up.
The equalizer mode changes to ROCK, POP, JAZZ or no
equalization, cyclically.
ROCK - Emphasizes the high and low range of music.
POP - Emphasizes voice and midrange of music.
JAZZ - Emphasizes the low range of music.
* or EQ on the remote control (except CSD-ED37)
T-BASS system
The T-BASS system enhances the realism of lowfrequency sound.
Press T-BASS and the T-BASS indicator lights up.
The unit can be turned off automatically at a specified time.
● While CD function is selected, operate the following
procedures in stop mode.
1
Press REPEAT/FM MODE/OSC ~ while
pressing STOP/MEMORY 13’HW.
If STOP/MEMORY is kept pressed, another operation
may start.
Within 4 seconds, press l++ or M to specify
2
the time until the power is turned off.
Each time it is pressed, the time changes between 10
and 90 minutes in 10-minute steps.
Specified time
To check the time remaining until the power is turned off
Repeat step 1 shown above. The remaining time is
displayed for 4 seconds.
While the sleep timer works,
the dot keeps flashing.
QSOUND system
This system provides a rich, three dimensional sound area
for stereo sources.
You can enjoy more enhanced sound.
Press QSOUND and the QSOUND indicator lights
● At higher volumes, turning QSOUND on may cause
sound distortion. In this case, make the volume down.
To listen with the headphones
Connect headphones with a stereo mini plug to the 0 jack.
up.
8 ENGLISH
To cancel the sleep timer
Display the remaining time and press K or ~
repeatedly until OFF is displayed.
NOTE
If the unit is turned off during tape playback, <- or 4 on
the deck will not be released. Press W= to release
4.
If an erroneous display or malfunction occurs
Make sure that none of the deck operation buttons is
pressed.
■ while pressing POWER 0 STANDBY.
Press
If the unit cannot be reset in the way above, disconnect the
AC cord and remove all the batteries to turn off the display.
Leave the unit for a while and turn the power back on.
● > or

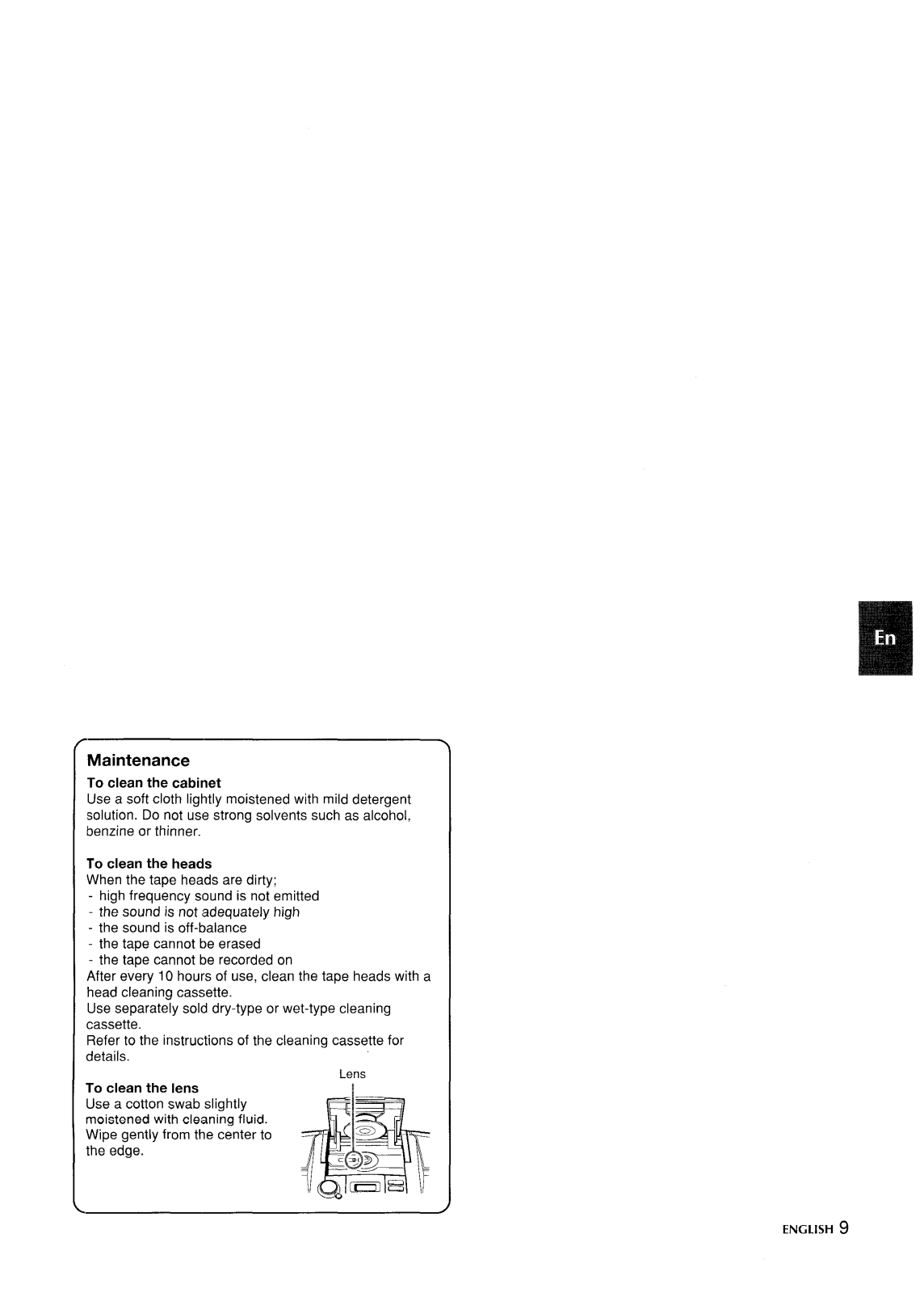

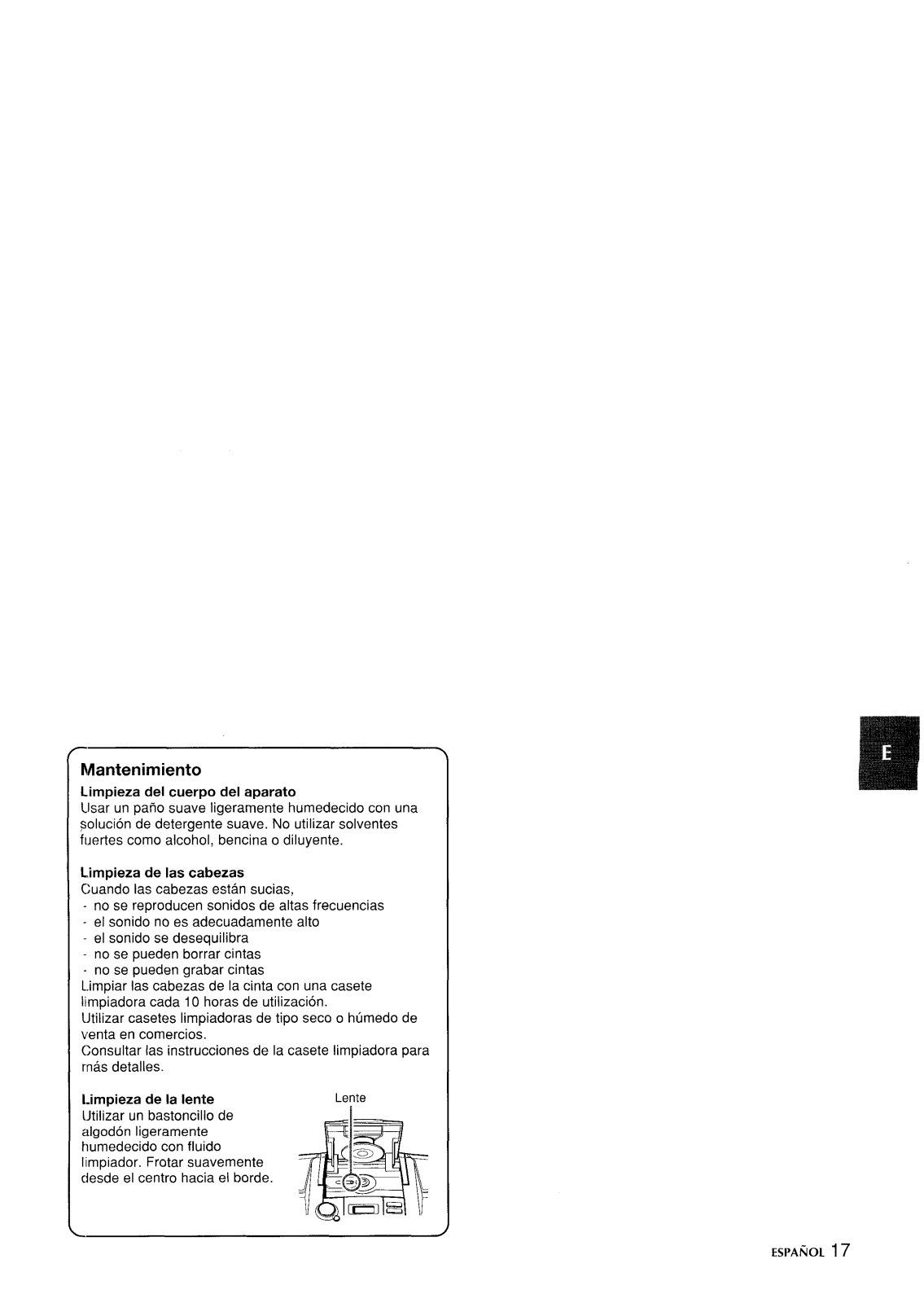

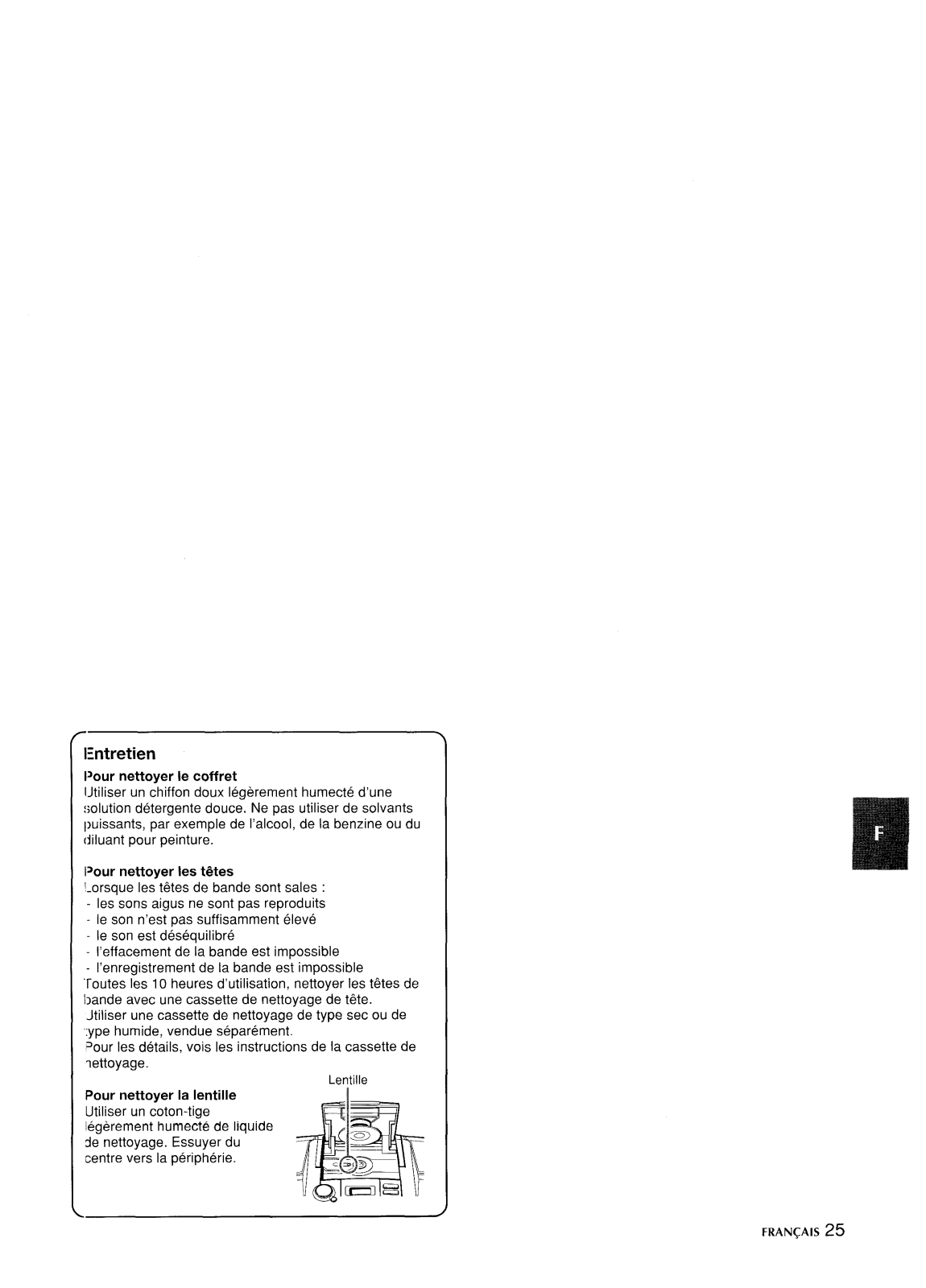

Maintenance
To clean the cabinet
Use a soft cloth lightly moistened with mild detergent
solution. Do not use strong solvents such as alcohol,
benzine or thinner.
To clean the heads
When the tape heads are dirty;
- high frequency sound is not emitted
- the sound is not adequately high
- the sound is off-balance
- the tape cannot be erased
- the tape cannot be recorded on
After every 10 hours of use, clean the tape heads with a
head cleaning cassette.
Use separately sold dry-type or wet-type cleaning
cassette.
Refer to the instructions of the cleaning cassette for
details.
To clean the lens
Use a cotton swab slightly
moistened with cleaning fluid.
Wipe gently from the center to
the edge.
Lens
ENGLISH 9
Loading...
