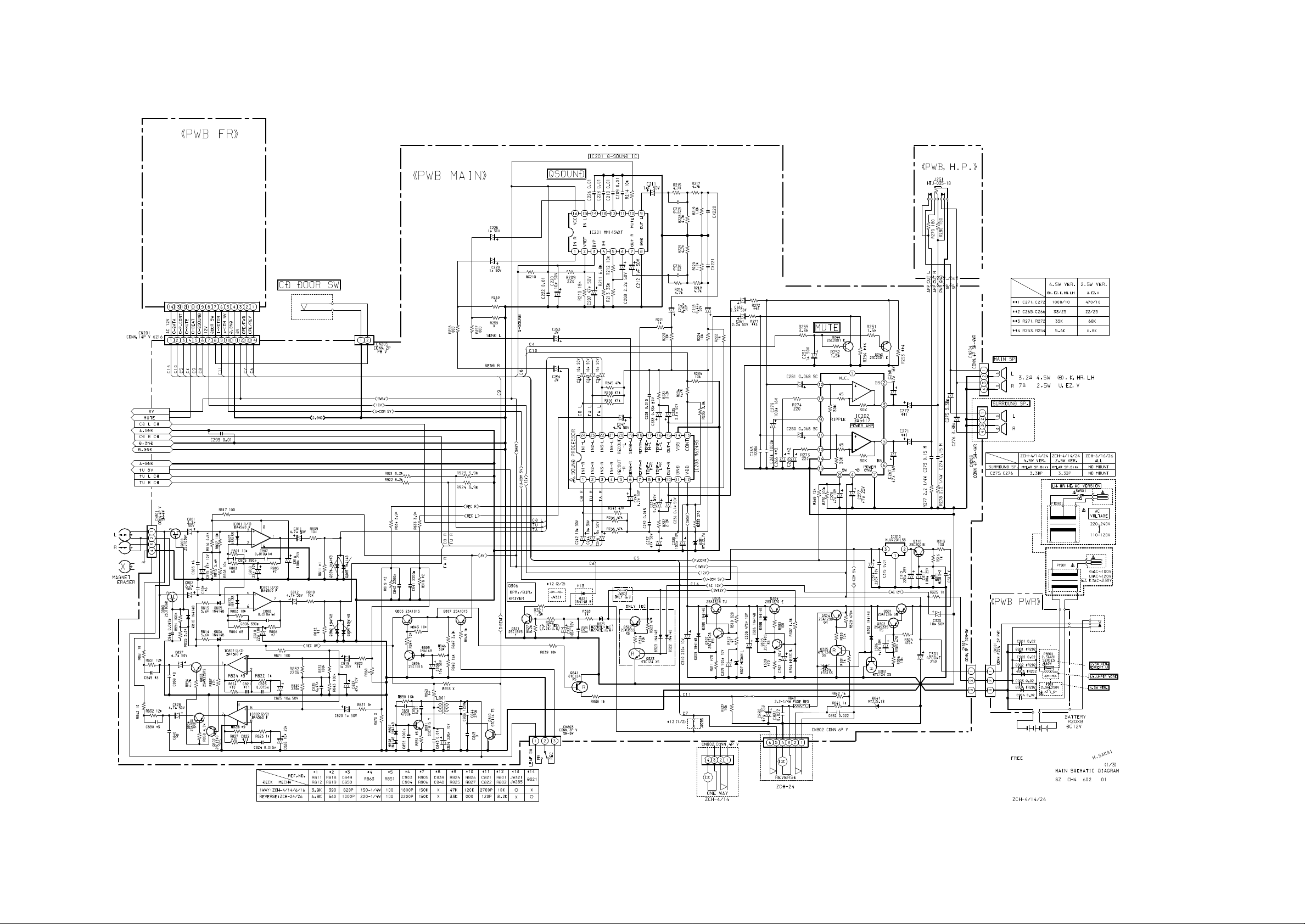

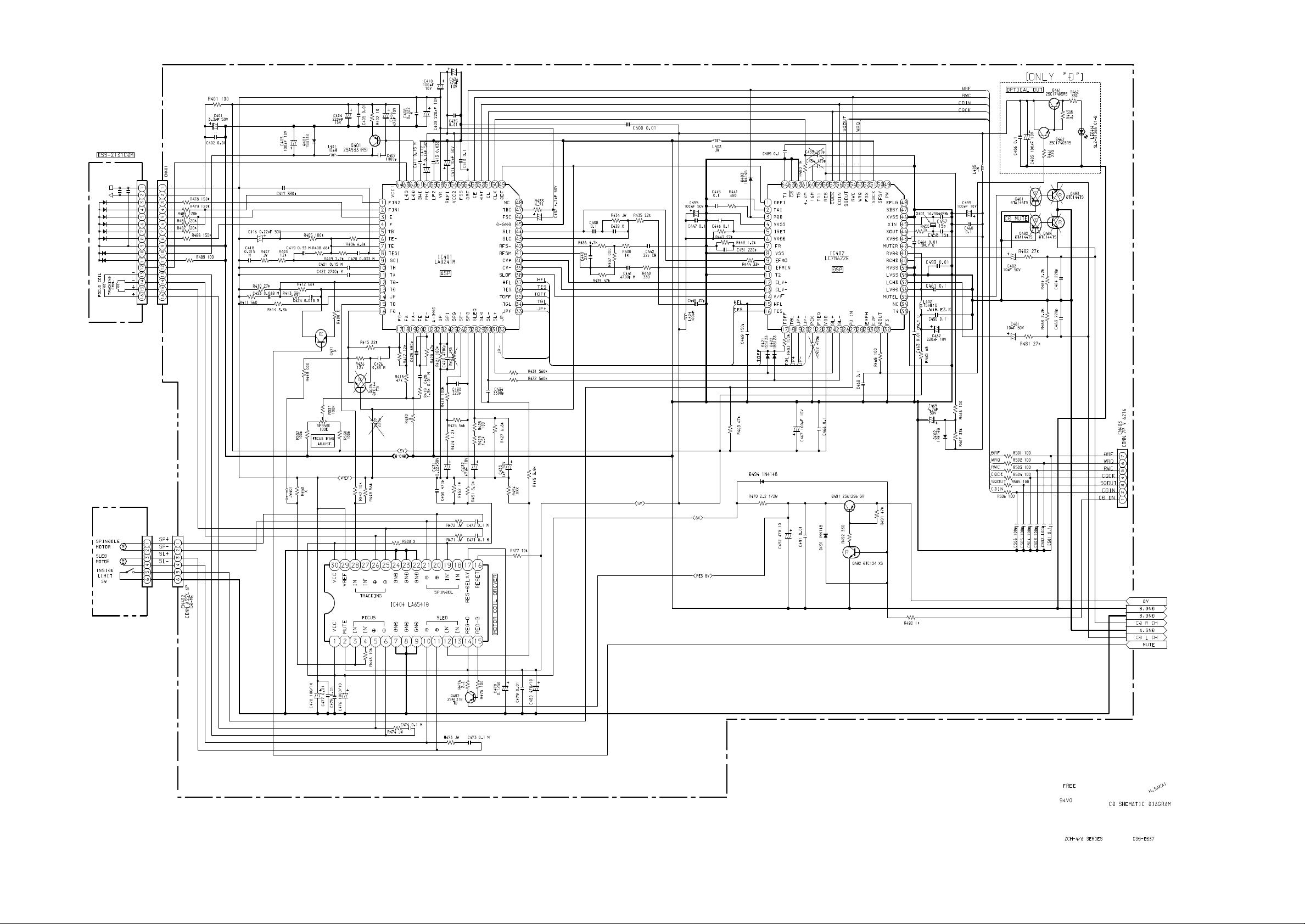

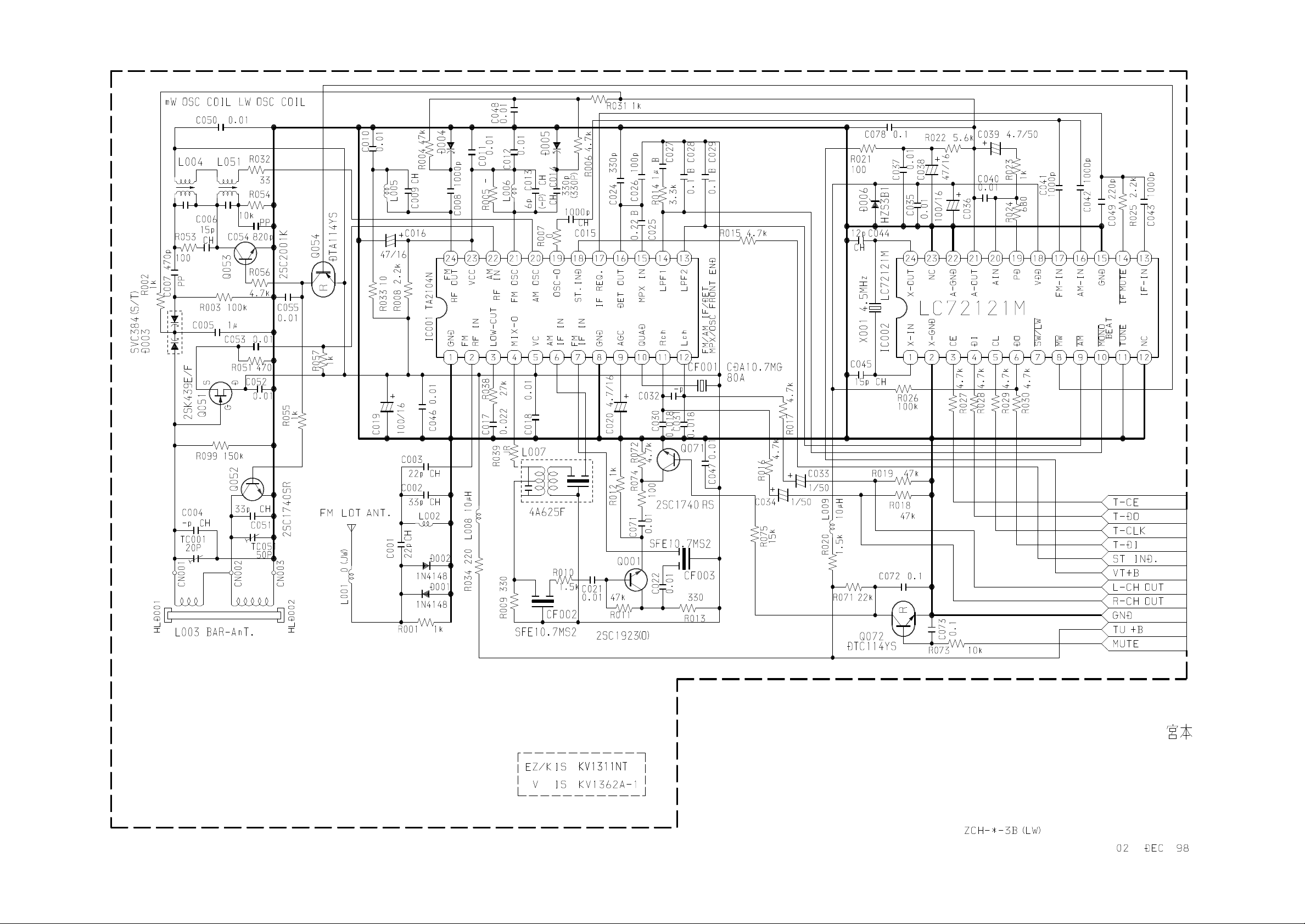

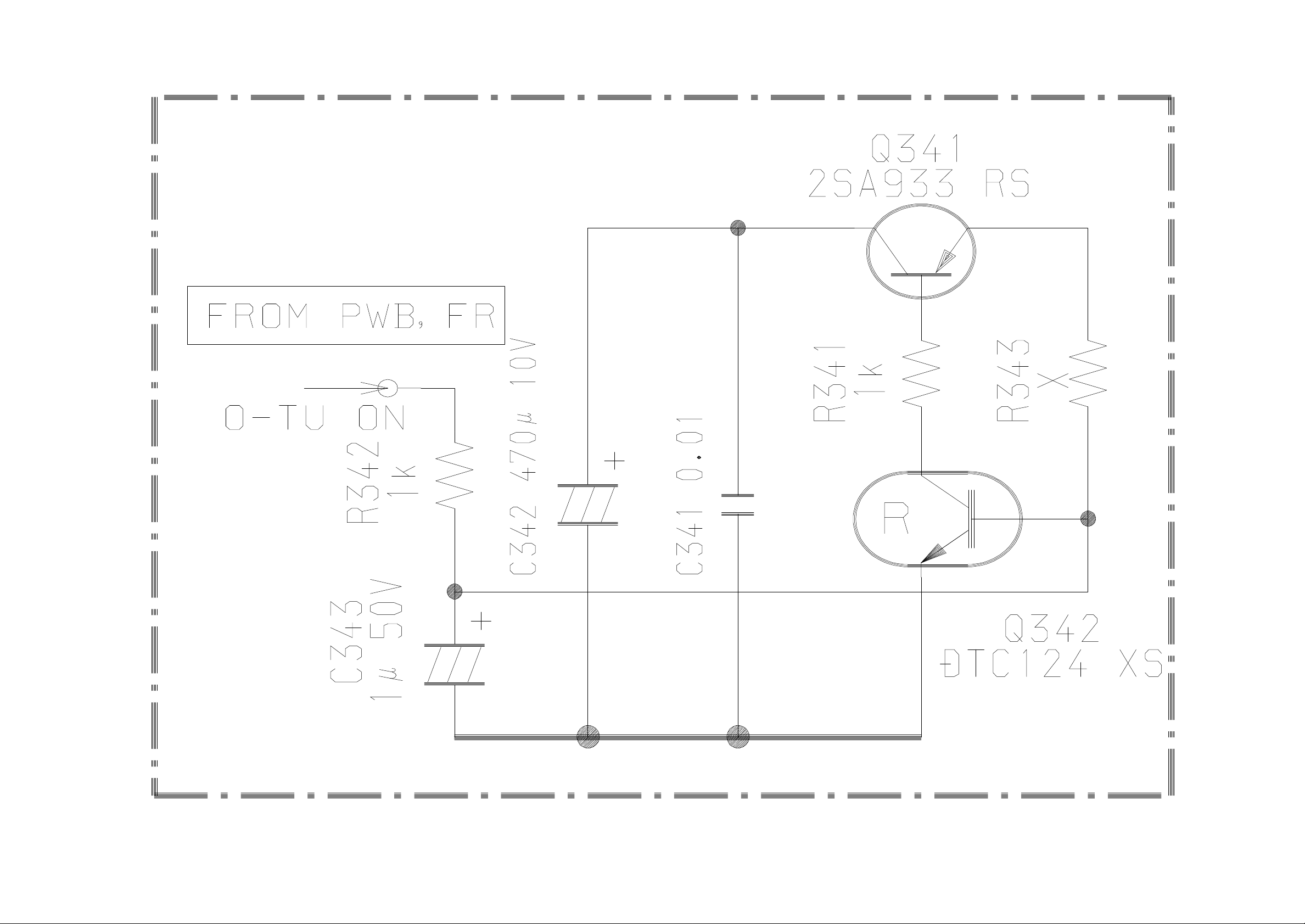

Aiwa CSD-ED57, CSD-ED59, CSD-ED67 Schematic

S E R V I C E M A N U A L

COMPACT DISC STEREO RADIO

CASSETTE RECORDER

CSD-ED57
CSD-ED59
CSD-ED67

• TYPE: 57U, 59LH, 59K, 67U

SIMPLE MANUAL

• Replace this Service Manual with "Revision Publishing" when it is issued.

S/M Code No. 09–991–402–4T1

ELECTRICAL MAIN PARTS LIST - 1/5 (CSD-ED57U/59LH/59K)

NOTE: The characters in the suffix column indicate the part usage.

LH .....................XX..................................A...................

K ......................XX...................................B..................

U ......................XX....................................C.................

KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 217 87-010-400-080 CAP, ELECT 0.47-50V ABC.................

C 218 87-010-400-080 CAP, ELECT 0.47-50V ABC.................

C 228 87-010-401-080 CAP, ELECT 1-50V ABC.................

C 229 87-010-401-080 CAP, ELECT 1-50V ABC.................

C 231 87-010-213-080 C-CAP,S 0.015-50 B ABC.................

C 232 87-010-213-080 C-CAP,S 0.015-50 B ABC.................

C 238 87-010-263-080 CAP, ELECT 100-10V ABC.................

C 237 87-010-374-080 CAP, ELECT 47-10V ABC.................

C 236 87-010-544-080 CAP, ELECT 0.1-50V ABC.................

C 235 87-010-544-080 CAP, ELECT 0.1-50V ABC.................

C 234 87-010-546-080 CAP, ELECT 0.33-50V ABC.................

C 233 87-010-546-080 CAP, ELECT 0.33-50V ABC.................

C 247 87-010-404-080 CAP, ELECT 4.7-50V ABC.................

C 248 87-010-404-080 CAP, ELECT 4.7-50V ABC.................

C 246 87-010-405-080 CAP, ELECT 10-50V ABC.................

C 241 87-010-405-080 CAP, ELECT 10-50V ABC.................

C 244 87-010-405-080 CAP, ELECT 10-50V ABC.................

C 242 87-010-405-080 CAP, ELECT 10-50V ABC.................

C 245 87-010-405-080 CAP, ELECT 10-50V ABC.................

C 243 87-010-405-080 CAP, ELECT 10-50V ABC.................

C 261 87-010-402-080 CAP, ELECT 2.2-50V ABC.................

C 262 87-010-402-080 CAP, ELECT 2.2-50V ABC.................

D 281 87-A40-466-080 ZENER,MTZJ2.7A ABC.................

IC 203 87-A21-111-040 C-IC,M62495FP ABC.................

C 209 87-010-190-080 S CHIP F 0.01 ABC.................

C 208 87-010-402-080 CAP, ELECT 2.2-50V ABC.................

C 207 87-010-408-080 CAP, ELECT 47-50V ABC.................

C 210 87-010-190-080 S CHIP F 0.01 ABC.................

C 215 87-010-425-080 C-CAP,0.22-25 F ABC.................

C 216 87-010-425-080 C-CAP,0.22-25 F ABC.................

C 212 87-010-544-080 CAP, ELECT 0.1-50V ABC.................

C 211 87-010-544-080 CAP, ELECT 0.1-50V ABC.................

C 223 87-010-190-080 S CHIP F 0.01 ABC.................

C 226 87-010-190-080 S CHIP F 0.01 ABC.................

C 222 87-010-190-080 S CHIP F 0.01 ABC.................

C 220 87-010-405-080 CAP, ELECT 10-50V ABC.................

IC 201 87-A20-946-040 C-IC,MM1434XF ABC.................

C 251 87-010-401-080 CAP, ELECT 1-50V ABC.................

C 264 87-010-178-080 CHIP CAP 1000P ABC.................

C 263 87-010-178-080 CHIP CAP 1000P ABC.................

C 268 87-010-380-080 CAP, ELECT 47-16V ABC.................

C 267 87-010-380-080 CAP, ELECT 47-16V ABC.................

C 266 87-010-383-080 CAP, ELECT 33-25V ABC.................

C 265 87-010-383-080 CAP, ELECT 33-25V ABC.................

C 279 87-010-112-080 CAP, ELECT 100-16V ABC.................

C 271 87-010-221-080 CAP, ELECT 470-10V ABC.................

C 272 87-010-221-080 CAP, ELECT 470-10V ABC.................

C 277 87-010-260-080 CAP, ELECT 47-25V ABC.................

C 278 87-010-384-080 CAP, ELECT 100-25V ABC.................

C 274 87-010-628-080 CAP,E 3.3-16 M 5L BP SRE ABC.................

C 273 87-010-628-080 CAP,E 3.3-16 M 5L BP SRE ABC.................

C 281 87-010-401-080 CAP, ELECT 1-50V ABC.................

C 280 87-010-401-080 CAP, ELECT 1-50V ABC.................

IC 201 87-A20-591-010 IC,BA5417 ABC.................

J 251 87-A60-569-010 JACK,HTJ-035-18 ABC.................

Q 244 89-320-011-010 TR,2SC2001 (0.6W) ABC.................

Q 243 89-320-011-010 TR,2SC2001 (0.6W) ABC.................

C 308 87-010-221-080 CAP, ELECT 470-10V ABC.................

C 309 87-010-263-080 CAP, ELECT 100-10V ABC.................

C 307 87-010-401-080 CAP, ELECT 1-50V ABC.................

C 306 87-010-404-080 CAP, ELECT 4.7-50V ABC.................

C 301 87-010-453-010 CAP, ELECT 4700-25V ABC.................

C 315 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 312 87-010-248-080 CAP, ELECT 220-10V ABC.................

C 310 87-010-248-080 CAP, ELECT 220-10V ABC.................

C 314 87-010-248-080 CAP, ELECT 220-10V ABC.................

C 311 87-010-263-080 CAP, ELECT 100-10V ABC.................

C 904 87-A10-577-080 CAP,CER 0.022-50 Z YF ABC.................

C 901 87-A10-577-080 CAP,CER 0.022-50 Z YF ABC.................

C 903 87-A10-577-080 CAP,CER 0.022-50 Z YF ABC.................

C 902 87-A10-577-080 CAP,CER 0.022-50 Z YF ABC.................

CN 301 87-099-043-010 CONN 2P EH ABC.................

D 307 87-017-148-080 ZENER,HZS6A1L ABC.................

D 304 87-017-161-080 ZENER,HZS7C2L ABC.................

D 303 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 308 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 305 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 306 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 309 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 311 87-017-139-010 ZENER,HZS15-2 ABC.................

D 903 87-A40-465-010 DIODE,FR202 ABC.................

D 902 87-A40-465-010 DIODE,FR202 ABC.................

D 901 87-A40-465-010 DIODE,FR202 ABC.................

D 904 87-A40-465-010 DIODE,FR202 ABC.................

ELECTRICAL MAIN PARTS LIST - 2/5 (CSD-ED57U/59LH/59K)

FC 0 87-033-213-010 CLAMP,FUSE SMK ABC.................

IC 310 87-070-416-010 IC,NJU7201 L55 ABC.................

Q 303 87-026-291-010 TR,DTC124XS ABC.................

Q 307 87-026-462-010 TR,2SC1740S ABC.................

Q 305 87-026-462-010 TR,2SC1740S ABC.................

Q 302 87-026-463-010 TR,2SA933S,RS ABC.................

Q 306 88-NF9-637-010 TR,2SA1318T/U ABC.................

Q 301 89-112-965-010 TR,2SA1296GR ABC.................

Q 304 89-213-702-010 TR,2SB1370 (1.8W) ABC.................

Q 310 87-026-462-010 TR,2SC1740S ABC.................

C 803 87-010-177-080 C-CAP,S 820P-50 SL ABC.................

C 804 87-010-177-080 C-CAP,S 820P-50 SL ABC.................

C 801 87-010-402-080 CAP, ELECT 2.2-50V ABC.................

C 802 87-010-402-080 CAP, ELECT 2.2-50V ABC.................

C 809 87-010-406-010 CAP,E 22-50 SM ABC.................

C 805 87-012-158-080 C-CAP,S 390P-50 CH ABC.................

C 806 87-012-158-080 C-CAP,S 390P-50 CH ABC.................

C 815 87-010-374-010 CAP, ELECT 47-10V ABC.................

C 817 87-010-401-010 CAP, ELECT 1-50V ABC.................

C 818 87-010-401-010 CAP, ELECT 1-50V ABC.................

C 819 87-010-401-010 CAP, ELECT 1-50V ABC.................

C 813 87-010-402-080 CAP, ELECT 2.2-50V ABC.................

C 814 87-010-402-080 CAP, ELECT 2.2-50V ABC.................

C 812 87-010-404-010 CONDENSER 4.7-50 ABC.................

C 811 87-010-404-010 CONDENSER 4.7-50 ABC.................

C 810 87-010-406-010 CAP,E 22-50 SM ABC.................

C 823 87-010-213-080 C-CAP,S 0.015-50 B ABC.................

C 824 87-010-213-080 C-CAP,S 0.015-50 B ABC.................

C 820 87-010-401-010 CAP, ELECT 1-50V ABC.................

C 828 87-010-404-010 CONDENSER 4.7-50 ABC.................

C 827 87-010-404-010 CONDENSER 4.7-50 ABC.................

C 826 87-010-405-080 CAP, ELECT 10-50V ABC.................

C 825 87-010-405-080 CAP, ELECT 10-50V ABC.................

C 822 87-012-153-080 C-CAP,S 120P-50 CH ABC.................

C 821 87-012-153-080 C-CAP,S 120P-50 CH ABC.................

C 833 87-010-179-080 CAP,CHIP S B1200P ABC.................

C 839 87-010-186-080 CAP,CHIP 4700P ABC.................

C 831 87-010-198-080 CAP, CHIP 0.022 ABC.................

C 832 87-010-198-080 CAP, CHIP 0.022 ABC.................

C 834 87-010-248-080 CAP, ELECT 220-10V ABC.................

C 830 87-010-260-080 CAP, ELECT 47-25V ABC.................

C 835 87-010-374-010 CAP, ELECT 47-10V ABC.................

C 838 87-010-405-080 CAP, ELECT 10-50V ABC.................

C 844 87-010-178-080 CHIP CAP 1000P ABC.................

C 845 87-010-178-080 CHIP CAP 1000P ABC.................

C 849 87-010-184-080 CHIP CAPACITOR 3300P(K) ABC.................

C 840 87-010-186-080 CAP,CHIP 4700P ABC.................

C 843 87-010-190-080 S CHIP F 0.01 ABC.................

C 846 87-010-194-080 CAP, CHIP 0.047 ABC.................

C 842 87-010-194-080 CAP, CHIP 0.047 ABC.................

C 841 87-010-194-080 CAP, CHIP 0.047 ABC.................

C 850 87-010-184-080 CHIP CAPACITOR 3300P(K) ABC.................

C 851 87-010-186-080 CAP,CHIP 4700P ABC.................

CN 802 87-049-469-010 CONN,4P V ABC.................

D 1 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 7 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 2 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 8 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 4 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 9 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 6 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 5 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 3 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 10 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 802 87-017-437-080 DIODE,1N4148M ABC.................

D 807 87-017-437-080 DIODE,1N4148M ABC.................

D 808 87-017-437-080 DIODE,1N4148M ABC.................

D 803 87-017-437-080 DIODE,1N4148M ABC.................

D 809 87-017-437-080 DIODE,1N4148M ABC.................

D 805 87-017-437-080 DIODE,1N4148M ABC.................

D 801 87-017-437-080 DIODE,1N4148M ABC.................

D 804 87-017-437-080 DIODE,1N4148M ABC.................

D 806 87-017-437-080 DIODE,1N4148M ABC.................

D 810 87-017-437-080 DIODE,1N4148M ABC.................

D 841 87-070-136-080 ZENER,MTZJ5.1B ABC.................

IC 802 87-A21-145-040 C-IC,BA4560F-E2 ABC.................

IC 801 87-A21-145-040 C-IC,BA4560F-E2 ABC.................

L 801 87-007-342-010 COIL,OSC 85K BIAS ABC.................

Q 802 87-026-462-010 TR,2SC1740S ABC.................

Q 804 87-026-463-010 TR,2SA933S,RS ABC.................

Q 803 87-026-463-010 TR,2SA933S,RS ABC.................

Q 809 87-026-496-080 FET,2SJ103GR ABC.................

Q 808 87-026-496-080 FET,2SJ103GR ABC.................

Q 805 89-110-150-010 TR,2SA1015 ABC.................

Q 807 89-110-150-010 TR,2SA1015 ABC.................

Q 806 89-318-155-010 TR,2SC1815(GR) ABC.................

Q 801 89-318-155-010 TR,2SC1815(GR) ABC.................

Q 810 87-026-464-010 TR,DTC114TS ABC.................

R 840 87-029-124-010 RES,FUSE 2.2-1/4 ABC.................

C 299 87-010-190-080 S CHIP F 0.01 ABC.................

C 321 87-010-190-080 S CHIP F 0.01 ABC.................

C 322 87-010-263-080 CAP, ELECT 100-10V ABC.................

ELECTRICAL MAIN PARTS LIST - 3/5 (CSD-ED57U/59LH/59K)

C 325 87-010-405-080 CAP, ELECT 10-50V ABC.................

CN 203 87-049-469-010 CONN,4P V ABC.................

CN 204 87-049-469-010 CONN,4P V ABC.................

CN 201 87-099-016-010 CONN,14P 6216V ABC.................

CN 205 87-A60-109-010 CONN,2P V S2M-2W ABC.................

D 32 87-027-607-080 ZENER,HZ7B3L ABC.................

D 322 87-020-465-080 DIODE,1SS133 (110MA) AB..................

D 323 87-020-465-080 DIODE,1SS133 (110MA) AB..................

Q 323 87-026-291-080 TR,DTC124XS AB..................

Q 322 87-026-463-080 TR,2SA933S (0.3W) AB..................

Q 321 89-318-154-080 TR,2SC1815 (0.4W) ABC.................

C 608 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 609 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 606 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 607 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 601 87-010-313-080 CAP, CHIP 18P ABC.................

C 604 87-010-314-080 C-CAP,S 22P-50V ABC.................

C 602 87-010-315-080 C-CAP,S 27P-50 CH ABC.................

C 603 87-010-317-080 C-CAP,S 39P-50 CH ABC.................

C 605 87-010-317-080 C-CAP,S 39P-50 CH ABC.................

C 617 87-010-178-080 CHIP CAP 1000P ABC.................

C 611 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 614 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 612 87-010-248-080 CAP, ELECT 220-10V ABC.................

C 610 87-010-263-080 CAP, ELECT 100-10V ABC.................

C 615 87-010-400-080 CAP, ELECT 0.47-50V ABC.................

C 616 87-010-401-080 CAP, ELECT 1-50V ABC.................

C 613 87-010-402-080 CAP, ELECT 2.2-50V ABC.................

C 618 87-010-405-080 CAP, ELECT 10-50V ABC.................

CN 601 87-099-031-010 CONN,14P 6216 H ABC.................

CN 603 87-099-199-010 CONN,6P 6216 H ABC.................

CN 604 87-099-200-010 CONN,7P 6216H ABC.................

CN 609 87-099-200-010 CONN,7P 6216H ABC.................

CN 605 87-099-200-010 CONN,7P 6216H ABC.................

CN 608 87-099-200-010 CONN,7P 6216H ABC.................

CN 602 87-099-200-010 CONN,7P 6216H ABC.................

D 601 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 602 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 611 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 612 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 614 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

IC 602 87-A21-245-010 IC,RPM6938-V4 ABC.................

IC 601 8Z-CH4-636-010 IC,LC867132V-**** ABC.................

L 601 87-003-171-010 COIL,15UH TROIDAL ABC.................

LCD 601 8Z-CH4-635-010 LCD,HLC7365 ZCH-4 ABC.................

LED 605 88-CD6-630-010 LED,934ID RED ABC.................

LED 606 88-CD6-630-010 LED,934ID RED ABC.................

LED 602 88-CD6-630-010 LED,934ID RED ABC.................

LED 607 88-CD6-630-010 LED,934ID RED ABC.................

LED 604 88-CD6-630-010 LED,934ID RED ABC.................

LED 603 88-CD6-630-010 LED,934ID RED ABC.................

LED 601 88-CD6-630-010 LED,934ID RED ABC.................

LED 609 88-CD6-630-010 LED,934ID RED ABC.................

LED 610 88-CD6-631-010 LED,934GD GRN ABC.................

Q 601 87-026-291-010 TR,DTC124XS ABC.................

Q 603 87-026-291-010 TR,DTC124XS ABC.................

Q 602 87-026-463-010 TR,2SA933S,RS ABC.................

Q 606 87-026-464-010 TR,DTC114TS ABC.................

Q 608 87-026-464-010 TR,DTC114TS ABC.................

Q 605 87-026-464-010 TR,DTC114TS ABC.................

Q 607 87-026-464-010 TR,DTC114TS ABC.................

Q 604 87-026-464-010 TR,DTC114TS ABC.................

Q 609 87-026-464-010 TR,DTC114TS ABC.................

Q 611 87-026-464-010 TR,DTC114TS ABC.................

Q 610 87-026-464-010 TR,DTC114TS ABC.................

Q 621 87-026-291-010 TR,DTC124XS ABC.................

S 615 87-A90-696-080 SW,TACT TS2103-03-430 ABC.................

S 616 87-A90-696-080 SW,TACT TS2103-03-430 ABC.................

S 612 87-A90-696-080 SW,TACT TS2103-03-430 ABC.................

S 613 87-A90-696-080 SW,TACT TS2103-03-430 ABC.................

S 611 87-A90-696-080 SW,TACT TS2103-03-430 ABC.................

S 614 87-A90-696-080 SW,TACT TS2103-03-430 ABC.................

X 602 87-030-273-010 VIB,XTAL 32.768K5PPM ABC.................

X 601 87-A70-070-080 VIB,CER 5.76MHZ CRHF ABC.................

C 400 87-010-178-080 CHIP CAP 1000P ABC.................

C 409 87-010-248-080 CAP, ELECT 220-10V ABC.................

C 404 87-010-248-080 CAP, ELECT 220-10V ABC.................

C 403 87-010-263-080 CAP, ELECT 100-10V ABC.................

C 406 87-010-374-080 CAP, ELECT 47-10V ABC.................

C 401 87-010-403-080 CAP, ELECT 3.3-50V ABC.................

C 410 87-010-263-080 CAP, ELECT 100-10V ABC.................

C 412 87-010-401-080 CAP, ELECT 1-50V ABC.................

C 414 87-010-405-080 CAP, ELECT 10-50V ABC.................

C 416 87-010-545-080 CAP, ELECT 0.22-50V ABC.................

C 417 87-012-157-080 C-CAP,S 330P-50 CH ABC.................

C 425 87-010-176-080 C-CAP,S 680P-50 SL ABC.................

C 429 87-010-186-080 CAP,CHIP 4700P ABC.................

C 432 87-010-374-080 CAP, ELECT 47-10V ABC.................

C 436 87-010-374-080 CAP, ELECT 47-10V ABC.................

C 433 87-010-401-080 CAP, ELECT 1-50V ABC.................

C 437 87-010-404-080 CAP, ELECT 4.7-50V ABC.................

C 431 87-010-545-080 CAP, ELECT 0.22-50V ABC.................

ELECTRICAL MAIN PARTS LIST - 4/5 (CSD-ED57U/59LH/59K)

C 430 87-012-156-080 C-CAP,S 220P-50 CH ABC.................

C 440 87-010-147-080 C-CAP,S 3P-50 CH ABC.................

C 442 87-010-313-080 CAP, CHIP 18P ABC.................

C 448 87-010-315-080 C-CAP,S 27P-50 CH ABC.................

C 459 87-010-263-080 CAP, ELECT 100-10V ABC.................

C 457 87-010-316-080 C-CAP,S 33P-50 CH ABC.................

C 458 87-010-316-080 C-CAP,S 33P-50 CH ABC.................

C 450 87-012-140-080 CAP 470P ABC.................

C 463 87-010-184-080 CHIP CAPACITOR 3300P(K) ABC.................

C 468 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 463 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 467 87-010-263-080 CAP, ELECT 100-10V ABC.................

C 462 87-010-370-080 CAP,E 330-6.3 SME ABC.................

C 465 87-010-404-080 CAP, ELECT 4.7-50V ABC.................

C 469 87-012-154-080 C-CAP,S 150P-50 CH ABC.................

C 476 87-010-236-080 CAP,E 1000-10 SME ABC.................

C 478 87-010-263-080 CAP, ELECT 100-10V ABC.................

C 480 87-010-221-080 CAP, ELECT 470-10V ABC.................

C 481 87-010-405-080 CAP, ELECT 10-50V ABC.................

C 482 87-010-405-080 CAP, ELECT 10-50V ABC.................

C 483 87-012-156-080 C-CAP,S 220P-50 CH ABC.................

C 484 87-012-156-080 C-CAP,S 220P-50 CH ABC.................

C 496 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

C 498 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

C 495 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

C 497 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

C 493 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

C 499 87-010-322-080 C-CAP,S 100P-50 CH ABC.................

CN 403 87-099-195-010 CONN,7P 6216 V ABC.................

CN 401 87-A60-424-010 CONN,16P V TOC-B ABC.................

D 491 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 494 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

IC 401 87-A20-446-010 C-IC,LA9241ML ABC.................

IC 402 87-A20-459-010 C-IC,LC78622ED ABC.................

IC 404 87-A21-093-010 IC,LA6541D ABC.................

L 403 81-NWB-655-010 COIL,10UH TROIDAL A...................

L 404 81-NWB-655-010 COIL,10UH TROIDAL A...................

L 405 81-NWB-655-010 COIL,10UH TROIDAL A...................

L 401 87-003-102-080 COIL, 10UH ABC.................

L 402 87-005-847-080 COIL,2.2UH(CECS) ABC.................

L 406 87-005-847-080 COIL,2.2UH(CECS) ABC.................

L 404 87-008-372-010 FILTER, EMI BL OIRNI .BC.................

L 405 87-008-372-010 FILTER, EMI BL OIRNI .BC.................

L 403 87-008-372-010 FILTER, EMI BL OIRNI .BC.................

Q 403 87-026-502-080 DTC144TS ABC.................

Q 402 89-113-184-080 TR,2SA1318T ABC.................

SFR 401 87-024-175-080 SEMI-FIXED RESISTOR, 47K ABC.................

X 401 81-592-641-010 CERAMIC FILTER, 16.93MHZ ABC.................

X 401 87-A70-046-010 VIB,XTAL 16.934MHZ ABC.................

C 491 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 492 87-010-221-080 CAP, ELECT 470-10V ABC.................

D 494 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 492 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

D 491 87-020-465-080 DIODE,1SS133 (110MA) ABC.................

Q 401 87-026-463-080 TR,2SA933S (0.3W) ABC.................

Q 492 87-026-291-080 TR,DTC124XS ABC.................

Q 491 89-112-965-080 TR,2SA1296 (0.75W) ABC.................

C 5 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................

C 6 87-010-313-080 CAP, CHIP 18P .B..................

C 3 87-010-314-080 C-CAP,S 22P-50V ABC.................

C 1 87-010-314-080 C-CAP,S 22P-50V ABC.................

C 7 87-012-158-080 C-CAP,S 390P-50 CH A.C.................

C 8 87-012-349-080 C-CAP,S 1000P-50 CH ABC.................

C 7 87-014-051-080 CAPACITOR (PP), 560P .B..................

C 19 87-010-112-080 CAP, ELECT 100-16V ABC.................

C 13 87-010-145-080 C-CAP,S 1P-50 CH ABC.................

C 17 87-010-194-080 CAP, CHIP 0.047 ABC.................

C 14 87-010-305-080 C-CAP 470P-50CH ABC.................

C 16 87-010-380-080 CAP, ELECT 47-16V ABC.................

C 15 87-012-349-080 C-CAP,S 1000P-50 CH ABC.................

C 18 87-015-819-080 CAPACITOR,0.01 ABC.................

C 20 87-010-404-080 CAP, ELECT 4.7-50V ABC.................

C 24 87-015-629-080 CHIP CAPACITOR, 0.0022 ABC.................

C 29 87-016-669-080 C-CAP,S 0.1-25 K B ABC.................

C 28 87-016-669-080 C-CAP,S 0.1-25 K B ABC.................

C 27 87-A11-067-080 C-CAP,S 1-10 K B ABC.................

C 25 87-A11-229-080 C-CAP,S 0.22-10 K B ABC.................

C 36 87-010-112-080 CAP, ELECT 100-16V ABC.................

C 30 87-010-198-080 CAP, CHIP 0.022 A.C.................

C 31 87-010-198-080 CAP, CHIP 0.022 A.C.................

C 31 87-010-213-080 C-CAP,S 0.015-50 B .B..................

C 30 87-010-213-080 C-CAP,S 0.015-50 B .B..................

C 38 87-010-380-080 CAP, ELECT 47-16V ABC.................

C 33 87-010-401-080 CAP, ELECT 1-50V ABC.................

C 34 87-010-401-080 CAP, ELECT 1-50V ABC.................

C 39 87-010-404-080 CAP, ELECT 4.7-50V ABC.................

C 35 87-015-819-080 CAPACITOR,0.01 ABC.................

C 44 87-010-311-080 CAP 12P ABC.................

C 45 87-010-312-080 C-CAP,S 15P-50 CH ABC.................

C 42 87-012-349-080 C-CAP,S 1000P-50 CH ABC.................

C 41 87-012-349-080 C-CAP,S 1000P-50 CH ABC.................

C 43 87-012-349-080 C-CAP,S 1000P-50 CH ABC.................

ELECTRICAL MAIN PARTS LIST - 5/5 (CSD-ED57U/59LH/59K)

C 52 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 55 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 53 87-010-197-080 CAP, CHIP 0.01 DM ABC.................

C 51 87-010-316-080 C-CAP,S 33P-50 CH ABC.................

C 54 87-014-055-080 CAP,PP 820P-100 J .B..................

CF 2 82-785-747-080 CF,MS2 GHY,R ABC.................

CF 3 82-785-747-080 CF,MS2 GHY,R ABC.................

CF 1 87-A91-094-010 FLTR,CDA10.7 MG80A ABC.................

CN 1 87-099-194-010 CONN,6P 6216V ABC.................

D 6 87-017-072-080 ZENER,HZS3B1 ABC.................

D 1 87-070-345-080 DIODE,IN4148 ABC.................

D 2 87-070-345-080 DIODE,IN4148 ABC.................

HD 1 88-CD6-661-010 HLDR,BAR ANT. ABC.................

HD 2 88-CD6-661-010 HLDR,BAR ANT. ABC.................

IC 1 87-A21-184-010 IC,TA2104AN ABC.................

IC 2 87-A21-185-040 C-IC,LC72121M ABC.................

L 9 87-005-849-080 COIL,10UH(CECS) ABC.................

L 8 87-005-849-080 COIL,10UH(CECS) ABC.................

L 2 87-A50-347-010 COIL,FM BPF EX ABC.................

L 4 87-A50-420-010 COIL,MW OSC(SYN) ABC.................

L 5 87-A50-424-010 COIL,FM RF EX(SYN) ABC.................

L 6 87-A50-427-010 COIL,FM OSC EX(SYN) AB..................

L 6 87-A50-454-010 COIL,FM OSC U(SYN) ..C.................

L 3 87-A91-095-010 BAR-ANT,MW FOR 2B(SYN) A.C.................

L 3 87-A91-096-010 BAR-ANT,MW/LW FOR 3B(SYN) .B..................

L 7 87-A91-308-010 FLTR,PCFAZH- 450T (TOK) ABC.................

L 2 88-CD6-655-010 COIL,FM5MM*3.5T ABC.................

L 51 87-A50-421-010 COIL,LW OSC(SYN) .B..................

Q 1 89-319-233-080 TR,2SC1923 (0.1W) ABC.................

Q 54 87-026-214-080 TR,DTA114YS (0.3W) .B..................

Q 52 87-026-447-080 TR,2SC1740S R .B..................

Q 51 87-A30-092-080 FET,2SK439E/F .B..................

Q 53 89-320-011-080 TR,2SC2001 (15W) .B..................

SCR 4 87-A40-615-070 VARI-CAP,KV1311NT ABC.................

SCR 5 87-A40-615-070 VARI-CAP,KV1311NT ABC.................

SCR 3 87-A40-616-070 VARI-CAP,SVC384(S/T) ABC.................

TC 1 87-011-220-080 TRIMMER CAP 20P VTC ABC.................

TC 51 87-011-233-080 TRIMER,50P VCT54 .B..................

X 1 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309 ABC.................

ELECTRICAL MAIN PARTS LIST - 1/5 (CSD-ED67U)

NOTE: The characters in the suffix column indicate the part usage.

U ......................XX..................................A...................

KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 217 87-010-400-080 CAP, ELECT 0.47-50V A...................

C 218 87-010-400-080 CAP, ELECT 0.47-50V A...................

C 228 87-010-401-080 CAP, ELECT 1-50V A...................

C 229 87-010-401-080 CAP, ELECT 1-50V A...................

C 231 87-010-213-080 C-CAP,S 0.015-50 B A...................

C 232 87-010-213-080 C-CAP,S 0.015-50 B A...................

C 238 87-010-263-080 CAP, ELECT 100-10V A...................

C 237 87-010-374-080 CAP, ELECT 47-10V A...................

C 236 87-010-544-080 CAP, ELECT 0.1-50V A...................

C 235 87-010-544-080 CAP, ELECT 0.1-50V A...................

C 234 87-010-546-080 CAP, ELECT 0.33-50V A...................

C 233 87-010-546-080 CAP, ELECT 0.33-50V A...................

C 248 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 247 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 246 87-010-405-080 CAP, ELECT 10-50V A...................

C 243 87-010-405-080 CAP, ELECT 10-50V A...................

C 244 87-010-405-080 CAP, ELECT 10-50V A...................

C 242 87-010-405-080 CAP, ELECT 10-50V A...................

C 245 87-010-405-080 CAP, ELECT 10-50V A...................

C 241 87-010-405-080 CAP, ELECT 10-50V A...................

C 262 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 261 87-010-402-080 CAP, ELECT 2.2-50V A...................

D 281 87-A40-466-080 ZENER,MTZJ2.7A A...................

IC 203 87-A21-111-040 C-IC,M62495FP A...................

C 209 87-010-190-080 S CHIP F 0.01 A...................

C 208 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 207 87-010-408-080 CAP, ELECT 47-50V A...................

C 210 87-010-190-080 S CHIP F 0.01 A...................

C 215 87-010-425-080 C-CAP,0.22-25 F A...................

C 216 87-010-425-080 C-CAP,0.22-25 F A...................

C 212 87-010-544-080 CAP, ELECT 0.1-50V A...................

C 211 87-010-544-080 CAP, ELECT 0.1-50V A...................

C 222 87-010-190-080 S CHIP F 0.01 A...................

C 226 87-010-190-080 S CHIP F 0.01 A...................

C 223 87-010-190-080 S CHIP F 0.01 A...................

C 220 87-010-405-080 CAP, ELECT 10-50V A...................

IC 201 87-A20-946-040 C-IC,MM1434XF A...................

C 251 87-010-401-080 CAP, ELECT 1-50V A...................

C 264 87-010-178-080 CHIP CAP 1000P A...................

C 263 87-010-178-080 CHIP CAP 1000P A...................

C 267 87-010-380-080 CAP, ELECT 47-16V A...................

C 268 87-010-380-080 CAP, ELECT 47-16V A...................

C 265 87-010-383-080 CAP, ELECT 33-25V A...................

C 266 87-010-383-080 CAP, ELECT 33-25V A...................

C 279 87-010-112-080 CAP, ELECT 100-16V A...................

C 271 87-010-221-080 CAP, ELECT 470-10V A...................

C 272 87-010-221-080 CAP, ELECT 470-10V A...................

C 277 87-010-260-080 CAP, ELECT 47-25V A...................

C 278 87-010-384-080 CAP, ELECT 100-25V A...................

C 274 87-010-628-080 CAP,E 3.3-16 M 5L BP SRE A...................

C 273 87-010-628-080 CAP,E 3.3-16 M 5L BP SRE A...................

C 281 87-010-401-080 CAP, ELECT 1-50V A...................

C 280 87-010-401-080 CAP, ELECT 1-50V A...................

IC 201 87-A20-591-010 IC,BA5417 A...................

J 251 87-A60-569-010 JACK,HTJ-035-18 A...................

Q 243 89-320-011-010 TR,2SC2001 (0.6W) A...................

Q 244 89-320-011-010 TR,2SC2001 (0.6W) A...................

C 308 87-010-221-080 CAP, ELECT 470-10V A...................

C 309 87-010-263-080 CAP, ELECT 100-10V A...................

C 307 87-010-401-080 CAP, ELECT 1-50V A...................

C 306 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 301 87-010-453-010 CAP, ELECT 4700-25V A...................

C 315 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 312 87-010-248-080 CAP, ELECT 220-10V A...................

C 310 87-010-248-080 CAP, ELECT 220-10V A...................

C 314 87-010-248-080 CAP, ELECT 220-10V A...................

C 311 87-010-263-080 CAP, ELECT 100-10V A...................

C 903 87-A10-577-080 CAP,CER 0.022-50 Z YF A...................

C 902 87-A10-577-080 CAP,CER 0.022-50 Z YF A...................

C 901 87-A10-577-080 CAP,CER 0.022-50 Z YF A...................

C 904 87-A10-577-080 CAP,CER 0.022-50 Z YF A...................

CN 301 87-099-043-010 CONN 2P EH A...................

D 307 87-017-148-080 ZENER,HZS6A1L A...................

D 304 87-017-161-080 ZENER,HZS7C2L A...................

D 308 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 309 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 306 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 303 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 305 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 311 87-017-139-010 ZENER,HZS15-2 A...................

D 902 87-A40-465-010 DIODE,FR202 A...................

D 901 87-A40-465-010 DIODE,FR202 A...................

D 903 87-A40-465-010 DIODE,FR202 A...................

D 904 87-A40-465-010 DIODE,FR202 A...................

FC 0 87-033-213-010 CLAMP,FUSE SMK A...................

IC 310 87-070-416-010 IC,NJU7201 L55 A...................
