Aiwa AV-D57 Service Manual

AV-D57

U

SERVICE MANUAL

STEREO AV RECEIVER

• Replace this Service manual with “Revision Publishing” when it is issued.

S/M Code No. 09-002-427-9T1

SIMPLE

DATA

ELECTRICAL MAIN PARTS LIST - 1/11

NOTE: The characters in the suffix column indicate the part usage.

U ......................XX..................................A...................

KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 716 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 715 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 717 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 714 87-010-560-040 CAP,E 10-50 GAS A...................

C 718 87-015-699-040 CAP,E 10-50 7L A...................

C 719 87-015-699-040 CAP,E 10-50 7L A...................

C 721 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 722 87-010-318-080 C-CAP,S 47P-50 CH A...................

C 720 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 803 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 809 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 807 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 805 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 802 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 801 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 806 87-010-400-040 CAP,E 0.47-50 A...................

C 808 87-010-498-040 CAP,E 10-16 GAS A...................

C 814 87-010-178-080 CHIP CAP 1000P A...................

C 818 87-010-178-080 CHIP CAP 1000P A...................

C 810 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 816 87-010-312-080 C-CAP,S 15P-50 CH A...................

C 817 87-012-155-080 C-CAP 180P-50CH A...................

C 819 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 811 87-A10-189-040 CAP,E 220-10 A...................

C 812 87-A10-189-040 CAP,E 220-10 A...................

C 821 87-010-178-080 CHIP CAP 1000P A...................

C 822 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 824 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 823 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 825 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 827 87-010-198-080 CAP, CHIP 0.022 A...................

C 826 87-010-405-040 CAP,E 10-50 A...................

C 829 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 820 87-012-156-080 C-CAP,S 220P-50 CH A...................

C 832 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 830 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 838 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 837 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 839 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 836 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 835 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 834 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 831 87-A10-189-040 CAP,E 220-10 A...................

C 848 87-010-405-040 CAP,E 10-50 A...................

C 842 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 846 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 841 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 843 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 844 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 840 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 845 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 849 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 847 87-015-699-040 CAP,E 10-50 7L A...................

C 858 87-010-178-080 CHIP CAP 1000P A...................

C 856 87-010-178-080 CHIP CAP 1000P A...................

C 859 87-010-178-080 CHIP CAP 1000P A...................

C 857 87-010-178-080 CHIP CAP 1000P A...................

C 854 87-010-178-080 CHIP CAP 1000P A...................

C 853 87-010-178-080 CHIP CAP 1000P A...................

C 855 87-010-178-080 CHIP CAP 1000P A...................

C 852 87-010-178-080 CHIP CAP 1000P A...................

C 850 87-010-408-040 CAP,E 47-50 SME A...................

C 862 87-010-178-080 CHIP CAP 1000P A...................

C 861 87-010-178-080 CHIP CAP 1000P A...................

C 860 87-010-178-080 CHIP CAP 1000P A...................

C 866 87-012-140-080 CAP 470P A...................

CN 803 87-099-755-010 CONN,14P H 9604 A...................

CN 802 87-A60-064-010 CONN,32P H 9604S-32F A...................

CN 805 87-A60-077-010 CONN,10P H 9604S-10F A...................

CN 801 87-A60-079-010 CONN,08P H 9604S-08F A...................

FL 801 8A-AR1-602-010 FL,BJ759GK A...................

L 801 87-A50-434-010 COIL,CLK 4.19M(TOKO) A...................

LED 706 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 709 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 704 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 708 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 707 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 703 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 705 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 710 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 711 87-A40-317-080 LED,SLR-342VCT31 RED A...................

LED 712 87-A40-317-080 LED,SLR-342VCT31 RED A...................

S 808 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 801 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 802 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 807 87-A90-095-080 SW,TACT EVQ11G04M A...................

ELECTRICAL MAIN PARTS LIST - 2/11

S 806 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 809 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 816 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 817 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 813 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 812 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 814 87-A90-095-080 SW,TACT EVQ11G04M A...................

SW 801 87-A91-646-010 SW,RTRY EC12E12204 A...................

SW 802 87-A91-647-010 SW,RTRY EC12E12504 A...................

C 501 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 502 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 503 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 504 87-012-157-080 C-CAP,S 330P-50 CH A...................

C 517 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 518 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 519 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 513 87-010-260-080 CAP, ELECT 47-25V A...................

C 514 87-010-260-080 CAP, ELECT 47-25V A...................

C 516 87-010-370-080 CAP,E 330-6.3 SME A...................

C 515 87-010-370-080 CAP,E 330-6.3 SME A...................

C 512 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 511 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 520 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 531 87-010-213-080 C-CAP,S 0.015-50 B A...................

C 539 87-010-401-080 CAP, ELECT 1-50V A...................

C 536 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 535 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 532 87-010-992-080 C-CAP,S 0.047-25 B A...................

C 533 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z A...................

C 541 87-010-185-080 C-CAP,S 3900P-50 B A...................

C 542 87-010-185-080 C-CAP,S 3900P-50 B A...................

C 540 87-010-401-080 CAP, ELECT 1-50V A...................

C 547 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 549 87-016-081-080 C-CAP,S 0.1-16 RK A...................

C 559 87-010-183-080 C-CAP,S 2700P-50 B A...................

C 554 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 556 87-010-248-080 CAP, ELECT 220-10V A...................

C 555 87-010-405-080 CAP, ELECT 10-50V A...................

C 557 87-010-405-080 CAP, ELECT 10-50V A...................

C 550 87-016-081-080 C-CAP,S 0.1-16 RK A...................

C 565 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 566 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 561 87-012-140-080 CAP 470P A...................

C 562 87-012-140-080 CAP 470P A...................

CN 501 87-A60-039-010 CONN,32P V 9604S-32C A...................

CN 502 87-A60-054-010 CONN,14P V 9604S-14C A...................

CN 503 87-A60-056-010 CONN,12P V 9604S-12C A...................

CN 702 87-099-668-010 CONN,9P TUC-P 9P-B1 ....................

J 501 87-099-609-010 JACK,PIN 4P KM EARTH A...................

J 502 87-099-609-010 JACK,PIN 4P KM EARTH A...................

R 587 87-A00-126-080 RES M/F 220-1/WJ VIP ....................

C 102 87-010-235-080 CAP,E 470-16 SME A...................

C 101 87-010-235-080 CAP,E 470-16 SME A...................

C 105 87-010-247-080 CAP, ELECT 100-50V A...................

C 107 87-010-263-080 CAP, ELECT 100-10V A...................

C 104 87-010-382-080 CAP, ELECT 22-25V A...................

C 106 87-010-384-080 CAP, ELECT 100-25V A...................

C 103 87-010-384-080 CAP, ELECT 100-25V A...................

C 108 87-012-140-080 CAP 470P A...................

C 109 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 112 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 117 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 115 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 110 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 111 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 118 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 116 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 114 87-016-658-090 CAP,E 4700-35 SMG A...................

C 113 87-016-658-090 CAP,E 4700-35 SMG A...................

C 119 87-A10-416-090 CAP,E 6800-80 SMG VB A...................

C 128 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 127 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 125 87-010-247-080 CAP, ELECT 100-50V A...................

C 121 87-010-260-080 CAP, ELECT 47-25V A...................

C 126 87-010-263-080 CAP, ELECT 100-10V A...................

C 123 87-010-384-080 CAP, ELECT 100-25V ....................

C 124 87-010-384-080 CAP, ELECT 100-25V ....................

C 124 87-010-385-080 CAP, ELECT 220-25V A...................

C 123 87-010-385-080 CAP, ELECT 220-25V A...................

C 122 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 120 87-A10-416-090 CAP,E 6800-80 SMG VB A...................

C 143 87-A10-712-080 C-CAP,S 0.22-50 Z F A...................

C 144 87-A10-712-080 C-CAP,S 0.22-50 Z F A...................

CN 110 87-A60-621-010 CONN,4P V 2MM JMT A...................

PR 104 87-026-691-080 FUSE,10A 125V 251 A...................

PR 101 87-026-691-080 FUSE,10A 125V 251 A...................

R 109 87-029-060-080 RES,FUSE 33-1/4 W A...................

R 143 87-A00-261-080 RES,M/F 0.56-1W J A...................

W 3 8Z-AR2-606-010 CONN ASSY,9P VH A...................

WH 101 87-A90-510-010 HLDR,WIRE 2.5-9P A...................

C 204 87-010-176-080 C-CAP,S 680P-50 SL A...................

C 203 87-010-176-080 C-CAP,S 680P-50 SL A...................

ELECTRICAL MAIN PARTS LIST - 3/11

C 209 87-010-392-080 CAP ELECT 33SME-35V A...................

C 206 87-010-405-080 CAP, ELECT 10-50V A...................

C 205 87-010-405-080 CAP, ELECT 10-50V A...................

C 208 87-016-299-080 CAP,E 10-100 SME A...................

C 212 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 211 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 210 87-010-392-080 CAP ELECT 33SME-35V A...................

C 217 87-A10-516-080 C-CAP,S 100P-200 J CH A...................

C 218 87-A10-516-080 C-CAP,S 100P-200 J CH A...................

C 216 87-A10-897-080 CAP,E 100-25 BP SME A...................

C 215 87-A10-897-080 CAP,E 100-25 BP SME A...................

C 228 87-010-178-080 CHIP CAP 1000P A...................

C 227 87-010-178-080 CHIP CAP 1000P A...................

C 225 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 224 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 223 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 222 87-010-805-080 CAP, S 1-16 A...................

C 221 87-010-805-080 CAP, S 1-16 A...................

C 229 87-016-251-080 CAP,E 220-16 M SMG A...................

C 226 87-016-251-080 CAP,E 220-16 M SMG A...................

C 231 87-A10-354-080 C-CAP,S 0.047-50 K B A...................

C 230 87-A10-354-080 C-CAP,S 0.047-50 K B A...................

C 285 87-010-186-080 CAP,CHIP 4700P A...................

C 287 87-010-190-080 S CHIP F 0.01 A...................

C 288 87-010-190-080 S CHIP F 0.01 A...................

C 289 87-010-190-080 S CHIP F 0.01 A...................

C 290 87-010-190-080 S CHIP F 0.01 A...................

C 298 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 291 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 296 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 297 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 294 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 293 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 295 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 292 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 303 87-010-179-080 CAP,CHIP S B1200P A...................

C 304 87-010-179-080 CAP,CHIP S B1200P A...................

C 309 87-010-260-080 CAP, ELECT 47-25V A...................

C 306 87-010-406-080 CAP, ELECT 22-50 A...................

C 305 87-010-406-080 CAP, ELECT 22-50 A...................

C 308 87-016-299-080 CAP,E 10-100 SME A...................

C 310 87-010-260-080 CAP, ELECT 47-25V A...................

C 311 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 312 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 317 87-A10-516-080 C-CAP,S 100P-200 J CH A...................

C 318 87-A10-516-080 C-CAP,S 100P-200 J CH A...................

C 316 87-A10-897-080 CAP,E 100-25 BP SME A...................

C 315 87-A10-897-080 CAP,E 100-25 BP SME A...................

C 328 87-010-178-080 CHIP CAP 1000P A...................

C 327 87-010-178-080 CHIP CAP 1000P A...................

C 325 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 324 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 323 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 321 87-010-805-080 CAP, S 1-16 A...................

C 322 87-010-805-080 CAP, S 1-16 A...................

C 330 87-A10-354-080 C-CAP,S 0.047-50 K B A...................

C 331 87-A10-354-080 C-CAP,S 0.047-50 K B A...................

C 334 87-A10-918-080 CAP,E 100-16 SMG A...................

C 335 87-A10-918-080 CAP,E 100-16 SMG A...................

C 385 87-010-186-080 CAP,CHIP 4700P A...................

C 396 87-010-190-080 S CHIP F 0.01 A...................

C 395 87-010-190-080 S CHIP F 0.01 A...................

C 393 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 391 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 392 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 394 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 402 87-010-181-080 CAP,CHIP S 1800P A...................

C 406 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 403 87-010-405-080 CAP, ELECT 10-50V A...................

C 405 87-010-406-080 CAP, ELECT 22-50 A...................

C 409 87-A10-516-080 C-CAP,S 100P-200 J CH A...................

C 408 87-A10-897-080 CAP,E 100-25 BP SME A...................

C 414 87-010-178-080 CHIP CAP 1000P A...................

C 413 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 412 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 411 87-010-805-080 CAP, S 1-16 A...................

C 416 87-016-299-080 CAP,E 10-100 SME A...................

C 420 87-A10-354-080 C-CAP,S 0.047-50 K B A...................

C 485 87-010-186-080 CAP,CHIP 4700P A...................

C 493 87-010-190-080 S CHIP F 0.01 A...................

C 491 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 492 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 745 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 746 87-012-368-080 C-CAP,S 0.1-50 F A...................

J 201 87-A60-199-010 TERMINAL,SP 8P CJ-9034-07 V0 A...................

J 301 87-A60-200-010 TERMINAL,SP 6P CJ-9033-21-3 V0 A...................

J 715 87-A60-244-010 JACK,PIN 1P BLK A...................

L 292 87-003-383-010 COIL,1UH-S A...................

L 291 87-003-383-010 COIL,1UH-S A...................

L 293 87-003-383-010 COIL,1UH-S A...................

L 294 87-003-383-010 COIL,1UH-S A...................

L 391 87-003-383-010 COIL,1UH-S A...................

ELECTRICAL MAIN PARTS LIST - 4/11

L 392 87-003-383-010 COIL,1UH-S A...................

L 491 87-003-383-010 COIL,1UH-S A...................

P 2 86-NFZ-222-010 PIN,DIA1-6.5 A...................

PR 201 87-026-691-080 FUSE,10A 125V 251 A...................

PR 202 87-026-691-080 FUSE,10A 125V 251 A...................

PR 301 87-026-691-080 FUSE,10A 125V 251 A...................

PR 302 87-026-691-080 FUSE,10A 125V 251 A...................

PR 401 87-026-691-080 FUSE,10A 125V 251 A...................

PR 402 87-026-691-080 FUSE,10A 125V 251 A...................

R 211 87-A00-262-080 RES,M/F 0.15-2W J A...................

R 212 87-A00-262-080 RES,M/F 0.15-2W J A...................

R 233 87-A00-262-080 RES,M/F 0.15-2W J A...................

R 232 87-A00-262-080 RES,M/F 0.15-2W J A...................

R 231 87-A00-262-080 RES,M/F 0.15-2W J A...................

R 234 87-A00-262-080 RES,M/F 0.15-2W J A...................

R 334 87-A00-262-080 RES,M/F 0.15-2W J A...................

R 332 87-A00-262-080 RES,M/F 0.15-2W J A...................

R 333 87-A00-262-080 RES,M/F 0.15-2W J A...................

R 331 87-A00-262-080 RES,M/F 0.15-2W J A...................

R 417 87-A00-262-080 RES,M/F 0.15-2W J A...................

R 416 87-A00-262-080 RES,M/F 0.15-2W J A...................

R 424 87-A00-262-080 RES,M/F 0.15-2W J A...................

R 590 87-A00-262-080 RES,M/F 0.15-2W J A...................

R 611 87-A00-262-080 RES,M/F 0.15-2W J A...................

S 291 87-A90-174-010 SW,PUSH 2-2-2 A...................

S 292 87-A90-174-010 SW,PUSH 2-2-2 A...................

TH 201 87-A91-081-080 C-THMS,100K-K 20P A...................

TH 202 87-A91-081-080 C-THMS,100K-K 20P A...................

TH 302 87-A91-081-080 C-THMS,100K-K 20P A...................

TH 301 87-A91-081-080 C-THMS,100K-K 20P A...................

TH 401 87-A91-081-080 C-THMS,100K-K 20P A...................

C 606 87-010-405-080 CAP, ELECT 10-50V A...................

C 605 87-010-405-080 CAP, ELECT 10-50V A...................

C 701 87-010-260-080 CAP, ELECT 47-25V A...................

C 702 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 709 87-012-195-080 C-CAP,U 100P-50CH A...................

C 704 87-012-286-080 CAP, U 0.01-25 A...................

C 703 87-012-286-080 CAP, U 0.01-25 A...................

C 712 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 711 87-010-263-080 CAP, ELECT 100-10V A...................

C 717 87-012-286-080 CAP, U 0.01-25 A...................

C 719 87-012-286-080 CAP, U 0.01-25 A...................

C 713 87-012-286-080 CAP, U 0.01-25 A...................

C 714 87-012-286-080 CAP, U 0.01-25 A...................

C 727 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 728 87-010-248-080 CAP, ELECT 220-10V A...................

C 722 87-012-176-080 CAP 15P A...................

C 721 87-012-176-080 CAP 15P A...................

C 725 87-012-274-080 CHIP CAP,U 1000P-50B A...................

C 723 87-012-274-080 CHIP CAP,U 1000P-50B A...................

C 758 87-012-167-080 C-CAP,U 5P-50 CH A...................

C 757 87-012-188-080 C-CAP,U 47P-50 CH A...................

C 756 87-012-286-080 CAP, U 0.01-25 A...................

C 755 87-012-286-080 CAP, U 0.01-25 A...................

C 761 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 769 87-010-260-080 CAP, ELECT 47-25V A...................

C 763 87-010-829-080 CAP, U 0.047-16 A...................

C 765 87-012-286-080 CAP, U 0.01-25 A...................

C 764 87-012-337-080 C-CAP,U 56P-50 CH A...................

C 773 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 774 87-010-263-080 CAP, ELECT 100-10V A...................

C 777 87-010-400-080 CAP, ELECT 0.47-50V A...................

C 778 87-010-401-080 CAP, ELECT 1-50V A...................

C 779 87-010-401-080 CAP, ELECT 1-50V A...................

C 775 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 770 87-010-829-080 CAP, U 0.047-16 A...................

C 772 87-010-829-080 CAP, U 0.047-16 A...................

C 776 87-012-286-080 CAP, U 0.01-25 A...................

C 780 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 781 87-010-405-080 CAP, ELECT 10-50V A...................

C 782 87-010-405-080 CAP, ELECT 10-50V A...................

C 785 87-010-805-080 CAP, S 1-16 A...................

C 786 87-010-805-080 CAP, S 1-16 A...................

C 789 87-012-275-080 C-CAP,U 1200P-50 B A...................

C 788 87-012-280-080 CAP, U 3300P-50 A...................

C 787 87-012-280-080 CAP, U 3300P-50 A...................

C 783 87-012-286-080 CAP, U 0.01-25 A...................

C 784 87-012-286-080 CAP, U 0.01-25 A...................

C 795 87-010-194-080 CAP, CHIP 0.047 A...................

C 796 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 791 87-010-405-080 CAP, ELECT 10-50V A...................

C 794 87-010-406-080 CAP, ELECT 22-50 A...................

C 799 87-010-829-080 CAP, U 0.047-16 A...................

C 793 87-012-273-080 C-CAP,U 820P-50 B A...................

C 790 87-012-275-080 C-CAP,U 1200P-50 B A...................

C 798 87-012-278-080 C-CAP,U 2200P-50 B A...................

C 797 87-012-278-080 C-CAP,U 2200P-50 B A...................

C 819 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 813 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 812 87-012-286-080 CAP, U 0.01-25 A...................

C 814 87-012-286-080 CAP, U 0.01-25 A...................

C 829 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

ELECTRICAL MAIN PARTS LIST - 5/11

C 820 87-010-260-080 CAP, ELECT 47-25V A...................

C 823 87-012-286-080 CAP, U 0.01-25 A...................

C 822 87-012-286-080 CAP, U 0.01-25 A...................

C 821 87-012-286-080 CAP, U 0.01-25 A...................

C 959 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 960 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 961 87-012-170-080 C-CAP,U 8P-50 CH A...................

C 701 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 702 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 907 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 906 87-010-260-080 CAP, ELECT 47-25V A...................

C 909 87-010-371-080 CAP, ELECT 470-6.3V A...................

C 908 87-010-387-080 CAP,E 470-25 SME A...................

C 902 87-010-406-080 CAP, ELECT 22-50 A...................

C 904 87-010-406-080 CAP, ELECT 22-50 A...................

C 903 87-010-406-080 CAP, ELECT 22-50 A...................

C 905 87-010-406-080 CAP, ELECT 22-50 A...................

C 901 87-010-406-080 CAP, ELECT 22-50 A...................

C 915 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 914 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 912 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 913 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 910 87-010-371-080 CAP, ELECT 470-6.3V A...................

C 911 87-010-371-080 CAP, ELECT 470-6.3V A...................

CN 901 87-A60-619-010 CONN,2P V 2MM JMT A...................

J 905 87-099-911-010 JACK,PIN 3P YEL A...................

J 904 87-099-911-010 JACK,PIN 3P YEL A...................

J 903 87-099-911-010 JACK,PIN 3P YEL A...................

J 901 87-099-911-010 JACK,PIN 3P YEL A...................

J 902 87-099-912-010 JACK,PIN 3P YEL W/E A...................

L 901 87-005-239-080 COIL,100UH A...................

R 905 87-010-317-080 C-CAP,S 39P-50 CH A...................

87-067-579-010 TAPPING SCREW, BVT2+3-8 A...................

C 101 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 107 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 108 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 109 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 106 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 100 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 102 87-010-374-080 CAP, ELECT 47-10V A...................

C 105 87-012-140-080 CAP 470P A...................

C 116 87-010-091-080 C-CAP,22P-50 CH A...................

C 113 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 114 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 111 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 110 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 119 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 117 87-010-314-080 C-CAP,S 22P-50V A...................

C 115 87-010-374-080 CAP, ELECT 47-10V A...................

C 118 87-010-402-080 CAP, ELECT 2.2-50V A...................

C 112 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 127 87-010-101-080 CAP, ELECT 220-16 A...................

C 129 87-010-101-080 CAP, ELECT 220-16 A...................

C 120 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 126 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 125 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 128 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 121 87-010-263-080 CAP, ELECT 100-10V A...................

C 122 87-010-311-080 CAP 12P A...................

C 123 87-010-311-080 CAP 12P A...................

C 135 87-010-101-080 CAP, ELECT 220-16 A...................

C 130 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 138 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 137 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 134 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 133 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 131 87-010-263-080 CAP, ELECT 100-10V A...................

C 132 87-010-263-080 CAP, ELECT 100-10V A...................

C 136 87-010-263-080 CAP, ELECT 100-10V A...................

C 139 87-010-314-080 C-CAP,S 22P-50V A...................

C 142 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 141 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 148 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 149 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 143 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 144 87-010-312-080 C-CAP,S 15P-50 CH A...................

C 147 87-010-405-080 CAP, ELECT 10-50V A...................

C 140 87-010-552-040 CAP,E 22-16 GAS A...................

C 145 87-012-154-080 C-CAP,S 150P-50 CH A...................

C 146 87-012-154-080 C-CAP,S 150P-50 CH A...................

C 153 87-010-178-080 CHIP CAP 1000P A...................

C 154 87-010-178-080 CHIP CAP 1000P A...................

C 159 87-010-178-080 CHIP CAP 1000P A...................

C 151 87-010-405-080 CAP, ELECT 10-50V A...................

C 152 87-010-405-080 CAP, ELECT 10-50V A...................

C 150 87-010-405-080 CAP, ELECT 10-50V A...................

C 156 87-012-140-080 CAP 470P A...................

C 157 87-012-154-080 C-CAP,S 150P-50 CH A...................

C 158 87-012-154-080 C-CAP,S 150P-50 CH A...................

C 155 87-A10-369-080 C-CAP,S 0.47-16 K B A...................

C 160 87-010-178-080 CHIP CAP 1000P A...................

C 168 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

ELECTRICAL MAIN PARTS LIST - 6/11

C 164 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 163 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 166 87-010-405-080 CAP, ELECT 10-50V A...................

C 161 87-010-405-080 CAP, ELECT 10-50V A...................

C 162 87-010-405-080 CAP, ELECT 10-50V A...................

C 167 87-010-405-080 CAP, ELECT 10-50V A...................

C 169 87-012-154-080 C-CAP,S 150P-50 CH A...................

C 165 87-A10-369-080 C-CAP,S 0.47-16 K B A...................

C 171 87-010-178-080 CHIP CAP 1000P A...................

C 172 87-010-178-080 CHIP CAP 1000P A...................

C 175 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 176 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 179 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 174 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 173 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 178 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 170 87-012-154-080 C-CAP,S 150P-50 CH A...................

C 177 87-A10-369-080 C-CAP,S 0.47-16 K B A...................

C 184 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 183 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 180 87-010-405-080 CAP, ELECT 10-50V A...................

C 185 87-010-405-080 CAP, ELECT 10-50V A...................

C 181 87-010-405-080 CAP, ELECT 10-50V A...................

C 182 87-010-405-080 CAP, ELECT 10-50V A...................

C 186 87-010-405-080 CAP, ELECT 10-50V A...................

C 188 87-016-083-080 C-CAP,S 0.15-16 RK A...................

C 187 87-016-083-080 C-CAP,S 0.15-16 RK A...................

C 189 87-016-083-080 C-CAP,S 0.15-16 RK A...................

C 193 87-010-154-080 CAP CHIP 10P A...................

C 194 87-010-154-080 CAP CHIP 10P A...................

C 192 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 196 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 191 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 198 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 190 87-010-405-080 CAP, ELECT 10-50V A...................

C 197 87-010-405-080 CAP, ELECT 10-50V A...................

C 195 87-010-405-080 CAP, ELECT 10-50V A...................

C 199 87-A10-369-080 C-CAP,S 0.47-16 K B A...................

C 202 87-010-154-080 CAP CHIP 10P A...................

C 209 87-010-154-080 CAP CHIP 10P A...................

C 201 87-010-154-080 CAP CHIP 10P A...................

C 204 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 203 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 206 87-010-401-080 CAP, ELECT 1-50V A...................

C 207 87-010-405-080 CAP, ELECT 10-50V A...................

C 208 87-010-405-080 CAP, ELECT 10-50V A...................

C 205 87-A10-369-080 C-CAP,S 0.47-16 K B A...................

C 210 87-010-154-080 CAP CHIP 10P A...................

C 212 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 211 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 214 87-010-405-080 CAP, ELECT 10-50V A...................

C 216 87-010-405-080 CAP, ELECT 10-50V A...................

C 215 87-010-405-080 CAP, ELECT 10-50V A...................

C 219 87-010-993-080 C-CAP,S 0.056-25 B A...................

C 213 87-A10-369-080 C-CAP,S 0.47-16 K B A...................

C 223 87-010-178-080 CHIP CAP 1000P A...................

C 222 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 224 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 221 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 228 87-010-405-080 CAP, ELECT 10-50V A...................

C 227 87-010-405-080 CAP, ELECT 10-50V A...................

C 220 87-A10-369-080 C-CAP,S 0.47-16 K B A...................

C 237 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 236 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 239 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 238 87-010-314-080 C-CAP,S 22P-50V A...................

C 231 87-010-805-080 CAP, S 1-16 A...................

C 244 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 245 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 242 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 240 87-010-314-080 C-CAP,S 22P-50V A...................

C 243 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 241 87-010-405-080 CAP, ELECT 10-50V A...................

C 254 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 256 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 253 87-010-263-080 CAP, ELECT 100-10V A...................

C 257 87-010-314-080 C-CAP,S 22P-50V A...................

C 259 87-010-314-080 C-CAP,S 22P-50V A...................

C 258 87-010-314-080 C-CAP,S 22P-50V A...................

C 255 87-010-378-080 CAP, ELECT 10-16V A...................

C 268 87-010-197-080 CAP, CHIP 0.01 DM A...................

C 261 87-010-314-080 C-CAP,S 22P-50V A...................

C 266 87-010-314-080 C-CAP,S 22P-50V A...................

C 260 87-010-314-080 C-CAP,S 22P-50V A...................

C 265 87-010-314-080 C-CAP,S 22P-50V A...................

C 264 87-010-314-080 C-CAP,S 22P-50V A...................

C 263 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z A...................

C 279 87-010-091-080 C-CAP,22P-50 CH A...................

C 274 87-010-182-080 C-CAP,S 2200P-50 B A...................

C 272 87-010-186-080 CAP,CHIP 4700P A...................

C 278 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 273 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

ELECTRICAL MAIN PARTS LIST - 7/11

C 275 87-010-263-080 CAP, ELECT 100-10V A...................

C 284 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 289 87-010-314-080 C-CAP,S 22P-50V A...................

C 288 87-010-314-080 C-CAP,S 22P-50V A...................

C 287 87-010-314-080 C-CAP,S 22P-50V A...................

C 286 87-010-314-080 C-CAP,S 22P-50V A...................

C 282 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 283 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 281 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 280 87-010-401-080 CAP, ELECT 1-50V A...................

C 290 87-010-314-080 C-CAP,S 22P-50V A...................

C 297 87-010-314-080 C-CAP,S 22P-50V A...................

C 298 87-010-314-080 C-CAP,S 22P-50V A...................

C 292 87-010-314-080 C-CAP,S 22P-50V A...................

C 291 87-010-314-080 C-CAP,S 22P-50V A...................

C 294 87-010-314-080 C-CAP,S 22P-50V A...................

C 296 87-010-314-080 C-CAP,S 22P-50V A...................

C 293 87-010-314-080 C-CAP,S 22P-50V A...................

C 295 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 302 87-010-762-080 CAP E220-10 BP A...................

C 317 87-016-462-080 C-CAP,S 1-16 F A...................

C 318 87-016-462-080 C-CAP,S 1-16 F A...................

C 338 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 336 87-010-405-080 CAP, ELECT 10-50V A...................

C 337 87-010-405-080 CAP, ELECT 10-50V A...................

C 339 87-010-405-080 CAP, ELECT 10-50V A...................

C 342 87-010-180-080 C-CER 1500P A...................

C 343 87-010-180-080 C-CER 1500P A...................

C 344 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 341 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 340 87-010-405-080 CAP, ELECT 10-50V A...................

C 403 87-010-401-080 CAP, ELECT 1-50V A...................

C 404 87-018-131-080 CAP, CER 1000P-50V A...................

C 405 87-018-131-080 CAP, CER 1000P-50V A...................

CN 101 87-099-563-010 CONN,20P TUC-P20X-B1 A...................

CN 105 87-A60-060-010 CONN,07P V 9604S-07C A...................

CN 102 87-A60-190-010 CONN,16P H TUC-P16X-B1 A...................

CN 103 88-AR1-658-010 CONN ASSY,2P (AC-3) A...................

FB 102 87-008-372-080 FILTER, EMI BL OIRNI A...................

FB 105 87-008-372-080 FILTER, EMI BL OIRNI A...................

FB 104 87-008-372-080 FILTER, EMI BL OIRNI A...................

FB 103 87-008-372-080 FILTER, EMI BL OIRNI A...................

FB 106 87-008-372-080 FILTER, EMI BL OIRNI A...................

FB 107 87-008-474-080 F-BEAD,EMI BL02RN1 A...................

FB 108 87-008-474-080 F-BEAD,EMI BL02RN1 A...................

FB 111 87-008-372-080 FILTER, EMI BL OIRNI A...................

FB 110 87-008-372-080 FILTER, EMI BL OIRNI A...................

FB 112 87-008-372-080 FILTER, EMI BL OIRNI A...................

J 101 87-A60-573-010 JACK,PIN 1P ORN A...................

L 103 87-005-274-080 COIL,68UH K LAL03 A...................

L 109 87-005-840-080 C-COIL,BLM21A10 A...................

L 106 87-008-372-080 FILTER, EMI BL OIRNI A...................

L 104 87-008-501-080 FLTR,DSS306-B101 A...................

L 108 87-008-501-080 FLTR,DSS306-B101 A...................

L 105 87-008-501-080 FLTR,DSS306-B101 A...................

L 107 87-008-501-080 FLTR,DSS306-B101 A...................

L 102 87-A50-095-010 COIL,68UH RCR875D A...................

L 101 87-A50-517-080 COIL,10UHK FLR88 A...................

L 111 87-A50-231-010 COIL,68UH RCR108D A...................

L 110 87-A50-517-080 COIL,10UHK FLR88 A...................

X 102 87-A70-243-010 VIB,XTAL 24.576MHZ A...................

CN 504 87-099-574-010 CONN,20P TUC-P20P-B1 A...................

CN 505 87-A60-189-010 CONN,16P V TUC-P16P-B1 A...................

C 149 87-010-154-080 CAP CHIP 10P A...................

C 159 87-010-154-080 CAP CHIP 10P A...................

C 150 87-010-154-080 CAP CHIP 10P A...................

C 156 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 155 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 158 87-010-248-080 CAP, ELECT 220-10V A...................

C 153 87-010-401-080 CAP, ELECT 1-50V A...................

C 154 87-010-401-080 CAP, ELECT 1-50V A...................

C 157 87-010-408-080 CAP, ELECT 47-50V A...................

C 169 87-010-154-080 CAP CHIP 10P A...................

C 172 87-010-154-080 CAP CHIP 10P A...................

C 170 87-010-154-080 CAP CHIP 10P A...................

C 171 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 175 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 174 87-010-401-080 CAP, ELECT 1-50V A...................

C 173 87-010-405-080 CAP, ELECT 10-50V A...................

R 176 87-A00-401-050 RES,M/F 390-1W J VTP A...................

R 179 87-A00-402-050 RES,M/F 560-1W J VTP A...................

C 548 87-010-404-080 CAP, ELECT 4.7-50V A...................

C 723 87-010-401-080 CAP, ELECT 1-50V A...................

C 726 87-010-401-080 CAP, ELECT 1-50V A...................

C 503 87-010-188-080 CAP,CHIP 6800P A...................

C 504 87-010-188-080 CAP,CHIP 6800P A...................

C 507 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................

C 501 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................

C 502 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................

CN 604 87-A60-079-010 CONN,08P H 9604S-08F A...................

CN 605 8A-AR3-652-010 CONN ASSY,2P -VIDEO 3 A...................

FB 501 87-008-372-080 FILTER, EMI BL OIRNI A...................

ELECTRICAL MAIN PARTS LIST - 8/11

FB 602 87-008-372-080 FILTER, EMI BL OIRNI A...................

J 501 87-A60-606-010 JACK,PIN 3P R/W/Y W/O SW H A...................

J 603 87-A60-550-010 JACK,DIA6.3 BLK ST W/SW KM A...................

C 607 87-010-178-080 CHIP CAP 1000P A...................

C 608 87-010-186-080 CAP,CHIP 4700P A...................

C 601 87-010-195-080 C-CAP,S 0.068-25 F A...................

C 603 87-010-195-080 C-CAP,S 0.068-25 F A...................

C 604 87-010-195-080 C-CAP,S 0.068-25 F A...................

C 606 87-010-195-080 C-CAP,S 0.068-25 F A...................

C 605 87-010-195-080 C-CAP,S 0.068-25 F A...................

C 602 87-010-195-080 C-CAP,S 0.068-25 F A...................

C 615 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 610 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 611 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 613 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 614 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 612 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 634 87-010-374-080 CAP, ELECT 47-10V A...................

CN 601 87-A60-076-010 CONN,12P H 9604S-12F A...................

CN 603 87-A60-080-010 CONN,07P H 9604S-07F A...................

S 601 87-A90-095-080 SW,TACT EVQ11G04M A...................

S 602 87-A90-095-080 SW,TACT EVQ11G04M A...................

SW 601 87-A91-645-010 SW,RTRY EC12E24304NON-CLICK A...................

C 131 87-010-378-080 CAP, ELECT 10-16V A...................

C 133 87-010-378-080 CAP, ELECT 10-16V A...................

C 135 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 136 87-012-368-080 C-CAP,S 0.1-50 F A...................

C 1 87-010-387-080 CAP,E 470-25 SME A...................

C 2 87-010-403-080 CAP, ELECT 3.3-50V A...................

C 7 87-A10-922-090 CAP,CER 0.01-250 M F KH A...................

C 5 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................

C 4 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................

C 3 87-A11-148-080 CAP,TC U 0.1-50 Z F A...................

CN 103 87-A60-851-010 CONN,9P V VH A...................

CN 101 88-805-042-690 CONN ASSY,4P A...................

F 101 87-026-691-080 FUSE,10A 125V 251 A...................

FC 101 87-A90-160-080 FUSE CLAMP,FC 51F A...................

FC 102 87-A90-160-080 FUSE CLAMP,FC 51F A...................

PR 1 87-A91-276-080 FUSE,125MA 125V F 251 A...................

PR 106 87-026-691-080 FUSE,10A 125V 251 A...................

PR 105 87-026-691-080 FUSE,10A 125V 251 A...................

PT 2 8A-NF8-661-010 PT,SUB ANF-8 (U) A...................

RY 1 87-A90-977-010 RELAY,AC12V DG12D1-O(M) A...................

T 1 87-A60-317-010 TERMINAL, 1P MSC A...................

T 2 87-A60-317-010 TERMINAL, 1P MSC A...................

D 709 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 708 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 707 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 747 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 802 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 804 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 803 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 807 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 801 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 805 87-A40-344-080 ZENER,MTZJ6.2C A...................

D 813 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 815 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 818 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 819 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 822 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 824 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 821 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 823 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 820 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 826 87-020-465-080 DIODE,1SS133 (110MA) A...................

IC 703 87-017-915-080 IC,BU4094BCF A...................

IC 702 87-017-915-080 IC,BU4094BCF A...................

IC 701 87-A21-481-040 C-IC,HD74HC4051FP A...................

IC 802 87-070-083-010 IC,GP1U281X A...................

IC 801 8A-AR3-601-010 C-IC,UPD780228GF-*** A...................

Q 719 87-A30-071-080 C-TR,RT1N 144C A...................

Q 721 87-A30-071-080 C-TR,RT1N 144C A...................

Q 724 87-A30-071-080 C-TR,RT1N 144C A...................

Q 720 87-A30-071-080 C-TR,RT1N 144C A...................

Q 722 87-A30-071-080 C-TR,RT1N 144C A...................

Q 723 89-112-965-080 TR,2SA1296 (0.75W) A...................

Q 804 87-026-610-080 TR,KTC3198GR A...................

Q 802 87-A30-071-080 C-TR,RT1N 144C A...................

Q 808 87-A30-071-080 C-TR,RT1N 144C A...................

Q 807 87-A30-071-080 C-TR,RT1N 144C A...................

Q 805 87-A30-074-080 C-TR,RT1P 141C A...................

Q 801 87-A30-074-080 C-TR,RT1P 141C A...................

Q 809 87-A30-076-080 C-TR,2SC3052F A...................

Q 803 87-A30-076-080 C-TR,2SC3052F A...................

Q 806 87-A30-087-080 C-FET,2SK2158 A...................

D 503 87-070-274-080 DIODE,1N4003 SEM A...................

D 502 87-A40-438-080 ZENER,MTZJ4.7A A...................

D 501 87-A40-438-080 ZENER,MTZJ4.7A A...................

IC 501 87-017-022-080 IC,NJM2068M-D(T1) A...................

IC 502 87-017-726-080 IC,BU4052 BCF A...................

IC 503 87-A21-202-040 C-IC,M62445AFP A...................

D 107 87-A40-115-060 DIODE,RS603M A...................

ELECTRICAL MAIN PARTS LIST - 9/11

D 101 87-A40-345-080 ZENER,MTZJ10C A...................

D 102 87-A40-468-080 C-DIODE,HSM2836CTR A...................

D 108 87-A40-468-080 C-DIODE,HSM2836CTR A...................

D 109 87-A40-469-080 C-DIODE,HSM2838CTR A...................

D 110 87-A40-004-080 ZENER,MTZJ16A A...................

D 112 87-A40-335-080 ZENER,MTZJ11C T-72 A...................

D 125 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 126 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 122 87-070-274-080 DIODE,1N4003 SEM A...................

D 123 87-070-274-080 DIODE,1N4003 SEM A...................

D 121 87-A40-224-010 DIODE,GBU8D A...................

D 124 87-A40-435-080 ZENER,MTZJ30D A...................

Q 107 87-026-610-080 TR,KTC3198GR A...................

Q 105 87-A30-075-080 C-TR,2SA1235F A...................

Q 106 87-A30-076-080 C-TR,2SC3052F A...................

Q 103 87-A30-083-080 TR,CSD1489B A...................

Q 101 89-110-372-080 TR,2SA1037(140MHZ 200MW) A...................

Q 108 89-213-702-010 TR,2SB1370 (1.8W) A...................

Q 102 89-213-702-010 TR,2SB1370 (1.8W) A...................

Q 109 89-213-702-010 TR,2SB1370 (1.8W) A...................

Q 118 87-026-609-080 TR,KTA1266GR A...................

Q 117 87-026-609-080 TR,KTA1266GR A...................

Q 115 87-A30-075-080 C-TR,2SA1235F A...................

Q 113 87-A30-075-080 C-TR,2SA1235F A...................

Q 116 87-A30-076-080 C-TR,2SC3052F A...................

Q 114 87-A30-076-080 C-TR,2SC3052F A...................

Q 112 87-A30-076-080 C-TR,2SC3052F A...................

D 202 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 201 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 209 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 219 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 217 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 218 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 210 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 216 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 215 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 213 87-070-136-080 ZENER,MTZJ5.1B A...................

D 214 87-A40-344-080 ZENER,MTZJ6.2C A...................

D 211 87-A40-646-010 DIODE,FMB-G16L A...................

D 212 87-A40-646-010 DIODE,FMB-G16L A...................

D 224 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 225 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 226 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 223 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 227 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 220 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 221 87-070-274-080 DIODE,1N4003 SEM A...................

D 243 87-A40-345-080 ZENER,MTZJ10C A...................

D 242 87-A40-488-080 DIODE,1SS244 A...................

D 241 87-A40-488-080 DIODE,1SS244 A...................

D 302 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 301 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 309 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 319 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 317 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 310 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 316 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 318 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 315 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 313 87-070-136-080 ZENER,MTZJ5.1B A...................

D 314 87-A40-344-080 ZENER,MTZJ6.2C A...................

D 312 87-A40-646-010 DIODE,FMB-G16L A...................

D 311 87-A40-646-010 DIODE,FMB-G16L A...................

D 325 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 324 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 323 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 320 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 321 87-070-274-080 DIODE,1N4003 SEM A...................

D 346 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 345 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 343 87-A40-345-080 ZENER,MTZJ10C A...................

D 342 87-A40-488-080 DIODE,1SS244 A...................

D 341 87-A40-488-080 DIODE,1SS244 A...................

D 405 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 401 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 408 87-070-136-080 ZENER,MTZJ5.1B A...................

D 409 87-A40-344-080 ZENER,MTZJ6.2C A...................

D 407 87-A40-646-010 DIODE,FMB-G16L A...................

D 406 87-A40-646-010 DIODE,FMB-G16L A...................

D 414 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 410 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 412 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 411 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 413 87-070-274-080 DIODE,1N4003 SEM A...................

D 425 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 423 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 420 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 433 87-A40-345-080 ZENER,MTZJ10C A...................

D 441 87-020-465-080 DIODE,1SS133 (110MA) A...................

Q 209 87-A30-076-080 C-TR,2SC3052F A...................

Q 208 87-A30-076-080 C-TR,2SC3052F A...................

Q 207 87-A30-076-080 C-TR,2SC3052F A...................

ELECTRICAL MAIN PARTS LIST - 10/11

Q 203 87-A30-107-070 C-TR,CMBT5401 A...................

Q 205 87-A30-107-070 C-TR,CMBT5401 A...................

Q 206 87-A30-107-070 C-TR,CMBT5401 A...................

Q 204 87-A30-107-070 C-TR,CMBT5401 A...................

Q 202 87-A30-257-080 C-TR,2SD1306E A...................

Q 201 87-A30-257-080 C-TR,2SD1306E A...................

Q 210 87-A30-076-080 C-TR,2SC3052F A...................

Q 217 87-A30-106-070 C-TR,CMBT5551 A...................

Q 218 87-A30-106-070 C-TR,CMBT5551 A...................

Q 219 87-A30-186-010 FET,2SK3053 A...................

Q 211 87-A30-190-080 TR,CC5551 A...................

Q 212 87-A30-190-080 TR,CC5551 A...................

Q 228 87-026-232-080 TR,DTA144WK A...................

Q 226 87-026-236-080 TR,DTC124E,K A...................

Q 221 87-A30-072-080 C-TR,RT1P 144C A...................

Q 223 87-A30-074-080 C-TR,RT1P 141C A...................

Q 227 87-A30-075-080 C-TR,2SA1235F A...................

Q 225 87-A30-075-080 C-TR,2SA1235F A...................

Q 222 87-A30-076-080 C-TR,2SC3052F A...................

Q 224 87-A30-107-070 C-TR,CMBT5401 A...................

Q 220 87-A30-186-010 FET,2SK3053 A...................

Q 232 87-A30-076-080 C-TR,2SC3052F A...................

Q 230 87-A30-076-080 C-TR,2SC3052F A...................

Q 231 87-A30-076-080 C-TR,2SC3052F A...................

Q 233 87-A30-076-080 C-TR,2SC3052F A...................

Q 240 87-A30-107-070 C-TR,CMBT5401 A...................

Q 309 87-A30-076-080 C-TR,2SC3052F A...................

Q 307 87-A30-076-080 C-TR,2SC3052F A...................

Q 308 87-A30-076-080 C-TR,2SC3052F A...................

Q 305 87-A30-107-070 C-TR,CMBT5401 A...................

Q 303 87-A30-107-070 C-TR,CMBT5401 A...................

Q 306 87-A30-107-070 C-TR,CMBT5401 A...................

Q 304 87-A30-107-070 C-TR,CMBT5401 A...................

Q 301 87-A30-257-080 C-TR,2SD1306E A...................

Q 302 87-A30-257-080 C-TR,2SD1306E A...................

Q 310 87-A30-076-080 C-TR,2SC3052F A...................

Q 314 87-A30-097-010 TR,FN 1016 A...................

Q 313 87-A30-097-010 TR,FN 1016 A...................

Q 315 87-A30-098-010 TR,FP 1016 A...................

Q 316 87-A30-098-010 TR,FP 1016 A...................

Q 318 87-A30-106-070 C-TR,CMBT5551 A...................

Q 317 87-A30-106-070 C-TR,CMBT5551 A...................

Q 319 87-A30-186-010 FET,2SK3053 A...................

Q 312 87-A30-190-080 TR,CC5551 A...................

Q 311 87-A30-190-080 TR,CC5551 A...................

Q 326 87-026-236-080 TR,DTC124E,K A...................

Q 321 87-A30-072-080 C-TR,RT1P 144C A...................

Q 323 87-A30-074-080 C-TR,RT1P 141C A...................

Q 327 87-A30-075-080 C-TR,2SA1235F A...................

Q 325 87-A30-075-080 C-TR,2SA1235F A...................

Q 322 87-A30-076-080 C-TR,2SC3052F A...................

Q 324 87-A30-107-070 C-TR,CMBT5401 A...................

Q 320 87-A30-186-010 FET,2SK3053 A...................

Q 330 87-A30-076-080 C-TR,2SC3052F A...................

Q 331 87-A30-076-080 C-TR,2SC3052F A...................

Q 332 87-A30-076-080 C-TR,2SC3052F A...................

Q 333 87-A30-076-080 C-TR,2SC3052F A...................

Q 340 87-A30-107-070 C-TR,CMBT5401 A...................

Q 405 87-A30-076-080 C-TR,2SC3052F A...................

Q 404 87-A30-076-080 C-TR,2SC3052F A...................

Q 407 87-A30-097-010 TR,FN 1016 A...................

Q 408 87-A30-098-010 TR,FP 1016 A...................

Q 409 87-A30-106-070 C-TR,CMBT5551 A...................

Q 402 87-A30-107-070 C-TR,CMBT5401 A...................

Q 403 87-A30-107-070 C-TR,CMBT5401 A...................

Q 406 87-A30-190-080 TR,CC5551 A...................

Q 401 87-A30-257-080 C-TR,2SD1306E A...................

Q 417 87-026-236-080 TR,DTC124E,K A...................

Q 412 87-A30-072-080 C-TR,RT1P 144C A...................

Q 414 87-A30-074-080 C-TR,RT1P 141C A...................

Q 418 87-A30-075-080 C-TR,2SA1235F A...................

Q 416 87-A30-075-080 C-TR,2SA1235F A...................

Q 413 87-A30-076-080 C-TR,2SC3052F A...................

Q 415 87-A30-107-070 C-TR,CMBT5401 A...................

Q 411 87-A30-186-010 FET,2SK3053 A...................

Q 410 87-A30-186-010 FET,2SK3053 A...................

Q 420 87-A30-076-080 C-TR,2SC3052F A...................

Q 421 87-A30-076-080 C-TR,2SC3052F A...................

Q 440 87-A30-107-070 C-TR,CMBT5401 A...................

IC 701 87-020-784-080 IC,TC4053BF A...................

D 903 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 902 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 901 87-070-136-080 ZENER,MTZJ5.1B A...................

IC 902 87-017-917-080 IC,BU4066BCF A...................

IC 901 87-A20-820-010 IC,BA7625 A...................

Q 905 87-A30-071-080 C-TR,RT1N 144C A...................

Q 906 87-A30-074-080 C-TR,RT1P 141C A...................

Q 901 87-A30-075-080 C-TR,2SA1235F A...................

Q 903 87-A30-075-080 C-TR,2SA1235F A...................

Q 902 87-A30-075-080 C-TR,2SA1235F A...................

Q 907 87-A30-075-080 C-TR,2SA1235F A...................

Q 904 87-A30-076-080 C-TR,2SC3052F A...................

ELECTRICAL MAIN PARTS LIST - 11/11

D 101 87-A40-291-080 DIODE,1N4148 (CPT) A...................

D 102 87-A40-614-040 C-DIODE,SFPB-72 A...................

D 305 87-017-932-080 ZENER,MTJ6.2B A...................

D 302 87-A40-469-080 C-DIODE,HSM2838CTR A...................

D 301 87-A40-469-080 C-DIODE,HSM2838CTR A...................

D 403 87-A40-291-080 DIODE,1N4148 (CPT) A...................

D 404 87-A40-348-080 ZENER,MTZJ3.3A A...................

IC 106 87-017-022-080 IC,NJM2068M-D(T1) A...................

IC 107 87-017-022-080 IC,NJM2068M-D(T1) A...................

IC 105 87-017-022-080 IC,NJM2068M-D(T1) A...................

IC 104 87-017-022-080 IC,NJM2068M-D(T1) A...................

IC 109 87-020-784-080 IC,TC4053BF A...................

IC 108 87-020-784-080 IC,TC4053BF A...................

IC 103 87-A20-602-040 C-IC,M5291FP A...................

IC 101 87-A21-501-010 C-IC,YSS902 A...................

IC 102 87-A21-503-010 C-IC,AK4527VQ A...................

IC 118 87-001-604-080 IC,TC74HCU04F A...................

IC 110 87-017-022-080 IC,NJM2068M-D(T1) A...................

IC 111 87-017-022-080 IC,NJM2068M-D(T1) A...................

IC 113 87-017-022-080 IC,NJM2068M-D(T1) A...................

IC 112 87-017-022-080 IC,NJM2068M-D(T1) A...................

IC 119 87-020-784-080 IC,TC4053BF A...................

IC 115 87-A20-870-010 IC,GP1F37R A...................

IC 121 87-002-298-080 IC,TC74HC00AF A...................

IC 120 87-017-022-080 IC,NJM2068M-D(T1) A...................

IC 124 87-017-022-080 IC,NJM2068M-D(T1) A...................

IC 125 87-A20-736-010 IC,BA033ST A...................

IC 126 87-A21-499-080 C-IC,SN74HC153A A...................

IC 127 87-A21-502-080 C-IC,YSD917 A...................

Q 102 87-A30-071-080 C-TR,RT1N 144C A...................

Q 101 87-A30-071-080 C-TR,RT1N 144C A...................

Q 105 87-A30-071-080 C-TR,RT1N 144C A...................

Q 103 87-A30-071-080 C-TR,RT1N 144C A...................

Q 108 87-A30-073-080 C-TR,RT1N 141C A...................

Q 107 87-A30-074-080 C-TR,RT1P 141C A...................

Q 109 87-A30-086-070 C-TR,CSD1306E A...................

Q 104 87-A30-217-010 TR,2SB1436(R) A...................

Q 100 87-A30-217-010 TR,2SB1436(R) A...................

Q 111 87-A30-076-080 C-TR,2SC3052F A...................

Q 112 87-A30-076-080 C-TR,2SC3052F A...................

Q 110 87-A30-086-070 C-TR,CSD1306E A...................

Q 113 89-420-612-010 TR,2SD2061 (2W) A...................

Q 404 87-026-608-080 C-TR,DTC 123 JK A...................

Q 405 87-A30-076-080 C-TR,2SC3052F A...................

D 145 87-A40-347-080 ZENER,MTZJ2.2B A...................

D 146 87-A40-347-080 ZENER,MTZJ2.2B A...................

IC 145 87-A20-715-010 IC,M62439SP A...................

IC 146 87-A20-715-010 IC,M62439SP A...................

Q 721 87-A30-086-070 C-TR,CSD1306E A...................

D 504 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 505 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 506 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 503 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 502 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 501 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 602 87-017-931-080 ZENER,MTZJ5.6B A...................

Q 602 87-A30-075-080 C-TR,2SA1235F A...................

Q 604 87-A30-075-080 C-TR,2SA1235F A...................

Q 608 87-A30-075-080 C-TR,2SA1235F A...................

Q 606 87-A30-075-080 C-TR,2SA1235F A...................

Q 605 87-A30-075-080 C-TR,2SA1235F A...................

Q 607 87-A30-076-080 C-TR,2SC3052F A...................

Q 609 87-A30-076-080 C-TR,2SC3052F A...................

Q 603 87-A30-076-080 C-TR,2SC3052F A...................

Q 601 87-A30-076-080 C-TR,2SC3052F A...................

Q 619 87-026-610-080 TR,KTC3198GR A...................

Q 611 87-A30-075-080 C-TR,2SA1235F A...................

Q 617 87-A30-075-080 C-TR,2SA1235F A...................

Q 612 87-A30-075-080 C-TR,2SA1235F A...................

Q 618 87-A30-075-080 C-TR,2SA1235F A...................

Q 614 87-A30-075-080 C-TR,2SA1235F A...................

Q 610 87-A30-075-080 C-TR,2SA1235F A...................

Q 616 87-A30-075-080 C-TR,2SA1235F A...................

Q 615 87-A30-076-080 C-TR,2SC3052F A...................

Q 613 87-A30-076-080 C-TR,2SC3052F A...................

IC 101 87-017-888-080 IC,NJM4558MD A...................

D 1 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 6 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 7 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 3 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 4 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 2 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 5 87-020-465-080 DIODE,1SS133 (110MA) A...................

Q 2 87-026-245-080 TR,DTC114ES A...................

Q 1 87-A30-197-080 TR,KTA1267GR A...................

Q 3 87-A30-198-080 TR,KTC3199GR A...................

MECHANICAL PARTS LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

U ......................XX..................................A...................

KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

87-CE3-023-010 BADGE,AIWA 30N SILV A...................

8A-AR3-002-010 PANEL,REAR UBM A...................

8A-AR3-003-010 PANEL,FR U A...................

8A-AR3-037-010 PANEL,REAR LHBM ....................

8A-AR3-070-010 CABI,FR LH GLD ....................

8A-AR3-071-010 PANEL,FR GLD ....................

8Z-AR1-020-110 RING,FOOT SIL A...................

8Z-AR1-021-010 FOOT,REAR A...................

8Z-AR1-050-010 CABI,STEEL GLD ....................

* 8A-AR3-001-010 CABI,FR U A...................

* 8A-AR3-025-010 CABI,STEEL A...................

8A-AR3-006-010 KNOB,RTRY JOG A...................

8A-AR3-007-010 RING,VOL A...................

8A-AR3-011-010 BTN,SP A...................

8A-AR3-012-010 KEY,ASSY,DOLBY A...................

8A-AR3-013-010 KEY,ASSY,ENTER A...................

8A-AR3-020-010 KEY,ECO A...................

8A-AR3-021-010 KEY,POWER A...................

8A-AR3-024-010 KEY,BAL A...................

8A-AR3-045-010 KNOB,RTRY VOL A...................

8A-AR3-047-010 RING,FUN A...................

8A-AR2-005-010 WINDOW,DISP DIGI A...................

8A-AR3-004-010 WINDOW,DISP 5.1CH ....................

8A-AR3-009-010 REFLECTOR,FUN A...................

8A-AR3-010-010 REFLECTOR,ECO A...................

87-033-209-010 TERMINAL, EARTH A...................

88-AR1-203-010 HLDR,TU A...................

88-AR1-211-110 HLDR,AC SW ....................

88-AR1-218-010 HLDR,PWB H8.9 A...................

8A-AR1-201-010 HLDR,EQ PWB ....................

8Z-AR1-205-010 HLDR,HT-SINK A...................

8Z-AR1-219-010 HLDR,PWB PRO A...................

8Z-AR1-219-110 HLDR,PWB PRO ....................

8Z-NB8-240-010 COVER, PL A...................

87-067-579-010 TAPPING SCREW, BVT2+3-8 A...................

87-067-581-010 TAPPING SCREW, BVT2+3-15 A...................

87-067-584-010 TAPPING SCREW, BVT2+3-6 A...................

87-067-585-010 TAPPING SCREW, BVTT+4-6 A...................

87-067-632-010 TAPPING SCREW, BVT2+3-15 A...................

87-067-633-010 TAPPING SCREW, BVT2+3-8 A...................

87-067-641-010 UTT2+3-8(W/O SLOT)BL A...................

87-067-689-010 TAPPING SCREW, BVTT+3-8 A...................

87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................

87-067-761-010 TAPPING SCREW, BVT2+3-10 A...................

87-078-191-010 S-SCREW,IT+4-10 A...................

87-591-095-410 TAPPING SCREW, QIT+3-8 (GLD) A...................

* 8A-AR3-201-010 GUIDE,FL A...................

87-067-001-010 FW,3.1-5.4-1 A...................

87-067-579-010 TAPPING SCREW, BVT2+3-8 A...................

87-050-079-010 AC-CORD ASSY,E ....................

87-085-185-010 BUSHING, AC CORD (E) ....................

87-085-189-010 BUSHING, CORD (U) A...................

87-A80-092-010 AC CORD ASSY,E BLK SUN FAI ....................

87-A80-110-010 AC CORD ASSY,U SPT-2W A...................

88-907-351-110 FF-CABLE, 7P 1.25 350MM A...................

88-908-101-110 FF-CABLE, 8P 1.25 10MM A...................

88-912-101-110 FF-CABLE, 12P 1.25 100MM A...................

88-912-161-110 FF-CABLE,12P 1.25 160MM A...................

8A-AR2-641-010 FF-CABLE, 14P 1.25 440MM A...................

8A-AR3-605-010 PT,AAR-3(U) A...................

8A-AR3-606-010 PT,AAR-3(HC) ....................

8A-AR3-643-010 FF-CABLE,32P 1.25 430MM A...................

D 107 87-A40-115-060 DIODE,RS603M A...................

D 121 87-A40-224-010 DIODE,GBU8D A...................

F 102 87-035-369-010 FUSE,5A 250V TE ....................

F 101 87-035-369-010 FUSE,5A 250V TE ....................

F 101 87-035-494-010 FUSE,10A 125V T 237 A...................

Q 108 89-213-702-010 TR,2SB1370 (1.8W) A...................

Q 109 89-213-702-010 TR,2SB1370 (1.8W) A...................

Q 213 87-A30-097-010 TR,FN 1016 A...................

Q 214 87-A30-097-010 TR,FN 1016 A...................

Q 215 87-A30-098-010 TR,FP 1016 A...................

Q 216 87-A30-098-010 TR,FP 1016 A...................

Q 313 87-A30-097-010 TR,FN 1016 A...................

Q 314 87-A30-097-010 TR,FN 1016 A...................

Q 315 87-A30-098-010 TR,FP 1016 A...................

Q 316 87-A30-098-010 TR,FP 1016 A...................

Q 407 87-A30-097-010 TR,FN 1016 A...................

Q 408 87-A30-098-010 TR,FP 1016 A...................

W 3 8Z-AR2-606-010 CONN ASSY,9P VH A...................

WH 101 87-A90-510-010 HLDR,WIRE 2.5-9P A...................

87-067-579-010 TAPPING SCREW, BVT2+3-8 A...................

ACCESSORIES / PACKAGE LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

U ......................XX..................................A...................

KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8A-AR3-902-010 IB,LH(ESP)M ....................

8A-AR3-903-010 IB,U(ESF)M A...................

87-043-115-010 ANT,FEEDER FM A...................

87-A91-017-010 PLUG,CONVERSION JT-0476 ....................

8A-AR2-701-010 RC UNIT,RC-AAR02 BLK A...................

8A-AR3-704-010 RC UNIT,RC-AAR03 ....................

ANT 0 87-006-225-010 AM LOOP ANT NC2 A...................

SCHEMATIC DIAGRAM _ 1 (MAIN 1/2)

SCHEMATIC DIAGRAM _ 1 (MAIN 2/2)

SCHEMATIC DIAGRAM _ 2 (FRONT 1/2)

SCHEMATIC DIAGRAM _ 2 (FRONT 2/2)

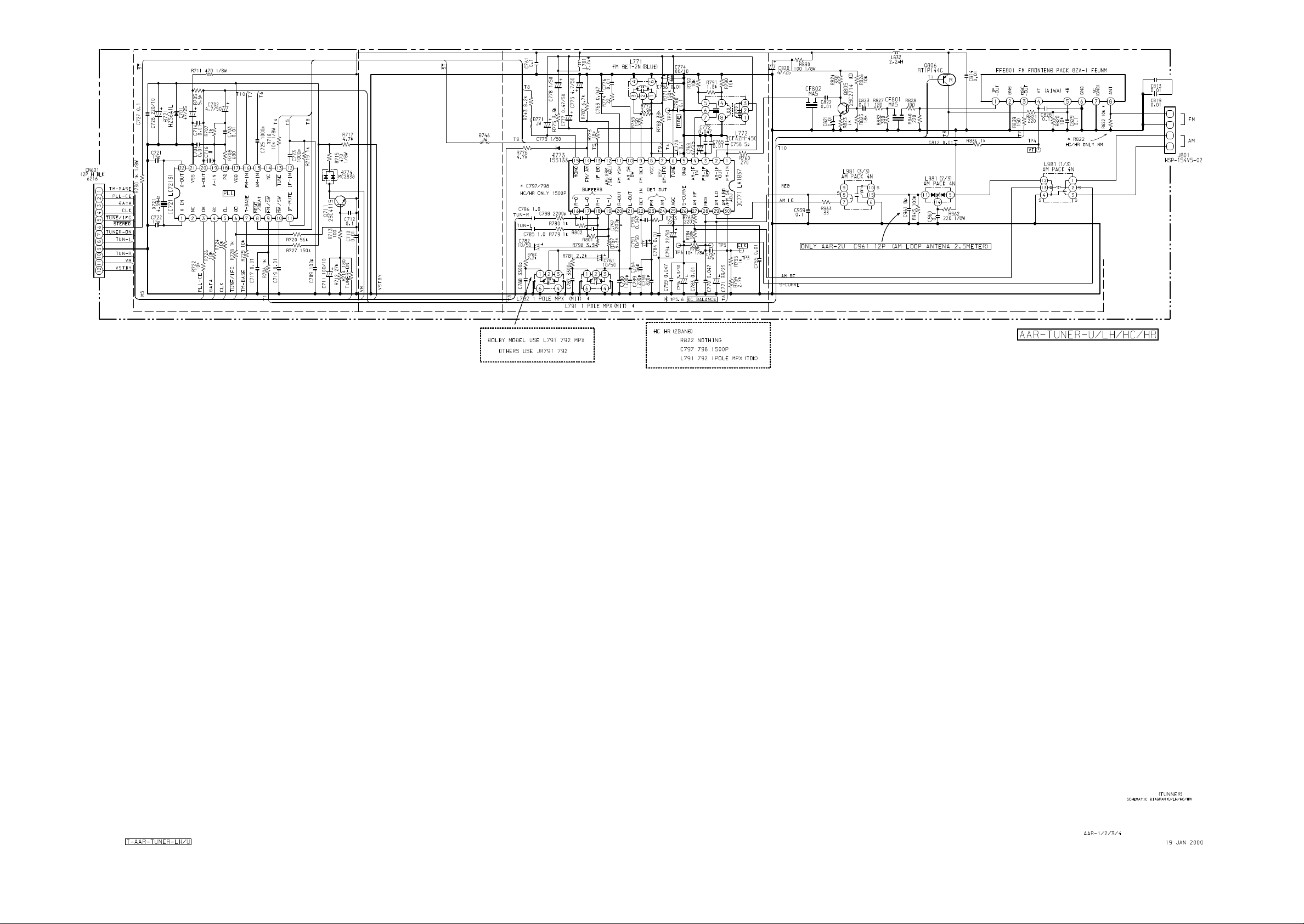

SCHEMATIC DIAGRAM _ 3 (TUNER)

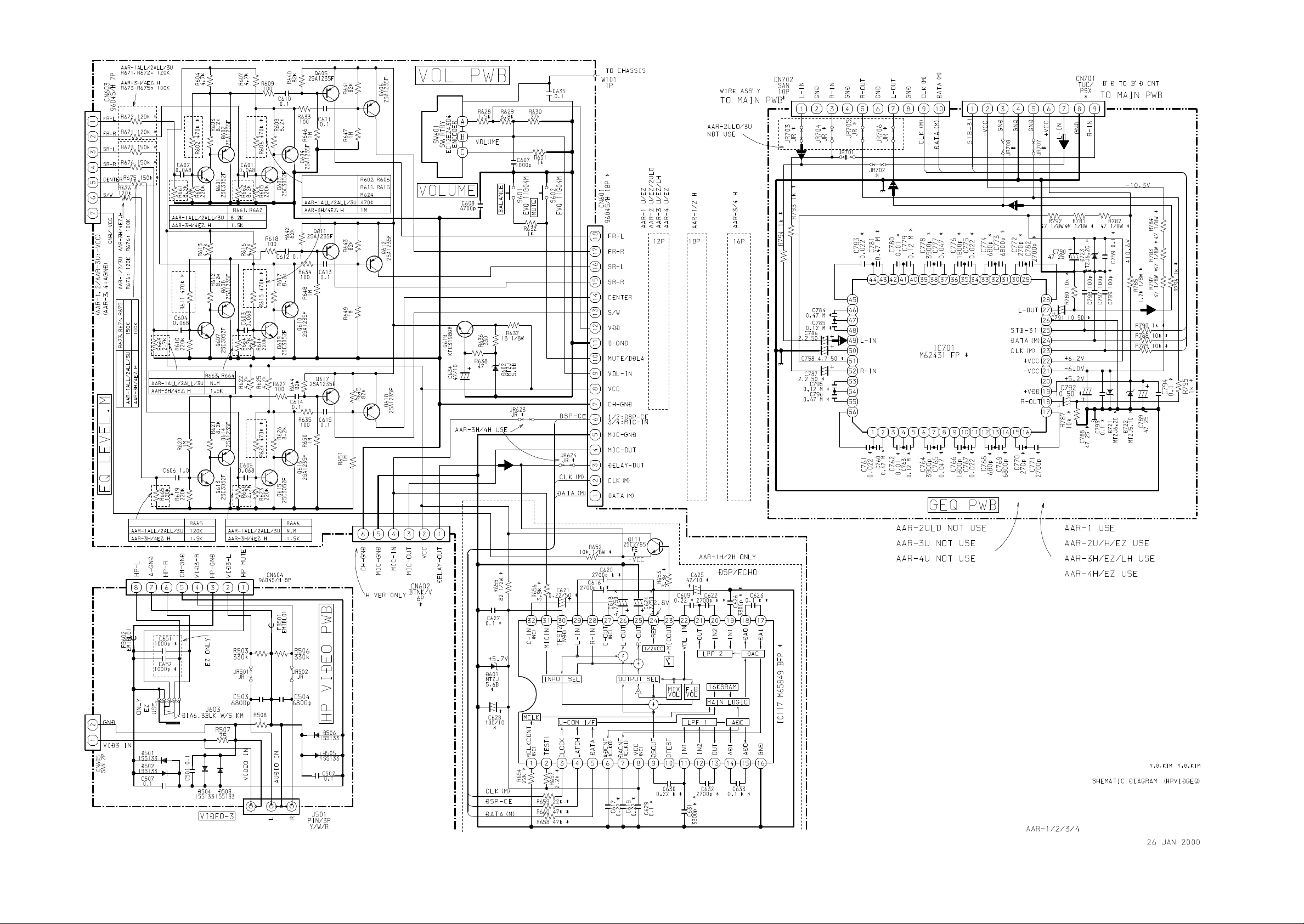

SCHEMATIC DIAGRAM _ 4 (HP VIDEO / GEQ / VOL)

SCHEMATIC DIAGRAM _ 5 (SPEAKER)

SCHEMATIC DIAGRAM _ 6 (AC 1/2)

SCHEMATIC DIAGRAM _ 6 (AC 2/2)

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]

Printed in Singapore9820543
