Airstream Interstate 2015 Owner's Manual

2015 Interstate

Owner’s Manual

Publication Date: November 2014

Introduction

Safety

General Information

Floor Plans and Specifications

Interior

Exterior

Sprinter Van

Driving

Maintenance

1

2

3

4

5

6

7

8

9

Disclaimer And Copyright

Disclaimer:

All information, illustrations and specifications contained in this manual are based on the latest product information available at the time of publication approval. If and when new materials and production techniques are developed that can improve the quality of its product, or material substitutions are necessary due to availability, Airstream reserves the right to make such changes.

Airstream Interstate Motorhome Owner’s Manual ©2014 Airstream, Inc. All rights reserved

iv	Interstate

Table Of Contents

	Page
INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . .	.1-1
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . .	.2-1
Safety Precautions. . . . . . . . . . . . . . . . . . . .	.2-3
Chemical Sensitivity and Ventilation.	2-3
Smoke Alarm and Carbon Monoxide Detectors .	2-5
Basic Safety Information . . . . . . . . . . . . . . . . .	.2-6
If the CO Alarm Sounds.	2-8
If the Smoke Alarm Sounds.	2-8
Using the Silence Features. . . . . . . . . . . . . . . .	.2-9
What You Need to Know About Carbon Monoxide (CO) . . . .2-9
Finding the Source of CO After an Alarm.	2-10
How Can I Protect My Family From CO Poisoning? .	2-10
General Limitations of
Smoke and CO Alarms.	2-11
Basic Rules for Safety.	2-12
Fire Extinguisher . . . . . . . . . . . . . . . . . . . . .	2-13
Safety.	2-13
GENERAL INFORMATION. . . . . . . . . . . . . . . . . . . . .	.3-1
Limited Warranty Policy .	3-3
Service . . . . . . . . . . . . . . . . . . . . . . . . . .	.3-6

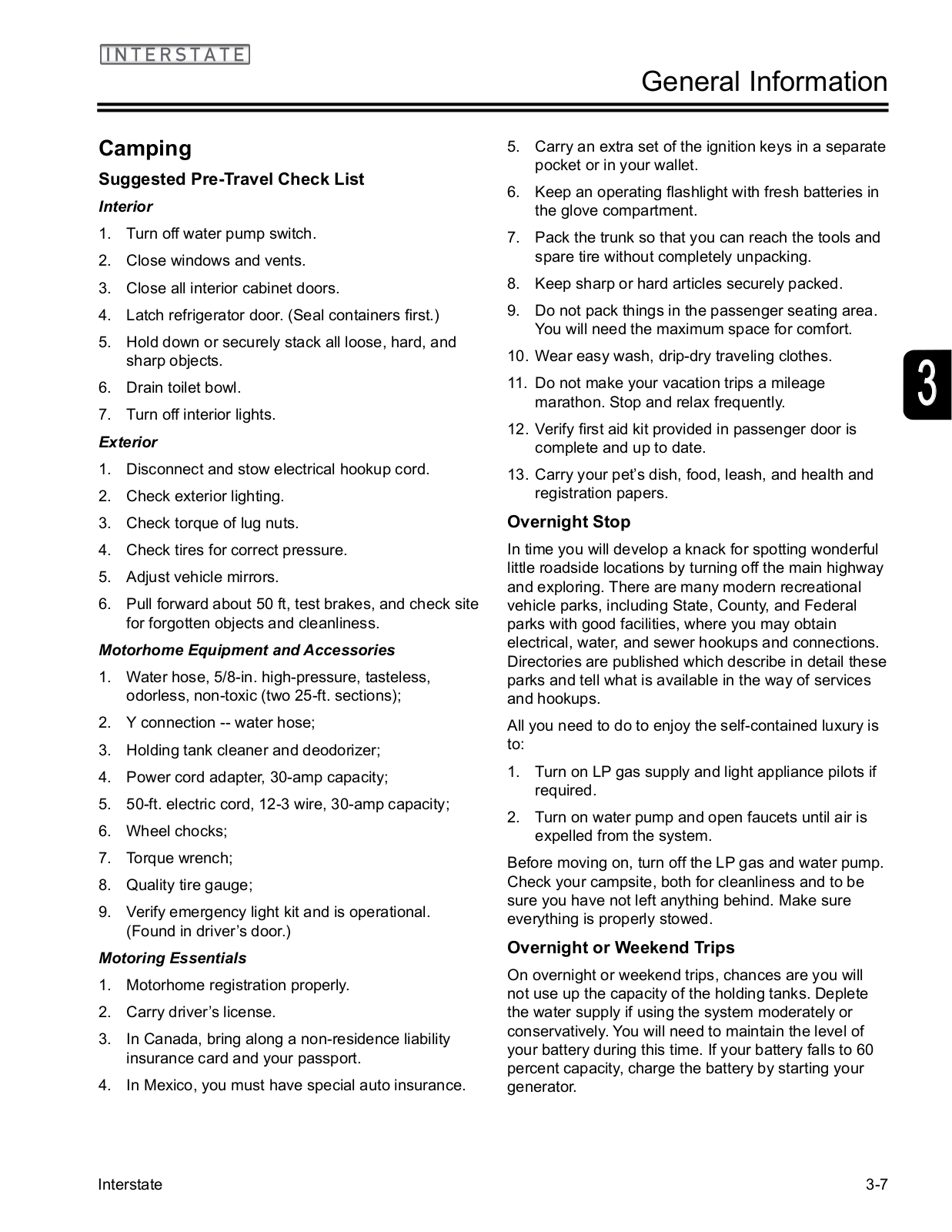

Camping. . . . . . . . . . . . . . . . . . . . . . . . . .	.3-7
floor plans and
Specifications .	4-1
Floor Plans. . . . . . . . . . . . . . . . . . . . . . . .	.4-2
Specifications .	4-4

Interstate

v

Table ofContents (Continued)

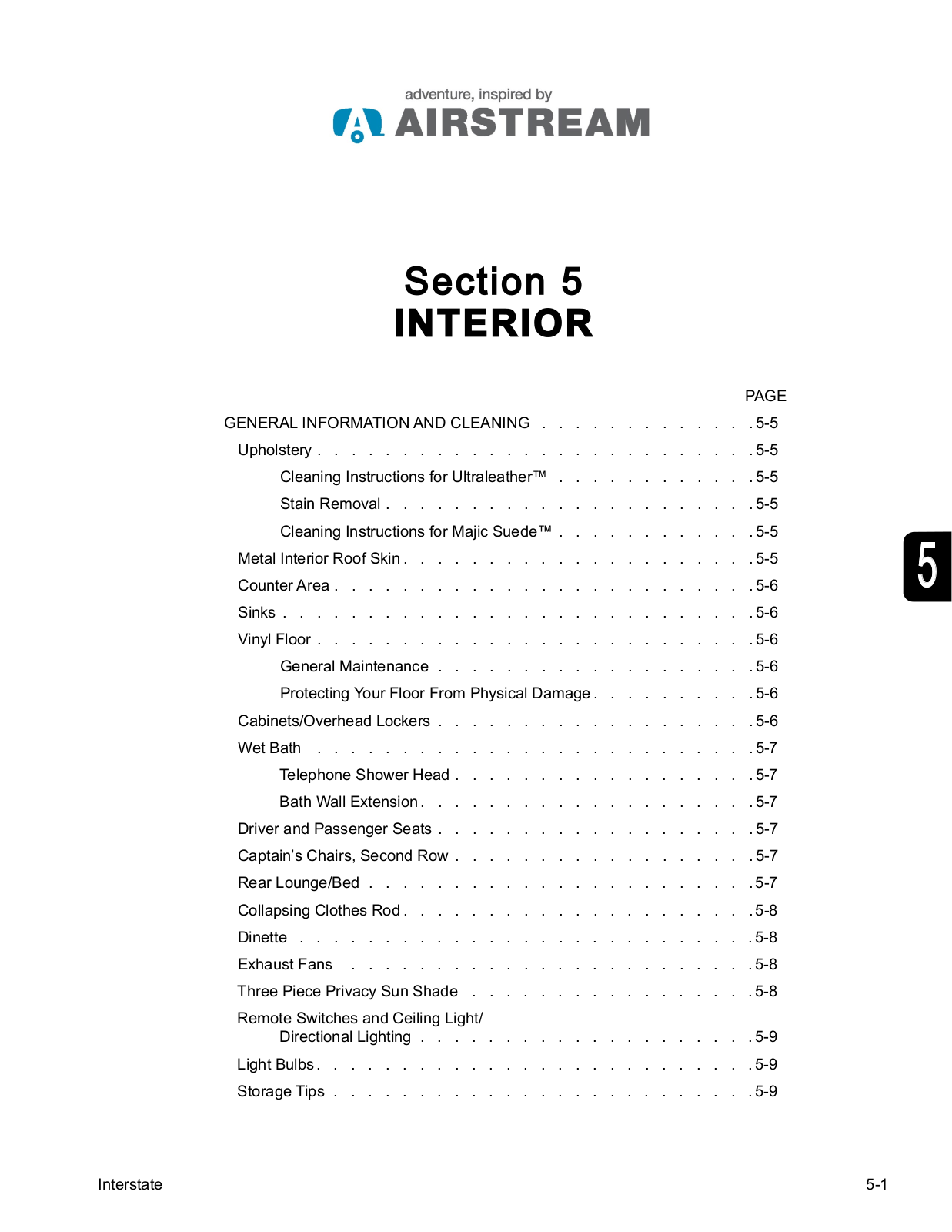

INTERIOR .	5-1
General Information and Cleaning .	5-5
Plumbing .	5-9

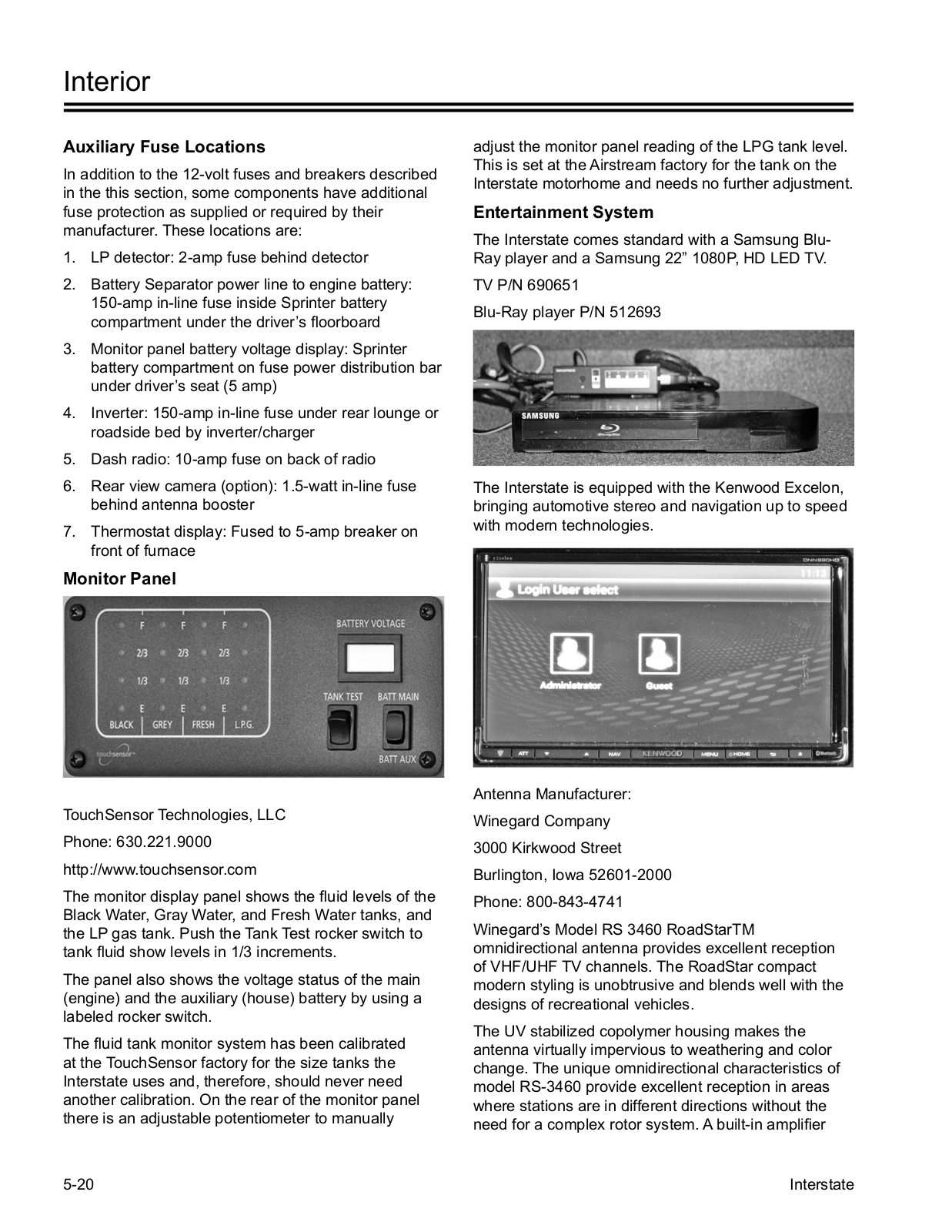

Electrical.	5-11
Appliances .	5-23
EXTERIOR . . . . . . . . . . . . . . . . . . . . . . . . . . .	.6-1
Waxes and Polishes. . . . . . . . . . . . . . . . . . . .	.6-2
How to Care for Your Motorhome Finish.	6-2

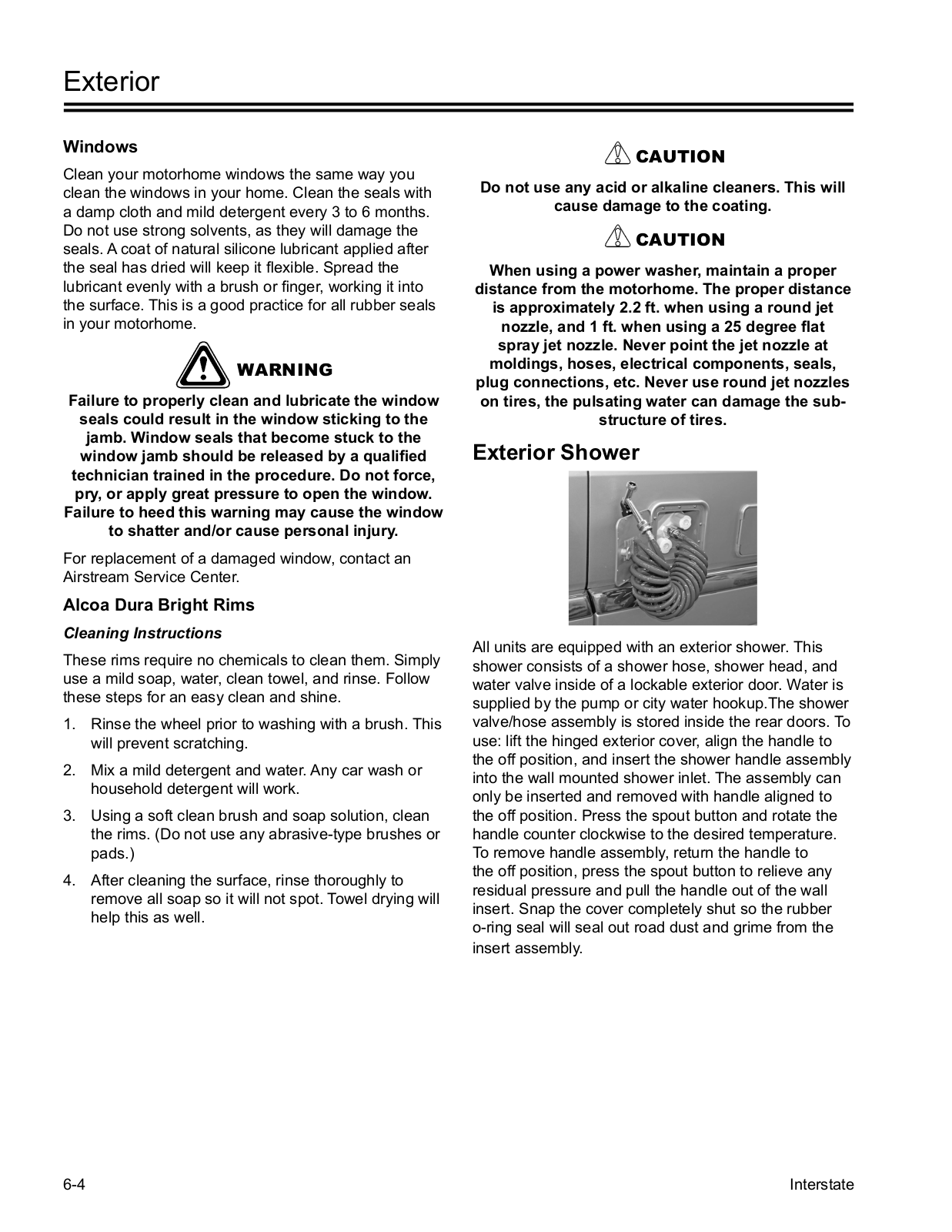

Exterior Shower . . . . . . . . . . . . . . . . . . . . .	.6-4
Exterior Sliding Step. . . . . . . . . . . . . . . . . . .	.6-5
Roadside Exterior Features (Excludes Grand Tour).	6-6
Curbside Exterior Features (Excludes Grand Tour) .	6-7

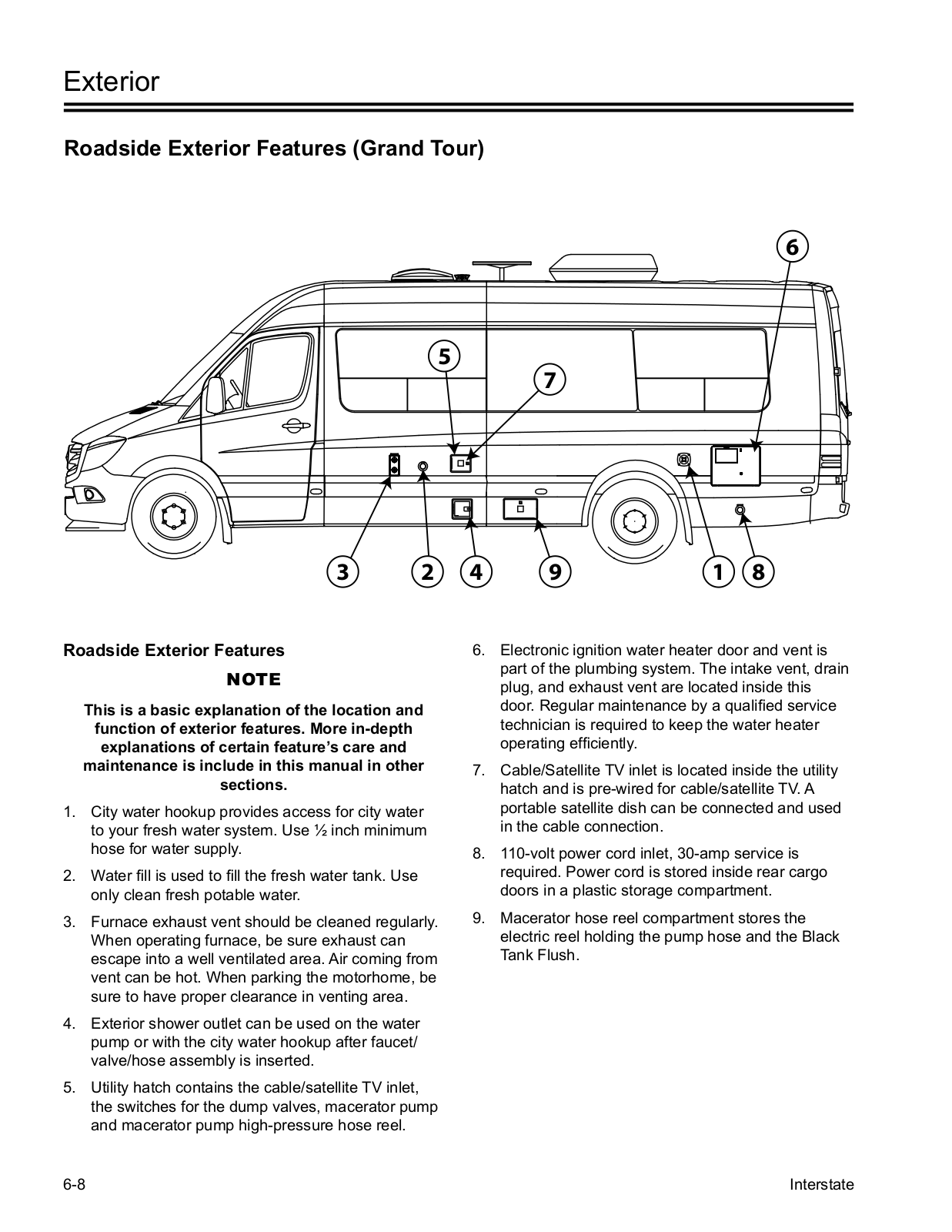

Roadside Exterior Features (Grand Tour) .	6-8
Curbside Exterior Features (Grand Tour). . . . . . . . .	.6-9
Side Screen Door (Grand Tour) . . . . . . . . . . . . . .	6-10
Remote Controlled Rear Power Screen (Grand Tour).	6-10
Fiamma Power Awning. . . . . . . . . . . . . . . . . . .	6-11
Hitch Cover. . . . . . . . . . . . . . . . . . . . . . . .	6-12
Sprinter Van. . . . . . . . . . . . . . . . . . . . . . . . .	.7-1
Important Sprinter Information.	7-3
Fuel. . . . . . . . . . . . . . . . . . . . . . . . . . . .	.7-3
Component Identification. . . . . . . . . . . . . . . . .	.7-3
Driver’s and Passenger’s Seats and Restraint Systems. .	.7-3
Cab Area.	7-3

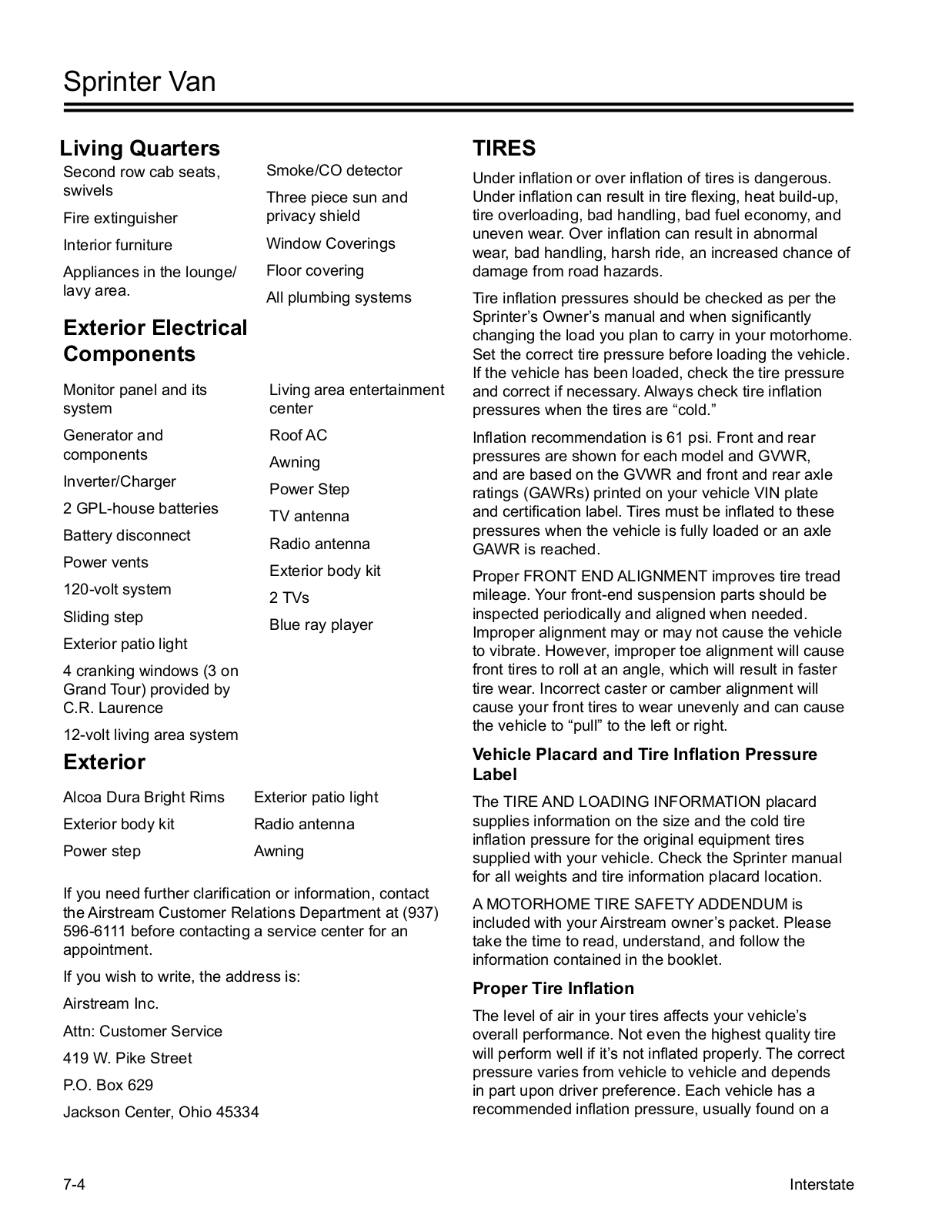

Living Quarters. . . . . . . . . . . . . . . . . . . . . .	.7-4
Exterior Electrical Components .	7-4
Exterior.	7-4
TIRES . . . . . . . . . . . . . . . . . . . . . . . . . . .	.7-4

vi	Interstate

Table ofContents (Continued)

REMOVING A WHEEL. . . . . . . . . . . . . . . . . . . . .	.7-8
INSTALLING A WHEEL. . . . . . . . . . . . . . . . . . . . .	.7-8
TIRE ROTATION . . . . . . . . . . . . . . . . . . . . . . .	.7-9
Tow Vehicle. . . . . . . . . . . . . . . . . . . . . . . .	7-10

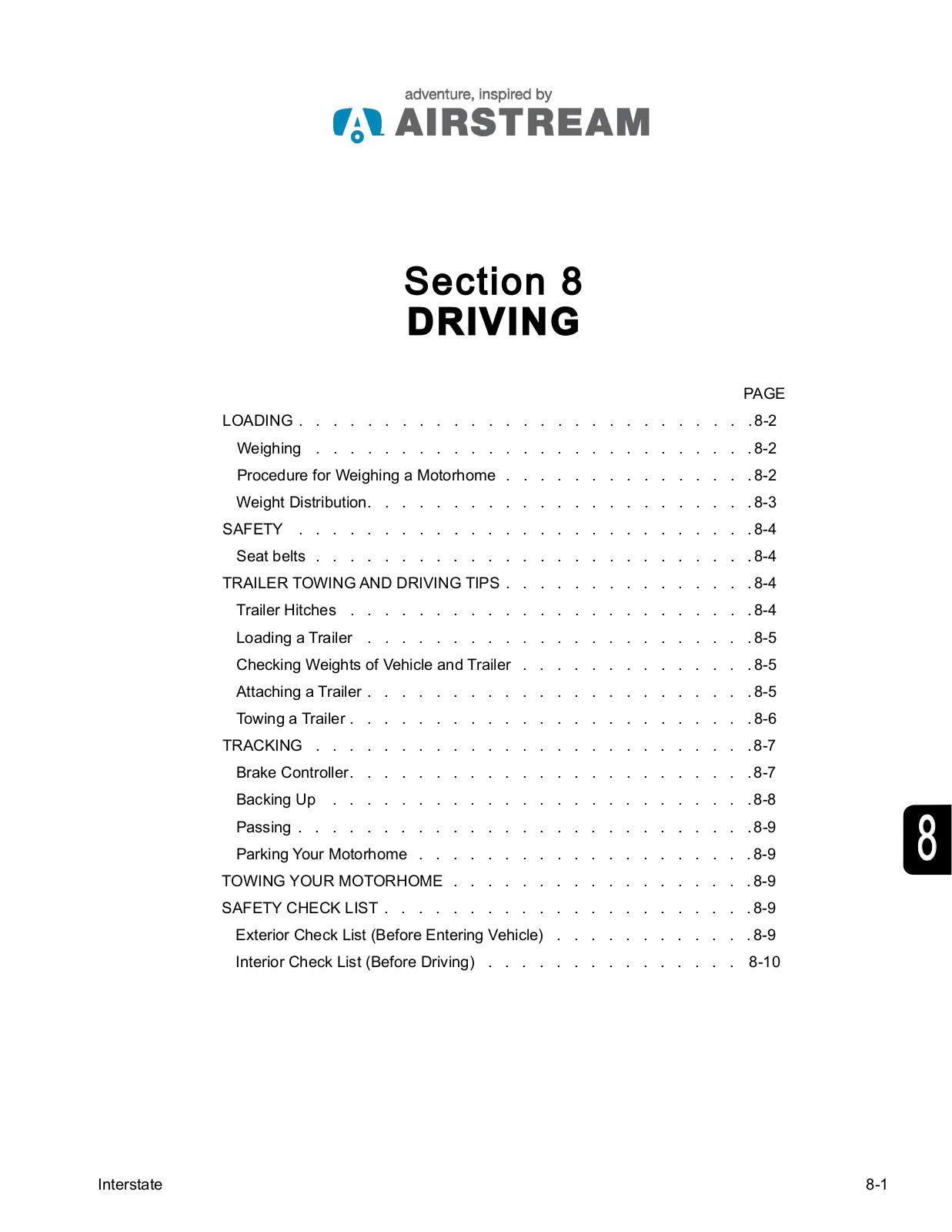

Driving. . . . . . . . . . . . . . . . . . . . . . . . . . . .	.8-1
Loading. . . . . . . . . . . . . . . . . . . . . . . . . .	.8-2
Safety.	8-4
Trailer Towing and Driving Tips . . . . . . . . . . . . . .	.8-4
Tracking .	8-7
Towing Your Motorhome.	8-9
Safety Check List. . . . . . . . . . . . . . . . . . . . .	.8-9
maintenance . . . . . . . . . . . . . . . . . . . . . . . . .	.9-1
Maintenance Schedule . . . . . . . . . . . . . . . . . .	.9-4
Suggested Maintenance and Replacement Parts .	9-5
Tire Care.	9-7
LPG System . . . . . . . . . . . . . . . . . . . . . . . .	.9-9
Water System - Self-Contained . . . . . . . . . . . . . .	9-10
Drain Valve Locations. . . . . . . . . . . . . . . . . . .	9-13
Shut Off Valve .	9-14
Toilet. . . . . . . . . . . . . . . . . . . . . . . . . . .	9-14
Storage and Winterizing .	9-15
Drain and Waste System. . . . . . . . . . . . . . . . . .	9-17
Electrical Diagrams (Twin and Lounge Series) .	9-20
Electrical Diagrams (Grand Tour Series). . . . . . . . .	9-29
FAQs and Answers. . . . . . . . . . . . . . . . . . . . .	9-41

Interstate

vii

viii	Interstate

RA-400 Patcher for UD

1

Section 1

INTRODUCTION

The Owner’s Manual for your new Airstream Motorhome is designed to respond to the most frequent inquiries regarding the operation, function, and care of the many systems that make modern motorhoming a joy.

The Airstream Interstate Motorhome is integrated into a Sprinter Van, designed and manufactured by Sprinter. Operation of the Sprinter, its engine, power train, and other related components are discussed in the Sprinter Operator’s Manual and other literature provided

by Sprinter. As a point of reference, those systems discussed in the Sprinter literature are warranted by Sprinter or their suppliers.

Airstream realizes our customers possess varying degrees of expertise in the area of repairing and maintaining the appliances in their motorhome. For this reason, the service and trouble-shooting information found in this manual is directed toward those with average mechanical skills. We also realize you may be more familiar in one area than you are in another. Only you know your capabilities and limitations.

We want you to use this manual, and hope you will find the information contained in it helpful; however, should you ever feel you may be “getting in over your head,’ please see your dealer to have the repairs made.

The operation and care of component parts such as, refrigerator, furnace, water heater and others are briefly explained in this manual.

All information, illustrations, and specifications contained in this manual are based on the latest product information available at the time of publication approval. Airstream reserves the right to make changes if and when new materials and/or production techniques are developed that can improve the quality of its product, or when material substitutions are necessary due to availability.

We have provided many important safety messages in this manual. Always read and obey all safety messages.

warning

A warning is used for a hazardous situation which, if not avoided, could result in death or serious injury to persons.

caution

A caution is used to advise caution when performing actions that could result in minor or moderate injury to persons and/or damage to equipment.

note

A note is used to address practices not related to personal injury. This applies to hazardous situations involving property damage only.

Optional items may be available on all, or particular models. Additionally, some optional items can only be included during the manufacturing phase and cannot later be added to the motorhome.

The inclusion of optional items information in this manual does not imply or suggest the availability, application suitability, or inclusion for any specific unit.

note

Your Sprinter Van Operator’s and Warranty Manuals contain important cautions, warnings, operational, and warranty information on the Sprinter and its components. All information in the Sprinter manual should be reviewed and followed for your safety. The Airstream Interstate Owner’s Manual may provide addition information and tips on the use of the Van as a motorhome; however, no information in the Airstream manual should be interpreted as advice or directions to disregard or void the warnings, cautions, or other information contained in the Sprinter’s manuals.

Interstate

1-1

Introduction

NOTES:

1-2	Interstate

RA-400 Patcher for UD

Section 2											2
SAFETY											Page
Safety Precautions. . . . . . . . . . . . . . . . . . . .											.2-3
Weight Distribution. . . . . . . . . . . . . . . . . . . . . .											.2-3
Tire Safety . . . . . . . . . . . . . . . . . . . . . . . . .											.2-3
Appliances and Equipment.											2-3
Generator Safety .											2-3
Mold . . . . . . . . . . . . . . . . . . . . . . . . . . .											.2-3
Chemical Sensitivity and Ventilation.											2-3
Chemical Sensitivity.											2-3
Formaldehyde.											2-3
Ventilation . . . . . . . . . . . . . . . . . . . . . . . . .											.2-4
Do Not Smoke .											2-4
Medical Advice.											2-4
Liquid Propane Gas (LPG) Detector. . . . . . . . . . . . . . .											.2-4
Low Voltage. . . . . . . . . . . . . . . . . . . . . .											.2-4
Detector Test .											2-5
Smoke Alarm and Carbon Monoxide Detectors .											2-5
Features. . . . . . . . . . . . . . . . . . . . . . . . . .											.2-5
Fire Safety Tips. . . . . . . . . . . . . . . . . . . . . . .											.2-6
Battery Activation.											2-6
Basic Safety Information . . . . . . . . . . . . . . . . .											.2-6
Horn Pattern Selection for Smoke Alarm.											2-6
Weekly Testing.											2-7
Test the Smoke and CO Alarms. . . . . . . . . . . . . . . . .											.2-7
Regular Maintenance. . . . . . . . . . . . . . . . . . . . .											.2-7
Choosing a Replacement Battery:. . . . . . . . . . . . . . . .											.2-7

Interstate

2-1

Safety

Section 2

Safety

Table ofContents (Continued)

If the CO Alarm Sounds.			2-7
Alarm: Move to Fresh Air .			2-8
If the Smoke Alarm Sounds.			2-8
Responding to an Alarm .			2-8
What to do in Case of Fire. . . . . . . .	. . .	. . . .	. . . . .2-8
Develop and Practice a Plan of Escape .			2-8
Using the Silence Features. . . . .	. . .	. . . .	. . . . .2-9
Silencing the Low Battery Warning.			2-9

What You Need to Know About Carbon Monoxide (CO) . . . .2-9

What Is CO? . . . . . . . . . . . . . . . . . . . . . . . .	.2-9
Symptoms of CO Poisoning.	2-9
Important.	2-9
Finding the Source of CO After an Alarm.	2-9
Potential Sources of CO in the Motorhome . . . . . . . . . . . .	2-10
The Following Conditions Can Result in Transient CO Situations. . . . 2-10
How Can I Protect My Family From CO Poisoning? .	2-10
General Limitations of
Smoke and CO Alarms.	2-11
Basic Rules for Safety.	2-12
Detector Test. . . . . . . . . . . . . . . . . . . . . . . .	2-12
Fire Extinguisher . . . . . . . . . . . . . . . . . . . . .	2-13
Safety.	2-13
Emergency Exit. . . . . . . . . . . . . . . . . . . . . . .	2-13

2-2	Interstate

Safety

Safety Precautions

Many things can be construed as safety related, but the most important is your common sense. If you are careless with matches, cigarettes, flammable material, or any other hazardous material, you surely realize your potential for accidents is greatly increased.

You will find many safety recommendations in this section and throughout the manual. The following recommendations are the ones we consider to be the most important.

Weight Distribution

Motorhomes have fresh water and wastewater tanks, a water heater, and storage areas. It gives you great flexibility in loading. With flexibility comes responsibility. If you want to load down all the storage compartments, the amount of fluids may have to be reduced. It is a trade off so plan wisely. Distribute your additional cargo as evenly as possible with the heaviest objects located as low as possible.

Do you really want to carry a full freshwater tank to a RV park 1,000 miles away and then hook up to a city water supply? Even if you’re going to a remote area, you can usually fill your water tank shortly before entering the area. Just reducing your load by 10 gallons of water lets you carry an additional 30 pounds of cargo.

Tire Safety

Properly maintained tires improve the steering, stopping, traction, and load-carrying capability of your vehicle. Refer to Section 9 - Maintenance for tire care and safety information. Also, be sure to read the Tire Safety Manual Addendum included with your owner’s packet.

Appliances and Equipment

The appliances (stove, refrigerator, etc.) and equipment (hot water heater, furnace, etc.) typically operate on liquified petroleum (LP) gas. LP gas is flammable and is contained under high pressure. Improper use may result in a fire and/or explosion. Make sure to follow all instructions and warnings in this manual as well as those in the specific owner’s manuals of the appliances and equipment.

Generator Safety

Do not operate the generator in an enclosed building or in a partly enclosed area, such as a garage. Be sure to follow all instructions and warnings in this manual and

the generator manufacturer’s manual. Refer to Section 5 - Interior, under the Electrical heading, for generator information.

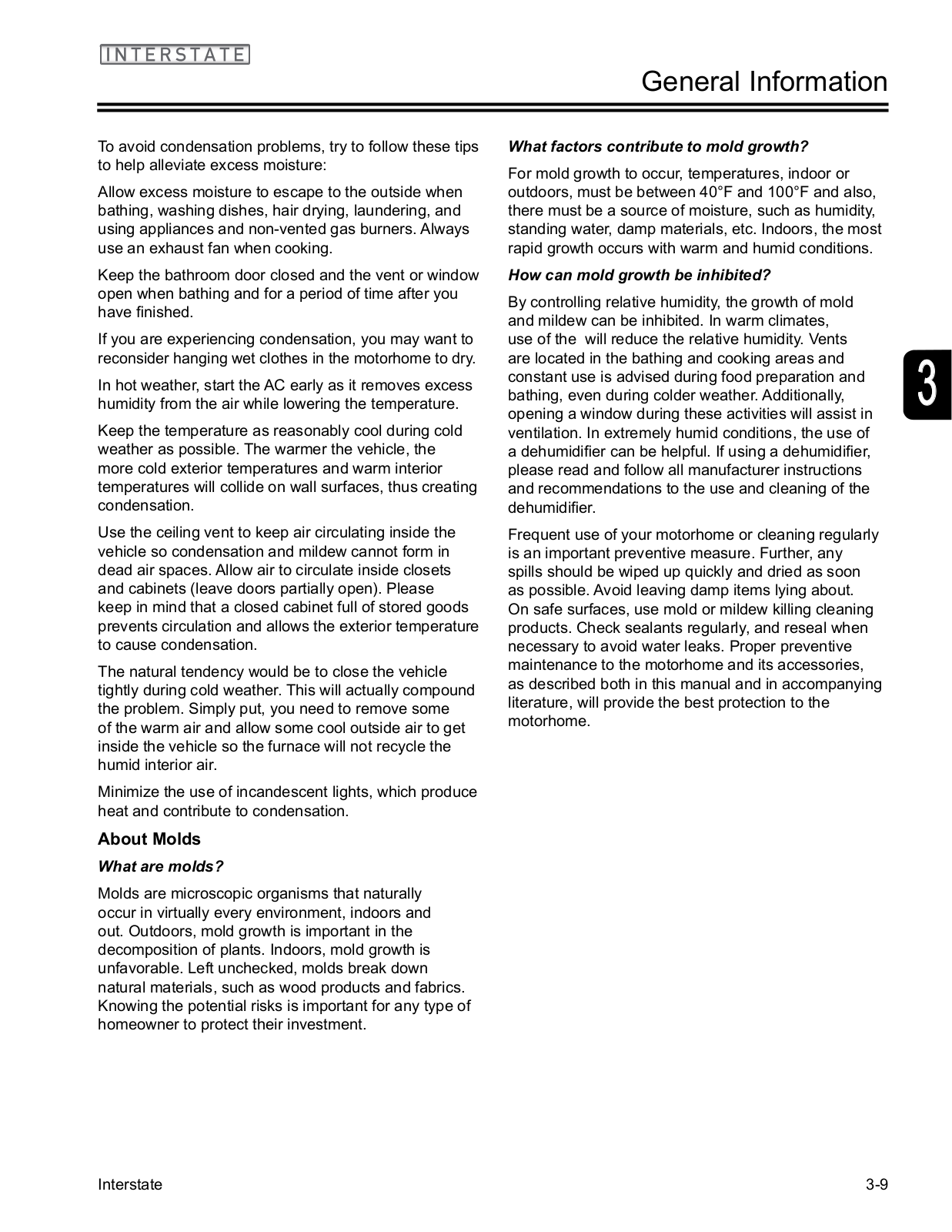

Mold

Mold and mold spores exist throughout indoor and outdoor environments. There is no practical way

to eliminate all mold and mold spores in the indoor 2 environment; however, the way to control indoor

mold growth is to control moisture. Refer to Section 3 - General Information for information on controlling condensation and molds.

Chemical Sensitivity and Ventilation

Chemical Sensitivity

Immediately after the purchase of your new recreational vehicle and sometimes after it has been closed up for an extended period of time, you may notice a strong odor and/or experience a chemical sensitivity. This is not a defect in your recreational vehicle. Like your home, there are many different products used in the construction of recreational vehicles, such as carpet, linoleum, plywood, insulation, upholstery, etc. Formaldehyde is also the by-product of combustion and numerous household products, such as some paints, coatings, and cosmetics. However, recreational vehicles are much smaller than your home and therefore, the exchange of air inside a recreational vehicle is significantly less than in a home. These products, when new or when exposed to elevated temperatures and/or humidity, may off-gas different chemicals, including formaldehyde. This off-gassing, in combination with the minimal air exchange, may cause you to experience irritation of the eyes, nose, and throat, as well as sometimes headache, nausea, and a variety of asthma-like symptoms. Elderly persons and young children, as well as anyone with a history of asthma, allergies, or lung problems, may be more susceptible to the effects of off-gassing.

Formaldehyde

Formaldehyde is a naturally occurring substance and is an important chemical used widely by industry to manufacture building materials and numerous household products. It is also a by-product of

combustion and certain other natural processes. Thus, it may be present inside the motorhome. Ventilation of the unit normally reduces the exposure to a comfortable level.

Trace levels of formaldehyde are released from smoking, cooking, use of soaps and detergents, such as carpet shampoos and cosmetics, and many other

Interstate

2-3

Safety

household products. Some people are very sensitive to formaldehyde while others may not have any reaction to the same levels of formaldehyde. Amounts released decrease over time.

Your Airstream motorhome was manufactured using low formaldehyde-emitting (LFE) wood products, the use of which is typical in the recreation vehicle industry. Formaldehyde has an important role in the adhesives used to bind wood products used in

recreation vehicles. The wood products in your trailer are designed to emit formaldehyde at or lower than industry guidelines and should not produce symptoms in most individuals.

While LFE wood products typically do not emit formaldehyde at a level that would cause symptoms in most individuals, it is possible, though not likely, for symptoms to occur when the Touring Coach is not properly ventilated. Ventilation is an essential requirement for Touring Coach use for many reasons.

Any effects of formaldehyde can be greatly reduced by actions such as opening windows, opening roof vents, running the air conditioner (A/C), or some combination thereof. In addition, the emission of formaldehyde by these products naturally decreases rapidly over time.

Airstream strongly suggests you take measures to properly ventilate your motorhome on a regular basis. If you have any questions with respect to proper ventilation of your motorhome, please do not hesitate to contact your dealer or Airstream.

Ventilation

To reduce or lessen exposure to chemicals from offgassing, it is of utmost importance that you ventilate your recreational vehicle. Ventilation should occur frequently after purchase and at times when the temperatures and humidity are elevated. Remember, off-gassing is accelerated by heat and humidity. Open windows, exhaust vents, and doors. Operate ceiling and/or other fans, roof ACs, and furnaces, and use a fan to force stale air out and bring fresh air in. Decreasing the flow of air by sealing the recreational vehicle increases the formaldehyde level in the vehicle’s indoor air.

Do Not Smoke

It is recommended you do not smoke inside your recreational vehicle. In addition to causing damage to your recreational vehicle, tobacco smoke releases formaldehyde and other toxic chemicals.

Medical Advice

Questions regarding the effects of formaldehyde on your health should be submitted to your doctor or local health department.

Liquid Propane Gas (LPG) Detector

This alarm has a seven-year life; see end-of-life notification in LPG detector manual. Please read the entire detector manual before operating the unit.

The LPG detector is located in the kitchen area. LPG is a mixture of gases produced and sold commercially as a fuel for heating and cooking appliances. LPG is highly flammable and, as a result, can be explosive if ignited under certain circumstances. LPG is heavier than air and, if confined in a closed space, will accumulate close to the floor. The LPG detector is designed to alarm at less than 25 percent of the legal explosive limit. It will provide a visual and audible alarm by sounding an alarm every 5 seconds and lighting the red light emitting diode (LED).

Your LPG detector is wired directly to your Touring Coach battery and incorporates a 1-amp, in-line fuse. It has no internal battery backup. In normal stand-by mode, the LED indicator will be green.

Low Voltage

The operating voltage for the detector is 12 VDC. The actual voltage supplied to the detector in a recreational vehicle may drop below the minimum 8 VDC. The detector provides the user with a low voltage warning before reaching that level and will provide additional distinct, clear warnings and alarms after the 8 VDC level is reached. However, if available power supplied to the unit is below the operating voltage of 8 VDC, the detector will not detect gas or provide protection against dangerous levels of LPG.

2-4	Interstate

Safety

WARNING

Activation of this detector indicates the possible presence of LPG, which can cause an explosion and/or fire, causing serious injury or death. This normally indicates a leak in the LPG installation or an LPG appliance. Extinguish all open flames, open your windows and door, and evacuate the unit immediately. Do not activate any electrical

switch. Turn off the LPG at your gas tank(s). Do not re-enter your unit until a qualified repair technician has corrected the problem and certified the system as safe.

WARNING

It is not recommended that the detector be disconnected from the battery during periods of storage. There is a small heater on the sensor of the device that burns away impurities in the air during periods of normal use. During periods when power is interrupted, impurities can build up on the sensor. When power is returned to the detector, the detector alarm may activate until the impurities are burned off. This could take a number of hours, during which time the alarm will be constantly on.

Detector Test

The Test/Rest button is used to verify proper alarm function. Executing the test function sounds the alarm and illuminates the red LED. The test will sound the alarm twice, with 4 beeps in 1 second, followed by 5 seconds of silence. By pressing the button, you can verify that the alarm sounds and the LED functions properly.

WARNING

Have a qualified technician check your LPG system annually or if you detect any signs of leaks or malfunctions.

NOTE

Refer to Section 5 - Interior and Section 6 - Exterior for additional LPG warnings and safety information.

Smoke Alarm and Carbon Monoxide

Detectors

2

	Manufacturer: First Alert	Canada
	Model SCO5RVA	Dicon Global, Inc.
	United States	20 Steelcase Road. West,
		Unit #3
	BRK Brands, Inc.
		Markham, Ontario. L3R 1B2
	3901 Liberty Street Road
	Aurora, Illinois 60504	Tel: [phone]
		Fax [phone]
	For consumer inquiries
		For consumer inquires call:
	call: 800-323-9005	800-323-9005

IMPORTANT. Dangers, Warnings, and Cautions alert you to important operating instructions or to potentially hazardous situations. Pay special attention to these items.

Parts of this section on the Smoke Alarm and Carbon Monoxide (CO) Detectors are a reprint of the manual included with each device and provided to you in the Airstream owner’s briefcase. Please read, understand, and follow all aspects of the complete manual before activating and operating the Smoke Alarm and Carbon Monoxide Detectors. If you have not received the manual, use the appropriate contact information above to obtain one, or contact Airstream Customer Relations at 937-596-6111.

Features

•Separate sensors to detect smoke and CO; the two alarm systems work independently

•Powered by a 9-volt battery

•Side access drawer for easy battery replacement

Interstate

2-5

Safety

WARNING

Have a professional technician check all safety related systems yearly or whenever any doubts of their ability to function properly arise.

Fire Safety Tips

Follow safety rules and prevent hazardous situations.

1.Use smoking materials properly. Never smoke in bed.

2.Keep matches or lighters away from children.

3.Store flammable materials in proper containers.

4.Keep electrical appliances in good condition and do not overload electrical circuits.

5.Keep stoves and barbecue grills grease, and debris-free.

6.Never leave anything cooking on the stove unattended.

7.Keep portable heaters and open flames, like candles, away from flammable materials.

8.Do not let rubbish accumulate.

Keep alarms clean and test them weekly. Replace alarms immediately if they are not working properly. Smoke Alarms that do not work cannot alert you to a fire. Keep at least one working fire extinguisher in your motorhome and an additional one in the kitchen. Have fire escape ladders or other reliable means of escape from an upper floor in case stairs are blocked.

WARNING

Smoke and CO Alarms are shipped with batteries deactivated. Ask dealer to activate batteries or activate batteries immediately upon delivery. Failure to follow warning will remove your protection.

Battery Activation

To activate battery, pull labeled clear plastic tab from device. If tab was previously removed, test batteries and replace as needed.

Basic Safety Information

WARNING

Danger: Carbon Monoxide is poisonous and can cause confusion, unconsciousness, and death. Follow all instructions, cautions, and warnings in this section and the generator operator’s manual.

1.Never sleep in the vehicle with the genset running without ensuring the carbon monoxide detector is working. Primary protection against inhal-ing carbon monoxide is daily (every eight hour) inspection for visible and audible genset exhaust system leaks.

2.DO NOT operate the generator in an enclosed building or in a partly enclosed area such as a garage.

3.Review the safety precautions for fuel and exhaust fumes in the genera¬tor manual.

4.DO NOT operate the generator when the recreation vehicle is parked in high grass or brush. Heat from the exhaust could cause a fire in dry conditions.

5.Never operate your chassis or generator engine, or the engine of any vehicle, longer than necessary when the vehicle is parked.

6.DO NOT simultaneously operate generator

and a ventilator which could result in the entry of exhaust gas. When exhaust ventilators are used, we recommend that a window on the opposite side of the unit “upwind” of exhaust gases be opened to provide cross ventilation.

7.When parked, orient the vehicle so that the wind will carry the exhaust away from the vehicle. DO NOT open nearby windows, ventilators, or doors into the passenger compartment, particularly those which can be “down wind”, even part of the time.

8.DO NOT operate the generator when parked in close proximity to veg¬etation, snow, buildings, vehicles, or any other object that could deflect the exhaust under or into the vehicle.

9.DO NOT touch the generator when running, or immediately after shutting off. Heat from the generator can cause burns. Allow the generator to cool before attempting maintenance or service.

NOTE: The generator is located under the motorhome in front of the spare tire. The spare tire may have to be lowered to access the service door. See spare tire instructions in the Sprinter section of this manual.

2-6	Interstate

Safety

WARNING

The Smoke and CO Alarms cannot operate without working batteries. Removing the batteries for any reason, or failing to replace the batteries at the end of their service life, removes your protection.

NEVER ignore any alarm. See “If Your Smoke and CO Alarms Sounds” for more information on how to respond to an alarm. Failure to respond can result in injury or death.

The Silence Features are for your convenience only and will not correct a problem. See “Using the Silence Features” for details. Always check your motorhome for a potential problem after any alarm. Failure to do so can result in injury or death.

Test the Smoke and CO Alarms once a week. If the Alarm ever fails to test correctly, have it replaced immediately. If the Alarm is not working properly, it cannot alert you to a problem.

WARNING

Test Units in your motorhome after the vehicle has been in storage, before each trip, and at least once a week while in use. Failure to test units used in RVs as described may remove your protection.

Horn Pattern Selection for Smoke Alarm

When the alarm detects smoke, the default horn pattern is 3 beeps, pause, 3 beeps. To manually change the horn pattern to 6 beeps, pause, 6 beeps: open the battery drawer (with batteries installed), press and hold the test button down, and then close the battery drawer.To return to the default horn pattern of 3 beeps, pause, 3 beeps: open the battery drawer and then close the battery drawer.

•In the U.S. the horn pattern is 3 beeps, pause, 3 beeps.

•In Canada the horn pattern is 6 beeps, pause, 6 beeps.

Always test the alarm to verify the horn pattern for your area.

NOTE

See the First Alert User’s Manual for information on optional locking features.

Weekly Testing

WARNING

NEVER use an open flame of any kind to test this unit. You might accidentally damage or set fire to

the unit or to your home. The built-in test switch 2 accurately tests the unit’s operation, as required by

Underwriters Laboratories, Inc. (UL). NEVER use vehicle exhaust. It may cause permanent damage and will void your warranty.

DO NOT stand close to the Alarm when the horn is sounding. Exposure at close range may be harmful to your hearing. When testing, step away when horn starts sounding.

caution

It is important to test this unit every week to make sure it is working properly. Using the test button is the recommended way to test this Smoke and CO Alarms.

Test the Smoke and CO Alarms

Press and hold the Test/Silence button for 3-5 seconds until unit starts to alarm.

During testing, you will see and hear the following sequence:

•The Horn will sound 3 beeps, pause, and sound 3 beeps. The Power/Smoke LED flashes red and the CO LED will be off. NOTE: For Canada, the horn will sound 6 beeps, pause, and sound 6 beeps. The Power/Smoke LED flashes red and the CO LED will be off.

•Next the Horn will sound 4 beeps, pause, 4 beeps. The Power/Smoke LED will be Off and the CO LED flashes Red.

If the unit does not alarm, make sure the batteries are correctly installed and test again. If the unit still does not alarm, replace it immediately.

Regular Maintenance

This unit has been designed to be as maintenancefree as possible, but there are a few simple things you must do to keep it working properly. Use only the replacement batteries listed below. The unit may not operate properly with other batteries. Never use

Interstate

2-7

Safety

rechargeable batteries since they may not provide a constant charge.

•Test it at least once a week.

•Clean the Smoke and CO Alarms at least once a month: gently vacuum the outside of the Smoke and CO Alarms using your household vacuum’s soft brush attachment. A can of clean, compressed air (sold at computer or office supply stores) may also be used. Follow manufacturer instructions for use. Test the Smoke and CO Alarms once a week. Never use water, cleaners, or solvents, since they may damage the unit.

•If the Smoke and CO Alarms becomes contaminated by excessive dirt, dust, and/or grime, and cannot be cleaned to avoid unwanted alarms, replace the unit immediately.

•Relocate the unit if it sounds frequent unwanted alarms. See “Where This Alarm Should Not Be Installed” for details.

Choosing a Replacement Battery:

Your Smoke and CO Alarms requires a 9-volt battery. They are shipped with batteries.

WARNING

The battery door will resist closing unless batteries are installed. This warns you that the unit will not operate without batteries.

If the CO Alarm Sounds

WARNING

Actuation of your CO Alarm indicates the presence of CO which can kill you. In other words, when your CO Alarm sounds, you must not ignore it.

1.Operate the Test/Silence button.

2.Call your emergency services, fire department, or 911. Write down the number of your local emergency service here:

3.Immediately move to fresh air/outdoors or by an open door or window. Do a head count to check that all persons are accounted for. Do not reenter the premises or move away from the open door or window until the emergency services responder has arrived, the premises have been aired out, and your CO Alarm remains in its normal condition.

4.After following steps 1-3, if your CO Alarm reactivates within a 24-hour period, repeat steps 1-3. Call a qualified appliance technician to investigate for sources of CO from fuel-burning equipment and appliances, and inspect for proper operation of this equipment. If problems are identified during this inspection, have the equipment serviced immediately. Note any combustion equipment not inspected by the technician, and consult the manufacturers’ instructions, or contact the manufacturers directly, for more information about CO safety and this equipment. Make sure that motor vehicles are not, and have not, been operating in an attached garage or adjacent to the residence. Write down the number of a qualified appliance technician here:

Alarm: Move to Fresh Air

If you hear the CO alarm horn and the CO red light is flashing, move everyone to a source of fresh air. DO NOT remove the batteries.

If the Smoke Alarm Sounds

Responding to an Alarm

WARNING

If the unit alarm sounds and you are not testing the unit, it is warning you of a potentially dangerous situation that requires your immediate attention. NEVER ignore any alarm. Ignoring the alarm may result in injury or death.

Never remove the batteries from a battery operated Smoke and CO Alarms to stop an unwanted alarm (caused by cooking smoke, etc.). Removing batteries disables the alarm so it cannot sense smoke, and removes your protection. Instead, open a window or fan the smoke away from the unit. The alarm will reset automatically.

If the unit alarm sounds get everyone out of the motorhome immediately.

What to do in Case of Fire

•Do not panic; stay calm. Follow your family escape plan.

•Get everyone out of the motorhome as quickly as possible. Do not stop to get dressed or collect anything.

2-8	Interstate

Safety

•Feel doors with the back of your hand before opening them. If a door is cool, open it slowly. Do not open a hot door. Keep doors and windows closed, unless you must escape through them.

•Cover your nose and mouth with a cloth (preferably damp). Take short, shallow breaths.

•Meet at your planned meeting place outside your motorhome, and do a head count to make sure everybody got out safely.

•Call the Fire Department as soon as possible from outside. Give your address, and then your name.

•Never go back inside a burning motorhome for any reason.

•Contact your Fire Department for ideas on making your motorhome safer.

Develop and Practice a Plan of Escape

•Make a floor plan indicating all doors used as escape routes from the motorhome.

•Have a family meeting and discuss your escape plan, showing everyone what to do in case of fire.

•At each campground, determine a place outside your motorhome where you all can meet if a fire occurs.

•Familiarize everyone with the sound of the Smoke Alarm and train him or her to leave your motorhome when they hear it.

•Practice a fire drill at least every six months or when new guests are with you. Practice allows you to test your plan before an emergency; you may not be able to reach your children or may be visiting a fellow camper while they sleep. It is important they know what to do.

Alarms have various limitations. See “General Limitations of Smoke and CO Alarms” for details.

Using the Silence Features

WARNING

Never remove the batteries to quiet an unwanted alarm. Removing the batteries disables the alarm and removes your protection. Do not use the Silence Feature in emergency situations. It will not correct a CO problem or extinguish a fire.

Interstate

The silence feature is intended to temporarily silence the horn while you identify and correct the problem. The silence feature can temporarily quiet an unwanted alarm for several minutes. Press the Test/Silence button on the alarm cover for at least 3-5 seconds. After the Test/Silence button is released, the red LED blinks during the silence mode.

Silencing the Low Battery Warning	2
This silence feature can temporarily quiet the low

battery warning “chirp” for up to 8 hours. You can silence the low battery warning “chirp” press the Test/ Silence Button on the alarm cover.

Once the low battery warning “chirp” silence feature is activated, the unit continues to flash the green light twice a minute for 8 hours. After 8 hours, the low battery “chirp” will resume. Replace the batteries as soon as possible; this unit will not operate without battery power.

To deactivate this feature: Press the Test/Silence button again. The unit will go into Test Mode and the low battery warning will resume (LED flashes and unit sounds “chirp” once a minute).

What You Need to Know About Carbon Monoxide (CO)

What Is CO?

CO is an invisible, odorless, tasteless gas produced when fossil fuels do not burn completely, or are exposed to heat (usually fire). Electrical appliances typically do not produce CO.

These fuels include: wood, coal, charcoal, oil, natural gas, gasoline, diesel, kerosene, and liquid propane.

Common appliances are often sources of CO. If they are not properly maintained, are improperly ventilated, or malfunction, CO levels can rise quickly. CO is a real danger now that homes are more energy efficient. “Airtight” homes with added insulation, sealed windows, and other weatherproofing can trap CO inside.

Symptoms of CO Poisoning

These symptoms are related to CO poisoning and should be discussed with ALL household members.

•Mild Exposure: Slight headache, nausea, vomiting, fatigue (“flu-like” symptoms).

•Medium Exposure: Throbbing headache, drowsiness, confusion, fast heart rate.

•Extreme Exposure: Convulsions, unconsciousness, heart and lung failure. Exposure to Carbon Monoxide can cause brain damage or death.

2-9

Safety

Important

This CO Alarm measures exposure to CO over time. It alarms if CO levels are extremely high in a short period of time, or if CO levels reach a certain minimum over a long period of time. The CO Alarm generally sounds an alarm before the onset of symptoms in average, healthy adults. This is important because you need to be warned of a potential CO problem while you can still react in time. In many reported cases of CO exposure, victims may be aware that they are not feeling well, but become disoriented and can no longer react well enough to exit the building or get help. Also, young children and pets may be the first affected. The average healthy adult might not feel any symptoms when the CO Alarm sounds. However, people with cardiac or respiratory problems, infants, unborn babies, pregnant mothers, or elderly people can be more quickly and severely affected by CO. If you experience even mild symptoms of CO poisoning, consult your doctor immediately.

Finding the Source of CO After an Alarm

CO is an odorless, invisible gas, which often makes it difficult to locate the source of CO after an alarm. These are a few of the factors that can make it difficult to locate sources of CO:

•Motorhome is well ventilated before the investigator arrives

•Problem caused by “backdrafting”

•Transient CO problem caused by special circumstances

Potential Sources of CO in the Motorhome

•Fuel-burning appliances like: a portable heater, gas kitchen range or cook top, furnace, hot water heater

•Damaged or insufficient venting: corroded or disconnected water heater vent pipe, leaking or damage furnace vent, or cracked heat exchanger, blocked or clogged appliance vents

•Improper use of appliances/device: operating fuel burning appliances or vehicle in an enclosed area (like a garage or screened porch)

•Transient CO problems: “transient” or on-again- off-again CO problems can be caused by outdoor conditions and other special circumstances

The Following Conditions Can Result in

Transient CO Situations

1.Excessive spillage or reverse venting of fuel appliances can be caused by outdoor conditions such as:

•Wind direction and/or velocity, including high, gusty winds, heavy air in the vent pipes (cold/ humid air with extended periods between cycles)

•Negative pressure differential resulting from the use of exhaust fans

•Several appliances running at the same time competing for limited fresh air

•Vent pipe connections vibrating loose from the furnace, water heater or other fuel burning appliances

•Obstructions in or unconventional vent pipe designs which can amplify the above situations

2.Extended operation of non vented fuel burning devices (cooktop).

3.Temperature inversions, which can trap exhaust close to the ground.

4.Motorhome idling in an open or closed attached garage, or near a home.

These conditions are dangerous because they can trap exhaust in your motorhome.

Since these conditions can come and go, they are also hard to recreate during a CO investigation.

How Can I Protect My Family From CO Poisoning?

A CO Alarm is an excellent means of protection. It monitors the air and sounds a loud alarm before CO levels become threatening for average, healthy adults.

A CO alarm is not a substitute for proper maintenance of appliances.

To help prevent CO problems and reduce the risk of CO poisoning:

•Clean appliance vents yearly. Keep them free of debris, leaves, and nests for proper air flow. Also, have a professional check for rust and corrosion, cracks, or separations. These conditions can prevent proper air movement and cause back drafting. Never “cap” or cover a vent in any way that would block air flow

2-10	Interstate

Safety

•Test and maintain all fuel-burning equipment annually. Most RV service centers offer appliance inspections for a nominal fee

•Make regular visual inspections of all fuel-burning appliances. Check appliances for excessive rust and scaling. Also check the flame on the burner and pilot lights. The flame should be blue. A yellow flame means fuel is not being burned completely and CO may be present. Keep the blower door on the furnace closed. Use vents or fans, when they are available, on all fuel-burning appliances. Make sure appliances are vented to the outside. Do not grill or barbecue indoors, in garages, or on screened porches

•Check for exhaust back flow from CO sources. Check the draft hood on an operating furnace for a back draft. Look for cracks on furnace heat exchangers

•Check the RV beside you at a campground. CO can come in an open window or vent

•Keep windows and doors open slightly. If you suspect CO is entering your motorhome, open a window or a door. Opening windows and doors can significantly decrease CO levels

General Limitations of

Smoke and CO Alarms

Smoke and CO Alarms may not waken all individuals

Practice the escape plan before every excursion and with all newcomers to the vehicle, making sure that everyone is involved. Allow children to master fire escape planning and practice before holding a fire drill at night when they are sleeping. If children or others do not readily waken to the sound of the Smoke and CO Alarms, or if there are infants or family members with mobility limitations, make sure that someone is assigned to assist them in a fire drill and in the event of an emergency. It is recommended that you hold a fire drill while family members are sleeping in order to determine their response to the sound of the Smoke and CO Alarms while sleeping and to determine whether they may need assistance in the event of an emergency.

Smoke and CO Alarms cannot work without power

These 9-volt, battery-operated units cannot work if the batteries are missing, disconnected, dead; if the wrong type of batteries are used; or if the batteries are not installed correctly.

Smoke and CO Alarms will not sense:

The smoke and CO alarm will only sense smoke or CO at the sensor. Smoke or CO may be present in other areas. Doors or other obstructions may affect the rate at which CO or smoke reaches the sensors.

Consider installing another alarm device (Combination

CO and Smoke Alarm, or separate CO Alarms and 2 Smoke Alarms) if you inhabitat areas you believe need protection.

Smoke and CO Alarms may not be heard

The alarm horn loudness meets or exceeds current UL standards of 85 dB at 10 feet (3 meters). However, the Smoke and CO Alarms may not wake up a sound sleeper or one who has recently used drugs or has been drinking alcoholic beverages. This is especially true if the door is closed or only partly open. Even persons who are awake may not hear the alarm horn if the sound is blocked by distance or closed doors. Noise from traffic, stereo, radio, television, AC, or other appliances may also prevent alert persons from hearing the alarm horn. The Smoke and CO Alarms are not intended for people who are hearing impaired.

WARNING

The Alarm may not have time to alarm before the fire itself causes damage, injury, or death, since smoke from some fires may not reach the unit immediately. Examples of this include persons smoking in bed, children playing with matches, or fires caused by violent explosions resulting from escaping gas.

Smoke and CO Alarms are not a substitute for life insurance

Although this Smoke and CO Alarm warns against increasing CO levels or the presence of smoke, Airstream Inc. and/or BRK Brands, Inc. do not warrant or imply in any way that they will protect lives. Motorhome owners and users must still insure their lives.

Smoke and CO Alarms have a limited life

Although the Smoke and CO Alarms and all of their parts have passed many stringent tests and are designed to be as reliable as possible, any of these parts could fail at any time. Therefore, you must test these devices weekly. The unit should be replaced immediately if it is not operating properly. Any Smoke or CO Alarm that is beyond its replacement date should be replaced immediately.

Interstate

2-11

Safety

Smoke and CO Alarms are not foolproof

Like all other electronic devices, the Smoke and CO Alarms have limitations. They can only detect smoke or CO that reaches the sensors. They may not give early warning if the source of smoke or CO in a remote part of the motorhome, away from the alarm device. The First Alert Users Manual provided in your owner’s packet has troubleshooting and other important information. Please read, understand, and

follow all information contained the First Alert Manual. If you have any questions concerning the alarm that cannot be answered in this manual or the First Alert manual please contact First Alert Consumer Affairs at 1 800.323.9005, M-F 7:30 AM to 5:00 PM (CST) or Airstream Customer relations 937.596.6111.

Basic Rules for Safety

WARNING

DO NOT store LP containers within vehicle. LP containers are equipped with safety devices that vent gas should the pressure become excessive.

WARNING

DO NOT use cooking appliances for comfort heating. Cooking appliances need fresh air for safe operation. Before operation, open overhead vent or turn on exhaust fan and open window.

A warning label has been positioned in the cooking area to remind you to provide an adequate supply of fresh air for combustion. Unlike homes, the amount of oxygen supply is limited due to the size of the recreational vehicle, and proper ventilation when using the cooking appliances will avoid dangers of asphyxiation. It is especially important that cooking appliances not be used for comfort heating as the

danger of asphyxiation is greater when the appliance is used for long periods of time.

Portable fuel burning equipment, including wood and charcoal grills and stoves, shall not be used inside the recreational vehicle. The use of this equipment inside the recreational vehicle may cause fires or asphyxiation.

A Warning Label has been located near the LP gas container. This label reads: DO NOT FILL CONTAINER

(S) TO MORE THAN 80% PERCENT OF CAPACITY. Overfilling the LP gas container can result in uncontrolled gas flow that can cause fire or explosion. A properly filled container will contain approximately 80 percent of its volume as liquid LP gas.

2-12

WARNING

Do not bring or store LP gas containers, gasoline or other flammable liquids inside the vehicle because a fire or explosion may result.

WARNING

If you smell gas

• Extinguish any open flames, pilot lights and all smoking materials.

•Do not touch electrical switches.

•Shut off the gas supply using the remote shut off

switch.

•Open doors and other ventilating openings.

•Leave the area until odor clears.

•Have the gas system checked and leakage source corrected before using again.

LP gas regulators must always be installed with the diaphragm vent facing downward. Regulators that are not in compartments have been equipped with a protective cover. Make sure that regulator vent faces downward and that cover is kept in place to minimize vent blockage that could result in excessive gas pressure causing fire or explosion.

The regulator at the LP tank is under a gray, plastic cover. The protective cover helps to keep the vent on the regulator from being clogged by wasps or ice, but the regulator should be checked regularly to make sure the vent remains clear.

WARNING

Do not attempt to seal regulator cover.

WARNING

Check vent each time tank is filled to make sure it is clear of obstructions.

Detector Test

The Test/Rest button is used to verify proper alarm function. Executing the test function sounds the alarm and lights up the red LED. The test will sound the alarm twice, with 4 “beeps” in 1 second followed by 5 seconds of silence. By pressing the button, you can verify if the alarm sounds and the LED functions properly.

Interstate

Safety

WARNING

Have a qualified technician check your LP Gas system annually or if you have any signs of leaks or malfunctions.

Fire Extinguisher

The fire extinguisher, just inside your forward door, should be checked for charge on a regular basis. Make sure your family, especially the cook, knows how to release the extinguisher storage bracket and how to properly operate the extinguisher. Check with your local fire department for professional advice on its operation and use if you find the directions on the extinguisher unclear. They will be able and willing to assist you and your family.

Safety

Emergency Exit

There are three avenues of escape from the motorhome in the event of an emergency, the driver’s door, the passenger door, and the sliding side cargo door. As always, safety should be one of your top priorities. Make sure you and everyone traveling with you can operate these doors and exit rapidly without light. A little planning and a quick practice session at each camping site is well worth the time it may take.

WARNING

At each campsite, make sure you have not parked in such a manner as to block the operation of the doors or the escape avenues by being too close to trees, fences, or other impediments. Scenic views

are one reason for traveling, but do not park so 2 the beautiful lake or steep cliff is just outside your doors. Do not block access to the doors from the

inside or outside of the vehicle.

WARNING

Read the directions carefully on the fire extinguisher. If there is any doubt on the operation you and your family should practice, then replace or recharge the extinguisher. You will find your local fire department will be happy to assist you and answer any questions.

WARNING

Do not smoke in bed. Keep matches out of reach of small children. Do not clean with flammable material. Keep flammable material away from open flame. We have all heard these warnings many times, but they are still among the leading causes of fires.

Other safety information on the LPG system of your motorhome is located in the Plumbing Section of this manual.

Interstate

2-13

Safety

NOTES:

2-14	Interstate

RA-400 Patcher for UD

Section 3

GENERAL INFORMATION

		Page	3
Limited Warranty Policy .		3-3
Warranty Coverage.		3-3
Limitation of Implied Warranties. . . . . . . . . .	. . . . . . .	.3-3
Items Not Covered. . . . . . . . . . . . . . .	. . . . . . .	.3-3
Disclaimer of Incidental and Consequential Damages.	. . . . . . .	.3-4
Obtaining Warranty Service.		3-4
Dealer Representations Excluded. . . . . . . . .	. . . . . . .	.3-4
Warranty Transfer. . . . . . . . . . . . . . .	. . . . . . .	.3-4
Changes in Design .		3-5
Consumer Arbitration Program . . . . . . . . . .	. . . . . . .	.3-5
Explanation of Airstream Limited Warranty.		3-5
Airstream Limited Warranty Excludes:.		3-5
Normal Wear .		3-5
Accident . . . . . . . . . . . . . . . .	. . . . . . .	.3-5
Abuse.		3-5
Exposure . . . . . . . . . . . . . . . .	. . . . . . .	.3-5
Overload . . . . . . . . . . . . . . . .	. . . . . . .	.3-5
Chemical Gassing.		3-5
Sprinter Van. . . . . . . . . . . . . . .	. . . . . . .	.3-6
Other Exclusions. . . . . . . . . . . . .	. . . . . . .	.3-6
Service . . . . . . . . . . . . . . . . . . .	. . . . . . .	.3-6
Reporting Safety Defects . . . . . . . . . . . .	. . . . . . .	.3-6

Interstate

3-1

General Information

Section 3

General Information

Table ofContents (Continued)

Camping. . . . . . . . . . . . . . . . . . . . . . . . . .	.3-7
Suggested Pre-Travel Check List . . . . . . . . . . . . . . . .	.3-7
Interior. . . . . . . . . . . . . . . . . . . . . . . .	.3-7
Exterior. . . . . . . . . . . . . . . . . . . . . . . .	.3-7
Motorhome Equipment and Accessories. . . . . . . . . . .	.3-7
Motoring Essentials. . . . . . . . . . . . . . . . . . .	.3-7
Overnight Stop . . . . . . . . . . . . . . . . . . . . . . .	.3-7
Overnight or Weekend Trips . . . . . . . . . . . . . . . . . .	.3-7

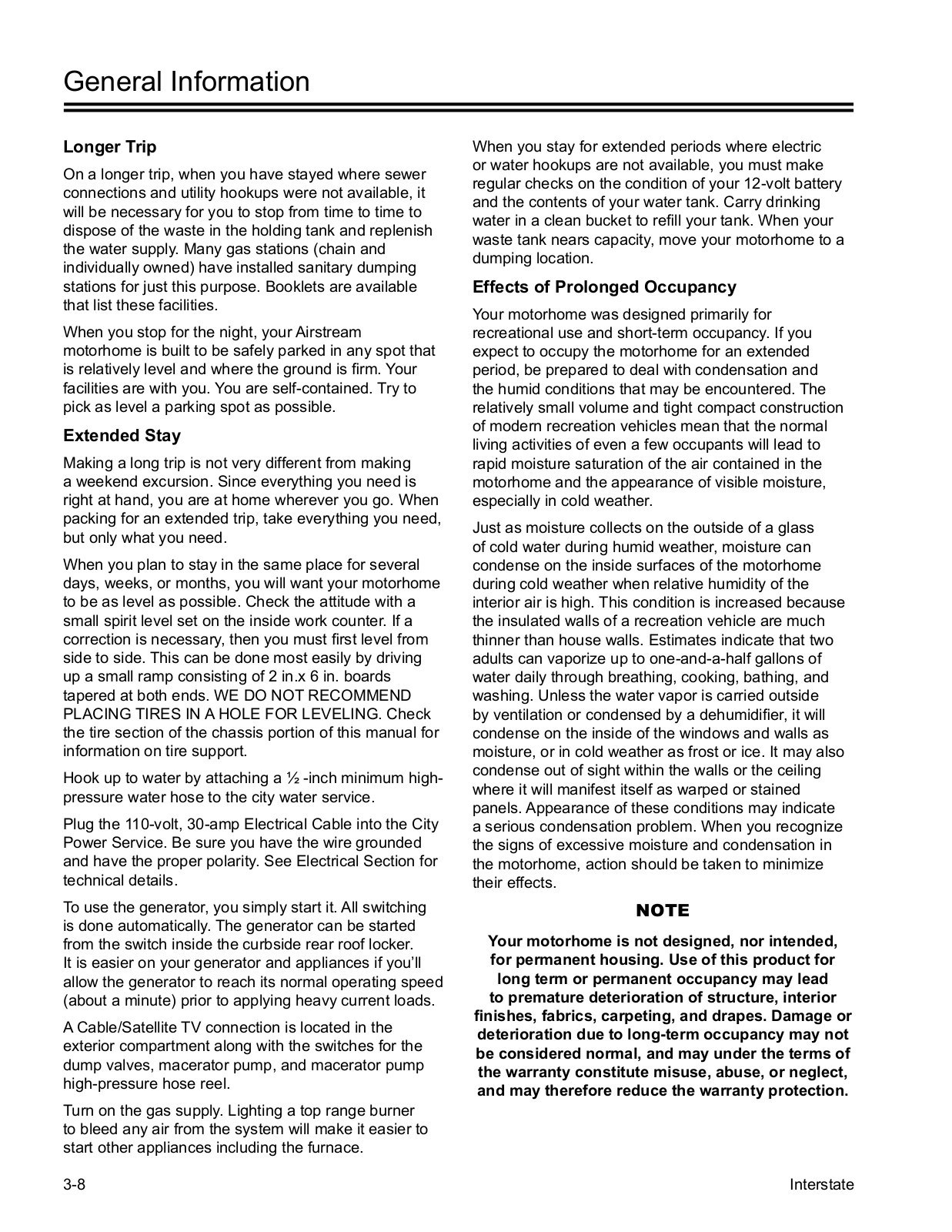

Longer Trip .	3-8
Extended Stay . . . . . . . . . . . . . . . . . . . . . . .	.3-8
Effects of Prolonged Occupancy .	3-8
About Molds.	3-9
What are molds?. . . . . . . . . . . . . . . . . . . .	.3-9
What factors contribute to mold growth?. . . . . . . . . . .	.3-9
How can mold growth be inhibited?. . . . . . . . . . . . .	.3-9

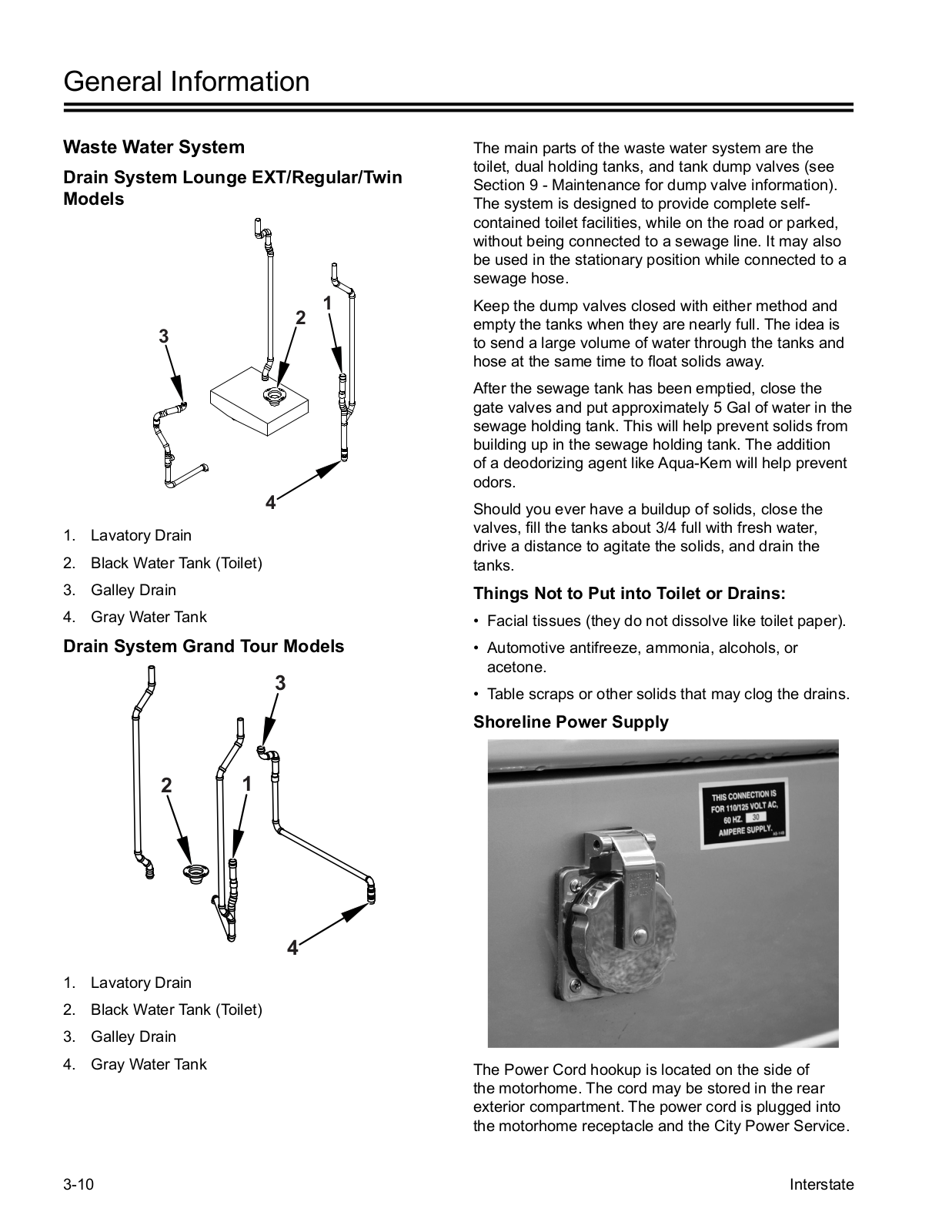

Waste Water System. . . . . . . . . . . . . . . . . . . . .	3-10
Drain System Lounge EXT/Regular/Twin Models. . . . . . . . . .	3-10
Drain System Grand Tour Models. . . . . . . . . . . . . . . .	3-10
Things Not to Put into Toilet or Drains: . . . . . . . . . . . . . .	3-10
Shoreline Power Supply .	3-10

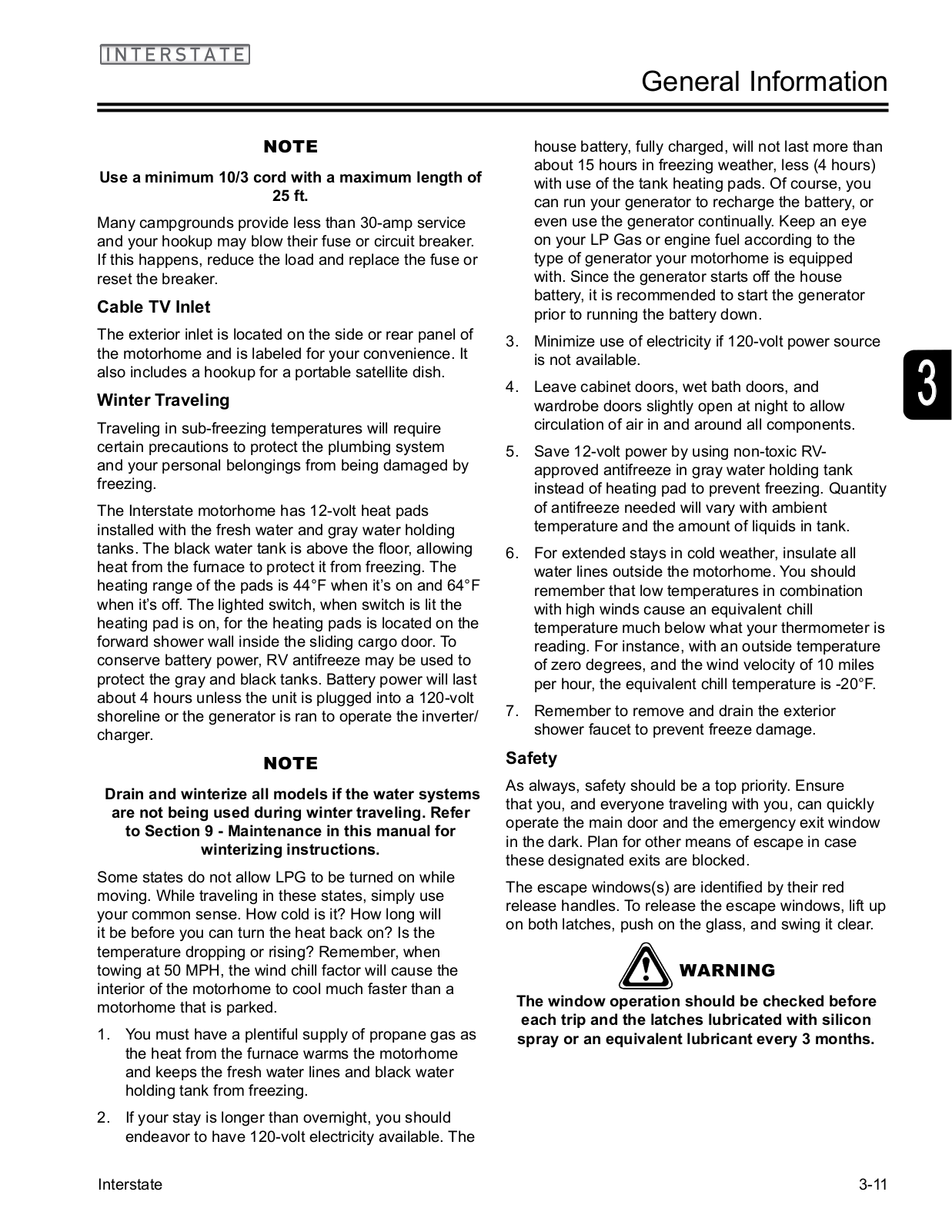

Cable TV Inlet.	3-11
Winter Traveling. . . . . . . . . . . . . . . . . . . . . . .	3-11
Safety. . . . . . . . . . . . . . . . . . . . . . . . . . .	3-11

3-2	Interstate

General Information

Limited Warranty Policy

Warranty Coverage

Airstream Inc. (“Airstream”) warrants that it will repair or replace defects in material or workmanship in any components of a new Airstream motorhome purchased from an authorized Airstream dealer in the United States or Canada for 36,000 miles (57,937 Kilometers) or a period of thirty-six (36) months.

In order to obtain coverage under this Limited Warranty, you must notify an authorized Airstream dealership or Airstream of the warrantable defect no later than ten (10) days following expiration of this Limited Warranty. Airstream’s obligation to repair or replace defective materials or workmanship is the sole obligation of Airstream under this Limited Warranty. Airstream reserves the right to use new or remanufactured parts of similar quality to complete any warranty work.

Limitation of Implied Warranties

Implied warranties arising under applicable law, if any, including but not limited to implied warranties of merchantability or fitness for a particular purpose, are hereby limited in duration to the term of this limited warranty. All other warranties, express or implied, are hereby disclaimed by Airstream. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.

Items Not Covered

This Limited Warranty does not provide coverage for any of the following:

1.Tires, batteries, stereo, television, range/stove, furnace, refrigerator, AC unit, toilet, water heater, microwave, generator, and other materials, parts, and components warranted by persons or entities other than Airstream. Please refer to the warranties of component manufacturers for terms and conditions of coverage.

2.Any part or component of the motorhome not manufactured or installed by Airstream.

3.Normal deterioration due to wear or exposure, including but not limited to rust, corrosion, oxidation, and cosmetic blemishes.

4.Normal maintenance and service items, including but not limited to light bulbs, fuses, lubricants, sealants and seals, door adjustments, and awning tension.

5.After-market equipment or accessories installed

on the motorhome after completion of manufacture by Airstream, or any defects or damage caused by such items.

6.Motorhomes not purchased through an authorized dealer of Airstream motorhomes, and motorhomes purchased directly or indirectly through auction, salvage, repossession, or other non-customary sale means.

7.Defects or damage caused by, in whole or in part, or in any way related to:

a.	Accidents, misuse (including off-road use), or	3
	negligence.
b.	Failure to comply with the instructions set
	forth in any owner’s manual provided with the
	motorhome.
c.	Alteration or modification of the motorhome,
	except such alterations or modifications ap-
	proved in writing by Airstream.
d.	Acts of God or other environmental conditions,
	such as lightning, hail, salt, or other chemicals
	in the atmosphere.
e.	De-icing agents or other chemicals applied to
	the motorhome.
f.	Failure to properly maintain or service the
	motorhome, including, but not limited to, the
	maintenance of lubricants, sealants, and seals.
g.	Condensation and the results of condensa-
	tion, including water damage and the growth of
	mold or mildew. Mold and mildew are natural
	growths, given certain environmental condi-
	tions, and are not covered by the terms of this
	Limited Warranty.
h.	Use of the motorhome other than for temporary
	recreation purposes, including, but not limited
	to, use of the motorhome for residential, disas-
	ter relief, commercial, or rental purposes.
i.	The addition of weight to the motorhome that
	causes the motorhome’s total weight to exceed
	applicable motorhome weight ratings, or addi-
	tion of weight causing improper distribution of
	the weight of the motorhome.
j.	Selection, use, and operation of any hitch as-
	sembly.
k.	Failure to seek and obtain repairs in a timely
	manner.
l.	Failure to use reasonable efforts to mitigate
	damage caused by defects.

Interstate

3-3

General Information

m.Failure to properly ventilate the motorhome.

n.Improper electric power supply or improper vehicle hookup to other facilities.

o.Acts or omissions of any person or entity other than Airstream.

Disclaimer of Incidental and Consequential Damages

Airstream hereby disclaims any and all incidental and consequential damages arising out of or relating to the motorhome, including expenses such as transportation to and from vehicle dealerships and Airstream

repair facilities, loss of time, loss of pay, loss of use, inconvenience, commercial loss (including lost profits), towing charges, bus fares, vehicle rental, service call charges, gasoline expenses, incidental charges such as telephone calls and facsimile transmissions, and expenses for lodging. This disclaimer is independent of any failure of the essential purpose of any warranties provided with a motorhome, and shall survive any determination that a warranty failed of its essential purpose. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Obtaining Warranty Service

In order to obtain warranty service under this Limited Warranty, the owner must do all of the following:

1.Owner and dealer representative must complete and return the Customer Performance Checkout within 10 days from delivery of the motorhome,

2.Notify Airstream or one of its authorized, independent dealers of any claimed defect within the warranty period or 10 days thereafter,

3.Provide notification of a defect within 10 days of discovery of that defect, and

4.Promptly return the motorhome to an authorized Airstream dealer or Airstream for repairs.

If you believe a defect covered by this Limited Warranty still exists after an attempted repair by an authorized Airstream dealer, you must contact Airstream at the following address, specifying:

1.The complete serial number of the motorhome,

2.The date of original purchase and the date of original delivery,

3.The name of the selling dealer, and

4.The nature of the problem and the steps or service which have been performed.

Airstream, INC.

419 West Pike Street P.O. Box 629

Jackson Center, Ohio 45334-0629 Attention: Owner Relations Department

Airstream may direct you to an authorized Airstream dealer, or may request that you bring your motorhome to the Airstream factory in Jackson Center, Ohio for repairs.

Airstream does not control the scheduling of repairs at its authorized Airstream dealers, and repairs at the Airstream factory may not be immediately available. Therefore, you may encounter delays in scheduling repairs and/or completion of repairs. All costs associated with transporting the motorhome for any warranty service shall be the sole responsibility of the owner.

Dealer Representations Excluded

The entire Limited Warranty provided by Airstream is set forth herein. Airstream will not be responsible for any additional representations or warranties made by any person or entity other than Airstream, and Airstream’s obligations are solely as set forth in the terms and conditions of this Limited Warranty.

Warranty Transfer

This Limited Warranty is transferable to subsequent owners for the remaining duration of the warranty period, upon approval from Airstream. Transfer of this Limited Warranty will only be approved by Airstream upon all of the following:

1.Airstream’s receipt of a completed transfer application form,

2.The payment of a $250.00 processing fee to

Airstream, and

3.The completion of an inspection of the condition of the motorhome, at the owner’s expense, by an authorized Airstream dealer in accordance with Airstream’s required procedure and Airstream’s receipt of a written report as to the results of such inspection.

Transfer application forms are available from your dealer or Airstream’s Service Administration Department.

3-4	Interstate

General Information

Changes in Design

Airstream reserves the right to make changes in design and improvements upon its products from time to time, without imposing upon itself any obligation to install additional features in your motorhome.

Consumer Arbitration Program

Airstream Inc. participates in the Consumer Arbitration Program for Recreation Vehicles (CAP-RV). This thirdparty dispute resolution program is available, at no charge to you, to settle unresolved warranty disputes for recreation vehicles. This dispute resolution program reviews eligible product and service related complaints involving warranty covered components.

To find out more about this program, or to request an application/brochure, please call the Arbitration Administration office toll-free 800.279.5343.

For recreation vehicles purchased in the State of California: The CAP-RV program operates as a certified mechanism under the review of the California Arbitration Certification Program. You must utilize the arbitration program before claiming rights conferred by 15 USC section 2310 (Uniform Commercial Code) or Civil Code section 1793.22(b) (Song-Beverly Warranty Act). You are not required to use the program if you choose to seek redress by pursuing rights and remedies not created by those laws.

Members of the armed forces who purchased the vehicle in California, who were stationed in or a resident of California at the time of purchase (regardless of state of purchase), or who are stationed in California at the time of application to this program may utilize the CAPRV program.

Explanation of Airstream Limited Warranty

Along with your new Airstream motorhome, you have purchased the Airstream Limited Warranty. Read your Limited Warranty carefully. It contains the entire

agreement with respect to Airstream’s obligation on the Limited Warranty on your new vehicle. The terms of the Limited Warranty, and only those terms, will define Airstream’s responsibility. When you receive your Limited Warranty file it for safekeeping.

Upon proof of purchase date to any Airstream Dealer Service Center, defects in materials or workmanship will be repaired or replaced without cost to the owner for a period of thirty six (36) months from the original purchase date, or 36,000 miles (57,937 kilometers), whichever occurs first. Written warranties of some manufacturers of components of the motorhome will be honored by Airstream for the duration on that manufacturer’s warranty.

Airstream Limited Warranty Excludes:

Normal Wear

Items such as curtains, upholstery, floor coverings, and window, door, and vent seals will show wear or may even wear out within the 2-year warranty period, depending upon the amount of usage, weather, and atmospheric conditions.

Accident

We strongly urge our dealers and customers to inspect the motorhome upon receipt of delivery for any damage

caused by accident while being delivered to the dealer, 3 or while it is on the dealer’s lot. Damage of this nature becomes the dealer or customer’s responsibility upon acceptance of delivery, unless Airstream is notified

and the person making the delivery verifies the damage. Glass breakage, whether obviously struck or mysterious, is always accidental and covered by most insurance policies.

Abuse

Lack of customer care and/or improper maintenance will result in early failure for which Airstream cannot be held responsible.

Exposure

Deterioration by sunlight is possible to such items as tires, curtains or upholstery. Steel or metal surfaces are subject to the elements, causing rust and corrosion that is normal and beyond the control and responsibility of Airstream.

Overload

Overload Damage due to loading beyond capacity or to cause improper balance is not covered by the

Airstream Limited Warranty. The Airstream motorhome is engineered to properly handle any normal load. There are limits to the amount of load that can be safely transported depending upon speed and road conditions. If these limits have been exceeded, the Airstream Limited Warranty will not cover resulting damage. For additional information on the load capacity of your motorhome, consult your Sprinter and Airstream Owner’s Manuals or gross vehicle weight rating plate.

Chemical Gassing

Chemical gassing is not a “Defect” in your recreational vehicle and is not covered by the Limited Warranty. Please follow the recommendations in this manual to address this concern.

Interstate

3-5

General Information

Sprinter Van

Airstream, Inc., does not accept any responsibility in connection with any of its motorhomes for the

Sprinter Van or its components. The Sprinter Van and its components are covered by Sprinter Warranties as explained by Sprinter literature provided with each motorhome. Your Sprinter Van and its components are pre-checked by its manufacturer before delivery to Airstream. All service to the Sprinter Van and its

components must be performed by Sprinter designated service points according to the manufacturer’s warranty and service policies. Sprinter literature is supplied with each Airstream motorhome. The literature gives

important information concerning its warranty coverage, maintenance, and operation.

WARNING

Your Sprinter Van Operator’s and Warranty Manuals contain important cautions and, warnings, and operational and warranty information on the Sprinter and its components. All information in the Sprinter manual should be reviewed and followed for your safety.

The Airstream Interstate Owner’s Manual may provide addition information and tips on the use of the Van as a motorhome, however, no information, in whole or in part, in any Airstream manuals should be interpreted as advice or directions to disregard or void the Warnings, Cautions, Notices, or other information contained in the Sprinter’s manuals.

Other Exclusions

Tires, batteries, and the generator are serviced by their respective manufacturers and will be handled by their service centers according to the terms of their written policy. Any warranty forms from these manufacturers should be completed promptly, preferably at time of purchase.

Service

Before leaving the factory, every vital part of the motorhome is tested for performance. Each test is signed and certified by an inspector. After the

motorhome arrives on your dealer’s lot, all vital parts and systems are again tested. When you take delivery of your new motorhome, you will receive a complete check out.

At that time, a specified list of performance checks on your motorhome equipment will be conducted, and any deficiencies you have experienced since taking delivery will be corrected.

3-6

Please contact your dealer if your motorhome needs service. Major service under your Airstream Limited Warranty is available through our nationwide network of Airstream Dealer Service Centers. An up-to-date list of Dealer Service Centers will be sent to you with an Owner’s Survey shortly after your motorhome is delivered. Our website, www.Airstream.com also has a dealer locator on it. This list is current as of the date of this publication.

Occasionally, dealerships change or new dealers are added who may not appear on this list. For this reason, it is suggested you contact your local dealer from time to time for an updated list. Additional copies are available if you need them. All centers operate on an appointment basis for the utmost efficiency.

When you require service for your motorhome from the Airstream Factory Service Center or a Certified Dealer Service Center, please contact the service manager for an appointment, and inform him if you are unable to keep the appointment date or wish to change it. Service may be arranged at the Factory Service Center by contacting the Service Coordinator at:

Airstream Factory Service Center

P.O. Box 629, 419 W. Pike Street

Jackson Center, Ohio 45334-0629 Phone: [phone] or [phone]

Reporting Safety Defects

If you believe your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA), in addition to notifying Airstream, Inc.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NTHSA cannot become involved in individual problems between you, your dealer, or Airstream Inc.

To contact NHTSA, you may either call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800- 424-9153), go to http://www.safercar.gov, or write to:

Administrator

NHTSA

1200 New Jersey Avenue, S.E. Washington, DC 20590

You can also obtain other information about motor vehicle safety from http://www.safercar.gov.

Interstate
