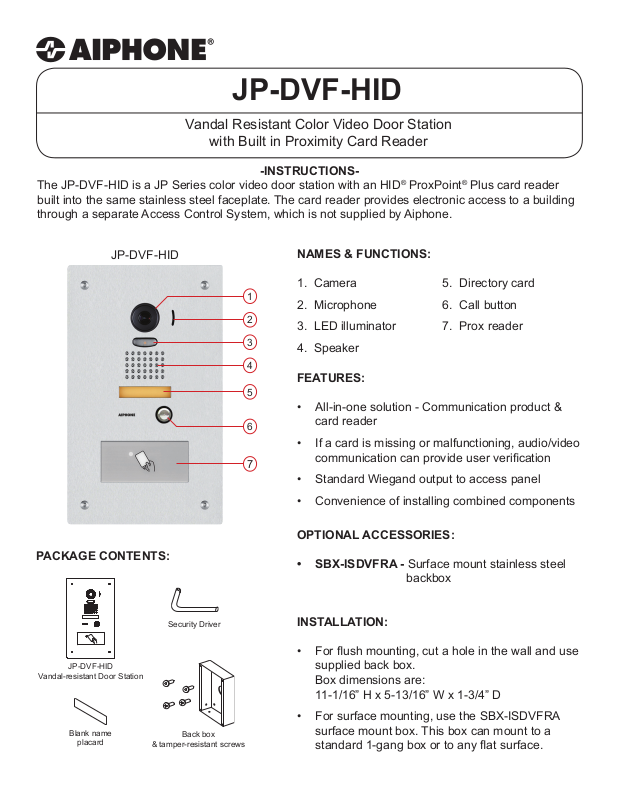

Aiphone JP-DVF-HID User Manual

JP-DVF-HID

Vandal Resistant Color Video Door Station

with Built in Proximity Card Reader

-INSTRUCTIONS-

The JP-DVF-HID is a JP Series color video door station with an HID® ProxPoint® Plus card reader built into the same stainless steel faceplate. The card reader provides electronic access to a building through a separate Access Control System, which is not supplied by Aiphone.

JP-DVF-HID

NAMES & FUNCTIONS:

1. Camera 5. Directory card

2. Microphone 6. Call button

3. LED illuminator 7. Prox reader

4. Speaker

FEATURES:

• All-in-one solution - Communication product &

card reader

• If a card is missing or malfunctioning, audio/video

communication can provide user verication

• Standard Wiegand output to access panel

• Convenience of installing combined components

OPTIONAL ACCESSORIES:

PACKAGE CONTENTS:

JP-DVF-HID

Vandal-resistant Door Station

Blank name

placard

& tamper-resistant screws

Security Driver

Back box

• SBX-ISDVFRA - Surface mount stainless steel backbox

INSTALLATION:

• For ush mounting, cut a hole in the wall and use supplied back box. Box dimensions are: 11-1/16” H x 5-13/16” W x 1-3/4” D

• For surface mounting, use the SBX-ISDVFRA surface mount box. This box can mount to a

standard 1-gang box or to any at surface.

WIRING DIAGRAM:

Aiphone Corporation | www.aiphone.com/home | tech@aiphone.com | P: 800.692.0200

JP-DVF-HID JP-4MED

A1 A2

Connect the reader to the host according to the wiring table below and the host installation guide.

Wiegand Wire Color

+ DC (5-16V) Red Ground Black Data0 Green Data1 White Shield Ground Drain Green LED Orange Red LED Brown Beeper Yellow Hold Blue Card Present Violet

1A1 1A2

2A1 2A2

3A1 3A2

4A1 4A2

PS-2420UL

TESTING & OPERATION:

• When power is applied to the card reader, the LED will ash green three (3) times while the beeper beeps simultaneously. The LED will then turn red. This indicates that the microcontroller is operating properly.

• Present an ID card to the reader (hold card directly in front of reader). The LED will momentarily turn green while the beeper beeps once, indicating that the card was read successfully.

SPECIFICATIONS:

CARD READER:

Reader type: 6005B ProxPoint Plus Power Source: 5 ~ 16V DC Max Voltage: 18V DC Current: 30mA (Avg); 75mA (peak) Terminations: Color-coded pre-wired pigtail Wiring Distance: 500’ Operating Temp: 14° ~ 140°F / -10° ~ 60°C Operating Humidity: 0-95% relative humidity non-condensing

FCC WARNING:

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference that may cause undesired operation.

• For proper regulatory compliance, the drain wire should be disconnected at the power supply end of the cable.

• Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

• The Reader is intended to be powered from a limited power source output of a previously certifed power supply

CAMERA:

Camera unit: CMOS camera Scanning line: 525 lines Min. illumination: 5 Lux at 1’6” Terminations: Screw terminals Operating Temp: 14° ~ 140°F / -10° ~ 60°C Wiring Distance: 330’ w/ 871802 wire Dimensions: 11-11/16” H x 7” W

Pg. 2

JP-DVF-HID Instr.

0715
