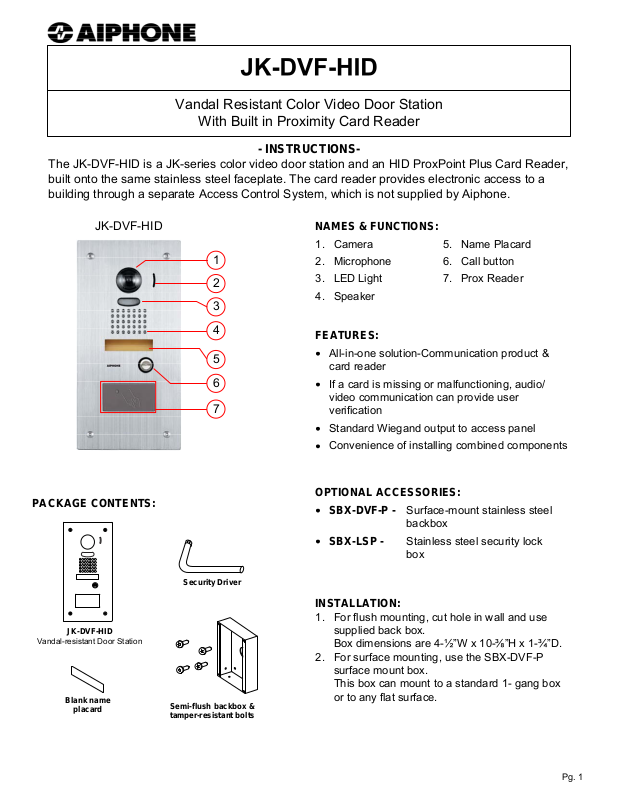

Aiphone JK-DVF-HID Installation Manual
Vandal Resistant Color Video Door Station
With Built in Proximity Card Reader
- INSTRUCTIONS-
The JK-DVF-HID is a JK-series color video door station and an HID ProxPoint Plus Card Reader,
built onto the same stainless steel faceplate. The card reader provides electronic access to a
building through a separate Access Control System, which is not supplied by Aiphone.
JK-DVF-HID
PACKAGE CONTENTS:
NAMES & FUNCTIONS:
1. Camera 5. Name Placard
1
2
2. Microphone 6. Call button
3. LED Light 7. Prox Reader
4. Speaker
3
4
5
6
7
FEATURES:
All-in-one solution-Communication product &
card reader
If a card is missing or malfunctioning, audio/
video communication can provide user
verification
Standard Wiegand output to access panel
Convenience of installing combined components
OPTIONAL ACCESSORIES:
SBX-DVF-P - Surface-mount stainless steel
backbox
JK-DVF-HID
Vandal-resistant Door Station
Blank name
placard
SBX-LSP - Stainless steel security lock
box
Security Driver
INSTALLATION:
1. For flush mounting, cut hole in wall and use
supplied back box.
Box dimensions are 4-½”W x 10-⅜”H x 1-¾”D.
2. For surface mounting, use the SBX-DVF-P
surface mount box.
This box can mount to a standard 1- gang box
or to any flat surface.
Semi-flush backbox &
tamper-resistant bolts
Pg. 1
WIRING DIAGRAM:
JK-DVF-HID
A1
A2
Connect the reader to the host according to the
wiring table below and the host installation guide.
Wiegand Wire Color
+ DC (5-16V) Red
Ground Black
Data0 Green
Data1 White
Shield Ground Drain
Green LED Orange
Red LED Brown
Beeper Yellow
Hold Blue
Card Present Violet
JK-1MED / JK-1MD
1A1
1A2
S
S
TESTING AND OPERATION:
When power is applied to the card reader, the LED will flash green three (3) times while
the beeper beeps simultaneously. The LED will then turn red. This indicates that the
microcontroller is operating properly.
Present an ID card to the reader. (Hold card directly in front of reader.) The LED will
momentarily turn green while the beeper beeps once, indicating that the card was read
successfully.
B1
B2
+
-
+
-
PS-1820UL
SPECIFICATIONS:
CARD READER:
Model #: HID 6005B
Power Source: 5 ~ 16V DC
Absolute Max. Voltage: 18V DC
Current Requirements: 30mA (Avg); 75mA (peak)
Terminations: Color-coded pre-wired pigtail
Wiring Distance: 500'
Operating Temperature: -10°~60°C / 14°~140°F
Operating Humidity: 0-95% relative humidity
non-condensing
FCC WARNING:
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference that may cause undesired operation.
For proper regulatory compliance, the drain wire should be disconnected at the
power supply end of the cable.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
The Reader is intended to be powered from a limited power source output of a
previously certified power supply.
CAMERA:
Camera unit: CMOS Camera
Scanning line: 525 lines
Min. illumination: 5 Lux at 1'6"
Terminations: Screw terminals
Operating Temperature:-10°~60°C / 14°~140°F
Wiring Distance: 330' w/87180250C wire
980' w/JKW-BA & 85160210C wire
Dimensions(camera): 5-¾” W x 11-⅝” H x 1-5/16" D
With SBX-DVF-P: 5-15/16" W x 11-¾” H x 2-13/16" D (Top)
1-15/16" D (Bottom)
Aiphone Communication Systems
1700 130th Ave. N.E.
Bellevue, WA 98005
(425) 455-0510
FAX (425) 455-0071
TOLL FREE TECHNICAL SUPPORT:
(800) 692-0200
E-MAIL: tech@aiphone.com
JK-DVF-HID Instr.
Pg. 2
0912JD
