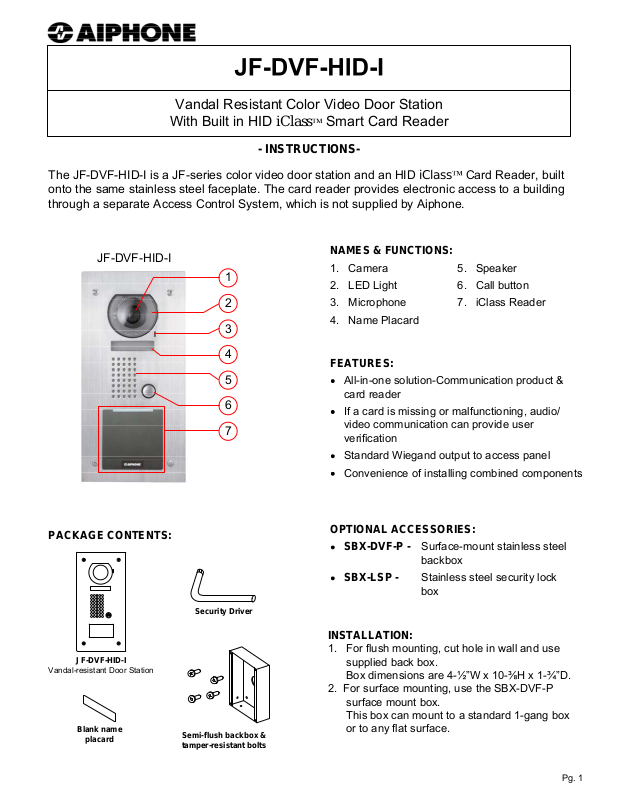

Aiphone JF-DVF-HID-I User Manual
Vandal Resistant Color Video Door Station
With Built in HID iClass
- INSTRUCTIONS-
Smart Card Reader
The JF-DVF-HID-I is a JF-series color video door station and an HID iClass
Card Reader, built
onto the same stainless steel faceplate. The card reader provides electronic access to a building
through a separate Access Control System, which is not supplied by Aiphone.
JF-DVF-HID-I
1
2
NAMES & FUNCTIONS:
1. Camera 5. Speaker
2. LED Light 6. Call button
3. Microphone 7. iClass Reader
4. Name Placard
3
4
FEATURES:
5
6
7
All-in-one solution-Communication product &
card reader
If a card is missing or malfunctioning, audio/
video communication can provide user
verification
Standard Wiegand output to access panel
PACKAGE CONTENTS:
JF-DVF-HID-I
Vandal-resistant Door Station
Blank name
placard
Security Driver
Semi-flush backbox &
tamper-resistant bolts
Convenience of installing combined components
OPTIONAL ACCESSORIES:
SBX-DVF-P - Surface-mount stainless steel
backbox
SBX-LSP - Stainless steel security lock
box
INSTALLATION:
1. For flush mounting, cut hole in wall and use
supplied back box.
Box dimensions are 4-½”W x 10-⅜H x 1-¾”D.
2. For surface mounting, use the SBX-DVF-P
surface mount box.
This box can mount to a standard 1-gang box
or to any flat surface.
Pg. 1
WIRING DIAGRAM:
JF-DVF-HID-I
A1
A2
Connect the reader to the host according to the
wiring table below and the host installation guide.
Wiegand Wire Color
+ DC (10-16V) Red
Ground Black
Data0 Green
Data1 White
Shield Ground Drain
JF-2MED
1A1
1A2
2A1
2A2
S
S
B1
B2
+
-
PS-1820UL
Green LED Orange
Red LED Brown
Beeper Yellow
Hold Blue
--- Violet
TESTING AND OPERATION:
When power is applied to the iClass reader, the LED will turn RED while the beeper beeps
simultaneously 3 times. (The last tone is a higher frequency). The LED will then flash once after the
last tone. This indicates that the microcontroller is operating properly.
+
-
Present an
iClass ID card to the reader (Hold the card directly in front of reader). The LED will
momentarily turn green while the beeper beeps once, indicating that the card was read successfully.
SPECIFICATIONS:
CARD READER:
Power Source: 10 ~ 16V DC
(linear recommended)
Current Requirements: 80mA (Avg); 300mA (peak)
@ 12V DC
Transmit Frequency: 13.56 MHz
Terminations: Color-coded pre-wired pigtails
Wiring Distance: 500'
Operating Temperature: -10°~60°C / 14°~140°F
Operating Humidity: 5-95% relative humidity
non-condensing
FCC WARNING:
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference that may cause undesired operation.
For proper regulatory compliance, the drain wire should be disconnected at the
power supply end of the cable.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
The Reader is intended to be powered from a limited power source output of a
previously certified power supply.
CAMERA:
Camera unit: CCD Camera
Scanning line: 525 lines
Min. illumination: 5 Lux at 1' or less
Terminations: Screw terminals
Wiring Distance: 330' w/871802 wire
980' w/JBW-BA & 851602 wire
Dimensions (camera): 5-¾” W x 11-⅝” H x 1-5/16" D
With SBX-DVF-P: 5-15/16" W x 11-¾” H x 2-13/16" D (Top)
1-15/16" D (Bottom)
Aiphone Communication Systems
1700 130th Ave. N.E.
Bellevue, WA 98005
(425) 455-0510
FAX (425) 455-0071
TOLL FREE TECHNICAL SUPPORT:
(800) 692-0200
E-MAIL: tech@aiphone.com
JF-DVF-HID-I Instr.
Page 2
0810JD
