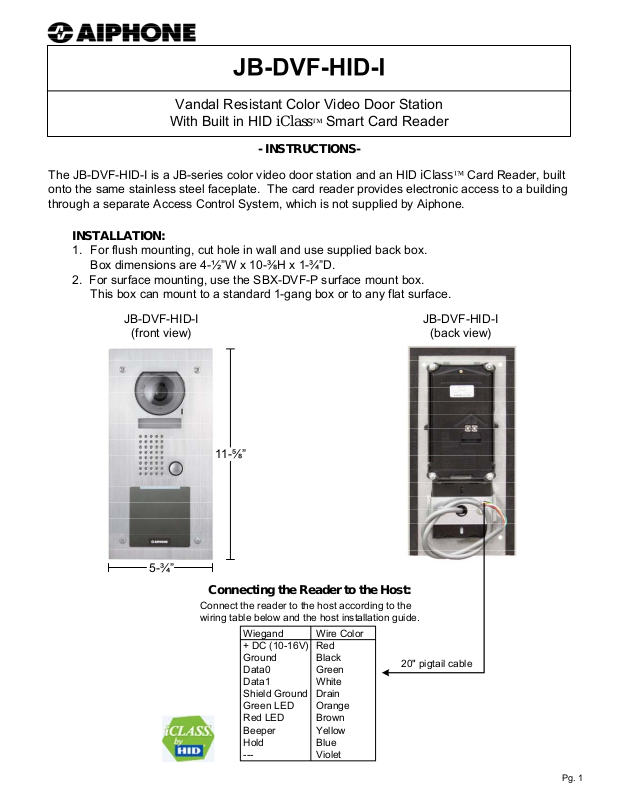

Aiphone JB-DVF-HID-I User Manual
Vandal Resistant Color Video Door Station
With Built in HID iClass
- INSTRUCTIONS-
Smart Card Reader
The JB-DVF-HID-I is a JB-series color video door station and an HID iClass
Card Reader, built
onto the same stainless steel faceplate. The card reader provides electronic access to a building
through a separate Access Control System, which is not supplied by Aiphone.
INSTALLATION:
1. For flush mounting, cut hole in wall and use supplied back box.
Box dimensions are 4-½”W x 10-⅜H x 1-¾”D.
2. For surface mounting, use the SBX-DVF-P surface mount box.
This box can mount to a standard 1-gang box or to any flat surface.
JB-DVF-HID-I
(front view)
JB-DVF-HID-I
(back view)
11-⅝”
5-¾”
Connecting the Reader to the Host:
Connect the reader to the host according to the
wiring table below and the host installation guide.
Wiegand Wire Color
+ DC (10-16V) Red
Ground Black
Data0 Green
Data1 White
Shield Ground Drain
Green LED Orange
Red LED Brown
Beeper Yellow
Hold Blue
--- Violet
20" pigtail cable
Pg. 1
WIRING DIAGRAM:
JB-DVF-HID-I
Master
JB-2M(E)D
A1
A2
Output to Host
Access Control System
1A1
1A2
2A1
2A2
S
S
B1
B2
+
-
PS-1820UL
TESTING AND OPERATION:
When power is applied to the iClass reader, the LED will turn RED while the beeper beeps
simultaneously 3 times. (The last tone is a higher frequency). The LED will then flash once after the
last tone. This indicates that the microcontroller is operating properly.
Present an
iClass ID card to the reader (Hold the card directly in front of reader). The LED will
momentarily turn green while the beeper beeps once, indicating that the card was read successfully.
SPECIFICATIONS:
CARD READER:
Power Source: 10 ~ 16 VDC / 65 ~ 225mA
Current Requirements: 80mA (Avg); 300mA (peak) at 12V
Transmit Frequency: 13.56 MHz
Terminations: Color-coded pre-wired pigtails
Wiring Distance: 500'
Operating Temperature: -10° ~ 60° C / 14° ~ 140° F
Operating Humidity: 5% to 95% relative humidity
non-condensing
CAMERA:
Camera unit: CCD Camera
Scanning line: 525 lines
Min. illumination: 1 Lux or less at 1'
Terminations: Screw terminals
Wiring Distance: 330' w/871802 wire
980' w/JBW-BA & 851602 wire
Dimensions (camera): 5-¾” W x 11-⅝” H x 1-5/16" D
With SBX-DVF-P: 5-15/16" W x 11-¾” H x 2-13/16" D (Top)
1-15/16" D (Bottom)
+
-
FCC WARNING:
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference that may cause undesired operation.
For proper regulatory compliance, the drain wire should be disconnected at the
power supply end of the cable.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
The Reader is intended to be powered from a limited power source output of a
previously certified power supply.
