U7242A USB3.0 Test
Fixture
User’s Guide
Agilent Technologies
Notices
© Agilent Technologies, Inc. 2009
No p art o f this manu al may be re produce d in
any form or by any means (including electronic storage and retrieval or translation
into a foreign language) without prior agreement and written consent from Agilent
Technologies, Inc. as governed by United
States and international copyright laws.
Manual Part Number
U7242-97000
Edition
First edition, May 2009
Agilent Technologies, Inc.
1900 Garden of the Gods Road
Colorado Springs, CO 80907 USA
Warranty
The material contained in this document is provided “as is,” and is subject to being changed, without notice,
in future editions. Further, to the maximum extent permitted by applicable
law, Agilent disclaims all warranties,
either express or implied, with regard
to this manual and any information
contained herein, including but not
limited to the implied warranties of
merchantability and fitness for a particular purpose. Agilent shall not be
liable for errors or for incidental or
consequential damages in connection with the furnishing, use, or performance of this document or of any
information contained herein. Should
Agilent and the user have a separate
written agreement with warranty
terms covering the material in this
document that conflict with these
terms, the warranty terms in the separate agreement shall control.
Technology Licenses
The hardware and/or software described in
this document are furnished under a license
and may be used or copied only in accordance with the terms of such license.
Restricted Rights Legend
If software is for use in the performance of a
U.S. Government prime contract or subcontract, Software is delivered and licensed as
“Commercial computer software” as
defined in DFAR 252.227-7014 (June 1995),
or as a “commercial item” as defined in FAR
2.101(a) or as “Restricted computer software” as defined in FAR 52.227-19 (June
1987) or any equivalent agency regulation or
contract clause. Use, duplication or disclosure of Software is subject to Agilent Technologies’ standard commercial license
terms, and non-DOD Departments and
Agencies of the U.S. Government will
receive no greater than Restricted Rights as
defined in FAR 52.227-19(c)(1-2) (June
1987). U.S. Government users will receive
no greater than Limited Rights as defined in
FAR 52.227-14 (June 1987) or DFAR
252.227-7015 (b)(2) (November 1995), as
applicable in any technical data.
Safety Notices
CAUTION
A CAUTION notice denotes a hazard. It calls attention to an operating procedure, practice, or the like
that, if not correctly performed or
adhered to, could result in damage
to the product or loss of important
data. Do not proceed beyond a
CAUTION notice until the indicated
conditions are fully understood and
met.
WARNING
A WARNING notice denotes a
hazard. It calls attention to an
operating procedure, practice, or
the like that, if not correctly performed or adhered to, could result
in personal injury or death. Do not
proceed beyond a WARNING
notice until the indicated conditions are fully understood and
met.
2 Agilent U7242A USB 3.0 Test Fixture User’s Guide
Contents
U7242A USB 3.0 Test Fixture Description 5
Fixture and Accessories 6
Dimension 6
Characteristics, Regulatory, and Safety Information 7
Electrical Characteristics 7
Operating and Non-operating Environmental Characteristics 7
Safety Information 7
3
4 Agilent U7242AUSB 3.0 Test Fixture User’s Guide
U7242A USB 3.0 Test Fixture Description
The U7242A USB3.0 test fixture is required to perform the measurement
with the Agilent U7243A USB3.0 Electrical Compliance Test Application.
The fixture helps you to easily access the USB3.0 test signals.
The U7242A USB3.0 test fixture is required for the all the Far End (TP1)
tests including:
• Far End Unit Internal test
• Far End SSC Slew Rate test
• Far End Template test
• Far End Peak-to- Peak Differential Output Voltage test
• Far End RMS Random Jitter test
• Far End Maximum Deterministic Jitter test
• Far End Total Jitter at BER- 12 test

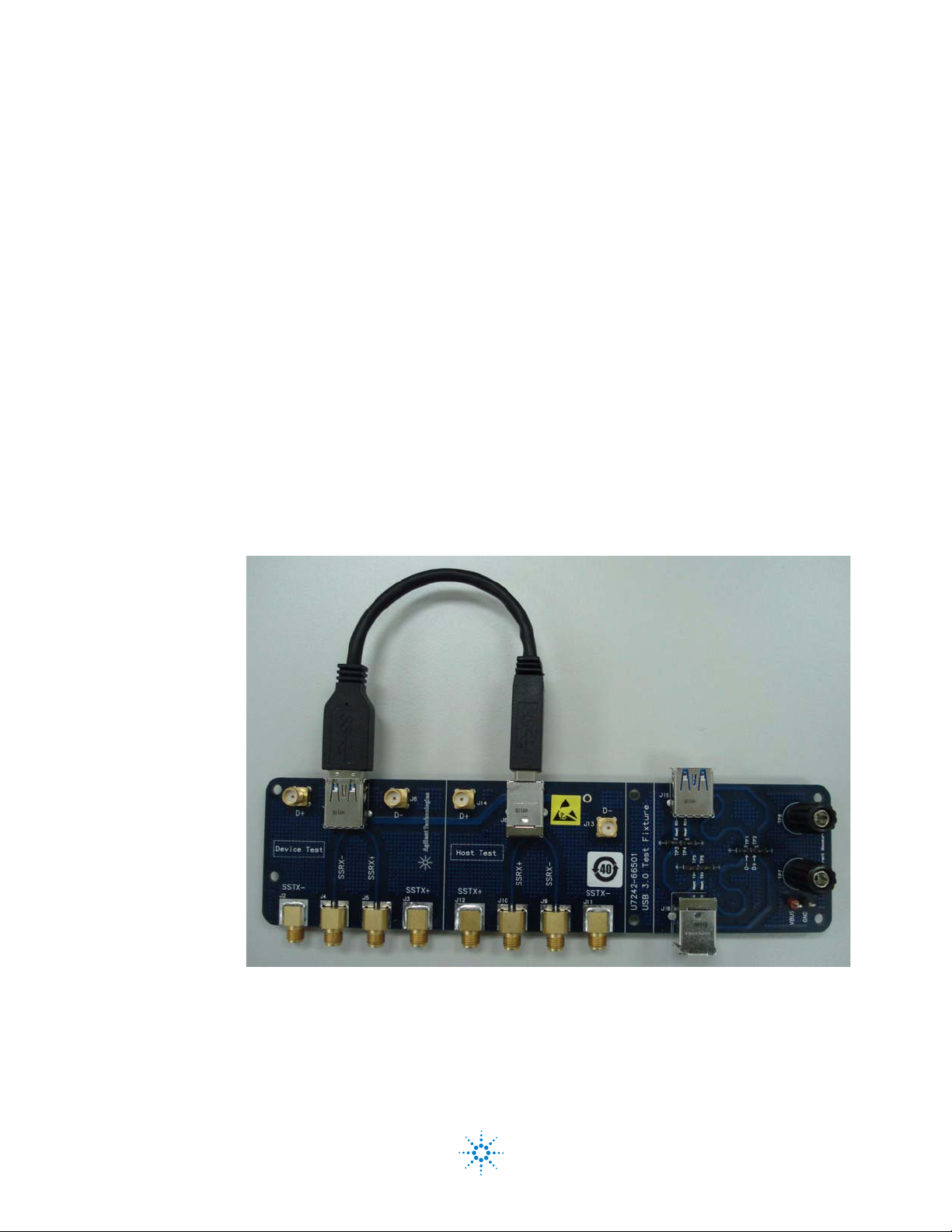

Figure 1 U7242A USB3.0 Test Fixture Board
Agilent Technologies
5
Fixture and Accessories
The complete set of USB3.0 test fixture contains the following items:
Part Number Description Quantity
U7242-66501 USB 3.0 test fixture 1 unit
8121-1880 USB 3.0 Std-A to Std-B cable (4 inches) 1 unit
8121-1924 USB 3.0 Std-A to Std-B cable (3.1 inches) 1 unit
1253-8358 Double Banana Plug With Shorting Bar 1 unit
Dimension
The dimension of the U7242A test fixture board is as follows:
PCB board height = 2.00 inches
PCB board width = 7.75 inches
PCB board thickness = 0.063 inches
6
Characteristics, Regulatory, and Safety Information
Electrical Characteristics
The following electrical characteristics are the specification of the U7242A
USB3.0 test fixture:
Description Specification
Trace Impedance 100 ohm +
Mated Connector 90 ohm +
Cable 90 ohm +
10%
10%
10%
Operating and Non-operating Environmental Characteristics
The following are the environmental characteristics of the U7242A USB3.0
test fixture:
Description Minimum Requirement
Ambient temperature Operating = 0°C to 40°C
Non-operating = - 51°C to 71°C
Humidity Operating = 95% RH at 40°C for 24 hours
Altitude Operating = 4,570m (15,000 ft)
Non-operating = 15,244m (50,000 ft)
Indoor use This fixture is rated for indoor use only
Random vibration HP/Agilent class B1 and MIL-PRF-2880 OF Class 3 random
Mechanical shock HP/Agilent class B1 and MIL-PRF-2880 OF (operating 30g,
1/2 sine, 11-ms duration, 3 shocks/axis along major axis.
Total of 18 shocks)
Safety Information
The U7237A 10GBASE- T transmitter test fixture herewith complies with
the essential requirements of the Low Voltage Directive 73/23/EEC and the
EMC Directive 89/336/EEC, and carries the CE- marking accordingly. The
product was tested in a typical configuration with HP/Agilent test systems.
The following are the safety regulatory information of the U7237A
10GBASE- T transmitter test fixture:
7
Minimum Requirement:
IEC 61010- 1: Second edition 2001-2
EN 61010- 1:2001
UL3111- 1 or UL 6101B- 1:2003 (must be an Agilent ID)
Canada: CSA- C22.2 No. 1010.1:1992
8
www.agilent.com
© Agilent Technologies, Inc. 2009
First edition, May 2009
*U7242-97000*
U7242-97000
