AES SA2 User Manual

AES GmbH - D-99310 - Arnstadt - Markt 14 - [phone] - www.ibri-aes.com

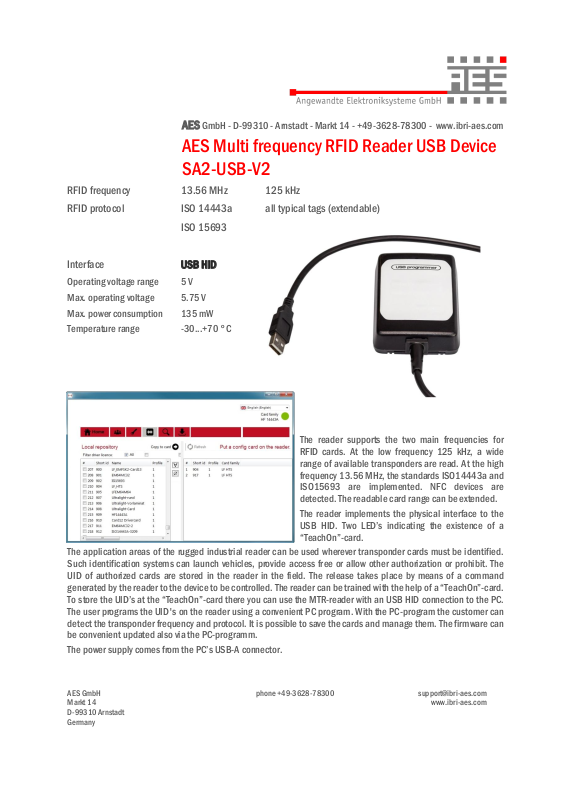

AES Multi frequency RFID Reader USB Device

RFID frequency

13.56 MHz

125 kHz

RFID protocol

ISO 14443a

all typical tags (extendable)

ISO 15693

Interface

USB HID

Operating voltage range

5 V

Max. operating voltage

5.75 V

Max. power consumption

135 mW

Temperature range

-30...+70 °C

The reader supports the two main frequencies for
RFID cards. At the low frequency 125 kHz, a wide
range of available transponders are read. At the high
frequency 13.56 MHz, the standards ISO14443a and
ISO15693 are implemented. NFC devices are
detected. The readable card range can be extended.

The reader implements the physical interface to the
USB HID. Two LED’s indicating the existence of a
“TeachOn”-card.

The application areas of the rugged industrial reader can be used wherever transponder cards must be identified.
Such identification systems can launch vehicles, provide access free or allow other authorization or prohibit. The
UID of authorized cards are stored in the reader in the field. The release takes place by means of a command
generated by the reader to the device to be controlled. The reader can be trained with the help of a “TeachOn”-card.
To store the UID’s at the “TeachOn”-card there you can use the MTR-reader with an USB HID connection to the PC.
The user programs the UID's on the reader using a convenient PC program. With the PC-program the customer can
detect the transponder frequency and protocol. It is possible to save the cards and manage them. The firmware can
be convenient updated also via the PC-programm.

The power supply comes from the PC’s USB-A connector.

SA2-USB-V2

AES GmbH phone [phone] [e-mail]
Markt 14 www.ibri-aes.com
D-99310 Arnstadt
Germany
