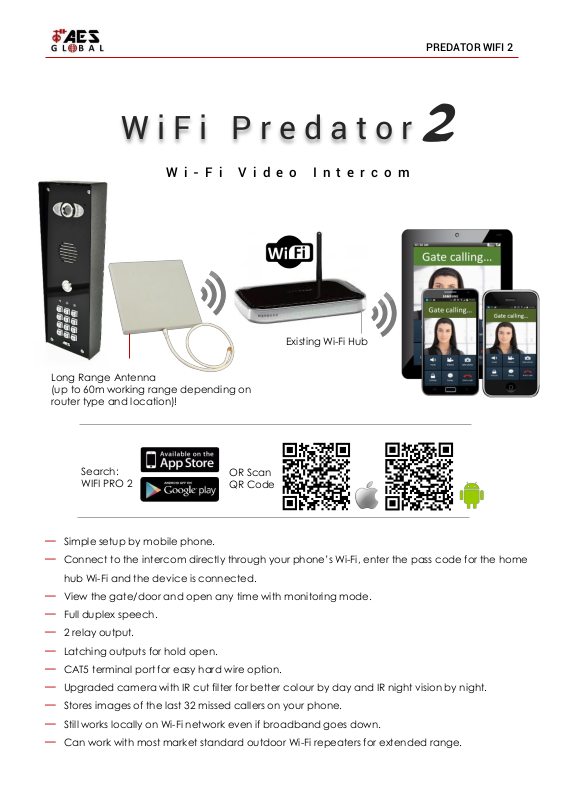

AES PREDATOR WIFI 2 Datasheet

Wi- F i V i d e o I n t e r c o m

Long Range Antenna
(up to 60m working range depending on
router type and location)!

Existing Wi-Fi Hub

― Simple setup by mobile phone.
― Connect to the intercom directly through your phone’s Wi-Fi, enter the pass code for the home

hub Wi-Fi and the device is connected.

― View the gate/door and open any time with monitoring mode.
― Full duplex speech.
― 2 relay output.
― Latching outputs for hold open.
― CAT5 terminal port for easy hard wire option.
― Upgraded camera with IR cut filter for better colour by day and IR night vision by night.
― Stores images of the last 32 missed callers on your phone.
― Still works locally on Wi-Fi network even if broadband goes down.
― Can work with most market standard outdoor Wi-Fi repeaters for extended range.

Search:
WIFI PRO 2

PREDATOR WIFI 2

W i F i P r e d a t o r

2

OR Scan
QR Code

W i F i V i d e o I n t e r c o m

PREDATOR WIFI 2

NEW!

GoogleTM
PUSH alerts
on Apple

and Android

devices

Icon

based

layout

AmazonTM Cloud P2P
servers hosted in multiple
countries for the fastest
connection.

NEW! 2 relays

NEW! Full 2 way Duplex

and half Duplex sound
options!

NEW! Upgraded
camera with IR cut
filter for better colour
by day and IR night
vision by night

W i F i P r e d a t o r

2

Colour camera with

night vision and IR cut

filter

Security

screw access

Infra-red night vision

illuminators

Waterproof Mylar

1.5W speaker

Illuminated IP67

push button

Optional illuminated

keypad for up to 1200

code access control

High gain Wi-Fi antenna

60 degree transmission to
concentrate & extend range.
Weatherproof for outdoor use.

2 metre RG174 cable with

SMA male connector.

Wi- F i / L A N V i d e o I n t e r c o m

PREDATOR WIFI 2

Technical Details

Power Supply 24v dc (adaptor included) App Name WIFI PRO 2

Current
Consumption

80mA standby, 300mA calling Audio Full 2 way Duplex and

half Duplex sound
options

Relay Outputs 2 Keypad Option Yes

Relay Type N/O & N/C contacts Keypad Relays 3

Relay Time Adjustable 1-10 secs Keypad Codes 1200

Relay Load 2A 24v AC max Wi-Fi Standard 802.11b/g/n

IP Rating IP55 Security 6 digit passcode

protected

Camera Colour, 110 degree, 640x480 pixel

Uplink Bandwidth 110K bits/sec

Night Vision Yes, by infrared illumination (now

with IR cut filter)

W i F i P r e d a t o r

2

Contemporary cool-white illuminated buttons.
Marine grade, brushed stainless steel construction with gloss acrylic trim and
powder coated aluminium hood.

(Kit includes WIFI panel, antenna, 1x
TAB10 Monitor and install manual)

Modern blue back lighting effect.
Marine grade, brushed stainless steel construction with gloss acrylic trim.

PRED2-WIFI-IMP

PRED2-WIFI-IMP-MONITOR1

PRED2-WIFI-AB

PRED2-WIFI-AB-MONITOR1

PREDATOR WIFI 2

(Kit includes speech panel, antenna,
power supply and install manual)

(Kit includes speech panel, antenna,
power supply and install manual)

(Kit includes WIFI panel, antenna, 1x
TAB10 Monitor and install manual)

Architectural model with contemporary cool-white illuminated buttons.
Marine grade, brushed stainless steel construction.

PRED2-WIFI-AS

PRED2-WIFI-AS-MONITOR1

(Kit includes speech panel, antenna,
power supply and install manual)

(Kit includes WIFI panel, antenna, 1x
TAB10 Monitor and install manual)

Flush Mount marine grade, brushed stainless steel construction.
Contemporary cool-white illuminated buttons.

(Kit includes WIFI panel, antenna, 1x
TAB10 Monitor and install manual)

PRED2-WIFI-FS

PRED2-WIFI-FS-MONITOR1

PREDATOR WIFI 2

Flush mount marine grade, brushed stainless steel construction with gloss
acrylic trim.
Modern blue back lighting effect.

PRED2-WIFI-FB

PRED2-WIFI-FB-MONITOR1

(Kit includes speech panel, antenna,
power supply and install manual)

(Kit includes speech panel, antenna,
power supply and install manual)

(Kit includes WIFI panel, antenna, 1x
TAB10 Monitor and install manual)

F l u s h M o u n t O p t i o n s

PREDATOR WIFI 2

PRED2-WIFI-IMPK

PRED2-WIFI-IMPK-MONITOR1

PRED2-WIFI-ABK

PRED2-WIFI-ABK-MONITOR1

Keypad includes 3 relays, 1200 codes, with latching & momentary operation & more.
Marine grade, brushed stainless steel construction with gloss acrylic trim and powder
coated aluminium hood. Contemporary cool while illuminated buttons.

(Kit includes WIFI Panel, antenna, 1x
TAB10 Monitor and install manual)

Keypad includes 3 relays, 1200 codes, with latching & momentary operation & more.
Modern blue back lighting effect.
Marine grade, brushed stainless steel construction with gloss acrylic trim.

(Kit includes speech panel, antenna,
power supply and install manual)

(Kit includes speech panel, antenna,
power supply and install manual)

(Kit includes WIFI Panel, antenna, 1x
TAB10 Monitor and install manual)

PRED2-WIFI-ASK

PRED2-WIFI-ASK-MONITOR1

Keypad includes 3 relays, 1200 codes, with latching & momentary operation & more.
Architectural model with contemporary cool-white illuminated buttons.
Marine grade, brushed stainless steel construction.

(Kit includes speech panel, antenna,
power supply and install manual)

(Kit includes WIFI Panel, antenna, 1x
TAB10 Monitor and install manual)

PREDATOR WIFI 2

PRED2-WIFI-FSK

PRED2-WIFI-FSK-MONITOR1

PRED2-WIFI-FBK

PRED2-WIFI-FBK-MONITOR1

Keypad includes 3 relays, 1200 codes, with latching & momentary operation & more.
Flush Model with contemporary cool-white illuminated buttons.
Marine grade, brushed stainless steel construction.

(Kit includes WIFI Panel, antenna, 1x
TAB10 Monitor and install manual)

(Kit includes speech panel, antenna,
power supply and install manual)

(Kit includes speech panel, antenna,
power supply and install manual)

(Kit includes WIFI Panel, antenna, 1x
TAB10 Monitor and install manual)

Keypad includes 3 relays, 1200 codes, with latching & momentary operation & more.
Flush Model with Modern blue back lighting effect.
Marine grade, brushed stainless steel construction with gloss acrylic trim.

F l u s h M o u n t O p t i o n s

316

PREDATOR WIFI 2

― Wall mount touch screen monitor (1280x800 Resolution), compatible with the

Predator system.

― 10.1 inch screen IPS LCD Android screen with RJ-45 interface USB port.
― WiFi connectable.
― 12V dc or POE.
― Complete with both wall mount bracket and desk stand.
― Android OS (4.4.2) with Predator PRO app pre-loaded.
― A64 Quad Core 1.6 ghz.

TAB-10

PRED2-WiFi-IMK
Call Panel

PRED2-WiFi-IMP
Call Panel

PRED2-WiFi-ABK/ASK
Call Panel

PRED2-WiFi-AB/AS
Call Panel

Call Panel Dimensions

PRED2-WiFi-FSK/FBK
Call Panel

PRED2-WiFi-FS/FB
Call Panel

W i F i R a n g e

E x t e n d i n g T i p s

― Range can be extended up to 500 metres by using various open market devices, such as

Homeplug Technology, WiFi repeaters and point to point links. Always conduct a site

survey before quoting this system.
