AES Predator 2 Installation Manual

1 | P a g e

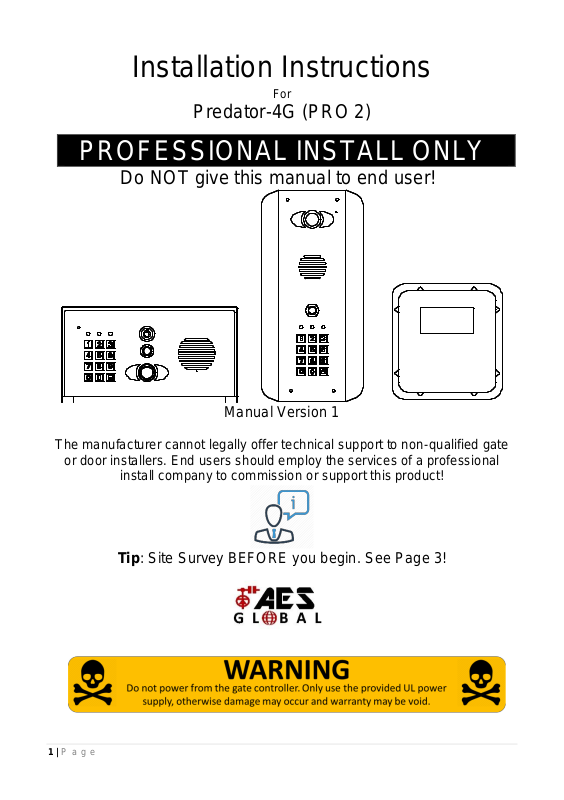

Installation Instructions

For

Predator-4G (PRO 2)

PROFESSIONAL INSTALL ONLY

Do NOT give this manual to end user!

Manual Version 1

The manufacturer cannot legally offer technical support to non-qualified gate

or door installers. End users should employ the services of a professional

install company to commission or support this product!

Tip: Site Survey BEFORE you begin. See Page 3!

2 | P a g e

Index

Section

Pages

Site Survey

3

WiFi Setup

4-8

Answering on Android

9

Answering on Apple

10

LAN setup

11

Installation

12

Power

13

Intercom Module Wiring

13

Keypad Module Wiring

14

Output Connections Example

14

Adding Additional APP Users

15

Other Settings

16

Sounds, Volume & Speech

17

Using the APP

18

Keypad Programming

19

Using the Keypad

21

Troubleshooting

21

Revision Changes

23

3 | P a g e

Mbs

Slow Fast

Site Survey

YES!

I have 4G signal at the gate with my phone! If
not, STOP. You will need some! Try a different

network provider.

YES!

I have at least 1 Mb UPLOAD speed. If not
STOP! This system may operate intermittently
remotely or have delayed PUSH notifications.

4 | P a g e

Wifi Setup

Step 1

Step 2

Step 3

Open the intercom and connect antenna.

Do not install the intercom.
Power it up with your 4G
modem so that you can perform
the configuration with the home
owners phone beside the
intercom.

Note: If you skip this step and
proceed directly to installation,
technical support may request
you go back and perform this

Download and install the app
on the end-user’s phone.

Search for wifi PRO 2 and find
the icon, or scan the QR code
if the phone has a QR scan
app.

Tip: Be sure to accept ALL
permissions during install,
otherwise you will experience
problems later!

Architectural or “Portrait” oriented models

will have security screws at the top.
Loosen only these with the security
screwdriver provided.

Pedestal style “Landscape” orientated

units will have a locking key.

Loosen top screws

Use Key on lock

Portrait wall
mount style

Landscape

Pedestal Style

5 | P a g e

Step 4

Connect 24v 1amp DC power supply to the Predator power in terminals.
Connect the 24v DC POE 0.5amp power supply to the 4G modem as shown.
Wire a patch lead from the LAN port on 4G modem to LAN the port on the predator.

Step 5a, 5b, 5c

WARNING

Mains electricity to be

wired by qualified

electrician only

24v DC PSU

1AMP

110-250v

mains in

Relay1

Relay2

LAN

CPU &

Transmitter

Code

Button

Open the APP and press the Settings
button. Then press the add intercom
button.

4G Modem

24v POE

PSU

0.5AMP

110-250v

mains in

POE

LAN

PREDATOR

Power

in

Take a note of your
Bell I.D.

BELL ID

AES-123456-ABCDEF

6 | P a g e

Step 5d, 5e

Step 6

Diagnostic Tips

1. Intercom is showing online status, but the video feed shows “fetching”.

A. This can be caused by poor power cable extended to the intercom or weak 4G.

2. Intercom is not showing online status.

A. This can be caused by weak 4G, dropping in and out due to weak signal.

3. I can see video but there is no audio on the phone or there is no audio at the intercom.

A: This can be caused by the audio settings being too low on the phone, or permissions for the
app were not accepted during app install. Check microphone permissions for the app in the phone
settings.

4. The status is showing online, then connecting, then online again.

A: This is normal when a phone roams between two wifi connections, or between wifi and data.
Make sure the phone is stationary and either has good wifi or a stable data connection.

Enter the intercom Bell I.D.

(See Step 5a)

Enter “admin” for the main

user.

Enter “123456789” as the

default password and press

the TICK as shown.

Press the Video icon to
view live video.
Note: at close proximity,
you will experience acoustic
feedback. This is normal.

If you can see live video
and hear audio, the
intercom has successfully
connected to the network.

Should be
showing ONLINE
status.

If the unit is not
showing online
you are not
connected to the
4G network.

7 | P a g e

Step 7 - Press the call button.

Answering on Android

Intercom
Calling…

The intercom will send a notification message via GoogleTM PUSH
notification service through the internet to the phone. The
notification will need to be accepted, the phone unlocked, and then
the APP will launch to reveal the visitor and give the user an
opportunity to either accept or reject the call..

Swipe down your
notification banner
when called, and press
the Intercom

notification.

Your phone will now
launch the app and
you will see a
snapshot of the visitor
at which point you can
answer or decline the

call.

Press the green icon to

accept.

8 | P a g e

Answering on Apple

Note: Various versions of IOS and Android OS will have different notification acceptance
techniques. Please refer to online support for your device if needed.

Swipe the

notification left

Press “VIEW”

Swipe green

icon to answer

Phone will now

launch app

TIP: Make sure ringer switch is
ON and volume is turned up.

TIP: If you don’t get
notifications then check
settings/notifications and
select the app.

TIP: If there is no voice from the
speaker at the gate, check the
iphone microphone permissions in

9 | P a g e

Installation

Power

This intercom comes with a 24v dc power supply. The intercom requires up to 2 amps peak
demand at times, therefore power cable is of extreme importance.
It is preferred the 24v dc PSU is installed within close proximity of the intercom. However, on
occasion this may be difficult to achieve. Please adhere to the cable thickness guide below or the
device may be damaged and rendered out of warranty by the manufacturer.

Up to 2 meters (6 feet) use minimum 0.5mm / 18 gauge cable.
Up to 4 meters (12 feet) use minimum 1mm / 16 gauge cable.
Up to 8 meters (25 feet) use minimum 1.5mm / 14 gauge cable.

Mount the 4G modem as
high as possible and
away from obstructions
such as vehicles, shrubs
and trees to maximise
signal strength.

Do NOT mount modem
at ground level.

Intercom wall/pillar

mounted

Pedestal mounted

version

24v dc PSU

24v dc PSU

Never use fine gauge
cable such as alarm cable
or CAT5 to power this
device. Doing so will void

the manufacturer’s

warranty!

10 | P a g e

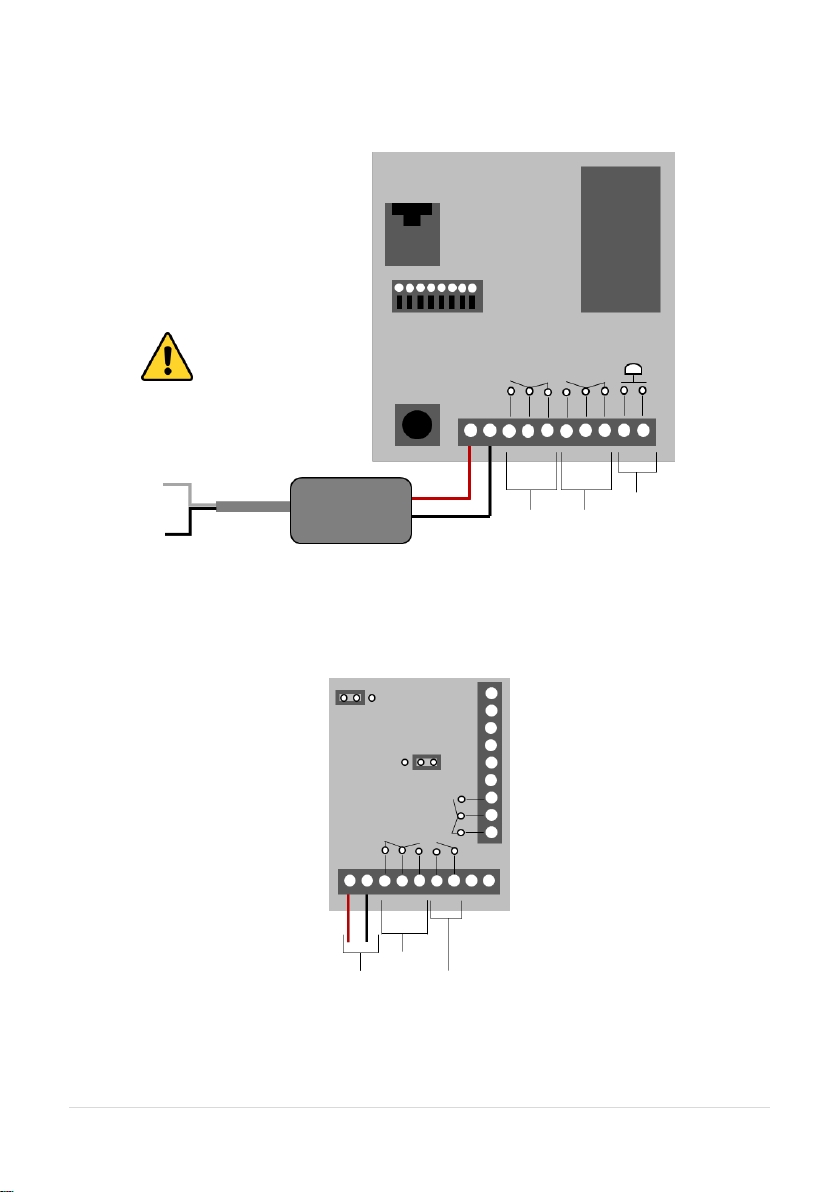

Intercom Module Wiring

Keypad Module Wiring

24v DC PSU

110-250v

mains in

WARNING

Mains electricity to be

wired by qualified

electrician only

+24v

GND

N/O

COM

N/C

Relay1

Relay2

Exit button

24vdc

(already

pre-wired)

Relay1

Relay2

N/C

COM

N/O
Egress

Advanced

Connections

Relay3

N/C N/O

Relay2

Full/Auto

11 | P a g e

Output Connections Example

Modem Connections

The second LED will flash if you have medium 3G signal.
The second LED will stay solid if you have medium 4G signal.

RF (signal level)

COM

N/O

COM

N/C

COM

N/O

Intercom board

Keypad board

Electric Gates

Gate
Controller

Magnetic
Lock

N/C

Other control

device

12v DC

(Not supplied)

POE Power Supply

RJ45 connection

Sim Card Holder

(DATA/IOT Sim only)

LED Indicators

LAN RJ45

Connection

S

I

M

S
Y
S

SIM – The sim LED will come on if there is a sim inserted.

RF – The first LED will flash if you have low 3G signal.

The first LED will stay solid if you have low 4G signal.

N
E
T
2

The second LED will flash if you have high 3G signal.
The second LED will stay solid if you have high 4G signal.

SYS – The system LED will flash when active, solid when inactive.

NET2– This LED flashes when active.

12 | P a g e

Adding Additional APP Users

Additional users MUST be added with individual user names. Do NOT use the same username.

ADMIN Phone

ADMIN Phone

ADMIN Phone

ADMIN Phone

Enter a NEW
username &

password

Note how
existing users

can be deleted

New Phone

New Phone

New Phone

New Phone

Be sure to enter NEW
username & password as
created by the admin

phone.

13 | P a g e

Other Settings

Edit Intercom

details

Ring tones

Check APP

version

Add an intercom (can
have up to 6
doors/gates calling one

device)

Add/edit users

Turn off config
mode (extra

security)

Wifi settings &
signal

strength

Set max monitoring

time

Change relay times (1-

9 secs)

Set time zone +
(daylight saving

adjust)

Set max talking

time.

Set max ringing

time (from intercom)

Set sound option.
Duplex, simplex1,
simplex2.

Reboot

intercom

14 | P a g e

Sound, Volumes and Speech

This intercom is capable of full duplex speech, which means two people can have a conversation
and appear to speak at the same time. Since various manufacturers of android phones, iphones
and tablets all differ in acoustic performance, and different users may require varying levels of
volume on their own handset, it may be possible to setup some devices in full duplex mode but
others may need to be set in half duplex mode (phone user will press to talk). This may also be
required if a phone is in a particularly noisy environment, or the intercom is located near a busy
main road with high levels of traffic noise.

Choose the speech option which
best suits the individual and he

device being used.

+ - SPK

Suggest 80% MAX

volume

Suggest
50% MAX
volume on

“Press and Hold” option

appears when device set to

half duplex 1 or 2.

15 | P a g e

Using the APP

Settings

View Camera &

listen

Thumbnail preview

Home

Call Log (shows
images of visitors
whom calls were
accepted or
previewed on this

device.

If you took
snapshots of a
visitor while on a
call, view them

here.

If you took video
recordings of
visitors, you can

view them here.

Press to extend

talking time

Gate/door release 1.
Momentary press to
TRIGGER.
Press and HOLD for
3 seconds to LATCH
open.
Momentary press
again to UNLATCH

Record video of
visitor to your
phone. (some
versions of phone
need codec
installed to play

this format).

Take pictures of
visitors on your

phone.

Gate/door release 2.
Momentary press to
TRIGGER.
Press and HOLD for
3 seconds to LATCH
open.
Momentary press
again to UNLATCH

End call.

Android users press BACK button to run in

“background” mode or “close app” to save

battery. (notifications will launch app again)

16 | P a g e

Keypad overview

This keypad has 3 outputs, all independent from the intercom/app relays. The diagram below
shows the LED indicators which indicate programming and relay status information.

RED when incorrect codes entered and outputs are locked out.

1 2 3
4 5 6
7 8 9
* 0 #

SLOW FLASHING - in normal standby mode.
ON in programming mode.
ON when relay 3 activated.

GREEN when output 1 activated.
RED when output 2 activated.
CLEAR when output 3 activated

FAST FLASHING – Wrong code entered / error.

TIP: After power up, as a security precaution, the keypad cannot be programmed for 60 seconds.
Once this time elapses, you may begin.
TIP: Flashing amber LED is normal standby mode!

Keypad Programming

0 0 0 0 * *

Quick start guide

1) Enter programming mode (amber LED should be ON)

1 0 2 0 0 ? ?? ? #0

2) Enter a new user code...

* *

3) Exit programming mode

4) Enter the new user code to check the relay clicks.

Full Keypad programming

Enter programming mode..

0 0 0 0 * *

Exit programming mode..

* *

Enter a new ENGINEER/INSTALLERS code…

Go into programming mode firstly then enter the following sequence…

Location

0 1 ?? ? ?

4-8 digit code Validate

#

Tip: The engineer code
must be the same length as
user codes. If using a 6 digit
engineers code, then user
codes must also be 6 digits
long etc.

The unit is now in programming mode. Amber LED on the
keypad should remain permanently on. 0000 is the default
programming passcode.

The unit should exit programming mode and the amber LED
should start flashing again.

Replace ???? with your new ENGINEERS
code.

17 | P a g e

Enter or delete new user/Homeowner codes

There are 3 groups of user codes. Group 10 for relay 1, group 20 for relay 2, and group 30 for
relay 3. The programming sequence is shown below…

Memory locations
000-999 for relay 1
001-100 for relay 2
001-100 for relay 3

1 0 2 0 0

10= relay 1 codes
(1000 available)
20= relay 2 codes
(100 available)
30= relay 3 codes
(100 available)

? ?? ? #0

2= add code
5= delete code

Pin code 4-8 digits Validate

Example: Add user 31 to have access code 5555 operating relay 2….

2 0 2 0 3 5 55 5 #1

Group 2 Add code Location 31 Pin code 5555 Validate

Programming relay output times and modes…

? ?

0

1 -

0 = start / stop toggle mode (latching)
1-99999 = seconds momentary operation

9 9 9 9 9

or

#

51=relay1
52=relay2
53=relay3

Validate

Delete a user code even if you don’t know the code…

? ? 5 ? ?? #

10=relay1
20=relay2
30=relay3

Delete code ID location to be deleted Validate

Delete an entire group of codes

? ? 0 9 99 #

10=relay1 group
20=relay2 group
30=relay3 group

Super delete code Validate

Programming super user codes…

A super user code can activate any of the 3 relays

Location

0 2 ?? ? ?

4-8 digit code Validate

#

Restoring defaults

When in programming mode, you can enter the following sequence…

9 9 99 #

18 | P a g e

When the engineers/installers code is forgotten….

1) Wire a push button (or replicate with wire link) across the Egress terminal and (-)GND.

2) Switch off power for 1 minute.

3) Switch ON power.

4) during the first 60 seconds, press the EG button once to enable the function.

5) Enter the following code..

8 0 08 * *

The keypad should now be in programming mode, ready to accept new data. Change the
installers/engineers code now as per instructions above.

Using the keypad

Using the standard codes…

Once you have exited out of programming mode, simply enter the user code.

Using super user codes

?? ? ? # 1

Activate output 1

?? ? ? # 2

Activate output 2

?? ? ? # 3

Activate output 3

Troubleshooting

It is worth remembering that when you install this intercom, you are literally only supplying 25% of
the overall system. The other 75% already exists with the customer. Namely the router, the wifi
network, and the phones or devices.

Anything can go wrong with any part of that entire system. Therefore, it is a useful exercise to
attempt to prove to the customer that the intercom hardware is working and operational before
attempting to diagnose the root cause, especially when connected wirelessly to a network.

If the intercom is connected via wifi to the network, it is very useful to press and hold the code
button on the board, then connect the phone DIRECTLY to the BELL wifi network (must be within
wifi range of intercom). Open the app, and show the customer that when the phone is connected
directly to the intercom, there is video and two way speech. The job is then to find out what part of
the installation or overall system is causing the problem since the intercom hardware has been
proven as operational.

We can say without doubt that when we do get hardware failures, the above process will not work
and you will not get video and voice to the phone in a direct connection like thi

Below are the most common causes of problems with installs, starting with the most common first.

Problem/error

Symptoms caused

Solution

Wrong power cable (too
thin) installed from 24v
adaptor to the intercom,
or power adaptor too far

Delayed push notifications,
video lag, voice problems,
freezing, relays not opening
the gate.

Change the power cable to
specifications shown within this
manual.

19 | P a g e

from intercom.

Additional user added
incorrectly.

Can randomly display status
“id already in use”

When an additional user was
being added, the process was
done incorrectly. Additional users
MUST be added by the admin
device first, with separate
usernames created for each. The
new usernames and passwords
must be used by the new devices
as shown in this manual to logon
to the intercom.

Change History

Top

version

Panel

version

PCB

version

Firmware version

IOS app

version

Android

app version

1 2 1.0

4.11.12.21.20171121

1 1

20 | P a g e

Regulatory Compliance

FCC Id: 2ALPX-WIFI-IBK
Grantee: Advanced Electronic Solutions Global Ltd
This device complies with Part 15 of FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Output power listed is conducted. This device must be installed to provide a separation distance
of at least 20 cm from all persons and must not be co-located or operating in conjunction with any
other antenna or transmitter. End-users and installers must be provided with antenna installation
instructions and transmitter operating conditions for satisfying RF exposure compliance. This
device has 20MHz and 40 MHz bandwidth modes.

EU-RED Declaration of Conformity

Manufacturer: Advanced Electronic Solutions Global Ltd
Address: Unit 4C, Kilcronagh Business Park, Cookstown, Co Tyrone, BT809HJ, United Kingdom

We/I declare, that the following equipment (Video intercom), part numbers:
Wifi-iBK, wifi-iB, wifi-ABK, wifi-AB, wifi-BD, wifi-BEK,
wifi-BEik, wifi-Bei, wifi-BFT-KPAD

Complies with the following essential requirements:
EN 301 489-1 V2.2.0 (2017-03) (Electro-Magnetic compliance)
EN 301-489-17 V3.2.0 (2017-03) (Electro-Magnetic compliance)
EN 62479:2010 (Maximum output power)
EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 (Electrical Safety)

This product is not a complete product until fully installed. It is therefore considered a component

part of an overall system. The installer is responsible to check that the end installation complies

with local regulatory requirements. This equipment forms part of a “fixed installation”

The manufacturer cannot legally offer technical support to non-qualified gate

or door installers. End users should employ the services of a professional

install company to commission or support this product!
