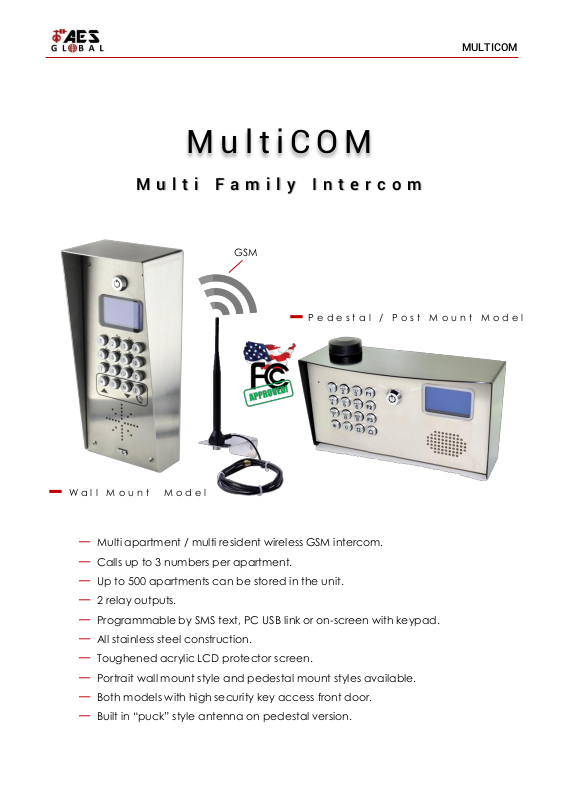

M u l t i C O M
― Multi apartment / multi resident wireless GSM intercom.
― Calls up to 3 numbers per apartment.
― Up to 500 apartments can be stored in the unit.
― 2 relay outputs.
― Programmable by SMS text, PC USB link or on-screen with keypad.
― All stainless steel construction.
― Toughened acrylic LCD protector screen.
― Portrait wall mount style and pedestal mount styles available.
― Both models with high security key access front door.
― Built in “puck” style antenna on pedestal version.
W a l l M o u n t M o d e l
M u l t i F a m i l y I n t e r c o m
P e d e s t a l / P o s t M o u n t M o d e l
MULTICOM
GSM
― Digital directory and display, users can scroll names or dial by apartment number.
― Customisable welcome screen message and instructions.
― Users answer call from their telephone, press * to open gates!
― Keypad can also be used as 4-6 digit access control keypad.
― 2 year manufacturers warranty.
M u l t i C O M
M u l t i A p a r t m e n t I n t e r c o m
GSM Signal
Apartment 1
Apartment 2
Apartment 3
Up to 500 Apartments
Mobile Phone Mast
Digital Panel Calling up
to 500 Apartments!
SIM Card Inside
MULTICOM
M u l t i C O M
G S M A p a r t m e n t I n t e r c o m
Rain Hood
Weatherproof
Mylar Speaker
Metal Buttons
Backlit Illuminated
LCD Display
Key Lock Access
Front Door
Brushed
Stainless Steel
Construction
Antenna
Wall Mount Bracket
MultiCOM-500
MULTICOM
Technical Details
Power Supply 12-24v dc (24dc adaptor
included)
GSM Modem Quad band
850/900/1800/1900
Current
Consumption
100mA standby, 1 amp
dialling
Modem Approvals CE & FCC
Relay Outputs 2 Programming Method SMS & with
keypad on screen
Relay Type N/O & N/C contacts Caller ID Yes
Relay Time Adjustable 1-9999 seconds Relay Control By phone
Relay Load 2A 24v AC max Keypad Codes 1
IP Rating IP55
Pedestal mountable version with industry standard 3” x 3” mounting
hole arrangement.
Super high volume model with 4 watt speaker, perfect for car park
barriers and industrial entrances.
Wall mounted version for regular building door access or shared gate
entrances.
BS316 marine grade stainless steel rain and sun hood.
Multicom-500iS/3GA (US/Canada/Telstra)
Multicom-500iS/3GE (EU)
Multicom-500hS/3GA (US/Canada/Telstra)
Multicom-500hS/3GE (EU)
MULTICOM
Wall mounted flush version for regular building door access or shared
gate entrances.
BS316 marine grade stainless steel.
Multicom-500FS/3GA (US/Canada/Telstra)
Multicom-500FS/3GE (EU)
