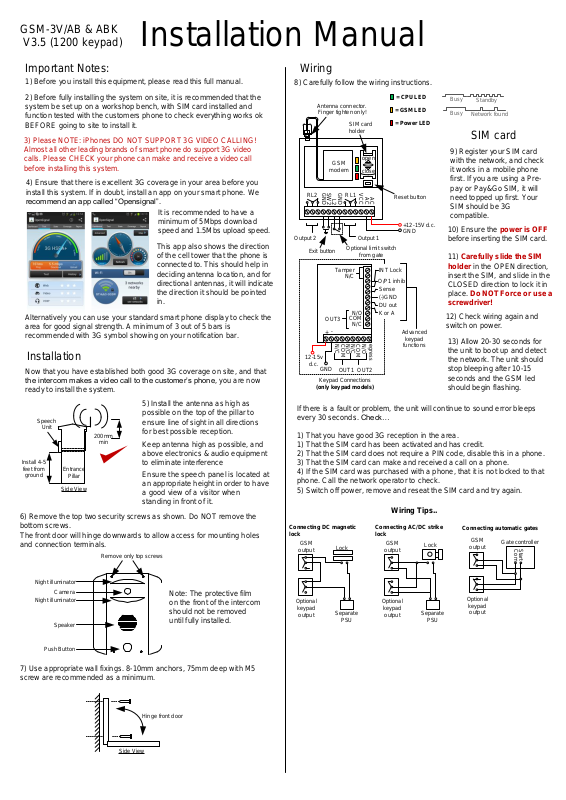

GSM-3V/AB & ABK
V3.5 (1200 keypad)
Installation Manual
Important Notes:
1) Before you install this equipment, please read this full manual.
2) Before fully installing the system on site, it is recommended that the
system be set up on a workshop bench, with SIM card installed and
function tested with the customers phone to check everything works ok
BEFORE going to site to install it.
3) Please NOTE: iPhones DO NOT SUPPORT 3G VIDEO CALLING!
Almost all other leading brands of smart phone do support 3G video
calls. Please CHECK your phone can make and receive a video call
before installing this system.
4) Ensure that there is excellent 3G coverage in your area before you
install this system. If in doubt, install an app on your smart phone. We
recommend an app called “Opensignal”.
It is recommended to have a
minimum of 5Mbps download
speed and 1.5Mbs upload speed.
This app also shows the direction
of the cell tower that the phone is
connected to. This should help in
deciding antenna location, and for
directional antennas, it will indicate
the direction it should be pointed
in.
Alternatively you can use your standard smart phone display to check the
area for good signal strength. A minimum of 3 out of 5 bars is
recommended with 3G symbol showing on your notification bar.
Installation
Now that you have established both good 3G coverage on site, and that
the intercom makes a video call to the customer’s phone, you are now
ready to install the system.
5) Install the antenna as high as
Speech
Install 4-5
feet from
ground
Unit
Entrance
Side View
Pillar
200mm
min
6) Remove the top two security screws as shown. Do NOT remove the
bottom screws.
The front door will hinge downwards to allow access for mounting holes
and connection terminals.
Remove only top screws
possible on the top of the pillar to
ensure line of sight in all directions
for best possible reception.
Keep antenna high as possible, and
above electronics & audio equipment
to eliminate interference
Ensure the speech panel is located at
an appropriate height in order to have
a good view of a visitor when
standing in front of it.
Wiring
8) Carefully follow the wiring instructions.
AC
egress
= CPU LED
= GSM LED
= Power LED
Reset button
INT Lock
O/P1 inhib
Sense
(-)GND
DU out
+12-15V d.c.
GND
Advanced
keypad
functions
Antenna connector.
Finger tighten only!
GSM
modem
GND
GND
SW2
RL2
L2
Exit button
Tamper
N/C
OUT3
-
+
N/C
COM
12-15v
d.c.
GND
OUT1 OUT2
Keypad Connections
(only keypad models)
SIM card
holder
open
close
VCC
RL1
AC
Output 1Output 2
Optional limit switch
from gate
N/O K or A
COM
N/C
N/O
N/C
COM
N/O
If there is a fault or problem, the unit will continue to sound error bleeps
every 30 seconds. Check…
1) That you have good 3G reception in the area.
1) That the SIM card has been activated and has credit.
2) That the SIM card does not require a PIN code, disable this in a phone.
3) That the SIM card can make and received a call on a phone.
4) If the SIM card was purchased with a phone, that it is not locked to that
phone. Call the network operator to check.
5) Switch off power, remove and reseat the SIM card and try again.
Wiring Tips..
Connecting DC magnetic
lock
GSM
output
Lock
Connecting AC/DC strike
lock
GSM
output
Busy
Standby
Busy
Network found
SIM card
9) Register your SIM card
with the network, and check
it works in a mobile phone
first. If you are using a Prepay or Pay&Go SIM, it will
need topped up first. Your
SIM should be 3G
compatible.
10) Ensure the power is OFF
before inserting the SIM card.
11) Carefully slide the SIM
holder in the OPEN direction,
insert the SIM, and slide in the
CLOSED direction to lock it in
place. Do NOT Force or use a
screwdriver!
12) Check wiring again and
switch on power.
13) Allow 20-30 seconds for
the unit to boot up and detect
the network. The unit should
stop bleeping after 10-15
seconds and the GSM led
should begin flashing.
Connecting automatic gates
Lock
GSM
output
Gate controller
Start
Com
Night illuminator
Camera
Night illuminator
Note: The protective film
on the front of the intercom
should not be removed
Speaker
Push Button
until fully installed.
7) Use appropriate wall fixings. 8-10mm anchors, 75mm deep with M5
screw are recommended as a minimum.
Hinge front door
Side View
Optional
keypad
output
Separate
PSU
Optional
keypad
output
Separate
PSU
Optional
keypad
output
Programming
Additional Programming Parameters
Programming is carried out by sending SMS texts to the unit.
1) First check reception. Send the following SMS to the unit...
*20#
The unit should reply SIGNAL LEVEL = ?
Where ? will be between 1 and 31
Below 14 can cause problems like
intermittent relay operation, no voice from
the gate to the house or no video calling.
The reply message should show WCDMA. If it only shows GSM, then
you do not have 3G coverage.
This scale shows the reception grade,
from poor to good. It is preferable to be
in the top end of medium or higher.
1-12
Poor
13-20
Medium
21-31
Good
2) Program the numbers you wish the unit to dial when the call button is
pressed, up to a maximum of 3 numbers. Each SMS must start with the
pass code, default 1234, in the following format *12*1234#, followed
immediately by a command. E.g to program the telephone number
0987654321, enter the following SMS..
*12*1234#1110987654321#
Note: For dialling land lines
or non video calling phones,
Pass code
Function code
11 = Telephone number 1
12 = Telephone number 2
13 = Telephone number 3
Data
(telephone number)
2= Video call
1= Audio call
the unit can be programmed
to make standard audio calls
to certain numbers.
Up to 3 numbers can be sent together in a single SMS as follows..
*12*1234#112tel.number1#121tel.number2#132tel.number3#
Note: In this example, the first number is receiving a video call, second
number receiving audio call, third number receiving video call.
The unit should reply to each programming text sent, with Ok or error
message.
3) It is recommended to change the “no answer” time if there is more than 1
number stored. When the unit is calling the first number, and this no answer
time expires, then the unit will end the call and begin calling the second
number.
This can be used to prevent voicemail or answering machines picking up
the call on the first number.
*12*1234#52??#
Where ?? can be 2 digits from 10-99 seconds, default is 20. Note
that video calls take around 5-8 seconds to connect.
The unit can allow up to 100 telephone numbers to be stored, for users to
be able to ring the system for automatic entry. This uses caller ID like a
phone to determine the identity of the caller. First, the unit must know what
country it is operating in.
4) Program the country code as follows..
*12*1234#71??#
Where ?? can be 1-3 digits. For uk, insert 44, for Ireland 353, for
USA insert 1. Do not use any leading zeros.
5) Enter the telephone numbers required to have access control. Do not
enter country code, just the complete number as you would dial it..
*12*1234#7210987654321#
Pass code
Function code
72 = Add number
1= Relay 1
2 = Relay 2
Data
(telephone number)
Note: As shown, you can
pick which relay you wish to
activate when dialling in. 3
numbers can be entered in
the same SMS.
Code Description Default
01????#
02????#
03????#
1n*#
3?#
4?#
50?#
51?#
53??#
55??#
57??#
58?#
77number#
77*#
65?#
73??#
73*#
74?#
74*#
1?*#
61?#
63?#
64?#
67?#
68?#
69?#
999#
Change programming password. 1234
Change access control password (allows users not in caller ID list
to call intercom and use pass code to activate relay).
Change monitoring mode password (dial to listen in mode)
Delete a button calling number, where n = number 1,2 or 3. N/A
Speaker volume. Where ? = level 0 - 4
Microphone volume. Where ? = level 0 - 4
Relay 1 time. Where ? = 1-9999 seconds.
Relay 2 time. Where ? = 1-9999 seconds.
Max call time. Where ??? = 005-999 seconds (3 digit code) 60 sec
Max monitoring time (for listen in mode when calling the intercom)
00-60 mins. 00 = no limit.
Unit can call or SMS service number by set duration to prevent
SIM card deactivation if seldom used. 00-60 days. 00 = no inform.
Choose between scheduled call to service number or send SMS to
service number. ?=1 for SMS, 2 for call.
Store service number to receive scheduled SMS or call from
intercom.
Delete service number.
Dial in mode for withheld numbers or non stored numbers. 1 =
answer the call & wait for pass code. 2 = answer the call,
automatically activate 2 way speech & access to relays.
Delete phone number for caller ID access, ?? will be the telephone
number to be deleted.
Delete all phone numbers for caller ID access.
Add engineer phone number. Unit will only accept programming
from this number.
Delete administrator phone number.
Delete a dialling out number, where ? = number location 1,2 or 3.
Change relay 1 trigger code.
Change relay 1 hold code.
Change relay 1 un-hold / release code.
Change relay 2 trigger code.
Change relay 2 hold code.
Change relay 2 un-hold / release code.
Restore defaults
Remember to begin each new SMS with pass code *12*1234#
5678
1212
3
3
1 sec
1 sec
10 min
00
1
N/A
N/A
1
N/A
N/A
N/A
N/A
N/A
*
#
1
7
8
9
N/A
Service Commands list
These commands do not require a pass code string. Simply send the sms as
you see it below...
*20#
*21#
*22#
Check reception. Reply will indicate signal level = 0-31
Check stored numbers. Note: no pass code needed for this
command. O = dial out number. I = Dial in number.
Check gate status. Reply will indicate status of limit switch input
(L2), and both relays.
N/A
N/A
N/A
*12*1234#722tel.number1#721tel.number2#722tel.number3#
Note: In this example, the first number will trigger relay 2, the second
number will trigger relay 1 and the third number will trigger relay 2.
USA customers – For some networks, you may need to enter the numbers with the long distance
1 before area code, then the number. E.g. 1-702-555-1234. Try it with and without to see method
works.
Keypad Programming (only ABK models)
LED indicators
ON when incorrect codes entered and outputs are locked out.
GREEN when output 1 activated.
1 2 3
4 5 6
7 8 9
* 0 #
Note: Programming can only begin 60 seconds after power on.
Enter Programming mode
0
0 0 0 *
Enter new programmers code
RED when output 2 activated.
FAST FLASHING – Wrong code entered / error.
SLOW FLASHING - in normal standby mode.
ON in programming mode.
ON when relay 3 activated.
The unit is now in programming mode. Amber LED
will remain ON. 0000 is default programmers code.
*
Note: Pressing ** again will exit programming
mode.
Restoring defaults
While in programming mode, enter the following to delete all codes and settings apart from the
Master code.. (this can take up to 2.5 minutes)...
9 9 99 #
When the master code is forgotten….
1) Wire a push button (or replicate with wire link) across the EG IN terminal and (-)GND.
2) Switch off power for 1 minute.
3) Switch ON power.
4) during the first 60 seconds, press the EG button once to enable the function.
5) Enter the following code..
8 0 08 * *
The keypad should now be in programming mode, ready to accept new data.
0 1 ?? ? ?
Location
4-8 digit code Validate
#
Record or Delete user codes
1 0 2 0
10= relay 1 codes
(1000 available)
20= relay 2 codes
(100 available)
30= relay 3 codes
(100 available)
Example: Add user 31 to have access code 5555 operating relay 2….
2= add code
5= delete code
0
Memory locations
000-999 for relay 1
001-100 for relay 2
001-100 for relay 3
? ?? ? #0
Pin code 4-8 digits Validate
2 0 2 0 3 5 55 5 #1
Group 2 Add code Location 31 Pin code 5555 Validate
Delete a code
? ? 5 ? ?? #
10=relay1
20=relay2
30=relay3
Delete all codes in a group
Delete code ID location to be deleted Validate
? ? 0 9 99 #
Additional keypad information – Note: These features are not commonly used.
EG IN (EGRESS INPUT)
Connect a push button between this terminal and (-)GND. When Egress button is pressed, output 1
will be activated for the programmed delay. Egress button is usually located inside a building and
used as a push to exit.
K or A. (KEYPAD ACTIVE OUTPUT)
An NPN transistor open collector output. It switches to (-) ground for 10 seconds on each key
touching. This can be used to turn on lights, CCTV camera, or buzzer to notify a guard. The rating
of this output is: Ic max: 100mA sink, Vc max: 24VDC
DU OUT (DURESS OUTPUT)
An NPN transistor open collector output. It switches to (-) ground after the Duress Code is entered.
Use it to trigger an alarm zone, or turn on a buzzer to notify a guard. Ic max: 100mA sink. Vc max:
24VDC
DOOR SENSE
N/C connected to (-)GND, to be connected to a normally closed door contact. It can be used to
generate a door open alarm or door forced open alarm.
O/P 1 Inhibit
Normally open. When closed, this disables all codes for relay group 1 except super user and duress
codes.
Interlock Output
NPN transistor output, open collector, max power 24v dc, 100mA sink. Used to operate a door in
conjunction with another keypad, or prevent two doors being opened at the same time.
Tamper N/C
Normally closed tamper switch. This can be used in conjunction with a tamper switch on a box or
enclosure to prevent tampering. This can be connected to an alarm system.
10=relay1 group
20=relay2 group
30=relay3 group
Super delete code Validate
Programming Relay output times & modes
? ?
51=relay1
52=relay2
53=relay3
or
0
1 -
9 9 9 9 9
0 = start / stop toggle mode (latching)
1-99999 = seconds momentary operation
#
Validate
Programming SUPER user code
Super user code is an optional feature which allows the same code to operate outputs 1, 2 or 3.
0 2 ?? ? ?
Location
4-8 digit code Validate
#
Using super user code
?? ? ? # 1
?? ? ? # 2
?? ? ? # 3
Activate output 1
Activate output 2
Activate output 3
Using standard user code
To use standard code, simply enter the 4 digit code.
Note: Remember to exit programming mode with ** before testing user codes.
User Manual
32
1
65
4
9
8
7
#0
*
END
END
Dialling…
MY GATE
Predator 3G Video Intercom
This GSM intercom system will call up to 3 telephone numbers in sequence when the call button is pressed.
There are several modes of operation depending on how the unit has been programmed by your installer. The following
instructions will assume default programming.

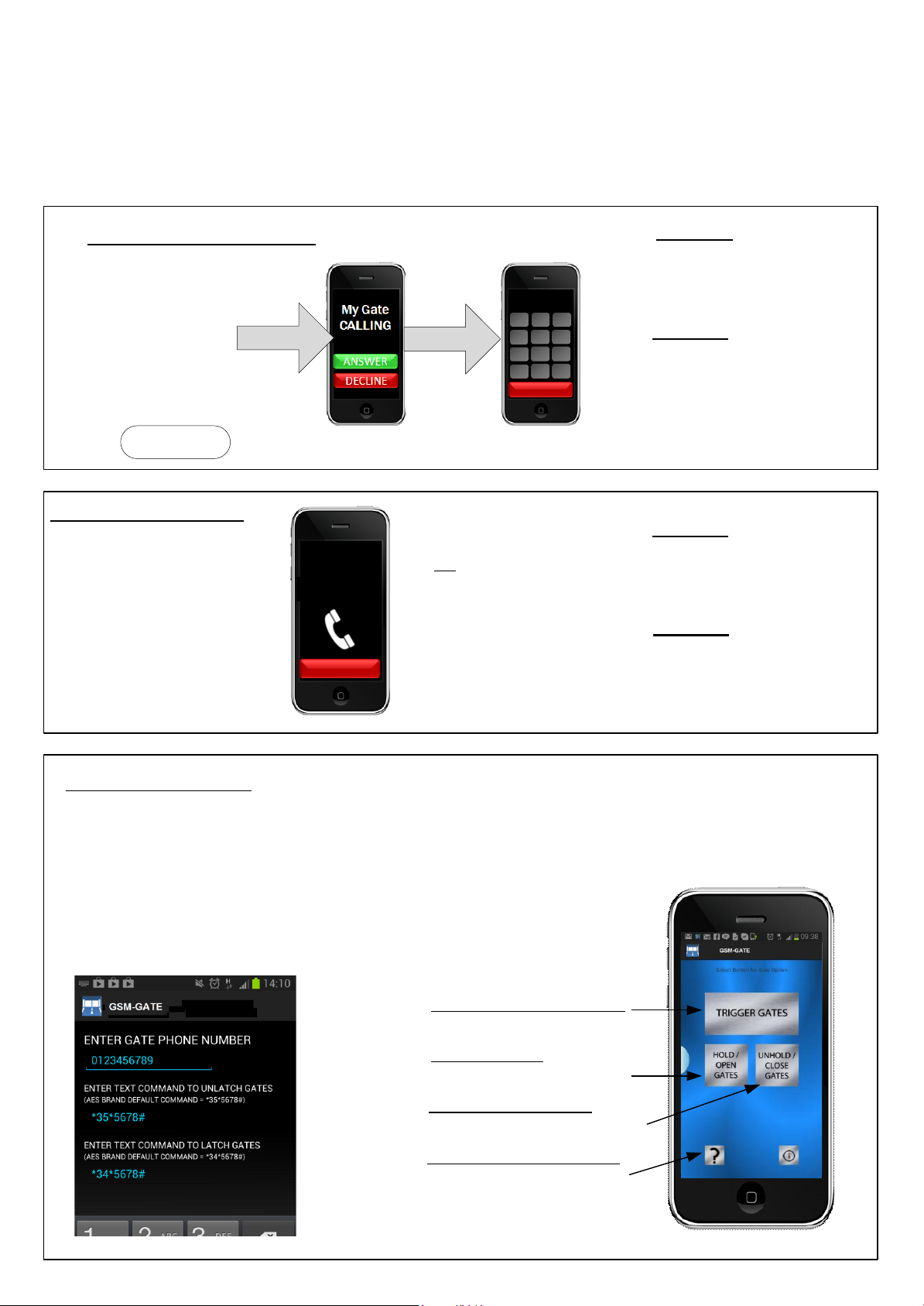

Intercom calling your phone
Call button
pressed
Access Control Options
Option 1) If your number is
saved inside the intercom
memory, just dial it and it will
activate the door or gate
without answering your call.
The intercom will end the call
for you.
Answer call.
(Only some gate systems allow hold open
Option 2) If your number
is not saved in the
intercom memory, it will
answer the call. Enter the
code on your telephone
keypad to activate the
door or gate (default code
5678 shown).
Output 1
Press * to trigger relay
Press # to hold relay
Press 1 to release relay
Output 2
Press 7 to trigger relay
Press 8 to hold relay
Press 9 to release relay
control, depending on manufacturer)
Output 1
*33*5678# - Momentary trigger
*34*5678# - Hold relay
*35*5678# - Release relay
Output 2
*36*5678# - Momentary trigger
*37*5678# - Hold relay
*38*5678# - Release relay
Using the Android App
If you are using Android, you can purchase the Android app at the google play store (GSM-GATE). The app allows
easy advanced control of the intercom and gates or door by the simple press of the buttons shown. The app will
need configured with the SIM card phone number of your intercom before it can be used.
Once the app is installed, pressing the MENU button on your phone will display the
setting screen below, where you can enter the SIM card phone number.
If your gate system is set for timed operation where it automatically closes after a
preset delay, you may be able to take advantage of the latching features.
Press button to trigger gates
(speed dials your intercom)
Hold open gates
(sends latch SMS command)
Release / un-hold gates
(sends unlatch SMS command)
Press for additional features
1) Check gate open or closed
2) Check reception level
3) Check stored numbers
Sending SMS Commands
All of the features shown on the Android app are also available for non Android users, or non smart phone
users. You can simply send the same SMS commands manually to the intercom as detailed below...
*33*5678#
*34*5678#
*35*5678#
*20#
*21#
*22#
Momentary trigger output relay (default user pass code 5678)
Latch output relay (default user pass code 5678)
Un-latch output relay (default user pass code 5678)
Check reception level of intercom.
Check stored numbers. Unit will reply with list of stored numbers. I = dial in number. O = dial out number.
Check gate / door status. Unit will reply Relay1 = On/Off, Relay2 = On/Off, Detect = On/Off
SIM cards & Credit
Please note that if you are using a Pay&Go or Pre-pay SIM card, which requires topped up occasionally, most network
providers provide a feature called Auto Top Up. This allows you to register the SIM card on their web site, and create a
payment method. When the credit runs low, the network will automatically top up your SIM card, so that you don’t have to
worry about running out. Contact your network provider in your country for more information or register with them online.
Fault finding & FAQs
Q. The unit will not power up. No LEDs on.
A. Check power supply voltage at intercom is within 11.5V-12.5V DC. Cable length from PSU to intercom should be less than 3 meters.
Q. The unit powers up but there is a bleeping from the door station.
A. This means the unit is not able to detect the network for some reason.
-Check the SIM card is activated and has calling credit.
-Power off the unit, remove the SIM and check it in a mobile phone to verify it can make a call.
-Check the SIM does not ask for a PIN code when put in a phone. If it does, then disable the PIN code request.
-Check the SIM is a standard GSM SIM, not 3G or 4G only SIM. If you are unsure, contact your SIM card provider to verify. Frequency of operation should
be any one of the international quad band standards, 850 / 900 / 1800 / 1900 MHz.
-Check the reception is good. Poor reception is not sufficient.
-Check the antenna has been mounted as high as possible, not near large metal objects, or wet green shrubs etc.
-Check the antenna connection. Visually inspect that the centre pin inside the antenna is intact, and has not been pushed back inside the fitting.
-Check voltage at the intercom is minimum 11.5V and that the cable from power supply to intercom is less than 3 meters.
Q. The unit calls the first number, but there is not enough time to answer before it diverts to the next number.
A. Increase the no answer time as per programming instructions.
Q. The unit calls the first number but voicemail comes on before it can ring the second number.
A. Decrease the no answer time as per programming instructions.
Q. The caller ID part does not work.
A. Be sure to program the caller ID part under 72 feature. If your number is a private or number withheld, then it will not work.
Even if you have already programmed a number to receive a call from the intercom, if you also want that number to have caller ID access, it must be
programmed under the 72 feature also.
Ensure the number is entered as you would normally dial it from another phone.
Do not put the country code in front of the number.
Enter the country code in which the unit is operating in separate under the 71 feature.
International callers ringing the intercom may not work.
Q. There is no audio from the gate, but the person at the gate can hear ok.
A. This can be due to low reception.
-Check reception level by *20#.
-Change SIM card if necessary to another network which may have better coverage.
-Purchase a high gain antenna.
This may also be caused by either a defective microphone. If reception is optimum and the problem persists, contact your supplier or dealer.
Q. The audio quality that can be heard on the remote telephone is poor or humming (buzzing).
A. A small amount of GSM buzz can be considered normal on GSM intercoms, but not so much that causes inability to hear the person speaking. This can
be caused by the GSM antenna being mounted too close to the speech panel or not mounted high enough.
-Try earthling the speech panel chassis to 0V of the power supply.
-This is also a symptom of poor reception. Try above steps on checking and improving reception.
Q. The * or # key does not work when the intercom calls a phone.
A. Check if you can hear the relay clicking at the gate when the * or # key is pressed during a call. If it can be heard, then the system is working, check
wiring between the relay and the lock or gate panel. If the relays do not make a clicking sound, then check this feature on a different mobile cell phone or
landline. If it works on a different phone, check the settings on the phone in question under DTMF tones.
Failure of DTMF tones to operate correctly is also a symptom of low reception. Check steps above on improving reception. Try pressing the buttons longer
when attempting to activate the gates or door.
Q. The intercom makes an audio call but not a video call.
A. Check site 3G coverage, check SIM card capability, check that the person receiving the call has a phone that already can receive video calls.
Loading...
