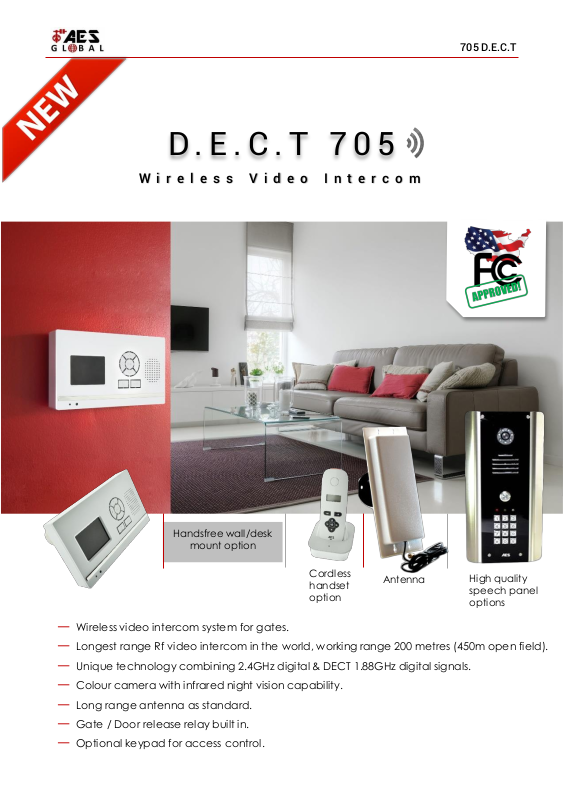

D . E . C . T 7 0 5
W i r e l e s s V i d e o I n t e r c o m
― Wireless video intercom system for gates.
― Longest range Rf video intercom in the world, working range 200 metres (450m open field).
― Unique technology combining 2.4GHz digital & DECT 1.88GHz digital signals.
― Colour camera with infrared night vision capability.
― Long range antenna as standard.
― Gate / Door release relay built in.
― Optional keypad for access control.
705 D.E.C.T
Cordless
handset
option
Handsfree wall/desk
mount option
High quality
speech panel
options
Antenna
― Dual technology using 2.4GHz digital spread spectrum for one way video and two way
DECT digital 1.88GHz for voice, giving world leading range capability.
― Add up to a total of 3 audio handsets to compliment the main video handset.
― Voicemail feature built in.
Up to 200m
DUAL 2 in One Long
Range Antenna
Up to 200m
DIGITAL VIDEO
Optional Audio Handset
Video Handset
DECT AUDIO
2.4GHz
1.88GHz
D . E . C . T 7 0 5
W i r e l e s s V i d e o I n t e r c o m
705 D.E.C.T
Speech Panel
Security screw
access
Colour
camera with
night vision
Loud
weatherproof
1.5 Watt
speaker
Illuminated
call button
Optional
keypad with
illuminated
metal buttons
3.5” LCD colour
display
Microphone
Door / Gate
release
Menu & settings
navigation, volume
control
Loudspeaker
output
Stainless steel
construction
D . E . C . T 7 0 5
W i r e l e s s V i d e o I n t e r c o m
705 D.E.C.T
Technical Details
Power Supply 24v dc (adaptor included) Handset Battery Lithium Ion mobile
phone battery
Current
Consumption
50mA standby, 1Amp calling Night Vision Yes, by infrared
illumination
Relay Outputs 1 Battery Life 24 hours between
charges
Relay Type N/O & N/C contacts Charging Voltage 5v adaptor included
Relay Time Fixed 4 seconds Keypad Option Yes
Relay Load 2A 24v AC max Keypad Relays 3
IP Rating IP55 Keypad Codes 1200
Camera Colour, 80 degree viewing angle
Desktop Bracket
K i t s & P a r t N u m b e r s
― Stylish curved architectural model.
― Modern blue back lighting effect.
― BS316 marine grade, brushed stainless steel construction with gloss
acrylic trim.
― Kit includes speech panel, antenna, power supply, desktop/wall
mounted monitor OR Portable Handset and install manual.
― Stylish curved architectural model.
― Modern blue back lighting effect.
― BS316 marine grade, brushed stainless steel construction with gloss
acrylic trim.
― Kit includes speech panel, antenna, power supply, desktop/wall
mounted monitor OR Portable handset and install manual.
D . E . C . T 7 0 5
705 D.E.C.T
705-HF-AB (Standard
Architectural Model)
705-HF-ABK (Architectural
Model with Keypad)
705-AB (Standard
Architectural Model)
705-ABK (Architectural
Model with Keypad)
― Antenna extension cable kit.
― Complete with SMA male – female couplings.
― 2x5 metres long to extend antenna height or location to achieve
better results.
705 D.E.C.T
( K i t s & P a r t N u m b e r s )
705-EH (Extra Handset)
705-AC5 (Antenna Cable)
― Add up to 3 additional audio handsets to any 705 video kit as
additional slave handsets.
(Note: this is same handset used for 603 kits).
Call Panel Dimensions
AB Panel
ABK Panel
Antenna
705 Wall
Monitor
705 Portable
Handset
